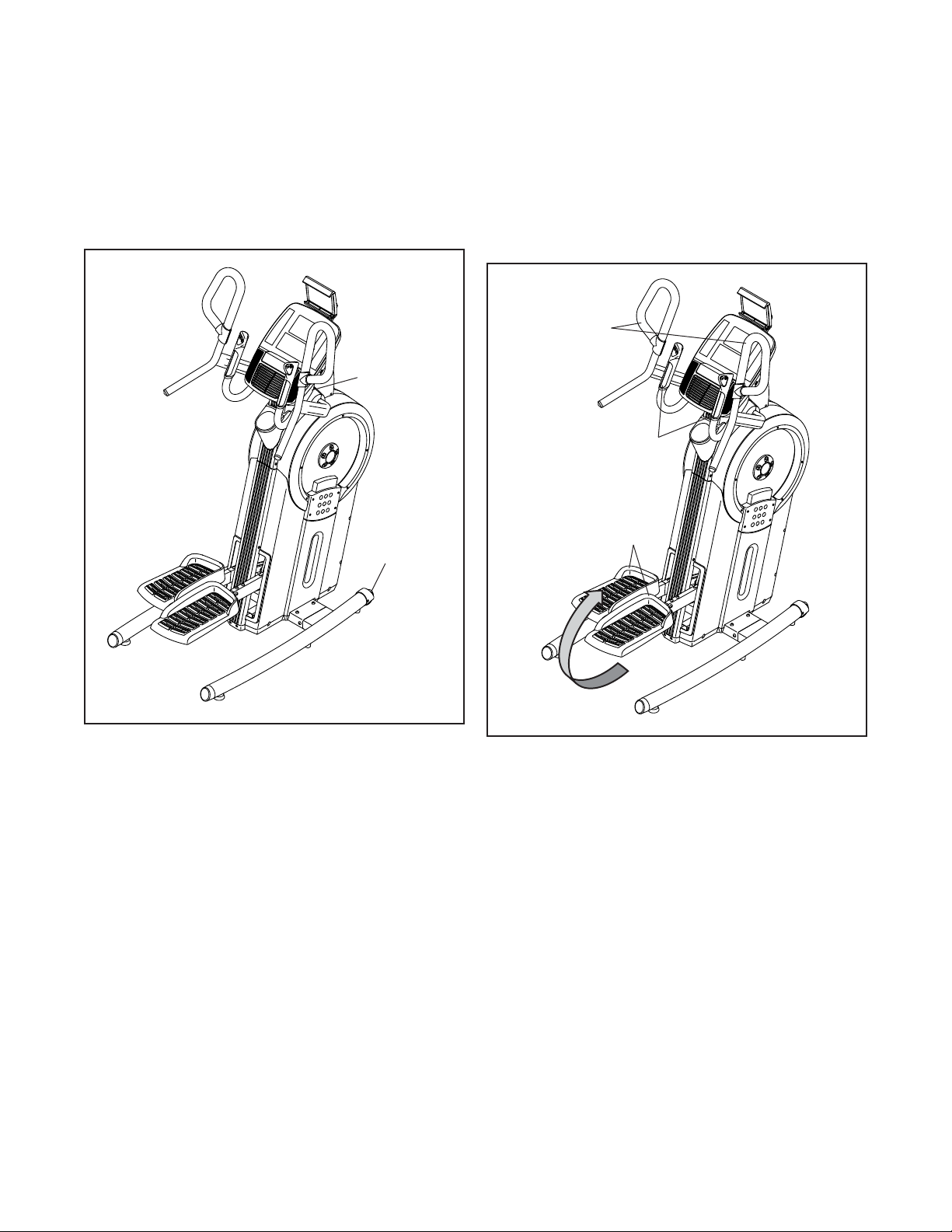

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON
Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android
and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in
the U.S. and other countries and is used under license.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all
important precautions and instructions in this manual and all warnings on your trainer before using
your trainer. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the trainer are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. The trainer is not intended for use by persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervision or instruction about use of the trainer
by someone responsible for their safety.
4. Use the trainer only as described in this
manual.
5. The trainer is intended for home use only. Do
not use the trainer in a commercial, rental, or
institutional setting.
6. Keep the trainer indoors, away from moisture
and dust. Do not put the trainer in a garage
or covered patio, or near water.
7. Place the trainer on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the trainer and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the trainer.
8. Inspect and properly tighten all parts each
time the trainer is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the trainer at all times.
10. When connecting the power cord (see page
16), plug the power cord into a grounded
circuit.
11. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
12. Do not operate the trainer if the power cord
or plug is damaged, or if the trainer is not
working properly.
13. DANGER:Always unplug the power
cord and switch the power switch to the off
position when the trainer is not in use and
before cleaning the trainer. Servicing other
than the procedures in this manual should
be performed by an authorized service representative only.
14. The trainer should not be used by persons
weighing more than 350 lbs. (159 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the trainer. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
trainer.
17. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
3
18. The trainer does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the
trainer; do not arch your back.
SAVE THESE INSTRUCTIONS
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
4
5
UTS
STANDARD SERVICE PLANS
all
6
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
CARDIO HIIT PRO TRAINER. The CARDIO HIIT PRO
TRAINER trainer provides an impressive selection
of features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the trainer. If you have questions after
Handlebar
Heart Rate Monitor
Fan
Accessory Tray
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Tablet Holder
Console
Pedal
Leveling
Foot
Pedal Leg
Power Switch
Wheel
Length: 5 ft. 7 in. (170 cm)
Width: 2 ft. 5 in. (74 cm)
7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
#8 x 16mm
Screw
(111)–4
M8 x 15mm
Screw (96)–2
M4 x 16mm Flat
Head Screw
(101)–10
M8 x 20mm
Screw (102)–8
M8 x 25mm
Screw (105)–6
M8 x 86mm Screw
(109)–2
M4 x 22mm
Screw
(107)–10
M6 x 12mm
Screw
(108)–8
M10 x 20mm
Screw (110)–8
8
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
• To identify small parts, see page 8.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
9
2. With the help of a second person, place some of
the packing materials (not shown) under the right
side of the Frame (1). Have the second person
hold the Frame to prevent it from tipping
while you complete this step.
Identify the Right and Left Stabilizers (8, 9) and
orient them as shown.
Attach the Right Stabilizer (8) to the Frame (1)
with four M10 x 20mm Screws (110); start all
the Screws, and then tighten them.
Then, remove the packing materials from under
the right side of the Frame (1).
Attach the Left Stabilizer (9) in the same way.
2
9
110
110
3. Identify the Right and Left Pedal Bases (2, 3)
and the Right and Left Pedals (22, 23), and
orient them as shown.
Attach the Right Pedal (22) to the Right Pedal
Base (2) with four M6 x 12mm Screws (108);
start all the Screws, and then tighten them.
Attach the Left Pedal (23) to the Left Pedal
Base (3) in the same way.
110
3
23
108
1
8
3
22
2
108
10
4. Attach the Right Pedal Base (2) to the
Right Pedal Leg (24) with four M8 x 20mm
Screws (102); start all the Screws, and then
tighten them.
Attach the Left Pedal Base (not shown) to the
Left Pedal Leg (not shown) in the same way.
4
102
24
102
2
5. Press the Rear Cover (53) onto the Left and
Right Shields (50, 51).
Attach Rear Cover (53) with four M4 x 16mm
Flat Head Screws (101); start all the Flat Head
Screws, and then tighten them.
Then, insert the Accessory Tray (18) into the
Rear Cover (53).
5
18
101
53
50, 51
101
11

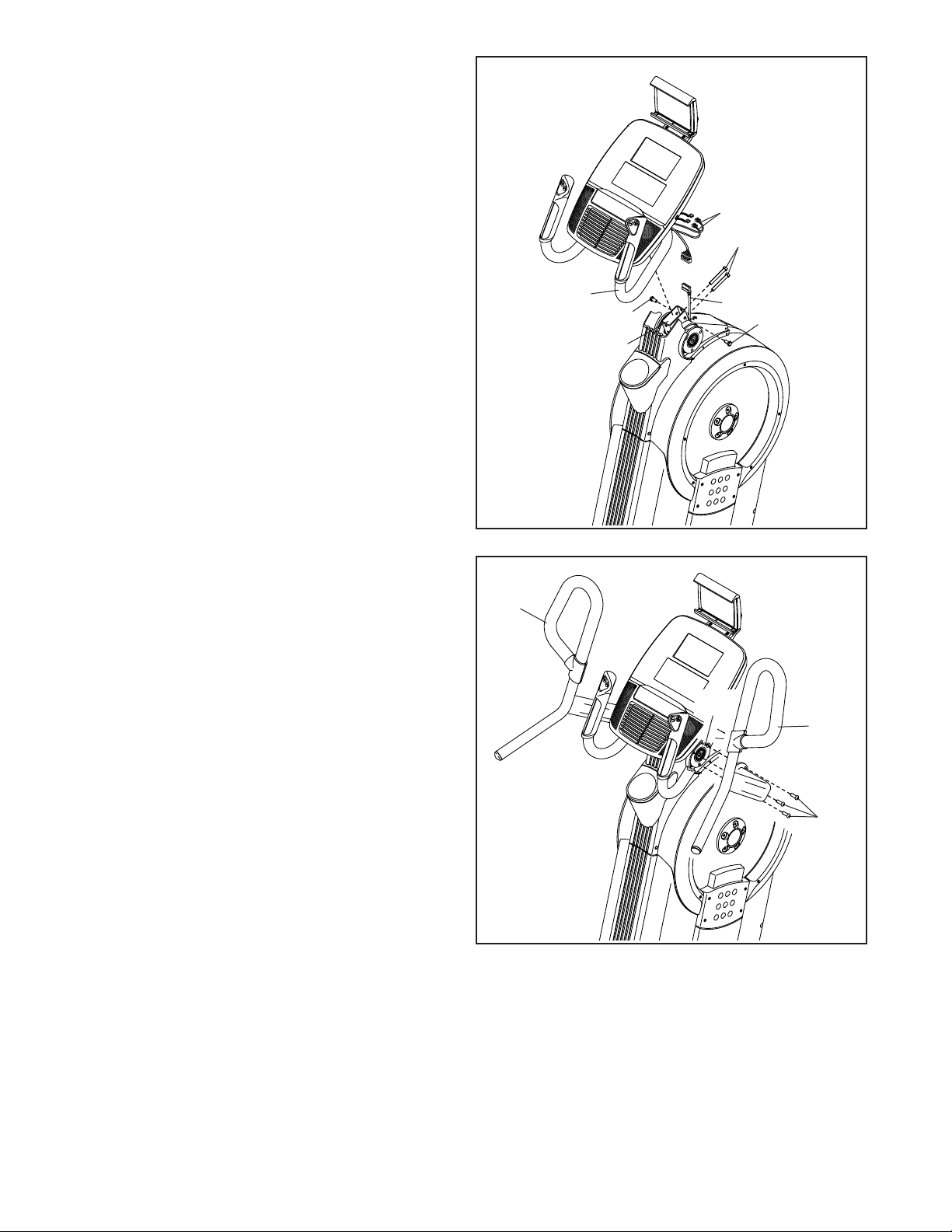

6. See the upper drawing. With the help of a
second person, orient the Console (5), the
Console Cover (7), and the Console Bracket (4)
as shown. Route the wires (A) on the Console
through the Console Cover and the Console
Bracket as shown; make sure to insert the
wires through the upper part of the hole in
the Console Bracket.
6
5
7
See the lower drawing. Tip: Avoid pinching
the wires. Attach the Console (5) and the
Console Cover (7) to the Console Bracket (4)
with four M4 x 22mm Screws (107); start all the
Screws, and then tighten them.
A
4
5
7
4
Avoid pinching
the wires
107
7. Attach the Tablet Holder (6) to the Console (5)
with four #8 x 16mm Screws (111); start all the
Screws, and then tighten them.
7
6
5
111
12
8. While a second person holds the Console
Bracket (4) near the Frame (1), connect the
wires on the Console to the Main Wire (115) and
to the Left and Right Pulse Wires (117, 125).
Tip: Avoid pinching the wires. Attach the
Console Bracket (4) to the Frame (1) with two
M8 x 86mm Screws (109) and two M8 x 15mm
Screws (96); start all the Screws, and then
tighten them.
8
Avoid pinching
the wires
117, 125
109
9. Identify the Right and Left Handlebars (10, 11).
Make sure that the Pedals (not shown) are
level. Attach the Right Handlebar (10) to the
Right Handlebar Arm (15) with three M8 x 25mm
Screws (105); start all the Screws, and then
tighten them. Tip: It may be helpful to rotate
the Right Handlebar for better access to
tighten the Screws.
Attach the Left Handlebar (11) in the same
way.
4
96
1
9
11
115
96
15
10
13
105
10. Identify the Rear and Front Pivot Covers
(65, 66).
Press a set of Rear and Front Pivot Covers (65,
66) together around the Right Handlebar (10)
near the bend (A). Then, attach them to each
other with two M4 x 22mm Screws (107).
See the inset drawing. Slide the Rear and Front
Pivot Covers (65, 66) toward the Shield Cover
(12). Attach the Front Pivot Cover to the Right
Handlebar (10) with an M4 x 22mm Screw (107).
10
10
66
65
Repeat this step on the other side of the
trainer.
11. Attach the Front Cover (52) to the Left and Right
Shields (50, 51) with six M4 x 16mm Flat Head
Screws (101); start all the Flat Head Screws,
and then tighten them.
11
10
65
66
107
12
101
A
107
52
101
50, 51
12. Make sure that all parts are properly tightened before you use the trainer. Extra parts may be included.
Place a mat beneath the trainer to protect the floor.
14
THE CHEST HEART RATE MONITOR
HOW TO PUT ON THE HEART RATE MONITOR
If the heart rate monitor looks like the one shown in
drawing 1, press the transmitter (A) onto the snap fas-teners on the chest strap (B). If the heart rate monitor
looks like the one shown in drawing 2, insert the tab
(C) on one end of the chest strap (D) into one end of
the transmitter (E). Then, press the end of the transmitter under the buckle (F) on the chest strap; the tab
should be flush with the transmitter.
12
B
A
Next, wrap the heart
rate monitor around
your chest in the location shown; the heart
rate monitor must be
under your clothes,
tight against your skin.
Make sure that the logo
is right-side-up. Then, attach the other end of the chest
strap. Adjust the length of the chest strap, if necessary.
C
E
D
F
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct
sunlight for extended periods of time, and do not
expose it to temperatures above 122° F (50° C) or
below 14° F (-10° C).
• Do not excessively bend or stretch the heart rate
monitor when using or storing it.
• To clean the transmitter, use a damp cloth and a
small amount of mild soap. Then, wipe the transmitter with a damp cloth and thoroughly dry it with a soft
towel. Never use alcohol, abrasives, or chemicals
to clean the transmitter. Hand wash and air dry the
chest strap.
TROUBLESHOOTING
• If the heart rate monitor does not function when
positioned as described at the left, move it slightly
lower or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, re-wet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
Next, pull the transmitter and the chest
strap away from your
body a few inches
and locate the two
electrode areas (G).
Using saliva or contact lens solution, wet the electrode areas. Then, return
the transmitter and the chest strap to a position against
your chest.
CARE AND MAINTENANCE
• Thoroughly dry the electrode areas with a soft towel
after each use. Moisture may keep the heart rate
monitor activated, shortening the life of the battery.
G
• If there is a battery cover on the back of the transmitter, replace the battery with a new battery of the
same type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical conditions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
15
HOW TO USE THE TRAINER
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
DANGER:Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug; if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Plug the power
cord into an
appropriate
outlet that
is properly
installed and
grounded in
accordance with
all local codes
and ordinances.
The outlet must
be on a nominal 120-volt circuit.
Grounded Outlet
Grounding Pin
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a properly grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
2-pole Receptacle
Adapter
Lug
Metal Screw
16
HOW TO MOVE THE TRAINER
HOW TO EXERCISE ON THE TRAINER
Due to the size and weight of the trainer, moving
it requires two persons. Stand in front of the trainer,
hold the console bracket, and place one foot against
one of the wheels. Have a second person help you pull
on the console bracket until the trainer will roll on the
wheels. Carefully move the trainer to the desired location, and then lower it to the floor.
Console
Bracket
Place
your foot
here
To mount the trainer, hold the handlebars or the pulse
grips and step onto the pedal that is in the lower position. Then, step onto the other pedal. Push the pedals
until they begin to move with a continuous motion.
Note: The pedals can turn in either direction. It is
recommended that you turn the pedals in the direction shown by the arrow; however, for variety, you
can turn the pedals in the opposite direction.
Handlebars
Pulse
Grips
Pedals
To dismount the trainer, wait until the pedals come to
a complete stop. Note: The trainer does not have a
free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
17
HOW TO LEVEL THE TRAINER
HOW TO USE THE TABLET HOLDER
If the trainer
rocks slightly
on your floor
during use, turn
one or both of
the leveling feet
beneath the stabilizers until the
rocking motion
is eliminated.
Leveling
Feet
IMPORTANT: The tablet holder is designed for use
with most full-size tablets. Do not place any other
electronic device or object in the tablet holder.
To insert a tablet into
the tablet holder, set
the bottom edge of
the tablet in the tray.
Then, pull the clip over
the top edge of the
tablet. Make sure that
the tablet is firmly
secured in the tablet
holder. Rotate the tab-
let holder to the desired
angle. Reverse these actions to remove the tablet from
the tablet holder.
18
CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Watch high-definition videos with simulated
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
19
FEATURES OF THE CONSOLE
HOW TO TURN ON THE POWER
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
The console features revolutionary iFit technology that
enables the console to communicate with your wireless
network. With iFit technology, you can download personalized workouts, create your own workouts, track
your workout results, and access many other features.
See www.iFit.com for complete information.
In addition, the console features a selection of onboard
workouts and several iFit demo workouts. Each workout automatically controls the resistance of the pedals
and prompts you to vary your pedaling speed as it
guides you through an effective exercise session. You
can also set a customized workout goal with the set-agoal workout.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor or the chest
heart rate monitor.
IMPORTANT: If the trainer has been exposed to
cold temperatures, allow it to warm to room temperature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
16). Next, locate the

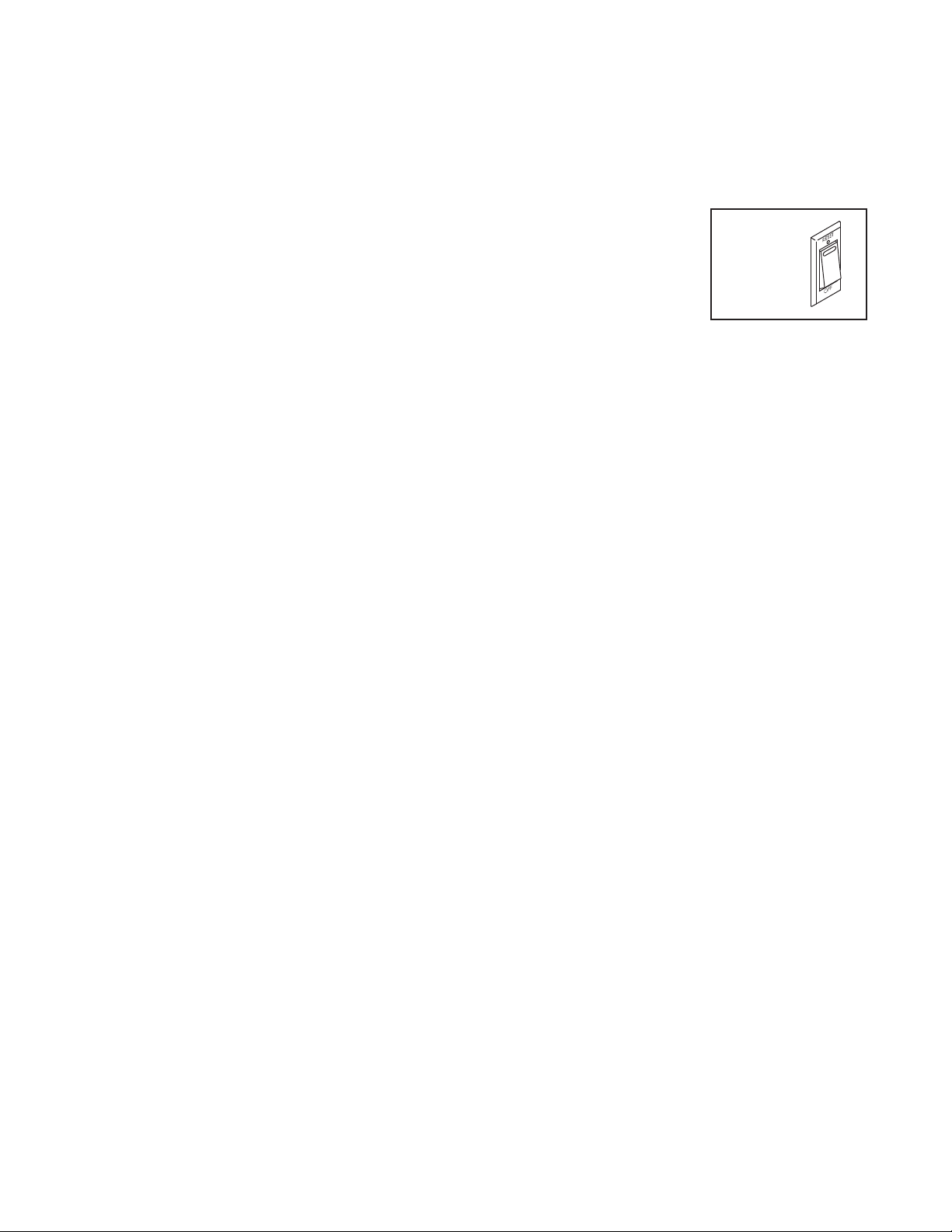

power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then turn on and the console will be
ready for use.
IMPORTANT: The console features a display demo
mode, designed to be used if the trainer is displayed in a store. If the demo mode is turned on,
the console will show a preset presentation when
you nish exercising. To turn off the demo mode,
see step 6 on page 27.
Reset
Position
You can also browse the internet or listen to your
favorite workout music or audio books with the console
sound system while you exercise.
To turn on the power, see this page. To learn how to
use the touch screen, see page 21. To set up the
console, see page 21.
20
HOW TO USE THE TOUCH SCREEN
2. Check for firmware updates.
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout. However, you cannot zoom in
and out by sliding your fingers on the screen.
• To type information into a text box, first touch the text
box to view the keyboard. To use numbers or other
characters on the keyboard, touch the ?123 button. To view more characters, touch the Alt button.
Touch the Alt button again to return to the number
keyboard. To return to the letter keyboard, touch the
ABC button. To use a capital character, touch the
button with an upward-facing arrow. To use multiple
capital characters, touch the arrow button again. To
return to the lowercase keyboard, touch the arrow
button a third time. To clear the last character, touch
the button with a backward-facing arrow and an X.

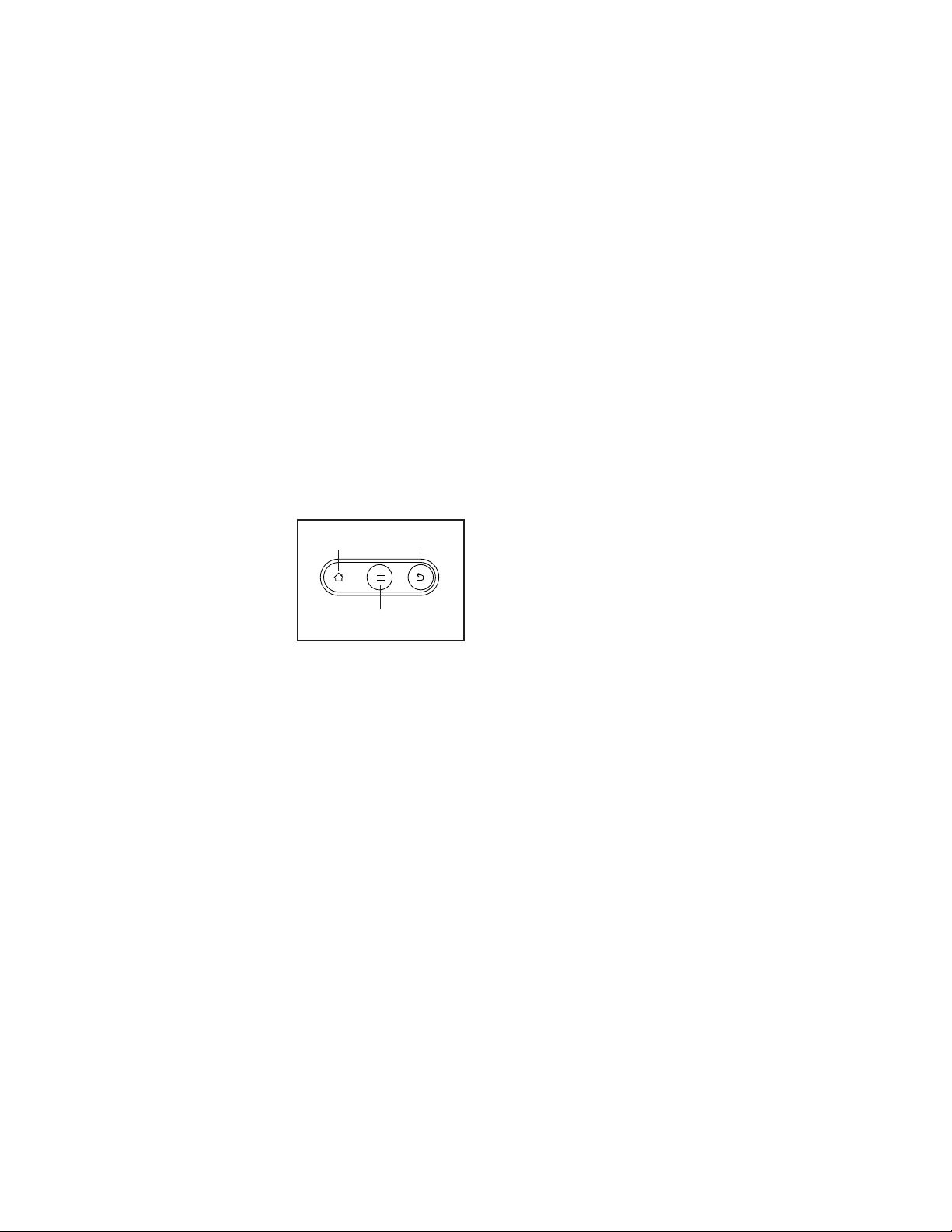

• Use these buttons on
the console to navigate
the tablet. Press the
home button to return to
the main menu. Press
the settings button to
access the settings
menu (see page 27).
Press the back button to return to the previous
screen.
Home
Back
Settings
First, see step 1 and 2 on page 29 and select
the maintenance mode. Then, see step 3 on page
29 and check for firmware updates.
3. Create an iFit account.
Touch the globe button at the bottom of the screen
and then touch the iFit button.
Note: For information about navigating in the inter-
net browser, see page 31.
The internet browser will open to the iFit.com home
page. Follow the prompts on the website to sign up
for your iFit membership. If you have an activation
code, select the code activation option.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 22. To use
an onboard workout, see page 23. To use a
set-a-goal workout, see page 25. To use an iFit
workout, see page 26.
To use the equipment settings mode, see
page 27. To use the maintenance mode, see page
29. To use the wireless network mode, see page
30. To use the sound system, see page 31. To use the internet browser, see page 31.
Note: If there is a sheet of plastic on the screen,
remove the plastic.
HOW TO SET UP THE CONSOLE
Before using the trainer for the first time, set up the
console.
1. Connect to your wireless network.
Note: In order to access the internet, download
iFit workouts, and use some other features of the
console, the console must be connected to a wireless network. See HOW TO USE THE WIRELESS
NETWORK MODE on page 30 to connect the
console to your wireless network.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see step 13 on page 28. For
simplicity, all instructions in this section refer to miles.
21
HOW TO USE THE MANUAL MODE
1. Touch the screen or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 20.
If desired, adjust the
volume level by pressing the Vol increase and
decrease buttons on the
console or by pressing
the Volume increase and decrease buttons on the
left handlebar.
2. Select the main menu.
When you turn on the console, the main menu will
appear on the screen after the console boots up.
Touch the home button at the bottom of the screen
or press the Manual button to return to the main
menu at any time.
3. Change the resistance of the pedals as desired.
Touch the Start button or begin pedaling.
As you pedal, you can change the resistance of
the pedals. To change the resistance, press one of
the numbered Quick Resistance buttons or press
the Resistance increase and decrease buttons on
the console. You can also press the Resistance
increase and decrease buttons on the right
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
4. Follow your progress.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown.
To select the desired display mode, simply flick or
slide the screen. You can also view additional workout information by touching the red boxes on the
screen.
To pause the workout, touch one of the menu but-
tons on the screen. To continue the workout, touch
the Resume button. To end the workout session,
touch the End Workout button.
5. Measure your heart rate if desired.
To use the chest heart rate monitor, see page
15. To use the handgrip heart rate monitor, follow
the instructions below. Note: If you use both heart
rate monitors at the same time, the chest heart
rate monitor will have priority.
If there are
sheets of plastic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms
resting against
the contacts. Avoid moving your hands or grip-
ping the contacts tightly.
When your pulse is detected, your heart rate
will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
Contacts
If desired, keep your pedaling speed near the tar-
get cadence. The target zone meter will prompt you
to increase, decrease, or maintain your pedaling
speed. To view the target zone meter, flick or slide
the screen. Note: The target cadence is displayed
in revolutions per minute (rpm).
22
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 20.
6. Turn on the fan if desired.
The fan has several
speed settings, including
an auto mode. While the
auto mode is selected,
the speed of the Fan
will automatically increase or decrease as your
pedaling speed and/or your power output in watts
increases or decreases. Press the fan increase and
decrease buttons repeatedly to select a fan speed
or to turn off the fan.
Note: If the pedals are not moved for a while when
the main menu is selected, the fan will turn off
automatically.
7. When you are finished exercising, unplug the
power cord.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components of the trainer may wear
prematurely.
2. Select the main menu.
See step 2 on page 22.
3. Select an onboard workout.
To select an onboard workout, touch the runner
button at the bottom of the screen. The workouts
menu will appear on the screen.
Select the desired workout category from the work-
outs menu and then select the desired workout.
Note: It may be necessary to scroll the screen to
view all the menu options.
Note: You can also press the Calorie, Intensity, or
Performance buttons on the console to access the
workouts menu.
The screen will show the name and duration of the
workout. The screen will also show the approximate number of calories you will burn during the
workout and a profile of the resistance settings of
the workout.
4. Start the workout.
Touch the Start Workout button to start the workout.
Each workout is divided into segments. One resis-
tance level and one target cadence (speed) are
programmed for each segment.
During the workout, the profiles will show your
progress. To view the profiles, flick or slide the
screen.
During some workouts, the screen will show a map
of the route and a marker indicating your progress. Touch the buttons on the screen to select the
desired map options.
23
As you exercise, keep your pedaling speed near
the target cadence for the current segment. The
target zone meter will prompt you to increase,
decrease, or maintain your pedaling speed. To
view the target zone meter, flick or slide the screen.
Note: The target cadence is displayed in revolutions per minute (rpm).
IMPORTANT: The target cadence is intended
only to provide motivation. Your actual pedaling
speed may be slower than the target cadence.
Make sure to pedal at a speed that is comfortable for you.
To pause the workout, touch either the back button
or the home button at the bottom of the screen. To
continue the workout, touch the Resume button. To
end the workout, touch the End Workout button.
The workout will continue in this way until the last
segment ends. A workout summary will appear on
the screen. After you view the workout summary,
touch the Finish button to return to the main menu.
You may also be able to either save or publish your
results using one of the options on the screen.
5. Follow your progress.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons. If you press a Resistance button, you can then manually control the resistance (see step 3 on page
22). To return to the programmed resistance settings of the workout, touch the Follow Workout
button.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories that
you burn will depend on various factors, such
as your weight. In addition, if you manually
change the resistance level during the workout, the number of calories you burn will be
affected.
See step 4 on page 22.
6. Measure your heart rate if desired.
See step 5 on page 22.
7. Turn on the fan if desired.
See step 6 on page 23.
8. When you are finished exercising, unplug the
power cord.
See step 7 on page 23.
24
HOW TO USE A SET-A-GOAL WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 20.
2. Select the main menu.
See step 2 on page 22.
3. Select a set-a-goal workout.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons. If you press a Resistance button, you can then manually control the resistance (see step 3 on page
22). To return to the programmed resistance settings of the workout, touch the Follow Workout
button.
Note: If you manually change the resistance level
during a calorie goal workout, the length of the
workout will adjust automatically to ensure that you
meet your calorie goal.
To select a set-a-goal workout, touch the Set A
Goal button on the screen.
To set a customized goal for your workout, touch
the button for the desired goal. Then, touch the
increase and decrease buttons on the screen to
enter your goal and to select other variables for the
workout. The screen will show the duration and distance of the workout, and the approximate number
of calories you will burn during the workout.
4. Start the workout.
Touch the Start button to start the workout.
The workout will function in the same way as the
manual mode (see page 22).
As you exercise, keep your pedaling speed near
the target cadence for the current segment. The
target zone meter will prompt you to increase,
decrease, or maintain your pedaling speed. To
view the target zone meter, flick or slide the screen.
Note: The target cadence is displayed in revolutions per minute (rpm).
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories that
you burn will depend on various factors such
as your weight. In addition, if you manually
change the resistance level during the workout, the number of calories you burn will be
affected.
The workout will continue until you reach the goal
that you set. A workout summary will appear on
the screen. After you view the workout summary,
touch the Finish button to return to the main menu.
You may also be able to either save or publish your
results using one of the options on the screen.
5. Follow your progress.
See step 4 on page 22.
6. Measure your heart rate if desired.
See step 5 on page 22.
7. Turn on the fan if desired.
IMPORTANT: The target cadence is intended
only to provide motivation. Your actual pedaling
speed may be slower than the target cadence.
Make sure to pedal at a speed that is comfortable for you.
See step 6 on page 23.
8. When you are finished exercising, unplug the
power cord.
See step 7 on page 23.
25
HOW TO USE AN IFIT WORKOUT
To use an iFit workout, the console must be connected
to a wireless network (see HOW TO USE THE
WIRELESS NETWORK MODE on page 30). An iFit
account is also required.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or
other device, open an internet browser, go to
www.iFit.com, and sign in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
Wt. button. The next workout of that type in your
schedule will then download. Note: You may be
able to access demo workouts through these buttons, even if you do not log in to your iFit account.
To compete in a race or challenge that you
have previously joined on iFit.com, touch the
Compete button. To view your workout history,
touch the Track button. To use a set-a-goal work-
out, touch the Set A Goal button (see page 25).
For more information about iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the screen will
show the name and estimated duration of the
workout. The screen will also show the approximate number of calories you will burn during the
workout.
If the iFit workout is a race or challenge, the display
will count down to the beginning of the race.
6. Start the workout.
2. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 20.
3. Select the main menu.
See step 2 on page 22.
4. Log in to your iFit account.
If you have not already done so, touch the Login
button to log in to your iFit account. Enter your
iFit.com username and password and touch the
Login button.
To switch users within your iFit account, touch the
user button at the bottom of the screen. If more
than one user is associated with your iFit account,
a list of users will appear. Touch the name of the
desired user.
5. Select an iFit workout.
IMPORTANT: Before iFit workouts will
download, you must add them to your schedule
on iFit.com (see step 1).
To download an iFit workout from iFit.com to
the console, touch the Map, Train, Video, or Lose
See step 4 on page 23. During some workouts,
an audio coach will guide you through your
workout.
7. Follow your progress.
See step 4 on page 22. The screen may also
show a map of the route and a marker indicating
your progress. Touch the buttons on the screen to
select the desired map options.
During a race or challenge, the screen will
show your position in the race relative to other
competitors.
8. Measure your heart rate if desired.
See step 5 on page 22.
9. Turn on the fan if desired.
See step 6 on page 23.
10. When you are finished exercising, unplug the
power cord.
See step 7 on page 23.
For more information about iFit features, go to
www.iFit.com.
26
HOW TO USE THE EQUIPMENT SETTINGS MODE
6. Turn on or turn off the display demo mode.
IMPORTANT: Some of the features described may
not be enabled. Occasionally, a firmware update may
cause your console to function slightly differently.
1. Select the settings main menu.
Turn on the console and select the main menu
(see steps 1 and 2 on page 27). Then, touch the
gears button at the bottom of the screen to select
the settings main menu.
Note: You can also press the settings button on the
console to select the settings main menu.
2. Select the equipment settings mode.
In the settings main menu, touch the Equipment
Settings button.
Note: It may be necessary to scroll the screen to
view all the menu options.
3. Enable or disable the auto relogin feature.
Enable this feature to have the console automati-
cally log in to your iFit account when you turn on
the power. Note: This feature is recommended for
private owners of the trainer only.
To enable or disable the auto relogin feature, first
touch the Auto Relogin button. Next, touch the
Enable checkbox or the Disable checkbox. Then,
touch the back button on the screen.
4. Enable or disable automatic console updates.
The console features a display demo mode,
designed to be used if the trainer is displayed in
a store. While the demo mode is turned on, the
screen will show a preset presentation when the
trainer is not in use.
To turn on or turn off the display demo mode, first
touch the Demo Mode button. Next, touch the On
checkbox or the Off checkbox. Then, touch the
back button on the screen.
7. Hide or display the gears button.
The console features an option to hide the gears
button to prevent unauthorized users from accessing the settings main menu.
To hide or display the gears button, touch the Hide
Settings button and select the desired checkbox.
Then, follow the prompts on the screen.
IMPORTANT:
To access the
settings main
menu when the
gears button is
hidden, draw a
square clockwise on the
screen.
8. Select a language.
To select a language, touch the Language button
and select the desired language.
To enable or disable automatic console updates,
first touch the Auto Update button. Next, touch the
Enable checkbox or the Disable checkbox. Then,
touch the back button on the screen.
Note: To select a time for automatic console
updates, see step 12.
5. Enable or disable the internet browser.
To enable or disable the internet browser, first
touch the Browser button. Next, touch the Enable
checkbox or the Disable checkbox. Then, touch the
back button on the screen.
9. Enable or disable a passcode.
The console features a child safety passcode,
designed to prevent unauthorized users from using
the trainer.
Touch the Passcode button. To enable a passcode,
touch the Enable checkbox. Then, enter a 4-digit
passcode of your choice. Touch Save to use this
passcode. Touch Cancel to return to the equipment
settings mode and not use a passcode. To disable
the passcode, touch the Disable checkbox.
27
Note: If a passcode is enabled, the console will
regularly ask for you to enter the passcode. The
console will remain locked until the correct passcode is entered. IMPORTANT: If you forget your
passcode, enter the following master passcode
to unlock the console: 1985.
10. Enable or disable street view.
During some workouts, the screen may show a
map. To enable or disable the street view feature of
the maps, first touch the Street View button. Next,
touch the Enable checkbox or the Disable checkbox. Then, touch the back button on the screen.
11. Select a time zone.
To select a time zone, touch the Timezone button
and select the desired time zone. Then, touch the
back button on the screen.
desired time. Then, touch the back button on the
screen.
When you select an update time, you must also
enable automatic console updates (see step 4).
IMPORTANT: You must still unplug the power
cord after using your trainer. Set the update
time for a time when you normally use your
trainer and will be available to unplug the
power cord after an update.
13. Select the unit of measurement.
Touch the US/Metric button to view the selected
unit of measurement. Next, touch the checkbox for
the desired unit of measurement. Then, touch the
back button on the screen.
14. Exit the equipment settings mode.
12. Select an update time.
To select a time for automatic console updates,
touch the Update Time button and select the
To exit the equipment settings mode, press the
back button on the console or touch the back button on the screen.
28
HOW TO USE THE MAINTENANCE MODE
IMPORTANT: Some of the features described may
not be enabled. Occasionally, a firmware update may
cause your console to function slightly differently.
1. Select the settings main menu.
See step 1 on page 27.
2. Select the maintenance mode.
In the settings main menu, touch the Maintenance
button to enter the maintenance mode.
The maintenance mode main screen will show
information about the console and the wireless
network.
Note: Occasionally, a firmware update may cause
your console to function slightly differently. These
updates are always designed to improve your exercise experience.
4. View machine information.
Touch the Machine Info button to view information
about your trainer. After you view the information,
touch the back button on the screen.
5. Find keycodes.
This option is intended to be used by service
technicians to identify whether a certain button is
working correctly.
6. Enter a custom IP address.
3. Update the console firmware.
For the best results, regularly check for firmware
updates.
Touch the Firmware Update button to check for
firmware updates using your wireless network. The
update will begin automatically.
IMPORTANT: To avoid damaging the trainer,
do not turn off the power while the firmware is
being updated.
The screen will show the progress of the update.
When the update is complete, the trainer will turn
off and then turn back on. If it does not, press the
power switch into the off position. Wait for several
seconds, and then press the power switch into the
reset position. Note: It may take a few minutes for
the console to be ready for use.
If your network does not automatically generate IP
addresses, touch the Custom IP button to enter a
custom IP address.
7. Reset the console to the factory default
settings.
Touch the Factory Reset button and follow the
instructions on the screen to reset the console to
the factory default settings. IMPORTANT: If you
reset the console, you will lose all of your custom console settings.
8. Exit the maintenance mode.
To exit the maintenance mode, press the back but-
ton on the console or touch the back button on the
screen.
29
HOW TO USE THE WIRELESS NETWORK MODE
The console features a wireless network mode that
allows you to set up a wireless network connection.
Note: You must have your own wireless network and
an 802.11b/g/n router with SSID broadcast enabled
(hidden networks are not supported).
1. Select the settings main menu.
See step 1 on page 27.
2. Select the wireless network mode.
name (SSID). If your network has a password, you
will also need to know the password.
An information box will ask if you want to connect
to the wireless network. Touch the Connect button
to connect to the network or touch the Cancel button to return to the list of networks. If the network
has a password, touch the password entry box. A
keyboard will appear on the screen. To view the
password as you type it, touch the Show Password
checkbox.
To use the keyboard, see HOW TO USE THE
TOUCH SCREEN on page 21.
In the settings main menu, touch the Network
Setup button to enter the wireless network mode.
Note: You can also touch the wireless symbol to
enter the wireless network mode.
3. Enable Wi-Fi.
Make sure that the Wi-Fi® checkbox is marked
with a green checkmark. If it is not, touch the Wi-Fi
menu option once and wait for a few seconds. The
console will search for available wireless networks.
4. Set up and manage a wireless network
connection.
When Wi-Fi is enabled, the screen will show a list
of available networks. Note: It may take several
seconds for the list of wireless networks to appear.
Make sure that the checkbox on the Network
notification menu option is marked with a green
checkmark to have the console notify you when a
wireless network is within range and available.
When a list of networks appears, touch the desired
network. Note: You will need to know your network
When the console is connected to your wireless
network, the WiFi menu option at the top of the
screen will display the word CONNECTED.
To disconnect from a wireless network, select the
wireless network and then touch the Forget button.
If you are having problems connecting to an
encrypted network, make sure that your password
is correct. Note: Passwords are case-sensitive.
Note: The iFit mode supports unsecured and
secured (WEP, WPA™, and WPA2™) encryption.
A broadband connection is recommended; performance depends on connection speed.
Note: If you have questions after following
these instructions, go to support.iFit.com for
assistance.
5. Exit the wireless network mode.
To exit the wireless network mode, press the back
button on the console or touch the back button on
the screen.
30
HOW TO USE THE SOUND SYSTEM
HOW TO USE THE INTERNET BROWSER
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on your personal audio
player. Adjust the volume
level using the Vol increase
and decrease buttons on the
console or the volume control on your personal audio
player.
Note: To use the internet browser, you must have
access to a wireless network including a wireless
router (802.11b/g/n) with SSID broadcast enabled (hidden networks are not supported).
To open the internet browser, touch the globe button at
the bottom of the screen. Then, select a website.
To navigate the internet browser, touch the Back,
Refresh, and Forward buttons on the screen. To exit
the internet browser, touch the Return button on the
screen.
To use the keyboard, see HOW TO USE THE TOUCH
SCREEN on page 21.
To enter a different web address in the URL bar, first,
slide your finger down the screen to view the URL bar,
if necessary. Then, touch the URL bar, use the keyboard to enter the address, and touch the Go button.
Note: While you are using the internet browser, the
resistance, fan, and volume buttons will still function,
but the workout buttons will not function.
Note: If you have questions after following these
instructions, go to support.iFit.com for assistance.
31
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
IMPORTANT: To satisfy exposure compliance requirements, the antenna and transmitter in the console
must be at least 8 in. (20 cm) from all persons and must not be near or connected to any other antenna or
transmitter.
Note: The console contains FCC ID: OMC349766 and FCC ID: OMCIABR12.
32
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the trainer is used. Replace
any worn parts immediately.
To clean the trainer, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 22.
If the console does not display your heart rate
when you use the chest heart rate monitor, see
TROUBLESHOOTING on page 15.

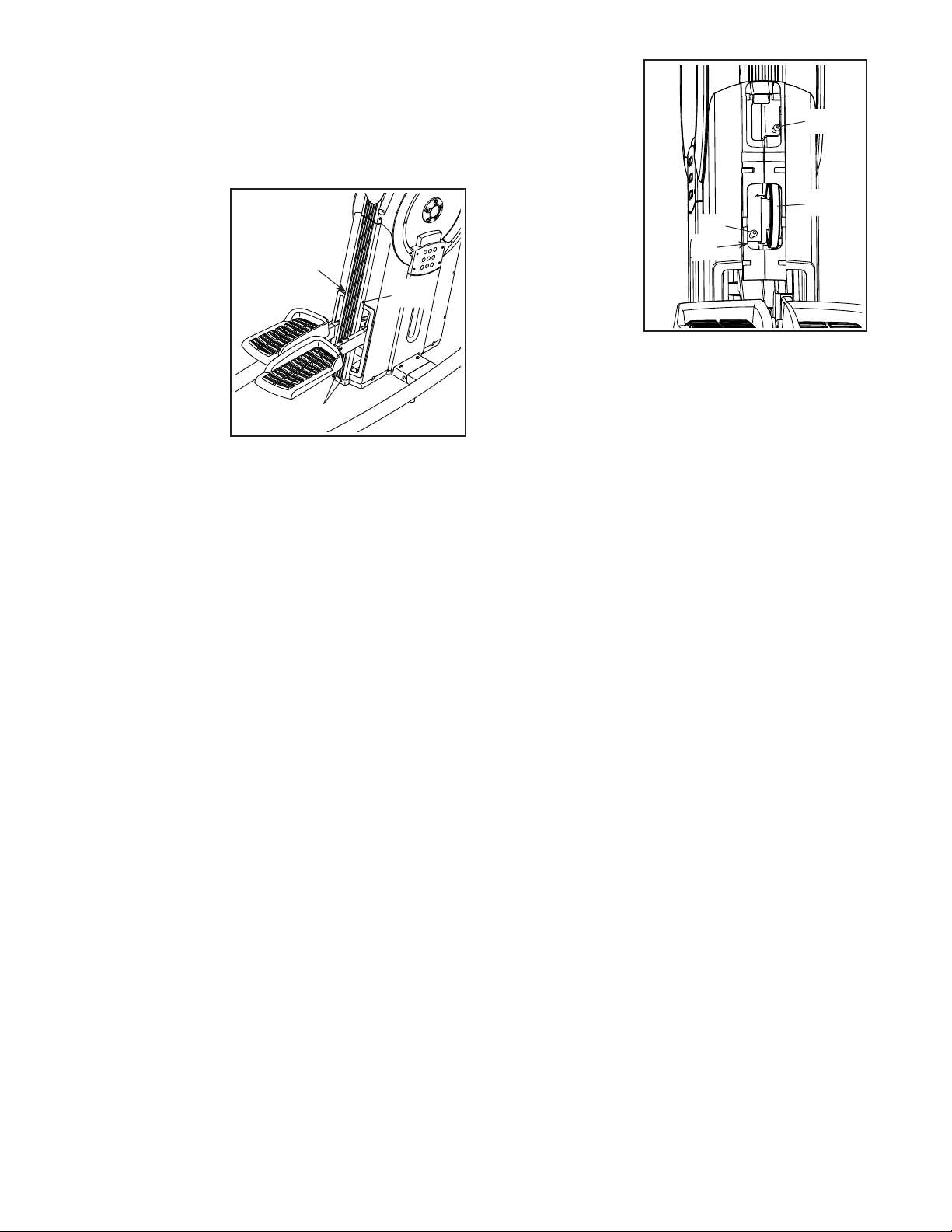

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power adapter.
Next, remove the
four indicated
M4 x 16mm Flat
Head Screws
(101) and the
Lower Rear
Shield Cover
(68).
Next, turn the Large Pulley (21) until a Pulley Magnet
(121) is aligned with the Reed Switch (116). Then,
loosen, but do not remove, the M4 x 19mm Screw
(113), slide the Reed Switch slightly closer to or away
from the Pulley Magnet, and retighten the Screw.
101
101
101
116
21
Then, plug in the power adapter and turn the Large
Pulley (21) for a moment. Repeat these actions, if
necessary, until the console displays correct feedback.
Then, reattach the lower rear shield cover.
113
121
33
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belts may need to be adjusted. To adjust the drive
belts, first unplug the power adapter.
Next, remove the
four indicated
M4 x 16mm
Flat Head
Screws (101)
and the Lower
Rear Shield
Cover (68).
101
101
101
Then, locate the
lower Adjustment
Screw (A).
Tighten the lower
Adjustment Screw
four turns; this will
tighten the Large
Drive Belt (31).
A
31
Stand on the trainer and pedal for a few moments.
If the pedals still slip, step off the trainer and locate
the upper Adjustment Screw (B). Tighten the upper
Adjustment Screw two turns; this will tighten the Small
Drive Belt (28).
Stand on the trainer again and pedal for a few
moments. If the pedals still slip, step off the trainer and
tighten the lower Adjustment Screw (95) four turns; this
will again tighten the Large Drive Belt (31).
B
28
When you have properly adjusted the drive belts,
reattach the lower rear shield cover.
34
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.

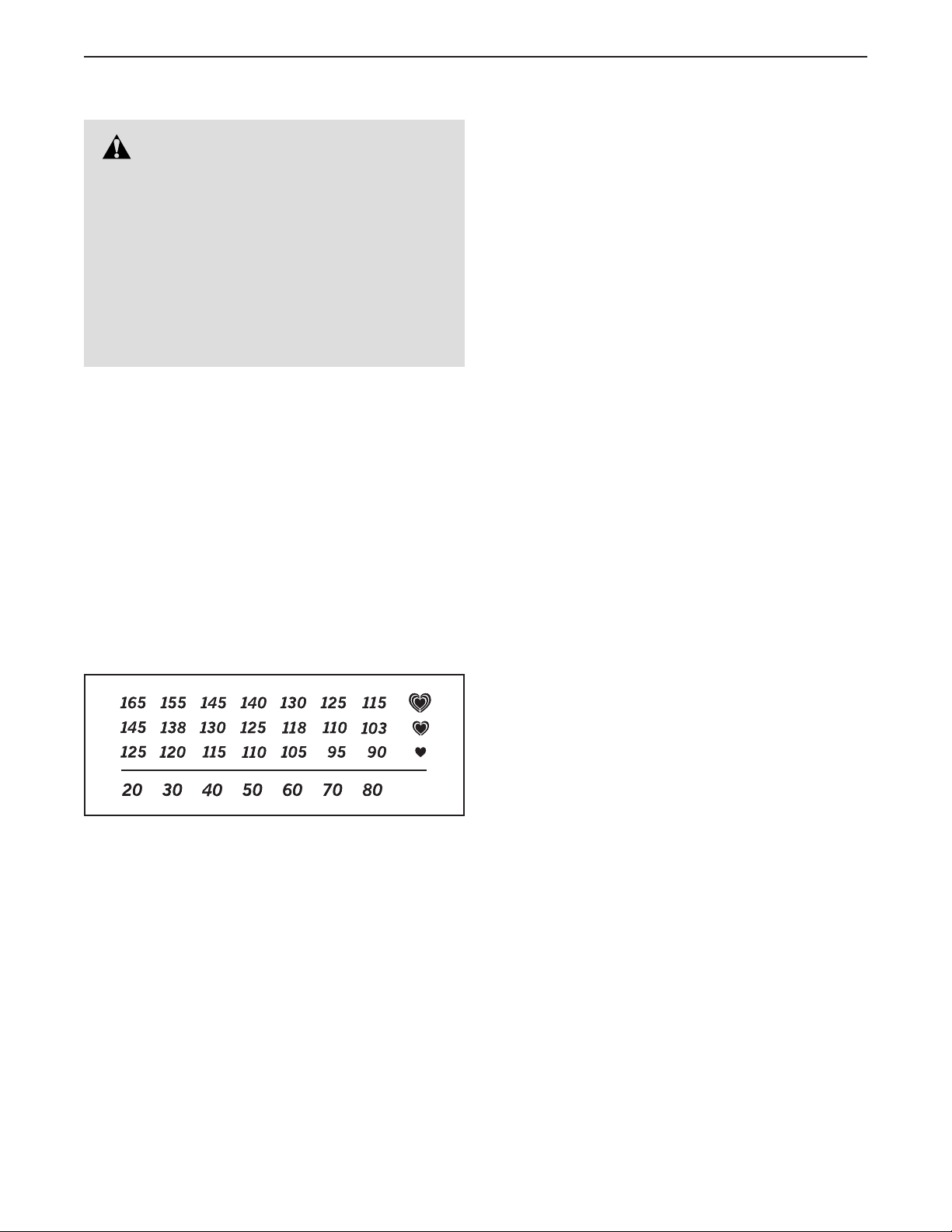

The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
35
PART LIST
Key No. Qty. DescriptionKey No. Qty. Description
Model No. PFEL01415.0 R0316B
1 1 Frame
2 1 Right Pedal Base
3 1 Left Pedal Base
4 1 Console Bracket
5 1 Console
6 1 Tablet Holder
7 1 Console Cover
8 1 Right Stabilizer
9 1 Left Stabilizer
10 1 Right Handlebar
11 1 Left Handlebar
12 1 Shield Cover
13 2 Pulse Grip
14 1 Left Handlebar Arm
15 1 Right Handlebar Arm
16 1 Magnet Bracket
17 2 Idler
18 1 Accessory Tray
19 1 Exchange Axle
20 1 Medium Pulley
21 1 Large Pulley
22 1 Right Pedal
23 1 Left Pedal
24 1 Right Pedal Leg
25 1 Left Pedal Leg
26 2 Connector Arm
27 1 Disc Axle
28 1 Small Drive Belt
29 2 Crank Arm
30 1 Crank
31 1 Large Drive Belt
32 2 Disc
33 2 Disc Hub
34 1 Sprocket
35 2 Link Arm
36 1 Resistance Motor
37 1 Resistance Disc
38 1 Resistance Arm
39 1 Resistance Block
40 1 Power Switch
41 1 Small Pulley
42 1 Clamp
43 3 Key
44 2 Magnet Cover
45 2 Cover Bracket
46 1 Left Wheel Cover
47 1 Right Magnet Shield
48 1 Left Magnet Shield
49 2 Disc Ring
50 1 Left Shield
51 1 Right Shield
52 1 Front Cover
53 1 Rear Cover
54 1 Accessory Tray Base
55 2 Stabilizer Cap
56 4 Foot
57 2 Wheel
58 1 Right Wheel Cover
59 2 Handlebar Cap
60 2 Grip
61 1 Left Rear Handlebar Cover
62 1 Left Front Handlebar Cover
63 1 Right Rear Handlebar Cover
64 1 Right Front Handlebar Cover
65 2 Rear Pivot Cover
66 2 Front Pivot Cover
67 2 Boss
68 1 Lower Rear Shield Cover
69 2 Leveling Foot
70 16 Small Bearing
71 4 Medium Bearing
72 2 Large Bearing
73 8 Bushing
74 2 Large Spacer
75 2 Small Spacer
76 2 M10 Jam Nut
77 2 Crank Washer
78 8 M8 Washer
79 4 M6 Washer
80 2 M5 Nut
81 2 M10 Shoulder Bolt
82 5 M4 x 42mm Screw
83 8 Clip
84 4 M6 x 14mm Screw
85 4 M5 x 16mm Screw
86 1 M3.5 x 12mm Screw
87 10 M8 x 16mm Screw
88 10 Disc Screw
89 2 M10 Locknut
90 2 M10 x 55mm Hex Bolt
91 2 Axle Screw
92 2 Flange
93 2 Stud
94 2 M10 x 55mm Bolt
95 2 Adjustment Screw
96 2 M8 x 15mm Screw
97 2 M8 Shoulder Screw
98 1 M8 x 30mm Bolt
99 3 M8 Locknut
100 4 M8 x 23mm Screw
36
Key No. Qty. DescriptionKey No. Qty. Description
101 14 M4 x 16mm Flat Head Screw
102 8 M8 x 20mm Screw
103 18 Cap Screw
104 2 M6 x 110mm Screw
105 6 M8 x 25mm Screw
106 16 M4 x 16mm Screw
107 10 M4 x 22mm Screw
108 8 M6 x 12mm Screw
109 2 M8 x 86mm Screw
110 8 M10 x 20mm Screw
111 4 #8 x 16mm Screw
112 1 M8 Screw
113 25 M4 x 19mm Screw
114 15 M4 x 12mm Screw
115 1 Main Wire
116 1 Reed Switch/Wire
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
117 1 Left Pulse Wire
118 1 Power Cord
119 2 Crank Cover Disc
120 2 Slant Cap
121 2 Pulley Magnet
122 1 Power Board
123 1 Chest Heart Rate Monitor
124 1 Grommet
125 1 Right Pulse Wire
126 1 Spring
127 1 Frame Spacer
128 1 Disc Axle Washer
* – User’s Manual
* – Assembly Tool
* – Grease Packet
37
EXPLODED DRAWING A
Model No. PFEL01415.0 R0316B
124
74
30
33
128
72
88
34
35
100
40
1
20
22
42
119
90
73
92
24
93
72
26
73
74
116
113
91
88
43
70
29
87
78
70
87
77
84
79
71
102
71
85
89
2
108
120
113
126
39
96
70
32
77
15
70
97
80
70
12
113
70
71
70
99
87
23
27
78
76
78
25
73
102
127
41
90
87
70
43
97
95
75
93
37
85
98
86
70
29
71
16
73
38
106
91
36
94
122
121
43
92
3
85
79
106
84
95
112
100
119
32
87
78
94
28
19
17
75
70
76
17
121
21
31
89
108
120
108
107
78
106
4
7
80
109
96
14
70
33
88
26
78
35
87
73
79
84
87
13
111
6
5
87
73
79
84
38
EXPLODED DRAWING B
Model No. PFEL01415.0 R0316B
67
62
106
105
60
11
104
61
66
107
59
50
64
63
65
101
52
106
65
83
101
66
67
51
83
104
113
82
10
107
105
49
59
103
113
115
118
58
103
125
113
99
57
82
83
117
56
106
110
56
106
8
113
69
83
113
44
47
103
103
113
82
82
113
81
113
113
60
48
49
103
44
45
103
114
103
114
18
113
83
103
114
53
83
46
99
114
101
113
81
57
54
56
9
101
106
56
83
113
101
106
69
113
55
113
103
114
113
83
101
101
68
55
101
123
39
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 6.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for the lifetime of the original
purchaser (customer). Parts are warranted for ve (5) years from the date of purchase. Labor is warranted
for two (2) years from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specic legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
