ProForm PFEL013071 User Manual

CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manu­al for future reference.
Serial
Number
Decal
Write the serial number in the space above for reference.
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are commit­ted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE STORE; please contact Customer Care.
IMPORTANT: You must note the product model number and serial number (see the drawing above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST Sat. 8 a.m.–4 p.m. MST
ON THE WEB: www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

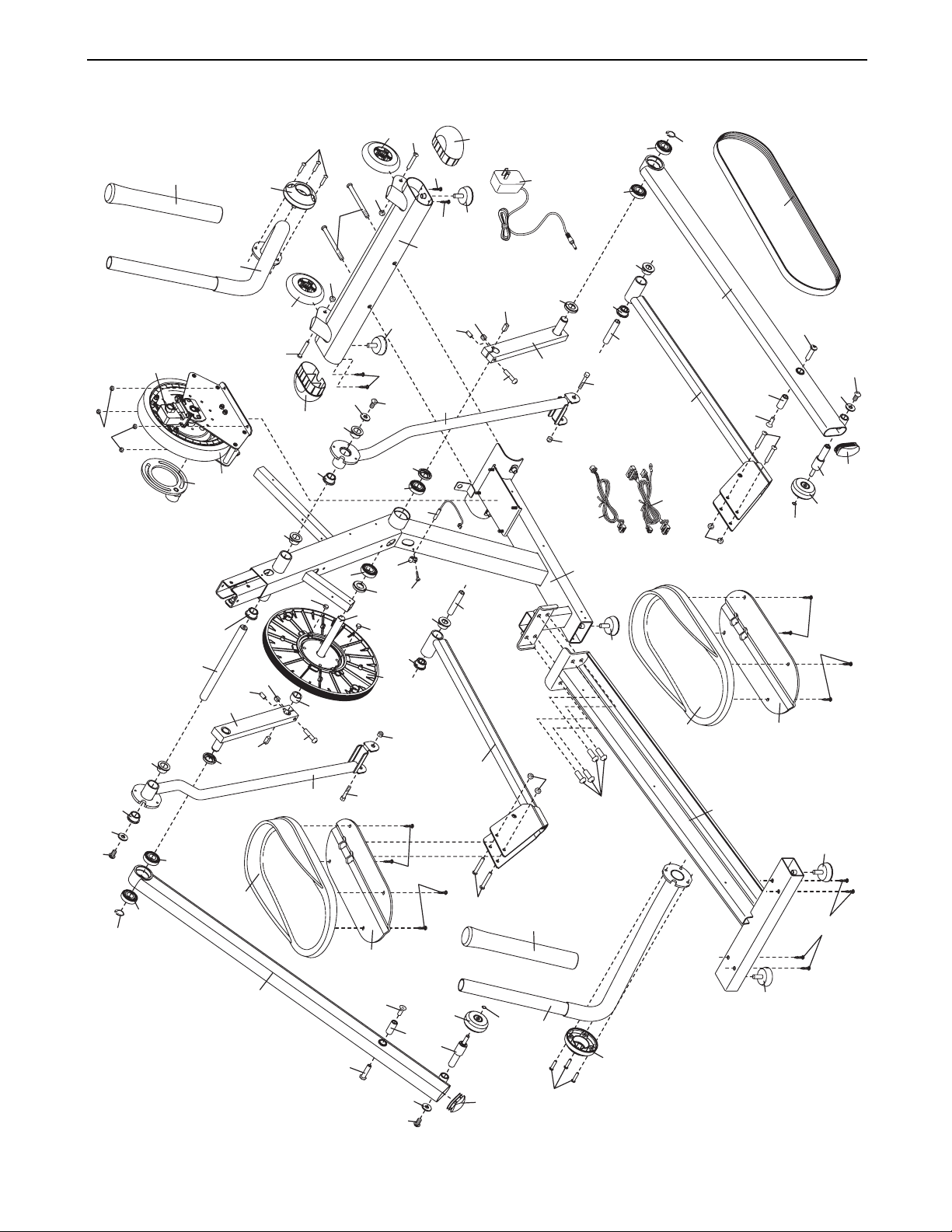

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
WARNING DECAL PLACEMENT
The warning decal shown here has been applied in the location shown. If the decal is missing
or illegible, call the telephone number on the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.
Note: The decal may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.
3. Your elliptical exerciser is intended for home use only. Do not use your elliptical exerciser in a commercial, rental, or institutional set­ting.
4. Keep your elliptical exerciser indoors, away from moisture and dust. Place your elliptical exerciser on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around your elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used by persons weighing more than 300 lbs. (136 kg).
8. Wear appropriate exercise clothes when exercising; do not wear loose clothes that could become caught on your elliptical exer­ciser. Always wear athletic shoes for foot protection.
9. Hold the handgrip pulse sensor or the han­dlebars when mounting, dismounting, or using your elliptical exerciser.
10. Keep your back straight while using your elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device. Various factors, including the user’s move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
12. When you stop exercising, allow the pedals to slowly come to a stop.
13. If you feel pain or dizziness while exercising, stop immediately and cool down.
14. Use your elliptical exerciser only as described in this manual.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
®
1050 STS elliptical exerciser. The 1050 STS elliptical exerciser provides an impressive array of features designed to make your workouts at home more effec­tive and enjoyable.
For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before con-
tacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed under warranty, you must register the elliptical exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Power Supply
Handlebar
Wheel
Pedal
Console
Water Bottle Holder*
Leveling Foot
Leveling Foot
*No water bottle is included
Integrated Universal Dock for iPod
5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable wrench , and rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M8 Hex Nylon
Locknut (77)–4
M6 x 14mm
Flat Head
Screw (55)–1
M10 x 22mm x
1.5mm Washer (63)–2
M6 x 18mm Patch
Screw (57)–6
M8 x 55mm Patch
Bolt (61)–4
#8 x 1/2"
Screw (79)–6
M8 x 19mm Patch
Screw (65)–4
M10 x 120mm Patch Screw (58)–2
M4 x 16mm
Screw (80)–4
M10 x 15mm Patch
Screw (71)–2
#8 x 2"
Screw (68)–4
M10 x 27mm Patch
Screw (64)–4
Barrel Nut (56)–1
6
1.
Remove the two M10 x 120mm Patch Screws (58) and the shipping bracket (not shown) attached to the front of the Frame (1). Discard the shipping bracket. Do not discard the two
M10 x 120mm Patch Screws.
Orient the Stabilizer (49) with the Wheels (8) in the position shown. While a second person tips the Frame (1) backward, attach the Stabilizer to the Frame with the two M10 x 120mm Patch Screws (58).
2. Identify the Right Handlebar (36), which is marked with an “R” sticker, and orient it as shown. Attach the Right Handlebar and the Upper Body Endcap (34) to the Frame (1) with three M6 x 18mm Patch Screws (57).
Repeat this step to attach the Left Handlebar (22).
58
49
1
2
1
1
8
8
22
57
36
34
To make assembly easier, read the information on page 5 before you begin assembling the elliptical exerciser.
7
4. While a second person holds the Console (4) near the Upright (3), connect the console wire to the Wire Harness (46). Then, connect the pulse wire to the Handgrip Pulse Wire (85). Insert the excess wire downward into the Upright.
Tip: Avoid pinching the wires during this step. Attach the Console (4) to the Upright (3)
with four M4 x 16mm Screws (80).
4
80
3. Identify the Upright (3) and orient it as shown. Have a second person hold the Upright near the top of the Frame (1). Locate the wire tie (see the inset drawing) in the Upright. Tie the lower end of the wire tie to the Wire Harness (46). Next, pull the upper end of the wire tie upward out of the top of the Upright. Then, untie and discard the wire tie. Tip: Do not allow the Wire
Harness to fall into the Upright. Use a piece of tape or an elastic band to hold the Wire Harness and the Handgrip Pulse Wire (85) in place until step 4.
Tip: Avoid pinching the Wire Harness (46) during this step. Slide the Upright (3) onto the
Frame (1). Attach the Upright with four M8 x 19mm Patch Screws (65).
3
4
46
85
Pulse Wire
3
1
65
65
Avoid pinching the
Wire Harness (46)
during this step
Avoid pinching the
wires during this step
Wire Tie
46
Console
Wire
46
85
3
8
5. Identify and orient the Track (2) as shown.
Tip: Remove the Track Cover (not shown) from the Track and set it aside until step 9.
Attach the Track to the Frame (1) with four M10 x 27mm Patch Screws (64). Tip: To prevent
squeaking, do not overtighten the Patch Screws.
5
64
2
55
30
56
25
24
Grease
Holes
6
1
6. Cut and remove the wire tie that holds the Link Tube (30) inside the left Link Arm (25). Leave the Link Tube inside the left Link Arm and then position the Left Pedal Leg (24) and the left Link Arm as shown.
Apply a small amount of the included grease to a Barrel Nut (56). Insert the Barrel Nut through the indicated holes in the Left Pedal Leg (24) and the left Link Arm (25). Then, insert the Barrel Nut through the Link Tube (30) inside the left Link Arm.
Tighten an M6 x 14mm Flat Head Screw (55) into the Barrel Nut (56).
9
8. Identify the left Pedal (26), which is marked with an “L” sticker, and orient it as shown. Attach the left Pedal to the bracket on the Left Pedal Leg (24) with two M8 x 55mm Patch Bolts (61) and two M8 Hex Nylon Locknuts (77).
Repeat this step to attach the right Pedal (86).
8
25
25
71
63
27
7
7. Insert the axle of the Roller (27) through the right Link Arm (25); make sure that the Roller is on the inner side of the Link Arm. Attach the Roller with an M10 x 15mm Patch Screw (71) and an M10 x 22mm x 1.5mm Washer (63).
Tip: Use a wrench to hold the axle of the Roller firmly in place while you tighten the Patch Screw into the axle.
Repeat this step to attach the other Roller (27) to the left Link Arm (25).
24
77
61
26
26
10
9. Attach the Track Cover (7) to the Track (2) with six #8 x 1/2” Screws (79).
9
79
79
79
7
10. If there is a shipping bracket (not shown) insert­ed into the underside of the Frame (1), remove and discard the shipping bracket.
While a second person tips the Frame (1) for­ward, tighten a Foot (9) into the underside of the Frame.
10
2
9
1
11

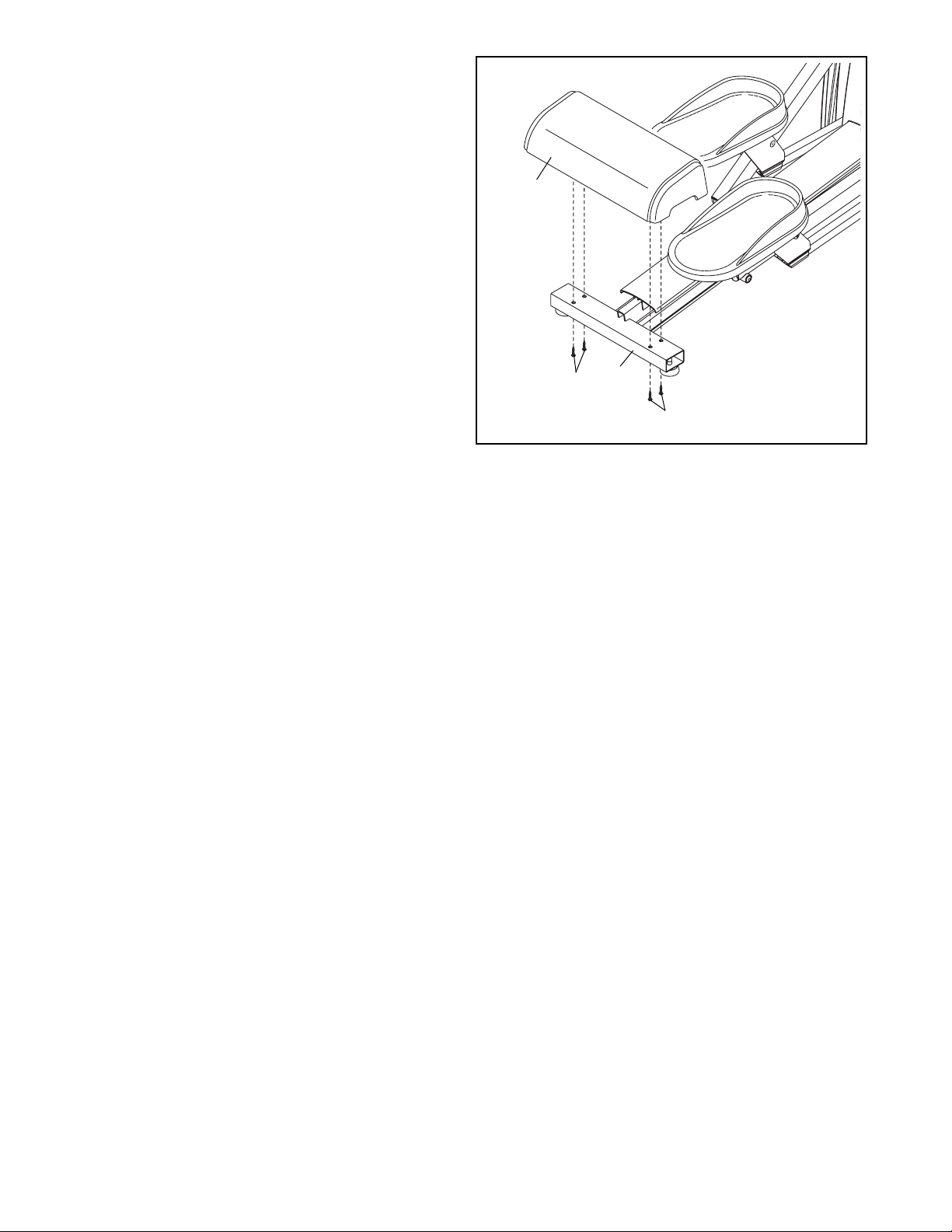

11. While a second person tips the elliptical exercis­er forward, attach the Rear Track Cover (17) to the Track (2) with four #8 x 2" Screws (68).
11
17
68
68
2
12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.
Plug the power supply into the socket at the front of the elliptical exerciser (see HOW TO PLUG IN THE POWER SUPPLY on page 12). IMPORTANT: If the elliptical exerciser has been exposed to cold tem-
peratures, allow it to warm to room temperature before plugging in the power cord. If you do not do this, the console displays or other electronic components may become damaged.
12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO PLUG IN THE POWER SUPPLY
Plug one end of the included power supply into the jack on the front of the elliptical exerciser. Plug the other end of the power supply into an appropriate out­let that is properly installed in accordance with all local codes and ordinances.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical exercis­er, moving it requires two persons. Stand in front of
the elliptical exerciser, hold the upright, and place one foot against one of the front wheels. Pull on the upright and have a second person lift the rear of the ramp until the elliptical exerciser will roll on the front wheels. Carefully move the elliptical exerciser to the desired location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor during use, turn one or both of the leveling feet beneath the base or beneath the front stabilizer until the rocking motion is eliminated. If the elliptical exer­ciser flexes during use, turn the leveling foot beneath the center of the frame.
HOW TO EXERCISE ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars and step onto the pedal that is in the lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note:
The crank arms can turn in either direction. It is recommended that you turn the crank arms in the direction shown by the arrow below; however, for variety, you can turn the crank arms in the oppo­site direction.
To dismount the elliptical exerciser, wait until the ped­als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher pedal first. Then, step off the lower pedal.
Place
your foot
here
Pull on upright
Lift
here
Lift here
Pedals
Crank Arm
Handlebars
13
FEATURES OF THE CONSOLE
The revolutionary console offers an array of features designed to make your workouts more effective and enjoyable. When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. While you exercise, the console will display continuous exercise feedback. You can also measure your heart rate using the handgrip pulse sensor.
In addition, the console offers twenty preset workouts. Each workout automatically changes the resistance of the pedals and prompts you to vary your pedaling pace as it guides you through an effective workout.
The console also offers four heart rate workouts that change the resistance of the pedals to keep your heart rate near target heart rate settings while you exercise.
The console features a fitness journal, which automati­cally records and stores your exercise information so that you can view your workout history and track your progress.
You can even listen to your favorite music or audio books with the console’s stereo sound system while you exercise. This product has been designed specifi­cally to work with iPod
®
and has been certified by the
developer to meet Apple performance standards.
To personalize console settings, see page 14. To identify yourself as User 1 or User 2, see page 15. To use the manual mode, see page 16. To use a pre­set workout, see page 18. To use a heart rate work­out, see page 19. To view the fitness journal, see page 21. To reset the fitness journal, see page 22. To use the stereo sound system, see page 22.
CONSOLE DIAGRAM
Navigation
Buttons
14
HOW TO PERSONALIZE CONSOLE SETTINGS
The console has a user mode that allows you to des­ignate yourself as User 1 or User 2, enter user infor­mation before you begin exercising, and select con­sole settings. The user information you enter will also be recorded and stored in the fitness journal, which allows you to view your workout history (see HOW TO VIEW THE FITNESS JOURNAL on page 21).
Follow the steps below to personalize console set­tings.
1. Select the user mode.
To select the user mode, press the Enter button. The console can store information and keep track of workout history for two different users.

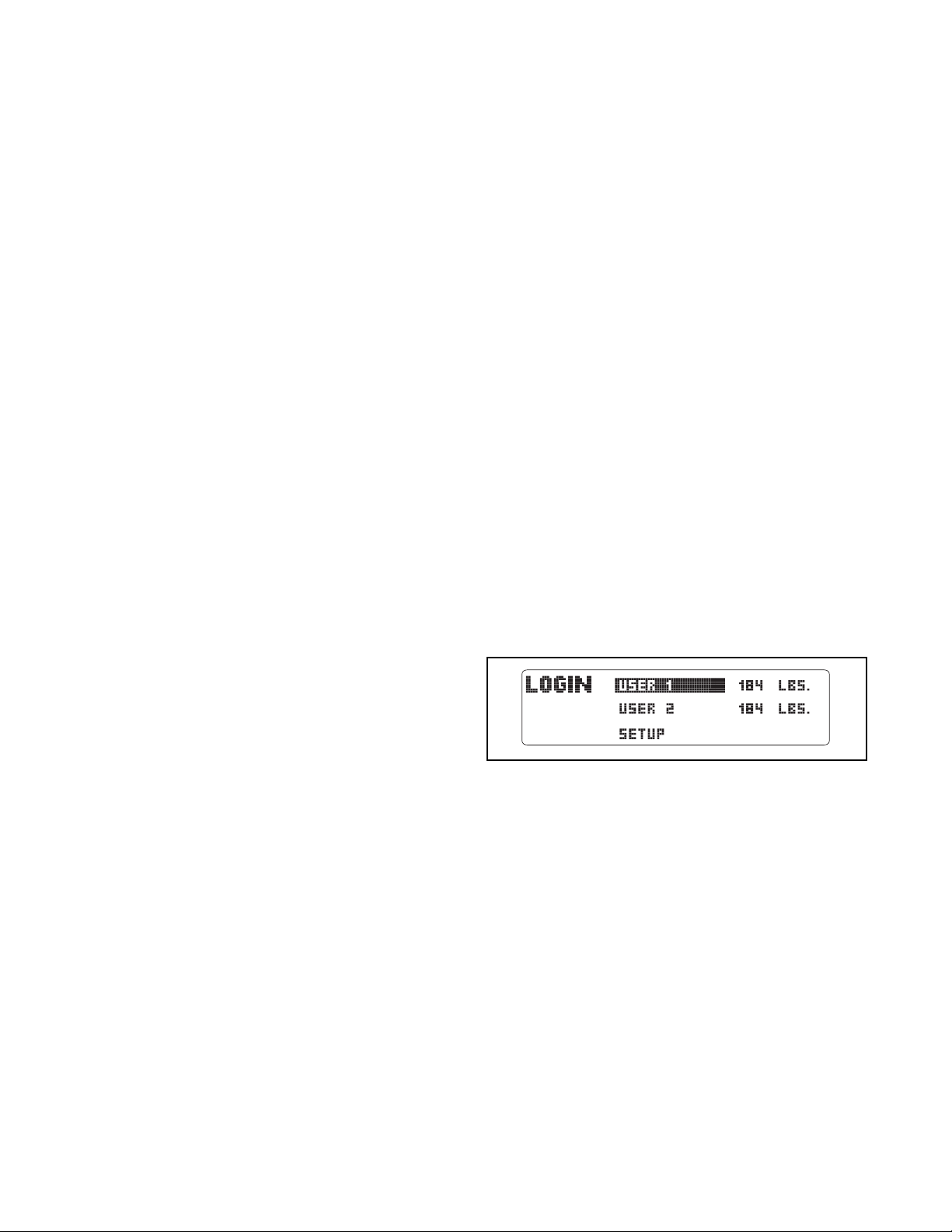

When you select the user mode, the word LOGIN will appear in the display for a few seconds and then the user mode menu will appear.
IMPORTANT: To highlight options within a menu, press the up, down, left, or right Navigation buttons. To select options within a menu, press the Enter button (see the drawing on page 13).
Note: To exit the user mode at any time, press the Back button repeatedly until the manual mode is selected (see page 16). To re-enter the user mode from the manual mode, press the Enter button.
2. Enter user information.
To enter your user information, first highlight the SETUP option and press the Enter button. The setup menu will then appear in the display.
Next, highlight the SETUP USER 1 or SETUP USER 2 option and press the Enter button. The user information menu will then appear in the dis­play.
You can now enter your name and your weight. Highlight the desired option in the menu and press the Enter button. A flashing cursor will appear in a field in the display. To enter a number or letter above the cursor, press the up and down Navigation buttons. To move the cursor, press the left and right Navigation buttons. When you have finished entering the desired numbers or letters in the field, press the Enter button. Repeat this action to enter all the desired user information. Note: For more information about the RESET JOURNAL option, see page 22.
To exit the user information menu, press the Back button. The setup menu will then appear in the dis­play.
15
3. Select a default user setting.
The console can record, store, and load informa­tion for two different users. The default user setting allows you to choose the user information that will be loaded and recorded when you turn on the con­sole at the beginning of a workout session.
To select a default user setting, first highlight the SELECT DEFAULT USER option in the setup menu and press the Enter button. A list of default user options will then appear in the display.
To select a default user option, press the up and down Navigation buttons until an arrow appears next to the desired option. Then, press the Enter button. When you select an option, an “x” will appear in the box next to the selected option.
Note: You can also turn on or turn off the welcome screen from this menu. If the SHOW WELCOME SCREEN option is selected, then a welcome mes­sage with the name of the selected user will appear in the display each time you turn on the console.
To exit the default user menu, press the Back but­ton. The setup menu will then appear in the dis­play.
4. Set the date and time.
Setting the date and time will allow the console to record your workout history accurately in the fit­ness journal.
To set the date and time, first highlight the CHANGE DATE OR TIME option in the setup menu and press the Enter button. The date setting will then appear in the display.
To set the date, first press the left and right Navigation buttons to highlight the month, day, or
year field. Then, press the up and down Navigation buttons to select the desired month, day, or year.
When you have finished setting the date, press the Enter button. The time setting will then appear in the display.
To set the time, first press the left and right Navigation buttons to select the hour or minute field. Then, press the up and down Navigation but­tons to select the desired hour or minute; make sure to select the correct AM or PM time. When you have finished setting the time, press the Enter button. The console will then exit the user mode.
HOW TO IDENTIFY YOURSELF AS USER 1 OR USER 2
The console can load information and keep track of the workout history for two different users. To identify yourself as User 1 or User 2 for a workout session, first press the Enter button to enter the user mode.
The word LOGIN will appear in the display for a few seconds and then the user mode menu will appear. Press the up and down Navigation buttons to highlight USER 1 or USER 2. Note: If you have personalized the console settings (see page 14), then the name you entered will appear instead of USER 1 or USER 2.
Then, press the Enter button to confirm your choice. The console will then exit the user mode.
16
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face of the console, remove the plastic.
1. Begin pedaling to turn on the console.
A moment after you begin pedaling, the display will light.
2. Personalize console settings if desired.
See HOW TO PERSONALIZE CONSOLE SET­TINGS on page 14.
3. Select the manual mode.
Each time you turn on the console, the manual mode will be selected. If you have selected a workout, press the Intensity Control Workouts but­ton to return to the manual mode. When the man­ual mode is selected, zeros will appear in the dis­play.
4. Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Resistance increase and decrease buttons. Note: After you press the buttons, it will take a moment for the pedals to reach the select­ed resistance level.
5. Follow your progress with the display.
As you exercise, the display can show the follow­ing workout information:
• The elapsed time. Note: When you select a workout, the display will show the time remain­ing in the workout instead of the elapsed time.
• The distance, in total revolutions, that you have pedaled.
• Your pedaling pace in revolutions per minute (rpm).
• The approximate number of calories you have burned.
• The resistance level of the pedals.
• The date.
• Your heart rate. Note: Your heart rate will be dis­played only while you use the handgrip pulse sensor (see step 6 on page 17).
The console offers two display options. The display option you select will determine which workout information is shown. Press the Display button repeatedly to select the desired display option.
Note: Regardless of which display mode you select, the resistance level will appear in the dis­play for a few seconds each time you change the setting. In addition, your heart rate will appear in the display each time you use the handgrip pulse sensor (see step 6 on page 17).
To adjust the volume level of the console, press the Volume increase and decrease buttons.
17
6. Measure your heart rate if desired.
If there are sheets of clear plastic on the metal con­tacts on the hand­grip pulse sensor, remove the plas­tic. To measure
your heart rate, hold the handgrip pulse sensor with your palms resting against the metal contacts. Avoid
moving your hands or gripping the contacts too tightly.
When your pulse is detected, one, two, or three dashes will appear in the display, and then your heart rate will appear. For the most accurate heart rate reading, hold the contacts for at least 15 sec­onds. Note: If you continue to hold the handgrip pulse sensor, the display will show your heart rate for up to 30 seconds.
If the display does not show your heart rate, make sure that your hands are positioned as described. Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly. For opti­mal performance, clean the metal contacts using a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
7. Turn on the fan if desired.
The fan has high and low speed settings. Press the Fan button repeatedly to select a fan speed or to turn off the fan.
Pivot the fan louvers above the display upward or downward to direct the airflow from the fan.
Note: If the pedals do not move for about thirty seconds, the fan will turn off automatically.
8. When you are finished exercising, the console will turn off automatically.
If the pedals do not move for several seconds, a tone will sound and the console will pause. If the pedals do not move for several minutes and the buttons are not pressed, the console will turn off and the display will be reset.
Contacts
18
HOW TO USE A PRESET WORKOUT
1. Begin pedaling to turn on the console.
A moment after you begin pedaling, the display will light.
2.
Select the workout menu.
To select the workout menu, press the Intensity Control Workouts button. The workout menu will then appear in the display.
3. Select a preset workout.
To select one of the twenty preset workouts, first press the left and right Navigation buttons to high­light the PRESET WORKOUTS option, and then press the Enter button.
Then, press the left and right or the up and down Navigation buttons until the name of the desired preset workout appears in the display. Note: To return to a previous menu, press the Back button. To return to the manual mode, press the Intensity Control Workouts button.
When you select a preset workout, the display will show the name of the workout and the workout time. A profile of the resistance levels for the work­out will also appear in the display.
4. Begin pedaling to start the workout.
Each preset workout is divided into 20, 30, or 45 one-minute segments. One resistance level and one target rpm (pace) setting are programmed for each segment. Note: The same resistance and/or target rpm setting may be programmed for consecu­tive segments.
During the workout, the workout profile will show your progress (see the drawing above). The small arrow below the workout profile indicates the cur­rent segment of the workout. The height of the segment indicates the resistance level for the cur­rent segment. At the end of each segment of the workout, a series of tones will sound and the small arrow will move to the next segment of the profile. If a different resistance level and/or target rpm is
programmed for the next segment, the resistance level and/or target rpm will flash in the display for a few seconds to alert you. The resistance of the pedals will then change.
As you exercise, you will be prompted to keep your pedaling pace near the target rpm setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear, decrease your pace. When no words appear, maintain your current pace.
IMPORTANT: The target rpm settings are intended only to provide motivation. Your actu­al pace may be slower than the target rpm set­tings. Make sure to pedal at a pace that is com­fortable for you.
If the resistance level for the current segment is too high or too low, you can manually override the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level for the next seg­ment.
The workout will continue in this way until the small arrow reaches the right end of the profile. To stop the workout at any time, stop pedaling. A tone will sound and the time will begin to flash in the display. To restart the workout, simply resume ped­aling.
5. Follow your progress with the display.
When you use a preset workout, the display can show the time remaining in the workout, the dis­tance you have pedaled, the resistance level, the approximate number of calories you have burned, and your pedaling pace in revolutions per minute (rpm). Press the Display button repeatedly to select the desired display option.
6. Measure your heart rate if desired.
See step 6 on page 17.
7. Turn on the fan if desired.
See step 7 on page 17.
8. When you are finished exercising, the console will turn off automatically.
See step 8 on page 17.
19
HOW TO USE A HEART RATE WORKOUT
1. Begin pedaling to turn on the console.
A moment after you begin pedaling, the display will light.
2.
Select the workout menu.
To select the workout menu, press the Intensity Control Workouts button. The workout menu will then appear in the display.
3. Select a heart rate workout.
To select one of the four hear rate workouts, first press the left and right Navigation buttons to high­light the HEART RATE WORKOUTS option, and then press the Enter button.
Then, press the left and right or the up and down Navigation buttons until the name of the desired heart rate workout appears in the display. Note: To return to a previous menu, press the Back button. To return to the manual mode, press the Intensity Control Workouts button.
4. Enter a target heart rate setting.
A few seconds after you select a heart rate work­out, the words SELECT TARGET HEART RATE and the number 110 will will appear in the display. Press the up and down Navigation buttons to enter the desired target heart rate setting, and then press the Enter button.
The workout time and a profile of the resistance levels for the workout will then appear in the dis­play.
5. Begin pedaling to start the workout.
Each heart rate workout is divided into 20 or 30 one-minute segments. One target heart rate set­ting is programmed for each segment. Note: The same target heart rate setting may be pro­grammed for consecutive segments.
During the workout, the workout profile will show your progress (see the drawing above). The small arrow below the workout profile indicates the cur­rent segment of the workout. The height of the segment indicates the target heart rate setting for the current segment. At the end of each segment of the workout, a series of tones will sound and the small arrow will move to the next segment of the profile.
20
During a heart rate workout, the console will regu­larly compare your heart rate to the target heart rate setting for the current segment of the workout. If your heart rate is too far below or above the tar­get heart rate setting, the resistance of the pedals will automatically increase or decrease to bring your heart rate closer to the target heart rate set­ting. Each time the resistance changes, the resis­tance level will appear in the display for a few sec­onds to alert you.
You will also be prompted to pedal at a steady pace so you can maintain your target heart rate. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear, decrease your pace. When no words appear, maintain your current pace.
IMPORTANT: Make sure to pedal at a pace that is comfortable for you. If the resistance level for
the current segment is too high or too low, you can manually override the setting by pressing the Resistance buttons. Note: If you manually override the resistance settings, you may not maintain your target heart rate.
IMPORTANT: When the current segment of the workout ends, the pedals will automatically adjust to the resistance level for the next seg­ment.
The workout will continue in this way until the small arrow reaches the right end of the profile. To stop the workout at any time, stop pedaling. A tone will sound and the time will begin to flash in the display. To restart the workout, simply resume ped­aling.
6. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sen­sor continuously during heart rate workouts; how­ever, you should hold the handgrip pulse sensor frequently for the workouts to operate properly.
Each time you hold the handgrip pulse sensor, keep your hands on the metal contacts for at least 15 seconds.
7. Follow your progress with the display.
When you use a heart rate workout, the display can show the time remaining in the workout, the distance you have pedaled, the resistance level, the approximate number of calories you have burned, and your pedaling pace in revolutions per minute (rpm). Press the Display button repeatedly to select the desired display option.
8. Measure your heart rate if desired.
See step 6 on page 17.
9. Turn on the fan if desired.
See step 7 on page 17.
10. When you are finished exercising, the console will turn off automatically.
See step 8 on page 17.
21
HOW TO VIEW THE FITNESS JOURNAL
1. Begin pedaling to turn on the console.
A moment after you begin pedaling, the display will light.
2. Identify yourself as User 1 or User 2.
See page 15.
3.
Select the fitness journal.
To select the fitness journal, press the Fitness
Journal button. The console will then load the stored journal information for the selected user.
Note: As you view the fitness journal, press the Back button at any time to return to the previous menu or display.
The fitness journal can display the following exer­cise information for the current year:
Time—The total number of hours you have ped­aled on the elliptical exerciser.
Revolutions—The total distance, in revolutions, you have pedaled on the elliptical exerciser.
Calories—The total approximate number of calo­ries you have burned.
Average Speed—Your average pedaling speed, in revolutions per minute (rpm).
Weight—Your weight, as entered in your user information.
4. View exercise information by year.
When you select the fitness journal, the year totals will appear in the display.
To view exercise information for a different year, press the up and down Navigation buttons to change the year. Note: The fitness journal can store information for 11 different years.
5. View exercise information by month.
After a few seconds, the view month menu will appear in the display.
To view exercise information by month, press the up and down Navigation buttons to highlight the desired month in the right side of the display. Then, press the Enter button. The exercise infor­mation for the selected month will appear in the display.
6. View exercise information by week.
After a few seconds, the view week menu will appear in the display.
To view exercise information by week, press the up and down Navigation buttons to highlight the desired week in the right side of the display. Then, press the Enter button. The exercise information for the selected week will appear in the display.
7. View exercise information by day.
After a few seconds, the view day menu will appear in the display.
To view exercise information by day, press the left and right Navigation buttons until an arrow appears above the desired day in the right side of the display. Then, press the Enter button. The exercise information for the selected day will appear in the display.
8. Continue to view the fitness journal as desired.
Repeat steps 3 through 6 to view exercise infor­mation for the desired year, month, week, or day.
9. Exit the fitness journal.
Press the Fitness Journal button to exit the fitness journal at any time.
Note: To delete the exercise information stored in the fitness journal, see HOW TO RESET THE FITNESS JOURNAL on page 22.
22
HOW TO RESET THE FITNESS JOURNAL
1. Select the user mode.
See step 1 on page 14.
2. Reset the fitness journal.
To delete exercise information stored in the fitness journal, first highlight the SETUP option and then press the Enter button. The setup menu will then appear in the display.
Next, highlight the SETUP USER 1 or SETUP USER 2 option and press the Enter button. The user information menu will then appear in the dis­play.
Then, highlight the RESET JOURNAL option and press the Enter button. A confirmation request will appear in the display. To delete the information stored in the fitness journal, use the left and right Navigation buttons to highlight the RESET JOUR­NAL option and press the Enter button. To retain the information stored in the fitness journal, high­light the CANCEL option and press the Enter but­ton.
After you press the Enter button, the user informa­tion menu will again appear in the display.
3. Exit the user mode.
Press the Back button repeatedly until you have exited the user information menus.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the console’s stereo sound system while you exercise, you must connect your iPod
®
, CD player, or personal audio play­er through the audio jack or through the Integrated Universal Dock for iPod
®
.
To use the audio jack, plug an audio cable (not includ­ed) into the jack on the console and into a jack on your iPod, MP3 player, or CD player. Make sure that
the audio cable is fully plugged in.
This product has been designed specifically to work with iPod and has been certified by the developer to meet Apple performance standards. To use the Integrated Universal Dock for iPod, you need an iFit
®
Universal iPod®Connector. Plug one end of the includ­ed iFit Universal Connector into the Integrated Universal Dock for iPod and plug the other end into your iPod. Make sure that the iFit Universal iPod
Connector is fully plugged in.
Next, press the play button on your iPod, CD player, or personal audio player. Adjust the volume on your iPod, CD player, or personal audio player or press the Volume increase and decrease buttons on the con­sole.
23
Inspect and tighten all parts of the elliptical exerciser regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the console does not display your heart rate when you hold the handgrip pulse sensor, or if the displayed heart rate appears to be too high or too low, see step 6 on page 17.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor during use, see HOW TO LEVEL THE ELLIPTICAL EXERCISER on page 12.
MAINTENANCE AND TROUBLESHOOTING
24
These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper inten­sity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the near­est ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exer­cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses
carbohydrate calories
for energy. Only after the first few minutes of exercise does your body begin to use stored
fat calories
for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 min­utes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
25
1 1 Frame 2 1 Track 3 1 Upright 4 1 Console 5 1 Rear Shield Cover 6 1 Upright Cover 7 1 Track Cover 8 2 Wheel
9 5 Foot 10 1 Eddy Mechanism 11 2 Pedal Arm Tube 12 1 Idler 13 1 Pulley 14 1 Crank 15 6 Crank Bearing 16 1 Resistance Motor 17 1 Rear Track Cover 18 2 Magnet 19 6 Pivot Bushing 20 1 Clamp 21 1 Reed Switch/Wire 22 1 Left Handlebar 23 1 Left Upper Body Arm 24 1 Left Pedal Leg 25 2 Link Arm 26 2 Pedal 27 2 Roller 28 4 Weld Spacer 29 2 Roller Axle 30 2 Link Tube 31 2 Crank Arm 32 2 Key 33 1 Left Side Shield 34 2 Upper Body Endcap 35 2 Rear Handle Cover 36 1 Right Handlebar 37 1 Right Upper Body Arm 38 1 Right Pedal Leg 39 1 Right Pedal Bracket 40 1 Right Side Shield 41 1 Pivot Axle 42 1 Crank Arm Spacer 43 1 Belt 44 2 Handle Grip
45 2 Link Arm Endcap 46 1 Wire Harness 47 1 Power Harness 48 1 Left Pedal Bracket 49 1 Stabilizer 50 2 Stabilizer Endcap 51 2 M6 x 9mm Patch Screw 52 2 M8 x 50mm Hex Bolt 53 2 Large Snap Ring 54 2 Small Snap Ring 55 2 M6 x 14mm Flat Head Screw 56 2 Barrel Nut 57 6 M6 x 18mm Patch Screw 58 2 M10 x 120mm Patch Screw 59 2 M10 x 20mm Patch Screw 60 4 M6 Nylon Locknut 61 4 M8 x 55mm Patch Bolt 62 2 M8 x 50mm Patch Bolt 63 2 M10 x 22mm x 1.5mm Washer 64 4 M10 x 27mm Patch Screw 65 4 M8 x 19mm Patch Screw 66 15 #8 x 3/4" Screw 67 1 M4 x 16mm T Screw 68 4 #8 x 2" Screw 69 8 M6 x 12mm Patch Screw 70 2 M10 x 29mm x 2mm Washer 71 2 M10 x 15mm Patch Screw 72 1 #8 x 1/2" Screw 73 2 M10 Nylon Locknut 74 2 M10 x 89mm Hex Bolt 75 4 Pivot Bushing 76 2 M8 Nylon Locknut 77 4 M8 Hex Nylon Locknut 78 2 M8 Hex Nylon Locknut Cls10.9 79 11 #8 x 1/2" Screw 80 4 M4 x 16mm Screw 81 3 Hood Clip 82 5 Custom Clip 83 1 #8 x 2 1/2" Screw 84 1 Power Supply 85 2 Handgrip Pulse Sensor/Wire
* Hex Key * Grease Packet * User’s Manual
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEL01307.1 R0408A
Note: Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts. *These parts are not illustrated.
26
EXPLODED DRAWING A—Model No. PFEL01307.1 R0408A
85
80
4
65
66
65
79
3
40
66
82
5
66
81
66
66
81
66
82
67
83
6
33
79
7
79
81
17
66
35
66
66
35
27
EXPLODED DRAWING B—Model No. PFEL01307.1 R0408A
8
59
60
70
19
53
19
15
16
44
15
41
12
10
19
31
28
36
51
26
32
34
78
62
19
14
74
76
48
18
79
28
62
49
9
59
28
15
21
20
72
75
75
13
73
69
57
58
76
8
70
50
19
19
15
18
42
52
23
79
79
37
51
9
78
11
50
24
61
52
32
44
84
28
31
77
73
15
15
75
75
11
74
47
1
9
64
46
38
26
53
77
25
2
55
30
43
39
61
54
56
69
27
9
68
29
63
45
71
25
56
55
63
71
30
29
27
45
54
9
22
34
57
Part No. 266251 R0408A Printed in China © 2008 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. There is a twelve (12) year warranty on the resistance mechanism. There is a lifetime warranty on the frame. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Loading...
