USER'S MANUAL
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained technicians on our customer hot line
will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. PFCR66060
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE R-950 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MAINTENANCE AND STORAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions before
using the PROFORM¨R-950.
1. It is the responsibility of the owner to ensure
that all users of the R-950 are adequately
informed of all precautions.
2. Read all instructions in this manual before
using the R-950. Use the R-950 only as
described.
3. Position the R-950 indoors, on a level surface. Place a mat beneath the R-950 to protect the floor or carpet.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep small children and pets away from the
R-950 at all times.
6. The R-950 should not be used by persons
weighing more than 250 pounds.
8. After adjusting the position of the seat, make
sure that the seat knob is firmly retightened
(see HOW TO ADJUST THE SEAT on page 5).
9. Always keep your back straight when using
the R-950. Do not arch your back.
10. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
11. When raising the R-950 to the vertical storage position or lowering it, hold both the
handlebar and the rear tube of the frame (see
HOW TO STORE THE R-950 on page 7).
12. When storing the R-950 in the vertical position, make sure that the R-950 is resting on a
level surface, and that the side with the
crossbar is against a wall for stability.
BEFORE YOU BEGIN
Thank you for selecting the innovative PROFORM
¨
R-950. The R-950 offers a unique form of low-impact
exercise that works both the upper body and the lower
body for greater cardiovascular benefits and increased
muscle toning. The R-950 features independent push
and pull resistance controls that let you tailor your
exercise to the level thatÕs perfect for you. And when
youÕre not exercising, the R-950 can be folded for
compact storage.
For your benefit, read this manual carefully before
you use the PROFORM¨R-950. If you have addition-
al questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is PFCR66060. The
serial number can be found on a decal attached to the
R-950 (see the front cover of this manual).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Handlebar
Push Resistance Control
Pull Resistance Control
FRONT
BACK
LEFT SIDE
Stop Tab
Seat Knob
Seat
Pedal
Frame
Console
Crossbar
1. Firmly hold the Seat (7) with one hand and the
Handlebar Frame (3) with the other hand. Lift the
Seat and pivot the Handlebar Frame to the position shown at the right.
Make sure that there are two Handlebar Bushings
(41) in the upper end of the Handlebar Frame (3).
Slide the Handlebar (4) into the Handlebar Frame.
The Handlebar must be turned as shown. Tighten
the four #8 x 1/2Ó Screws (35) into the Handlebar
Frame and the Handlebar.
Pivot the Console Bracket (12) to the position
shown.
Push the Resistance Knob (6) onto the shaft on
the Resistance Cylinder (5).
2. The Console (13) requires two ÒAAÓ batteries (not
included). Alkaline batteries are recommended.
See the inset drawing. Open the battery cover on
the back of the Console. Insert two batteries into
the Console. Make sure that the negative (Ð)
ends of the batteries are touching the springs
in the Console. Close the battery cover.
Connect the Reed Switch Wire (33) to the wire on
the Console (13). Feed any excess wire into the
Seat Frame (2). Insert the Console into the
Console Bracket (12) until the tab on the Console
snaps into the hole in the Console Bracket.
ASSEMBLY
3
41
6
5
12
35
Place all parts of the R-950 in a cleared area and remove the packing materials; do not dispose of the packing materials until assembly is completed. Assembly requires a phillips screwdriver (not
included).
4
7
Batteries
Cover
13
33
12
2
13
2
1

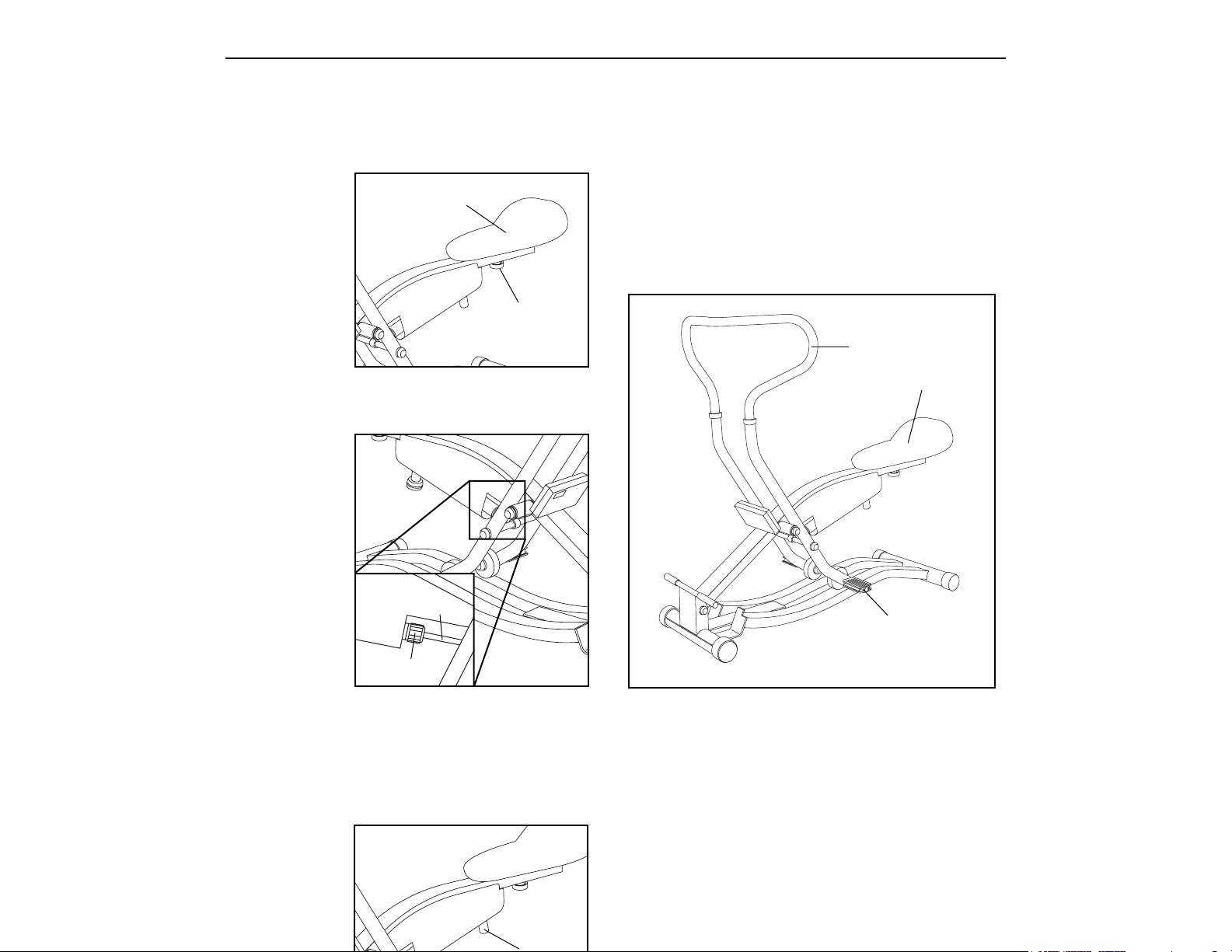

HOW TO USE THE R-950
HOW TO ADJUST THE SEAT
To adjust the
position of the
Seat (7), first
turn the Seat
Knob (11) to
loosen it. Slide
the Seat to the
desired position and firmly
retighten the
Seat Knob.
HOW TO ADJUST THE PULL RESISTANCE
The unique R950 allows you
to adjust the
push and pull
resistance levels independently. To
change the
resistance you
feel when you
pull the handlebar, turn the
collar at the
front of the
Resistance
Cylinder (5). There are twelve different resistance levels. A small arrow on the right side shield will show
which resistance level is selected.
HOW TO ADJUST THE PUSH RESISTANCE
To change the
resistance you
feel as you
push the handlebar, turn the
Knob (6) at the
back of the
HOW TO EXERCISE ON THE R-950
Sit on the Seat (7), place your feet on the Pedals
(14), and hold the Handlebar (4). Your hands can be
positioned on the top, sides, or bottom of the
Handlebar, close together or far apart, or in an overhand or underhand grip. If necessary, adjust the position of the Seat.
To begin exercising, pull the Handlebar (4) toward
your waist while pushing the Pedals (14) away with
your legs. Return to the starting position. This completes one repetition. Repeat, moving with a smooth,
continuous motion. For the best results, move through
the full range of motion and maintain a steady pace.
CAUTION: To avoid injury, keep your back
straight. Do not arch your back. As you exercise,
adjust the push and pull resistance levels as desired.
Note: The console will automatically turn on when you
begin exercising on the R-950. The operation of the
console is described on pages 6 and 7.
11
7
4
7
14
Collar
5
DIAGRAM OF THE CONSOLE
DESCRIPTION OF THE CONSOLE
The innovative console offers a manual mode and
three pacer programs. The pacer programs are
designed to help you achieve specific exercise goals
by pacing your exercise. The programs include a stamina-building Interval program, an Aerobic program,
and a special Fat Burn program. Whether you select
the manual mode or one of the pacer programs, the
console will provide continuous exercise feedback during your workouts. Please read pages 6 and 7 before
operating the console.
HOW THE PACER PROGRAMS OPERATE
When you use a
pacer program, two
columns of bars will
appear in the display. The left column
The graphs on the left side of the console show how
the target pace will change during the programs.
Look at the graphs for a moment (see the drawing
above). Each graph is divided into ten columns, with
six bars in each column. The columns represent twominute time periods, and the red bars show what the
target pace will be. In the first column of the Fat Burn
graph, for example, there is one red bar. This shows
that during the first two minutes of the Fat Burn program, the target pace will be 25 repetitions per minute
(see the scale at the right end of the graph). In the second column there are five red bars. This shows that
during the second two-minute time period, the target
pace will be about 40 repetitions per minute. Note:
Because there are ten two-minute periods, each program will last for twenty minutes.
DESCRIPTION OF THE MONITOR MODES
The six monitor modes provide continuous exercise
Note: If there is a thin sheet
of clear plastic on the face of
the console, remove it.
¥ DistanceÑThis mode shows the total number of
repetitions you have completed, up to 999. The display will then reset to zero and continue counting.
¥ Fat calories (FAT CALS)ÑThis mode shows the
approximate number of fat calories you have
burned. (See BURNING FAT on page 9 for an
explanation of fat calories.)
¥ Calories (CALS)ÑThis mode shows the approxi-
mate number of calories you have burned. (This
approximate number includes both the fat calories
and carbohydrate calories. See BURNING FAT on
page 9.)
¥ ScanÑThis mode displays the calories, fat calories,
reps per minute, time, and distance modes, for 5
seconds each, in a repeating cycle.

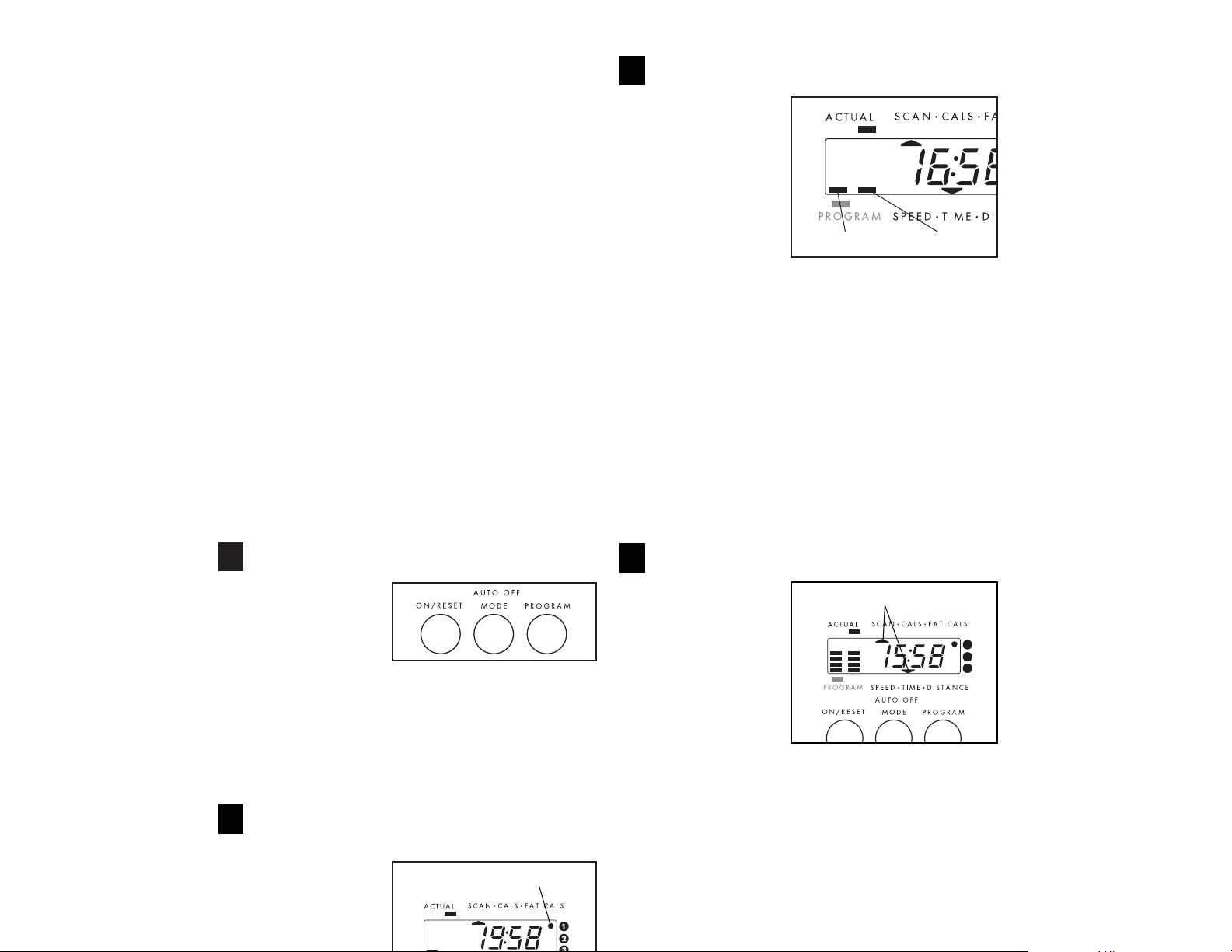

STEP-BY-STEP CONSOLE OPERATION
Before the console can be operated, two ÒAAÓ batteries must be installed. (See assembly step 3 on
page 4 for installation instructions.) Follow the steps
below to operate the console.
Turn on the power
To turn on the
console power,
press the
on/reset button
or simply begin
exercising on
the R-950. When the power is turned on, the
entire display will appear for two seconds. The
console will then be ready for use. Note: If batteries were just installed, the power will already be
on.
Select one of the three pacer programs or the
manual mode
To select one of
the pacer programs, repeatedly press the
program button.
Begin your workout
If you selected
the manual
mode, go to
step 4. If you
selected one of
the pacer programs, two
columns of
bars will
appear in the
display. The left column will show one bar, showing that the target pace is 40 repetitions per
minute. The right column will show your actual
pace. Adjust your pace until only one bar appears
in the right column. As the program progresses,
the target pace will change periodically; as the
target pace changes, adjust your pace to keep
both columns at the same height. Important: The
target pace is a goal pace. Your actual pace
may be slower than the target pace, especially
during the first few months of your exercise
program. Be sure to exercise at a pace that is
comfortable for you.
Follow your progress with the monitor modes
When the
power is turned
on, the scan
mode will automatically be
selected. One
mode indicator
will show that
the scan mode
is selected, and
a flashing mode indicator will show which mode is
currently displayed. Note: If you select a different
mode, you can select the scan mode again by
repeatedly pressing the mode button.
If desired, you can select the speed, time, distance, fat calories, or calories mode for full-time
display. To select one of these modes, repeatedly
press the mode button. The mode indicators will
show which mode is selected. (Make sure that the
Target Pace Actual Pace
1
2
3
4
Program Indicator
Mode Indicators
Inspect and tighten all parts of the R-950 regularly.
Clean the R-950 periodically with a soft, damp cloth.
To prevent damage to the console, keep liquids away
from the console and keep the console out of direct
sunlight.
HOW TO LUBRICATE THE R-950
Every three
months, a
small amount
of light multipurpose oil
should be
applied to the
R-950. Apply a
few drops of
oil between
the dome caps
and the frame in the locations shown at the right. Be
sure to apply oil to both sides of the R-950.
CONSOLE TROUBLE-SHOOTING
If the console does not operate properly, the batteries
should be replaced. See assembly step 2 on page 4
for installation instructions.
If the console
does not display correct
feedback, the
position of the
Reed Switch
(33) should be
adjusted.
Loosen, but do
not remove,
the two indicated #8 x 1/2Ó
Screws (35). Slide the Screws slightly forward or
backward in the slots, making sure to keep the upper
Screw directly above the lower Screw. Make sure
that the lever on the Reed Switch is behind the
1. Hold the Handlebar (4) firmly and pivot it back and
down until the Wheel (26) hits the stop tab. Next,
lift the Seat (7) slightly and continue to pivot the
Handlebar down until the R-950 is in the position
shown in drawing 1a. Fold down the Console (13).
2. If desired, the R-950
can be stored in a
vertical position.
Fold the R-950 as
described above.
Next, firmly hold
the Handlebar (4)
with one hand, and
hold the rear tube
of the Frame (1)
with the other
hand. Raise the R-
950 to the position
shown at the right.
MAINTENANCE AND STORAGE
Apply Oil
1
4
7
Stop Tab
26
13
1a
35
33
Tab
4
1
2
CONDITIONING GUIDELINES
The following general guidelines will help you to plan
your exercise program. Remember that proper nutrition and adequate rest are essential for successful
results.
EXERCISE INTENSITY
Whether your goal is to burn fat or strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, look above your age and
find the three numbers in light grey boxes. The three
numbers are your Òtraining zone.Ó The lowest number
your body begin to use stored fat calories for energy. If
your goal is to burn fat, adjust your pace until your
heart rate is near the lowest number in your training
zone as you exercise. It may also be helpful to set the
collar at the front of the resistance cylinder to level 1,
2, 3, or 4.
For maximum fat burning, adjust your pace until your
heart rate is near the middle number in your training
zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust your pace until your heart rate is near the highest number in your training zone. It may also be helpful to set the collar at the front of the resistance cylinder to level 5, 6, 7, or 8.
Strength Training
To strengthen and tone your muscles, you must exercise your muscles at a moderate to high percentage of
their capacity. Set the collar at the front of the resistance cylinder to level 9, 10, 11, or 12.
HOW TO MEASURE YOUR HEART RATE
To measure your heart rate, first exercise for at least
four minutes. Then, stop exercising and place two fingers on your
wrist as
shown. Take a
six-second
heartbeat
count, and
multiply the
result by 10 to
find your heart
WARNING: Before beginning this or any exercise program, consult your physician. This is
especially important for persons over the age
of 35 or persons with pre-existing health
problems.
PART LISTÑModel No. PFCR66060 R1096A
Key No. Qty. Description
1 1 Frame
2 1 Seat Frame
3 1 Handlebar Frame
4 1 Handlebar
5 1 Resistance Cylinder
6 1 Resistance Knob
7 1 Seat
8 1 Seat Bracket
9 1 Carriage Bolt
10 2 Seat Bracket Screw
11 1 Seat Knob
12 1 Console Bracket
13 1 Console
14 2 Pedal
Key No. Qty. Description
23 2 3Ó Wheel
24 2 Frame Cap
25 10 Dome Cap
26 2 3 1/2Ó Wheel
27 1 Storage Clip
28 4 Bronze Pivot Bushing
29 4 Plastic Pivot Bushing
30 1 1 1/2Ó x 3Ó Inner Cap
31 1 Latch Plate
32 1 Seat Spacer
33 1 Reed Switch w/Wire
34 4 1/2Ó Push Nut
35 8 #8 x 1/2Ó Screw
36 3 Fastener
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, lasting 5 to 10 minutes. Begin with slow,
controlled stretches, and progress to more rhythmic
stretches to increase the body temperature, heart rate,
and circulation in preparation for strenuous exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone.
A cool-down, with 5 to 10 minutes of stretching.
Thorough stretching helps to offset problems caused
when you stop exercising suddenly. Stretching for
increased flexibility is also most effective after exercising. A proper cool-down should leave you relaxed and
comfortably tired.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
1
20
23
28
25
33
37
24
24
37
38
33
34
14
14
34
4
3
35
25
29
29
29
25
19
12
13
25
26
26
19
25
39
25
5
6
28
28
25
25
21
36
36
17
16
15
17
11
35
31
27
30
2
8
99
7
41
40
42
10
43
32
EXPLODED DRAWINGÑModel No. PFCR66060 R1096A
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
¥ The MODEL NUMBER of the product (PFCR66060).
¥ The NAME of the product (PROFORM¨R-950).
¥ The SERIAL NUMBER of the product (see the front cover of this manual).
¥ The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 10 of this manual).
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to
a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or
repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth
above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
Loading...
