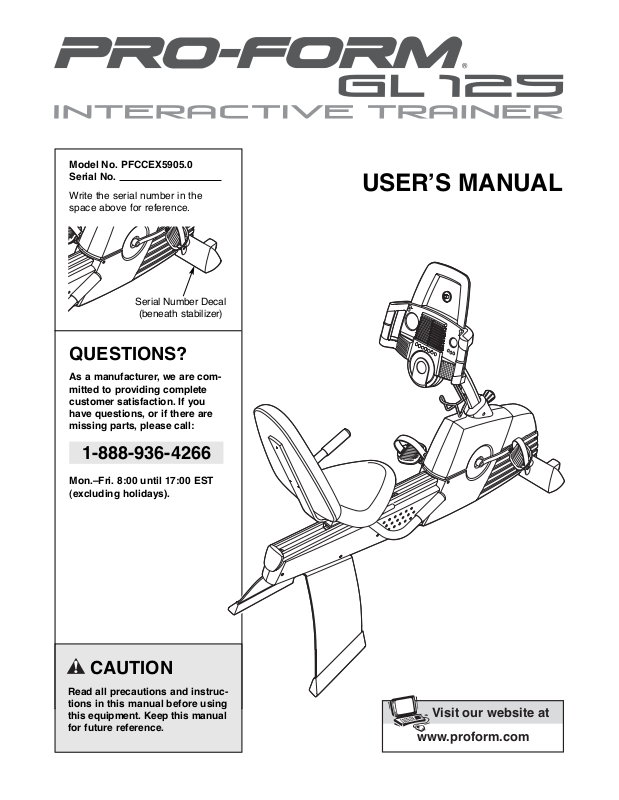

USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial Number Decal
(beneath stabilizer)
Model No. PFCCEX5905.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
1-888-936-4266
Mon.–Fri. 8:00 until 17:00 EST
(excluding holidays).
Visit our website at
www.proform.com
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
3
1. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle. Use the exercise cycle
only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
4. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exercise cycle to mount, dismount, and use the
exercise cycle.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
7. Wear appropriate clothing when exercising;
do not wear loose clothing that could
become caught on the exercise cycle. Always
wear athletic shoes for foot protection.
8. The exercise cycle should not be used by
persons weighing more than 115 kg (250 lbs).
9. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
10. Always keep your back straight when using
the exercise cycle; do not arch your back.
11. If you feel pain or dizziness while exercising,
stop immediately and cool down.
12. The exercise cycle does not have a freewheel; the pedals will continue to move until
the flywheel stops.
13. The decal shown below has been placed on
the exercise cycle. If the decal is missing, or
if it is not legible, please call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply
the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.
4
Congratulations for selecting the new PROFORM
®
GL125 exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fitness, building endurance, and toning the entire body.
The PROFORM GL125 exercise cycle offers an
impressive array of features to let you enjoy this
healthful exercise in the convenience and privacy of
your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, please note the
product model number and serial number before calling. The model number is PFCCEX5905.0. The serial
number can be found on a decal attached to the exercise cycle (see the front cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
REAR
Seat
Seat Lever
Pedal/Strap
Wheel
Leveling Foot
Console
Fan
Power Jack
CD Holder
CD Player
Handlebar
Water Bottle Holder*
*No bottle is included
Adjustment Knob
RIGHT SIDE
BEFORE YOU BEGIN
Backrest
5
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver .
Use the drawings below to identify the small parts used for assembly. The number in parenthesis below each
drawing is the key number of the part, from the PART LIST on page 25. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled.
1. Orient the Front Stabilizer (15) as shown. While another
person lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M8 x 52mm Button
Screws (54) and two M8 Washers (64).
15
54
64
1
1
M8 Nylon
Locknut (49)–4
M6 x 16mm Tapered
Button Screw (102)–8
M8 x 25mm Button
Screw (40)–4
M6 Washer
(66)–4
M6 x 16mm Button
M8 Washer
(64)–2
Screw (8)–4
M8 x 38mm Button
Bolt (96)–4
M4 x 12mm
Screw (41)–8
M6 x 22mm Button
Screw (93)–3
M4 x 16mm
Screw (57)–6
M8 x 52mm Button
Screw (54)–2
M4 x 20mm
Screw (101)–1
M6 x 25mm Button
Screw (99)–1
6
2
2
31
Make sure the
wire harnesses
do not get
pinched and
damaged during
this step.
41
20
43
1
99
42
2. While another person holds the Upright (2) in the posi-
tion shown, connect the Upper Wire Harness (42) to
the Lower Wire Harness (43). Gently pull the upper
end of the Upper Wire Harness to remove any slack
from the Wire Harnesses.
Turn the indicated Adjustment Knob (20) counterclockwise two or three turns to loosen it. Next, pull the Knob,
insert the Upright (2) into the Frame (1), and then
release the Knob. Be careful to avoid pinching the
Wire Harnesses (42, 43). Move the Upright up and
down slightly until the pin on the Knob snaps into
one of the holes in the Upright. Then, turn the Knob
clockwise until it is tight. Tighten the M6 x 25mm
Button Screw (99) into the Frame.
Attach the Water Bottle Holder (31) to the Upright (2)
with two M4 x 12mm Screws (41).
3. Attach the Left Inner Handlebar (71) to the Upright (2)
with four M6 x 16mm Tapered Button Screws (102).
Attach the Right Inner Handlebar (68) to the
Upright (2) in the same way.
3
71
2
102
102
68
4. Attach a Handlebar (3) to the Seat Bracket (11) with
two M8 x 38mm Button Bolts (96) and two M8 Nylon
Locknuts (49). Make sure that the Nylon Locknuts
are resting in the hexagonal holes in the front of
the Handlebar.
Attach the other Handlebar (3) to the Seat Bracket
(11) in the same way.
11
3
3
96
49
4
7
5. Attach the Seat (9) to the Seat Bracket (11) with four
M6 x 16mm Button Screws (8) and four M6 Washers
(66).
5
9
11
66
8
8
66
6. Attach the Backrest (90) to the Seat Bracket (11) with
three M6 x 22mm Button Screws (93).
11
93
90
6
7. Push down the lever (not shown) on the right side of
the Seat Carriage (10), slide the Seat Carriage into the
Frame Rail (81), and then pull the lever back up.
Attach a Bumper (82) to the Frame Rail (81) with an
M4 x 20mm Screw (101). Next, press the Frame Rail
Endcap (83) into the end of the Frame Rail.
10
83
81
82
101
7
8
9. With the help of another person, carefully raise the
exercise cycle so it is resting on the Front and Rear
Stabilizers (not shown).
While another person holds the Console (4) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (42). Insert the
excess wire harness down into the Upright (2).
Attach the Console (4) to the Upright (2) with four M4
x 12mm Screws (41). Be careful to avoid pinching
the wire harnesses.
9
4
2
41
10. Attach the CD Holder (59) to the Console (4) with two
M4 x 12mm Screws (41) as shown.
Attach the Left Handlebar Cover (6) to the Console (4)
with three M4 x 16mm Screws (57).
Attach the Right Handlebar Cover (5) to the
Console (4) in the same way.
57
5
4
59
41
6
10
Wire
Harness
42
8. With the help of another person, carefully tip the
exercise cycle onto its left side so it is resting on the
Left Inner Handlebar (not shown).
Identify the Left Rear Stabilizer (16), which is marked
with an “L” sticker. Attach the Left Rear Stabilizer and
the Stabilizer Plate (87) to the Frame (1) with two M8
x 25mm Button Screws (40) as shown; do not tighten
the Button Screws yet.
Insert the Right Rear Stabilizer (98) between the
Stabilizer Plate (87) and the Frame (1). Attach the
Right Rear Stabilizer with two M8 x 25mm Button
Screws (40). Tighten all four Button Screws.
40
87
40
1
8
98
16
9
13. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11. Identify the Left Pedal (22), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal
counterclockwise
into the Left Crank Arm
(24). Tighten the Right Pedal (not shown)
clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the exercise cycle for one week, retighten the Pedals. For
best performance, the Pedals must be kept tightened.
Adjust the Left Pedal Strap (25) to the desired position, and press the end of the Pedal Strap onto the tab
on the Left Pedal (22).
Adjust the Right Pedal Strap (not shown) in the
same way.
12. Plug one end of the Power Supply (52) into the jack at
the front of the exercise cycle. Plug the other end of
the Power Supply into an appropriate outlet that is
properly installed in accordance with all local codes
and ordinances.
Note: The console can be operated with batteries (not
included) instead of the Power Supply (52) if desired.
To install batteries, follow the instructions below.
See the inset drawing. Press the indicated tab on the
battery drawer and pull the battery drawer down.
Press four “D” batteries into the battery clips; make
sure that the batteries are oriented as shown by
the markings inside of the battery clips. Then,
close the battery drawer. Note: Alkaline batteries are
recommended.
11
24
25
Ta b
Batteries
Battery
Drawer
22
12
52
4
Ta b
