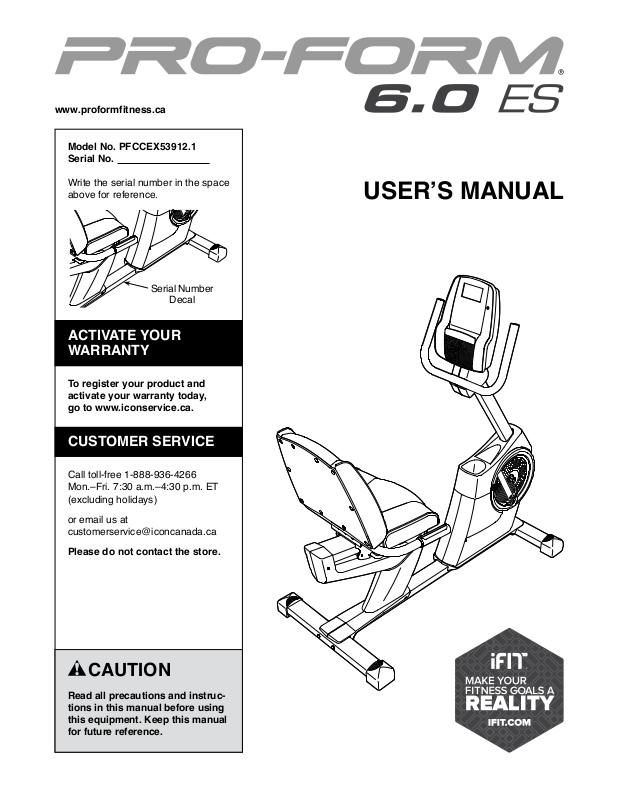

ProForm PFCCEX539121 User Manual
www.proformfitness.ca
Model No. PFCCEX53912.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.iconservice.ca.
USER’S MANUAL
CUSTOMER SERVICE
Call toll-free 1-888-936-4266
Mon.–Fri. 7:30 a.m.–4:30 p.m. ET
(excluding holidays)
or email us at
customerservice@iconcanada.ca
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE AND TROUBLESHOOTING .....................................................24
EXERCISE GUIDELINES ....................................................................26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

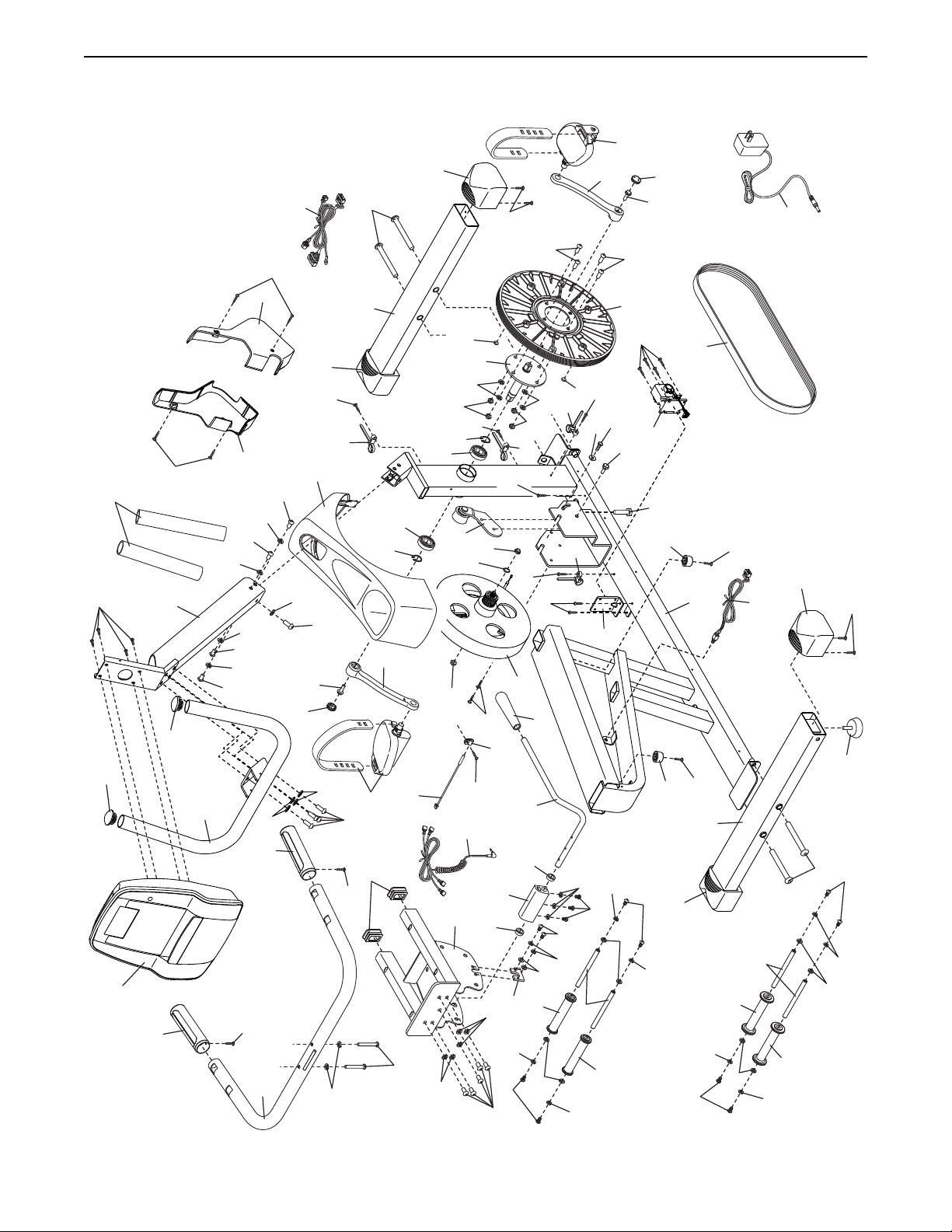

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
Google Maps is a trademark of Google Inc.
IFIT is a registered trademark of ICON Health & Fitness, Inc.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to
ensure that all users of the exercise bike are
adequately informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. Use the exercise bike only as described in
this manual.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a commercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface
with at least 2 ft. (0.6 m) of clearance around
the exercise bike. To protect the floor or
carpet from damage, place a mat under the
exercise bike.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be
used by persons weighing more than
300 lbs. (136 kg).
11. Be careful when mounting and dismounting
the exercise bike.
12. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
13. Always keep your back straight while using
the exercise bike; do not arch your back.
14. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
15. This Class [B] digital apparatus complies
with Canadian ICES-003.
3
4
Your new tness equipment represents a signicant investment
in your health. Protect your investment now from unexpected
mechanical or electrical failures for up to ve years.
PLAN FEATURES
•
• Protection for one to ve years
• Over 100 authorized repair centers
• Highly trained repair technicians
• A national toll-free repair hotline
• Simple repair claim procedure
• No claim forms
Easy enrollment
• Fast, ecient repair anywhere in Canada
• In-home repairs covered
• Parts and labour covered
• Mechanical and electrical failures covered
To protect your tness equipment today, please
call Customer Care at
1-888-936-4266
Or, email us at customerservice@iconcanada.ca
™
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
6.0 ES exercise bike. Cycling is an effective exercise
for increasing cardiovascular tness, building endurance, and toning the body. The 6.0 ES exercise bike
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benet, read this manual carefully before
you use the exercise bike. If you have questions after
Length: 4 ft. 4 in. (132 cm)
Width: 2 ft. 1 in. (64 cm)
Seat
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Handlebar
Backrest
Leveling Foot
Accessory Tray
Pedal/Strap
Wheel
Heart Rate Monitor
Seat Handle
6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 Split
Washer
(50)–4
M6 x 20mm
Screw (88)–4
M6 Washer
(66)–4
M6 x 50mm Screw (65)–4
M8 Split
Washer (61)–12
M10 x 95mm Screw (62)–4
M4 x 16mm
Screw (56)–4
M8 x 16mm
Screw (60)–10
M4 x 22mm
Screw (90)–4
M8 x 45mm Screw (63)–2
7
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
1. Go to www.iconservice.ca/CustomerService/
registration and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Service
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Service (see the front cover of this
manual) and register your product.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2. Set a sturdy piece of packing material under the
front of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Identify the Front Stabilizer (2). Note: The Front
Stabilizer has wheels; the Rear Stabilizer (not
shown) does not have wheels.
Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Screws (62).
Remove the packing material.
2
Wheel
2
1
62
8
3. Set a sturdy piece of packing material under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping
while you complete this step.
Orient the Rear Stabilizer (3) so that the welded
tubes are facing away from the Frame (1).
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Screws (62).
Remove the packing material.
3
3
1
4. Slide the Shield Cover (5) upward onto the
Upright (4).
Have a second person hold the Shield Cover (5)
around the Upright (4) until you complete step 5.
Tip: Avoid pinching the wires inside the
Frame (1). Slide the Upright (4) onto the Frame.
Attach the Upright (4) with five M8 x 16mm
Screws (60) and five M8 Split Washers (61).
62
4
Welded
Tubes
61
60
60
5
61
Avoid pinching
the wires
4
61
60
1
9
5. Locate the wire tie inside the Upright (4). Then,
locate the Main Wire (76) and the Frame Pulse
Wire (75) inside the Frame (1).
5
Wire Tie
Tie the lower end of the wire tie to the ends
of the Main Wire (76) and the Frame Pulse
Wire (75).
Then, pull the other end of the wire tie upward
until the Main Wire (76) and the Frame Pulse
Wire (75) are routed through the Upright (4).
Then, slide the Shield Cover (5) downward and
press it onto the Right and Left Front Shields
(21, 22).
6. Tip: Avoid pinching the wires. Attach the
Handlebar (6) to the Upright (4) with four
M6 x 20mm Screws (88) and four M6 Split
Washers (50).
5
Wire
Tie
4
1
22
6
Avoid pinching
75
76
21
the wires
6
50
88
4
10
