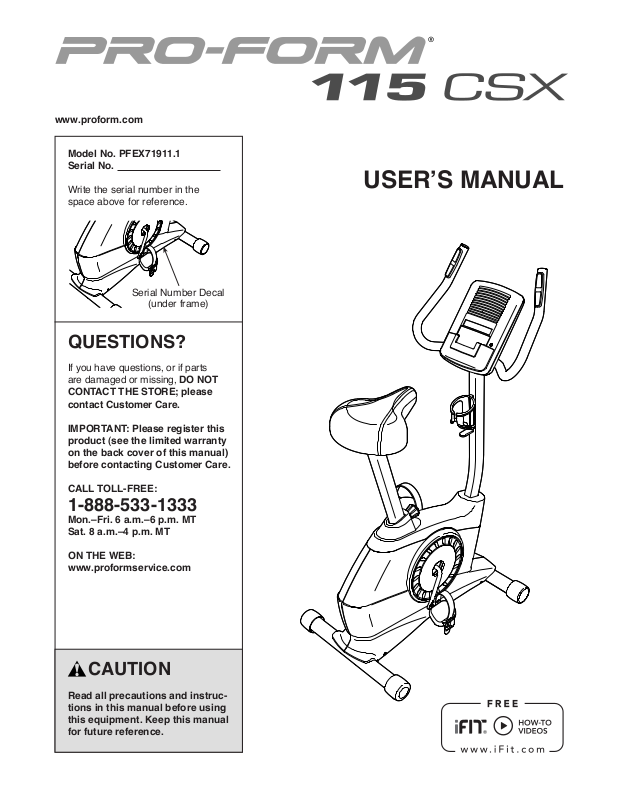

www.proform.com
Model No. PFEX71911.1
Serial No.
Write the serial number in the
space above for reference.
Serial Number Decal
(under frame)
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
258868 258869 258870 258871 258872
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
MAINTENANCE AND TROUBLESHOOTING .....................................................19
EXERCISE GUIDELINES ....................................................................21
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are adequately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a commercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The exercise bike does not have a freewheel;
the pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
3
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM® 115
CSX exercise bike. Cycling is an effective exercise
for increasing cardiovascular fitness, building endurance, and toning the body. The 115 CSX exercise bike
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. If you have questions after
Length: 2 ft. 8 in. (81 cm)
Width: 2 ft. (61 cm)
Handlebar
Water Bottle Holder*
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Heart
Rate Monitor
Console
Seat
Seat Post
Leveling Foot
Adjustment Knob
Wheel
Pedal/Strap
*Water bottle is not included
4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
(37)–8
M8 x 38mm
Bolt (53)–4
M4 x 16mm
Screw (40)–6
M4 x 22mm
Screw (38)–2
M10 x 75mm
Screw (36)–4
M8 x 18mm
Screw (35)–4
5
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materialsuntilyounishallassemblysteps.
• To identify small parts, see page 5.
1. Identify the Rear Stabilizer (14), which has a
Leveling Foot (43) near each end.
Attach the Rear Stabilizer (14) to the Frame (1)
with two M10 x 75mm Screws (36).
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
43
36
14
1
43
6
2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 75mm Screws (36).
2
2
36
1
3. Orient the Upright (3) and the Top Shield (9) as
shown.
Have a second person hold the Upright (3) and
the Top Shield (9) near the Frame (1) until you
complete step 4.
Connect the Upper Wire (32) to the Lower Wire
(31). Then, pull the excess Upper Wire out of the
top of the Upright.
3
3
9
31
1
32
7
4. Tip: Avoid pinching the wires. Slide the
Upright (3) onto the Frame (1).
Attach the Upright (3) with four M8 x 18mm
Screws (35).
Slide the Top Shield (9) downward and press it
onto the Left and Right Shields (17, 18).
4
Avoid pinching
the wires
3
9
35
35
5. Attach the Seat (12) to the Seat Post (5) with four
M8 Locknuts (37). Note: The Locknuts may be
preattached to the underside of the Seat.
17
18
5
12
37
1
37
5
8

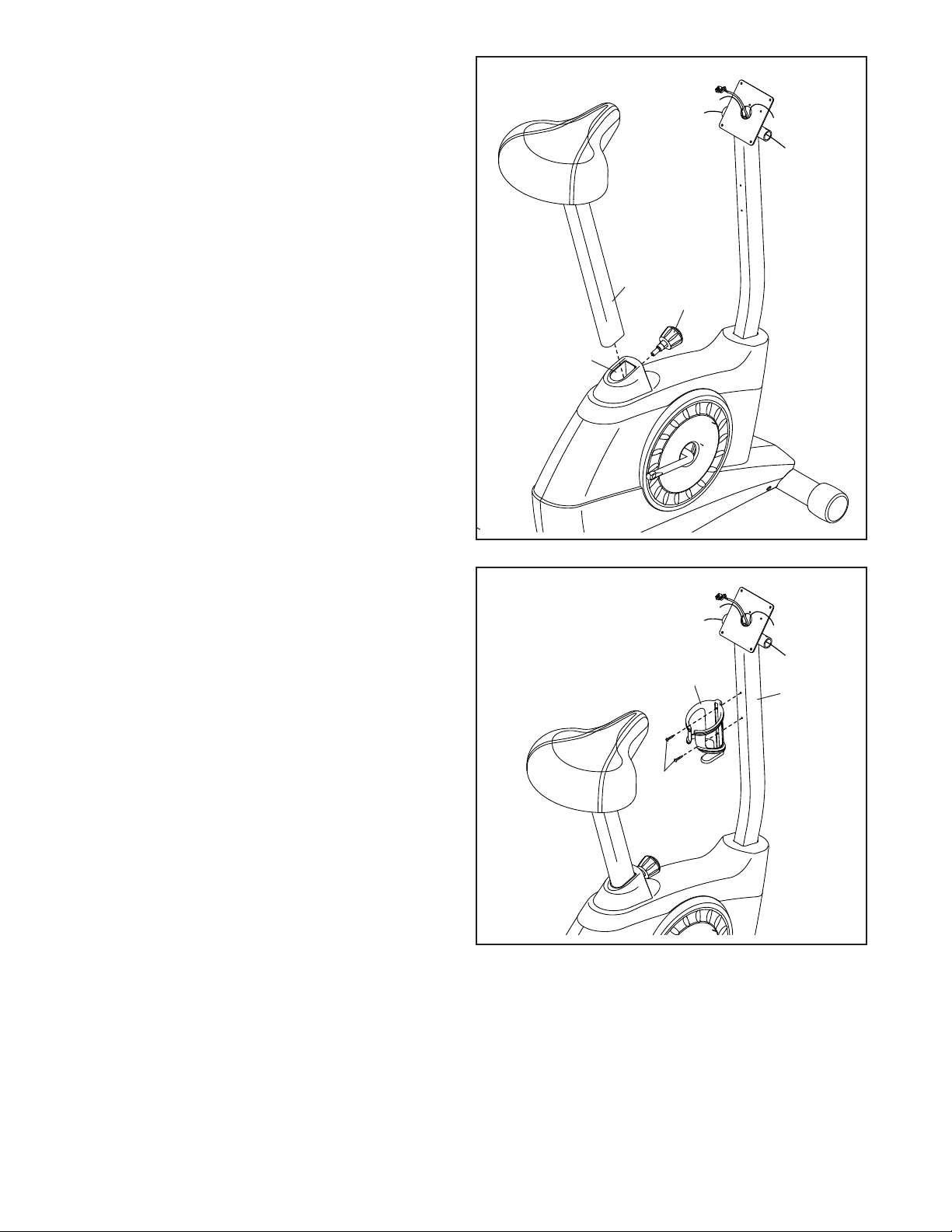

6. Using an adjustable wrench, tighten the
Adjustment Knob (11) into the Frame (1).
Next, loosen the Adjustment Knob (11) a few
turns, pull it outward, and insert the Seat Post (5)
into the Frame (1).
Slide the Seat Post (5) upward or downward to
the desired position, and release the Adjustment
Knob (11) into one of the adjustment holes in
the Seat Post. Move the Seat Post upward
or downward slightly to make sure that the
Adjustment Knob is engaged in one of the
adjustment holes in the Seat Post. Then,
tighten the Adjustment Knob.
6
5
11
1
7. Attach the Water Bottle Holder (49) to the
Upright (3) with two M4 x 22mm Screws (38).
7
49
3
38
9
8. Identify the Right Handlebar (48), which is
marked with an “R” sticker, and orient it as
shown. Make sure that the hexagonal holes
are in the indicated location.
While a second person holds the Right
Handlebar (48) near the Upright (3), tie the indicated wire tie to the Right Pulse Wire (42). Then,
pull the other end of the wire tie upward out of
the top of the Upright.
Tip: Avoid pinching the wire. Slide the Right
Handlebar (48) onto the Upright (3).
8
Avoid pinching
47
28
3
the wire
Wire Tie
53
42
48
Attach the Right Handlebar (48) with two M8
x 38mm Bolts (53) and two M8 Locknuts (37).
Make sure that the Locknuts are in the hexagonal holes.
Attach the Left Handlebar (47) in the same
way.
9. The Console (6) can use four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries together. IMPORTANT: If the Console has
been exposed to cold temperatures, allow
it to warm to room temperature before you
insert batteries. Otherwise, you may damage the console displays or other electronic
components. Remove the screws and the
battery covers, insert batteries into the battery
compartments, and then reattach the battery
covers. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartments.
37
Hexagonal
Holes
9
Screws
Battery
Covers
Batteries
Batteries
To purchase an optional power adapter, call
the telephone number on the front cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied power
adapter. Plug one end of the power adapter into
the receptacle on the console; plug the other
end into an outlet installed in accordance with all
local codes and ordinances.
6
10
10. While a second person holds the Console (6)
near the Upright (3), connect the wires on the
Console to the Upper Wire (32) and to the Right
and Left Pulse Wires (42, 28).
Insert the excess wire downward into the Upright
(3) or upward into the Console (6).
Tip: Avoid pinching the wires. Attach the
Console (6) to the Upright (3) with four M4 x
16mm Screws (40).
10
Avoid pinching
6
32
3
42
28
the wire
40
11. Attach the Handlebar Cover (19) to the Upright
(3) with two M4 x 16mm Screws (40).
11
19
40
3
11
12. Identify the Right Pedal (26), which is marked
with an “R.” Using an adjustable wrench, firmly
tighten the Right Pedal clockwise into the right
arm of the Crank (13).
Tighten the Left Pedal (not shown) counter-
clockwise into the left arm of the Crank (not
shown).
12
Adjust the strap on the Right Pedal (26) to the
desired position, and press the end of the strap
onto the tab on the Right Pedal.
Adjust the strap on the Left Pedal (not
shown) in the same way.
13. Make sure that all parts are properly tightened before you use the exercise bike. Note: Extra parts may
be included. Place a mat under the exercise bike to protect the floor or carpet.
13
26
Strap
Tab
12
HOW TO USE THE EXERCISE BIKE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the proper
height. As you pedal, there should be a slight bend in
your knees when the pedals are in the lowest position.
To adjust the seat,
first loosen the
adjustment knob
a few turns. Next,
pull the knob
outward, slide the
seat post upward
or downward to the
desired position,
and then release
the knob into one
of the adjustment
holes in the seat post. Move the seat post upward
or downward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post. Then, tighten the knob.
Seat
Post
Adjustment
Knob
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals. Then, adjust
the straps to the
desired position, and
press the ends of the
straps onto the tabs.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise bike
rocks slightly on your
floor during use, turn
one or both of the
leveling feet under
the rear stabilizer
until the exercise bike
is level.
Leveling
Feet
Tab
Strap
13
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers ten preset workouts—five
weight loss workouts and five performance workouts. Each preset workout automatically changes the
resistance of the pedals as it guides you through an
effective workout.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 15. To use a
preset workout, see page 16. To use the sound
system, see page 17. To use the user mode, see
page 17.
Note: Before using the console, make sure that batteries are installed (see assembly step 9 on page 10).
If there is a sheet of plastic on the display, remove the
plastic.
14
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual
mode by pressing the Workouts increase or
decrease button repeatedly until a track appears in
the center display.
Track
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
The left display–This
display can show the
elapsed time and the
approximate number
of calories you have
burned. The display will
change modes every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout.
The left display will also show your heart rate when
you use the handgrip heart rate monitor (see step 5
on page 16).
The center
display–This display
will show the resistance
level of the pedals for
a few seconds each
time the resistance level
changes.
This display will also
show a track representing 1/4 mile (400 m). As
you exercise, indicators
will appear in succession around the track
until the entire track appears. The track will then
disappear and the indicators will again begin to
appear in succession.
The right display–This
display can show the
distance you have
pedaled in miles or
kilometers and your
pedaling pace in miles
per hour or kilometers per hour. The display will
change modes every few seconds.
15
Note: The console can show pedaling speed and
distance in either miles or kilometers. To change
the unit of measurement, see HOW TO USE THE
USER MODE on page 17.
5. Measure your heart rate if desired.
HOW TO USE A PRESET WORKOUT
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip
heart rate monitor with your palms resting against
the metal contacts. Avoid moving your hands or
gripping the contacts tightly.
When your pulse is detected, a heart-shaped
symbol will flash in the display and then your heart
rate will be shown. For the most accurate heart rate
reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
Contacts
1. Turn on the console.
See step 1 on page 15.
2. Select a preset workout.
To select a preset workout, press the Workouts
increase or decrease button repeatedly until the
number of the desired workout appears in the right
display.
When you select a preset workout, the duration of
the workout will appear in the left display, the maximum resistance level for the workout will flash in
the center display, and the number of the workout
will appear in the right display.
After a few seconds, a profile of the resistance
levels of the workout will scroll across the center
display.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press the
Fan button repeatedly to select a fan speed or to
turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Profile
Note: Complete profiles of the preset workouts are
printed on the sides of the console.
3. Begin pedaling to start the workout.
Each workout is divided into several one-minute
segments. One resistance level is programmed for
each segment. Note: The same resistance level
may be programmed for consecutive segments.
16
During the workout, the workout profile will show
your progress (see the drawing on page 16).
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the resistance level for
the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level is programmed for the next segment,
the resistance level will flash in the display for a
few seconds to alert you. The resistance of the
pedals will then change.
If the resistance level for the current segment is too
high or too low, you can manually override the setting by pressing the Resistance buttons. However,
when the current segment ends, the pedals will
automatically adjust to the resistance level for the
next segment.
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment
of the profile flashes and the last segment of the
workout ends.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug your audio
cable into the jack on the console and into a jack on
your MP3 player or CD player; make sure that your
audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player.
THE USER MODE
The console features a user mode that allows you to
select a unit of measurement for the console and to
view console usage information.
To select the user mode, press and hold down the Fan
button for a few seconds until the user mode information appears in the display.
The console can show pedaling speed and distance in
either miles or kilometers.
Note: If you continue to pedal after the workout is
completed, the display will continue to show exercise feedback; however, the display will not show
the elapsed time until you select the manual mode
or a new workout.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
The center display will show the selected unit of measurement. An E for English miles or an M for metric
kilometers will appear in the display. To change the
unit of measurement, press the Resistance increase
button repeatedly.
Note: When you replace the batteries, it may be necessary to reselect the unit of measurement.
The left display will show the total number of hours that
the console has been used since the exercise bike was
purchased. The right display will show the total distance that the exercise bike has been pedaled.
To exit the user mode, press the Fan button.
17
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandthereceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
18
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise bike regularly. Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, see assembly step
9 on page 10 for battery replacement instructions.
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 16.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, you must remove the seat
post, the adjustment knob, and the top shield (see the
instructions below).
Locate the Reed Switch (21). Turn the Pulley (13) until
a Pulley Magnet (16) is aligned with the Reed Switch.
Loosen, but do not remove, the indicated M4 x 16mm
Screw (40). Slide the Reed Switch slightly closer to or
away from the Magnet, and then retighten the Screw.
13
16
40
Turn the Pulley (13) for a moment. If necessary, repeat
the step above until the console displays correct
feedback.
21
To remove the Seat Post (5), loosen the Adjustment
Knob (11) a few turns, pull the Adjustment Knob
outward, and remove the Seat Post. Then, using an
adjustable wrench, remove the Adjustment Knob.
9
11
5
Using a flat screwdriver, release the tabs along the bottom edge of the Top Shield (9) and slide the Top Shield
upward.
When the reed switch is correctly adjusted, reattach
the shield cover, the adjustment knob, and the seat
post.
HOW TO LEVEL THE EXERCISE BIKE
If the exercise
bike rocks
slightly on your
floor during use,
turn one or both
of the leveling
feet until the
exercise bike is
level.
Leveling
Feet
19
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted.
To adjust the drive belt, you must remove the seat
post, the adjustment knob, the top shield, the right
pedal, and the right shield (see the instructions below).
To remove the Seat Post (5), loosen the Adjustment
Knob (11) a few turns, pull the Adjustment Knob
outward, and remove the Seat Post. Then, using an
adjustable wrench, remove the Adjustment Knob.
11
5
9
Remove all the screws from the left and right shields;
there are two sizes of screws in the shields—note
which size of screw you remove from each hole.
Then, gently pull the right shield away from the frame.
Loosen the M6 x 20mm Hex Screw (46). Then, tighten
the M10 x 50mm Hex Screw (33) until the Drive Belt
(23) is tight.
23
46
33
26
Using a flat screwdriver, release the tabs along the bottom edge of the Top Shield (9) and slide the Top Shield
upward. Then, using an adjustable wrench, turn the
Right Pedal (26) counterclockwise and remove it.
When the Drive Belt (23) is tight, tighten the M6 x
20mm Hex Screw (46).
Then, reattach the left and right shields, the right pedal,
the top shield, the adjustment knob, and the seat post.
20
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise —never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
21
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. PFEX71911.1 R0812A
1 1 Frame
2 1 Front Stabilizer
3 1 Upright
4 2 Stabilizer Cap
5 1 Seat Post
6 1 Console
7 1 Flywheel
8 2 M10 Washer
9 1 Top Shield
10 2 Access Disc
11 1 Adjustment Knob
12 1 Seat
13 1 Pulley/Crank
14 1 Rear Stabilizer
15 2 Wheel
16 2 Pulley Magnet
17 1 Left Shield
18 1 Right Shield
19 1 Handlebar Cover
20 1 Seat Post Bushing
21 1 Reed Switch/Wire
22 1 Clamp
23 1 Drive Belt
24 1 Left Pedal/Strap
25 1 Idler
26 1 Right Pedal/Strap
27 1 Crank Bearing Set
28 1 Left Pulse Wire
29 1 Resistance Motor
30 2 M4 x 19mm Screw
31 1 Lower Wire
32 1 Upper Wire
33 1 M10 x 50mm Hex Screw
34 2 M4 x 25mm Screw
35 4 M8 x 18mm Screw
36 4 M10 x 75mm Screw
37 8 M8 Locknut
38 2 M4 x 22mm Screw
39 2 M10 Flange Nut
40 13 M4 x 16mm Screw
41 4 M4 x 12mm Screw
42 1 Right Pulse Wire
43 2 Leveling Foot
44 1 M4 x 13mm Screw
45 2 Contact
46 1 M6 x 20mm Hex Screw
47 1 Left Handlebar
48 1 Right Handlebar
49 1 Water Bottle Holder
50 1 M6 Washer
51 2 Handlebar Cap
52 1 M6 x 15mm Shoulder Screw
53 4 M8 x 38mm Bolt
* – User’s Manual
* – Assembly Tool
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
22
EXPLODED DRAWING
Model No. PFEX71911.1 R0812A
24
12
23
37
28
37
51
45
5
37
21
30
47
53
49
38
9
35
20
11
6
40
19
40
3
40
45
53
35
37
15
51
30
42
48
32
10
40
27
39
8
31
4
43
36
7
14
40
25
8
39
33
43
22
1
16
41
50
44
46
52
4
27
16
29
34
2
13
34
36
15
26
40
10
40
17
18
40
40
40
23
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)
•thenameoftheproduct(seethefrontcoverofthismanual)
•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. Parts and labor are warranted for ninety (90) days from
the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
oriftheproductisusedforcommercialorrentalpurposes.Nootherwarrantybeyondthatspecicallyset
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromstatetostate.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 338279 R0812A Printed in China © 2012 ICON IP, Inc.
Loading...
