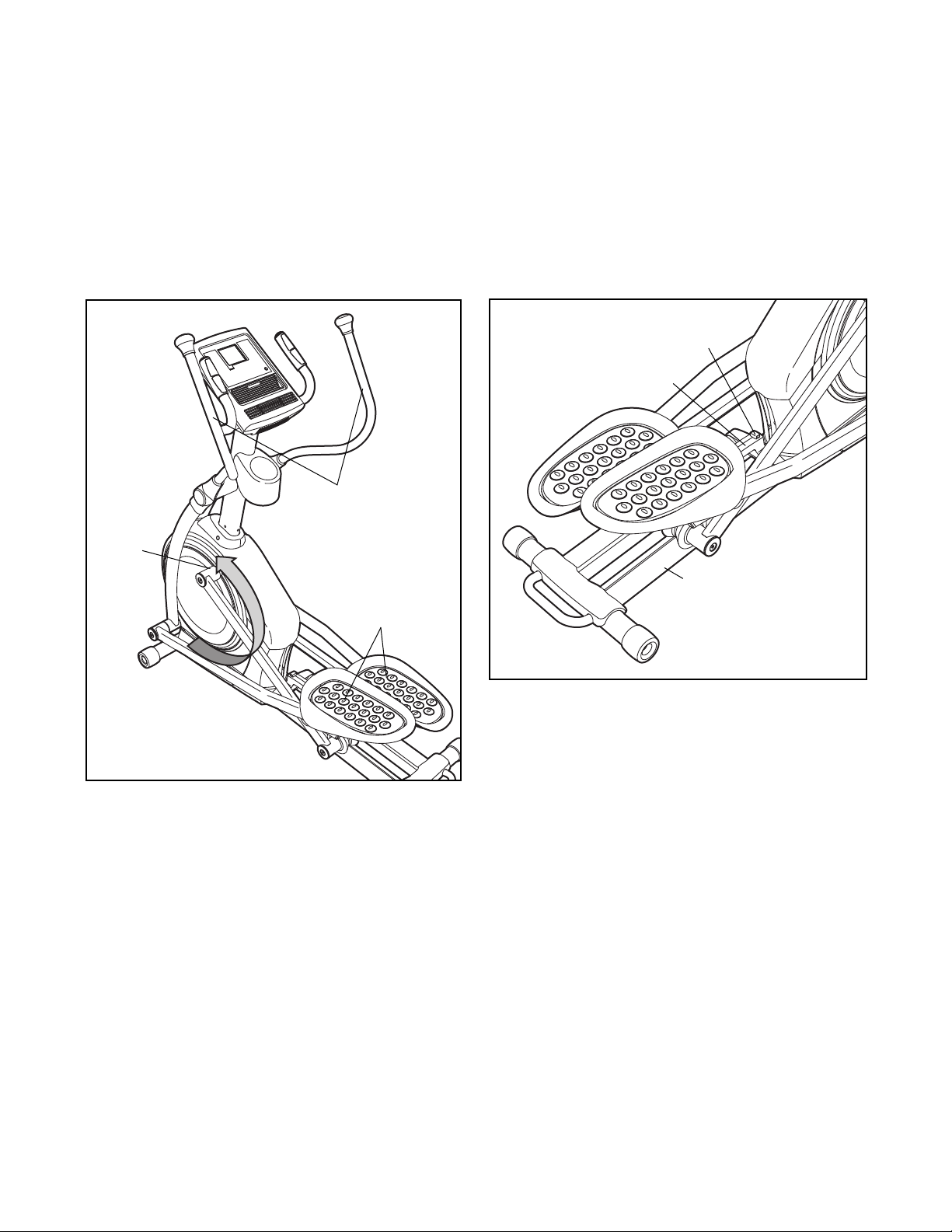

WARNING DECAL PLACEMENT

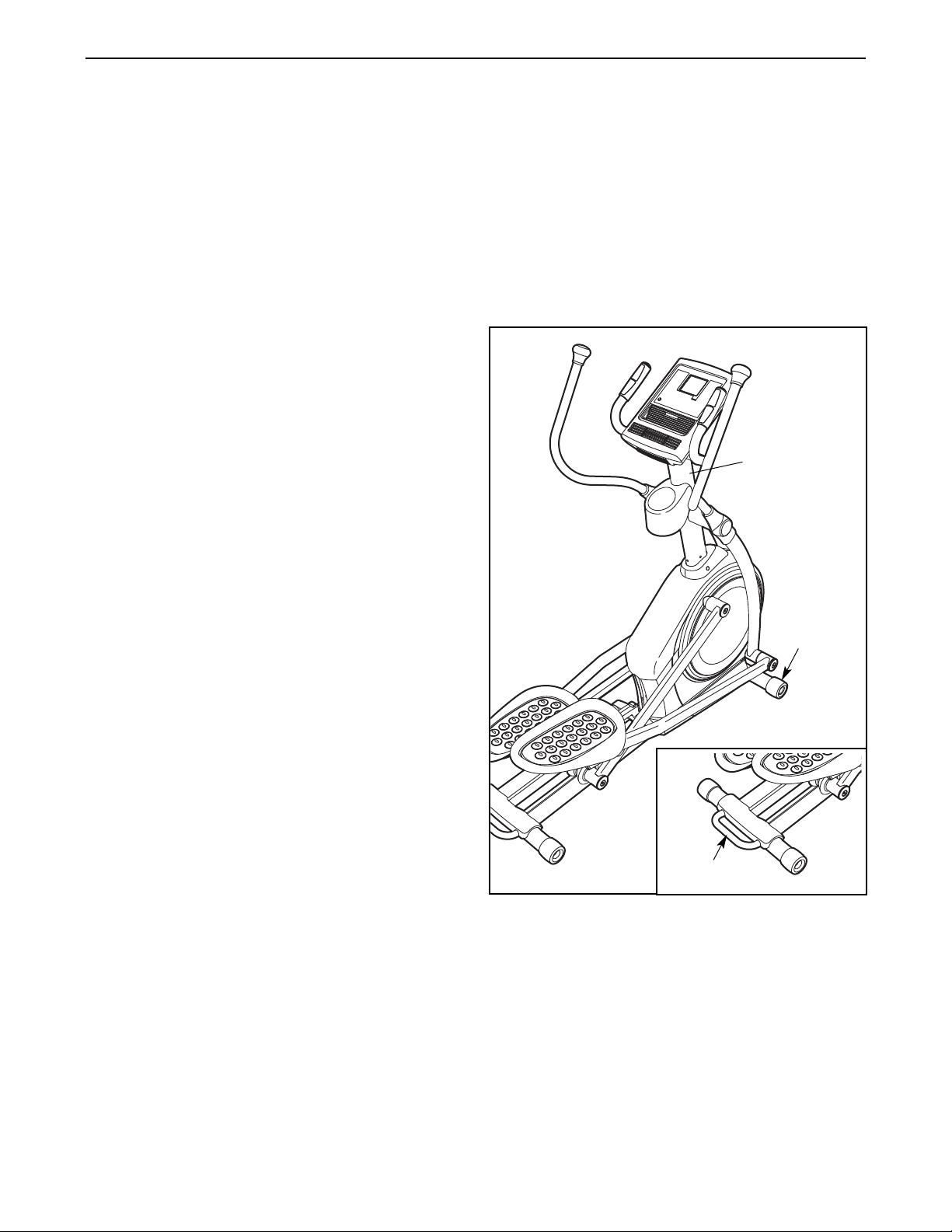

This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is at least 3 ft. (0.9 m)
of clearance in the front and rear of your
elliptical exerciser and 2 ft. (0.6 m) on each
side.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 275 lbs.
(125 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the upper body arms or the handlebars
when mounting, dismounting, or using your
elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
14. Use your elliptical exerciser only as
described in this manual.
3
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®785 F
lliptical exerciser. The 785 F elliptical exerciser pro-
e
vides a wide array of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
Console
Water Bottle Holder*
cover of this manual. To help us assist you, note the
roduct model number and serial number before con-
p
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Upper Body Arm
Ramp Handle
Pedal
Ramp
Handle
Wheel
Roller
*Water bottle is not included
4
ASSEMBLY
M8 x 38mm
Bolt (96)–8
M8 Locknut
(102)–8
19mm Wave
Washer (66)–4
16mm Wave
Washer (54)–2
M8 x 25mm
Washer (98)–6
M4 x 16mm
Screw (104)–10
M8 x 19mm Patch
Screw (82)–15
M8 Split
Washer (83)–9
M10 Locknut
(92)–2
M10 Washer
(95)–2
M8 x 80mm Patch
Screw (84)–2
M10 x 60mm
Bolt (100)–2
M10 x 45mm Patch
Screw (99)–4
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The
number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware
kit, check to see if it has been preassembled.
5
1.
To make assembly easier, read the
nformation on page 5 before you begin.
i
ttach the Front Stabilizer (6) to the Frame (1)
A
with two M8 x 80mm Patch Screws (84).
1
6
1
84
2. Orient the Ramp (3) as shown. Then, insert the
Ramp into the Frame (1).
Attach the Ramp (3) with five M8 x 19mm Patch
Screws (82) and five M8 Split Washers (83).
3. While a second person holds the Upright (4)
near the Frame (1), connect the Upper Wire
Harness (110) to the Lower Wire Harness (111).
Tip: Avoid pinching the wires. Slide the
Upright (4) onto the Frame (1). Attach the
Upright with four M8 x 19mm Patch Screws (82)
and four M8 Split Washers (83). Do not tighten
the Patch Screws yet.
2
82
83
1
3
83
82
3
Avoid pinching
the wires
4
82
83
82
83
82
1
82
83
110
111
6
4. Apply a small amount of the included grease to
the right Crank Arm (20) and to a 19mm Wave
Washer (66).
4
Orient a Crank Arm Spacer (55) so that the flat
nd is facing away from the elliptical exerciser.
e
Slide the Crank Arm Spacer and the 19mm
Wave Washer (66) onto the right Crank Arm
(20).
Identify the Right Roller Arm (59), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the Right Roller Arm (59) onto the right
Crank Arm (20). Attach the Right Roller Arm
with an M8 x 19mm Patch Screw (82), an Axle
Cover (53), and an M8 x 25mm Washer (98); to
avoid breaking the Axle Cover, do not overtighten the Patch Screw.
Repeat this step for the Left Roller Arm (not
shown).
5. Identify the Right Pedal Bracket (64), which is
marked with a “Right” sticker.
5
5
Grease
66
59
98
53
82
20
Flat
End
5
Apply a small amount of grease to the inside of
the tube on the Right Roller Arm (59) and to the
barrel of an M10 x 60mm Bolt (100).
Attach the Right Pedal Bracket (64) to the Right
Roller Arm (59) with the M10 x 60mm Bolt
(100), an M10 Washer (95), and an M10
Locknut (92). Do not overtighten the Locknut;
the Right Pedal Bracket must pivot freely.
Repeat this step for the Left Pedal Bracket
(48).
48
92
95
64
100
Grease
59
7

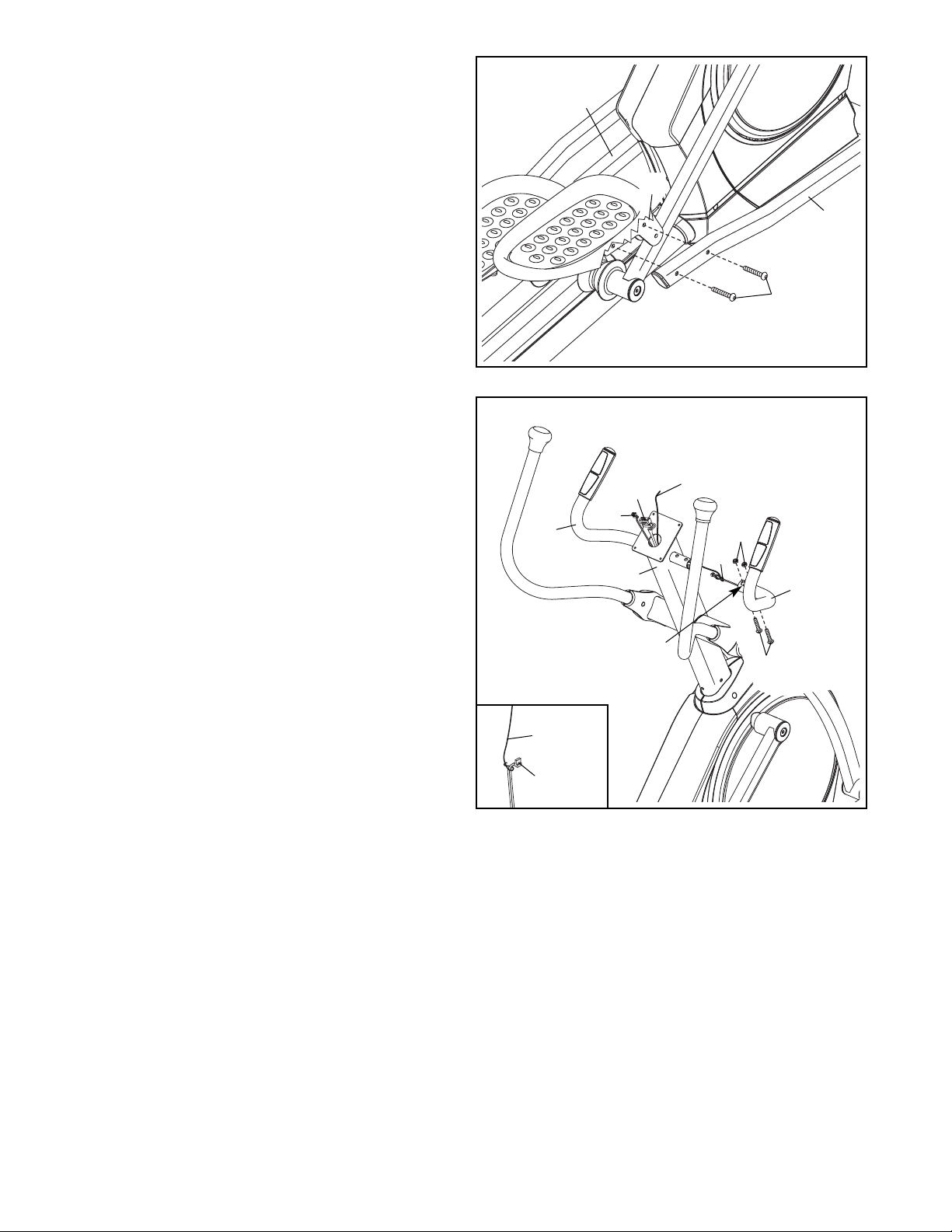

6. Identify the Right Upper Body Arm (61) and the
Right Upper Body Leg (60), which are marked
with “Right” stickers, and orient them as shown.
ake sure that the hexagonal holes are in
M
the indicated location.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (not shown) and the Left Upper Body
Leg (not shown).
6
61
102
Hexagonal
Holes
96
60
7. Apply a small amount of grease to the Pivot
Axle (35) and to a 16mm Wave Washer (54).
Insert the Pivot Axle (35) through the Upright (4)
and then center it.
Slide the 16mm Wave Washer (54), an Inner
Leg Cover (68), and the Right Upper Body Leg
(60) onto the right side of the Pivot Axle (35).
Repeat this step for the Left Upper Body Leg
(not shown).
Tighten an M8 x 19mm Patch Screw (82) and
an M8 x 25mm Washer (98) into each end of
the Pivot Axle (35).
7
4
Grease
35
54
68
60
98
82
8
8. Attach an Outer Leg Cover (67) and the Inner
Leg Cover (68) around the Right Upper Body
Leg (60) with two M4 x 16mm Screws (104).
Repeat this step for the other side of the
lliptical exerciser.
e
8
104
9. Apply a small amount of grease to the axle on
the Right Upper Body Leg (60) and to a 19mm
Wave Washer (66).
Identify the Right Pedal Arm (58), which is
marked with a “Right” sticker, and orient it as
shown.
Slide the 19mm Wave Washer (66) and the
Right Pedal Arm (58) onto the Right Upper
Body Leg (60).
Attach the Right Pedal Arm (58) with an M8 x
19mm Patch Screw (82), an Axle Cover (53),
and an M8 x 25mm Washer (98); to avoid
breaking the Axle Cover, do not overtighten
the Patch Screw.
66
60
98
67
53
82
104
68
9
Grease
60
Repeat this step for the Left Pedal Arm (not
shown).
58
9
