USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. PFEL3905.2
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if parts are missing, PLEASE DO
NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

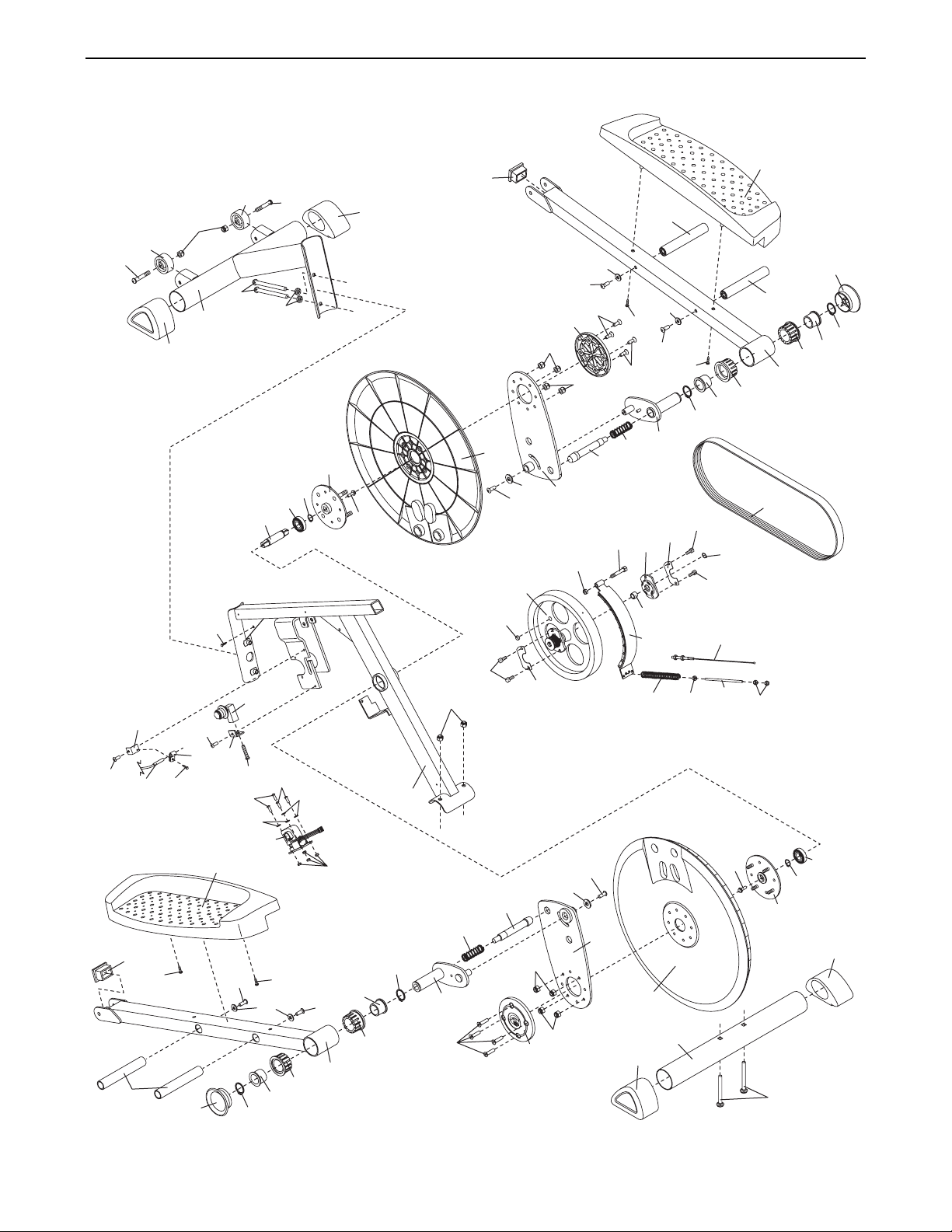

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The warning decal shown here has been applied
in the location shown. If a decal is missing or
illegible, call the telephone number on the
front cover of this manual and request a free
replacement decal. Apply the decal in the
location shown. Note: The decal may not be
shown at actual size.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the handlebars when mounting, dismounting, or using
your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
4
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
®
STRIDE SELECT 825 elliptical exerciser. The STRIDE
SELECT 825 is an incredibly smooth exerciser that
moves your feet in a natural elliptical path, minimizing
the impact on your knees and ankles. And the unique
STRIDE SELECT 825 offers an impressive array of
features to help you achieve your fitness goals in the
convenience of your home.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before contacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
Pedal Disk
Wheel
Pedal
Console
Water Bottle Holder*
Fan
Adjustment Knob
*No water bottle is included
5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M4 x 16mm
Screw (66)–8
M8 Jamnut
(80)–4
M8 x 25mm Patch
Screw (22)–2
M4 x 22mm
Screw (76)–2
M8 Nylon
Locknut (46)–6
M8 x 45mm Button
M8 Split
Washer (83)–2
M10 Nylon
Locknut (29)–2
Bolt (50)–4
M10 Split
Washer (94)–2
Cover Screw
M8 x 70mm Button Bolt (67)–2
(82)–4
M8 Washer
(53)–6
Wave Washer
(91)–2
M8 x 16mm Button
Screw (84)–4
M10 x 59mm Bolt Set (27)–2
M10 x 83mm Button Screw (63)–2
M10 x 75mm Carriage Bolt (34)–2
6
1.
Identify the Rear Stabilizer (4). While another person lifts the rear of the Frame (1), attach the Rear
Stabilizer to the Frame with two M10 x 75mm
Carriage Bolts (34) and two M10 Nylon Locknuts
(29).
4
34
29
29
1
2. See the inset drawing. Remove the two M10 x
45mm Button Bolts (33) and the packing tubes from
the front of the Frame (1). Next, remove the rubber
band from the Lower Wire Harness (87). Discard
the Button Bolts, the packing tubes, and the rubber
band.
Press the two Stabilizer Endcaps (35) onto the
Front Stabilizer (3). Orient the Stabilizer Endcaps as
shown.
35
3
35
1
33
2
Packing Tube
Packing
Tube
1
87
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
7
3. Slide an M10 Split Washer (94) onto each of the
two M10 x 83mm Button Screws (63). Insert the
Button Screws into the Front Stabilizer (3). Next,
slide the Mast (15) onto the Button Screws and
against the Front Stabilizer. Make sure that the
Mast is oriented as shown.
While another person holds the Mast (15) and the
Front Stabilizer (3) near the Frame (1), connect the
Extension Wire Harness (95) to the Lower Wire
Harness (87). Insert the connectors on the Wire
Harnesses into the Mast.
While the other person lifts the front of the Frame
(1), carefully pull the upper end of the Extension
Wire Harness (95) to remove any slack. While
holding the upper end of the Extension Wire
Harness, attach the Mast (15) and the Front
Stabilizer (3) to the Frame with the two M10 x
83mm Button Screws (63). Do not tighten the
Button Screws yet.
Avoid pinching the Wire Harnesses (87, 95) during this step.
94
3
1
63
3
15
95
87
Pull
Avoid pinching the
wire harnesses
during this step
4
2
46
67
15
83
83
95
86
76
72
Hexagonal
Holes
4. While another person holds the Upright (2) in the
position shown, connect the Upper Wire Harness
(86) to the Extension Wire Harness (95).
Next, insert the Upright (2) into the Mast (15); make
sure that the Upright is oriented as shown.
Attach the Upright with two M8 x 70mm Button Bolts
(67), two M8 Split Washers (83), and two M8 Nylon
Locknuts (46). Make sure that the Wire
Harnesses (86, 95) do not get pinched and damaged during this step. Do not tighten the Button
Bolts yet.
Attach the Water Bottle Holder (72) to the Upright
(2) with two M4 x 22mm Screws (76).
Avoid pinching the
wire harnesses
during this step
8
6. While another person holds the Console (5) near
the Upright (2), connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness down into the Upright. Next,
attach the Console to the Upright with four M4 x
16mm Screws (66). Be careful to avoid pinching
the wire harnesses.
5
86
66
66
2
Wire
Harness
6
Avoid pinching the
wire harnesses
during this step
5. The Console (5) requires four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the elliptical exerciser has been
exposed to cold temperatures, allow it to warm
to room temperature before inserting batteries
into the Console. If you do not do this, the console displays or other electronic components
may become damaged. Press the tab on the bat-
tery door and remove the battery door. Insert four
batteries into the Console as shown. Make sure
that the batteries are oriented as shown by the
markings on the battery door. Reattach the bat-
tery door.
5
5
Batteries
Batteries
Battery
Cover
7. Slide the Right Crank Arm (38) onto the four indicated welded bolts; make sure that the Right Crank
Arm is in the indicated cutout in the Pedal Disk
(8). Next, finger tighten four M8 Jamnuts (80) onto
the welded bolts. Then, fully tighten one of the
Jamnuts, and then tighten the Jamnut farthest from
the first Jamnut. Then, tighten the remaining two
Jamnuts.
Attach a Hub Cover (48) to the Right Crank Arm
(38) with four Cover Screws (82). Then, tighten an
Adjustment Knob (45) onto the right Adjustment Pin
(17).
7
38
Cutout
82
48
80
Welded
Bolts
8
80
45
17
9

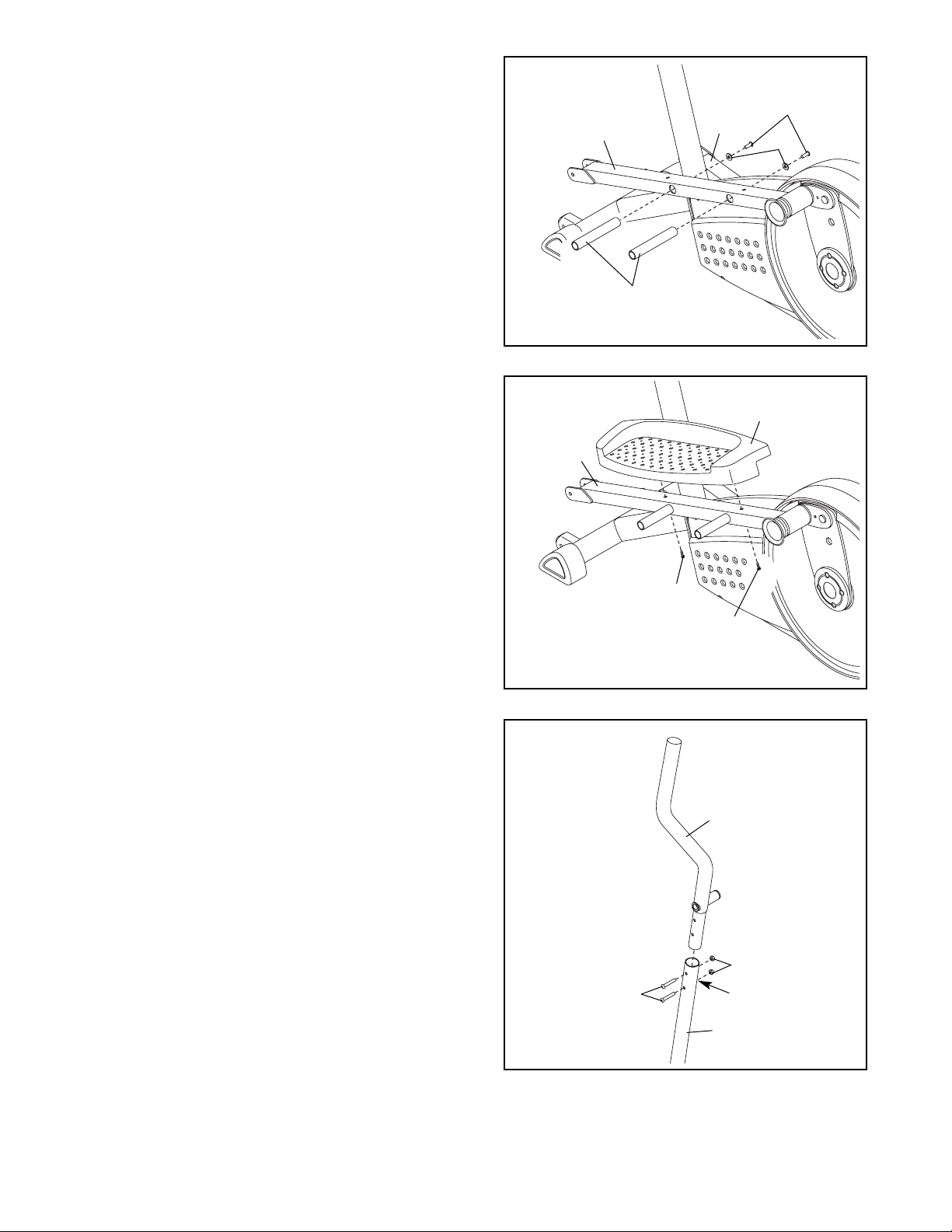

9. Attach one of the Pedals (12) to the Left Pedal Arm
(14) with two M4 x 16mm Screws (66).
Attach the other Pedal (not shown) to the Right
Pedal Arm (not shown) in the same way.
14
12
66
66
9
8. Attach two Pedal Posts (16) to the Left Pedal Arm
(14) with two M8 x 16mm Button Screws (84) and
two M8 Washers (53).
Attach the other Pedal Posts (not shown) to the
Right Pedal Arm (75) in the same way.
8
16
14
84
53
75
10. Identify the Left Handlebar (9), which is marked with
a sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79);
make sure that the
Handlebar Leg is turned so the hexagonal holes
are on the indicated side. Attach the Left
Handlebar with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (46). Make sure that
the Nylon Locknuts are inside of the hexagonal
holes. Do not tighten the Button Bolts yet.
Assemble the Right Handlebar (not shown) and the
other Handlebar Leg (not shown) in the same way.
46
10
9
50
Hexagonal
Holes
79
10
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12
14
12. Apply a small amount of grease to an M10 x 59mm
Bolt Set (27) and to the surfaces of the Leg
Bushings (28) in the left Handlebar Leg (79). Attach
the left Handlebar Leg to the Left Pedal Arm (14)
with the Bolt Set. Do not overtighten the Bolt Set;
the left Handlebar Leg must be able to pivot
freely.
Attach the right Handlebar Leg (79) to the Right
Pedal Arm (75) in the same way.
See step 3. Tighten the two M10 x 83mm Button
Screws (63). See step 4. Tighten the two M8 x
70mm Button Bolts (67). See step 10. Tighten the
M8 x 45mm Button Bolts (50) in the Handlebar
Legs (79).
27
79
79
75
28
28
27
Grease
Grease
11. Apply a generous amount of the included grease to
the Pivot Axle (81) and to the two M8 Washers (53).
Next, insert the Pivot Axle into the Upright (2) and
center it. Reapply grease to both ends of the Pivot
Axle.
Slide a Handlebar Spacer (25) onto the short tube on
the Left Handlebar (9), and rotate the Handlebar
Spacer so the small arrow is pointing toward the
floor. Next, slide the Left Handlebar onto the left end
of the Pivot Axle (81). Finger tighten an M8 x 25mm
Patch Screw (22) with an M8 Washer (53) and a
Wave Washer (91) into the end of the Pivot Axle.
Then, press the small tabs on a Handlebar Cap (23)
into the Handlebar Spacer.
Assemble the Right Handlebar (10) in the same way.
Make sure that both Wave Washers (91) are on the
Pivot Axle (81), and then tighten both M8 x 25mm
Patch Screws (22) at the same time.
Grease
Grease
Grease
Tube
Arrow
11
81
25
9
2
23
22
53
91
10
Tube
25
Arrow
23
91
53
22
11
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handgrip
pulse sensor and step onto the pedal that is in the
lowest position. Next, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedal discs can turn in either
direction. It is recommended that you move the
pedal discs in the direction shown by the arrow
below; however, for variety, you can turn the pedal
discs in the opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
HOW TO USE THE HANDLEBARS
The handlebars are
designed to add
upper-body exercise to your workouts. Push and pull
the handlebars as
you exercise to
work your arms,
shoulders, and
back.
To exercise only your lower body, hold the handgrip
pulse sensor as you exercise.
HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL EXERCISER
To adjust the stride of the elliptical exerciser, first pull
one of the adjustment knobs until the adjustment
bracket can be pivoted freely. Then, pivot the adjustment bracket until the adjustment knob is aligned with
either of the two holes in the crank arm, and gently
release the knob. Pivot the adjustment bracket back
and forth slightly to make sure that the adjustment pin
is engaged in one of the holes. Adjust the other side of
the elliptical exerciser in the same way.
Pedals
Pedal
Disc
Handlebars
Pulse Sensor
Handlebars
Handgrip
Pulse
Sensor
Adjustment
Bracket
Adjustment
Knob
Pin
Crank
Arm
Holes
12
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more effective. When
the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of
a button. As you pedal, the console will provide continuous exercise feedback. You can even measure your
heart rate using the built-in handgrip pulse sensor.
In addition, the console features two pulse programs
that change the resistance of the pedals and help you
to maintain a steady pedaling pace to keep your heart
rate near a target heart rate setting while you exercise.
The console also offers four preset programs. Each
program automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
To use the manual mode of the console, see the
instructions at the right. To use a pulse program, see
page 14. To use a preset program, see page 15.
Before using the console, make sure that batteries are
installed (see assembly step 5 on page 8). If there is a
sheet of clear plastic on the display, remove the plastic.
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the Increase button
or begin pedaling. The pace guide will light for a
moment; the console will then be ready for use.
2. Select the manual mode.
When the power is turned on, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing the
Program button repeatedly until no program indicators (see the drawing above) appear along the
left side of the display.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the pedals
by pressing the
Increase and
Decrease buttons.
There are ten resistance levels. Note: After the buttons are pressed, it
will take a moment for the pedals to reach the
selected resistance level.
Fan
Button
Increase
Button
Program Button
Program
Indicator
Display
Pace
Guide
Decrease
Button
Program
Profiles
DIAGRAM OF THE CONSOLE
13
4. Monitor your progress with the display.
The upper half of
the display will show
the elapsed time,
the distance (total
revolutions) you
have pedaled, and
the resistance level
of the pedals. The display will change from one
mode to the next every few seconds. Note: When
a program is selected (except for pulse program
2), the display will show the time remaining in the
program instead of the elapsed time.
The lower half of the
display will show
your pedaling speed
(revolutions per
minute [RPM]) and
the approximate
number of calories
you have burned. The display will change from
one mode to the other every few seconds. The
lower half of the display will also show your heart
rate when you use the handgrip pulse sensor (see
step 5).
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plastic.
Next, hold the handgrip pulse sensor
with your palms
resting on the contacts. When your pulse is detected, the heart-shaped indicator in the lower half of
the display will flash each time your heart beats,
and your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrip pulse sensor for about 30
seconds. Note: If you continue to hold the handgrip pulse sensor, the display will show your heart
rate for about 30 seconds. The display will then
show your heart rate along with the other modes.
If your heart rate is not shown, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance, periodically clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals.
6. Turn on the fan if desired.
To turn on the fan at low speed, press the fan button. To turn on the fan at high speed, press the fan
button a second time. To turn off the fan, press the
fan button a third time. Note: If the fan is turned on
but the pedals are not moved for thirty seconds,
the fan will automatically turn off to conserve the
batteries.
Rotate the thumb
tab on the right side
of the fan to adjust
the angle of the fan.
7. When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved for a few seconds, the
time will begin to flash and the console will pause.
If the pedals are not moved for a few minutes, the
console will turn off and the display will be reset.
Contacts
Thumb
Ta b
14
HOW TO USE A PULSE PROGRAM
Pulse program 1 is designed to keep your heart rate
within a set range during your workout. Pulse program
2 is designed to keep your heart rate near a target
heart rate setting that you select.
Follow the steps below to use a pulse program.
1. Turn on the console.
See step 1 on page 12.
2. Select a pulse program.
To select pulse program 1 or 2, press
the Program button
repeatedly until the
number 1 or 2
appears along the
left side of the display.
3. Enter a target heart rate.
If pulse program 1 is selected, the maximum tar-
get heart rate setting for the program will flash in
the display (see the drawing above). Press the
Increase and Decrease buttons to change the setting, if desired (see EXERCISE INTENSITY on
page 17). If the maximum target heart rate setting
is increased or decreased, the intensity level of the
entire program will increase or decrease.
If pulse program 2 is selected, the target heart
rate setting for the entire program will flash in the
display. Press the Increase and Decrease buttons
to change the setting, if desired (see EXERCISE
INTENSITY on page 17).
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sensor continuously during a pulse program; however,
you must hold the handgrip pulse sensor frequently. Each time you hold the handgrip pulse sen-
sor, keep your hands on the metal contacts for
at least 30 seconds. Note: When you are not
holding the handgrip pulse sensor, the letters PLS
will appear in the display instead of your heart
rate.
5. Begin pedaling to start the program.
Pulse program 1 is 30 minutes long, and is divid-
ed into several time periods of different lengths.
One target heart rate is programmed for each period. Pulse program 2 is sixty minutes long (you
may choose to use only part of the program). The
same target heart rate is programmed for the
entire program.
During the program, the console will regularly
compare your heart rate to the target heart rate
setting. If your heart rate is too far below or above
the target heart rate setting, the resistance of the
pedals will automatically increase or decrease to
being your heart rate closer to the target heart rate
setting. Note: If the resistance level is too high or
too low, you can override it by pressing the
Increase and Decrease buttons. However, when
the console compares your heart rate to the target
heart rate setting, the resistance may automatically change.
After the first minute of the program, the pace
guide will help you to maintain a steady pedaling
pace. When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current pace.
IMPORTANT: The pace guide is intended only
to provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The display will show the time remaining in pulse
program 1, or the elapsed time in pulse program
2. If you stop pedaling for a few seconds, the program will pause and the time will flash in the display. To restart the program, simply resume pedaling.
6. Monitor your progress with the display.
See step 4 on page 13.
15
7. Turn on the fan if desired.
See step 6 on page 13.
8. When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.
HOW TO USE A PRESET PROGRAM
Preset programs 3, 4, 5, and 6 automatically change
the resistance of the pedals and prompt you to
increase or decrease your pedaling pace as they
guide you through effective workouts. The profiles
printed on the left side of the display show how the
resistance level and the target pace will change during
the preset programs.
Follow the steps below to use a preset program.
1. Turn on the console.
See step 1 on page 12.
2. Select a preset program.
To select preset program 3, 4, 5, or 6,
press the Program
button repeatedly
until the number 3,
4, 5, or 6 appears
along the left side of
the display. When a
preset program is selected, the display will show
how long the program will last.
3. Begin pedaling to start the program.
Each preset program consists of several time periods of different lengths. One resistance level and
one target pace are programmed for each period.
At the end of each period of the program, the
resistance level will flash in the display for a few
seconds. The resistance of the pedals will then
automatically change to the resistance level that is
programmed for the next period. Note: If the resistance level is too high or too low, you can override
it by pressing the Increase and Decrease buttons.
However, when the current period ends, the resistance level will automatically change if a different
resistance level is programmed for the next period.
During the program, the pace guide will prompt
you to increase or decrease your pedaling pace.
When one of the two lower indicators lights,
increase your pace; when one of the two upper
indicators lights, decrease your pace. When the
center indicator lights, maintain your current pace.
IMPORTANT: The pace guide is intended only
to provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The display will show the time remaining in the
program. If you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
4. Monitor your progress with the display.
See step 4 on page 13.
5. Measure your heart rate if desired.
See step 5 on page 13.
6. Turn on the fan if desired.
See step 6 on page 13.
7. When you are finished exercising, the console
will automatically turn off.
See step 7 on page 13.
16
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 5 on page 8
for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts can
be cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
MAINTENANCE AND TROUBLESHOOTING
17
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses
carbohydrate calories
for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories
for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
18
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
19
NOTES
20
NOTES
21
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
1 1 Frame
2 1 Upright
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Console
6 1 Left Side Shield
7 1 Right Side Shield
8 2 Pedal Disc
9 1 Left Handlebar
10 1 Right Handlebar
11 2 Foam Grip
12 2 Pedal
13 1 Upright Endcap
14 1 Left Pedal Arm
15 1 Mast
16 4 Pedal Post
17 2 Adjustment Pin
18 4 Pedal Arm Bushing
19 2 Adjustment Spring
20 2 Adjustment Bracket
21 2 Snap Ring
22 2 M8 x 25mm Patch Screw
23 2 Handlebar Cap
24 6 Handlebar Bushing
25 2 Handlebar Spacer
26 2 Upright Spacer
27 2 M10 x 59mm Bolt Set
28 4 Leg Bushing
29 4 M10 Nylon Locknut
30 1 Pillow Block
31 1 Idler
32 2 Wheel
33 2 M10 x 45mm Button Bolt
34 2 M10 x 75mm Carriage Bolt
35 4 Stabilizer Endcap
36 1 Left Crank Arm
37 1 Idler Bracket
38 1 Right Crank Arm
39 1 Crank
40 2 Crank Bearing
41 1 Flywheel
42 4 Large Snap Ring
43 1 Magnet
44 1 Flywheel Spacer
45 2 Adjustment Knob
46 7 M8 Nylon Locknut
47 2 Crank Screw
48 2 Hub Cover
49 1 M6 x 8mm Screw
50 4 M8 x 45mm Button Bolt
51 1 Return Spring
52 1 Magnet Guide
53 6 M8 Washer
54 1 “C” Magnet
55 1 Motor
56 1 Belt
57 2 Hub
58 1 Small Snap Ring
59 1 M5 x 40mm Screw
60 3 M6 Nut
61 4 M5 Nylon Locknut
62 4 M5 x 12mm Bolt
63 2 M10 x 83mm Button Screw
64 1 M8 x 41mm Bolt
65 2 Adjustment Bracket Screw
66 16 M4 x 16mm Screw
67 2 M8 x 70mm Button Bolt
68 4 Flywheel Screw
69 1 Reed Switch Clamp
70 1 Idler Screw
71 2 Handlebar Endcap
72 1 Water Bottle Holder
73 1 M6 x 16mm Screw
74 4 M4 x 38mm Screw
75 1 Right Pedal Arm
76 2 M4 x 22mm Screw
77 1 Reed Switch
78 1 Reed Switch Bracket
79 2 Handlebar Leg
80 8 M8 Jamnut
81 1 Pivot Axle
82 8 Cover Screw
83 2 M8 Split Washer
84 4 M8 x 16mm Button Screw
85 1 Resistance Cable
86 1 Upper Wire Harness
87 1 Lower Wire Harness
88 2 Pedal Arm Sleeve
89 2 M3 x 12mm Screw
90 4 Motor Washer
91 2 Wave Washer
92 2 Inner Pedal Arm Sleeve
93 2 M6 Washer
94 2 M10 Split Washer
95 1 Extension Wire Harness
96 2 Pedal Arm Endcap
97 2 Pillow Block Retainer
* – Hex Key
* – Grease
* – User’s Manual
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEL3905.2 R0208A
22
EXPLODED DRAWING A—Model No. PFEL3905.2 R0208A
71
66
66
74
5
74
23
22
53
91
6
13
66
72
89
24
25
46
76
28
27
15
66
24
83
83
26
67
66
71
2
24
81
46
9
25
24
24
46
26
89
95
87
10
23
91
22
53
24
50
79
27
28
27
50
79
28
27
86
11
66
74
59
7
74
66
23
EXPLODED DRAWING B—Model No. PFEL3905.2 R0208A
12
96
32
33
32
35
29
33
63
39
94
40
21
3
57
47
35
16
53
84
64
82
19
66
30
53
84
20
97
66
18
42
68
68
82
48
80
80
8
93
65
41
17
38
46
16
92
56
58
75
88
45
42
18
73
16
96
78
77
66
66
45
49
69
66
12
37
84
70
62
31
90
42
55
53
18
62
66
88
90
84
14
61
18
92
42
35
44
54
51
8
85
52
60
4
47
60
40
21
57
35
34
43
68
29
1
19
20
82
97
65
93
17
36
80
80
48
Part No. 235490 R0208A Printed in China © 2008 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Loading...
