Model No. PFCCEL3805.0
www.proform.com
Visit our website at
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
1-888-936-4266
Monday through Friday from 8:00
to 17:00 EST (excluding holidays).

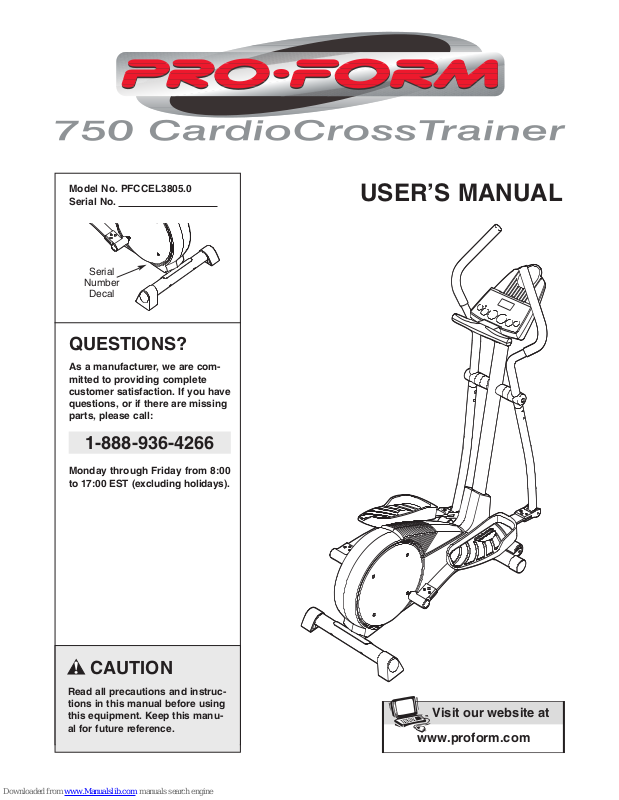

USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manu
al for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE
CONDITIONING GUIDELINES
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
. Read all instructions in this manual and all
1
warnings on the elliptical exerciser before
using the elliptical exerciser.
. Wear appropriate exercise clothes when
7
using the elliptical exerciser. Always wear
athletic shoes for foot protection.
2. It is the responsibility of the owner to
ensure that all users of the elliptical exerciser are adequately informed of all precautions.
3. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
4. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
5. Keep children under 12 and pets away from
the elliptical exerciser at all times.
6. The elliptical exerciser should not be used
by persons weighing more than 115 kg (250
lbs.).
8. Always hold the handgrip pulse sensor or
the handlebars when mounting, dismounting, or using the elliptical exerciser.
9. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
10. Keep your back straight when using the
elliptical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercising, stop immediately and cool down.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. The elliptical exerciser is intended for home
use only. Do not use the elliptical exerciser
in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
50 CARDIO CROSSTRAINER. The PROFORM 750
7
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. And the unique PROFORM
750 features adjustable resistance and a state-of-theart console to help you get the most from your
exercise.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
Bookrack
Handlebar
®
tions after reading this manual, please call the toll-free
elephone number on the front cover of this manual.
t
To help us assist you, please note the product model
number and serial number before calling. The model
number is PFCCEL3805.0. The serial number can be
found on a decal attached to the elliptical exerciser
(see the front cover of this manual for the location of
the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
Console
Handgrip Pulse Sensor
FRONT
Pedal
Wheel
Pedal Spring
BACK
Pedal Disk
LEFT SIDE
*No water bottle is included
4
ASSEMBLY
M4 x 16mm
Screw (52)–2
M10 x 27mm
Button Screw (67)–3
M10 Split
Washer (59)–7
M10 Nylon
Locknut (33)–6
M10 x 29mm
Carriage Bolt (28)–2
M10 Bolt Set (74)–2
Spring Bracket
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
M10 x 75mm Carriage
Bolt (34)–4
M10 x 76mm Button
Bolt (7)–2
M8 x 25mm Button
Screw (56)–2
Wave Washer
(79)–2
M10
Washer (65)–2
Handlebar
Washer (55)–2
ssembly requires two persons.Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
ncluded allen wrenches, assembly requires a phillips screwdriver , an adjustable
i
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity used in assembly.
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: Some small parts may have been
1.
Identify the Front Stabilizer (10). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 75mm Carriage
Bolts (34) and two M10 Nylon Locknuts (33). Make
sure that the Front Stabilizer is turned so the
Wheels (22) are not touching the floor
.
5
1
34
34
22
22
1
10
33
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (9) to the Frame with two
10 x 75mm Carriage Bolts (34) and two M10 Nylon
M
Locknuts (33).
2
3
3
1
33
9
4
3
3. While another person holds the Upright (2) in the position shown, connect the Extension Wire Harness (44)
to the Wire Harness (43). Carefully pull the upper
end of the Extension Wire Harness to remove any
slack. While holding the upper end of the
Extension Wire Harness,
Frame (1). Do not pinch the Wire Harnesses.
Attach the Upright (2) to the Frame (1) with two M10 x
76mm Button Bolts (7), two M10 Split Washers (59),
and two M10 Nylon Locknuts (33).
Nylon Locknuts yet.
4. Connect the wire harness on the Handgrip Pulse
Sensor (29) to the indicated wire harness on the
Console (23). Insert both wire harnesses into the opening in the bottom of the Console. Next, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the Console. Be careful not to pinch
the wire harnesses.
slide the Upright onto the
Do not tighten the
3
2
33
1
4
52
Bracket
23
Tube
Make sure the
Wire Harnesses
(44, 43) do not
get pinched and
damaged during
this step.
59
59
44
43
7
23
29
52
See the inset drawing. Align the holes in the bracket on
the Console (23) with the holes in the metal tube on
the Handgrip Pulse Sensor (29). Tighten two M4 x
16mm Screws (52) through the bracket into the tube as
shown.
The Console (23) requires four “D” batteries (not
5.
included); alkaline batteries are recommended. Press
the tab on the battery cover, and lift off the battery
cover. Insert four batteries into the battery compartment. Make sure that the batteries are oriented as
shown by the diagram inside the battery compart-
Reattach the battery cover.
ment.
Tube
29
Wire Harnesses
5
Battery
Cover
Batteries
Ta b
23
6
6. While another person holds the Console (23) in the
position shown, connect the wire harness on the
onsole to the Extension Wire Harness (44). Insert the
C
excess wire harness into the Upright (2).
Attach the Console (23) to the Upright (2) with three
M10 x 27mm Button Screws (67) and three M10 Split
Washers (59).
harnesses.
Snap the bookrack onto the Console (23) in the indicated location.
Be careful to avoid pinching the wire
6
3
2
7
6
59
67
Bookrack
Wire Harness
44
67
59
2
7. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5); make sure that the Handlebar
Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38).
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
Attach the Right Handlebar (8) to the other Handlebar
Leg (5) in the same way.
Apply a generous amount of the included grease to the
Pivot Axle (77) and to the two Handlebar Washers (55).
Next, insert the Pivot Axle into the Upright (2) and centre
it. Reapply grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (47) onto the short tube on
each Handlebar (6, 8), and rotate the Handlebar
Spacers so the small arrows are pointing toward the
floor. Next, slide the Handlebars onto the Pivot Axle (77).
Make sure that the Handlebars are on the correct
sides.
Make sure that the
7
Grease
56
46
6
50
79
55
Grease
Tube
47
77
Arrow
38
5
Hexagonal
Holes
8
2
Tighten an M8 x 25mm Button Screw (56) with a
Handlebar Washer (55) and a Wave Washer (79) into
each end of the Pivot
ashers are on the Pivot Axle.
W
Handlebar Caps (46) as shown, and press the small
tabs on the Handlebar Caps into the two Handlebar
Spacers (47).
8. Identify the left Pedal Spring (11), which is marked with
a sticker. Attach the Left Pedal (13) to the left Pedal
Spring with an M10 x 29mm Carriage Bolt (28), an M10
Split Washer (59), an M10 Washer (65), and a Pedal
Knob (27) as shown. Note: The Left Pedal can be
attached in any of five positions (see HOW TO
ADJUST
Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
THE PEDALS on page 9).
Axle (77). Make sure the W
ave
Next, orient the two
5
8
28
59
65
27
13
1
1
7
9. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide a Spring Spacer (63) onto the
ake sure that the Spring Spacer is turned so
xle; m
a
the flat side is facing the elliptical exerciser. Next,
lide the Left Rear Spring Bracket (12) on the left Pedal
s
Spring (11) onto the axle. Slide a Spring Bracket
Washer (35) onto an M10 x 27mm Patch Screw (40),
and tighten the Patch Screw into the axle.
Next, hold the lower end of the left Handlebar Leg (5)
inside of the Front Spring Bracket (73) on the left Pedal
Spring (11). Apply grease to an M10 Bolt Set (74).
Attach the Handlebar Leg to the Front Spring Bracket
with the Bolt Set.
the Handlebar Leg must pivot freely.
Attach the right Pedal Spring (not shown) to the right
side of the elliptical exerciser in the same way.
Tighten the two M10 x 76mm Button Bolts (7).
See step 7. Tighten the M8 x 45mm Button Bolts (50)
in the Handlebar Legs (5).
Do not overtighten the Bolt Set;
9
40
Grease
74
35
11
73
rease
G
12
16
63
2
7
5
74
11
10. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.
8
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO ADJUST THE PEDALS
The motion of
the elliptical
xerciser is
e
determined by
the position of
the pedals. To
adjust the pedals, first loosen
the pedal knobs
beneath the
pedals. Slide the
pedals forward
or backward to
one of the five
positions, and
then retighten
the knobs. Make
sure that both pedals are in the same position.
HOW TO USE THE HANDLEBARS
The handlebars
are designed to
add upper-body
exercise to your
workouts. As you
exercise, push
and pull the handlebars to work
your arms, shoulders, and back.
To exercise only
your lower body,
hold the handgrip
pulse sensor as
you exercise.
HOW TO MOVE THE ELLIPTICAL EXERCISER
Pedal
Pedal
Knob
Handlebars
Pedal
Spring
Handgrip
Pulse
Sensor
until it can be moved on the front wheels. Carefully
move the elliptical exerciser to the desired location
and then lower it. CAUTION: To decrease the possi-
bility of injury, bend your legs and keep your back
traight as you lift the rear stabilizer; make sure to
s
lift with your legs rather than your back.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the
elliptical crosstrainer, hold the
handgrip pulse
sensor and
step onto the
pedal that is in
the lowest
position. Then,
step onto the
other pedal.
Push the pedals until they
begin to move
with a continuous motion.
Note: The
pedal disks
can turn in
either direction. It is recommended that you move
the pedal disks in the direction shown by the
arrow; however, for variety, you may turn the pedal
disks in the opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Pedal Disk
Handgrip
Pulse Sensor
Pedals
Stand
behind the
elliptical
exerciser,
hold the
rear stabilizer firmly,
and lift the
elliptical
exerciser
Wheel
Rear
Stabilizer
9
A B C D
E
H
I
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the elliptical exerciser can
be adjusted with a touch of a button. As you exercise,
the console will provide continuous exercise feedback.
You can even measure your heart rate using the builtin handgrip pulse sensor.
The console also offers four Smart workout programs.
Each program automatically changes the resistance of
the elliptical exerciser and prompts you to increase or
decrease your pace as it guides you through an effective workout.
In addition, the console features two Heart Rate workout programs that automatically change the resistance
of the elliptical exerciser and prompt you to vary your
pace to keep your heart rate near a target heart rate
as you exercise.
F
G
L
K
J
The console also features iFIT.com interactive technology. Having iFIT.com interactive technology is like having a personal trainer in your home. Using a stereo
audio cable (available at electronics stores), you can
connect the elliptical exerciser to your home stereo,
portable stereo, computer, or VCR and play special
iFIT.com CD and video programs (iFIT.com CDs and
videocassettes are available separately). iFIT.com CD
and video programs automatically control the resistance of the pedals and prompt you to vary your pace
as a personal trainer coaches you through every step
of your workout. High-energy music provides added
motivation.
settes, call the toll-free telephone number on the
front cover of this manual.
With the elliptical exerciser connected to your computer, you can also go to our Web site at www.iFIT.com
and access programs directly from the internet.
Explore www.iFIT.com for more information.
To purchase iFIT.com CDs and videocas-
10
CONSOLE DESCRIPTION
ee the drawing on page 10. Note: If there is a thin
S
sheet of clear plastic on the face of the console,
emove it.
r
resistance level, calories, fat calories, or heart rate)
is currently shown. Note: When the distance is
hown, the word Miles or the letters Kms will
s
appear; when your speed is shown, the letters
PH or Km/H will appear.
M
A. Exercise feedback display—This display features
seven modes that give you instant exercise feedback: your current speed, the elapsed time (or the
time remaining in a Smart program or a Heart Rate
program), the distance that you have pedaled, the
resistance level, the approximate number of calories you have burned, the approximate number of
fat calories you have burned (see FAT BURNING
on page 21), and your heart rate (when you use
the handgrip pulse sensor). If the scan mode is
selected, the display will change from one mode to
the next every six seconds. Or, you can select a
single mode for continuous display.
Note: The console can show speed and distance
in either miles or kilometers. To change the unit
of measurement, hold down the On/Reset button
for six seconds. The mode indicators (see F.
below) will show which unit of measurement is
selected. When the batteries are replaced, it may
be necessary to reselect the desired unit of
measurement.
B. Increase and decrease arrows—During Smart pro-
grams, Heart Rate programs, and iFIT.com programs, these arrows will prompt you to increase or
decrease your pace to match the target pace.
C. Manual mode/program indicator—When a Smart
program is selected, the upper right corner of the
display will show a 1, 2, 3, or 4, depending on
which Smart program is selected. When a Heart
Rate program is selected, the upper right corner of
the display will show a 5 or 6. When the iFIT
mode is selected, the upper right corner will show
the letters IF. When the manual mode is selected,
the upper right corner will be blank.
.com
G. Pace indicators—When the manual mode is select-
ed, only the left pace indicator will appear. This
pace indicator represents your exercise pace. As
you increase or decrease your pace, additional bars
will appear or disappear in the pace indicator. When
a Smart program, a Heart Rate program, or the
iFIT.com mode is selected, both pace indicators
will appear. The left pace indicator represents your
exercise pace, and the right pace indicator represents a target pace. During the program, the target
pace will periodically change. As the right pace
indicator changes, simply adjust your pace so that
the same number of bars appear in both pace indicators.
pace. Your actual pace may be slower than the
target pace, especially during the first few
months of your exercise program. Make sure to
exercise at a pace that is comfortable for you.
H. On/Reset button—When the console is off, pressing
this button will turn on the display. When the console is on, pressing this button will reset the display. This button is also used to select the unit of
measurement for speed and distance (see A. at the
left).
I. Display Mode button—This button is used to select
the feedback modes. The modes will be selected
in the following order: scan, speed, time, distance,
resistance level, calories, fat calories, and heart
rate (when the handgrip pulse sensor is used).
J. + and – buttons—These buttons control the resis-
tance of the elliptical exerciser
tance levels; level 10 is the most challenging.
These buttons are also used to enter your age
when a Heart Rate program is selected.
Important: The target pace is a
There are ten resis
.
goal
-
D. Program profiles—These profiles show how the
resistance of the elliptical exerciser and the target
pace will change during Smart programs and Heart
Rate programs. For example, profile number 3
shows that during Smart program 3, both the resistance and the pace will gradually increase during
the first half of the program, and then gradually
decrease during the last half.
arnings—see p. 3.
E. W
F. Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, distance,
K. Program button—This button is used to select the
manual mode, Smart programs, and Heart Rate
programs.
L. IFIT.com button—This button is used to select the
.com mode.
iFIT
light when the iFIT.com mode is selected.
o use the manual mode of the console,
T
o use a Smart program,
12. T
Heart Rate program,
CDs or videos, see page 18. To use a program
directly from our W
The indicator on the button will
see page
see page 13. T
see page 14. To use iFIT.com
eb site,
see page 19.
11
o use a
OW TO USE THE MANUAL MODE
H
urn on the console.
T
1
Note: The console requires four “D” batteries (not
included). If you have not installed batteries, see
tep 5 on page 6 and install batteries.
s
To turn on the console, press the On/Reset button
or begin pedaling.
Select the manual mode.
2
Each time the
console is
turned on, the
manual mode
will be selected. If a Smart
program, a
Heart Rate program, or the iFIT.com mode has been selected,
select the manual mode by pressing the Program
button repeatedly until the upper right corner of
the display is blank.
Begin exercising and adjust the resistance of
3
the elliptical exerciser.
This corner
should be blank
the resistance level changes, the console will
show the resistance level for six seconds. In
ddition, when a Smart program or a Heart Rate
a
program is selected, the display will show the
ime
emaining
t
r
elapsed time.
If desired, you can select a single feedback mode
for continuous display. Press the Display Mode
button repeatedly until only the MPH (or Km/H),
Time, Miles (or Kms), Resist., Cals., or Fat Cals.
indicator appears in the display. Make sure that
the Scan indicator does not appear.
In addition, the left pace indicator will appear in the
display to show your exercise pace. As you
increase or decrease your pace, additional bars
will appear or disappear in the pace indicator.
Measure your heart rate if desired.
n the program instead of the
i
5
Note: If there
are thin sheets
of plastic on
the metal contacts on the
handgrip pulse
sensor, peel off
the plastic.
Metal
Contacts
As you exercise, adjust the resistance of the
elliptical exerciser as desired by pressing the +
and – buttons. There are ten resistance levels;
level 10 is the most challenging. Note: After the
buttons are pressed, it will take a few seconds for
the selected setting to be reached.
Follow your progress with the feedback modes
4
and the left pace indicator.
When the console is turned
on, the scan
mode will be
selected. As
you exercise,
the display will
show your current speed, the elapsed time, the distance that
you have pedaled, the current resistance level,
and the approximate numbers of calories and fat
calories you have burned. In addition, your heart
rate will be shown when you use the handgrip
pulse sensor (see step 5 below). Note: Each time
To use the handgrip pulse sensor, place your
hands on the metal contacts. Your palms must be
on the upper contacts and your fingers must be
touching the lower contacts. Avoid moving your
hands. When your pulse is detected, the heartshaped indicator in the display will flash each
time your heart beats. After a moment, two dashes (– –) will appear and then your heart rate will
be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 15 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 15 seconds. The display will then show your heart rate
along with the other feedback modes.
When you are finished exercising, the console
6
will automatically turn off.
If the pedals are not moved and the console buttons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve
the batteries.
12
OW TO USE A SMART PROGRAM
H
Turn on the console.
1
See step 1 on page 12.
elect one of the four Smart programs.
S
2
Each time the
console is turned
on, the manual
mode will be
selected. To
select a Smart
program, press
the Program button repeatedly until the number 1, 2, 3, or 4
appears in the upper right corner of the display.
The profiles numbered 1 through 4 on the right
side of the console show the resistance and pace
settings for the Smart programs. For example,
profile number 3 shows that when Smart program
3 is selected, both the resistance and the pace
will gradually increase during the first half of the
program, and then decrease during the last half.
Start the program.
3
To start the program, simply begin exercising.
Each Smart program consists of twenty, oneminute periods. One resistance setting and one
pace setting are programmed for each period.
(The same resistance setting and/or pace setting
may be programmed for consecutive periods.)
During the program, the resistance of the elliptical
exerciser will automatically change as shown by
the applicable profile on the console. If the current resistance level is too high or too low
can change the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.
, you
The pace settings for the pro-
ram will be
g
shown by the
ight pace indica-
r
tor in the display.
(The left pace
indicator will
show your actual exercise pace.) As the right
pace indicator changes during the program, simply increase or decrease your pace so that the
same number of bars appear on both pace indicators. If your pace is slower than the current
pace setting, the increase arrow will appear in the
display to prompt you to increase your pace; if
your pace is faster than the pace setting, the
decrease arrow will appear.
settings for the program are intended only to
provide a goal. Your actual pace may be slower than the pace settings, especially during
the first few months of your exercise program.
Make sure to exercise at a pace that is comfortable for you.
During the program, the display will show the time
remaining in the program. When no time remains,
the program will be completed. If you continue
exercising after the program is completed, the
display will continue to show your exercise feedback.
Follow your progress with the feedback modes.
Increase Arrow
Important: The pace
4
See step 4 on page 12.
Measure your heart rate if desired.
5
See step 5 on page 12.
When you are finished exercising, the console
6
will automatically turn off.
See step 6 on page 12.
13
OW TO USE A HEART RATE PROGRAM
H
Each Heart Rate program helps you to keep your
heart rate near a certain
eart rate
h
rate is estimated by subtracting your age from 220.
or example, if you are 25 years old, your maximum
F
heart rate is 195.) Heart Rate program 5 is designed
to keep your heart rate between 65% and 85% of your
maximum heart rate while you exercise; Heart Rate
program 6 is designed to keep your heart rate
between 65% and 80% of your maximum heart rate.
uring your workout. (Your maximum heart
d
percentage
of your
maximum
Hold the handgrip pulse sensor
.
4
When using a Heart Rate program, you must use
the handgrip pulse sensor (see step 5 on page
12). It is not necessary to hold the handgrips continuously during the program. However, you
should hold the handgrips frequently for the pro-
ram to operate properly. Each time you hold
g
the handgrips, keep your hands on the metal
contacts for at least 30 seconds. Note: When
you are not holding the handgrips, the letters PLS
will appear in the display instead of your heart
rate.
Follow the steps below to use a Heart Rate program.
Turn on the console.
1
See step 1 on page 12.
Select one of the two Heart Rate programs.
2
Each time the
console is
turned on, the
manual mode
will be selected.
To select a
Heart Rate program, press the
Program button repeatedly until the number 5 or 6
appears in the upper right corner of the display.
The profiles numbered 5 and 6 on the right side
of the console show the resistance settings for
the Heart Rate programs. For example, profile
number 5 shows that when Heart Rate program 5
is selected, the resistance level will gradually
increase during the program and then decrease
near the end.

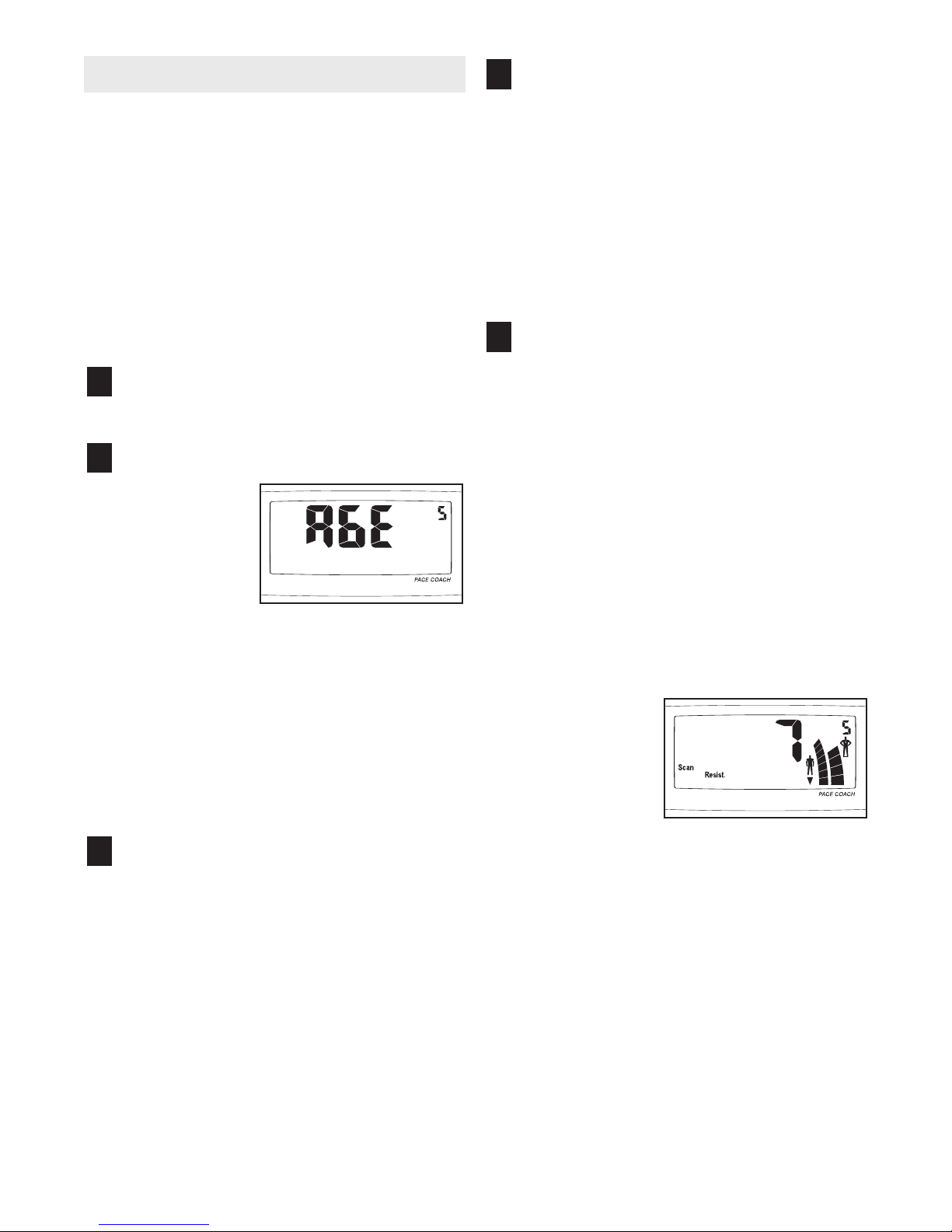

Enter your age.
3
When a Heart Rate program is selected, the word
AGE will appear in the display. You must enter
your age to use a Heart Rate program. To enter
your age, first press the + or – button. The current
age setting will then be shown. Next, press the +
or – button repeatedly to enter your age. Once
you have entered your age, your age will be
saved in memory until the batteries are replaced.
Start the program.
5
To start the program, simply begin exercising.
Each Heart Rate program consists of twenty, oneminute periods. One resistance setting and one
heart rate setting are programmed for each period. (The same resistance setting and/or heart
rate setting may be programmed for consecutive
periods.)
During the program, the resistance of the elliptical
exerciser will automatically change as shown by
the applicable profile on the console. If the current resistance level is too high or too low, you
can adjust the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.
As you exercise,
the pace indicators will help you
to keep your
heart rate near
the heart rate
setting for the
current period.
The left pace indicator will show your actual exercise pace. The right pace indicator will show a
target pace. When you hold the handgrip pulse
sensor, the console will compare your heart rate
to the heart rate setting for the current period. If
necessary, the right pace indicator will then
change to prompt you to increase or decrease
your pace to bring your heart rate closer to the
current heart rate setting. When the right pace
14
indicator changes, increase or decrease your
LINE OUT
PHONES
L
INE OUT
PHONES
A
LINE OUT
PHONES
LINE OUT
PHONES
P
HONES
PHONES
pace so that the same number of bars appear on
oth pace indicators. If your pace is slower than
b
he current pace setting, the increase arrow will
t
appear in the display; if your pace is faster than
the pace setting, the decrease arrow will appear.
Important: The pace settings for the program
re intended only to provide a goal. Your actu-
a
al pace may be slower than the pace settings,
especially during the first few months of your
exercise program. Make sure to exercise at a
pace that is comfortable for you.
During the program, the display will show the
time remaining in the program. When no time
remains, the program will be completed. If you
continue exercising after the program is completed, the display will continue to show your exercise feedback.
Follow your progress with the feedback
6
modes.
See step 4 on page 12.
When you are finished exercising, the console
7
will automatically turn off.
HOW TO CONNECT YOUR CD PLAYER, VCR,
R COMPUTER
O
o use iFIT.com CDs,the elliptical exerciser must be
T
connected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
15 to 17 for connecting instructions.
To use iFIT.com
videocassettes, the elliptical exerciser must be con-
nected to your VCR. See page 17 for connecting
instructions.
our Web site
To use iFIT.com programs directly from
, the elliptical exerciser must be connected to your home computer. See page 17 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT
and PHONES jacks, see instruction A below. If
your CD player has only one jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
See step 6 on page 12.
A
Audio
Cable
Head-
phones
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
B
Audio
Cable
1/8”
-adapter
Y
Headphones
15
HOW TO CONNECT YOUR PORTABLE STEREO
AUDIO OUT
RIGHT
LEFT
LINE OUT
A
PHONES
LINE OUT
AUDIO OUT
RIGHT
L
EFT
B
LINE OUT
CD
VCR
Amp
L
INE OUT
LINE OUT
A
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
HOW TO CONNECT YOUR HOME STEREO
ote: If your stereo has an RCA-type AUDIO OUT
N
ack, see instruction A below. If your stereo has a
j
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
. Plug one end of a 1/8” to RCA stereo audio cable
A
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
A/B
Audio
Cable
B. See the drawing above. Plug one end of a 1/8” to
1/8” stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
ote: If your stereo has an unused LINE OUT jack,
N
ee instruction A below. If the LINE OUT jack is
s
being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
available at electronics stores) into the jack
(
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
A
Audio
Cable
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Yadapter into the LINE OUT jack on your stereo.
B
C
RCA
Y-adapter
Audio
Cable
1/8”
-adapter
Y
Audio
Cable
Wire removed from
LINE OUT jack
Headphones
16
HOW TO CONNECT YOUR COMPUTER
LINE OUT
A
PHONES
LINE OUT
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
IN
O
UT
CH
3
4
VIDEO AUDIO
ANT. IN
RF OUT
I
N
O
UT
CH
3
4
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
I
N
O
UT
CH
34
HOW TO CONNECT YOUR VCR
ote: If your computer has a 1/8” LINE OUT jack,
N
ee instruction A. If your computer has only a
s
PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
available at electronics stores) into the jack
(
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
A
Audio
Cable
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B
Audio
Cable
1/8”
Y-adapter
ote: If your VCR has an unused AUDIO OUT jack,
N
ee instruction A below. If the AUDIO OUT jack is
s
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
ONNECT YOUR HOME STEREO on page 16.
C
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
A
Audio
Cable
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Yadapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
B
Headphones/Speakers
17
Audio Cable
ire removed from
W
AUDIO OUT jack
RCA
Y-adapter
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes, the elliptical
exerciser must be connected to your portable CD player, portable stereo, home stereo, computer with CD
player, or VCR. See HOW TO CONNECT YOUR CD
LAYER, VCR, OR COMPUTER on page 15. To pur-
P
chase iFIT.com CDs or videocassettes, call the tollfree telephone number on the front cover of this
manual.
Press the play button on your CD player or
4
CR.
V
moment after the play button is pressed, your
A
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a Smart program (see step 3 on page 13).
However, an electronic “chirping” sound will alert
you when the resistance and/or the pace setting is
about to change.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
1
See step 1 on page 12.
Select the iFIT.com mode.
2
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
.com CD, insert the CD
Note: If the resistance of the elliptical exerciser
and/or the pace setting does not change when
a “chirp” is heard:
• Make sure that the indicator on the iFIT.com
button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the console may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Follow your progress with the feedback modes.
5
See step 4 on page 12.
Measure your heart rate if desired.
6
See step 5 on page 12.
When you are finished exercising, the console
7
will automatically turn off.
See step 6 on page 12.
18
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the elliptical exerciser must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER
on page 17. In addition, you must have an internet
connection and an internet service provider. A list of
specific system requirements will be found on our Web
site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
1
See step 1 on page 12.
Select the iFIT.com mode.
2
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Go to your computer and start an internet
3
connection.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
5
select a program.
ead and follow the on-line instructions for using
R
a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen countdown will begin.
Return to the elliptical exerciser and begin
7
exercising.
When the on-screen countdown ends, the pro
gram will begin. The program will function in
almost the same way as a Smart program (see
step 3 on page 13). However, an electronic “chirping” sound will alert you when the resistance
and/or the pace setting is about to change.
Follow your progress with the feedback modes.
8
See step 4 on page 12.
Measure your heart rate if desired.
9
See step 5 on page 12.
When you are finished exercising, the console
10
will automatically turn off.
See step 6 on page 12.
-
19
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild dish soap. Important: Keep
liquids away from the console and keep the console out of direct sunlight. During storage, remove
the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced. See assembly step 5 on page 6
for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor; excessive movement may interfere
with heart rate readings. Do not hold the metal contacts too tightly.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the handgrip pulse sensor, clean the metal contacts with a soft cloth—do
not use alcohol, abrasives, or chemicals.
Next, remove the four Screws (51) from the right
Pedal Disc (15), and slide the Pedal Disc off. Remove
ll Screws (52, 64) from the Right Side Shield (4) and
a
the two Screws (69) from beneath the Pedal Disc, and
remove the Right Side Shield (4). Remove all Screws
(52) from the Left Side Shield (3) and remove the Left
Side Shield.
Next, see the drawing below and locate the Reed
Switch (53). Loosen, but do not remove, the indicated
M4 x 16mm Self-tapping Screw (52). Slide the Reed
Switch slightly toward or away from the Magnet (58) on
the flywheel. Retighten the Screw. Turn the left Pedal
Disc (15) for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly adjusted, reattach the Side Shields (3, 4), the
right Pedal Disc (15), and the Pedal Springs (11).
58
53
15
52
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To do this, you must
remove the Pedal Springs (11), the right Pedal Disc
(15), and the Side Shields (3, 4). See step 9 on page
8 and remove the Pedal Springs.
15
4
3
51
69
11
69
64
51
11
51
52
64
52
64
HOW TO ADJUST THE DRIVE BELT
If you can feel
the pedals slip
while you are
pedaling, even
when the
resistance is
adjusted to
the highest
level, the
Drive Belt (19)
may need to
be adjusted.
T
o adjust the
Drive Belt, you must first remove both side shields.
ADJUST
O
See HOW
left and remove the side shields.
Next, loosen the M8 x 22mm Flat Head Screw (68)
and turn the M10 x 60mm Bolt (62) until the Drive Belt
(19) is tight. When the Drive Belt is tight, tighten the
Flat Head Screw. Reattach the side shields.
T
68
62
19
THE REED SWITCH at the
20
CONDITIONING GUIDELINES
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
carbohydrate
fat
calories for energy.
calories for ener-
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers
your age. The three numbers are your “training zone.”
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
above
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts.
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
After a few months of regular exer-
21
HOW TO ORDER REPLACEMENT PARTS
o order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
T
the following information:
• the MODEL NUMBER of the product (PFCCEL3805.0)
• the NAME of the product (PROFORM 750 CARDIO CROSSTRAINER)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see page 22 of this manual)
LIMITED WARRANTY
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center
ucts used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of
incidental or consequential damages.
ranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
Accordingly, the above limitation may not apply to you. The war-
, to prod
-
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
Part No. 228577 R0605A Printed in China © 2005 ICON IP, Inc.
PART LIST—Model No. PFCCEL3805.0 R0605A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame
2 1 Upright
3 1 Left Side Shield
4 1 Right Side Shield
5 2 Handlebar Leg
6 1 Left Handlebar
7 2 M10 x 76mm Button Bolt
8 1 Right Handlebar
9 1 Rear Stabilizer
10 1 Front Stabilizer
11 2 Pedal Spring
12 1 Left Rear Spring Bracket
13 1 Left Pedal
14 1 Right Pedal
15 2 Pedal Disc
16 2 Disc Crossbar
17 1 Flywheel
18 1 Side Shield Bracket
19 1 Drive Belt
20 2 Rear Endcap
21 2 Front Endcap
22 2 Wheel
23 1 Console
24 2 Handgrip
25 1 Idler Assembly
26 2 M5 x 14mm Self-tapping Screw
27 2 Pedal Knob
28 2 M10 x 29mm Carriage Bolt
29 1 Handgrip Pulse Sensor
30 2 Large Snap Ring
31 2 Large Bearing
32 1 Pedal Axle
33 9 M10 Nylon Locknut
34 4 M10 x 75mm Carriage Bolt
35
36 12 M6 x 33.5mm Bolt
37
38 5 M8 Nylon Locknut
39 1
40
41 2 M10 x 45mm Button Bolt
2
4
2
Spring Bracket Washer
Arm Bushing
Pedal
M10 Spacer
M10 x 27mm Patch Screw
42 4 M5 Washer
43 1 Wire Harness
44 1 Extension Wire Harness
45 1 Resistance Control Motor
46 2 Handlebar Cap
47 2 Handlebar Spacer
48 2 Upright Spacer
49 6 Small Handlebar Arm Bushing
50 4 M8 x 45mm Button Bolt
51 8 M6 x 28mm Screw
52 11 M4 x 16mm Screw
53 1 Reed Switch/Wire
54 1 Cable Clamp
55 2 Handlebar Washer
56 2 M8 x 25mm Button Screw
57 1 M10 Flat Head Bolt
58 1 Magnet
59 7 M10 Split Washer
60 4 Large Handlebar Arm Bushing
61 2 5/16” x 25.4mm Hex Bolt
62 1 M10 x 60mm Bolt
63 2 Spring Spacer
64 4 M4 x 25mm Screw
65 3 M10 Washer
66 14 M6 Nylon Locknut
67 3 M10 x 27mm Button Screw
68 1 M8 x 22mm Flat Head Screw
69 2 M6 x 18mm Screw
70 1 Right Rear Spring Bracket
71 2 M5 x 16mm Self-tapping Screw
72 2 M5 x 16mm Screw
73 2 Front Spring Bracket
74 2 M10 Bolt Set
75 12 M6 Washer
76
77 1
78
79 2 Wave Washer
#
#
# 1 User’s Manual
2
2
1
1
Handlebar Endcap
Pivot Axle
M3 x 13mm Screw
Allen W
Grease
rench
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
22
EXPLODED DRAWING—Model No. PFCCEL3805.0 R0605A
61
30
32
31
30
31
24
8
4
3
50
5
38
44
45
6
46
5
60
17
2
10
33
14
12
35
18
19
1
33
13
37
11
29
51
51
51
15
51
51
34
9
33
33
20
20
16
61
54
52
53
38
25
68
62
55
56
38
50
48
47
49
24
56
55
57
39
33
58
22
41
21
33
41
21
22
37
33
34
27
65
28
27
65
28
60
60
60
23
52
52
6
4
52
69
52
69
64
37
37
49
48
47
49
49
46
11
16
52
52
35
70
75
66
36
40
63
40 75
66
63
36
6
7
59
59
67
36
66
75
36
66
75
73
73
71
74
74
74
74
43
15
66
66
72
42
26
26
38
7
59
33
59
7
76
76
67
49
49
78
78
77
79
59
59
79
23
Loading...
