Page 1
Model No. PFCCEL29221
www.proform.com
Visit our website at
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you have
questions, or if there are missing
parts, please call:
1-888-936-4266
Mon.–Fri. 8h00 until 18h30 EST
(excluding holidays).
USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manu
al for future reference.
-
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical crosstrainer.
Read all instructions in this manual before
1.
using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.
3. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrainer indoors, away from moisture and dust.
Inspect and properly tighten all parts regu-
4.
larly. Replace any worn parts immediately.
5. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.
6. The elliptical crosstrainer should not be used
by persons weighing more than 115 kg (250
lbs.).
7. Wear appropriate exercise clothing when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection.
Always hold the console handgrip or the han-
8.
dlebars when mounting, dismounting, or
using the elliptical crosstrain er.
9. The heart rate sensor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
sensor is intended only as an exercise aid in
determining heart rate trends in general.
10. Keep your back straight when using the elliptical crosstrainer; do not arch your back.
11. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
Page 4
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
650 CARDIO CROSSTRAINER
. The PROFORM
®
®
650
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. And the unique PROFORM
®
650 features adjustable resistance and a simple-touse console to help you get the most from your exercise. Welcome to a whole new world of natural, elliptical-motion exercise from PROFORM.
For your benefit, read this manual carefully before
using the elliptical crosstrainer. If you have ques-
Water Bottle Holder*
Bookrack
Console Handgrip
tions after reading this manual, please call our tollfree customer service department at 1-888-936-4266,
Monday through Friday 8h00 until 18h30 eastern time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is PFCCEL29221.
The serial number is found on a decal attached to the
elliptical crosstrainer (see the front cover of this manual for the location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Resistance Knob
Console
Heart Rate Sensor
FRONT
Pedal
Pedal Spring
BACK
Pedal Disk
LEFT SIDE
*No water bottle
is included
4
Page 5
ASSEMBLY
Console
Screw (59)–4
M10
Washer (29)–2
M10 Split
Washer (45)–2
M10 Nylon
Locknut (33)–6
M10 x 27mm
Carriage Bolt (27)–2
M10 Bolt Set (25)–2
M8 x 19mm Button
Screw (56)–2
Handlebar
Washer (55)–2
Spring Bracket
Washer (35)–2
M8 Nylon
Locknut (38)–4
M8 x 45mm Button Bolt (50)–4
M10 x 27mm
Patch Screw (40)–2
M10 x 75mm Carriage Bolt (34)–4M10 x 74mm Bolt (7)–2
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver
wrench , and a rubber mallet .
As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 14. The second number refers to the quantity used in assembly.
pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: Some small parts may have been
, an adjustable

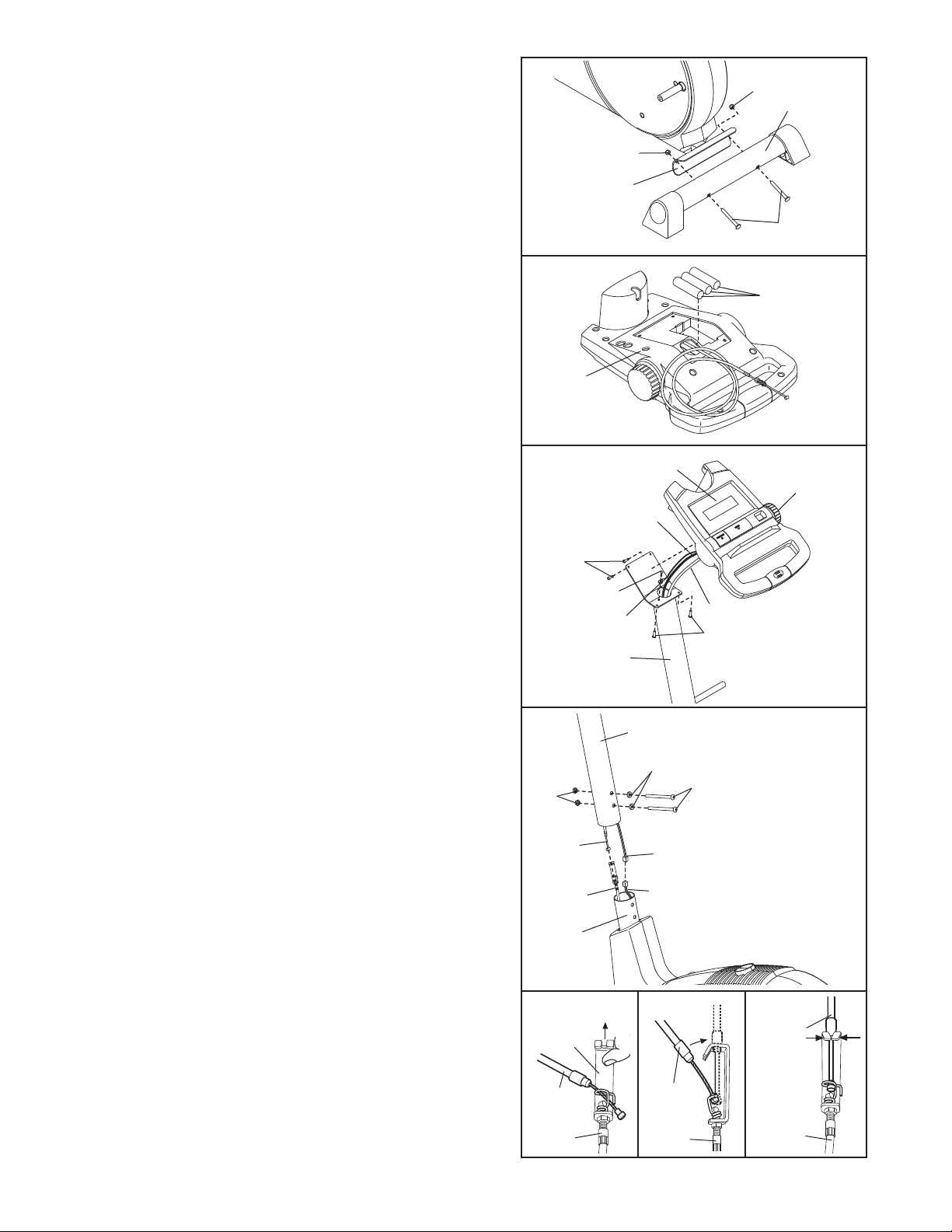

1. Identify the Front Stabilizer (10), which has round
Endcaps (21) on it. While another person lifts the front
of the Frame (1), attach the Front Stabilizer to the
Frame with two M10 x 75mm Carriage Bolts (34) and
two M10 Nylon Locknuts (33).
1
5
34
21
34
10
1
33
Page 6
2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (9) to the Frame with two
M10 x 75mm Carriage Bolts (34) and two M10 Nylon
Locknuts (33).
2
33
9
33
1
34
3. The Console (23) requires three “AA” batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the battery compartment.
sure that the batteries are oriented as shown by
the diagram inside the battery compartment.
4. While another person holds the Console (23) in the
position shown, insert the control cable and the console wire down through the Upright (2). Attach the
ground wire to the Upright with an M4 x 16mm Selftapping Screw (52). Insert the excess cable and wire
into the Upright.
Attach the Console (23) to the Upright (2) with four
Console Screws (59).
the cable and wires.
Make sure the Resistance Knob (42) is set on the
lowest setting before proceeding to the next step.
Be careful to avoid pinching
Make
3
23
4
Console Wire
59
Ground Wire
Batteries
23
42
52
Control Cable
59
2
5. While another person holds the Upright (2) in the posi-
tion shown, connect the console wire to the Reed
Switch Wire (53).
Next, connect the control cable to the Resistance
Cable (43) in the following way:
• Refer to drawing A. Pull up on the metal bracket, and
insert the tip of the control cable into the wire clip on
the Resistance Cable (43) as shown.
• Refer to drawing B. Firmly pull the control cable and
slide it into the metal bracket on the Resistance
Cable (43) as shown.
• Refer to drawing C. Using pliers, squeeze the prongs
on the upper end of the metal bracket together.
Push the excess cable and wires down into the Frame
(1). Insert the Upright (2) into the Frame. Do not pinch
the wires or cables. Secure the Upright to the Frame
with two M10 x 74mm Bolts (7), two M10 Split
Washers (45), and two M10 Nylon Locknuts (33). Do
not tighten the Bolts yet.
5
33
Control
Cable
A
Metal
Bracket
Control
Cable
43
43
1
2
45
53
B
Control
Cable
7
Console
Wire
43
Make sure the
Wires and
Cables do not
get pinched and
damaged during
this step.
C
Control
Cable
43
6
Page 7

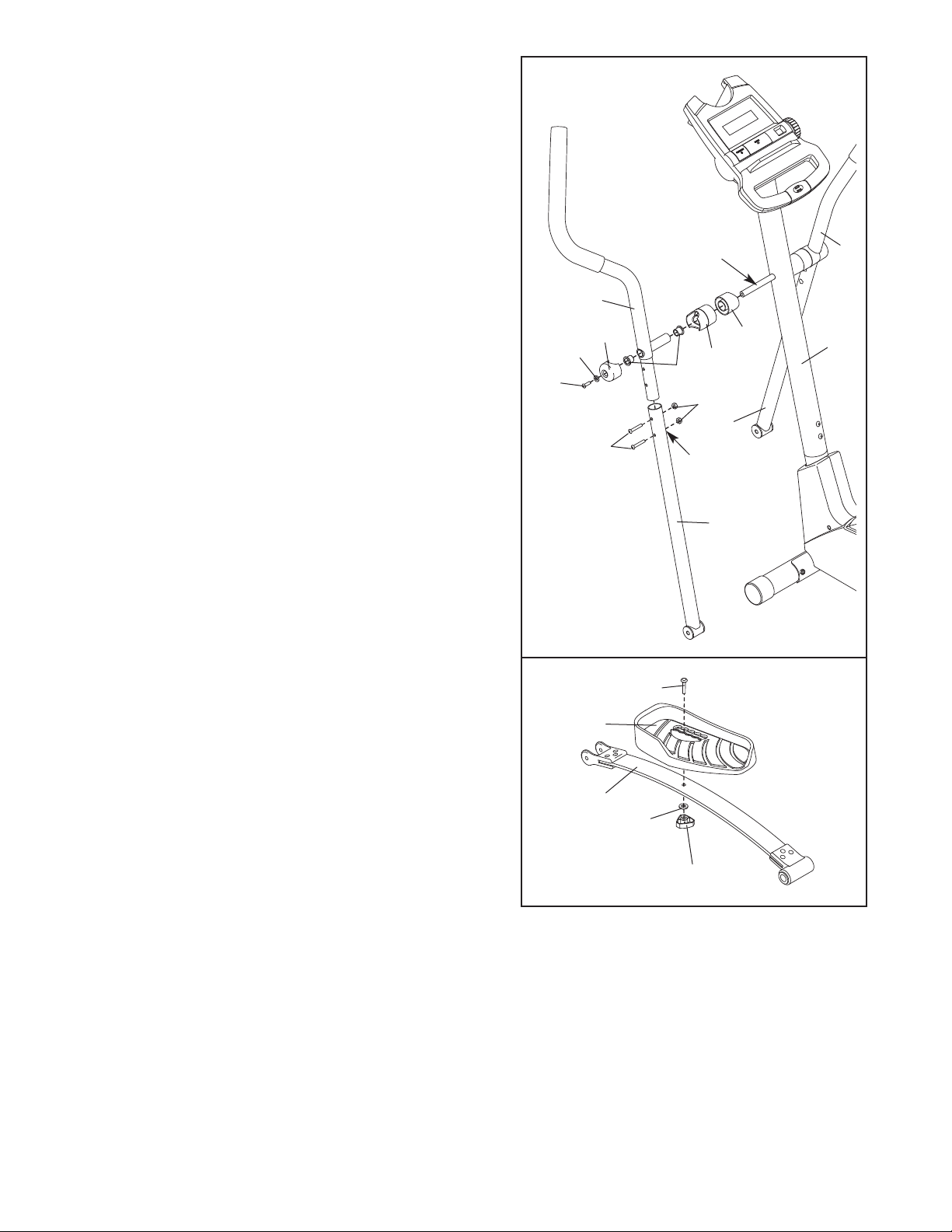

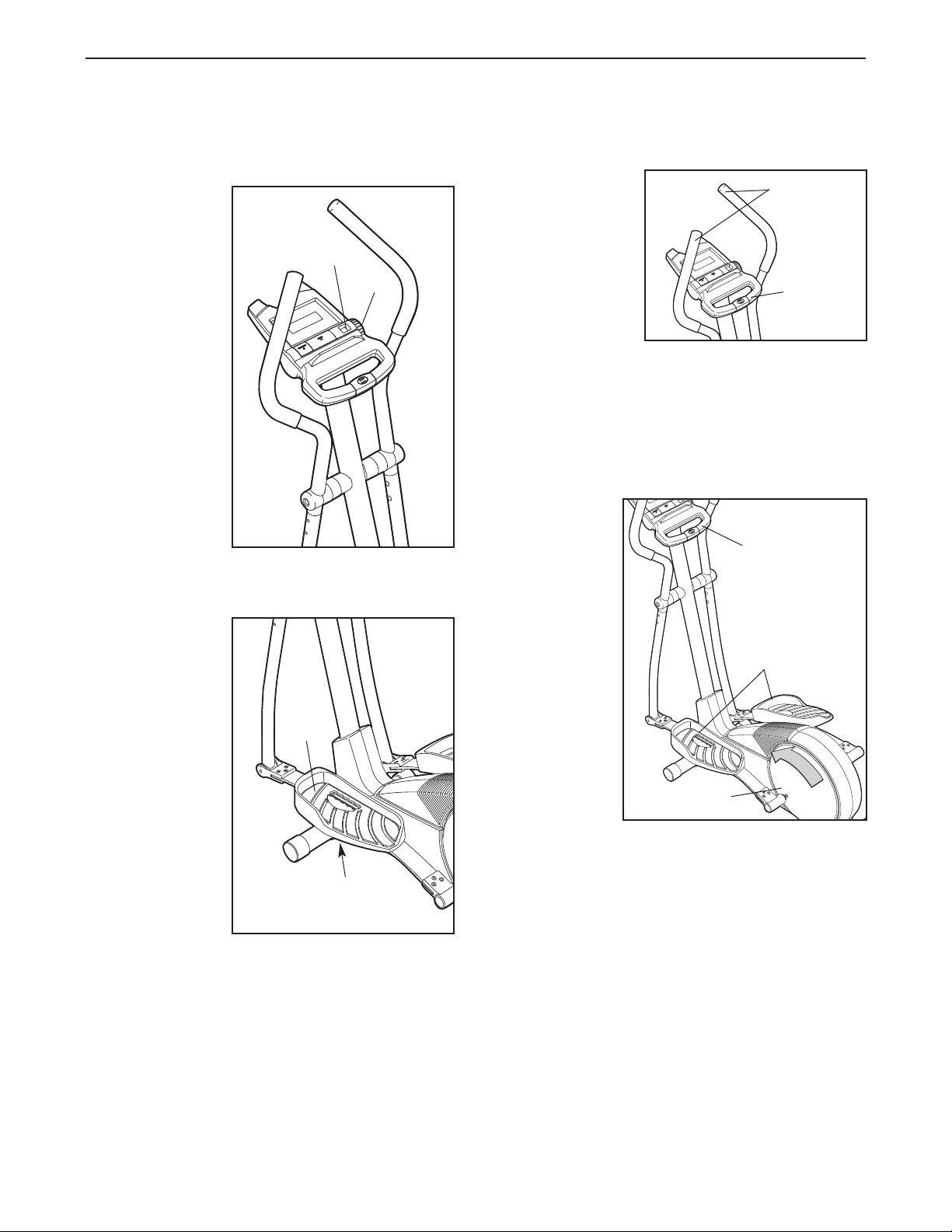

6. Identify the Left Handlebar (6), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (5);
Leg is turned so the hexagonal holes are on the
indicated side.
Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (38).
Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.
make sure that the Handlebar
Attach the Left Handlebar to the
Make sure that the
6
Apply a small amount of the included grease to the left
and right axles on the Upright (2).
Make sure that there are two Small Handlebar
Bushings (49) in the Left Handlebar (6). Carefully slide
an Upright Spacer (48), a Handlebar Spacer (47), the
Left Handlebar, and a Handlebar Cap (46) onto the left
axle on the Upright (2) as shown. Slide a Handlebar
Washer (55) onto an M8 x 19mm Button Screw (56), and
tighten the Button Screw into the axle.
Assemble the Right Handlebar (8) and the other
Handlebar Leg (5) in the same way.
7. Identify the left Pedal Spring (11), which is marked with
a sticker. Attach the Left Pedal (13) to the left Pedal
Spring with an M10 x 27mm Pedal Bolt (27), an M10
Washer (29), and a Pedal Knob (28) as shown. Note:
The Left Pedal can be attached in any of five positions
(see HOW TO ADJUST THE PEDALS on page 9).
Grease
6
46
55
56
50
7
13
49
27
48
47
38
5
Hexagonal
Holes
5
8
2
Attach the Right Pedal (not shown) in the same way
Make sure that both Pedals are in the same position.
.
11
29
28
7
Page 8

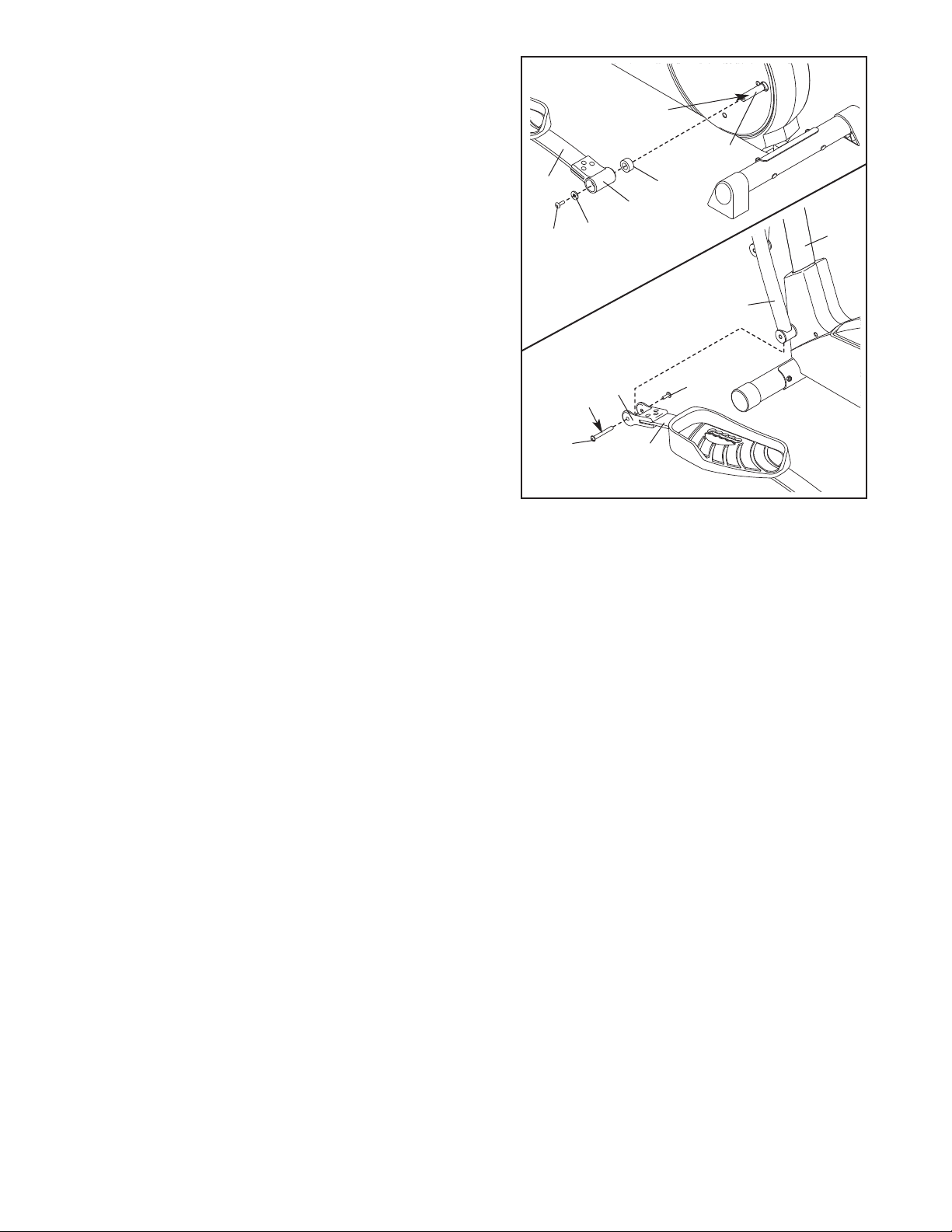

8. Apply a small amount of grease to the axle on the left
Disc Crossbar (16). Slide a Spring Spacer (63) onto the
make sure that the Spring Spacer is turned so
axle;
the flat side is facing the elliptical crosstrainer.
Next, slide the Left Rear Spring Bracket (12) on the left
Pedal Spring (11) onto the axle. Slide a Spring Bracket
Washer (35) onto an M10 x 27mm Patch Screw (40),
and tighten the Patch S c r e w into the axle.
Next, hold the lower end of the left Handlebar Leg (5)
inside of the Front Spring Bracket (65) on the left Pedal
Spring (11). Apply grease to an M10 Bolt Set (25).
Attach the Handlebar Leg to the Front Spring Bracket
with the Bolt Set.
the Handlebar Leg must pivot freely.
Attach the right Pedal Spring (not shown) to the right
side of the elliptical crosstrainer in the same way.

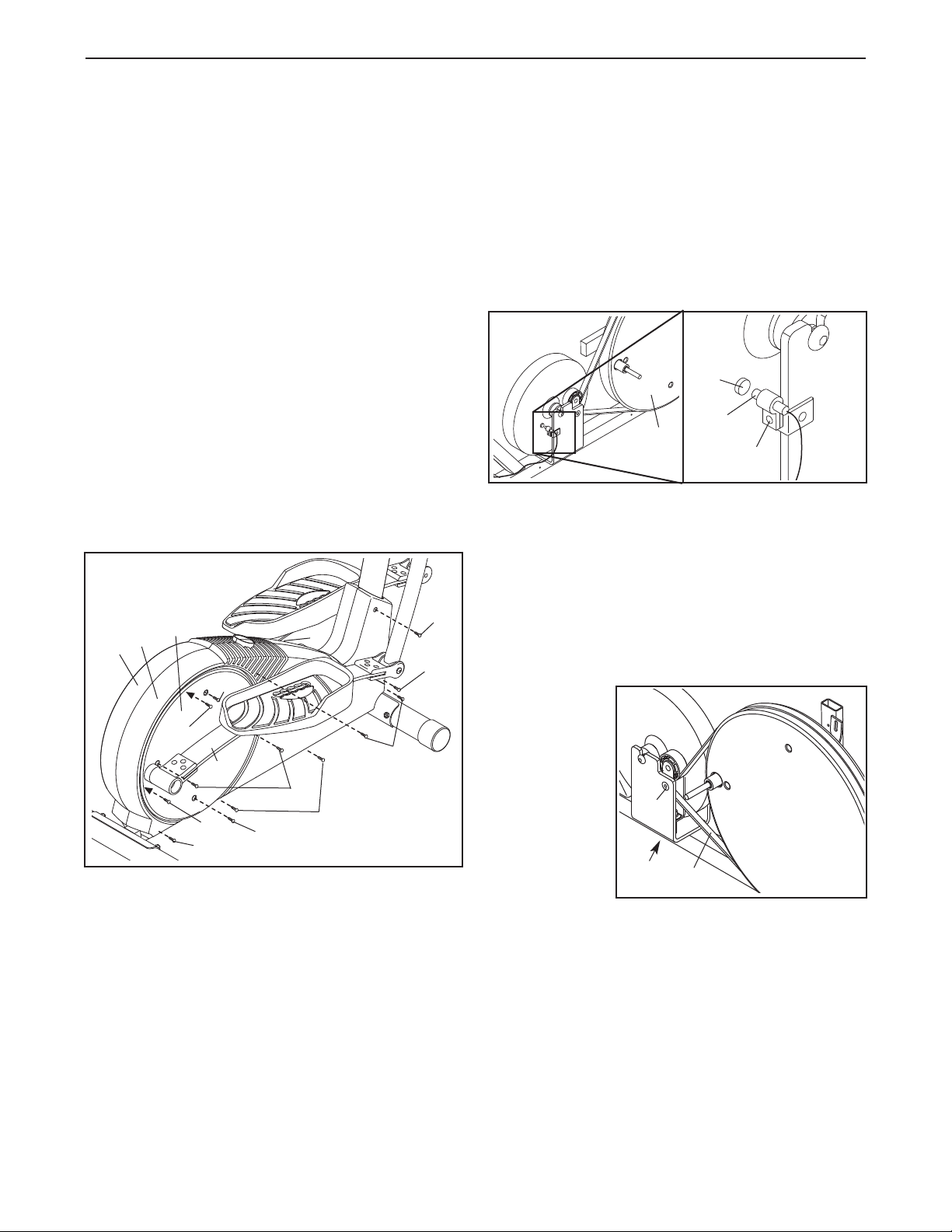

Refer to step 5. Tighten the M10 x 74mm Bolts (7) in
the Upright (2).
Refer to step 6. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Legs (5).
Do not overtighten the Bolt Set;
8
11
40
Grease
25
35
Grease
12
65
16
63
2
5
25
11
9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.
8
Page 9
HOW TO USE THE ELLIPTICAL CROSSTRAINER
HOW TO ADJUST THE RESISTANCE OF THE
PEDALS
As you exercise,
you can adjust
the resistance of
the pedals with
the resistance
knob on the
right side of the
console. To
increase the
resistance,
turn the knob
clockwise; to
decrease the
resistance, turn

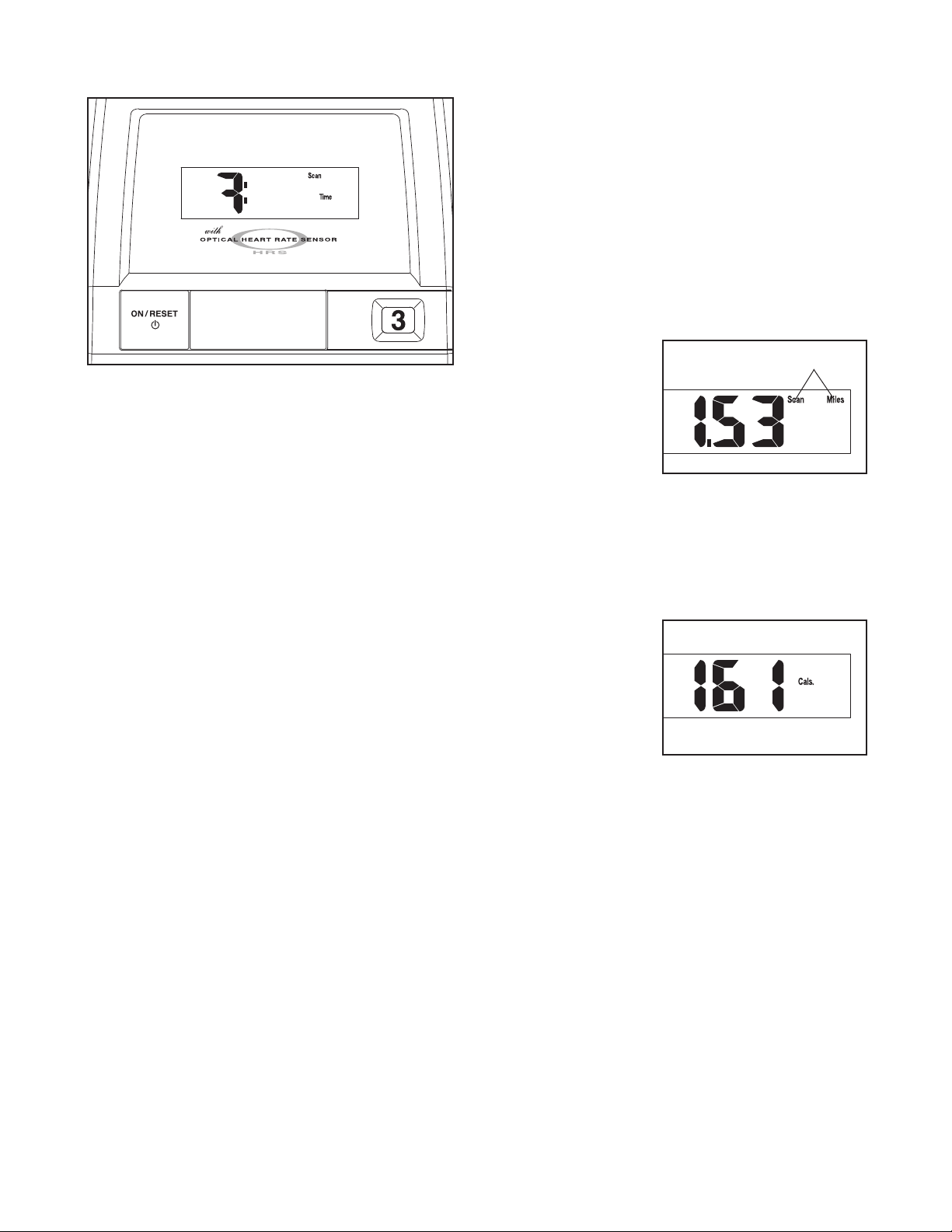

the knob counterclockwise. The
number in the
resistance window displays the
resistance level.
HOW TO ADJUST THE PEDALS
The motion of
the elliptical
crosstrainer is
determined by
the position of
the pedals.
To adjust the
pedals, first
loosen the pedal
knobs beneath
the pedals. Slide
the pedals forward or backward to one of
the five positions, and then
retighten the
knobs. Make
sure that both pedals are in the same position.
Window
Knob
Pedal
Pedal
Knob
HOW TO USE THE HANDLEBARS
The handlebars are
designed to add
upper-body exer
cise to your workouts. As you exercise, push and pull
the handlebars to
work your arms,
shoulders, and
back.
To exercise only your lower body, hold the console
handgrip as you exercise.
HOW TO EXERCISE ON THE ELLIPTICAL
CROSSTRAINER
To mount the
elliptical crosstrainer, hold the
console handgrip and step
onto the pedal
that is in the
lowest position.
Then, step onto
the other pedal.
Push the pedals
until they begin
to move with a
continuous
motion. Note:
The pedal
disks can turn
in either direction. It is rec
ommended that you move the pedal disks in the
direction shown by the arrow; however, for variety,
you may turn the pedal disks in the opposite direc
tion.
To dismount the elliptical crosstrainer, wait until the
pedals come to a complete stop. (Note: The elliptical
crosstrainer does not have a free wheel; the pedals will continue to move until the flywheel stops.)
When the pedals are stationary
pedal first. Then, step off the lowest pedal.
-
Pedal Disk
-
, step of
Handlebars
Console
Handgrip
Console
Handgrip
Pedals
f the highest
-
9
Page 10
FEATURES OF THE CONSOLE
The easy-to-use console features seven modes that
provide instant exercise feedback during your workouts. The modes are described below.
Speed—This mode displays your pedalling speed.
Time—This mode displays the elapsed time. Note: If
you stop pedalling for ten seconds or longer, the time
mode will pause.
Distance—This mode displays the distance you have
pedalled.
Calories—This mode displays the approximate number of calories you have burned.
Fat Calories—This mode displays the approximate
number of fat calories you have burned (see FAT
BURNING on page 13).
Scan—This mode displays the speed, time, distance,
calorie, and fat calorie modes, for a few seconds
each, in a repeating cycle.
Heart Rate—This mode shows your heart rate when
you use the heart rate sensor.
HOW TO OPERATE THE CONSOLE
Make sure that there are batteries in the console (see
assembly steps 3 and 4 on page 6). If there is a t hin
sheet of clear plastic on the console, remove it.
Follow the steps below to operate the console.
1. To turn on the power, press the On/Reset button or
simply begin pedalling. When the power is turned
on, the entire display will appear for two seconds.
The console will then be ready for operation.
2. Select one of the seven modes:
Scan mode—
When the power is
turned on, the
scan mode will
automatically be
selected. The scan
indicator will
appear in the display to show that
the scan mode is selected, and a second mode
indicator will show which mode is currently displayed. Note: If a different mode is selected, you
can select the scan mode again by repeatedly
pressing the Display Mode button.
Speed, time, distance, calories,
or fat calories
mode—To select
one of these
modes for continuous display, press
the Display Mode
button repeatedly
until only the MPH (or Km/H),
Cals., or Fat Cals. indicator appears in the display
Make sure that the Scan indicator does not appear.
Mode Indicators
ime, Miles (or Kms),
T
.
The console can display speed and distance in
Note:
either miles or kilometers. To change the unit of measurement, hold down the On/Reset button for a few
seconds.
measurement is selected. When the batteries are
replaced, it may be necessary to reselect the desired
unit of measurement
The mode indicators will show which unit of
.
10
o reset the display at any time, press the On/Reset
T
button.
Page 11

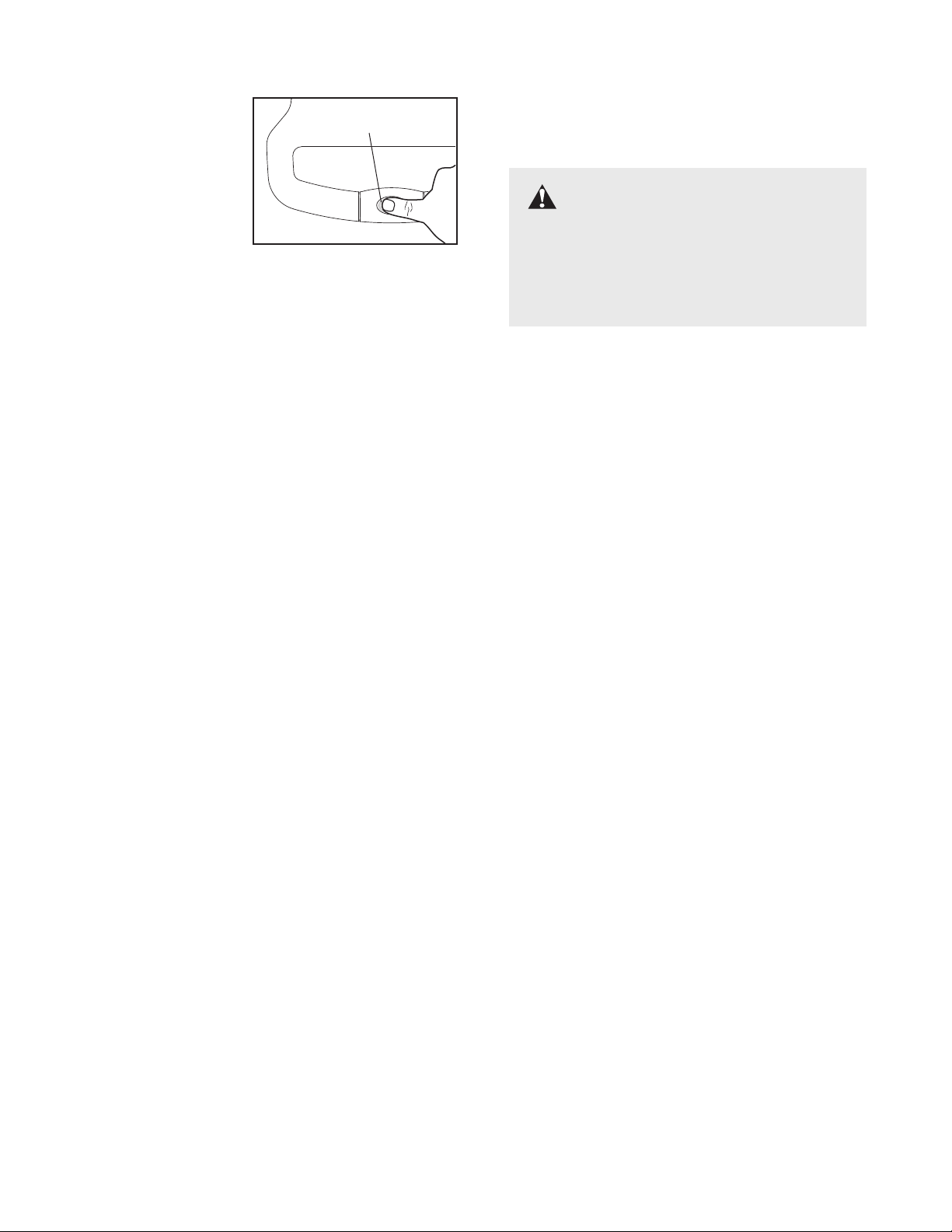

3. Measure your heart rate, if desired.
o measure your
T
heart rate, stop
pedaling and
place your thumb
on the heart rate
sensor as shown.
Do not press too
hard, or the circulation in your
thumb will be restricted, and your pulse will not
be detected. After a few seconds, the heart-shaped
indicator in the display will flash steadily, two dashes will appear, and then your heart rate will be
shown. Hold your thumb on the heart rate sensor
for another 15 seconds for the most accurate reading. If the displayed heart rate appears to be too
high or too low, or if your heart rate is not displayed,
lift your thumb off the heart rate sensor and allow
the displ ay to r es e t. Then, place your thumb on the
heart rate sensor as described above.
Heart Rate Sensor
Make sure that you are applying the proper amount
of pressure to the heart rate sensor. Try the heart
rate sensor several times until you become familiar
with it. Remember to stand still while measuring
your heart rate.
WARNING:The heart rate
sensor is not a medical device. Various
factors may affect the accuracy of heart
rate readings. The heart rate sensor is
intended only as an exercise aid in determining heart rate trends in general.
4. To turn off the power, simply wait for a few minutes.
The console has an “auto-off” feature. If the
pedals are not moved and the On/Reset button
is not pressed for a few minutes, the power will
turn off automatically to conserve the batteries.
11
Page 12
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical crosstrainer
regularly. Replace any worn parts immediately.
To clean the elliptical crosstrainer, use a damp cloth
and a small amount of mild dish soap. Important:
Keep liquids away from the console and keep the
console out of direct sunlight. During storage,
remove the batteries from the console.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced. Refer to assembly steps 3 and 4
on page 6 for replacement instructions.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To do this, you must
remove the Pedal Springs (11), the right Pedal Disc
(15), and the Side Shields (3, 4). Refer to step 8 on
page 8 and remove the Pedal Springs.
15
4
3
51
41
11
41
64
Next, remove the four Screws (51) from the right
Pedal Disc (15), and slide the Pedal Disc off. Remove
all Screws (52, 64) from the Right Side Shield (4) and
the two Bolts (41) from beneath the Pedal Disc, and
remove the Right Side Shield (4). Remove all Screws
(52) from the Left Side Shield (3), and remove the
Left Side Shield.
51
11
51
52
64
52
64
Next, refer to the drawing below and locate the Reed
Switch (53). Loosen, but do not remove, the indicated
M4 x 16mm Self-tapping Screw (52). Slide the Reed
Switch slightly toward or away from the Magnet (58) on
the flywheel. Retighten the Screw. Turn the left Pedal
Disc (15) for a moment. Repeat until the console displays correct feedback. When the Reed Switch is correctly adjusted, reattach the Side Shields (3, 4), the
right Pedal Disc (15), and the Pedal Springs (11).
58
53
15
52
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the Drive Belt (19) may need to be adjusted. To
adjust the Drive Belt, you must first remove both side
shields. Refer to HOW TO ADJUST THE REED
SWITCH at the left and remove the side shields.
Next, loosen
the M8 x
22mm Flat
Head Screw
(68) and turn
the M10 x
60mm Bolt
(62) until the
Drive Belt (19)
is tight. When
the Drive Belt
is tight, tighten
the Flat Head
Screw
. Reattach the side shields.
62
68
19
12
Page 13
CONDITIONING GUIDELINES
WARNING:
• Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of
35 or persons with pre-existing health problems.
• The heart rate sensor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
sensor is intended only as an exercise aid
in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

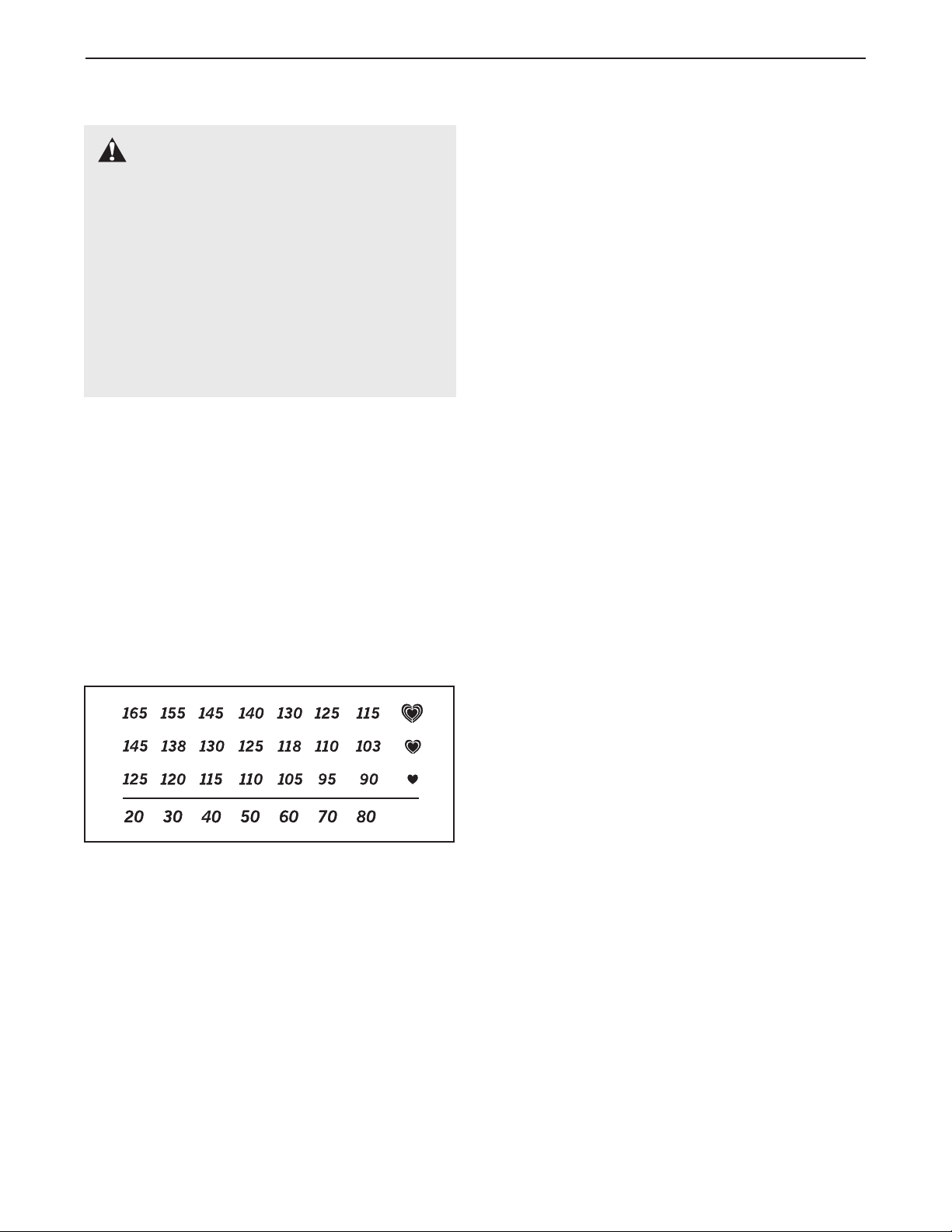

heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
carbohydrate calories for ener-
o find the proper heart rate for you, first find your age
T
on the bottom line of the chart (ages are rounded of
to the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.”
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
The lower two numbers are recommended
f
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts.
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
After a few months of regular exer-
13
Page 14
PART LIST—Model No. PFCCEL29221 R1103A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame
2 1 Upright
3 1 Left Side Shield
4 1 Right Side Shield
5 2 Handlebar Leg
6 1 Left Handlebar
7 2 M10 x 74mm Bolt
8 1 Right Handlebar
9 1 Rear Stabilizer
10 1 Front Stabilizer
11 2 Pedal Spring
12 1 Left Rear Spring Bracket
13 1 Left Pedal
14 1 Right Pedal
15 2 Pedal Disc
16 2 Disc Crossbar
17 1 Flywheel
18 1 Side Shield Bracket
19 1 Drive Belt
20 2 Rear Endcap
21 2 Front Endcap
22 1 Belt Idler
23 1 Console
24 2 Handgrip
25 2 M10 Bolt Set
26 12 M6 Washer
27 2 M10 x 27mm Carriage Bolt
28 2 Pedal Knob
29 3 M10 Washer
30 2 Large Snap Ring
31 2 Large Bearing
32 1 Pedal Axle
33 7 M10 Nylon Locknut
34 4 M10 x 75mm Carriage Bolt
35
36
2
12
Spring Bracket Washer
M6 x 33.5mm Bolt
37 4 Pedal Arm Bushing
38 5 M8 Nylon Locknut
39 1 M10 Washer
40 2 M10 x 27mm Patch Screw
41 2 M6 x 18mm Bolt
42 1 Resistance Knob
43 1 Resistance Cable
44 1 Right Rear Spring Bracket
45 2 M10 Split Washer
46 2 Handlebar Cap
47 2 Handlebar Spacer
48 2 Frame Spacer
49 4 Small Handlebar Arm Bushing
50 4 M8 x 45mm Button Bolt
51 8 M6 x 25mm Screw
52 10 M4 x 16mm Self-tapping Screw
53 1 Reed Switch/Wire
54 1 Cable Clamp
55 2 Handlebar Washer
56 2 M8 x 19mm Button Screw
57 1 M10 Flat Head Bolt
58 1 Magnet
59 4 Console Screw
60 4 Large Handlebar Arm Bushing
61 2 5/16” x 25.4mm Hex Bolt
62 1 M10 x 60mm Bolt
63 2 Spring Spacer
64 4 M4 x 25mm Screw
65 2 Front Spring Bracket
66 14 M6 Nylon Locknut
67 2 M5 x 14mm Self-tapping Screw
68 1 M8 x 22mm Flat Head Screw
69 2 Handlebar Endcap
# 1 Allen Wrench
#
#
1
1
Grease
s Manual
’
User
Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
14
Page 15

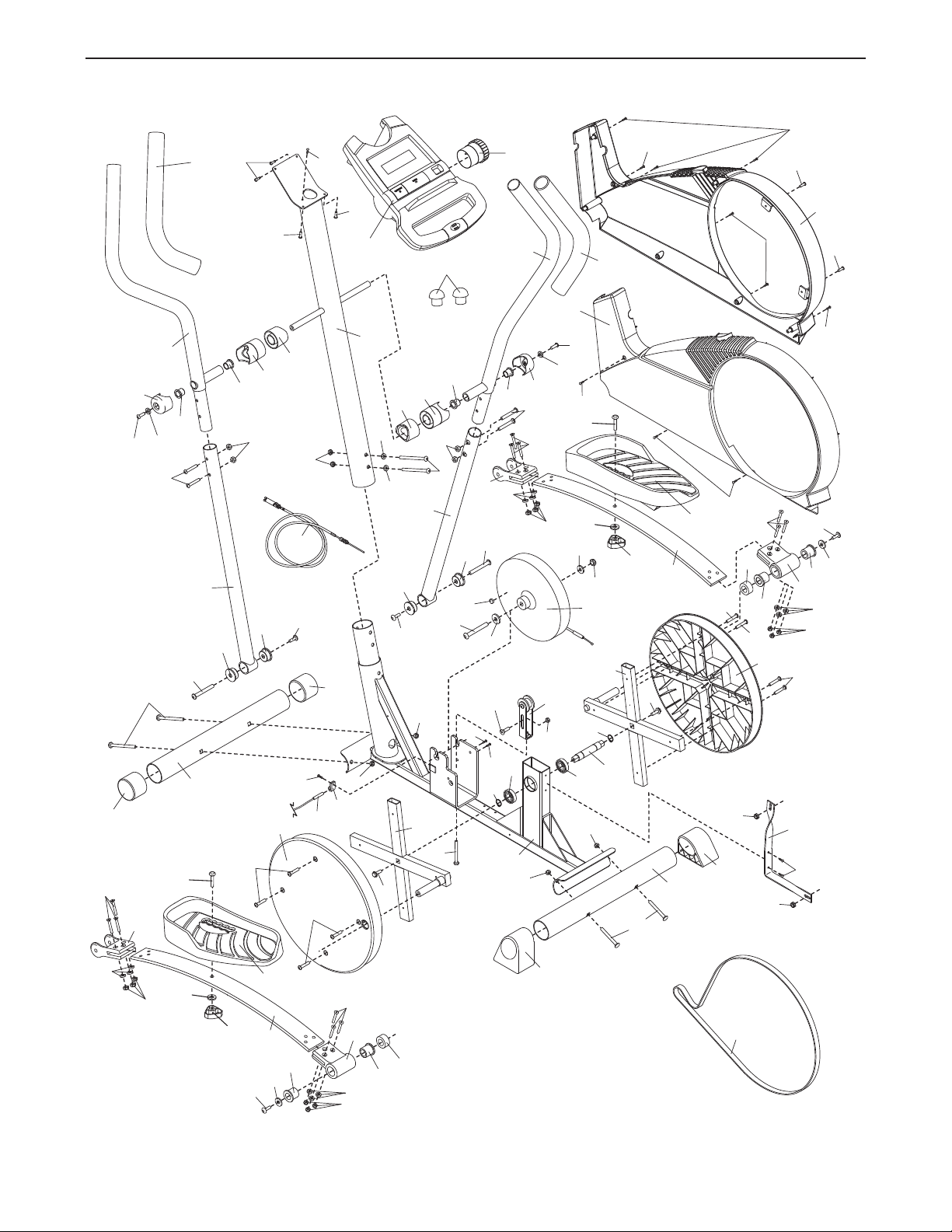

EXPLODED DRAWING—Model No. PFCCEL29221 R1103A
61
30
32
31
30
31
24
8
4
3
50
5
38
45
6
46
5
60
17
2
33
14
12
35
18
19
1
33
13
37
43
11
33
51
51
51
15
51
51
34
9
33
33
20
20
16
61
54
52
53
38
68
62
55
56
38
50
48
47
49
24
56
55
57
39
33
58
21
21
37
34
29
29
60
60
60
23
52
52
64
52
41
52
41
64
37
37
49
48
47
49
49
46
11
16
52
35
44
26
66
36
40
63
40
26
66
63
36
36
66
26
36
66
26
65
65
28
25
25
25
25
15
66
66
27
42
29
67
67
7
59
45
59
59
28
27
10
22
52
69
15
Page 16
HOW TO ORDER REPLACEMENT PARTS
If you have additional questions, please call our toll-free customer service department at 1-888-936-4266,
Monday through Friday 8h00 until 18h30 eastern time (excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER of the product (PFCCEL29221)
• The NAME of the product (PROFORM
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see page 14)
®
650 CARDIO CROSSTRAINER)
LIMITED WARRANTY
ICON OF CANADA, INC., (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to
replacing or repairing, at ICON's option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of
incidental or consequential damages.
ranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some provinces do not allow limitations on how long an implied warranty lasts.
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to
province or so specified by the retailer of your equipment.
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
Part No. 208337 R1103A Printed in Canada © 2003 ICON OF/DU CANADA, INC.
Accordingly
, the above limitation may not apply to you.
Accordingly
The war
-
, the
Loading...
