USER’S MANUAL
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
Model No. PFCCEL03900
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are
committed to providing complete customer satisfaction. If
you have questions, or if there
are missing parts, we will guarantee complete satisfaction
through direct assistance from
our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE:
Mon.–Fri., 8 a.m.–6:30 p.m. EST
1-888-936-4266
Visit our website at
www.proform.com
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
3
1. Read all instructions in this manual before
using the elliptical trainer.
2. Use the elliptical trainer only as described in
this manual.
3. It is the responsibility of the owner to
ensure that all users of the elliptical trainer
are adequately informed of all precautions.
4. Place the elliptical trainer on a level surface,
with a mat beneath it to protect the floor or
carpet. Keep the elliptical trainer indoors,
away from moisture and dust.
5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the elliptical trainer at all times.
7. The elliptical trainer should not be used by
persons weighing more than 115 kg (250
lbs.).
8. Wear appropriate clothing when using the
elliptical trainer. Always wear athletic shoes
for foot protection.
9. When mounting and dismounting the elliptical trainer, always hold the handlebars or
the T-handle and step onto and off the pedal
that is in the lowest position.
10. Each time you stop exercising on the
elliptical trainer, allow the pedals to come to
a complete stop before dismounting.
11. Always keep your back straight when using
the elliptical trainer. Do not arch your back.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
13. The elliptical trainer is intended for in-home
use only. Do not use the elliptical trainer in a
commercial, rental, or institutional setting.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the PROFORM®545E elliptical trainer.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. ICON assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Congratulations for selecting the PROFORM®545e
elliptical trainer. The 545e is an incredibly smooth
exerciser that moves your feet in a natural elliptical
path, minimizing the impact on your knees and ankles.
And the unique 545e features adjustable resistance,
upper-body and stationary handlebars, and a multimode console to help you get the most from your
exercise. Welcome to a whole new world of natural,
elliptical-motion exercise from PROFORM.
For your benefit, read this manual carefully before
you use the elliptical trainer. If you have questions
after reading the manual, call our Customer Service
Department toll-free at 1-888-936-4266, Monday
through Friday, 8 a.m. until 6:30 p.m. Eastern Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is PFCCEL03900.
The serial number can be found on a decal attached
to the elliptical trainer (see the front cover of this manual for the location of the decal).
Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.
Resistance Knob
FRONT
BACK
LEFT SIDE
Pedal Arm
Pedal Disk
Side Shield
Pedal
Book Holder
Upright
Water Bottle Holder
(Bottle not included)
T-Handle
Handlebar
5
PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART
LIST on page 13. Note: Some parts may have been
pre-attached for shipping. If a part is not in the
parts bag, check to see if it has been preattached.
M6 x 16mm Screw (54)
M6 Black Nylon Locknut (55)
M4 x 16mm Round
Head Screw (38)
M4 x 19mm Round
Head Screw (16)
M10 Nylon Locknut (29)
Weld Spacer (49)
Pedal Arm Bushing (42)
Handlebar Spacer (39)
3/4” Axle Cap (43)
5/8” Axle Cap (57)
Rear Pedal Arm Bushing (11)
Pedal Arm Spacer (41)
6
ASSEMBLY
Assembly requires two people. Place all parts of the elliptical trainer in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires that you have a phillips screwdriver , two adjustable wrenches , a
rubber mallet , and a pair of pliers .
1. While another person holds the Console (6) near the
Upright (3), insert the Resistance Cable (26) down
through the Upright.
2. While another person holds the Upright (3) near the
Frame (1) as shown, connect the Extension Wire
(63) to the Sensor Wire (25).
Next, connect the Resistance Cable (26) to the
Lower Cable (64) in the following way:
• Refer to drawing A. Pull up on the metal bracket,
and insert the tip of the Resistance Cable (26) into
the wire clip on the Lower Cable (64) as shown.
• Refer to drawing B. Firmly pull the Resistance
Cable (26) and slide it into the metal bracket on the
Lower Cable (64) as shown.
• Refer to drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
Slide the Upright (3) onto the welded bolts on the
Frame (1). Make sure that the Resistance Cable
(26) doesn’t become caught on the Frame (1) or
the Upright (3). Be careful to avoid pinching the
Resistance Cable and the Sensor Wire (25)
between the the Frame and the Upright. Tighten
an M10 Nylon Locknut (29) onto each welded bolt.
64
64
26
Metal
Bracket
26
B
A
C
64
26
3
2
1
29
26
Welded
Bolts
63
64
25
1
6
26
3
7
4. Find the Left Pedal (31), which has a ridge on the
right side. Attach the Left Pedal to one of the Pedal
Arms (12) with three M4 x 19mm Round Head
Screws (16) as shown.
Repeat this step to attach the Right Pedal to the other
Pedal Arm (not shown).
5. Locate the Left Handlebar (8) (there is an “L” sticker
on the Left Handlebar for identification). Apply a thin
film of the included grease to the axle at the lower
end of the Left Handlebar.
Slide a Handlebar Spacer (39) and the Pedal Arm
(12) with the Left Pedal (31) onto the Left Handlebar
(8) as shown. Make sure that there are two Pedal
Arm Bushings (42) in the Pedal Arm. (Note: These
parts fit tightly; it may be helpful to use a rubber mallet). Next, refer to the PART IDENTIFICATION
CHART on page 5 and identify the 3/4” Axle Caps
(43). Tap a 3/4” Axle Cap onto the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (62).
4
31
12
16
8
62
43
42
12
12
5
39
Ridge
31
Grease
3. While another person holds the Console (6) near the
Upright (3), connect the console wire to the Extension
Wire (63).
Make sure the slack Resistance Cable (26) is pulled
up out of the Upright (3). Feed the slack Extension
Wire (63) down into the Upright (3). Push the excess
Resistance Cable into the Console (6). Attach the
Console to the Upright with four M4 x 16mm Round
Head Screws (38). Be careful to avoid pinching the
Resistance Cable and the Extension Wire.
Press the Resistance Knob (50) onto the Resistance
Cable (26).
3
6
3
38
26
63
Console
Wire
50
8
8. The Console (6) requires four “AA” batteries (not
included). Alkaline batteries are recommended.
To install batteries, look under the Console (6) and
locate the two Battery Covers (66)—there is one
Battery Cover on each side. Remove the Battery
Covers by sliding them in the direction shown by the
arrows on the Battery Covers. Insert two batteries into
each battery compartment; make sure that all four
batteries are turned so the negative ends (marked
“–”) are touching the springs in the battery compartments. Then, reattach the Battery Covers by slid-
ing them in the opposite direction.
9. Make sure that all parts of the elliptical trainer are properly tightened. Place a mat under the elliptical
trainer to protect the floor or carpet from damage.
6
8
7
55
54
10
3
Batteries
66
7. Attach the T-Handle (10) to the Upright (3) with two
M6 x 16mm Screws (54) and two M6 Black Nylon
Locknuts (55).
6. Slide a Weld Spacer (49) onto the left axle on the
Upright (3). Make sure that the open side of the Weld
Spacer is facing the Upright.
Apply a thin film of the included grease to the axles
and crank arms in the locations indicated.
Slide a Pedal Arm Spacer (41) onto the left Crank
Arm (59). Make sure that there are two Rear Pedal
Arm Bushings (11) in the Pedal Arm (12) attached to
the Left Handlebar (8).
With the help of another person, slide the Left
Handlebar (8) onto the left axle on the Upright (3)
while sliding the left Pedal Arm (12) onto the left
Crank Arm (59). Note: These parts fit tightly; it may be
helpful to use the rubber mallet. In addition, it may be
helpful to rotate the left Crank Arm to a different position.
Tap a 5/8” Axle Cap (57) onto the left axle on the
Upright (3). Tap a 3/4” Axle Cap (43) onto the left
Crank Arm (59).
Repeat this step to attach the Right Handlebar and
the right Pedal Arm (not shown).
6
59
41
11
12
49
57
3
43
8
Grease
Grease
9
HOW TO USE THE ELLIPTICAL TRAINER
HOW TO EXERCISE ON THE ELLIPTICAL TRAINER
To mount the elliptical trainer, firmly hold the handlebars or the T-handle and carefully step onto the pedal
that is in the lowest position. Next, step onto the other
pedal. Push the pedals until they begin to move with a
continuous motion. Note: The pedal disks can turn
in either direction. It is recommended that you
turn the pedal disks in the direction shown below;
however, to give variety to your exercise, you may
choose to turn the pedal disks in the opposite
direction.
To dismount the elliptical trainer, allow the pedals to
come to a complete stop. CAUTION: The elliptical
trainer does not have a free wheel; the pedals will
continue to move until the flywheel stops. When
the pedals are stationary, step off the highest pedal
first. Then, step off the lowest pedal.
HOW TO ADJUST THE RESISTANCE OF THE
PEDALS
As you exercise,
you can adjust
the resistance of
the pedals with
the resistance
knob on the
console. To
increase the
resistance,
turn the knob
clockwise; to
decrease the
resistance, turn the knob counterclockwise.
DESCRIPTION OF THE CONSOLE
The innovative console offers a manual mode and
three personal coach pace programs. The pace programs are designed to help you achieve specific exercise goals by pacing your exercise. You can choose
from a stamina-building interval program, an aerobic
program, and a special fat burning program. The console also features six modes that display instant exercise feedback. The modes are described below:
Calories—This mode shows the approximate number
of calories you have burned.
Fat Calories—This mode shows the approximate
number of fat calories you have burned (see Burning
Fat on page 12).
Time—If you select the manual mode, this mode will
show the elapsed time. If you select one of the three
pace programs, this mode will count down the time
remaining in the program. Note: When you stop exercising, the time will flash when it is displayed.
Distance—This mode shows your total distance, in
miles.
Speed—This mode shows your exercise pace, in
miles per hour.
Scan—This mode displays the other five modes, for
seven seconds each, in a repeating cycle.
Pedal
Pedal Disk
Resistance Knob
10
HOW THE PACE PROGRAMS OPERATE
When you use a
pace program, two
columns of bars will
appear in the upper
display. The left column represents a
target pace, and the
right column shows
your actual exercise
pace. The target pace will change periodically during
the program; as the target pace changes, simply
adjust your pace to keep both columns at the same
height. Important: The target pace is a goal pace.
Your actual pace may be slower than the target
pace, especially during the first few months of
your exercise program. Be sure to exercise at a
pace that is comfortable for you.
The three graphs
on the console
show how the target
pace will change
during the
programs. During
the Aerobic
program (program 2), for example, the target pace will
gradually increase during the first half of the program,
and gradually decrease during the last half of the program. Each program will last for twenty minutes.
STEP-BY-STEP CONSOLE OPERATION
Before the console can be operated, batteries
must be installed. See assembly step 8 on page 8.
Follow the steps below to operate the console.
Turn on the power
To turn on the
power, press
the on/reset
button or
simply begin
exercising.
The entire display will appear for two seconds; the console will
then be ready for use. Note: If batteries were just
installed, the power will already be on.
Select one of the three pace programs or the
manual mode
To select one of
the pace
programs,
repeatedly press
the program
select button. A
1, 2, or 3 will
appear in the upper display to show which program you have selected. To select the manual
mode, press the program select button until no
number appears in the upper display. The programs will be selected in the following order: program 1 (interval), program 2 (aerobic), program 3
(fat burn), manual mode.
Begin your workout
If you selected
the manual
mode, go to
step 4. If you
selected one of
the pace programs, two
columns of bars
will appear in
the upper display. The left column will show a
target pace. The right column will show your
actual exercising pace. Adjust your pace until the
same number of bars appear in both columns.
The arrows on the right side of the upper display
will show whether you need to increase or
decrease your pace. Each time the target pace
changes during the program, adjust your pace to
keep both columns at the same height.
Follow your progress with the six feedback
modes
The scan
mode—
Repeatedly
press the mode
button until a
bar appears
above the scan
symbol. When the scan mode is selected, the console will display the calories, fat calories, time,
distance, and speed modes, for seven seconds
each, in a repeating cycle.
4
3
2
1
Actual Pace
Indicator
Actual Pace
Target Pace
Bar
Target Pace
11
The calories,
fat calories,
time, distance,
or speed
mode—
Repeatedly
press the
mode button until a bar appears below or above
the name of the desired mode. (Note: When the
time mode is selected, no bar will appear; when
the speed mode is selected, the letters MPH will
appear instead of a bar.) Make sure that there is
not a bar above the word “scan.”
If desired, press the on/reset button to reset the
lower display.
Turn off the power
To turn off the power, simply wait for about
six minutes. If the pedals are not turned and the
buttons are not pressed for six minutes, the
power will turn off automatically.
5
MAINTENANCE
Inspect and tighten all parts of the elliptical trainer
regularly. Replace any worn parts immediately.
The elliptical trainer can be wiped clean with a soft
cloth and mild detergent. Do not use abrasives or
solvents. To prevent damage to the console, keep
liquids away from the console. Use only a sealable
water bottle in the console.
CONSOLE TROUBLE-SHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, refer to
assembly step 8 on page 8.
STORAGE
When storing the elliptical trainer, remove the batteries from the console. Keep the elliptical trainer in a
clean, dry location, away from moisture and dust.
12

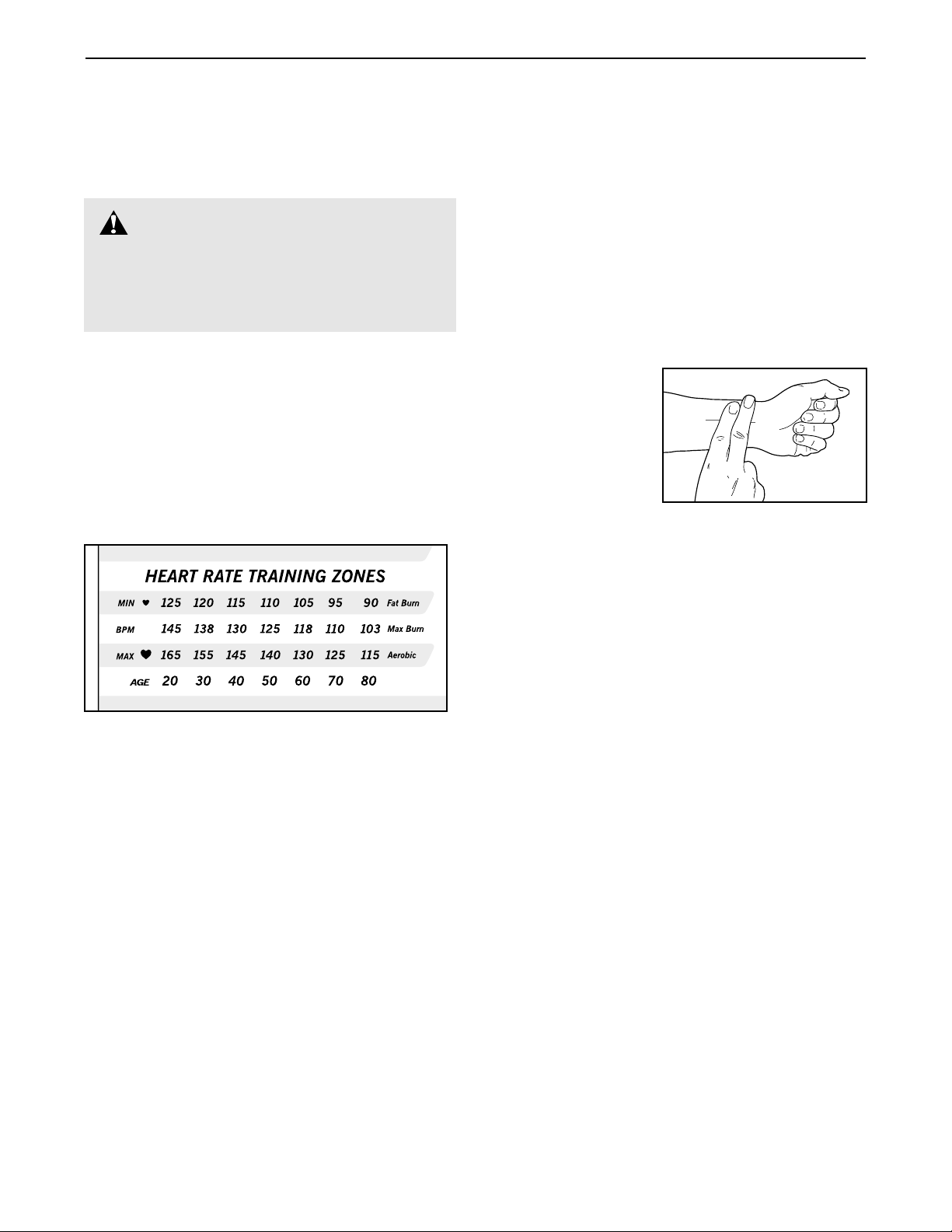

CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded off to the
nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The smallest number is the recommended
heart rate for fat burning; the middle number is the
heart rate for maximum fat burning; the largest
number is the heart rate for aerobic exercise.
Burning Fat
To burn fat effectively, you must exercise at a low
intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only
after the first few minutes of exercise does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the intensity of your exercise until
your heart rate is near the smallest number in your
training zone as you exercise. For maximum fat burning, adjust the intensity of your exercise until your
heart rate is near the middle number.
Aerobic Exercise
To strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity
that requires large amounts of oxygen for prolonged
periods of time. This increases the demand on the
heart to pump blood to the muscles, and on the lungs
to oxygenate the blood. For aerobic exercise, adjust
the intensity of your exercise until your heart rate is
near the largest number in your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, first exercise for at least four
minutes. Then, stop
exercising and place
two fingers on your
wrist as shown.
Take a six-second
heartbeat count,
and multiply the result by 10 to find your heart rate.
For example, if your six-second heartbeat count is 14,
your heart rate is 140 beats per minute. (A six-second
count is used because your heart rate will drop rapidly
when you stop exercising.)
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30
minutes of exercising with your heart rate in your
training zone. (During the first few weeks of your
exercise program, do not keep your heart rate in
your training zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching.
This will increase the flexibility of your muscles
and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may plan up to five workouts each week, if desired.
Remember, the key to success is make exercise a
regular and enjoyable part of your everyday life.
WARNING:Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over the age of 35 or persons with pre-existing health problems.
13
PART LIST—Model No. PFCCEL03900 R0601A
Note: “#” indicates a non-illustrated part. “*” indicates that an extra part may be included. Specifications are
subject to change without notice. See the back cover of this manual for information about ordering replacement
parts.
Key
No. Qty. Description
1 1 Frame
2 2 T-Handle Endcap
3 1 Upright
4 1 Right Side Shield
5 1 Left Side Shield
6 1 Console
7 2 Foam Handlebar Grip
8 1 Left Handlebar
9 2 M8 Lock Washer
10 1 T-Handle
11 4 Rear Pedal Arm Bushing
12 2 Pedal Arm
13 13 M5 x 16mm Screw
14 1 Resistance Strap
15 1 Strap Buckle
16 6 M4 x 19mm Round Head Screw
17 2 1/4” Nylon Locknut
18 2 Adjustment Bracket
19 2 M6 Eyebolt
20 2 M10 Nylon Jam Nut
21 1 Flywheel Axle
22 2 Flywheel Bearing
23 1 Flywheel
24 1 Magnet
25 1 Sensor Wire/Reed Switch
26 1 Resistance Control/Cable
27 4 Stabilizer Endcap
28 1 Tension Spring
29 4 M10 Nylon Locknut
30 1 Belt
31 1 Left Pedal
32 1 Pulley w/Shaft
33 2 Crank Arm Extension
34 1 M4 x 16mm Screw
35 2 5/16” Zinc Bolt
36 2 Pulley Bearing
Key
No. Qty. Description
37 2 Pedal Disk
38 17 M4 x 16mm Round Head Screw
39 2 Handlebar Spacer
40 1 Side Shield Bracket
41 2* Pedal Arm Spacer
42 4 Pedal Arm Bushing
43 4* 3/4” Axle Cap
44 1 M4 x 16mm Flat Head Screw
45 1 Right Pedal
46 4 #8 Flat Washer
47 1 Clamp Nut
48 1 Clamp Bolt
49 2 Weld Spacer
50 1 Resistance Knob
51 4 M4 x 25mm Screw
52 1 Return Spring
53 2 M10 Washer
54 2 M6 x 16mm Screw
55 2 M6 Black Nylon Locknut
56 4* Pivot Bushing
57 2* 5/8” Axle Cap
58 1 M4 x 64mm Screw
59 2 Crank Arm
60 1 3/4” Plastic Spacer
61 2 5/16” Zinc Washer
62 1 Right Handlebar
63 1 Extension Wire
64 1 Lower Cable
65 1 Console Back
66 2 Battery Cover
# 1 User’s Manual
# 2 Side Shield Decal
# 1 Warning Decal
# 1 Hardware Kit
# 1 Grease Packet
14
EXPLODED DRAWING—Model No. PFCCEL03900 R0601A
42
38
43
57
38
39
14
56
12
66
6
65
50
62
4
58
38
13
13
13
51
57
26
38
8
49
56
16
38
7
54
10
55
31
27
11
43
63
56
56
20
43
21
38
28
22
44
16
46
36
17
24
47
15
45
59
18
22
36
23
27
19
53
60
20
12
41
9
61
33
40
13
49
42
3
29
42
32
19
17
39
52
27
18
53
48
64
22
1
34
41
11
13
35
9
25
33
59
61
38
5
30
43
11
13
35
37
27
13
37
15
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-888-936-4266, Mon.–Fri.,
8 a.m.–6:30 p.m. EST (excluding holidays). To help us assist you, please be prepared to give the following information when calling:
• The MODEL NUMBER of the product (PFCCEL03900)
• The NAME of the product (PROFORM
®
545e elliptical trainer)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see page 13).
ICON of Canada Inc.
900 de l’Industrie
St-Jérôme, Québec
Canada, J7Y 4B8
PLACE
STAMP
HERE
Part No. 175646 R0601A Printed in China © 2001 ICON Health & Fitness, Inc.
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE
NAME:
ADDRESS:
COUNTY:
MODEL NO.:
RETAILER NAME:
PHONE:
POSTCODE:
SERIAL NO.: PURCHASE DATE:
RETAILER ADDRESS:
1) Primary user(s) of product:
o Male o Female o Family
2) Age of primary user:
o
0–24 o 35–44 o 55–64
o
25–34 o 45–54 o 65 and over
3) Annual household income:
o 0–9,999 o 15,000–19,999
o 10,000–14,999 o 20,000+
4) How many times a week do you exercise?
o Less than 3 times o 3 times or more
5) Have you ever purchased an ICON product before?
o
Yes o No
6) Where did you first see or hear about ICON products?
o Magazine o Friend/relative
o Newspaper Ad o Other
o Store
7) What was the primary reason for purchasing this ICON product?
o Store Employee o Television Ads o Colour
o Electronic Features o Magazine Ads o Other
o Product Design o Product Innovation
o Price
8) Did you consider purchasing fitness equipment from another
manufacturer?
o No o Yes
What other manufacturer?
9) Based on your impression of what you have purchased,
would you buy another ICON product?
o Yes o No o No Opinion
If not, what other brand name equipment would you purchase?
10)What other type of exercise equipment do you own?
o Bicycle o Exercise Cycle o Treadmill
o Home Gym o Weight Bench o Other
o Cardio Glide o Stepper
11)Which type of magazine do you read regularly?
o Sports o Fitness o Motoring
o Business o Computer o Other
12) Do you wish to be sent further bulletins about ICON products?
o Yes o No
THANK YOU FOR YOUR TIME
PRODUCT WARRANTY REGISTRATION
© 2001 ICON of Canada Inc. Printed in China
LIMITED WARRANTY
ICON OF CANADA INC., (ICON), warrants this product to be free from defects in workmanship and material, under
normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty
extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at
ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made
must be received by ICON at one of its authorized service centers with all freight and other transportation charges
prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty
does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used
for commercial or rental purposes, or to products used as store display models. No other warranty beyond that
specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with
the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential damages.
Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all
other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its
scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an implied
warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to province or
so specified by the retailer of your equipment.
ICON OF CANADA INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
™
of/du Canada Inc.
®
Loading...
