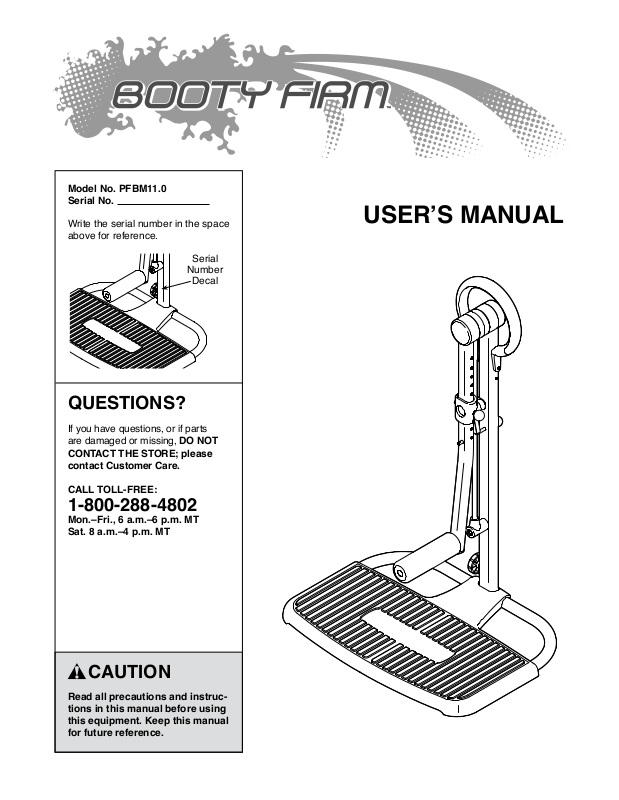

Model No. PFBM11.0 Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if parts are damaged or missing, DO NOT

CONTACT THE STORE; please contact Customer Care.

CALL TOLL-FREE:

1-800-288-4802

Mon.–Fri., 6 a.m.–6 p.m. MT Sat. 8 a.m.–4 p.m. MT

USER’S MANUAL

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ADJUSTMENT .............................................................................5

PART LIST/EXPLODED DRAWING .............................................................7

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is miss-

ing or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on this product before using this product. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure that all users of this product are adequately informed of all precautions.

3. Use this product only as described in this manual and in the included DVD.

4. This product is intended for home use only. Do not use this product in a commercial, rental, or institutional setting.

5. Keep this product indoors, away from moisture and dust. Do not put this product in a garage or covered patio or near water.

6. Place is product on a level surface, with a mat beneath it to protect the floor or carpet from damage. Make sure that there is enough clearance around this product.

8. This product should not be used by persons weighing more than 250 lbs. (113 kg).

9. Keep children under age 12 and pets away from this product at all times.

10. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on this product. Always wear athletic shoes for foot protection while exercising.

11. Always stand on the platform while using this product.

12. Use this product in a controlled manner; do not release the leg lever while the resistance cord is stretched.

13. Do not stand on the leg lever.

14. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

7. Inspect and properly tighten all parts each time you use this product. Replace any worn parts immediately.

BEFORE YOU BEGIN

Thank you for selecting the innovative BOOTY FIRM™ lower body developer. The BOOTY FIRM lower body developer is designed to let you enjoy a variety of fun and effective exercises that firm, tone, and strengthen the body.

For your benefit, read this manual carefully before you use this product. If you have questions after

reading this manual, please see the front cover of this manual.

ASSEMBLY

Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires a Phillips screwdriver . To avoid damaging parts, do not use power tools for assembly.

1. Slide the Upright (1) onto the Base (3). Attach the Upright by tightening the Upright Knob (23) into the Upright and the Base.

Next, secure the Upright (1) by tightening an M8

x 8mm Screw (31) into the Upright and the Base (3). Note: If you plan to periodically remove the Upright for transportation or storage, you may choose not to attach the Screw.

2. Attach the Handle (5) to the Upright (1) with four M4 x 15mm Screws (20).

3. Make sure that all parts are properly tight- ened. Place a mat beneath the Base (3) to protect the floor.

ADJUSTMENT

HOW TO ADJUST THE RESISTANCE

The resistance of the Leg Lever (2) can be adjusted to the desired level.

To adjust the resistance, first remove the Adjustment Pin (10). To increase the resistance, slide the Adjustment Bracket (7) downward to the desired position; to decrease the resistance, slide the Adjustment Bracket upward. Then, fully insert the Adjustment Pin into the Adjustment Bracket and the Leg Lever (2).

HOW TO LOCK AND UNLOCK THE LEG LEVER

To lock the Leg Lever (2), insert the Lock Pin (11) into the Upright (1) and the Leg Lever as shown at the right.

To use the Leg Lever (2), remove the Lock Pin (11) and insert it into the storage hole in the Upright (1).

Storage Hole

NOTES

PART LIST/EXPLODED DRAWING

Key No. Qty. Description Key No. Qty. Description

Model No. PFBM11.0 R1211B

1 1 Upright 2 1 Leg Lever 3 1 Base 4 1 Platform 5 1 Handle 6 1 Resistance Cord 7 1 Adjustment Bracket 8 1 Pad 9 1 Pad Tube 10 1 Adjustment Pin 11 1 Lock Pin 12 2 Upright Bushing 13 1 Push Nut 14 4 M3 x 15mm Screw 15 1 Leg Lever Cover 16 1 Upright Cover 17 1 Pad Tube Cap 18 1 Leg Lever Cap 19 1 M8 x 15mm Screw 20 6 M4 x 15mm Screw

21 1 Pulley Plate 22 2 Pulley 23 1 Upright Knob 24 4 Base Foot 25 2 Platform Foot 26 1 Upright Spacer 27 1 M8 x 105mm Bolt 28 8 M4 x 10mm Screw 29 1 M8 Washer 30 1 M8 Locknut 31 1 M8 x 8mm Screw * – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST/EXPLODED DRAWING near

the end of this manual)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. Parts are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. If replacement parts are shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will automatically be voided if the product is used as a store display model, if the product is purchased or transported outside the USA, if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,

or if the product is used for commercial or rental purposes. No other warranty beyond that specically set

forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of

property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other

consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantability or tness for a particular purpose are limited in their scope and duration to the terms set

forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to the customer.

This warranty provides specic legal rights; the customer may have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
