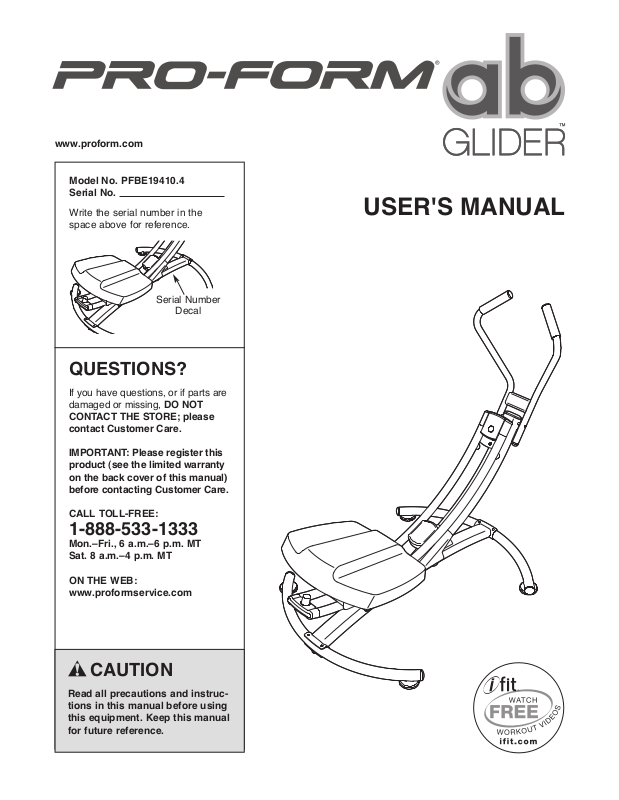

ProForm PFBE194104 User Manual
www.proform.com
Model No. PFBE19410.4
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ABDOMINAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request
a free replacement decal. Apply
the decal in the location shown.
Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your abdominal exerciser before using your abdominal exerciser. ICON assumes no responsibility for personal injury or property damage sustained by
or through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the abdominal exerciser only as
described in this manual.
3. It is the responsibility of the owner to ensure
that all users of the abdominal exerciser are
adequately informed of all precautions.
4. The abdominal exerciser is intended for
home use only. Do not use the abdominal
exerciser in any commercial, rental, or
institutional setting.
5. Keep the abdominal exerciser indoors, away
from moisture and dust. Place the abdominal
exerciser on a level surface, with carpet or a
non-slip mat beneath it.
6. Make sure that there is enough clearance
around the abdominal exerciser to mount,
dismount, and use the abdominal exerciser.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the abdominal exerciser at all times.
9. The abdominal exerciser should not be used
by persons weighing more than 300 lbs.
(136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the abdominal exerciser. Always
wear athletic shoes for foot protection while
exercising.
11. Use extreme caution while mounting and
dismounting the abdominal exerciser (see
HOW TO MOUNT AND DISMOUNT THE
ABDOMINAL EXERCISER on page 9). Always
hold the handlebar while exercising; do not
hold the pivot frame or the console.
12. Keep hands and feet away from moving
parts.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the PROFORM®AB GLIDER
bdominal exerciser. The versatile AB GLIDER
a
abdominal exerciser is designed to help you develop
our core muscles, improve your muscle tone, achieve
y
a shapelier figure, and increase your overall fitness.
For your benefit, read this manual carefully before
using the abdominal exerciser. If you have ques-
tions after reading this manual, please see the front
Console
cover of this manual. To help us assist you, note the
roduct model number and serial number before con-
p
tacting us. The model number and the location of the
erial number decal are shown on the front cover of
s
this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Handlebar
Handlebar Knob
Knee Pad
Roller Stop
Pivot Frame
Pin
4
ASSEMBLY
M8 x 55mm Button
Bolt (47)–1
M10 x 157mm Button Bolt (30)–1
Large Washer
(41)–1
Pivot Washer
(43)–1
M10 Curved
Washer (39)–2
M6 Washer
(35)–4
M10 Locknut
(38)–1
M8 Washer
(34)–13
M8 Locknut
(46)–1
M8 x 15mm Button
Screw (29)–12
M4 x 16mm
Screw (31)–2
M6 x 15mm Button
Screw (28)–4
M4 Washer
(48)–2
To hire an authorized service technician to assemble the abdominal exerciser, call 1-800-445-2480.
ssembly requires two persons. Place all parts of the abdominal exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and an
adjustable wrench .
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
