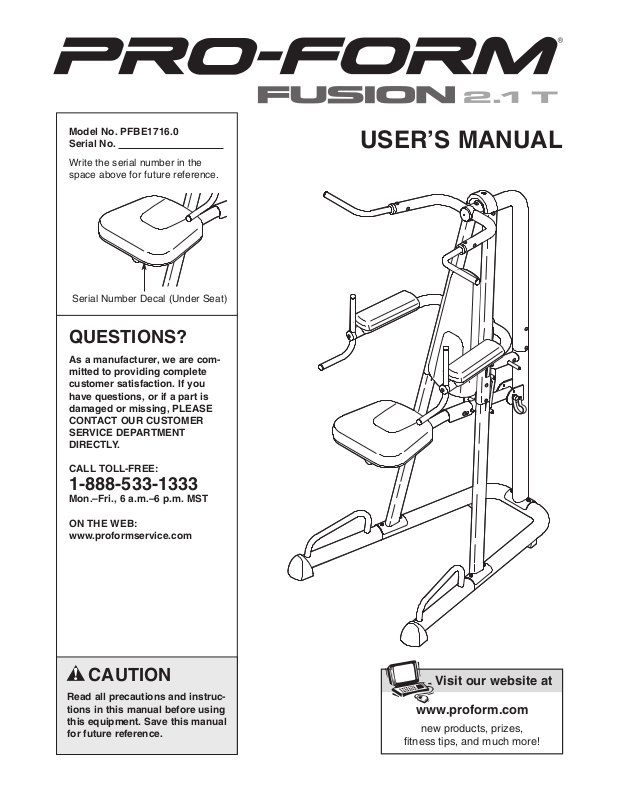

ProForm PFBE17160 User Manual
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Model No. PFBE1716.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
.proformservice.com
www
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

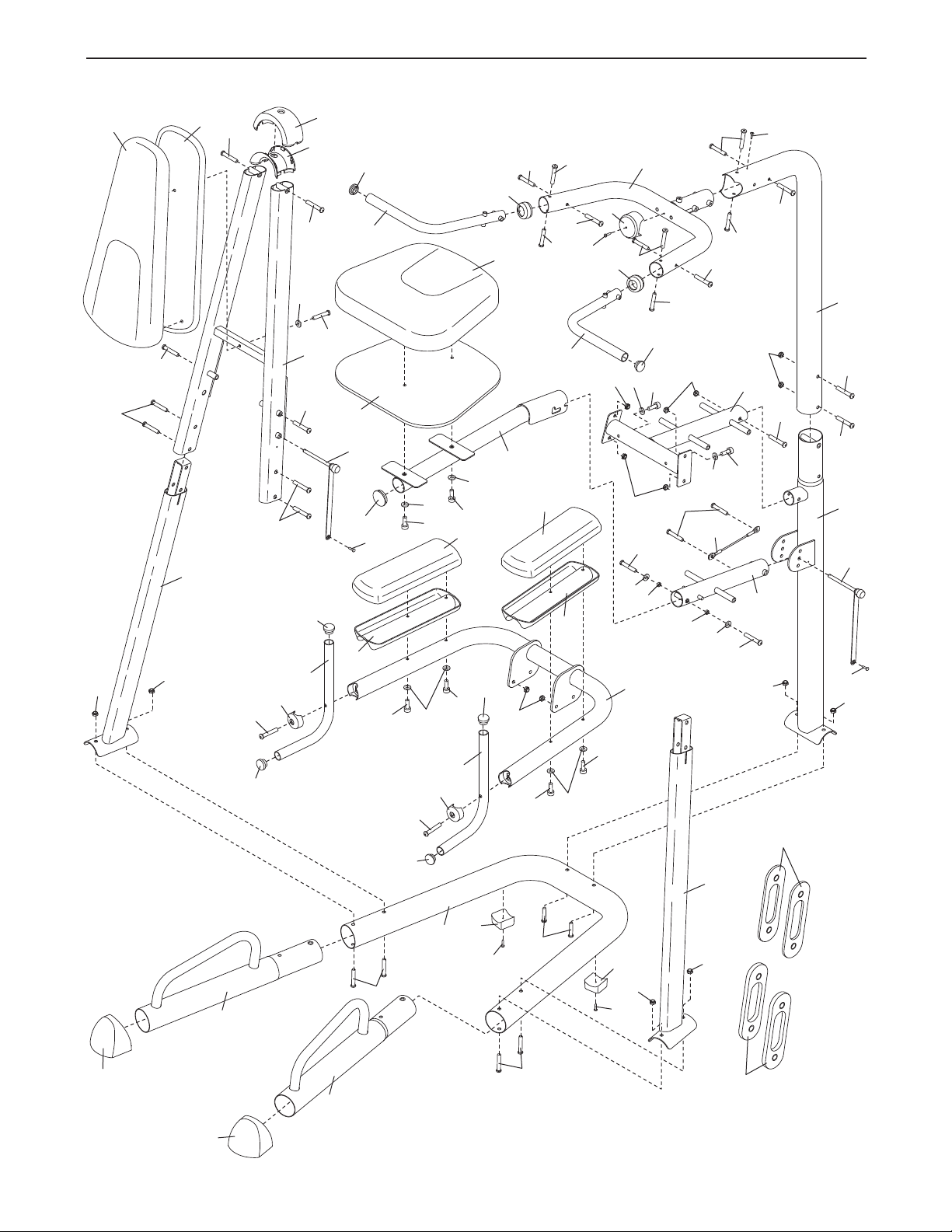

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
Keep hands and
fingers clear of
this area.
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the exercise rack.
1. Read all instructions in this manual before
using the exercise rack. Use the exercise
rack only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the exercise rack are adequately informed of all precautions.
3. The exercise rack is intended for home use
only. Do not use the exercise rack in any
commercial, rental, or institutional setting.
4.
Keep the
moisture and dust. Do not put the
rack
water.
5. Use the exercise rack only on a level surface.
Cover the floor beneath the exercise rack to
protect the floor.
Keep children under 12 and pets away from
6.
the exercise rack at all times.
7. Make sure all parts are properly tightened
each time the exercise rack is used. Replace
any worn parts immediately.
exercise rack
in a garage or covered patio, or near
indoors, away from
exercise
12. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
13.
The decals shown here have been placed on
the exercise rack. If a decal is missing or
illegible, call the toll-free telephone number
on the front cover of this manual and order a
free replacement decal. Apply the decal in the
location shown.
8. Always make sure that the pins and knobs
are fully engaged before using the exercise
rack.
9.
Never use the knee pad without at least one
resistance band connecting the support
frame to the pivot arm.
10. Always wear athletic shoes for foot protection while exercising.
11.
The exercise rack is designed to support a
maximum user weight of 300 pounds.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile PROFORM
FUSION 2.1 T exercise rack. The exercise rack is
designed to develop the abdominal muscle group.
Whether your goal is to tone your body, build dramatic
uscle size and strength, or improve your cardiovas-
m
cular system, the exercise rack will help you to
achieve the specific results you want.
For your benefit, read this manual carefully before
using the exercise rack. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model

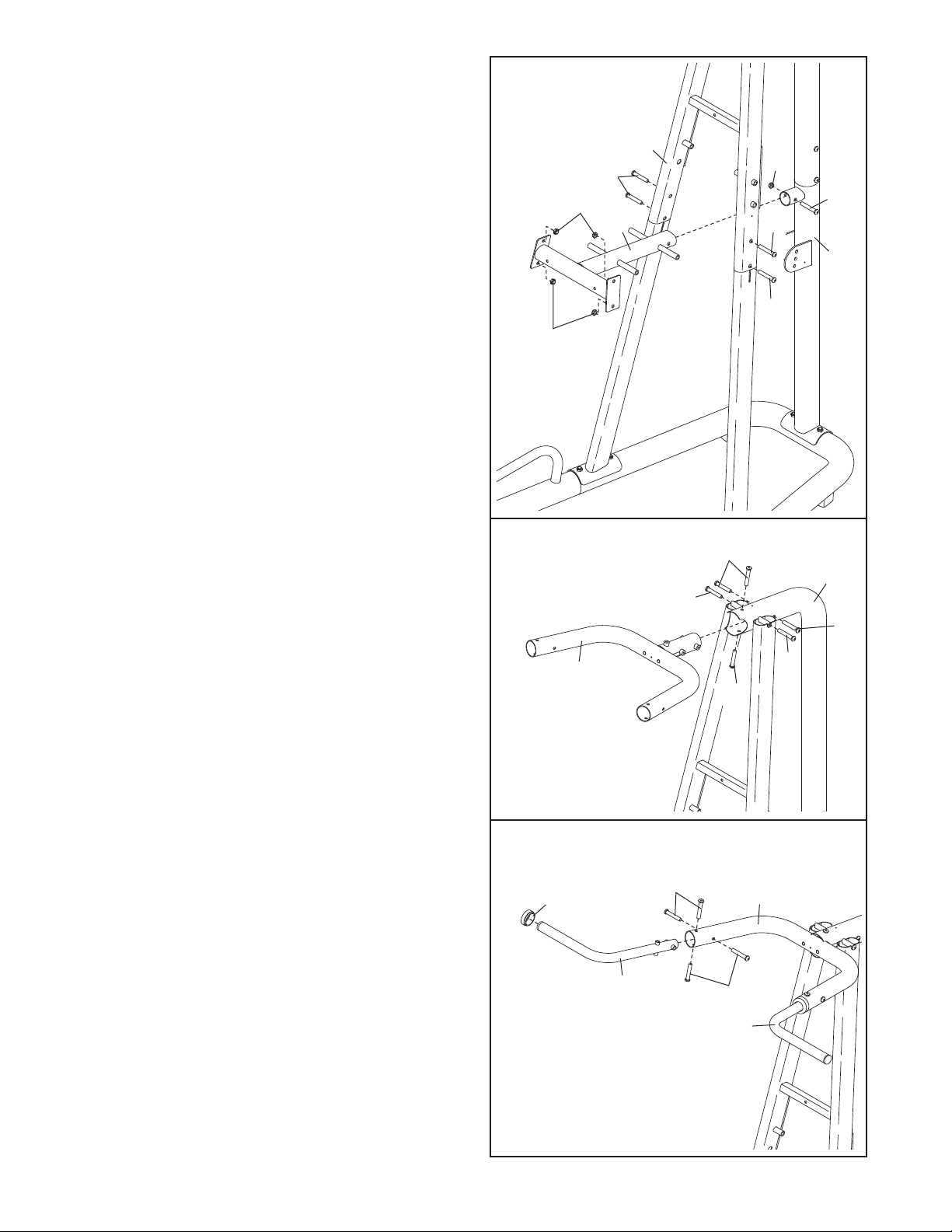

Pull-up Handle
Arm Rest
Dip Handle
®
number and serial number before calling. The model
number is PFBE1716.0. The serial number can be
found on a decal attached to the exercise rack (see
the front cover of this manual for the location of the
ecal).
d
To avoid a registration fee for any service needed
under warranty, you must register the exercise
rack at www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Assembled Dimensions:
Height: 82 in. / 208 cm
Width: 42 in. / 107 cm
Depth: 48 in. / 122 cm

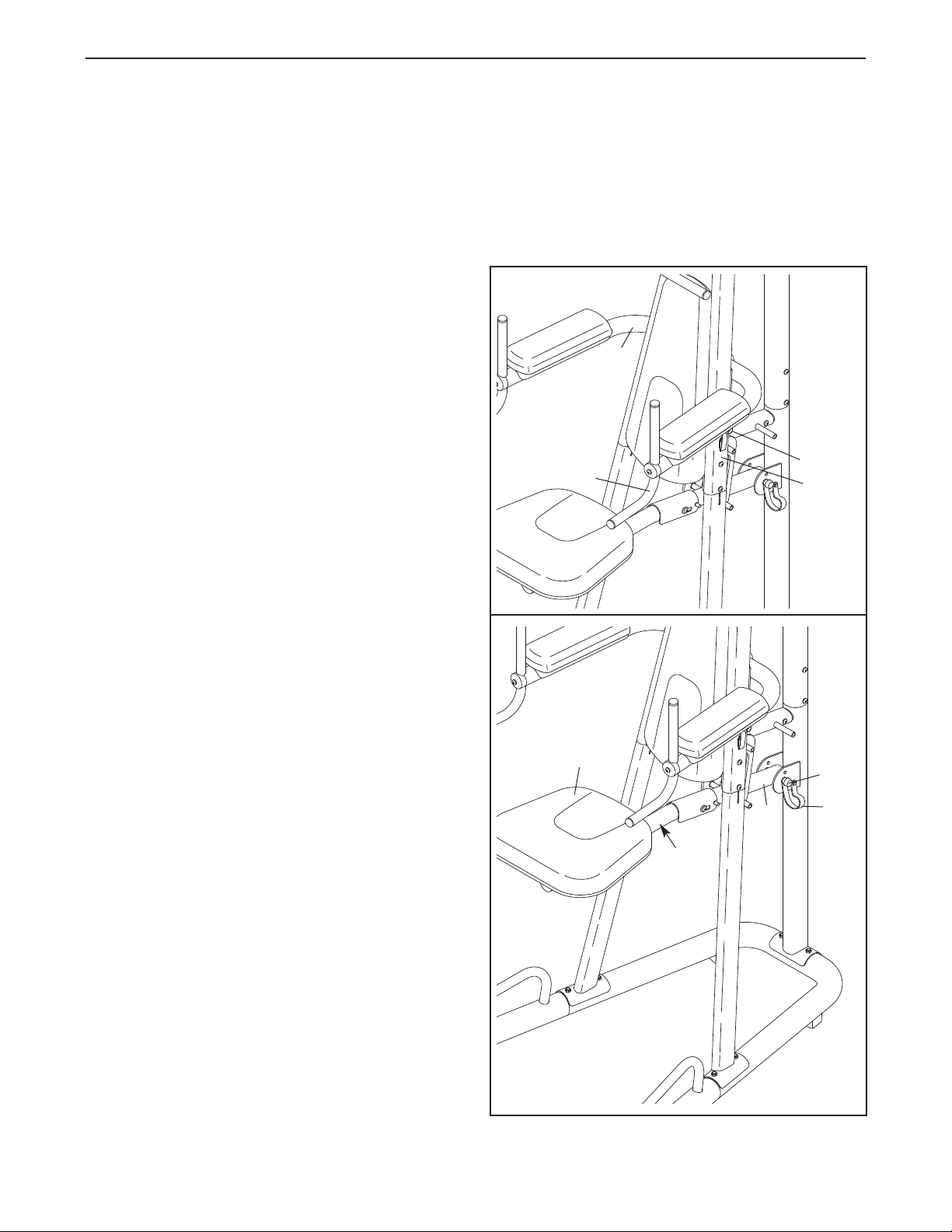

Backrest
Adjustment Pin
Right Side
Knee Pad
Push-up Handle
Note: The terms “right side” and “left side” are determined relative to a person with his back to
the backrest; they do not correspond to right and left on the drawings in this manual.
Adjustment Pin
Resistance Band
Left Side
4
M6 Washer (36)
M8 Washer (37)
M10 Nylon
Locknut (35)
M8 x 15mm
Button Screw (39)
M8 x 25mm
Shoulder Bolt (44)
M8 x 62mm Button Screw (41)
M10 x 90mm Button Bolt (42)
M8 x 20mm Button
Screw (43)
M6 x 70mm Screw (45)
M6 x 43mm Button
Screw (46)
M6 x 75mm Button Screw (47)
M10 x 53mm Button Bolt (40)
M10 x 62mm Button Bolt (30)
M10 x 100mm Button Bolt (31)
M4 x 25mm
Screw (48)
M4 x 12mm
Screw (49)
PART IDENTIFICATION CHART
efer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw-
R
ing is the key number of the part, from the PART LIST on page 18 of this manual.
have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached. If a part
is missing, call the toll-free telephone number on the front cover of this manual.
Note: Some small parts may
5
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the exercise rack can be assembled successfully by anyone. However, it is important to
realize that the versatile exercise rack has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
1. Attach two Base Pads (23) to the Base (1) with
two M4 x 25mm Screws (48).
Insert two M10 x 90mm Button Bolts (42) up
through the Base (1). It may be helpful to place
tape over the bolt heads to hold them in place.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the exercise rack, make sure all
parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One Phillips screwdriver
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1
1
23
48
42
23

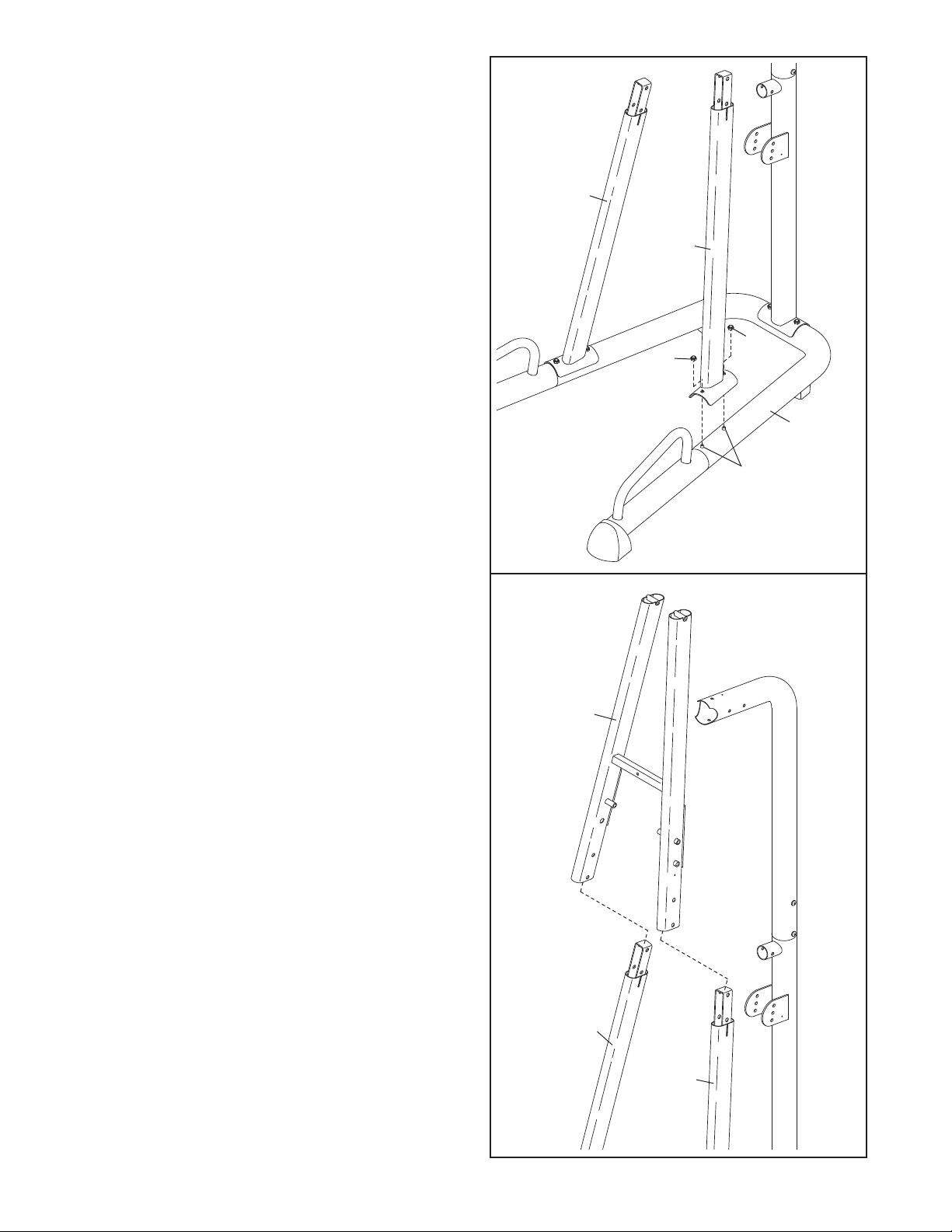

Press a Base Cap (22) onto a Base Leg (2).
2.
Repeat with the other Base Leg.
Insert the two Base Legs (2) into the Base (1) as
shown. Insert four M10 x 90mm Button Bolts (42)
up through the Base.
tape over the bolt heads to hold them in
place.
It may be helpful to place
48
2
42
1
42
22
2
2
6
