ProForm PETL50130 User Manual

Model No. PETL50130 Serial No.
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this man­ual for future reference.
Write the serial number in the space above for future reference.
Serial Number Decal
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:
Or write: ICON Health & Fitness, Ltd. Unit 4 Revie Road Industrial Estate Revie Road, Beeston Leeds, LS11 8JG UK
email: csuk@iconeurope.com
08457 089 009
Class HC Fitness Product
Visit our website at
www.iconeurope.com
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY AND PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

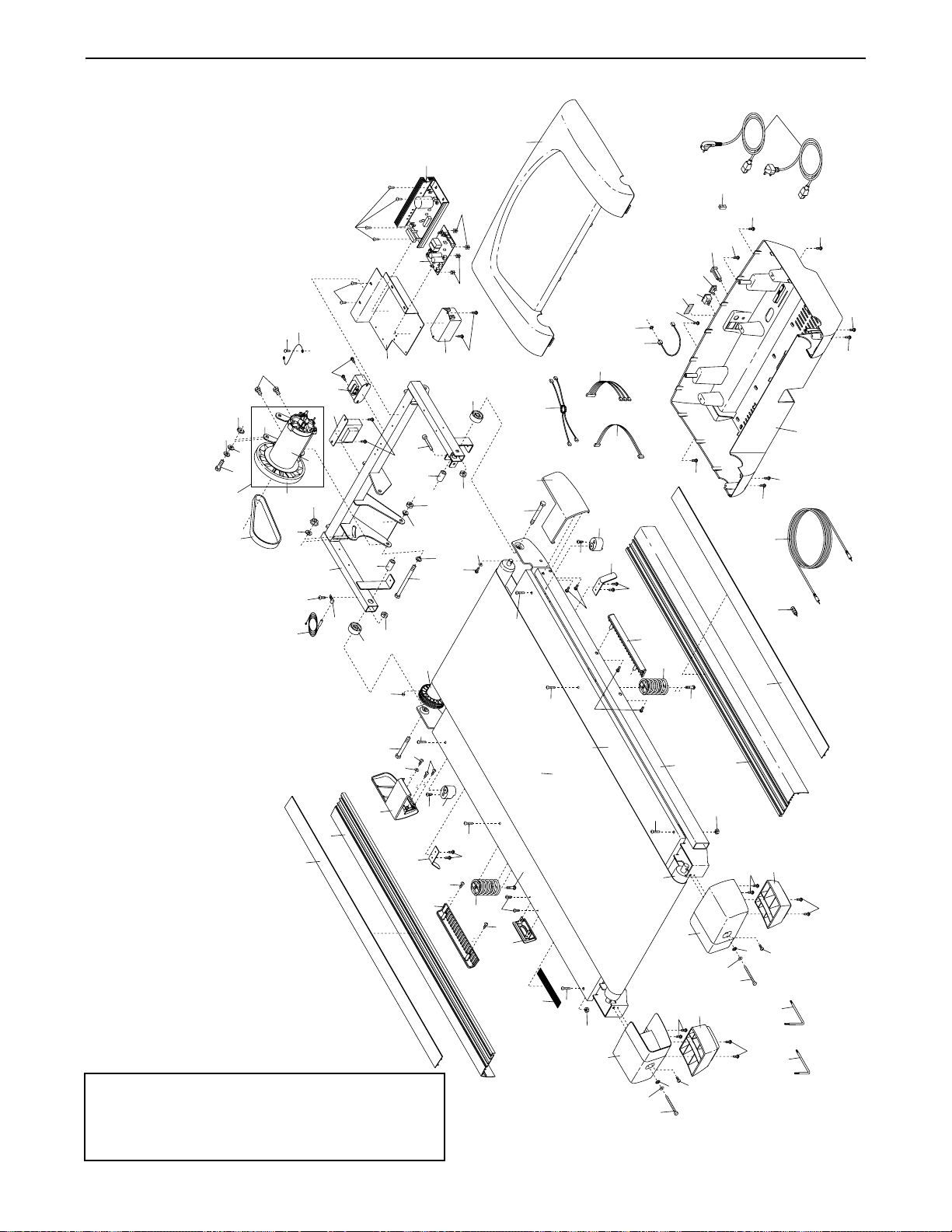

Note: An EXPLODED DRAWING is attached in the centre of this manual.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
3
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least 2.5 m (8 ft.) of clearance behind it and
0.5 m (2 ft.) on each side. Do not place the treadmill on any surface that blocks air open­ings. To protect the floor or carpet from dam­age, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or oxygen is administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 115 kg (250 lbs.) or less. Never allow more than one person on the treadmill at a time.
8. Wear appropriate exercise clothes whilst using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
9. When connecting the power cord (see page
11), plug the power cord into an earthed cir­cuit. No other appliance should be on the same circuit. When replacing the fuse, an ASTA approved BS1362 type should be fitted to the fuse carrier. A 13 amp fuse should be used.
10. If an extension cord is needed, use only a 3-
conductor, 1mm
2
(14-gauge) cord that is no
longer than 1.5 m (5 ft.).
11.Keep the power cord away from heated surfaces.
12.Never move the walking belt whilst the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
13.Never start the treadmill whilst you are stand­ing on the walking belt. Always hold the handrails whilst using the treadmill.
14.The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
15.The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
16. Never leave the treadmill unattended whilst it is running. Always remove the key, unplug the power cord, and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the loca­tion of the on/off switch.)
17.Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 25.) You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
18.When folding or moving the treadmill, make sure that the storage latch is fully closed.
IMPORTANT PRECAUTIONS
19. Whilst using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
20. Whilst using iFIT.com CDs and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
21. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
22. Inspect and properly tighten all parts of the treadmill every three months.
23. Never drop or insert any object into any opening.
24.
DANGER:Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized ser­vice representative only.
25. The treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. If a decal is missing or illegible, please call our Customer Service Department to order a free replace­ment decal. Apply the decal in the location shown. Note: The decals are not shown actual size.
4
5
Congratulations for purchasing the PROFORM®560 HR treadmill. The 560 HR treadmill offers an impres­sive array of features to help you achieve your fitness goals in the convenience of your home. From the ad­vanced console to the cushioned walking platform, the 560 HR treadmill is designed to make each workout more effective and enjoyable. And when you’re not ex­ercising, the treadmill can be folded away, taking less than half the floor space of conventional treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service Department at 08457 089 009. To help us assist you, please note the product model number and serial num­ber before calling. The model number of the treadmill is PETL50130. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Handrail
Latch Knob
Console
Accessory Tray
Key/Clip
Circuit Breaker
On/Off switch Walking Belt Foot Rail
Cushioned Walking Platform
BACK
RIGHT SIDE
Rear Roller Adjustment Bolts
Fan
Handgrip Pulse Sensor
BEFORE YOU BEGIN
6
For help identifying the assembly hardware, refer to the drawings below. Note: The assembly hardware and other small parts are packaged in separate part bags. Do not open the part bags until instructed to do so. (The
part bags are not labeled according to the order in which they are to be opened.) If a part is not found in the part bags, check to see if the part has been preassembled.
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver wire cut­ters , rubber mallet , and adjustable spanner .
1. Open part bag B. Identify the Right Upright (82) (the Left Upright [69] has a large round hole in the location shown). Lay the Right Upright flat, and cut the plastic ties off the lower end. Next, feed the Wire Harness (83) into the bottom of the Right Upright and pull it out of the hole in the top. Note: There may be a tie on the end of the Wire Harness to help you pull it through the hole.
Attach the Right Upright (82) to the bracket on the right side of the Base (109) with two 1 1/4” Bolts (104) and two Internal Star Washers (72). (Note: It may be helpful to use a rubber mallet to fully insert the Right Upright into the bracket.) Do not tighten the Bolts yet. Be
careful not to damage the Wire Harness.
Attach the Left Upright (69) to the left side of the Base (109) in the same way. Note: There is not a wire
harness on the left side.
82
83
1
69
Hole
109
104
72
Bracket
3/4” Screw (6)–20
1 1/4” Bolt (104)–4
1” Bolt (71)–2
1 1/4” Screw (92)–2
Wheel Nut (21)–2
2” Silver Screw (93)–2
Wheel Bolt (107)–2
Internal Star
Washer (72)–6
7
69
82
113
73
83
71
71
72
72
4
85
83
4. Open part bag A. With the help of a second person, hold the Console Base (85) near the Uprights (69, 82) as shown.
Connect the Wire Harness (83) to the wire harness in the Right Handrail Bracket (113). Make sure to connect
the connectors properly (see the inset drawing). The connectors should slide together easily and snap into place. If the connectors do not slide together easily
and snap into place, turn one connector and try to con­nect them again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON.
Insert the wires harnesses into the Right Upright (82). Hold the Handrail Brackets (73, 113) on top of the
Uprights (69, 82). Finger tighten two 1” Bolts (71) with Internal Star Washers (72) into the Handrail Brackets and the tops of the Uprights as shown. Press the
Handrail Brackets towards the centre of the tread­mill. Then, tighten both Bolts.
3. With the help of a second person, carefully tip the Uprights (69, 82) down so the treadmill pivots on the Wheels (108) as shown.
Tighten a 3/4” Screw (6) into one side of the Base (109) and one of the Wheel Housings (106). Attach a long Rear Base Pad (105) and a short Front Base Pad (100) to the Base with four additional 3/4” Screws (6) as shown.
Repeat this step on the opposite side of the treadmill.
With the help of a second person, carefully raise the Uprights (69, 82) to the vertical position.
2. Open part bag C. See drawing 2a. Attach a Wheel (108) to each Wheel Housing (106) with a Wheel Bolt (107) and a Wheel Nut (21) as shown. Do not overtighten the
Wheel Nuts.
See drawing 2b. Insert a Wheel Housing (106) into the Base (109). (Note: It may be helpful to use a rubber mallet to fully insert the Wheel Housing.) Next, press a Base Endcap (99) into the Base.
Repeat this step on the opposite side of the treadmill.
100
105
105
109
106
106
106
108
21
6
6
106
108
106
99
109
107
107
2a
2b
108
108
109
69
3
6
6
100
6
82
8
6. Identify the Left and Right Handrails (68, 81) (see the end views of the Handrails in the inset drawing). The curved edges of the Handrails should be on the outside.
Slide the Right Handrail (81) onto the Right Handrail Bracket (113), and press the lip on the front of the Right Handrail under the Console Base (85). (Note: It may be helpful to tip the Right Handrail and to tap it with a rub­ber mallet to correctly position it.) Tighten three 3/4” Screws (6) into the Right Handrail as shown. Note: It may be necessary to move the lower end of the Right Handrail slightly to align the lower screw hole.
Attach the Left Handrail (68) in the same way.
See assembly step 1. Tighten the four 1 1/4” Bolts (104).
113
81
Lip
85
68
6
6
6
7. Press the Latch Knob Sleeve (75) into the Left Upright (69). Note: It may be helpful to use a rubber mallet to fully insert the Latch Knob Sleeve.
Remove the Latch Knob (70) from the Latch Pin (80). Make sure that the Latch Pin Collar (76) and the Spring (77) are on the Latch Pin. (Note: If there are two Latch Pin Collars, place one on each side of the Spring.) Insert the Latch Pin into the Left Upright (69) and tighten the Latch Knob onto the Latch Pin.
80
76
75
69
77
7
70
(81)
Curved Edge
(68)
5. Hold the Pulse Bar (125) near the Console Base (85). Connect the Pulse Wire (124) on the Pulse Bar to the in­dicated wire on the Console Base. The connectors should slide together easily and snap into place. If the connectors do not slide together easily and snap into place, turn one connector and try to connect them again. Insert the wires into the hole in the Console Base.
Have a second person hold the Pulse Bar (125) firmly on the Console Base (85). Attach the Pulse Bar to the Console Base with two 1 1/4” Screws (92) in the loca-
tions shown. Be careful not to damage the Pulse Wire (124) or the wire on the Console Base. Next,
tighten two 2” Silver Screws (93) into the Console Base and the Pulse Bar in the locations shown. Note: The
correct Screws must be used in the correct loca­tions, or the Pulse Bar may be damaged.
92
85
125
5
92
93
124
93
124
9
9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 28). To protect the floor or carpet, place a mat under the treadmill.
8. Raise the Frame (54) to the storage position. (See HOW TO FOLD THE TREADMILL FOR STORAGE on page
25.) Attach the Left and Right Rear Feet (63, 58) to the bottoms of the Left and Right Rear Endcaps (64, 62) with four 3/4” Screws (6) as shown. Note: There are
stickers identifying the Left and Right Rear Feet. Be careful not to overtighten the Screws.
58
6
6
63
62
64
54
8
10
1. Make sure that the power cord is unplugged. Remove
the indicated 3/4” Screw (6) and the Access Door (94) from the back of the Console Back (95).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin-
der is near the lower edge of the receiver and is fac­ing the Console (88) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door (94). Connect the wire on the receiver to the indicated wire ex­tending from the Console.
3. Make sure that no wires are pinched. Reattach the
Access Door (94) with the 3/4” Screw (6). The other wires included with the receiver may be discarded.

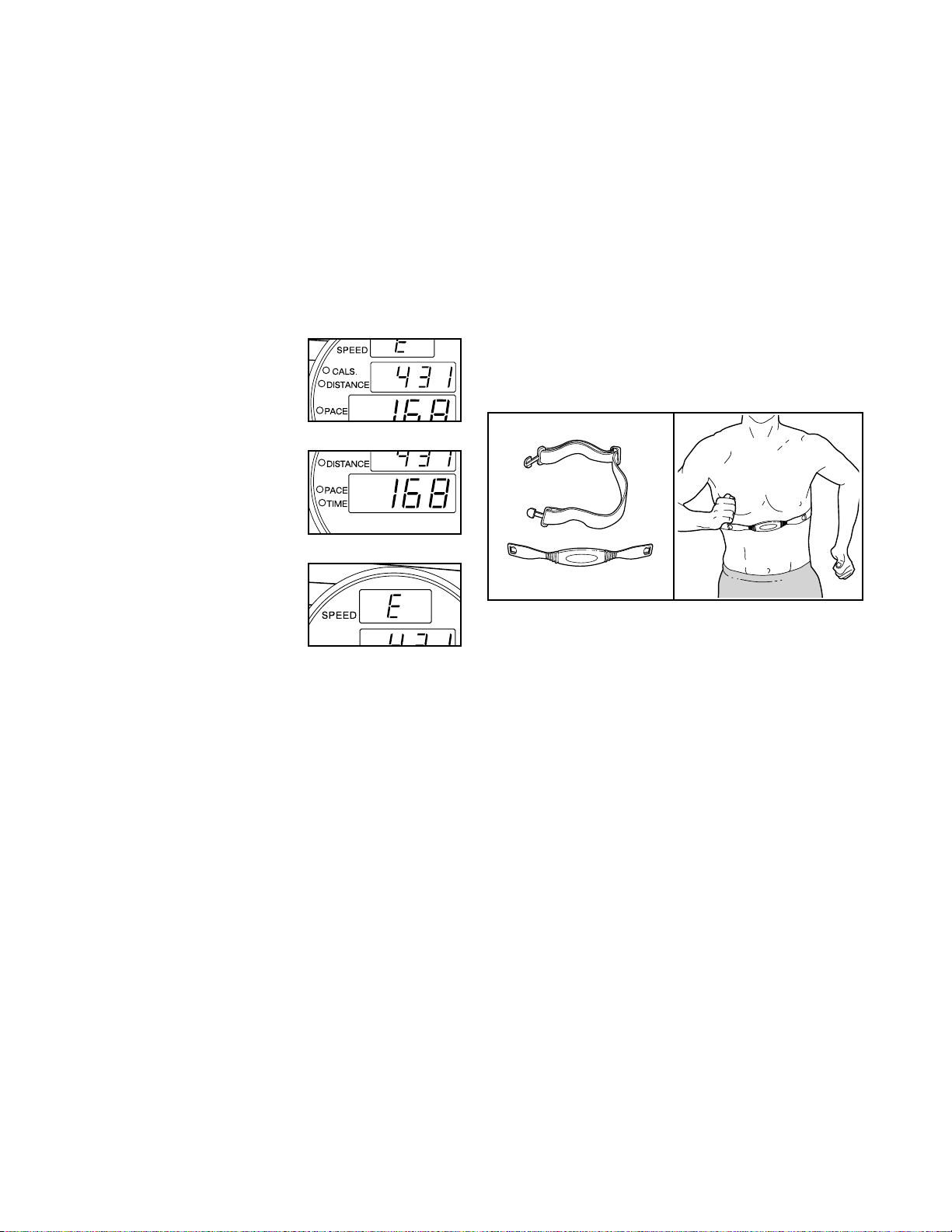

If you purchase the optional chest pulse sensor (see page 24), follow the steps below to install the re­ceiver and the short jumper wire included with the chest pulse sensor.
A
6
94
Cylinder
95
88
Wire
Wire
11
TREADMILL OPERATION
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
TM
, a high-performance lubricant. IMPOR-
TANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric cur­rent to reduce the risk of electric shock. This product is equipped with a power cord having an equipment-earthing conductor and a earthing plug.
Two power cords are included. Select the one that will fit your outlet. See drawing 1. Plug the indicated end of the power cord into the socket on the treadmill. Next, lift the tab on the ferrite box and clamp the ferrite box around the power cord. Fasten the included plastic tie just behind the ferrite box and cut off the excess plastic tie. The plastic tie will prevent the ferrite box from sliding along the power cord. See drawing 2. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
Important: If the power cord is damaged, it must be replaced with a manufacturer-recommended power cord.
DANGER:
Improper connection of the equipment-earthing conductor can result in an in­creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Socket on treadmill
Outlet
1
2
Ferrite Box
Tab
Plastic Tie
12
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features designed to help you get the most from your workouts.
Whilst the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even mea­sure your heart rate using the handgrip pulse sensor or the optional chest pulse sensor (see page 24).
In addition, the console offers four preset programs. Each program automatically controls the speed and in­cline of the treadmill as it guides you through an effec­tive workout. Two heart rate programs are also offered. Each program adjusts the speed and incline of the treadmill to keep your heart rate near a target heart rate whilst you exercise.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. To pur-
chase iFIT.com CDs or videocassettes, visit our Web site at www.iFIT.com.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available. See www.iFIT.com for
more information. To use the manual mode of the console, follow the
steps beginning on page 13. To use a preset program, see page 15. To use a heart rate program, see page
17. To use an iFIT.com CD or video program, see page 21. To use iFIT.com programs directly from our Web site, see page 23.
Note: If there are sheets of clear plastic on the console, remove them.
Clip
Key
Fan Button
13
HOW TO TURN ON THE POWER
Plug in the power cord (see page 11).
Locate the on/off switch on the treadmill near the power cord. Move the on/off switch to the on position.
Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 12) and slide the clip onto the waistband of your clothes. Next, route the cord attached to the clip under the handgrip pulse sensor, and insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by
carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in­serted, the manual mode will be selected and the indicator on the Manual Control button will light. If you have se­lected a program, press the Manual Control button to reselect the manual mode.
Press the Start button or the Speed + button to start the walking belt.
A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by pressing
the Speed + and – but­tons. Each time a button is pressed, the speed setting will change by
0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the Quick Speed buttons. Note: The console can display
speed and distance in either miles or kilome­tres. For simplicity, all instructions in this sec­tion refer to miles.
To stop the walking belt, press the Stop button. The Pace/Time display will begin to flash. To restart the walking belt, press the Start button or the Speed + button.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 28).
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the Incline buttons. Each time a button is pressed, the incline will change by
0.5%.
Follow your progress with the matrix and the displays.
The matrix—When the
manual mode or the iFIT.com mode is se­lected, the matrix will display a 1/4-mile track. As you exercise, the in­dicators around the track will light in succession until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.
Incline display—This display shows the incline level of the treadmill.
5
4
3
2
1
3
2
1
On
Position
14
Heart Rate display
This display shows your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor.
Speed display—This display shows the speed of the walking belt. Note: When the Metric indicator beside the display is lit, the console will display speed and distance in kilome­tres; when the Metric indicator is not lit, the con­sole will display speed and distance in miles. To change the unit of measurement, see THE IN­FORMATION MODE/DEMO MODE on page 24.
Calories/Distance dis­play—This display
shows the approximate number of calories you have burned and the distance that you have walked or run. The display will change from one number to the other every few seconds, as shown by the indicators beside the display.
Pace/Time display— Whilst the manual mode or the iFIT.com mode is selected, this display will show your pace (in minutes per mile) and the elapsed time. Whilst a program is se­lected (except for the heart rate Self Select pro­gram), the display will show your pace and the time remaining in the program. The display will change from one number to the other every few seconds, as shown by the indicators beside the display.
To reset the displays, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate if desired.
To use the hand­grip pulse sen­sor, first make sure that your hands are clean. Next, stand on
the foot rails
and hold the handgrip pulse sensor with your palms on the metal contacts. Avoid moving your hands. When your pulse is detected, two dashes (– –) will appear in the Heart Rate display, and then your heart rate will be shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15 seconds.
Turn on the fan if desired.
To turn on the fan, press the button below the fan. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the but­ton a third time. Note: A few minutes after the walking belt is stopped, the fan will automatically turn off.
When you are finished exercising, remove the key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi­tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se­cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
8
7
6
Contacts
15
HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 13.
Select one of the preset programs.
When the key is in­serted, the manual mode will be selected. To select a preset pro­gram, press the right Select Program button repeatedly until one of the four preset program indicators lights.
The diagrams beside the preset program indica­tors show how the speed and incline of the tread­mill will change during the preset programs. When a preset program is selected, the Speed display will flash the maximum speed setting of the pro­gram for a few seconds, and the Incline display will flash the maximum Incline setting. The Pace/Time display will show how long the program will last.
The matrix will show the first four speed set­tings of the program.
Press the Start button or the Speed + button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. One speed setting and one incline setting are programmed for each seg­ment. Note: The same speed setting and/or in­cline setting may be programmed for two or more consecutive segments.
The speed setting for the first segment is shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed settings for the next four segments are shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the Speed display and/or the Incline display will flash to alert you. When the first segment ends, all speed set- tings will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit after the speed settings have moved to the left, the speed settings may move downward so that only the highest indicators appear in the ma­trix. If some of the indicators in the Current Segment column are not lit when the speed set­tings move to the left again, the speed settings will move back up.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column of the matrix and the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will light or darken in the Current Segment column. (If any of the columns to the right of the Current Segment col­umn have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well.)
Note: When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
3
2
1
Current Segment
16
To stop the program at any time, press the Stop button. The Pace/Time display will begin to flash. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment of the pro­gram begins, the treadmill will automatically adjust to the speed and incline settings for the next seg­ment.
Follow your progress with the displays.
See step 5 on page 13.
Measure your heart rate if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, remove the key from the console.
When the program ends, make sure that the in­cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in a secure place. Note: If the displays and various
indicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 24 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
7
6
5
4
17
HOW TO USE HEART RATE PROGRAMS
Put on the optional chest pulse sensor (see page 24).
You must wear the optional chest pulse sensor to use a heart rate program.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 13.
Select a heart rate program.
When the key is in­serted, the manual mode will be selected. To select a heart rate program, press the left Select Program button repeatedly until one of the two heart rate program indicators lights.
The diagrams beside the heart rate program indi­cators show how the target heart rate will change during the programs. During the 85% Max. pro­gram, your heart rate will reach approximately 85% of your estimated maximum heart rate; dur­ing the Self Select program, your heart rate will re­main near a level that you select.
Note: Your estimated maximum heart rate is de­termined by subtracting your age from 220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190).
During heart rate pro­grams, the matrix will show a moving graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.
Enter your age.
When a heart rate pro­gram is selected, the word “AGE” and the cur­rent age setting will flash in the Heart Rate dis­play. If you have already entered your age, simply press the Enter button. If you have not entered your age, press the + and – buttons beside the Enter button to enter your age. Then, press the Enter button.
Enter a maximum speed.
After you have entered your age, the letters “SPd” and the maximum speed setting of the pro­gram will flash in the Heart Rate display. If desired, press the + and – buttons beside the Enter button to change the maximum speed set­ting. When the desired setting is shown, press the Enter button.
If the 85% Max. program is selected, go to step
7. If the Self Select program is selected, go to step 6.
Enter a target heart rate.
After you have entered a maximum speed setting, the letters “PLS” and the target heart rate setting for the program will flash in the Heart Rate dis­play. If desired, press the + and – buttons beside the Enter button to change the target heart rate setting. When the desired setting is shown, press the Enter button.
6
5
4
3
2
1
CAUTION:If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
18
Press the Start button or the Speed + button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each heart rate program is divided into several time segments of different lengths. One target heart rate is programmed for each segment. Note: If the Self Select program is selected, the same target heart rate is programmed for all segments.
During each segment, the console will regularly compare your heart rate to the current target heart rate. If your heart rate is too far below or above the target heart rate, the speed of the treadmill will automatically increase or decrease to bring your heart rate closer to the target heart rate. If the speed reaches the maximum speed setting of the program (see step 5 on page 17) and your heart rate is still too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
During the last three seconds of each segment, a series of tones will sound and the Speed display and the Incline display will flash.
The program will continue until the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to
the current target heart rate, the speed and/or in­cline of the treadmill may automatically change to bring your heart rate closer to the target heart rate.
If your pulse is not detected during the program, the letters “PLS” will flash in the Heart Rate dis­play and the speed and incline of the treadmill may automatically decrease until your pulse is de­tected. If this occurs, see the instructions included with the optional chest pulse sensor.
To stop the program, press the Stop button. Heart rate programs cannot be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.
Follow your progress with the displays.
See step 5 on page 13. Note: During heart rate
programs, the display around the Heart Rate display will show your heart rate as a percent­age of your estimated maximum heart rate.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, remove the key from the console.
See step 7 on page 16.
10
9
8
7
19
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 19 and 20 for connecting instructions. To use iFIT.com video- cassettes, the treadmill must be connected to your VCR. See page 21 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your home computer. See page 20 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the split­ter into the PHONES jack on your CD player. Plug your headphones into the other side of the splitter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5 mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the split­ter into the PHONES jack on your stereo. Plug your headphones into the other side of the splitter.
Audio Cable
Head-
phones
A
Audio Cable
Adaptor
A
Audio Cable
B
Audio Cable
C
Audio Cable
Splitter
Headphones
B
Splitter
Headphones
HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT LEFT
LINE OUT
PHONES
20
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the adaptor. Plug the adaptor into an RCA Y-adaptor (available at elec­tronics stores). Next, remove the wire that is cur­rently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adaptor. Plug the Y-adaptor into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5 mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the splitter. Plug the split­ter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the splitter.
Audio Cable
Adaptor
A
Audio Cable
A
Audio
Cable
RCA
Y-adaptor
Wire removed from
LINE OUT jack
B
Adaptor
Audio Cable
B
Splitter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
PHONES
CD
VCR
Amp
LINE OUT
21
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 20.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the RCA Y-adapter. Plug the RCA Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 19 to 21. Note: To purchase iFIT.com CDs or video-
cassettes, visit our Web site at www.iFIT.com.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use iFIT.com CDs or videocassettes, press the iFIT.com button. The indicator on the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Pace/Time display is flashing, press the Start button or the Speed + button on the console. The treadmill will not re­spond to a CD or video program whilst the Pace/Time display is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
4
3
2
1
Audio Cable
Adapter
A
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
VIDEO AUDIO
IN
CH 34
OUT
AUDIO OUT
RIGHT LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT CH 34
OUT
22
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The Pace/Time dis­play will begin to flash. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the
speed and incline will change to the next set­tings of the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Pace/Time display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 21.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Pace/Time display is not flashing. If the Pace/Time display is flashing, press the Start button or the Speed + button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the matrix and the displays.
See step 5 on page 13.
Measure your heart rate if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, remove the key from the console.
See step 7 on page 16.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR when you are finished using them.
8
7
6
5
23

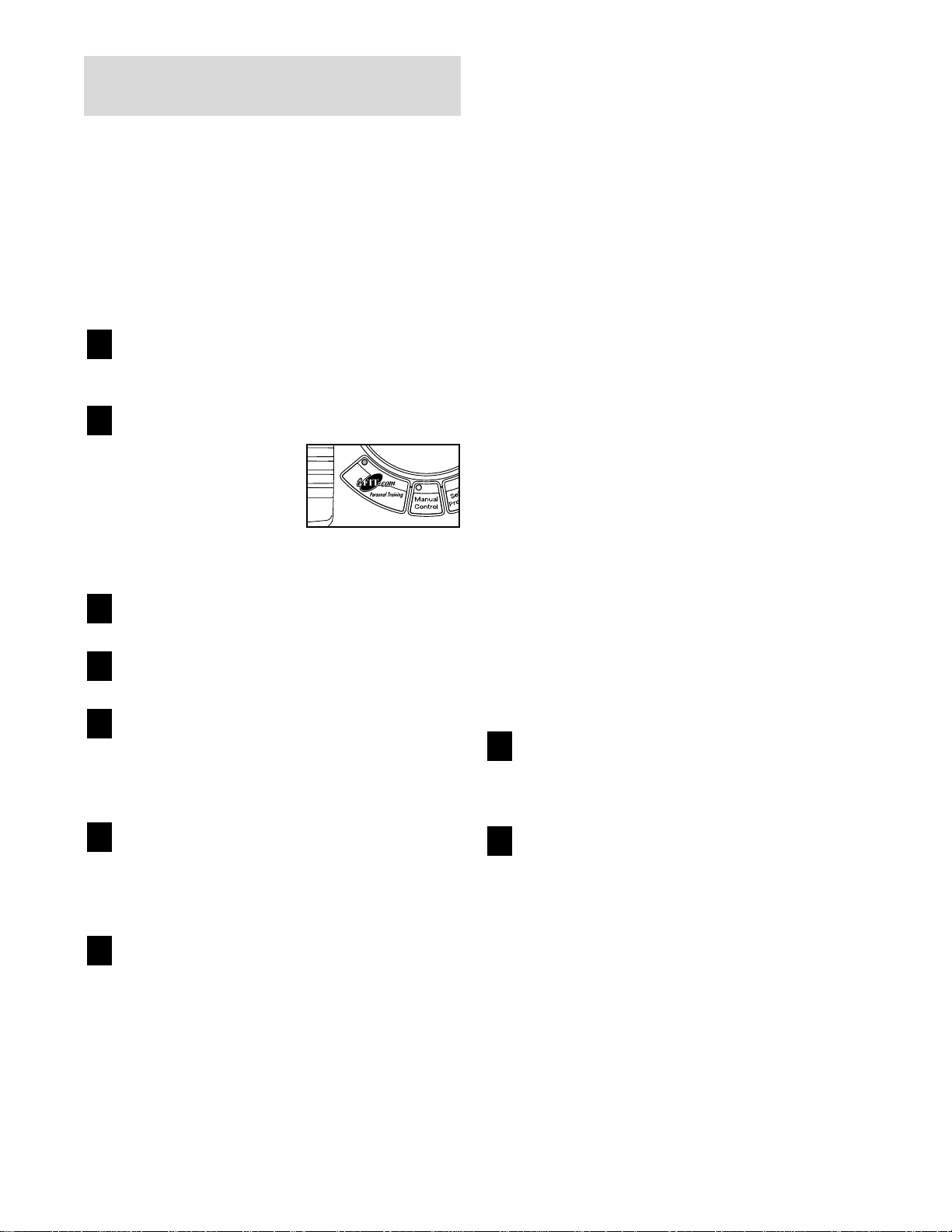

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 20. In addi­tion, you must have an internet connection and an in­ternet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The in­dicator on the button will light.
Go to your computer and start an internet connection.
Start your web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to se­lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot pads. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic
“chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The Pace/Time dis­play will begin to flash. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the speed
and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop and the Pace/Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Pace/Time display is not flashing. In addi­tion, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the matrix and the displays.
See step 5 on page 13.
When you are finished exercising, remove the key from the console.
See step 7 on page 16.
9
8
7
6
5
4
3
2
1
24
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of the total number of hours that the treadmill has been used and the total number of miles that the walk­ing belt has moved. The information mode also allows you to switch the console from miles per hour to kilo­metres per hour. In addition, the information mode al­lows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button whilst inserting the key into the console. When the information mode is selected, the following informa­tion will be shown:
The Calories/Distance dis­play will show the total num­ber of miles (or kilometres) that the walking belt has moved.
The Pace/Time display will show the total number of hours the treadmill has been used.
An “E” for English or an “M” for metric will appear in the Speed display. Press the Speed + button to change the unit of measurement.
IMPORTANT: The Heart Rate display should be blank. If a “d” appears in the display, the console is in
the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. Whilst the
console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will au­tomatically light in a preset sequence, although the buttons on the console will not operate. If a “d” appears
in the Heart Rate display whilst the information mode is selected, press the Speed – button so the display is blank.
To exit the information mode, remove the key from the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor provides hands-free op­eration and allows you to use the console’s heart rate programs. To purchase a chest pulse sensor, call
08457 089 009.
25
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right. To de-
crease the possibility of injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the
treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the frame is past the latch pin. Slowly release the latch knob. Make sure that
the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sun­light. Do not leave the treadmill in the storage position in temperatures above 30°C (85°F).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the frame is
securely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on the base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution whilst mov­ing the treadmill. Do not move the treadmill over an un­even surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
Base
Frame
Latch
Knob
Latch
Pin
26
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill firmly with your right hand. Pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin.
2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Latch
Pin
Frame
Latch
Knob
27
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 11.) If an ex-
tension cord is needed, use only a 3-conductor, 1 mm
2
(14-gauge) cord that is no longer than 1.5
m (5 ft.). Important: The treadmill is not compatible with GFCI-equipped outlets. b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as
shown, the circuit breaker has tripped. To reset the
circuit breaker, wait for five minutes and then press
the switch back in. d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on position.
PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If it is plugged in, unplug it, wait for five minutes, and
then plug it back in. c. Remove the key from the console. Reinsert the key fully into the console. d. Make sure that the on/off switch is in the on position. e. If the treadmill still will not run, please call our Customer Service Department.
PROBLEM: The walking belt slows when walked on SOLUTION: a. If an extension cord is needed, use only a 3-conductor, 1mm
2
(14-gauge) cord that is no longer
than 1.5 m (5 ft.).
b. If the walking belt is overtightened, treadmill performance
may decrease and the walking belt may be permanently damaged. Remove the key and UNPLUG THE POWER CORD. Using the included allen wrench, turn both rear roller adjustment bolts counterclockwise 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift the edges of the walking belt 5–7 cm (2–3 in.) off the walking platform. Be careful to keep the walk­ing belt centred. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department.
Rear Roller Adjustment Bolts
b
5–7cm
Tripped
c
Reset
On
Position
d
28
PROBLEM: The walking belt is off-centre or slips when walked on SOLUTION: a. If the walking belt is off-centre, first remove the key and
UNPLUG THE POWER CORD. If the walking belt has
shifted to the left, use the allen wrench to turn the left
rear roller bolt clockwise 1/2 of a turn; if the walking belt
has shifted to the right, turn the bolt counterclockwise
1/2 of a turn. Be careful not to overtighten the walking
belt. Plug in the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is
centred. b. If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the allen
wrench, turn both rear roller bolts clockwise 1/4 of a turn.
When the walking belt is correctly tightened, you should
be able to lift each side of the walking belt 5–7 cm (2–3 in.)
off the walking platform. Be careful to keep the walking
belt centred. Plug in the power cord, insert the key, and
walk on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
PROBLEM: The displays of the console do not function properly SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person,
carefully tip the Base (109) down as shown. Remove
the four Long Belly Pan Screws (121). Note: A phillips
screwdriver with at least a 5” shaft is required.
With the help of a second person, carefully raise the
Upright (82) as shown. Carefully pivot the Hood (39)
off.
Locate the Reed Switch (24) and the Magnet (18) on
the left side of the Pulley (120). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 3 mm (1/8 in.). If necessary,
loosen the Screw (25) and move the Reed Switch
slightly. Retighten the Screw. Reattach the Hood, and
run the treadmill for a few minutes to check for a cor-
rect speed reading.
a
b
18
24
25
Top
View
3 mm
120
121
121
109
a
39
82
29
EXERCISE GUIDELINES
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts: A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post­exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensors are not medical devices. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensors are intended only as exercise aids in determining heart rate trends in general.
To locate the parts listed below, see the EXPLODED DRAWING attached in the centre of this manual.
30
PART LIST—Model No. PETL50130 R0903A
1 2 Foot Rail Cover 2 1 Left Foot Rail 3 1 Left Front Endcap 4 2 Belt Guide 5 4 Belt Guide Screw 6 45 3/4” Screw 7 1 Left Decal Holder 8 2 Cushion Spring
9 4 Catch Screw/Isolator Screw 10 1 Warning Deal 11 2 Rear Platform Bolt 12 1 Latch Catch 13 2 Spring Bolt (Bottom) 14 2 Spring Bolt (Top) 15 2 Front Isolator 16 2 Front Platform Screw 17 2 Platform Pivot Bolt 18 1 Magnet 19 2 Lift Frame Spacer 20 1 Motor Pivot Bolt 21 7 Wheel Nut 22 2 Frame Spacer 23 1 Reed Switch Clip 24 1 Reed Switch 25 1 Reed Switch Screw 26 1 Lift Frame 27 1 Motor Tension Nut 28 1 Motor 29 1 Pulley/Flywheel/Fan 30 1 Motor Belt 31* 1 Motor Assembly 32 1 Motor Tension Bolt 33 1 Motor Tension Washer 34 1 Motor Star Washer 35 2 Motor Bracket Bolt 36 7 Small Screw 37 2 Ground Wire 38 1 Transformer 39 1 Hood 40 1 Controller 41 2 Power Cord 42 1 iFIT.com Wire Nut 43 1 iFIT.com Wire 44 1 Receptical 45 2 Static Decal 46 1 On/Off Switch 47 5 Belly Pan Screw 48 1 Belly Pan 49 1 Photo Switch Wire 50 1 Filter Wire
51 1 Left Front Endcap 52 1 Walking Belt 53 1 Walking Platform 54 1 Frame 55 2 Platform Nut 56 1 Right Foot Rail 57 1 Rear Roller 58 1 Right Rear Foot 59 1 Allen Wrench 60 2 Rear Roller Adj. Bolt 61 2 Rear Roller Washer 62 1 Right Rear Endcap 63 1 Left Rear Foot 64 1 Left Rear Endcap 65 2 Small Endcap Screw 66 2 Endcap Washer 67 4 Front Endcap Screw 68 1 Left Handrail 69 1 Left Upright 70 1 Latch Knob 71 2 1” Bolt 72 4 Internal Washer 73 1 Left Handrail Bracket 74* 1 Latch Assembly 75 1 Latch Knob Sleeve 76 1 Latch Pin Collar 77 1 Latch Spring 78 1 Right Console Plate 79 1 Pin Clip 80 1 Latch Pin 81 1 Right Handrail 82 1 Right Upright 83 1 Wire Harness 84 1 Left Accessory Tray 85 1 Console Base 86 4 Fan Screws 87 1 Fan 88 1 Console 89 1 Fan Housing 90 1 Right Accessory Tray 91 1 Key/Clip 92 2 1 1/4” Screw 93 2 2” Sliver Screw 94 1 Access Door 95 1 Console Back 96 1 Tie Holder 97 1 Releasable Tie 98 1 Plastic Tie 99 2 Base Endcap
100 2 Front Base Pad
Key No. Qty. Description Key No. Qty. Description
101 2 Clevis Pin 102 2 Hairpin Cotter 103 4 Cage Nut 104 4 1 1/4” Bolt 105 2 Rear Base Pad 106 2 Wheel Housing 107 2 Wheel Bolt 108 2 Wheel 109 1 Base 110 1 Incline Stop Bracket 111 2 Incline Motor Bolt 112 1 Incline Motor 113 1 Right Handrail Bracket 114 1 Right Decal Holder 115 1 5/16” Allen Wrench 116 1 iFIT.com Cable 117 1 Motor Bracket 118 2 J-Nut 119 1 Front Roller Adj. Bolt 120 1 Front Roller/Pulley 121 4 Long Belly Pan Screw 122 1 Controller Wire 123 2 Rear Roller Star Washer 124 1 Pulse Wire 125 1 Pulse Bar 126 2 Caution Decal 127 2 Nylon Washer 128 2 Motor Pivot Bushing 129 1 Electronics Bracket
130 1 Choke 131 1 Filter 132 1 Power Board 133 4 Plastic Stand-off 134 1 Ferrite Box 135 1 Splitter 136 1 Optic Disk 137 1 Photo Switch 138 1 Photo Switch Nut 139 1 Photo Switch Bolt 140 1 Photo Switch Washer 141 1 Circuit Breaker
# 1 12” Green Wire, F/Ring # 1 6” Green Wire, 2 Ring # 1 4” Green Wire, F/Ring # 1 12” Blue Wire, 2 F # 1 4” Blue Wire, 2 F # 1 4” Blue Wire, M/F # 1 4” Black Wire, M/F # 1 4” Black Wire, 2 F # 1 12” White Wire, 2 F # 1 6” Red Wire, M/F # 1 User’s Manual
* Includes all parts shown in the box # These parts are not illustrated
Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
31
Part No. 200853 R0903A Printed in USA © 2003 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write: ICON Health & Fitness, Ltd.
Customer Service Department Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Tel:
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (PETL50130)
• The NAME of the product (PROFORM
®
560 HR treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on pages 30 and 31 and the EXPLODED DRAWING attached in the centre of this manual)
08457 089 009
EXPLODED DRAWING—Model No. PETL50130 R0903A
To identify the parts shown on this EXPLODED DRAWING, see the PART LIST on pages 30 and 31 of the user’s manual.
41
39
40
134
133
36
132
36
37
36
35
34
117
33
127
32
31*
30
36
38 130
28
29
27
127
26
25
23
24
129
119
36
128
19
21
22
18
17
65
66
133
42
36
131
22
19
21
21
66
128
65
20
120
16
67
50
51
17
9
16
52
67
14
6
53
43
122
49
15
4
5
114
46
45
44
121
47
8
13
54
141
121
47
47
116
78
1
56
47
48
121
121
47
3
2
1
9
15
14
4
5
6
7
8
13
9
6
12
10
11
55
64
11
57
61
60
123
55
6
58
6
62
6
123
61
60
6
63
6
59
6
115
EXPLODED DRAWING—Model No. PETL50130 R0903A
90
86
87
86
89
88
85
84
135
113
6
83
125
6
93
92
82
91
6
92
6
6
94
93
124
6
95
6
6
6
6
6
6
6
6
6
6
6
103
99
100
96
36
98
97
6
36
37
71
72
81
6
73
71
72
74*
70
80
79
77
75
118
69
6
68
118
6
78
21
111
6
139
112
137
6
99
140
138
136
111
101
102
83
102
36
101
103
100
72
21
104
110
126
72
104
6
6
106
107
126
109
105
6
21
108
106
105
6
6
107
21
108
Loading...
