ProForm PETL35135, PETL35136 User Manual

Page 1
www.iconeurope.com
Visit our website at
Class H Fitness Product
Model No. PETL35135 Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:
08457 089 009
or write: ICON Health & Fitness, Ltd. Customer Service Department Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
USER'S MANUAL
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

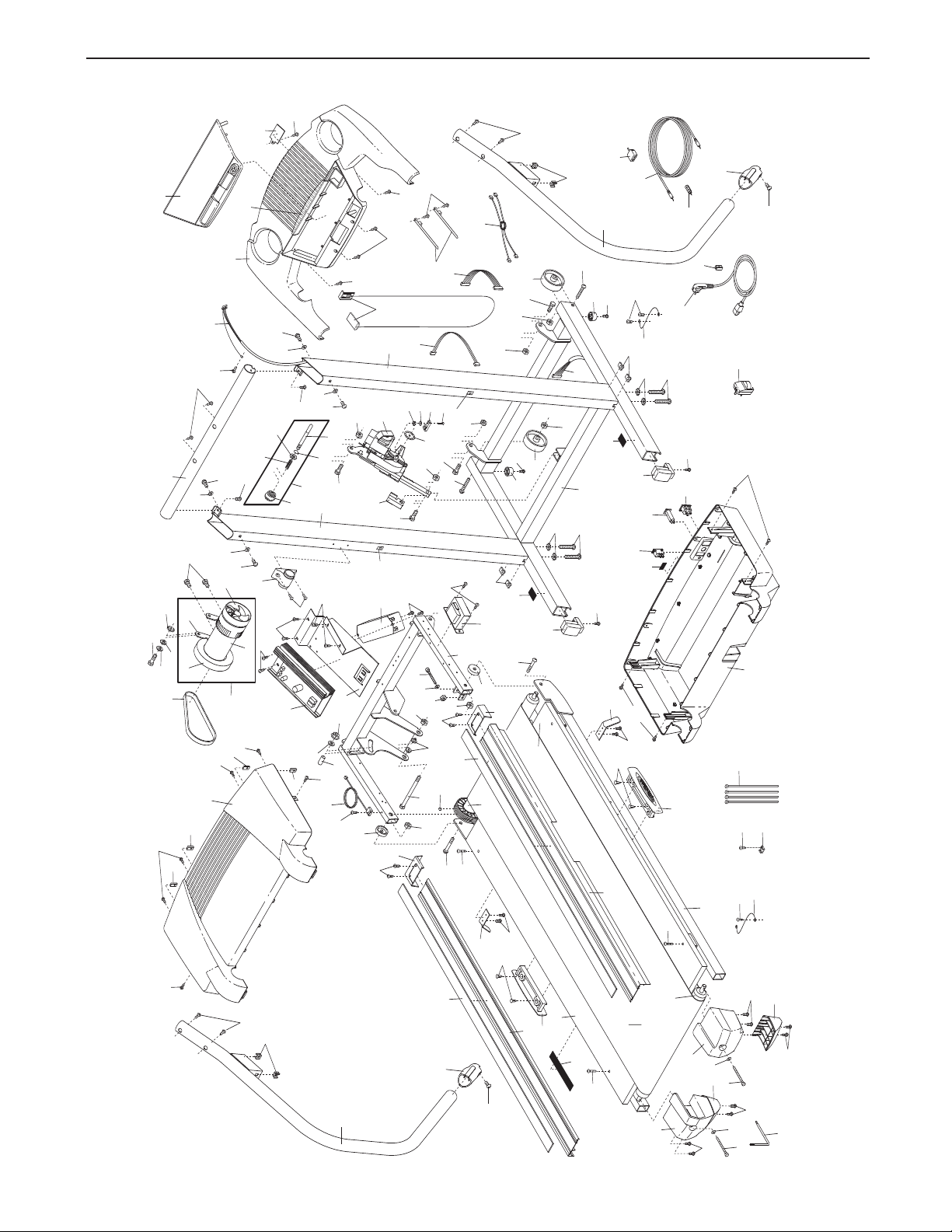

Note: An EXPLODED DRAWING and a PART LIST are attached in the centre of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least 2.5 m (8 ft.) of clearance behind it and
0.5 m (2 ft.) on each side. Do not place the treadmill on a surface that blocks any air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or oxygen is administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 113 kg (250 lbs.) or less.
8. Never allow more than one person on the treadmill at a time.
9. Wear suitable exercise clothes whilst using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
Never use the treadmill with bare feet, wear­ing only stockings, or in sandals.
10. When connecting the power cord (see page 9), plug the power cord into an earthed circuit. No other appliance should be on the same cir­cuit. When replacing the fuse, an ASTA ap­proved BS1362 type should be fitted to the fuse carrier. A 13 amp fuse should be used.
11. If an extension cord is needed, use only a 3­conductor, 1mm longer than 1.5 m (5 ft.).
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
12. Keep the power cord away from heated sur­faces.
13. Never move the walking belt whilst the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BE­FORE YOU BEGIN on page 5 if the treadmill is not working properly.)
14. Never start the treadmill whilst you are stand­ing on the walking belt. Always hold the handrails whilst using the treadmill.
15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
16. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
17. Never leave the treadmill unattended whilst it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on tion of the on/off switch.)
Always wear athletic shoes.
2
(14-gauge) cord that is no
18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
When folding or moving the treadmill, make
19. sure that the storage latch is fully closed.
20. Whilst using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per sonal trainer describes the change.
page 5 for the loca
-
-
3
Page 4
21. Whilst using iFIT.com CDs and videos, you can manually override the speed and incline settings at any time by pressing the speed
nd incline buttons. However, when the next
a
chirp” is heard, the speed and/or incline will
“ change to the next settings of the CD or video program.
22. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
23. Inspect and properly tighten all parts of the treadmill regularly.
24. Never insert any object into any opening.
DANGER: Always unplug the power
25. cord immediately after use, before cleaning the treadmill, and before performing the mainte-
ance and adjustment procedures described in
n this manual. Never remove the motor hood un­less instructed to do so by an authorized ser-
ice representative. Servicing other than the
v procedures in this manual should be performed by an authorized service representative only.
26. This treadmill is intended for in-home use only. Do not use this treadmill in a commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on the treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department to order a free replacement decal (see the back cover of this manual). Apply the decal in the location shown.
4
Page 5
BEFORE YOU BEGIN
ongratulations for selecting the PROFORM
C
readmill. The 390 P treadmill combines advanced
t technology with innovative design to help you get the most from your exercise in the convenience and pri­vacy of your home. And when you’re not exercising, the unique 390 P treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
Water Bottle Holder
(Bottle not included)
Handrail
®
90 P
3
ng this manual, please call our Customer Service
i
epartment at
D please note the product model number and serial num­ber before calling. The model number of the treadmill is PETL35135. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarise yourself with the parts that are labelled in the drawing below.
8457 089 009.To help us assist you,
0
Bookrack
Console
Key/Clip
Upright
Storage Latch
Walking Belt
Foot Rail
BACK
Rear Roller Adjustment Bolts
On/Off Switch
Circuit Breaker
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
Page 6
ASSEMBLY
ssembly requires two persons.Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , wire cutters , needlenose pliers and a rubber mallet .
For help identifying the assembly hardware, refer to the PART IDENTIFICATION CHART in the centre of this manual. Note: The assembly hardware and other small parts are packaged in separate part bags. Do not open the part bags until instructed to do so.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the tread­mill onto its left side as shown. Partially fold the Frame (86) so that the treadmill will be more stable. Do not fully
fold the treadmill until it is completely assembled.
Open part bag A.
two Base Endcaps (65) to the bottom of the Base (69) with four 1” Tek Screws (58). Attach a Wheel (66) to the Base with a 2” Bolt (64) and a Wheel Nut (13).
Note: It may be helpful to tap on the Base Endcaps with a rubber mallet as you insert the Base Endcaps.
2. Identify the Right and Left Uprights (29, 25); the Left Upright has two small holes in the indicated location. Make sure that there are two U-nuts (45) in the lower end of each Upright (see drawing 2a).
Hold the Right Upright (29) near the Base (69), and orient
the Right Upright so the indicated bracket is in the position shown. Straighten the Wire Harness (42), and
feed it into the lower end of the Right Upright and out of the upper end. Make sure that no wires are pinched. Hand tighten two 3” Bolts (70) with Star Washers (63) into the bottom of the Base and the lower end of the Right Upright.
With the help of a second person, tip the treadmill onto its other side. Attach the Left Upright (25) as described above. (Note: There is not a wire harness on the left side.) Attach the other Wheel (not shown) to the Base (69) as described in step 1.
Attach the two Base Pads (57) and
1
2
70
58
63
58
42
65
65
69
58
57
58
29
86
64
57
66
13
Bracket
25
Holes
2a
29, 25
45
6
Page 7
3. With the help of a second person, raise the Uprights (25,
29) to the vertical position.
3
Open part bag B. Set the Crossbar (40) on the brackets
n the Uprights (25, 29). Attach the Crossbar with two
o Crossbar Screws (39).
Screws yet.
4. Identify the Right Handrail (72), which has a large hole in the left side. Feed the Wire Harness (42) up into the bracket on the Right Handrail and out of the large hole in the left side. (Note: It may be helpful to use needlenose pliers to pull the Wire Harness out of the hole.) Press a Handrail Cap (76) onto the lower end of the Right Handrail as shown. Remove any plastic ties from the bracket.
Insert the bracket on the Right Handrail (72) into the top of the Right Upright (29) so the Handrail Cap (76) is rest­ing against the Upright as shown. Attach the Right Handrail and the Handrail Cap with and two Washers (38) as shown. Do not tighten the
Bolts yet.
Do not tighten the Crossbar
three 1” Bolts (37)
40
39
39
25
29
4
Bracket
72
42
Large
Hole
37
38
38
37
29
5. Open part bag C. Attach the end of the ground wire to the small hole in the side of the Right Handrail (72) with a Silver Ground Screw (75).
Attach the Storage Latch (36) to the Left Upright (25) with two 3/4” Screws (61).
Remove the Latch Knob (30) from the Latch Pin (35). Make sure that the Latch Pin Collar (33) and the Spring (32) are on the Latch Pin. Insert the Latch Pin into the Storage Latch (36), and then tighten the Latch Knob back onto the Latch Pin.
Attach the left Handrail (not shown) in the same way as in step 4.
76
Ground
Wire
75
72
61
37
5
25
30
36
Large
Hole
33
32
35
7
Page 8
6. Place the Console Base (47) on the Right Handrail (72) and the Left Handrail (not shown). Attach the Console
ase with four 3/4” Screws (61) (only two Screws are
B shown).
Do not overtighten the Screws.
6
47
Insert the Wire Harness (42) through the two indicated nylon ties on the Console Base (47). Next, touch the Right Handrail (72) to discharge any static. Refer to drawing 6a. Find the connector on the end of the Wire Harness (42). Insert the connector into the red socket be­neath the Console (43). The connector should slide eas-
ily into the socket and snap into place.
does not slide easily and snap into place, turn the connec­tor and then insert it.
Make sure that the connector and wires appear as shown in drawing 6a.
SERTED PROPERLY, THE CONSOLE MAY BE DAM­AGED WHEN THE POWER IS TURNED ON.
7. Insert the excess Wire Harness (42) into the large hole in the side of the Right Handrail (72). Securely tighten the
nylon ties on the bottom of the Console Base (47) to prevent the Wire Harness from slipping. Then, cut off
the ends of the nylon ties.
IF THE CONNECTOR IS NOT IN-
If the connector
7
61
Ties
Ties
72
6a
42
42
42
Opening
43
47
Route the Wire Harness (42) through the indicated open­ing in the Console Base (47). Attach the Wire Cover (44) to the Console Base with a Silver Ground Screw (75).
Tighten two 3/4” Screws (61) into the Console Base (47).
8. Lower the Handrails (not shown) to the floor. Make sure
that the Frame (86) is centered between the Handrails.
Firmly tighten the bolts and screws used in steps 3, 4, and 6.
Raise the Handrails to the vertical position.
Firmly tighten the 3” Bolts (70).
72
8
86
70
75
44
61
69
70
9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included hex keys in a secure place. The large hex key is used to adjust the walking belt (see page 22). To protect the floor or carpet, place a mat under the treadmill.
8
Page 9
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant. IMPOR­TANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunction or break
down, earthing provides a path of least resistance for electric cur­rent to reduce the risk of electric shock. This product is equipped with a power cord having an equipment-earthing conductor and an earthing plug.
be replaced with a manufacturer-recommended power cord.
See drawing 1. Plug the indicated end of the power cord into the socket on the treadmill. the ferrite box and clamp the ferrite box around the power cord. Fasten the included plastic tie just behind the ferrite box and cut off the excess plastic tie. The plastic tie will prevent the ferrite box from sliding along the power cord.
See drawing 2. Press the pins on the power cord into the metal clips in the adapter as shown. Close the adapter cover over the end of the power cord and tighten the screw in the adapter. Important: Make
sure that the adapter cover is secure and the screw has been tightened before using the power cord.
See drawing 3. Plug the power cord into an appropriate outlet that is properly installed and earthed in accordance with all local codes and ordinances. Important: The treadmill is not compatible with
GFCI-equipped outlets.
Important: If the power cord is damaged, it must
If a ferrite box is included, lift the tab on
1
2
Screw
Adapter
3
Socket on treadmill
Ferrite Box
Plastic Tie
Tab
Adapter
Cover
Pins
Metal
Clips
Outlet
DANGER: Improper connection of the equipment-earthing conductor can result in an in-
creased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
9
Page 10

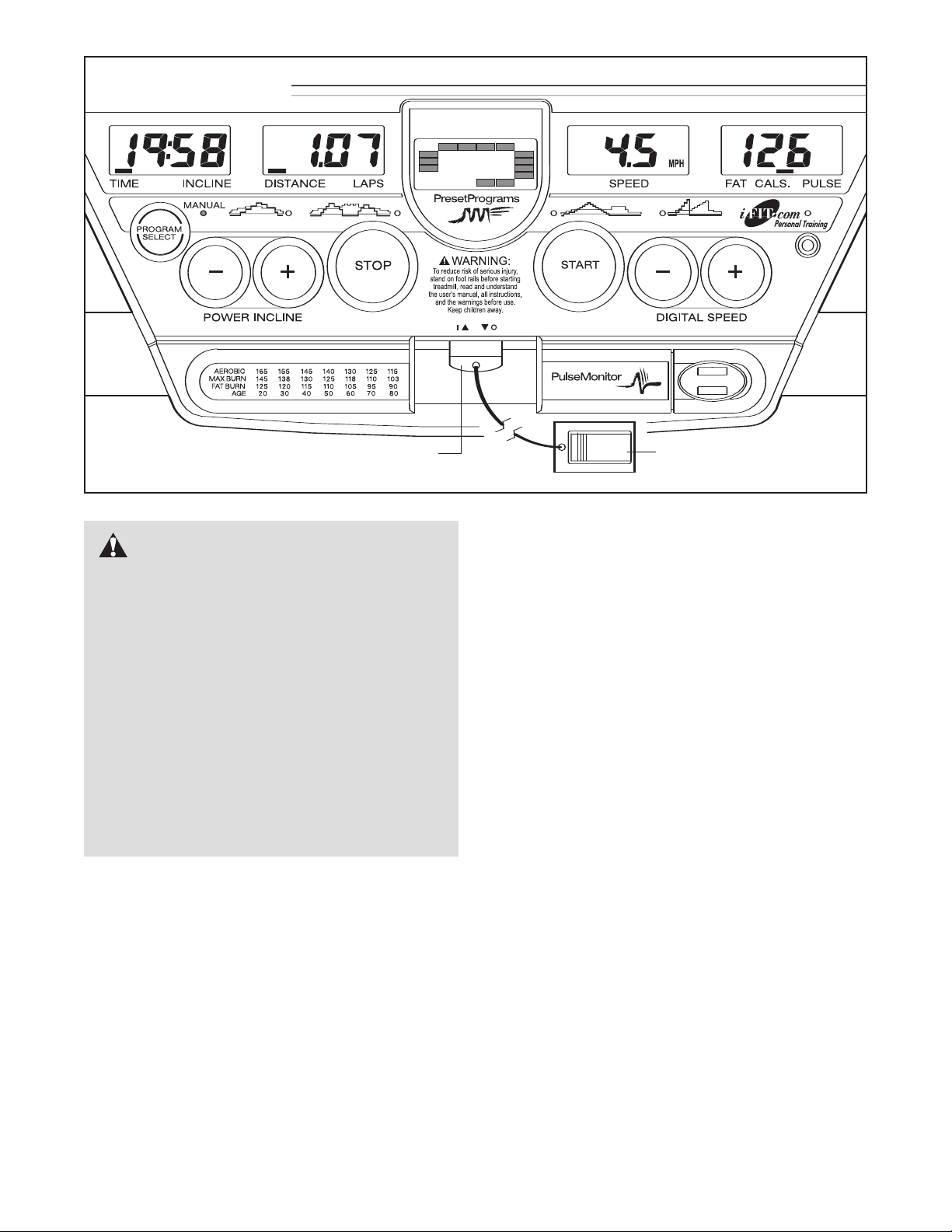

ONSOLE DIAGRAM
C
Key
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing above) whilst operating the treadmill.
• Adjust the speed in small increments in order to avoid sudden jumps in speed.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features that are designed to help you get the most from your work outs. When the manual mode of the console is se lected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the matrix and the four displays will provide continuous exercise feedback. You can even measure your heart rate using the built-in pulse sensor.
-
Clip
Four preset programs are also offered. Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
chase iFIT.com CDs and videocassettes, visit our Web site at www.iFIT.com.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. See
www.iFIT.com for more information.
­To use the manual mode of the console, follow the
steps beginning on page 11. To use a preset pro
gram, see page 13. To use an iFIT.com CD or video program, see page 16. To use an iFIT.com program directly from our Web site, see page 18.
To pur-
-
10
Page 11

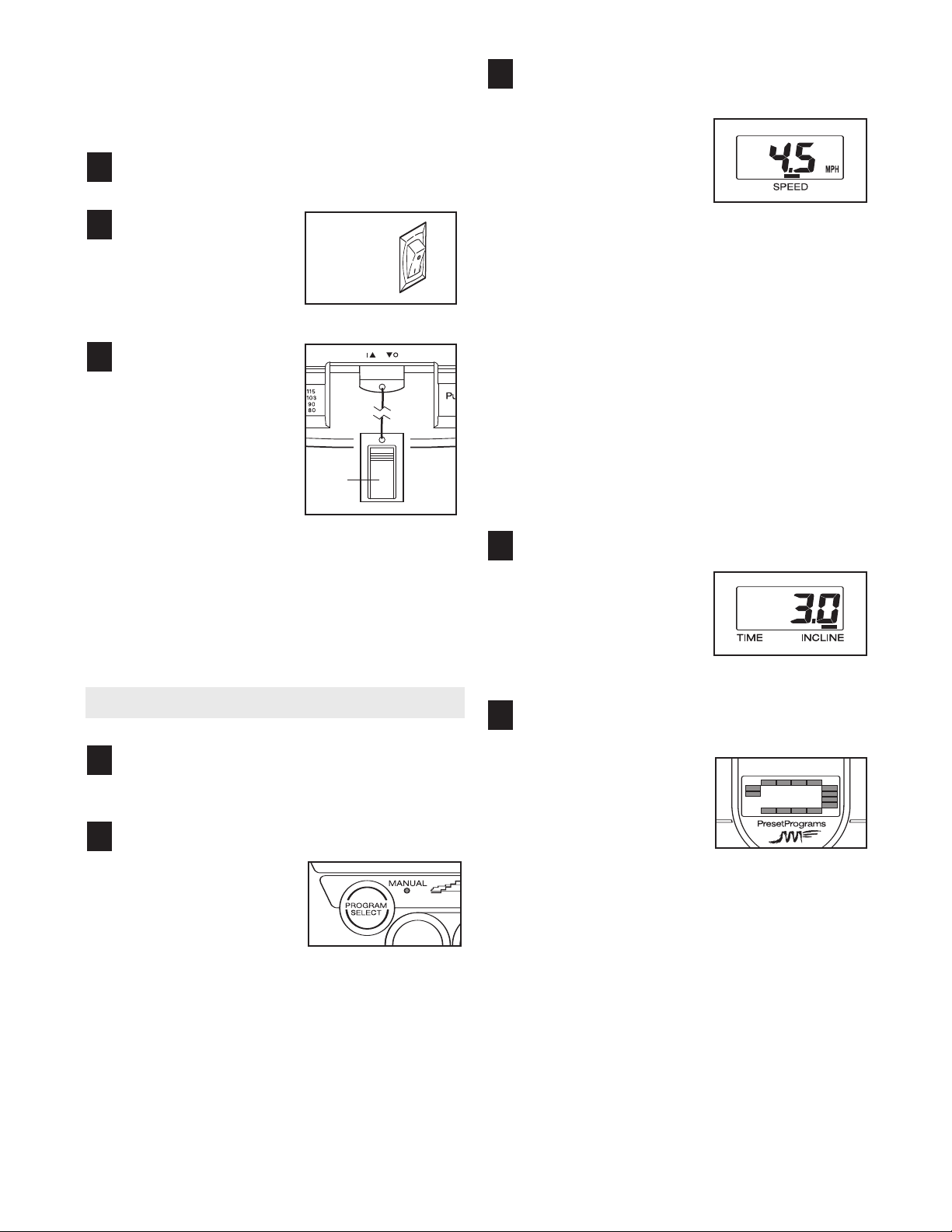

HOW TO TURN ON THE POWER
ote: If there is a sheet of clear plastic on the face of
N the console, remove the plastic.
lug in the power cord (see page 9).
P
1
ocate the on/off
L
2
switch on the right side of the console. Make sure that the switch is in the on position.
On
Position
Press the Start button or the Speed + button to
3
start the walking belt.
A moment after the but­ton is pressed, the walk-
ng belt will begin to
i move. Hold the handrails and begin walking. As you exercise, change the speed of the walking belt as desired by press­ing the Speed buttons. Each time a button is pressed, the speed will change by 0.1 mph. If a button is held down, the speed will change in in­crements of 0.5 mph.
Stand on the foot rails
3
of the treadmill. Find the clip attached to the key, and slide the clip onto the waistband of your clothes. Next, in­sert the key into the console. After a mo­ment, the displays and the matrix will light.
Test the clip by care­fully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
Clip
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. If you have selected a program or the iFIT.com mode, press the Program Select but­ton repeatedly to reselect the manual mode.
To stop the walking belt, press the Stop button. The Time/Incline display will begin to flash. To restart the walking belt, press the Start button or the Speed + button.
Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt, and align the walking belt if necessary (see page
22).
Change the incline of the treadmill as desired.
4
To change the incline of the treadmill, press the Incline buttons. Each time a button is pressed, the incline will change by 0.5%.
Follow your progress with the matrix and the
5
four displays.
The matrix—When the
manual mode or the iFIT.com mode is se­lected, a 1/4-mile track will appear in the matrix. As you walk or run on the treadmill, the indicators around the track will light in succession until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.
1
1
Page 12

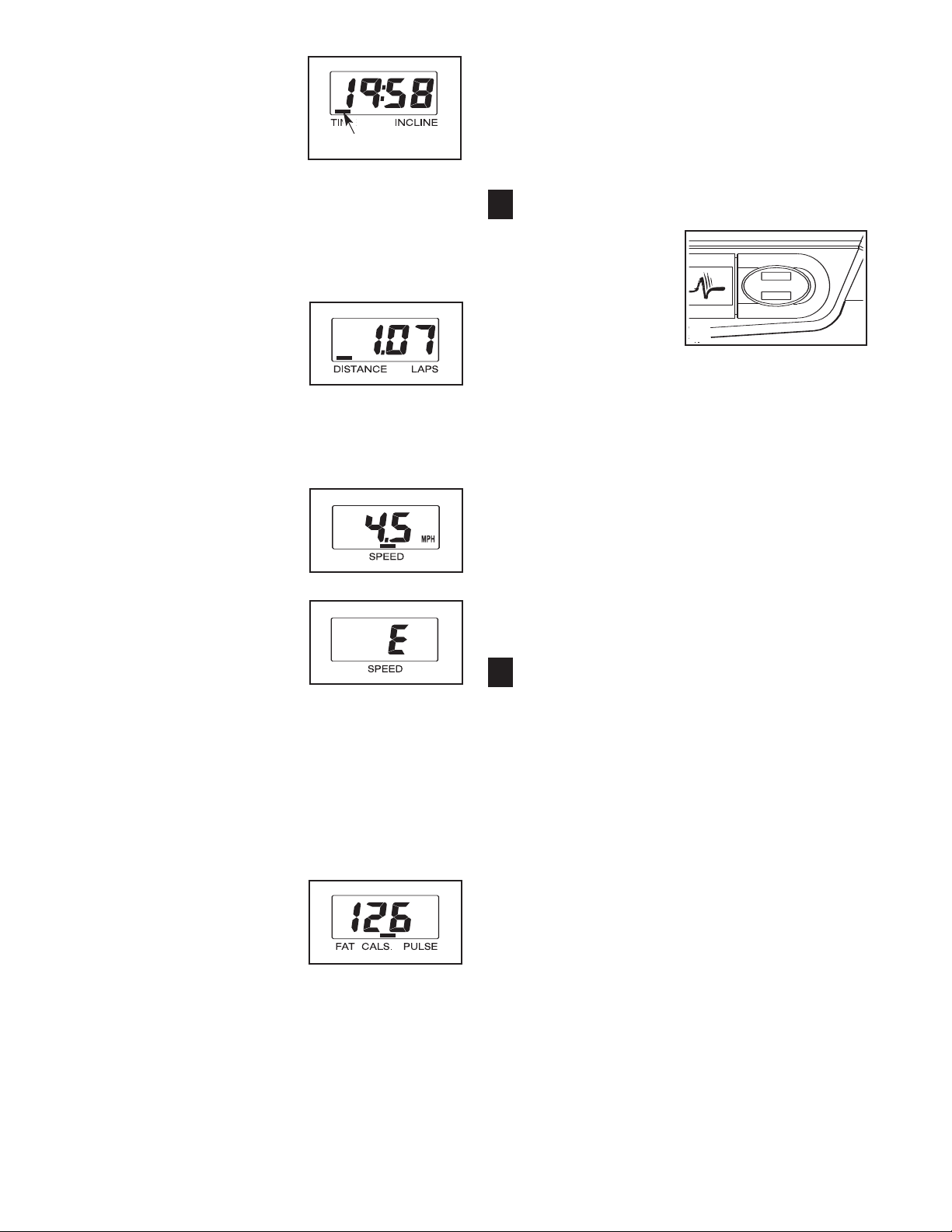

Time/Incline display
When the manual mode
r the iFIT.com mode is
o selected, this display will
how the elapsed time
s and the incline level of the treadmill. The display will alternate between one number and the other every few seconds, as shown by the indicators in the display. When a preset program is selected, the display will show the time remaining in the pro­gram and the incline level of the treadmill.
Distance/Laps display
shows the distance that you have walked or run and the number of 1/4­mile laps you have com­pleted. The display will alternate between one number and the other every few seconds, as shown by the indicators in the display.
Speed display—This display shows the speed of the walking belt.
Note: The console can display speed and dis­tance in either miles or kilometers. The letters “MPH” or “Km/H” will ap­pear in the Speed display to show which unit of measurement is selected. To change the unit of measurement, press the Stop button whilst inserting the key into the con­sole. An “E” for English miles or an “M” for metric kilometers will appear in the Speed display. Press the Speed + button to change the unit of measure­ment. When the desired unit of measurement is selected, remove the key and then reinsert it.
Fat Calories/Calories/ Pulse display—This dis-
play shows the approxi mate numbers of
calories
—This display
fat
and
calories
-
you
Indicator
have burned (see FAT BURNING on page 23). The display will alternate between one number
nd the other every few seconds, as shown by the
a indicators in the display. The display will also
how your heart rate when you use the pulse sen-
s sor (see step 6).
Measure your heart rate if desired.
6
To measure your heart rate, stand on the foot rails and place your thumb on the pulse sensor.
Do not press too hard, or the circu­lation in your thumb will be restricted and your pulse will not be detected.
heart-shaped indicator in the Fat Calories/Calories/ Pulse display will flash each time your heart beats, and your heart rate will be shown. Hold your thumb on the pulse sensor for about 15 seconds for the most accurate reading.
If the displayed heart rate appears to be too high or too low, or if your heart rate is not displayed, lift your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor as de­scribed above. Remember to stand still whilst measuring your heart rate.
When you are finished exercising, remove the
7
key.
Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest level. The incline must be at the lowest level
when the treadmill is raised to the storage po­sition or the treadmill will be damaged. Next,
remove the key from the console and put the key in a secure place.
When you are finished using the treadmill, move the on/off switch to the off position.
When your pulse is detected, the
12
Page 13

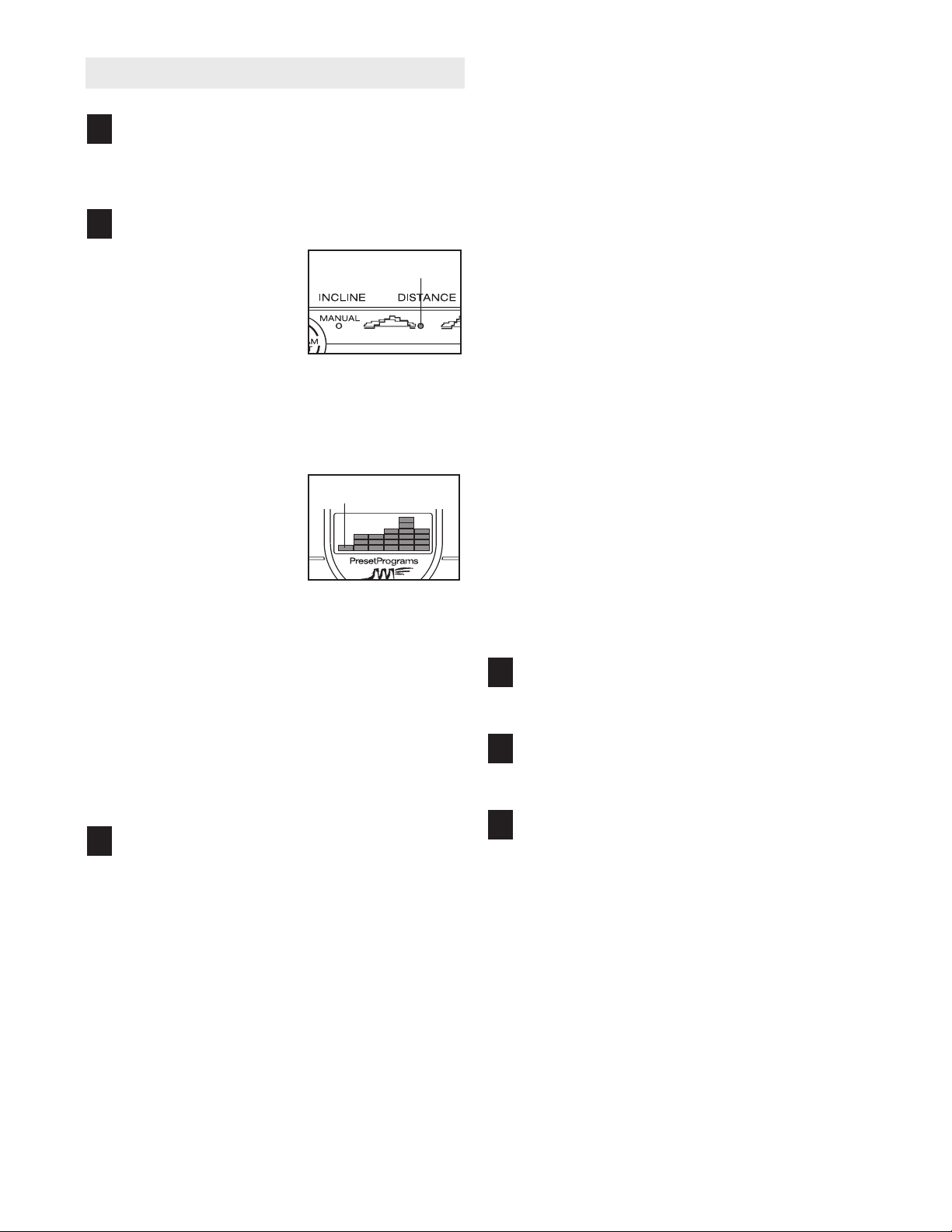

OW TO USE A PRESET PROGRAM
H
nsert the key into the console.
I
1
ee HOW TO TURN ON THE POWER on page
S
11.
elect one of the preset programs.
S
2
When the key is in­serted, the manual mode will be selected. To select a preset pro­gram, press the Program Select button repeatedly until one of the four program indicators lights. Note: The graphs beside the program indicators show how the speed and incline of the treadmill will change during the programs.
Each program consists of either 20 or 30 one­minute segments. One speed setting and one incline setting are pro­grammed for each seg­ment. The speed set­ting for the first segment appears in the left column of the matrix. The speed settings for the next five segments appear in the five columns to the right. Note: One bar in a column represents a speed setting of either 1 mph or 1.5 mph, two bars repre­sent a speed setting of 2 mph or 2.5 mph, three bars represent a speed setting of 3 mph or 3.5 mph, and so forth.
number of bars appear in two consecutive columns, a different speed setting may be pro­grammed for each segment.
Press the Start button or the Speed + button to
3
start the program.
When the button is pressed, the left column of the matrix will begin to flash, and the treadmill will au­tomatically adjust to the speed and incline settings for the first segment. walking.
Important: Even if the same
Hold the handrails and begin
Program Indicator
Current Period
When the first segment of the program ends, a se­ries of tones will sound and
ove one column to the left.
m
incline of the treadmill is about to change, the
peed display and/or the Time/Incline display
S will flash to alert you.
second segment will then appear in the left column of the matrix and the treadmill will automatically adjust to the speed and incline settings for the sec­ond segment.
The program will continue until the speed setting for the last segment appears in the left column of the matrix and the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can manually override the setting by pressing the Speed or Incline buttons. However,
begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the program, press the Stop button. The Time/Incline display will begin to flash. To restart the program, press the Start button or the Speed + button. The walking belt will begin to move at 1 mph. When the next segment begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
Follow your progress with the four displays.
all speed settings will
f the speed and/or
I
The speed setting for the
when the next segment
4
Refer to step 5 on page 11.
Measure your heart rate if desired.
5
See step 6 on page 12.
When you are finished exercising, remove the
6
key.
When the program ends, make sure that the treadmill is at the lowest incline level. Next, re-
move the key from the console and put it in a secure place.
When you are finished using the treadmill, move the on/off switch to the off position.
13
Page 14
LINE OUT
PHONES
L
INE OUT
PHONES
AUDIO OUT
R
IGHT
LEFT
A
LINE OUT
A
UDIO OUT
RIGHT
LEFT
A
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
P
HONES
L
INE OUT
PHONES
PHONES
P
HONES
OW TO CONNECT THE TREADMILL TO YOUR
H
D PLAYER, VCR, OR COMPUTER
C
To use iFIT.com CDs, the treadmill must be connected
o your portable CD player, portable stereo, home
t stereo, or computer with CD player. See pages 14 and 15 for connecting instructions. To use iFIT.com video- cassettes, the treadmill must be connected to your VCR. See page 16 for connecting instructions. To use iFIT.com programs directly from our Web site, the treadmill must be connected to your home computer. See page 15 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
.5 mm LINE OUT jack, see instruction B. If your
3 stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
ight side of the console. Plug the other end of the
r cable into the adaptor. Plug the adaptor into an AUDIO OUT jack on your stereo.
A
Audio
Adaptor
Cable
A
Audio
Cable
Plug one end of the audio cable into the jack on the
B.
right side of the console. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your CD player. Plug your head­phones into the other side of the splitter.
Head-
phones
B
Audio
Cable
Splitter
B. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
B
Audio Cable
Plug one end of the audio cable into the jack on the
C.
right side of the console. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your stereo. Plug your head­phones into the other side of the splitter.
C
Headphones
14
Audio Cable
Headphones
Splitter
Page 15
HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
A
LINE OUT
CD
VCR
Amp
L
INE OUT
CD
VCR
Amp
LINE OUT
A
PHONES
LINE OUT
HOW TO CONNECT YOUR COMPUTER
ote: If your stereo has an unused LINE OUT jack,
N see instruction A below. If the LINE OUT jack is
eing used, see instruction B.
b
A. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the adaptor. Plug the adaptor into the LINE OUT jack on your stereo.
A
Audio
Adaptor
Cable
B. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the adaptor. Plug the adaptor into an RCA Y-adaptor (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adaptor. Plug the Y­adaptor into the LINE OUT jack on your stereo.
ote: If your computer has a 3.5 mm LINE OUT
N jack, see instruction A. If your computer has only a
HONES jack, see instruction B.
P
A. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the splitter. Plug the splitter into the PHONES jack on your computer. Plug your head­phones or speakers into the other side of the splitter.
B
B
Audio
Splitter
Cable
Headphones/Speakers
RCA
Y-adaptor
Adaptor
Audio Cable
Wire removed from
LINE OUT jack
15
Page 16

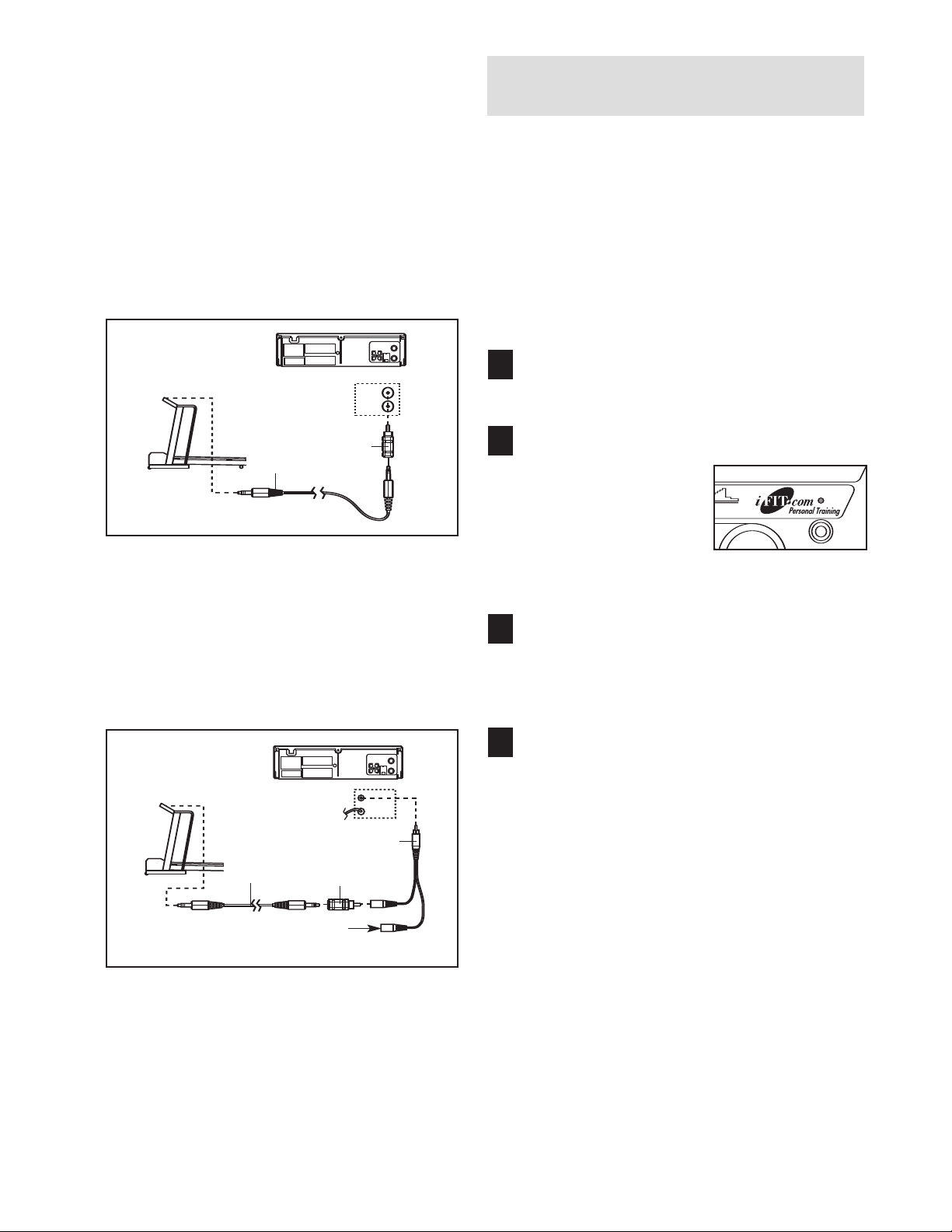

HOW TO CONNECT YOUR VCR
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
IN
O
UT
CH 3
4
VIDEO AUDIO
ANT. IN
R
FOUT
I
N
O
UT
CH
3
4
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
A
NT. IN
RF OUT
I
N
O
UT
CH
34
ote: If your VCR has an unused AUDIO OUT jack,
N see instruction A below. If the AUDIO OUT jack is
eing used, see instruction B. If you have a TV
b with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the adaptor. Plug the adaptor into the AUDIO OUT jack on your VCR.
A
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill
ust be connected to your portable CD player, portable
m
tereo, home stereo, computer with CD player, or
s VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page
14. Note: To purchase iFIT.com CDs and videocas-
settes, visit our Web site at www.iFIT.com.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key fully into the console.
1
See HOW TO TURN ON THE POWER on page 11.
Audio
Adaptor
Cable
B. Plug one end of the audio cable into the jack on the
right side of the console. Plug the other end of the cable into the adaptor. Plug the adaptor into an RCA Y-adaptor (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adaptor. Plug the Y-adaptor into the AUDIO OUT jack on your VCR.
B
RCA Y-adaptor
Audio Cable
Adaptor
Wire removed from
AUDIO OUT jack
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To use an iFIT.com CD or video program, press the Program Select but­ton repeatedly until the iFIT.com indicator lights.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com video­cassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Incline display is flashing, press the Start button or the Speed + but ton on the console. The treadmill will not respond to a CD or video program whilst the Time/Incline display is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
AUTION:
C prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
Always listen for the “chirp” and be
-
16
Page 17
If the speed or incline setting is too high or too low, you can manually override the setting at any
ime by pressing the Speed or Incline buttons on
t the console. However,
eard, the speed and/or incline will change to
h the next setting for the CD or video program.
To stop the walking belt, press the Stop button on the console. The Time/Incline display will begin to flash. To restart the program, press the Start but­ton or the Speed + button. After a moment, the walking belt will begin to move at 1 mph. When
the next “chirp” is heard, the speed and/or in­cline will change to the next setting for the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Time/Incline display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 16.
Note: If the speed and/or of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time/Incline display is not flashing. If the Time/Incline display is flashing, press the Start button or the Speed + button on the console.
when the next “chirp” is
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con-
ole may not detect the program signals.
s
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
If you are using your portable CD player and
• the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the matrix and the
5
four displays.
See step 5 on page 11.
Measure your heart rate if desired.
6
See step 6 on page 12.
When the iFIT.com CD or video program ends,
7
remove the key.
See step 6 on page 13.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player or VCR when you are finished using them.
17
Page 18

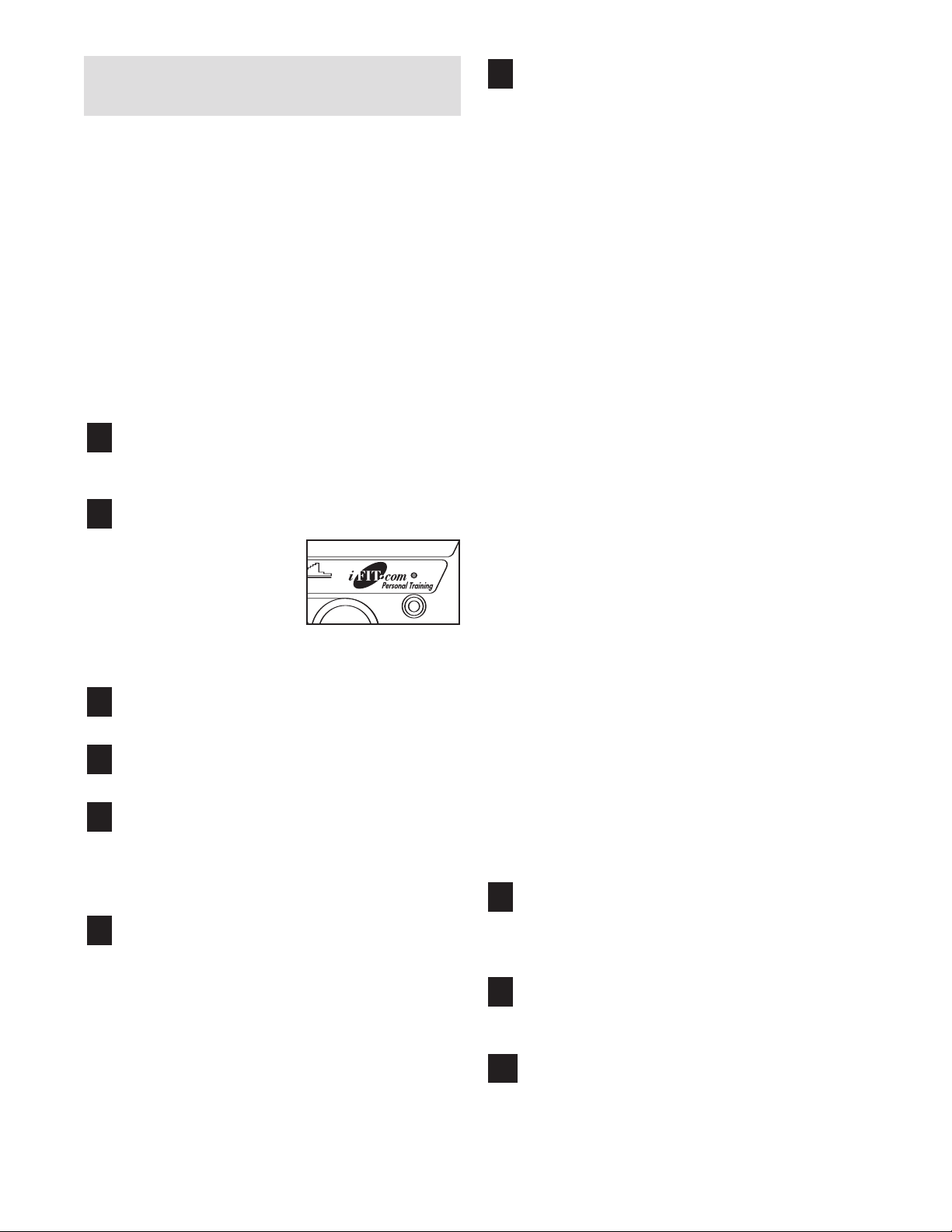

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key, and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 15. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected. To use a program from our Web site, press the Program Select button repeatedly until the iFIT.com indicator lights.
Go to your computer and start an internet
3
connection.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
old the handrails, step onto the walking belt, and
H begin walking.
During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline setting is too high or too low, you can manually override the setting at any time by pressing the Speed or Incline buttons on the console.
heard, the speed and/or incline will change to the next setting for the program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Incline dis­play will begin to flash. To restart the program, press the Start button or the Speed + button. After a moment, the walking belt will begin to move at 1
When the next “chirp” is heard, the speed
mph.
and/or incline will change to the next setting for the program
When the program is completed, the walking belt will stop and the Time/Incline display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed and/or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Incline display is not flashing. In addi­tion, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the matrix and the
8
four displays.
See step 5 on page 11.
However, when the next “chirp” is
.
CAUTION: Always
When you start the program, an on-screen count down will begin.
-
Measure your heart rate if desired.
9
See step 6 on page 12.
When the program ends, remove the key.
10
See step 6 on page 13.
18
Page 19
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE

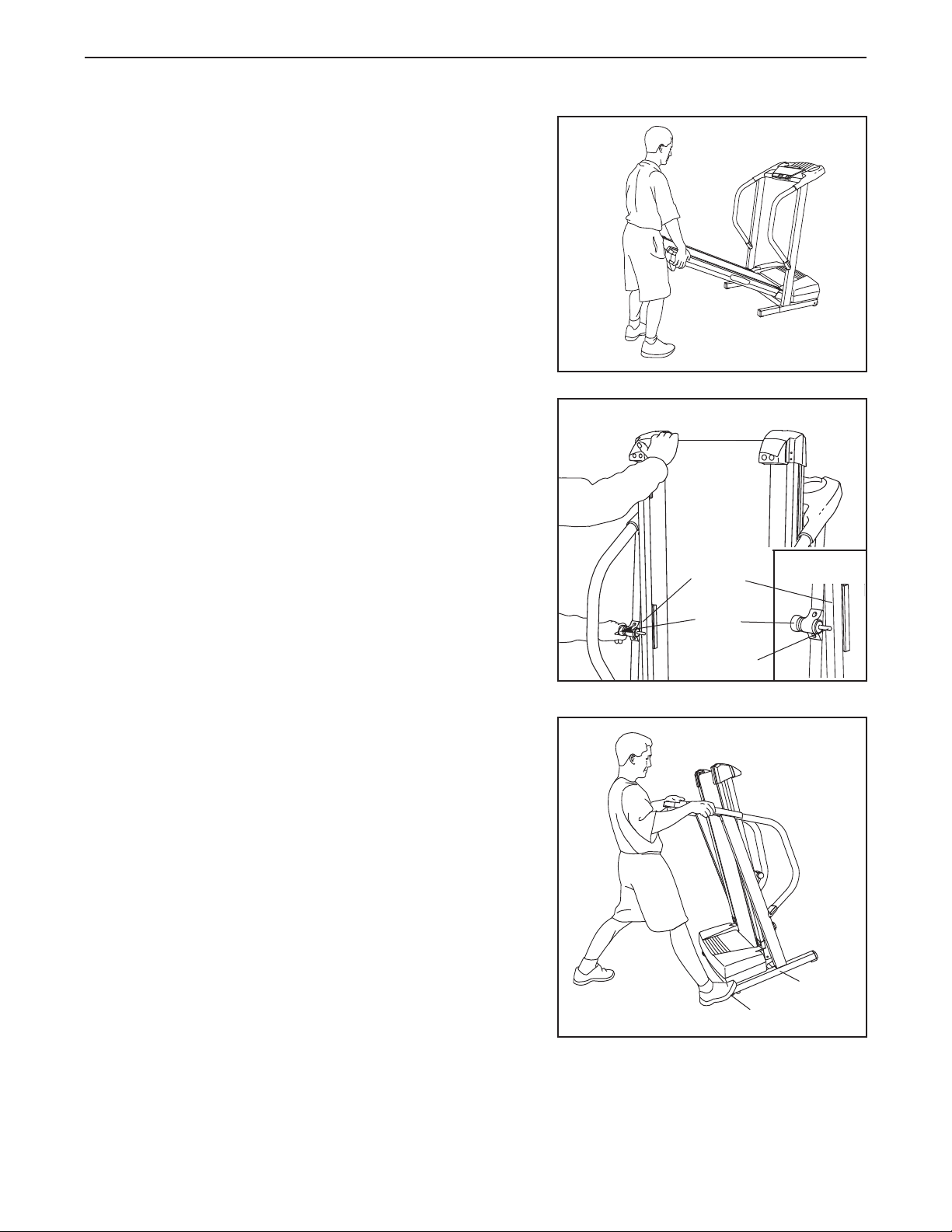

Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per-
anently damaged. Next, unplug the power cord. CAUTION:
m You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at the
To decrease the possibility of injury, bend your legs
right.
and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the frame is past the latch pin. Slowly release the latch knob.
the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sun­light. Do not leave the treadmill in the storage position in temperatures above 30° C (85° F).
Make sure that
Frame
Engaged
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the frame is se
curely held by the latch pin.
Hold the upper ends of the handrails. Place one foot on the
1. base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution whilst mov­ing the treadmill. Do not move the treadmill over an un­even surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
-
Latch Knob
Latch Pin
Base
Front Wheels
19
Page 20
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the tread-
mill to the floor. Do not drop the treadmill frame to the
floor. To decrease the possibility of injury, bend your legs and keep your back straight.
Latch Knob
20
Page 21
TROUBLESHOOTING

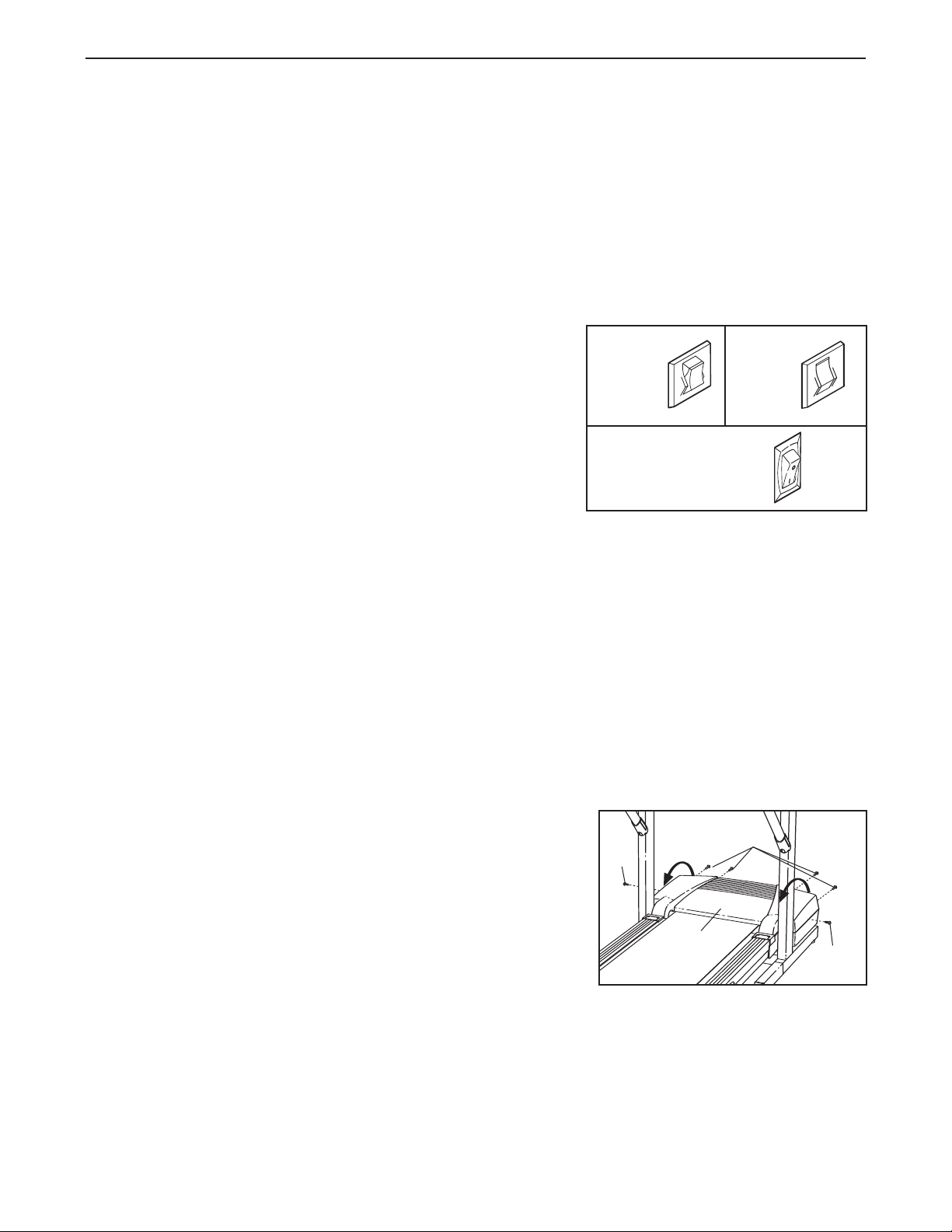

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a properly earthed outlet. (See page 9.) If an exten-
sion cord is needed, use only a 3-conductor, 1 mm (5 ft.). Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill near the power cord (see c. above). If the cir-
cuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
2
(14-gauge) cord that is no longer than 1.5 m
c
Tripped
d
On
Position
Reset
d. Make sure that the on/off switch is in the on position (see d. above).
e. If the treadmill still will not run, call our Customer Service Department.
PROBLEM: The displays of the console do not function properly
SOLUTION:
a. Remove the key from the console and UNPLUG THE
POWER CORD.Remove the six 3/4” Screws (61)
from the Hood, and carefully pivot the Hood (1) off.
a
61
61
1
61
21
Page 22

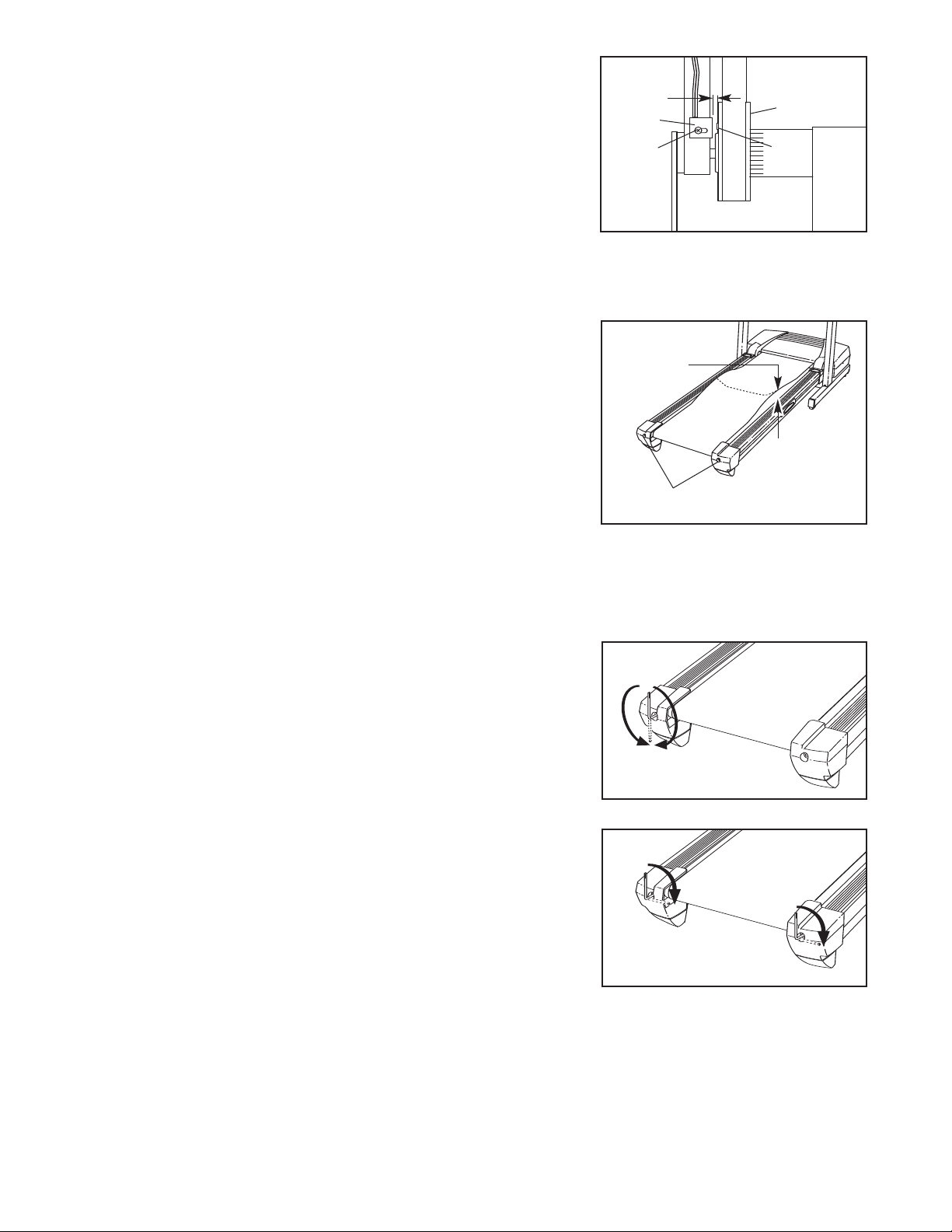

Locate the Reed Switch (10) and the Magnet (18) on the left side of the Pulley (17). Turn the Pulley until the
agnet is aligned with the Reed Switch. M
M
that the gap between the Magnet and the Reed
witch is about 1/8”.If necessary, loosen the Screw
S
(26), move the Reed Switch slightly, and then retighten the Screw. Re-attach the Hood, and run the treadmill for a few minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
ake sure
1
10
26
Top
View
/8”
1
17
8
SOLUTION:
PROBLEM: The walking belt is off-centre or slips when walked on
SOLUTION: a. If the walking belt is off-centre, first remove the key
a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 9.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be­come damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 8–10 cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centred. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tight­ened.
c. If the walking belt still slows when walked on, call our Customer Service Department.
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to over­tighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centred.
b
8–10 cm
Rear Roller Adjustment Bolts
a
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the hex key, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 8–10cm (3–4 in.) off the walking platform. Be careful to keep the walking belt centred. Plug in the power cord, insert the key, and carefully walk on the tread­mill for a few minutes. Repeat until the walking belt is properly tightened.
22
b
Page 23
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi-
ian. This is especially important for individu-
c als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
ergy. Only after the first few minutes does your body begin to use stored
s to burn fat, adjust the speed and incline of the tread-
i mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
fat calories
for energy. If your goal
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor on the console.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible
carbohydrate calories
for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
-
23
Page 24
PART IDENTIFICATION CHART
Washer (38)–4
Wheel Nut (13)–2
3/4” Screw (61)–8
1” Bolt (37)–6
Crossbar Screw
(39)–2
Silver Ground
Screw (75)–2
Star Washer
(63)–4
3” Bolt (70)–4
2” Bolt (64)–2
1” Tek Screw
(58)–4
Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.
Page 25
PART LIST—Model No. PETL35135 R0105A
Key
No. Qty. Description
1 Hood
1 2 4 Rail Screw 3 1 Motor Belt 4 1 Motor Tension Bolt 5 5 Flat Washer 6 1 Motor Star Washer 7 1 Flywheel
8 1 Motor 9* 1 Motor Assembly 10 1 Reed Switch 11 1 Latch Warning Decal 12 2 Frame Spacer 13 7 Wheel Nut 14 2 Frame Pivot Bolt 15 4 Walking Platform
Screw 16 1 Left Foot Rail 17 1 Front Roller/Pulley 18 1 Magnet 19 1 Motor Pivot Bolt 20 2 Motor Bracket Bolt 21 1 Right Foot Rail
Endcap 22 6 Belly Pan Clip 23 1 Front Roller
Adjustment Bolt 24 1 Filter 25 1 Left Upright 26 8 Electronics Screw 27 2 Foot Rail Cover 28 1 Motor Tension Nut
Right Upright
1
29 30 1 Latch Knob 31* 1 Latch Knob Assembly 32 1 Spring 33 1 Latch Pin Collar 34 1 Latch Pin Clip 35 1 Latch Pin 36
1 Storage Latch 37 6 1” Bolt 38 7 Washer
Crossbar Screw
2
39 40 1 Crossbar
Adapter
1
41
1
Wire Harness
Wire Cover
42 1 43 1 Console 44 45 4 U-nut 46 1 Bookrack 47 1 Console Base
Key
No. Qty. Description
8 1 Lift Frame Ground
4
Wire 49 2 Console Screw 50 1 Key/Clip 51 1 Incline Motor 52 1 Incline Bracket 53 1 Incline Motor Bolt 54 2 Lift Frame Bolt 55 2 Lift Frame Nut 56 1 Motor Controller Wire 57 2 Base Pad 58 4 1” Tek Screw 59 1 Controller 60 1 Lift Frame 61 18 3/4” Screw 62 2 Warning Decal 63 4 Star Washer 64 2 2” Bolt 65 2 Base Endcap 66 2 Wheel 67 1 Motor Sleeve 68 4 8” Cable Tie 69 1 Base 70 4 3” Bolt 71 1 Left Handrail 72 1 Right Handrail 73 4 Cage Nut 74 1 Left Foot Rail Endcap 75 2 Silver Ground
Screw 76 2 Handrail Cap
Incline Bottom Bolt
77 78 1 Circuit Breaker 79 1 Small Bolt 80 1 Receptical 81 1 Belly Pan 82 2 Belt Guide 83 4 Belt Guide Screw 84 85 2 Isolator Cushion 86 1 Frame 87 88 1 Motor Fan 89 90 1 91 1 Right Rear
92
93
1
4 Plastic Fastener
Small Nut
1
Cable Tie Clamp
1
Ground Wire
Endcap Pad
Rear Roller
2
Adjustable Bolt
1 Right Rear Endcap
Key
No. Qty. Description
4 1 Hex Key
9 95 1 Left Rear Endcap 96 1 Walking Belt 97 1 Walking Platform 98 1 Right Foot Rail
99 1 Left Rear Endcap Pad 100 1 Rear Roller 101 2 Plastic Tie 102 13 Rear Endcap Screw 103 1 Motor Mount Bracket 104 1 Jack 105 1 Audio Cable 106 1 Electronic Bracket 107 1 Choke 108 1 Static Decal 109 1 Ferrite Box 110 1 On/Off Switch 111 2 Upright Insert 112 1 Power Cord Set 113 1 Splitter 114 1 Small Star Washer 115 2 Nylon Washer 116 2 Plastic Bushing 117 1 Photo Switch 118 1 Photo Switch Wire 119 1 Filter Wire 120 3 Ground Wire Screw 121 1 1/4” Nut
# 1 18” Blue Wire, M/F # 1 6” Blue Wire, 2F # 1 14” Blue Wire, 2F
10” Black Wire, 2F
1
# # 1 8” Black Wire, 2F # 1 6” White Wire, M/F # 1 8” White Wire, 2F # 1 8” Green Wire, 2 Ring # 1 8” Green Wire, F/Ring # 1 4” Green Wire, F/Ring #
1 10 ” Red Wire, M/F
# 1 User’s Manual
*Includes all parts shown in the box #These parts are not illustrated
Page 26
EXPLODED DRAWING—Model No. PETL35135
R0105A
31*
30
32
35
34
33
94
95
92
38
99
102
102
92
38
93
91
102
102
13
77
53
13
52
66
13
64
105
104
113
115
47
61
46
61
61
44
49
43
28
10
102
12
19
13
13
60
23
2
13
12
14
21
16
18
17
14
15
2
74
98
82
83
97
15
96
81
102
83
82
102
80
65
62
69
54
55
54
57
58
72
37
76
73
58
57
51
37
38
39
37
38
37
38
39
37
38
40
61
62
64
50
120
90
58
89
68
100
42
15
75
61
101
11
55
56
85
84
84
85
71
73
61
108
86
15
65
111
111
13
66
78
1
61
61
25
29
45
45
61
70
63
63
70
61
36
79
117
114
87
113
61
110
119
118
112
109
58
58
42
75
37
76
116
115
22
22
22
61
22
67
38
120
48
3
4
5
6
7
8
9*
103
20
88
41
27
27
26
107
121
106
26
59
26
26
24
26
EXPLODED DRAWING—Model No. PETL35135 R0105A
Page 27
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
CON Health & Fitness, Ltd.
I Customer Service Department Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (PETL35135)
®
• The NAME OF THE PRODUCT (PROFORM
390 P treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST and the EXPLODED DRAWING attached in the centre of this manual)
Part No. 222879 R0105A
Printed in Canada
2005 ICON IP, Inc.
©
Loading...
