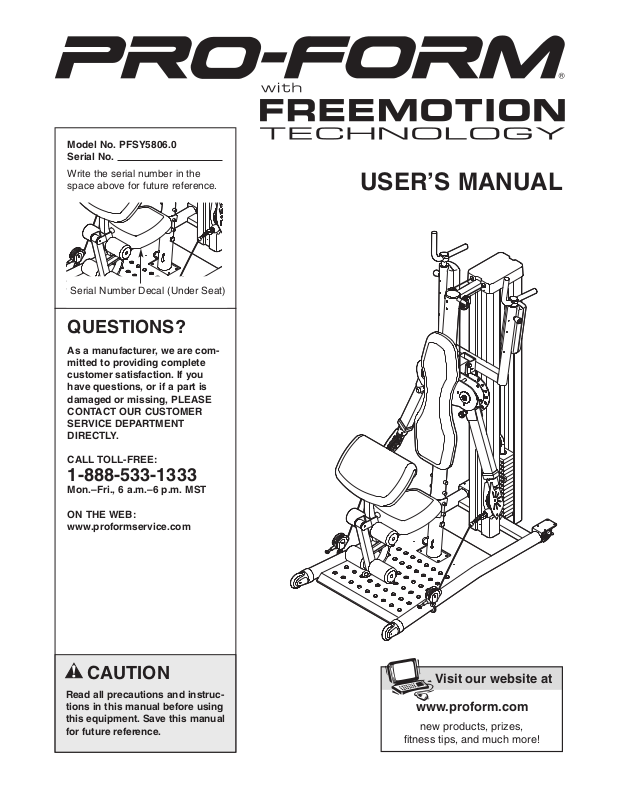

ProForm PFSY58060, FREEMOTION TECHNOLOGY Owner's Manual

Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Model No. PFSY5806.0 Serial No.
Write the serial number in the space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if a part is damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.proformservice.com
CAUTION
Read all precautions and instruc tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
Keep hands and fingers clear of this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin­ning assembly.
WARNING DECAL PLACEMENT
The decals shown here have been placed on the weight system. If a decal is missing or illegible, please call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
PROFORM is a registered trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
1. Read all instructions in this manual and all warnings on the weight system before using the weight system. Use the weight system only as described in this manual.
2. It is the responsibility of the owner to ensure that all users of the weight system are ade­quately informed of all precautions.
3. The weight system is intended for home use only. Do not use the weight system in any commercial, rental, or institutional setting.
4. Keep the weight system indoors, away from moisture and dust. Place the weight system on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around the weight system to mount, dismount, and use the weight system.
5. Inspect and properly tighten all parts regular­ly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protec­tion while exercising.
The weight system is designed to support a
9. maximum user weight of 300 pounds.
10. Make sure that the cables remain on the pul­leys at all times. If the cables bind as you are exercising, stop immediately and make sure that the cables are on the pulleys. Replace all cables at least every two years.
11. Always stand on the base plate when per­forming an exercise that could cause the weight system to tip.
12. Never release the handles, leg lever, squat bar, ankle strap, or curl bar while weights are raised; the weights will fall with great force.
13. Do not use the weight system with the top weight pinned in an elevated position.
14. Use the weight system only with the included weight. Do not use the weight system with any other type weight to add resistance.
15. Always secure the weight stack with the lock pin and lock after exercising to prevent unauthorized use of the weight system (see LOCKING THE WEIGHT STACK on page 15).
16. Always make sure that the pins and knobs are fully engaged before using the weight system.
17. If you feel pain or dizziness at any time while exercising, stop immediately and begin cool­ing down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile PROFORM WITH FREEMOTION TECHNOLOGY weight system. The weight system offers a selection of weight stations designed to develop every major muscle group of the body. Whether your goal is to tone your body, build dra­matic muscle size and strength, or improve your cardio­vascular system, the weight system will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the weight system. If you have questions after
reading this manual, please see the front cover of this
ASSEMBLED DIMENSIONS: Height: 85 in. (216 cm) Width: 75 in. (191 cm) Depth: 61 in (155 cm)
Backrest
®
manual. To help us assist you, please note the product model number and serial number before contacting us. The model number is PFSY5806.0. The serial number can be found on a decal attached to the weight system (see the front cover of this manual).
To avoid a registration fee for any service needed under warranty, you must register the weight sys­tem at www.proformservice.com/registration.
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Dip Handle
Dip Arm Knob
Dip Arm
Dip Arm Pin
Press Arm Knob
Press Arm
Right Side
Curl Pad
Seat
Pulley Housing
Leg Developer
Base
Squat Bar
Note: The terms “right side” and “left side” are determined relative to a person sitting on the seat; they do not correspond to right and left on the drawings in the manual.
Weight Pin
Weight
Locking Caster
Extension
Strap
Handle
Left Side
Curl Bar
Ankle Strap
4
ASSEMBLY
Make Assembly Easier
Everything in this manual is designed to ensure that the weight system can be assembled suc­cessfully by almost anyone. However, the weight system has many parts and the assembly process will take time. By setting aside plenty of time, assembly will go smoothly.
aterials until assembly is completed.
m
Tighten all parts as you assemble them, unless nstructed to do otherwise.
i
As you assemble the weight system, make sure
all parts are oriented as shown in the drawings.
• For help identifying small parts, use the PART
IDENTIFICATION CHART.
To hire an authorized service technician to assem­ble the weight system, call toll-free 1-800-445-2480.
Before beginning assembly, carefully read the following information and instructions:
Assembly requires two people.
Because of its weight and size, the weight sys-
tem should be assembled in the location where it will be used. Make sure that there is enough clearance to walk around the weight system as you assemble it.
Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing
1.
Before beginning assembly, make sure you understand the information in the box above. For help identifying small parts, use the PART IDENTIFICATION CHART in the center of this manual.
In addition to the included grease packet and hex key , assembly may require the fol­lowing tools (not included):
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Clear tape or masking tape, and soapy water
Assembly will be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
1
99
94
1
Attach a Wheel (32) to a Wheel Cap (31) with an M8 x 65mm Button Bolt (94) and an M8 Nylon Locknut (1
Locknut; the Wheel must pivot easily.
Attach the Wheel Cap (31) to the Base (1) with two M4 x 16mm Self-tapping Screws (99).
Repeat this step with the other Wheel Cap (31).
2. Attach a Locking Caster (76) to the Base (1) with four M8 x 20mm Button Bolts (92) and four M8 Nylon Locknut (1
Repeat this step with the other Locking Caster (76).
10).
Do not overtighten the Nylon
10).
31
32
110
99
76
31
92
92
1
76
10
1
110
5
3. Press the 89mm Round Cap (39) into the Upright (3).
Insert four M10 x 55mm Carriage Bolts (83) up
hrough the Base (1). N
t
heads with a piece of tape may help hold them in place.
with the four Bolts and four M10 Nylon Locknuts (108). Do not tighten the Nylon Locknuts yet.
Attach the Upright (3) to the Base
ote: Covering the bolt
3
39
3
108
4. Note: The parts in steps 7, 13, and 14 may
come preassembled. If the Press Arm Cable (not shown) is preattached, make sure that it goes over the Dip Arm (5) as this step is com­pleted.
Apply grease to an M10 x 115mm Bolt (84). Attach the Dip Bolt and an M10 Nylon Locknut (108).
that the Bolt is inserted through the indicated hole in the Dip Arm. Do not overtighten the Locknut; the Dip Arm must be able to pivot easily.
Arm (5) to the Upright (3) with the
Make sure
108
1
83
83
4
Hole
5
108
3
53
Attach the Dip with an M4 x 13mm Self-tapping Screw (112). Insert the Pin into the Dip Arm and the Upright (3).
Arm Pin (53) to the Dip Arm (5)
12
1
Grease
84
6
5. Attach the Weight Guide (13) to the Base (1) with an M10 x 50mm Bolt (96), two M10 Washers
105), an 16mm x 6mm Spacer (11), and an M10
( Nylon Locknut (108).
5
16
79
Attach the Weight Guide With Hole (36) to the Base (1) in the same manner. Make sure that the indicated hole in the Weight Guide is clos­er to the bottom.
Locate the fourteen Weights (27) that do not have Weight Bushings (30) pressed into them. Press two Weight Bushings into the outside holes of each Weight.
are oriented as shown with the pin holes on the bottom.
Slide two Weight Bumpers (29) onto the Weight Guides (13, 36). Slide the fourteen Weights (27) onto the Weight Guides.
Insert the Weight Tube (16) into the center hole in the fifteenth Weight (27). Tap the Roll Pin (79) into the top hole in the Weight Tube.
that the Pin is underneath the Weight and is centered in the Weight Tube.
Slide the Weight (27) onto the Weight Guides (13,
36).
Make sure that all of the Weights
Make sure
13
36
27
30
27
Pin
Hole
Hole
29
96
105
108
11
1
6. See drawing 6b. Attach the Front Shroud (14) to the Base (1) with an M4 x 16mm Self-tapping Screw (99).
See drawing 6a. Note: If the Press Arm Cable (not shown) has been routed through the Top Cover (24), make sure that the Cable crosses under the Top Frame (12) and hangs between the Weight Guides (13, 36) while this step is completed.
op Frame (12) to the Weight Guides
Attach the (13, 36) with two M10 x 65mm Bolts (95), four M10 Washers (105), two 16mm x 12mm Spacers (81), and two M10 Nylon Locknuts (108).
tighten the Nylon Locknut yet.
Attach the Top Frame (12) to the Upright (3) with two M10 x 100mm Button Bolts (91) and an M10 Nylon Locknut (108).
Set the Top Cover (24) over the Front Shroud (14) and the Top Frame (12).
Tighten the M10 Nylon Locknuts (108) used in this step and in step 3.
T
Do not
6a
6b
91
3
14
95
12
108
99
105
14
13 36
24
81
105
105
1
108
7
7. Refer to the CABLE DIAGRAM on page 17 to ensure correct cable routing during steps 7
hrough 14.
t
se the wire in the Left Press Arm (7) to pull the
U Press Arm Cable (66) up through the Press Arm.
Make sure that the Cable is routed around the pulleys above the Press Arm as shown in the inset drawing.
7
6
6
Hold a 4" Pulley (42) over the Press Arm Cable (66). Attach the Pulley inside of the Swivel Arm (26) with an M10 x 50mm Button Bolt (88), two M10 Washers (105), two 16mm x 6mm Spacers (11), and an M10 Nylon Locknut (108).
8. Route the Press Arm Cable (66) over a 3 1/2" Pulley (43). Attach the Pulley and a Cable Trap (47) to the Top Frame (12) with an M10 x 40mm Screw (97). Make sure that the Cable Trap is
oriented to hold the Cable in the groove of the Pulley.
7
108
11
105
42
66
8
12
26
11
105
43
88
66
47
97
9. Route the Press Arm Cable (66) through the Top Cover (24) and over a 3 1/2" Pulley (43). the Pulley and a Cable Trap (47) to the Top Frame (12) with an M10 x 40mm Screw (97).
Make sure that the Cable T hold the Cable in the groove of the Pulley.
10. Route the Press Arm Cable (66) under a 3 1/2" Pulley (43). and two Finger Guards (48) to the second hole from the top of the Weight Tube (16) with an M10 x 50mm Bolt (96) and an M10 Nylon Locknut (108). Make sure that the Cable T
ed to hold the Cable in the groove of the Pulley.
Attach the Pulley
rap is oriented to
, a Cable Trap (47),
Attach
rap is orient
9
24
12
10
16
48
96
43
66
43
66
48
47
47
97
108
8
11. Route the Press Arm Cable (66) over a 3 1/2" Pulley (43). Attach the Pulley and a Cable Trap
47) to the Top Frame (12) with an M10 x 40mm
( Screw (97).
riented to hold the Cable in the groove of the
o Pulley.
Make sure that the Cable Trap is
11
97
47
3
4
6
6
12
12. Route the Press Arm Cable (66) through the Top Cover (24) and over a 3 1/2" Pulley (43). Attach the Pulley and a Cable Trap (47) to the Top Frame (12) with an M10 x 40mm Screw (97).
Make sure that the Cable Trap is oriented to hold the Cable in the groove of the Pulley.
13. Use the wire in the Right Press Arm (8) to pull the Press Arm Cable (66) down through the Press Arm. Make sure that the Cable is routed
around the pulleys above the Press Arm as shown in the inset drawing.
Hold a 4" Pulley (42) over the Press Arm Cable (66). Attach the Pulley inside of the Swivel Arm (26) with an M10 x 50mm Button Bolt (88), two M10 Washers (105), two 16mm x 6mm Spacers (11), and an M10 Nylon Locknut (108).
12
13
97
66
66
88
47
105
43
24
12
8
14. Orient the Cable Cover (63) as shown and slide it onto the Press
Insert the Press Arm Cable (66) into the Cable Coupler (64). Screws (1 place.
Slide the Cable Cover (63) over the Cable Coupler (64).
Arm Cable (66).
Tighten four M6 x 10mm Set
14) into the Coupler to hold the Cable in
11
108
105
66
63
14
42
64
11
66
114
1
26
14
9
15. See drawing 15a. Slide the Rear Shroud (15) under the Top Cover (24).
15a
24
Attach the Top Cover (24) and the Front and Rear
hrouds (14, 15) to the Top Frame (12) with three
S M4 x 16mm Self-tapping Screws (99).
See drawing 15b. Attach the Rear Shroud (15) to the Base (1) with an M4 x 16mm Self-tapping Screw (99).
16. Attach the Backrest (18) to the Upright (3) with two M6 x 115mm Screws (113) and two M6 Washers (107).
15b
16
18
99
99
12
15
14
99
15
1
3
113
107
113
17.
Attach the Seat (19) to the Seat Frame (4) with two M6 x 30mm Screws (87) and an M6 x 100mm Screw (85).
Set the Seat Frame (4) onto a set of posts on the Upright (3).
18. Attach the Bumper (115) to the Leg Developer (6) with an M4 x 19mm Self-tapping Screw (100).
Grease an M10 x 75mm Bolt (86). Attach the Leg Developer (6) to the Seat Frame (4) with the Bolt and an M10 Nylon Locknut (108).
tighten the Nylon Locknut; the Leg Developer must be able to pivot easily
Do not over
.
17
18
19
Grease
107
4
86
87
4
100
108
115
85
6
10
19. Attach a Front and Rear Dip Cap (33, 34) around a Dip Handle (10) with two M3 x 32mm Self-tap-
ing Screws (102).
p
ighten a Dip Arm Knob (51) into the Dip Arm (5).
T Pull the Knob out as far as it will go and insert the Dip Handle (10) through a Dip Arm Bushing (35) and into the Dip Arm. Engage the Knob into the Dip Handle.
Repeat this step on the other side of the Dip Arm (5).
9
1
1
5
102
0
1
3
3
102
4
3
5
5
3
20. Attach an Arm Pad (21) and an Arm Pad Base (22) to the Dip Arm (5) with two M6 x 70mm Screws (93).
Repeat this step on the other side of the Dip Arm (5).
21. Insert a Pad Tube (17) into the Leg Developer (6). Slide two Leg Pads (23) and two Pad Covers (119) onto the Pad Tube.
Slide two Leg Pads (23) and two Pad Covers (119) onto the Seat Frame (4).
20
21
119
22
23
21
5
93
17
23
119
6
4
119
23
119
22. Attach the Curl Pad (20) to the Curl Post (9) with two M6 x 30mm Screws (87).
Make sure that all parts are properly tightened
23. before using the weight system. remaining parts will be explained in the ADJUST­MENTS section, beginning on the following page.
The use of the
22
20
9
87
11
ADJUSTMENTS
This section explains how to adjust the weight system. See the EXERCISE GUIDELINES on page 18 for impor­tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying exercise guide to see the correct form for each exercise.
roperly tighten all parts each time the weight system is used. Replace any worn parts immediately. The weight
P system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.
ADJUSTING THE DIP HANDLES
The Dip Handles (10) can be moved to three different lengths in the Dip Arm (5), and rotated in 90-degree increments.
10
To adjust a Dip Handle (10), disengage the Dip Arm Knob (51) and move the Dip Handle to the desired position. Reengage the Knob into the Handle.
ADJUSTING THE PRESS ARM
5
51
10
To adjust a Press Arm (7 or 8), first disengage the Press Arm Knob (50). Move the Press Arm to the desired position, and reengage the Knob into the Adjustment Plate (25).
WARNING: Always make sure that
the Press Arm Knob (50) fully engages the Adjustment Plate (25) before exercising.
ADJUSTING THE DIP
o adjust the Dip Arm (5), first make sure the press
T arms are in the lowered position (see ADJUSTING THE PRESS ARM above). Then, remove the Dip Arm Pin (53). Move the Dip Arm to the raised or lowered position. Reengage the Pin into the Upright (3) and the Dip Arm.
ARM
25
8
50
7
5
12
3
53
ADJUSTING THE SEAT
To adjust the height of the Seat (19), lift the Seat Frame (4) off of the Upright (3). Set the Seat Frame onto a different set of posts on the Upright.
For some exercises, the Seat (19) should be removed
rom the weight system and stored where it will not
f interfere with the exercise.
ATTACHING THE CURL PAD
3
19
4
To use the Curl Pad (20), insert the Curl Post (9) into the Seat Frame (4). Secure the Curl Post with the Curl Knob (52).
Store the Curl Pad (20) away from the weight system while performing exercises that do not require it.
ATTACHING THE PULLEY HOUSINGS
The Pulley Housings (54) can be attached to the Upright (3) (leg developer position), or to the Base (1) (squat position or preacher curl position).
To attach a Pulley Housing (54), slide the hook on the Pulley Housing onto the bracket at the desired posi-
Attach the Housing Cable (71) to the Eyehook
tion. (65) with a Clip (61).
20
Preacher
Curl
9
4
52
54
3
61
71
1
Squat
65
Leg
Developer
ATTACHING THE LEG DEVELOPER
o use the Leg Developer (6), first move the press
T arms to the lowered position (see ADJUSTING THE PRESS housings to the leg developer position (see ING THE PULLEY HOUSINGS above). Then, attach the Housing Cables (71) to the Leg Developer using a Clip (61).
ARM on page 12).
Then, attach the pulley
ACH
TT
A
6
71
61
13
ATTACHING THE CURL BAR
To use the Curl Bar (58), first attach the curl pad to the seat frame (see ATTACHING THE CURL PAD on page 13). Next, attach the pulley housings to the preacher curl position (see ATTACHING THE PUL­LEY HOUSINGS on page 13). Then, attach the
ousing Cables (71) to the Leg Developer (6) with
H two Clips (not shown). Finally, attach the Curl Bar to the Leg Developer with a Clip (61).
ATTACHING THE SQUAT BAR
58
6
71
61
To use the Squat Bar (55), first remove the seat (see ADJUSTING THE SEAT on page 13). Then attach the pulley housings to the squat positions (see ATTACH­ING THE PULLEY HOUSINGS on page 13). Next, attach the Squat Bar to the Housing Cables (71) with four Clips (61) and the two Extension Straps (70). Finally, adjust the Extension Straps to the correct length.
ATTACHING THE HANDLES
55
70
61
61
71
A Handle (69) can be attached to an Eyehook (65), or to a Housing Cable (not shown), with a Clip (61). For some exercises an Extension Strap (not shown) should be attached between the Eyehook or Cable and the Handle with two Clips. Adjust the Extension Strap to the correct length.
The Ankle Strap (not shown) can be attached in the same manner.
65
61
69
14
MOVING THE WEIGHT SYSTEM
o move the weight system, step on the levers on the
T Locking Casters (76) to unlock the wheels. Move the
eight system to the new location. Relock the wheels
w on the Locking Casters.
CHANGING THE WEIGHT SETTING
To change the setting of the weight stack, insert the Weight Pin (28) under the desired Weight (27). Insert the Weight Pin so that the bent end touches the weight stack. Turn the bent end down.
Lever
76
27
Note: Due to the cables and pulleys, the amount of resistance at each exercise station may vary from the weight setting. Use the WEIGHT RESISTANCE CHART on page 16 to find the approximate amount of resistance.
LOCKING THE WEIGHT STACK
To lock the weight stack, insert the Lock Pin (78) into the indicated hole in a Weight Guide With Hole (36). Insert the Lock (77) through the hole in the Weight Pin and close the Lock.
ADJUSTING THE CABLE
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cable before resistance is felt, the cables should be tightened.
o tighten the cable, remove the M10 x 50mm Bolt
T (96) from the Weight T Pulley (43), the Cable Trap (47), and the two Finger Guards (48) to a lower hole in the Weight Tube with the Bolt and an M10 Nylon Locknut (108).
that the Cable Trap is oriented to hold the Press Arm Cable (66) in the groove of the Pulley. To
loosen the Cable, attach the Pulley to a higher hole in the Weight Tube.
ube (16). Reattach the 3 1/2"
Make sure
96
77
48
16
28
36
78
66
48
43
47
108
15
WEIGHT RESISTANCE CHART
The chart below shows the approximate weight resistance for the 10 lb. weights. Note: The actual resistance at each station may vary due to differences in individual weight plates as well as friction between the cables, pulleys, and weight guides.
WEIGHT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
*Weight resistance shown is for each arm.
Press
Arm*
Leg
Developer
9 15 20 25 30 36 41 46 51 57 62 67 72 77 84
20 30 42 50 65 73 92 97 108 125 137 144 159 170 180
16
CABLE DIAGRAM
The cable diagram shows the proper routing of the Press Arm Cable (66). Use the diagram to make sure that the cable and the cable traps have been assem­bled correctly. If the cable has not been correctly routed, the weight system will not function properly and damage may occur. The numbers show the cor­rect route for the cable.
traps do not touch or bind the cable.
Make sure that the cable
11
12
10
9
4
3
8
6
5
13
1
Press Arm Cable (66)
7
2
17
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles, push them close to their maximum capacity. Your mus­cles will adapt and grow as you progressively increase the intensity of your exercise. You can adjust the inten­sity level of an individual exercise in two ways:
• by changing the amount of weight used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an exercise, such as one sit-up. A “set” is a series of repetitions.)
The proper amount of weight for each exercise depends upon the individual user. You must gauge your limits and select the amount of weight that is right for you. Begin with 3 sets of 8 repetitions for each exercise you perform. Rest for 3 minutes after each set. When you can complete 3 sets of 12 repetitions without difficulty, increase the amount of weight.
Toning
You can tone your muscles by pushing them to a mod­erate percentage of their capacity. Select a moderate amount of weight and increase the number of repeti­tions in each set. Complete as many sets of 15 to 20 repetitions as possible without discomfort. Rest for 1 minute after each set. Work your muscles by complet­ing more sets rather than by using high amounts of weight.
Weight Loss
To lose weight, use a low amount of weight and increase the number of repetitions in each set. Exercise for 20 to 30 minutes, resting for a maximum of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and well-balanced fitness program. anced program is:
• Plan 20 to 30 minutes of aerobic exercise, such as
• Rest from both strength training and aerobic exercise
The combination of strength training and aerobic exer­cise will reshape and strengthen your body op your heart and lungs.
raining
An example of a bal
Plan strength training workouts on Monday
ednesday
W
running on a treadmill or riding on an exercise cycle or an elliptical exerciser, on
for at least one full day each week to give your body time to regenerate.
, and Friday
.
T
uesday and
,
Thursday
, plus devel-
.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the length of time for each workout, and the number of repetitions and sets completed, is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be sensi­tive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong before continuing. Remember that adequate rest and a proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching and light exercise to warm up. Warming up prepares your body for more strenuous exercise by increasing circulation, raising your body temperature and deliver­ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis­es. Select exercises for every major muscle group, emphasizing areas that you want to develop most. To give balance and variety to your workouts, vary the exercises from session to session.
Schedule your workouts for the time of day when your energy level is the highest. Each workout should be followed by at least one day of rest. Once you find the schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an ef
fective exercise program. This requires moving through the full range of motion for each exercise, and moving only the appropriate parts of the body. Exercising in an uncontrolled manner will leave you feeling exhausted. On the exercise guide accompany­ing this manual you will find photographs showing the correct form for several exercises, and a list of the muscles affected. Refer to the muscle chart on the next page to find the names of the muscles.
The repetitions in each set should be performed smoothly and without pausing. The exertion stage of each repetition should last about half as long as the return stage. Proper breathing is important. Exhale during the exertion stage of each repetition and inhale during the return stroke. Never hold your breath.
18
Rest for a short period of time after each set. The
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck) B. Pectoralis Major (chest) C. Biceps (front of arm) D. Obliques (waist) E. Brachioradials (forearm) F. Hip Flexors (upper thigh) G. Abductor (outer thigh) H. Quadriceps (front of thigh) I. Sartorius (front of thigh) J. Tibialis Anterior (front of calf) K. Soleus (front of calf) L. Anterior Deltoid (shoulder) M. Rectus Abdominus (stomach) N. Adductor (inner thigh) O. Trapezius (upper back) P. Rhomboideus (upper back) Q. Posterior Deltoid (shoulder) R. Triceps (back of arm) S. Latissimus Dorsi (mid back) T. Spinae Erectors (lower back) U. Gluteus Medius (hip) V. Gluteus Maximus (buttocks) W. Hamstring (back of leg) X. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
• building workout. Rest for one minute after each set for a toning work-
• out.
• Rest for 30 seconds after each set for a weight loss workout.
Plan to spend the first couple of weeks familiarizing yourself with the equipment and learning the proper form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching. Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into each stretch gradually and go only as far as you can
ithout strain. Stretching at the end of each workout
w is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the date, the exercises performed, the resistance used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key to achiev­ing the greatest results is to make exercise a regular and enjoyable part of your everyday life.
19
PART LIST—Model No. PFSY5806.0 R0906A
Key Qty. Description
No.
1 1 Base 2 1 Base Plate 3 1 Upright 4 1 Seat Frame
1 Dip Arm
5 6 1 Leg Developer 7 1 Left Press Arm 8 1 Right Press Arm
9 1 Curl Post 10 2 Dip Handle 11 4 16mm x 6mm
Spacer 12 1 Top Frame 13 1 Weight Guide 14 1 Front Shroud 15 1 Rear Shroud 16 1 Weight Tube 17 1 Pad Tube 18 1 Backrest 19 1 Seat 20 1 Curl Pad 21 2 Arm Pad 22 2 Arm Pad Base 23 4 Leg Pad 24 1 Top Cover 25 2 Adjustment Plate 26 2 Swivel Arm 27 15 Weight 28 1 Weight Pin 29 2 Weight Bumper 30 31 Weight Bushing 31 2 Wheel Cap 32 2 Wheel 33 2 Front Dip Cap 34 2 Rear Dip Cap 35 2 Dip Arm Bushing 36 1 Weight Guide With
Hole 37 2 57mm Round
Inner Cap 38 1 Leg Developer
Cap 39 1 89mm Round Cap 40 2 Press Arm Cap 41 2 Trunnion 42 2 4" Pulley 43 7 3 1/2" Pulley 44 4 2 3/4" Pulley 45 2 45mm x 3mm
Spacer 46 4 Finger Guard 47 48 2 Finger Guard 49 4 M12 Locknut
5 Cable Trap
Key Qty. Description
No.
50 2 Press Arm Knob 51 2 Dip Arm Knob 52 1 Curl Knob 53 1 Dip Arm Pin
4 2 Pulley Housing
5 55 1 Squat Bar 56 1 Bar Grip 57 8 32mm Round
Inner Cap 58 1 Curl Bar 59 1 Ankle Strap 60 2 19mm Square
Inner Cap 61 6 Clip 62 1 Weight Tube
Bumper 63 2 Cable Cover 64 2 Cable Coupler 65 2 Eyehook 66 1 Press Arm Cable 67 12 19mm Round
Inner Cap 68 1 Right Retainer
Ring 69 2 Handle 70 2 Extension Strap 71 2 Housing Cable 72 4 Pivot Pulley
Bearing 73 1 Left Retainer Ring 74 8 16mm x 19mm
Spacer 75 2 Cable Bearing 76 2 Locking Caster 77 1 Lock 78 1 Lock Pin 79 1 Roll Pin
Press Arm
80
81 4 16mm x 12mm
82 83 4 M10 x 55mm
84 1 M10 x 115mm Bolt 85 1 M6 x 100mm
86 1 M10 x 75mm Bolt 87 4 M6 x 30mm Screw 88 2 M10 x 50mm
89
2
Bushing
Spacer
Bar Hook
1
Carriage Bolt
Screw
Button Bolt
4 M10 x 90mm
Button Bolt
Key Qty. Description
No.
90 4 M12 x 30mm
Button Bolt
91 2 M10 x 100mm
Button Bolt
2 14 M8 x 20mm
9
Button Bolt 93 4 M6 x 70mm Bolt 94 2 M8 x 65mm
Button Bolt 95 2 M10 x 65mm Bolt 96 3 M10 x 50mm Bolt 97 4 M10 x 40mm
Screw 98 2 M10 x 45mm
Button Bolt 99 9 M4 x 16mm Self-
tapping Screw
100 3 M4 x 19mm Self-
tapping Screw
101 2 M5 x 16mm Bolt 102 4 M3 x 32mm Self-
tapping Screw
103 4 M3.5 x 38mm
Self-tapping
Screw
104 2 Inner Snap Ring 105 12 M10 Washer 106 2 M5 Washer 107 2 M6 Washer 108 20 M10 Nylon
Locknut
109 2 M10 Nylon
Jamnut
110 16 M8 Nylon Locknut
111 4 38mm x 8mm
Spacer
112 1 M4 x 13mm Self-
tapping Screw
113 2 M6 x 115mm
Screw
114 8 M6 x 10mm Set
Screw
115 1 Bumper 116 2 Outer Snap Ring 117 2 M10 Nut 118 1 76mm x 76mm
Cap
119 4 Pad Cover
# User’s Manual # Exercise Guide
# Hex Key Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
M6 Washer (107)
M10 Washer (105)
M8 Nylon Locknut (110)
M10 Nylon Locknut (108)
M10 x 55mm Carriage Bolt (83)
M8 x 20mm Button Bolt (92)
M8 x 65mm Button Bolt (94)
M6 x 100mm Screw (85)
M6 x 115mm Screw (113)
M6 x 70mm Screw (93)
M4 x 16mm Self-tapping Screw (99)
M4 x 19mm Self-tapping Screw (100)
M4 x 13mm Self-tapping Screw (112)
M3 x 32mm Screw (102)
M10 x 50mm Button Bolt (88)
M10 x 115mm Bolt (84)
M10 x 75mm Bolt (86)
M10 x 65mm Bolt (95)
M10 x 50mm Bolt (96)
M10 x 40mm Screw (97)
M6 x 30mm Screw (87)
M6 x 10mm Set Screw (114)
M10 x 100mm Button Bolt (91)
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses by each draw­ing is the key number of the part, from the PART LIST in the center of this manual. Note: Some small parts
may have been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
65
64
63
66
42
26
40
41
7
50
43
53
25
25
3
39
43
44
18
19
20
9
52
23
23
23
21
23
17
22
21
22
37
37
51
35
34
10
33
57
57
57
10
33
57
34
35
51
5
67
67
65
64
63
66
42
26
40
41
8
50
60
60
72
72
68
73
74
74
74
74
75
67
67
38
80
80
84
113
113
85
86
87
87
88
88
89
89
90
90
91
92
92
93
93
114
114
102
102
102
102
104
116
116
104
75
107
107
111
111
111
105
105
105
105
108
108
108
110
112
108
108
108
108
109
109
4
6
108
44
114
114
11
11
67
67
11
11
117
117
49
49
49
49
90
90
45
115
100
118
119
119
119
EXPLODED DRAWING A—Model No. PFSY5806.0 R0906A
61
7
0
108
54
54
71
98
98
108
46
46
46
46
44
71
44
55
57
57
106
82
56
59
5
8
57
57
69
24
4
7
47
43
43
43
4
3
47
47
14
15
43
48
48
16
62
30
27
29
28
13
1
31
31
32
32
2
76
76
77
78
79
81
11
83
83
94
94
103
103
92
92
96
96
95
97
9
7
99
100
100
99
99
9
9
101
110
110
110
110
108
105
105
108
105
108
105
97
97
12
47
99
99
99
99
36
EXPLODED DRAWING B—Model No. PFSY5806.0 R
0906A
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to give the following information:
• the MODEL NUMBER of the product (PFSY5806.0)
• the NAME of the product (PROFORM WITH FREEMOTION TECHNOLOGY weight system)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and mate­rial, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or dam­age to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is author­ized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or conse­quential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of mer­chantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. may not apply to you.
Accordingly, the above limitation
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEAL
Part No. 244177 R0906A Printed in China © 2006 ICON IP, Inc.
TH & FITNESS, INC., 1500 S. 1000 W
., LOGAN, UT 84321-9813
Loading...
