ProForm CS9e HeartRate COntrol, DTL52940 User Manual

CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this man­ual for future reference.
Write the serial number in the space above for future reference.
Model No. DTL52940 Serial No.
USER'S MANUAL
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Serial Number Decal
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
3
WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or oxygen is administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 250 pounds. Never allow more than one person on the treadmill at a time.
8. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
9. When connecting the power cord (see page 10), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
10.Use only a single-outlet surge suppressor that meets all of the specifications described on page 9. To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806­3651 and order part number 146148.
11.Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
12.Keep the power cord and the surge suppres­sor away from heated surfaces.
13.Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
14.Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
15.The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
16.The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
17.Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and move the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the circuit breaker.)
18.Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 24.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
19.When folding or moving the treadmill, make sure that the storage latch is fully closed.
IMPORTANT PRECAUTIONS
20.When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
21.When using iFIT.com CDs and videos, you can manually override the speed and incline set­tings at any time by pressing the speed and in­cline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
22.Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
23.Inspect and properly tighten all parts of the treadmill every three months.
24.Never drop or insert any object into any open­ing.
25.
DANGER:Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
26.The treadmill is intended for in-home use only. Do not use the treadmill in any commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
4
The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-800-999-3756 and order a free replacement decal. Apply the decal in the location shown. Note: The decals are not shown at actual size.
5
Thank you for selecting the revolutionary PROFORM
®
CS9e treadmill. The PROFORM CS9e treadmill com­bines advanced technology with innovative design to help you get the most from your exercise program in the convenience and privacy of your home. And when you’re not exercising, the unique PROFORM CS9e treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is DTL52940. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Console
Book Holder
Accessory Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Foot Rail
Power Cord
BACK
RIGHT SIDE
Rear Roller Adjustment Bolts
Fan
Handgrip Pulse Sensor
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver , rubber mallet , and wire cutters .
For help identifying assembly hardware, see the drawings below. Note: The assembly hardware and other small parts are packaged in separate part bags. If a part is not found in the part bags, check to see if the part has been preattached.
1. With the help of a second person, carefully raise the Uprights (109) to the position shown.
Insert one of the Extension Legs (128) into the treadmill as shown. Make sure that the Extension Leg is turned so the Base Pad (100) is beneath it. Note: It may be helpful to tip the Uprights (109) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same way.
100
109
128
1
6
3/4” Screw (6)–2
5/16” x 1” Bolt
(122)–4
3/4” Tek Screw (47)–8
4” Bolt (112)–2
1/4” Star Washer
(92)–4
1/4” x 1” Bolt
(71)–4
7
2. Remove the plastic ties and the wood brace from the
Uprights (109). Identify the left handrail, which has a hole in the indi-
cated location, and the right handrail. Hold the right handrail near the right Upright (109), and insert the Wire Harness (83) into the large hole in the right handrail and out of the upper end as shown.
Next, hold the right handrail against the right Upright (109). Tighten a 4” Bolt (112) three to four turns into the right Upright and the lower end of the right handrail. Tighten two 5/16” x 1” Bolts (122) into the upper end of the right handrail and the right Upright. Be careful not to drop the Bolts into the handrail. If necessary, raise or lower the handrail to thread the Bolts into the Upright.
Firmly tighten all three Bolts.
Attach the left handrail as described above. Note: There is not a wire harness in the left Upright (109).
2
109
109
83
122
122
Brace
Left
Handrail
Right
Handrail
Hole
112
112
3. With the help of another person, hold the console as-
sembly near the right Upright (109) and the left Upright (not shown).
Connect the Wire Harness (83) to the wire harness in the console assembly. Make sure to connect the con-
nectors properly (see the inset drawing); the con­nectors should slide together easily and snap into place. If the connectors do not slide together easily and
snap into place, turn one connector and try to connect them again. IF THE CONNECTORS ARE NOT CON-
NECTED PROPERLY, THE CONSOLE MAY BE DAM­AGED WHEN THE POWER IS TURNED ON. Insert the
excess wire harnesses back into the right handrail. Set the console assembly on the right Upright (109) and
the Left Upright (not shown). Thread two 1/4” x 1” Bolts (71) with 1/4” Star Washers (92) into each side of the console assembly. After you have started all four
Bolts, tighten them.
Console
Assembly
Right Handrail
83
92
71
83
3
109
8
6. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 27). To protect the floor or carpet, place a mat under the treadmill.
5. Remove the knob from the pin. Make sure that the collar
and the spring are on the pin as shown. Insert the pin into the Latch Housing (75), and tighten the knob back onto the pin.
Raise the Frame (54) to the vertical position. While an­other person holds the Frame, hold the Latch Housing (75) against the inside of the Frame. Thread two 3/4” Screws (6) several turns into the Latch Housing and the Frame.
Align the pin with the hole in the Left Handgrip (76) by sliding the Latch Housing (75) up or down. Make sure that the pin can be inserted fully into the hole. Hold the Latch Housing in place and tighten the two 3/4” Screws (6). Be careful not to overtighten the Screws.
Pull the knob to the right and carefully lower the Frame (54) to the floor. Press the Latch Cover (12) into the left side of the Frame. See the inset drawing. Make sure that the notch in the Latch Cover is positioned on the Frame as shown.
Note: Over a period of use, the Latch Housing (75) may need to be adjusted again to align the pin with the hole in the Left Handgrip (76).
54
Spring
Knob
Collar
Pin
75
76
Hole
12
5
6
12
Notch
54
4. With the help of a second person, carefully tip the
Uprights (109) down to the position shown. Make sure
that the Extension Legs (128) remain in the Uprights.
Press the two Base Endcaps (99) into the base of the Uprights (109). See the inset drawing. Make sure that the angle of each Base Endcap matches the angle of the Upright.
Attach each Extension Leg (128) with two 3/4” Tek Screws (47) and a Round Base Pad (67) as shown. (Note: Attach the lower Screw [without the Round Base Pad] first.) Attach the two Base Pads (100) with four 3/4” Tek Screws. Note: There are no screw holes in theBase Endcaps (99). Press firmly on the screwdriver when tightening the 3/4” Tek Screws (47).
With the help of a second person, carefully raise the Uprights (109) so the Base Pads (100) are resting on the floor.
109
128
128
67
100
67
47
47
47
4
100
47
99
99
99
109
9
If you purchase the optional chest pulse sensor (see page 23), follow the steps below to install the re­ceiver and the short jumper wire included with the chest pulse sensor.
3. Make sure that no wires are pinched. Reattach the Access Door (94) with the 3/4” Screw (6). The other wires included with the receiver may be discarded.
1. Make sure that the power cord is unplugged. Remove the indicated 3/4” Screw (6) and the Access Door (94) from the back of the Console Back (95).
2. Connect the wire on the receiver (A) to the indicated wire extending from the Console Back (95). Remove the paper from the adhesive pad on the back of the receiver.
Hold the receiver so the small cylinder is near the lower edge of the receiver and is facing the Console Back as shown. Firmly press the receiver onto the indi-
cated corner of the Access Door (94). Note: If there are two screws included with the chest pulse sensor and two plastic posts on the inside of the Access Door, attach the receiver to the plastic posts on the Access Door with the two screws.
A
95
94
Cylinder
6
Wire
10
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806-3651 and order part number 146148.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
TREADMILL OPERATION
11
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features that help you get the most from your workouts.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even mea­sure your heart rate using the handgrip pulse sensor or the optional chest pulse sensor (see page 23).
In addition, the console offers four preset programs. Each program automatically controls the speed and in­cline of the treadmill as it guides you through an effec­tive workout. Two heart rate programs are also offered. Each program automatically adjusts the speed and in­cline of the treadmill to keep your heart rate near a tar­get heart rate while you exercise.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. To
purchase iFIT.com CDs or videocassettes, call toll­free 1-800-735-0768.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available. See www.iFIT.com for
more information. To use the manual mode of the console, follow the
steps beginning on page 12. To use a preset program, see page 14. To use a heart rate program, see page
16. To use an iFIT.com CD or video program, see page 20. To use iFIT.com programs directly from our Web site, see page 22.
Note: If there is a sheet of clear plastic on the console, remove the plastic.
Clip
Key
12
HOW TO TURN ON THE POWER
Plug in the power cord (see page 10).
Locate the reset/off circuit breaker near the power cord. Make sure that the circuit breaker is in the reset position.
Stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 11) and slide the clip onto the waistband of your clothes. Next, route the cord attached to the clip under the handgrip pulse sensor, and insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by
carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. If a pro­gram has been selected, press the Program Select button repeat­edly to reselect the manual mode.
Press the Start button or the Speed increase button to start the walking belt.
A moment after the but­ton is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin
walking. As you exercise, change the speed of the walking belt as desired by pressing the Speed in­crease and decrease buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the Quick Start but­tons.
To stop the walking belt, press the Stop button. The Time/Pace display will begin to flash. To restart the walking belt, press the Start button or the Speed increase button.
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 27).
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the Incline buttons. Each time a button is pressed, the incline will change by
0.5%. Note: After the but­tons are pressed, it may take a moment for the treadmill to reach the selected incline setting.
Follow your progress with the matrix, the training zone bar, and the displays.
The matrix—When the
manual mode or the iFIT.com mode is se­lected, the matrix will display a 1/4-mile track. As you exercise, the in­dicators around the track will light in succession until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.
The training zone bar— The training zone bar shows the approximate intensity level of your ex­ercise. For example, if three to six indicators in the bar are lit, the bar shows that your pace is ideal for fat burning.
5
4
3
2
1
3
2
1
Reset
Position
13
Speed display—This
display shows the speed of the walking belt.
Note: The console can display speed and dis­tance in either miles or kilometers. To find which unit of measure­ment is selected, press the Stop button while inserting the key into the console. An “E” for English miles or an “M” for met­ric kilometers will appear in the display. Press the Speed increase button to change the unit of mea­surement. When the desired unit of measurement is selected, remove the key and then reinsert it.
Note: For simplicity, all instructions in this manual refer to miles.
Distance/Incline dis­play—This display
shows the distance that you have walked or run and the incline level of the treadmill. The dis­play will change from one number to the other every few seconds. Note: Each time the incline changes, the display will show the incline setting for several seconds.
Calories/Pulse display—This display
shows the approximate number of calories you have burned. The dis­play will also show your heart rate when you use the handgrip pulse sen­sor or the chest pulse sensor. The display will change from one number to the other every few seconds.
Time/Pace display— When the manual mode or the iFIT.com mode is selected, this display will show the elapsed time and your current pace (pace is measured in minutes per mile). The display will change from one number to the other every few seconds. When a program is selected (except for the Self Select heart rate program), the display will show the time remaining in the pro­gram rather than the elapsed time.
To reset the displays, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate if desired.
To use the hand­grip pulse sen­sor, first make sure that your hands are clean. Next, stand on
the foot rails
and hold the pulse bar with your palms on the metal con­tacts. Avoid moving your hands. When your pulse is detected, two dashes (– –) will appear in the Calories/Pulse display, and then your heart rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for about 15 seconds.
Note: The pulse bar is intended to be used only for heart rate measurement. Do not use the
pulse bar as a handlebar. Always hold the handrails for support when you are not mea­suring your heart rate.
Turn on the fan if desired.
To turn on the fan, press the Fan button. To turn on the fan at high speed, press the button a sec­ond time. To turn off the fan, press the button a third time. Note: A few minutes after the walking belt is stopped, the fan will automatically turn off.
When you are finished exercising, remove the key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi­tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se­cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When you are finished using the treadmill, move the reset/off circuit breaker to the off position and unplug the power cord.
8
7
6
Contacts
14
HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 12.
Select one of the preset programs.
When the key is in­serted, the manual mode will be selected. To select a personal trainer program, press the Program Select but­ton repeatedly until one of the four personal trainer program indicators lights.
The diagrams beside the personal trainer program indicators show how the speed and incline of the treadmill will change during the programs. When a program is selected, the Speed display will flash the maximum speed setting of the program for a few seconds, and the Distance/Incline display will flash the maximum Incline setting. The Time/Pace display will show how long the program will last.
The matrix will will show the first four speed settings of the program.
Press the Start button or the Speed increase button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. One speed setting and one incline setting are programmed for each seg­ment. Note: The same speed setting and/or in­cline setting may be programmed for two or more consecutive segments.
The speed setting for the first segment is shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed settings for the next four segments are shown in the columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the Speed display and/or the Distance/Incline display will flash to alert you. When the first segment ends, all speed settings will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit after the speed settings have moved to the left, the speed settings may move downward so that only the highest indicators appear in the matrix. If some of the indicators in the Current Segment column are not lit when the speed set­tings move to the left again, the speed settings will move back up.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will light or darken in the Current Segment column. (If any of the columns to the right of the Current Segment col­umn have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well.)
Note: When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
3
2
1
Current Segment
15
To stop the program at any time, press the Stop button. The Time/Pace display will begin to flash. To restart the program, press the Start button or the Speed increase button. The walking belt will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automati­cally adjust to the speed and incline settings for the next segment.
Follow your progress with the displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the key from the console.
When the program ends, make sure that the in­cline of the treadmill is at the lowest setting.
Next, remove the key from the console and put it in a secure place. Note: If the displays and various
indicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 23 and turn off the demo mode.
When you are finished using the treadmill, move the reset/off circuit breaker to the off position and unplug the power cord.
7
6
5
4
16

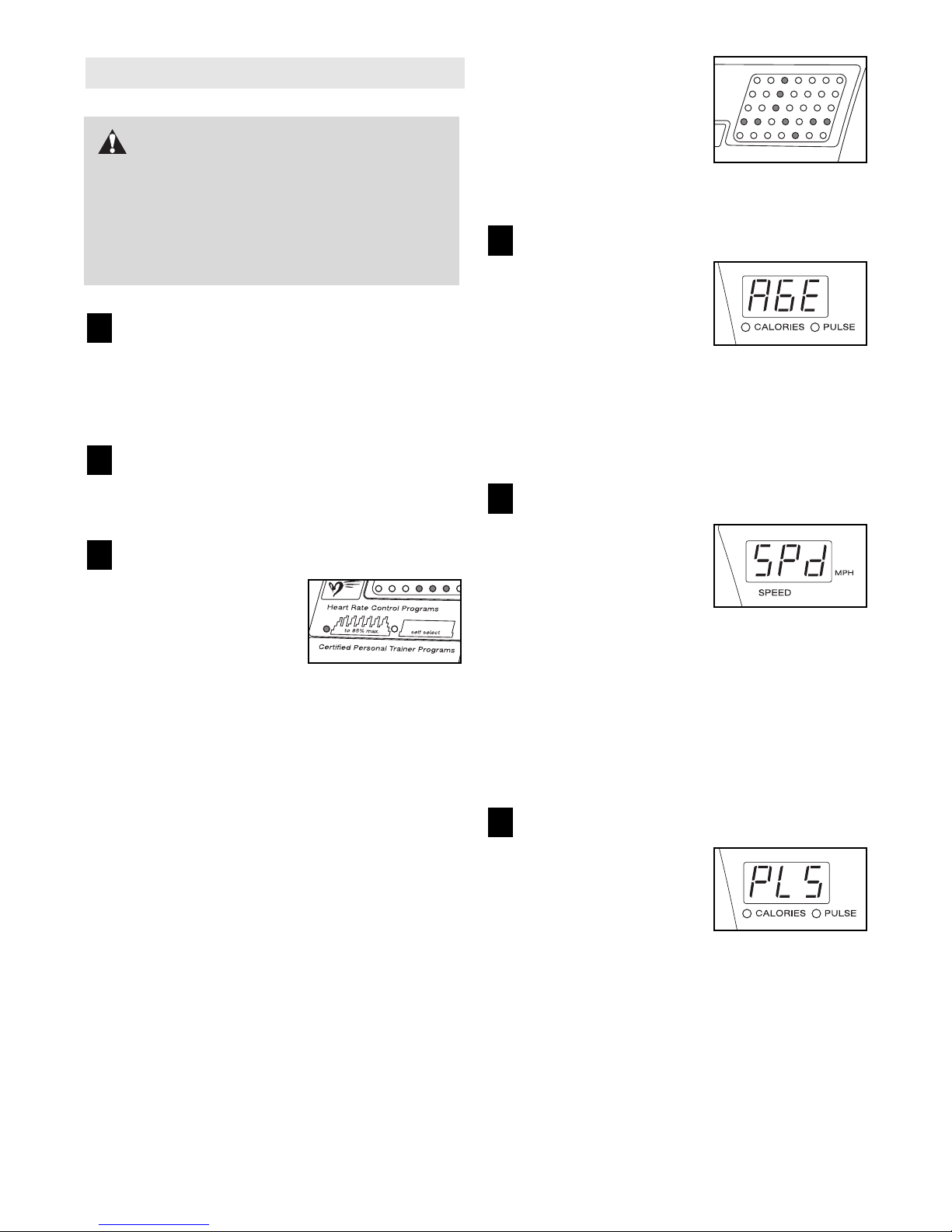

HOW TO USE HEART RATE PROGRAMS
Put on the optional chest pulse sensor.
You must wear the optional chest pulse sensor (see page 23) to use a heart rate program. See
the instructions included with the chest pulse sensor.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 12.
Select a heart rate program.
When the key is in­serted, the manual mode will be selected. To select a heart rate program, press the Program Select button repeatedly until one of the two heart rate program indicators lights.
The diagrams beside the heart rate program indi­cators show how the target heart rate will change during the programs. During the 85% Max pro­gram, your heart rate will reach approximately 85% of your estimated maximum heart rate; dur­ing the Self Select program, your heart rate will re­main near a level that you select. Note: Your esti­mated maximum heart rate is determined by sub­tracting your age from 220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190).
During heart rate pro­grams, the matrix will show a moving graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.
Enter your age.
When a heart rate pro­gram is selected, the word “AGE” and the cur­rent age setting will flash in the Calories/Pulse display. If you have al­ready entered your age, simply press the Enter button. If you have not entered your age, press the increase and decrease buttons beside the Enter button to enter your age. Then, press the Enter button.
Enter a maximum speed.
After you have entered your age, the letters “SPd” and the maximum speed setting of the pro­gram will flash in the Speed display. If de­sired, press the increase and decrease buttons beside the Enter button to adjust the maximum speed setting. When the desired setting is shown, press the Enter button.
If the 85% Max program is selected, go to step
7. If the Self Select program is selected, go to step 6.
Enter a target heart rate.
The letters “PLS” and the target heart rate set­ting for the program will flash in the Calories/ Pulse display. If desired, press the increase and decrease buttons beside the Enter button to ad­just the target heart rate setting. When the desired setting is shown, press the Enter button.
6
5
4
3
2
1
CAUTION:If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
17
Press the Start button or the Speed increase button to start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each heart rate program is divided into several time segments of different lengths. One target heart rate is programmed for each segment. Note: If the Self Select program is selected, the same target heart rate is programmed for all segments.
During each segment, the console will regularly compare your heart rate to the current target heart rate. If your heart rate is too far below or above the target heart rate, the speed of the treadmill will automatically increase or decrease to bring your heart rate closer to the target heart rate. If the speed reaches the maximum speed setting of the program (see step 5 on page 16) and your heart rate is still too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
During the last three seconds of each segment, a series of tones will sound and the Speed display and the Distance/Incline display will flash.
The program will continue until the last segment ends. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the current target heart rate, the speed and/or in­cline of the treadmill may automatically change to bring your heart rate closer to the target heart rate.
If your pulse is not detected during the program, the letters “PLS” will flash in the Calories/Pulse display and the speed and incline of the treadmill may automatically decrease until your pulse is de­tected. If this occurs, see the instructions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop button. Heart rate programs cannot be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.
Follow your progress with the displays.
See step 5 on page 12.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the key from the console.
See step 7 on page 15.
10
9
8
7
18
HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 18 and 19 for connecting instructions. To use iFIT.com video- cassettes, the treadmill must be connected to your VCR. See page 20 for connecting instructions. To use iFIT.com programs directly from our internet site, the treadmill must be connected to your home com­puter. See page 19 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (avail­able at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
Audio Cable
Head-
phones
A
Audio Cable
Adapter
A
Audio
Cable
B
Audio Cable
C
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT LEFT
LINE OUT
PHONES
19
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
Audio Cable
Adapter
A
Audio Cable
A
Audio Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
Audio Cable
B
3.5mm
Y-adapter
Headphones/Speakers
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
PHONES
CD
VCR
Amp
LINE OUT
20
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 19.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 18 to 20. Note: To purchase iFIT.com CDs or video-
cassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use iFIT.com CDs or videocassettes, press the iFIT.com button. The indicator on the button will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Pace display is flashing, press the Start button or the Speed in­crease button on the console. The treadmill will not respond to a CD or video program while the Time/Pace display is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
4
3
2
1
Audio
Cable
Adapter
A
Audio Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter
VIDEO AUDIO
IN
CH 34
OUT
AUDIO OUT
RIGHT
LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
34
OUT
21
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Pace dis­play will begin to flash. To restart the program, press the Start button or the Speed increase but­ton. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard,
the speed and incline will change to the next settings of the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Time/Pace display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 20.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing. If the Time/Pace display is flashing, press the Start button or the Speed increase button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the matrix, the train­ing zone bar, and the displays.
See step 5 on page 12.
Measure your heart rate if desired.
See step 6 on page 13.
Turn on the fan if desired.
See step 7 on page 13.
When you are finished exercising, remove the key from the console.
See step 7 on page 15.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR when you are finished using them.
8
7
6
5
22
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 19. In addi­tion, you must have an internet connection and an in­ternet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 12.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The in­dicator on the button will light.
Go to your computer and start an internet connection.
Start your web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to se­lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot pads. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic
“chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Pace dis­play will begin to flash. To restart the program, press the Start button or the Speed increase but­ton. After a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard,
the speed and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop and the Time/Pace display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing. In addi­tion, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the matrix, the train­ing zone bar, and the displays.
See step 5 on page 12.
When you are finished exercising, remove the key from the console.
See step 7 on page 15.
9
8
7
6
5
4
3
2
1
23
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of total number of miles that the walking belt has moved and the total number of hours that the treadmill has been used. The information mode also allows you to switch the console from miles to kilometers. In addi­tion, the information mode allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following informa­tion will be shown:
An “E” for English miles or an “M” for metric kilometers will appear in the Speed dis­play. Press the Speed in­crease button to change the unit of measurement.
The Distance/Incline display will show the total number of miles (or kilometers) that the walking belt has moved.
The Time/Pace display will show the total number of hours the treadmill has been used.
IMPORTANT: The Calories/Pulse display should be blank. If a “d” appears in the display, the console is in
the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will au­tomatically light in a preset sequence, although the buttons on the console will not operate. If a “d” appears
in the Calories/Pulse display when the information mode is selected, press the Speed decrease button so the display is blank.
To exit the information mode, remove the key from the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more features to the console. The chest pulse sensor provides hands-free operation and allows the console’s heart rate programs to be used. To purchase the optional
chest pulse sensor, call toll-free 1-800-734-2377.
24
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
1. Hold the treadmill in the locations shown at the right. To
decrease the possibility of injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Hold the treadmill frame firmly with your left hand. Using your right hand, pull the latch knob to the right and hold it. Raise the treadmill until the pin on the latch knob is aligned with the hole in the left handgrip. Then, release the latch knob. Make sure that the latch knob is fully
released so that the pin is fully inserted into the hole in the left handgrip.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the
pin on the latch knob is fully inserted into the hole in the left handgrip.
1. Hold the treadmill and place one foot on the base.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
3. Place one foot on the wheel, and carefully lower the
treadmill until the base is resting in the storage position.
Base
Front Wheels
Latch
Knob
Pin
Latch
Knob
Handgrip
Handgrip
Pin
Frame
25
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the treadmill frame firmly with your left hand. Pull the latch knob to the right. Pivot the treadmill down until the pin on the latch knob is below the handgrip. Slowly re­lease the latch knob.
2. Hold the treadmill firmly with both hands, and lower the treadmill to the floor. To decrease the possibility of in-
jury, bend your legs and keep your back straight.
Latch
Knob
Pin
Frame
Handgrip
26
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppres­sor that meets all of the specifications described on page 10. Important: The treadmill is not com-
patible with GFCI-equipped outlets. b. Make sure that the key is fully inserted into the console. c. Check the reset/off circuit breaker located on the frame near the
power cord. If the breaker protrudes as shown, the circuit breaker
has tripped. To reset the circuit breaker, wait for five minutes and
then press the breaker back in.
PROBLEM: The power turns off during use SOLUTION: a. Check the reset/off circuit breaker located on the treadmill frame near the power cord (see 1. c.
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in. c. Remove the key from the console and then reinsert it.
d. If the treadmill still will not run, please call our Customer Service Department toll-free.
PROBLEM: The displays of the console do not function properly SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of another person,
carefully tip the Base (109) down as shown. Remove the two 3/4” Screws (6) and the two 3/4” Tek Screws (47). Note: Your treadmill may not have 3/4” Tek Screws. A phillips screwdriver with at least a 5” shaft is required.
With the help of another person, carefully raise the Uprights (69) as shown. Carefully pivot the Hood (39) off.
TROUBLESHOOTING
Most treadmill problems can be solved by following the instructions below. If further assistance is needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
ResetOff
c
109
47
47
a
39
69
69
6
27
Locate the Reed Switch (24) and the Magnet (18) on
the left side of the Pulley (120). Turn the Pulley until
the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the
Reed Switch is about 1/8”. If necessary, loosen the
Screw (25) and move the Reed Switch slightly.
Retighten the Screw. Reattach the Hood. Make sure
the Screws are return to the correct holes (see step
A). Run on the treadmill for a few minutes to check for
a correct speed reading.
PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be
permanently damaged. Remove the key and UN-
PLUG THE POWER CORD. Using the included allen
wrench, turn both rear roller adjustment bolts counter-
clockwise 1/4 of a turn. When the walking belt is prop-
erly tightened, you should be able to lift the edges of
the walking belt 3 to 4 inches off the walking platform.
Be careful to keep the walking belt centered. Plug in
the power cord, insert the key, and run the treadmill
for a few minutes. Repeat until the walking belt is
properly tightened.
c. If the walking belt still slows when walked on, call our Customer Service Department toll-free.
PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the
left bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise 1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
a
b
18
24
25
Top
View
1/8”
120
Rear Roller Adjustment Bolts
b
3–4”
28
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the handgrip pulse sensor.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed or incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed or incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed or incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts: A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex­ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
EXERCISE GUIDELINES
WARNING:Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
29
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
1
2
3
4
5
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
30
PART LIST—Model No. DTL52940 R1003A
12Foot Rail Cover 21Left Foot Rail 31Left Front Endcap 42Belt Guide 54Belt Guide Screw 6563/4” Screw 71Console Frame 84Cage Nuts
91Incline Wire 10 1 Warning Decal 11 2 Rear Platform Bolt 12 1 Latch Cover 13 1 Pulse Bar Plate (Left) 14 1 Pulse Bar Plate (Right) 15 2 Isolator 16 4 Platform Screw 17 2 Platform Pivot Bolt 18 1 Magnet 19 2 Caution Decal 20 1 Motor Pivot Bolt 21 7 Wheel Nut 22 2 Frame Spacer 23 1 Reed Switch Clip 24 1 Reed Switch 25 1 Reed Switch Screw 26 1 Lift Frame 27 1 Motor Tension Nut 28 1 Motor 29 1 Pulley/Flywheel/Fan 30 1 Motor Belt 31* 1 Motor Assembly 32 1 Motor Tension Bolt 33 5 Motor Tension Washer/
Lift Pivot Washer 34 1 Motor Star Washer 35 2 Motor Bracket Bolt 36 7 Small Screw 37 1 Ground Wire 38 1 Transformer 39 1 Hood 40 1 Controller 41 1 Power Cord 42 1 iFIT.com Wire Nut 43 1 iFIT.com Wire 44 1 Power Cord Grommet 45 2 Static Decal 46 1 Reset/Off Switch 47 11 3/4” Tek Screw 48 1 Belly Pan 49 1 Photo Switch Wire
50 1 Filter Wire 51 1 Right Front Endcap 52 1 Walking Belt 53 1 Walking Platform 54 1 Frame 55 2 Platform Nut 56 1 Right Foot Rail 57 1 Rear Roller 58 2 Rear Foot 59 1 Allen Wrench 60 2 Rear Roller Adj. Bolt 61 2 Rear Roller Washer 62 1 Right Rear Endcap 63 1 Photo Switch 64 1 Left Rear Endcap 65 2 Endcap Fastener 66 1 Incline Motor 67 2 Round Base Pad 68 4 Pulse Bar Screw 69 2 Isolator Plate 70 1 Right Cup Holder (Bottom) 71 4 1/4” x 1” Bolt 72 1 Right Cup Holder (Top) 73 1 Left Cup Holder (Bottom) 74* 1 Latch Assembly 75 1 Latch Housing 76 1 Left Cup Holder (Top) 77 1 iFIT.com Wire 78 1 Jack 79 1 Book Holder 80 4 Fan Housing Screw 81 4 Isolator Plate Screw 82 1 Right Upright 83 1 Wire Harness 84 1 Isolator Housing 85 1 Console Base 86 4 Fan Screws 87 1 Fan 88 1 Console 89 1 Fan Housing 90 2 Center Isolator 91 1 Key/Clip 92 4 1/4” Star Washer 93 2 Isolator Cap 94 1 Access Door 95 1 Console Back 96 1 Tie Holder 97 1 Releasable Tie 98 8 Plastic Tie 99 2 Base Endcap
Key No. Qty. Description Key No. Qty. Description
100 4 Base Pad 101 2 Clevis Pin 102 3 Hairpin Cotter 103 2 Rear Roller Star Washer 104 1 Decal Plate 105 1 Outlet Plate 106 2 Wheel Housing 107 2 Wheel Bolt 108 2 Wheel 109 1 Upright 110 1 Pulse Bar 111 1 Incline Motor Bolt 112 2 4” Bolt 113 1 Cap Decal 114 1 1/2” Ground Screw 115 1 5/16” Allen Wrench 116 1 iFIT.com Cable 117 1 Motor Bracket 118 1 Pulse Wire 119 1 Front Roller Adj. Bolt 120 1 Front Roller/Pulley 121 4 Handrail Washer 122 4 5/16” x 1” Bolt 123 2 Handrail 124 1 Left Handgrip Top
125 1 Left Handgrip Bottom 126 1 Right Handgrip Top 127 1 Right Handgrip Bottom 128 2 Extension Leg 129 1 Incline Stop Bracket 130 4 U-Nut 131 8 Rear Endcap Screws 132 1 Power Bracket Screw 133 1 Photo Switch Washer 134 1 Photo Switch Nut 135 1 Lift Motor Pin 136 1 Right Foot Rail 137 1 Optic Disk
#110” Blue Wire, M/F #16” Blue Wire, 2 F #14” Blue Wire, 2 F #14” Blue Wire, M/F #14” Black Wire, M/F #14” Red Wire, M/F #112” Green Wire, F/Ring #18” Green Wire, 2 Ring #1User’s Manual
*Includes all parts shown in the box #These parts are not illustrated
Key No. Qty. Description Key No. Qty. Description
31
EXPLODED DRAWING—Model No. DTL52940 R1003A
40
41
46
104
6
39
38
35
34
117
33
32
28
31*
30
29
27
25
24
37
36
26
33
23
22
36
33
50
119
21
20
21
120
18
22
51
21
17
65
16
6
93
42
43
9
49
15
4
65
90
6
47
5
6
84
81
69
132
47
45
47
44
105
6
47
47
48
47
1
3
2
6
1
16
17
65
52
5
15
4
93
84
90
69
6
75
12
74*
81
6
10
53
54
131
55
62
58
136
131
58
131
103
61
60
115
131
59
11
57
11
55
64
103
61
60
EXPLODED DRAWING—Model No. DTL52940 R1003A
130
83
121
122
126
121
122
6
94
6
124
127
71
92
130
6
95
71
92
6
99
21
66
6
125
123
112
123
6
111
6
70
6
6
6
6
6
134
112
102
101
133
63
137
102
129
135
6
99
101
102
36
100
47
68
19
128
21
67
106
100
47
67
83
19
109
47
100
47
107
108
128
106
21
47
100
47
107
108
116
6
88
85
76
73
6
79
80
6
6
77
89
72
91
118
86
6
87
8
68
14
6
7
8
13
114
110
68
78
96
36
98
97
Part No. 206013 R1003A Printed in USA © 2003 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (DTL52940)
• The NAME of the product (PROFORM®CS9e treadmill)
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on pages 30 and 31)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod­ucts used for commercial or rental purposes; or products used as store display models. No other war­ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
