Model No. 831.24843.0 Serial No.

TREADMILL EXERCISER

Write the serial number in the space above for reference.

Serial Number

Decal

• Assembly

• Operation

• Maintenance

• Part List and Drawing

User’s Manual

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

256836

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

OPERATION AND ADJUSTMENT .............................................................13

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

TROUBLESHOOTING ......................................................................20

EXERCISE GUIDELINES ....................................................................23

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

90-DAY FULL WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is

missing or illegible, call 1-888-5331333 and request a free replacement

decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precations and in-

structions in this manual and all warnings on your treadmill before using your treadmill. Sears assumes no responsibility for personal injury or property damage sustained by or through the use of

this product.

1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

3. Use the treadmill only as described.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Place the treadmill on a level surface, with

at least 8 ft. (2.4 m) of clearance behind it

and 2 ft. (0.6 m) on each side. Do not place the treadmill on any surface that blocks air openings. To protect the oor or carpet from

damage, place a mat under the treadmill.

6. Do not operate the treadmill where aerosol products are used or where oxygen is being

administered.

7. Keep children under age 12 and pets away

from the treadmill at all times.

8. The treadmill should be used only by persons weighing 300 lbs. (136 kg) or less.

ance should be on the same circuit. Do not use an extension cord.

12. Use only a single-outlet surge suppressor that meets all of the specications described

on page 13. To purchase a surge suppres-

sor, see your local Sears store or call the

telephone number on the back cover of this

manual and order part number 146148, or see your local electronics store.

13. Failure to use a properly-functioning surge

suppressor could result in damage to the

control system of the treadmill. If the control system is damaged, the walking belt may slow, accelerate, or stop unexpectedly, which may result in a fall and serious injury.

14. Keep the power cord and the surge suppressor away from heated surfaces.

15. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROUBLESHOOTING on page 20 if the treadmill is not working properly.)

16. Read, understand, and test the emergency

stop procedure before using the treadmill (see

HOW TO TURN ON THE POWER on page 15).

9. Never allow more than one person on the

treadmill at a time.

10. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes

that could become caught in the treadmill. Athletic support clothes are recommended

for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

11. When connecting the power cord (see page

13), plug the power cord into a surge sup-

pressor (not included) and plug the surge suppressor into a grounded circuit capable

of carrying 15 or more amps. No other appli-

17. Never start the treadmill while you are standing on the walking belt. Always hold the handrails or upper body arms while using the

treadmill.

18. The treadmill is capable of high speeds. Ad-

just the speed in small increments to avoid sudden jumps in speed.

19. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is in-

tended only as an exercise aid in determining

heart rate trends in general.

20. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord, and press the power switch into the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the power switch.)

21. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 7 and HOW TO FOLD AND MOVE THE TREADMILL on page 19.) You must be able to safely lift 45 lbs. (20 kg) to raise, lower, or move the treadmill.

22. When folding or moving the treadmill, make sure that the storage latch is holding the

frame securely in the storage position.

23. Never insert any object into any opening on

the treadmill.

24. Inspect and properly tighten all parts of the treadmill regularly.

25. DANGER: Always unplug the power

cord immediately after use, before cleaning the treadmill, and before performing the

maintenance and adjustment procedures

described in this manual. Never remove the

motor hood unless instructed to do so by an

authorized service representative. Servicing other than the procedures in this manual

should be performed by an authorized service representative only.

26. This treadmill is intended for home use only. Do not use this treadmill in a commercial,

rental, or institutional setting.

27. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

SAVE THESE INSTRUCTIONS

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM® CROSSWALK 397 treadmill. The CROSSWALK 397 treadmill provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the treadmill. If you have questions after reading

Length: 5 ft. 5 in. (165 cm) Width: 2 ft. 9 in. (84 cm)

Handrail

Storage Latch

Crosswalk Arms

this manual, please see the back cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Accessory Tray

Console

Heart Rate Monitor

Key/Clip

Walking Belt

Foot Rail

Idler Roller Adjustment Screws

Hood

Power Switch

Wheel

Platform Cushion

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-

tached. If it is not, call 1-888-533-1333. Extra hardware may be included.

1/4" Star Washer

(23)—4

#8 x 1" Screw

(7)–4

#10 x 1 1/2" Screw

(8)–2

3/8" Star

Washer (3)–10

1/4" x 3 1/2" Screw (56)—4

3/8" x 3 1/4" Screw (2)–6

#8 x 3/4" Screw

(4)–4

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishassembly.

• The underside of the walking belt is coated with

high-performance lubricant. After shipping, there may be some lubricant on top of the walking belt or on the shipping carton. This is normal. If there is lubricant on top of the walking belt, wipe it off with a soft cloth and a mild, non-abrasive cleaner.

1. Make sure that the power cord is unplugged.

Remove and discard the two screws (A) and the

shipping bracket (B) from the right side of the Base (74). Then, remove and discard the screws and shipping bracket (not shown) from the left side of the Base.

• To identify small parts, see page 6.

• Assembly requires the following tools:

the included hex keys

one Phillips screwdriver

scissors

• To avoid damaging parts, do not use power tools.

2. Locate the Upright Wire (63) bundled between the Base (74) and the Belly Pan (52). Route the Upright Wire into the Base and out of the indicated hole.

Press a Base Cap (70) into each side of the

Base (74).

See the inset drawing. Cut the plastic tie near

the Upright Wire (63). Be careful not to dam-

age the Upright Wire.

Hole

Tie

Cut

4. Identify the Right Upright (76), which is marked “Right.” Have a second person hold the Right Upright near the Base (74).

See the inset drawing. Tie the wire tie in the

Right Upright (76) securely around the end of the Upright Wire (63). Then, insert the Upright Wire into the lower end of the Right Upright as you pull the other end of the wire tie through the Right Upright.

Wire Tie

Wire

Tie

5. Hold the Right Upright (76) against the Base (74). Be careful not to pinch the Upright Wire

(63).

Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star

Washer (3) into the top hole in the Right Upright (76). Then, partially tighten the Screw into the Base (74).

Partially tighten two more 3/8" x 3 1/4" Screws

(2) with two 3/8" Star Washers (3) into the Right Upright (76) and the Base (74); do not fully

tighten the Screws yet.

Attach the Left Upright (not shown) in the

same way. Note: There are no wires on the left

side.

6. Identify the Left and Right Handrails (59, 64), which are marked “Left” and “Right.” Remove the four 5/16" x 3/4" Screws (5) and four 5/16" Star Washers (6) from the bottoms and sides of each Handrail.

Hold the Right Handrail (64) near the Right

Upright (76). Insert the wire tie on the Upright Wire (63) through the hole in the bottom and out of the hole in the side of the Left Handrail as shown. Then, pull the Upright Wire through the Right Handrail.

Attach the Right Handrail (64) to the Right

Upright (76) with two of the 5/16" x 3/4" Screws (5) and two of the 3/8" Star Washers (6) that you just removed. Make sure not to pinch the

Upright Wire (63). Start both Screws, and

then tighten them.

Attach the Left Handrail (59) to the Left Upright

(66) as described above. Note: There are no

wires on the left side.

5, 6

6 59

5, 6

7. Position the Console Crossbar (61) between the Left and Right Handrails (59, 64) with the Console Ground Wire (47) positioned as shown.

Attach the Console Crossbar (61) to the Left

and Right Handrails (59, 64) with the other four 5/16" x 3/4" Screws (5) and the other four 5/16" Star Washers (6) that you removed in step 6.

Start all four Screws, and then tighten them.

8. With the help of a second person, hold the console assembly near the Right Handrail (64).

Connect the Upright Wire (63) to the console

wire. See the inset drawing. The connectors

should slide together easily and snap into

place. If they do not, turn one connector and try again. IF YOU DO NOT CONNECT THE CON-

NECTORS PROPERLY, THE CONSOLE MAY BECOME DAMAGED WHEN YOU TURN ON THE POWER. Then, remove the wire tie from

the Upright Wire.

Connect the Console Ground Wire (47) on the

Console Crossbar (61) to the ground wire on the console.

Assembly

Console

Wire

Console

Ground

Wire

Console

Wire

9. Insert the wires into the Right Handrail (64) through the indicated hole as you set the console assembly on the Left and Right Handrails (59, 64). Make sure that no wires are pinched.

Attach the console assembly with four #8 x 3/4"

Screws (4). Start all four Screws, and then

tighten them. Do not overtighten the Screws.

See assembly step 5. Firmly tighten the six 3/8"

x 3 1/4" Screws (2) on the lower ends of the Left and Right Uprights (66, 76) (only one side is shown).

Wire

Tie

Wires

Hole

Console Assembly

Ground

Wires

10. Attach the two Console Clamps (83) to the console assembly with four #8 x 1" Screws (7).

Console

Assembly

11. Identify the Left and Right Upper Body Arms (84,

85).

Make sure that the Left Upper Body Arm (84)

is positioned as shown. Attach the Left Upper Body Arm to the Left Upright (66) with two 1/4" x 3 1/2" Screws (56), two 1/4" Star Washers (23), and two 3/8" Star Washers (3) as shown. Do not

overtighten the Screws.

Attach the Right Upper Body Arm (85) as de-

scribed above.

12. Attach the Latch Housing (67) with the Latch Spacer (82) to the Left Upright (66) with two #10 x 1 1/2" Screws (8); make sure that the knob is

on the indicated side. Start both Screws, and

then tighten them. Be careful not to over-

tighten the Screws.

13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plas-

ticonthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.

Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is used to adjust the walking belt (see pages 21 and 22).

Knob

OPERATION AND ADJUSTMENT

HOW TO PLUG IN THE POWER CORD

DANGER: Improper connec-

tion of the equipment-grounding conductor increases the risk of electric shock. Check

with a qualied electrician or serviceman if you are unsure whether the product is properly grounded. Do not modify the plug—if it will not t the outlet, have a proper outlet installed by a qualied electrician.

Your treadmill, like other electronic equipment, can be damaged by sudden voltage changes in your home’s power. To decrease the risk of damaging your

treadmill, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase

a surge suppressor, see precaution 12 on page 3.

Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have

a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for

120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate

whether it is functioning properly. Failure to use a properly-functioning surge suppressor could dam- age the control system of the treadmill (see precau-

tion 13 on page 3).

This product must be grounded. If it should mal-

function or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product’s power cord has an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropri-

ate outlet that is properly installed and grounded in accordance with all local codes and ordinances. IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets and may not be compatible with AFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit (see drawing 1). A temporary adapter may be used to connect the surge suppressor to a 2-pole receptacle if a properly-grounded outlet is not available (see drawing 2).

Grounded Outlet

Metal Screw

The temporary adapter should be used only until a properly-grounded outlet (see drawing 1) can be in-

stalledbyaqualiedelectrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a grounded outlet box cover. The adapter must be held in place by a metal screw.

Some 2-pole receptacle outlet box covers are not grounded. Contact a qualied electrician to determine if the outlet box cover is grounded before

using an adapter.

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Grounding Plug

Grounded Outlet Box

Adapter

Lug

Grounding Plug

Surge Suppressor

CONSOLE DIAGRAM

Key

FEATURES OF THE CONSOLE

The treadmill console offers an impressive array of features designed to make your workouts more effective and enjoyable.

When you use the manual mode, you can change the speed and incline of the treadmill with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even measure your heart rate using the handgrip heart rate monitor.

In addition, the console offers sixteen preset workouts. Eight of these use the crosswalk arms, and the other eight are designed to help you meet your weight-loss goals. Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.

Clip

To turn on the power, see page 15. To use the manual mode, see page 15. To use a preset workout, see page 17. To use the information mode, see

page 18.

IMPORTANT: If there is a sheet of clear plastic on

the console, remove the plastic. To prevent dam-

age to the walking platform, wear clean athletic shoes while using the treadmill. The first time you

use the treadmill, observe the alignment of the

walking belt, and center the walking belt if necessary (see pages 21 and 22).

Note: The console can display speed and distance in either miles or kilometers. To find out which unit of measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page

18. Note: For simplicity, all instructions in this section refer to miles.

HOW TO TURN ON THE POWER

HOW TO USE THE MANUAL MODE

IMPORTANT: If the treadmill has been exposed to cold temperatures, allow it to warm to room temperature before turning on the power. If you do not do this, you may damage the console displays or

other electrical components.

Plug in the power cord (see page 13). Next, locate the power switch on the treadmill frame near the power cord. Press the power switch into the reset position.

IMPORTANT: The console features a display demo

mode, designed to be used if the treadmill is dis-

played in a store. If the displays light as soon as you plug in the power cord and press the power switch into the reset position, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays remain lit, see THE INFORMATION MODE on page

18 to turn off the demo mode.

Next, stand on the foot rails of the treadmill. Find the clip attached to the key (see the drawing on page 14) and slide the clip onto the waistband of your clothes. Then, insert the key into the console. After a moment, the displays will light. IMPORTANT: In an emergency

situation, the key can be pulled from the console, causing the walking belt to slow to a stop. Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the posi-

tion of the clip.

Reset

1. Insert the key into the console.

See HOW TO TURN ON THE POWER at the left.

2. Select the manual mode.

When the key is inserted, the manual mode will be

selected. If a preset workout has been selected, remove the key and then reinsert it.

3. Start the walking belt.

To start the walking belt, press the Start button, the

Speed increase button, or one of the speed buttons numbered 1 through 10.

If you press the Start button or the Speed increase

button, the walking belt will begin to move at 1 mph. As you exercise, change the speed of the walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press a button, the speed setting will change by 0.1 mph; if you hold down a button, the speed setting will change in increments of 0.5 mph. Note: After you press a button, it may take a moment for the walking belt to reach the selected speed setting.

If you press one of the numbered speed buttons,

the walking belt will gradually change speed until it reaches the selected speed setting.

To stop the walking belt, press the Stop button.

The time will begin to flash in the display. To restart the walking belt, press the Start button or the Speed increase button.

4. Change the incline of the treadmill as desired.

To change the incline

of the treadmill, press the Incline increase or decrease buttons. Each time you press the Incline increase or decrease button, the incline will change by 0.5%. Note: After you press a button, it may take a moment for the treadmill to reach the selected incline setting.

5. Follow your progress with the displays.

6. Measure your heart rate if desired.

The far left display—

When you select the manual mode, the matrix will display a track that represents 1/4 mile (400 m). As you exercise, the indicators around the track will appear in succession until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.

The lower left display—

As you exercise, the lower left display can show the elapsed time and the distance that you have walked or run. The lower left display will also show the incline of the treadmill each time the incline level changes.

The lower right dis-

play—The lower right display can show the approximate number of calories that you have burned and the speed of the walking belt. The display also shows your heart rate when you use the handgrip heart rate monitor (see step 6).

The upper

display—The upper display can show the elapsed time, the distance that you have walked or run, the approximate number of calories that you have burned, or the speed of the walking belt. Press the Display button repeatedly until the upper display shows the information that you are most interested in viewing. Note: While information is shown in the upper display, the same information will not be shown in the lower displays.

Before using the

handgrip heart rate monitor, remove the sheets of clear plastic from the metal contacts on the pulse bar. In addition, make sure that your hands are clean.

To measure your heart rate, stand on the foot

rails and hold the metal contacts on the handrail. Avoid moving your hands. When your pulse is detected, a heart symbol in the lower right display will flash each time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For the most accurate heart rate reading,

continue to hold the contacts for about 15 seconds.

7. When you are finished exercising, remove the key from the console.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting or you may damage the treadmill when you fold

it to the storage position. Next, remove the key from the console and put it in a secure place.

When you are finished using the treadmill, press

the power switch into the off position and unplug the power cord. IMPORTANT: If you do not do

this, the treadmill’s electrical components may wear prematurely.

Contacts

To reset the displays, press the Stop button, re-

move the key, and then reinsert the key.

HOW TO USE A PRESET WORKOUT

1. Insert the key into the console.

See HOW TO TURN ON THE POWER on page 15.

of the profile will begin to flash. If a new speed and/or incline setting is programmed for the next segment, the new speed and/or incline setting will appear in the displays. The treadmill will then automatically adjust to the new speed and/or incline setting.

2. Select a preset workout.

To select a preset work-

out, press the Crosswalk Workouts button or the Wt. Loss Workouts button repeatedly until the number of the desired workout appears in the upper display.

When you select a preset workout, the incline level

of the workout will flash in the lower left display, the speed setting will flash in the lower right display, and then the workout length will appear in the lower left display. In addition, a profile of the speed settings of the workout will appear in the far left display.

3. Press the Start button or the Speed increase button to start the workout.

A moment after you press the button, the treadmill

will automatically adjust to the first speed and incline settings of the workout. Hold the handrails and begin walking.

Each workout is divided into 30 one-minute seg-

ments. One speed setting and one incline setting are programmed for each segment. Note: The same speed setting and/or incline setting may be programmed for consecutive segments.

If you have selected a crosswalk workout, you will

be prompted to use the crosswalk arms. When the crosswalk indicator on the console lights up, move the crosswalk arms forward and backward as you walk on the treadmill. This action exercises your arms, shoulders, and back for a total body workout.

The workout will continue in this way until the last

segment of the profile flashes in the display and the last segment ends. The walking belt will then slow to a stop.

If the speed or incline setting is too high or too low

at any time during the workout, you can manually override the setting by pressing the speed or incline buttons; however, when the next segment of the

workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

To stop the workout at any time, press the Stop

button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.

4. Follow your progress with the displays.

See step 5 on page 16.

During the workout,

the profile will show your progress. The flashing segment of the profile represents the current segment of the workout. The height of the flashing segment indicates the speed setting for the current segment. At the end of each segment, a tone will sound and the next segment

Current Segment

5. Measure your heart rate if desired.

See step 6 on page 16.

6. When you are finished exercising, remove the key from the console.

See step 7 on page 16.

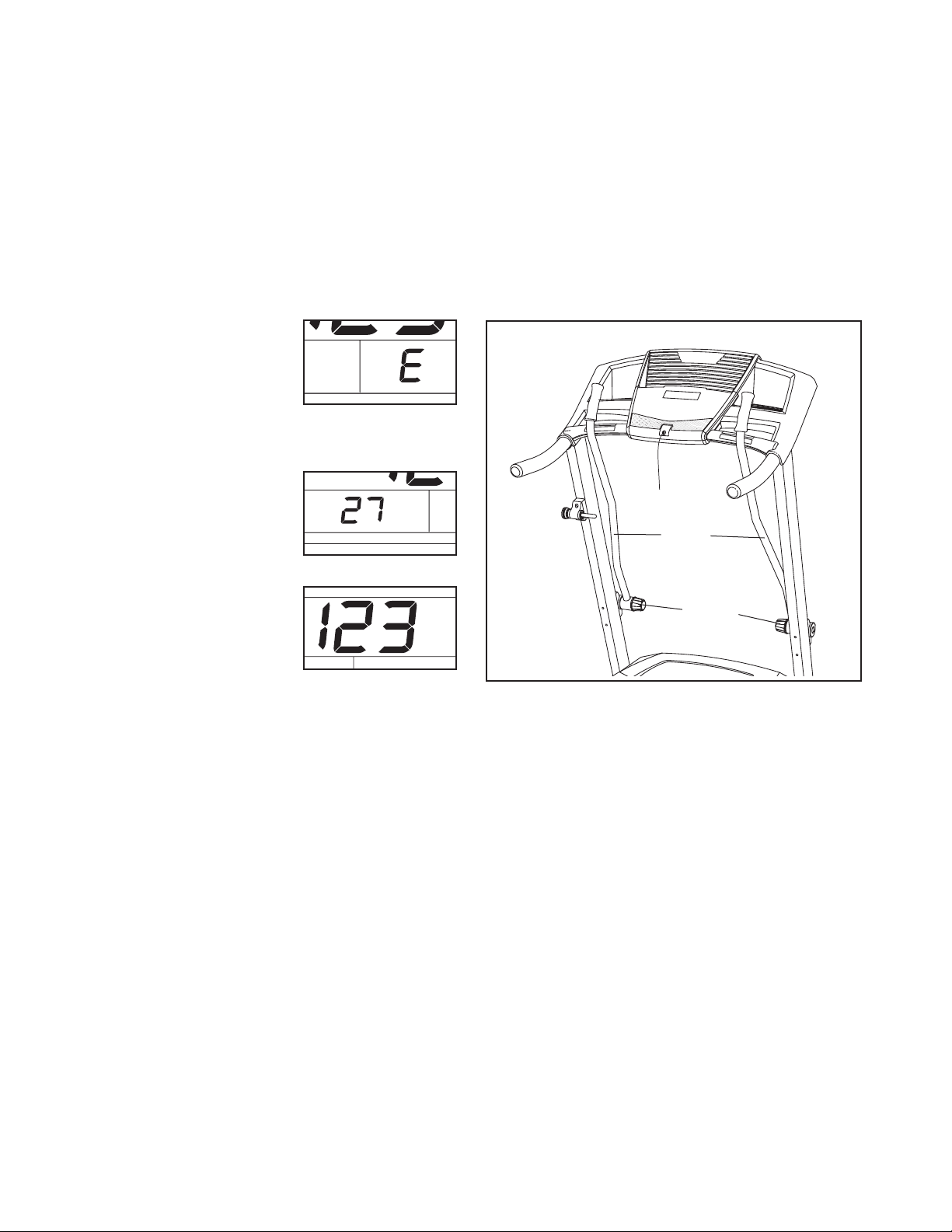

THE INFORMATION MODE

HOW TO USE THE CROSSWALK ARMS

The console features an information mode that keeps track of the total distance that the walking belt has moved and the total number of hours that the treadmill has been used. The information mode also allows you to select a measurement system of miles or kilometers, and to turn the display demo mode on and off.

To select the information mode, hold down the Stop button while inserting the key into the console and then release the Stop button. When the information mode is selected, the following information will be shown:

An “E” for English miles or an “M” for metric kilometers will appear in the lower right display. Press the Speed increase button to change the unit of measurement if desired.

The lower left display will show the total number of miles (or kilometers) that the walking belt has moved.

As you walk on the treadmill, you can hold the handrails or use the crosswalk arms. To exercise your arms, shoulders, and back for a total body workout, move the crosswalk arms forward and backward as you walk on the treadmill.

To vary the intensity of your upper body exercise, the resistance of the crosswalk arms can be adjusted. To increase the resistance, turn the resistance knobs clockwise; to decrease the resistance, turn the knobs counterclockwise.

Crosswalk

Arms

The upper display will show the total number of hours the treadmill has been used.

The console features a display demo mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned on, the console will function normally when you plug in the power cord, press the power switch into the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, a “d” will appear in the lower right display while the information mode is selected. To turn on or off the demo mode, press the Speed decrease button.

To exit the information mode, remove the key from the console.

Resistance

Knobs

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL

Before folding the treadmill, adjust the incline to the lowest position. If you do not do this, you may damage the treadmill when you fold it. Remove the key and unplug the power cord. CAUTION: You must be able to safely lift 45 lbs. (20 kg) to raise, lower,

or move the treadmill.

1. Holdthemetalframermlyinthelocationshown

by the arrow below. CAUTION: Do not hold the frame by the plastic foot rails. Bend your legs and keep your back straight.

Frame

HOW TO MOVE THE TREADMILL

Before moving the treadmill, fold it as described at the left. CAUTION: Make sure that the latch pin is fully

inserted into the platform cushion. Moving the

treadmill may require two people.

1. Hold the frame and one of the handrails, and place one foot against a wheel.

Frame

Handrail

Wheel

2. Hold the framermlywithyourrighthand.Pullthe latch knob to the left and hold it. Raise the frame until the hole in the platform cushion is aligned with the latch pin. Then, slowly release the latch knob;

make sure that the latch pin is fully inserted

into the platform cushion.

Latch Knob

Latch Pin

Platform Cushion

Toprotecttheoororcarpet,placeamatunderthe

treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).

Engaged

2. Pull back on the handrail until the treadmill will roll on the wheels, and carefully move it to the desired location. CAUTION: Do not move the treadmill

without tipping it back, do not pull on the frame, and do not move the treadmill over an uneven surface.

3. Place one foot against a wheel, and carefully lower the treadmill.

HOW TO LOWER THE TREADMILL FOR USE

1. See drawing 2. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left and hold it. Next, lower the frame until it is past the latch pin. Make sure that the pin does not hit against the foot rail. Then, release the latch knob.

2. See drawing 1 at the left. Hold the metal frame

rmlywithbothhands,andlowerittotheoor.

CAUTION: Do not hold the frame by the plastic foot rails, and do not drop the frame. Bend your legs and keep your back straight.

TROUBLESHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assis-

tance is needed, see the front cover of this manual.

SYMPTOM: The power does not turn on

a. Make sure that the power cord is plugged into a

surge suppressor and that the surge suppressor is plugged into a properly-grounded outlet (see page

13). Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedonpage

13. IMPORTANT: The treadmill is not compat- ible with GFCI-equipped outlets and may not be compatible with AFCI-equipped outlets.

b. After the power cord has been plugged in, make

sure that the key is inserted into the console.

c. Check the power switch located on the treadmill

frame near the power cord. If the switch protrudes as shown, the switch has tripped. To reset the

powerswitch,waitforveminutesandthenpress

the switch back in.

c. Remove the key from the console, and then

reinsert it.

d. If the treadmill still will not run, please see the front

cover of this manual.

SYMPTOM: The console displays remain lit when you remove the key from the console

a. The console features a display demo mode, de-

signed to be used if the treadmill is displayed in a store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE INFORMATION MODE on page 18 to turn off the demo mode.

SYMPTOM: The displays of the console do not function properly

a. Remove the key from the console and UNPLUG

THE POWER CORD. Next,removetheveindi-

cated #8 x 3/4" Screws (4).

Tripped

SYMPTOM: The power turns off during use

a. Check the power switch (see the drawing above).

Iftheswitchhastripped,waitforveminutesand

then press the switch back in.

b. Make sure that the power cord is plugged in. If the

powercordispluggedin,unplugit,waitforve

minutes, and then plug it back in.

Reset

Carefully lift the Motor Hood (48) upward, and then

slide it forward and off. Make sure that the Motor Hood does not get caught by the tabs on the sides of the Motor Hood.

Locate the Reed Switch (33) and the Magnet (32)

on the right side of the Pulley (31). Turn the Pulley until the Magnet is aligned with the Reed Switch.

Make sure that the gap between the Magnet and the Reed Switch is about 1/8 in. (3 mm).

If necessary, loosen the #8 x 3/4" Truss Head Screw (14), move the Reed Switch slightly, and then retighten the Screw. Carefully slide the Motor Hood (not shown) back on by lining up the guides. Reattach the Motor Hood withtheve#8x3/4" Screws (not shown). Then, plug in the power cord, insert the key, and run the treadmill for a few minutes to check for a correct speed reading.

Front

View

1/8 in.

b. If the walking belt is overtightened, treadmill per-

formance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

2–3 in.

SYMPTOM: The incline of the treadmill does not change correctly

a. Hold down the Stop button and the Speed increase

button, insert the key into the console, and then release the Stop button and the Speed increase button. Press the Stop button and then press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the incline does not begin calibrating, press the Stop button again, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.

SYMPTOM: The walking belt slows when walked on

a. Use only a single-outlet surge suppressor that

meetsallofthespecicationsdescribedon page 13.

Idler Roller Screws

c. Your treadmill features a walking belt coated with

high-performance lubricant. IMPORTANT: Never

apply silicone spray or other substances to the walking belt or the walking platform unless instructed to do so by an authorized service representative. Such substances may deteriorate the walking belt and cause excessive wear. If

you suspect that the walking belt needs more lubricant, see the front cover of this manual.

d. If the walking belt still slows when walked on, see

the front cover of this manual.

SYMPTOM: The walking belt is off-center or slips when walked on

SYMPTOM: The upperbody arms squeak during

use

a. If the walking belt is off-center,rstremovethe

key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the hex key to turn the left idler roller screw clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Then, plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on,rstre-

move the key and UNPLUG THE POWER CORD. Using the hex key, turn both idler roller screws clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each edge of the walking belt 2 to 3 in. (5 to 7 cm) off the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

a. (Note: Correcting this problem requires a small

amount of marine grease, available at hardware stores.) Turn the resistance knob (A) counterclockwise and remove it. Next, remove the resistance cone (B) and the upper body arm (C), along with the resistance plate (D), plastic spacer (E), spring washer (F), washers (G), and thrust bearing (H). (Note: If the resistance plate [D] comes out of the resistance cone (B), press it back in.) Apply a thin layer of white marine grease to the outer surface of the resistance cone (B). Then reattach all parts in the order shown below.

EXERCISE GUIDELINES

WARNING: Before beginning this

or any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your "training zone." The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

PART LIST

Key No. Qty. Description Key No. Qty. Description

Model No. 831.24843.0 R0911A

1 8 #8 x 1/2" Ground Screw 2 6 3/8" x 3 1/4" Screw 3 10 3/8" Star Washer 4 31 #8 x 3/4" Screw 5 8 5/16" x 3/4" Screw 6 8 5/16" Star Washer 7 4 #8 x 1" Screw 8 2 #10 x 1 1/2" Screw 9 2 3/8" x 2 1/2" Bolt 10 1 Incline Motor Spacer 11 2 M6 x 50mm Screw 12 2 3/8" x 1" Bolt 13 3 Hood Clip 14 19 #8 x 3/4" Truss Head Screw 15 1 3/8" x 1 3/4" Bolt 16 6 3/8" Jam Nut 17 2 1/4" x 3/8" Screw 18 4 #8 x 1/2" Screw 19 4 5/16" x 1 1/2" Bolt 20 4 5/16" Nut 21 2 Upper Handrail Cap 22 2 #8 Star Washer 23 4 1/4" Star Washer 24 2 Drive Roller Washer 25 2 1/4" x 1 1/4" Screw 26 2 Incline Frame Washer 27 1 Left Foot Rail 28 2 Platform Cushion 29 1 Caution Decal 30 2 Belt Guide 31 1 Drive Roller/Pulley 32 1 Magnet 33 1 Reed Switch 34 1 Reed Switch Clamp 35 1 Drive Motor 36 1 Controller 37 1 Controller Plate 38 1 Frame 39 1 Walking Platform 40 1 Walking Belt 41 1 Right Foot Rail 42 1 Idler Roller 43 1 Left Rear Foot 44 1 Hex Key

45 1 5/32" Hex Key 46 1 Right Rear Foot 47 1 Console Ground Wire 48 1 Motor Hood 49 1 Incline Motor 50 2 Lift Frame Bushing 51 1 Lift Frame 52 1 Belly Pan 53 1 Power Cord Grommet 54 1 Power Cord 55 1 Power Switch 56 4 1/4" x 3 1/2" Screw 57 1 Console 58 1 Console Base 59 1 Left Handrail 60 2 Lower Handrail Cap 61 1 Console Crossbar 62 1 Key/Clip 63 1 Upright Wire 64 1 Right Handrail 65 2 Upper Body Arm Insert 66 1 Left Upright 67 1 Latch Housing 68 1 Latch Pin Assembly 69 2 Warning Decal 70 4 Base Cap 71 2 Thick Base Pad 72 2 Thin Base Pad 73 1 Upright Grommet 74 1 Base 75 2 Wheel 76 1 Right Upright 77 2 Lift Frame Pin 78 8 #8 x 3/4" Tek Screw 79 2 1/4" Star Washer 80 1 3/8" x 1 1/2" Bolt 81 2 Wire Tie 82 1 Latch Spacer 83 2 Console Clamp 84 1 Left Upper Body Arm 85 1 Right Upper Body Arm 86 2 #10 x 3/4" Screw 87 8 #10 Flat Washer * – User’s Manual

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

EXPLODED DRAWING A

Model No. 831.24843.0 R0911A

EXPLODED DRAWING B

Model No. 831.24843.0 R0911A

EXPLODED DRAWING C

Model No. 831.24843.0 R0911A

Get it fixed, at your home or ours!

Your Home

For repair—in your home—of all major brand appliances, lawn and garden equipment,

or heating and cooling systems, no matter who made it, no matter who sold it!

For the replacement parts, accessories, and user’s manuals that you need to do-it-yourself.

For Sears professional installation of home appliances

and items like garage door openers and water heaters.

1-800-4-MY-HOME

Call anytime, day or night (U.S.A. and Canada)

www.sears.com www.sears.ca

Our Home

For repair of carry-in items like vacuums, lawn equipment,

and electronics, call or go on-line for the location of your nearest

Sears Parts & Repair Center.

(1-800-469-4663)

1-800-488-1222

Call anytime, day or night (U.S.A. only)

www.sears.com

To purchase a protection agreement (U.S.A.)

or maintenance agreement (Canada) on a product serviced by Sears:

1-800-827-6655

(U.S.A.) 1-800-361-6665 (Canada)

Para pedir servicio de reparación a domicilio, y para ordenar piezas:

1-888-SU-HOGAR

® Registered Trademark /

® Marca Registrada /

Trademark /

Marca de Fábrica /

(1-888-784-6427)

Service Mark of Sears Brands, LLC

Marca de Servicio de Sears Brands, LLC

90-DAY FULL WARRANTY

If this Sears Treadmill Exerciser fails due to a defect in material or workmanship within 90 days of the date of purchase, call 1-800-4-MY-HOME® (1-800-469-4663) to arrange for free repair (or replacement if repair proves impossible). The frame and drive motor are warranted for five (5) years from the date of purchase.

This warranty does not apply when the Treadmill Exerciser is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Sears, Roebuck and Co., Hoffman Estates, IL 60179

ProForm Crosswalk 397 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
