ProForm CROSSWALK 380x User Manual

Model No. PCTL93040
www.proform.com
Visit our website at
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call:
1-888-936-4266
USER'S MANUAL
Mon.–Fri. 8h00 until 18h30 EST (excluding holidays).
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

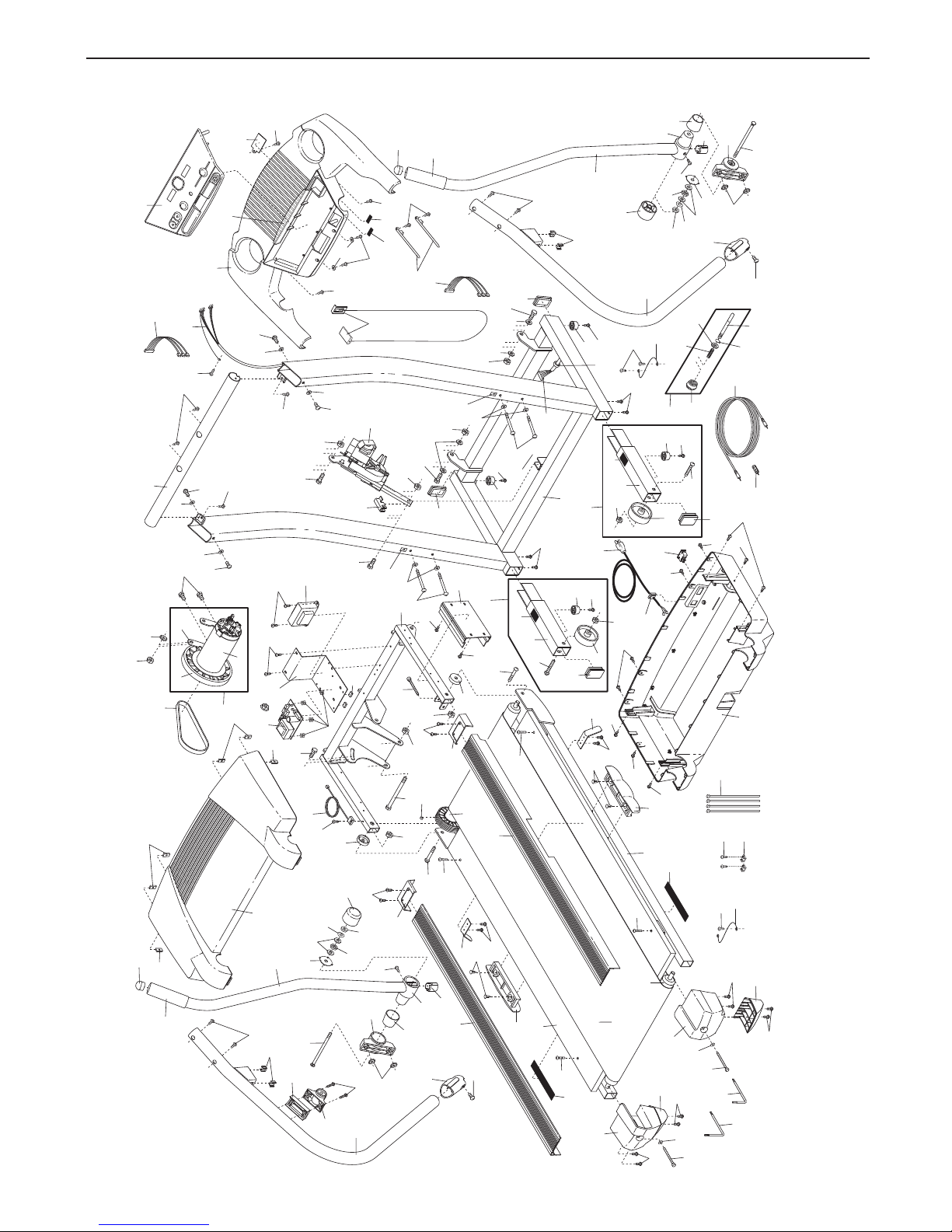

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
Keep children under the age of 12 and pets
6. away from the treadmill at all times.
The treadmill should be used only by persons
7. weighing 115 kg (250 lbs.) or less.
8. Never allow more than one person on the treadmill at a time.
Wear appropriate exercise clothes when
9. using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
Always wear athletic
10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a CUL-listed surge suppressor of 450 joules minimum surge dissipation with voltage rating of 400 volts or less, rated at 15 amps, with a 1 mm2(14-gauge) cord of 1.5 m (5 ft.) or less in length. Do not use an exten­sion cord.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
away from heated surfaces.
sor
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BE­FORE YOU BEGIN on page 4 if the treadmill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails or upper body arms while using the treadmill.
-
2
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the on/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 4 for the location of the on/off circuit breaker.)
21. When using iFIT.com CD’s and videos, you can manually override the speed setting at any time by pressing the speed buttons. However, when the next “chirp” is heard, the speed will change to the next setting for the CD or video program.
22. Always remove iFIT.com CD’s and videos from your CD player or VCR when you are not using them.
18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 5, and HOW TO FOLD AND MOVE THE TREADMILL on page 18.) You must be able to safely lift 20 kg (45 lbs.) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make sure that the storage latch is fully closed.
20. When using iFIT.com CD’s and videos, an electronic “chirping” sound will alert you when the speed of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed changes. In some in­stances, the speed may change before the personal trainer describes the change.
23. Inspect and properly tighten all parts of the treadmill regularly.
24. Never insert any object into any opening.
DANGER: Always unplug the power
25. cord immediately after use, before cleaning the treadmill, and before performing the mainte­nance and adjustment procedures described in this manual. Never remove the motor hood un­less instructed to do so by an authorized ser­vice representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
26. This treadmill is intended for in-home use only. Do not use this treadmill in a commer­cial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. Sears assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown have been placed on your treadmill. If a decal is missing or illegible, please call our Customer Service Department, toll-free, to order a free replacement decal (see page 23 of this manual). Apply the decal in the location shown. Note: The decals are not shown at actual size.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary CROSSWALK 380x treadmill. The CROSSWALK 380x treadmill combines advanced technology with innova­tive design to help you get the most from your exercise program in the convenience and privacy of your home. And when you’re not exercising, the unique CROSS­WALK 380x treadmill can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have additional questions,
Water Bottle Holder
(Bottle not included)
Upper Body Arm
Storage Latch
Handrail
PROFORM
®
please call our Customer Service Department at 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PCTL93040. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Bookrack
Console
Key/Clip
Upright
Walking Belt
Foot Rail
BACK
Rear Roller Adjustment Bolts
On/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
4
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver , wire cutters , and needlenose pliers .
To identify small parts, use the PART IDENTIFICATION CHART attached in the center of this manual. Note: If a part is not in the parts bag, first check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-936-4266.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the Uprights (69) until the treadmill is in the position shown. Insert one of the Extension Legs (63) into the treadmill as shown. (Note: It may be helpful to tip the Uprights as you insert the Extension Leg.) Make sure that the Warning Decal (62) is in the indicated location on the Extension Leg.
Insert the other Extension Leg (not shown) in the same way.
2. With the help of a second person, carefully lower the treadmill frame and then tip the Uprights (69) down as shown. (Note: It may be helpful to place your foot on one of the Extension Legs [63] as you tip the Uprights.) Make
sure that the Extension Legs remain in the Uprights.
1
69
62
63
2
57
58
Attach each Extension Leg (63) with two 1” Tek Screws (58).
Attach four Base Pads (57) with four 1” Tek Screws (58) as shown. Note: One replacement Base Pad may be in­cluded. If a Base Pad becomes worn and needs to be replaced, use the replacement Base Pad.
With the help of a second person, raise the Uprights (69) to the vertical Position.
58
57
58
63
58
58
58
57
57
69
63
5
Identify the Right Handrail (72), which has a large hole in
3.
the left side. Feed the Wire Harness (42) up into the bracket on the Right Handrail and out of the large hole in the left side. (Note: It may be helpful to use needlenose pliers to pull the Wire Harness out of the large hole.) Press a Handrail Cap (76) onto the lower end of the Right Handrail as shown. Remove any plastic ties from the bracket.
Insert the bracket on the Right Handrail (72) into the top of the right Upright (69) so the Handrail Cap (76) is rest­ing against the Upright. Attach the Right Handrail and the Handrail Cap with three 1” Bolts (37) and two Washers (38) as shown. Do not tighten the Bolts yet.
3
Large
42
Hole
Bracket
37
38
72
38
37
69
76
37
4. Attach the Storage Latch (36) and the Latch Spacer (29) to the Left Handrail (71) with two 1” Latch Screws (123).
Remove the Latch Knob (30) from the Latch Pin (35). Make sure that the Latch Pin Collar (33) and the Spring (32) are on the Latch Pin as shown. Insert the Latch Pin into the Storage Latch (36) and tighten the Latch Knob back onto the Latch Pin.
Attach the Left Handrail (71) as described in step 3. Note: There is not a wire harness on the left side.
5. Attach the end of the ground wire to the small hole in the
side of the Right Handrail (72) with a 1/2” Silver Ground Screw (75).
4
71
29
30
36
33
35
123
32
5
Ground
75
Wire
72
6
6. Place the Console Base (47) on the Right Handrail (72) and the Left Handrail (not shown). Attach the Console Base with four 3/4” Screws (2) (only two Screws are shown).
Do not overtighten the Screws.
6
47
Insert the Wire Harness (42) through the two indicated plastic ties on the Console Base (47). Next, touch the Right Handrail (72) to discharge any static. Refer to the inset drawing. Find the 3-wire connector on the end of the Wire Harness (42). Insert the connector into the red socket beneath the console. The connector should slide easily into the socket and “snap” into place. If the connector does not slide easily and snap into place, turn the connec­tor and then insert it. Insert the 5-wire connector into the black socket beneath the console in the same way.
Make sure that the connectors and wires appear as shown at the right. IF THE CONNECTORS ARE NOT
INSERTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON.
If you plan to use iFIT.com CD’s or videocassettes, or pro­grams from our Web site (see page 13), plug the Audio Cable (120) into the jack on the back of the Console (43).
7. Insert the excess Wire Harness (42) into the large hole in the side of the Right Handrail (72). Securely tighten the
plastic ties on the bottom of the Console Base (47) to prevent the Wire Harness from slipping. Then, cut off
the ends of the plastic ties.
42
Ties
2
72
120
43
42
3-wire
5-wire
120
7
Ties
42
Opening
47
Route the Wire Harness (42) through the indicated open­ing in the Console Base (47). If you connected the Audio Cable (120) in step 5, route it through the slot in the Wire Cover (44). Attach the Wire Cover to the Console Base with a 3/4” Screw (2).
Tighten two 3/4” Screws (2) into the Console Base (47).
Refer to step 3 and 4. Firmly tighten the three 1” Bolts (37) in each Handrail (72, 71).
8. Attach a Wheel (66) to the inner side of each Extension Leg (63) with a 3 1/2” Bolt (64) and a Wheel Nut (13) as shown. Do not overtighten the Bolts. The Wheels should be able to spin freely.
72
8
13
120
66
49
44
2
63
64
9. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet, place a mat under the treadmill.
7
OPERATION AND ADJUSTMENT
PERFORMANT LUBE
THE
Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
TM
WALKING BELT
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right).
plug. Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is CUL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding
-
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec trician to determine if the outlet box cover is grounded before using an adapter.
8
-
CONSOLE DRAWING
Key
CAUTION: Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing above) while operating the treadmill.
• Adjust the speed in small increments in order to avoid sudden jumps in speed.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.
FEATURES OF THE CONSOLE
The treadmill console offers a selection of features that are designed to help you get the most from your work outs. When the manual mode of the console is se lected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the track and the four displays will provide continuous ex ercise feedback. You can even measure your heart rate using the built-in pulse sensor.
-
-
Clip
Two workout programs are also offered. Each program automatically controls the speed of the treadmill as it guides you through an effective workout.

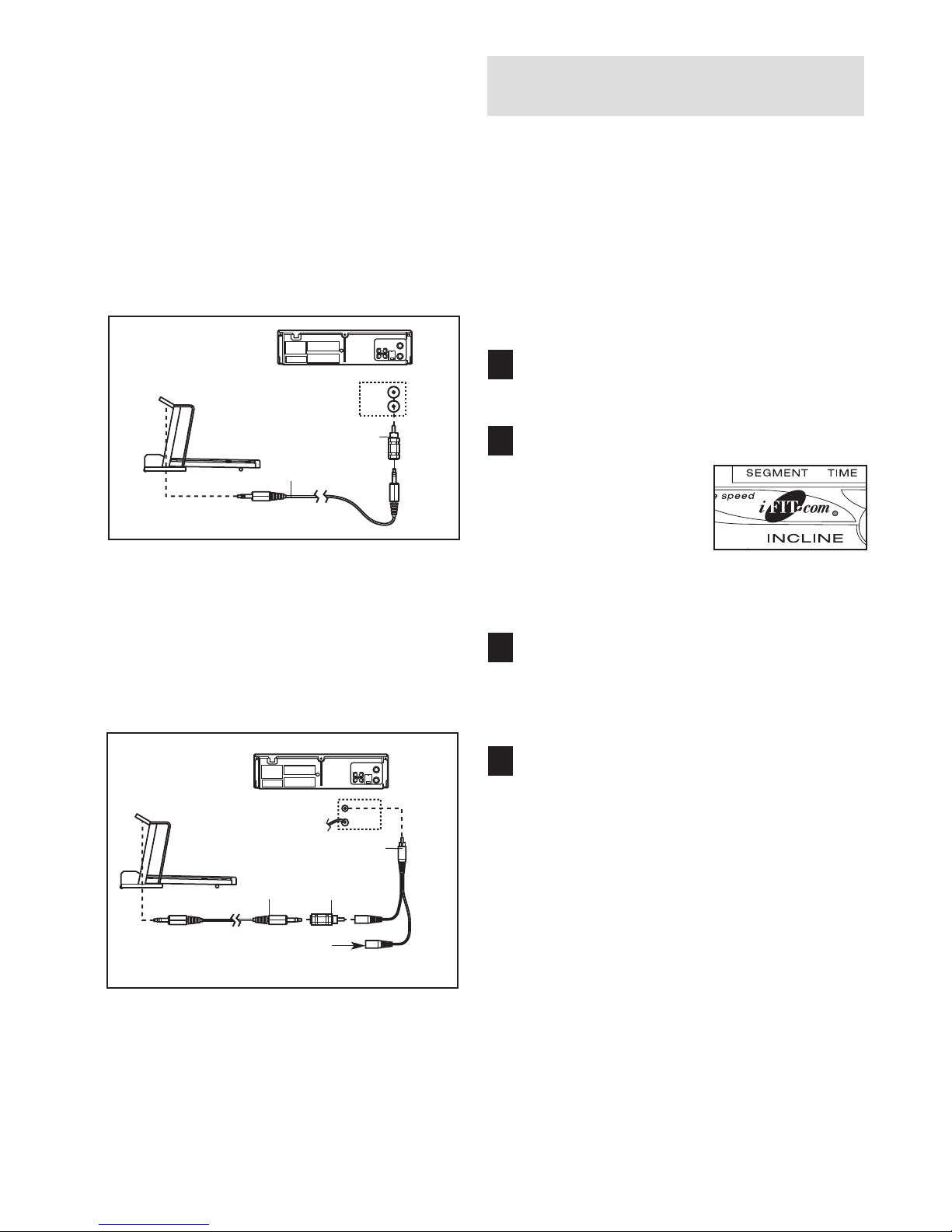

The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD and video programs (additional CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation.
iFIT.com CDs or videocassettes, call 1-888-936-
4266.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op-
are soon to be available.
tions
more information.
-
To use the manual mode of the console, follow the steps beginning on page 10. To use a workout pro
gram, see page 12. To use an iFIT.com CD or video program, see page 15. To use an iFIT.com program directly from our Web site, see page 17.
To purchase
See www.iFIT.com for
-
9
HOW TO TURN ON THE POWER
Note: If there is a thin sheet of clear plastic on the sole, remove the plastic.
Plug in the power cord (see page 8).
1
Locate the on/off cir
2
cuit breaker on the front of the treadmill near the power cord. Make sure that the breaker is in the reset position.
Stand on the foot rails
3
of the treadmill. Find the clip attached to the key, and slide the clip onto the waistband of your clothes. Next, in­sert the key into the console. After a mo­ment, the displays and various indicators on the console will light.
Test the clip by care­fully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.
-
Reset
Clip
con-
Press the Start button or the Speed
3
start the walking belt.
A moment after the but­ton is pressed, the walk-
belt will begin to
ing move. Hold the handrails and begin walking.
As you exercise, change the speed of the walking belt as desired by pressing the Speed buttons. Each time a button is pressed, the speed will change by 0.1 mph. If a button is held down, the speed will change in increments of 0.5 mph.
To stop the walking belt, press the Stop button. The Time display will begin to flash. To restart the walking belt, press the Start button or the Speed button.
Note: During the first few minutes that the treadmill is used, observe the alignment of the walking belt, and align it if necessary (see page 21).
Change the incline of the treadmill as desired.
ss
button to
4
To change the incline of the treadmill, press either of the Incline buttons until the desired incline level is reached.
Follow your progress with the LED track and
5
the four displays.
s
s
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is inserted, the manual mode will au tomatically be selected and the Manual Control indicator will light. If a program has been se­lected, press the Mode button repeatedly to select the manual mode.
-
The LED Track—The LED track represents a distance of 1/4 mile (400 m). As you exercise, the indicators around the track will light, one at a time, until you have com pleted 1/4 mile. A new lap will then begin.
Time display—When the manual mode or the iFIT.com mode is se lected, this display will show the elapsed time. When a workout program is selected, the will show the time remaining in the program and the time remaining in the current segment of the pro-
The display will alternate between
gram. ber and the other every few seconds, as shown by the indicators in the display.
display
-
-
Indicator
one num-
10

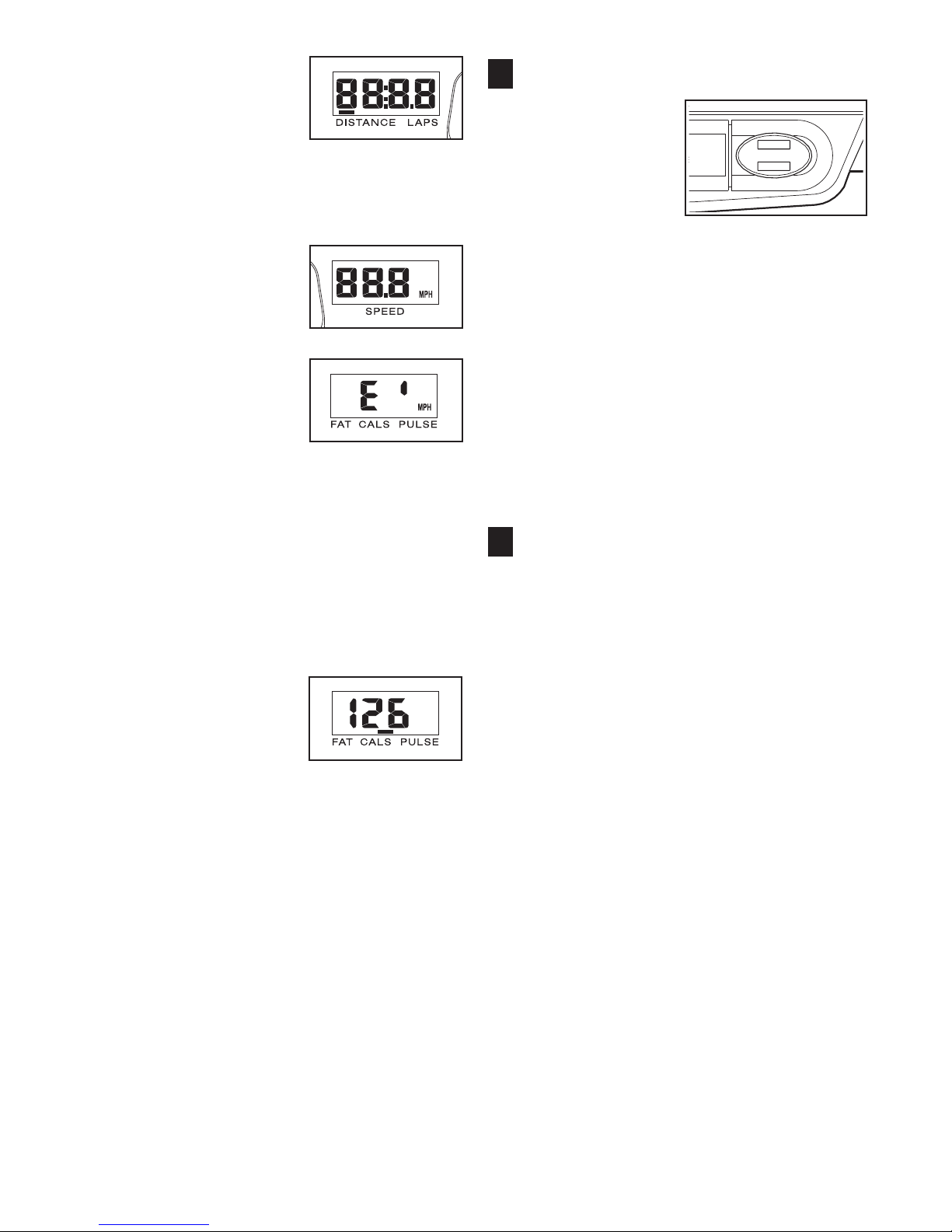

Distance/Laps display—This display
shows the distance that you have walked or run and the number of 1/4­mile laps you have com­pleted. The display will alternate between one number and the other every few seconds, as shown by the indicators in the display.
Speed display—This display shows the speed of the walking belt.
Note: The console can display speed and dis­tance in either miles or kilometers. The letters “MPH” or “KPH” will ap­pear in the Speed display to show which unit of measurement is selected. To change the unit of measurement, hold down the Stop button, insert the key into the console, and continue to hold the Stop button for a moment. An “E” for English miles or an “M” for metric kilo­meters will appear in the Fat Calories/Calories/ Pulse display. Press the Speed the unit of measurement. When the desired unit of measurement is selected, remove the key and then reinsert it.
Fat Calories/Calories/ Pulse display—This dis-
play shows the approxi­mate numbers of fat calories and calories you have burned (see FAT BURNING on page 22). The display will alternate between onds, as shown by the indicators in the display. The display will also show your heart rate when you use
one number and the other every few sec-
the pulse sensor (see step 6).
ss
button to change
Measure your heart rate, if desired.
6
To measure your heart rate, stand on the foot rails and place your thumb on the pulse sensor.
Do not press too hard, or the circu­lation in your thumb will be restricted and your pulse will not be detected. After a few seconds, the heart-
shaped indicator in the Fat Calories/Calories/ Pulse display will begin to flash, one or two dashes (– –) will appear, and then your heart rate will be shown. Hold your thumb on the pulse sensor for about 15 seconds for the most accurate reading.
If the displayed heart rate appears to be too high or too low, or if your heart rate is not displayed, lift your thumb off the pulse sensor for a few seconds. Then, place your thumb on the pulse sensor as de­scribed above. Remember to stand still while mea­suring your heart rate.
When you are finished exercising, remove the
7
key.
Step onto the foot rails, press the Stop button, and adjust the incline of the treadmill to the lowest level. The incline must be at the lowest level
when the treadmill is raised to the storage po­sition or the treadmill will be damaged. Next,
remove the key from the console and put the key in a secure place.
When you are finished using the treadmill, move the on/off circuit breaker near the power cord to the off position.
1
1
HOW TO USE A WORKOUT PROGRAM
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on 10.
Select one of the workout programs.
2
When the key is in­serted, the manual mode will be selected. To select a workout pro­gram, press the Mode button repeatedly until the Walker indicator or the Runner indicator lights.
When a workout program is selected, the maxi­mum speed setting for the program will flash in the Speed display for a few seconds. The Time display will show how long the program will last. Note: The profiles beside the Walker and Runner indicators show how the speed of the treadmill will change during the workout programs.
Press the Start button or the Speed
3
start the program.
button to
ss
The program will continue in this way until no time remains in the Time display. The walking belt will then slow to a stop.
During the program, the incline of the treadmill can be adjusted with the Incline buttons. If the speed setting for the current period is too high or too low, you can manually override the setting by pressing the Speed buttons on the console. However, when the next period begins, the
treadmill will adjust to the next speed setting for the program.
To stop the program, press the Stop button. The Time display will begin to flash. To restart the pro­gram, press the Start button or the Speed ton. To end the program, press the Stop button, remove the key, and then reinsert the key.
Follow your progress with the LED track and
4
the four displays.
Refer to step 5 on page 10.
Measure your heart rate if desired.
5
See step 6 on page 11.
s
s
but-
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed set­ting for the program. Hold the handrails and begin walking.
Each program is divided into several time periods of different lengths. One speed setting is pro­grammed for each period. (The same speed set­ting may be programmed for consecutive periods.)
hen only three seconds remain in the first period
W of the program, a series of tones will sound. If the speed of the treadmill is about to change, the Speed display will flash to alert you, and then the treadmill will automatically adjust to the speed set­ting for the second period.
When the program ends, remove the key from
6
the console.
When the program ends, make sure that the treadmill is at the lowest incline level. Next, re-
move the key from the console and put it in a secure place.
When you are finished using the treadmill, move the on/off circuit breaker near the power cord to the off position.
12
HOW TO CONNECT THE TREADMILL TO YOUR
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
AUDIO OUT
RIGHT
LEFT
A
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CD’s
, the treadmill must be con­nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 13 and 14 for connecting instructions.
To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 15 for connecting instructions. To use iFIT.com programs directly from our internet site, the treadmill must be connected to your home
computer. See page 14 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack beneath
the console. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.
Head-
Audio Cable
phones
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
B
3.5mm Audio Cable
Headphones
Y-adapter
B
Audio Cable
C. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
C
3.5mm
Audio
Y-adapter
Cable
Headphones
13
HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
A
LINE OUT
CD
VCR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
A
PHONES
LINE OUT
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y­adapter into the LINE OUT jack on your stereo.
Note:
If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speak­ers into the other side of the Y-adapter.
B
B
Audio Cable
Wire removed from
LINE OUT jack
RCA
Y-adapter
Adapter
Audio Cable
Y-adapter
Headphones/Speakers
3.5mm
14
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH 34
A
AUDIO OUT
RIGHT
LEFT
VIDEO
AUDIO
ANT. IN
RF OUT
IN
OUT
CH 3
4
VIDEO AUDIO
ANT
. IN
RF OUT
IN
OUT
CH
3
4
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 14.
A. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
A
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CD’s or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page
Note: To purchase iFIT.com CD’s or iFIT.com
13.
videocassettes, call toll-free 1-888-936-4266.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key fully into the console.
1
See HOW TO TURN ON THE POWER on page 10.
Adapter Audio Cable
B. Plug one end of the audio cable into the jack be-
neath the console. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
RCA Y-adapter
Audio Cable
Adapter
Wire removed from
AUDIO OUT jack
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will automatically be selected. To use an iFIT.com CD or video program, press the Mode button repeatedly until the iFIT.com indica­tor lights.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com video­cassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time display is flashing, press the Start button or the Speed the console. The treadmill will not respond to a CD or video program when the Time display is flash­ing.
During the CD or video program, an electronic “chirping” sound
will alert you when the speed of
the treadmill is about to change. C
Always listen for the “chirp” and be prepared for speed changes. In some instances, the speed may change before the personal trainer describes the change.
button on
s
s
AUTION:
15
If the speed setting is too high or too low, you can manually override the setting at any time by pressing the Speed buttons on the console. However,
speed will change or video program.
To stop the walking belt at any time, press the Stop button on the console. The Time display will begin to flash. To restart the program, press the Start button or the Speed ment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is heard, the
speed will change to the next setting for the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Time display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 15.
Note: If the speed of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time display is not flashing. If the Time display is flashing, press the Start but­ton or the Speed
when the next “chirp” is heard, the
to the next setting for the CD
button. After a mo-
s
s
s
s
button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
If you are using your portable CD player and
• the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the LED track and
5
the four displays.
See step 5 on page 10.
Measure your heart rate if desired.
6
See step 6 on page 11.
When the iFIT.com CD or video program ends,
7
remove the key.
See step 6 on page 12.
CAUTION: Always remove iFIT.com CD’s and videocassettes from your CD player or VCR when you are finished using them.
16
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Return to the treadmill and stand on the foot
7
rails. Find the clip attached to the key, and slide the clip onto the waistband of your clothes.
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 14. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
2
When the key is in­serted, the manual mode will be selected and the manual indica­tor will light. To use a program from our Web site, press the Mode button repeatedly until the iFIT.com indicator lights.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and begin walking.
During the program, an electronic “chirping” sound will alert you when the speed of the treadmill is about to change.
“chirp” and be prepared for speed changes.
If the speed setting is too high or too low, you can manually override the setting at any time by pressing the Speed buttons on the console.
However, when the next “chirp” is heard, the speed will change to the next setting for the program.
To stop the walking belt at any time, press the Stop button on the console. The Time display will begin to flash. To restart the program, press the Start button or the Speed ment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is heard, the speed will change to the next setting for the program.
When the program is completed, the walking belt will stop and the Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
CAUTION: Always listen for the
s
s
button. After a mo-
Go to your computer and start an internet
3
connection.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to se
5
lect a program.
ead and follow the on-line instructions for using a
R program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count down will begin.
Note: If the speed of the treadmill does not change when a “chirp” is heard, make sure the iFIT.com indicator is lit and the Time display is not flashing. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped
-
-
around a power cord.
Follow your progress with the LED track and
8
the four displays.
See step 5 on page 10.
Measure your heart rate if desired.
9
See step 6 on page 11.
When the program ends, remove the key.
10
See step 6 on page 12.
17

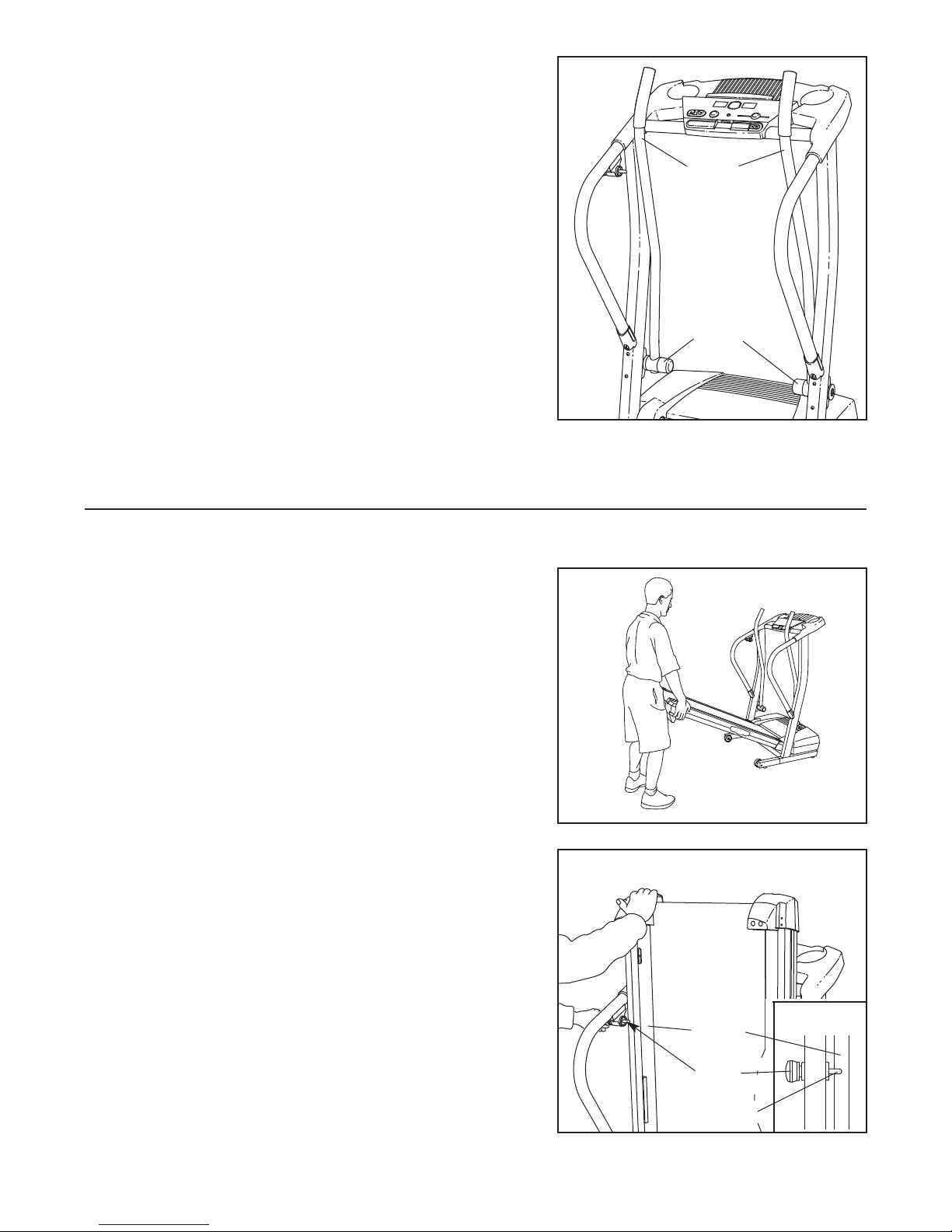

HOW TO USE THE UPPER BODY ARMS
As you walk on the treadmill, you can either hold the handrails or use the upper body arms. To exercise your arms, shoulders, and back for a total body workout, move the upper body arms forward and back as you walk on the treadmill.
To vary the intensity of your upper body exercise, the resistance of the upper body arms can be adjusted. To increase the resis­tance, turn the resistance knobs clockwise; to decrease the re­sistance, turn the knobs counterclockwise.
Upper
Body Arms
Resistance
Knobs
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 20 kg (45 lbs.) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at
the right. To decrease the possibility of injury, bend your
legs and keep your back straight. As you raise the tread­mill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway to the vertical posi-
tion.
Move your right hand to the position shown and hold the
2. treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the frame is past the latch pin. Slowly release the latch knob. Make sure that
the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sun light. Do not leave the treadmill in the storage position in temperatures above 30° C (85° F).
-
Frame
Engaged
Latch Knob
Latch Pin
18
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the frame is se-
curely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on the base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels. Carefully move the treadmill to the desired location. To re-
duce the risk of injury, use extreme caution while mov­ing the treadmill. Do not move the treadmill over an un­even surface.
3. Place one foot on the base, and carefully lower the treadmill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the latch pin. Slowly release the latch knob.
Base
Front Wheels
2. Hold the treadmill firmly with both hands, and lower the tread-
mill to the floor.
Do not drop the treadmill frame to the floor. To decrease the possibility of injury, bend your legs and keep your back straight.
Latch Knob
19
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-888-936-4266, Monday through Friday, 8h00 until 18h30. Eastern Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the on/off circuit breaker located on the
treadmill frame near the power cord. If the switch protrudes as shown, the on/off circuit breaker has tripped. To reset the on/off circuit breaker, wait for five minutes and then press the switch back in.
PROBLEM: The power turns off during use
SOLUTION: a. Check the on/off circuit breaker located on the treadmill frame near the power cord (see the
drawing above). If the on/off circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call toll-free 1-888-936-4266.
PROBLEM: The displays of the console do not function properly
SOLUTION:
a. Remove the key from the console and UNPLUG THE
POWER CORD. Remove the six 3/4” Screws (2) from
the hood, and carefully pivot the Hood (1) off.
c
Tripped
a
2
Reset
2
Locate the Reed Switch (10) and the Magnet (18) on the left side of the Pulley (17). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make
sure that the gap between the Magnet and the Reed Switch is about 1/8”. If necessary, loosen the
Screw (102) and move the Reed Switch slightly. Retighten the Screw. Re-attach the Hood, and run the treadmill for a few minutes to check for a correct speed reading.
20
1/8”
10
102
Top
View
2
1
17
18
PROBLEM: The walking belt slows when walked on
Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
SOLUTION:
a.
If the walking belt is overtightened, treadmill perfor-
b.
mance may decrease and the walking belt may be­come damaged. Remove the key and
UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 5–7 cm (2–3 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call toll-free 1-888-936-4266.
PROBLEM: The walking belt is off-center or slips when walked on
b
5–7 cm
Rear Roller Adjustment Bolts
SOLUTION: a. If the walking belt is off-center, first remove the key
and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tight­ened, you should be able to lift each side of the walk­ing belt 5–7 cm (2–3 in.) off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
PROBLEM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE
SOLUTION: a.
Correcting this problem requires a small amount of white marine grease, available at most hardware stores. Turn the Resistance Knob (109) counterclock­wise until it can be removed. Remove the Resistance Cone (108) and the Upper Body Arm (117), along with the Resistance Plate (127), Spring Washer (111), Thrust Washers (112), and Thrust Bearing (113). (Note: If the Resistance Sleeve [107] comes out of the Resistance Bracket [105], press it back in.) Apply a thin layer of white marine grease to the outer surface of the Resistance Cone (108). Reattach all parts in the order shown at the right.
a
b
a
105
107
24
112
111
108
109
127
113
110
21
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
-
ergy. Only after the first few minutes does your body begin to use stored is to burn fat, adjust the speed and incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
fat calories for energy. If your goal
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
-
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post­exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
22
ORDERING REPLACEMENT PARTS
To order replacement parts, call toll-free 1-888-936-4266, Monday through Friday 8h00 until 18h30 Eastern Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (PCTL93040)
• The NAME OF THE PRODUCT (PROFORM®CrossWalk 380x )
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached in the center of this manual)
ICON 900 de l’Industrie St-Jérôme, Québec Canada, J7Y 4B8
of/du Canada Inc.
PLACE STAMP
HERE
23
®
of
/du Canada Inc.
LIMITED WARRANTY
ICON OF CANADA, INC. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, to products used for commercial or rental purposes, or to products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some provinces do not allow the exclusion or limitation of incidental or consequential dam­ages. Accordingly, the above limitation may not apply to you. The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some provinces do not allow limitations on how long an im­plied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from province to province or so specified by the retailer of your equipment.
ICON OF CANADA, INC., 900 de l’Industrie, St. Jerôme, QC J7Y 4B8
IMPORTANT: MAIL WITHIN 14 DAYS OF PURCHASE NAME:
PHONE: ADDRESS: COUNTY: MODEL NO.:
SERIAL NO.: PURCHASE DATE:
RETAILER NAME:
1) Primary user(s) of product:
o Male o Female o Family
2) Age of primary user:
o 0–24 o 35–44 o 55–64 o 25–34 o 45–54 o 65 and over
3) Annual household income:
o 0–9,999 o 15,000–19,999 o 10,000–14,999 o 20,000+
4) How many times a week do you exercise?
o Less than 3 times o 3 times or more
5) Have you ever purchased an ICON product before?
o Yes o No
6) Where did you first see or hear about ICON products?
o Magazine o Friend/relative o Newspaper Ad o Store o Other
7) What was the primary reason for purchasing this ICON product?
o Store Employee o Television Ads o Colour o Electronic Features o Magazine Ads o Price o Product Design o Product Innovation o Other Features
POSTCODE:
RETAILER ADDRESS:
PRODUCT WARRANTY REGISTRATION
8) Did you consider purchasing fitness equipment from another manufacturer?
o No o Yes
What other Manufacturer?
9) Based on your impression of what you have purchased, would you buy another ICON product?
o Yes o No o No Opinion
If not, what other brand name equipment would you purchase?
_____________________________________________________
10) What other type of exercise equipment do you own?
o Bicycle o Exercise Cycle o Treadmill o Home Gym o Weight Bench o Stepper o Cardio Glide o Other
Which type of magazines do you read regularly?
11)
o Sports o Fitness o Motoring o Business o Computer o General
12) Do you wish to be sent further bulletins about ICON products?
o Yes o No
THANK YOU FOR YOUR TIME
ICON OF CANADA, INC.
2004
©
Part No. 215553 R1104A
Printed in Canada
© 2004 ICON, IP
3/4” Screw (2)–6
Washer (38)–4
1/2” Silver Ground
Screw (75)–1
3 1/2” Bolt (64)–2
1” Bolt (37)–6
Wheel Nut (13)–2
1” Tek Screw
(58)–8
1” Latch Screw (123)–2
PART IDENTIFICATION CHART
Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.
PART LIST—Model No. PCTL93040 R1104A
Key
Qty. Description
No.
1 1 Hood
15 3/4” Screw
2 3 1 Motor Belt 4 1 Motor Tension Bolt 5 1 Latch Warning 6 1 Motor Star Washer 7 1 Flywheel 8 1 Motor
9* 1 Motor Assembly 10 1 Reed Switch 11 1 Latch Warning Decal 12 2 Frame Spacer 13 7 Wheel Nut 14 2 Frame Pivot Bolt 15 4 Walking Platform
Screw 16 1 Left Foot Rail 17 1 Front Roller/Pulley 18 1 Magnet 19 1 Motor Pivot Bolt 20 2 Motor Bracket Bolt 21 1 Right Foot Rail
Endcap 22 6 Belly Pan Clip 23 1 Front Roller
Adjustment Bolt 24 1 Left Upper Body Arm
w/Foam Grip 25 1 Right Upper Body
Arm w/Foam Grip 26 13 Ground Screw 27 4 Foot Rail Screw 28 1 Motor Tension Nut 29 1 Latch Spacer
Latch Knob
30
31* 1 Latch Knob Assembly
32 1 Spring 33 34 35 1 Latch Pin 36 1 Storage Latch 37 38 11 Washer 39 2 Crossbar Screw 40 41 1 5/32” Allen Wrench 42 1 Wire Harness 43 1 Console 44 1 Wire Cover 45 4 Resistance Bracket
1
1 Latch Pin Collar
Latch Pin Clip
1
6 1” Bolt
1 Crossbar
Key
Qty. Description
No.
Bolt 46 47 1 Console Base 48 2 #8 Washer 49 4 1/2” Console Screw 50 1 Key/Clip 51 1 Incline Motor 52 1 Incline Bracket 53 1 Top Incline Motor Bolt 54 2 7/16” x 1” Bolt 55 2 7/16” Nut 56 1 Motor Controller Wire 57 4 Base Pad 58 8 1” Tek Screw 59 1 Controller 60 1 Lift Frame
61* 2 Extension Leg
62 2 Warning Decal 63 2 Extension Leg 64 2 3 1/2” Bolt 65 4 Base Endcap 66 2 Wheel 67 1 Console Warning
68 4 8” Cable Tie 69 1 Upright 70 1 Grommet 71 1 Left Handrail 72 1 Right Handrail 73 4 Cage Nut 74 1 Left Foot Rail Endcap 75 1 1/2” Silver Ground
76 77 1 Long Ground Wire 78 1 On/Off Circuit Breaker 79 80 81 1 Belly Pan 82 2 Belt Guide 83 84 4 Plastic Fastener 85 2 Isolator Cushion 86 87 2 End Cap 88 1 Incline Motor Wire 89 3 Cable Tie Clamp 90 1 Ground Wire 91 1 Right Rear Endcap
1 Bookrack
Assembly
Decal
Screw
Handrail Cap
2
1 Power Cord
Power Cord Grommet
1
4 Belt Guide Screw
1 Frame
Key
Qty. Description
No.
Pad
92
93 1 Right Rear Endcap 94 1 Allen Wrench 95 1 Left Rear Endcap 96 1 Walking Belt 97 1 Walking Platform 98 1 Right Foot Rail
99 1 Left Rear Endcap Pad 100 1 Rear Roller 101 2 Plastic Tie 102 15 Rear Endcap Screw 103 1 Motor Mount Bracket 104 2 Resistance Bolt 105 2 Resistance Bracket 106 4 Star Washer 107 2 Resistance Sleeve 108 2 Resistance Cone 109 2 Resistance Knob 110 4 3/8” Washer 111 2 Spring Washer 112 4 Thrust Washer 113 2 Thrust Bearing 114 2 Foam Grip 115 1 Power Board w/Clips 116 4 Plastic Stand-off 117 1 Electronic Bracket 118 1 Choke 119 1 Wire Harness Decal 120 1 Audio Cable 121 1 iFIT.com Plug 122 2 Upright Insert 123 2 1” Latch Screw 124 125 2 Foam Tape 126 1 Bottom Incline Motor
127
*Includes all parts shown in the box #These parts are not illustrated
2 Rear Roller
Adjustable Bolt
Dome Insert
2
Bolt Resistance Plate
2 # 1 8” Blue Wire, 2F # 1 4” Blue Wire, 2F
1 4” Blue Wire, M/F
# # 1 4” White Wire, M/F # 1 8” White Wire, 2F
1 8” Green Wire, 2 Ring
# # 1 8 ” Red Wire, M/F # 1 User’s Manual
31*
30
32
35
34
33
59
26
26
106
105
104
107
108
78
59
120
121
47
2
46
2
49
44
49
43
28
10
102
12
19
13
13
60
23
2
13
12
14
21
16
18
17
14
15
2
74
98
82
83
97
15
96
86
15
95
92
38
92
38
93
91
81
102
83
82
102
79
80
61*
58
63
64
66
57
58
65
61*
62
13
69
58
55
54
55
54
13
126
57
58
72
37
76
73
58
57
51
53
13
37
38
39
37
38
37
38
39
37
38
40
2
57
58
62
63
64
13
66
50
26
90
26
89
68
100
65
42
26
70
42
15
2
65
65
2
94
41
99
101
67
11
102
102
102
2
5
5
5
88
56
52
75
102
85
84
84
85
106
114
24
109
25
114
109
123
71
76
73
36
2
37
108
107
105
104
29
111
127
113
112
110
45
38
45
38
78
118
26
26
117
116
115
122
122
3
4
6
7
8
9*
103
20
1
22
22
22
22
125
5
102
2
2
2
2
26
77
48
119
124
124
87
87
102
13
127
112
113
111
110
EXPLODED DRAWING—Model No. PCTL93040 R1104A
Loading...
