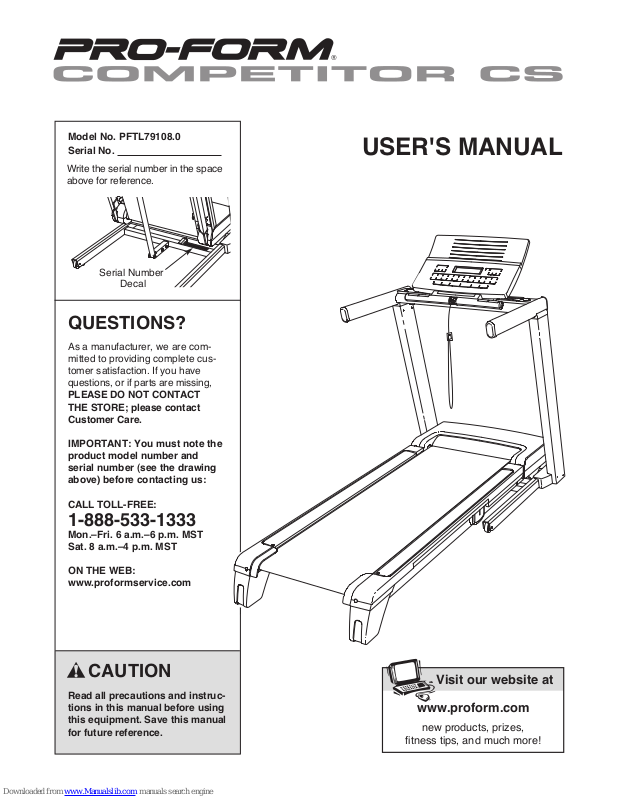

Page 1
Model No. PFTL79108.0
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or
illegible, call the telephone number on
the front cover of this manual and request a free replacement decal. Apply
the decal in the location shown. Note:
The decals may not be shown at actual
size.
PROFORM is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 12. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
12), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 14).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
Page 4
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
OMPETITOR CS treadmill. The COMPETITOR CS
C
treadmill offers an impressive array of features designed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
nique COMPETITOR CS treadmill can be folded up,
u
requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Accessory Tray
Handrail
®
ual. To help us assist you, note the product model
umber and serial number before contacting us. The
n
model number and the location of the serial number
decal are shown on the front cover of this manual.
o avoid a registration fee for any service needed
T
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Book Holder
Console
Pulse Sensor
Key/Clip
Upright
Walking Belt
Foot Rail
Rear Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Platform Cushion
5
Page 6
ASSEMBLY
3/8" Nut (8)–3
Base Foot Spacer
(13)–2
3/8" Star Washer
(9)–11
3/8" x 4 1/2" Bolt (6)–4
#8 x 1" Tek Screw (2)–4
3/8" x 1/2" Bolt
(7)–4
Bolt Spacer (80)–4
3/8" x 2" Bolt (4)–3
3/8" x 3" Bolt (5)–3
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, lubricant may be transferred to the top of the walking
belt or the shipping carton. This is normal. If there is lubricant on top of the walking belt, simply wipe off the lubri-
ant with a soft cloth and a mild, non-abrasive cleaner.
c
Assembly requires the included hex key and your own Phillips screwdriver ,
adjustable wrench , wire cutters , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly.
Extra hardware may be included.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Cut the tie securing the Upright Wire (38) to the
Base (83). Locate the tie in the indicated hole in
the Base, and use the tie to pull the Upright Wire
out of the hole.
1
56
6
B
A
38
Hole
83
Page 7
. Attach two Base Feet (81) to the Base (83) in the
2
location shown with two Base Foot Spacers (13)
nd two #8 x 1" Tek Screws (2). Then, attach the
a
two other Base Feet (81) with only #8 x 1" Tek
Screws (2).
2
1
8
83
2
13
81
2
81
2
13
81
2
3. Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
Attach a Wheel (84) with the Bolt and the Nut
that you just removed. Do not overtighten the
Nut; the Wheel must turn freely. Discard the
shipping bracket.
4. Identify the Right Upright (78) and the Right
Upright Spacer (79), which are marked with
stickers. Insert the Upright Wire (38) through the
Right Upright Spacer as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (78) securely around the end of
the Upright Wire (38). With the help of a second
person, hold the Right Upright near the Base
(83). Then, pull the other end of the wire tie until
the Upright Wire is routed completely through
the Right Upright.
3
83
4
84
C
8
4
78
38
38
79
83
78
38
Wire
Tie
7
Page 8
5. Hold a Bolt Spacer (80) inside the lower end of
the Right Upright (78). Insert a 3/8" x 4 1/2" Bolt
(6) with a 3/8" Star Washer (9) into the Right
Upright and the Bolt Spacer. Repeat this step
ith a second Bolt Spacer (80), 3/8" x 4 1/2"
w
Bolt (6), and 3/8" Star Washer (9).
5
6
78
9
Hold the Right Upright Spacer (79) and the
ight Upright (78) against the Base (83). Be
R
careful not to pinch the Upright Wire (38).
Partially tighten the two 3/8" x 4 1/2" Bolts (6);
do not fully tighten the Bolts yet.
6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so the treadmill is more stable; do
not fully fold the Frame yet.
Remove and discard the two indicated bolts (A)
and the shipping bracket (B).
Remove the 3/8" Nut (8), the 3/8" x 2" Bolt (4),
and the shipping bracket (C) from the Base (83).
The Bolt and Nut will be used in the next assembly step. Discard the shipping bracket.
38
0
8
80
79
83
6
B
A
56
4
7. Attach a Wheel (84) with the 3/8" x 2" Bolt (4)
and the 3/8" Nut (8) that you removed in step 6.
Do not overtighten the Nut; the Wheel must
turn freely.
83
8
C
7
4
84
8
8
Page 9
8. With the help of a second person, hold a Bolt
Spacer (80) inside the lower end of the Left
Upright (74). Insert a 3/8" x 4 1/2" Bolt (6) with a
3/8" Star Washer (9) into the Left Upright and
he Bolt Spacer. Repeat this step with a second
t
Bolt Spacer (80), 3/8" x 4 1/2" Bolt (6), and 3/8"
Star Washer (9).
8
6
74
9
76
rient the Left Upright (74) and the Left Upright
O
Spacer (76) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(83). Partially tighten the two 3/8" x 4 1/2" Bolts
(6); do not fully tighten the Bolts yet.
With the help of a second person, tip the treadmill so that the Base (83) is flat on the floor.
9. See the upper inset drawing. Orient the Right
Handrail Spacer (98) with the Right Upright (78)
as shown. Insert the Upright Wire (38) and wire
tie through the Right Upright Spacer and press
the Spacer onto the Upright.
Have a second person hold the Handrail Base
(96) near the Right Upright (78).
83
80
9
Wire Tie
38
98
96
38
View A
78
Connect the Upright Wire (38) to the Handrail
Wire (52). See the lower inset drawing. The
connectors should slide together easily and
snap into place. If they do not, turn one connec-
tor and try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE
POWER IS TURNED ON. Remove the wire tie
from the Upright Wire.
Wire Tie
52
98
View A
78
52
38
9
Page 10
10. Insert the indicated connectors and tie into the
Right Upright (78).
Next, set the Handrail Base (96) onto the
andrail Spacers (97, 98).
H
Attach the Handrail Base (96) with four 3/8" x
1/2" Bolts (7) and four 3/8" Star Washers (9);
tart all four Bolts and then tighten them.
s
Press four (three are shown) Handrail Caps (99)
into the ends of the Handrail Base (96).
See steps 5 and 8. Tighten the four 3/8" x 4 1/2"
Bolts (6).
0
1
99
97
96
9
onnectors
C
99
9
7
7
98
11. Pull the end of the Handrail Wire (52) out of the
hole in the Handrail Base (96).
With the help of a second person, hold the console assembly near the Handrail Base (96).
Connect the Handrail Wire (52) to the console
wire. See the lower inset drawing in step 8.
The connectors should slide together easily
and snap into place. If they do not, turn one
connector and try again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON.
Connect the Console Ground Wire (101) to the
console assembly ground wire. Insert the wires
into the console assembly.
Attach the console assembly with three 3/8" x 3"
Bolts (5) and three 3/8" Star Washers (9). Be
careful not to pinch the wires.
11
99
Console
Assembly
Console
Wire
52
96
9
78
Console
Assembly
Ground Wire
101
9
5
Tie
10
Page 11
12. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
rient the Storage Latch (53) so that the large
O
barrel and the Latch Knob (54) are oriented as
shown.
12
6
5
8
4
ttach the Latch Bracket (27) and Storage Latch
A
53
(53) to the Base (83) with two 3/8" x 2" Bolts (4)
and two 3/8" Nuts (8).
Attach the upper end of the Storage Latch (53)
to the bracket on the Frame (56) with a 3/8" x 2"
Bolt (4) and a 3/8" Nut (8). Note: It may be necessary to move the Frame back and forth to
54
Large
Barrel
27
83
align the Storage Latch with the bracket.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
8
4
13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used
to adjust the walking belt (see pages 23 and 24).
If you purchase the optional chest pulse sensor (see page 19), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the indicated 1/2" Screws (1) and the
Access Door (87) from the Console Back (91).
2. Connect the wire on the receiver (A) to the indicated wire extending from the Console Back
(91). Hold the receiver so the small cylinder
is oriented as shown and is facing the
Console Back. Attach the receiver to the plastic
posts on the Access Door (87) with the two included small screws.
3. Make sure that no wires are pinched.
Reattach the Access Door (87) with the 1/2"
Screws (1). Discard the other wires included
with the receiver.
11
91
Wire
87
Small
Screws
1
A
Small
Cylinder
Page 12
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
our treadmill features a walking belt coated with high-
Y
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
lug. Plug the power cord into a surge suppressor,
p
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
12
Page 13
CONSOLE DIAGRAM
Key
FEATURES OF THE CONSOLE
This revolutionary treadmill console offers a selection
of features designed to make your workouts more effective and enjoyable. When you use the manual mode
of the console, you can change the speed and incline
of the treadmill with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the
handgrip pulse sensor or the optional chest pulse sensor (see page 19 for more information on the optional
chest pulse sensor).
In addition, the console features 24 personal trainer
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective workout. You can even compete
against animated runners using the iFIT Competition
Training Center.
Clip
To turn on the power, follow the steps on page 14. To
use the manual mode, see page 14. To use a per-
sonal trainer workout, see page 16. To use the iFIT
Competition Training Center, see page 17. To use
the settings mode, see page 18. To use the information mode, see page 19.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic. To prevent damage to the walking platform, wear clean athletic
shoes while using the treadmill. The first time you
use the treadmill, observe the alignment of the
walking belt, and center the walking belt if necessary (see page 24).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page
19. For simplicity, all instructions in this section refer to
miles.
13
Page 14
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 12). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
Reset
Position
power cord. Switch the circuit
breaker to the reset position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 19 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 13)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the position of the clip.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Each time you insert the key, the manual mode will
be selected. If you have selected a workout, press
either of the workout buttons repeatedly until only
zeros appear in the display.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the Quick Speed
buttons numbered 1 to 12. Note: After you press
the buttons, it may take a moment for the walking
belt to reach the selected speed setting.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
a button, the speed setting will change by 0.1 mph;
if you hold down a button, the speed setting will
change in increments of 0.5 mph. If you press one
of the twelve numbered Quick Speed buttons, the
speed of the walking belt will gradually adjust until
it reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
Quick Speed buttons.
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease buttons, or one of the
Quick Incline buttons numbered 0 to 12. Each time
you press a button, the incline will gradually adjust
until it reaches the selected incline setting.
14
Page 15
5. Follow your progress with the display.
The console offers several display options. The dis-
lay option you select will determine which workout
p
information is shown. Press the Display button re-
eatedly to select the desired display option.
p
As you walk or run on the treadmill, the display can
show the following workout information:
sensor (see page 19 for information about the optional chest pulse sensor). Note: If you hold the
handgrip pulse sensor and wear the optional chest
ulse sensor at the same time, the console will not
p
display your heart rate accurately.
Before using the handgrip pulse sensor, remove
the sheets of clear plastic from the metal contacts.
In addition, make sure that your hands are clean.
• The elapsed time.
• The distance you have walked or run.
• The approximate number of calories you have
burned.
• The approximate number of calories burned per
hour.
• Your exercise intensity in mets. One met is the
amount of energy you use while resting.
• The speed of the walking belt.
• The incline level of the treadmill.
• Your pace in minutes per mile or minutes per kilo-
meter.
• Your heart rate.
Note: Regardless of which display mode you select,
the speed or incline setting will appear in the display for a few seconds each time you change the
setting. In addition, your heart rate will appear in the
display each time you use the handgrip pulse sensor or the optional chest pulse sensor (see step 6).
6. Measure your heart rate if desired.
To measure
your heart rate,
stand on the
foot rails and
hold the metal
contacts on the
handrail—
Contacts
avoid moving
your hands.
When your pulse is detected, your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when you fold the treadmill to the storage position or you may damage the treadmill. Next, re-
move the key from the console and put it in a secure
place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the electrical components of the
treadmill may wear prematurely.
You can measure your heart rate using either the
handgrip pulse sensor or the optional chest pulse
15
Page 16
HOW TO USE A PERSONAL TRAINER WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
4.
1
2. Select a personal trainer workout.
To select one of the 24 personal trainer workouts,
press the Select Workout button. Then press the
Increase and Decrease buttons below the Select
Workout button until the name of the desired workout appears in the display.
The program will continue in this way until the last
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
low to a stop.
s
f the speed or incline setting for the current seg-
I
ment is too high or too low, you can manually override the setting by pressing the Speed and Incline
buttons. Every few times a Speed button is
pressed, an additional indicator will appear or disappear in the Current Segment column. However,
when the next segment of the program begins,
the treadmill will automatically adjust to the
speed and incline settings for the next segment.
When you select a personal trainer workout, the
display will show the name, the duration, the maximum incline setting, and the maximum speed setting of the workout. In addition, a profile of the
speed settings of the workout will appear in the display.
Each preset workout is divided into one-minute
segments. One speed setting and one incline setting are programmed for each segment. Note: The
same speed and/or incline setting may be programmed for consecutive segments.
3. Press the Start button to start the workout.
A moment after you press the Start button, the
treadmill will automatically adjust to the first speed
and incline settings of the workout. Hold the
handrails and begin walking.
During the program, the profile will show your
progress. The flashing segment of the profile represents the current segment of the program. The
height of the flashing segment indicates the speed
setting for the current segment. At the end of each
segment, a series of tones will sound, the next segment of the profile will begin to flash and the speed
and incline setting will appear in the display to alert
you.
To stop the program at any time, press the Stop
button. To restart the program, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for
that segment.
4. Follow your progress with the display.
See step 5 on page 15.
Instead of showing elapsed time, the display will
show the time remaining in the workout. The display will also show your energy output in watts.
5. Measure your heart rate if desired.
See step 6 on page 15.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
16
Page 17
HOW TO USE THE IFIT COMPETITION TRAINING
CENTER
. Insert the key into the console.
1
ee HOW TO TURN ON THE POWER on page
S
14.
2. Select the iFIT Competition Training Center.
3. Follow your progress with the display.
The console offers several display options. The dis-
lay option you select will determine which workout
p
information is shown. Press the Display button re-
eatedly to select the desired display option.
p
As you walk or run on the treadmill, the display can
show the following workout information:
To select the iFIT Competition Training Center,
press the Select Event button. Use the Increase
and Decrease buttons below the Select Event to
select a race against a group of four opponents or
against one opponent.
If you choose to compete against a group, highlight
the RACE AGAINST A PACK option and then
press the Enter button below the Select Event button. Select a level of difficulty and the distance of
the race by pressing the Increase and Decrease
buttons. Press the Enter button after each selection.
If you choose to complete against one opponent,
highlight the RACE A SINGLE OPPONENT option
and then press the Enter button below the Select
Event button. Press the Increase and Decrease
buttons to view your opponents. For each the opponent, the screen will display a message from the
opponent and the opponentʼs statistics. Each opponent may appear more than once in different levels, or tiers, of difficulty. The least challenging opponent is in tier one and the most challenging opponent is in tier three. Select an opponent and
press the Enter button. Then, press the increase
and decrease buttons to select the distance of the
race and press the Enter button.
• An animation
of a runner labeled “U,”
which represents you. As
you increase
or decrease the speed of the walking belt, the
runner will speed up or slow down.
• Animations of the other runners.
• A map of the course you are running will appear
on the left side of the screen. The runners will be
represented by squares on the map.
• Your number of seconds ahead of the other run-
ners or behind the lead runner will appear below
the map of the course. If you are behind the other
runners, a negative number of seconds will appear.
• Your rank in the race will appear inside the map
of the course.
• The speed of the walking belt. Note: Press the
Enter button to see your pace in minutes per mile
or minutes per kilometer. Press the Enter button
again to view the speed of the walking belt.
A few moments after you select the distance of the
race, READY, SET, GO will appear on the screen
and then the race will begin. Hold the handrails and
begin walking.
Adjust the speed and incline of the treadmill as desired. Your opponents will adjust their speed and
tactics based on the course and the situation.
The workout will continue until the race ends.
• The incline level of the treadmill.
• The approximate number of calories you have
burned.
• The distance that you have walked or run.
• The elapsed time.
17
Page 18
• A profile of the incline settings of the race.
HOW TO USE THE SETTINGS MODE
• A status bar showing the distance you have travlled in the race and the distance you still have to
e
travel.
• Your average speed.
• The rate at which your opponents recover their
energy (rec).
• The bank, or amount, of energy your opponents
have left. As the amount of energy in a bank decreases, the speed of that opponent will decrease.
• The racing tactics your opponents are using. Your
opponents will use different tactics in different situations. Consult a reputable source to learn more
about these tactics.
• Your heart rate.
4. Measure your heart rate if desired.
See step 6 on page 15.
To view your
heart rate, select the display
option at the
right.
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page
4.
1
2. Select the settings mode.
To select the settings mode, press the Select
Event button. Highlight the SETTINGS option and
press the Enter button. The menu will show the
maximum incline of the race, the incline selection
setting, and the start speed for the race.
3. Enter user information.
Press the Increase and Decrease buttons until an
arrow appears next to the desired option. Then,
press the Enter button. A flashing cursor will appear in the field in the display. Press the Increase
and Decrease buttons to change the selection.
When you have finished changing the field, press
the Enter button. Repeat this action to enter all the
desired information.
When you are done changing the settings, highlight the
EXIT SETTINGS option and press the Enter button.
5. When you are finished exercising, remove the
key from the console.
See step 7 on page 15.
18
Page 19
THE INFORMATION MODE
THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that allows
ou to select a unit of measurement for the console,
y
turn on or turn off the display demo mode, and change
he contrast of the display.
t
To select the information mode, hold down the Stop
button, insert the key into the console, and then release
the Stop button. When the information mode is selected, the following information will appear in the display:
The display will show the selected unit of measurement. To change the unit of measurement, press the
Speed increase button. To view distance in miles, select ENGLISH. To view distance in kilometers, select
METRIC.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on,
the word “ON” will appear in display while the information mode is selected. To turn on or turn off the demo
mode, press the Speed decrease button.
An optional chest pulse sensor offers hands-free oper-
tion as it tracks your heart rate during your workouts.
a
To purchase the optional chest pulse sensor, call
he telephone number on the front cover of this
t
manual.
HOW TO ADJUST THE CUSHIONING SYSTEM
Remove the key from the console and unplug the
power cord. The treadmill features a cushioning sys-
tem that reduces the impact as you walk or run on the
treadmill. To increase the firmness of the walking platform, step off the treadmill and slide the platform cushions toward the front of the treadmill. To decrease the
firmness, step off the treadmill and slide the platform
cushions toward the back of the treadmill. Note: Make
sure that both cushions are set at the same firmness level. The faster you run on the treadmill, or
the more you weigh, the firmer the walking platform should be.
To adjust the contrast of the display, press the Incline increase and decrease buttons.
To exit the information mode, remove the key from the
console.
19
Platform
Cushion
Decrease
Increase
Platform
Cushion
Walking Platform
Page 20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
owest position. If you do not do this, you may damage the
l
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the pos-
sibility of injury, do not lift the frame by the plastic
foot rails. Make sure to bend your legs and keep your
back straight as you raise the frame. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in
the storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch
knob is locked in the storage position.
1. Hold a handrail and the frame and place one foot against
one of the wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against a wheel, and carefully lower the
treadmill until it is resting in the storage position.
Latch Knob
Frame
Handrail
Wheel
Base
20
Page 21
HOW TO LOWER THE TREADMILL FOR USE
. Hold the upper end of the treadmill with your right hand.
1
Pull the latch knob to the left and hold it. It may be necessary to push the frame forward as you pull the knob to
the left. Pivot the frame downward and release the latch
knob.
2. Hold the metal frame firmly with both hands and lower
it to the floor. CAUTION: Do not grip only the plastic
foot rails or drop the frame to the floor. Bend your
legs and keep your back straight.
Latch Knob
21
Page 22
TROUBLESHOOTING
ost treadmill problems can be solved by following the steps below. Find the symptom that applies, and
M
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 12). Use only a single-outlet surge suppressor that meets all of the specifications described on page 12. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch
protrudes as shown, the circuit breaker has tripped.
To reset the circuit breaker, wait for five minutes
and then press the switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to
the minimum level. This will recalibrate the incline system. If the incline does not calibrate, press
the Stop button, and then press the Incline increase or decrease button again. When the incline
is calibrated, remove the key from the console.
c
Tripped
Reset
PROBLEM:The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG
THE POWER CORD. With the help of a second
person, carefully tip the Uprights (74, 78) down.
There may be two #8 x 2" Screws (105) in the bottom of the Belly Pan (73). If there are, remove
them. Note: A Phillips screwdriver with a shaft at
least 5 in. (13 cm) long is required. Then, raise the
Uprights.
22
a
78
74
73
105
105
Page 23
Remove the three 3/4" Screws (12) and carefully
pivot the Hood (61) off.
Locate the Reed Switch (71) and the Magnet (50)
on the left side of the Pulley (51). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the 3/4" Reed Switch Screw (15),
move the Reed Switch slightly, and then retighten
the Screw. Reattach the Hood (not shown). If necessary, tip down the Uprights (not shown), reattach
the Hood Screws (not shown) and raise the
Uprights. Run the treadmill for a few minutes to
check for a correct speed reading.
1/8 in.
Top
View
15
71
12
61
50
51
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 19 to turn off the demo mode.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 12.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
b
2–3 in.
come damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
rear roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking
Rear Roller Bolts
belt is properly tightened.
c. If the walking belt still slows when walked on, see the front cover of this manual.
23
Page 24
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the
ey and UNPLUG THE POWER CORD. If the
k
walking belt has shifted to the left, use the hex
ey to turn the left rear roller bolt clockwise 1/2 of a
k
turn; if the walking belt has shifted to the right,
turn the bolt counterclockwise 1/2 of a turn. Be
careful not to overtighten the walking belt. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each
edge of the walking belt 2 to 3 in. (5 to 7 cm) off
the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for
a few minutes. Repeat until the walking belt is
properly tightened.
a
b
24
Page 25
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
25
Page 26
PART LIST—Model No. PFTL79108.0 R0708A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
ey No. Qty. Description Key No. Qty. Description
K
1 29 1/2" Screw
2
31Hex Key
463/8" x 2" Bolt
533/8" x 3" Bolt
643/8" x 4 1/2" Bolt
743/8" x 1/2" Bolt
883/8" Nut
9 11 3/8" Star Washer
10 1 Reset/Off Circuit Breaker
11 5 3/4" Tek Screw
12 3 3/4" Screw
13 3 Base Foot Spacer
14 4 #8 x 1/2" Tek Screw
15 1 3/4" Reed Switch Screw
16 8 #8 x 1 3/4" Screw
17 2 1/4" x 1 1/4" Bolt
18 2 5/16" x 3 5/8" Bolt
19 2 3/8" x 1 1/4" Bolt
20 2 Rear Roller Bolt
21 1 3/8" x 1 3/4" Motor Bolt
22 1 3/8" x 1 1/2" Bolt
23 2 3/8" x 1" Bolt
24 8 1/2" Ground Screw
25 10 1 1/4" Foot Rail Screw
26 2 1/4" x 3/8" Bolt
27 1 Latch Bracket
28 12 #8 x 3/4" Track Screw
29 4 Belt Guide Screw
30 2 1/4" Washer
31 2 1/4" Lock Washer
32 2 #8 x 1" Screw
33 1 Controller Ground Wire
34 2 3/8" Jamnut
35 1 Lift Frame Ground Wire
36 2 5/16" Flange Nut
37 3 Hood Clip
38 1 Upright Wire
39 3 Cage Nut
40 4 #8 x 1 3/4" Screw
41 1 Left Foot Rail
42 1 Warning Decal
43 2 Walking Platform Cushion
44 1 Walking Platform
45 1 Walking Belt
46 2 Belt Guide
47 1 Motor Isolator
48 2 Frame Spacer
49 3 Front Roller Spacer
50 1 Magnet
4 #8 x 1" Tek Screw
51 1 Front Roller/Pulley
2 1 Handrail Wire
5
53 1 Storage Latch
54 1 Latch Knob
55 1 Right Foot Rail
56 1 Frame
57 2 Rear Roller Bracket
58 1 Rear Roller
59 1 Left Rear Foot
60 1 Right Rear Foot
61 1 Hood
62 1 Drive Belt
63 1 Incline Motor Wire
64 1 Motor
65 1 Lift Frame
66 3 Wire Tie
67 1 Rear Roller Ground Wire
68 1 Power Cord
69 1 Power Cord Grommet
70 1 Controller
71 1 Reed Switch
72 1 Reed Switch Clip
73 1 Belly Pan
74 1 Left Upright
75 1 Incline Motor
76 1 Left Upright Spacer
77 1 Latch Cap
78 1 Right Upright
79 1 Right Upright Spacer
80 4 Bolt Spacer
81 4 Base Foot
82 2 Caution Decal
83 1 Base
84 2 Wheel
85 3 Releasable Tie
86 8 8" Tie
87 1 Access Door
88 1 Book Holder
89 1 Console
90 2 Cushion Track Stop
91 1 Console Back
92 1 Console Plastic Tie
93 1 Console Frame
94 2 Cup Holder
95 2 15 1/2" Wire Tie
96 1 Handrail Base
97 1 Left Handrail Spacer
98 1 Right Handrail Spacer
99 4 Handrail Cap
100 1 Key/Clip
26
Page 27
Key No. Qty. Description Key No. Qty. Description
01 1 Console Ground Wire
1
102 2 Cushion Track
103 2 Front Cushion
104 1 Lift Motor Spacer
ote: Specifications are subject to change without notice. See the back cover of this manual for information about
N
05 2 #8 x 2" Screw
1
*–4" Red Wire, M/F
*–4" Black Wire, M/F
*–Userʼs Manual
ordering replacement parts. *These parts are not illustrated.
27
Page 28
4
4
54
53
8
8
25
25
25
25
55
77
17
17
18
18
20
31
30
20
31
30
24
24
29
29
46
46
36
36
49
50
48
44
42
45
49
51
58
56
57
57
48
3
60
59
40
40
25
25
25
25
41
1
103
1
103
43
102
90
32
28
28
28
43
102
28
28
90
32
28
28
28
67
EXPLODED DRAWING A—Model No. PFTL79108.0 R0708A
28
Page 29
11
11
11
11
72
15
71
37
37
37
12
12
1
24
24
68
69
10
24
33
61
66
73
70
35
19
19
26
64
47
62
65
105
105
24
12
EXPLODED DRAWING B—Model No. PFTL79108.0 R0708A
29
Page 30
81
2
81
2
81
2
4
84
8
84
6
9
6
6
9
9
7
9
7
9
21
22
34
34
75
23
23
8
8
74
78
83
82
76
79
82
86
85
80
80
80
13
81
2
13
104
4
8
27
38
95
63
4
38
8
EXPLODED DRAWING C—Model No. PFTL79108.0 R0708A
30
Page 31
1
1
1
1
1
1
1
1
1
1
1
88
89
1
87
92
91
100
14
14
39
39
93
5
9
24
101
96
52
52
99
99
99
99
16
98
97
94
94
16
16
EXPLODED DRAWING D—Model No. PFTL79108.0 R0708A
31
Page 32
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
T
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame and drive motor are warranted for a lifetime. Parts and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other
warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 266308 R0708A Printed in USA © 2008 ICON IP, Inc.
Loading...
