ProForm CI250 User Manual

USER'S MANUAL
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Serial Number Decal
Model No. DRTL11720 Serial No.
Find the serial number in the location shown below. Write the serial number in the space above for reference.
QUESTIONS?
If you have questions, or if there are missing parts, we will guar­antee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
2
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described in this manual.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should not be used by persons weighing more than 250 pounds.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806­3651 and order part number 146148.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the tread­mill is not working properly.)
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
18. Using the included hand weights and not hold­ing the handrails may compromise your ability to maintain your balance. Exercises using hand weights should be attempted only by ex­perienced users.
19. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the loca­tion of the on/off switch.)
20. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 19.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
3
21. Do not change the incline of the treadmill by placing objects under the treadmill.
22. When folding or moving the treadmill, make sure that the storage latch is fully closed.
23. When using iFIT.com CD’s and videos, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or in­cline changes. In some instances, the speed and/or incline may change before the per­sonal trainer describes the change.
24. When using iFIT.com CD’s and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.
25. Always remove iFIT.com CD’s and videos
from your CD player or VCR when you are not using them.
26. Inspect and properly tighten all parts of the treadmill regularly.
27. Never insert or drop any object into any opening.
28.
DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the main­tenance and adjustment procedures de­scribed in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
29. This treadmill is intended for in-home use only. Do not use this treadmill in any commer­cial, rental, or institutional setting.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. If the decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.
Note: This decal is shown at 38% of actual size.
4
Thank you for selecting the revolutionary PROFORM
®
C1250 treadmill. The C1250 treadmill combines ad­vanced technology with innovative design to help you get the most from your exercise program in the conve­nience of your home. And when you’re not exercising, the unique C1250 can be folded up, requiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (ex­cluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is DRTL11720. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Hand Weights
Lock Knob
Book Holder
Key/Clip
Circuit Breaker
On/Off Switch
Walking Belt
Adjustable Cushion Deck
Foot Rail
Power Cord
Rear Roller Adjustment Bolts
Water Bottle Holder (Bottle not included)
Pulse Sensor
RIGHT SIDE
LEFT SIDE
5
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires your own phillips screw­driver and rubber mallet .
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
2. With the help of a second person, carefully lower the treadmill frame and then tip the Uprights (69) down as shown. Make sure that the Extension Legs (102) remain
in the Uprights.
Attach each Extension Leg (102) with two of the six 3/4” Screws (100) as shown.
With the help of a second person, carefully tip the Uprights (69) back to the vertical position.
Note: One replacement Base Pad (99) may be included. Use the extra Base Pad if one becomes worn or needs to be replaced.
100
102
69
99
99
Frame
69
100
102
1. With the help of a second person, carefully raise the treadmill to the upright position as shown.
Insert one of the Extension Legs (102) into the treadmill as shown. Make sure that the Extension Leg is turned so the Base Pad (99) is on the bottom. If necessary, tip the Uprights (69) forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same way.
102
99
1
3. Insert a Handrail Extension (66) into the post on the right Upright (69) as shown; make sure that the indicated holes are on top. Tap the Handrail Extension with a rub­ber mallet to fully insert it. Attach the Handrail Extension with two 1/2” Screws (67) as shown.
Identify the Right Foam Grip (75), which has a large cutout in the left side for the Pulse Bar (76). Slide the Right Foam Grip as far as possible onto the post on the right Upright (69). (Note: It may be helpful to apply soapy water to the Handrail Extension [66].) Make sure that the tab on the
Foam Grip is inserted into the Console Base (81).
75
76
Cutout
Tab
66
Post
67
Holes
69
81
3
2
6
69
8. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 21). To protect the floor or carpet from damage, place a mat under the treadmill.
4. Make sure that the front edge of the Right Foam Grip (75) is under the Console Base (81) as shown. Tighten a 3/4” Screw (100) into the side of the Right Foam Grip as shown. Note: It may be necessary to pull the Foam Grip outward slightly (see arrow A) to align the Screw with the hole in the post.
Attach the other Handrail Extension (not shown) and the Left Foam Grip (not shown) as described in step 3 and this step.
5. Press the Lock Knob Sleeve (70) into the left Upright (69).
Remove the Lock Knob (68) from the Lock Pin (74). Make sure that the two Lock Pin Collars (72) and the Spring (71) are on the Lock Pin. Insert the Lock Pin into the Lock Knob Sleeve (70) and the left Upright (69). Tighten the Lock Knob onto the Lock Pin.
69
70
68
71
72
74
5
6. Clean the Book Rack (124) with a clean cloth and rubbing
alcohol.
Remove the paper from the top of the Book Rack Tape (123). Make sure that the straight edge of the Book Rack (124) is pressed against the plastic around the Console (82). Press on the top of the Book Rack and the bottom of the Console Base (81). Wait for 24 hours before setting
a book on the Book Rack.
123
123
81
82
124
6
75
100
A
81
7. Look at the Endcap (58). If the left or right foot on the End­cap does not touch the floor, the included thick base pads should be attached to the treadmill as described below.
See assembly step 2. Lower the treadmill frame and the Uprights (69) as shown. If the left foot of the Endcap (58) was off the ground, remove the two Base Pads (99) from the right Upright (69). Attach the included thick base pads to the right Upright. If the right side of the Endcap was off the ground, attach the thick base pads to the left Upright.
If either side of the Endcap (58) lifts off the floor when the treadmill is used, attach the thick base pads as described.
58
7
Foot
Foot
4
7
Edge
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806-3651 and order part number 146148.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
DANGER:
Improper connection of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
8
FEATURES OF THE CONSOLE
The advanced console offers an impressive array of features to help you get the most from your exercise. When the console is in the manual mode, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the built-in thumb pulse sensor. Note: See page 18 for information about the optional chest pulse sensor.
Eight certified personal trainer programs are also offered. Each program automatically controls the speed and incline of the treadmill to give you an effec­tive low-, medium-, or high-intensity workout. The in­cluded hand weights can be used to add upper-body exercise to your workouts as well.
The console also features new iFIT.com interactive technology. iFIT.com technology is like having a per­sonal trainer right in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD programs (CD’s are available sep­arately). iFIT.com CD programs automatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added motivation. Each CD features two programs designed by certified per­sonal trainers.
In addition, you can connect the treadmill to your VCR and TV and play iFIT.com video programs (videocas­settes are available separately). Video programs offer the same benefits as iFIT.com CD programs, but add the excitement of working out with a class and an instructor—the hottest new trend at health clubs.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess basic programs, audio programs, and video pro­grams directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To purchase iFIT.com CD’s or videocassettes, call toll­free 1-800-735-0768.
To use the manual mode of the console, follow the steps beginning on page 10. To use a personal trainer
program, see page 11. To use an iFIT.com CD or video program, see page 15. To use an iFIT.com program directly from our internet site, see page 17.
CAUTION:
Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turn­ing on the power.
• Always wear the clip (see the drawing above) while operating the treadmill.
• Adjust the speed in small increments to avoid sudden jumps in speed.
• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

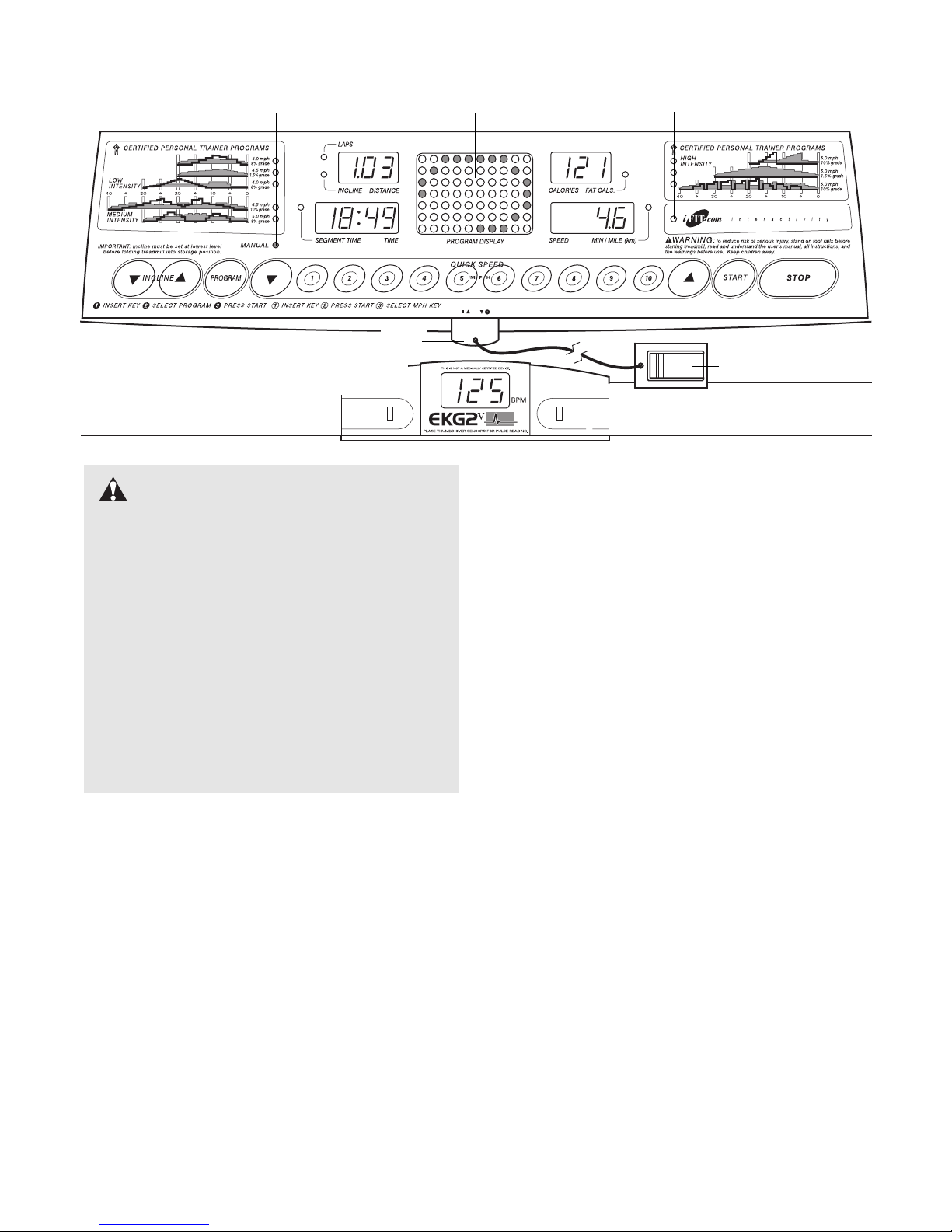

CONSOLE DIAGRAM
Clip
Thumb Pulse Sensor
Display
Display
Program Indicators
Manual/Program Indicators
Program Display
Key
Pulse Display
Note: If there is a thin sheet of clear plastic on the face of the console, remove it.
9
HOW TO TURN ON THE POWER
Plug in the power cord (see HOW TO PLUG IN THE POWER CORD on page 8).
Locate the on/off switch on the treadmill near the power cord. Move the on/off switch to the on position.
Stand on the foot rails of the treadmill. Find the clip attached to the key and slide the clip onto the waistband of your clothes. Next, in­sert the key into the console. After a moment, the displays and various indicators will light. Test the
clip by carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip as needed.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. If a pro­gram has been selected, press the Program button repeatedly to select the manual mode.
Press the Start button or the Speed
button to
start the walking belt.
A moment after the but­ton is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking. As you exer­cise, change the speed of the walking belt as de­sired by pressing the Speed buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the Quick Speed buttons.
To stop the walking belt, press the Stop button. The Time/Segment Time display will begin to flash. To restart the walking belt, press the Start button or the Speed
button.
Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt and align it if necessary (see page 21).
Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the Incline buttons. Each time one of the buttons is pressed, the incline will change by 0.5%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.
Follow your progress with the LED track and the displays.
The LED Track—When
the manual mode or an iFIT.com program is se­lected, the program dis­play will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light in sequence until you have completed 1/4 mile. A new lap will then begin.
Distance/Incline/ Laps display—This dis-
play shows the distance that you have walked, the incline level of the tread­mill, and the number of 1/4-mile laps you have completed. The display will change from one number to the next every seven seconds. The Incline indicator or the Laps indicator will light when the incline level or the number of laps is shown. Note: Each time the Incline buttons are pressed, the display will show the current in­cline setting for several seconds.
Time/Segment Time dis­play—When the manual
mode or an iFIT.com pro­gram is selected, this dis­play will show the elapsed time. When a personal trainer program is selected, the display will show both the time remaining in the program and the time remaining in the current segment of the program. The display will alternate between one number and the other every seven seconds. The Segment Time indicator will light when the segment time is shown.
5
4
3
2
1
3
2
1
On
Position
10
Calories/Fat Calories display—This
display shows the approximate numbers of calories and fat calories you have burned (see FAT BURNING on page 22). Every seven sec­onds, the display will change from one number to the other. The Fat Cals. indicator will light when the number of fat calories is shown.
Speed/Min-Mile display—This display
shows the speed of the walking belt and your current pace (pace is measured in minutes per mile). Every seven seconds, the display will change from one number to the other. The Min/ Mile indicator will light when your pace is shown.
Note: The console can display speed and dis­tance in either miles or kilometers. To find which unit of measurement is selected, hold down the Stop button while inserting the key into the con­sole. An “E,” for English miles, or an “M,” for metric kilometers, will appear in the display. Press the Speed
button to change the unit of measure-
ment. When the desired unit of measurement is selected, remove the key and then reinsert it. Note: For simplicity, all instructions in this manual refer to miles.
To reset the displays, press the Stop button, re­move the key, and then reinsert the key.
Measure your heart rate, if desired.
Note: Before using the pulse sensor, make sure that your hands are clean.
To measure your heart rate, stand on the foot rails and place both thumbs on the pulse sensor as shown. Do not
press too hard, or the circulation in your thumbs will be restricted and your heart rate will not be detected. After a few seconds,
one or two dashes will appear in the Pulse display and then your heart rate will be shown. Hold your
thumbs on the sensor for another 15 seconds for the most accurate reading. If the displayed heart rate appears to be too high or too low, or if your heart rate is not displayed, lift your thumbs off the sensor and allow the display to reset. Then, place your thumbs on the sensor as described above. Remember to stand still while measuring your heart rate. Note: If the optional chest pulse sensor is worn, your heart rate will be displayed in the Pulse display.
When you are finished, remove the key.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest set­ting when the treadmill is folded to the storage position or the treadmill will be damaged. Next,
remove the key from the console and put it in a se­cure place. Note: If the displays and various in-
dicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 18 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
HOW TO USE PERSONAL TRAINER PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page 10.
Select one of the personal trainer programs.
When the key is inserted, the manual mode will be selected and the Manual indicator will light. To select one of the personal trainer programs, press the Program button repeatedly until one of the eight personal trainer program indicators lights.
The console features three low-intensity programs, two medium-intensity programs, and three high­intensity programs. The profiles on the console show how the speed and incline of the treadmill will change during the programs. The numbers beside the profiles show the maximum speed and incline settings for the programs. For example, the upper left profile shows that the treadmill will reach a maximum speed of 4 mph and a maximum incline of 8% during the first program.
2
1
7
6
11
The program display will show a simplified profile of the program you have selected. The Time/Segment Time display will show how long the program will last.
Press the Start button or the Speed
button to
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. The Time/Segment Time display shows both the time remaining in the program and the time remaining in the current segment. One speed setting and one incline setting are programmed for each segment. The speed setting for the first segment will be shown in the flashing Current Segment column of the program display. (The incline settings are not shown in the program display.) The speed settings for the next seven segments will be shown in the seven columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash, a se­ries of tones will sound, and all speed settings will move one column to the left. The speed setting for the second segment will then be shown in the flashing Current Segment column and the tread­mill will automatically adjust to the speed and in­cline settings for the second segment.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and no time remains in the Time/Segment Time display. The walking belt will then slow to a stop.
Note: Each time a segment ends and the speed settings move one column to the left, if all of the
indicators in the Current Segment column are lit, the speed settings will move downward so that only
the highest indicators in the columns will appear in the program display. When the speed settings
move to the left again and not all of the indicators in the Current Segment column are lit, the speed settings will move back up.
If the speed or incline setting for the current segment is too high or too low, you can manually override the setting by pressing the Speed or Incline buttons on the console. Every few times one of the Speed buttons is pressed, an additional indicator will light or darken in the Current Segment column. If any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well. Note: If you manually adjust the speed setting so that all of the indicators in the Current Segment column are lit, the speed settings in the program display will not move downward as described above. When the current segment of
the program ends, the treadmill will automati­cally adjust to the speed and incline settings for the next segment.
To stop the program temporarily, press the Stop button. The Time/Segment Time display will begin to flash. To restart the program, press the Start but­ton or the Speed
button. To end the program, press the Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
See step 5 on page 10.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program is completed, remove the key from the console.
When the program has ended, make sure that the incline of the treadmill is at the lowest set­ting. Next, remove the key from the console and put it in a safe place.Note: If the displays and various indicators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 18 and turn off the demo mode.
When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.
6
5
4
3
Current Segment
12
HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CD’s, the treadmill must be con-
nected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 13 and 14 for connecting instructions. To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 15 for connecting instructions. To
use iFIT.com programs directly from our internet site, the treadmill must be connected to your home
computer. See page 14 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
Audio Cable
Head-
phones
A
Audio Cable
Adapter
A
Audio
Cable
B
Audio Cable
C
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones
13
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
AUDIO OUT
RIGHT
LEFT
LINE OUT
PHONES
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
Audio Cable
Adapter
A
Audio Cable
A
Audio Cable
RCA
Y-Adapter
Wire removed from
LINE OUT jack
B
Adapter
Audio Cable
B
3.5mm
Y-adapter
Headphones/Speakers
14
CD
VCR
Amp
LINE OUT
LINE OUT
LINE OUT
PHONES
CD
VCR
Amp
LINE OUT
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 14.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CD’s or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 13 and 14. Note: To purchase iFIT.com CD’s or
videocassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. To use iFIT.com CD’s or video­cassettes, press the Program button repeatedly until the iFIT.com indicator lights.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or VCR.
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Segment Time dis­play is flashing, press the Start button or the Speed
button on the console. The treadmill will not respond to a CD or video program when the Time/Segment Time display is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
4
3
2
1
Audio Cable
Adapter
A
Audio
Cable
Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-Adapter
15
VIDEO AUDIO
IN
CH
34
OUT
AUDIO OUT
RIGHT
LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT
CH
34
OUT
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Segment Time display will begin to flash. To restart the pro­gram, press the Start button or the Speed
but-
ton. After a moment, the walking belt will begin to move. When the next “chirp” is heard, the
speed and incline will change to the
When the CD or video program is completed, the walking belt will stop and the Time/Segment Time display will begin to flash. Note: To use another CD or video program, press the Stop button or re­move the key and go to step 1 on page 15.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time/Segment Time display is not flashing. If the Time/Segment Time display is flashing, press the Start button or the Speed
button on the console.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the LED track and the displays.
See step 5 on page 10.
Measure your heart rate, if desired.
See step 6 on page 11.
When the program is completed, remove the key.
See step 6 on page 12.
CAUTION: Always remove iFIT.com CD’s and videocassettes from your CD player or VCR when you are finished using them.
7
6
5
16
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 14. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.
Follow the steps below to use a program from our Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
When the key is in­serted, the manual mode will be selected and the Manual indica­tor will light. To use a program from our inter­net site, press the Program button repeatedly until the iFIT.com indicator lights.
Go to your computer and start an internet connection.
Start your web browser, if necessary, and go to our internet site at www.iFIT.com.
Follow the desired links on our internet site to select a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is
heard, the speed and/or incline will change to the next settings of the program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Segment Time display will begin to flash. To restart the pro­gram, press the Start button or the Speed
but-
ton. After a moment, the walking belt will begin to move at 1.0 mph. When the next “chirp” is
heard, the speed and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop and the Time/Segment Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Segment Time display is not flashing. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the LED track and the displays.
See step 5 on page 10.
When the program has ended, remove the key.
See step 6 on page 12.
9
8
7
6
5
4
3
2
1
17
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following informa­tion will be shown:
The Distance/Incline/Laps display will show the total number of miles that the walk­ing belt has moved.
The Time/Segment Time dis­play will show the total num­ber of hours the treadmill has been used.
An “E,” for english miles, or an “M,” for metric kilometers, will appear in the Speed/Min­Mile display. Press the Speed
button to change the unit of
measurement.
IMPORTANT: The Calories/Fat Calories dis­play should be blank. If a “d”
appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a “d” ap-
pears in the Calories/Fat Calories display when the information mode is selected, press the Speed
button so the display is blank.
To exit the information mode, remove the key from the console.
HOW TO ADJUST THE CUSHIONING SYSTEM
The treadmill features a cushioning system that reduces the impact as you walk or run on the treadmill. The firmness of the cushioning system is controlled by the adjustable cushions at the center of the treadmill (there is one ad­justable cush­ion on each side). To se­lect the maxi­mum firmness setting, turn the cushions to level 3; to decrease the firmness, turn the cushions to level 2 or 1. It may be helpful to lift on the walking platform as you rotate the cushion. Note:
The faster you run on the treadmill, or the more you weigh, the firmer the cushioning system should be. Make sure that both cushions are at the same setting.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more fea­tures to the console. The chest pulse sensor offers hands-free operation and continuously monitors your heart rate during your workouts. To purchase the op-
tional chest pulse sensor, call toll-free 1-800-734-
2377.
Adjustable
Cushion
18
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be damaged. Make sure the adjustable cushion is in a set position (see page 18). Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown
at the right. CAUTION: To decrease the possibility of in-
jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway
to the vertical position.
2. Move your right hand to the position shown and hold the treadmill firmly. Using your left hand, pull the lock knob to the left and hold it. Raise the treadmill until the lock pin is aligned with the hole in the catch. Insert the lock pin into the catch. Make sure that the lock pin is fully inserted
into the catch.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the pin
on the lock knob is inserted into the slot in the catch.
1. Hold the handrails as shown and place your foot against
one of the wheels. It may be helpful to grip the pulse bar as you tip the treadmill. Do not pull the Book Rack.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 above. Hold the upper end of the treadmill with your right hand as shown. Pull the lock knob to
the left and hold it. Pivot the treadmill down until the frame is past the pin on the lock knob. Note: You may need to push the handrail to the side slightly.
2. See drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
Base
Pulse Bar
Front Wheels
1
Knob
Catch
2
19
Book Rack
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the circuit breaker located on the treadmill
near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill
near the power cord. The switch must be in the on position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the
circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. Make sure that the on/off switch is in the on position.
e. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and unplug the
power cord. Carefully tip the treadmill down as
shown in drawing a. Remove the Screws (39, 83) from the hood. Raise the Uprights (69) and carefully re­move the hood.
Locate the Reed Switch (10) and the Magnet (7) on the left side of the Pulley (8). Turn the Pulley until the Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed Switch is about 1/8”. If necessary, loosen the 1/2”
Screw (67) and move the Reed Switch slightly. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.
Tripped
c
Reset
On
Position
d
7
83
39
69
a
8
Top
View
67
1/8”
10
20
PROBLEM: The thumb pulse sensor does not function properly
SOLUTION: a. Wash your hands before to using the pulse sensor. In addition, keep the pulse sensor clean using
a damp cloth and a small amount of mild detergent.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be­come damaged. Remove the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in­sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows, please call our Customer Service Department, toll-free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key and
UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise
1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and care­fully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com
CD’s and videos are played
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline.
Rear Roller Adjustment Bolts
3”–4”
b
a
b
21
CONDITIONING GUIDELINES
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor on the console. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for en- ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-ex­ercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
22
PART LIST—Model No. DRTL11720 R1202A
1 2 Foot Rail Insert 2 2 Foot Rail 3 2 Foot Rail Cap Screw 4 1 Left Foot Rail Cap 5 2 Frame Pivot Bolt 6 2 Frame Pivot Spacer 7 1 Magnet 8 1 Front Roller/Pulley 9 8 Frame Pivot Nut
10 1 Reed Switch/Sensor
Wire 11* 1 Latch Assembly 12 1 Reed Switch Clip 13 1 Lift Frame 14 1 Star Washer 15* 1 Idler Assembly 16 1 Motor 17 1 Idler Arm 18 1 Motor Belt 19 1 Idler Pulley 20 1 Tension Bolt 21 1 Pulley Nut 22 1 Idler Arm Bolt 23 1 Hood 24 1 Incline Motor Bolt 25 4 Plastic Stand-off 26 1 Power Board 27 5 Screw 28 2 Ball Detent 29 1 Controller 30 1 Electronics Plate 31 1 Motor/Controller Wire 32 1 Front Roller Adj. Bolt 33 4 1 1/4” Screw 34 4 Roller Washer 35 1 Front Roller Nut 36 1 Incline Motor 37 1 Incline Motor Stop 38 1 Belly Pan 39 10 Belly Pan Screw
(Long) 40 2 Static Decal 41 1 Circuit Breaker 42 1 Power Cord 43 1 On/Off Switch 44 1 Left Endcap Insert 45 4 Belt Guide Screw 46 2 Belt Guide 47 2 Front Isolator
48 2 Adjustable Cushion 49 16 Fastener 50 1 Belly Pan 51 1 Right Foot Rail Cap 52 1 Walking Platform 53 4 Platform Screw 54 2 Adjustable Cushion
Screw 55 1 Video Wire Nut 56 5 Ground Screw/
Controller Screw 57 1 Ground Wire 58 1 Rear Endcap 59 2 Rear Roller Adj. Bolt 60 1 Warning Decal 61 1 Allen Wrench 62 1 Rear Roller 63 2 Rear Isolator 64 2 Cushion Spacer 65 1 Left Foam Grip 66 2 Handrail Extension 67 8 1/2” Screw 68 1 Lock Knob 69 1 Upright 70 1 Lock Knob Sleeve 71 1 Spring 72 2 Lock Pin Collar 73 1 Pin Clip 74 1 Lock Pin 75 1 Right Foam Grip 76 1 Pulse Bar 77 2 Pulse Bar Washer 78 2 Pulse Bar Bolt 79 2 Upright Endcap 80 4 Belly Pan Screw 81 1 Console Base 82 1 Console 83 10 Console Screw 84 1 Key/Clip 85 1 IFIT.com Wire 86 1 Jack 87 14 Console Back Screw 88 1 Console Back 89 1 Releaseable Tie 90 1 Cable Tie Screw 91 1 Cable Tie Clamp 92 4 8” Cable Tie 93 2 Lift Pivot Bolt 94 2 Wheel Bolt
95 2 Wheel 96 1 Right Endcap Insert 97 1 Grommet 98 1 Upright Wire Harness
99 4 Base Pad 100 8 3/4” Screw 101 1 Tension Nut 102 2 Extension Leg 103 2 Extension Cap 104 2 Incline Warning Decal 105 1 Shock 106* 2 Extension Leg
Assembly 107 1 Chest Pulse Wire 108 1 Book Holder 109 1 Power Cord Grommet 110 1 Frame 111 2 Catch Screw 112 1 Catch 113 1 Audio Wire 114 1 Walking Belt 115 1 30” Wire Harness 116 1 20” Wire Harness 117 2 Hand Weight 118 2 Endcap Spacer 119 2 Thick Base Pad 120 2 Cushion Bolt 121 2 Long Hood Screw 122 1 Filter Wire 123 7 Book Rack Tape 124 1 Book Rack 125 1 Idler Spring 126 2 Motor Bolt 127 1 Motor Isolator 128 1 Tension Washer 129 1 Pulley Spacer 130 1 Incline Motor Pivot Bolt 131 2 Motor Bushing
# 1 20” Green Wire, F/Ring # 1 12” Green Wire, 2/Ring # 1 8” Green Wire, 2/Ring # 1 8” Black Wire, M/F # 1 4” Black Wire, 2F # 1 8” White Wire, 2F # 1 4” Blue Wire, 2F # 1 User's Manual
* Includes all parts shown in box # These parts are not illustrated
Key
No. Qty. Description
Key
No. Qty. Description
Key
No. Qty. Description
To locate the parts listed below, see the EXPLODED DRAWING attached in the center of this manual.
23
Part No. 192416 R1202A Printed in USA © 2002 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (DRTL11720)
• The NAME OF THE PRODUCT (PROFORM
®
C1250 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the PART LIST on page 23 and the EXPLODED DRAWING attached in the center of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod­ucts used for commercial or rental purposes; or products used as store display models. No other war­ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
EXPLODED DRAWING—Model No. DRTL11720 R1202A
To identify the parts shown on this exploded drawing, see
the PART LIST on page 23 of the USER’S MANUAL.
39
29
5
9
127
27
30
32
14
35
36
37
3
51
8
7
47
56
122
25
26
31
25
130
9
126
19
129
17
131
125
21
128
20
22
67
12
10
3
9
101
13
9
6
4
2
16
18
15*
42
5
6
9
9
53
111
109
43
41
55
40
39
113
80
38
80
83
46
24
53
52
114
1
2
47
111
49
49
50
54
80
83
45
48
28
34
64
120
49
63
49
53
112
54
1
111
34
28
64
120
48
53
63
44
61
62
96
118
49
110
118
34
59
57
56
58
34
59
60
EXPLODED DRAWING—Model No. DRTL11720 R1202A
116
108
123
79
117
86
124
84
82
81
79
107
33
85
87
83
87
87
83
33
78
77
67
100
66
76
75
74
73
71
69
70
72
115
23
87
88
87
87
9
95
94
14
93
87
40
87
99
98
100
121
119
94
105
104
93
99
100
102
95
9
97
89
106*
100
121
91
90
92
99
100
103
77
67
78
65
100
100
68
66
11*
104
102
106*
103
99
100
Loading...
