USER'S MANUAL
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE. The
trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.ÐFri., 6 a.m.Ð6 p.m. MST
Model No. PFEX34390
Serial No.
Patent Pending
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Page 2
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE RECUMBENT CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Page 3
3
1. Read all instructions in this manual before
using the recumbent cycle.
2. It is the responsibility of the owner to ensure
that all users of the recumbent cycle are adequately informed of all precautions. Use the
recumbent cycle only as described in this
manual.
3. Use the recumbent cycle indoors on a level
surface. Keep the recumbent cycle away from
moisture and dust. Place a mat under the
recumbent cycle to protect the floor.
4. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the recumbent cycle at all times.
6. Wear appropriate clothing when exercising;
do not wear loose clothing that could become
caught on the recumbent cycle. Always wear
athletic shoes when using the recumbent
cycle.
7. The recumbent cycle should not be used by
persons weighing more than 250 pounds.
8. Always keep your back straight when using
the recumbent cycle; do not arch your back.
9. If you feel pain or dizziness while exercising,
stop immediately and cool down.
10. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. The recumbent cycle is intended for home
use only. Do not use the recumbent cycle in a
commercial, rental, or institutional
setting.
12. The recumbent cycle does not have a freewheel; the pedals will continue to move until
the flywheel stops.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the recumbent cycle.
Page 4
4
Congratulations for selecting the new PROFORM
¨
985R recumbent cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fitness, building endurance, and toning the entire body.
The PROFORM¨985R offers an impressive array of
features to let you enjoy this healthful exercise in the
convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the PROFORM¨985R. If you have questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please mention the product model
number and serial number when calling. The model
number is PFEX34390. The serial number can be
found on a decal attached to the recumbent cycle
(see the front cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Handlebar
FRONT
BACK
Seat
Backrest
Side Shield
Wheel
Pedal
Pedal Strap
Console
Book Holder
Seat Handle
LEFT SIDE
BEFORE YOU BEGIN
Page 5
5
ASSEMBLY
Assembly requires two persons. Place all parts of the recumbent cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
Ground Screw (82)Ð1
M6 Nylon Locknut (15)Ð4
M6 x 38mm Button Bolt (14)Ð7
M10 Nylon Locknut (45)Ð2
M10 X 70mm Carriage Bolt (72)Ð2
M10 x 25mm Button Head Screw (74)Ð10
Console Screw (20)Ð4
M8 Washer (90)Ð7
M6 Washer (91)Ð3
M8 x 38mm Button Bolt (24)Ð4
M6 x 22mm Button Screw (29)Ð4
M8 x 100mm Button Bolt (63)Ð3
M10 Split Washer (17)Ð10
Page 6
6
1. Attach the Front Stabilizer (2) to the front of the
Frame (1) with two M10 x 70mm Carriage Bolts (72)
and two M10 Nylon Locknuts (45). Make sure that
the Front Stabilizer is turned so the Wheels (75)
are not touching the floor.
2. Slide the Carriage Bar (7) onto the indicated tube on
the Frame (1). Attach the Carriage Bar to the Frame
with four M10 x 25mm Button Screws (74) and four
M10 Split Washers (17).
If the Seat Carriage (11) is not on the Carriage Bar
(7), pivot the Seat Handle (79) to the position shown
and slide the Seat Carriage onto the Carriage Bar.
Move the Seat Carriage to the desired position and
pivot the Seat Handle forward to secure the Seat.
3. Position the Rear Stabilizer (3) under the Carriage
Bar (7) as shown. Attach the Rear Stabilizer to the
Carriage Bar with three M8 x 100mm Button Bolts
(63) and three M8 Washers (90).
2
11
79
3
7
63
63
90
17
7
17
17
17
74
74
1
90
3
2
75
1
72
45
1
Page 7
7
4. Insert the lower end of the Backrest Frame (8) into
the Seat Frame (27). Attach the Seat Frame and the
Backrest Frame to the Seat Carriage (11) with four
M8 x 38mm Button Bolts (24).
5. Slide a Seat Handle (61) onto one side of the
Backrest Frame (8). Attach the Seat Handle with
two M6 x 38mm Button Bolts (14) and two M6 Nylon
Locknuts (15).
Attach the other Seat Handle (not shown) to the
other side of the Backrest Frame (8).
14
13
8
91
4
7
8
24
24
27
11
90
90
12
27
61
8
29
29
15
6
14
7. Attach the Backrest (13) to the Backrest Frame (8)
with three M6 x 38mm Button Bolts (14) and three
M6 Washers (91).
6. Attach the Seat (12) to the Seat Frame (27) with
four M6 x 22mm Button Screws (29) and four M8
Washers (90).
5
Page 8
8
9
20
20
6
10
11
18
Hole
9
22
Console
Wires
Console
Ground
Wire
82
22
16
74
17
6
6
17
9
6
69
17
17
18
74
74
1
8
9. While another person holds the Handlebar (16) near
the Upright (6), route the two Pulse Wires (22) into
the Upright and out of the hole at the top of the
Upright.
Next, attach the Handlebar (16) to the Upright (6)
with two M10 x 25mm Button Screws (74) and two
M10 Split Washers (17). Make sure that the Pulse
Wires (22) are not pinched between the Handlebar and the Upright.
11. Attach the Console (9) to the Upright (6) with the
four Console Screws (20). Make sure that no
wires are pinched between the Console and the
Upright.
10. Hold the Console (9) near the Upright (6) as shown.
Identify the green console ground wire and attach it
to the Upright with a Ground Screw (82). Make sure
that the console ground wire connector is pointed
toward the center of the indicated hole as shown.
Next, connect the Extension Wire (18) and the two
Pulse Wires (22) to the corresponding wires on the
Console (9). Make sure that the wires are not tan-
gled around each other.
8. While another person holds the Upright (6) in the
position shown, connect the Extension Wire (18) to
the Wire Harness (69).
Next, carefully slide the Upright (6) onto the Frame
(1). Be careful to avoid pinching the wires.
Loosely thread four M10 x 25mm Button Screws
(74) with M10 Split Washers (17) into the Upright
and the Frame. Then, firmly tighten all four Button
Screws.
Page 9
9
HOW TO ADJUST THE POSITION OF THE SEAT
For effective exercise, the seat
should be in the
proper position.
As you pedal,
there should be a
slight bend in
your knees when
the pedals are in
the farthest position. IMPOR-
TANT: After you
adjust the seat, make sure that your knees will not
touch the handlebar or the console when you
pedal. To adjust the seat, first pivot the seat handle to
the position shown in the drawing. Next, slide the seat
forward or back to the desired position. To secure the
seat, pivot the seat handle forward.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
straps off the tabs on
the pedals. Adjust the
straps to the desired
positions and press
the straps back onto
the tabs.
Seat
Seat
Handle
Strap
Ta b
HOW TO OPERATE THE RECUMBENT CYCLE
12. Identify the Left Pedal (40) (there is an ÒLÓ on the
Left Pedal for identification). Using an adjustable
wrench, tighten the Left Pedal counterclockwise into
the left arm of the Crank (19).
Tighten the Right Pedal (not shown) clockwise into
the right arm of the Crank (19).
Adjust the Left Pedal Strap (41) to the desired position and press the Pedal Strap onto the tab on the
Left Pedal (40). Adjust the Right Pedal Strap (not
shown) in the same way.
40
Tab
19
41
12
86
Jack
13
14. Make sure that all parts are properly tightened before you use the recumbent cycle. Note: After
assembly is completed, some extra parts may be left over. Place a mat beneath the recumbent cycle to protect
the floor.
13. Plug the Power Supply (86) into the jack at the rear
of the recumbent cycle. Note: Your Power Supply
may look different from the one pictured.
IMPORTANT: When unplugging the Power
Supply (86), always unplug the Power Supply
from the recumbent cycle first and then from the
wall outlet.
Page 10
10

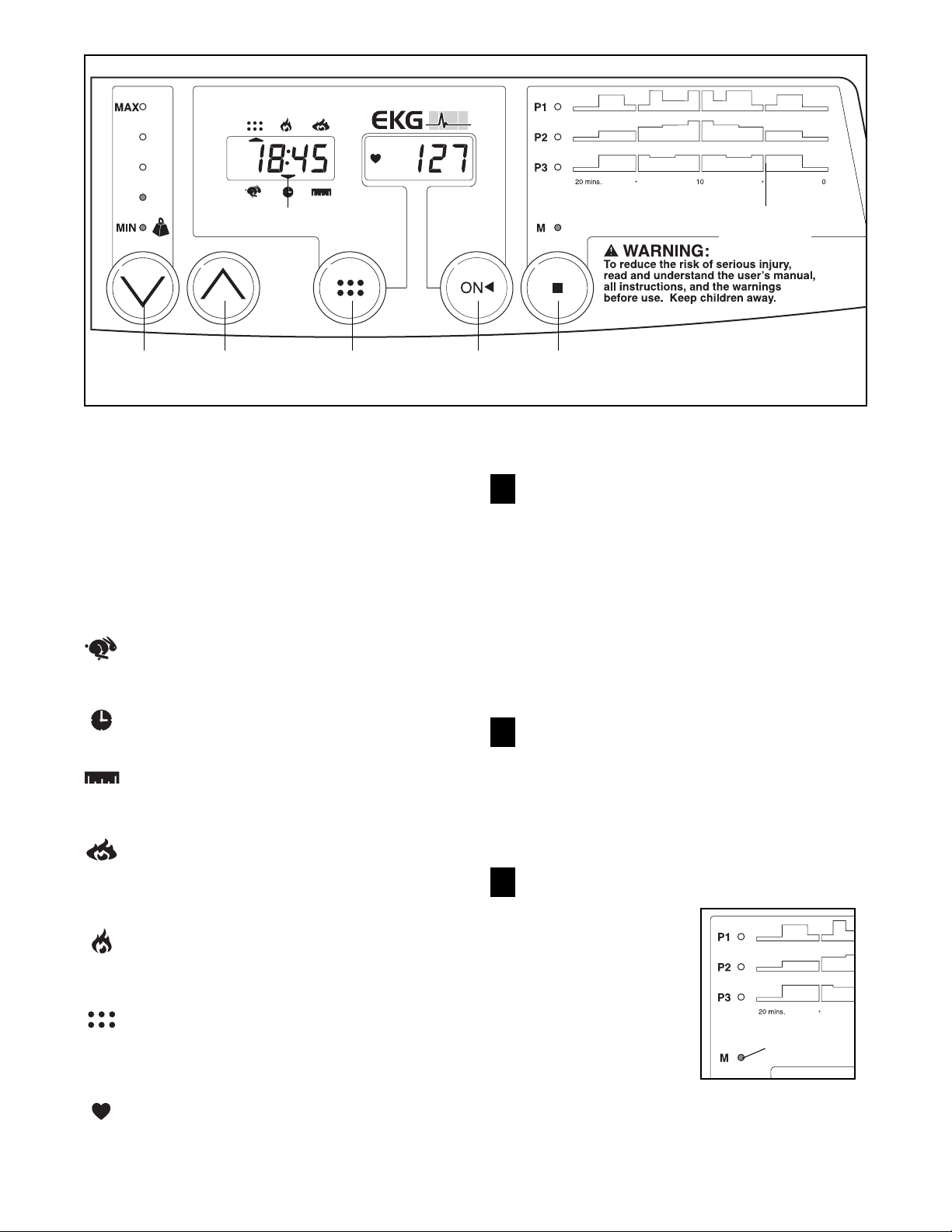

DESCRIPTION OF THE CONSOLE
The innovative console offers a manual mode and
three preset workout programs. When the manual
mode is selected, the pedaling resistance can be
changed with a touch of a button. When a preset programs is selected, the console will automatically control the pedaling resistance to give you an effective
workout. The console also features seven monitor
modes that provide instant exercise feedback:
SpeedÑWhen a mode arrow points to this symbol, the console will show your pedaling speed,
in miles per hour.
TimeÑWhen a mode arrow points to this symbol, the console will show the elapsed time.
DistanceÑWhen a mode arrow points to this
symbol, the console will show the distance you
have pedaled, in miles.
Fat CalorieÑWhen a mode arrow points to this
symbol, the console will show the approximate
number of fat calories you have burned (see
FAT BURNING on page 13).
CalorieÑWhen a mode arrow points to this symbol, the console will show the approximate number of calories you have burned.
ScanÑWhen a mode arrow points to this symbol, the console will show the speed, time, distance, fat calorie, and calorie modes, for 5 seconds each, in a continuous cycle.
PulseÑThe pulse window will show your heart
rate when the pulse monitor is used.
HOW TO USE THE MANUAL MODE
Plug in the power supply.
Plug the power supply into the recumbent cycle
(see assembly step 13 on page 9). Next, plug the
power supply into an electrical outlet. Note:
When you plug in the power supply, press the
on/reset button, or activate the console by
turning the pedals, the resistance motor will
automatically calibrate itself. During calibration, you will hear the resistance motor turning. Wait until calibration is complete before
continuing.
Turn on the power.
Press the on/reset button or simply begin pedaling to turn on the power. The entire display will
appear for a moment; the console will then be
ready for use. Note: If the power supply was just
plugged in, the power will already be on.
Select the manual mode.
When the power is
turned on, the manual mode will be
selected and the
manual indicator will
light. If a preset program has been
selected, press the
select button repeatedly until the manual
indicator lights.
3
2
1
Resistance
Buttons
Mode
Button
On/Reset
Button
Select
Button
Program
Profiles
Mode Arrow
Manual
Indicator
Page 11
11
Adjust the pedaling resistance as desired.
As you exercise,
adjust the pedaling
resistance by pressing the resistance buttons. The indicators
on the left side of the
console will show
which resistance level
is selected. When the
lowest indicator is
dimly lit, resistance
level 1 is selected; when the lowest indicator is
brightly lit, resistance level 2 is selected; when
the second indicator is dimly lit, resistance level 3
is selected; when the second indicator is brightly
lit, resistance level 4 is selected; and so forth.
When the highest indicator is brightly lit, resistance level 10, the most difficult level, is selected.
Follow your progress with the monitor modes.
The scan modeÑTo
select the scan mode,
repeatedly press the
mode button until an
arrow appears under
the scan symbol.
When the scan mode
is selected, the console will display the
speed, time, distance, fat calorie, and calorie
modes, for 5 seconds each, in a continuous
cycle. A second arrow will show which mode is
currently displayed.
The speed, time, distance, fat calorie, or
calorie modeÑTo
select a single mode
for continuous display,
repeatedly press the
mode button until an
arrow appears by the
desired symbol. Make
sure that there is not an arrow under the scan
symbol.
The pulse modeÑTo use the pulse mode, see
step 6.
To reset the modes, press the on/reset button.
Measure your heart rate, if desired.
Note: If the metal contacts on the top and
bottom of the pulse sensor are covered with
clear vinyl strips, peel off the strips before
using the pulse sensor.
To measure
your heart rate,
place your
hands on the
metal contacts
on the pulse
sensor. Your
palms must be
resting on the
upper contacts
and your fingers must be touching the lower contacts. Avoid
moving your hands.
When your pulse is
detected, the heartshaped indicator in the
pulse display will flash
each time your heart
beats. A moment later,
your heart rate will be
shown. For the most accurate heart rate reading,
continue to hold the contacts for about 15 seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described above.
Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly.
When you are finished exercising, turn off the
power.
To turn off the power, simply wait for five
minutes. If the pedals are not turned and the
console buttons are not pressed for five minutes,
the power will turn off automatically.
7
6
5
4
Metal
Contacts
Resistance
Indicators
Mode Arrow
Mode Arrow
WARNING: The pulse sen-
sor is not a medical device. Various factors, including the userÕs movement, may
affect the accuracy of heart rate readings. The pulse sensor is intended only
as an exercise aid in determining heart
rate trends in general.
Page 12
12
Inspect and tighten all parts of the recumbent cycle
regularly. To clean the recumbent cycle, use a soft,
damp cloth. To prevent damage to the console, keep
liquids away from the console and keep the console
out of direct sunlight.
PULSE SENSOR TROUBLE-SHOOTING
¥ Avoid moving your hands while using the pulse sen-
sor. Excessive movement may interfere with heart
rate readings.
¥ Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
¥ For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
¥ For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft clothÑnever use alcohol,
abrasives, or chemicals.
MAINTENANCE AND TROUBLE-SHOOTING
HOW TO USE A PRESET WORKOUT PROGRAM
Plug in the power supply.
See step 1 on page 10.
Turn on the power.
See step 2 on page 10.
Select one of the three preset programs.
When the power is
turned on, the manual mode will be
selected and the
manual indicator will
light. To select a
preset program,
press the select button repeatedly until the P1, P2, or P3 indicator
lights. Note: When a preset program is selected,
the resistance motor may calibrate itself and the
displays may reset.
Each preset program will last for approximately
twenty minutes. The program profiles on the right
side of the console show how the pedaling resistance will change during the programs. During
program P2, for example, the profile shows that
the pedaling resistance will gradually increase
during the first ten minutes, and then gradually
decrease during the last ten minutes.
Begin your workout.
As you exercise, the pedaling resistance will periodically change, as shown by the program profiles on the console. The indicators on the left
side of the console will show the current resistance level. Note: The resistance buttons will not
operate while a preset program is in use.
Follow your progress with the monitor modes.
See step 5 on page 11.
Measure your heart rate, if desired.
See step 6 on page 11.
When the preset program is completed, turn
off the power.
To turn off the power, simply wait for five
minutes. If the pedals are not turned and the
console buttons are not pressed for five minutes,
the power will turn off automatically.
7
6
5
4
3
2
1
Indicator
Page 13
13
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
on the bottom line of the chart (ages are rounded off
to the nearest ten years). Next, find the three numbers
above your age. The three numbers are your Òtraining
zone.Ó The lowest number is the recommended heart
rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; the highest number is the recommended heart rate for aerobic
exercise.
To measure your heart rate, first exercise for at least
four minutes. Then, stop pedaling and measure your
heart rate using the pulse sensor (see step 6 on page
11).
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise. For maximum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be Òaerobic.Ó Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise.A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday
life.
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
Page 14
14
1 1 Frame
2 1 Front Stabilizer
3 1 Rear Stabilizer
4 1 Left Side Shield
5 1 Right Side Shield
6 1 Upright
7 1 Carriage Bar
8 1 Backrest Frame
9 1 Console
10 2 Handlebar Endcap
11 1 Seat Carriage
12 1 Seat
13 1 Backrest
14 7 M6 x 38mm Button Bolt
15 6 M6 Nylon Locknut
16 1 Handlebar
17 10 M10 Split Washer
18 1 Extension Wire
19 1 Pulley/Crank
20 4 Console Screw
21 13 M4 x 16mm Screw
22 1 M10 Washer
23 1 Frame Endcap
24 4 M8 x 38mm Button Bolt
25 8 M5 x 6mm Screw
26 2 Seat Carriage Bushing
27 1 Seat Frame
28 2 Bushing
29 4 M6 x 22mm Button Screw
30 1 Pivot Bushing
31 1 Magnet
32 1 Crank Bearing Assembly
33 1 Seat Brake
34 1 Frame Bushing
35 1 Console Back
36 2 Resistance Roller
37 1 Right Pedal
38 1 Right Pedal Strap
39 1 Crank Nut
40 1 Left Pedal
41 1 Left Pedal Strap
42 2 Front Stabilizer Endcap
43 1 Base Tube Endcap
44 1 Reed Switch/Wire
45 6 M10 Nylon Locknut
46 2 Bumper
47 2 Adjustment Bracket
48 2 Eye Bolt
49 1 Idler Arm Assembly
50 1 M10 x 26mm Bolt
51 1 ÒJÓ Bolt
52 2 M8 Nylon Locknut
53 2 M5 x 30mm Screw
54 1 Stop Bolt
55 1 M8 x 44mm Hex Bolt
56 2 M8 Nut
57 2 M10 Black Flat Washer
58 1 Return Spring
59 1 ÒCÓ Magnet
60 2 Seat Frame Endcap
61 2 Seat Handle
62 6 M4 x 38mm Screw
63 3 M8 x 100mm Button Bolt
64 2 Rear Stabilizer Endcap
65 1 Brake Block
66 1 Axle
67 1 Resistance Cable
68 1 Belt
69 1 Wire Harness/Resistance Motor
70 1 Flywheel
71 2 Pulse Handle /Pulse Wire
72 2 M10 x 70mm Carriage Bolt
73 1 Resistance Bracket
74 10 M10 x 25mm Button Screw
75 2 Wheel
76 6 Nut
77 2 M10 x 45mm Bolt
78 1 Spring Bracket
79 1 Seat Handle
80 2 #6 x 16mm Screw
81 1 M8 Split Washer
82 1 Ground Screw
83 2 Flywheel Bearing
84 1 Reed Switch Clamp
85 6 Console Back Screw
86 1 Power Supply
87 2 Handle Washer
88 2 Snap Ring
89 1 Set Screw
90 7 M8 Washer
91 3 M6 Washer
# 1 UserÕs Manual
# 3 Allen Wrench
Note: Ò#Ó indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering
replacement parts.
EXPLODED DRAWINGÑModel No. PFEX34390 R0100A
Key No. Qty. Description Key No. Qty. Description Key No. Qty. Description
Page 15
15
20
71
16
17
17
74
32
31
1
74
17
74
17
74
17
6
32
45
18
2
42
77
72
45
75
72
77
42
45
69
39
53
36
15
19
19
12
24
24
29
90
51
52
50
49
45
25
25
28
30
33
21
26
26
25
25
28
79
17
17
74
21
62
54
76
34
10
56
57
83
80
70
83
57
56
66
69
40
41
52
55
59
67
76
58
62
21
4
62
21
5
21
64
14
15
3
64
86
7
17
17
74
14
63
68
11
8
13
37
38
10
14
15
14
85
35
85
9
23
29
29
27
90
61
91
91
91
90
90
92
65
89
87
88
88
87
21
21
78
73
61
44
84
21
76
48
47
48
47
76
76
60
60
43
81
46
21
21
46
74
17
82
EXPLODED DRAWINGÑModel No. PFEX34390 R0100A
Page 16
Part No. 163320 R0100A Printed in Taiwan © 2000 ICON Health & Fitness, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be
prepared to give the following information when calling:
¥ The MODEL NUMBER of the product (PFEX34390)
¥ The NAME of the product (PROFORM¨985R recumbent cycle)
¥ The SERIAL NUMBER of the product (see the front cover of this manual)
¥ The KEY NUMBER and DESCRIPTION of the part(s) from page 14 of this manual.
PROFORM¨is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not
extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center, products used
for commercial or rental purposes, or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
