IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exercise only as described in this
manual.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 275 pounds.
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exercising.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
11. Keep your back straight while using the elliptical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The warning decals shown on page 4 have
been placed on the elliptical exerciser in the
locations shown. If a decal is missing or
illegible, call the toll-free telephone number
on the front cover of this manual and order
a free replacement decal. Apply the decal in
the location shown.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
PROFORM®930 SPACE SAVER elliptical exerciser.
The 930 SPACE SAVER elliptical exerciser provides a
wide array of features designed to make your workouts at home more effective and enjoyable—and
when you’re not exercising, the unique elliptical exerciser can be folded out of the way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
product model number and serial number before contacting us. The model number is PFEL59107.0. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual
for the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Pedal Disc
Wheel
Pedal
Water Bottle Holder*
Console
Handle
Latch Button
FRONT
RIGHT SIDE
REAR
Fan
*No water bottle is included
5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own phillips screwdriver ,
adjustable wrench , and rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been preassembled.
Wave Washer
(101)–2
M10 Split
Washer (99)–2
M8 x 19mm Button
Screw (85)–6
Washer (102)–4
Screw (90)–6
Large Wave
M10 Nylon
Locknut (82)–2
M8 x 23mm Button
Screw (86)–4
M8 Split
Washer (97)–16
M8 Washer
(95)–4
M4 x 16mm
Screw (78)–6
M10 x 80mm Button Screw (93)–2M8 x 45mm Button
M8 x 23mm x
1mm Washer
(31)–4
M4 x 16mm
Round Head
Screw (80)–21
M10 x 78mm Carriage Bolt (92)–2
M8 x 23mm x
2mm Washer
M8 x 14mm Button
Screw (84)–6
(96)–8
6
2. Attach the Left and Right Frame Covers (36, 37)
around the Frame (1) with four M4 x 16mm
Round Head Screws (80).
3. With the help of another person, carefully tip
the elliptical exerciser onto its side. Attach the
Center Foot (40) to the Frame (1) with two
M4 x 16mm Screws (78). Then, return the elliptical exerciser to the upright position.
Orient the Rear Stabilizer (3) as shown. While
another person lifts the Folding Frame (2),
attach the Rear Stabilizer to the Folding Frame
with two M10 x 80mm Button Screws (93) and
two M10 Split Washers (99).
3
80
80
99
99
78
40
2
93
3
1
36
37
1
2
1.
See HOW TO FOLD AND UNFOLD THE
ELLIPTICAL EXERCISER on page 11, and
unfold the elliptical exerciser.
While another person lifts the front of the
Frame (1), attach the Front Stabilizer (4) to the
Frame with two M10 x 78mm Carriage
Bolts (92) and two M10 Nylon Locknuts (82).
4
92
82
82
1
1
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
5. Orient the Left and Right Upright Covers (19, 20)
as shown. Attach the Upright Covers around the
Upright (10) with five M4 x 16mm Round Head
Screws (80).
7
5
19
20
10
80
80
80
4. While another person holds the Upright (10)
near the Frame (1), connect the Upper Wire
Harness (65) to the Lower Wire Harness (64).
Then, insert the Upright (10) into the Frame (1).
Attach the Upright with four M8 x 19mm Button
Screws (85) and four M8 Split Washers (97). Do
not tighten the Button Screws yet.
Avoid pinching the Wire Harnesses (64, 65)
during this step.
10
1
97
97
97
97
85
85
65
64
4
Avoid pinching the
Wire Harnesses (64, 65)
during this step
8
7. Attach the Left Upper Body Arm (22) to the Left
Upper Body Leg (24) with three M8 x 14mm
Button Screws (84) and three M8 Split
Washers (97).
Attach the Right Upper Body Arm (23) in the
same way.
22
23
24
97
97
84
7
6
65
24
72
71
96
85
85
101
101
10
96
6. Apply a generous amount of the included grease
to the Upper Body Axle (71). Insert the Upper
Body Axle into the Upright (10). Be careful not
to damage the Upper Wire Harness (65).
Apply a small amount of grease to a Wave
Washer (101). Slide the Wave Washer onto the
left end of the Upper Body Axle (71).
Identify the Left Upper Body Leg (24), which is
marked with sticker, and orient it as shown.
Slide the Left Upper Body Leg onto the left side
of the Upper Body Axle (71).
Attach the Left Upper Body Leg (24) to the Upper
Body Axle (71) with an M8 x 19mm Button
Screw (85) and an M8 x 23mm x 2mm Washer
(96).
Repeat this step for the Right Upper Body
Leg (72).
Grease
Grease
9
10. While another person holds the Console (11)
near the Upright (10), connect the console wire
harness to the Upper Wire Harness (65).
Attach the Console (11) to the Upright (10) with
four M4 x 16mm Screws (78). Avoid pinching
the wire harnesses during this step.
10
78
Console Wire
Harness
11
Avoid pinching the
wire harnesses
during this step
8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the Left Upper Body Leg (24). Attach the Upper
Body Covers with five M4 x 16mm Round Head
Screws (80).
Attach the Right Rear Upper Body Cover (28)
and the Right Front Upper Body Cover (29)
in the same way.
24
80
80
80
26
28
27
8
9
29
9. The Console (11) requires four 1.5V “D” batteries
(not included); alkaline batteries are
recommended. Remove the battery cover and
insert four batteries into the Console. Make sure
that the batteries are oriented as shown at the
right. Then, reattach the battery cover.
Note: The Console (11) can be operated with an
optional power supply instead of batteries. To
purchase a power supply, call the toll-free
telephone number on the front cover of this
manual. Plug one end of the power supply into
the jack on the console. Plug the other end of
the power supply into an appropriate outlet that
is properly installed in accordance with all local
codes and ordinances
Battery
Cover
Batteries
11
10
65
10
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
12. Apply a generous amount of grease to the axle
on the Left Upper Body Leg (24) and to the axle
on the left Crank Arm (55). Then, apply grease
to two Large Wave Washers (102).
Slide an Upper Body Leg Spacer (9) and a
Large Wave Washer (102) onto the Left Upper
Body Leg (24). Make sure that the flat side of
the Upper Body Leg Spacer is facing outward. Then, slide the other Large Wave Washer
(102) onto the left Crank Arm (55).
Slide the left Pedal Arm (32) onto the Left Upper
Body Leg (24) while sliding the left Link Arm
(30) onto the axle on the left Crank Arm (55).
Attach the Pedal Arm (32) to the Left Upper
Body Leg (24) with an M8 x 23mm Button
Screw (86), an M8 Washer (95), an Axle Cover
(66), and an M8 x 23mm x 1mm Washer (31).
Then, attach the Link Arm (30) to the Crank Arm
(55) with an M8 x 23mm Button Screw (86), an
M8 Washer (95), a Large Axle Cover (52), and
an M8 x 23mm x 1mm Washer (31).
Repeat this step for the right Pedal
Arm (32) and the right Link Arm (30).
See step 4. Tighten the M8 x 19mm Button
Screws (85).
12
9
30
30
32
102
102
66
52
55
95
31
86
24
Grease
Grease
95
31
86
32
11. Orient a Link Arm (30) as shown. Attach the
Left Pedal (34) to the Link Arm with three
M8 x 45mm Button Screws (90), three M8 Split
Washers (97), and three M8 x 23mm x 2mm
Washers (96).
Attach a Pedal Arm Cover (39) to the Link
Arm (30) with an M4 x 16mm Round Head
Screw (80).
Repeat this step for the Right Pedal (not
shown) and the other Link Arm (not shown).
11
34
96
96
97
97
90
30
80
39
11

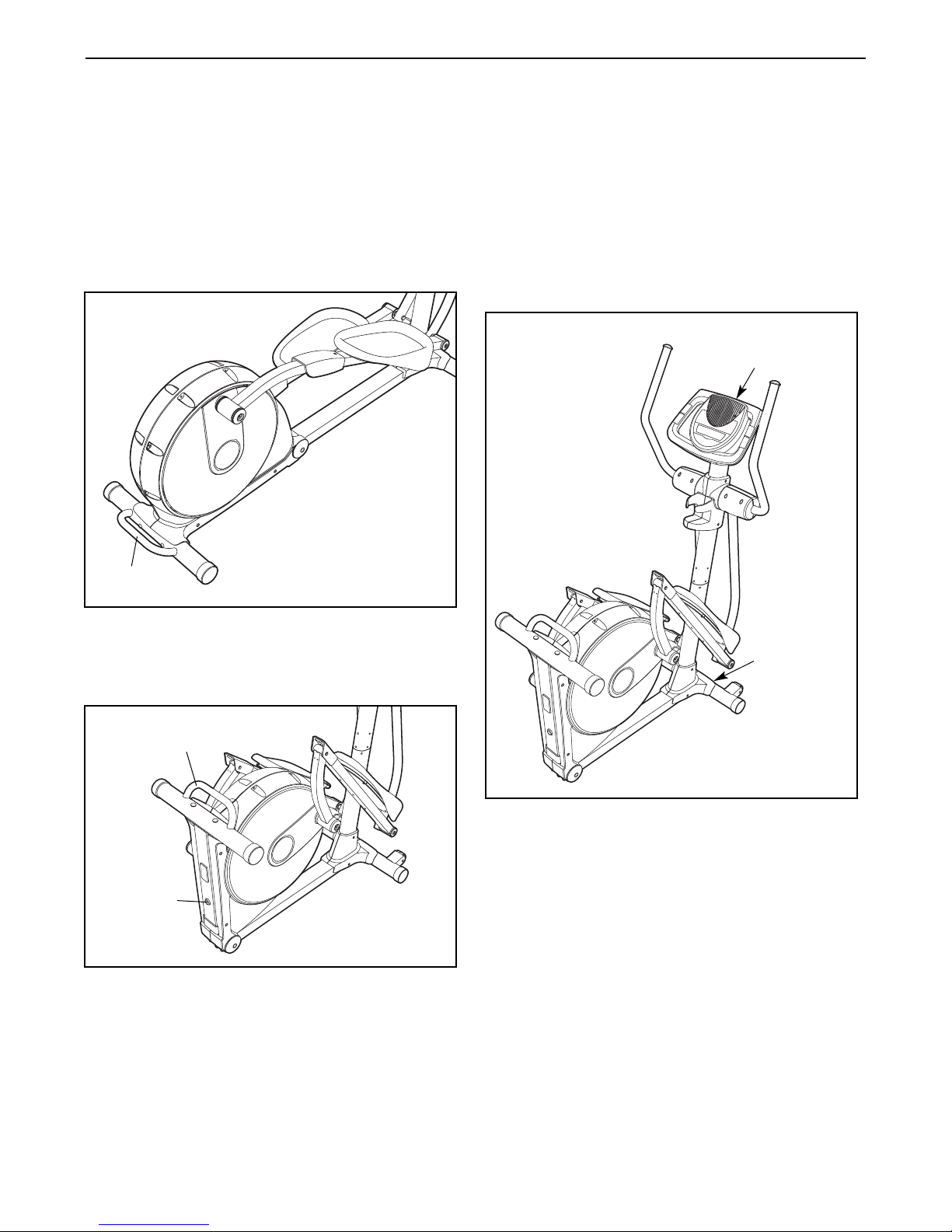

HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. To fold the elliptical exerciser, lift the handle on the rear of the elliptical exerciser
until the elliptical exerciser locks into the vertical position.
To unfold the elliptical exerciser, first hold the handle,
press the latch button, and then lower the frame to the
floor.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the elliptical exerciser and place one foot against the center of
the front stabilizer. Pull the transport handle backward
until the elliptical exerciser will roll on the front wheels.
Carefully move the elliptical exerciser to the desired
position, and then lower it.
Handle
Handle
Place
your foot
here
Transport
Handle
Latch
Button
12
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest position. Next, step onto the other pedal. Push the pedals
until they begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right; however, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Pedals
Crank Arm
Upper Body Arms
13
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback. You can even measure
your heart rate using the handgrip pulse sensor.
The console also features six interactive cross training
programs designed to help you to burn calories and
enhance your cardiovascular system while toning and
strengthening your muscles. The cross training programs automatically control the resistance of the pedals and prompt you to perform a variety of strength
exercises during your workout. Choose an upper body,
lower body, or total body cross training program for an
effective workout. Note: The strength exercises require
the use of dumbbells and an inflatable exercise ball
(not included). To purchase dumbbells or an exer-
cise ball, call the toll-free telephone number on the
front cover of this manual.
The console also offers two heart rate programs that
automatically control the resistance of the pedals and
prompt you to maintain a constant pedaling pace to
keep your heart rate near target heart rate settings during your workouts.
To use the manual mode of the console, follow the
steps beginning on page 14. To use a cross training
program, see page 15. To use a heart rate program,
see page 17.
Note: If there is a sheet of clear plastic on the face
of the console, remove the plastic.
14
HOW TO USE THE MANUAL MODE
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select the manual mode.
Each time you turn on the console, the manual
mode will be selected automatically. If you have
selected a program, reselect the manual mode by
pressing the Programs button repeatedly until the
words MANUAL MODE appear in the display.
Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Resistance increase and
decrease buttons repeatedly. There are ten resistance levels. Note: After you press the buttons, it
will take a moment for the pedals to reach the
selected resistance level.
Follow your progress with the display.
The left side of the
display—This side of
the display will show
the elapsed time.
Note: When a program is selected,
except for the heart rate control program, the display will show the time remaining in the program
instead of the elapsed time.
The left side of the display will also show your
heart rate when you use the handgrip pulse sensor (see step 5 on this page).
Note: When a program is selected, the left side of
the display will also show the approximate number of calories you have burned.
The center of the
display—When you
select the manual
mode, the center of
the display will show
a track that represents 640 revolutions. As you exercise, indicators
will appear in succession around the track until
the entire track appears. The track will then disappear and the indicators will again begin to appear
in succession.
The center of the display will also show the
resistance level of the
pedals for a few seconds each time the
resistance level
changes.
The right side of the
display—This side of
the display will show
the distance, in total
revolutions, you have
pedaled. Note: When
a program is selected, the right side of the display
will also show your pedaling pace in revolutions
per minute (rpm).
The top of the display—When you select the
manual mode, the top of the display will show the
approximate number of calories you have burned
and your pedaling pace in revolutions per minute
(rpm).
Measure your heart rate if desired.
If there are sheets of
clear plastic on the
metal contacts on
the handgrip pulse
sensor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor with your
palms resting against
the metal contacts. Avoid moving your hands
or gripping the contacts too tightly.
When your pulse is
detected, a heartshaped symbol will
flash in the left side of
the display each time
your heart beats, one
or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15 seconds. Note: If you continue to hold the handgrip
pulse sensor, the display will show your heart
rate for up to 30 seconds.
5
4
3
2
1
Metal Contacts
15
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using
a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
Turn on the fan if desired.
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
button a second time. To turn off the fan, press
the button a third time. Note: If the pedals do not
move for a few minutes, the fan will automatically
turn off to conserve the batteries.
Pivot the thumb tab
on the right side of
the fan to adjust the
fan angle.
When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for about five minutes
and the buttons are not pressed, the console will
turn off and the display will be reset.
HOW TO USE A CROSS TRAINING PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select one of the six cross training programs.
To select a cross training program, press the
Programs button repeatedly until the name of the
desired cross training program appears in the display. When you select a cross training program,
the program time will appear in the display and a
profile of the resistance levels for the program will
scroll across the center of the display.
Begin pedaling to start the program.
Each program is divided into 25, 30, or 45 oneminute segments. One resistance level and one
target rpm (revolutions per minute) setting are
programmed for most segments. (Note: The same
resistance level and/or target rpm setting may be
programmed for two or more consecutive segments.) During other segments, the console will
prompt you to perform strength exercises.
The resistance level
for the first segment
will appear in the
flashing Current
Segment column in
the display. The resistance levels for the next several segments will
appear in the columns to the right. The target rpm
setting will appear in the top of the display.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and
a series of tones will sound. If the resistance level
and/or target rpm is about to change, the resistance level and/or the target rpm setting will
appear in the display to alert you.
3
2
1
7
6
Thumb
Ta b
Current Segment
16
When the first segment is completed,
all resis-
tance levels will move one column to the left
. The
resistance level for the second segment will then
appear in the flashing Current Segment column
and the pedals will automatically adjust to the
resistance level for the second segment. Note: If
all the indicators in the Current Segment column
are lit,
the resistance levels may move downward
so that only the highest indicators appear in the
matrix.
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear,
decrease your pace. When the words PEDALING
IN RANGE appear, maintain your current pace.
Important: The target rpm settings are intended only to provide motivation. Your actual
pace may be slower than the target rpm settings. Make sure to exercise at a pace that is
comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance decrease or
increase buttons. Every few times you press a
Resistance button, an additional indicator will
appear or disappear in the Current Segment column; if any of the columns to the right of the
Current Segment column have the same number
of lit indicators as the Current Segment column,
an additional indicator may appear or disappear
in those columns as well. Important: When the
current segment of the program ends, the pedals will automatically adjust to the resistance
level for the next segment.
To stop the program at any time, stop pedaling.
The time will begin to flash in the display. To
restart the program, simply resume pedaling.
Perform the first strength exercise when
prompted.
When the first strength exercise segment begins,
the name of the first strength exercise will appear
in the display for a few seconds. The time will
pause and flash in the display.
Next, the display will show the recommended
number of repetitions for the first strength exercise.
Step off the elliptical exerciser and prepare to
begin the first strength exercise. Every few seconds, the console will sound a tone; when a tone
sounds, perform one repetition of the exercise.
Exercise with a slow, steady motion; do not perform more than one repetition each time a tone
sounds. The display will count down the repetitions as you perform them.
Note: Refer to the accompanying exercise chart
to see the correct form for each exercise. When
performing lunges, alternate legs with each repetition. When performing dumbbell rows, perform
half the repetitions with your right arm and half
the repetitions with your left arm. The strength
exercises require the use of dumbbells and an
inflatable exercise ball (not included). To pur-
chase dumbbells or an exercise ball, call the
toll-free telephone number on the front cover
of this manual.
Continue the cross training program.
When you have performed the recommended
number of repetitions, the words START PEDALING will appear in the display. To continue the
cross training program, step onto the exerciser
and start pedaling. The pedals will automatically
adjust to the resistance level for the next segment.
The program will continue in this way until the last
segment ends. Then, the words PROGRAM
DONE will appear in the display.
5
4
17
Follow your progress with the display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
HOW TO USE A HEART RATE PROGRAM
Press the Resistance decrease button or
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select one of the two heart rate programs.
To select a heart rate program, press the
Programs button repeatedly until HEART RATE
PROFILE or HEART RATE CONTROL appears in
the display.
If you select the heart rate profile program, the
maximum target heart rate setting will flash and a
profile of the target heart rate settings for the program will scroll across the center of the display.
If you select the heart rate control program,
the target heart rate setting for the program will
flash in the display.
Enter a target heart rate setting.
If you select the heart rate profile program, the
maximum target heart rate setting of the program
will flash in the display. Use the Resistance
increase and decrease buttons to change the
maximum heart rate setting, if desired. Note: If
you change the maximum target heart rate setting, the intensity level of the entire program will
change.
If you select the heart rate control program,
the target heart rate setting for the program will
flash in the display. Use the Resistance increase
and decrease buttons to change the target heart
rate setting, if desired. Note: The same target
heart rate setting will be used for the entire program.
Hold the handgrip pulse sensor.
It is not necessary to
hold the handgrip pulse
sensor continuously
during a heart rate program; however, you
should hold the handgrip pulse sensor frequently for the program to
operate properly. Each time you hold the hand-
grip pulse sensor, keep your hands on the
metal contacts for at least 30 seconds. When
you are not holding the handgrip pulse sensor,
the letters PLS will appear in the display instead
of your heart rate.
Begin pedaling to start the program.
Heart rate profile program—This program is
divided into 30 one-minute segments. One target
heart rate setting is programmed for each segment. Note: The same target heart rate setting
may be programmed for two or more consecutive
segments.
The target heart rate setting for the first segment
will be shown in the flashing Current Segment
column of the display. The target heart rate settings for the next several segments will be shown
in the columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
all target heart
rate settings will move one column to the left.
The
target heart rate setting for the second segment
will then be shown in the flashing Current
Segment column.
5
4
3
2
1
9
8
7
6
18
The program will continue in this way until the last
segment ends. Then, the words PROGRAM
DONE will appear in the display.
Heart rate control program—The same target
heart rate is programmed for all segments of this
program.
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to
the target heart rate setting. If your heart rate is
too far below or above the target heart rate, the
resistance of the pedals will automatically increase
or decrease to bring your heart rate closer to the
target heart rate.
You will also be prompted to pedal at a steady
pace. When the words PEDAL FASTER appear in
the display, increase your pace. When the words
PEDAL SLOWER appear in the display, decrease
your pace. When the words PEDALING IN
RANGE appear, maintain your current pace.
Important: Make sure to exercise at a pace
that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance decrease or
increase buttons; however, you might not maintain the target heart rate. Also, when the console
compares your heart rate to the target heart rate
setting, the resistance of the pedals may automatically increase or decrease to bring your heart
rate closer to the target heart rate setting.
Follow your progress with the display.
See step 4 on page 14.
Measure your heart rate if desired.
See step 5 on page 14.
Turn on the fan if desired.
See step 6 on page 15.
When you are finished exercising, the console
will turn off automatically.
See step 7 on page 15.
9
8
7
6
19
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 9 on page
9 for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—never use alco-
hol, abrasives, or chemicals to clean the contacts.
HOW TO ADJUST THE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest setting, the
belt may need to be adjusted. To adjust the belt, first
see assembly step 12 on page 10 and remove the left
pedal arm and the left link arm.
Then, carefully
pry off the left
Disc Cover (13)
using a flat
screwdriver.
Next, remove the
four screws (not
shown) from the
center of the left
Disc (12). Gently
rotate the Disc
Cover and the
Disc away from the elliptical exerciser.
Loosen, but do
not remove, the
three indicated
screws (A). Insert
the shaft of a
screwdriver
downward
between the
Idler (47) and the
Idler Pulley (48).
Pull the top of the
screwdriver
toward the front
of the elliptical exerciser until the Belt (74) is tight.
Then, tighten the three screws.
Reattach the left disc with the four screws and then
reattach the left disc cover. Next, see assembly step
12 on page 10 and reattach the left pedal arm and the
left link arm.
MAINTENANCE AND TROUBLESHOOTING
47
13
12
48
A
74
20
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses
carbohydrate calories
for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories
for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
21
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
1
2
3
4
5
22
NOTES
23
NOTES
24
1 1 Frame
2 1 Folding Frame
3 1 Rear Stabilizer
4 1 Front Stabilizer
5 1 Left Pedal Bracket
6 1 Right Pedal Bracket
7 4 Upper Bushing Assembly
8 2 Upper Body Arm Endcap
9 2 Upper Body Leg Spacer
10 1 Upright
11 1 Console
12 2 Disc
13 2 Disc Cover
14 1 Left Side Shield
15 1 Right Side Shield
16 4 Stabilizer Endcap
17 2 Wheel
18 2 Link Axle
19 1 Left Upright Cover
20 1 Right Upright Cover
21 2 Pivot Bushing
22 1 Left Upper Body Arm
23 1 Right Upper Body Arm
24 1 Left Upper Body Leg
25 1 Latch Axle
26 1 Left Rear Upper Body Cover
27 1 Left Front Upper Body Cover
28 1 Right Rear Upper Body Cover
29 1 Right Front Upper Body Cover
30 2 Link Arm
31 6 M8 x 23mm x 1mm Washer
32 2 Pedal Arm
33 4 M6 Washer
34 1 Left Pedal
35 1 Right Pedal
36 1 Left Frame Cover
37 1 Right Frame Cover
38 1 Latch Spring
39 2 Pedal Arm Cover
40 1 Center Foot
41 1 Latch Button
42 4 Link Bearing
43 2 Link Arm Pad
44 1 Eddy Mechanism
45 1 Eddy Crank Assembly
46 1 Pillow Block
47 1 Idler
48 1 Idler Pulley
49 1 Eddy Motor
50 1 Reed Switch/Wire
51 1 Clamp
52 2 Large Axle Cover
53 4 Pivot Arm Bushing
54 4 Link Snap Ring
55 2 Crank Arm
56 1 Crank Arm Spacer
57 1 Large Pulley
58 2 Crank Flange
59 2 Crank Bearing Assembly
60 1 Crank Spacer
61 1 Crank
62 2 Crank Snap Ring
63 2 Flange Screw
64 1 Lower Wire Harness
65 1 Upper Wire Harness
66 2 Axle Cover
67 4 Bushing Assembly
68 2 Brass Bushing
69 1 Latch Bracket
70 1 Pivot Axle
71 1 Upper Body Axle
72 1 Right Upper Body Leg
73 2 Upper Body Leg Endcap
74 1 Belt
75 2 Foam
76 1 Frame Cap
77 2 Transfer Handle Endcap
78 10 M4 x 16mm Screw
79 4 M4 x 16mm Flat Head Screw
80 21 M4 x 16mm Round Head Screw
81 8 M4 x 16mm Blunt Screw
82 4 M10 Nylon Locknut
83 8 M6 x 10mm Button Screw
84 6 M8 x 14mm Button Screw
85 8 M8 x 19mm Button Screw
86 4 M8 x 23mm Button Screw
87 12 M8 x 25mm Button Screw
88 5 M8 x 25mm Bolt Set
89 4 M8 x 35mm Button Screw
90 6 M8 x 45mm Button Screw
91 2 M10 x 60mm Button Bolt
92 2 M10 x 78mm Carriage Bolt
93 2 M10 x 80mm Button Screw
94 4 M6 Nylon Locknut
95 4 M8 Washer
96 8 M8 x 23mm x 2mm Washer
97 16 M8 Split Washer
98 2 M10 Washer
99 2 M10 Split Washer
100 2 M10 x 25mm Button Screw
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEL59107.0 R1107A
25
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
101 2 Wave Washer
102 4 Large Wave Washer
103 8 M8 Nylon Locknut
# 1 User’s Manual
# 2 Hex Key
# 1 Grease
Key No. Qty. Description Key No. Qty. Description
26
EXPLODED DRAWING A—Model No. PFEL59107.0 R1107A
39
8
75
29
23
7
85
96
28
80
83
6
83
83
35
86
97
84
97
80
7
84
72
95
97
66
31
67
9
67
102
32
96
97
96
97
73
90
80
37
82
85
31
100
21
98
1
25
38
21
70
69
41
78
98
40
100
31
85
80
91
17
16
92
11
82
17
101
91
78
4
80
71
16
77
101
7
96
97
19
65
80
24
85
97
85
80
26
84
34
97
82
36
80
73
39
102
67
95
83
67
80
83
32
96
97
96
97
90
66
86
9
5
83
31
85
68
80
22
97
20
10
68
7
27
80
80
77
8
27
EXPLODED DRAWING B—Model No. PFEL59107.0 R1107A
89
89
79
54
86
43
57
52
42
31
18
30
42
74
95
54
53
53
13
102
81
87
12
87
87
55
63
103
87
88
62
58
103
61
88
59
78
15
78
93
16
99
99
3
103
12
56
58
63
55
103
87
79
49
18
81
43
94
54
50
42
54
51
87
94
42
33
33
81
30
13
47
102
31
46
53
95
45
44
53
52
86
48
64
59
62
60
88
14
88
76
16
2
78
Part No. 247788 R1107A Printed in China © 2007 ICON IP, Inc.
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to
provide the following information when contacting us:
• the MODEL NUMBER of the product (PFEL59107.0)
• the NAME of the product (PROFORM 930 SPACE SAVER elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 24 to 27)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
