ProForm 831.23844.0 User Manual

Model No. 831.23844.0 Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

• Assembly

• Operation

• Maintenance

• Part List and Drawing

ELLIPTICAL EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE ELLIPTICAL EXERCISER .................................................. 12

MAINTENANCE AND TROUBLESHOOTING ................................................... 21

EXERCISE GUIDELINES ................................................................... 22

PART LIST .............................................................................. 24

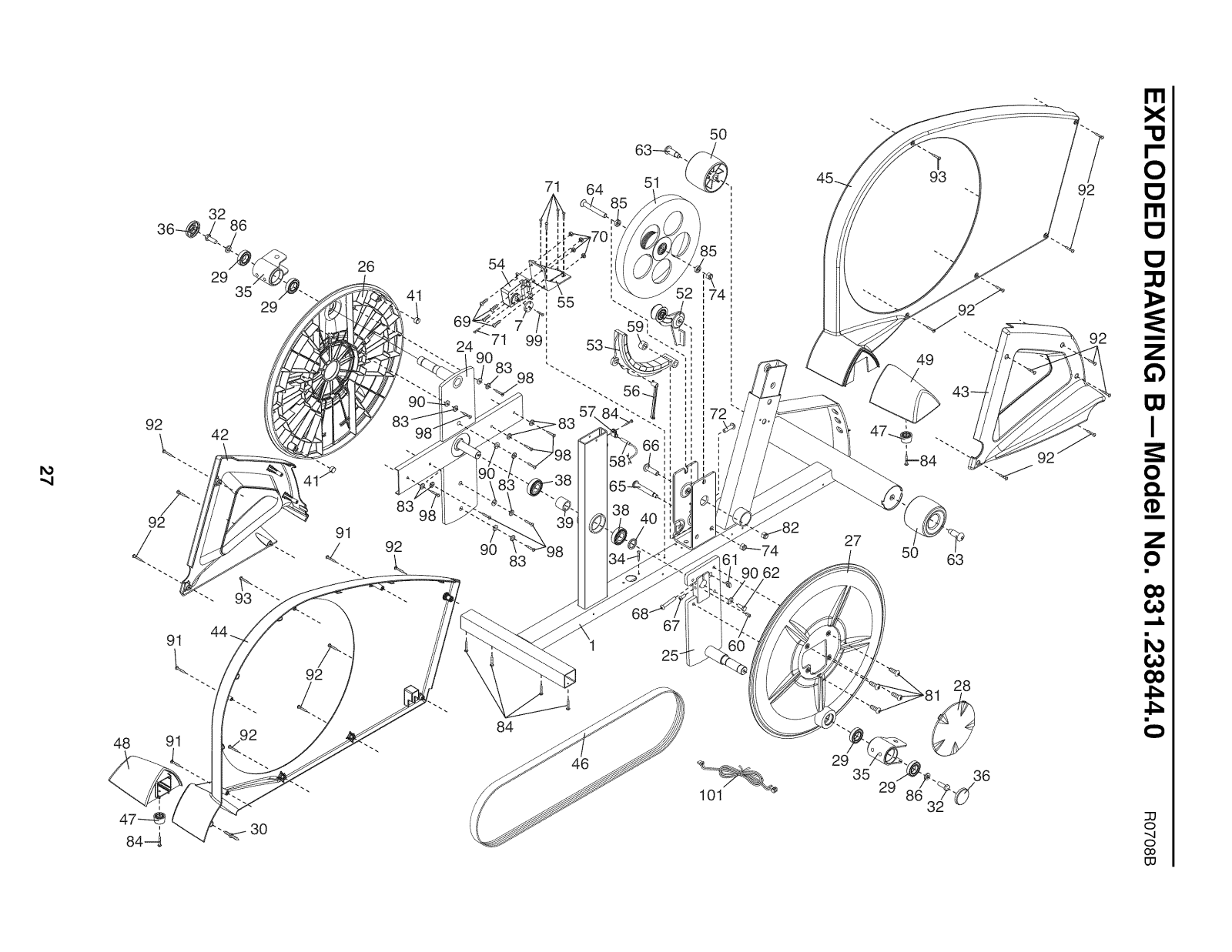

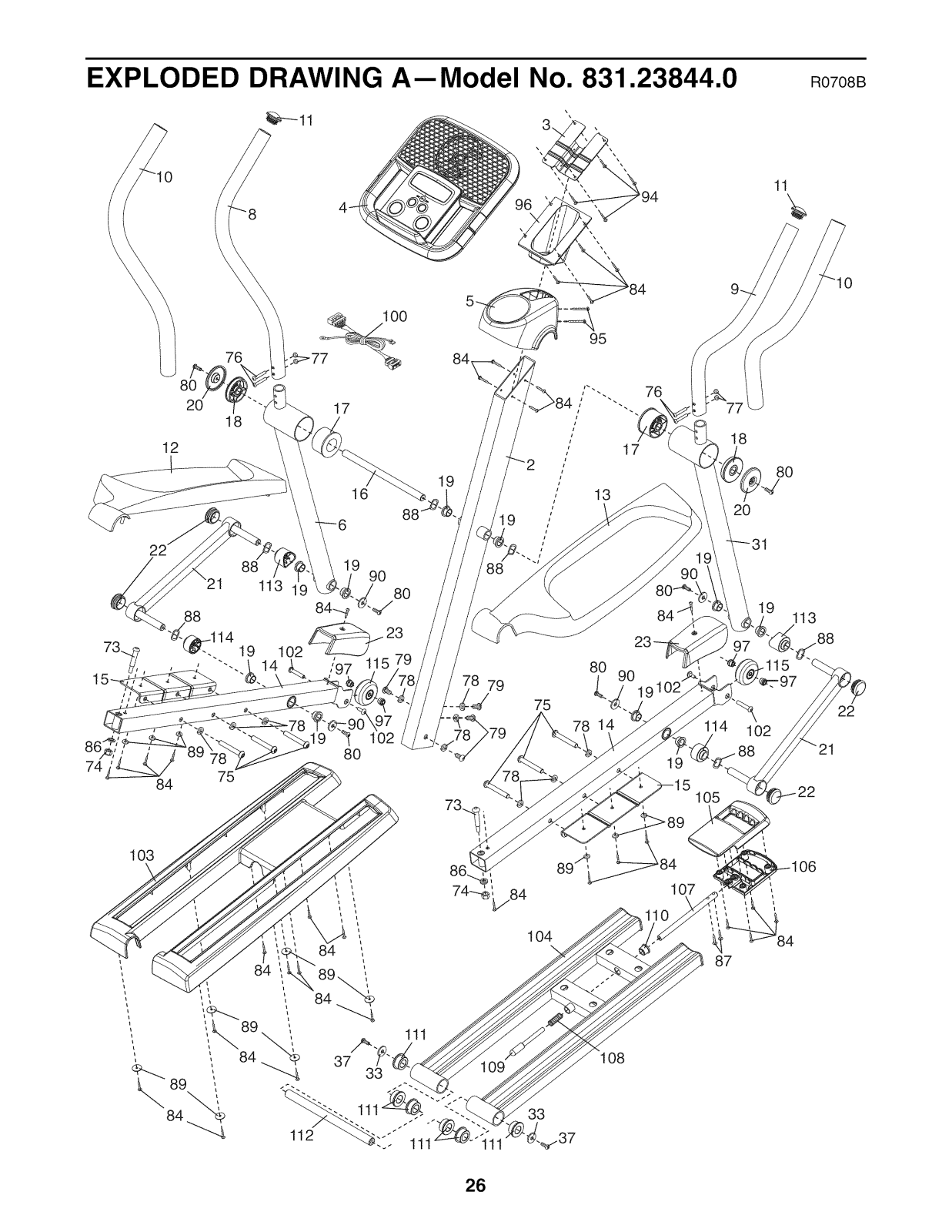

EXPLODED DRAWING .................................................................... 26

ORDERING REPLACEMENT PARTS .................................................. Back Cover

90 DAY FULL WARRANTY .......................................................... Back Cover

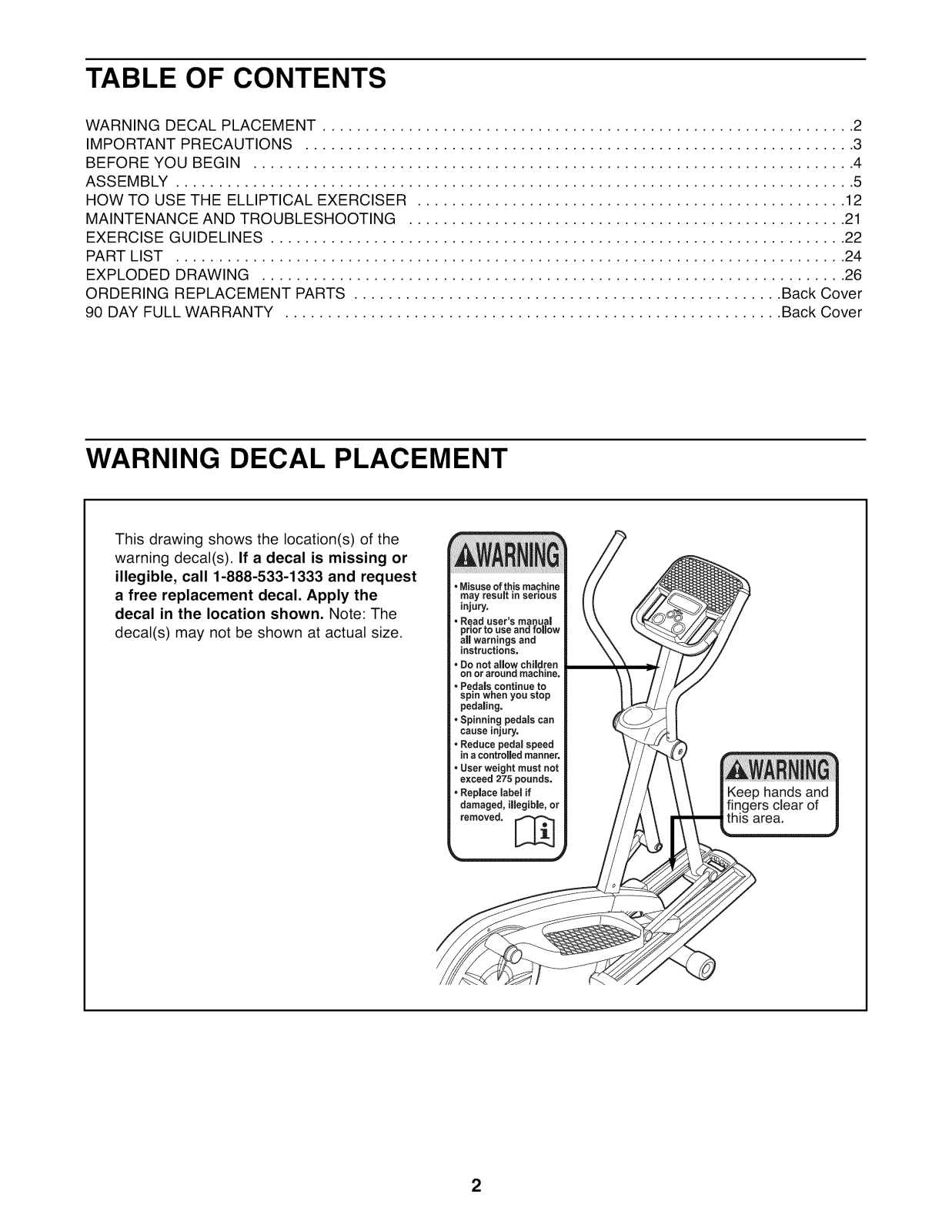

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, call 1-888-533-1333 and request a free replacement decal. Apply the

decal in the location shown. Note: The decal(s) may not be shown at actual size.

on or around machine.

, Pedals continue to

spin when you stop

pedaling.

* Spinning pedals can

cause injury.

* Reduce pedal speed

in a controlled manner.

, User weight must not

exceed 275 pounds.

, Replace label if

damaged, illegible, or

removed. [_

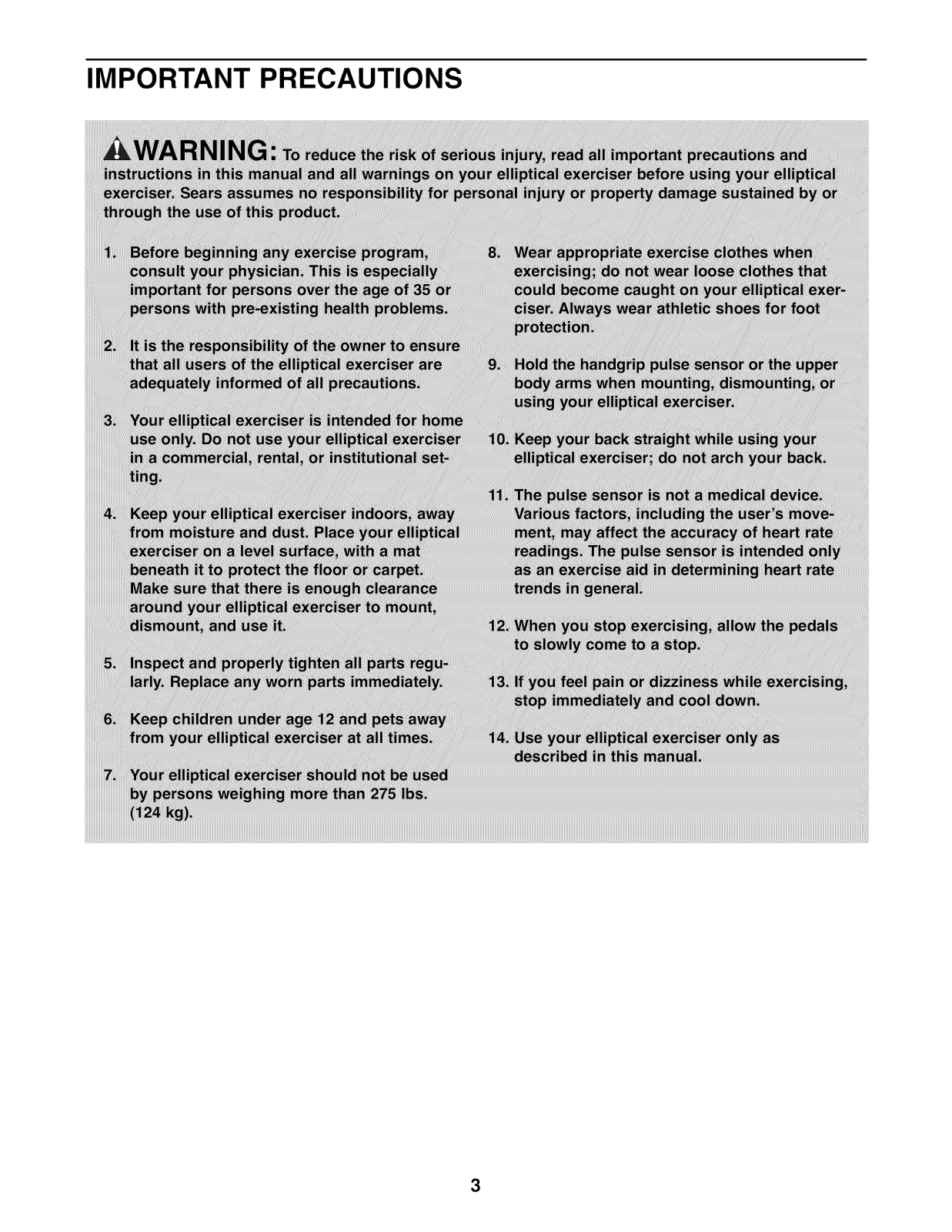

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for purchasing the revolutionary PROFORM XP TM THINLINE 480 elliptical exerciser.

The THINLINE 480 elliptical exerciser provides a wide array of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the back

Upper Body Arm

Water Bottle Holder*

cover of this manual. To help us assist you, note the product model number and serial number before con- tacting us. The model number and the location of the

serial number decal are shown on the front cover of this manual.

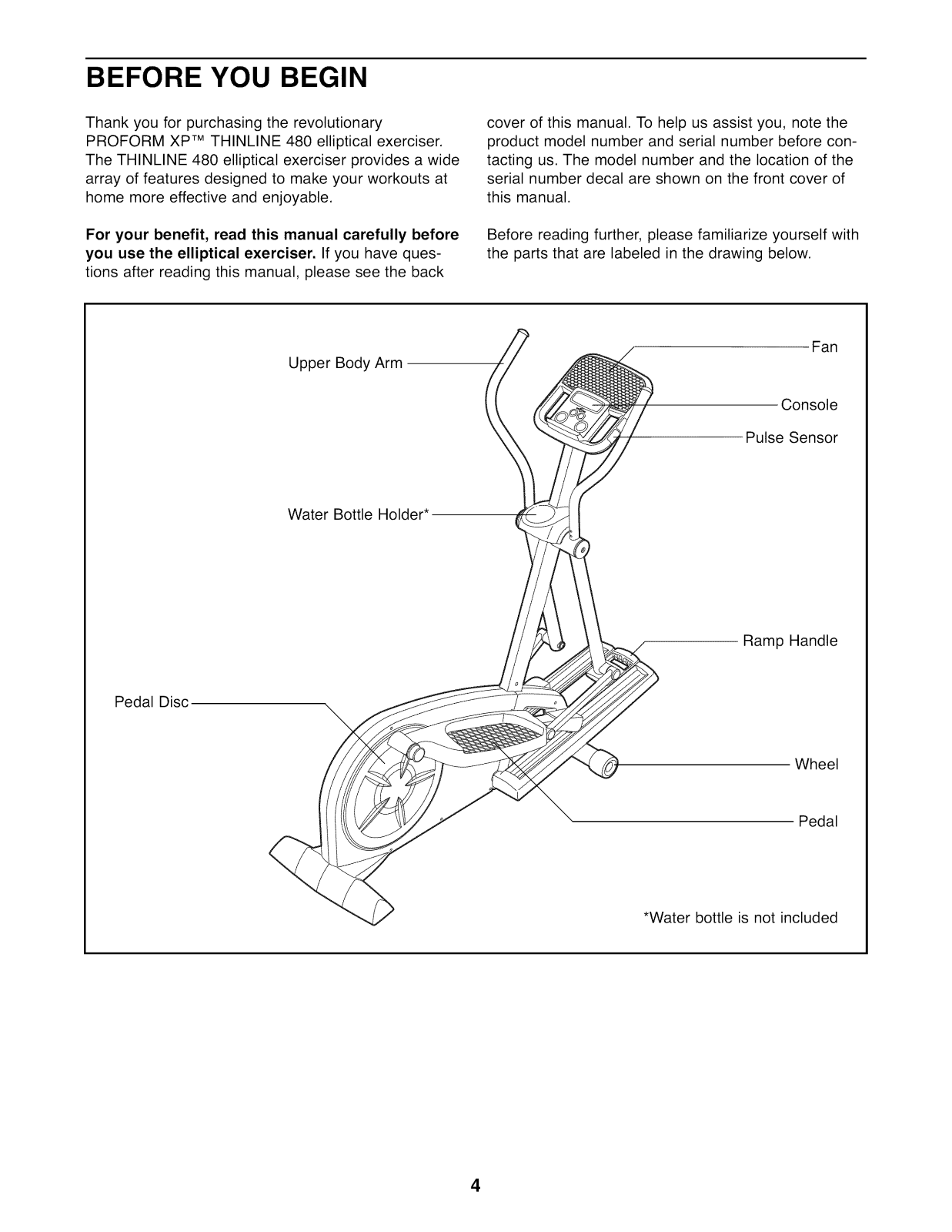

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Fan

Console

Pulse Sensor

Pedal Disc

Ramp Handle

Wheel

Pedal

*Water bottle is not included

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

Assembly requires the included tools and your own Phillips screwdriver _, adjustable wrench _, and rubber mallet

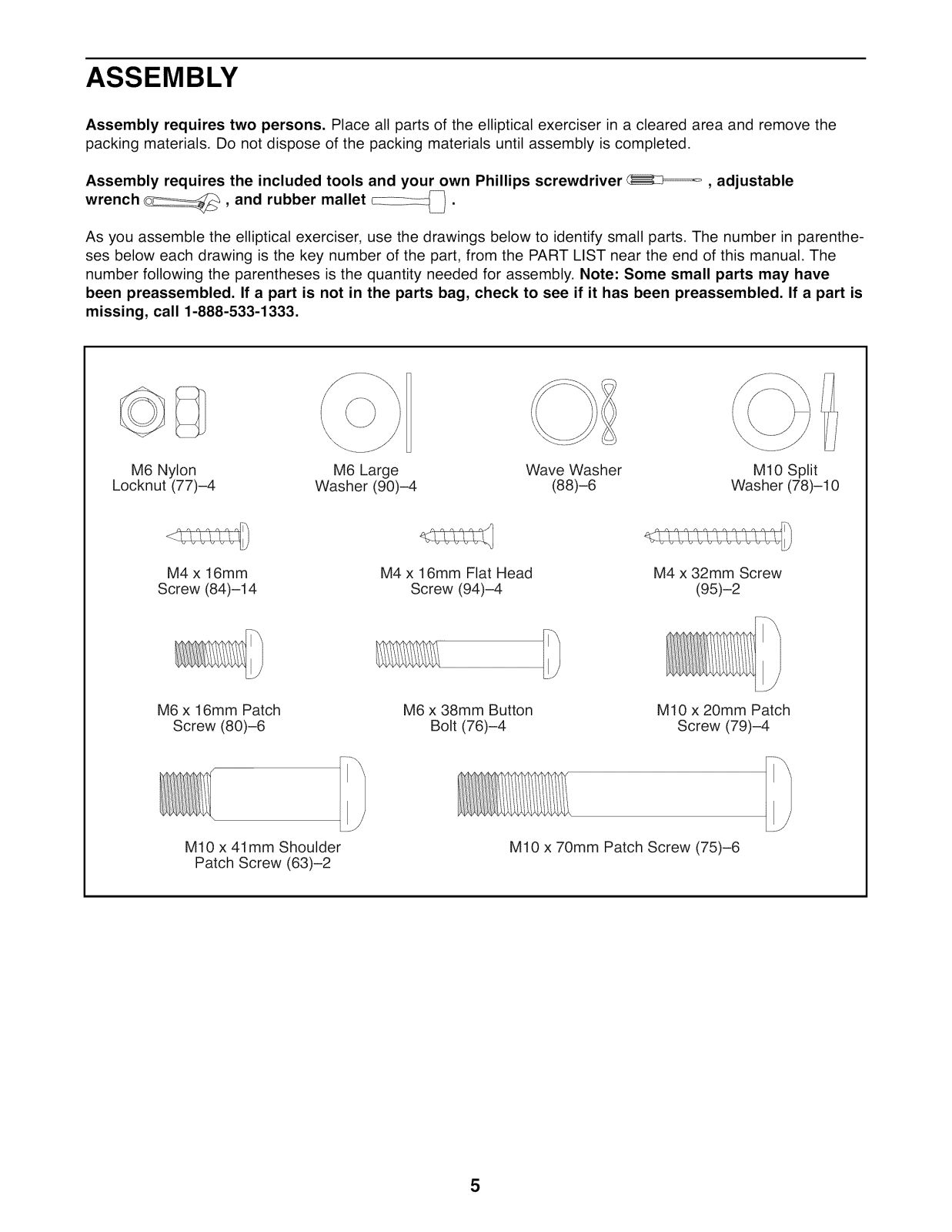

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe- ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in the parts bag, check to see if it has been preassembled. If a part is missing, call 1-888-533-1333.

M6 Nylon

Locknut (77)-4

M4 x 16mm

Screw (84)-14

M6 x 16mm Patch

Screw (80)-6

M10 x 41mm Shoulder

Patch Screw (63)-2

M6 Large Wave Washer

Washer (90)-4 (88)-6

M4 x 16mm Flat Head

Screw (94)-4

M6 x 38mm Button

Bolt (76)-4

M10 x 70mm Patch Screw (75)-6

MIO Split

Washer (78)-10

M4 x 32mm Screw

(95)-2

M10 x 20mm Patch

Screw (79)-4

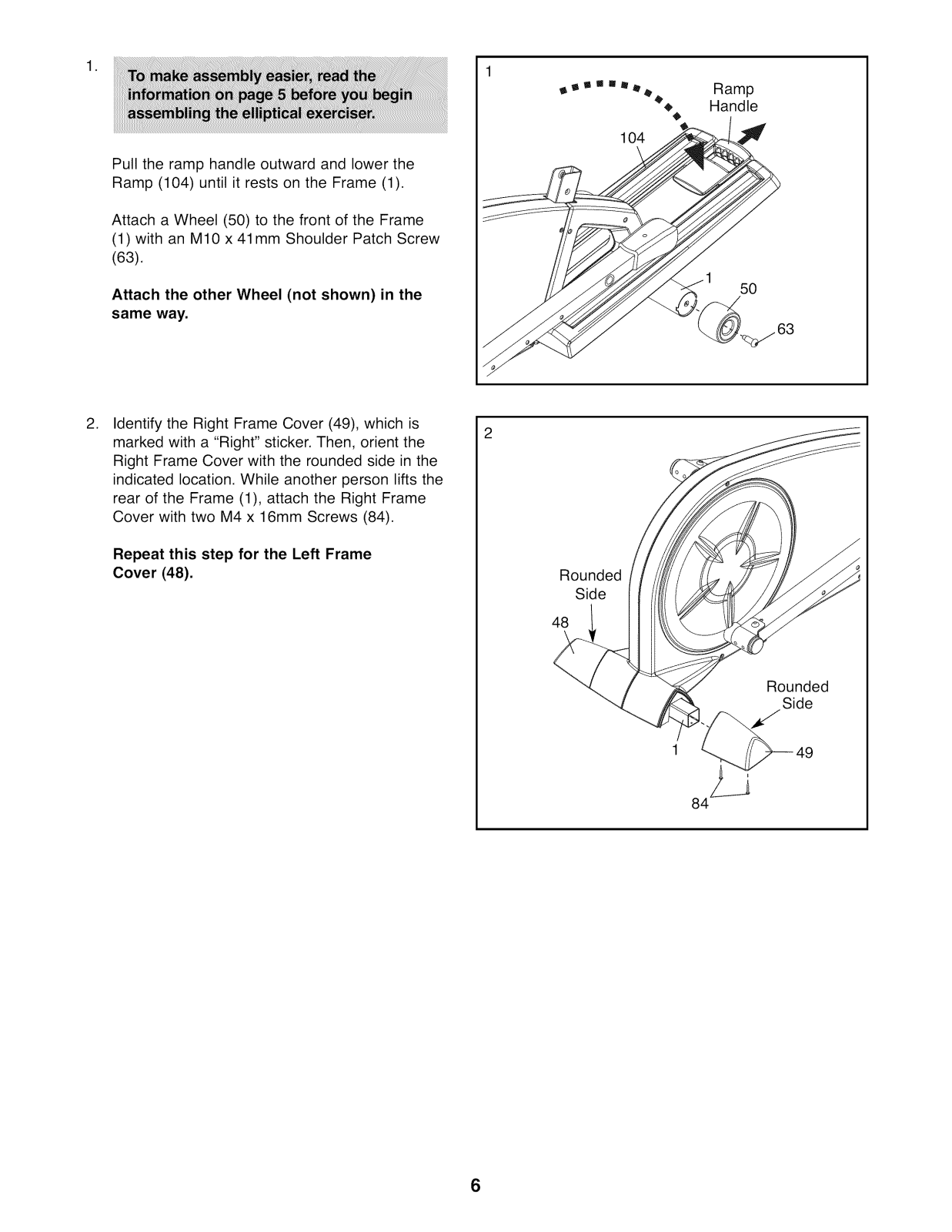

Pull the ramp handle outward and lower the Ramp (104) until it rests on the Frame (1).

Attach a Wheel (50) to the front of the Frame (1) with an M10 x 41 mm Shoulder Patch Screw (63).

Attach the other Wheel (not shown) in the same way.

Identify the Right Frame Cover (49), which is marked with a "Right" sticker. Then, orient the Right Frame Cover with the rounded side in the indicated location. While another person lifts the rear of the Frame (1), attach the Right Frame

Cover with two M4 x 16mm Screws (84).

104

Repeat this step for the Left Frame

Cover (48). Rounded

Side

Rounded

Side

Tip: Do not pinch the Wire Harness (100). Start all screws before tightening any of

them.

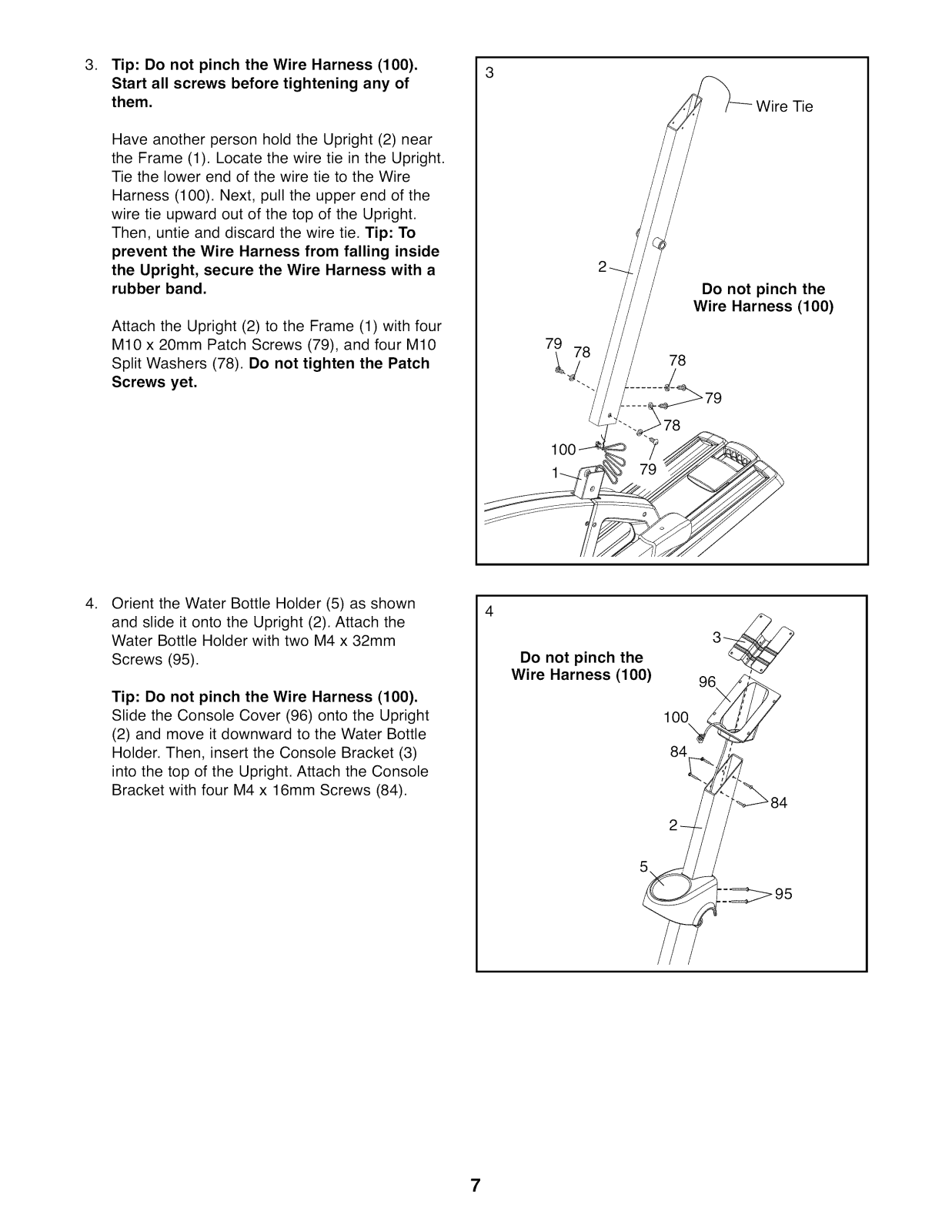

Have another person hold the Upright (2) near the Frame (1). Locate the wire tie in the Upright.

Tie the lower end of the wire tie to the Wire Harness (100). Next, pull the upper end of the

wire tie upward out of the top of the Upright. Then, untie and discard the wire tie. Tip: To

prevent the Wire Harness from falling inside the Upright, secure the Wire Harness with a

rubber band.

Attach the Upright (2) to the Frame (1) with four M10 x 20mm Patch Screws (79), and four M10 Split Washers (78). Do not tighten the Patch Screws yet.

79 78

Wire Tie

Do not pinch the

Wire Harness (100)

Orient the Water Bottle Holder (5) as shown and slide it onto the Upright (2). Attach the

Water Bottle Holder with two M4 x 32mm Screws (95).

Tip: Do not pinch the Wire Harness (100).

Slide the Console Cover (96) onto the Upright (2) and move it downward to the Water Bottle Holder. Then, insert the Console Bracket (3) into the top of the Upright. Attach the Console Bracket with four M4 x 16mm Screws (84).

Do not pinch the

Wire Harness (100)

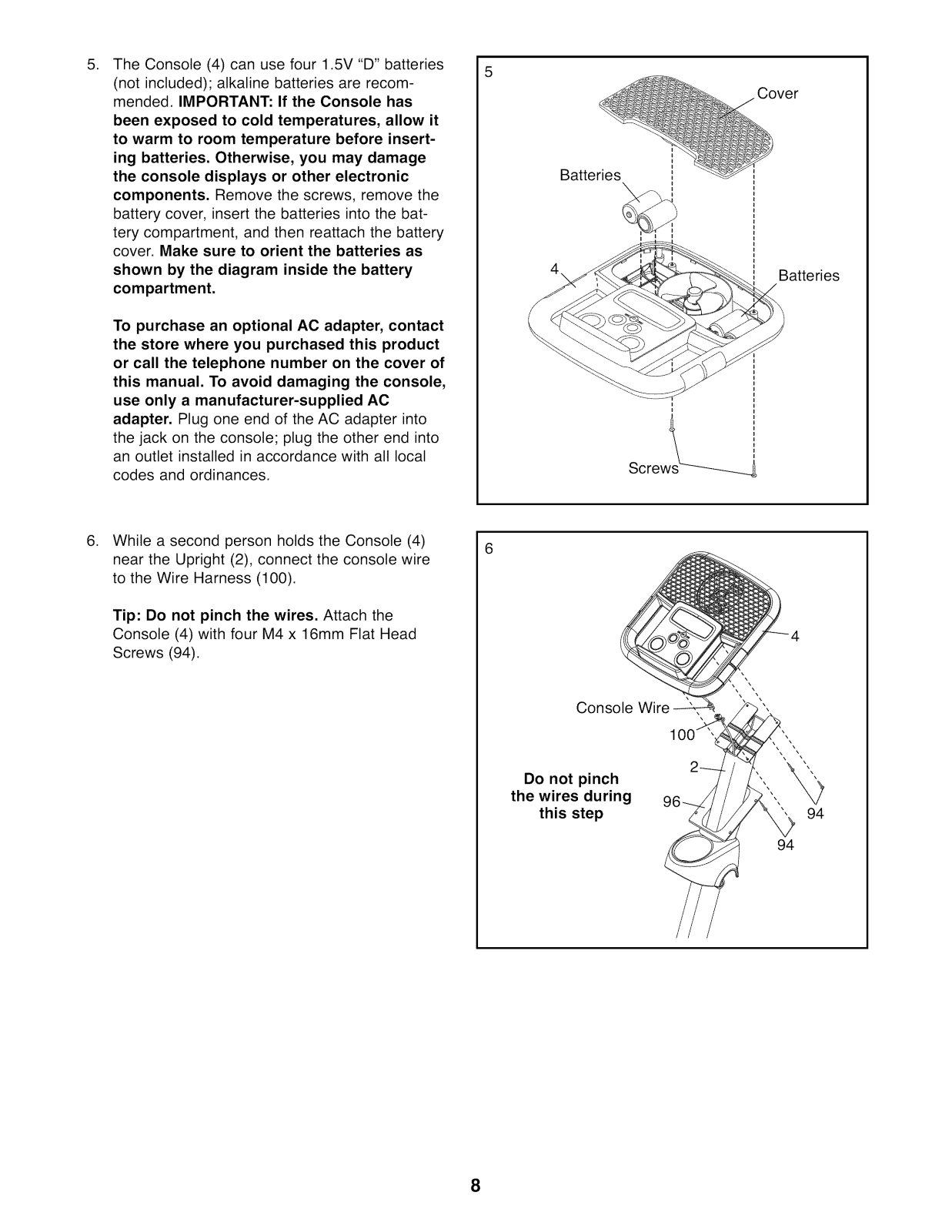

The Console (4) can use four 1.5V "D" batteries

(not included); alkaline batteries are recom- mended. IMPORTANT: If the Console has

been exposed to cold temperatures, allow it

to warm to room temperature before insert-

ing batteries. Otherwise, you may damage

the console displays or other electronic

components. Remove the screws, remove the battery cover, insert the batteries into the bat-

tery compartment, and then reattach the battery cover. Make sure to orient the batteries as

shown by the diagram inside the battery

compartment.

To purchase an optional AC adapter, contact the store where you purchased this product or call the telephone number on the cover of this manual. To avoid damaging the console,

use only a manufacturer-supplied AC

adapter. Plug one end of the AC adapter into the jack on the console; plug the other end into

an outlet installed in accordance with all local

codes and ordinances.

Batteries

',' C ver

Batteries

Scre

While a second person holds the Console (4)

near the Upright (2), connect the console wire

to the Wire Harness (100).

Tip: Do not pinch the wires. Attach the Console (4) with four M4 x 16mm Flat Head Screws (94).

Console

Do not pinch

the wires during

this step

SlidetheConsoleCover(96)(seethedrawing

7. 7 instep6)upwardtotheConsole(4).Attachthe ConsoleCoverwithfourM4x 16mmScrews

(84).

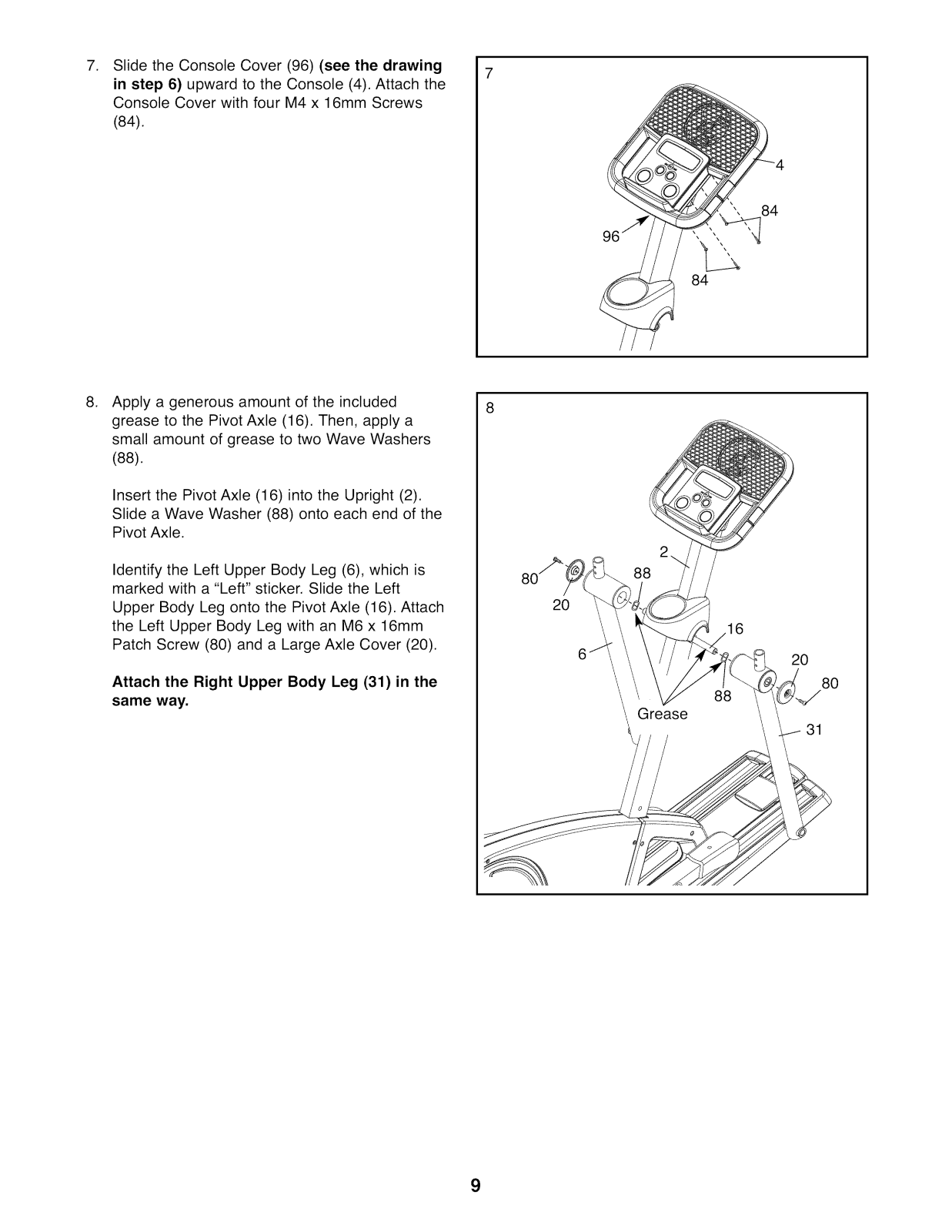

Apply a generous amount of the included grease to the Pivot Axle (16). Then, apply a small amount of grease to two Wave Washers (88).

Insert the Pivot Axle (16) into the Upright (2). Slide a Wave Washer (88) onto each end of the

Pivot Axle.

Identify the Left Upper Body Leg (6), which is marked with a "Left" sticker. Slide the Left

Upper Body Leg onto the Pivot Axle (16). Attach the Left Upper Body Leg with an M6 x 16mm Patch Screw (80) and a Large Axle Cover (20).

Attach the Right Upper Body Leg (31) in the same way.

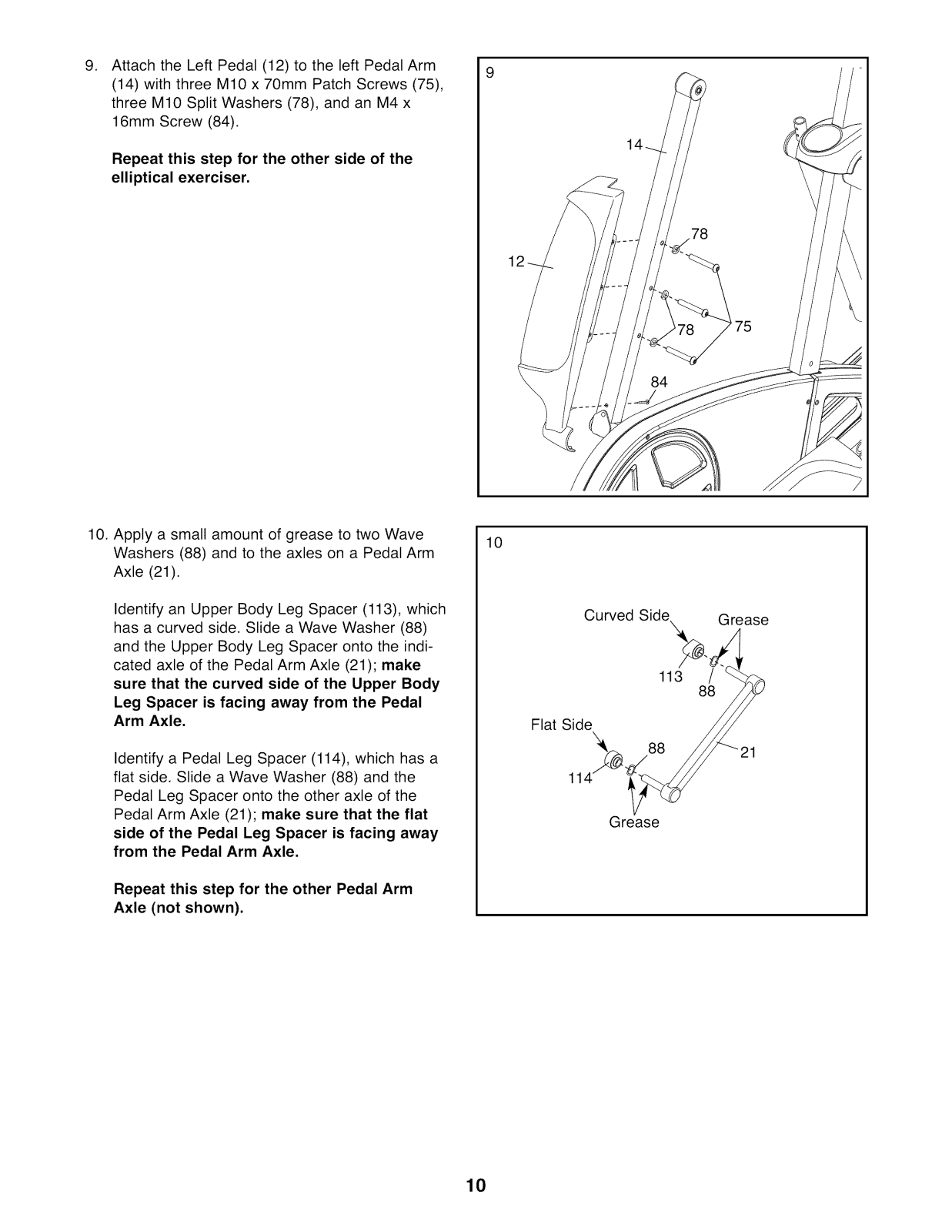

Attach the Left Pedal (12) to the left Pedal Arm

9. 9 (14) with three M10 x 70mm Patch Screws (75),

three M10 Split Washers (78), and an M4 x 16mm Screw (84).

Repeat this step for the other side of the elliptical exerciser.

10. Apply a small amount of grease to two Wave Washers (88) and to the axles on a Pedal Arm Axle (21).

Identify an Upper Body Leg Spacer (113), which has a curved side. Slide a Wave Washer (88) and the Upper Body Leg Spacer onto the indi- cated axle of the Pedal Arm Axle (21); make

sure that the curved side of the Upper Body Leg Spacer is facing away from the Pedal

Arm Axle.

Identify a Pedal Leg Spacer (114), which has a flat side. Slide a Wave Washer (88) and the Pedal Leg Spacer onto the other axle of the Pedal Arm Axle (21); make sure that the flat side of the Pedal Leg Spacer is facing away

from the Pedal Arm Axle.

Repeat this step for the other Pedal Arm Axle (not shown).

Flat Side

Curved

Grease

113

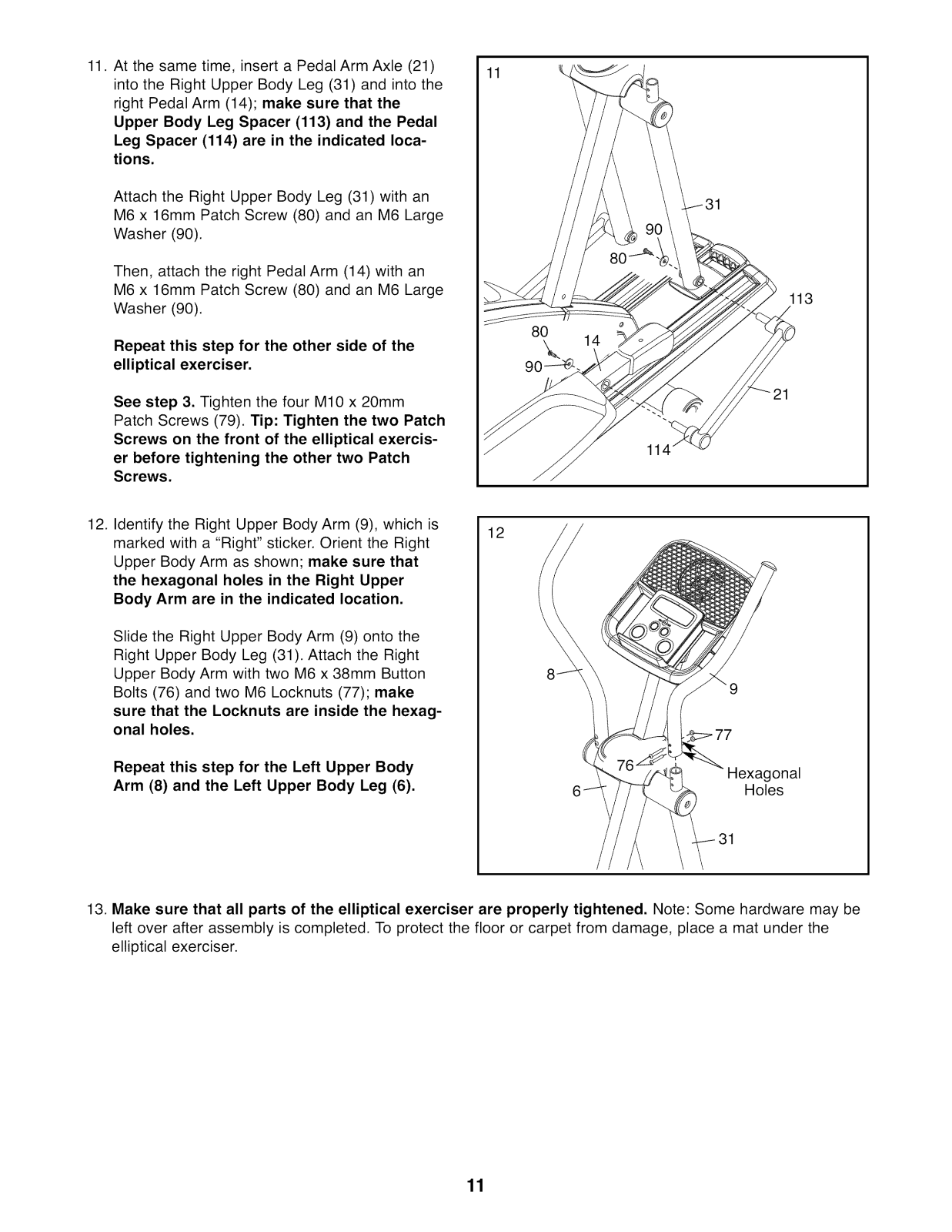

11. At the same time, insert a Pedal Arm Axle (21) into the Right Upper Body Leg (31) and into the right Pedal Arm (14); make sure that the

Upper Body Leg Spacer (113) and the Pedal Leg Spacer (114) are in the indicated loca-

tions.

Attach the Right Upper Body Leg (31) with an M6 x 16mm Patch Screw (80) and an M6 Large Washer (90).

Then, attach the right Pedal Arm (14) with an M6 x 16mm Patch Screw (80) and an M6 Large Washer (90).

113

Repeat this step for the other side of the elliptical exerciser.

See step 3. Tighten the four M10 x 20mm Patch Screws (79). Tip: Tighten the two Patch Screws on the front of the elliptical exercis- er before tightening the other two Patch

Screws.

12. Identify the Right Upper Body Arm (9), which is marked with a "Right" sticker. Orient the Right Upper Body Arm as shown; make sure that

the hexagonal holes in the Right Upper

Body Arm are in the indicated location.

Slide the Right Upper Body Arm (9) onto the Right Upper Body Leg (31). Attach the Right Upper Body Arm with two M6 x 38mm Button Bolts (76) and two M6 Locknuts (77); make

sure that the Locknuts are inside the hexag- onal holes.

Repeat this step for the Left Upper Body

Arm (8) and the Left Upper Body Leg (6).

114

onal

Holes

13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be

left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.

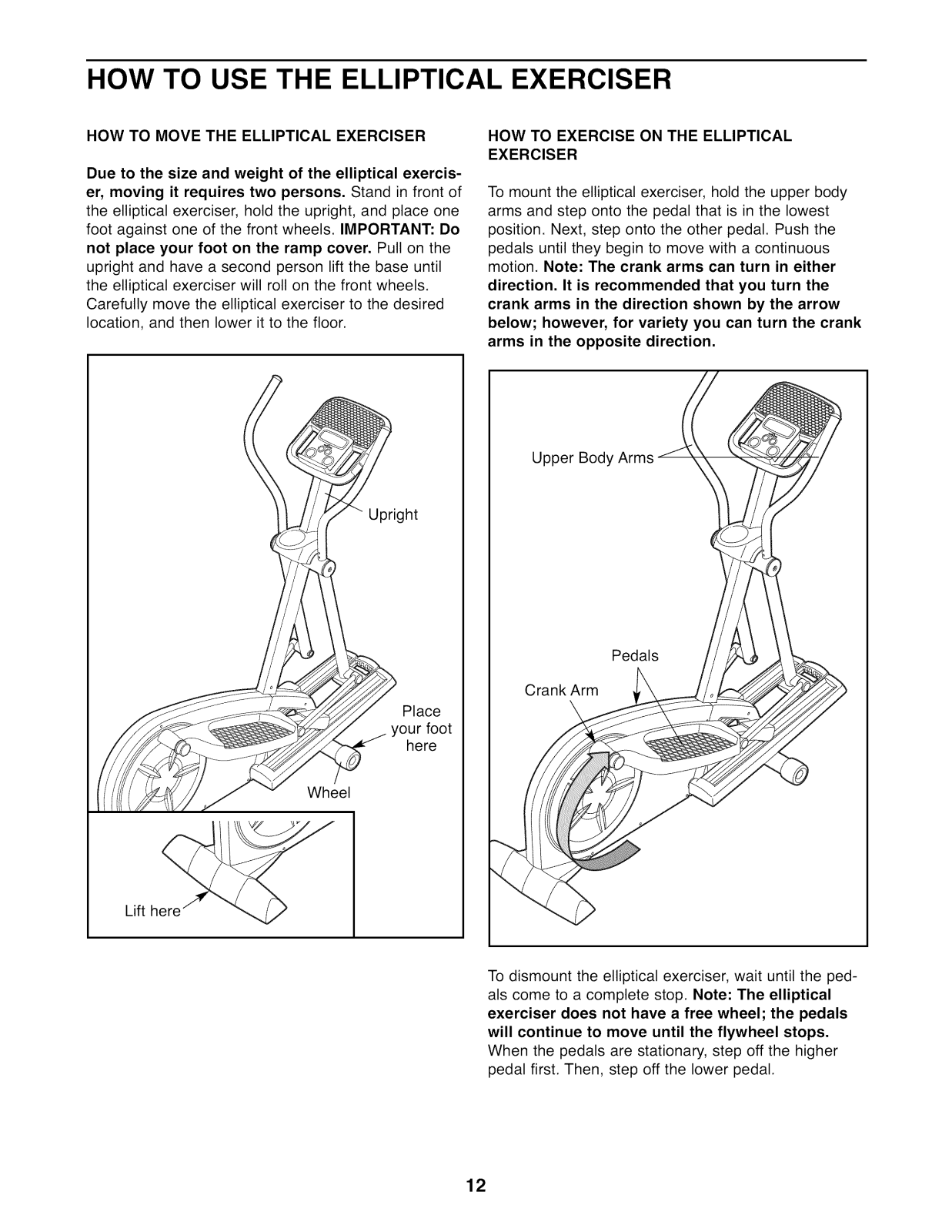

HOW TO USE THE ELLIPTICAL EXERCISER

HOW TO MOVE THE ELLIPTICAL EXERCISER

Due to the size and weight of the elliptical exercis-

er, moving it requires two persons. Stand in front of

the elliptical exerciser, hold the upright, and place one foot against one of the front wheels. IMPORTANT: Do

not place your foot on the ramp cover. Pull on the

upright and have a second person lift the base until the elliptical exerciser will roll on the front wheels. Carefully move the elliptical exerciser to the desired

location, and then lower it to the floor.

Upright

HOW TO EXERCISE ON THE ELLIPTICAL EXERCISER

To mount the elliptical exerciser, hold the upper body

arms and step onto the pedal that is in the lowest position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous

motion. Note: The crank arms can turn in either

direction. It is recommended that you turn the

crank arms in the direction shown by the arrow below; however, for variety you can turn the crank

arms in the opposite direction.

Upper Body Arms

Lift here

Pedals

Crank Arm

Place

your foot

here

Wheel

To dismount the elliptical exerciser, wait until the ped-

als come to a complete stop. Note: The elliptical exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops. When the pedals are stationary, step off the higher

pedal first. Then, step off the lower pedal.

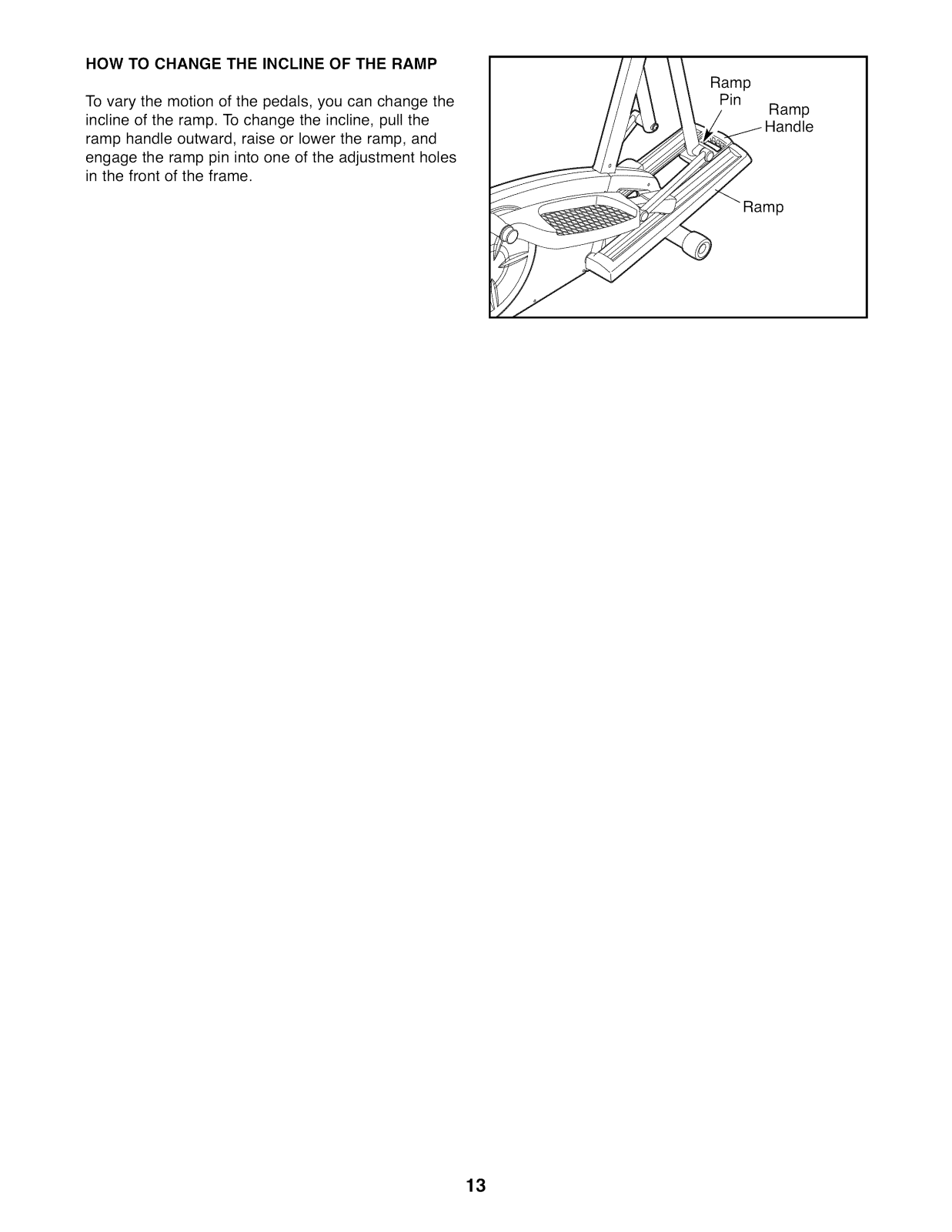

HOW TO CHANGE THE INCLINE OF THE RAMP

To vary the motion of the pedals, you can change the incline of the ramp. To change the incline, pull the ramp handle outward, raise or lower the ramp, and engage the ramp pin into one of the adjustment holes

in the front of the frame.

Ramp

FAN WORKOUT

FEATURES OF THE CONSOLE

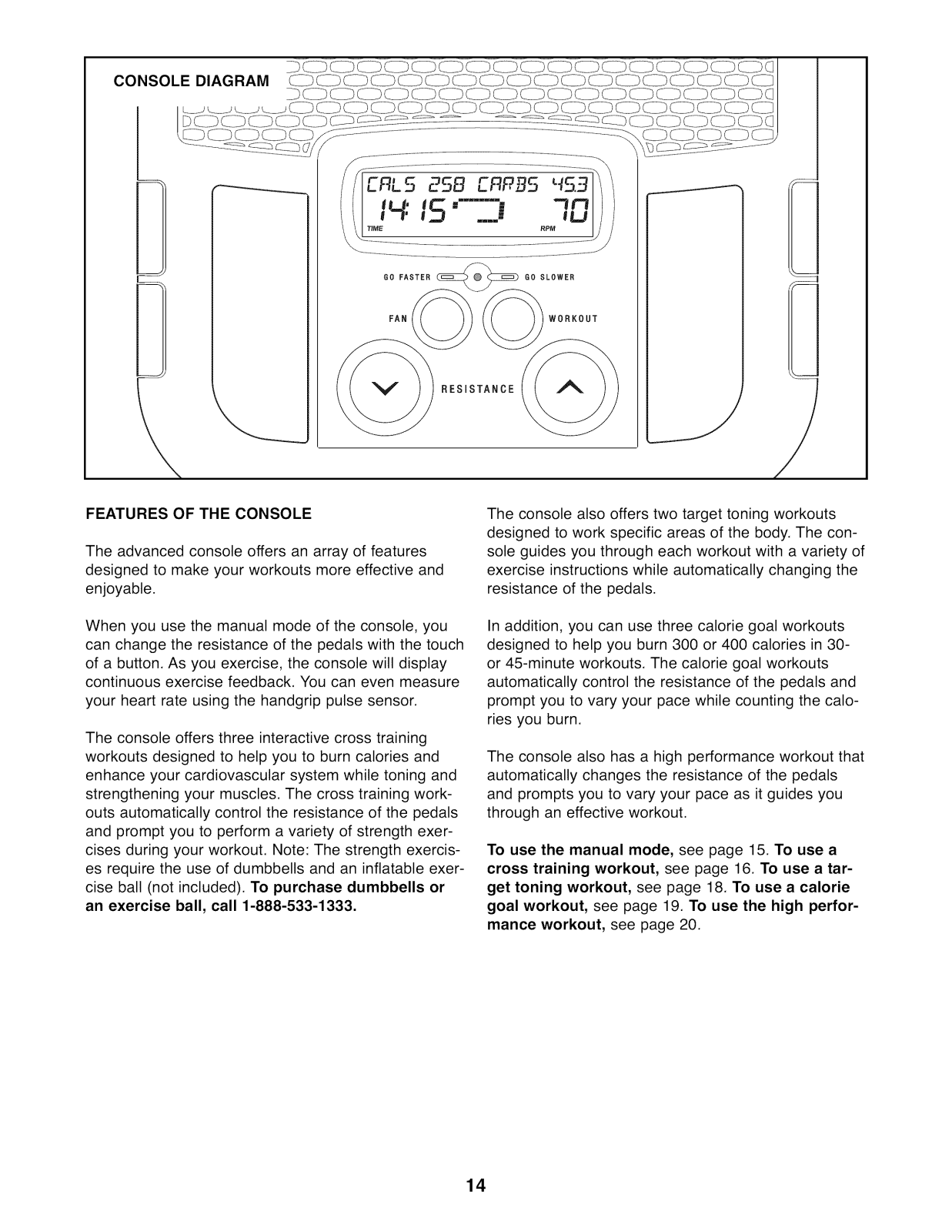

The advanced console offers an array of features designed to make your workouts more effective and enjoyable.

When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will display

continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.

The console offers three interactive cross training workouts designed to help you to burn calories and enhance your cardiovascular system while toning and strengthening your muscles. The cross training work- outs automatically control the resistance of the pedals and prompt you to perform a variety of strength exer- cises during your workout. Note: The strength exercis- es require the use of dumbbells and an inflatable exer- cise ball (not included). To purchase dumbbells or an exercise ball, call 1-888-533-1333.

The console also offers two target toning workouts designed to work specific areas of the body. The con- sole guides you through each workout with a variety of exercise instructions while automatically changing the resistance of the pedals.

In addition, you can use three calorie goal workouts designed to help you burn 300 or 400 calories in 30- or 45-minute workouts. The calorie goal workouts automatically control the resistance of the pedals and prompt you to vary your pace while counting the calo- ries you burn.

The console also has a high performance workout that automatically changes the resistance of the pedals and prompts you to vary your pace as it guides you through an effective workout.

To use the manual mode, see page 15. To use a cross training workout, see page 16. To use a tar- get toning workout, see page 18. To use a calorie goal workout, see page 19. To use the high perfor- mance workout, see page 20.

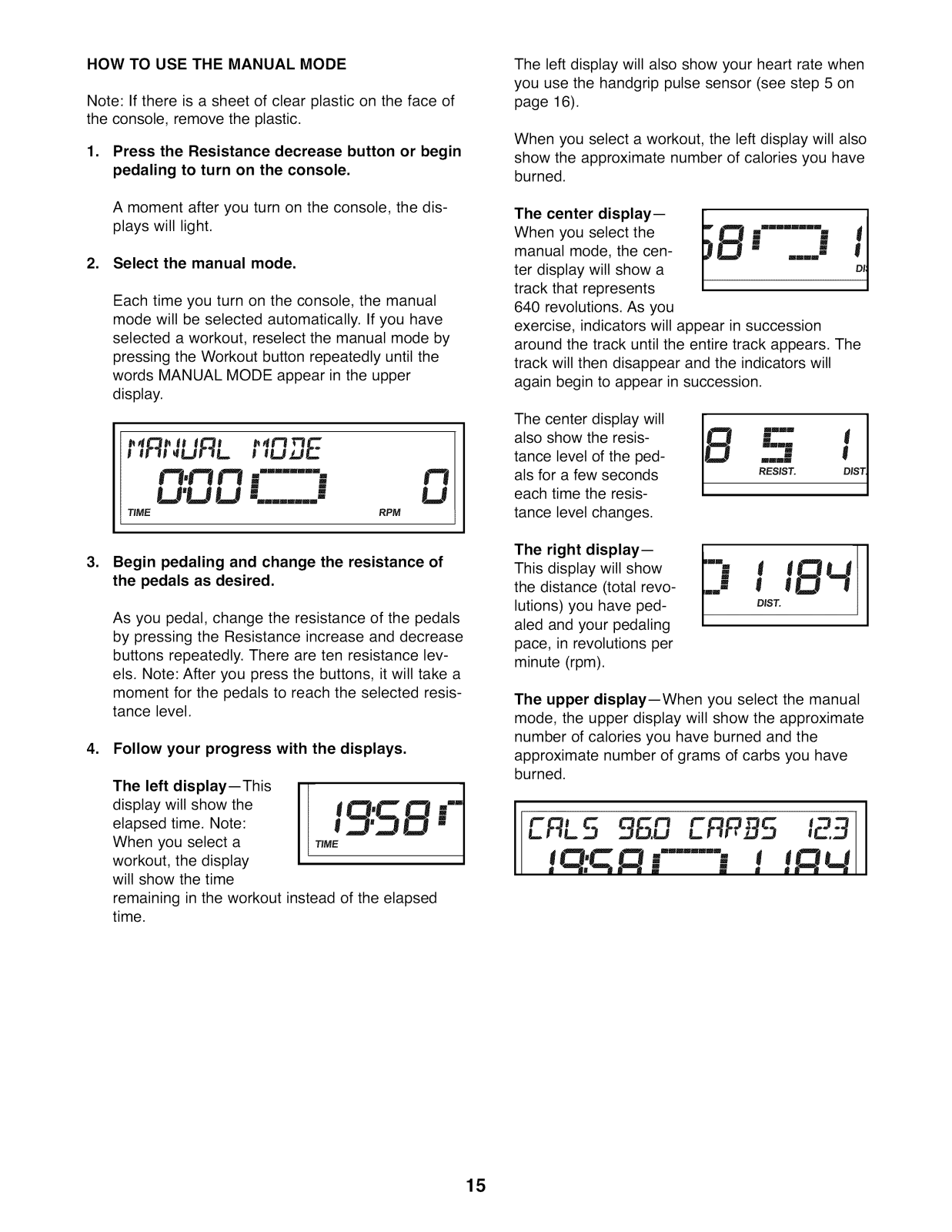

HOW TO USE THE MANUAL MODE

Note: If there is a sheet of clear plastic on the face of

the console, remove the plastic.

1. Press the Resistance decrease button or begin pedaling to turn on the console.

The left display will also show your heart rate when you use the handgrip pulse sensor (see step 5 on

page 16).

When you select a workout, the left display will also

show the approximate number of calories you have burned.

A moment after you turn on the console, the dis-

plays will light.

2. Select the manual mode.

Each time you turn on the console, the manual mode will be selected automatically. If you have

selected a workout, reselect the manual mode by

pressing the Workout button repeatedly until the

words MANUAL MODE appear in the upper display.

l ar_p_ur_L peu,_

t'l,t3 t'=1""...... :

LJ'UU i i i"!

TIME RPM

Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the resistance of the pedals

by pressing the Resistance increase and decrease buttons repeatedly. There are ten resistance lev-

els. Note: After you press the buttons, it will take a

moment for the pedals to reach the selected resis-

tance level.

4. Follow your progress with the displays.

The left display--This display will show the elapsed time. Note: When you select a workout, the display

will show the time

remaining in the workout instead of the elapsed

time.

lmmmm_lmlmm U

The center display-- When you select the

manual mode, the cen-

ter display will show a track that represents

640 revolutions. As you exercise, indicators will appear in succession around the track until the entire track appears. The

track will then disappear and the indicators will

again begin to appear in succession.

The center display will

also show the resis-

tance level of the ped-

als for a few seconds each time the resis-

tance level changes.

The right display-- This display will show the distance (total revo-

lutions) you have ped- aled and your pedaling pace, in revolutions per minute (rpm).

The upper display--When you select the manual

mode, the upper display will show the approximate number of calories you have burned and the approximate number of grams of carbs you have

burned.

D = .... m

fo...........![

LFtuS 9B,O ERRB5 12-3

10'C .O " ...... " --

. . ,.. i m !

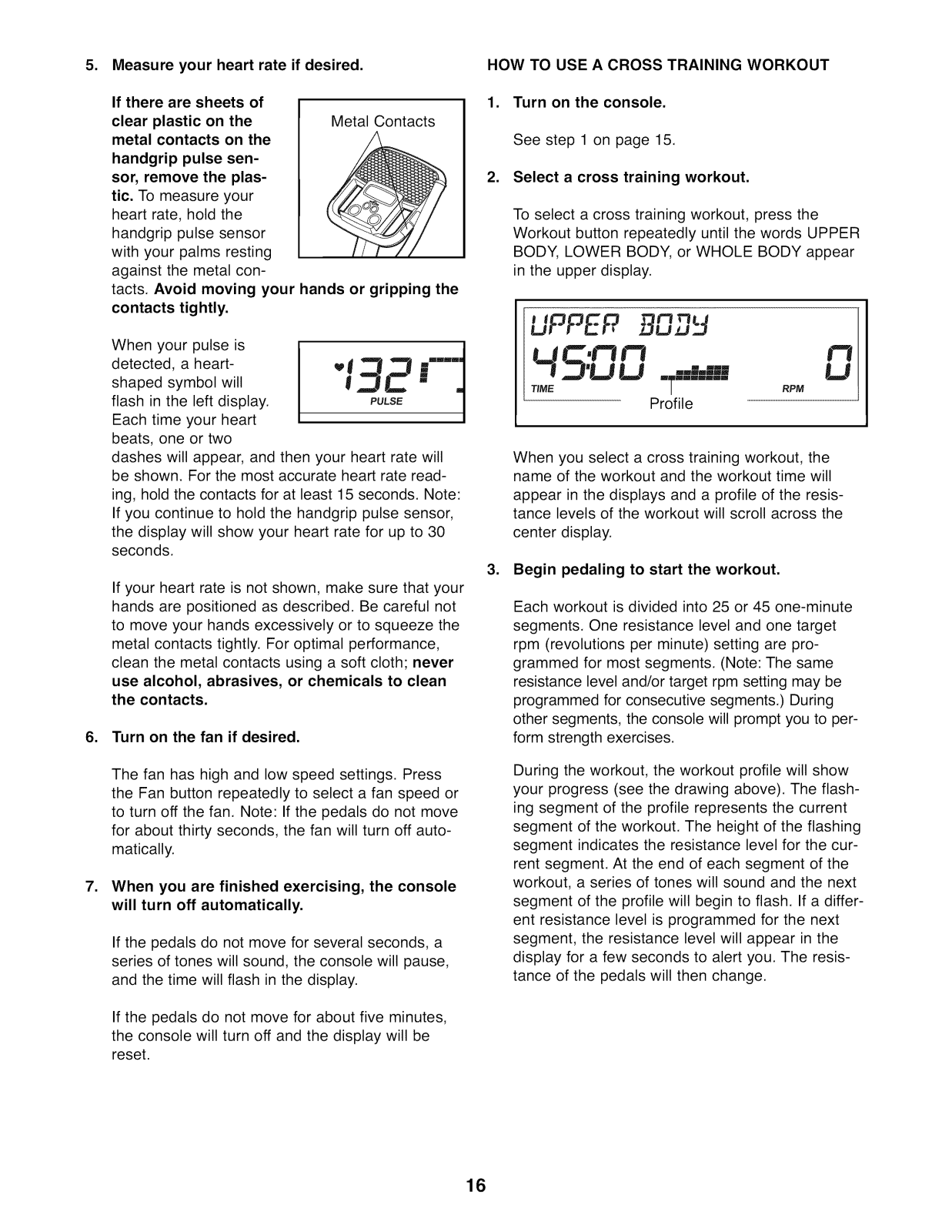

5. Measure your heart rate if desired. HOW TO USE A CROSS TRAINING WORKOUT

If there are sheets of clear plastic on the Metal Contacts

metal contacts on the handgrip pulse sen-

sor, remove the plas- tic. To measure your

heart rate, hold the handgrip pulse sensor

with your palms resting against the metal con- tacts. Avoid moving your hands or gripping the contacts tightly.

When your pulse is detected, a heart-

shaped symbol will flash in the left display. Each time your heart

beats, one or two dashes will appear, and then your heart rate will

be shown. For the most accurate heart rate read- ing, hold the contacts for at least 15 seconds. Note:

If you continue to hold the handgrip pulse sensor, the display will show your heart rate for up to 30

seconds.

If your heart rate is not shown, make sure that your hands are positioned as described. Be careful not to move your hands excessively or to squeeze the metal contacts tightly. For optimal performance, clean the metal contacts using a soft cloth; never

use alcohol, abrasives, or chemicals to clean the contacts.

6. Turn on the fan if desired.

1. Turn on the console.

See step 1 on page 15.

2. Select a cross training workout.

To select a cross training workout, press the Workout button repeatedly until the words UPPER

BODY, LOWER BODY, or WHOLE BODY appear in the upper display.

UPPER BDg

!'LILJ L!

_ME RPM

When you select a cross training workout, the name of the workout and the workout time will

appear in the displays and a profile of the resis- tance levels of the workout will scroll across the

center display.

3. Begin pedaling to start the workout.

Each workout is divided into 25 or 45 one-minute segments. One resistance level and one target

rpm (revolutions per minute) setting are pro- grammed for most segments. (Note: The same resistance level and/or target rpm setting may be programmed for consecutive segments.) During other segments, the console will prompt you to per- form strength exercises.

m_mmlmmm

Profile

The fan has high and low speed settings. Press the Fan button repeatedly to select a fan speed or to turn off the fan. Note: If the pedals do not move for about thirty seconds, the fan will turn off auto- matically.

When you are finished exercising, the console will turn off automatically.

If the pedals do not move for several seconds, a series of tones will sound, the console will pause, and the time will flash in the display.

If the pedals do not move for about five minutes, the console will turn off and the display will be

reset.

During the workout, the workout profile will show your progress (see the drawing above). The flash- ing segment of the profile represents the current segment of the workout. The height of the flashing segment indicates the resistance level for the cur- rent segment. At the end of each segment of the

workout, a series of tones will sound and the next segment of the profile will begin to flash. If a differ-

ent resistance level is programmed for the next segment, the resistance level will appear in the display for a few seconds to alert you. The resis- tance of the pedals will then change.

As you exercise, you will be prompted to keep your pedaling pace near the target rpm setting for the current segment. When the words PEDAL

FASTER appear in the upper display or the GO FASTER indicator on the pace guide is lit, increase your pace. When the words PEDAL

SLOWER appear or the GO SLOWER indicator is

lit, decrease your pace. When the words PEDAL- ING IN RANGE appear or when the center indica-

tor is lit, maintain your current pace.

GO FASTER GO SLOWER

IMPORTANT: The target rpm settings are intended only to provide motivation. Your actu-

al pace may be slower than the target rpm set- tings. Make sure to pedal at a pace that is com-

fortable for you.

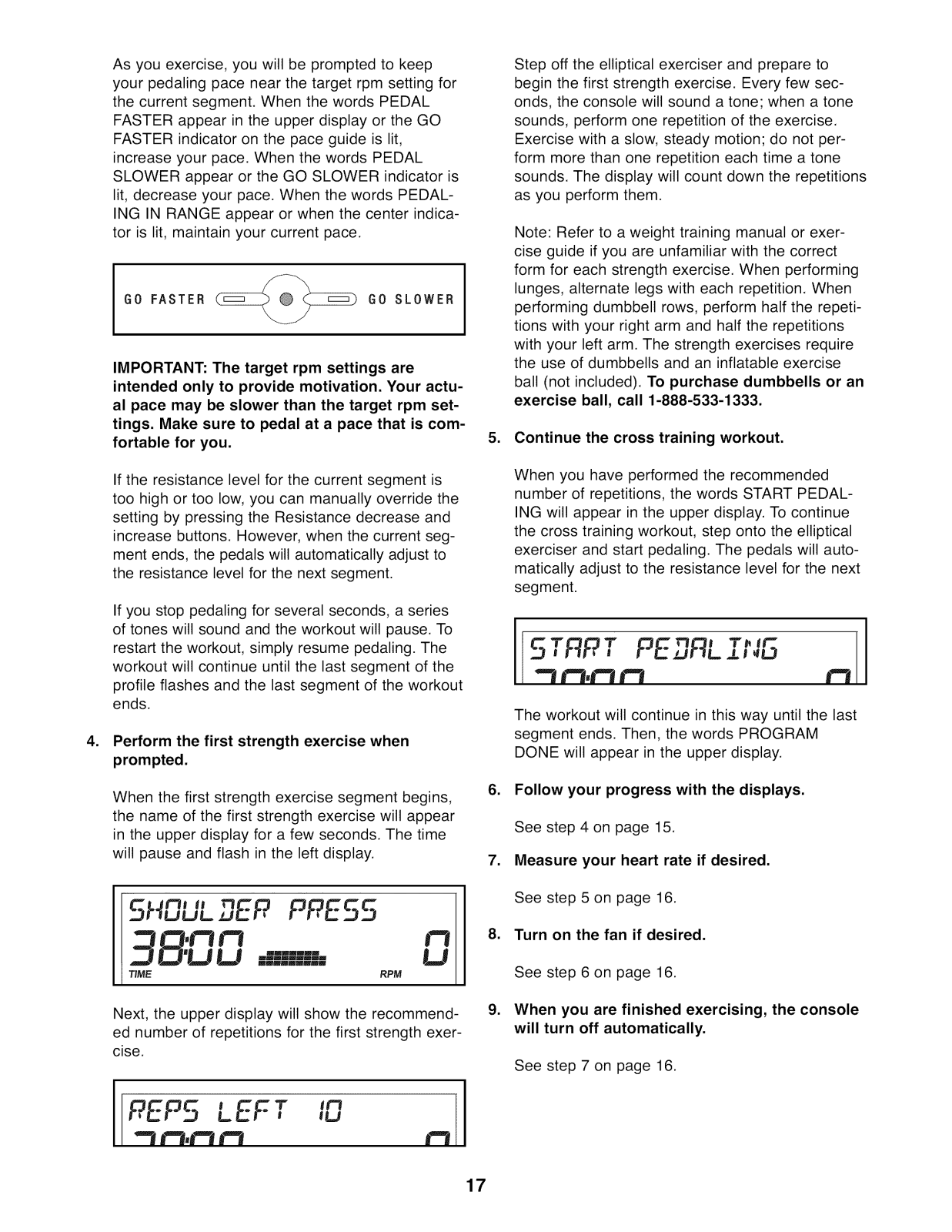

Step off the elliptical exerciser and prepare to begin the first strength exercise. Every few sec-

onds, the console will sound a tone; when a tone

sounds, perform one repetition of the exercise. Exercise with a slow, steady motion; do not per-

form more than one repetition each time a tone

sounds. The display will count down the repetitions as you perform them.

Note: Refer to a weight training manual or exer- cise guide if you are unfamiliar with the correct form for each strength exercise. When performing

lunges, alternate legs with each repetition. When

performing dumbbell rows, perform half the repeti- tions with your right arm and half the repetitions with your left arm. The strength exercises require

the use of dumbbells and an inflatable exercise

ball (not included). To purchase dumbbells or an exercise ball, call 1-888-533-1333.

5. Continue the cross training workout.

If the resistance level for the current segment is too high or too low, you can manually override the setting by pressing the Resistance decrease and

increase buttons. However, when the current seg-

ment ends, the pedals will automatically adjust to the resistance level for the next segment.

If you stop pedaling for several seconds, a series of tones will sound and the workout will pause. To

restart the workout, simply resume pedaling. The workout will continue until the last segment of the

profile flashes and the last segment of the workout ends.

Perform the first strength exercise when

prompted.

When the first strength exercise segment begins, the name of the first strength exercise will appear

in the upper display for a few seconds. The time will pause and flash in the left display.

.SHDULuEP PPES5

Q,r Ig

,,.7QLILt! =.= i.

TIME RPM

When you have performed the recommended

number of repetitions, the words START PEDAL- ING will appear in the upper display. To continue

the cross training workout, step onto the elliptical

exerciser and start pedaling. The pedals will auto- matically adjust to the resistance level for the next segment.

5TRPT PE RL

£=3,£'1t'i £'m

The workout will continue in this way until the last

segment ends. Then, the words PROGRAM DONE will appear in the upper display.

6. Follow your progress with the displays.

See step 4 on page 15.

Measure your heart rate if desired.

See step 5 on page 16.

8. Turn on the fan if desired.

See step 6 on page 16.

Next, the upper display will show the recommend- ed number of repetitions for the first strength exer-

cise.

'° I

t"l

When you are finished exercising, the console will turn off automatically.

See step 7 on page 16.

+ 39 hidden pages
