Technical Manual
WATER FILTER
Models: PF-GAC1
PF-AG1
PF-GAC1,5
PF-AG1,5
TABLE OF CONTENT & INSTALLATION RECORD
Page 2
Table of content & Installation record ..................................................................................Page 2
Warning & Safety instructions ..............................................................................................Page 3
Operating conditions & Requirements .................................................................................Page 4
Assembly..............................................................................................................................Page 5
Installation ...........................................................................................................................Page 6
Commissioning .....................................................................................................................Page 7
Electronic control panel .......................................................................................................Page 8
Maintenance ........................................................................................................................Page 10
Troubleshooting ...................................................................................................................Page 11

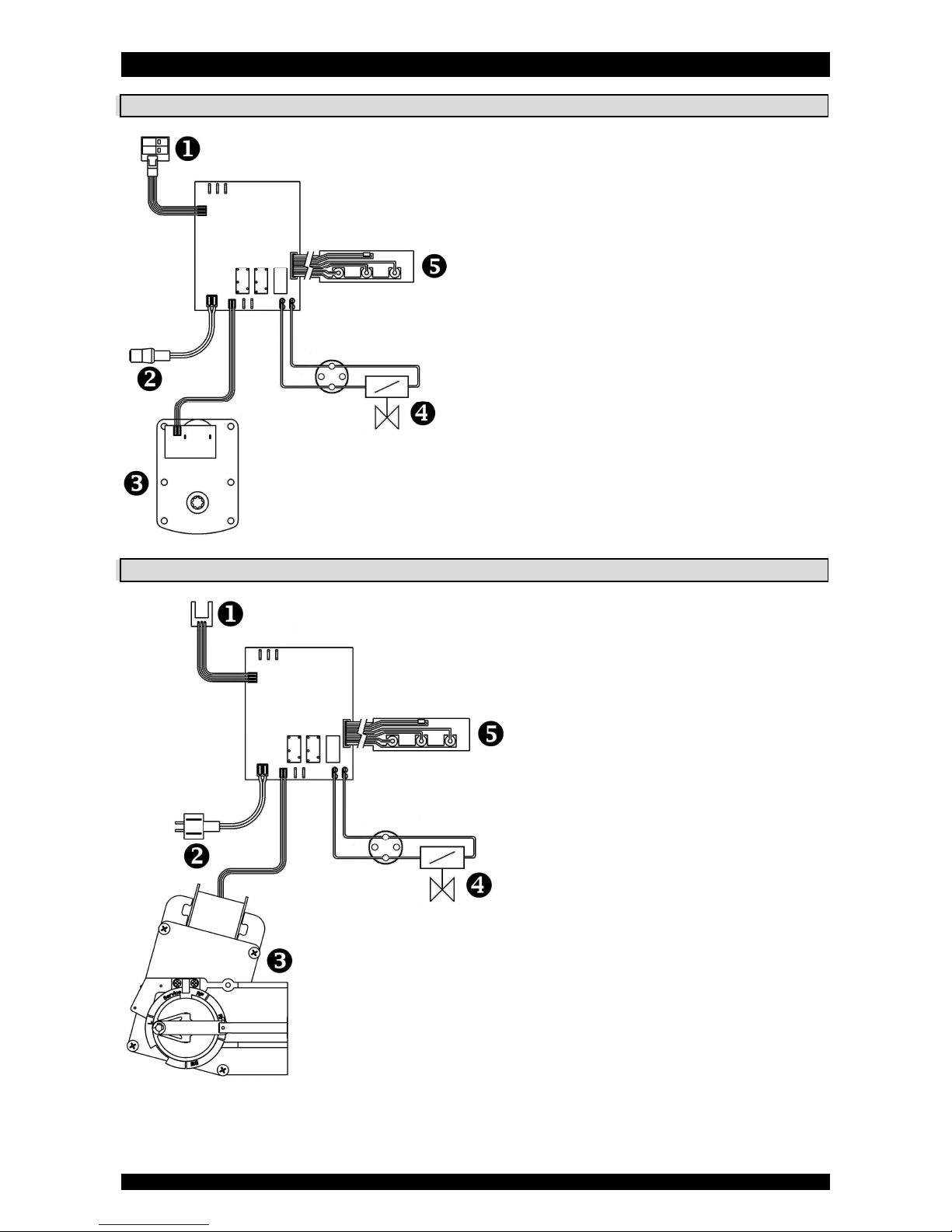

Electrical wiring diagrams ....................................................................................................Page 12
Default configuration parameter settings.............................................................................Page 13
Composition overview .........................................................................................................Page 14
Exploded view - PF-GAC1 & PF-AG1 - System .......................................................................Page 16

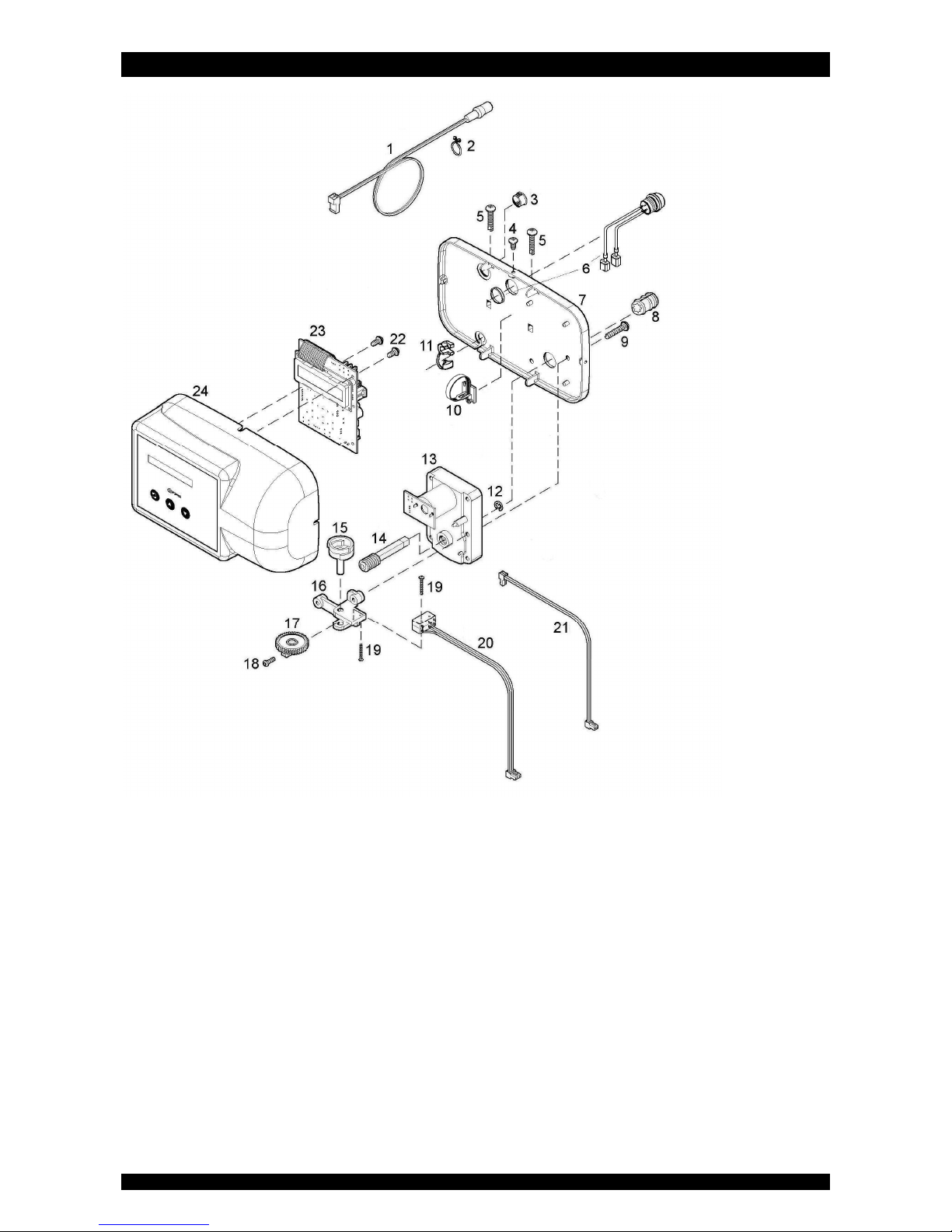

Exploded view - PF-GAC1 & PF-AG1 - Timer assembly ..........................................................Page 18

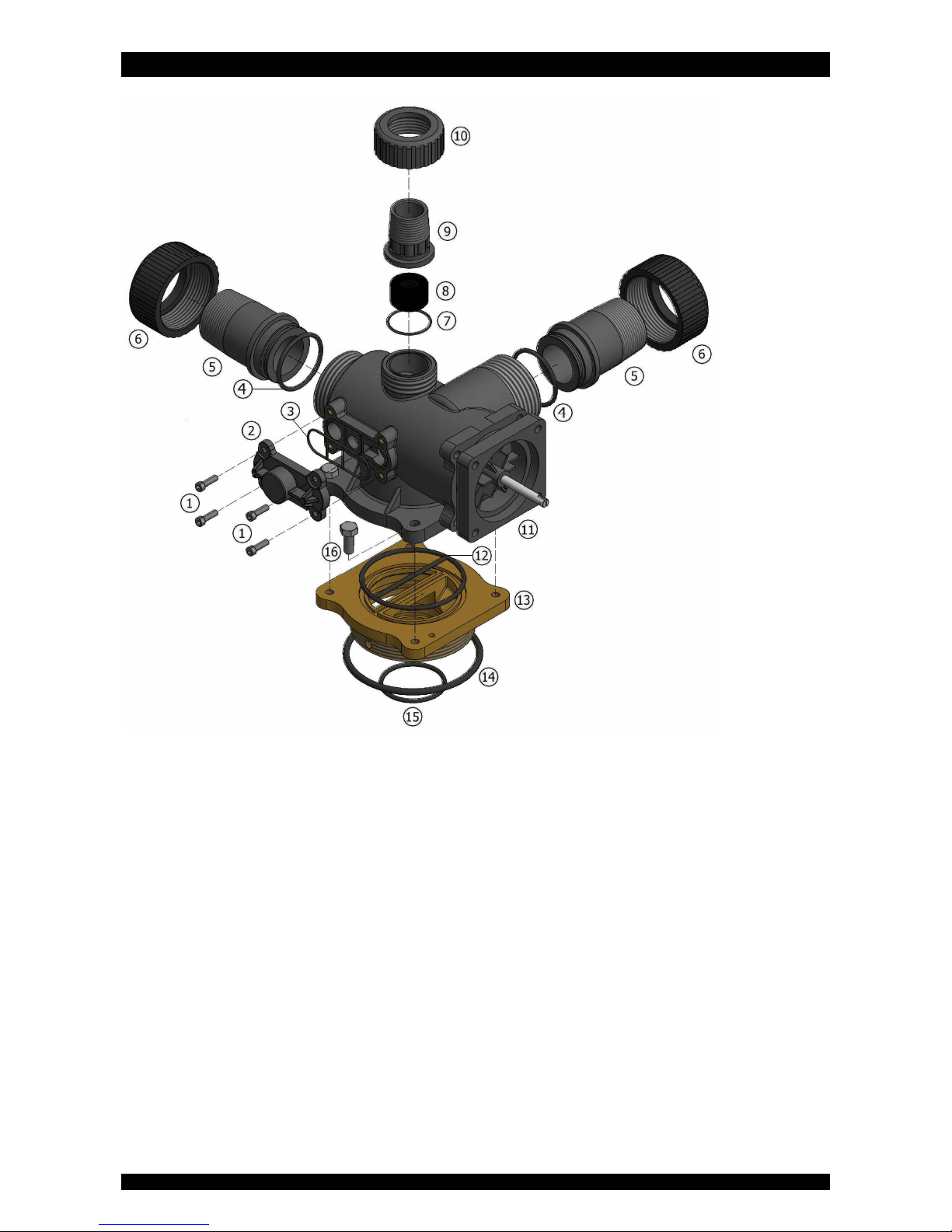

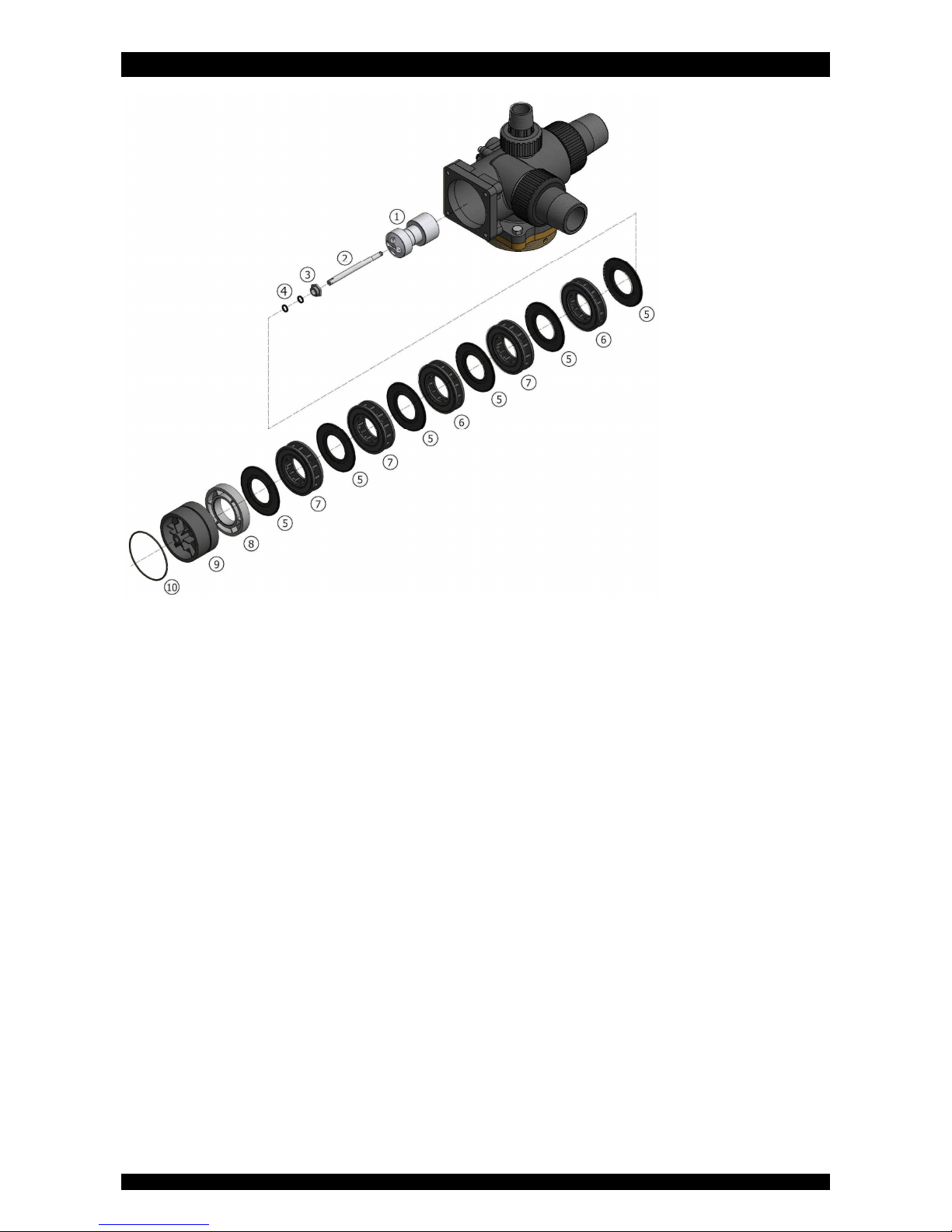

Exploded view - PF-GAC1 & PF-AG1 - Valve body .................................................................Page 20
Exploded view - PF-GAC1,5 & PF-AG1,5 - System .................................................................Page 22
Exploded view - PF-GAC1,5 & PF-AG1,5 - Timer assembly ....................................................Page 24

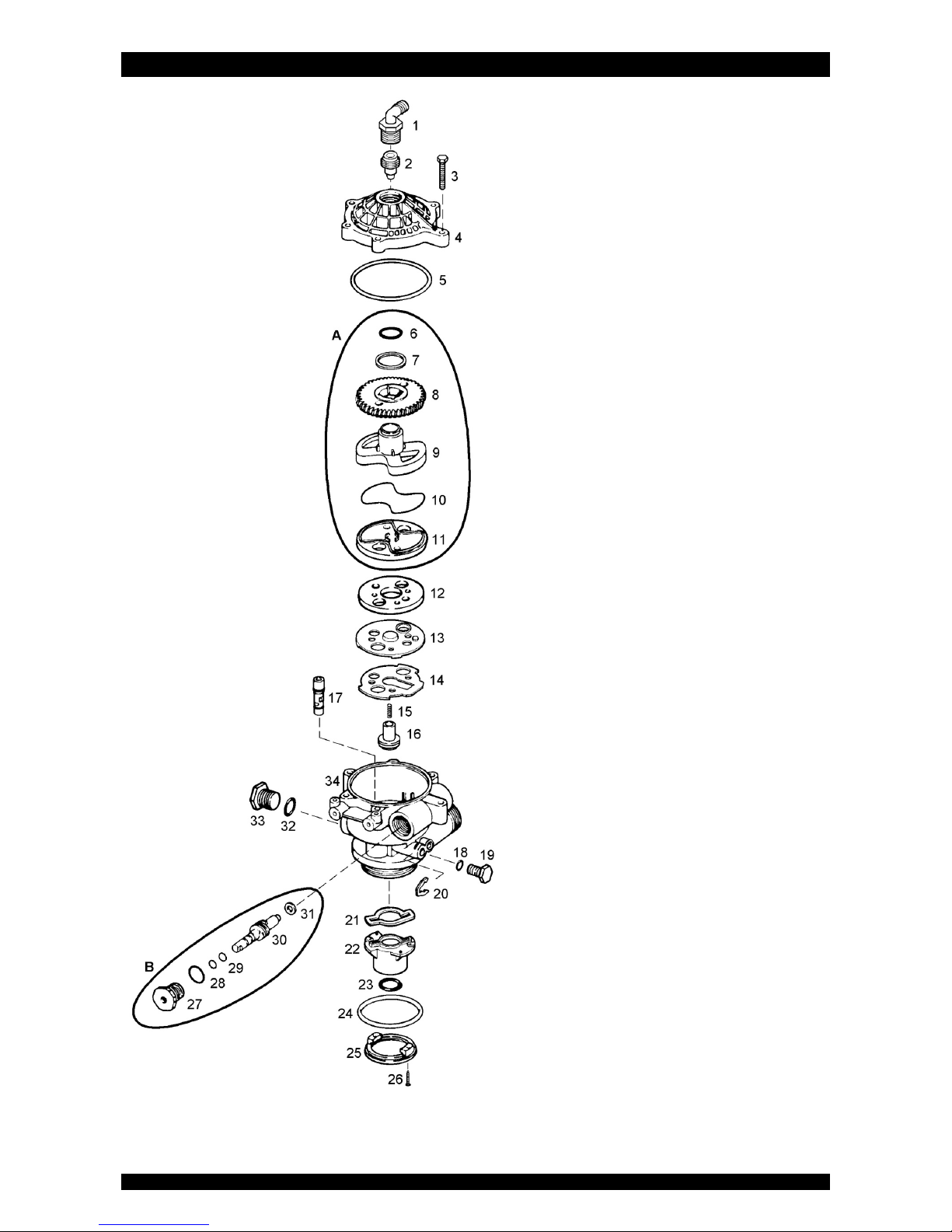

Exploded view - PF-GAC1,5 & PF-AG1,5 - Valve body ...........................................................Page 26
Exploded view - PF-GAC1,5 & PF-AG1,5 - Piston assembly ....................................................Page 28

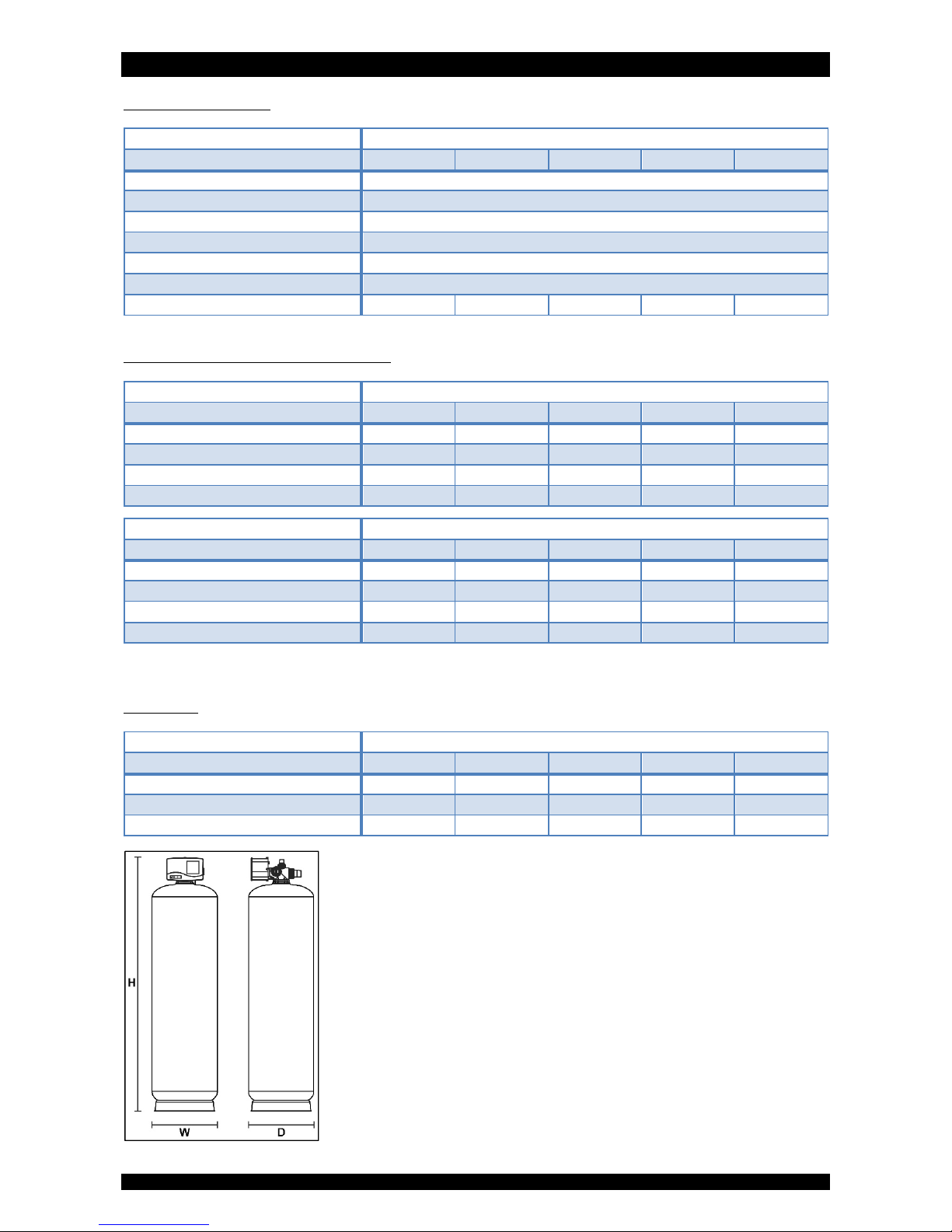

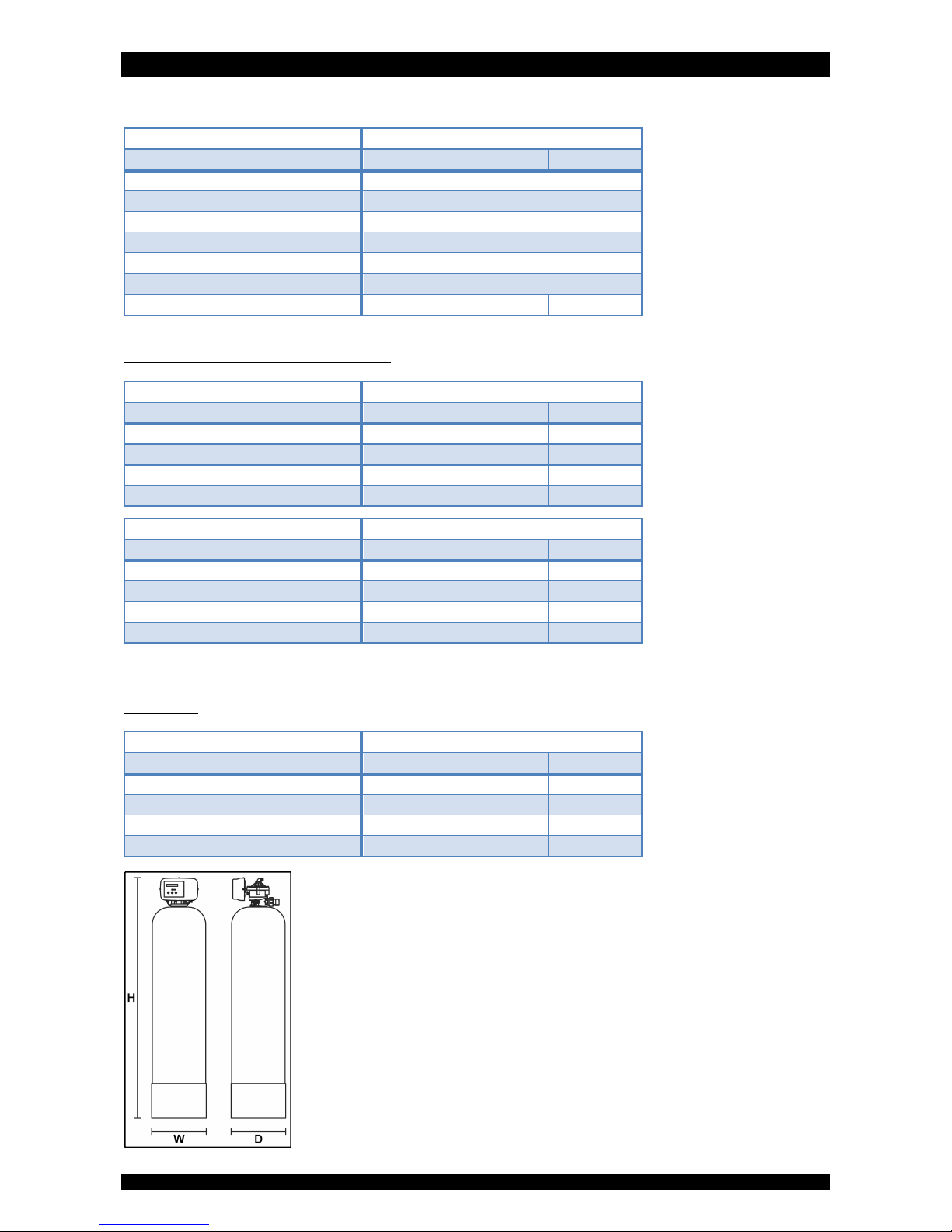

Technical data - PF-GAC1 & PF-AG1 .....................................................................................Page 30
Technical data - PF-GAC1,5 & PF-AG1,5 ................................................................................Page 31
WARNING & SAFETY INSTRUCTIONS
Page 3
Before you begin the installation of the appliance, we advise you read
and carefully follow the instructions contained in this manual. It contains
important information about safety, installation, use and maintenance of
the product. The actual system that you have received, may differ from
the pictures/illustrations/descriptions in these Instructions.
Failure to follow the instructions could cause personal injury or damage
to the appliance or property. Only when installed, commissioned and
serviced correctly, the appliance will offer you many years of trouble-free
operation.
The appliance is intended to ‘filter’ the water, meaning it will remove
specific undesired substances; it will not necessarily remove other
contaminants present in the water. The appliance will not purify polluted
water or make it safe to drink!
Installation of the appliance should only be undertaken by a competent
person, aware of the local codes in force. All plumbing and electrical
connections must be done in accordance with local codes.
Before setting up the appliance, make sure to check it for any externally
visible damage; do not install or use when damaged.
Use a hand truck to transport the appliance. To prevent accident or
injury, do not hoist the appliance over your shoulder. Do not lay the
appliance on its side.
Keep these Instructions in a safe place and ensure that new users are
familiar with the content.
The appliance is designed and manufactured in accordance with current
safety requirements and regulations. Incorrect repairs can result in
unforeseen danger for the user, for which the manufacturer cannot be
held responsible. Therefore repairs should only be undertaken by a
competent technician, familiar and trained for this product.
In respect of the environment, this appliance should be disposed of in
accordance with Waste Electrical and Electronic Equipment
requirements. Refer to national/local laws and codes for correct recycling
of this appliance.
OPERATING CONDITIONS & REQUIREMENTS
Page 4
OPERATING PRESSURE MIN-MAX: 2,5-8,0 bar / 36-116 psi
low operating pressure may lead to insufficient backwash of the
filter media, resulting in an increase in pressure drop and/or a
reduction of the filtration capacity during the service cycle.
if installed on a well, verify that the well pump is powerful
enough to provide sufficient flow rate for the backwash cycle.
check water pressure regularly; it may fluctuate severely
depending on the time of day, the day of the week or even the
season of the year.
take into account that night time water pressure may be
considerably higher than day time water pressure.
install a pressure reducer ahead of the appliance if necessary.
install a pressure booster, if it is likely that water pressure may
drop below the minimum.
OPERATING TEMPERATURE MIN-MAX: 4-48 °C / 39-120 °F
do not install the appliance in an environment where high
ambient temperatures (e.g. unvented boiler house) or freezing
temperatures can occur.
the appliance cannot be exposed to outdoor elements, such as
direct sunlight or atmospheric precipitation.
do not install the appliance too close to a water heater; keep at
least 3 m (10 ft) of piping between the outlet of the appliance
and the inlet of the water heater; water heaters can sometimes
transmit heat back down the cold pipe into the appliance;
always install a check valve at the outlet of the appliance.
ELECTRICAL CONNECTION:
this appliance only works on 24 VAC; always use it in
combination with the supplied transformer.
in case of damage to the power supply cable of the transformer,
immediately disconnect the transformer from the power outlet
and replace the transformer.
make sure to plug the transformer into a power outlet, which is
installed in a dry location, with the proper rating and overcurrent protection.
ASSEMBLY
Page 5

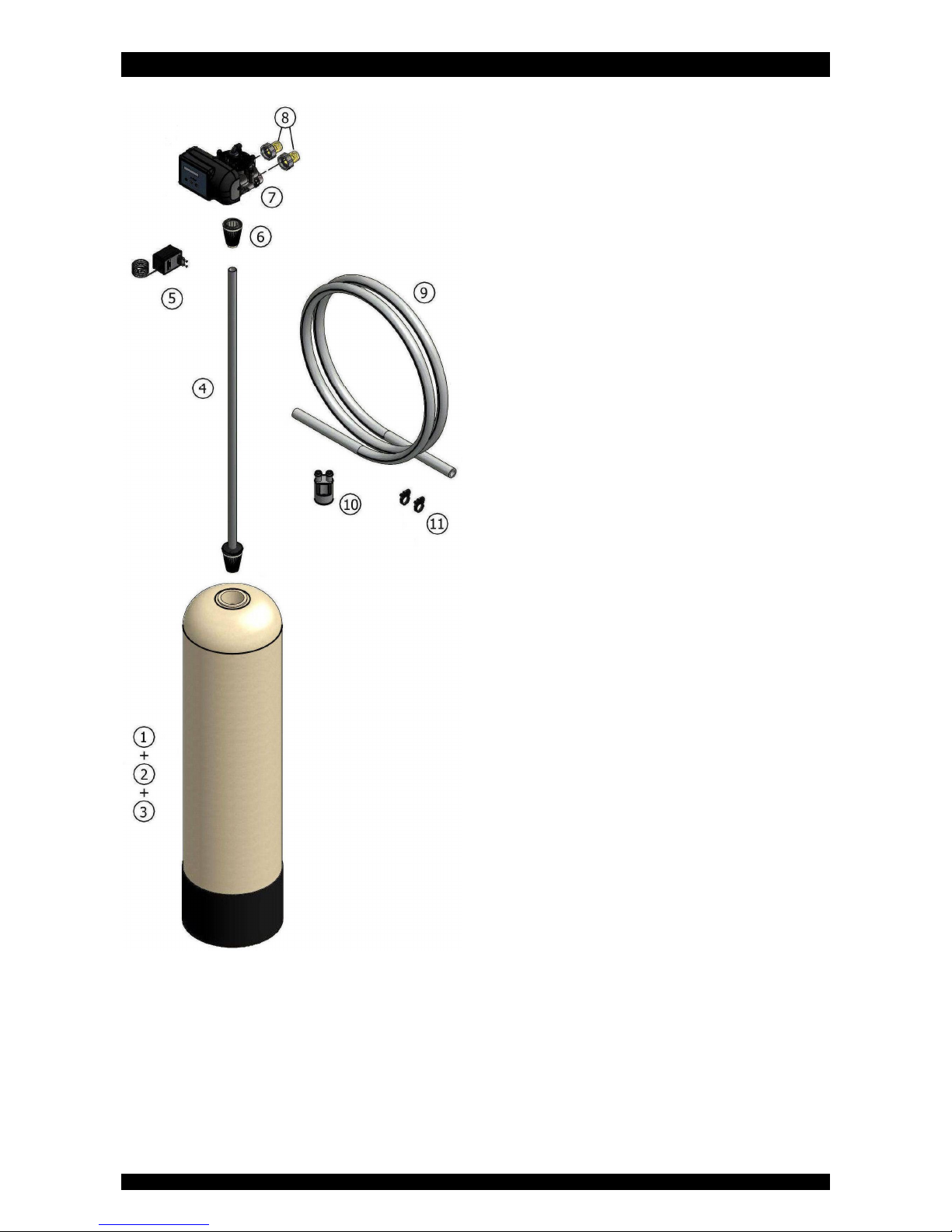

CONTENT CHECK
Actual parts that you have received, may differ from the
pictures/illustrations in these Instructions!
For ease of transportation and installation, the filter
media may NOT loaded in the pressure tank, but delivered in
separate bags of 1 cuft; it must be loaded on-site, after
positioning of the pressure tank.
Check the content of the system, using the Composition
Overview in these Instructions. Identify and lay-out the
different components to facilitate the assembly.
SIMPLEX
Picture 1.a, 2.a, 3.a
A Simplex system consists of 1 single filter module (pressure
tank, filter media, control valve).
During normal operation, the system delivers treated water.
As soon as it initiates a regeneration, it automatically goes
into bypass, guaranteeing uninterrupted supply of untreated
water.
It is possible to install a so called Normally Open Service Valve
(e.g. a solenoid operated diaphragm valve) in the outlet of the
system, that is controlled by the electronic timer of the
system; this Service Valve will be activated during the entire
duration of the regeneration, to close-off the control valve's
standard 'untreated water bypass during regeneration'.
MULTIPLEX PARALLEL
Picture 4
A Multiplex PARALLEL system consists of 2 or more Simplex
systems, that:
- are hydraulically installed in parallel;
- are programmed for different times of regeneration;
- may have a so called Normally Open Service Valve (e.g. a
solenoid operated diaphragm valve) in the outlet of each
Simplex system, that is controlled by the electronic timer
of each Simplex system; this Service Valve will be
activated during the entire duration of the regeneration,
to close-off the control valve's standard 'untreated water
bypass during regeneration'.
During normal operation, all Simplex systems are in service,
doubling/tripling/… the service flow rate!
In case of a power failure, all Service Valves will be
deactivated, meaning the outlet of all Simplex systems will be
open, guaranteeing uninterrupted supply of water.
FILTER MEDIA LOADING
1. Move the pressure tank to the correct installation
location; position it on a flat and level surface. Make sure
to leave enough space for ease of service.
2. Position the riser assembly upright and centred in the
pressure tank; plug the top of the riser tube with a piece
of tape or clean rag, to prevent filter media from entering
the tube.
3. Place a funnel on the pressure tank opening and fill the
pressure tank with filter media; make sure the riser
assembly remains centered in the pressure tank.
4. Rinse the pressure tank opening to remove any grains of
filter media from the threaded section.
5. Unplug the top of the riser tube.
CONTROL VALVE
only for PF-GAC1 & PF-AG1
1. Make sure the O-ring in the riser insert and the tank Oring (around the threaded section of the control valve) are
in the correct position.
2. Screw the top distributor onto the control valve.
3. Lubricate the threaded section of the pressure tank, the
top of the riser tube and the tank O-ring of the control
valve; use a silicon-based lubricant.
4. Lower the control valve straight down onto the riser tube,
until the riser tube is correctly inserted in the riser insert;
then push it down firmly and screw it onto the pressure
tank.
only for PF-GAC1,5 & PF-AG1,5
Picture 5
1. On the brass valve seat:
make sure the O-ring in the riser insert is in the correct
position;
install the top distributor and fix it by means of the 2
stainless steel screws;
install the tank O-ring in the groove on the flange
around the threaded section.
2. Lubricate the threaded section of the pressure tank, the
top of the riser tube and the tank O-ring of the valve seat;
use a silicon-based lubricant.
3. Lower the valve seat straight down onto the riser tube,
until the riser tube is correctly inserted in the riser insert
inside the valve seat; then push it down firmly and screw
it onto the pressure tank.
4. Install the valve seat O-ring in the groove on the valve
seat.
5. Install the control valve onto the valve seat; mind the
alignment pin!
5. Bolt the control valve to the valve seat by means of the 4
stainless steel bolts; tighten firmly.
INSTALLATION
Page 6
INLET & OUTLET
We strongly recommend the use of flexible hoses to
connect the appliance to the water distribution system; use
hoses with a large diameter in order to limit the pressure
loss.
We strongly recommend the installation of a bypass
system (not included with this product!) to isolate the
appliance from the water distribution system in case of
repairs. It allows to turn off the water to the appliance, while
maintaining full-flow (untreated) water supply to the user.
only for PF-GAC1 & PF-AG1:
with factory bypass (optional)
Picture 1
= mains water supply (untreated water)
= inlet of control valve (untreated water)
= outlet of control valve (treated water)
= application (treated water)
1. Screw the factory bypass onto the in/out ports on the
control valve (&); make sure to install the gasket
seals. Tighten the nuts firmly by hand.
2. Screw the connection kit with nuts onto the factory
bypass (&); make sure to install the gasket seals.
Tighten the nuts firmly by hand.
3. Connect the mains water supply to the adaptor on the
inlet port of the factory bypass ().
4. Connect the application to the adaptor on the outlet port
of the factory bypass ().
only for PF-GAC1 & PF-AG1:
with 3-valve connection kit (not included)
Picture 2
= inlet of control valve (untreated water)
= outlet of control valve (treated water)
1. Install the 3-valve connection kit.
2. Screw the connection kit with nuts onto the in/out ports
on the control valve (&); make sure to install the
gasket seals. Tighten the nuts firmly by hand.
3. Connect the IN valve of the 3-valve connection kit to the
adaptor on the in port of the control valve ().
4. Connect the OUT valve of the 3-valve connection kit to the
adaptor on the out port of the control valve ().
5. Connect the mains water supply to the inlet of the 3-valve
connection kit.
6. Connect the application to the outlet of the 3-valve
connection kit.
only for PF-GAC1,5 & PF-AG1,5:
with 3-valve connection kit (not incl.)
Picture 3
= inlet of control valve (untreated water)
= outlet of control valve (treated water)
1. Install the 3-valve connection kit.
2. Insert the adaptors in the in/out ports on the control valve
(&); make sure not to damage the O-rings. Install the
nuts and tighten them firmly by hand.
3. Connect the IN valve of the 3-valve connection kit to the
adaptor on the in port of the control valve ().
4. Connect the OUT valve of the 3-valve connection kit to the
adaptor on the out port of the control valve ().
5. Connect the mains water supply to the inlet of the 3-valve
connection kit.
6. Connect the application to the outlet of the 3-valve
connection kit.
DRAIN
We recommend the use of a stand pipe with P-trap.
To prevent backflow from the sewerage system into the
appliance, always install and use an air gap (drain adaptor
with air gap included with PF-GAC1 & PF-AG1), to connect
the drain hose to the sewerage system.
Lay-out the drain hose in such a way that pressure loss
is minimized; avoid kinks and unnecessary elevations.
Make sure that the sewerage system is suitable for the
rinse water flow rate of the appliance.
only for PF-GAC1 & PF-AG1
Picture 6
1. Install the drain adaptor to the sewerage system; it fits
over a 32 mm pipe or inside a 40 mm pipe adaptor. Ensure
a permanent and watertight connection.
2. Connect a 13 mm hose to the drain connection of the
control valve (); secure it by means of a clamp.
3. Run the drain hose to the drain adaptor and connect it to
one of the hose barbs; secure it by means of a clamp. This
drain line operates under pressure, so it may be installed
higher than the appliance.
only for PF-GAC1,5 & PF-AG1,5
Picture 7
1. Connect a pipe to the 1” BSP Male drain connection of the
control valve (); use an appropriate sealant.
2. Run the pipe to the sewerage system and connect it,
ensuring sufficient air gap between the end of the pipe
and the sewerage system. This drain line operates under
pressure, so it may be installed higher than the appliance.
SERVICE VALVE (optional)
Picture 8
1. Plug the DIN plug on the connection cable of the Service
Valve into the DIN socket at the back of the electronic
timer head of the respective control valve ().
COMMISSIONING
Page 7
ELECTRICAL
1. Connect the appliances power cord to the transformers
output.
2. Plug the transformer into an electrical outlet.
PRESSURIZING
1. Put the bypass system in 'bypass' position.
2. Make sure the electronic controller of the appliance is in
service mode.
3. Open the mains water supply.
4. Open a cold treated water faucet nearby the appliance
and let the water run for a few minutes until all air is
purged and all foreign material that may have resulted
from the installation is washed out; close the tap.
5. Gently pressurize the appliance, by putting it into service:
close the 'BYPASS' valve;
open the 'OUT' valve;
slowly open the 'IN' valve.
6. After 2-3 minutes, open a cold treated water faucet
nearby the appliance and let the water run for a few
minutes until all air is purged from the installation and the
filter media is rinsed (it is normal for the rinse water to
show some discoloration!); let the water run until the
rinse water is clear; close the tap.
7. Check the appliance and all hydraulic connections for
leaks.
ELECTRONIC CONTROL PANEL
1. Program the electronic controller.
INITIATE A REGENERATION
1. Manually initiate a regeneration, by pressing the scroll
button; the display will show:
2. Leave the appliance in this position; the count-down
timer will count down to 0 sec and start a regeneration.
Regen in 10 sec
ELECTRONIC CONTROL PANEL
Page 8
Picture 9
symbol
button
function
SCROLL
to advance to the next
parameter
UP
to increase the value of the
parameter
DOWN
to decrease the value of the
parameter
POWER-UP
After power-up the display will show the installed software
version for a period of 5 seconds.
POWER FAILURE
In the event of a power failure, the program will remain
stored in the NOVRAM® during an undefined period, while an
incorporated SuperCap will maintain the correct time of day
during a period of several hours; consequently, in case of
prolonged power failure, the time of day might not be
maintained; if this happens, the time of day will be reset to
8:00 when the power supply is re-established, while the
indication will flash, indicating that the time of day needs to
be set.
When the power failure occurs during the execution of an
automatic regeneration, the control valve will remain in its
last position; when the power supply is re-established, the
control valve will return to the service position, stay there for
60 sec. and restart a complete regeneration from the
beginning.
TIMER FAILURE
In the event of a timer failure, the display will show the
message:
If powering off/on the appliance doesn’t solve this problem,
professional service is required.
MAINTENANCE REMINDER
Once the maintenance interval is reached, the display will
intermittently show the message:
While the appliance will continue to operate normally, it is
recommended to have preventive maintenance performed
by a professional.
SERVICE MODE
In service mode the display shows the time of day and the
number of days remaining until the next regeneration:
REGENERATION MODE
In regeneration mode the display shows the remaining
regeneration time and the remaining cycle time:
The control valve can be reset to service mode at any time by
pressing the scroll button, as such manually advancing it
through the regeneration cycles.
MANUAL REGENERATION
It is possible to manually initiate an immediate regeneration
or a delayed regeneration (at the preprogrammed time of
regeneration).
1. Press the scroll button; the display will show:
If the control panel is left in this position, the
countdown timer will countdown to 0 sec and start an
immediate regeneration.
To cancel this mode, press the scroll button before
the countdown timer has reached 0 sec; the display
will show:
If the control panel is left in this position, a delayed
regeneration will be started at the indicated
preprogrammed time of regeneration.
To cancel this mode, press the scroll button; the control
panel will return to the service mode
HOLIDAY MODE
It is possible to put the appliance in holiday mode; this will
prevent automatic regeneration from taking place, yet will
ensure the appliance is automatically regenerated at the end
of the holiday cycle.
1. Press the scroll button repeatedly until the display
shows:
Press the up or down button to activate the
holiday mode by setting the number of full days away
from home, or deactivate the holiday mode (OFF).
Once the control panel is back in service mode, the display
will show:
The holiday mode is automatically cancelled when a
regeneration is manually initiated!
Service Required
Rgn:123 CycY:456
Maintenance Now
Regen in 10 sec
Regen @ 2:00
Holiday: OFF
8:01 Holiday
8:01 4 DAY REM
ELECTRONIC CONTROL PANEL
Page 9
PROGRAMMING INSTRUCTIONS -
BASIC SETTINGS
Before entering the programming mode, make sure that
the appliance is in the service mode.
In case no button is pressed in a period of 5 min, the
control panel will automatically return to the service mode;
any changes made will NOT be saved!
1. Press the scroll button; the display will show:
Press the up or down button to set the
language.
2. Press the scroll button again; the display will show:
Press the up or down button to set the time of
day.
3. Press the scroll button again; the display will show:
Press the up or down button to set the number
of days between regenerations.
4. Press the scroll button again; the display will show:
Press the up or down button to save the settings
into the NOVRAM® and exit the programming mode.
The regeneration cycle is necessary to wash out
impurities that are captured in the filter media during the
service cycle, and to prevent ‘caking’ of the filter media,
which may result in an increase of pressure drop over the
water filter. Typically a regeneration every 4 days should be
sufficient. In case of high flow rates, excessive water usage
or a high concentration of impurities in the incoming water,
it may be necessary to lower the number of days between
regenerations.
PROGRAMMING INSTRUCTIONS -
CONFIGURATION PARAMETERS
Before entering the programming mode, make sure that
the appliance is in the service mode.
All configuration parameters on this appliance have
been pre-programmed in the factory, to offer optimal
performance in a wide range of applications and situations.
Nevertheless it may be necessary or desirable to change any
of these parameters, to further optimize the appliances
performance or to adapt it to the specific requirements of
the installation.
In case no button is pressed in a period of 5 min, the
control panel will automatically return to the service mode;
any changes made will NOT be save!
1. Press the scroll button and hold it for 5 sec until the
display shows:
2. Within 10 sec, press the up button; the display will
show:
Press the up or down button to set the units of
measure (Metric or US).
3. Press the scroll button again; the display will show:
Press the up or down button to activate the
maintenance reminder function by setting the
maintenance interval, or deactivate the maintenance
reminder function.
4. Press the scroll button again; the display will show:
Press the up or down button to set the length
of the regeneration cycle.
Press the scroll button again to advance to the next
regeneration cycle.
Cycle 1
Backwash
Cycle 2
No function
Cycle 3
Fast rinse
Cycle 4
No function (PF
-
GAC1
,5 & PF
-
AG1,5)
5. Press the scroll button again; the display will show:
Press the up or down button to set the time of
regeneration.
6. Press the scroll button again; the display will show:
Press the up or down button to save the settings
into the NOVRAM® and exit the programming level.
Language:English
Set time: 8:01
Interval:4 Days
Cycle 1: XX min
System Check
Regen @ 0:00
Exit
Exit
MaintInt: 24mths
Units:Metric
MAINTENANCE
Page 10
RECOMMENDATION
Notwithstanding the reliability of the appliance, we strongly
recommend to have it serviced and maintained on a regular
basis by a competent and duly trained technician. He will be
able to determine the appropriate maintenance interval for
the appliance, depending on your specific application and the
local operating conditions. The advantages of performing
regular maintenance are:
regular check of the local operating conditions (water
quality, pressure, etc);
regular control and adjustment of the settings of the
appliance, to guarantee it operates at maximum
efficiency;
minimize the risk of unexpected break-down.
Contact your dealer or installer for more information, or visit
our website.
ROUTINE CHECKS
Regularly the user should perform a basic check to verify if the
appliance is functioning correctly, on the basis of the
following control points:
1. Check settings of electronic control panel.
2. Check water composition before/after appliance.
3. Check drain line from control valve; there shouldn’t be
any water flow (unless appliance is in regeneration).
4. Check appliance and surrounding area; there shouldn’t be
any water leakages.
BYPASSING THE APPLIANCE
Occasionally it may be necessary to put the appliance
hydraulically in bypass, i.e. to isolate it from the water
distribution system; f.e.:
in case of an urgent technical problem;
when it is not necessary to supply treated water to the
application.
WITH FACTORY BYPASS (optional) (only for PF-GAC1 &
PF-AG1)
Picture 10.a
SERVICE POSITION
= inlet valve to appliance is OPEN
= outlet valve from appliance is OPEN
Picture 10.b
BYPASS POSITION
= inlet valve to appliance is CLOSED
= outlet valve from appliance is CLOSED
Picture 10.c
MAINTENANCE POSITION
= inlet valve to appliance is OPEN
= outlet valve from appliance is CLOSED
SANITIZING THE APPLIANCE
This appliance is manufactured from premium quality
material and assembled in safe conditions to assure it is clean
and sanitary. If installed and serviced correctly, this appliance
will not infect or contaminate your water supply. However, as
in any 'device' plumbed-in in your water distribution system,
a proliferation of bacteria is possible, especially in case of
'stagnant water'. Therefore this appliance will automatically
rinse the filter media periodically.
If the power supply to the appliance is disconnected for a
longer period of time, we recommend, when the power
supply is re-established, to manually initiate a complete
regeneration.
TROUBLESHOOTING
Page 11
PROBLEM
CAUSE S
OLUTION
Untreated water to
service
Open or defective bypass
Close
or replace
bypass
Appliance
in regeneration
Wait until regeneration finishes or
manually
advance regeneration to end
Excessive water usage
Initiate regeneration manually
Change in raw water
composition
Verify
composition
of incoming
untreated
water
and adjust regeneration frequency accordingly
Appliance
fails to
start a
regenerat
ion Refer to problem “Appliance fails to start a
regeneration”
Appliance
fails to backwash properly
Refer to problem “
Appliance
fails to
backwash
properly”
PF-GAC1
& PF-AC1 only
: valve body and timer
out of synchronisation
Synchronize valve body and timer
Decreasing
filter capacity of
filter media
Clean or replace filter media
Loss of
filter media
Refer to problem “Loss of
f
ilter media
” Leak between riser tube and
control valve body
Verify that riser tube is seated correctly and is not
cracked
Low levels of
contaminant in treated
water
Bypass not completely closed
Close bypass
Excessive service flow rate
Lower
service flow rate
Increase filter capacity by increasing volume of filter
media
Leak between riser tube and
control valve body
Verify that riser tube is seated correctly and is not
cracked
Appliance
fails to
start
a regeneration
Faulty electrical
supply
Verify electrical service (fuse, transformer,...)
Defective PCB
Replace PCB
Defective
drive motor
Replace
drive motor
Regeneration frequency not programmed
Program regeneration frequency
Loss of water pressure
Build-up of impurities
in
pressure
tank Clean
filter media
and control valve; increase
regeneration frequency
Plugged lower and/or upper distributor
Verify that distributors are free of debris
Drain line from control
valve flows
continuously
Appliance
in regeneration
Wait until regeneration finishes or
manually
advance regeneration to end
Faulty electrical supply
Verify electrical service (fuse, transformer,...)
Defective drive motor
Replace drive motor
PF-
GAC1
& PF-AC1 only
: defective micro switch
Replace micro
switches
PF-
GAC1,5 & PF-AC1,5
only
: defective optical
switch
Replace optical switch
Defective PCB
Replace PCB
PF-
GAC1
& PF-AC1 only
: valve body and timer
out of synchronisation
Synchronise valve body and timer
Loss of
filter media
Lower and/or upper
distributor damaged
Replace distributor(s)
Leak between riser tube and upper distributor
Verify that riser tube is seated correctly and is not
cracked
Appliance
fails to
backwash properly
Low operating pressure
Check
operating pressure; must
be
higher than
2,5
bar
Insufficient water supply
Check water supply (flow rate/dynamic pressure)
Restricted drain line
Verify drain line for kinks or restrictions
Excessive b
uild-up of impurities
in
pressure
tank Clean or replace
filter media
and control valve;
increase regeneration frequency
Plugged backwash flow control
Clean or replace backwash flow control
Plugged top or bottom distributor
Verify that top and bottom distributor are clean and
slots are not clogged by iron or other impurities
Filter media is completely ‘caked’ (solid block)
Replace filter media and reduce regeneration
interval
Control valve cycles
continuously
PF-GAC1
& PF/AC1
only
: defective micro switch
PF-GAC1,5 & PF/AC1,5 only: defective optical
switch
Replace
micro switches
Replace optical switch
ELECTRICAL WIRING DIAGRAMS
Page 12
PF-GAC1 & PF-AC1
= position switches
= power lead
= drive motor
= service valve NO (optional)
= key pad
PF-GAC1,5 & PF-AC1,5
= optical switch
= power lead
= drive motor
= service valve NO (optional)
= key pad
DEFAULT CONFIGURATION PARAMETER SETTINGS
Page 13
Model PF-GAC1 & PF-AG1
Filter media (cuft) 1 2 3
Interval (days) 4 4 4
Cycle 1: BACKWASH (min) 10 10 10
Cycle 2: SLOW RINSE (min) 0 0 0
Cycle 3: PURGE (min) 3 3 3
Regen @ 0:00 0:00 0:00
Model PF-GAC1,5 & PF-AG1,5
Filter media (cuft) 3 4 5 7 10
Interval (days) 4 4 4 4 4
Cycle 1: BACKWASH (min) 10 10 10 10 10
Cycle 2: SLOW RINSE (min) 0 0 0 0 0
Cycle 3: PURGE (min) 3 3 3 3 3
Cycle 4: no function 0 0 0 0 0
Regen @ 0:00 0:00 0:00 0:00 0:00
COMPOSITION OVERVIEW
Page 14
Model
Media
volume
PN
Control valve, incl. transformer,
1” male BSP connections
Pressure tank,
incl. distributor assy
Underbedding
Filter media
(1 cuft bag)
cuft model # model # type ltr type #
PF-GAC1
1 35359 2400TF/JN/SV 1 10x40 1 Gravel 2-4 mm 4 Coconut GAC 1
2 35370 2400TF/JQ/SV 1 12x52 1 Gravel 2-4 mm 6 Coconut GAC 2
3 35707 2400TF/JS/SV 1 14x65 1 Gravel 2-4 mm 8 Coconut GAC 3
PF-AG1
1 35357 2400TF/JN/SV 1 10x40 1 Gravel 2-4 mm 4 Filter-Ag 1
2 35368 2400TF/JQ/SV 1 12x52 1 Gravel 2-4 mm 6 Filter-Ag 2
3 35371 2400TF/JS/SV 1 14x65 1 Gravel 2-4 mm 8 Filter-Ag 3
Model
Media
volume
PN
Control valve, incl. transformer,
1,5” male BSP connections
Pressure tank,
incl. distributor assy
Underbedding
Filter media
(1 cuft bag)
cuft model # model # type ltr type #
PF-GAC1,5
3 35852 EV1.5TF/J/100 1 14x65 1 Gravel 2-4 mm 12 Coconut GAC 3
4 35853 EV1.5TF/J/150 1 16x65 1 Gravel 2-4 mm 15 Coconut GAC 4
5 35854 EV1.5TF/J/200 1 18x65 1 Gravel 2-4 mm 18 Coconut GAC 5
7 35855 EV1.5TF/J/250 1 21x62 1 Gravel 2-4 mm 22 Coconut GAC 7
10 35856 EV1.5TF/J/350 1 24x72 1 Gravel 2-4 mm 26 Coconut GAC 10
PF-AG1,5
3 35857 EV1.5TF/J/100 1 14x65 1 Gravel 2-4 mm 12 Filter-Ag 3
4 35858 EV1.5TF/J/150 1 16x65 1 Gravel 2-4 mm 15 Filter-Ag 4
5 35859 EV1.5TF/J/200 1 18x65 1 Gravel 2-4 mm 18 Filter-Ag 5
7 35860 EV1.5TF/J/250 1 21x62 1 Gravel 2-4 mm 22 Filter-Ag 7
10 35861 EV1.5TF/J/350 1 24x72 1 Gravel 2-4 mm 26 Filter-Ag 10
Page 15

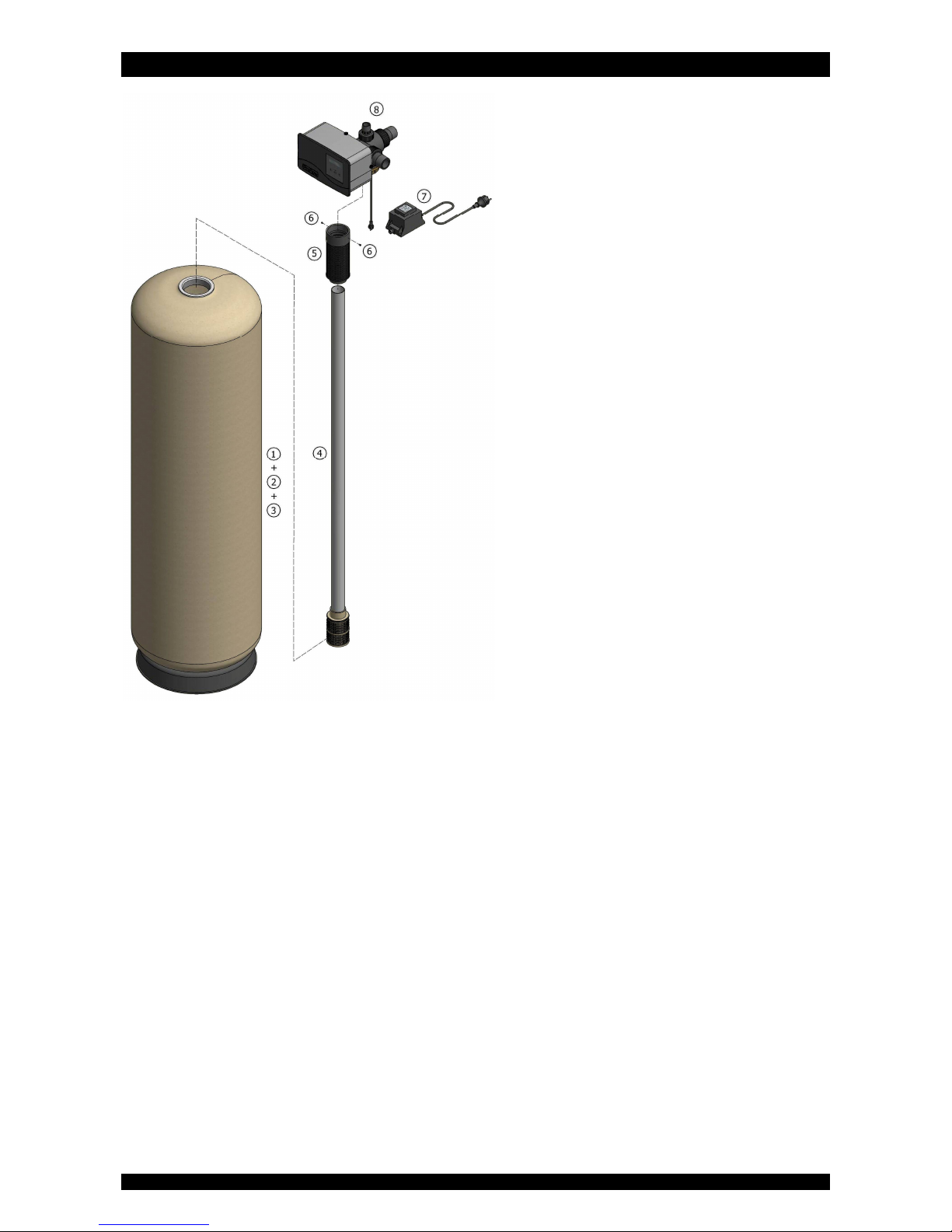

EXPLODED VIEW - PF-GAC1 & PF-AG1 - SYSTEM
Page 16
EXPLODED VIEW - PF-GAC1 & PF-AG1 - SYSTEM
Page 17
(*) Recommended Spare Part
Item PN Description Remark (*)
1 PT/1040/BA Pressure tank 10x40 1 cuft
PT/1252/BA Pressure tank 12x52 2 cuft
PT/1465/BA Pressure tank 14x65 3 cuft
2 A1100(BB) Coconut Granular Activated Carbon (GAC) multiple of 1 cuft
A8014 Filter-Ag multiple of 1 cuft
3 A1000 Gravel multiple of 25 kg (=17 ltr)
4 38534 Riser tube assembly to be cut to length
5 28/298/11 Transformer 230/24V - 50 Hz, 24VA, EuroT plug
28/298/18 Transformer 230/24V - 50 Hz, 24VA, UK plug
6 287/166 Top distributor
7 2400TF/JN/SV Control valve 1 cuft
2400TF/JQ/SV Control valve 2 cuft
2400TF/JS/SV Control valve 3 cuft
8 568/303/1 Connection kit 1” BSP male
9 38522 Drain hose to be ordered per meter
10 74163 Air gap with double hose barb
11 38521 Clamp, drain hose (2x)

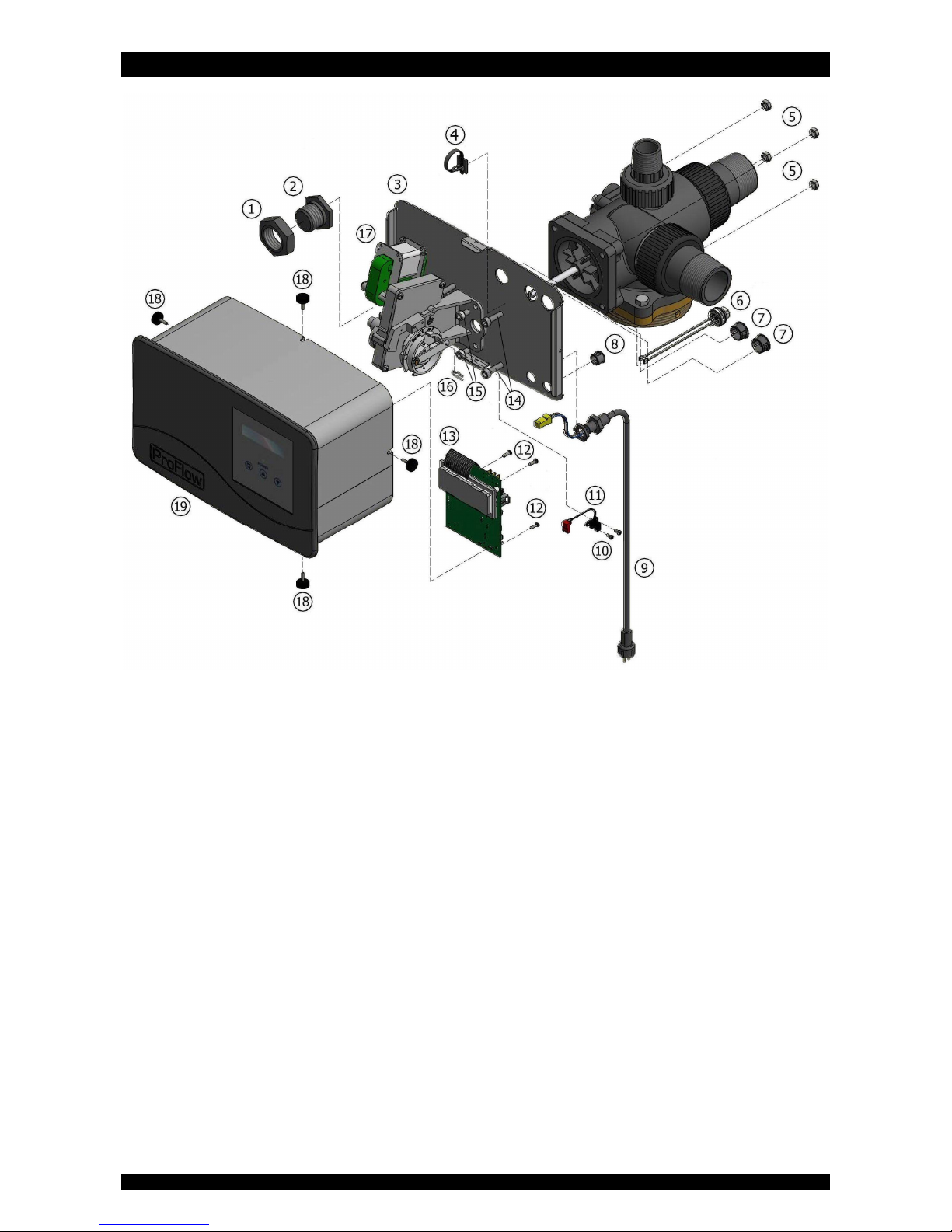

EXPLODED VIEW - PF-GAC1 & PF-AC1 - TIMER ASSEMBLY
Page 18
EXPLODED VIEW - PF-GAC1 & PF-AC1 - TIMER ASSEMBLY
Page 19
(*) Recommended Spare Part
Item PN Description Remark (*)
1 70971 Power lead with plug
2 72263 Clamp
3 28/244/1 Plug (large)
4 71502 Screw, timer cover (3x)
5 15/222 Screw, back plate (2x)
6 74135 Socket and cable assembly, Service Valve
7 74251 Back plate
8 75157 Worm coupling
9 15/222 Screw, drive motor assembly (2x)
10 74267 Cable clamp
11 70312 Strain relief, power lead
12 75158 Retaining ring, worm drive shaft
13 72261 Drive motor
14 75156 Worm drive shaft
15 70965 Switch cam
16 568/386 Bracket, micro switches
17 568/310 Gear, switch cam
18 15/184/7 Locking screw, switch cam
19 15/173/12 Screw, micro switches (2x)
20 72451 Micro switch assy
21 71679 Cable set, drive motor
22 15/102 Screw, PCB (2x)
23 72703 Printed Circuit Board
24 72614 Timer cover assembly
EXPLODED VIEW - PF-GAC1 & PF-AC1 - VALVE BODY
Page 20
EXPLODED VIEW - PF-GAC1 & PF-AC1 - VALVE BODY
Page 21
Item PN Description Remark (*)
1 21/83 Drain connection
2 568/271/N Backwash flow control N (22,7 Ltr/min) 1 cuft
568/271/Q Backwash flow control Q (30,3 Ltr/min) 2 cuft
568/271/S Backwash flow control S (37,8 Ltr/min) 3 cuft
3 72678 Bolt, valve cover (6x)
4 568/254/3 Valve cover
5 185/154/1 O-ring, valve cover
6 186/112 O-ring, Teflon
7 72327 Washer, PE
8 568/260 Worm gear
9 568/259 Rotor cam
10 185/041/1 O-ring, rotor
11 568/345/2 Rotor plate
12 568/256 Seal disk
13 568/383 Insert plate
14 568/384 Gasket
15 51/5/105 Spring, float valve
16 568/270/4 Float valve
17 568/274/5 Injector (green)
18 186/118 O-ring, plug (small)
19 541/273 Plug (small)
20 541/254 Spring clip, plug (small)
21 570/251 Gasket, riser
22 568/334 Riser insert
23 185/214/1 O-ring, riser tube
24 185/337/1 O-ring, tank
25 541/232 Adapter ring
26 15/207/12 Screw, adapter ring (2x)
27 72772 Packing gland nut (plastic)
28 185/211/1 O-ring, packing gland nut
29 186/115 O-ring, worm drive shaft (2x)
30 568/208/2 Worm drive shaft
31 14/43 Washer, worm drive shaft
32 185/208/1 O-ring, plug (large)
33 21/72/3 Plug (large)
34 72800 Valve body
A RK/568/259/2 Repair kit rotor
B RK/75154 Repair kit packing gland nut
(*) Recommended Spare Part
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - SYSTEM
Page 22
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - SYSTEM
Page 23
Item PN Description Remark (*)
1 PT/1465/4/BA Pressure tank 14x65, 4” top opening 3 cuft
PT/1665/4/BA Pressure tank 16x65, 4” top opening 4 cuft
PT/1865/4/BA Pressure tank 18x65, 4” top opening 5 cuft
PT/2162/4/BA Pressure tank 21x62, 4” top opening 7 cuft
PT/2472/4/BA Pressure tank 24x72, 4” top opening 10 cuft
2 A1100(BB) Coconut Granular Activated Carbon (GAC) multiple of 1 cuft
A8014 Filter-Ag multiple of 1 cuft
3 A1000 Gravel multiple of 25 kg (=17 ltr)
4 39107 Riser tube assembly to be cut to length
5 EV/TD Top distributor
6 EV/20533 Screw, top distributor
7 28/500/11/IL Transformer 230/24V - 50 Hz, 120VA, EuroT plug
28/500/18/IL Transformer 230/24V - 50 Hz, 120VA, UK plug
8 EV1.5TF/J/100 Control valve 3 cuft
EV1.5TF/J/150 Control valve 4 cuft
EV1.5TF/J/200 Control valve 5 cuft
EV1.5TF/J/250 Control valve 7 cuft
EV1.5TF/J/350 Control valve 10 cuft
(*) Recommended Spare Part
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - TIMER ASSEMBLY
Page 24
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - TIMER ASSEMBLY
Page 25
Item PN Description Remark (*)
1 EV/50195 Nut, drive motor assembly
2 EV/11538 Bolt, drive motor assembly
3 EV/20644/1 Back plate
4 74267 Cable clamp
5 EV/20648 Nut, back plate (4x)
6 74224 Socket and cable assembly, Service Valve
7 74226 Plug (large) (2x)
8 28/244/1 Plug (small)
9 28/500/11 Power lead with plug incl. with transformer
10 EV/20761 Screw, optical sensor (2x)
11 74235 Optical sensor
12 15/102 Screw, PCB (3x)
13 74232 Printed Circuit Board
14 EV/20647 Bolt, back plate (4x)
15 EV/20649 Bolt, drive motor assembly (2x)
16 EV/20653 R spring pin
17 EV/20960 Drive motor assembly
18 EV/11125 Screw, timer cover (4x)
19 74206 Timer cover assembly
(*) Recommended Spare Part
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - VALVE BODY
Page 26
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - VALVE BODY
Page 27
Item PN Description Remark (*)
1 EV/20961 Bolt, cap (4x)
2 EV/11101/1 Cap
3 EV/11115 Gasket, cap
4 EV/11092 O-ring, inlet/outlet adaptor (2x)
5 EV/11094-1 Inlet/outlet adaptor 1,5” BSP Male (2x)
6 EV/11093 Nut, inlet/outlet adaptor (2x)
7 EV/11088 O-ring, drain adaptor
8 74245 Drain Line Flow Controller 10.0 GPM 3 cuft
74246 Drain Line Flow Controller 15.0 GPM 4 cuft
74247 Drain Line Flow Controller 20.0 GPM 5 cuft
74254 Drain Line Flow Controller 25.0 GPM 7 cuft
74255 Drain Line flow Controller 35.0 GPM 10 cuft
9 EV/11090 Drain adaptor 1” BSP male
10 EV/11089 Nut, drain adaptor
11 EV/11075 Front plate
12 EV/11114 Gasket, valve seat
13 EV/11113 Valve seat
14 EV/11273 O-ring, tank
15 EV/11374 O-ring, riser tube
16 EV/20658 Bolt, valve seat (4x)
(*) Recommended Spare Part
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - PISTON ASSEMBLY
Page 28
EXPLODED VIEW - PF-GAC1,5 & PF-AG1,5 - PISTON ASSEMBLY
Page 29
Item PN Description Remark (*)
1 EV/20646 Piston
2 EV/20654 Stem
3 EV/11104 Bushing
4 EV/11105 O-ring, bushing (2x)
5 EV/11080 Seal disk
6 EV/11082 Spacer (narrow) (2x)
7 EV/11081 Spacer (wide) (3x)
8 EV/11078 Compression spacer
9 EV/11076 End cap
10 EV/11077 O-ring, end cap
(*) Recommended Spare Part
TECHNICAL DATA - PF-GAC1 & PF-AG1
Page 30
Technical specifications:
Model PF-GAC1 / PF-AG1
Filter media (cuft) 1 2 3
Operating pressure min/max (bar) 2,5/8,3
Operating temperature min/max (°C) 4/48
Electrical connection (V/Hz) 230/50
(1)
Max. power consumption (VA) 12
Hydraulic connection inlet/outlet 1” BSP Male
Hydraulic connection drain 13 mm hose barb
Pressure tank 10x40 12x52 14x65
(1) Supplied with 24V transformer
Performances @ 3 bar operating pressure
(2)
:
Model PF-GAC1
Filter media (cuft) 1 2 3
Service flow rate @∆p 1 bar (m³/hr)
(3)
3,4 3,4 3,5
Recomm. max. service flow (m³/hr)
(4)
1,2 1,7 2,3
Rinse water usage per regeneration (ltr) 295 394 492
Backwash flow rate (ltr/min) 23 31 38
Model PF-AG1
Filter media (cuft) 1 2 3
Service flow rate @∆p 1 bar (m³/hr)
(3)
3,4 3,4 3,5
Recomm. max. service flow (m³/hr)
(4)
2,4 3,4 4,6
Rinse water usage per regeneration (ltr) 295 394 492
Backwash flow rate (ltr/min) 23 31 38
(2) Indicative numbers, performances depending on operating conditions and water quality
(3) Based on clean filter bed operation
(4) Flow rate at which filtration process is still executed adequately, higher intermittent flow rates are possible
Dimensions:
Model PF-GAC1 / PF-AG1
Filter media (cuft) 1 2 3
Width (mm) (W) 264 311 365
Depth (mm) (D) 282 311 365
Depth, incl. factory bypass (mm) (D) 371 376 403
Height (mm) (H) 1.182 1.500 1.836
Page 31
Technical specifications:
Model PF-GAC1,5 / PF-AG1,5
Filter media (cuft) 3 4 5 7 10
Operating pressure min/max (bar) 2,5/8,0
Operating temperature min/max (°C) 4/48
Electrical connection (V/Hz) 230/50
(1)
Max. power consumption (VA)
80
Hydraulic connection inlet/outlet 1,5” BSP Male
Hydraulic connection drain 1” BSP Male
Pressure tank 14x65 16x65 18x65 21x62 24x72
(1) Supplied with 24V transformer
Performances @ 3 bar operating pressure
(2)
:
Model PF-GAC1,5
Filter media (cuft) 3 4 5 7 10
Service flow rate @∆p 1 bar (m³/hr)
(3)
7,8 7,8 7,8 7,9 8,0
Recomm. max. service flow (m³/hr)
(4)
2,3 3,0 3,8 5,1 6,7
Rinse water usage per regeneration (ltr) 492 738 984 1.230 1.722
Backwash flow rate (ltr/min) 38 57 76 95 133
Model PF-AG1,5
Filter media (cuft) 3 4 5 7 10
Service flow rate @∆p 1 bar (m³/hr)
(3)
7,8 7,8 7,8 7,9 8,0
Recomm. max. service flow (m³/hr)
(4)
4,6 6,0 7,6 10,2 13,4
Rinse water usage per regeneration (ltr) 492 738 984 1.230 1.722
Backwash flow rate (ltr/min) 38 57 76 95 133
(2) Indicative numbers, performances depending on operating conditions and water quality
(3) Based on clean filter bed operation
(4) Flow rate at which filtration process is still executed adequately, higher intermittent flow rates are possible
Dimensions:
Model PF-GAC1,5 / PF-AG1,5
Filter media (cuft) 3 4 5 7 10
Width (mm) (W) 408 434 491 555 635
Depth (mm) (D) 408 434 491 555 635
Height (mm) (H) 1.865 1.862 1.913 1.912 2.109
Manufactured & Assembled by
erie water treatment
a division of Aquion, Inc.
www.eriewatertreatment.com
Loading...
