Sky Fighters Twin Pack
User Manual
Model: PFBD101
Thank you for choosing ProFlight.
Please read this user manual before using this drone and
keep it safe for future reference.
Page 2
2 of 13
CONTENTS
Safety…………………………………………………………………………………3
Battery Charging…………………………………………………………………4
Installing Controller Batteries……………………………………………..5
Transmitter Diagram…………………………………………………………..5
Hot to change the Propellers….…………………………………………..6
Preparing for First Flight……………………………………………………..6
Binding of Radio Transmitter and Receiver…………………………7
Flight Instructions……………………………………………………………….8
Flight Adjustment……………………………………………………………….9
Aircraft Functions & Features…………………………………………….10
Troubleshooting Guide………………………………………………………13
Support………………………………………………………………………………13
Page 3
3 of 13
SAFETY
Read the entire instruction manual and familiarise yourself with the product
and all its features before operating. Failure to operate the product correctly
can result in damage to the product, surroundings or even serious injury. This
product is not a toy and must be operated with caution and common sense. It
requires some basic mechanical knowledge. This product is not intended for
use by children without direct adult supervision. This manual contains
instructions for safety, operation and maintenance. It is essential to read and
follow all the instructions and warnings in this manual prior to assembly, setup
or use in order to operate correctly and avoid damage or serious injury.
Not intended for use by children under 14 years of age. This is not a toy.
Always operate your drone in open spaces away from vehicles, buildings,
traffic and people.
Always keep out of reach of children.
Avoid exposure to water as moisture can cause damage to the
electronics.
Never operate your drone with low transmitter batteries.
The battery charger included with the drone has been designed to safely
charge the Li-Po battery.
Mishandling of Li-Po batteries can result in a fire, personal injury, and
/or property damage.
By handling, charging or using the included Li-Po battery you assume all
risks associated with lithium batteries.
If at any time the battery begins to balloon or swell, discontinue use
immediately. If charging or discharging, discontinue and disconnect.
Continuing to use, charge or discharge a battery that is ballooning or
swelling can result in fire.
Always store the battery at room temperature in a dry area for best
results.
Page 4
4 of 13
Do not store battery or drone in a car or direct sunlight. If stored in a
hot environment, the battery can be damaged or even catch fire.
Never use any other type of battery charger other than the one supplied
with the drone. Failure to charge the battery with a compatible charger
may cause fire resulting in personal injury and/or property damage.
Never exceed the recommended charge rate.
When a Li-Po battery is discharged below 3.7V, the battery may be
damaged and may no longer accept a charge. The drone will
automatically land and become inactive when the battery reaches this
level, this is to protect the battery.

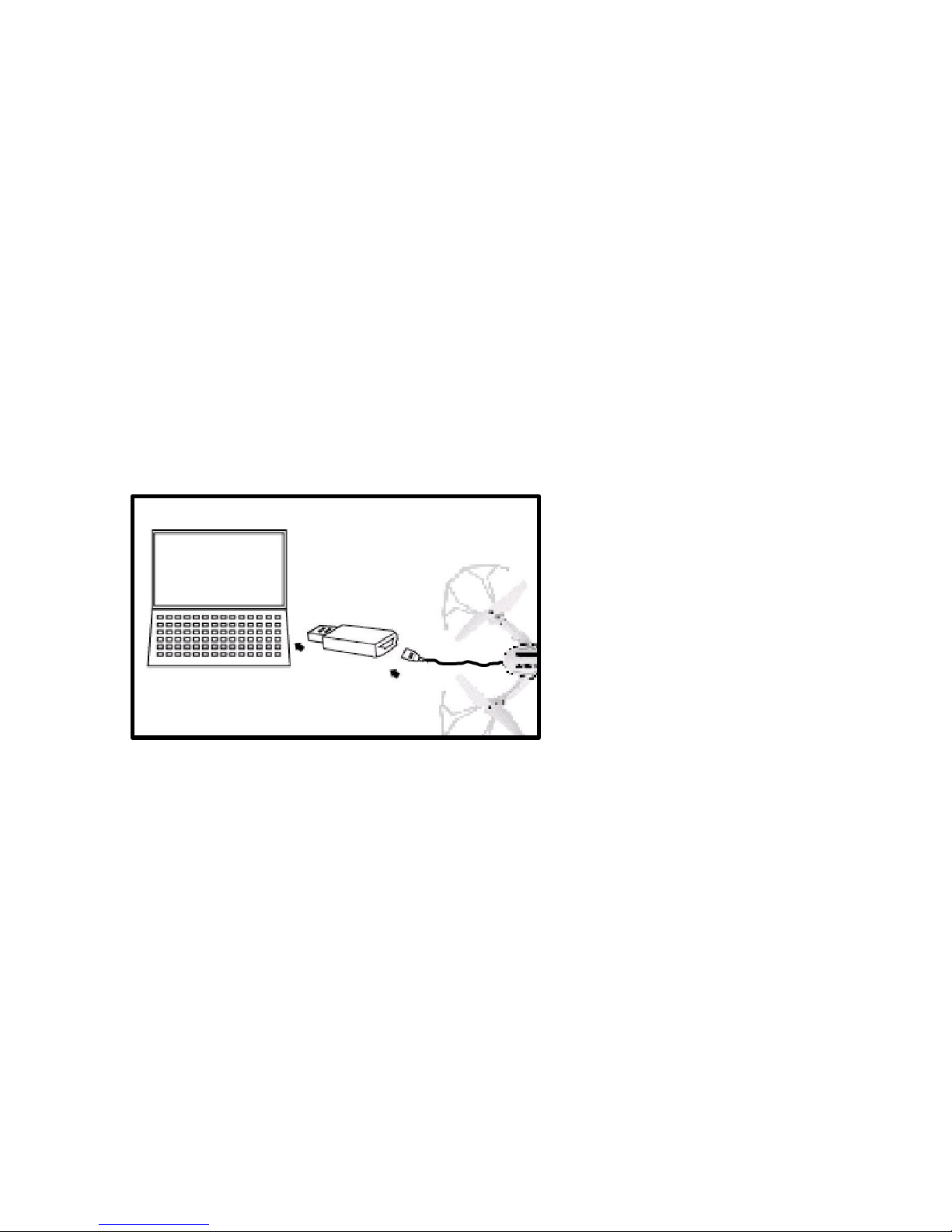

Battery Charging
Unplug the battery cable from
the socket in the back of the
drone, and connect the cable
to the supplied USB charging
adaptor. The adaptor should
then be plugged into a usb
socket to charge
When the charger is plugged into a USB slot, the charging the LED will
illuminate RED. When the battery is fully charged the LED will go out.
Charging should take around 60-70 minutes. DO NOT leave the battery
unattended whilst charging.
Page 5
5 of 13
Installing the Controller Batteries
Unscrew the battery cover and insert 4 x AA Batteries in each controller,
making sure the correct polarity is followed, before reattaching the battery
cover

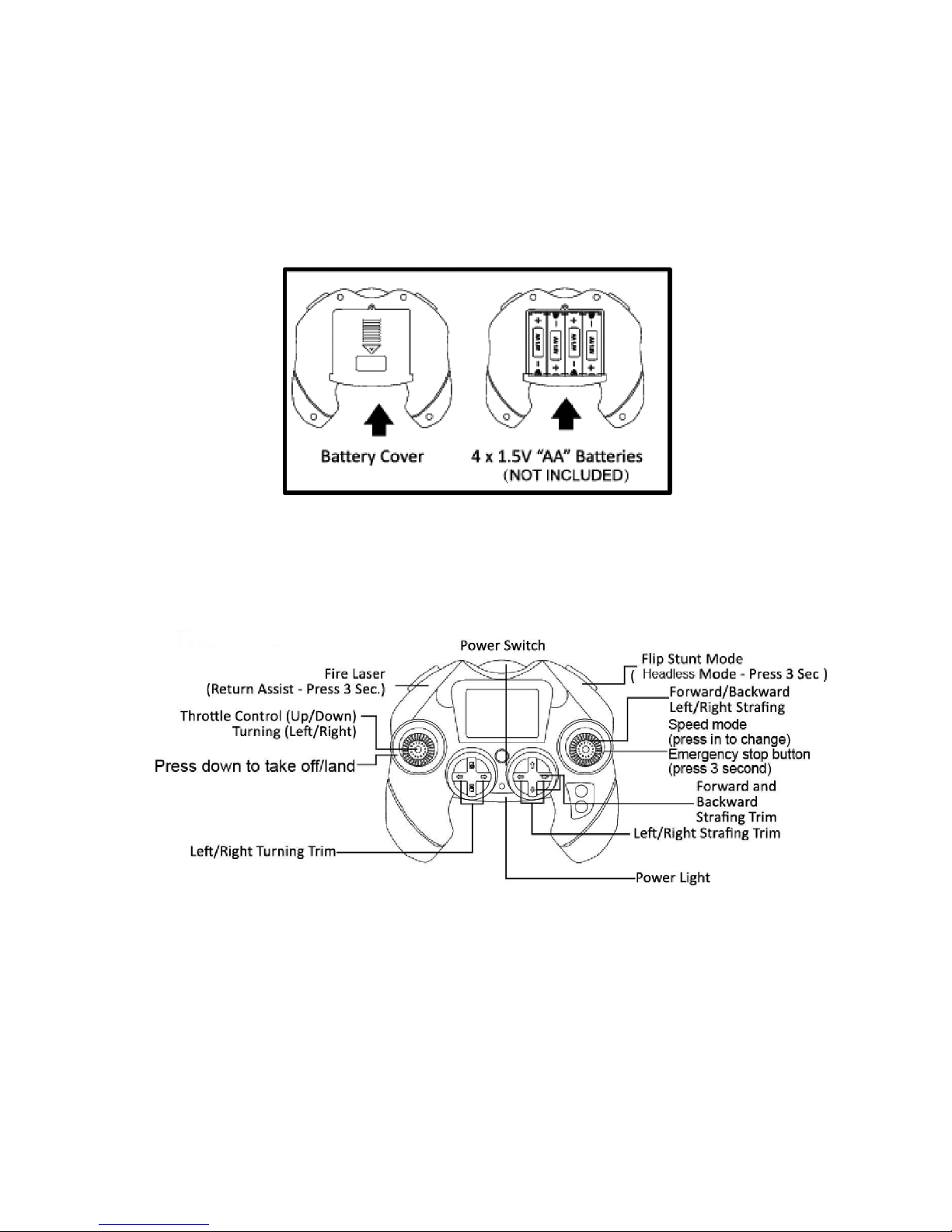

Transmitter Diagram
Page 6
6 of 13

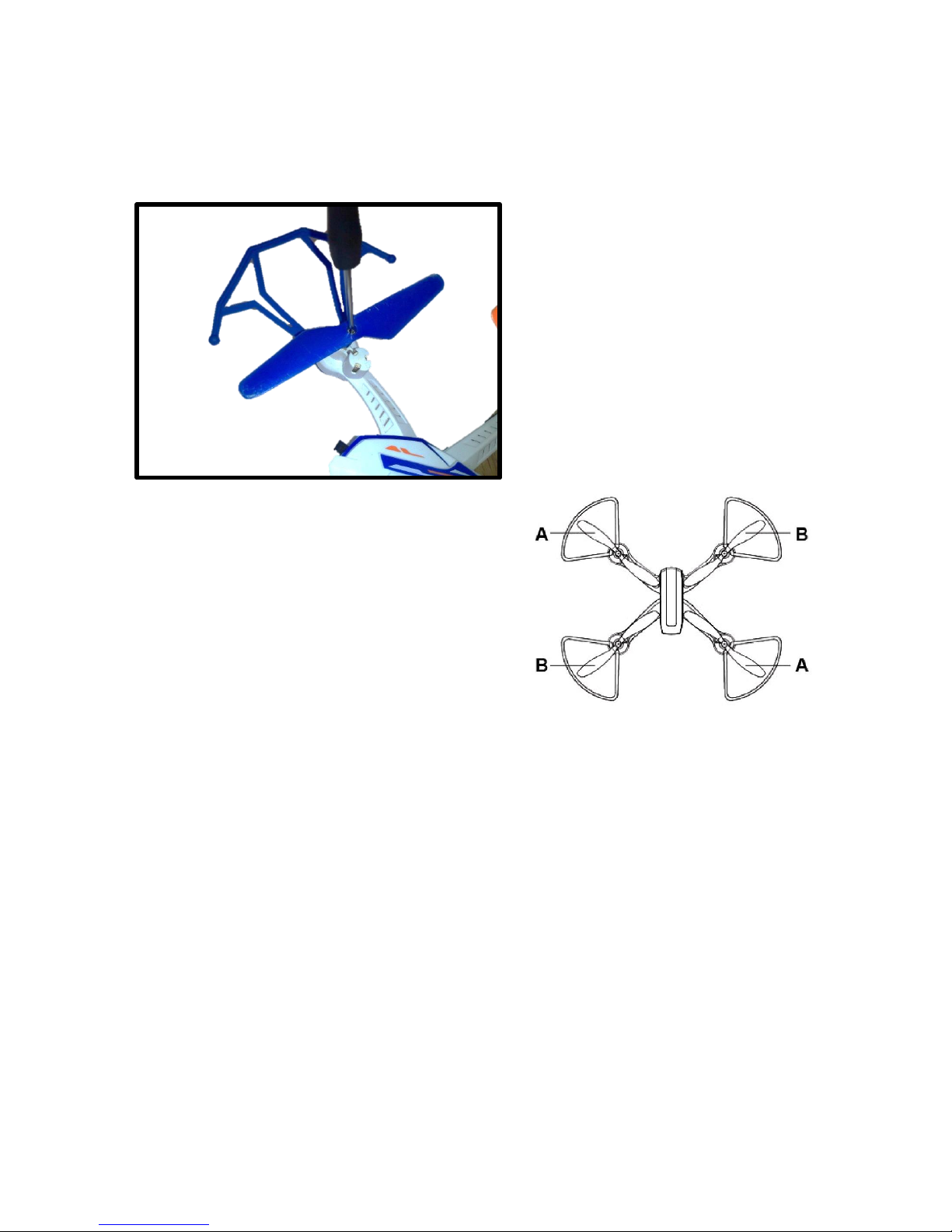

How to change the propellers
Using a screwdriver, untighten
the screw holding the
propeller in place and remove
the propeller. Insert the new
propeller over the motor
spindle and use a screwdriver
to tighten the screw.
It is important for the correct blade
to be placed on the correct motor or
the aircraft will not fly correctly.
There is one spare blade of each
colour and direction supplied with
the kit.
Preparing for First Flight
1. Make sure the transmitters and aircraft batteries for both drones are
sufficiently charged.
2. Find a suitable place to fly the aircraft, away from people, buildings and
vehicles.
3. Make sure the throttle stick is centred before turning on the transmitter.
Page 7
7 of 13
Binding of Radio Transmitter & Receiver
When pairing up, the below procedure should
be followed one drone at a time. Do not turn
on the second drone, until the first has been
paired.

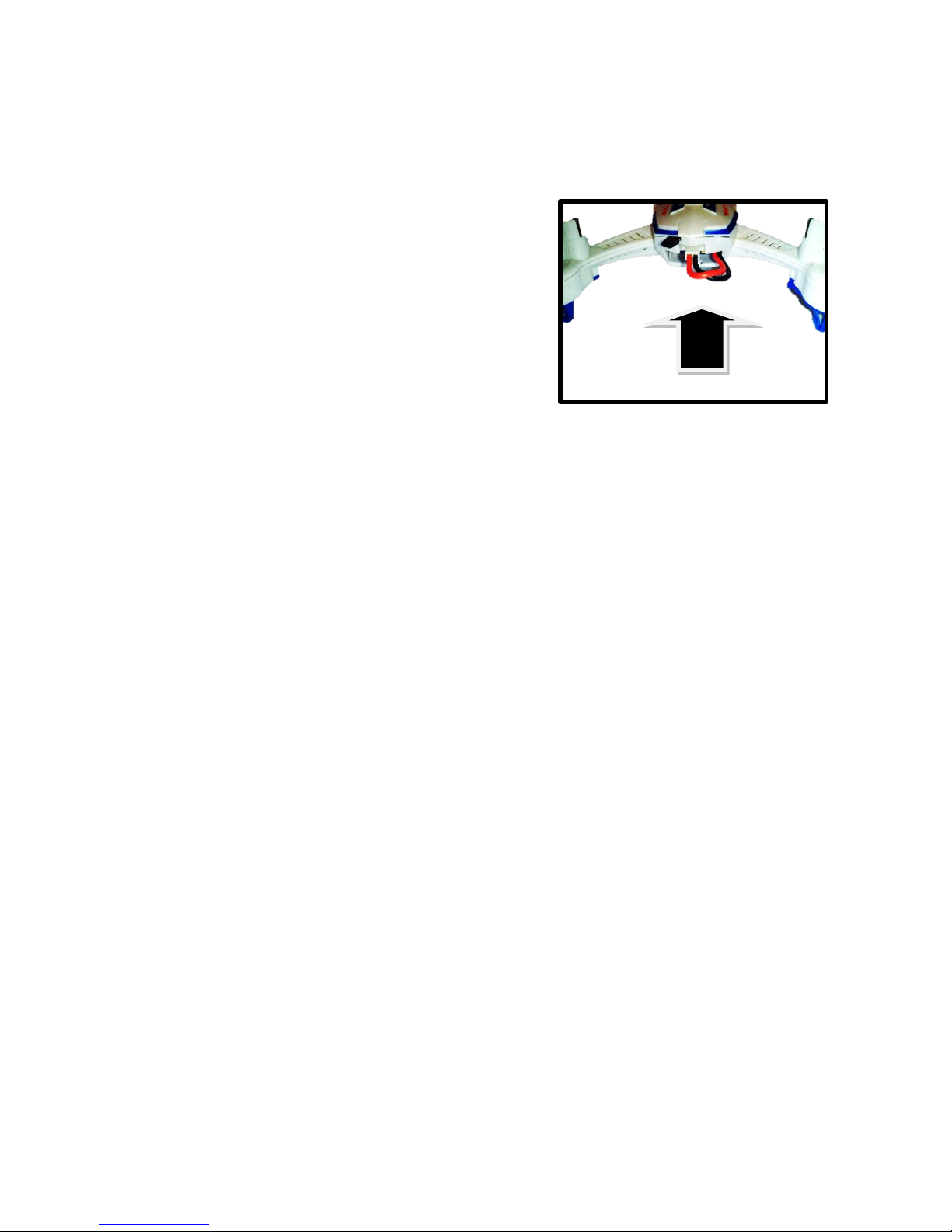

1. Place the aircraft on a flat surface and
insert the lead from the battery into the
socket on the rear of the drone.
2. Turn on the controller.
3. The controller will beep twice, and the red LED will flash. Pair it to the
drone by pushing the throttle stick to the top, it will bleep, and then pull
the throttle stick to the bottom.
4. The long bleep indicates it is paired, the process can then be repeated
for the second drone, and you are then ready to fly.
Page 8
8 of 13
Flight Instructions
Before your first flight make sure you are familiar with the controls of the
aircraft.

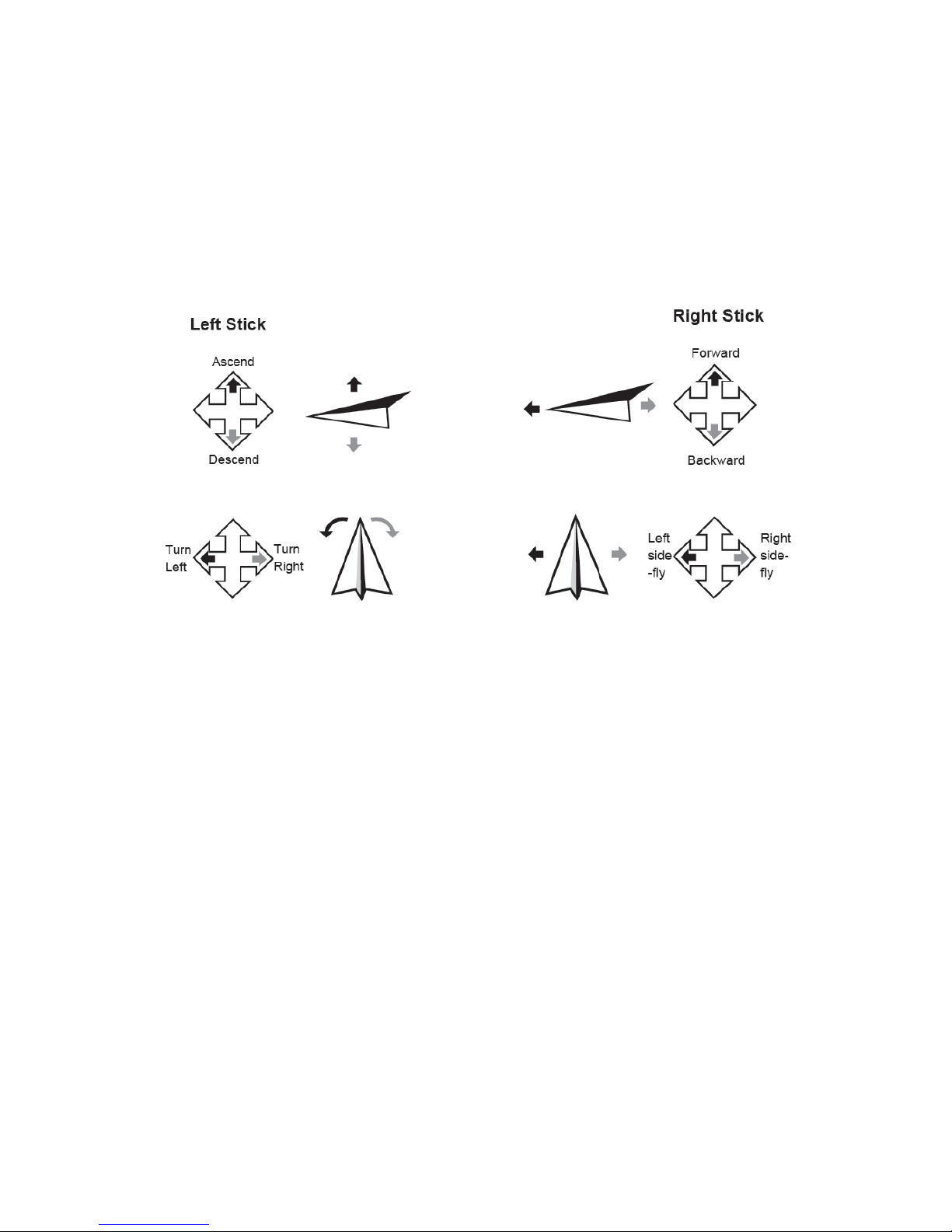

Left Joystick – Throttle & Rudder
Right Joystick – Elevator & Aileron
The aircraft can only take off and land by pressing the take off / land button
(click once to take off and once to land). Once the aircraft is airborne it will
hold a steady hover, you are now in control of the aircraft and can use the left
and right sticks to control it.
Note: Should the aircraft be left for a while with no control inputs it will go to
sleep, simply press and hold the take off/land button to reactivate the aircraft.
Page 9
9 of 13
Flight Adjustment

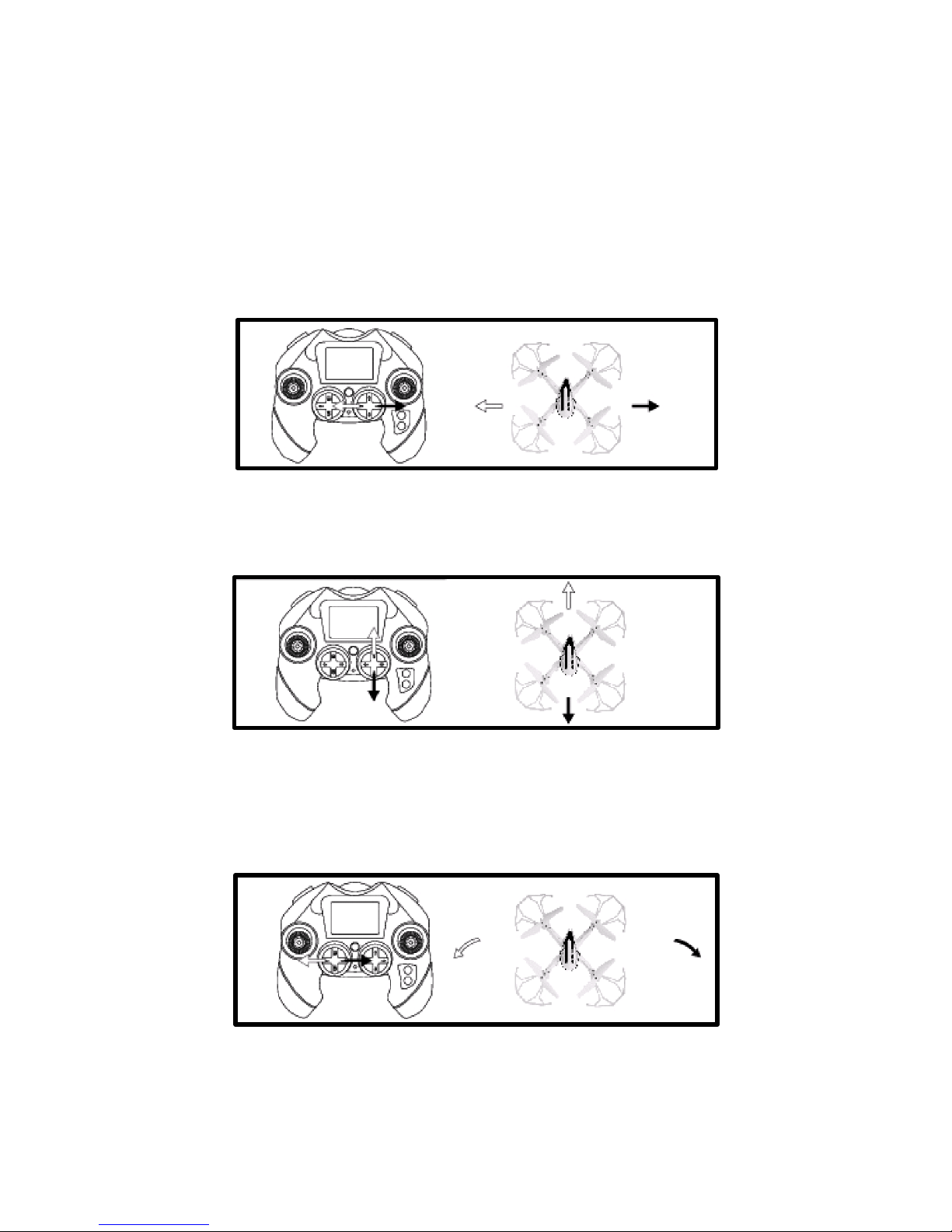

When you lift the Drone into the air, if the aircraft drifts in a particular
direction you can trim the controls using the trim buttons. Select the trim key
opposite the direction of drift. Trimming is always needed before your first
flight.
On the Right Directional Pad:
If the drone drifts left, tap the Right Directional Trim button until the drifting
stops. If it drifts right, the Left Directional Trim Button should be pressed until
drifting stops
If the drone drifts forward, tap the Down Directional Trim button until the
drifting stops. If it drifts backwards, the Up Directional Trim Button should be
pressed until drifting stops
On the Left Directional Pad:
If the drone spins anti clockwise, tap the Right Directional Trim button until the
drifting stops. If it spins clockwise, the Left Directional Trim Button should be
pressed until drifting stops
Page 10
10 of 13
Aircraft Functions and Features
One Key Return
The aircraft can be made to return in a fixed
direction by pressing and holding the return
button for 3 seconds. When the aircraft is
turned on it will remember the direction it is
oriented and upon activation of the Smart
Return feature it will fly back in that
direction.
NOTE: Be careful to orientate the aircraft with the rear tail facing towards you
if you want the aircraft to fly back towards you using the smart return mode.
You can retake full control of the aircraft at any time by moving the control
sticks. The aircraft will not return to where it started, it will simply move in the
direction it was orientated when turned on.
Flip Stunt Mode

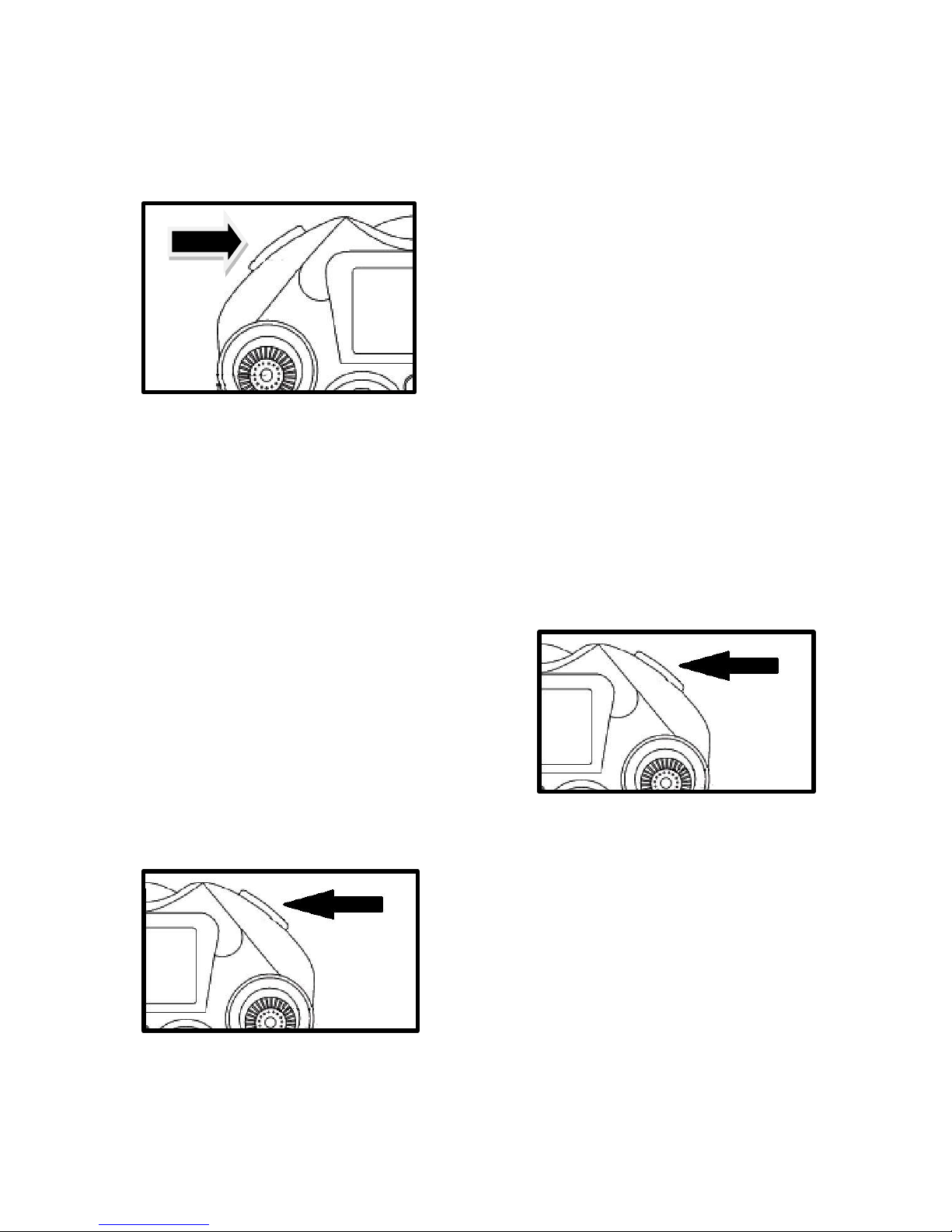

Press the Flip stunt button to activate the flip
mode. The controller will bleep until a stunt
has been selected using the right hand
joystick, to select the direction of the flip.
Headless Flight
The aircraft can be made to fly in Headless
Flight by holding the flip button for 3
seconds. This will make the aircraft fly
without a front or rear. It will fly in the
orientation of the pilot. If you move the
right joystick right, the aircraft will fly right.
Move the joystick left and it will fly left. Move the joystick forwards and the
aircraft will fly away from you and pull it back to make it fly towards you. It
does not matter which direction the drone is facing in headless mode.
Page 11
11 of 13

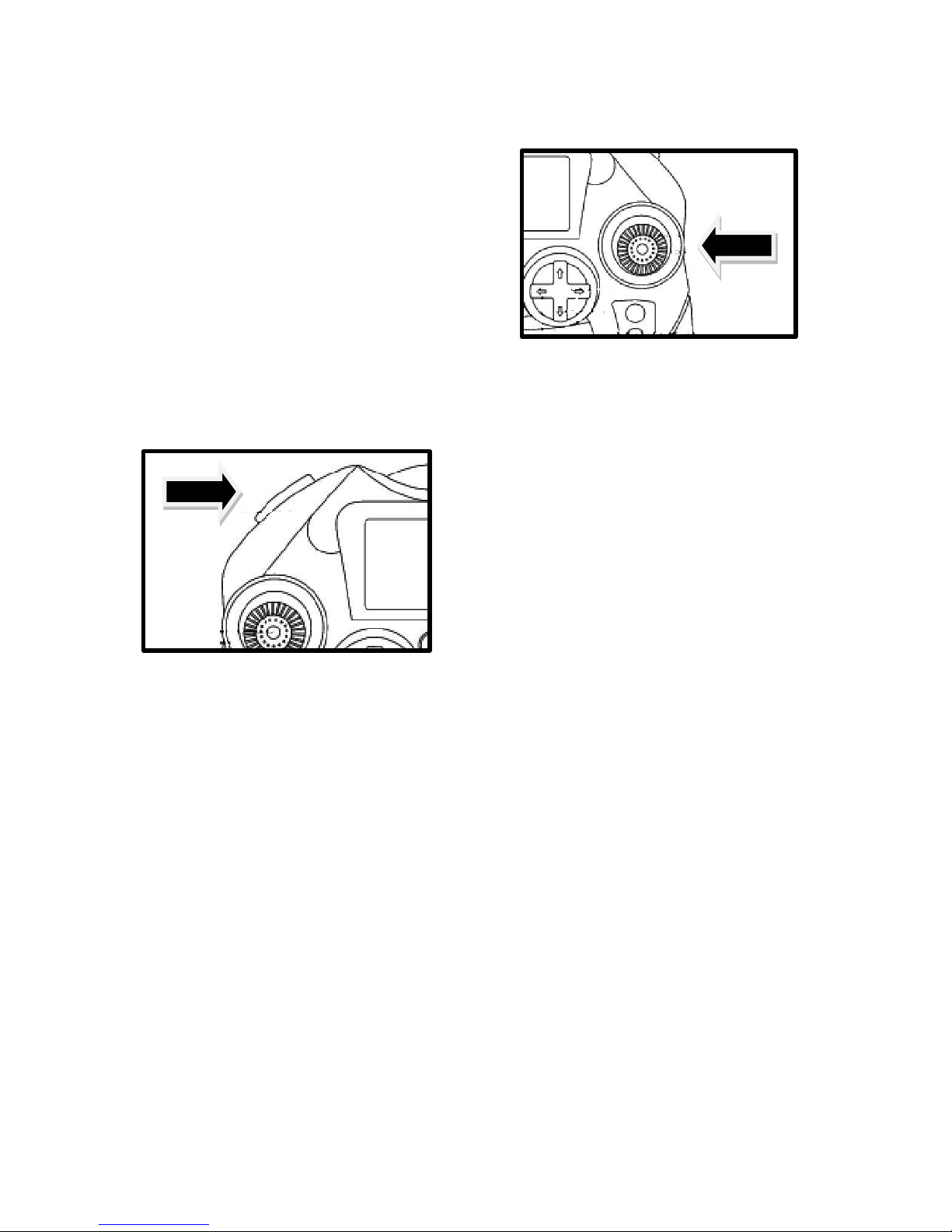

Speed Control
The drone has 3 speed settings. It will
initially be set at 25%. By pressing the right
joystick the speed of the drone can be
adjusted. The controller will bleep to
indicate the speed it is set at after the
button has been pressed.
25% - 1 Bleep, 50% - 2 Bleeps
100% - 3 Bleeps
Drone Laser Battle
Both drones are equipped with IR Laser
emitters which enables you to fire at your
opponent while flying. The Laser can be
fired by pressing the left Fire button. The
range is around 10 feet, and shoots out at
an angle of 45 degrees from the front of
the drone.
Use the fire button to hit your opponent, while flying through the air,
attempting to avoid getting hit by your opponent’s laser.
Each Drone can receive 4 hits before they land to recover for the next battle.
After each hit your drone will perform a different action to show a successful
hit
Page 12
12 of 13

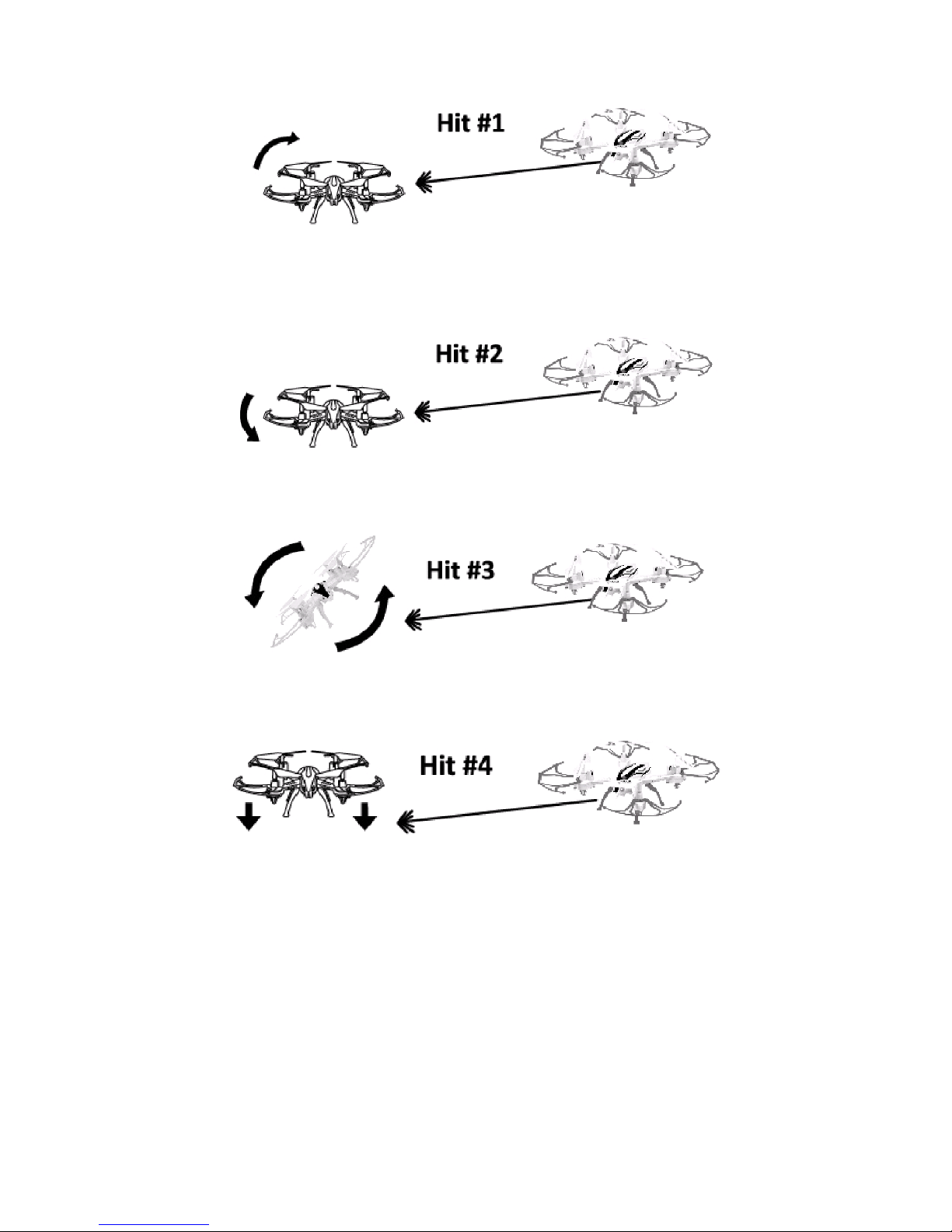

The First time your drone is hit, it will rotate clockwise 180 degrees before
resuming normal function
The Second time your drone is hit, it will rotate anti-clockwise 180 degrees
before resuming normal function
The Third time your drone is hit, it will perform a single flip, before resuming
normal function
The Forth time your drone is hit, the battle is over, and the drone will rotate
clockwise 180 degrees, before landing, ready for the next battle
Page 13
13 of 13
Troubleshooting
Problem
Cause
Solution
1
The lights on the aircraft are
flashing but it does not
respond to the control
1. The aircraft and transmitter
are not connected.
2. Insufficient battery power.
1. Repeat the connection
procedure.
2. Recharge the battery.
2
The aircraft blades turn but it
will not take off
1. Insufficient battery power.
2. The blades are distorted.
3. Take off button not pressed.
1. Recharge the battery.
2. Replace the blades.
3. Press the take off
button.
3
The aircraft shakes in flight
The blades are
damaged/distorted
Replace the blades.
Disposal: Do not dispose this product as unsorted
municipal waste. Collection of such waste must be
handled separately as special treatment is necessary
Recycling facilities are now available for all customers at which you
can deposit your old electrical products. Customers will be able to
take any old electrical equipment to participating civic amenity sites
run by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the
local council for details of your local household waste recycling
centres.
UK Support
http://www.proflightuk.co.uk/support/
If you have been through the troubleshooting, and the unit is failing to
operate, our service line can be contacted on: 0871 971 3141
Office hours: 9AM - 5PM Monday to Friday
www.prolightuk.co.uk
Unit 2, The Nursery
Berristow Lane
South Normanton
Derbyshire, DE55 2FX
