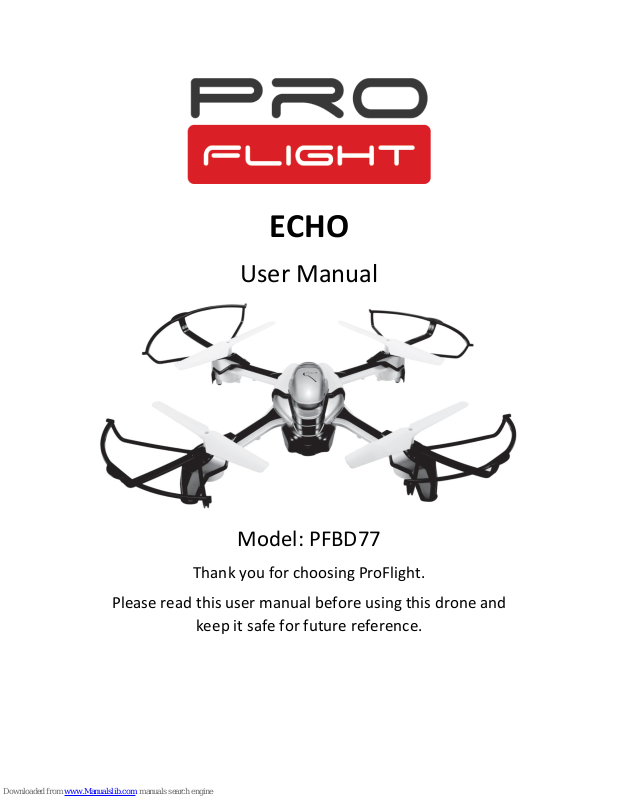

ECHO
User Manual
Model: PFBD77
Thank you for choosing ProFlight.
Please read this user manual before using this drone and
keep it safe for future reference.
2 of 16
CONTENTS
Safety…………………………………………………………………………………3
Battery Charging…………………………………………………………………4
Transmitter Diagram…………………………………………………………..6
Aircraft Diagram………………………………………………………………….7
Fitting Propeller Guards………………………………………………………8
Propeller Installation…………………………………………………………..8
Preparing for First Flight……………………………………………………..9
Binding of Radio Transmitter and Receiver…………………………9
Sensitivity…..………………………………………………………………………9
Flight Instructions………………………………………………………………10
Aircraft Functions & Features…………………………………………….11
Camera………………………………………………………………………………13
App…………………………………………………………………………………….14
Troubleshooting Guide………………………………………………………15
3 of 16
SAFETY
Read the entire instruction manual and familiarise yourself with the product
and all its features before operating. Failure to operate the product correctly
can result in damage to the product, surroundings or even serious injury. This
product is not a toy and must be operated with caution and common sense. It
requires some basic mechanical knowledge. This product is not intended for
use by children without direct adult supervision. This manual contains
instructions for safety, operation and maintenance. It is essential to read and
follow all the instructions and warnings in this manual prior to assembly, setup
or use in order to operate correctly and avoid damage or serious injury.
Not intended for use by children under 14 years of age. This is not a toy.
Always operate your drone in open spaces away from vehicles, buildings,
traffic and people.
Always keep out of reach of children.
Avoid exposure to water as moisture can cause damage to the
electronics.
Never operate your drone with low transmitter batteries.
The battery charger included with the drone has been designed to safely
charge the Li-Po battery.
Mishandling of Li-Po batteries can result in a fire, personal injury, and
/or property damage.
By handling, charging or using the included Li-Po battery you assume all
risks associated with lithium batteries.
If at any time the battery begins to balloon or swell, discontinue use
immediately. If charging or discharging, discontinue and disconnect.
Continuing to use, charge or discharge a battery that is ballooning or
swelling can result in fire.
Always store the battery at room temperature in a dry area for best
results.
4 of 16
Do not store battery or drone in a car or direct sunlight. If stored in a
hot environment, the battery can be damaged or even catch fire.
Never use any other type of battery charger other than the one supplied
with the drone. Failure to charge the battery with a compatible charger
may cause fire resulting in personal injury and/or property damage.
Never exceed the recommended charge rate.
When a Li-Po battery is discharged below 3.7V, the battery may be
damaged and may no longer accept a charge. The drone will
automatically land and become inactive when the battery reaches this
level, this is to protect the battery.
Battery Charging
Use only the enclosed USB Li-Po charger to charge your battery.
Remove the battery from the battery compartment at the rear of the aircraft.
Press down the release button on the underside of the aircraft and slide it out.
5 of 16
Plug the charger into the battery.
Plug the charger into the USB socket before attaching the battery.
When the charger is plugged into the USB slot (with no battery attached) the
LED will illuminate RED. When the battery is charging the LED will go out.
When the battery is fully charged it will illuminate RED. Charging should take
around 90 minutes. DO NOT leave the battery unattended whilst charging.
Remote Control Charging
Turn off the remote control. Connect the USB cable to the remote control.
The GREEN light on the control will illuminate whilst charging. Once charged
the RED light on the USB charger will illuminate.
6 of 16
Transmitter Diagram
1. Charging indicator 15. Direction control stick
2. Throttle control stick 16. Power indicator
3. Left/right rotation trim 17. Auto take off/landing
4. Power switch (hold for 3 seconds)
5. Camera lens up 18. Speed select (One
6. Camera lens down beep for low, two for
7. 3D flip (Future firmware update) med, three for high)
8. Charging socket 19. Photo control. (Future
9. Headless mode firmware updates)
10. LED light control switch 20. Return key
11. Backward trim
12. Forward trim
13. Left/right trim
14. Press and hold to before power on
to switch left & right control sticks
7 of 16
Aircraft Diagram
1. Prop-guards
2. Propeller
3. Power button
4. Camera module
5. Motor
6. Battery module
7. Obstacle avoidance module
8. Landing gear
8 of 16
Fitting Propeller Guards
It is recommended that until you are fully comfortable with the controls and
handling of the aircraft that you install the propeller guards. These will protect
the propellers and aircraft in the event of a crash or hard landing.
Place the propeller guard over the outside of
the propeller and attach it with the screw
provided.
The aircraft comes with a collision avoidance
system, but this will only function in Low
speed mode.
Propeller Installation
Insert the propeller over the motor spindle and use a screwdriver to
tighten the screw.
It is important for the correct blade to be placed on the correct
motor or the aircraft will not fly correctly. Each blade is marked with
an A or B to indicate which motor it corresponds to.
The white rotors are positioned at
the front, and the black at the rear.
9 of 16
Preparing for First Flight
1. Make sure both the transmitter and aircraft batteries are sufficiently
charged.
2. Find a suitable place to fly the aircraft, away from people, buildings and
vehicles.
3. Make sure the throttle stick is centred before turning on the transmitter.
Binding of Radio Transmitter & Receiver
1. Place the aircraft on a flat surface and insert the battery into the aircraft.
2. Turn on the controller.
3. The lights on the aircraft will flash repeatedly, hold the left stick down
until the transmitter binds with it. At this point the lights will illuminate
and stay on.
4. The aircraft is ready to fly.
The aircraft can be flown using either the radio control supplied or by using the
App on a smart device. For details on flying with the App, see page 14.
Sensitivity
The aircraft has 3 levels of sensitivity – High, Medium and Low. To change the
sensitivity, click the speed button. The controller will beep once when in Low
mode, twice when in medium mode and three times when in high mode.
10 of 16
High
In high sensitivity setting the aircraft will be more agile but more difficult to
control if you are new to flying.
Low
In low sensitivity setting the aircraft will be more docile and easier to control.
Medium
In medium mode the sensitivity will be between high and low.
Flight Instructions
Before your first flight make sure you are familiar with the controls of the
aircraft.
Left Joystick – Throttle & Rudder
Right Joystick – Elevator & Aileron
If the aircraft drifts in a particular direction you can trim the controls using the
trim buttons. Select the trim key opposite the direction of drift.
The aircraft can only take off and land by pressing the take off / land button
(click once to take off and once to land). Once the aircraft is airborne it will
hold a steady hover, you are now in control of the aircraft and can use the left
and right sticks to control it.
11 of 16
Note: Should the aircraft be left for a while with no control inputs it will go to
sleep, simply press and hold the take off/land button to reactivate the aircraft.
Aircraft Functions and Features
Obstacle Avoidance Sensor
Install the collision sensor to the bottom of the aircraft as per the below
diagram:
Collision avoidance will only work in Low speed mode. The sensor will work to
keep the drone around 2m away from any obstacles. Solid white objects (e.g.
walls) will be the easiest detected objects. Glass will not be detected. If an
object is detected the aircraft will move in the opposite direction to avoid it.
Smart Return
The aircraft can be made to return in a fixed direction by pressing and holding
the return button. When the aircraft is turned on it will remember the
direction it is oriented and upon activation of the Smart Return feature it will
fly back in that direction. NOTE: Be careful to orientate the aircraft with the
rear tail facing towards you if you want the aircraft to fly back towards you
using the smart return mode. You can retake full control of the aircraft at any
time by moving the control sticks. The aircraft will not return to where it
started, it will simply move in the direction it was orientated when turned on.
12 of 16
Headless Flight
The aircraft can be made to fly in Headless Flight by pressing the headless flight
button (9). This will make the aircraft fly without a front or rear. It will fly in
the orientation of the pilot. If you move the right joystick right, the aircraft will
fly right. Move the joystick left and it will fly left. Move the joystick forwards
and the aircraft will fly away from you and pull it back to make it fly towards
you. It does not matter which direction the drone is facing in headless mode.
To calibrate the aircraft for headless flight, place it on a flat surface with the
front facing away from the operator. Then push both the left and right sticks
to the lower left at the same time and hold for 2 seconds.
The indicator lights on the aircraft will change from stable to a fast flickering
for 2 seconds before returning to solid.
Phone installation
Stretch the controller apart and slide your phone/tablet into the
middle of the device.
13 of 16
Camera
Insert the camera module in the same way as the battery
module. Make sure the drone is turned off when you install
or remove the camera module.
The camera App can be downloaded by scanning the below
QR code:
Android iOS
To connect the aircraft to your mobile device: turn on the
aircraft and go to settings on your mobile device. Open the
WiFi settings and search for KD-**** from the device list.
Select it and wait for it to connect. Open the PANTONMA
App and click “My Drone”. This will lead you to the control
screen and show the view of the camera. You can either use
the on screen controls or the controller to control all aspects
of the aircraft.
14 of 16
APP
1 2 3 4 5 6 7 8 9 10
11
12
13 14 15 16 17 18 19
1. Take photo 11. Left control stick
2. Start/stop video recording 12. Right control stick
3. Control aircraft using 13. Mode ½ select
phone G-sensor (tilt to control) 14. Camera up
4. Toggle control sticks on/off screen 15. Camera down
5. Speed control (high or low only) 16. Take off / land
6. Return function 17. Level calibration
7. Headless mode 18. Enter picture/video
8. Turn lights on/off gallery
9. Turn on 3D view 19. WiFi signal strength
10. Return to App menu
15 of 16
Flying using the App
Once you have downloaded the App (see page 13), turn on the aircraft and
the lights will flash rapidly for around 5 seconds.
Once they have stopped rapidly flashing, go to the settings in your chosen
smart device and search for the aircraft (KD-****).
Once you have discovered it, select connect and wait for the WiFi to fully
connect.
Open the PANTONMA app and select “MY DRONE”. This will take you into
the live view on the camera and display on screen controls.
See Flight Instructions on page 10.
Note: Do not turn on the supplied remote control if you want to control the
aircraft using the App. If you want to fly using the controller, the App can
only be used for live view and photography, not controlling the aircraft.
Troubleshooting
Problem
Cause
Solution
1
The lights on the aircraft are
flashing but it does not
respond to the control
1. The aircraft and transmitter
are not connected.
2. Insufficient battery power.
1. Repeat the connection
procedure.
2. Recharge the battery.
2
The aircraft blades turn but it
will not take off
1. Insufficient battery power.
2. The blades are distorted.
3. Take off button not pressed.
1. Recharge the battery.
2. Replace the blades.
3. Press the take off
button.
3
The aircraft shakes in flight
The blades are
damaged/distorted
Replace the blades.
4
The aircraft won’t fly using the
App.
1. Aircraft not connected to
App.
2. Connection not done in
correct order.
3. Main controller is turned on.
1. Reconnect using the
instructions on page 15
2. Reconnect using the
instructions on page 15
3. Aircraft can not fly on
App when main
controller is turned on.
Turn off controller,
reset aircraft, app and
WiFi to reconnect to
App
5
Camera not working in App
1. Aircraft not connected to
App.
2. Camera module has come
loose.
1. Reconnect using the
instructions on page 15
2. Check camera module
is firmly installed in
body of aircraft.
16 of 16
6
Collision avoidance does not
work.
1. Aircraft not in Low speed
mode.
2. Being flown in a small area.
3. Obstacle is glass or black.
1. Press the Speed select
button until it beeps
once.
2. Collision avoidance
works at 2m from the
aircraft, if you fly in a
small area this will
confuse the system.
3. The collision avoidance
system can not easily
see glass or black
objects.
Disposal: Do not dispose this product as unsorted
municipal waste. Collection of such waste must be
handled separately as special treatment is necessary
Recycling facilities are now available for all customers at which you
can deposit your old electrical products. Customers will be able to
take any old electrical equipment to participating civic amenity sites
run by their local councils. Please remember that this equipment will
be further handled during the recycling process, so please be
considerate when depositing your equipment. Please contact the
local council for details of your local household waste recycling
centres.
Loading...
