Pro Fitness XT1000 User guide

Page 1

These Instructions contain important information which will help you get best from your equipment and ensure safe and correct assembly, use and maintenance.

If you need help or have damaged or missing parts, call the Customer Helpline: 0345 600 1714

or visit www.argos-support.co.uk

Assembly & User Instructions- Please Keep for future reference

Important – Please read these instructions fully before assembly or use

XT1000 Cross trainer

782/4832

Page 2

Contents

Safety Information

Components - Parts

Components – Fixings

Assembly Instructions

5-12

Workout Area

Exercise Information

14-20

. Before Starting

. Muscle Chart

. Warning up and Cooling Down

16-17

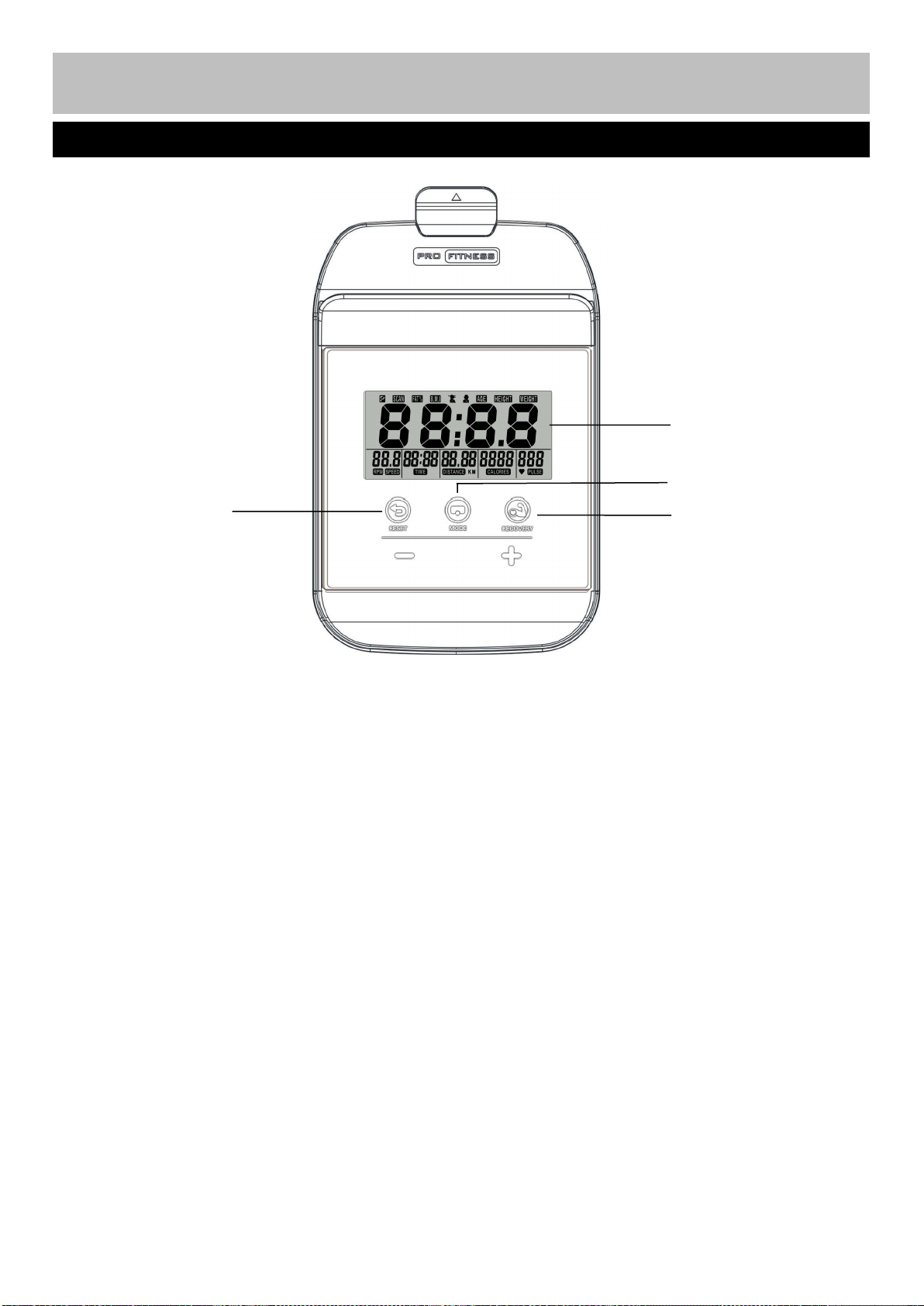

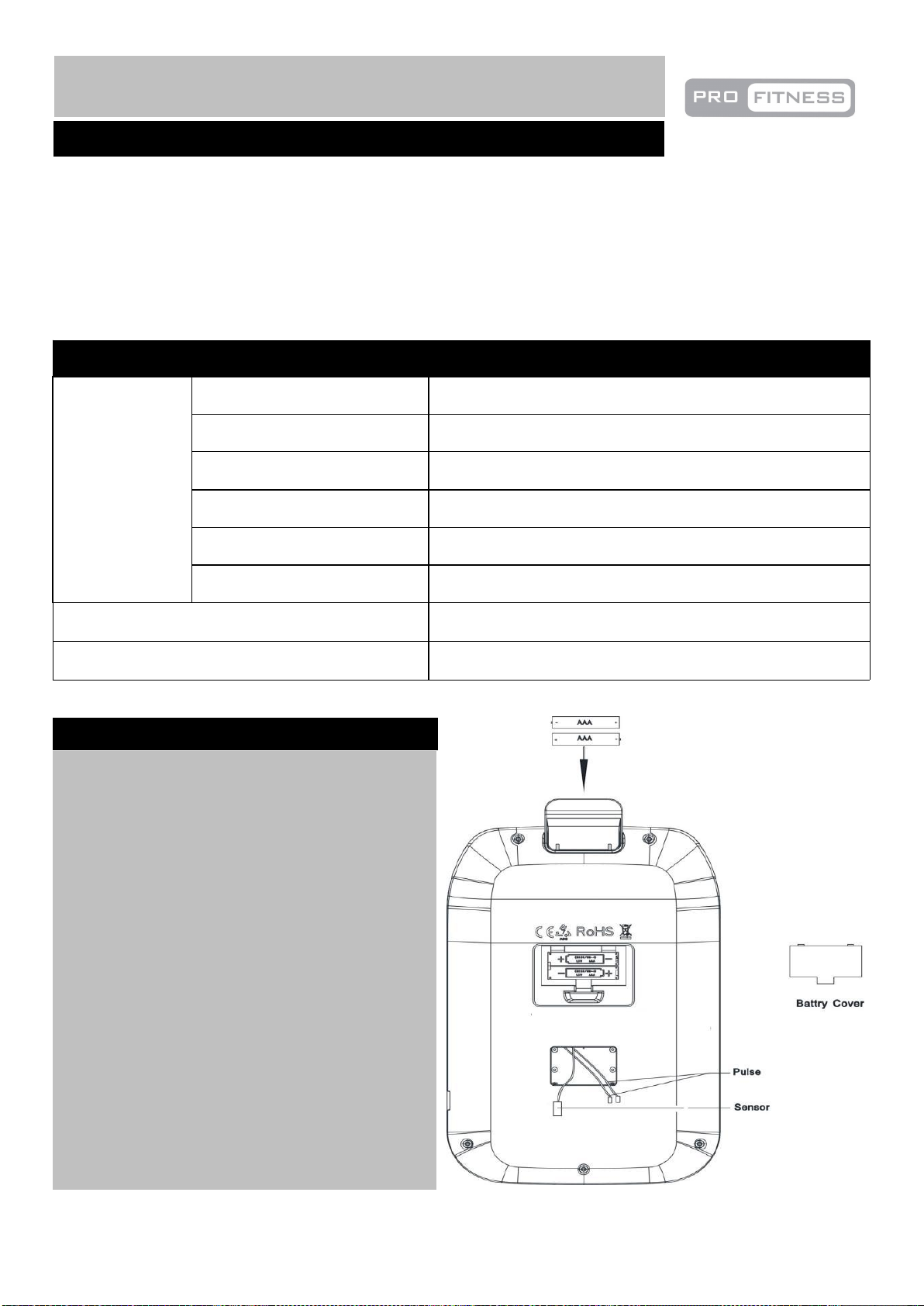

. Console operation

18-19

. Adjustment of the resistance

Care and Maintenance

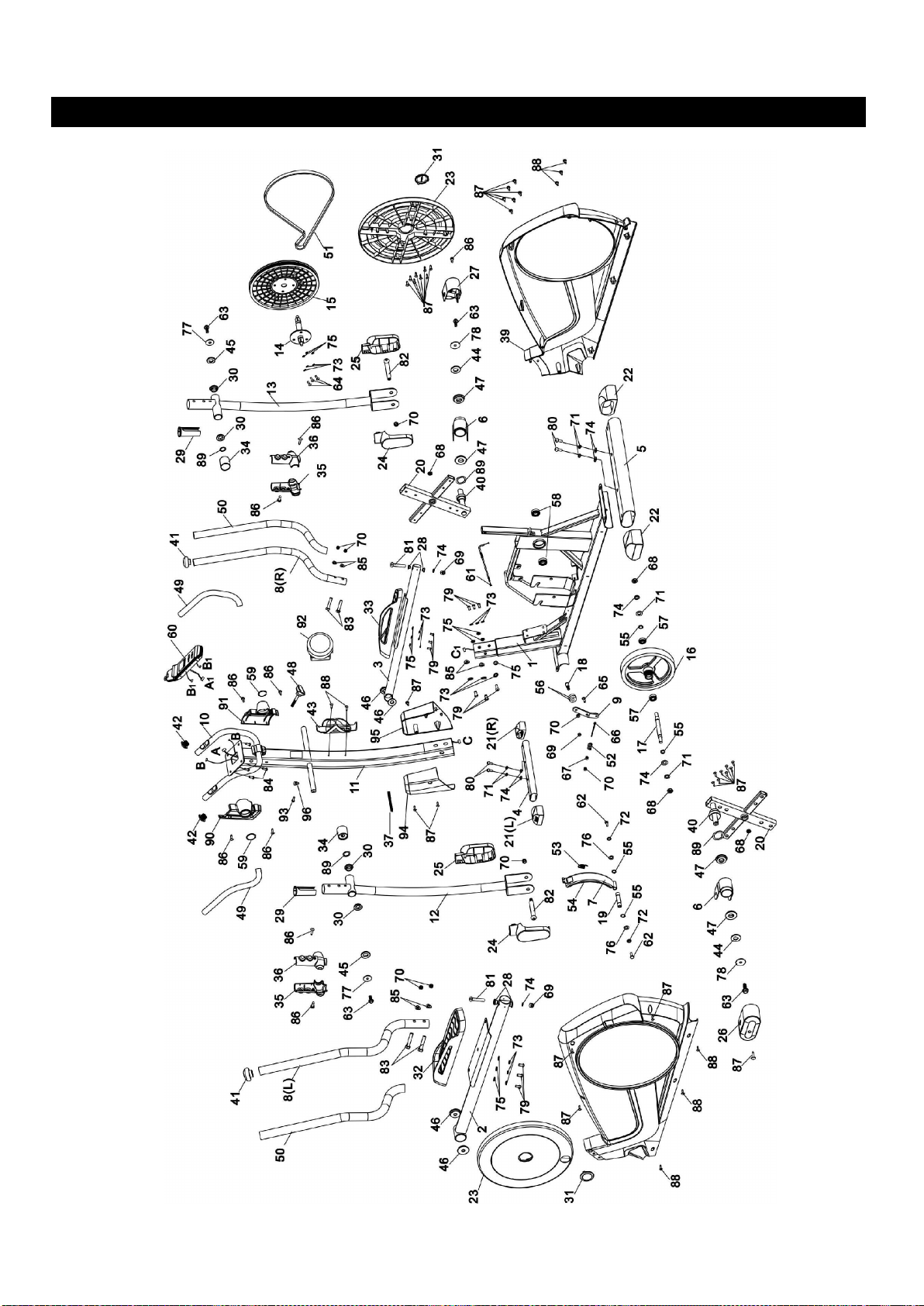

Exploded Parts Diagram

Parts List

23-24

Page 3

、

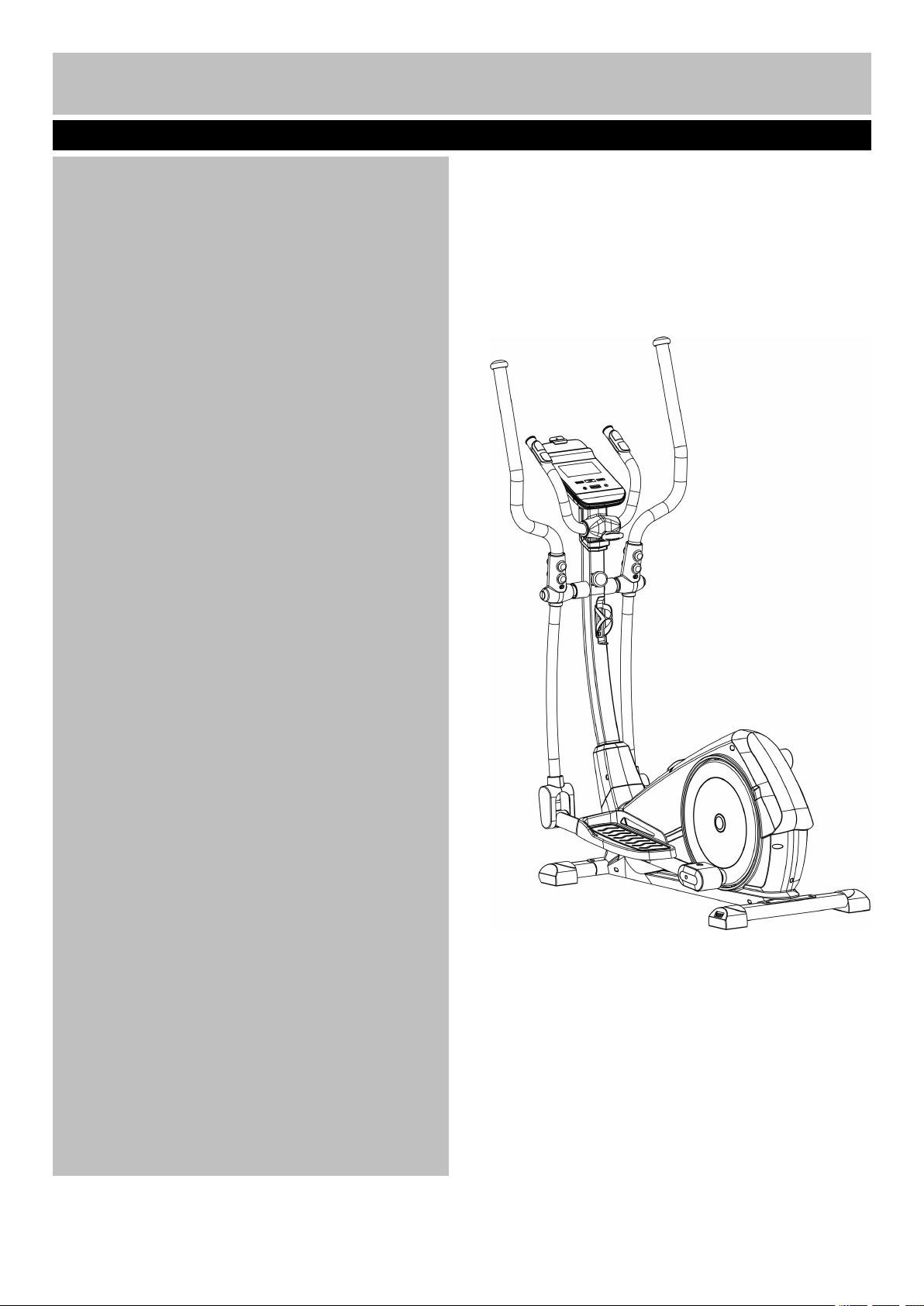

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you

Assembly

• The product must be installed on a stable and level surface. To protect the floor or carpet from damage, place a mat under the cross trainer.

• Assemble the item as close to its final position (in the same room) as possible.

• Make sure you have enough space to layout the

parts before starting.

• Keep children and animals away from the work

area, small parts could pose a choking hazard if swallowed.

• Dispose of all packaging carefully and responsibly.

• Check you have all the components and tools

listed in the parts list, bearing in mind that, for ease of assembly, some components are preassembled.

• The assembly of this equipment is best carried out

by 2 people.

Use

• It is the responsibility of the owner to ensure that all

users of this product are properly informed as to how to use this product safely.

• This product is intended for domestic use only. Do not use in any commercial, rental, or institutional setting.

• Use the equipment only for intended use, as

described in this manual. Do not use attachments not recommended by the manufacturer.

• Keep this equipment indoors, away from moisture

and dust. Do not put the equipment in a garage, outbuilding, covered patio, or near water.

• Your product is intended for use in clean dry

conditions. You should avoid storage in excessively

cold or damp places as this may lead to corrosion and other related problems that are outside our control.

• Keep unsupervised children away from the equipment.

• Disabled persons should not use the equipment without a qualified person or doctor in attendance.

• Always wear appropriate workout clothing when exercising. Do not wear loose or baggy clothing, as it may get caught in the equipment. Wear trainers to protect your feet while exercising.

• Do not place any sharp objects around the equipment.

• Keep hands away from all moving parts.

• If any of the adjustment devices are left projecting, they could interfere with the user’s movement.

• Before using the equipment to exercise, always perform stretching exercises to properly warm up.

• Only one person at a time should use the equipment.

• If the user experiences dizziness, nausea, chest pain, or other abnormal symptoms stop the workout

and seek immediate medical attention.

• Injuries to health may result from incorrect or excessive training.

• This product is suitable for a maximum user weight of: 120kg.

• This product conforms to: BS EN ISO 20957-1 and

-9 Class (H) - Home Use - Class (C).

• This stationary training equipment is not suitable for high accuracy purposes

• The cross trainer is not equipped with a free wheel and therefore the moving parts cannot be stopped immediately.

• To mount and dismount the equipment safely, hold the handlebar and step on/down the foot platform when it is in the lowest position.

Important – Please read fully before assembly or use

Safety Information

Warning: Before beginning any exercise program, consult your Doctor. This is especially important for persons over the age of 35 or persons with pre-existing health problems. You MUST read all instructions before using any fitness equipment. Argos and its associates assumes no responsibility for personal injury or property damage sustained by or through the use of this product. Over exercising may result in serious injury or death. If you feel faint stop exercising immediately. Warning! Heart rate monitoring systems may be inaccurate. For the most accurate heart rate measure, please hold both hand pulse sensors continuously during any programme.

operate a piece of exercise equipment. Be sure to read the entire manual before you assemble, operate or use this equipment.

Page 4

Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully

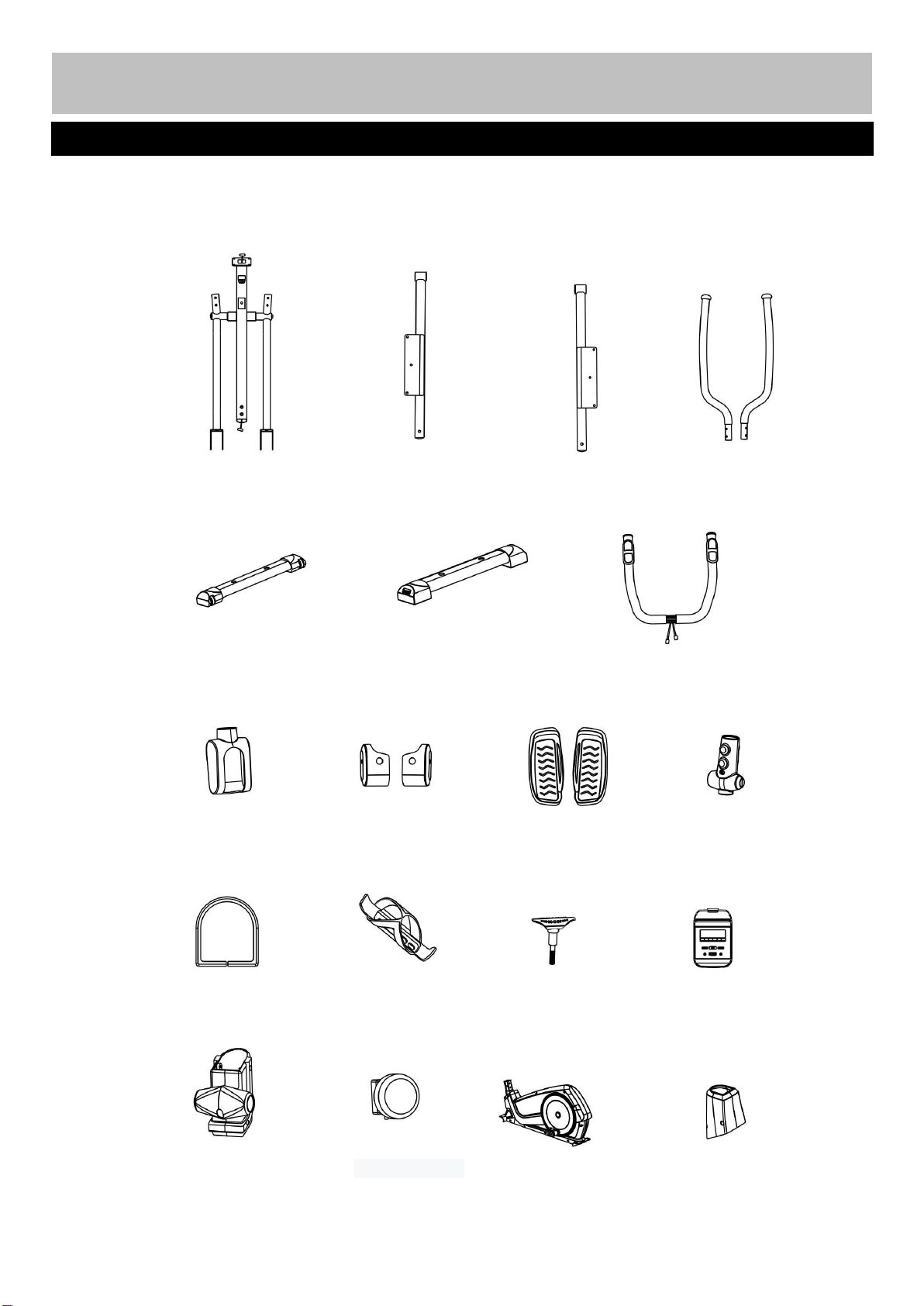

Components - Parts

If you have damaged or missing parts, please call the Customer Helpline: 0345 600 1714

http://www.argos-support.co.uk

Please check you have all parts listed below

11.Front Post

2.Left Footplate Bar

3.Right Footplate Bar

8.Handles(L&R)

4.Front Stabilizer

5.Rear Stabilizer

10.Fixed Handle

24/25. Handrail Bottom

Cover X 2

26/27.L&R Foot

Bar Cover

32/33.L&R Footplate

35/36. Handrail

Front/Rear

Cover

37. Front Post Ring

43.Bottle Holder

48.M8 T-Shaped Knob

60.Console

90/91.L&R Front Cover

92. Tension Knob

1.Main Frame

94/95. L/R Front Post

Cover

before contacting Argos regarding any missing components.

Page 5

Note

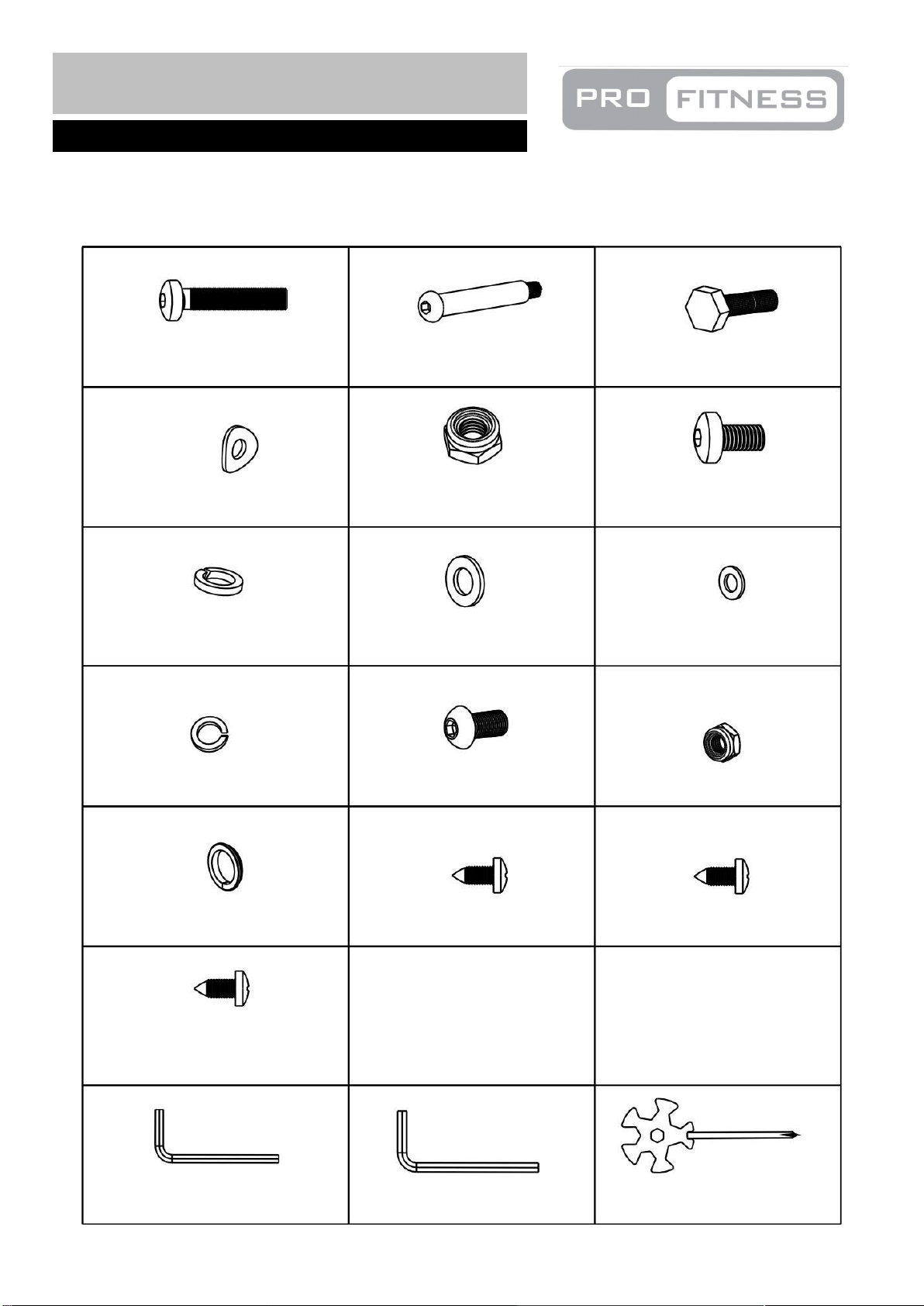

Components – Fixings

Please check you have all the fixings listed below

8182837059

M10x69 Allen Bolt x 2

807975

M8x87 Allen Bolt x 2

M8×42mm Hex Bolt x 4

Ø9×Ø22×R19mm Arc Washer x 6

Ø10mm Washer x 4

M10×20mm Allen Bolt x 4

Ø8mm Washer x 10

M10 Nut x 2

M8×15mm Allen Bolt x 12

ST4.2×15mm Philips Screw x 3

M8 Nut x 6

Ø8mm Spring Washer x 12

Plastic Ring x 2

Ø10mm Spring Washer x 4

Multi Wrench

6# Allen Key

5# Allen Key

ST4.2×15mm Philips Screw x 10

ST4.8×15mm Philips Screw x 2

：

The quantities below are the correct amount to complete the assembly. In some cases more

hardware may be supplied than are required. Some of the fixings are pre-fitted to the larger components. Please check carefully before contacting Argos regarding any missing fixings.

Page 6

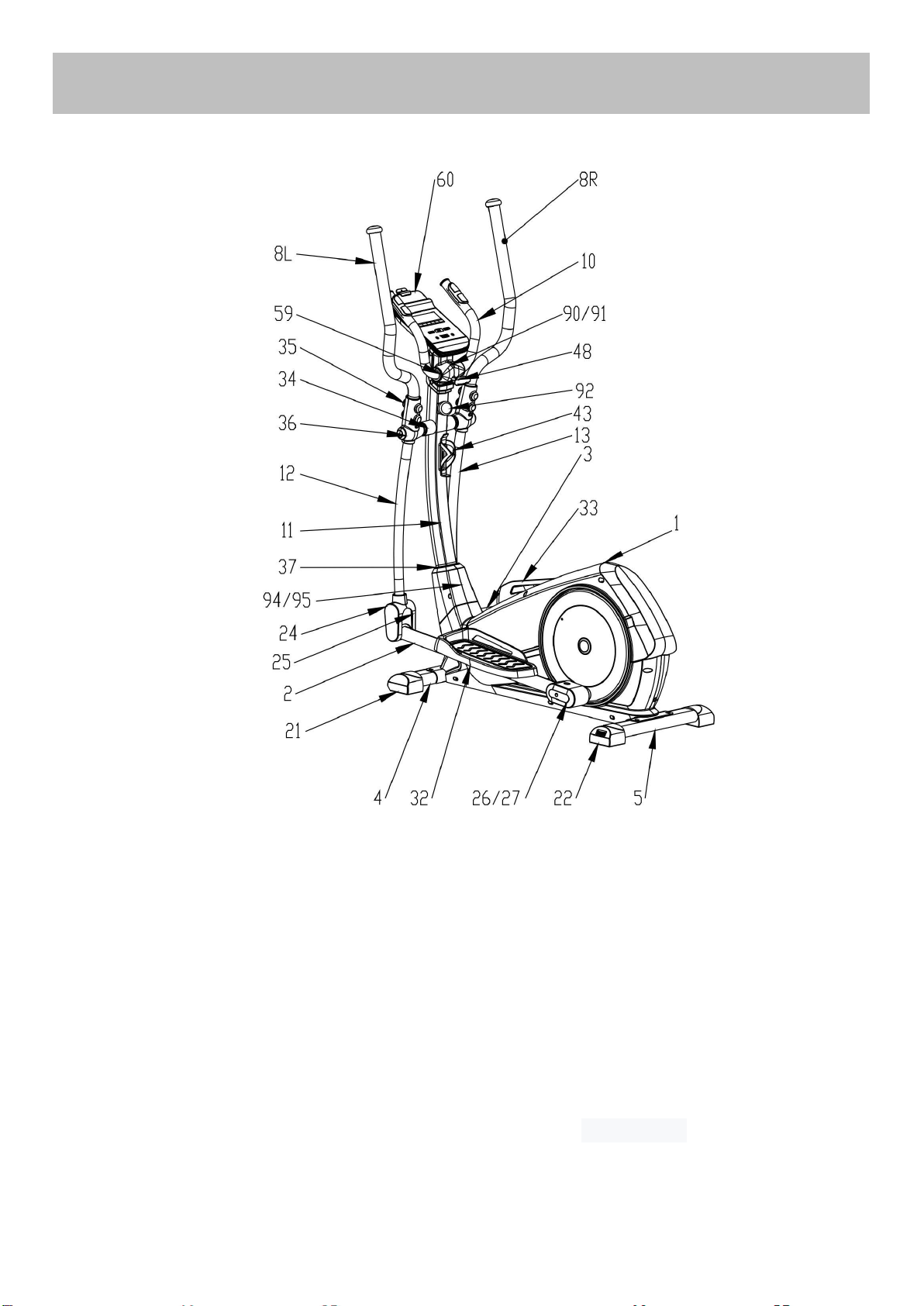

Total mass of the product is 43 kg. Total size of the equipment is (width) 67.5 cm × (depth) 122.5 cm ×

1 Main Frame 2 Left Footplate Bar 3 Right Footplate Bar 4

Front Stabilizer

Rear Stabilizer

8 Handle (L&R) 10

Fixed Handle

11 Front Post 12 Left Action Arm 13

Right Action Arm

21 Transport Wheel (L&R) 22 Level Foot 24 Left Handle Bottom Cover 25

Right Handle Bottom Cover

26 Left Footplate Bar Cover 27

Right Footplate Bar Cover

32 Left Pedal 33

Right Pedal

34 Handrail Axle Sleeve 35 Handrail Front Cover 36 Handrail Rear Cover 37

Front Post Ring

43 Water Bottle Bracket 48

T-shaped Knob

Plastic Ring

60 Console 90

Left Front Post Cover

91 Right Front Post Cover 92 Tension Knob 94 Left Front Post Cover 95

Right Front Post Cover

Assembly Instructions

(height) 160.5 cm.

Page 7

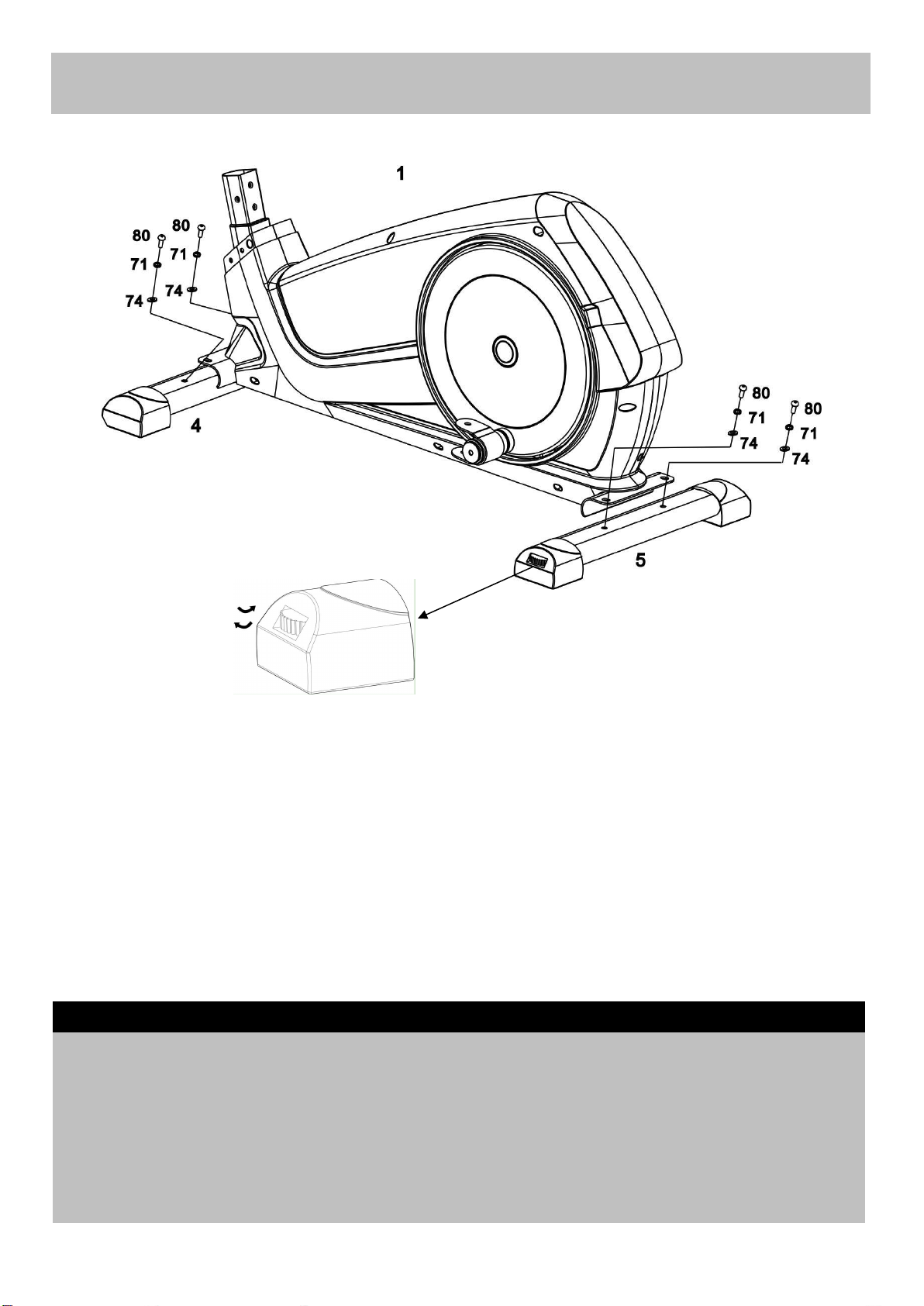

Assembly Instructions

a. Attach the Front Stabilizer (4) to the Main Frame (1) using 2 x M10x20mm Allen Bolts (80), 2 x 10mm Washers (74) and 2x10mm Spring Washers (71).

b. Attach the Rear Stabilizer (5) to the Main Frame (1) using 2 x M10x20mm Allen Bolts (80), 2 x 10mm Washers (74) and 2x10mm Spring Washers (71).

Note: The round gear on the Level Feet (22) can be rotated to ensure the cross trainer sit flat on the ground as shown in the diagram. Turn it anti clockwise to increase height and turn it clockwise to decrease height.

Step 1

Page 8

Assembly Instructions

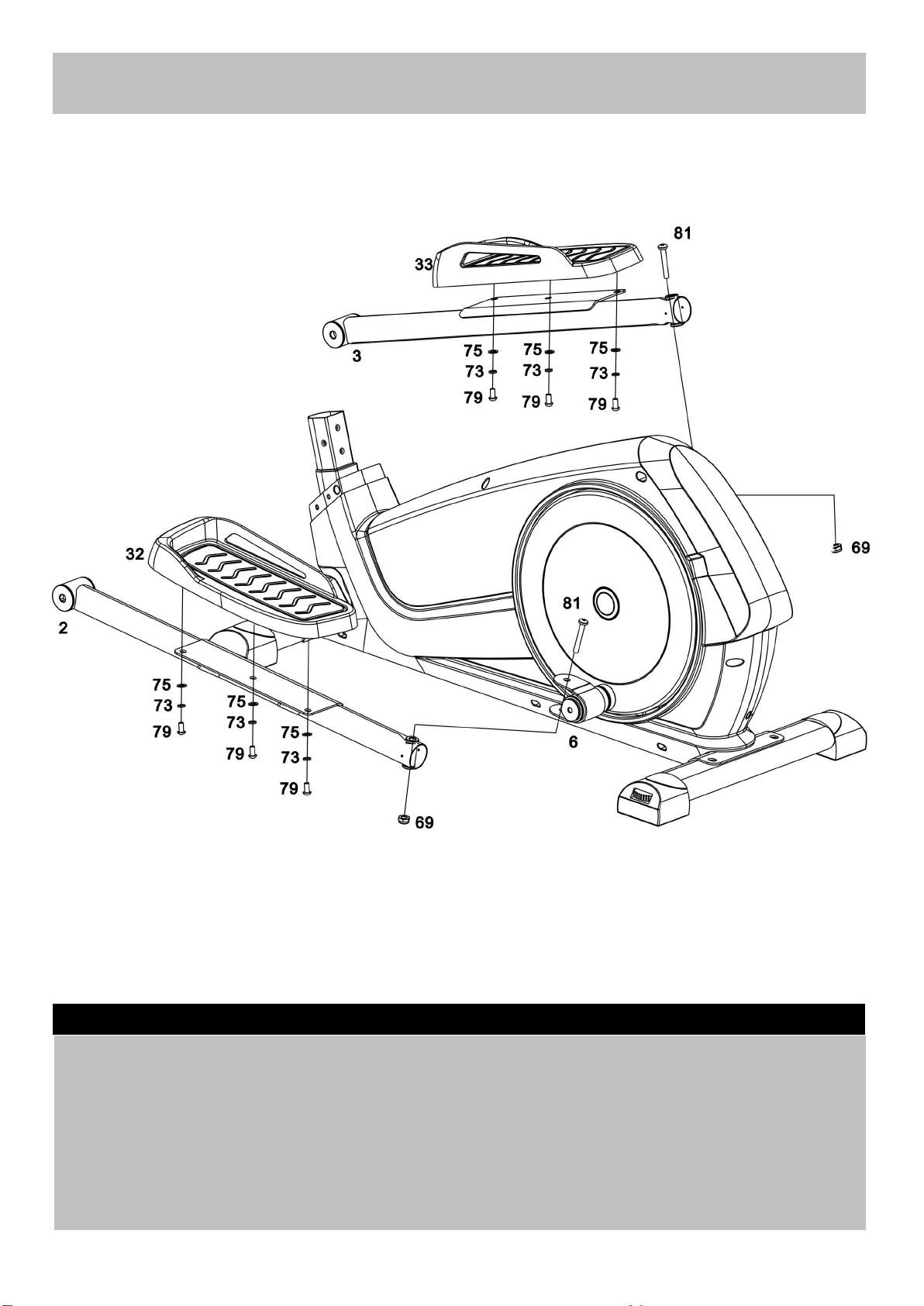

Step 2

a. Attach the Left Footplate (32) to the Left Footplate Bar (2) using 3 x M8×15mm Allen Bolts (79), 3 x Ø8mm Spring Washers (73) and 3 x Ø8mm Washers (75).

b. Attach the Right Footplate (33) to the Right Footplate Bar (3) using 3 x M8×15mm Allen Bolts(79), 3 x Ø8mm Spring Washers (73) and 3 x Ø8mm Washers (75).

c. Fix the Left & Right Footplate Bar (2, 3) to the Crank Connector (6) using 2 x Ø10×69mm Allen Bolts

(81) and 2 x M10 Nuts (69). 7

Page 9

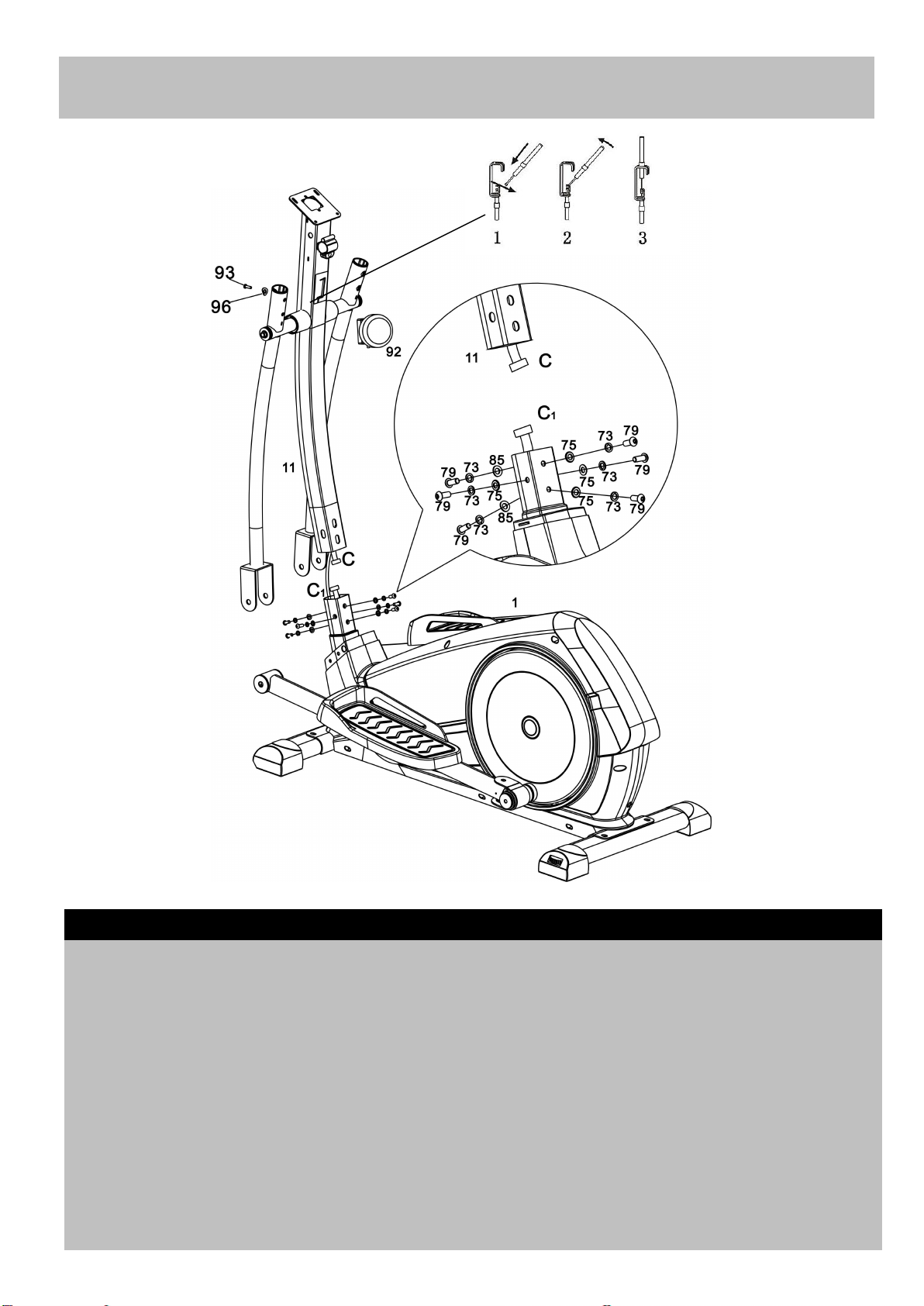

Assembly Instructions

a. Connect the Wire (C) to the wire (C1).

b. Fix the Front Post (11) to the Main Frame (1) using 6 x M8×15mm Allen Bolts (79), 6 x Ø8mm Spring

Washers (73), 2 x Ø9xØ22×R19mm Arc Washers (85) and 4 x Ø8mm Washers (75).

c. Remove the M5x50mm Philips Bolt (93) and Ø5mm Arc Washer (96) from the Tension Knob (92). Please note that the parts (93) and (96) are pre-assembled on the Tension Knob (92).

d. Turn the Tension Knob (92) to Level 1 and connect the bottom of the tension knob D1 with the hook

D2 as shown in the enlarged view of the diagram.. Then attach the Tension Knob (92) to the Front Post (11) using 1 x M5x50mm Philips Bolt (93) and Ø5mm Arc Washer (96).

Note: 1.Do not tighten the Allen Bolt (79), ensure they swivel freely.

2.Turn the Tension Knob (92) clockwise to increase resistance, turn it anti clockwise to decrease resistance.

Step 3

D1D1D2D2D1

Page 10

Assembly Instructions

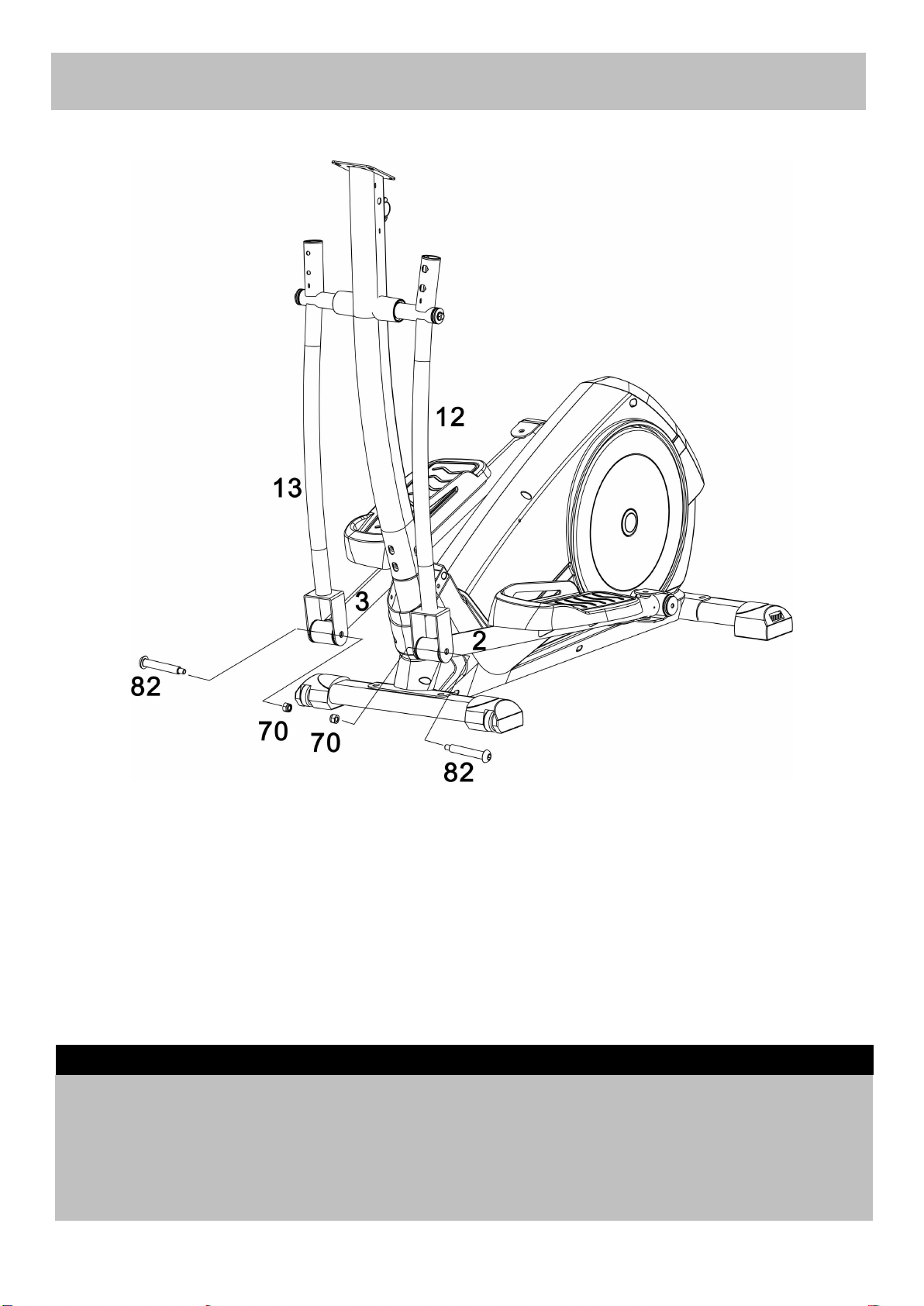

a. Fix the Left Footplate Bar (2) to the Left Action Arm (12) using 1 x Ø11.5×67mm Allen Bolt (82) and 1 x M8 Aircraft Nut (70).

b. Fix the Right Footplate Bar (3) to the Right Action Arm (13) using 1 x Ø11.5×67mm Allen Bolt (82) and 1 x M8 Aircraft Nut (70).

Step 4

Page 11

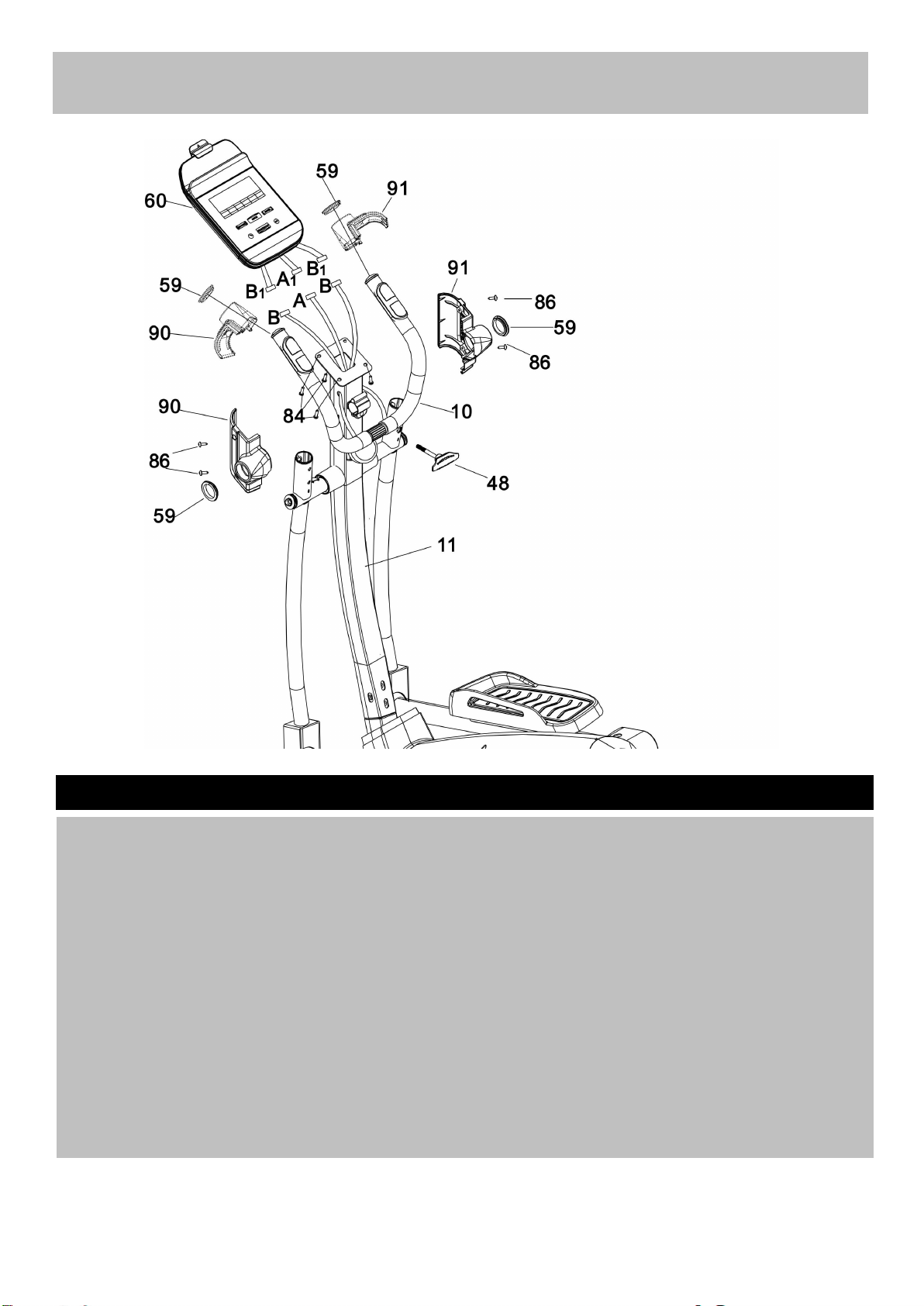

Step 5

a. Attach the Handle (10) to the bracket on the Front Post (11), and secure with M8 Lock knob (48).

Note: To adjust the position of the handle, turn the M8 lock knob (48) anti clockwise to loosen the handle (10) as shown in the diagram, and adjust the handle (10) to your required position, then secure the M8 lock knob (48).

b. Pass the two signal cables (B) on the Fixed Handle (10) into the holes on both sides of the Front

Post (11) and out of the top hole on the Front Post (11).

c. Connect the signal cables A1 and B1 on the Console (60) with the signal cables A and B from the

Front Post (11), respectively.

d. Attach the Console (60) to the Front Post (11) using 4 x M5x8MM Dome Head Philips Bolt (84).

a) Note: Part (84) is pre-assembled.

e. Slide the Left Handle Cover (90) from Right Handle Cover (91) to the left and right ends of the

Handle (10) respectively, fix using 4 x ST4.2x15mm Philips Screw (86) and put two Joint Rings (59) on the left and right side of the Handle (10) respectively, and then push them together from both sides. Please note that the 4 × ST4.2 × 15mm Philips Screw (86) are pre-assembled.

Assembly Instructions

Page 12

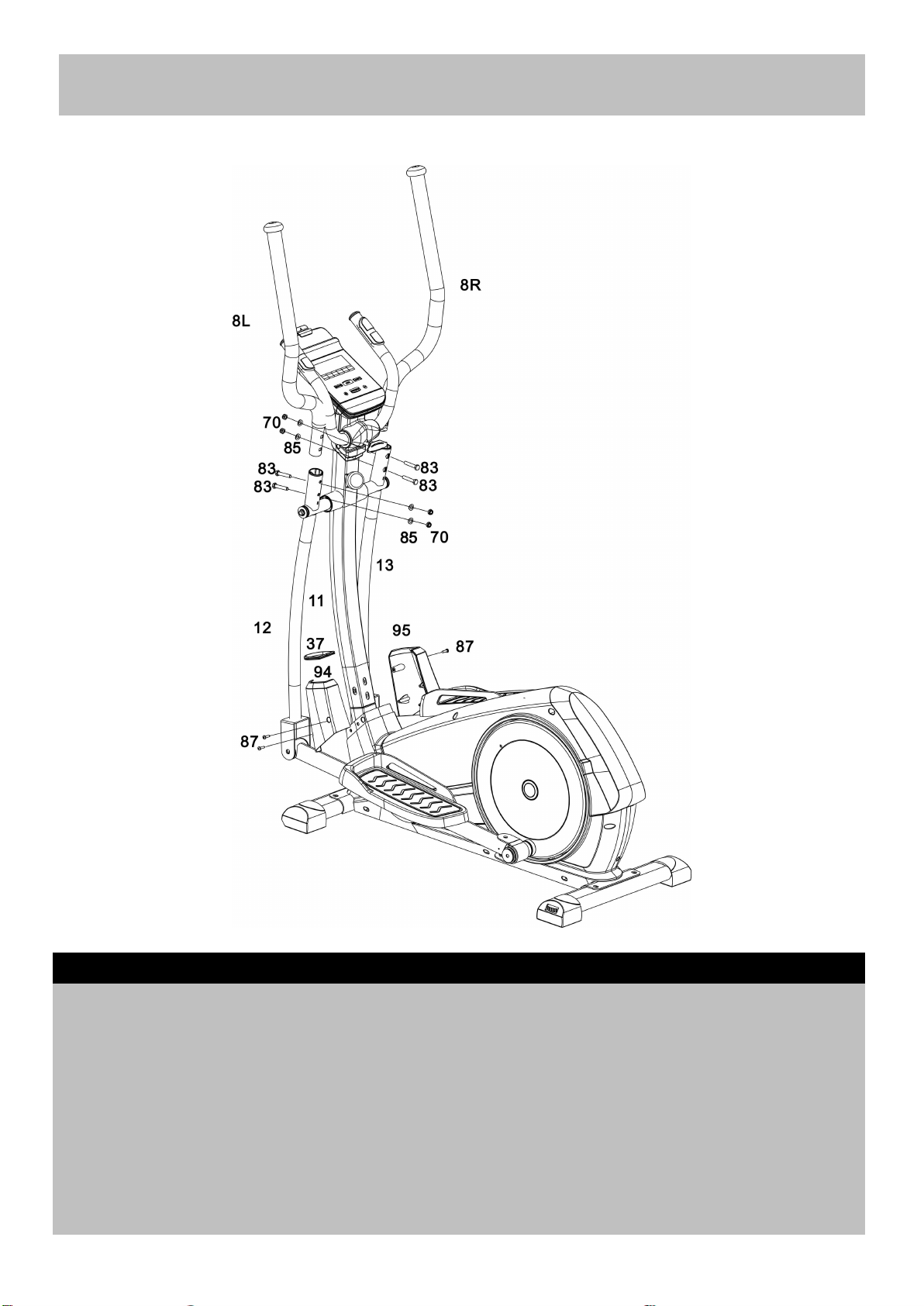

Assembly Instructions

a. Insert the Left Handle (8L) to the Left Action Arm (12); insert the Right Handle (8R) into the Right

Action Arm (13).

b. Fix the Left Handle (8L) to the Left Action Arm (12) using 2 x M8×42mm Hex Bolt (83), 2 x

Ø9×Ø22×R19mm Arc Washers (85) and 2 x M8 Nuts (70).

c. Fix the Right Handle (8R) to the Right Action Arm (13) using 2 x M8×42mm Hex Bolt (83), 2 x

Ø9×Ø22×R19mm Arc Washers (85) and 2 x M8 Nuts (70).

D．Attach the Front Post Ring (37) to the Front Post (11); then attach the L/R Front Post Cover (94 &

95) to the Main Frame and secure with 3 x ST4.2×15mm Philips Screws (87).

Step 6

Page 13

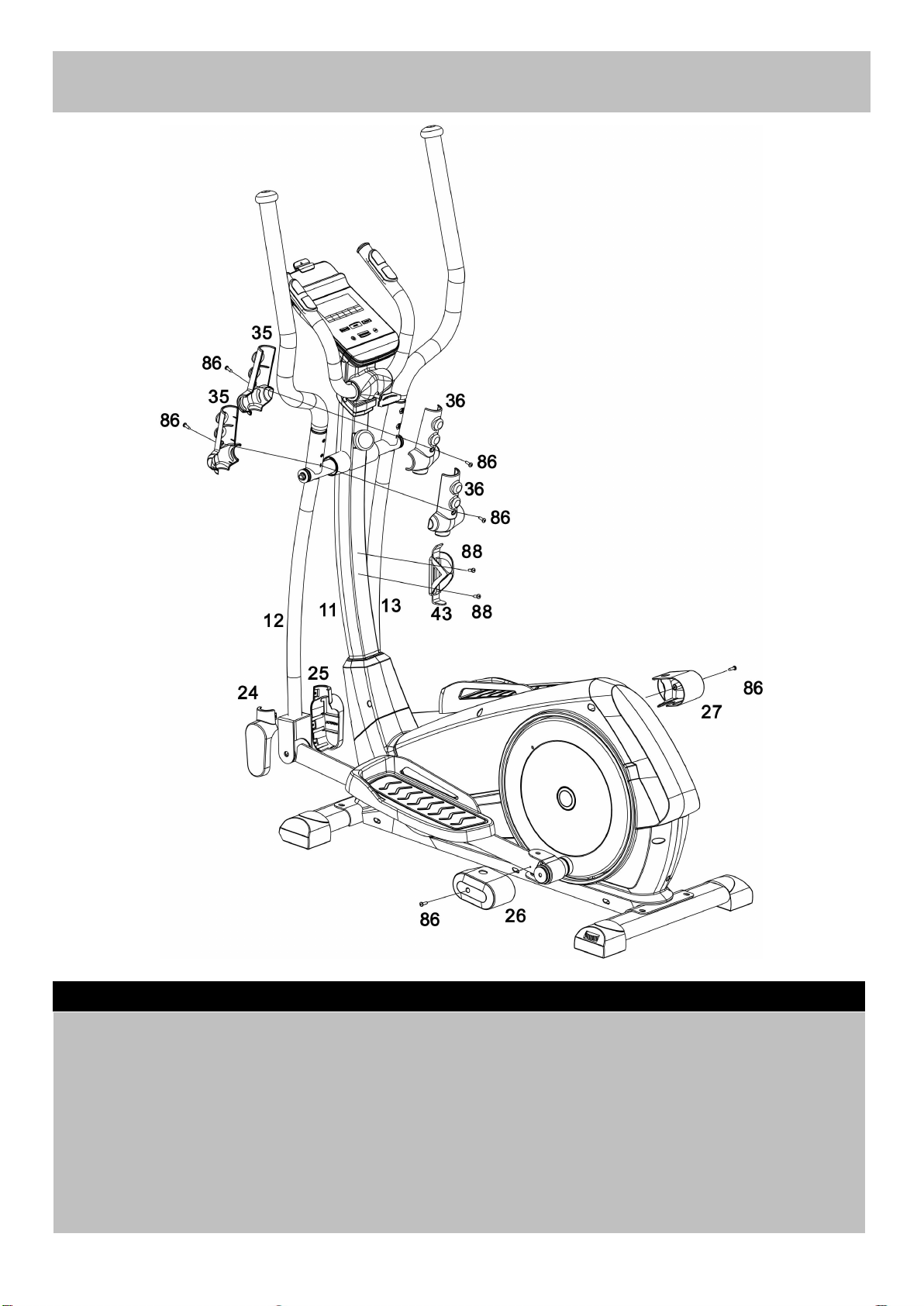

Assembly Instructions

Step 7

a. Fix the Handle Front Cover (35) and Handle Rear Cover (36) to the Left Action Arm (12) and Right

Action Arm (13) respectively using 4 x ST4.2×15mm Philips Screws (86).

b. Fix the Water Bottle Bracket (43) to the Front Post (11) using 2 x ST4.8×15mm Philips Screws (88).

c. Attach the Left Handle Bottom Cover (24) and Right Handle Bottom Cover (25) to the Left and Right

Action Arm (12 & 13).

d. Fix the Left Footplate Bar Cover (26) and Right Footplate Bar Cover (27) into the position shown in

the diagram using 2 x ST4.2×15mm Philips Screws (86).

Page 14

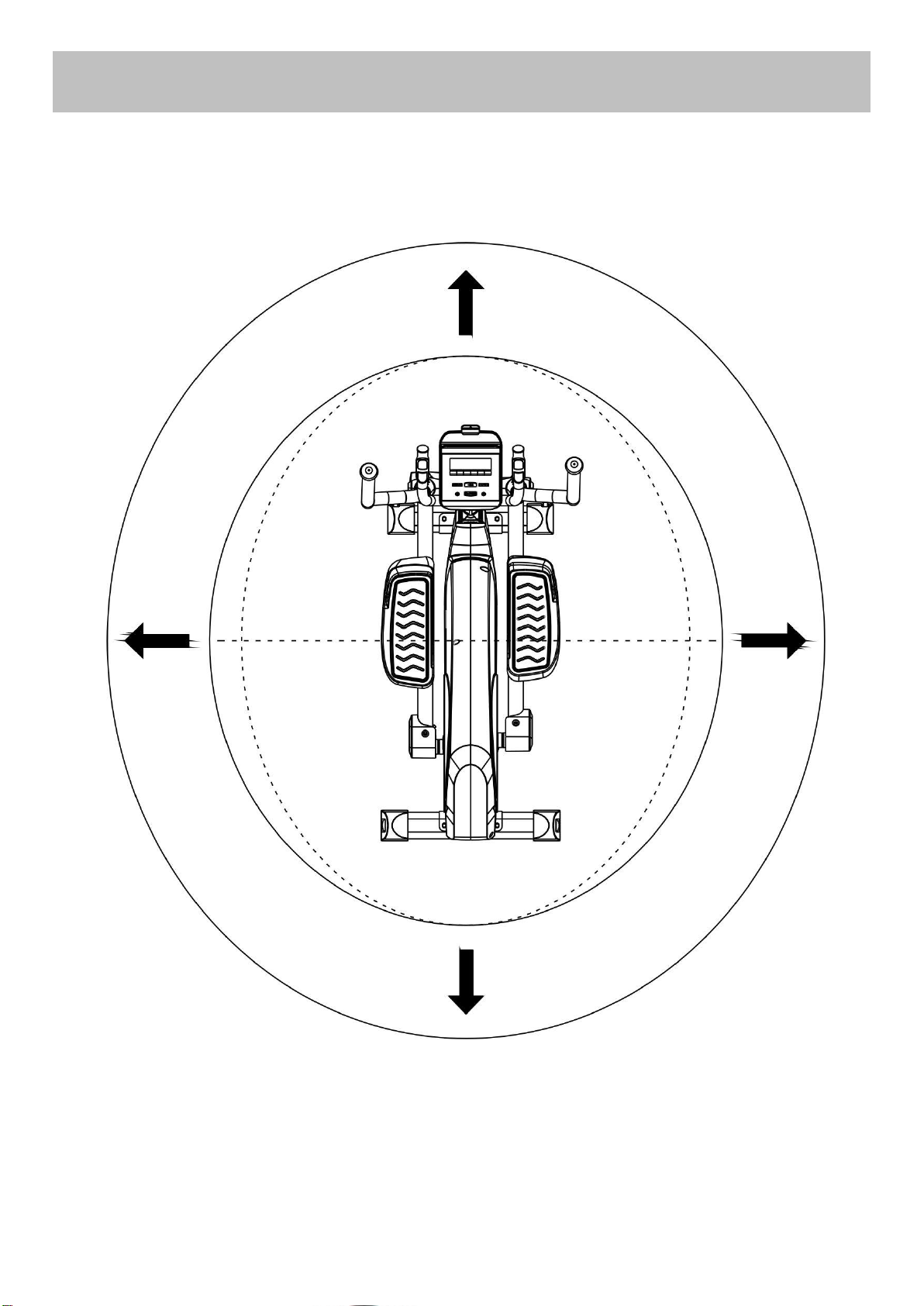

The free area must be at least 0.6m greater than the training area. This is a space where you can safely

0.6m

(Free area)

0.6m

(Free area)

0.6m

(Free area)

Training area

1.3m

Workout Area

0.6m

(Free area)

dismount, without obstruction, in case of an emergency. Where two pieces of equipment are positioned adjacent to each other the free area may be shared.

Only one person should be within the training area when the equipment is in use.

Page 15

85% to Max

65% to 85%

55% to 65%

Up to 55%

Tailor your exercise program according to your physical condition. If you have been inactive for several

Cardiovascular performance

Intermediate aerobic

Effective fat burning

Exercise Information

Before starting

Beats per minutes (bpm)

years, or are overweight, you must start slowly and increase your time on the equipment; a few minutes per workout increase is advisable. Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve over the next six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Please remember these essentials:

• Have your doctor review your training and diet programs to advise you of a workout routine you should adopt.

• Begin your training program slowly with realistic goals.

• Monitor your pulse frequently. Establish your target heart rate based on your age and condition.

• Set up your equipment on a flat even surface with adequate training area, as prescribed in this manual.

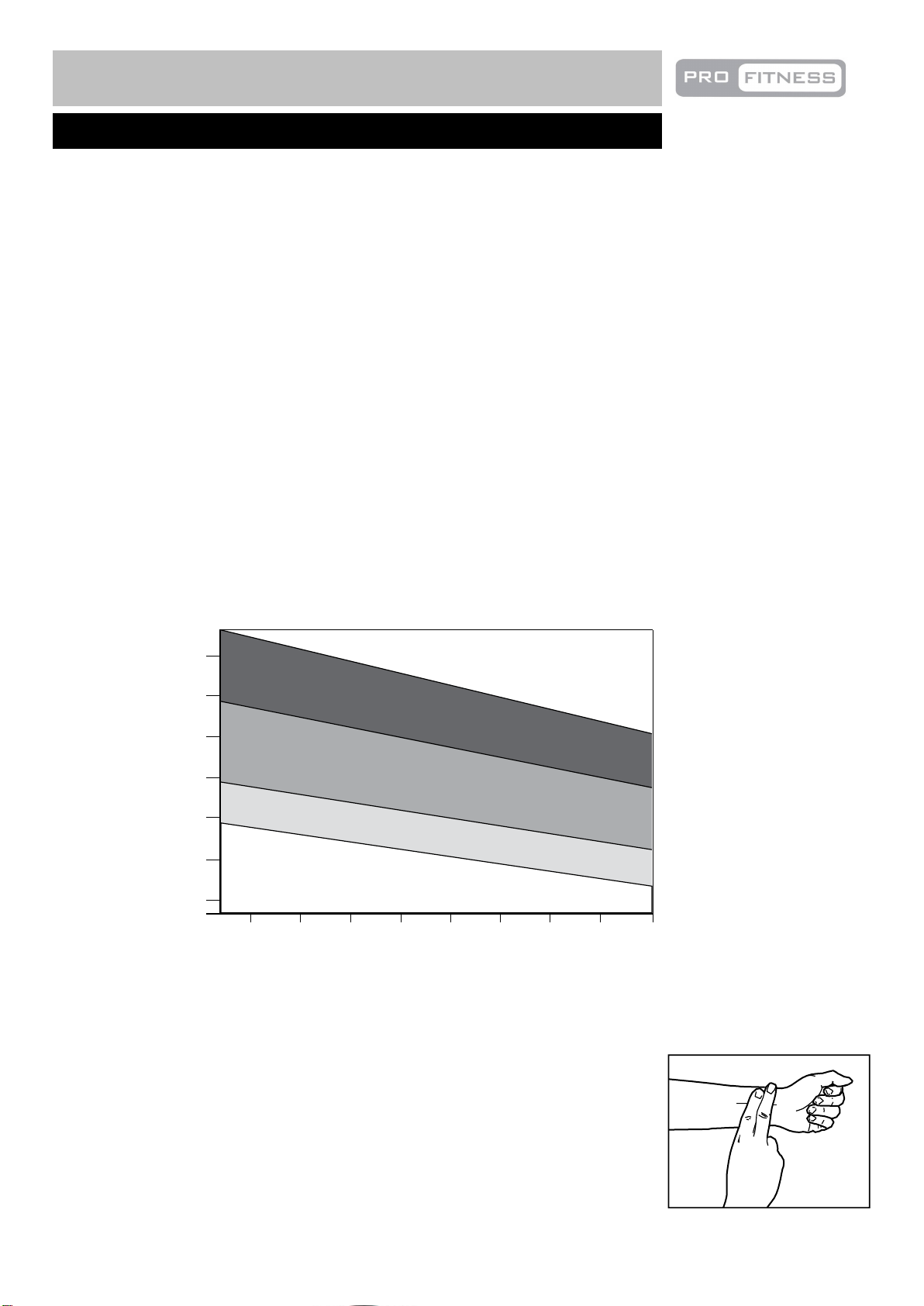

Exercise intensity

To maximize the benefits of exercising, it is important to exercise at an appropriate intensity. The intensity level can be found by using your heart rate as a guide. For effective aerobic exercise, your heart rate should be maintained at a level between 65% and 85% of your maximum heart rate as you exercise. This is known as your target zone. You can find your target zone in the table below.

200

180

160

140

120

100

25 30 35 40 45 50 55 60 70

Age

During the first few months of your exercise program, keep your heart rate near the low end of your target zone as you exercise. After a few months, your heart rate can be increased gradually until it is near the middle of your target zone as you exercise.

To measure your heart rate, stop exercising but continue moving your legs or walking around and place two fingers on your wrist. Take a six-second heartbeat count and multiply the results by 10 to find your heart rate. For example, if your six-second heartbeat count is 14, your heart rate is 140 beats per minute. (A six-seconds count is used because your heart rate will drop rapidly when you stop exercising.) Adjust the intensity of your exercise until your heart rate is at the required level.

Page 16

Aerobic Exercise

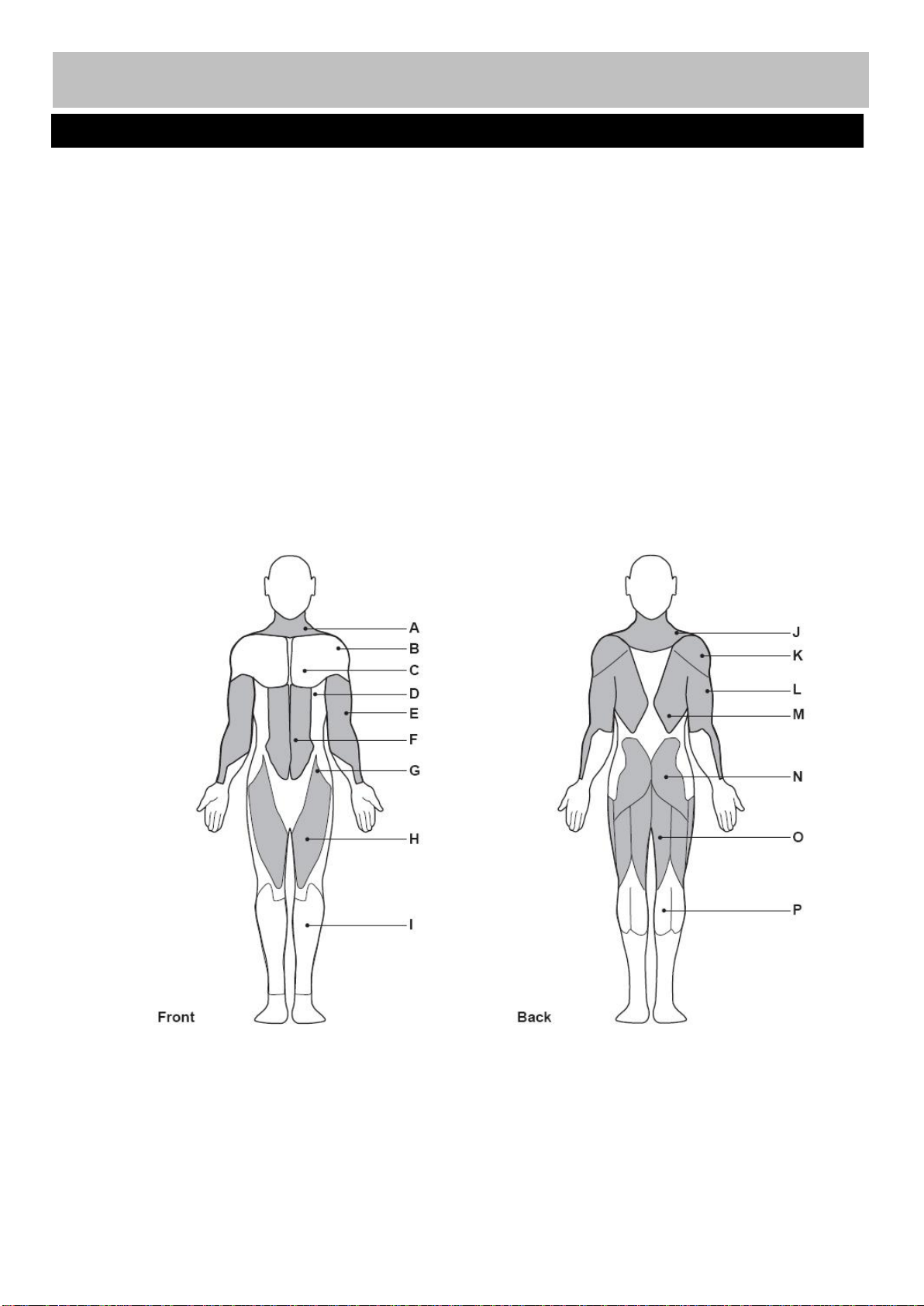

Muscle Chart

Exercise Information

A: Trapezius B: Anterior Deltoid C: Pectoralis Major D: Serratus Anterior E: Biceps F: Abdominal G: Sartorius H: Quadriceps

I: Tibialis Anterior J: Trapezius K: Posterior Deltoid L: Triceps M: Latissimus Dorsi N: Gluteals O: Hamstrings P: Gastrocnemiu

Aerobic exercise improves the fitness of your lungs and heart - your body’s most important muscle. Aerobic exercise is promoted by any activity that uses your large muscles (arms, legs, or buttock, for example).

Weight Training

Along with aerobic exercising which helps get rid of and keep off the excess fat that our bodies can store, weight training is an essential part of an exercise routine. Weight training helps tone, build and strengthen muscle. If you are working above your target zone, you may want to do a lower number of reps.

Targeted Muscle Groups

The exercise routine that is performed on the exercise bike will develop the lower body muscle groups. These muscle groups are highlighted on the muscle chart below.

Page 17

Each workout should include the following three parts:

Warming up and Cooling down

Exercise Information

leg.

1. A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up

increases your body temperature, heart rate, and circulation in preparation for exercise.

2. Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)

3. A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to reduce post-exercise muscle soreness.

Exercise Frequency

To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.

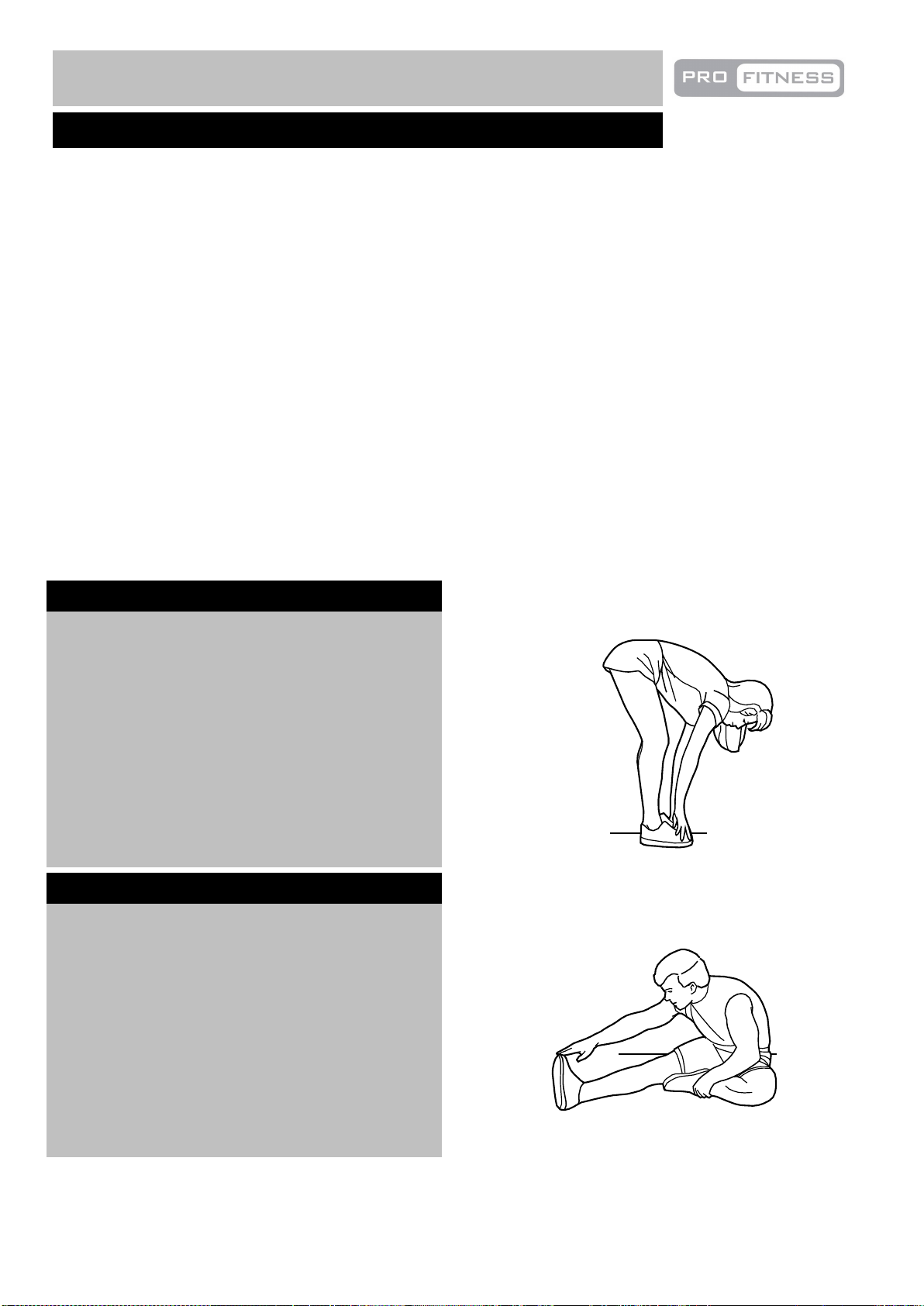

Suggested Stretches

Fora correctwarmup,seethe followingbasicstretching exercises. Moveslowly as youstretch, never bounce.

Toe touch stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible.

Hold for 15 counts, then relax

Repeat 3 times.

Stretches: Hamstrings, back of knees and back.

Hamstring stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible.

Hold for 15 counts, then relax

Repeat 3 times for each

Stretches: Hamstrings, lower back and groin.

Page 18

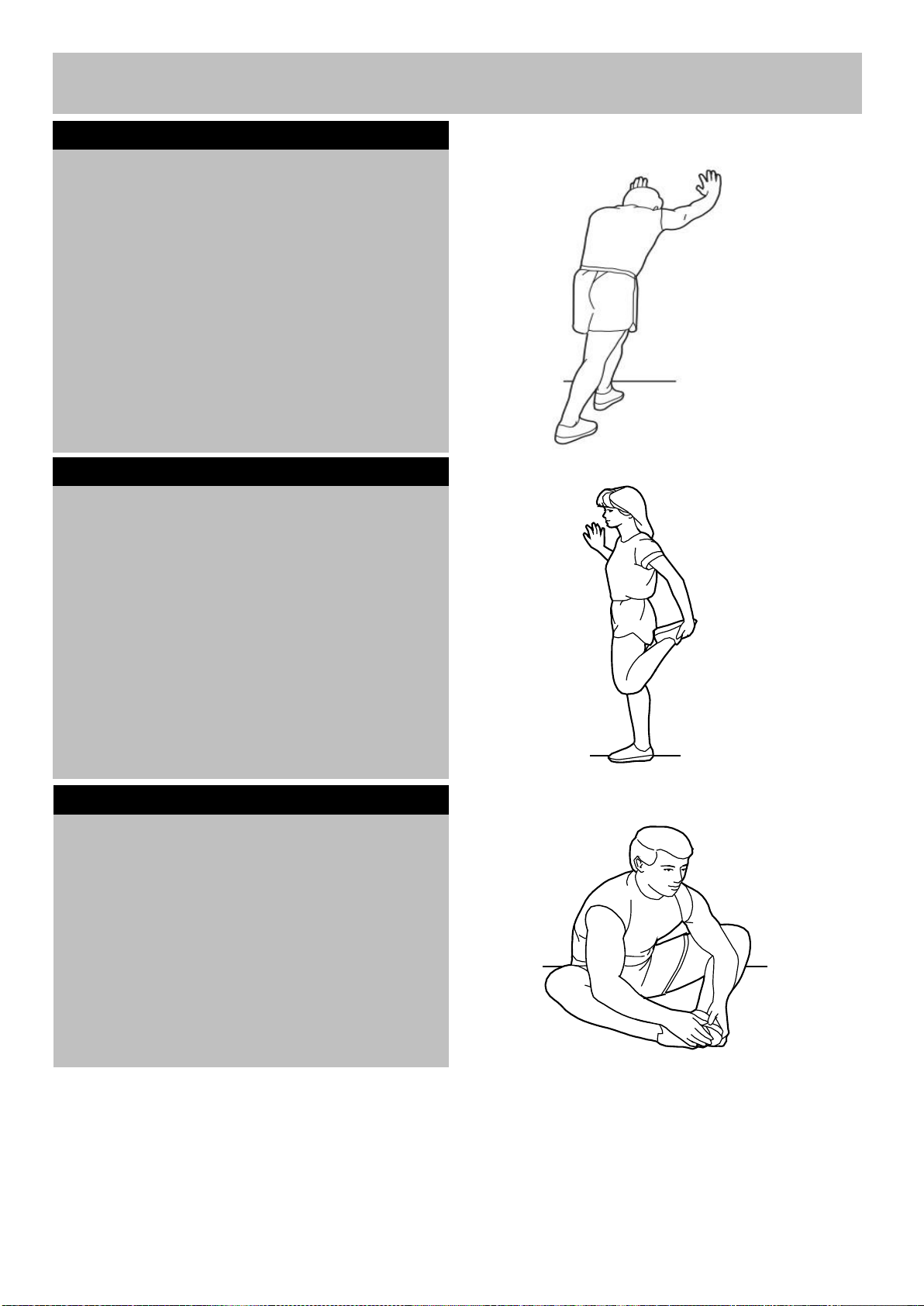

Inner thigh stretch

Calf/achilles stretch

Exercise Information

leg.

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall.

Hold for 15 counts, then relax.

Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well.

Stretches: Calves, achilles tendons and ankles.

Quadriceps stretch

With one hand against the wall for balance, reach back and grasp one foot with your other hand. Keeping your bent knee pointing directly downward towards the floor, gentle pull your heel towards your buttock until you feel a gentle stretch in the target area.

Hold for 15 counts, then relax.

Repeat 3 times .

Stretches: Quadriceps and hip muscles.

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible.

Hold for 15 counts, relax.

Repeat 3 times.

Stretches: Quadriceps and hip muscles.

Page 19

RECOVERY Key:

Exercise Information

Console Operation

18 Display

Mode

Recovery Reset

The recovery function will test your fitness recovery. To do this, hold the hand pulse sensors for one minute after which a fitness value will be displayed; F1.0 is excellent fitness and F6.0 is very poor fitness.

 MODE: This key lets you select and lock on to a particular function which you want.

Press to Choose SCAN, if you do not want the scan mode, press the Mode key until the pointer is next to the “flashing” function which you want. The unit can be reset by either changing the battery or pressing the MODE key for 4 seconds

AUTO ON /OFF：The console will switch on automatically when the exercise bike is in motion. The



console will enter Clock and Temperature mode when the speed has no signal input or no keys are pressed for approximately 4 minutes. RESET: Clear the data to zero when set up your workout.



A. SPEED: Workout speed. B. DISTANCE: Distance traveled. C. TIME: Workout time. D. CALORIES: Calories burnt. E. RPM: display the speed value during exercise, measuring range 0 ~ 999.Out of range shows 999. If

there is no signal input within 4 seconds, the speed will be 0.

F. HR: Heart rate sensors are used to measure the number of beats per minute.Your current heart rate will

be displayed 1 to 2 seconds after the heartbeat signal is received.The heartbeat symbol flashes when

Page 20

the heartbeat signal is received during the measurement. When no heart rate signal is input, the heart rate is

Specification

Function

Auto Scan

Every 6 Seconds

Speed

0.0 – 99.9 Km/h

Distance

0.0 – 999.9 Km

Time

00:00 – 99:59 (Minute: Second)

Calories

0.0 – 9999 Kcal

0-240

Battery type

2 x SIZE – AAA

Operation Temperature

0℃ - +40℃

Replacement of the battery

A. Remove the battery cover on the back of the computer. B. Replace 1.5V (AAA) battery. C. Make sure the battery is installed correctly and the polarities are correct. D. If the display is not clear or only partial segments appeared, remove the battery and wait for 15 seconds before re-installing it. E. The battery life is approx. 10 months under normal usage. F. When the battery is removed, all the functional values will reset to zero.

Exercise Information

Console Operation

displayed as P. Press UP or DOWN button one time, the heart rate will increase or decrease by 1 each time. Long press for rapid accumulation or subtraction. Set the range of measurement heart rate, the corresponding character flashing prompt when the measurement exceeds the preset range.

Page 21

Adjustment of the Resistance level by turning the 8-level tension knob either to the right (increase) or the left

Exercise Information

Adjustment of the resistance

(decrease).

Page 22

The safety level of the equipment can only be maintained if it is examined regularly for damage and wear e.g. ropes, pulleys and connection points.

2. Lubricate moving parts with

light oil periodically to prevent premature wear. To prevent damage to the computer, keep liquids away and keep it out of direct sunlight.

3. Inspect and tighten all parts

before using the equipment,

Replace defective components immediately and keep the equipment out of use until repair; Special attention to components most susceptible to wear.

The equipment can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

5. Do not attempt to repair

this equipment yourself.

Should you have any difficulty with assembly, operation or use of your exercise product or if you think that you may have parts missing, contact the manufacturer, their approved service agent or the

Customer Helpline: 0345 600 1714.

www.argos-support.co.uk

Guarantee:

For guarantee purposes, please retain your purchase receipt.

Exploded Parts Diagram

Care and Maintenance

Information for Users on Disposal of old Equipment and Batteries

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Service to this equipment should only be performed by an authorized service representative, unless authorized and/or instructed by the manufacturer.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Page 23

Page 24

No.

Description

QTY

Code

Main Frame

2A1205861

Left Footplate Bar

2A1205859

Right Footplate Bar

2A1205858

Front Stabilizer

2A1205856

Rear Stabilizer

2A1205857

Crank Connector

2A1205865

Magnet Bracket

2A1300077

Handle (L&R)

2A1205863 2A1205864

Idle Wheel Bracket

2A1300086

Fixed Handle

2A1300090

Front Post

2A1205862

Left Action Arm

2A1205863

Right Action Arm

2A1205864

Belt Pulley Axle

3B67E00239

φ280mm Belt Pulley

3C59J00067

Flywheel

3D89R00008

φ12×123mm Axle

φ15×41mm Axle

3B67E00216

φ12×60mm Axle

3B67E00203

Cross Bracket

2A1205860

Transport Wheel (L&R)

3C51JBC00035 3C51JBC00036

Level Foot

3C51JBC00080

Cross Bracket Cover

3C51JBG00716

Left Handle Bottom Cover

3C51JBG00053

Right Handle Bottom Cover

3C51JBG00054

Left Footplate Bar Cover

3C51JBG00055

Right Footplate Bar Cover

3C51JBG00056

Foot Bar Bushing

3C51JBF00115

φ38×φ32×83mm Sleeve

3C51JBE00039

φ32×φ19×9.5mm Nylon Bushing

3C51JBF00117

Plastic Cover

3C51JBG00665

Left Pedal

3C51JBF00125

Right Pedal

3C51JBF00126

Handrail Axle Sleeve

3C51JBG00065

Handrail Front Cover

3C51JBG00038

Handrail Rear Cover

3C51JBG00039

Instrument Rack Soft Plug

3C51JBG00664

Left Handle Cover

3C51JBG00659

Parts List

Page 25

Right Handle Cover

3C51JBG00660

Cross Bracket Axle Sleeve

3C59J00074

φ38×1.5mm Cone End Cap

3C51JBB00153

φ25×1.5mm Cone End Cap

3C51JBB00158

Water Bottle Bracket

3D600024

φ45×4mm D-hole Washer

3B53DIZ00013

φ32×4mm D hole Washer

3B53DIZ00017

φ45×φ11.8×9.5mm Bushing

3B800023

φ45×φ19×9.5mm Bushing

3B800024

T-shaped Knob

3C51JBD00042

φ23×φ29×390mm Handle Grip

3C73K00052

ф30×ф38×730mm Handle Grip

3C73K00053

Belt

3D59P00033

φ19×φ4.5×31.5mm Spring

3B61EJB00005

40×Ф11.5×Ф1.5mm Spring

3B61EJZ00004

Magnet

3F900023

φ12mm Axle Spring Bead Flange

3B56D00014

6202－2RS-Z3 Bearing

3B700012

6001-2Z Bearing

6004-2RS Bearing

3B700004

Plastic Ring

3C59J00416

Console

3C300105

Tension Cable

3C59J00420

M6×15mm Hex Bolt

3B51DBJ00083

M8×25mm Flange Hex Bolt

3B51DBJ00096

M8×15mm Hex Bolt

3B51DBZ00043

M10×25mm Hex Bolt

3B51DBJ00084

M8×95mm Tension Bolt

3B51DBZ00015

M8 Hex Nut

3B52DCB00013

M10 Hex Nut

M10 Nut

3B52DCC00007

M8 Nut

3B52DCC00007

ф10mm Spring Washer

3B53DIA00004

ф6mm Spring Washer

3B53DIA00007

φ8mm Spring Washer

3B53DIA00009

ф10mm Washer

3B53DIB00009

ф8mm Washer

3B53DIB00010

φ6mm Washer

3B53DIB00029

φ32×φ19×2mm Washer

B53DIZ00011

φ45×φ19×2mm Washer

3B66E00872

Parts List

Page 26

M8×15mm Allen Bolt

3B51DBD00233

M10×20mm Allen Bolt

3B51DBD00205

φ10×69mm Allen Bolt

3B51DBD00219

ф11.5×67mm Allen Bolt

3B51DBD00207

M8×42mm Hex Bolt

3B51DBJ00095

M5×10mm Hex Bolt

φ9×φ22×R19mm Arc Washer

3B53DIC00020

ST4.2×15mm Philips Screw

3B55DDD00003

ST4.2×15mm Philips Screw

3B55DDA00009

ST4.8×12mm Philips Screw

3B55DDD00006

φ20mm Corrugated Washer

3B53DIZ00009

Left Front Post Cover

3C51JBG00061

Right Front Post Cover

3C51JBG00062

Power Charge

3C51JBD00079

M5x50mm Philips Bolt

Left Instrument Rack Guard

3C51JBG00659

Right Instrument Rack Guard

3C51JBG00660

Φ5mm Arc Washer

A/A1

3D22O00087

B/B1

3D23O00184

C/C1

3D22O00092

Parts List

Guarantee

Page 27

Product Guarantee

This product is guaranteed against manufacturing defects from a period of

This product is guaranteed for twelve months from the date of original purchase. Any defect that arises due to faulty materials or workmanship will either be replaced, refunded or repaired free of charge where possible during this period by the dealer from whom you purchased the unit.

The guarantee is subject to the following provisions:  The guarantee does not cover accidental damage, misuse, cabinet

parts, knobs or consumable items.



The product must be correctly installed and operated in accordance with the instructions contained in this manual.



It must be used solely for domestic purpose.



The guarantee will rendered invalided if the products is re-sold or has been damaged by inexpert repair.



Specifications are subject to change without notice.



The manufacturer disclaims any liability for the incidental or consequential damages.



The guarantee is in addition to, and does not diminish your statutory or legal right.

 In the event of problem with the product with in the guarantee period call

Customer Helpline: 0345 600 1714

www.argos-support.co.uk

Guarantor: Argos Ltd

489 – 499 Avebury Boulevard

Central Milton Keynes

MK9 2NW

Year
