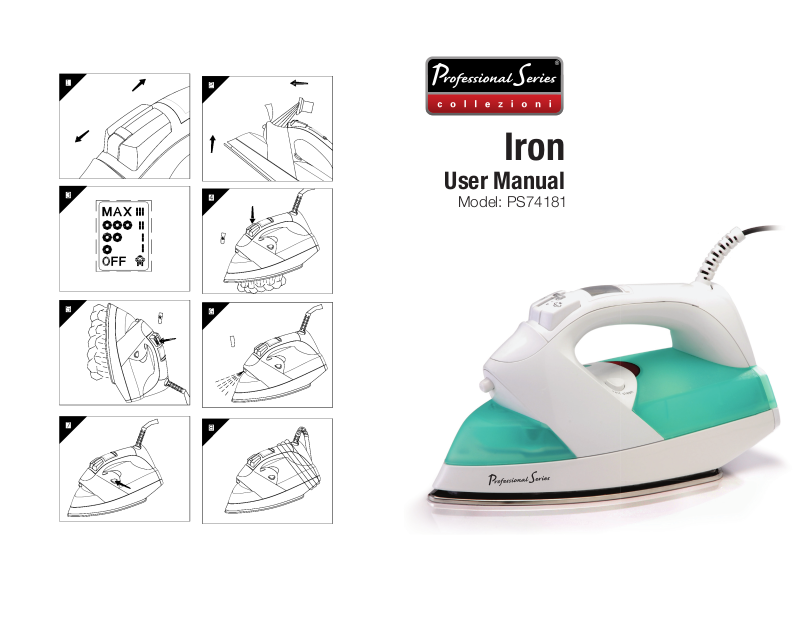

Professional Series PS74181 User Manual

Iron

User Manual

Model: PS74181

SAFETY INSTRUCTIONS

When using your atiron, basic safety precautions should always be
followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING

1. Use iron only for its intended use.

2. To protect against a risk of electric shock, do not immerse the iron in
water or other liquids.

3. The iron should always be turned to Off ″ before plugging or unplugging
from outlet. Never yank cord to disconnect from outlet; instead, grasp
plug and pull to disconnect.

4. Do not allow cord to touch hot surfaces. Let iron cool completely before
putting away. Loop cord loosely around iron when storing.

5. Always disconnect iron from electrical outlet when lling with water or
emptying and when not in use.

6. Do not operate iron with a damaged cord or if the iron has been dropped
or damaged. To avoid the risk of electric shock, do not disassemble
the iron take it to a qualied serviceman for examination and repair.
Incorrect reassembly can cause a risk of electric shock when the iron is used.

7. Close supervision is necessary for any appliance being used by or near
children. Do not leave iron unattended while connected or on an ironing
board.

8. Burns can occur from touching hot metal parts, hot water, or steam. Use
caution when you turn a steam iron upside down – there may be hot
water in the reservoir.

9. If the malfunction indicator goes on, the atiron is not operating nor­mally. Disconnect from the power supply and have the atiron serviced
by qualied service personnel.

SPECIAL INSTRUCTIONS

1. To avoid a circuit overload, do not operate another high wattage
appliance on the same circuit.

2. If an extension cord is absolutely necessary, a 10-ampere cord should
be used. Cords rated for less amperage may overheat. Care should be
taken to arrange the cord so that it cannot be pulled or tripped over.

SAVE THESE INSTRUCTIONS

More specically:

DO NOT let children or untrained persons use the appliance without

supervision.

NEVER immerse the iron, cable or plug in any liquid.
DO NOT leave the hot iron touching fabrics or very inammable sur-

faces.

DO NOT leave the appliance unnecessarily plugged in. Disconnect the

plug from the mains when the appliance is not being used.

NEVER touch the appliance with wet or damp hands.
DO NOT use the power cord or the appliance in order to pull the plug out

of the socket.

DO NOT leave the appliance exposed to the weather (rain, sun, etc. ).
DO NOT leave the iron without supervision when it is connected to the

power supply.

DO NOT ll the reservoir with water before removing the plug from the

socket.

PLEASE NOTE!

Do not use chemical additive, scented substances or decalciers. Fail­ure to comply with the above-mentioned regulations leads to the loss of
guarantee.

DESCRIPTION
OF DEVICE

(1). Spray organ (2). Filler door
(3). Steam dial (4). Shot-steam button
(5). Spray button (6). LCD window
(7). Maximum lling level (8). Temperature button
(9). Handle cover (10). Cord bushing
(11). Supply cord (12). Rear Bushion
(13). Rear top cap (14). Handle
(15). Rear middle cap (16). Transparent water tank
(17). Plate temperature control light (18). Self-cleaning button
(19). Plastic skirt (20). Plate with steam vents
