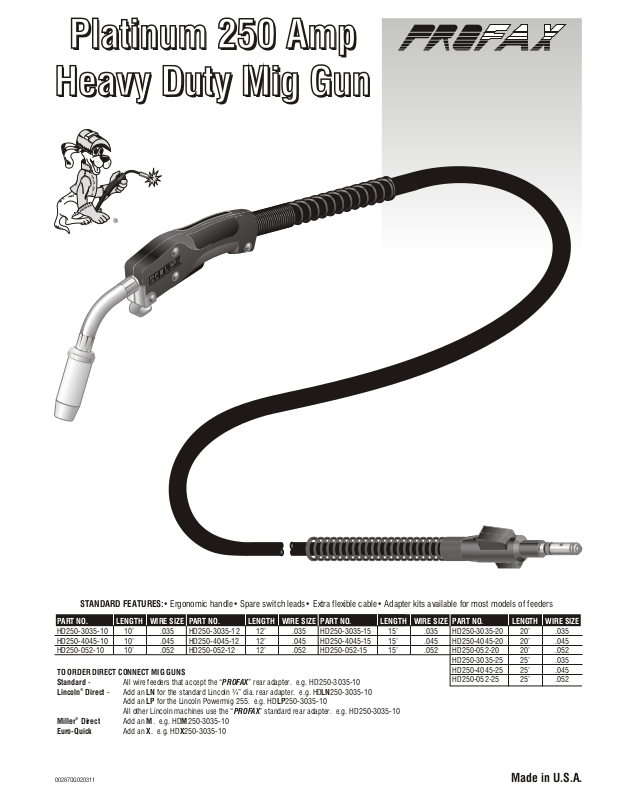

Platinum 250 Amp
Platinum 250 Amp
Platinum 250 Amp
Heavy Duty Mig Gun
Heavy Duty Mig Gun
Heavy Duty Mig Gun
®
STANDARD FEATURES:• Ergonomic handle• Spare switch leads• Extra flexible cable• Adapter kits available for most models of feeders
PART NO. LENGTH WIRE SIZE
HD250-3035-10 10’ .035
HD250-4045-10 10’ .045
HD250-052-10 10’ .052
TO ORDER DIRECT CONNECT MIG GUNS
Standard - All wire feeders that accept the “PROFAX” rear adapter. e.g. HD250-3035-10
®
Lincoln Direct - Add an LN for the standard Lincoln ¾” dia. rear adapter. e.g. HDLN250-3035-10
®
Miller Direct Add an M. e.g. HDM250-3035-10
Euro-Quick Add an X. e.g. HDX250-3035-10
00287OG020311
Add an LP for the Lincoln Powermig 255. e.g. HDLP250-3035-10
All other Lincoln machines use the “PROFAX” standard rear adapter. e.g. HD250-3035-10
PART NO. LENGTH WIRE SIZE
HD250-3035-12 12’ .035
HD250-4045-12 12’ .045
HD250-052-12 12’ .052
PART NO. LENGTH WIRE SIZE
HD250-3035-15 15’ .035
HD250-4045-15 15’ .045
HD250-052-15 15’ .052
PART NO. LENGTH WIRE SIZE
HD250-3035-20 20’ .035
HD250-4045-20 20’ .045
HD250-052-20 20’ .052
HD250-3035-25 25’ .035
HD250-4045-25 25’ .045
HD250-052-25 25’ .052
Made in U.S.A.
® ®
16
9A
9
8
4
2b
2a
2
1
3a
3
31
32
7
6
5
28
27
30
31a
29
13a
12a
13
21
26
11
12
14
10
10
11a
23a
20
23a
25
27
15
22
17
15
16
19
24
23
18

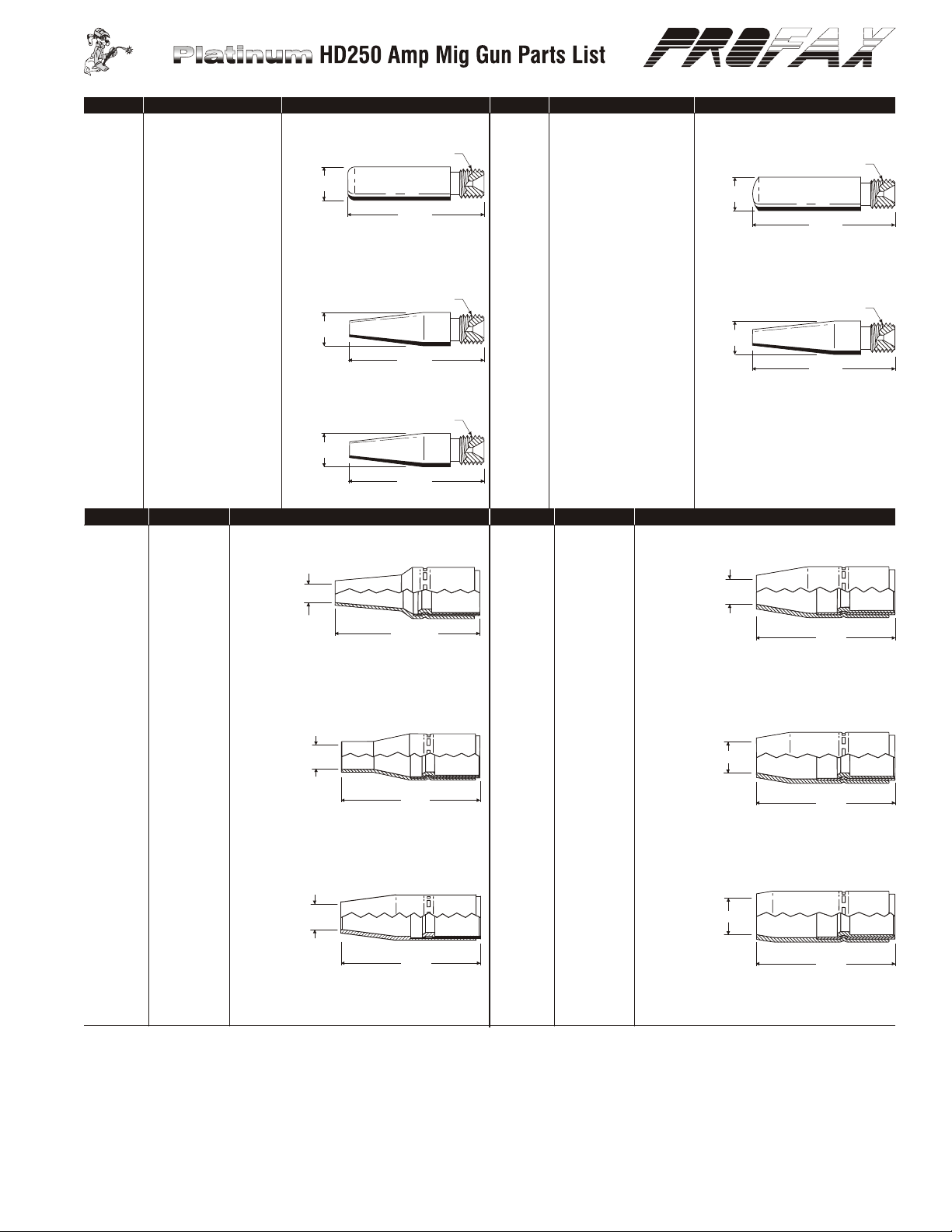

NO. PROFAX DESCRIPTION
1. 27S50 H.D. nozzle 1/2” (copper)
27S62 H.D. nozzle 5/8” (copper) (standard)
27S75 H.D. nozzle 3/4” (copper)
27T38 Tapered nozzle 3/8” (brass)(Use 17SLT series tip)
27T50 Nozzle 1/2” bottle (copper)
27K50 M.D. nozzle 1/2” (copper)
2. 17ST See Chart
2a. 16ST See Chart
2b. 17SLT See Chart
3. 17S See Chart (standard)
3a. 16S See Chart
4. 57HD Gas diffuser
5. 44C Set screw for gas diffuser/conduit
6. 240 Retaining ring
7. 260 O-ring
8. 17SW H.D. shock washer
9. 63-30HDJ Jacketed gooseneck 30°
63-45HDJ Jacketed gooseneck 45° (standard)
63-60HDJ Jacketed gooseneck 60°
63-180HDJ Jacketed gooseneck 180°
9a. TF-3HD H.D. flexible barrel
10. 62N Nipple
11. 112 Separator
11a. 114 Separator
12. 1-MBP-10 18 ball point screws
12a. A-532-24 9/16” ball point screws
13. 102 Cable connector block assembly
13a. 104 Cable connector block assembly
14. 154HD Hanger
15. 82HD Heavy duty handle w/screws
16. 122FM Binder screws for handle
17. 132-12 Clamp - handle
18. AL-300-25 7/32” hex wrench
19. 44-25 5/64” hex wrench
20. 92C Switch contacts w/screws
NO. PROFAX DESCRIPTION
21. 92 Trigger switch assembly
22. 142-6S Spring strain relief for handle
23. 250-10 10’ replacement cable assembly
250-12 12’ replacement cable assembly
250-15 15’ replacement cable assembly
250-20 20’ replacement cable assembly
250-25 25’ replacement cable assembly
250K Cable, bulk (per foot)
250CK Cloth wrapped cable, bulk (per foot) for guns longer than 15’
23a 244 Terminal
24. R185-S spring
25. 132-12 Clamp - connector block
26. 194 Connector tab assembly
27. R185-H Housing
28. R185-SC Screws for housing (4)
29. R172-UA Standard connector plug w/62N
R172-UAG Connector plug w/gas hole w/62N
30. 44C Set screw for conduit 8-32
31. R174-C Connector, Century
R174-E Connector, Esab (L-Tec )
R174-H Connector, Hobart
R174-L Connector, Lincoln
R174-M Connector, Miller
®
®®
®
®
®
R174-T Connector, standard
31a 224 O-ring
32. 42-23-15 15’ wire conduit assembly .023
42-3035-15 15’ wire conduit assembly .030-.035
42-4045-15 15’ wire conduit assembly .040-.045
42-116-15 15’ wire conduit assembly .052 - 1/16”
42-3035-25 25’ wire conduit assembly .030-.035
42-4045-25 25’ wire conduit assembly .040-.045
42-116-25 25’ wire conduit assembly .052 - 1/16”
42N-3545-15 15’ teflon conduit assembly (alumnium) .035-.045
