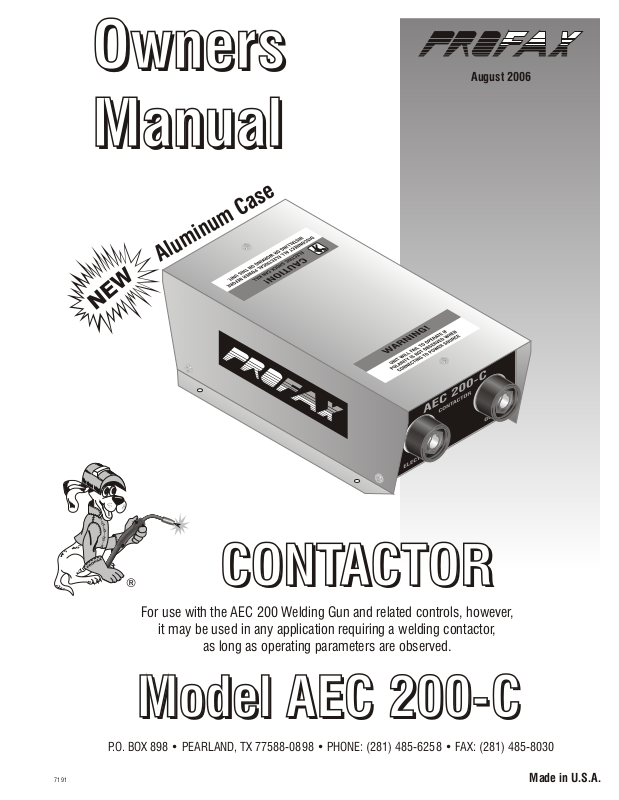

Profax AEC 200-C User Manual

Owners

Owners

Owners

Manual

Manual

Manual

ase

Aluminum C

August 2006

7191

.

.

A

A

.

.

S

S

.

.

U

U

N

N

I

I

E

E

D

D

A

A

M

M

®

For use with the AEC 200 Welding Gun and related controls, however,

it may be used in any application requiring a welding contactor,

Model AEC 200-CModel AEC 200-C

Model AEC 200-C

P.O. BOX 898 • PEARLAND, TX 77588-0898 • PHONE: [phone] • FAX: [phone]

CONTACTORCONTACTOR

CONTACTOR

as long as operating parameters are observed.

Made in U.S.A.

WarrantyWarranty

Warranty

LIMITED WARRANTY - Subject to the terms and conditions hereof, PROFAX, Pearland, Texas warrants its control boxes to be

free from defect in workmanship and material at the time of delivery by PROFAX.

PROFAX will honor warranty claims on this equipment as a result of failure from a defect for a period of one year from date of

sale to the original user.

Upon the return of this unit at users expense, PROFAX reserves the right to either repair or replace as necessary.

This is the only warranty either expressed or implied covering this unit.

CAUTION

Disconnect all electrical power to

the welding power source before

installing this control unit.

To install:

To connect AEC 200-C Contactor to AEC 200-2 Control Box

1. Insure that AEC 200-2 Control Box has been disconnected from all power.

2. Remove top cover from AEC 200-2 Control Box.

3. Install 3-conductor cord from the AEC 200-C Contactor Box to the AEC 200-2 Control Box
at terminals 3 & 4 on TS2. Green wire connects to ground stud.

4. Connect a short section of welding cable between the “Machine Pos.” terminal of the
AEC 200-C Contactor and the “Gun” terminal of the AEC 200-2 Control Box.

5. Connect the power cable lug of the AEC 200 Welding Gun to the “Gun” terminal on the
AEC 200-C Contactor.

6. Recheck all above steps and re-install cover on AEC 200-2 Control Box.
