Standard Features
• Economical Replacement Components Including Liner
• 350 Amps / 60% Duty Cycle
• Wire Sizes .035 - 3/32”
• Easy Field Repair
• Adapter Kits Available for Most Models of Feeders
Description
The Model AEC 1260 Self-Shielding Flux-Cored Gun is available with a 10’
or 15’ cable assembly with replaceable liner. The gun and cable assembly
are rated at 350 amperes and 60% duty cycle, and are capable of running
wire sizes .035, .045, 1/16”, .068, .072, 5/64” and 3/32”. Please consult,
the parts list to order the proper components for your wire size.
The model AEC 1260 gun is set up for use with LN-7, LN-8, LN-9, LN-15

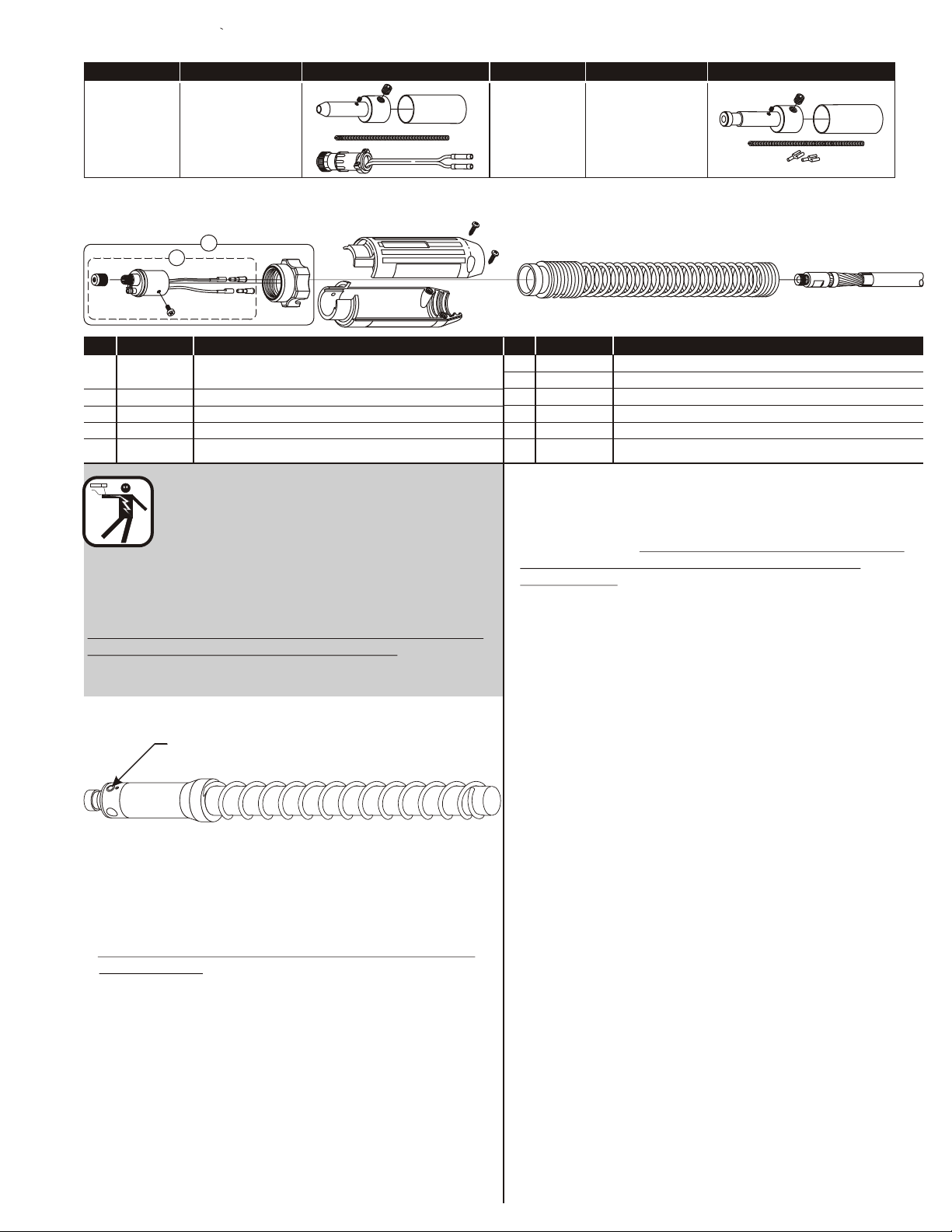

and LN-25 wire feeders. Adapter kits are available for Miller and Hobart
voltage sensing feeders.
The model X1260 gun is set up for use with Euro style wire feeders.
®®
00022OG080410
MODEL AEC 1260MODEL AEC 1260
MODEL AEC 1260MODEL AEC 1260
Made in U.S.A.
Parts
Parts
Parts
Breakdown
Breakdown
Breakdown
3a
3b
6”
3c
7
15
16
18
6”
1b
1a
21
12”
12”
3F
6
5
4
2
1d
1c
3d
3E
13
12
10
8
8a
17
25
26
14
11
9
29
30
31
Special length and bend goosenecks
20
available upon request.
NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION
1A 11-275 Insulated nozzle 2-3/4” stickout
1B 11-200 Insulated nozzle 2” stickout
1C 11-250 Insulated nozzle 1-1/4” stickout
1D 11-231 Thread protector (Standard)
2 12-651 Contact tip .035 .044
12-652 Contact tip .045 .054
12-653 Contact tip 1/16” .078
12-654 Contact tip .068 .086
12-655 Contact tip .072 .086
12-656 Contact tip 5/64” .093
12-657 Contact tip 3/32” .108
3A 13-301 30° Gooseneck 6” (Std. for 5/64 & 3/32 wires)
13-304 50° Gooseneck 6” (Std. for .045 & 1/16 wires)
13-309 90° Gooseneck 6”
13-301-5 Straight gooseneck w/5° bend
13-309-5 Straight gooseneck w/5° bend
3B 13-301J 30° Jacketed gooseneck 6”
13-304J 50° Jacketed gooseneck 6”
13-309J 90° Jacketed gooseneck 6”
3C 13-306 30° Gooseneck (XL 12”)
13-306-5 Straight gooseneck w/5° bend (XL 12”)
13-308 50° Gooseneck (XL 12”)
3D 13-306J 30° Jacketed gooseneck (XL 12”)
13-308J 50° Jacketed gooseneck (XL 12”)
3E LF-1260 Flexible gooseneck
3F LFA-1 Adapter (replaceable)
INCLUDES
4 18-950 Liner locking screw 5/16”-18
5 18-940 Steel insert
6 18-930 Ceramic insert
7 13-506 Replacement gooseneck liner (Std.)
13-512 Replacement gooseneck liner (XL 30°)
13-515 Replacement gooseneck liner (XL 50°)
8 14-268 Small heat shield assembly
INCLUDES
8A 14-270 Caution decal
9 18-780 Round head screw #8-32 x 1.50 (2 req'd)
10 18-781 Hex cap nut #8-32 (2 req’d)
11 14-222 Socket head cap screw
12 18-480 Retaining ring
13 14-572 Clamp
14 14-819 Spatter shield
15 14-297 Switch housing clamp
16 18-404 Pan head screw #8-32 x 5/16” (4 req’d)
17 14-340 Handle
18 15-308* Conductor cable assembly 8’(Lincoln Direct)
15-310 Conductor cable assembly 10’(Lincoln Direct)
15-315 Conductor cable assembly 15’(Lincoln Direct)
15-310M Conductor cable assembly 10’(Miller Direct)
15-315M Conductor cable assembly 15’(Miller Direct)
INCLUDES
19 15-128 Replacement liner 10’, .045-1/16” wires
15-129 Replacement liner 10’, .068-5/64” wires
15-130 Replacement liner 10’, 3/32” wires
15-133 Replacement liner 15’, .045-1/16” wires
15-134 Replacement liner 15’, .068-5/64” wires
15-135 Replacement liner 15’, 3/32” wires
20 15-531 Insulator sleeve w/spring
21 18-881 Flat head cap screw #8-32 x 3/8” (2 req’d)
22 18-892 Socket head set screw #8-32 x 5/16”
23 16-052 Trigger plug Lincoln
23c 079878 Trigger plug Miller
24 16-810 Switch assembly 10’(Lincoln Direct)
16-815 Switch assembly 15’(Lincoln Direct)
16-810M Switch assembly 10’(Miller Direct)
16-815M Switch assembly 15’(Miller Direct)
25 16-320 Cable clamp
26 16-660 Micro switch
27 18-332 Roll pin 3/32” x 7/8”
28 16-400 Trigger housing assembly
INCLUDES
29 16-151 Coil spring set (3 springs)
30 18-227 Roll pin 3/32” x 3/4”
31 18-628 Socket head screw #8-32 x 7/16”
30
