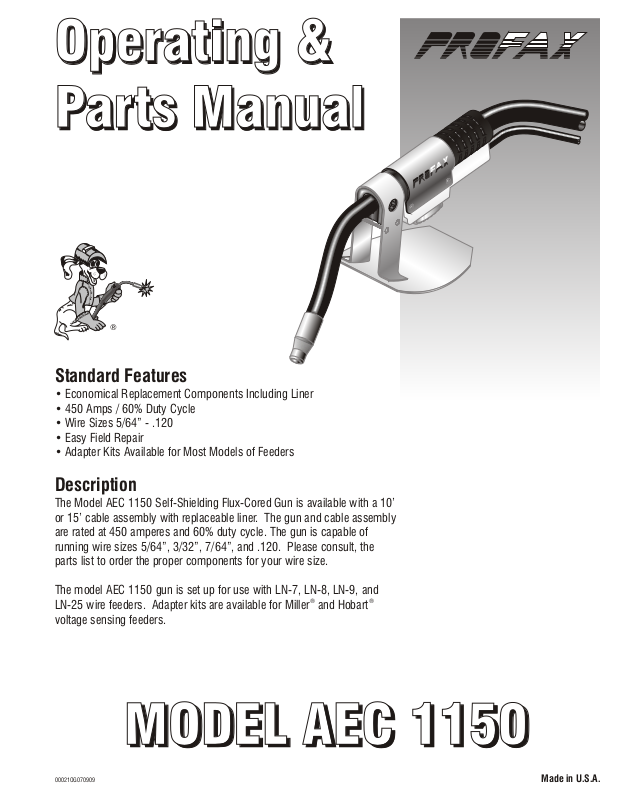

Profax AEC 1150 User Manual

Operating &

Operating &

Operating &

Operating &

Parts Manual

Parts Manual

Parts Manual

Parts Manual

®

Standard Features

• Economical Replacement Components Including Liner

• 450 Amps / 60% Duty Cycle

• Wire Sizes 5/64” - .120

• Easy Field Repair

• Adapter Kits Available for Most Models of Feeders

Description

The Model AEC 1150 Self-Shielding Flux-Cored Gun is available with a 10’
or 15’ cable assembly with replaceable liner. The gun and cable assembly
are rated at 450 amperes and 60% duty cycle. The gun is capable of
running wire sizes 5/64”, 3/32”, 7/64”, and .120. Please consult, the
parts list to order the proper components for your wire size.

The model AEC 1150 gun is set up for use with LN-7, LN-8, LN-9, and
LN-25 wire feeders. Adapter kits are available for Miller and Hobart
voltage sensing feeders.

®®

00021OG070909

MODEL AEC 1150MODEL AEC 1150

MODEL AEC 1150MODEL AEC 1150

Made in U.S.A.

Parts BreakdownParts Breakdown

Parts Breakdown

NOTE: For best operation all 1150 flux
core guns for 3/32” and larger wire sizes
will be shipped with the
13-443-25 25° gooseneck.

6”

6”

6

5

4

2

15

7

16

3a

3b

14”

3c

13

12

10

8a

8

17

25

26

14

11

9

31

30

27

29

28

30

18

19

24

23a

1

1a

Special length and bend goosenecks

21

20

available upon request.

NO. PART NO. DESCRIPTION NO. PART NO. DESCRIPTION

1 11-450 Insulated nozzle 2 3/4” stickout
1A 11-455 Insulated nozzle stickout
2 12-873 Contact tip 1/16”

12-874 Contact tip .068
12-875 Contact tip .072
12-876 Contact tip 5/64”
12-877 Contact tip 3/32”
12-878 Contact tip 7/64”
12-879 Contact tip .120
12-880 Contact tip 1/8”

3A 13-441 45° Gooseneck 1/16”-5/64”

13-443 45° Gooseneck 3/32”-1/8”
13-443-25 25° Gooseneck 3/32”-1/8”
13-484 82° Gooseneck 1/16”-5/64”
13-486 82° Gooseneck 3/32”-1/8”

3B 13-441J 45° Jacketed gooseneck 1/16”-5/64”

13-443J 45° Jacketed gooseneck 3/32”-1/8”
13-443-25J 25° Jacketed gooseneck 3/32”-1/8”
13-484J 82° Jacketed gooseneck 1/16”-5/64”
13-486J 82° Jacketed gooseneck 3/32”-1/8”

3C 13-443-14 Straight gooseneck w/5° bend, 14” long

13-443-14J Jacketed gooseneck w/5° bend, 14” long

INCLUDES

4 18-965 Liner locking screw 3/8”-16
5 18-960 Steel insert
6 18-912 Ceramic insert .120

18-932 Ceramic insert 3/32”

7 13-633 Replacement gooseneck liner 3/32”-1/8”

13-641 Use 13-633
13-624 Replacement gooseneck liner 1/16”-5/64”

8 14-269 Heat shield assembly

INCLUDES

8A 14-270 Caution decal

11 14-222 Socket head cap screw
12 18-480 Retaining ring
13 14-572 Clamp
14 14-819 Spatter shield
15 14-297 Switch housing clamp
16 18-404 Pan head screw #8-32 x 5/16” (4 req'd)
17 14-340 Handle
18 15-410 Conductor cable assembly 10’(Lincoln Direct)

15-415 Conductor cable assembly 15’(Lincoln Direct)
15-410M Conductor cable assembly 10’(Miller Direct)
15-415M Conductor cable assembly 15’(Miller Direct)

INCLUDES

19 15-140 Replacement liner 10’, 1/16”-5/64”

15-145 Replacement liner 15’, 1/16”-5/64”
15-150 Replacement liner 10’, 3/32”-1/8”

15-160 Replacement liner 15’, 3/32”-1/8”
20 15-531 Insulator sleeve w/spring
21 18-881 Flat head cap screw #8-32 x 3/8” (2 req'd)
22 18-892 Socket head set screw #8-32 x 5/16”
23 16-052 Trigger plug Lincoln
23a079878 Trigger plug Miller
24 16-810 Switch assembly 10’(Lincoln Direct)

16-815 Switch assembly 15’(Lincoln Direct)

16-810M Switch assembly 10’(Miller Direct)

16-815M Switch assembly 15’(Miller Direct)
25 16-320 Cable clamp
26 16-660 Micro switch
27 18-332 Roll pin 3/32” x 7/8”
28 16-400 Trigger housing assembly

INCLUDES

29 16-151 Coil spring set (3 springs)
30 18-227 Roll pin 3/32” x 3/4”
31 18-628 Socket head screw #8-32 x 7/16”

9 18-780 Round head screw #8-32 x 1.50 (2 req'd)
10 18-781 Hex cap nut #8-32 (2 req'd)

18

23

22

®

®

®

®

®

®

®

®

®

®
