Easy! Smooth!
GP-2500/2600→GP4000 Series
Replacement Guidebook
1/61
First Edition Feb. 2012
Page 2
Preface
This guidebook introduces the procedures to replace a unit in GP2500/2600 series
with a unit in GP4000 series.
Model in use Replacement model
GP-2601T GP-4601T
GP-2500S
GP-2500L
GP-2501T
GP-4501T
GP-2501S
GP-2501L
GP-4501TW
2/61
Page 3
GP4000 Series Model Number
GP4000 series model number partly differs depending on a specification. Before
placing an order, please make sure of the model number.
A 2 GP-4200 series (3.5”)
3 GP-4300 series (5.7”)
4 GP-4400 series (7.5”/7.0W”)
5 GP-4500 series (10.4”)
6 GP-4600 series (12.1”)
B 01 RS-232C/422/485
03 RS-485 (insulation)
C T TFT color LCD
W TFT color LCD (Wide Type)
D A Analog Resistive Film Touch Panel
M Matrix Touch Panel
E A AC Type Power Supply
D DC Type Power Supply
F W Low cost
C Coated
WC Light + Coated
3/61
Page 4
Contents
PREFACE 2
GP4000 SERIES MODEL NUMBER 3
CONTENTS 4
CHAPTER 1 SPECIFICATION COMPARISON 7
1.1 SPECIFICATIONS OF GP-2601T AND GP-4601T 7
1.2 SPECIFICATIONS OF GP-2500S/L AND GP-4501T 9
1.3 SPECIFICATIONS OF GP-2501T AND GP-4501T 11
1.4 SPECIFICATIONS OF GP-2501S/L AND GP-4501TW 13
CHAPTER 2 COMPATIBILITY OF HARDWARE 15
2.1 LOCATIONS OF CONNECTOR 15
CONNECTOR LOCATIONS OF GP-2601T AND GP-4601T 15
CONNECTOR LOCATIONS OF GP-2500S/2500L/2501T AND GP-4501T 17
CONNECTOR LOCATIONS OF GP-2501S/L AND GP-4501TW 19
2.2 TOUCH PANEL SPECIFICATIONS 20
2.2.1 WHEN REPLACING GP-2601T/2501T/2500S/2500L 20
2.2.2 WHEN REPLACING GP-2501S/L 20
2.3 DISPLAY COLORS (FOR GP-2500L AND GP-2501L ONLY) 20
2.4 PANEL CUTOUT DIMENSIONS (FOR GP-2500S/L AND GP-2501T ONLY) 21
2.5 TRANSFER CABLE 21
2.6 INTERFACE 21
2.6.1 SERIAL INTERFACE 21
2.6.2 AUXILIARY I/O INTERFACE (AUX) 22
2.6.3 SOUND OUTPUT INTERFACE (FOR GP2500S/L ONLY) 22
2.6.4 CF CARD INTERFACE 22
2.7 PERIPHERAL UNITS AND OPTIONS 22
2.7.1 BARCODE READER CONNECTION 22
4/61
Page 5
2.7.2 PINRTER CONNECTION 22
2.7.3 EXPANSION UNIT 23
2.7.4 FRONT MAINTENANCE UNIT 23
2.7.5 ISOLATION UNIT (EXCEPT GP-2601T) 23
2.8 POWER CONNECTOR 23
2.8.1 AC POWER SUPPLY TYPE 23
2.8.2 DC POWER SUPPLY TYPE 23
2.9 BACKUP BATTERY 24
2.10 POWER CONSUMPTION 24
2.11 MATERIALS/COLORS OF THE BODY 24
CHAPTER 3 REPLACEMENT PROCEDURE 25
3.1 WORK FLOW 25
3.2 PREPARATION 26
3.3 RECEIVE SCREEN DATA FROM GP2000 SERIES 27
3.4 CONVERT SCREEN DATA WITH THE PROJECT CONVERTER 31
3.5 TRANSFER SCREEN DATA TO GP4000 SERIES 39
3.6 DIFFERENCES OF SOFTWARE 44
3.6.1DIFFERENCES AFTER CONVERSION 44
CHAPTER 4 COMMUNICATION WITH DEVICE/PLC 46
4.1 DRIVER LIST 46
4.2 SHAPES OF COM PORTS 50
4.3 SIGNALS OF COM PORTS 51
4.3.1 SIGNALS OF COM1 51
4.3.2 SIGNALS OF COM2 53
4.4 MULTILINK CONNECTION 54
4.5 CABLE DIAGRAM AT THE TIME OF REPLACEMENT 54
4.5.1 WHEN USING A RS-232C CONNECTION CABLE, 55
4.5.2 WHEN USING A RS-422 CONNECTION CAB LE, 57
CHAPTER 5 APPENDIX 59
5/61
Page 6
5.1 CHANGING THE SETTING OF THE EXTERNAL MEDIA TO USE 59
6/61
Page 7
Chapter 1 Specification Comparison
1.1 Specifications of GP-2601T and GP-4601T
GP-2601T GP-4601T
Display Type TFT Color LCD
Display Colors, Levels
256 colors (without blink)/
64 colors (with blink)
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
Display Resolution SVGA (800x600 pixels)
Panel Cutout Dimensions
(mm)
301.5(W) x 227.5(H)
External Dimensions
(mm)
317(W) x 243(H) x 58(D)
315(W) x 241(H) x 56(D)
Touch Panel Type Matrix
Resistive film (Analog)/
Matrix
→See 2..2
Application
4MB UP! 32MB
Memory
SRAM
128KB UP! 320KB
Backup Battery
Secondary Battery
(rechargeable)
NEW!
Primary Battery
(replaceable)
→See 2.9
COM1
25 pin D-Sub (female)
RS-232C/422
9 pin D-Sub (male)
RS-232C
→See 2.6.1
Serial
Interface
COM2 -
9 pin D-Sub (male)
RS-422/485
→See 2.6.1
7/61
Page 8
Ethernet Interface -
NEW!
10BASE-T/100BASE-TX
CF Card Interface
✔
- →See 2.6.4
SD Card Interface -
NEW! ✔
Type A
USB I/F
Type mini B
-
NEW! ✔
→See 2.5
Tool Connector I/F
✔
-
Printer Interface
Centronic-compliant
(parallel)
NEW! USB(Type A)
→See 2.7.2
Auxiliary I/O Interface
✔
-
→See 2.6.2
8/61
Page 9
1.2 Specifications of GP-2500S/L and GP-4501T
GP-2500S/L GP-4501T
GP-2500S STN color LCD Display
Type
GP-2500L Monochrome LCD
UP! TFT color LCD
GP-2500S 64 colors Display
Colors,
Levels
GP-2500L
Monochrome, 2 levels/
monochrome, 8 levels
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
Display Resolution VGA (640x480 pixels)
Panel Cutout
Dimensions
(mm)
301.5(W) x 227.5(H)
259(W) x 201(H)
→See 2.4
External Dimensions
(mm)
317(W) x 243(H) x 58(D)
272.5(W) x 214.5(H) x 57(D)
Touch Panel Type Matrix
Resistive film (Analog)/
Matrix
→See 2.2
Application
4MB UP! 32MB
Memory
SRAM
256KB UP! 512KB
Backup Battery
Secondary Battery
(rechargeable)
NEW!
Primary Battery (replaceable)
→See 2.9
COM1
25 pin D-Sub (female)
RS-232C/422
9 pin D-Sub (male)
RS-232C
→See 2.6.1
Serial
Interface
COM2
9 pin D-Sub (male)
RS-232C
9 pin D-Sub (male)
RS-422/485
→See 2.6.1
9/61
Page 10
Ethernet Interface 10BASE-T
UP!
10BASE-T/100BASE-TX
CF Card Interface
✔
- →See 2.6.4
SD Card Interface -
NEW! ✔
Type A
USB I/F
Type mini B
-
NEW! ✔
→See 2.5
Tool Connector
Interface
✔
-
Printer Interface
Centronic-compliant
(parallel)
NEW! USB (Type A)
→See 2.7.2
Auxiliary I/O
Interface
✔
- →See 2.6.2
Sound I/O Interface
✔
- →See 2.6.3
10/61
Page 11
1.3 Specifications of GP-2501T and GP-4501T
GP-2501T GP-4501T
Display Type TFT color LCD
Display Colors,
Levels
256 colors (without blink)/
64 colors (with blink)
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
Display Resolution VGA (640×480 pixels)
Panel Cutout
Dimensions
(mm)
301.5(W) x 227.5(H)
259(W) x 201(H)
→See 2.4
External Dimensions
(mm)
317(W) x 243(H) x 58(D)
272.5(W) x 214.5(H) x 57(D)
Touch Panel Type Matrix
Resistive film (Analog)/
Matrix
→See 2.2
Application
2MB UP! 32MB
Memory
SRAM
128KB UP! 512KB
Backup Battery
Secondary Battery
(rechargeable)
NEW! Primary Battery
(replaceable)
→See 2.9
COM1
25 pin D-Sub (female)
RS-232C/422
9 pin D-Sub (male)
RS-232C
→See 2.6.1
Serial
Interface
COM2 -
9 pin D-Sub (male)
RS-422/485
→See 2.6.1
Ethernet Interface -
UP!
10BASE-T/100BASE-TX
11/61
Page 12
CF Card Interface
✔
- →See 2.6.4
SD Card Interface -
NEW! ✔
Type A
USB I/F
Type mini B
-
NEW! ✔
→See 2.5
Tool Connector
Interface
✔
-
Printer Interface
Centronic-compliant
(parallel)
NEW! USB (Type A)
→See 2.7.2
Auxiliary I/O
Interface
✔
- →See 2.6.2
12/61
Page 13
1.4 Specifications of GP-2501S/L and GP-4501TW
GP-2501S/L GP-4501TW
GP-2501S STN color LCD Display
Type
GP-2501L Monochrome LCD
UP! TFT color LCD
GP-2501S 64 colors
Display
Colors
GP-2501L
Monochrome, 8 levels
UP!
65,536 colors (without blink)/
16,384 colors (with blink)
Display Resolution VGA (640x480 pixels)
Panel Cutout
Dimensoins
(mm)
301.5(W) x 227.5(H)
External Dimensions
(mm)
317(W) x 243(H) x 58(D)
315(W) x 241(H) x 56(D)
Touch Panel Type Matrix
NEW!
Resistive film (Analog)
→See 2.2
GP-2501S AC100V - 240V
Rated
Input
Voltage
GP-2501L DC 24V
DC 24V
Application
1MB UP! 16MB
Memory
SRAM 128KB
128KB
Backup Battery
Secondary Battery
(rechargeable)
NEW!
Primary Battery (replaceable)
→See 2.9
13/61
Page 14
COM1
25 pin D-Sub (female)
RS-232C/422
9 pin D-Sub (male)
RS-232C
→See 2.6.1
Serial
I/F
COM2 -
9 pin D-Sub (male)
RS-422/485
→See 2.6.1
Ethernet Interface -
NEW!
10BASE-T/100BASE-TX
CF Card Interface
✔
-
→See 2.6.4
Type A
USB I/F
Type mini B
-
NEW! ✔
→See 2.5
Tool Connector I/F
✔
-
Printer Interface
Centronic-compliant
(parallel)
NEW! USB (Type A)
→See 2.7.2
Auxiliary I/O
Interface
✔
- →See 2.6.2
14/61
Page 15
Chapter 2 Compatibility of Hardware
2.1 Locations of connector
Connector locations on GP2000 series and GP4000 series are as follows:
Connector locations of GP-2601T and GP-4601T
GP-2601T
GP-4601T
Interface names
GP-2601T GP-4601T
1 Power Input Terminal Block Power Connector
2 Serial I/F (COM1)
3 - Serial I/F (COM2)
4 Tool Connector 5 - Ethernet I/F
6 - USB I/F (Type A)
7 - USB I/F (Type mini B)
8 - SD Card I/F
15/61
Page 16
9 CF Card I/F -
10 Expansion Unit I/F 11 Printer I/F 12 Auxiliary I/O Interface (AUX) -
16/61
Page 17
Connector locations of GP-2500S/2500L/2501T and GP-4501T
GP-2500S/L
GP-2501T
GP-4501T
17/61
Page 18
Interface names
GP-2500S/L GP-2501T GP-4501T
1 Power Input Terminal Block Power Connector
2 Serial I/F (COM1)
3 Serial I/F (COM2) - Serial I/F (COM2)
4 Tool Connector 5 Ethernet I/F - Ethernet I/F
6 - USB I/F (Type A)
7 - USB I/F (Type mini B)
8 - SD Card I/F
9 CF Card I/F -
10 Expansion Unit I/F 11 Printer I/F 12 Auxiliary I/O Interface
(AUX)
Sound I/O Interface
Auxiliary I/O Interface
(AUX)
-
13 Expansion CF Card I/F - -
18/61
Page 19
Connector locations of GP-2501S/L and GP-4501TW
GP-2501S/L
GP-4501TW
Interface names
GP-2501S/L GP-4501TW
1
Power Input Terminal Block (AC/DC)
Power Connector (DC)
2 Serial I/F (COM1)
3 - Serial I/F(COM2)
4 Tool Connector 5 Ethernet I/F
6 - USB I/F (Type A)
7 - USB I/F (Type mini B)
8 - SD Card I/F
9 CF Card I/F -
10 Expansion Unit I/F 11 Printer I/F 12 Auxiliary I/O Interface (AUX) -
19/61
Page 20
2.2 Touch Panel specifications
2.2.1 When replacing GP-2601T/2501T/2500S/2500L
For replacing GP-2601T/2501T/2500S/2500L with GP-4601T/4501T, you can
select the Matrix type (2-point touch input at the same time) or the Analog
Resistive Film type (1-point touch input) for Touch Panel Type.
For the Analog Resistive Film type, if you touch two points at the same time, only
the first touched point is recognized, but the second touched one is not.
If you use the Analog Resistive Film type, change to 1-point touch input setting
using the switch delay function of GP-Pro EX.
There’s a model number difference between the Analog Resistive Film type and the
Matrix type. For details, see GP4000 Series Model Number
.
2.2.2 When replacing GP-2501S/L
GP-4501TW adopts the Analog Resistive Film type.
For the Analog Resistive Film type, even if you touch two points at the same time,
it’s recognized that the coordinates located between these two points are touched.
If you have used the 2-point touch input on GP-2501S/L, change to the 1-point
touch input setting using the switch delay f unction of GP-Pro EX.
If you use the Matrix type that enables 2-point touch input at the same time, you
can replace GP-2501S/L with GP-4501T.
There’s a model number difference between the Analog Resistive Film type and the
Matrix type. For details, see GP4000 Series Model Number
.
2.3 Display Colors (for GP-2500L and GP-2501L only)
The display type of GP-2500L/2501L is a monochrome LCD , but GP4000 series has a
TFT color LCD. After replacement, the 2-color display changes to the color one.
When data of a monochrome model are converted to data of a color model with GP-Pro
EX, the converted data may be displayed in colors except black and white depending
on a setting of GP-PRO/PBIII. After conversion, please confirm the display colors of
the drawing or the parts on the screens just in case.
20/61
Page 21
2.4 Panel Cutout Dimensions (for GP-2500S/L and GP-2501T only)
The size of GP-4501T gets smaller. The panel cutout dimensions of GP-4501T are
different from those of GP2500 series. Attachment (model: CA4-ATM10-01) for
installing GP-4501T is available and you can use it when replacing GP2500 series with
GP-4501T.
For replacing GP-2601T or GP-2501S, there’s no change in the panel cutout
dimensions.
2.5 Transfer cable

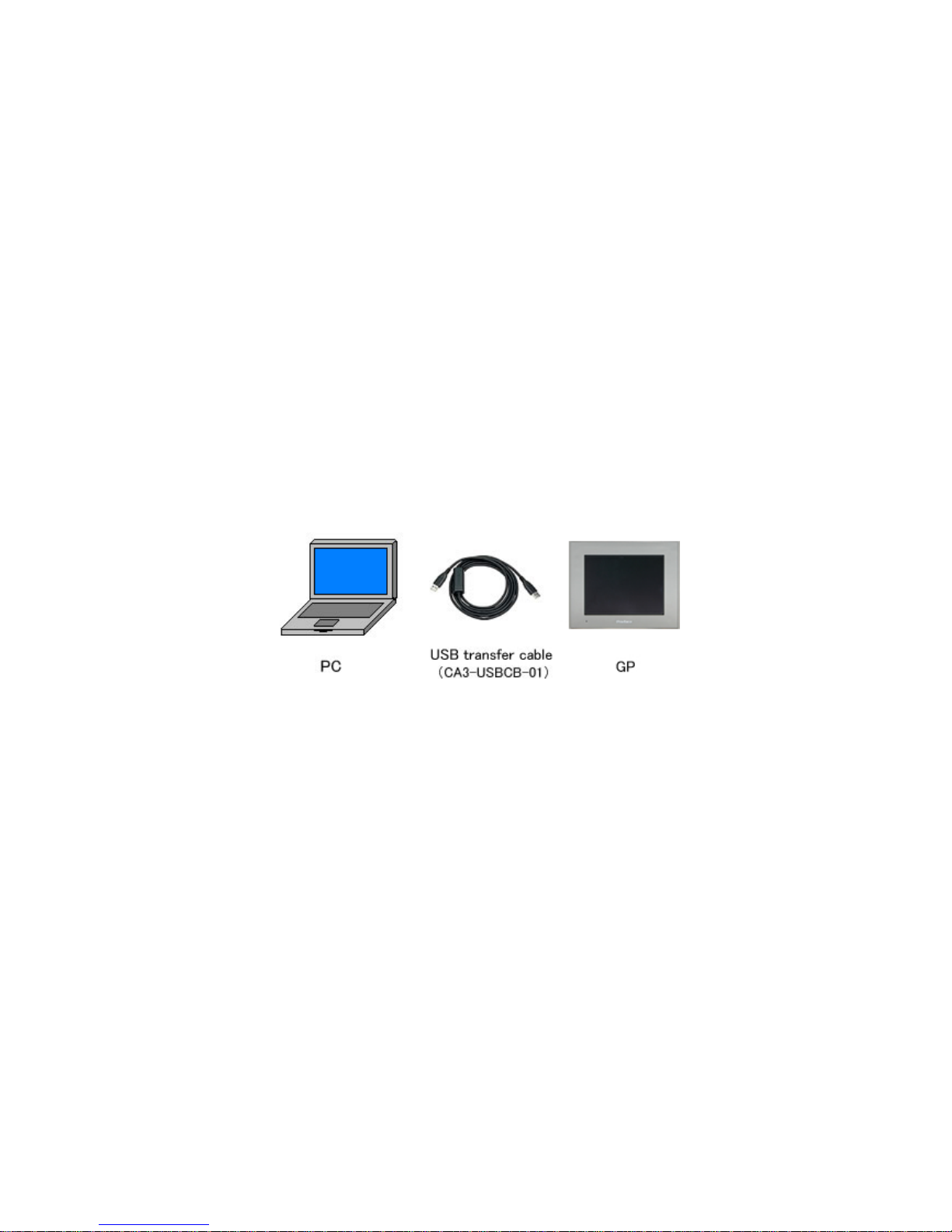

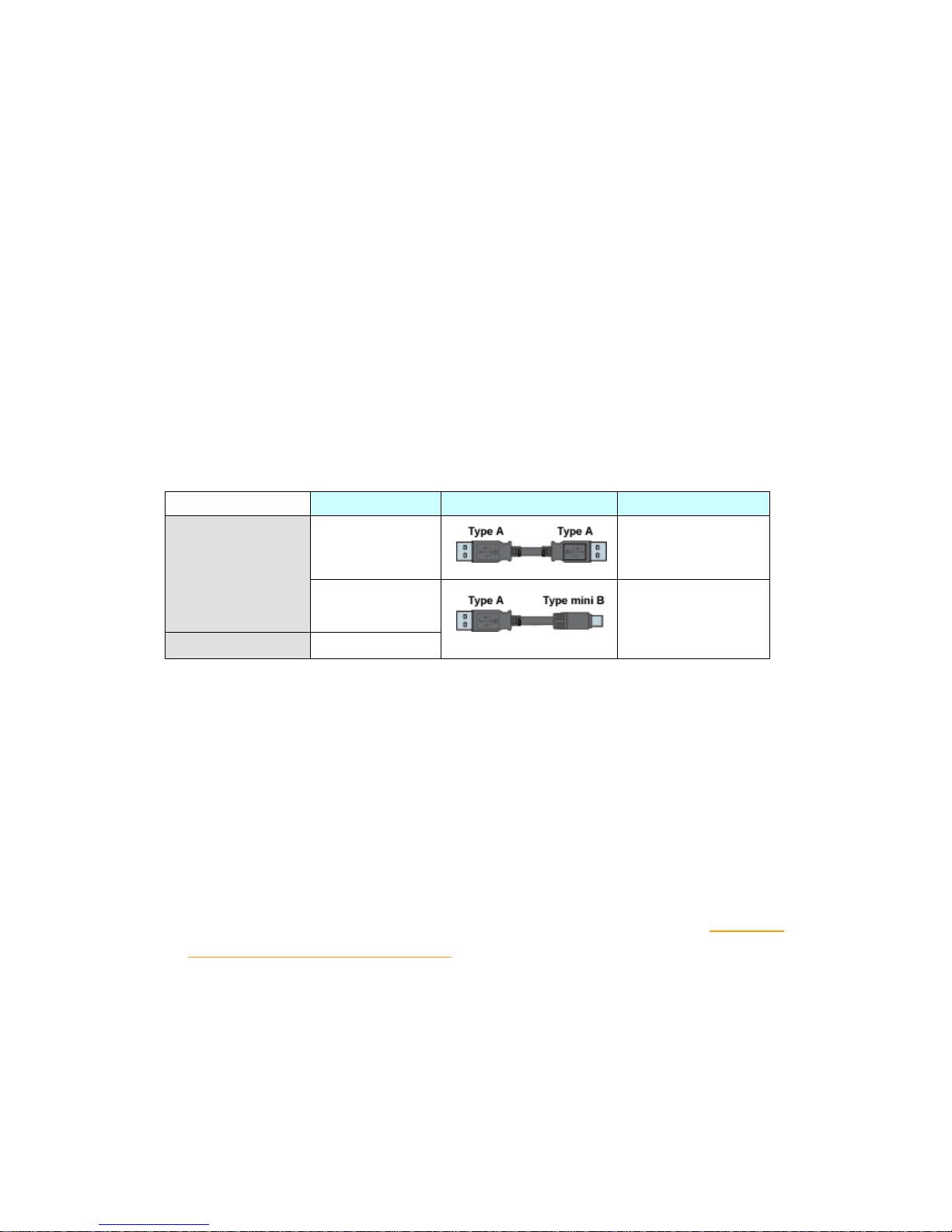

To transfer screen data to GP4000 series, use a USB transfer cable or Ethernet.
The USB cables that can be used for GP4000 series are as follows:
Model Connector Type Connector on GP
CA3-USBCB-01
USB (Type A)
Options
ZC9USCBMB1
Commercial Item
-
USB (Type mini B)
Please note that the cables (GPW-CB02, GPW-CB03, GP430-CU02-M) for GP2000
series cannot be used for GP4000 series.
2.6 Interface
2.6.1 Serial Interface

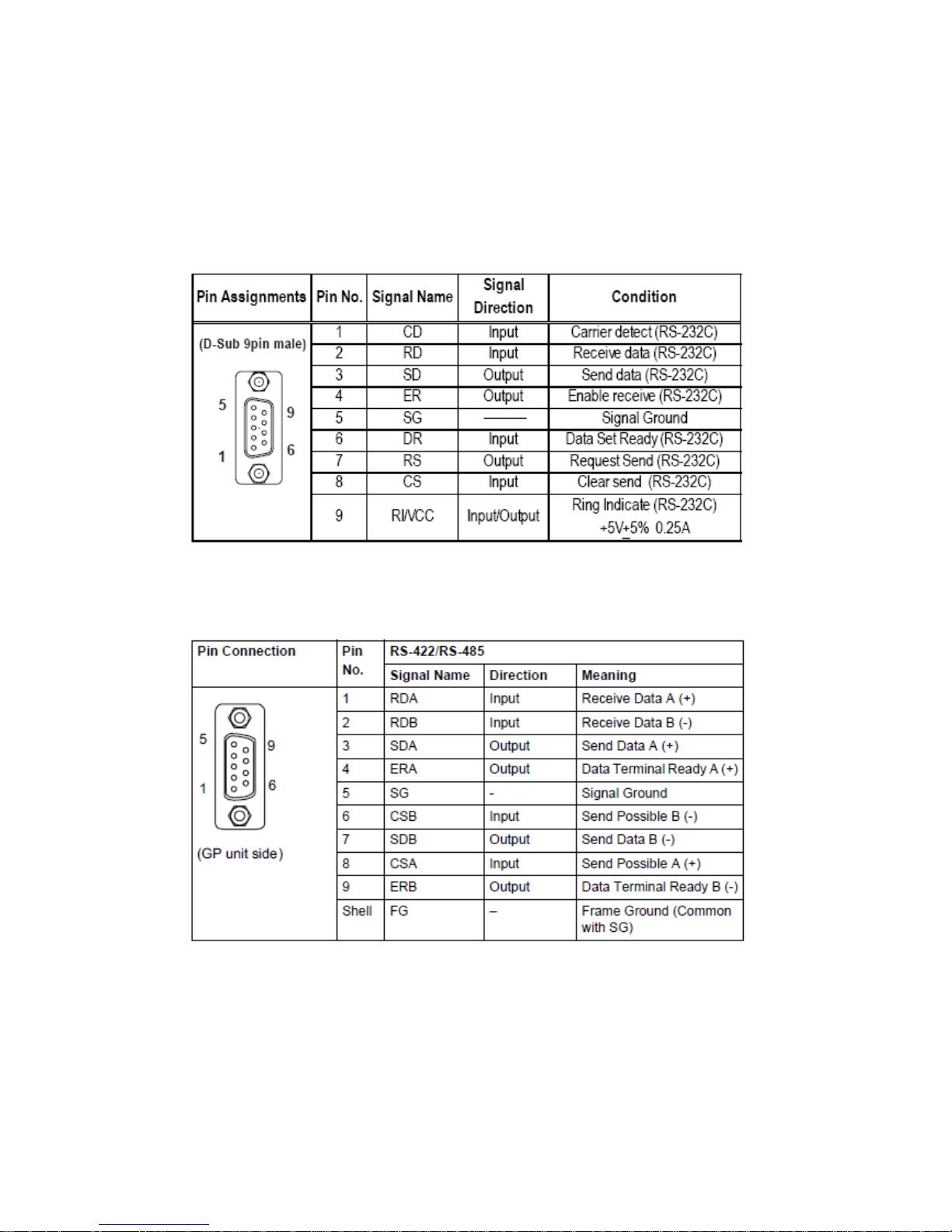

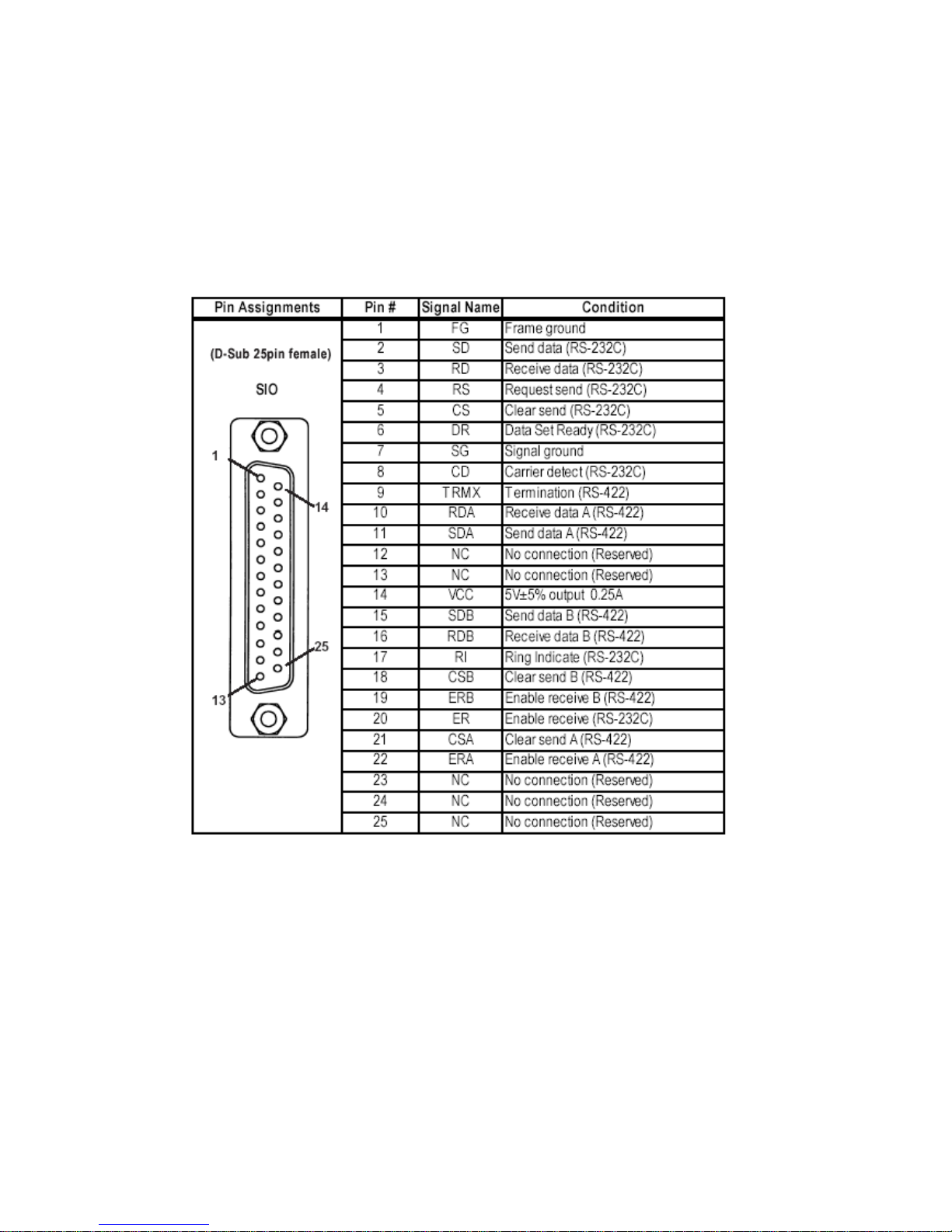

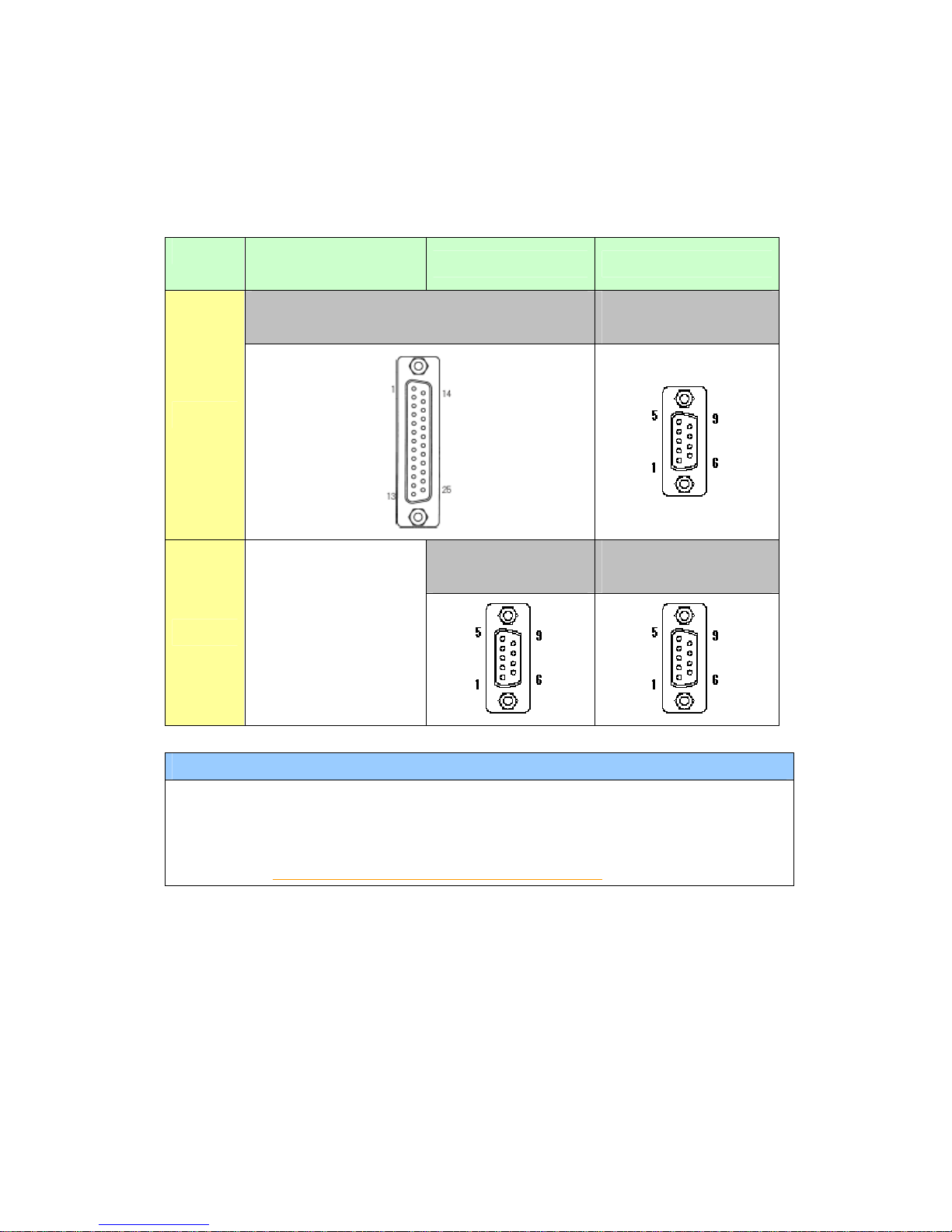

The COM ports (COM1 and COM2) on GP4000 series are D-Sub 9 pin male. The
COM1 port of GP2000 series is D-Sub 25 pin female and the C OM2 por t is D-sub9
pin male, and the pin assignment and the shape of male/female connector are

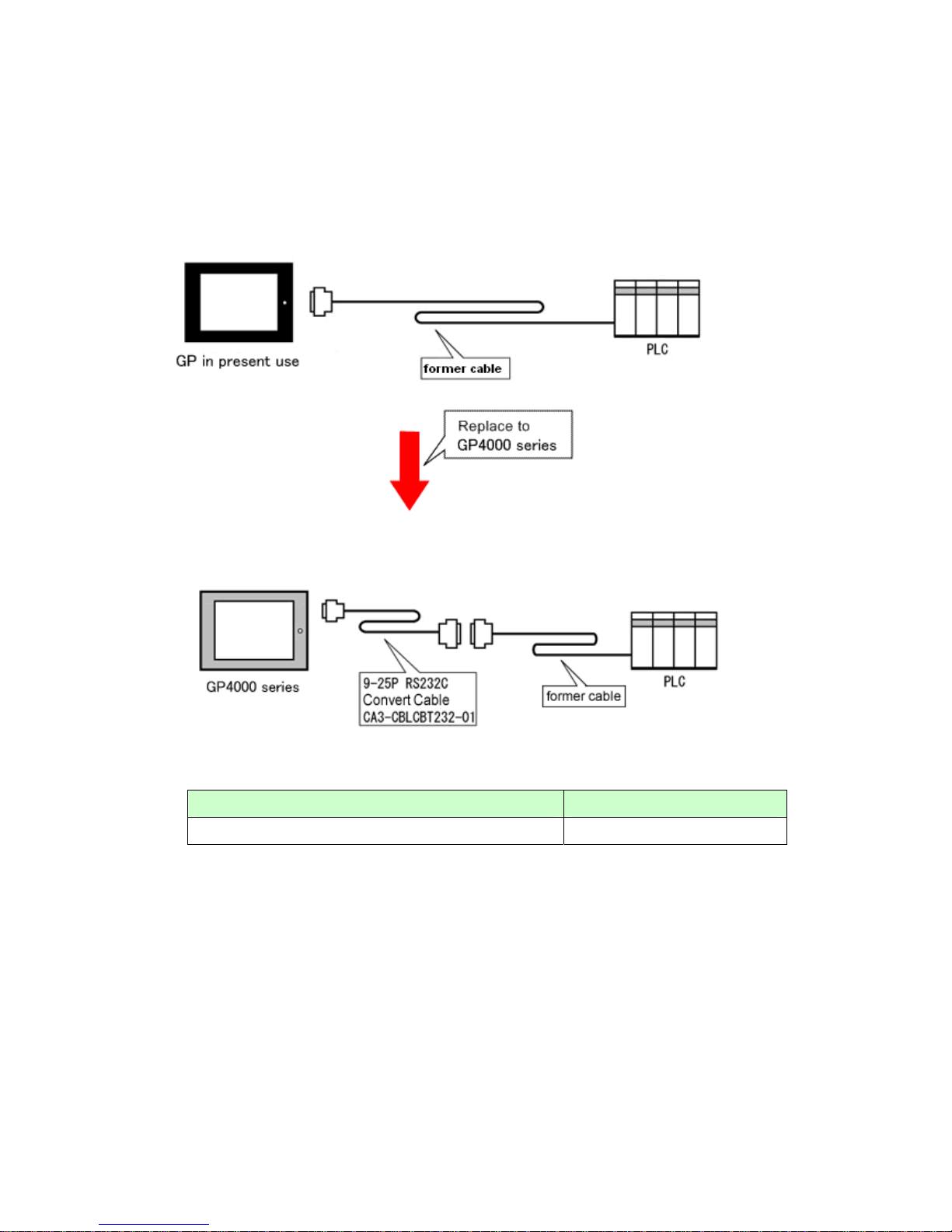

different from those of GP4000 series. Because of it, the existing PLC connection
cables cannot be used. If you use the existing connection cables, see [4.5 Cable
Diagram at the time of replacement].
And when the both COM1 and COM2 ports on GP-2500S/L ha ve RS-2 32C setting,
if you replace GP-2500S/L with GP4000 series, devices with RS-232C cannot be
connected to the COM2 port.
21/61
Page 22
2.6
2.6
2.6
2.7
.2 Auxiliary I/O Interface (AUX)
GP-4000 series is not equipped with Auxiliary I/O Feature. External Reset Input
and 3 Outputs (RUN Output, System Alarm Output, and External Buzzer Output)
that can be used for GP-2401T cannot be used.
.3 Sound Output Interface (for GP2500S/L only)
GP4000 series is not equipped with the sound output function. The sound output
function for GP2000 series cannot be used.
.4 CF Card Interface
GP4000 series is not equipped with a CF card slot. But a SD card slot (except
GP-4301TW) and a USB interface are installed. In order to use the GP2000 series
data saved in the CF card and the f unctions usi ng the CF car d, use a S D card or a
USB flash drive instead.

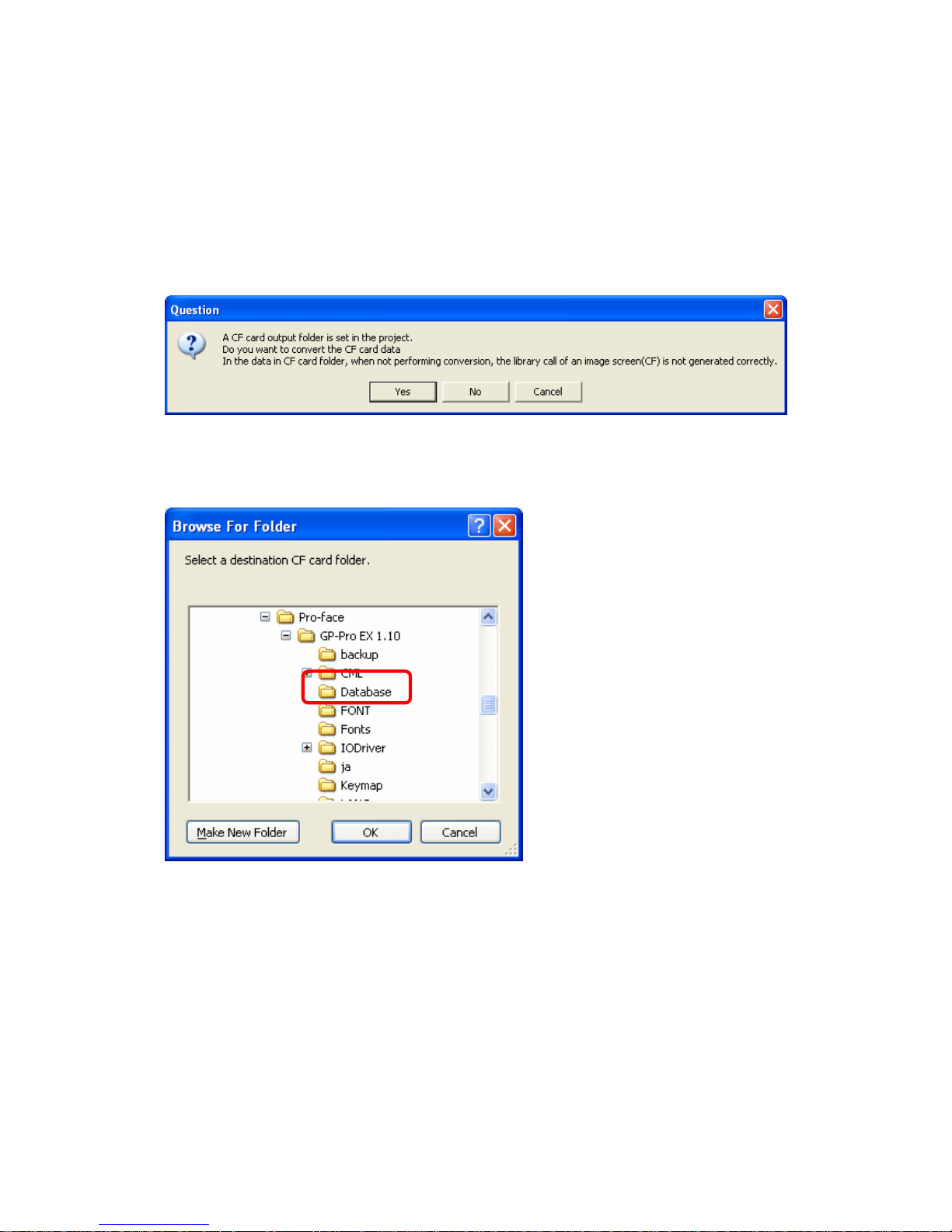

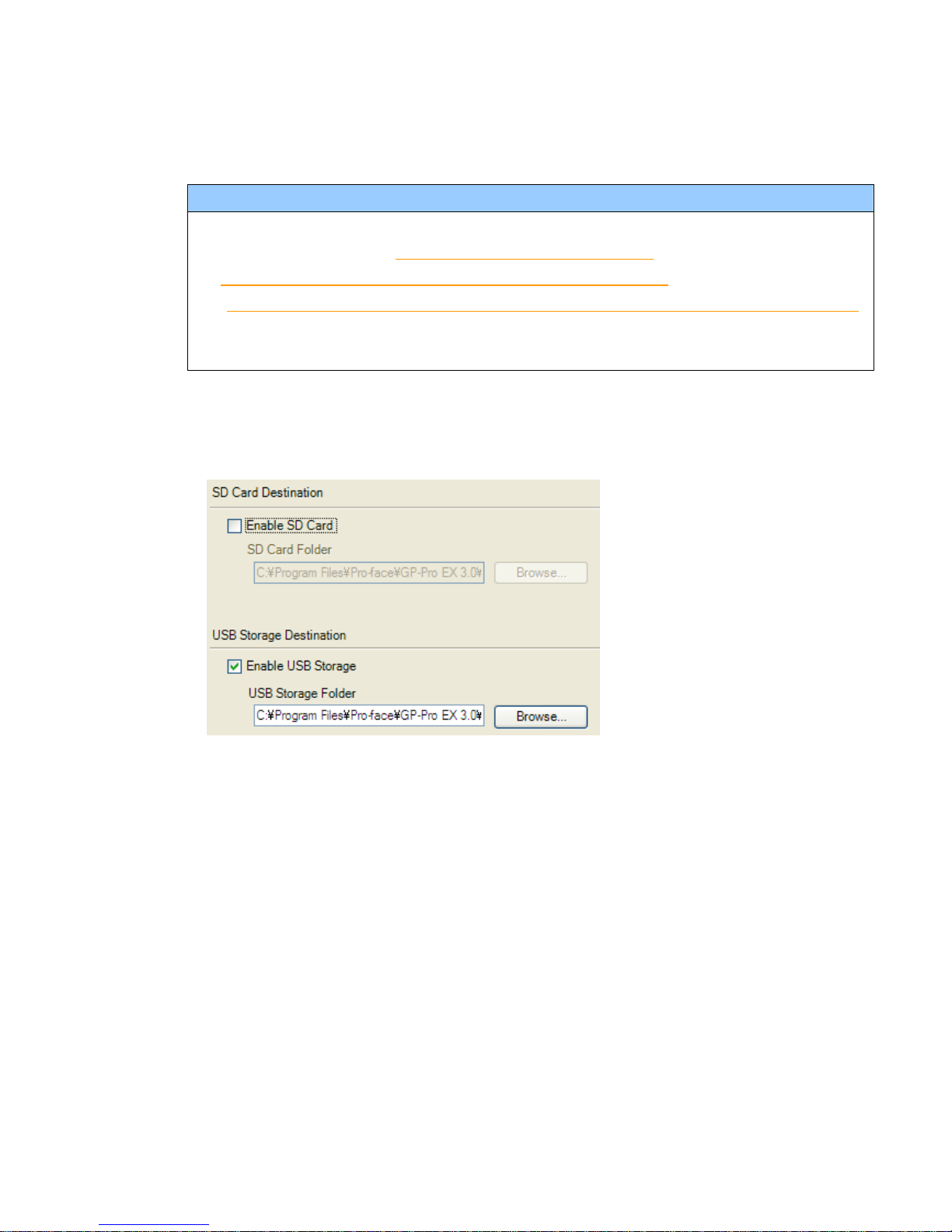

For the GP-PRO/PBIII’s ‘CF Card output folder’ setting, if project data is converted
on GP-Pro EX, the setting will automatically change to the one that uses a SD card.

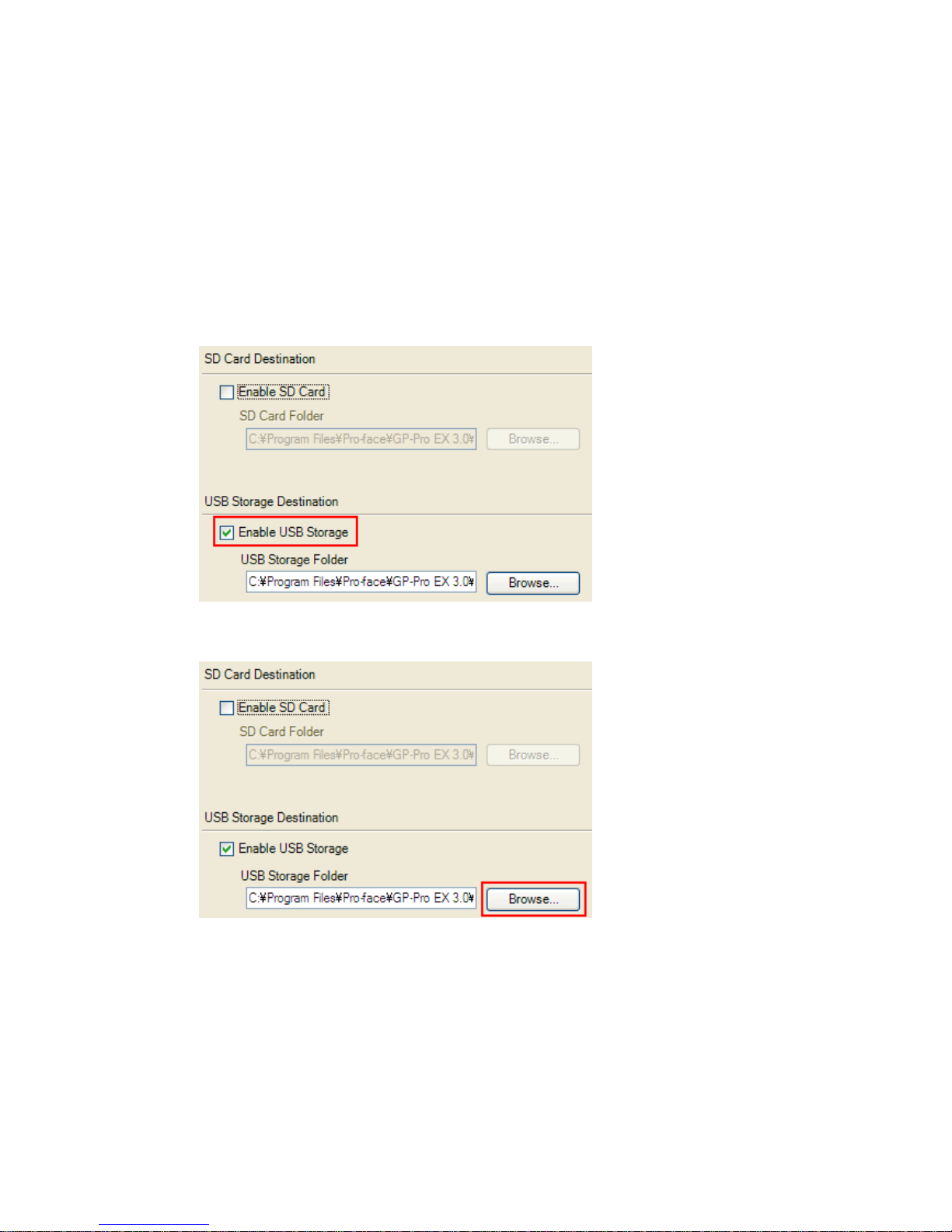

T o change the setting of the output destination folder , see [Changing the setting of
the external media to use].
2.7 Peripheral units and options
.1 Barcode reader connection
GP4000 series is not equipped with a tool port. A barcode reader that used to be
connected to the tool port on GP2000 series cannot be used. However, GP4000
series allows you to connect a barcode reader on its USB interface (Type A).
For the models GP4000 series supports, see [OtasukePro!]
(http://www.pro-face.com/otasuke/
).
2.7.2 Pinrter Connection
GP4000 series is not equipped with Centronics (parallel) Interface for a printer
though GP2000 series is equipped with it. If the printer for GP2000 series is used
for GP4000 series, a converter that converts USB I/F on GP4000 series to
Centronics I/F is required. And GP4000 series allows you to connect a printer on its
USB port.
For the models GP4000 series supports, see [OtasukePro!]
(http://www.pro-face.com/otasuke/
).
22/61
Page 23
2.7
2.7
2.7
2.8
2.8
.3 Expansion Unit
GP4000 series is not equipped with an expansion unit interface. The expansion unit
(each kind of unit like CC-LINK Unit) for GP2000 series cannot be used.
.4 Front Maintenance Unit
The front maintenance unit for GP2000 series (GP077-CFFM10) cannot be used for
GP4000 series.
.5 Isolation Unit (except GP-2601T)
The isolation unit for GP2000 series (CA2-ISOALL232-01, CA2-ISOALL422-01)
cannot be used for GP4000 series. You can use the isolation unit for GP4000 series
(CA3-ISO232-01) instead.
2.8 Power Connector
.1 AC Power Supply Type
The power connector on GP4000 series (AC Type) has the same terminal block as
GP2000 series, but the FG location is different.
GP-4501TW has a DC power supply type only . When replacing GP-2501S (AC T ype)
with GP-4501TW, changing to DC power supply is required.
.2 DC Power Supply Type
The power connector on GP4000 series (DC Type) is a spring lock type. If you
replace GP2000 series with GP4000 series, change the power cable.
23/61
Page 24
24/61
2.9 Backup Battery
Unlike GP2000 series, GP4000 series does not use rechargeable secondary batteries
but replaceable primary ones. (For both a rechargeable type and a replaceable one,
contents to be backed up are the same.)
When the time for replacement of backup batteries approaches, the message to urge
you to replace the battery, “RAAA053: Running out of power in the backup battery.
Please change the battery .” appears. When the message appears, replace the battery
referring to the GP4000 series hardware manual.
Replaceable Battery Model
PFXZCBBT1
2.10 Power Consumption
The power consumption of GP2000 series is different from that of GP4000 series.
AC Type DC Type
GP-2601T
50VA or lower (AC100V)
85VA or lower (AC240V)
GP-2500S/L -
GP-2501T/S/L
50VA or lower (AC100V)
85VA or lower (AC240V)
50W or lower
GP-4601T
GP-4501T
44VA or lower (AC100V)
58VA or lower (AC240V)
17W or lower
For the detailed electric specifications, see the hardware manual.
2.11 Materials/Colors of the body
The materials and the colors of GP2000 series and GP4000 series are as follows:
GP2000 series GP4000 series
Color Dark Gray Light Gray
Material Resin Resin with glass
Page 25
Chapter 3 Replacement Procedure
3.1 Work Flow ow
Receive screen data from
GP2000 series. *1
Convert GP2000 series
screen data with GP-Pro
EX’s Project Converter.
Check and modify the data
on GP-Pro EX.
Transfer the screen data to
GP4000 series.
Connect GP4000 series
and PLC with the PLC’s
Start connection and check
the communication.
Remove GP2000 series.
Connect the power cord.
Check the performance
and start operation.
Installation Screen
Check the compatibility of
hardware in Chapter 2.
Check the differences of
specifications in OtasukePro!
[Compatibility of Software]
(http://www.pro-face.com/o
tasuke/qa/gp3000/replace/s
oft/conv/care/3/).
Check the connection
between GP4000 series
and a PLC in the GP-Pro EX
Device/PLC Connection
Manual.
Install GP4000 series.
Communication
*1: This step is required if screen data is saved only in the GP unit, not in any other device.
25/61
Page 26
3.2 Preparation
GP-2500S/L, GP-2501T/S:
PC in which GP-PRO/PBIII for Windows C-Package02 V6.0 or
later is installed. *2
GP-2601T, GP-2501L:
PC in which GP-PRO/PBIII for Windows C-Package02 V6.3 or
lateris installed. *2
Requirements for
receiving screen data
from GP2000 series.
*1
Transfer Cable (The following three types of cables are
available.)
・ GPW-CB02 9 pin D-sub to PC
・ GPW-CB03 USB to PC *3
・ GP430-CU02-M or GPW-SET 25 pin D-sub to PC
*For GP2000 series, it’s possible to send/receive a screen
with a CF card or on Ethernet (for GP2500S/L only)
PC in which GP-Pro EX Ver.3.01 or later is installed. Requirements for
converting screen
data of GP2000
series and
transferring the
converted data to
GP4000 series
Transfer Cable (The following three types of cables are
available.)
・ A USB transfer cable (model: CA3-USBCB-01)
・ A USB data-transfer cable (model: ZC9USCBMB1)
・ A commercial USB cable (USB Type A/mini B)
* Possible to send/receive a screen with a SD card (except
GP-4501TW), a USB storage device, or on Ethernet.
*1: This step is required if screen data is saved only in the GP unit, no t in any other device.
*2: Please use the same version or later as or than that of the software used during creating screens on
GP2000 series. If you don’t know the version, we recommend you to use the newest version. The
newest version is GP-PRO/PBIII for Windows C-Package03 (SP2) V7.29. Those who have
GP-PRO/PBIII for Windows C-Package03 V7.0 can download it from our web site called [OtasukePro!]
(http://www.pro-face.com/otasuke/
).

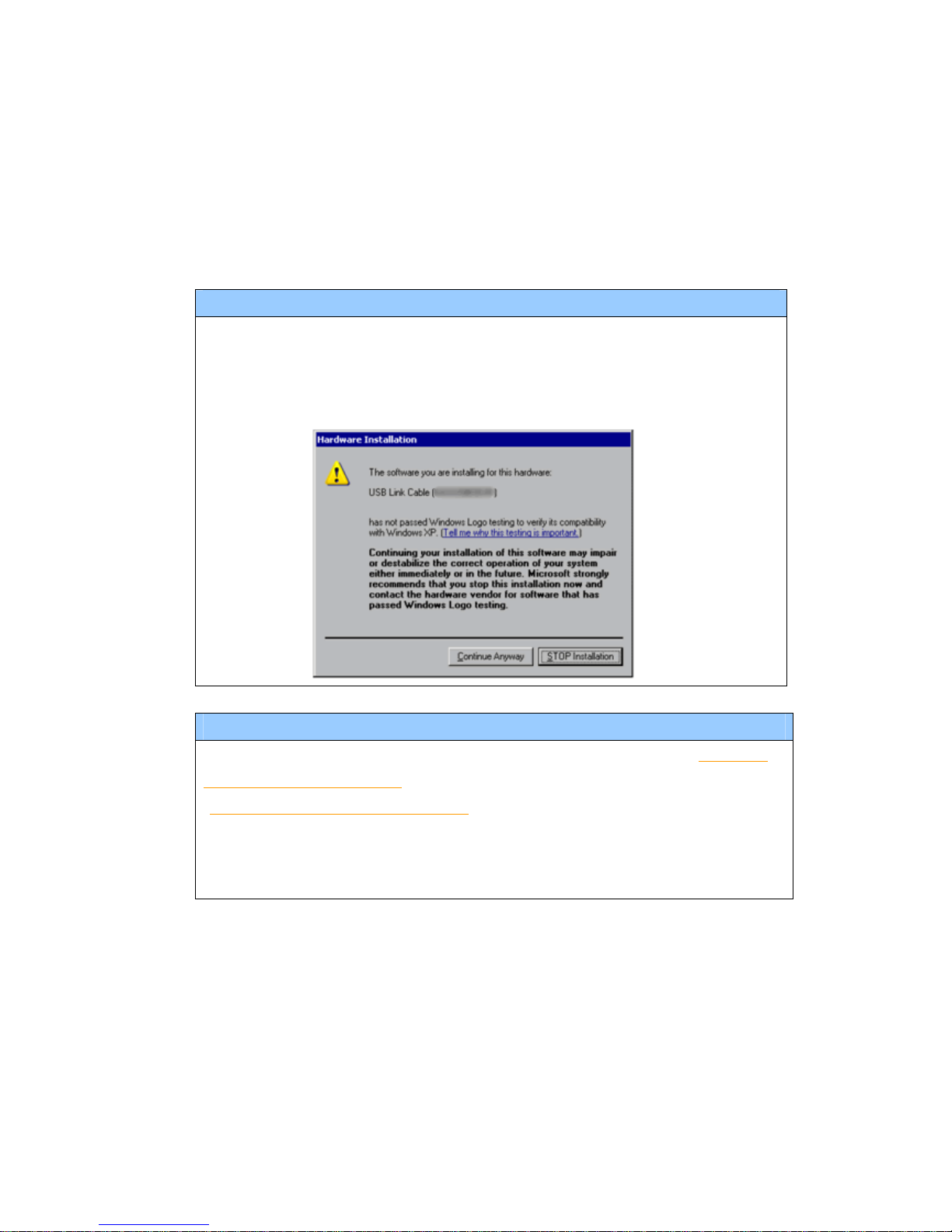

*3: GPW-CB03 is supported by GP-PRO/PBIII for Windows C-Package02(SP2)V6.23 or later. You need to
install a driver
from [Download] on our Web site called [OtasukePro!]
(http://www.pro-face.com/otasuke/
).
26/61
Page 27
3.3 Receive screen data from GP2000 series

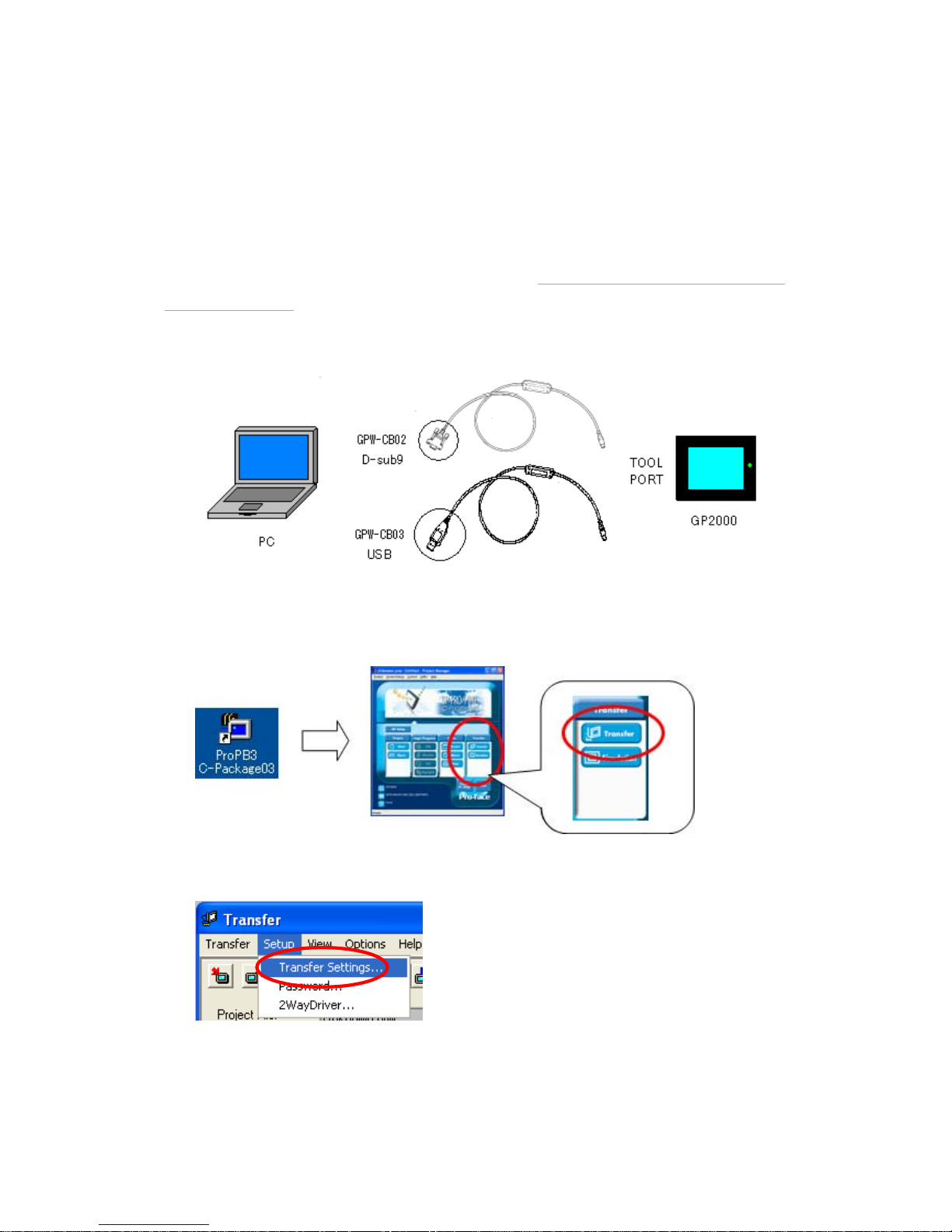

This section explains, as an example, how to receive screen data from GP2000 series
using a transfer cable, GPW-CB02 or GPW -CB03. If you have back ed up screen data,
this step is unnecessary; skip to the next section [3.4 Convert screen data with the
Project Converter].
1. Connect a transfer cable to the GP2000 series.

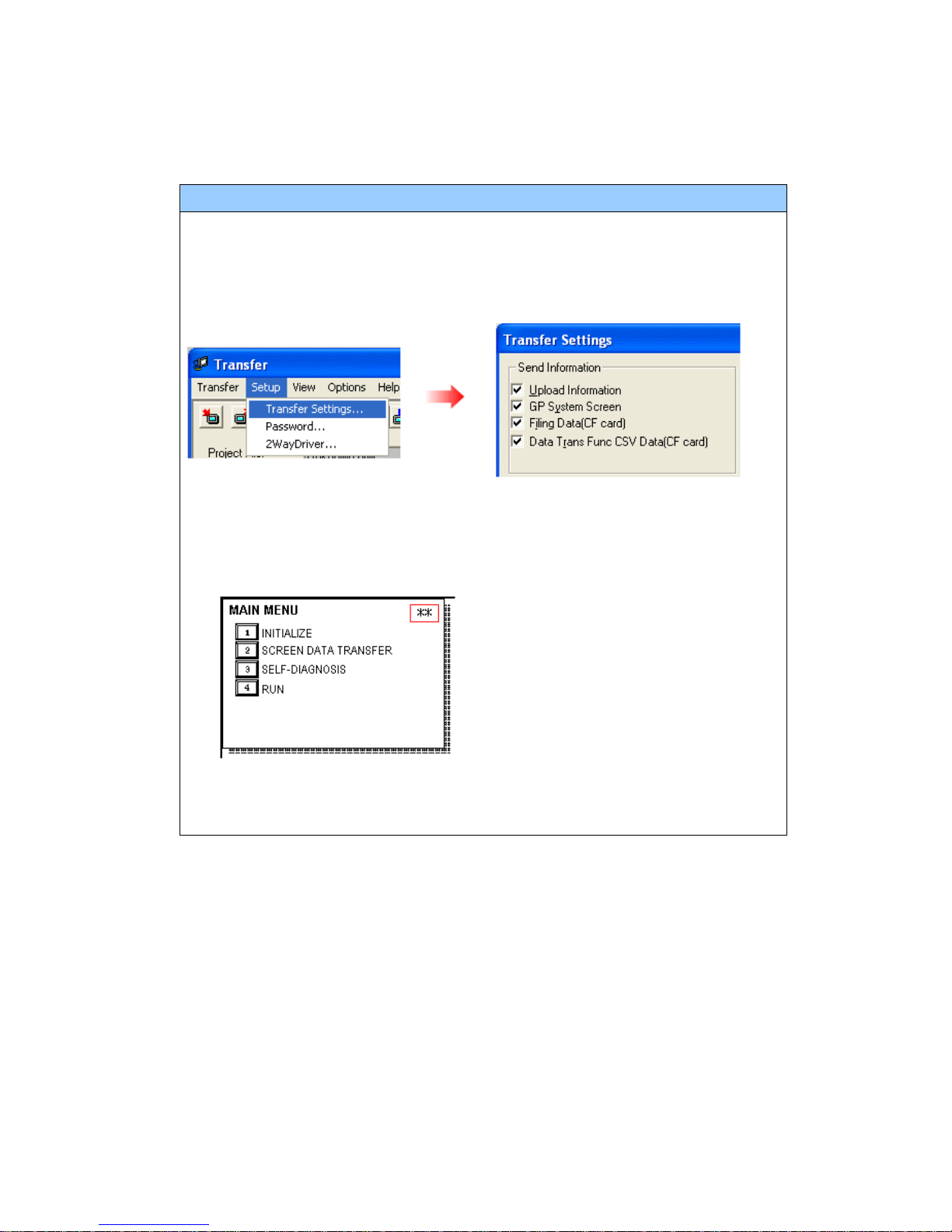

2. Strat up GP-PRO/PBIII for Windows and click the [Transfer] icon on the Project
Manager (Specify a desired project file.)
. On the [Transfer] window, select the [Setup] menu and cli ck [Transfer Settings.] 3
27/61
Page 28

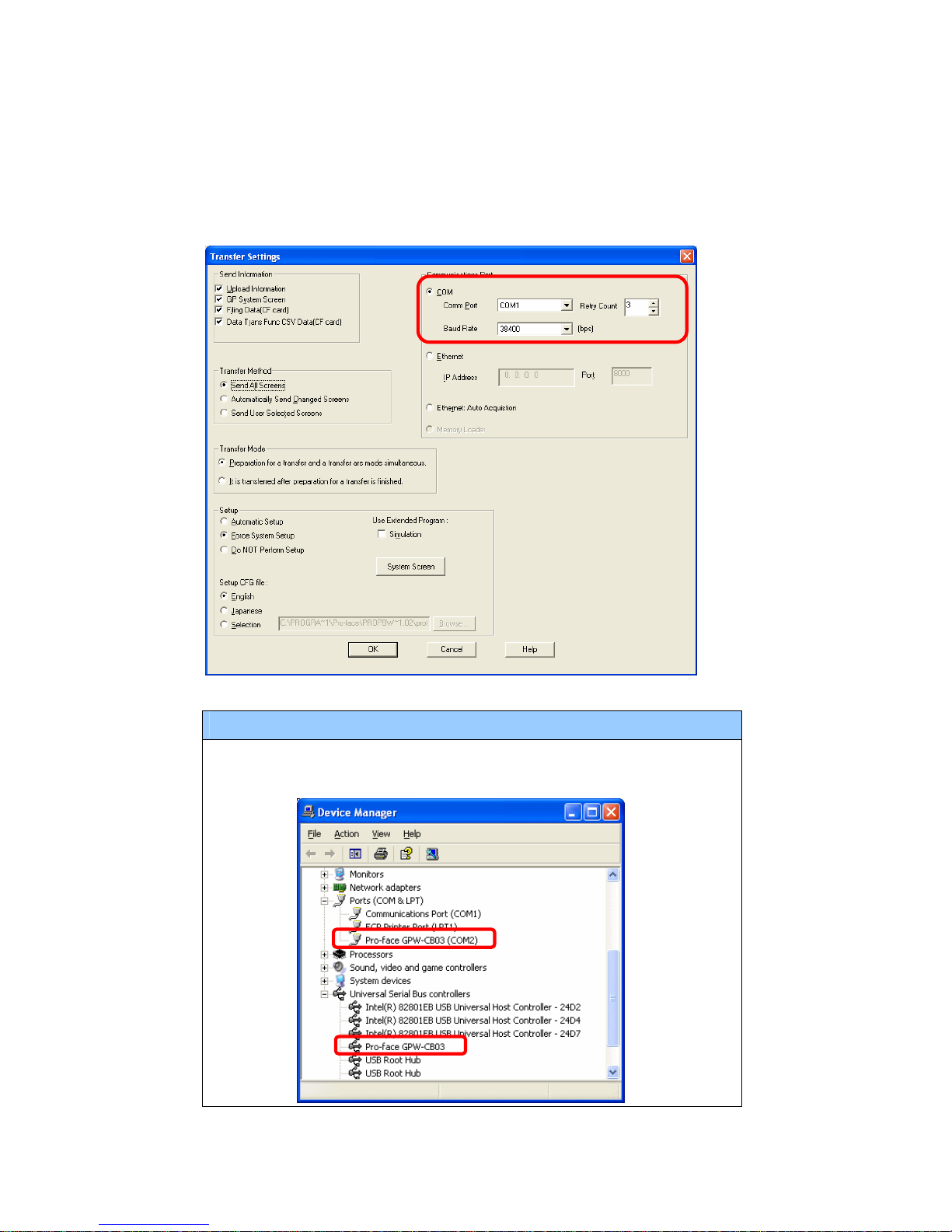

4. In the Communication Port field, select [COM], specify the COM port to which the
cable is connected, and click [OK].
If you use a USB transfer cable (GPW-CB03)…
You can check the COM port for the USB transfer cable (GPW-CB03),
which is assigned to the PC, with the Device Manager of Windows.
28/61
Page 29

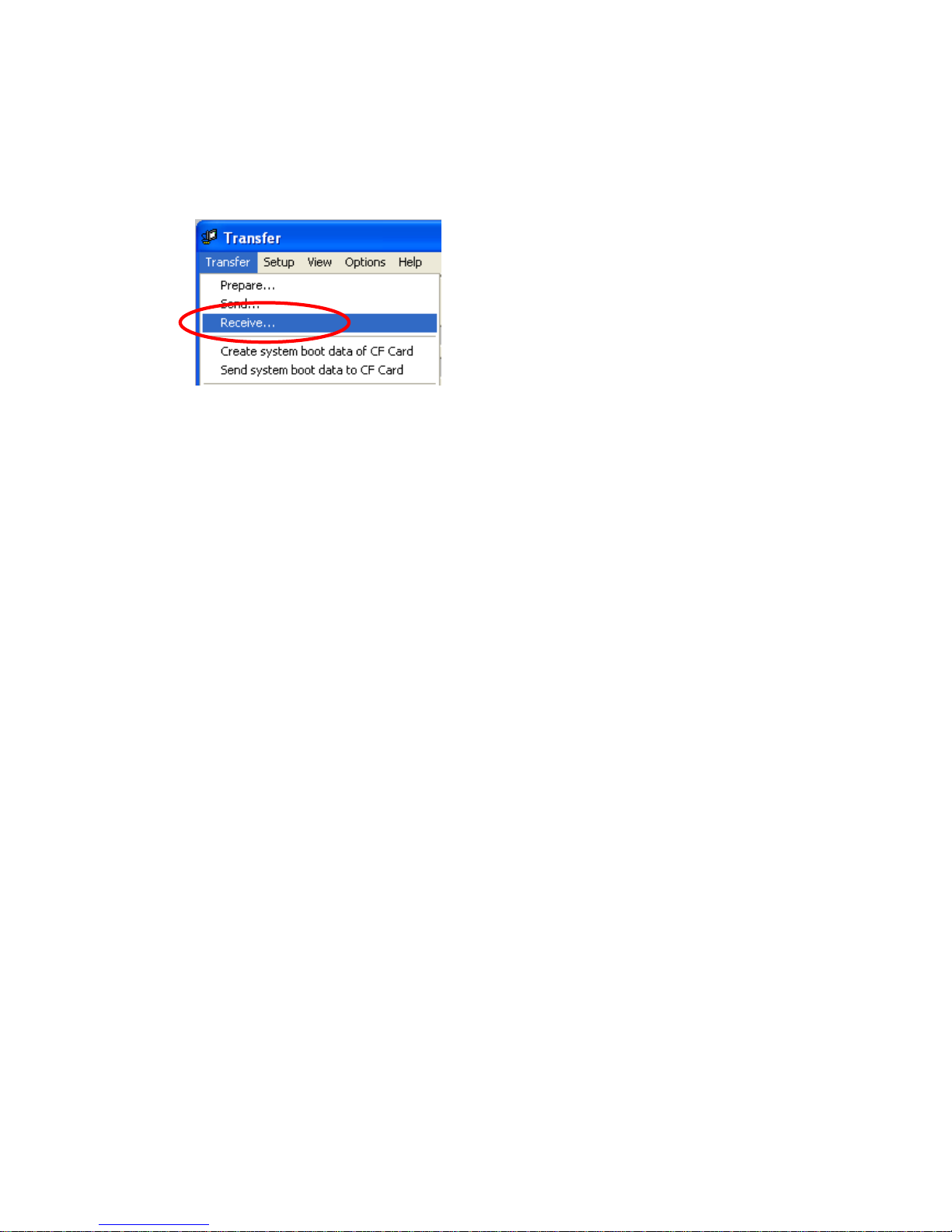

5. Select the [Transfer] menu and click [Receive..].
6. Specify the location to save the received screen data at and the project file name
and save them.
29/61
Page 30
In case there is no Upload Information
“Upload Information” is necessary to receive screen data from GP2000 series. It
needs to be included in screen data when transferring screen data to the display
unit beforehand. The Upload Information is sent to the display unit by default,
however, you may check off the box of Upload Information to preven t screen
reception by a third party.
You ca n check in the following wa y if the Upload Information has been sent or not.
1. Enter into the GP’s Offline mode.
2. If there are 2 asterisk (*) marks in the Main menu as shown below, the
Upload Information has been sent.
If not, there is no Upload Information sent. In this case, a message, which
indicates there is no Upload Information,” appears and you cannot receive the
data.
30/61
Page 31
3.4 nverter
Co
Co
1.

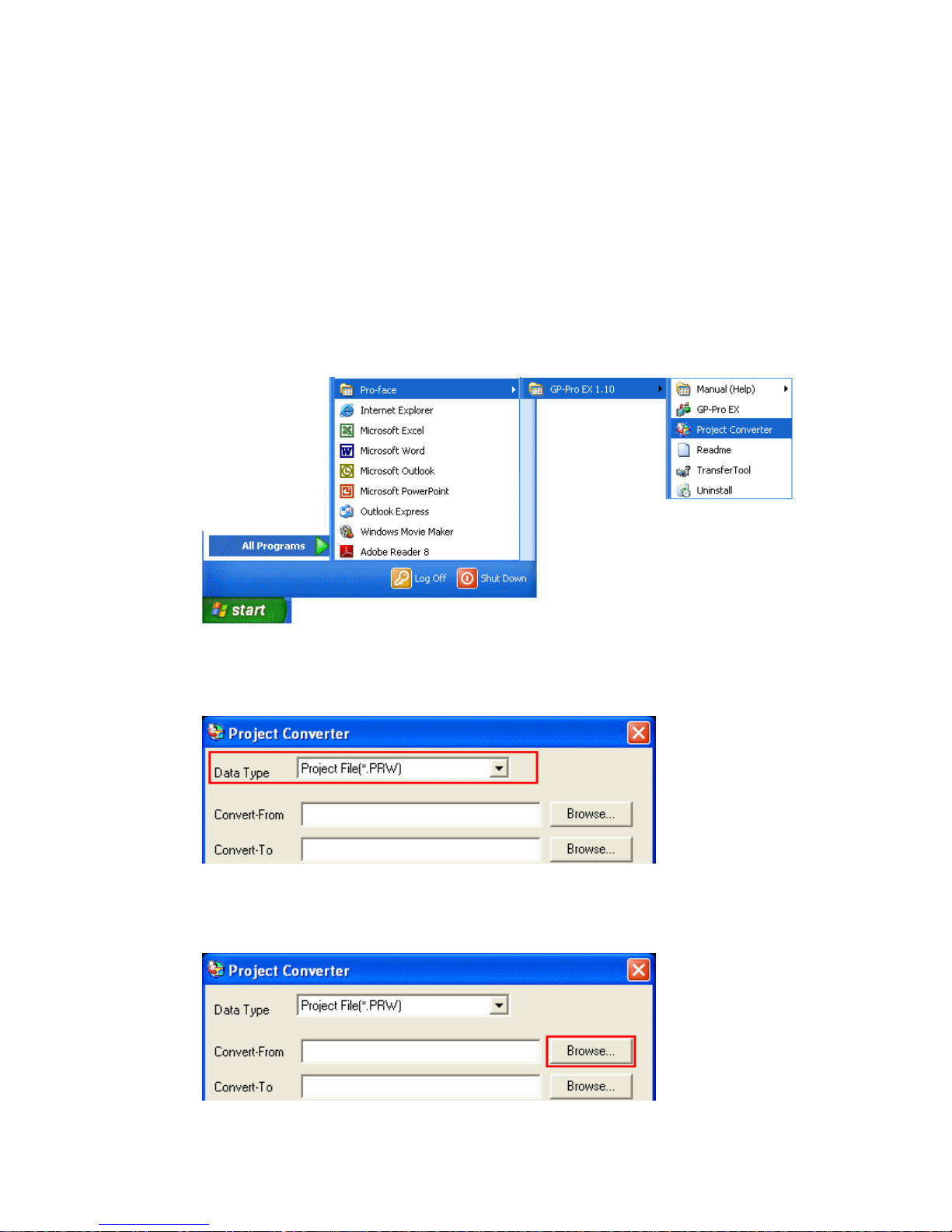

([Programs]->[Pro-face]->[GP-Pro EX *.**]->[Project Converter]) (For the
[*.**] part, the version of the software you use is displayed.)
Convert screen data with the Project Co
nvert a project file (*.prw) for GP2000 series with the GP-Pro EX’s Project
nverter.
Click the [Start] button, select [All Programs]

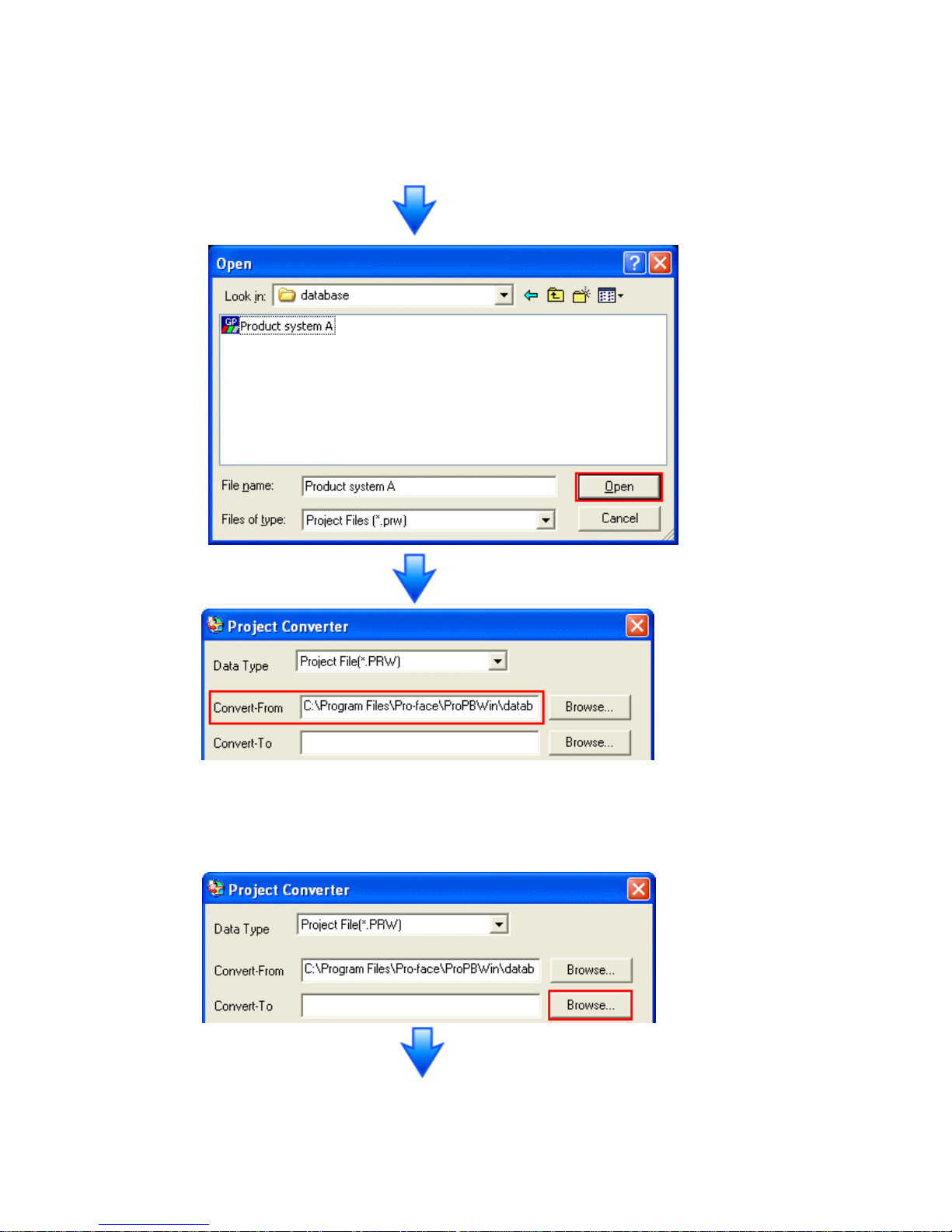

2. The Project Converter starts up and the [Project Converter] dialog box opens.
Select [Project File (*.PRW)] in the [Data Type].
Click the [Browse…] button and select a project file (e.g.: “Project system
A.prw”). Click [Open], and the file will be set in [Convert-From].
3.
31/61
Page 32

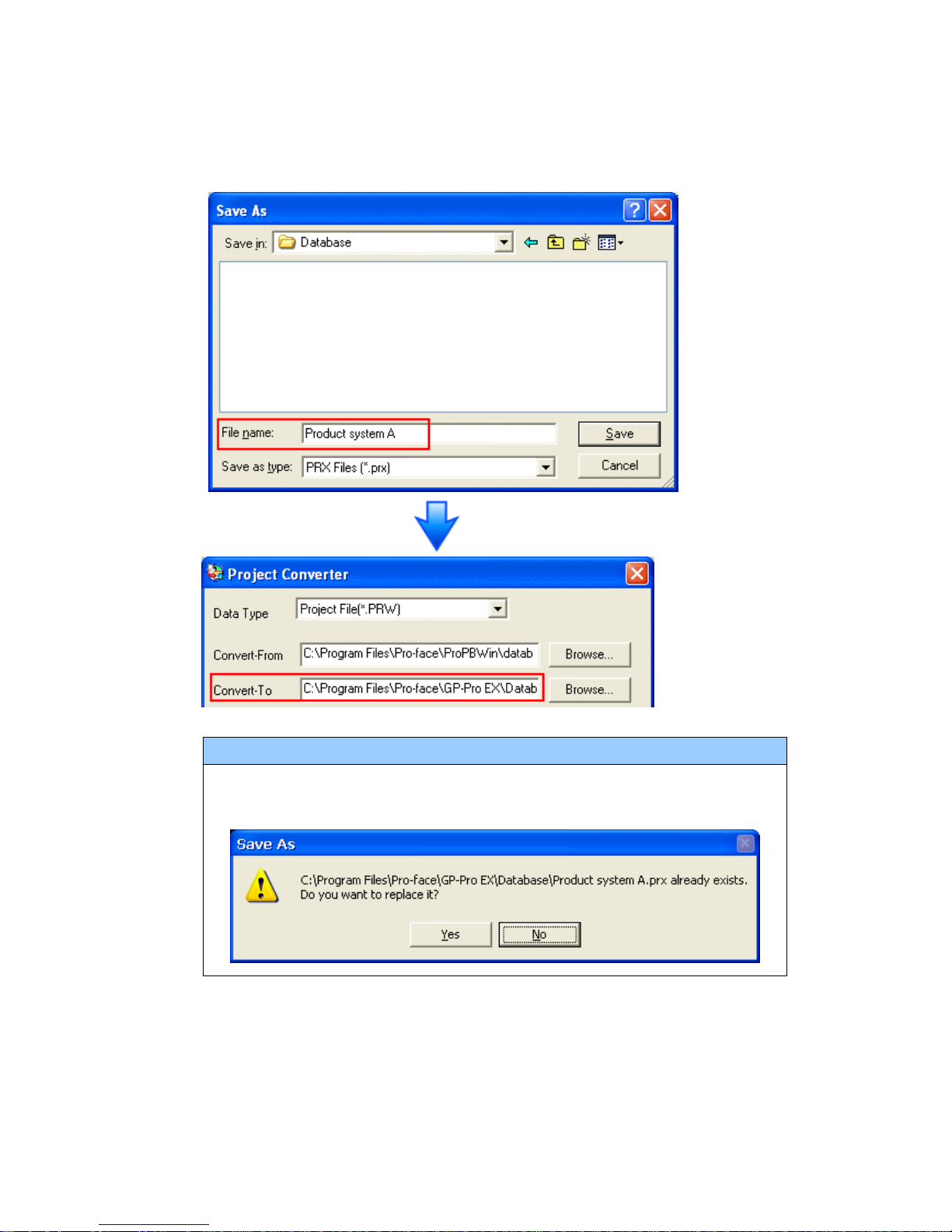

4. In [Convert- T o], designa te a GP-Pro EX’s project file (*.prx). Click the [Browse…]
button and enter a new [File Name] (e.g.: “Product system A.prx”). Click [Save],
and a new project file will be set to [Convert-To].
32/61
Page 33
NOTE
When a convert-to file exists, the window that confirms whether or not to
overwrite the file is displayed.
33/61
Page 34

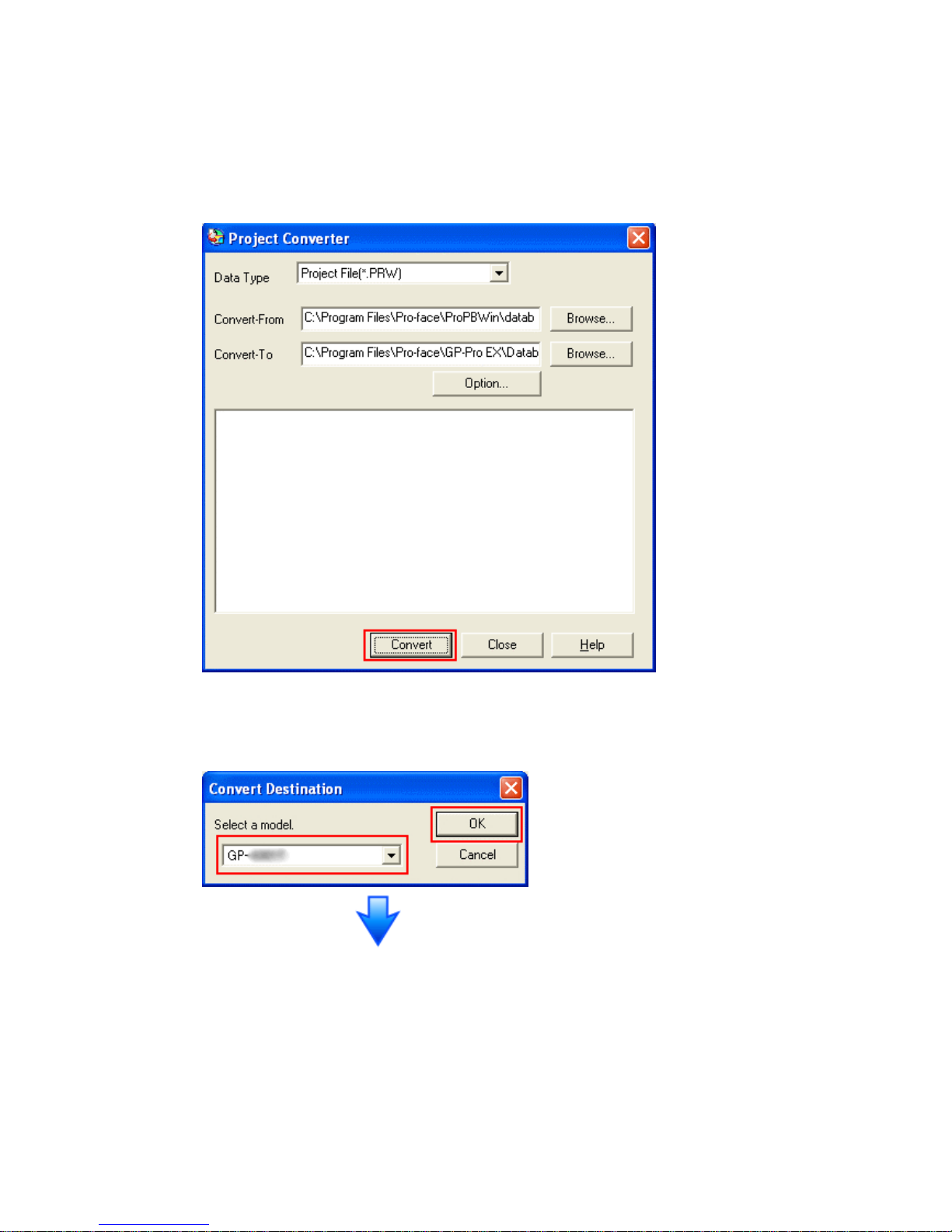

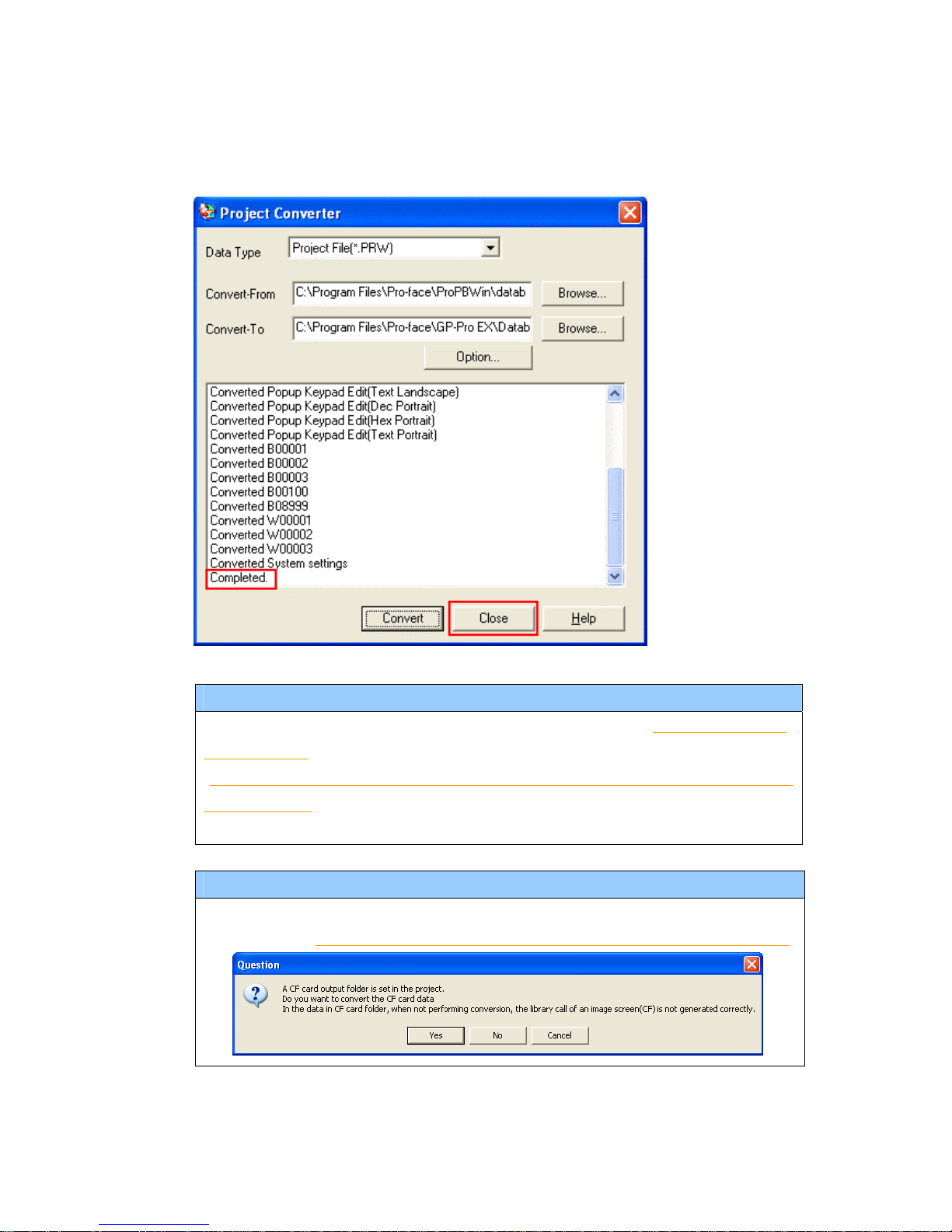

5. Click [Convert] and start the conversion.
If you are asked about the [Convert-To] type as shown below, select a
replacement model’s name on the pull-down menu. Click [OK].
6.
34/61
Page 35
If an error message is displayed during conversion
If an error message is displayed during conversion, refer to [Project Converter
Error Message]
(http://www.pro-face.com/otasuke/qa/gp3000/replace/soft/conv/project_conve
rter_error.html) on our Web site called [OtasukePro!] for the cause and the
solution.
NOTE

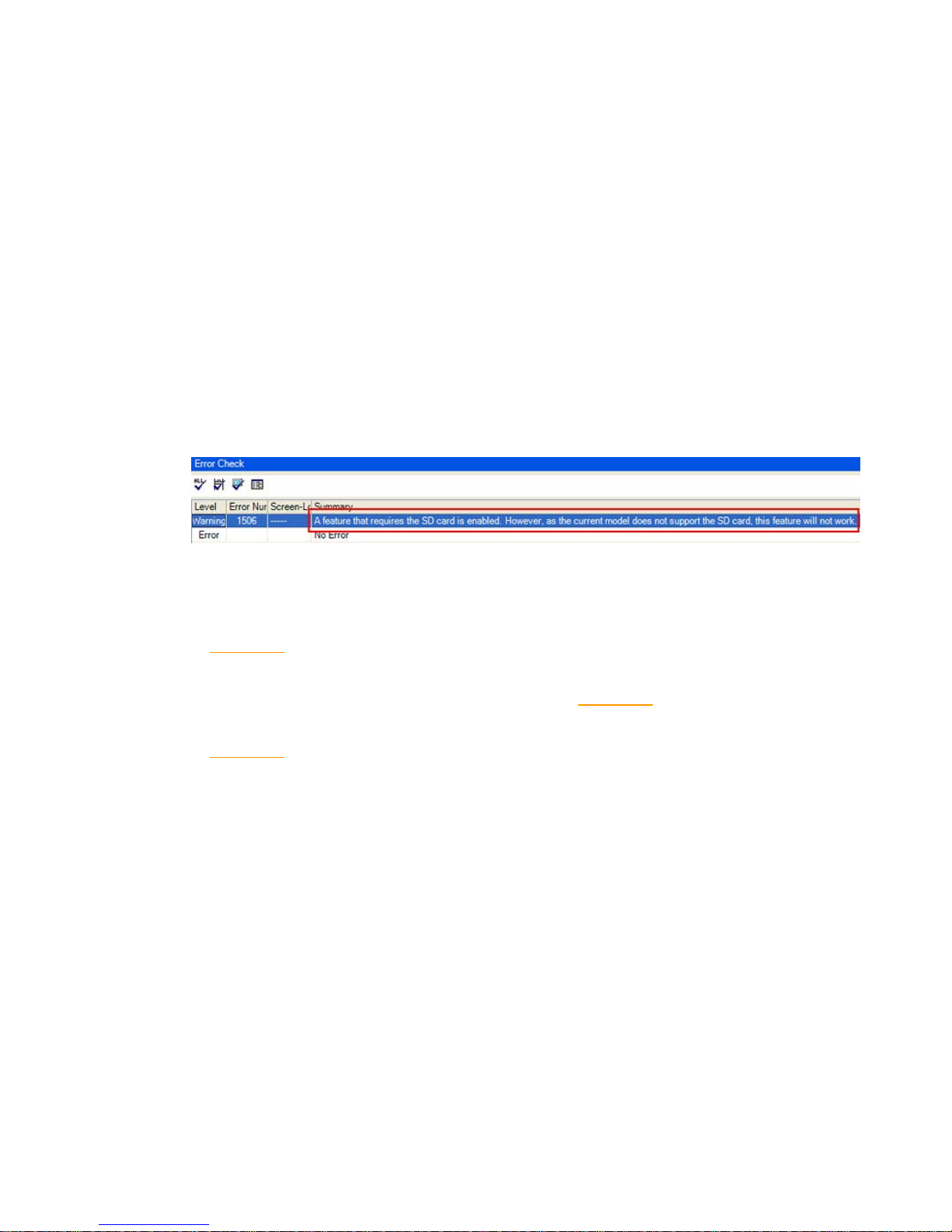

If the following dialog box appears, CF Card Ouput Folder setting is required.
Please refer to Convert GP-PRO/PBIII for Windows’”Destination CF Card Folder”
35/61
Page 36

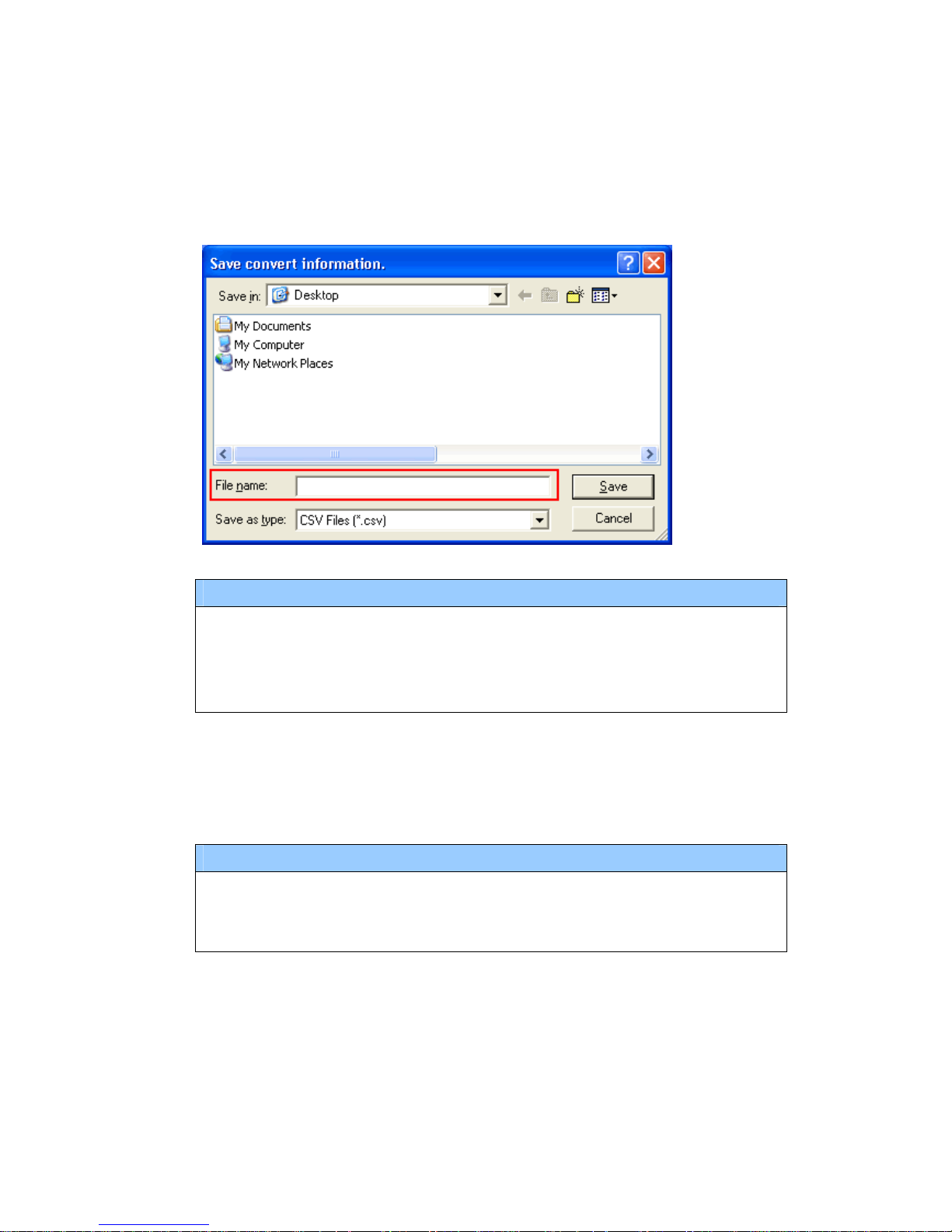

7. After conversion, the [Save convert information] dialog box appears. If you click
[Save], you can save the conversion information in a CSV file format.
NOTE
Because the differences made at the time of conversion from GP-Pro/PBIII for
Windows are described in the CSV saved file, the project file (*.prx) after
conversion can be checked and modified according to the conversion
information.
8. lose the [Project Converter] dialog box.
9.
Click [Close] to c
If you double click the project file (*.prx) after conversion, GP- Pro EX will start
and the file will open.
MEMO
For replacement with a model with analog resistive film, select the [Display]
setting on [System Settings] of GP-Pro EX and change the display type to an
analog resistive film type there.
36/61
Page 37
Convert GP-PRO/PBIII for Windows “Destination CF Card Folder”
If you convert a project file (*.prw) with a destination CF card folder designated in the
step 6, the Question dialog box asking whether or not to designate the destination CF
card folder for the convert destination appears again.
Select a folder (e.g.: “Database”) and click [OK].
If you click the [Make New Folder] button, you can create a new folder at any location.
37/61
Page 38
IMPORTANT
・ In the [Question] dialog box, be sure to select [Yes] and specify the destination
folder. If you select [No], images will not be called correctly.
・ GP4000 series that is a replacement model is not equipped with a CF card slot.
If a destination folder is created in the work above, a CF card will be
automatically replaced with a SD card for the external device setting.
To check or change the destination folder setting, see [Changing the setting of
the external media to use]
38/61
Page 39
3 creen data to GP4000 series
ut this section explains, as an example, how to transfer screen data with a USB
ansfer cable (model: CA3-USBCB-01).
.5 Transfer s
Transfer the project file after conversion to GP4000 series.
You can transfer data to GP4000 series via
・ A USB transfer cable (model: CA3-USBCB-01)
・ A USB data transfer cable (model: ZC9USCBMB1)
・ A commercial USB cable (USB Type A/mini B)
・ A SD card/A USB storage device
・ Ethernet
B
tr
39/61
Page 40
1. Connect your PC and GP4000 series with a USB transfer cable (model:
nstalled on you PC yet, a
instructions.
CA3-USBCB-01). If the driver of the cable has not been i
dialog box will appear. Please follow the
NOTE
The “Hardware Installation” dialog box as shown below may appear during
urity level of Windows® XP. Click
lling the driver. When installation is completed,
ish].
installing the USB driver depending on the sec
[Continue Anyway] to start insta
click [Fin
NOTE
If the following symptoms appear on Microsoft Windows® 7, go to updating
“USB Data Transfer Driver” on OtasukePro!
(http://www.pro-face.com/otasuke/
) for download.
・ An error occurs when GP-Pro EX or Transfer Tool is installed
・ An error occurs when data is transferred via a USB transfer cable
(model: CA3-USBCB-01).
40/61
Page 41

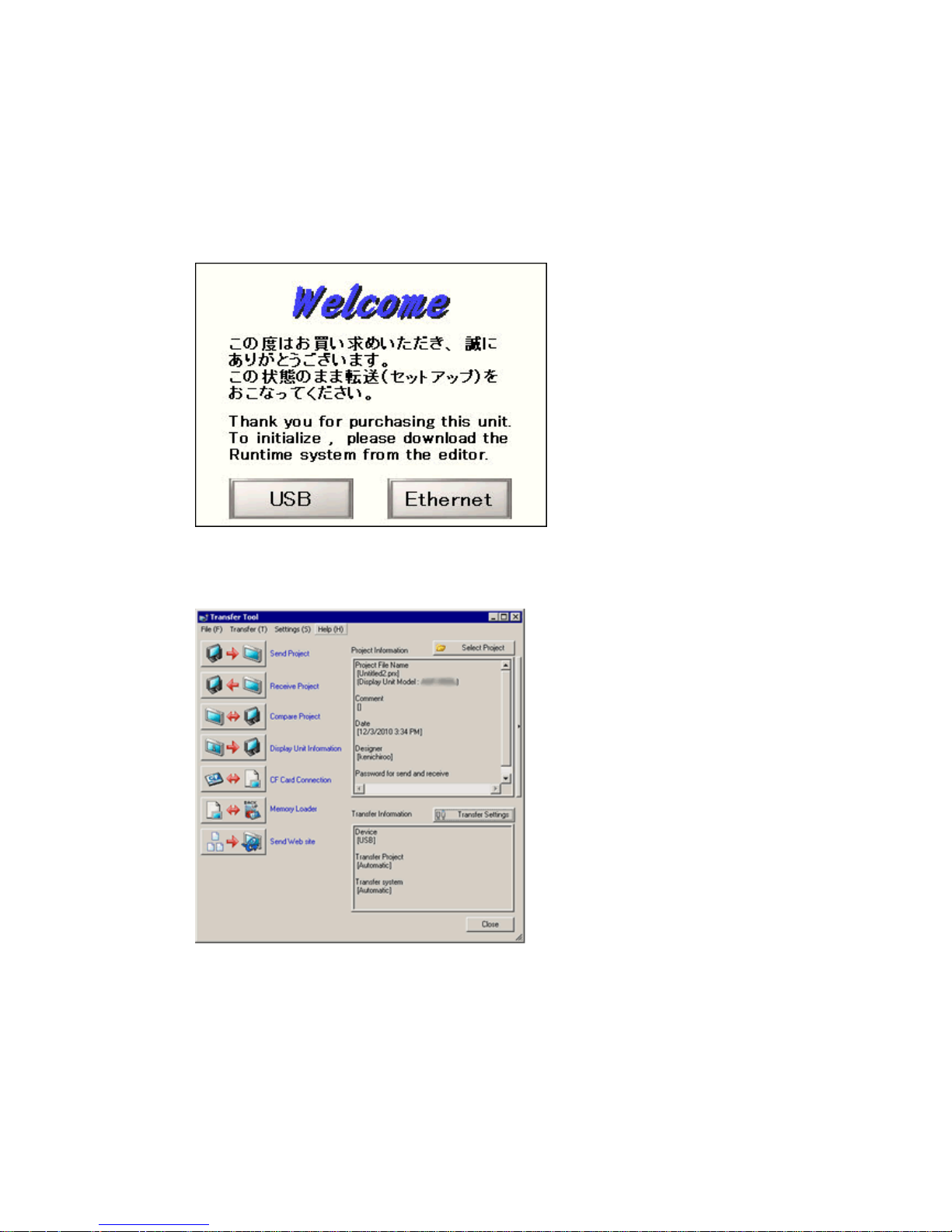

2. T urn on the power of GP4000 series. The “Initial Start Mode” screen will ap
the display unit. After transferring a project file once, this screen will not appear
again.
pear on
3. On the GP-Pro EX’s State Toolbar, click the [Transfer Project] icon to open the
Transfer Tool.
To transfer a different project file, click the [Select Project] button and select a
project file.
41/61
Page 42

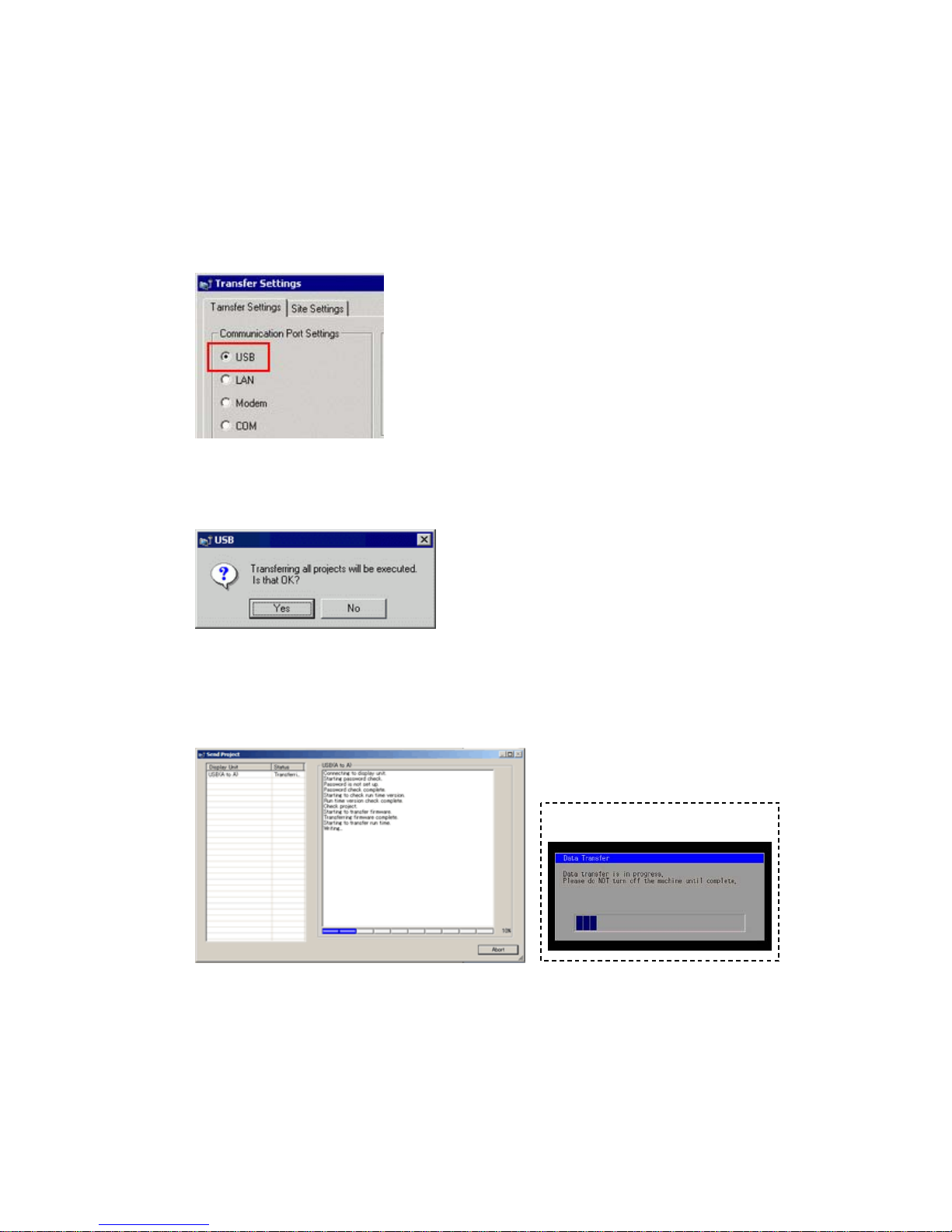

4. Make sure that the [Device] in the “Tr ansfer Settings Information” is set to [USB].
If not, click the [T r ansfer Setting] button to open the “Transfer Setting” dialog bo x.
Select [USB] in the Communication Port Settings field and click [OK].
5. Click [Send Project] to start transfer. When the
[Yes]. This dialog box doesn’t appear whe
following dialog box appears, click
same project file is sent again. n the
6. The following dialog box appears during transfer and you can check the
communication status. (The display unit enters the Transferring mode and
communication with the device such as a PLC is terminated.)
Display Screen
42/61
Page 43

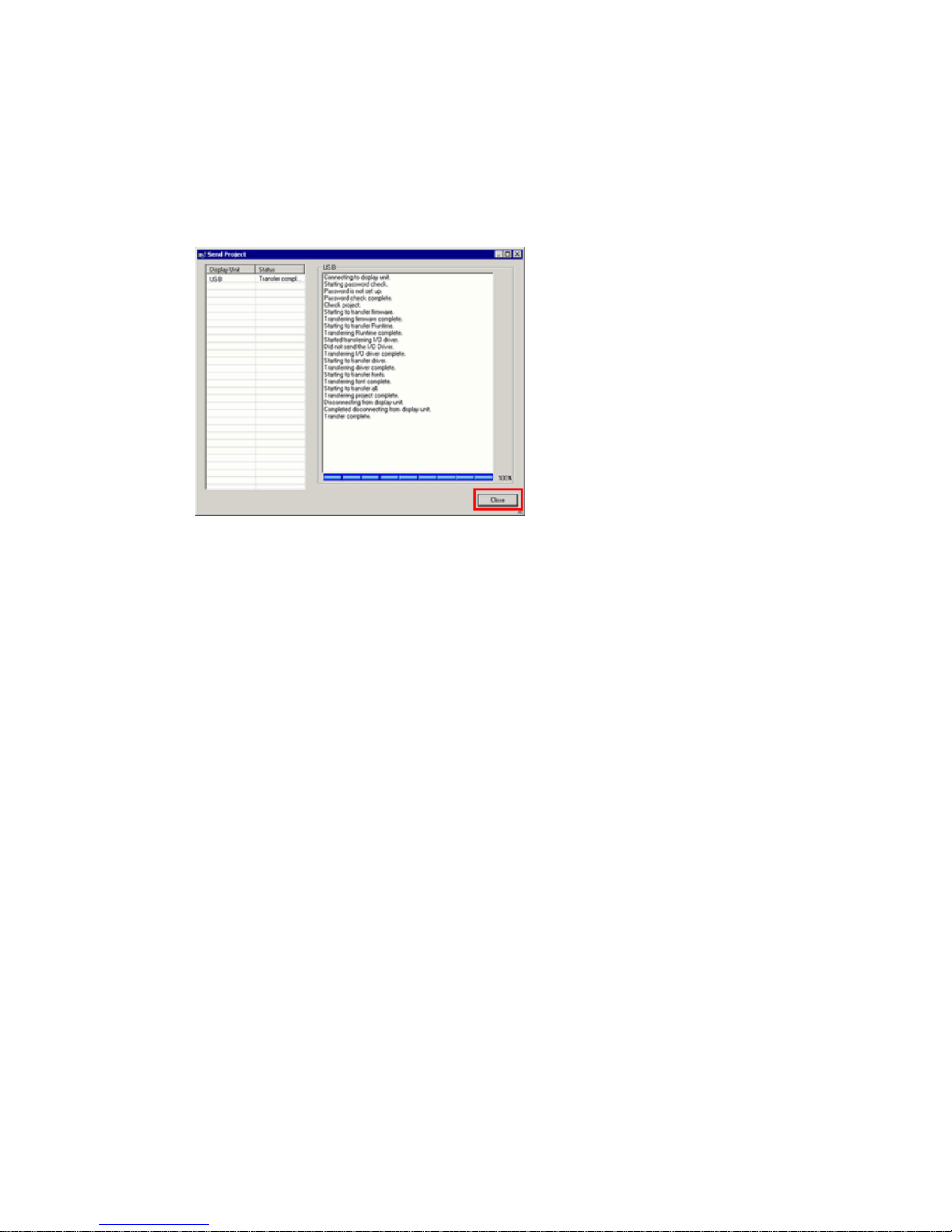

7. When transfer is completed, the status displayed in the dialog box will change
from [Transferring] to [Complete T ransfer]. Click [Close] to close the dialog box.
9.
The display unit will be reset and a screen of the transferred project file will be
displayed.
8. Close the Transfer Tool.
lick the [X] mark on top right of the screen or [Project]->[Exit] to close GP-Pro
C
EX.
43/61
Page 44
3.6 Differences of software
3.6.1Differences after conversion
Check the differences of screen data after conversion from GP-PRO/PBIII to
GP-Pro EX. For the details of each item, refer to our website.
http://www.pro-face.com/otasuke/qa/gp3000/replace/soft/conv/care/3/
Differences of Software
1 Touch Panel Type
2 Compatibility of Bit Switch
3 Compatibility of Alarm
4 Compatibility of Trend Graph
5 Compatibility of K tag (Input Order)
6 Compatibility of K tag (differen of ing) ce Writ
7 Compatibility of K tag (Indirect Setting)
8 Compatibility of N tag
Precautions for using the switch for [History Data Display] of Trend Graph
on the window
9
10 About window display on a momentary switch during momentary
operation
11 About the performance when a display area of the system window is
overlapping
12 Change of Tag Process
13 About the display when a fixed Draw is placed on a Part
14 Compatibility of Text
15 Compatibility of Fill
16 Compatibility of CF Card Data
17 Precautions for conversion when filing data is saved in a CF card
18 Precautions for setting “Color Settings” to [256 Colors without blinking]
19 Precautions for loading a part with “L Tag (Library Display)”
20 Compatibility of MRK files and CPW files
21 Compatibility of V Tag/v tag and Video Screen
22 Compatibility of Extended SIO Script
23 Compatibility of Sound Data
24 Compatibility of Device Monitor
44/61
Page 45
25 Compatibility of Ladder Monitor
26 Compatibility of J Tag and R Tag
27 Converting Screen Data of DOS
28 Compatibility of Standard Font
29
(Compatibility of D Script Trigger Condition)
D Script starts right after screen change or power on.
30 The position shifts when loading a window screen (Compatibility of U Tag)
31 ng Screen Level Change P r ecautions for usi
32 Compatibility of H tag
45/61
Page 46
Chapter 4 Communication with Device/PLC
4.1 D river list
IMPORTANT
The follow
More r website “Otasuke Pro! ” for
the
For ctable Devices]
(http t/soft/gpproex/driver/driver.html
ings are information as of October 2011.
connectable drivers will be added. Please check ou
latest information.
the devices/PLC each driver supports, see [Conne
://www.pro-face.com/produc
).
PLC
Manufacturer Series
OMRON Corporation C/CV Series HOST Link
CS/CJ Series Ethernet
CS/CJ Series HOST Link
CS/CJ/NJ Series EtherNet/IP
KEYENCE Corporation KV-700/1000/3000/5000CPU Direct
KZ10_80R/T Series CPU Direct
KZ-10_80R/T Series CPU Direct
KV-700/1000/3000/5000 Ethernet
Koyo Electronics Co., Ltd. KOSTAC/DL Series CCM SIO
KOSTAC/DL Series MODBUS TCP
JTEKT Corporation
(Formerly Toyoda Machine Works)
TOYOPUC CMP-LINK SIO
TOYOPUC CMP-LINK Ethernet
Sharp Manufacturing Systems
Corporation
JW Series Computer Link SIO
JW Series Computer Link Ethernet
TOSHIBA Machine Co., Ltd. TC Series (TCmini/TC200)
Panasonic Electric Works SUNX Co., Ltd. FP Series Computer Link SIO
(Formerly Matsushita Electric Works, Ltd)
Hitachi Industrial Equipment Systems Co., H Series Serial
H Series Ethernet
Ltd
HITACHI Ltd S10 Series SIO
S10V Series Ethernet
FANUC Corpration Power Mate Series
46/61
Page 47
Fuji Electric Co.,Ltd. MICREX-F Series SIO
MICREX-SX Series SIO
MICREX-SX Series Ethernet
Mitsubishi Heavy Industories Ltd DIASYS Netmation MODBUS TCP
MHI STEP3 Ethernet
Mitsubishi Electric Corporation A Series CPU Direct
A Series Ethernet
FX Series Computer Link
A Series Computer Link
FX Series CPU Direct
FX S thernet
Q Series CPU Direct
net
cation
eries E
Q Series QnU CPU Ether
Q/QnA Serial Communi
Q/QnA Series Ethernet
QnA Series CPU Direct
QUTE Series CPU Direct
Meidensha Corporation UNISEQUE Series Ethernet
YASKAWA Electric Corporation MEMOBUS SIO
MP Series SIO (Extension)
MEMOBUS Ethernet
MP/SERVO Ethernet
YOKOGAWA Electric Corporation IO Personal Computer Link S
MODBUS SIO Master
Personal Computer Ethernet
MODBUS TCP Master
Fatek Automation Corp. FB Series SIO
GE Intelligent Platforms Series 90-30/70 SNP
Series 90-30/70 SNP-X
et Series 90 Ethern
LS Industrial Systems s Cnet MASTER-K Serie
XGT Series Cnet
XGT Series Fenet
47/61
Page 48
Rockwell Automation Inc. DF1
DH-485
EtherNet/IP
Saia-Burgess Controls Ltd. Saia S-Bus SIO
Schneider Electric SA MODBUS SIO Master
MODBUS Slave
MODBUS TCP Master
Uni-Telway
Siemens AG
K512
ect
SIMATIC S7 MPI Direct
SIMATIC S7 3964(R)/R
SIMATIC S5 CPU Dir
SIMATIC S5 3964(R)
SIMATIC S7 Ethernet
Siemens Building Technologies SAPHIR SIO
Temperature Controller
Manufacturer Series
OMRON Controller CompoWay/F
Shinko Technos Co., Ltd. Controller SIO
CHINO Corporation Controller MODBUS SIO
Fuji Electric Co., Ltd Controller MODBUS SIO
Yamatake Corporation Digital Controller SIO
MODBUS SIO Master
MODBUS TCP Master
YOKOGAWA Electric Corporation Personal Computer Link SIO
RKC Instrument Inc.
r
Controller MODBUS SIO
Temperatuer Co ntrolle
Inverter/S rial Robot ervo/Indust
Manufacturer Series
Hitachi Industrial Equipment Systems Co.,
Ltd TU
Inverter ASCII SIO
Inverter MODBUS R
Fuji Electric Co., Ltd verter SIO In
Sanmei Electronics Co., Ltd Si/CutyAxis Series SIO
Mitsubishi Electric Corporation FREQROL Inverter
48/61
Page 49
YASKAWA Electric Corporation ter/Servo SIO
Ethernet
Inver
MP/Servo
IAI Corporation MODBUS SIO Robo cylinder
X-SELController
Hyundai Heavy Industries Hi4 Robot
Other Devices
Manufacturer Series
Digital Electronics Corporation net General Ether
General SIO
Memory Link
Cognex Corporation In-Sight Vision System
Modbus-IDA SIO Master
Master
General MODBUS RTU
General MODBUS TCP
ODVA
(Open DeviceNet Vendor Association,
Inc.)
xplicit Messaging EtherNet/IP E
49/61
Page 50
4 s

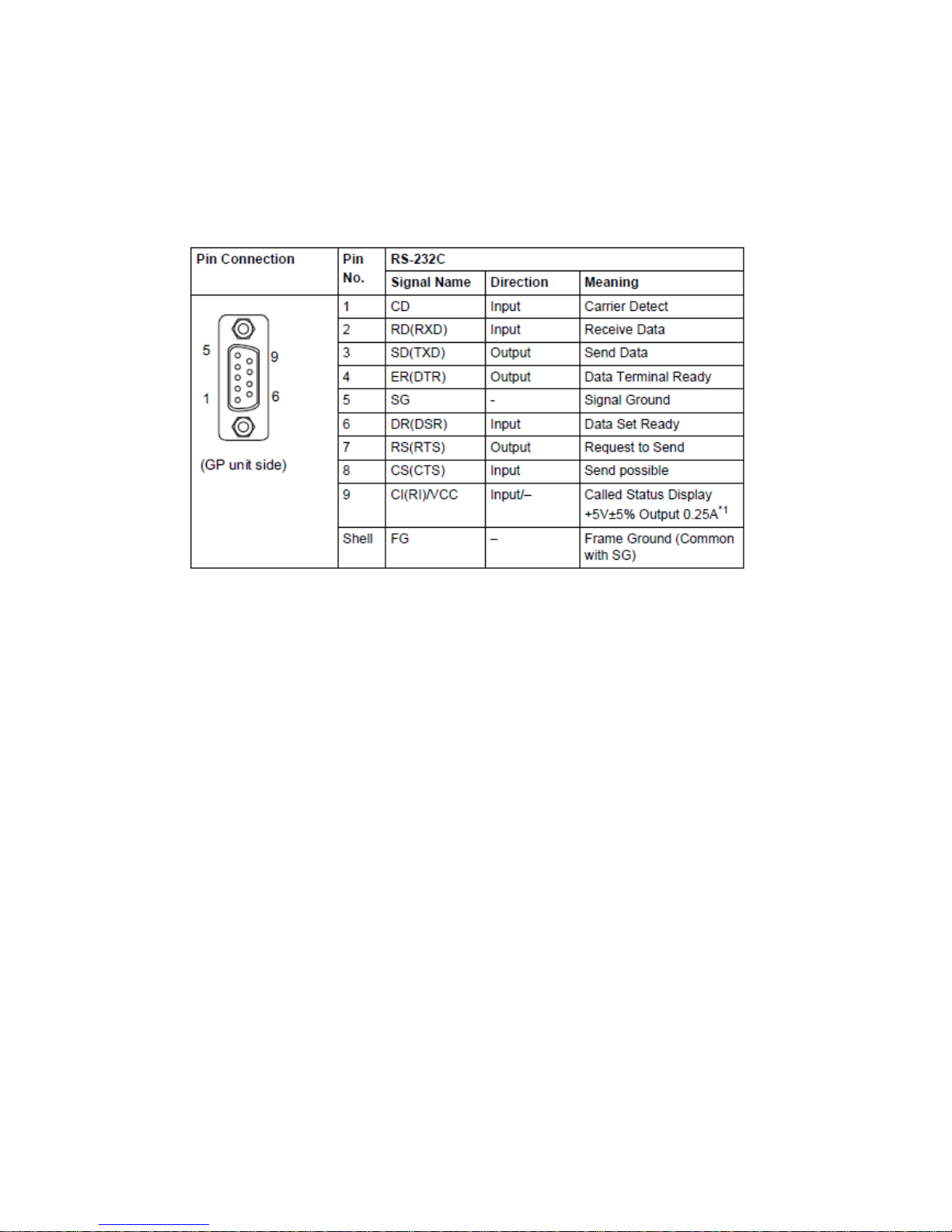

.2 Shapes of COM port
GP-2601T
GP-2500S/L GP4000 series
GP-2501T/S/L
25 pin D-Sub (female) 9 pin D-Sub (male)
RS-232C/422 RS-232C
COM1
9 pin D-Sub (male)
9 pin D-Sub (male)
RS-232C RS-422/485
COM2 -
NOTE

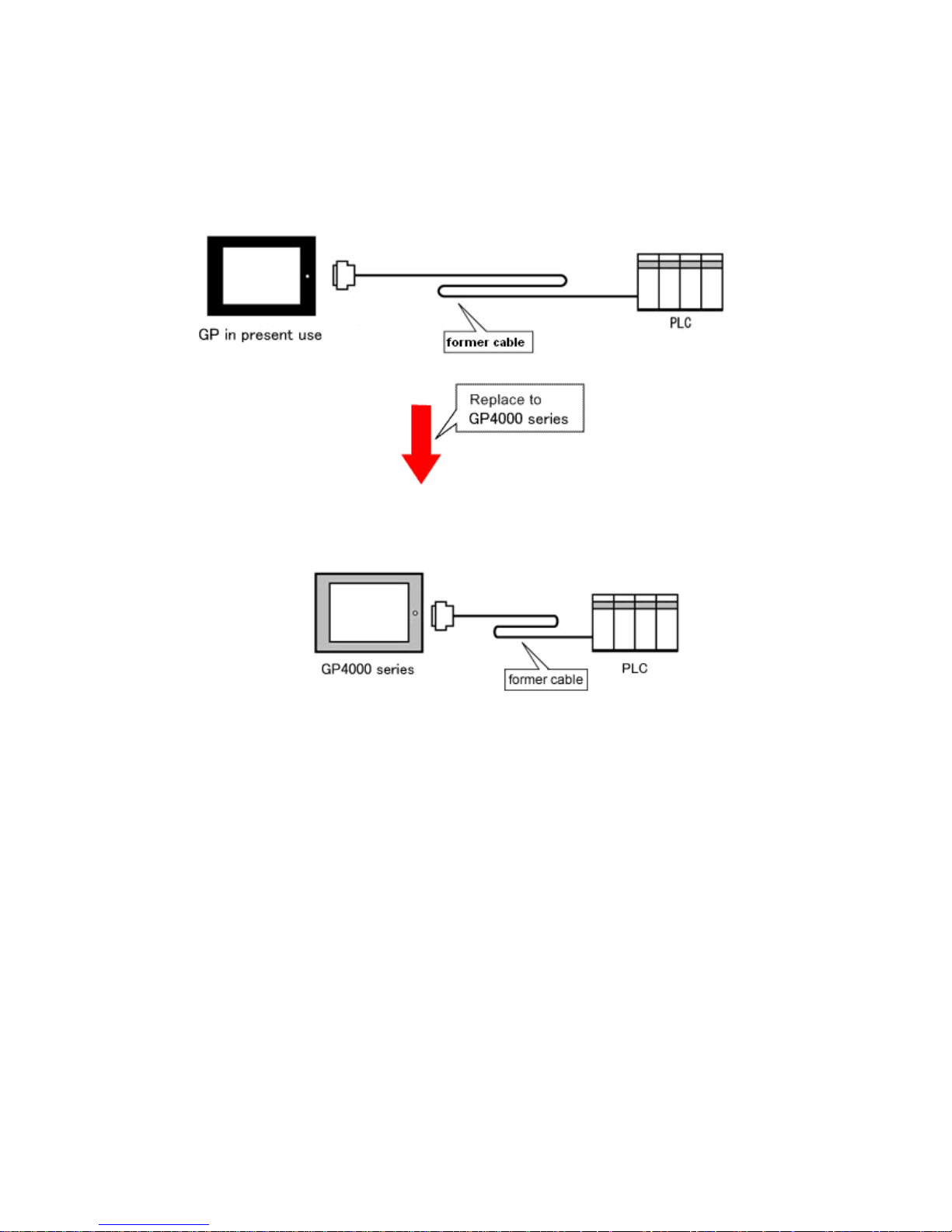

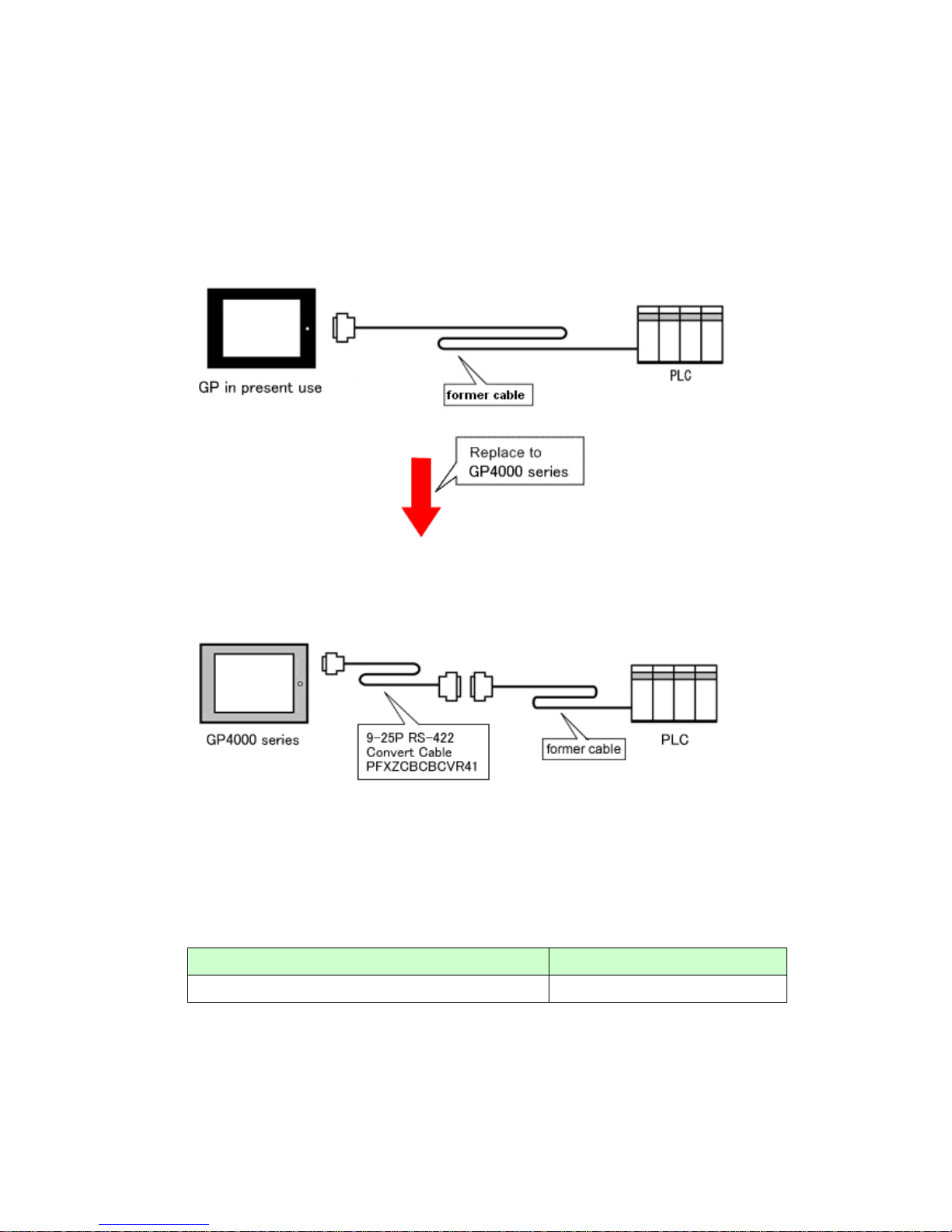

For the COM ports of GP2000 series and GP-4000 series, the pin assignment and the
shape of male/female connector are different. Because of it, the existing PLC
connection cables cannot be used as they are. If you use the existing connection
cables, see [4.5 Cable Diagram at the time of replacemet
].
50/61
Page 51
4.3 Signals of COM ports
4.3.1 Signals of COM1
For GP2000 se
RS-232C or
ries
RS-422 (female)
51/61
Page 52
For GP4000 series
RS-232C (male)
*1: RI and VICC of Pin 9 are switched on the software.
VCC Output is not protected from overcurrent.
Please follow the current rating to avoid false operation or breakdown.
52/61
Page 53
4.3
s (*for GP-2500S/L only)
RS-232C (male)
.2 Signals of COM2
For GP2000 serie
R
For GP4000 Series
S-422/485 (male)
53/61
Page 54
4.4
For s do not support multi-link connection
(n:
When converting the project file with the setting of the communication driver that
does not support multi-link connection (n:1) via RS-422, the connection is
automatically converted to (1:1).
For the communication drivers that support serial multi-link, see [Which drivers
Multilink Connection
GP4000 series, some communication driver
1) via RS-422.
support serial multilink communication?]
(http://www.pro-face.com/otasuke/files/manual/gpproex/new/device/com_mlnk.ht
m).
4.5 Cable Diagram at the time of replacement
The connection cable for GP2000 series can be used for GP4000 series.
But please note that there are precautions and restrictions as described below .
IMPORTANT
・ nection configurations GP4000 series supports with GP-Pro
EX Device/PLC Connection Manual before using a connection cable.
(http://www.pro-face.com/otasuke/files/manual/gpproex/new/device/index.ht
Please check the con
m)
・ The Siemens MPI connection cable cannot be used.
Please refer to the above-mentioned GP-Pro EX Device/PLC Connection Manual
and prepare a connection cable for GP4000 series newly.
54/61
Page 55
4.5.1 When using a RS-232C connection cable,
GP2000 series System Configuration (connecting to COM1)
System Configuration (connecting to COM1) after replaced with GP4000 series
To replace GP2000 series with GP4000 series, prepare the following item.
Product Name Model
RS-232C 9pin-25pin Conversion Cable (20cm) CA3-CBLCBT232-01
55/61
Page 56
GP2000 series System Configuration (connecting to COM2)
System Configuration (connecting to COM1) after GP2000 series is replaced with
GP4000 series
*The same cable can be used.
56/61
Page 57
4.5
GP2000 series (connecting to COM1) System Configuration
.2 When using a RS-422 connection cable,
System Configuration (connecting to COM2) after GP2000 series is replaced with
GP4000 series
*Before connecting to GP4000 series, be sure to change the port setting to [COM2] on
Device/PLC Setting. Please check the communication setting with GP-Pro EX
Device/PLC Connection Manual just in case.
To replace GP2000 series with GP4000 series, prepare the following item.
Product Name Model
RS-422 9pin-25pin conversion cable (20cm) PFXZCBCBCVR41
57/61
Page 58
NOTE
When using a terminal block adapter (GP070-CN10-O), we recommend you to
replace it with a terminal block conversion adapter (PFXZCBADTM1) for GP4000
series.

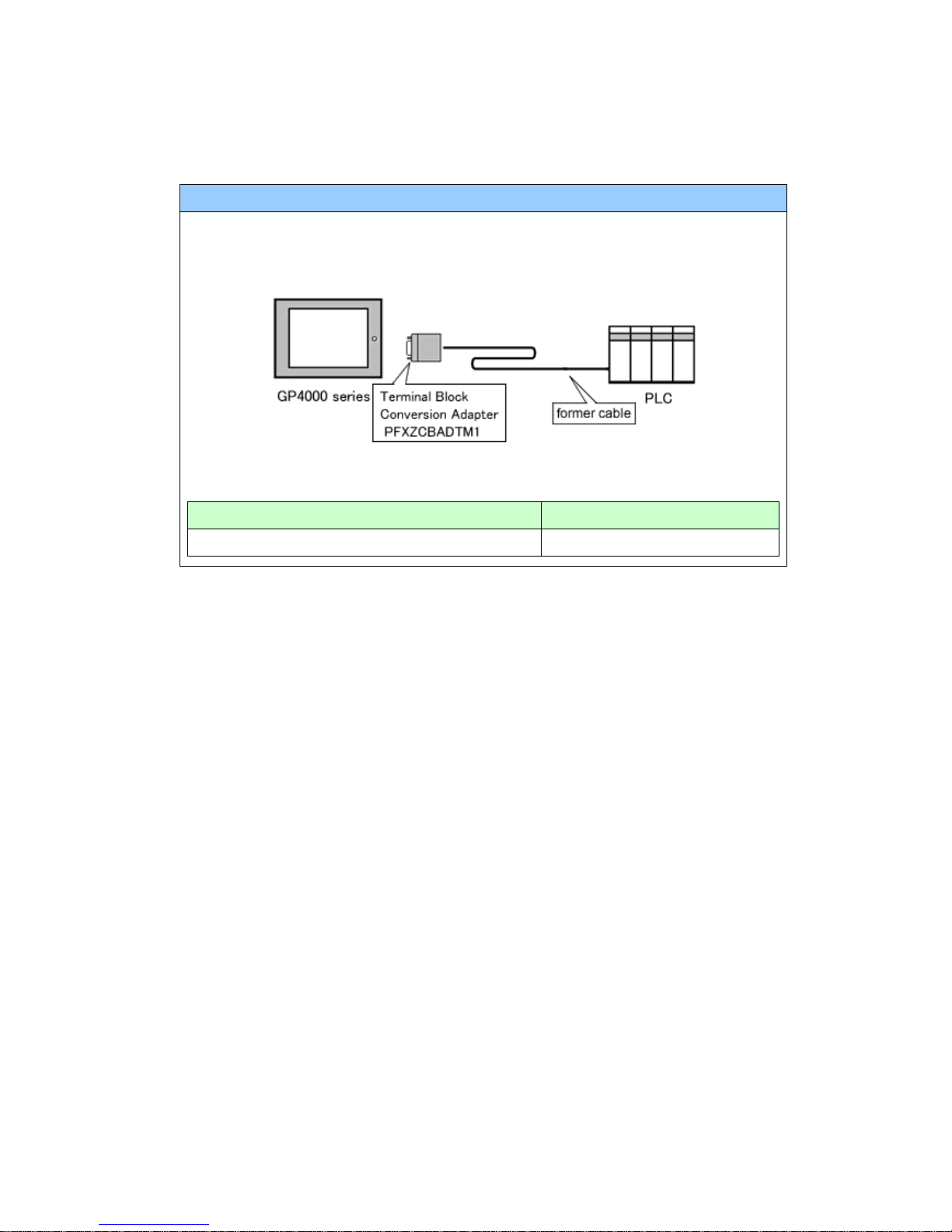

For replacement in this connection method, prepare the following item.
Product Name Model
RS-422 Terminal Block Conversion Adapter PFXZCBADTM1
58/61
Page 59
Chapter 5 Appendix
5.1
If a
GP4000 series with GP-Pro EX, “a CF card” is automatically replaced with “a SD card”
for the external media setting.
(1) After conversion of the project file data, at GP-Pro EX Error Check,
if the message, “The project contains features that require a SD card. However,
the selected display does not support SD cards so these features will not run.”
appears,
Changing the setting of the external media to us e
CF card has been used for GP-PRO/PBIII, after GP2000 series is replaced with
<Cause>
The model without a SD card slot has the setting that uses a SD card.
->Solution 1
To use a USB storage device instead of a SD card ->Solution 1(2)
To check or change the SD card’s data output destination folder setting
->Solution 2
(3)
59/61
Page 60
[Solution]
1. Change the SD Card setting to the USB storage setting following the steps below.
n]->[Destination Folder].
ii. Uncheck “Enable SD Card” and check “Enable USB Storage.
<Procedure>
i. Click [Project]->[Informatio
iii. Click the [Browse] button and specify a destination folder.
iv. Click [OK] to confirm the setting.
v. Click [Project]->[Save] to save changes.
vi. Check each function that uses the CF card and replace [SD Card] with [USB
Storage] for the media setting.
60/61
Page 61
NOTE
・ T o see how the tags or the parts of GP-PRO/PBIII for Windows are replaced on GP-Pro EX,
refer to [OtasukePro!] (http://www.pro-face.com/otasuke/
)
Comparison between GP-PRO/PBIII and GP-Pro EX”“Feature
lace/soft/conv/care/3/compare.htm(http://www.pro-face.com/otasuke/qa/gp3000/rep
61/61
)
・ To check each function setting of GP-Pro EX, refer to GP-Pro EX Reference Manual.
2. Check and change the destination folder set ting following the steps below.
i. Click [Project]->[Information]->[Destination Folder].
ii. The current setting is displayed.
iii. After changing it, click [OK] to confirm the setting.
iv. Click [Project]->[Save] to save changes.
Loading...
