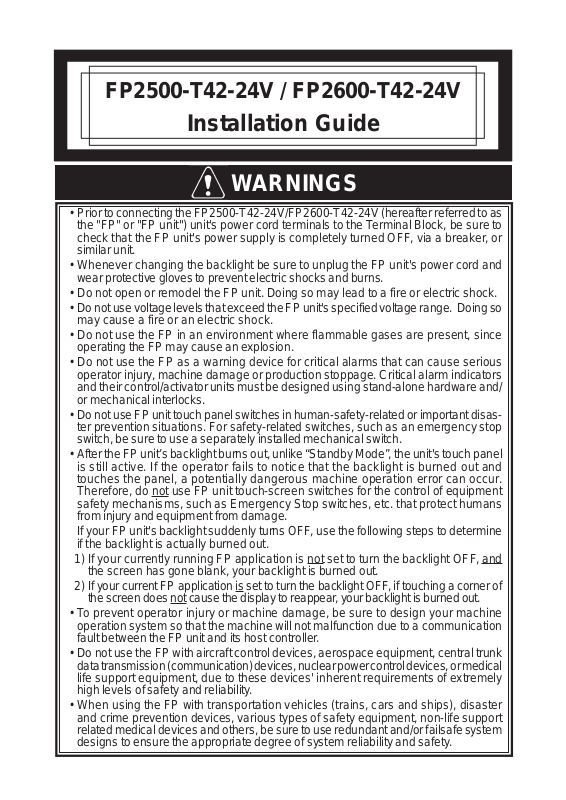

FP2500-T42-24V / FP2600-T42-24V

Installation Guide

WARNINGS

• Prior to connecting the FP2500-T42-24V/FP2600-T42-24V (hereafter referred to as
the "FP" or "FP unit") unit's power cord terminals to the Terminal Block, be sure to
check that the FP unit's power supply is completely turned OFF, via a breaker , or
similar unit.

• Whenever changing the backlight be sure to unplug the FP unit's power cord and
wear protective gloves to prevent electric shocks and burns.

• Do not open or remodel the FP unit. Doing so may lead to a fire or electric shock.

• Do not use voltage levels that exceed the FP unit's specified voltage range. Doing so
may cause a fire or an electric shock.

• Do not use the FP in an environment where flammable gases are present, since
operating the FP may cause an explosion.

• Do not use the FP as a warning device for critical alarms that can cause serious
operator injury , machine damage or production stoppage. Critical alarm indicators
and their control/activator units must be designed using stand-alone hardware and/
or mechanical interlocks.

• Do not use FP unit touch panel switches in human-safety-related or important disas­ter prevention situations. For safety-related switches, such as an emergency stop
switch, be sure to use a separately installed mechanical switch.

• After the FP unit’s backlight burns out, unlike “Standby Mode”, the unit's touch panel
is still active. If the operator fails to notice that the backlight is burned out and
touches the panel, a potentially dangerous machine operation error can occur.
Therefore, do
safety mechanisms, such as Emergency Stop switches, etc. that protect humans
from injury and equipment from damage.

If your FP unit's backlight suddenly turns OFF , use the following steps to determine
if the backlight is actually burned out.

1) If your currently running FP application is
the screen has gone blank, your backlight is burned out.

2) If your current FP application is set to turn the backlight OFF , if touching a corner of
the screen does

• To prevent operator injury or machine damage, be sure to design your machine
operation system so that the machine will not malfunction due to a communication
fault between the FP unit and its host controller .

• Do not use the FP with aircraft control devices, aerospace equipment, central trunk
data transmission (communication) devices, nuclear power control devices, or medical
life support equipment, due to these devices' inherent requirements of extremely
high levels of safety and reliability .

• When using the FP with transportation vehicles (trains, cars and ships), disaster
and crime prevention devices, various types of safety equipment, non-life support
related medical devices and others, be sure to use redundant and/or failsafe system
designs to ensure the appropriate degree of system reliability and safety .

not use FP unit touch-screen switches for the control of equipment

not set to turn the backlight OFF, and

not cause the display to reappear , your backlight is burned out.

To prevent this unit from malfunctioning:

• Do not strike the FP unit's touch panel with a hard or heavy object, or press on the
touch panel with too much force, since it may damage the display .

• Do not install the FP where the temperature will exceed the specified range.

• Be sure that water , liquids or metal particles do not enter the FP, since it may cause a
malfunction or a short circuit.

• Do not install the FP where sudden, large changes in temperature may occur . These
changes may cause condensation to form inside the unit, possibly leading to a mal­function.

• T o prevent excessive heat from building up inside the unit, do not install the FP where
its ventilation holes may be blocked. Also, do not install or store the FP near high
temperature equipment.

• Do not install or store the FP where direct sunlight or high levels of dust exist.

• Since the FP is a precision instrument, do not install or store it where either strong
shocks or excessive vibration may occur.

• Do not install or store the FP in an area containing chemicals or chemical fumes.

• Do not use paint thinner or organic solvents to clean the FP unit's case or screen.

• After turning the FP OFF, be sure to wait a few seconds before turning it ON again. If
the FP is started too soon, it may not start up correctly .

UL/c-UL/CSA Application Notes

The FP2500-T42-24V/FP2600-T42-24V units are UL/c-UL listed products (UL File No. E182139).
These units conform as components to the following standards:



UL508 Industrial Control Equipment





UL1604 Electrical Equipment for use in Class 1 & 2 - Division 2, or Class III Hazardous



(classified) locations.



CAN/CSA-C22.2, No.1010-1 Measurement and Control Equipment Safety Requirements for



Electrical Equipment for Measurement and Laboratory

FP2500-T42-24V (UL Registration Model No.:3280033-02)
FP2600-T42-24V (UL Registration Model No.:3280033-04)

<Cautions>

Be aware of the following items when building the FP into an end-use product:

• The FP unit's rear face is not approved as an enclosure. When building the FP unit into an end-use

product, be sure to use an enclosure that satisfies required standards as the end-use product's overall
enclosure.

• The FP unit must be used indoors only .

• This unit should be installed in the front face of a metal panel.

• If the FP unit is installed so as to cool itself naturally , be sure to install it in a vertical panel. Also, be

sure that the FP unit is installed at least 100 mm away from any adjacent structures or machine parts.
If these conditions are not met, the heat generated by the FP unit's internal components may cause the
unit to fail to meet UL standard.

UL1604 Conditions of Acceptability and Handling Cautions:

1. Power, input and output (I/O) wiring must be in accordance with Class I, Division 2 wiring methods

- Article 501- 4(b) of the National Electrical Code, NFPA 70 within the United States, and in
accordance with Section 18-152 of the Canadian Electrical Code for units installed within Canada.

2. Suitable for use in Class I, Division 2, Groups A, B, C and D, Hazardous Locations.

3. W ARNING: Explosion hazard - substitution of components may impair suitability for Class I, Divi­sion 2.

4. W ARNING: Explosion hazard - when in hazardous locations, turn power OFF before replacing or
wiring modules.

5. WARNING: Explosion hazard - do not disconnect equipment unless power has been switched

OFF , or the area is known to be non-hazardous.

6. WARNING: Explosion hazard - do not connect/disconnect equipment unless area is known to be
nonhazardous.

CE Marking Notes

The FP2500-T42-24V/FP2600-T42-24V units are CE marked products that conform to EMC
directives EN55011 Class A and EN61000-6-2.

For detailed CE marking information, please contact your local FP distributor .

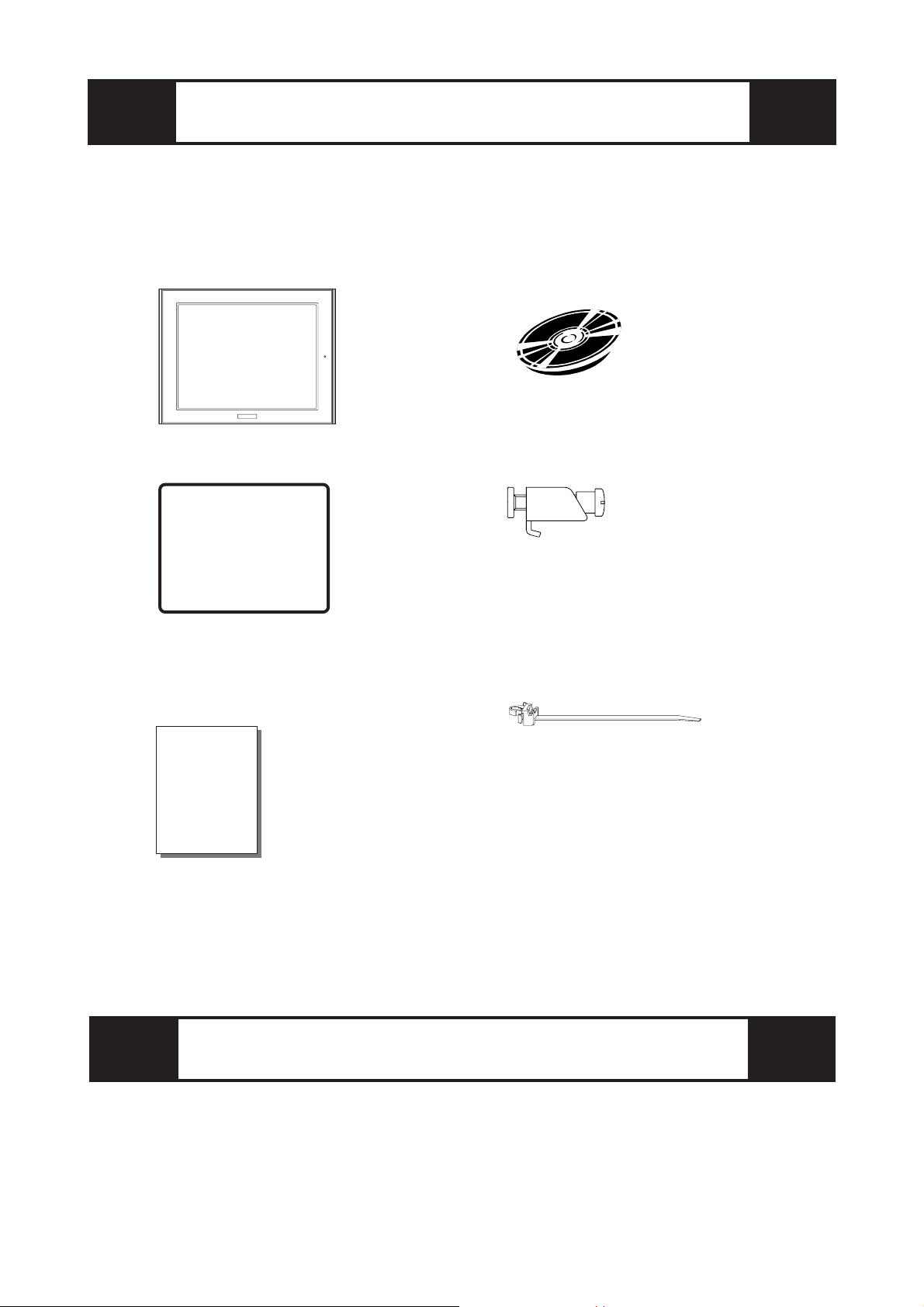

Package Contents

The following items are included in the FP unit's package. Before using the
FP, please confirm that all items listed here are present.

 FP unit  CD-ROM (1)
(FP2500-T42-24V/FP2600-T42-24V) (FP-2500/FP-2600 Series User Manual

Touch Panel Programs for MS-DOS

 Installation Gasket (1)  Installation Brackets (4/set)

®

)

 Installation Guide (1)  USB Cable Strap (1)
(this manual)

Installation

Guide

This unit has been carefully packed, with special attention to quality. How­ever, should you find anything damaged or missing, please contact your
local FP distributor immediately.

Options

 Cables
 Touch Panel Driver Software
 Maintenance Parts

About The Manual

The FP-2500/FP-2600 Series unit's PDF manual file (fp2000e.pdf) is contained in the
CD-ROM's [Manual
Reading a PDF file requires installation of the Adobe Corporation's Acrobat

\Eng] folder.

 Acrobat® Reader Installation:

T o install the Acrobat® Reader software, follow the steps given below .

1) This software, in the form of a self-extracting file, is located in this CD-ROM in the
folder titled [reader]. Use the Explorer software to find the file [Reader\Eng\
ar505enu.exe], and double-click on the file icon to begin the Reader installation.

2) After installation begins, follow the instructions given.

Acrobat

®

Reader Copyright© Adobe Systems Incorporated. All rights reserved.

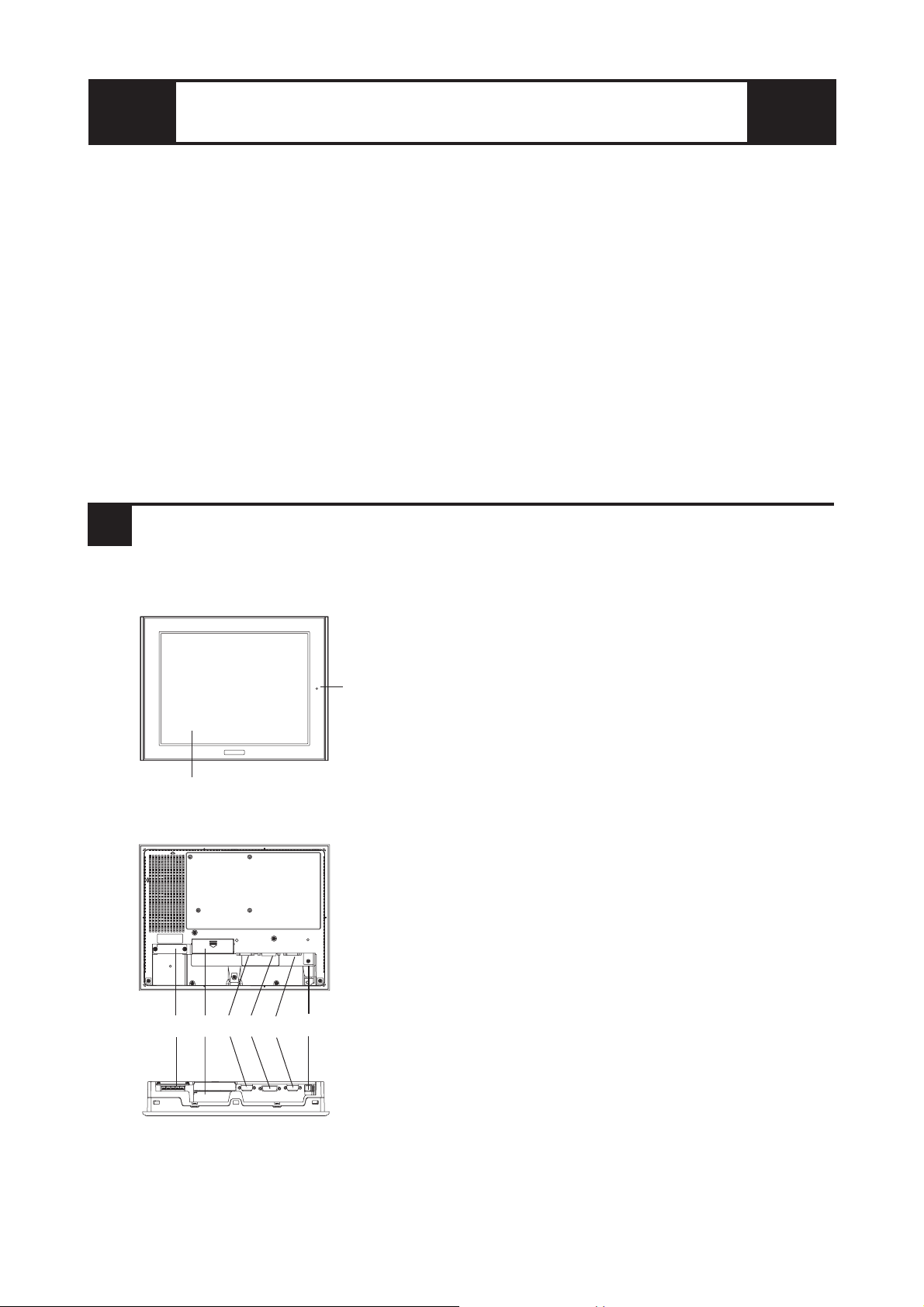

1 Part Names

A: TFT Color LCD

Front View

Displays host data.

B: Touch Panel

Switches screens or writes/sends data to the host.

®

Reader.

A, B

Rear View

C D

E F G H

Bottom View

C: Power Input Terminal Block

I

Provides power to the FP unit via the input and ground
terminals.

D: Dip Switch Cover

Covers the FP unit's operation mode dip switches.

E: Analog RGB Interface Connector

Connector for analog RGB cable.

F: DVI-D Interface Connector

Connector for DVI-D cable.

G: RS-232C Interface Connector

Connector for RS-232C (serial) cable. Used for
sending touch panel data to the host, and receiving
commands from the host.

H: USB Interface Connector

Connector for USB cable. Used for sending touch panel
data to the host, and receiving commands from the host.

I: Front LED

Used to indicate power supply , backlight or image
signal input status.

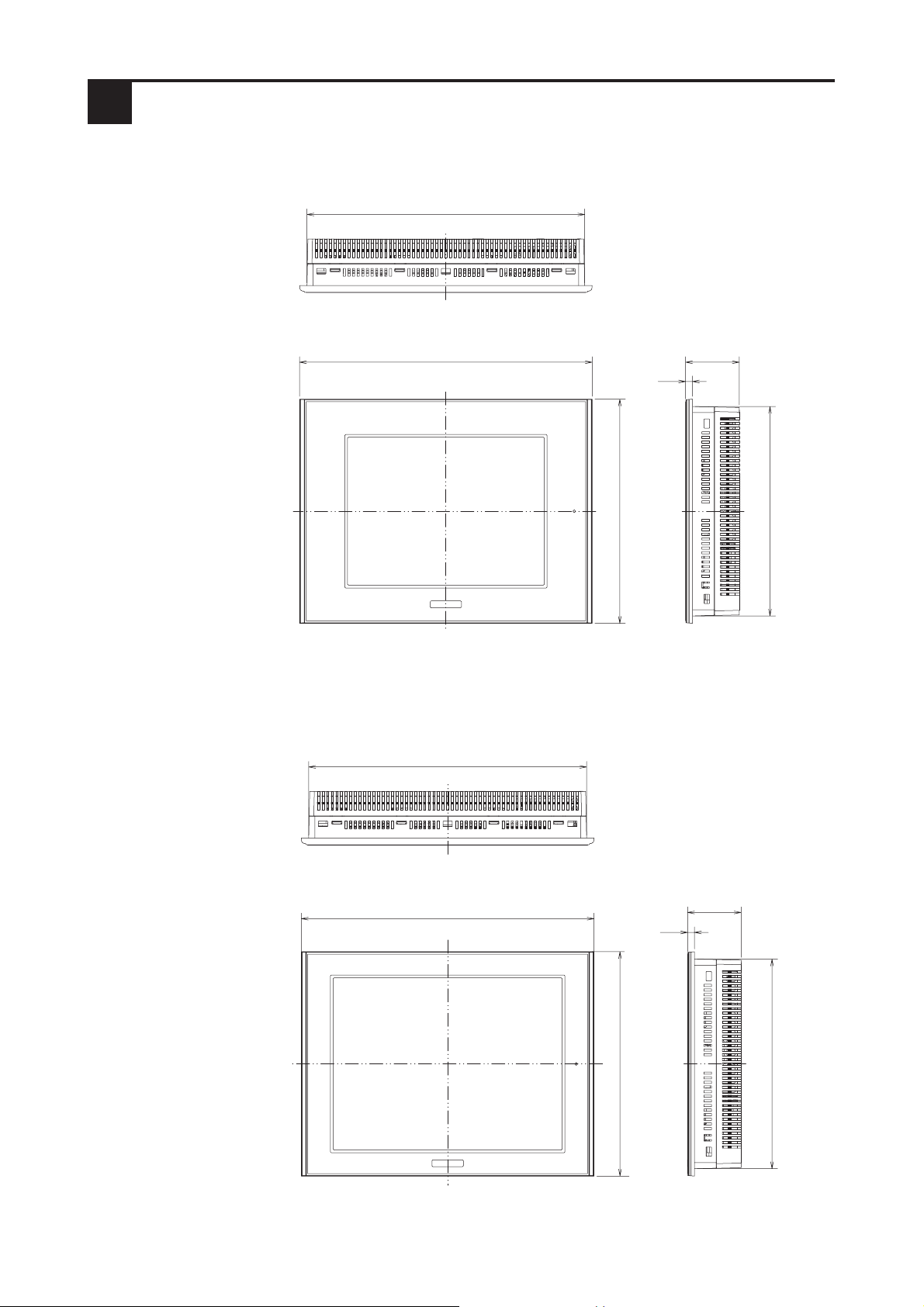

2 Dimensions



FP2500-T42-24V



Unit:mm [in]

301 [11.85]

Top View

317 [12.48]

Front View

8 [0.31]

243 [9.57]

58 [2.28]

227 [8.94]

Side View



FP2600-T42-24V



Unit:mm [in]

301 [11.85]

Top View

317 [12.48]

8 [0.31]

243 [9.57]

58 [2.28]

227 [8.94]

Front View

Side View

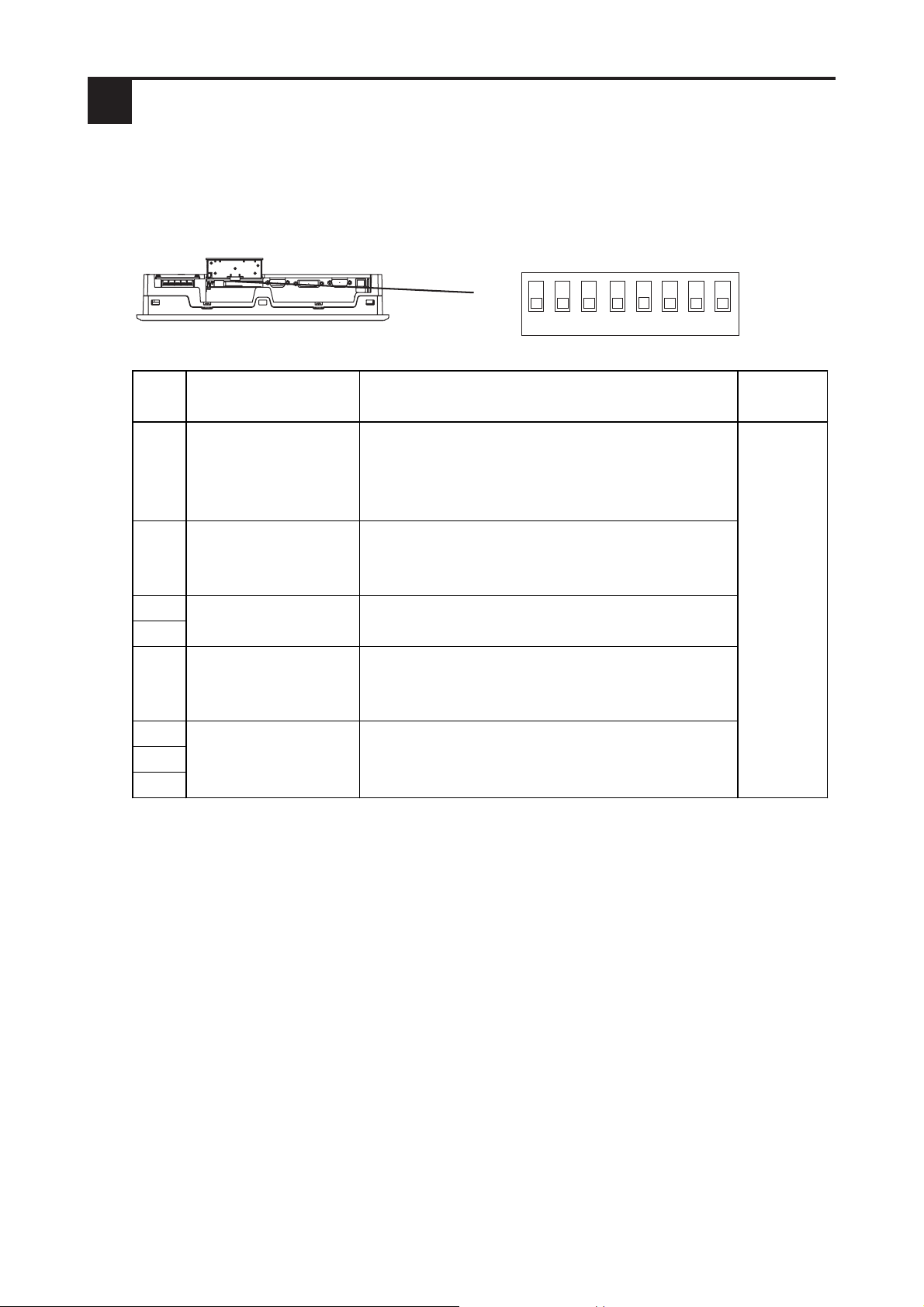

3 Dip Switches

The FP unit's dip switches are located behind the Dip Switch Cover.
Dip switch setting are effective only when starting up the FP unit.
After changing any dip switch settings, be sure to restart your FP unit.

ON

Bottom View

SW
No.

1-1

1-2 Display/hide the OSD.

1-3
1-4

1-5

1-6
1-7
1-8

Function Description

Switch between USB
and RS-232C fo r touch
panel data transmission.

Reserved Set this s witch to OFF

Switch between analog
RGB an d DV I-D input.

Reserved Be sure these switches are always set to OFF

Used to set the touch panel data input (command
control) method to either USB or RS-232C.
ON : USB
OFF : RS-232 C (Default se tting)
Used to display or hide the OSD.
ON : Hide
OFF : Disp lay (Default se tting)

Used to change the image input method.
ON : DVI-D
OFF : analog RGB (Default setting)

SW1

86543271

Factory

Settings

All OFF

*1

*1,2,3

*2,3

4 Interfaces



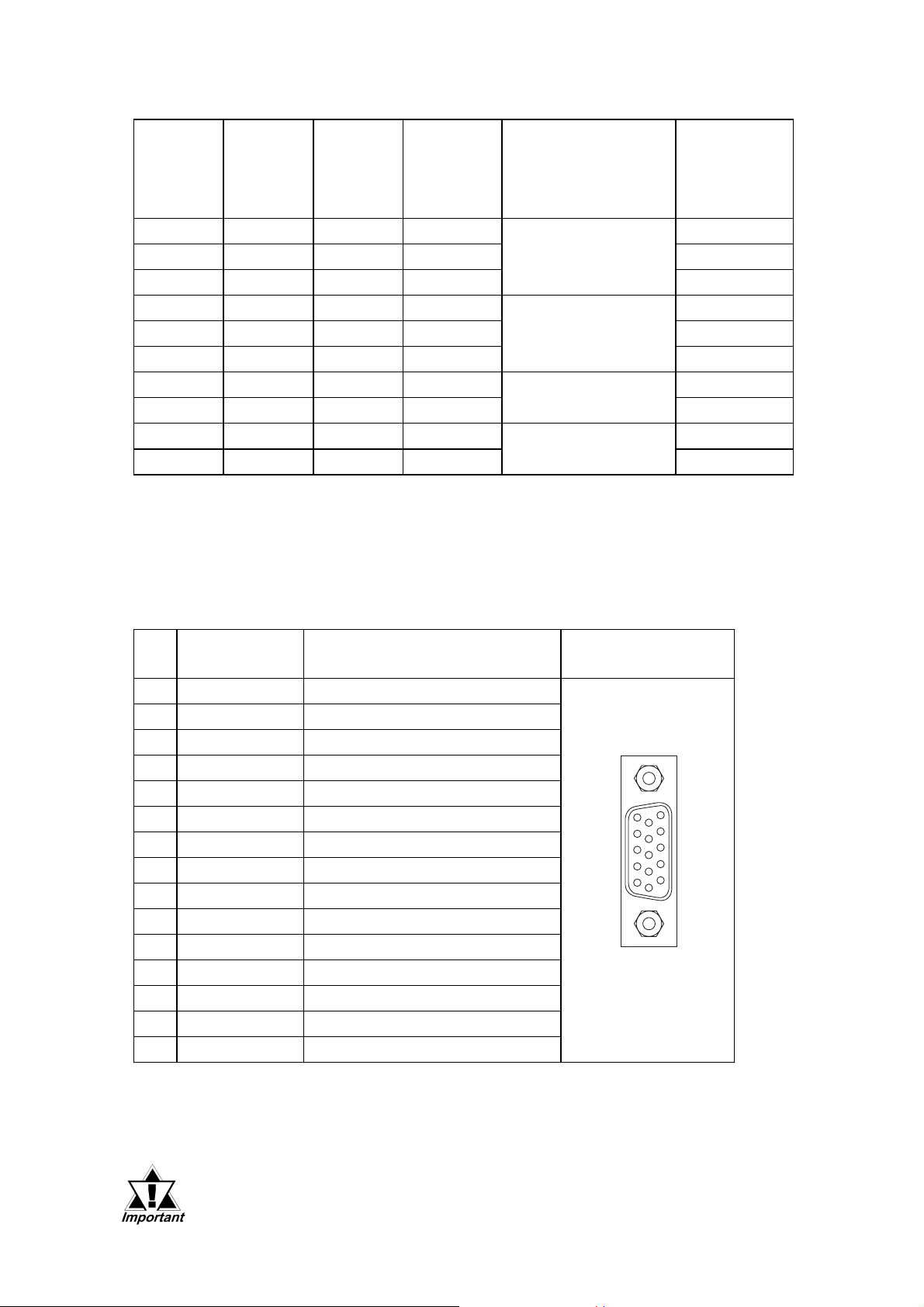

Analog RGB Interface



Input Signal Type Analog RGB

Image signal: analog RGB

Input Signal Characteristics

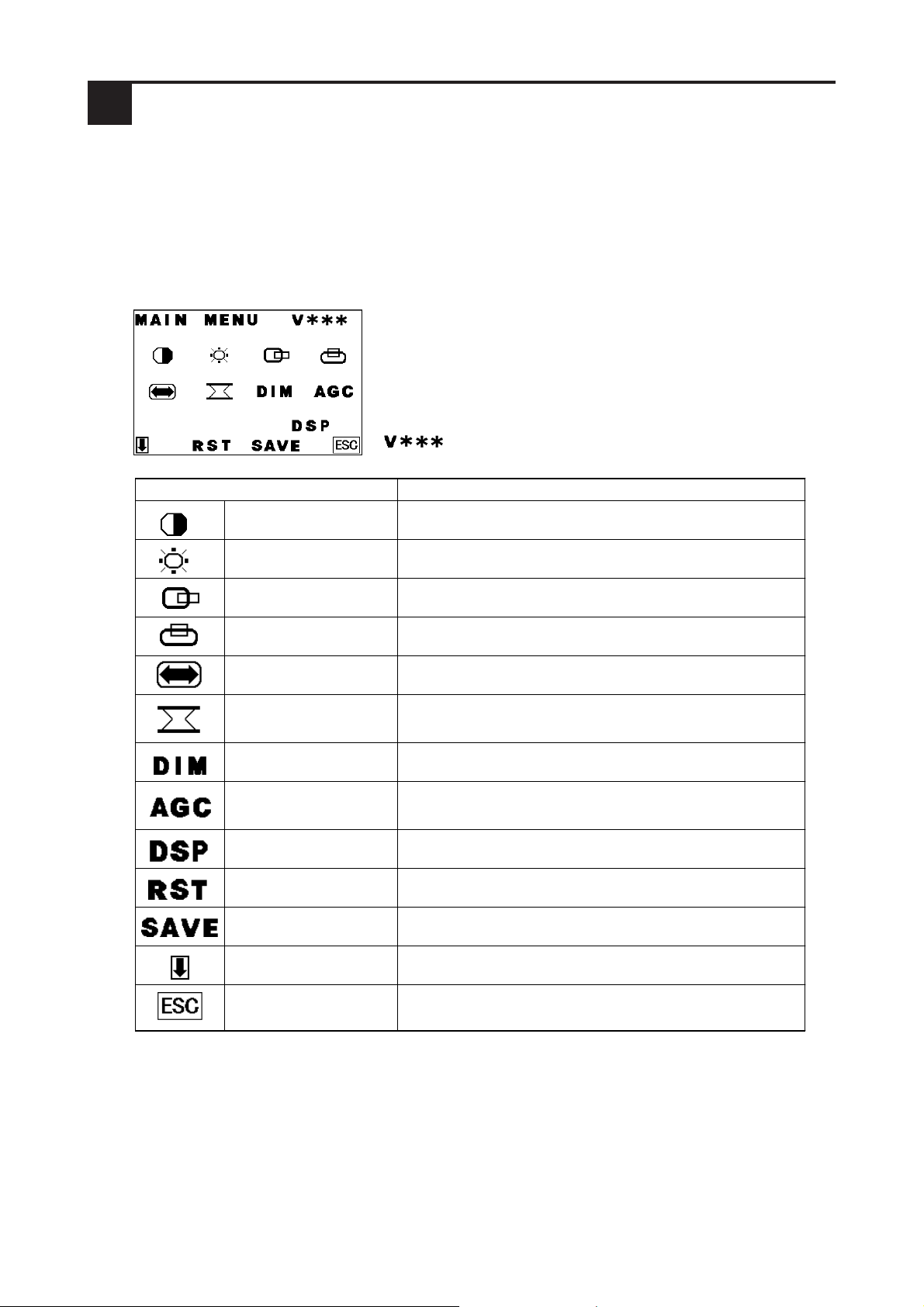

OSD Settings
(On Scree n Di sp lay )

The FP unit's available screen resolutions are as follows: (Unit: dot/pixel)



 FP2500-T42-24V



Synchronous signal: TTL level, negative true or positive true
Scanning type: non-interlace

CONTRAST
BLACK LEVEL
H-POS
V-POS
H-SIZ E
PHASE
BACKLIGHT
DEF AULT (ALL CLEA R)

Screen Resolution

Size

640×350

640×400 31.469 70.000 25.175 640 × 480
640×400 24.827 56.420 21.053 640 × 480
640×480 31.469 59.992 25.175 × 1.0 640 × 480

720×350

720×400

* 1 When the 350 pixel (vertical) signal setting is selected, 400 pixels, including 50 pixels at

the top and at the bottom of the screen, will be enlarged and displayed at 480 pixels
(1.2times).

* 2 Select "720 x 400 Display Resolution 720 x 400 DSP" in the OSD (On Screen Display)

"System Setting" screen.

* 3 When the 720 pixel (horizontal) signal setting is selected,

-When "720 x 400 DSP" is ON; only 640 pixels are displayed (80 pixels are not dis­played.)

-When "720 x 400 DSP" is OFF; all pixels are displayed but images may be cut off if
they do not match the sampling.

H Sync.

(kHz)

31.469 70.000 25.175 640 × 420

31.469 70.000 28.320 640 × 420

31.469 70.000 28.320 640 × 480

V Sync.

(Hz)

Dot Cl oc k

(MHz)

Expansi on

(H: Horizontal)

(V: Vertical)

× 1.0 (H)
× 1.2 (V)

× 1.0 (H)
× 1.2 (V)

Display

Resolution

*1

*1,2

*1



 FP2600-T42-24V



Screen Resoluti on

Size

H Sync.

(kHz)

V Sync.

(Hz)

Dot Clock

(MHz)

Expansion

(H: Horizontal )

Display

Resolution

(V: Vertical)

640×350

640×400 31.469 70.000 25.175 800 × 600

31.469 70.000 25. 1 75 800 × 525
× 1.25 (H)

× 1.5 (V)

640×400 24.827 56.420 21.053 800 × 600
640×480 31.469 59.992 25.175 800 × 600

× 1.25 (H)

640×480 35.000 66.670 30.240 800 × 600

× 1.25 (V)

640×480 37.861 72.810 31.500 800 × 600

720×350

720×400

31.469 70.000 28. 3 20 720 × 525

31.469 70.000 28. 3 20 720 × 600

× 1.0 (H)
× 1.5 (V)

800×600 35.156 56.250 36.000 800 × 600

× 1.0

800×600 37.879 60.317 40.000 800 × 600

* 1 When the 350 pixel (vertical) signal setting is selected, 400 pixels, including 50 pixels at

the top and at the bottom of the screen will be enlarged and displayed at 600 pixels
(1.5times).

* 2 Select "720 x 400 Display Resolution 720 x 400 DSP" in the OSD (On Screen Display)

"System Setting" screen.



Pin Assignments and Signal Names for Analog RGB



Pin

Signal Name Condi t i on Pin Loca t i on

No.

1 Analog R R signal input
2 Analog G G signal input
3 Analog B B signal input
4 Reserved NC (spare for input)
5 Digital grounding Dig ital signal GND
6 Return R R signal GND

15

7 Return G G signal GND
8 Return B B signal GND

11

9 Reserved NC (spare for input)
10 Digital grounding Digital signal GND
11 Rese rved NC (s pare for input)
12 Rese rved NC (s pare for input)
13 H. SYNC Hori zo ntal sy nchro nous signal i nput
14 V. SYNC Vertic al sync hronous sig nal i nput
15 Rese rved NC (s pare for input)

5

1

Connector: Mini Dsub 15 pin male
Connector set screw: Inch type (4-40)
Analog RGB Cable: FP-CV02-45, FP-CV00, FP-CV01 (VGA standard)

(Manufactured by Digital Electronics Corporation of Japan)

If a cable other than the specified Analog RGB cable is used, FP unit
operation cannot be guaranteed due to the possibility of noise
interference.



DVI-D Interface



Inpu t si gnal type DV I- D

H-POS
S etting by OSD
(On Screen Display)

V-POS

BACKLIGHT

DEF AULT (ALL CLEAR)

The FP unit's available screen resolutions are as follows: (Unit: dot/pixel)



 FP2500-T42-24V



Screen Resoluti on

Size

640×400 31.469 70.000 25.175 640 × 480
640×400 24.827 56.420 21.053 640 × 480
640×480 31.469 59.992 25. 175 × 1.0 640 × 480

H Sync.

(kHz)

V Sync.

(Hz)

Dot Clock

(MHz)

Expansion

(H: Horizontal )

(V: Vertical)

× 1.0 (H)
× 1.2 (V)

Display

Resolution

*1

720×400

* 1 When the horizontal 720 pixel signal is input;

-VGA Graphic & Text mode displays 640 pixels only and 80 pixels are not displayed.



 FP2600-T42-24V



Size

640×400 31.469 70.000 25. 175 800 × 600
640×400 24.827 56.420 21. 053 800 × 600
640×480 31.469 59.992 25. 175 800 × 600
640×480 35.000 66.670 30. 240 800 × 600
640×480 37.861 72.810 31. 500 800 × 600

720×400

800×600 35.156 56.250 36. 000 800 × 600
800×600 37.879 60.317 40. 000 800 × 600

31.469 70.000 28.320

H Sync .

(kHz)

*1

31.469 70.000 28.320

V Sync.

(Hz)

Screen Resoluti on

Dot Clock

(MHz)

× 1.0 (H)
× 1.2 (V)

Expansion

(H: Horizontal)

(V: Vertical )

× 1. 25 (H)

× 1. 5 (V)

× 1. 25 (H)
× 1. 25 (V)

× 1. 0 (H)
× 1. 5 (V)

× 1.0

640 × 480

Display

Resolution

720 × 600

* 1 When you use this resolution, select "720 x 400 Display Resolution 720 x 400 DSP" in

"System Setting" of the OSD (On Screen Display) .



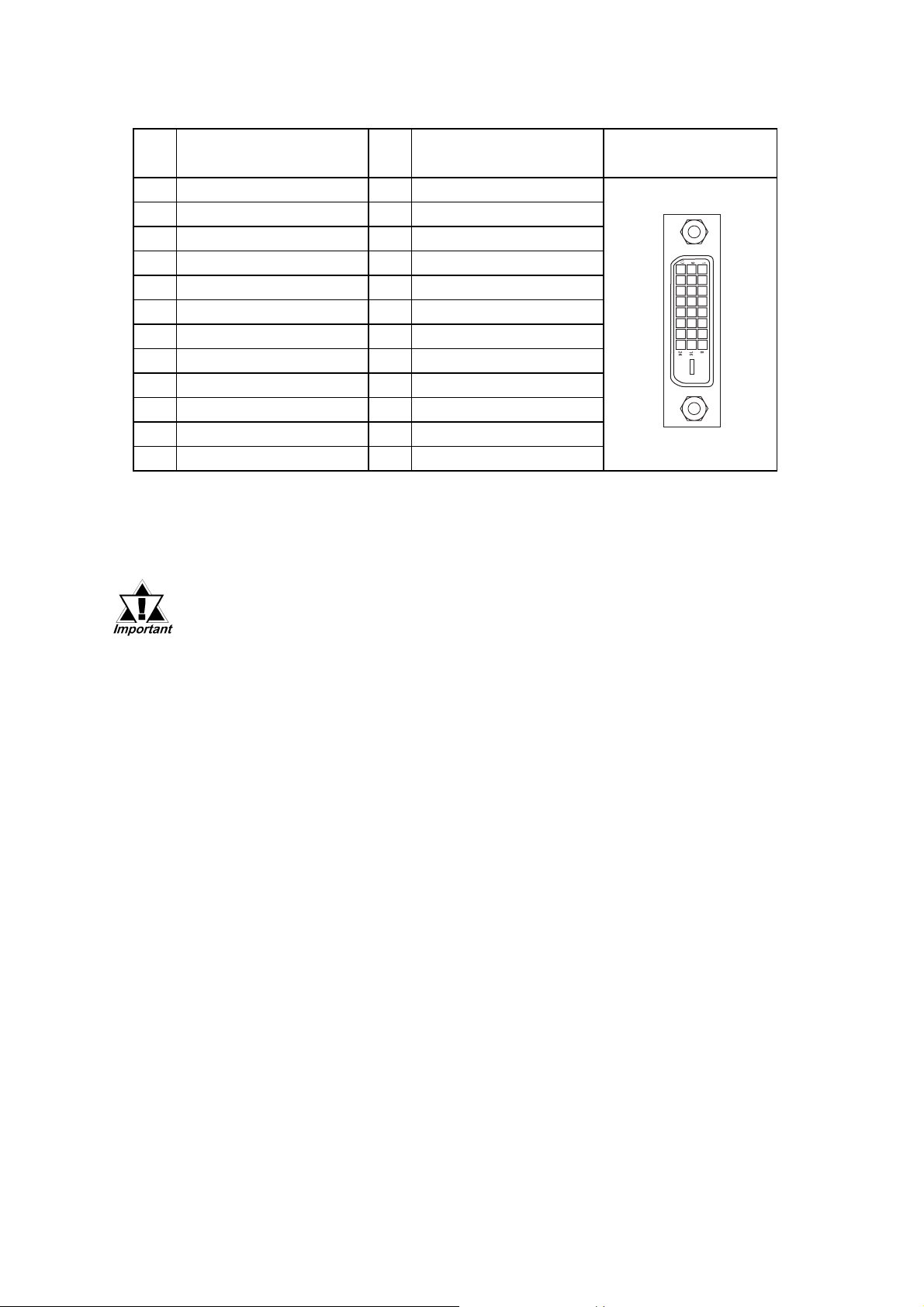

DVI-D Pin Assignments and Signal Names



Pin
No.

Signal Name

Pin

No.

Signal Name Pin Loca t ion

1 TMDS DATA2- 13 NC
2 TMDS DATA2+ 14 NC
3 TMDS DATA2/4 S HIELD 15 GND (+5V )
4NC16Hot Plug Detect

17

1

5NC17TMDS DATA0­6 DDC Clock 1 8 TMDS DATA0+
7 DDC Data 19 TMDS DATA0/ 5 S HIELD

24

7

8NC20NC

9 TMDS DATA1- 21 NC
10 TMDS DA TA1+ 22 TMDS CLOCK S HIE LD
11 TM DS DA TA1/ 3 SHIELD 23 TMDS CLOCK+
12 NC 24 TMDS CLOCK -

Connector: DVI-D 24-pin male
Connector set screw: Inch type (4-40)

DVI-D Cable: FP-DV01-50 <5m> (Manufactured by Digital Electronics Corporation of Japan)

If a cable other than the specified DVI-D cable is used, FP unit operation
cannot be guaranteed due to the possibility of noise interference.



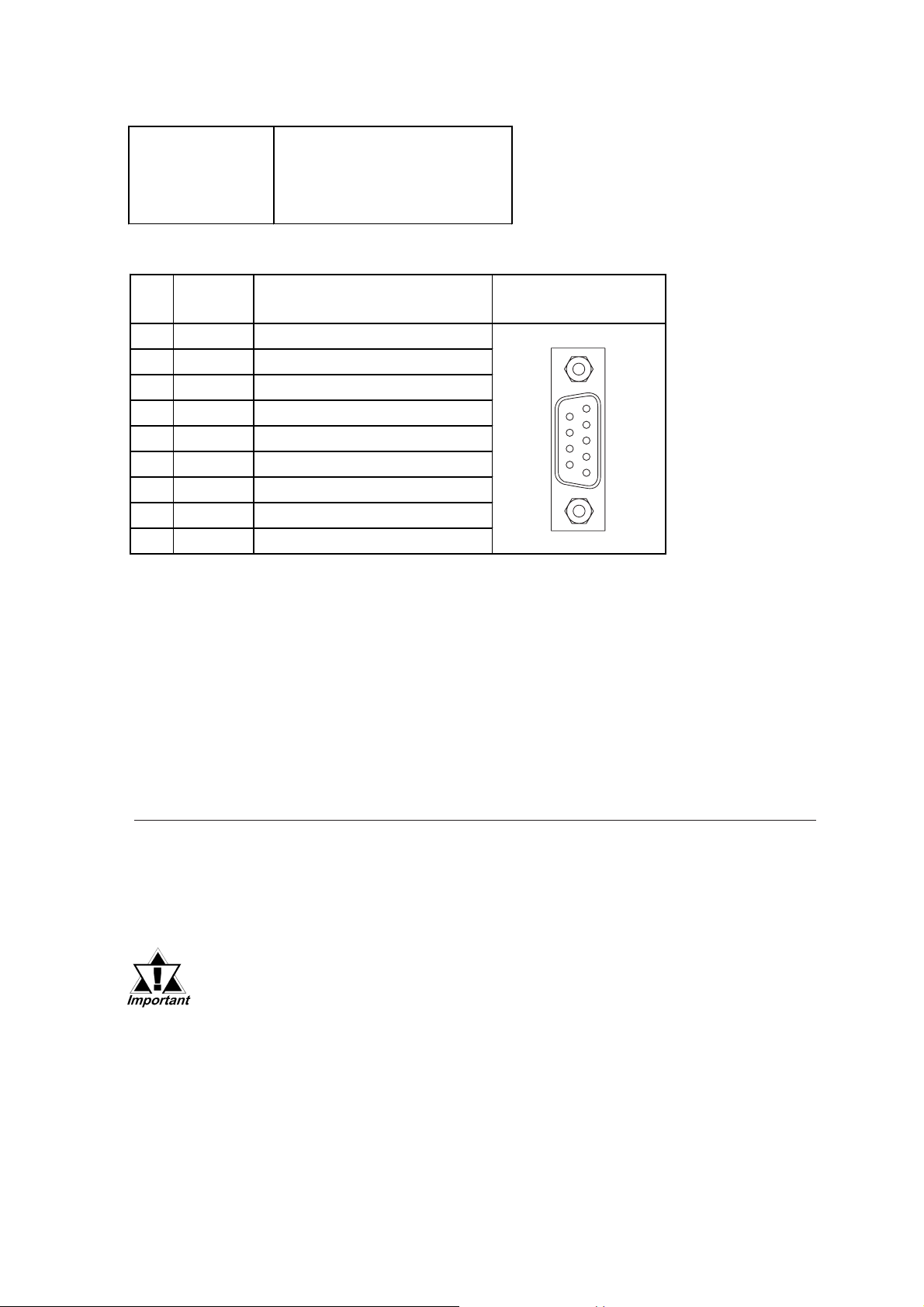

RS-232C Interface



Baud rate: 9600 b ps

RS-232C Interface



RS-232C (Serial) Interface Pin Assignments and Signal Names



Data length : 8 bits
Parity: none
Stop bit: 1

Pin
No.

Signal

Name

1 CD Carri er Dete ct *1
2 RD Re ce ive Data (FP Host)
3 SD Send Data (FP Host)
4 DTR Data Term inal Ready *1
5GND Ground
6 DS R Data Se t Ready *1
7 RS Request to Send (FP Host)
8 CS Clear to Send (FP Host)
9 NC (Use d internally)

*1 The FP unit's CD, DTR, and DSR lines are connected internally.

Connector : Dsub 9 pin female
Connector set screw : Inch type (4-40)
RS-232C Cable : FP61V-IS00-O

Condit i on Pin Location

→

←

6

9

←

→

(Manufactured by Digital Electronics Corporation of Japan)

Signal Names

1

5

Signal names used for FP unit RS-232C interfaces are designed to match the pin order used
on most PC serial connectors, which allows a straight cable to be used to connect the two.
Therefore, connect each FP connector pin's signal to the same signal signal on the PC side.

For example, the FP unit connector's pin #2 'RD' should be connected to the PC
connector's 'RD' terminal. Refer to the FP-2500/FP-2600 Series User Manual's "Cable

Diagrams" section for detailed signal direction information.

If a cable other than the specified RS-232C cable is used, FP unit operation
cannot be guaranteed due to the possibility of noise interference.



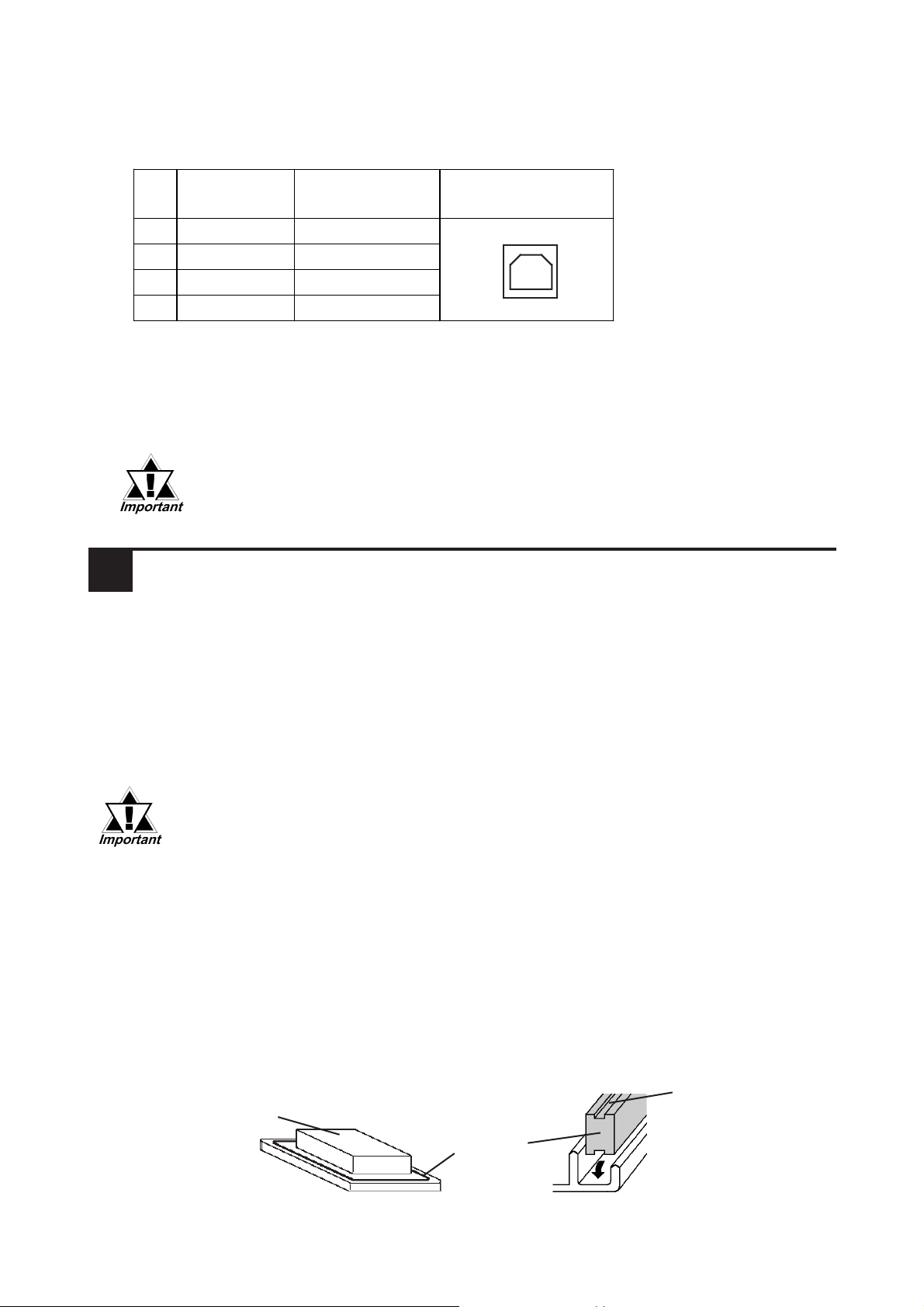

USB Interface





Pin Assignments and Signal Names for USB Interface



Pin

No.

1 USB1-5V +5V IN
2USBD1
3USBD1
4GND Ground

Communication : Low speed Device
Connector : B type connector
USB Cable : FP-US00

Signal

Name

(-)
(+)

If a cable other than the specified USB cable is used, FP unit operation
cannot be guaranteed due to the possibility of noise interference.

Condit i on Pin Location

USB data
USB data

5 Installation

21

(-)
(+)

3

4

(Manufactured by Digital Electronics Corporation of Japan)



Confirm the Installation Gasket's Positioning



It is strongly recommended that you use the gasket, since it absorbs vibration in addition to
repelling water.
Place the FP on a level surface with the display panel facing downward. Check that the FP
unit’s installation gasket is seated securely into the gasket’s groove, which runs around the
perimeter of the panel’s frame.

• Before installing the FP into a cabinet or panel, check that the installation
gasket is securely attached to the unit.

• A gasket which has been used for a long period of time may have scratches
or dirt on it, and could have lost much of its dust and drip resistance. Be sure
to change the gasket periodically or when scratches or dirt become visible.

• Be sure to use gasket model GP570-WP10-MS.

• Be sure the gasket's seam is not inserted into any of the unit's corners, only
in the straight sections of the groove. Inserting it into a corner may lead to its
eventually tearing.

• To ensure the installation gasket's maximum level of moisture resistance, be
sure the gasket's seam is inserted as shown into the panel's bottom face.

Rear face

The grooved sides
are vertical.

Gasket



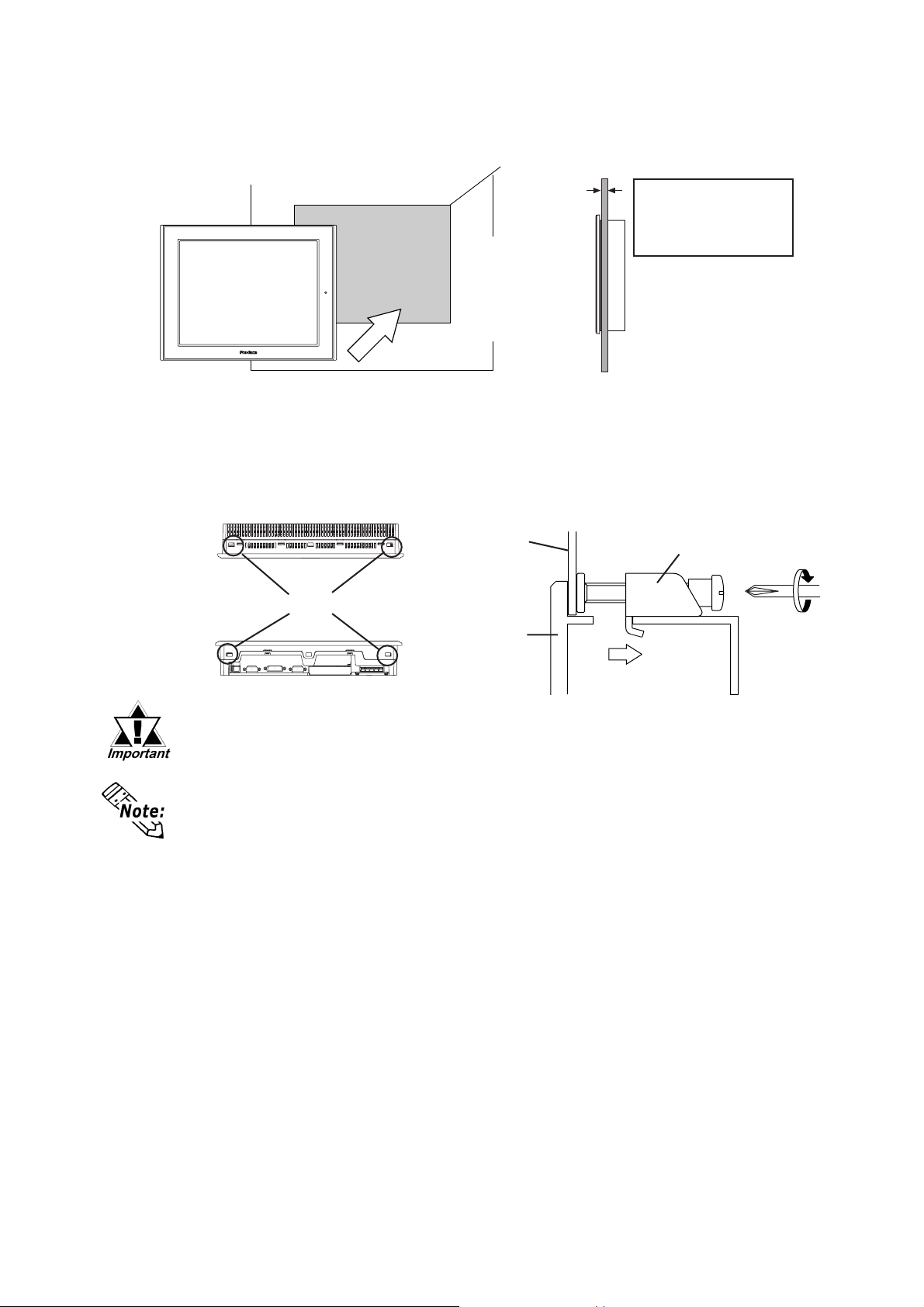

Create a Panel Cut and insert the FP into the panel from the front



Unit: mm [in]

Panel

301.5 [1 1.87 ]

+1
0

+0.04
0

under 4-R3

Panel

Panel thickness

1.6mm[0.06in] to

+1

0

+0.04

0

FP

227.5

[8.96 ]



Attach the Installation Fasteners from Inside the Panel



10.0mm[0.39in]

FP

The following figures show the four (4) fastener insertion slot locations. Insert each fastener's
hook into the slot. Tighten the screws in a diagonal pattern, and slowly increase the torque.

Installation

fastener

Top

Panel

Insertion Slots

FP

Bottom

• Tightening the screws with too much force can damage the FP unit's case.

• The necessary torque is 0.5N•m.

• Depending on the installation panel's thickness, etc., the number of installation
fasteners used may need to be increased provide the desired level of moisture
resistance.

• Installation fastener model number : GP070-AT01.

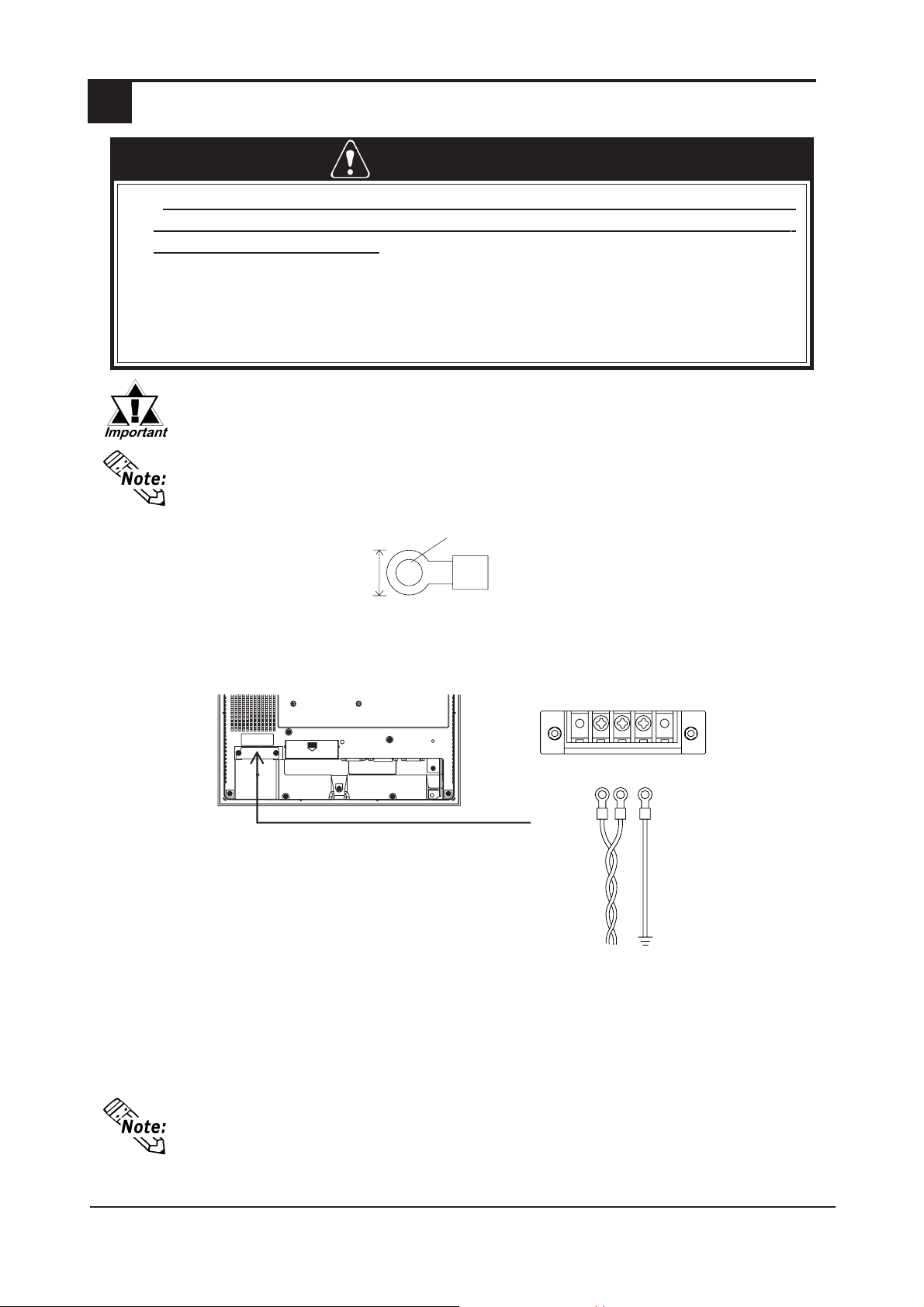

6 Wiring

WARNINGS

• To avoid an electric shock, when connecting the FP unit's power cord terminals to

the power terminal block, confirm that the power supply is completely turned OFF ,
via a breaker, or similar unit.

• FP2500-T42-24V/FP2600-T42-24V units are designed to use only DC24V input.
Any other power level can damage both the FP and the power supply .

• Since there is no power switch on the FP unit, be sure to attach a breaker-type
switch to its power cord.

• When the FG terminal is connected, be sure the wire is grounded. Not
grounding the FP unit will result in excess noise and vibration.

• Wherever possible, use thick wires (max.2mm2) for power terminals, and twist the
wire ends before attaching the ring terminals.

• Be sure to use the following size ring terminals.

Over φ3.2mm(0.13in)

*1

Under 6.0mm(0.24in)

• To avoid a short caused by loose ring terminals, be sure to use ring terminals with an
insulating sleeve.

Rear of FP



 Connecting the AC Power Cord



Power Input Terminal Block

+ - FG

+ - FG

Ring Terminals

When connecting the power cord, be sure to follow the procedures given below .

1. Confirm that the FP unit's Power Cord is unplugged from the power supply.

*1

2. Use a screwdriver to remove the Power Input T erminal Block's clear plastic cover.

3. Unscrew the screws from the middle three (3) terminals, align the Ring Terminals
and reattach the screws.

• Confirm that the ring terminal wires are connected correctly.

• The torque required to tighten these screws is 0.5 to 0.6 N•m.

4. Replace the Power Input Terminal Block's clear plastic cover.

*1 Suggested Ring Terminal : equivalent to V2-MS3 (made by JST)

7 Power Supply Cautions



Power Supply Cautions



Please pay special attention to the following instructions when connecting the power
cord terminals to the FP unit.

• If the power supply voltage exceeds the FP unit's specified range, connect a

voltage transformer.

• Between the line and the ground, be sure to use a low noise power supply. If

there is still an excessive amount of noise, connect a noise reducing transformer.

• Input and Output signal lines must be separated from the power control cables

for operational circuits.

• The FP unit's power supply cord should not be bundled with or kept close to

main circuit lines (high voltage, high current), or input/output signal lines.

• Connect a surge absorber to handle power surges.

• To reduce noise, make the power cord as short as possible.



Grounding Cautions



• When attaching a wire to the FP unit's rear face FG terminal, (on the AC

Connector), be sure to create an exclusive ground.



Input / Output Signal Line Cautions



• All FP Input and Output signal lines must be separated from all operating circuit

(power) cables. If this is not possible, use a shielded cable and ground the shield.

*1 Use a grounding resistance of 100Ω, a wire of 2mm2 or thicker, or your country's

applicable standard.

*1

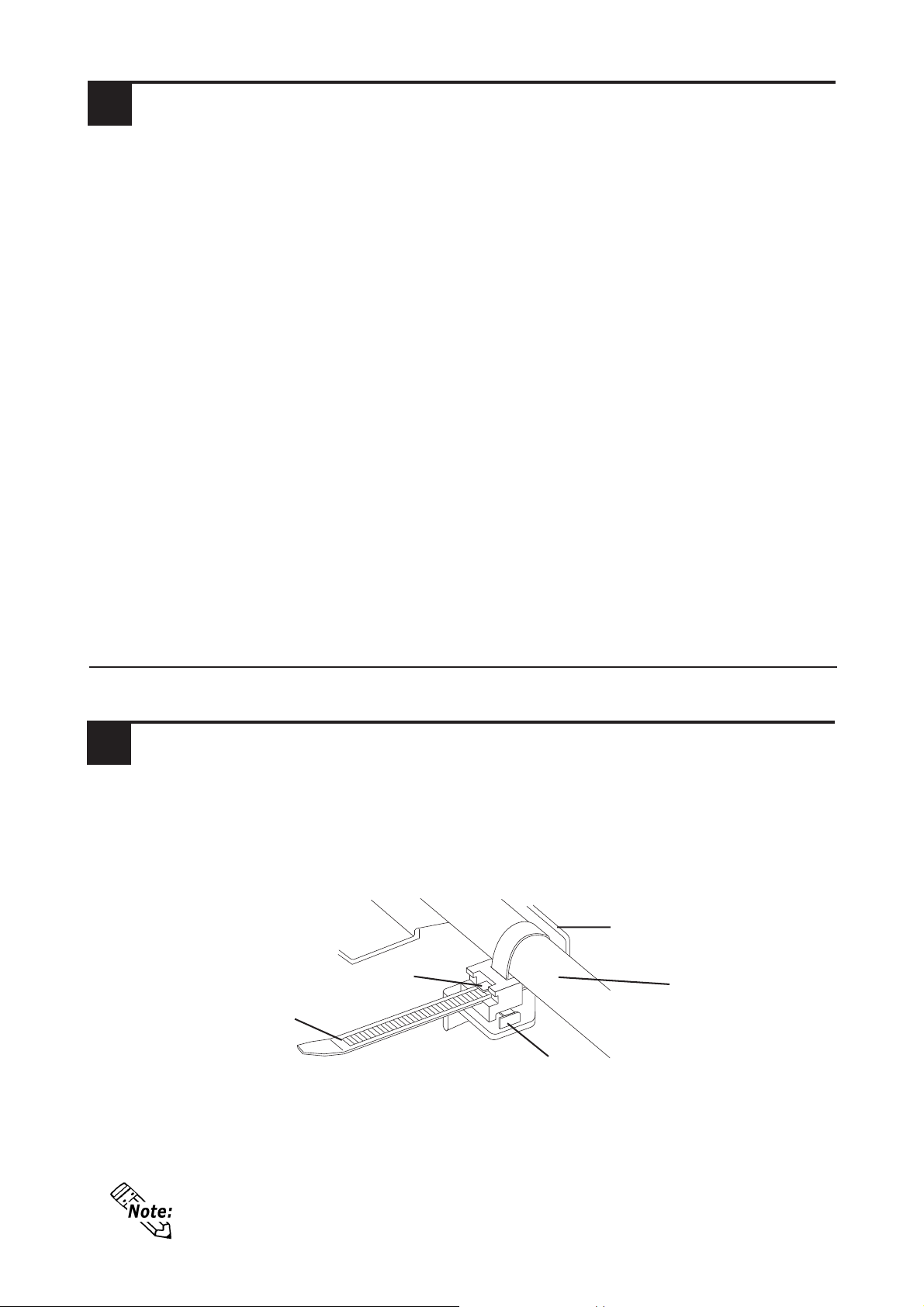

8 Using the USB Cable Strap



USB Cable Strap Attachment Procedure



1) Insert the USB cable into the USB connector .

2) Tighten the strap until the cable is secured in place and insert the cable strap into the
cable strap holder as shown in the following figure.

USB Cable Strap Holder

Stopper

USB Cable Strap

<A>



USB Cable Strap Removal



1) Push in the cable strap's stopper with a standard flat-blade screwdriver until the cable
strap band unlocks, and remove the strap.

2) Disconnect the USB cable.

• If the stopper will not move, press on <A> (shown in figure) to free the
strap from the strap holder.

USB Cable

9 Screen Display Adjustment



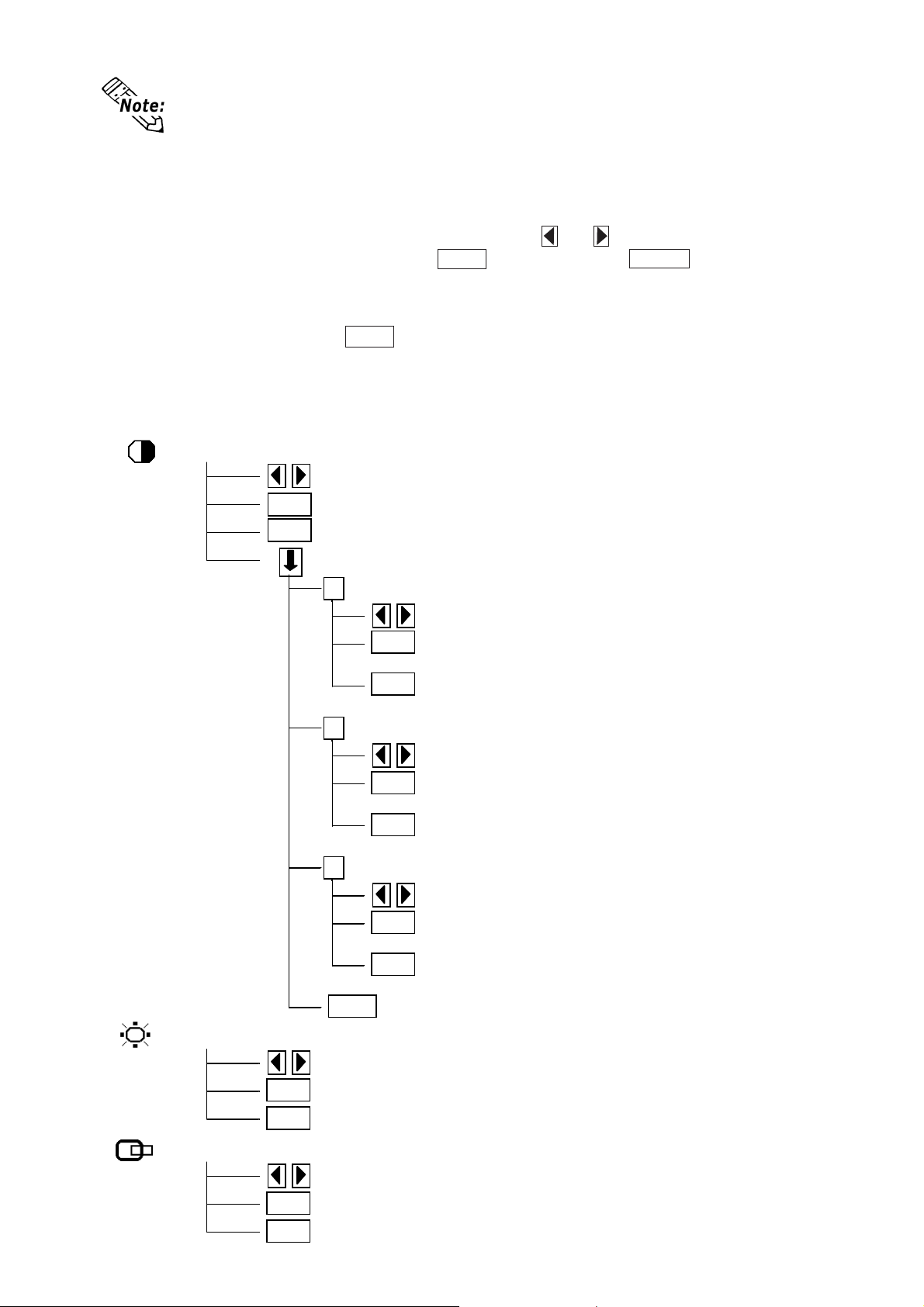

OSD Features



Use the FP unit's touch panel and the OSD (On Screen Display) menu to set the FP
screen settings, and fine-tune your screen's display. You can enter these settings even
while the FP si operating.

The following table explains each OSD setting item and its function.

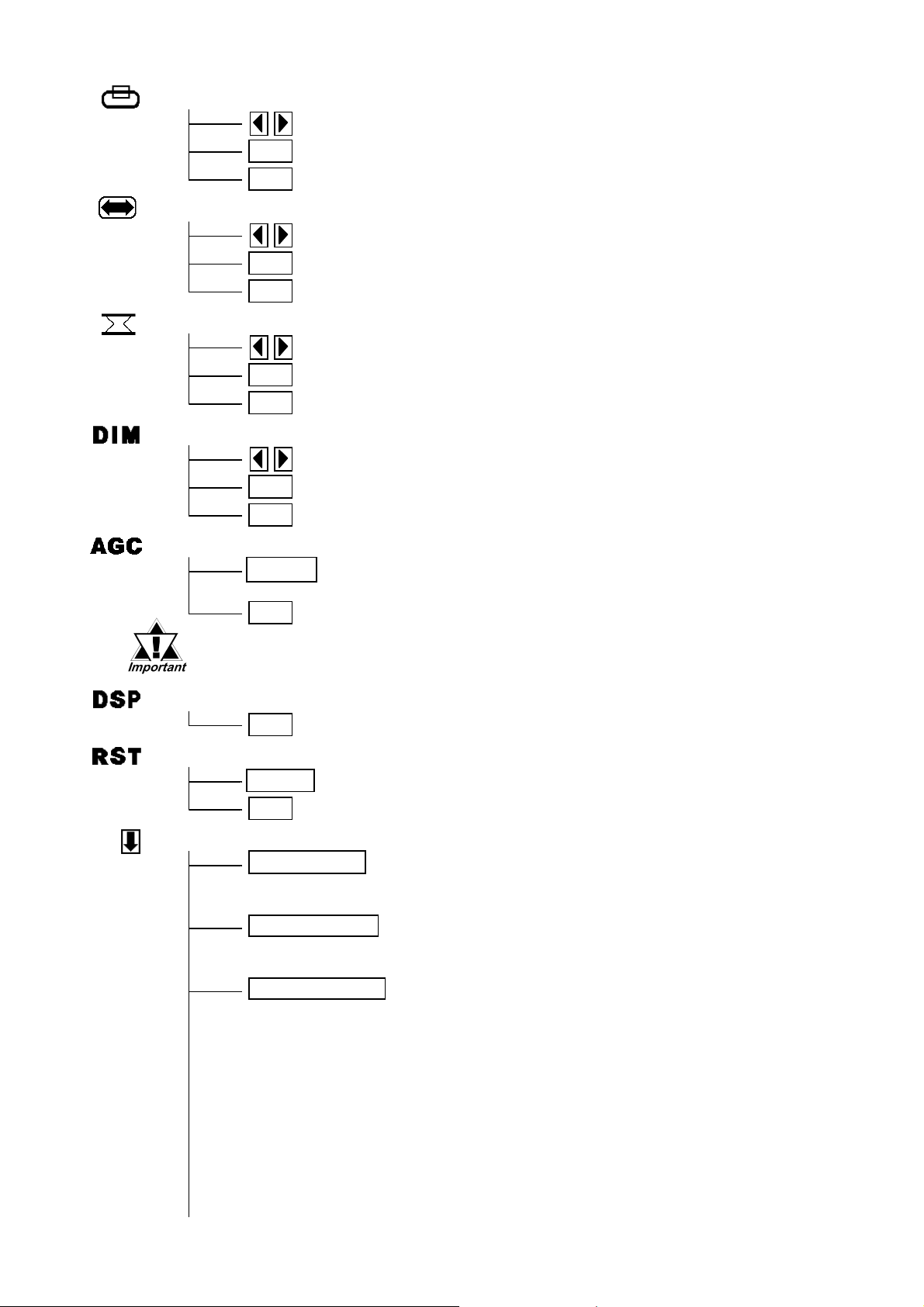

Main Menu

" " : OSD version.

Item

CONTRAST

BLACK LEVEL
H-POS A djus ts the horizontal posit ion of the screen.

V - P OS A djus ts the vertical position of the screen.
H-SIZE

PHASE

BACKLIGHT Adjust s the backlight br ight nes s . ( 9 levels)

AUTO GAIN CONTROL

DIS P LAY MODE Displays the res olut ion of the input image data.
OSD CLEAR (RESET) Resets the current OSD value to the default value.

OSD SAV E Save the current value and quit t he OSD .

Adjusts the contrast. (A nalog RGB only)
Adjusts the color brightness. (Analog RGB only )

A djus ts the screen size in the horizontal direction. ( Analog RGB only)
A djus ts the input s ignal and t he dot clock position. ( 32 levels)

(A nalog RGB only)

A utomatically adjust s t he contr ast and the brightness.
(A nalog RGB only)

Function

*1

*1

*1

*1

*1

SYSTEM Chang es s ettings such as activating the click sound.

ESCAPE

Cancels the set ting and returns to the upper level. In t he main menu,
this command closes the OSD.

*1 When using DVI-D, the message "DO NOT NEED SETUP FOR DVI-D" is displayed and

no settings are required.



Starting the OSD



To start the OSD and enter OSD mode, touch the touch panel's corners in the following
order : (1) upper left (2) upper right (3) lower right, all within 5 seconds. In OSD mode, the
setting screen will appear in the center of the screen. Until OSD setup is completed the
touch panel cannot be used to export data to external devices.

• The OSD is not displayed when SW1-2 is set to ON.



 Using the OSD



Icons on the screen are used to operate the OSD. When you start up the OSD, the main
menu appears. Touching the icon of the item you want to adjust displays its submenu or
setting change screen. In the setting change screen, and icons are used to change the
setting. To apply the setting, press the SET button. Press the SAVE button to save the
defined settings.



Quitting the OSD



To quit the OSD, press the ESC button in the main menu or level the OSD as it is for at
least 30 seconds. If the OSD is automatically closed after 30 seconds of inactivity, the
values set before the OSD was closed will be applied.



OSD Menu and Operation Tree



CONTRAST

Adjustm ent butt ons

SET
ESC

Applies the setting and then returns to the main menu.
Cancels the s etting and then returns to the main menu.
Sets the contrast setting and then moves to the sub contrast menu.

R R contrast

SET

ESC

G G contrast

SET

ESC

B B contrast

SET

ESC

ESC

Adjustm ent butt ons
Applies the setting and then returns to the sub contrast

adjus t m ent screen.
Cancels the setting and then returns to the sub contrast

adjus t m ent screen.

Adjustm ent butt ons
Applies the setting and then returns to the sub contrast

adjus t m ent screen.
Cancels the setting and then returns to the sub contrast

adjus t m ent screen.

Adjustm ent butt ons
Applies the setting and then returns to the sub contrast

adjus t m ent screen.
Cancels the setting and then returns to the sub contrast

adjus t m ent screen.
Returns to the contrast menu.

BLACKLEVEL

H-POS

SET
ESC

SET
ESC

Adjustm ent butt ons
Applies the setting and then returns to the main menu.
Cancels the s etting and then returns to the main menu.

Adjustm ent butt ons
Applies the setting and then returns to the main menu.
Cancels the s etting and then returns to the main menu.

V-POS

Adjustm ent buttons

SET
ESC

Appli es the setting and t hen ret urns to the m ai n m enu.
Cancels the setting and t hen ret urns to the m ai n m enu.

H-SIZE

Adjustm ent buttons

SET
ESC

Appli es the setting and t hen ret urns to the m ai n m enu.
Cancels the setting and t hen ret urns to the m ai n m enu.

PHASE

Adjustm ent buttons

SET
ESC

Appli es the setting and t hen ret urns to the m ai n m enu.
Cancels the setting and t hen ret urns to the m ai n m enu.

BACKLIGHT

Adjustm ent buttons

SET
ESC

Appli es the setting and t hen ret urns to the m ai n m enu.
Cancels the setting and t hen ret urns to the m ai n m enu.

AUTO G AIN CONTROL

START

ESC

St art s t he aut o gai n control and then autom at i cally returns to the main
menu.

Returns to the main menu.

• Be sure to perform the auto gain control when the screen has both 100%
black and 100% white areas displayed.

DISPLAY MODE

ESC

OSD CLEA R

START
ESC

SYSTEM

CLICK TONE

720×400 DSP

AUTO OFF DSP

Returns to the main menu.

Clears t he s etti ng.
Cancels the setting and t hen ret urns to the m ai n m enu.

Enables/disables the click s ound. With this parameter, the
sound l evel can als o be adj usted.
(Default value : OFF <Click sound disabled>)

W hen an input data resolut i on of 720 X 400 is us ed in the VGA
text mode, set this parameter to ON. For other resolutions, set
this parameter to OFF. (Default : OFF)

Enables/di sables the screen dis pl ay Aut o O FF func t i on and
sets the time when the Auto OFF function is enabled.
(Default : OFF <Auto OFF function disabled>)
The Auto OFF function aut om at i cally t urns off the display to
prevent t he sc reen from burning out when the touch panel i s
not used for some period of time. W ith this parameter, you can
set the time interval to turn off the screen display (how much
ti me pass es before the screen dis pl ay is turned off) when the
touc h panel i s not used. If the t ouch panel is not t ouched over
the set time, the backlight will automatically turns off.

Select t he time period from 1m i n, 3m i n, 5min, 10min, and OFF
(Aut o OF F func tion disabled).

BL ALARM

SET

Applies the setting and returns to the main menu.

Enables/disables the Backlight burnout detect function.
(Default : ON)
W hen a burned-out bac klight i s detected, the stat us LED
flas hes alternat el y green and red, or a s t ea dy orange.
Touch-operation will be disabled when the bac kli ght burns out ,
which prevents t he FP from sending i nput signals to t he PLC.

• Normally, the FP unit detects a backlight burnout by
monitoring the backlight's current flow, however, the
FP may fail to detect this condition, depending on the
type of backlight problem.

ESC

Cancels the setting and returns to the main menu.

• In the system setting screen, touching the value displayed on the panel changes
the value of the time period.

SAVE Saves all the adjusted settings in the EEPROM.

• In the OSD, pressing the SET button applies the set value and enables the

setting. The set value won't be canceled unless the power is turned OFF or
the value is reset.
If the power is turned OFF without saving the set value, that data will
disappear. The last saved data will be read into the system when the FP
starts. To enable the changed value, be sure to press the SAVE button.

• When the OSD automatically closes after 30 seconds of inactivity, the set

value that you were modifying at the time will be retained. If you quit the
OSD with the ESC button, the value that you were modifying will be not be
retained and the previously set value will be used.

10 Replacing the Backlight

The FP unit's backlight is user replacable.
For an explanation of how to replace the FP unit's backlight, please refer to the FP-

2500/FP-2600 Series User Manual or the backlight's Installation Guide.

Corresponding Replacement Backlight Model Numbers

FP Model No. Backl i ght Model No.

FP2500-T 42-24V GP577RT-BL00-MS
FP2600-T 42-24V PS600-BU00

Use of a different model backlight may cause a FP malfunction or breakdown.

Notice

Please be aware that Digital Electronics Corporation shall not be held liable by the user for any
damages, losses, or third party claims arising from the uses of this product.

Digital Electronics Corporation
8-2-52 Nanko Higashi, Suminoe-ku, Osaka 559-0031, Japan

URL: http://www.pro-face.com/

060124A .FP2000-MT01-BTH-ENG 2004.2 JM/A © 2004 Digital Electronics Corp.
