Preface

Thank you for purchasing Pro-face’s ST3000 Series Programmable Operator Interface (Hereafter referred to as the “ST unit”). Before operating your ST unit, be sure to read this manual to familiarize yourself with the ST unit’s operation procedures and features.

NOTICE

1. Copying this manual’s contents, either in whole or in part, is prohibited wi thout the express permission of Digital Electronics Corporation, Japan.

2. The information contained in this manual is subject to change without notice.

3. If you find any errors or omissions in this document, please contact Digital Electronics Corporation to report your findings.

4. Please be aware that Digital Electronics Corporation shall not be held liable by the user for any damages, losses, or third party claims arising from the uses of this product.

Product names used in this manual are the trademarks / registere d trademarks of their respective owners.

Page 3

Essential Safety Precautions

All safety-related procedures stated in this document must be followed to operate the ST correctly and safely. Be sure to read this and any related documents thoroughly to understand the correct operation and functions of the ST unit.

Safety Icons

Throughout this manual, these icons provide essential safety information for ST operation procedures requiring special attention. These icons indicate the following levels of danger:

Indicates situations where severe bodily injury, death or major equipment damage can occur.

Indicates situations where slight bodily injury or minor equipment damage can occur.

Indicates actions or procedures that should NOT be performed.

Indicates actions or procedures that MUST be performed to ensure correct unit operation.

System Design

Do not create ST touch panel switches that could possibly endanger the safety of personnel or equipment. A malfunction of the ST unit, its I/O unit(s), cable(s), or other related equipment can cause unexpected output signals, leading to a serious accident. Be sure to design all important machine operation switches so they are operated via a separate control system, and not via the ST.

Do not create ST touch panel switches to control machine safety operations, such as an emergency stop switch. Install these switches as separate hardware switches, otherwise severe bodily injury or equipment damage can occur.

Be sure to design your system so that a communication fault between the ST and its host controller will not cause equipment to malfunction. This is to prevent any possibility of bodily injury or equipment damage.

Do not use the ST as a warning device for critical alarms that can cause serious operator injury, machine damage or can halt system operation. Critical alarm indicators and their control/activator units must be designed using stand-alone hardware and/or mechanical interlocks.

Do not use the ST with aircraft control devices, aerospace equipment, central trunk data transmission (communication) devices, nuclear power control devices, or medical life support equipment, due to these devices’ inherent requirements of extremely high levels of safety and reliability.

Page 4

When using the ST with transportation vehicles (trains, cars, and ships), disaster and crime prevention devices, various types of safety equipment, and medical devices that are not life-support related, use redundant and/or failsafe system designs to ensure proper reliability and safety.

After the ST unit’s backlight burns out the touch panel is still active, unlike the ST unit’s “Standby Mode”. If the operator fails to notice that the backlight is burned out and touches the panel, a potentially dangerous machine operation error can occur. Therefore, do not create ST unit touch panel switches that may cause injury and/or equipment damage. If your ST unit’s backlight suddenly turns OFF , use the following steps to determine if the backlight is actually burned out.

1) If the ST unit’s “Backlight Control” is not set and the screen has gone blank, your backlight is burned out.

2) If the ST unit’s “Backlight Control” is set to S tandby Mode and the screen has gone blank, and touching the screen or performing another input operation does not cause the display to reappear, your backlight is burned out.

Handling

Do not modify the ST unit. Doing so may cause a fire or an electric shock.

Do not operate the ST in an environment where flammable gases are present, since it may cause an explosion.

Wiring

To prevent an electric shock be sure to disconnect your ST unit’s power cord from the power supply before wiring the ST.

Do not use voltage beyond the ST unit’s specified range. Doing so may cause a fire or an electric shock.

Maintenance

Do not connect or disconnect Host and ST unit communication cables while the ST is turned ON.

Do not replace the ST unit’s battery yourself. The ST uses a lithium battery for backing up its internal clock data and the battery may explode if it is replaced incorrectly. When replacement is required, please contact your local ST distributor.

Page 5

Installation

Be sure all cable connectors are securely attached to the ST unit. A loose connection may cause incorrect input or output signals.

Wiring

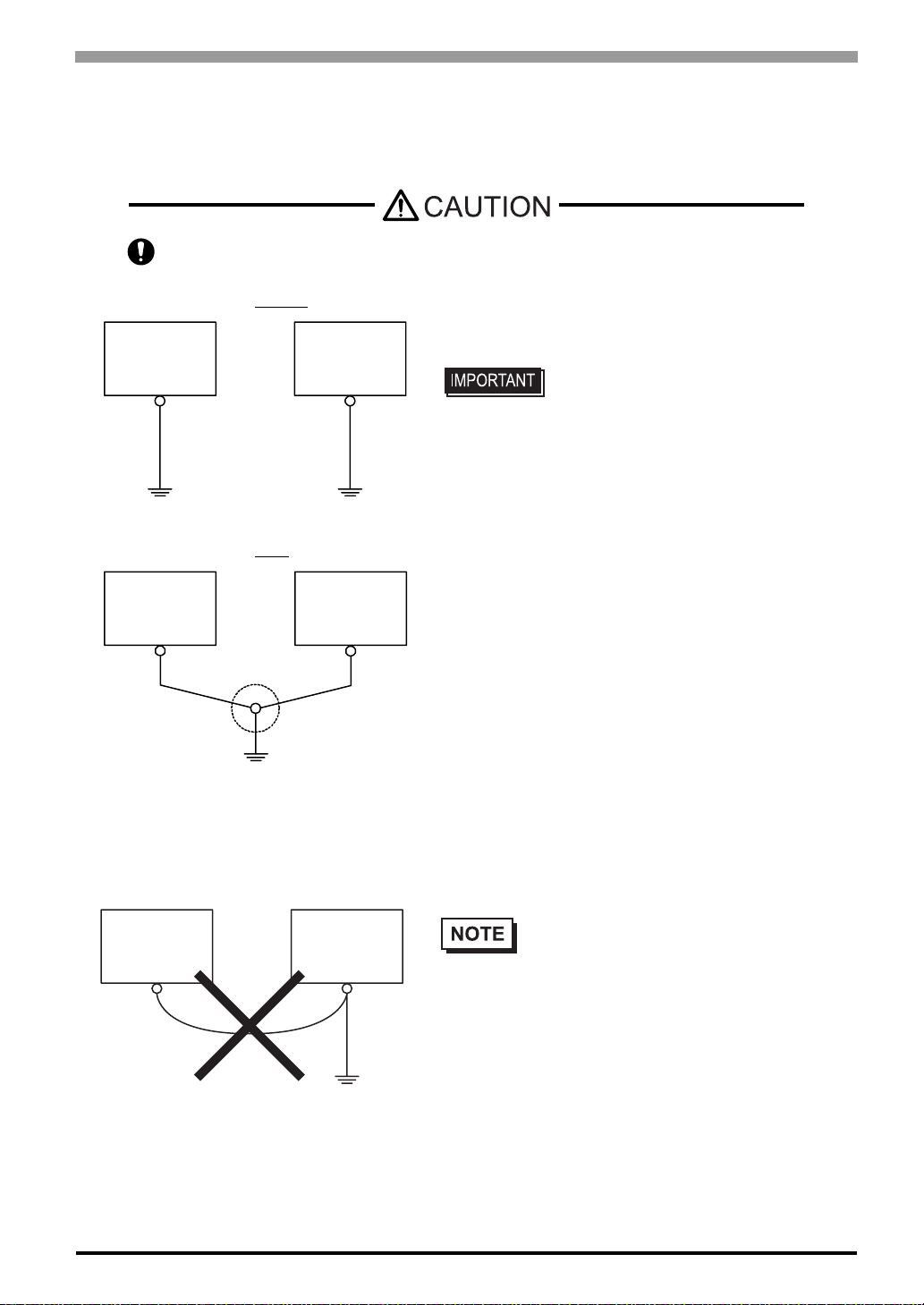

Be sure to ground the ST unit’s FG wire separately from other equipment FG lines. Also, be sure to use a

grounding resistance of 100 or less and a 2mm Otherwise, electric shock or malfunctions may result.

Be sure to use only the designated torque to tighten the ST unit’s terminal block screws. If these screws are not tightened firmly, it may cause a short-circuit, fire or incorrect unit operation.

Be sure that metal particles and wiring debris do not fall inside the ST unit. They can cause a fire, malfunction or incorrect unit operation.

or thicker wire, or your country’s applicable standard.

Maintenance

Be sure to turn the ST unit’s CF Card ACCESS switch OFF and confirm that the ACCESS lamp is not lit prior to inserting or removing a CF Card. Otherwise, CF Card internal data may be damaged or lost.

Do not reset or turn the ST OFF, or insert or remove the CF Card while the ST unit’s CF Card is being accessed. Create special application screens to perform operations like turning power OFF, resetting the ST or inserting or removing the CF Card.

Unit Disposal

When the product is disposed of, it should be disposed of in a manner appropriate to, and in accordance with, the user country's industrial machinery disposal/recycling standards.

General Safety Precautions

Do not press on the ST unit’s display with excessive force or with a hard object, since it can damage the display. Also, do not press on the touch panel with a pointed object, such as the tip of a mechanical pencil or a screwdriver, since doing so can damage the touch panel.

Do not install the ST where the ambient temperature exceeds the specified range. Doing so may cause a unit malfunction.

T o prevent abnormally high temperatures from occurring inside the ST, do not restrict or block the ST unit’s rear-face ventilation slots.

Do not operate the ST in areas where large, sudden temperature changes can occur. These changes can cause condensation to form inside the ST, possibly causing it to malfunction.

Page 6

Do not allow water, liquids or metal fragments to enter inside the ST unit’s case, since they can cause either a malfunction or an electric shock. The allowable pollution degree is 2.

Do not operate or store the ST in locations where it can be exposed to direct sunlight, high temperatures, excessive dust, moisture or vibration.

Do not operate or store the ST where chemicals evaporate, or where chemicals are present in the air. Corrosive chemicals: Acids, alkalines, liquids containing salt Flammable chemicals: Organic Solvents

Do not use paint thinner or organic solvents to remove dirt or oil from the ST unit’s surface. Instead, use a soft cloth moistened with a diluted neutral detergent.

Do not use or store the ST in areas with direct sunlight, since the sun’s ultraviolet rays may cause the LCD’s quality to deteriorate.

Do not store the ST in an area where the temperature is lower than that recommended in the ST unit’s specifications. Doing so may cause the LCD display’s liquid to congeal, which can damage the LCD.

Also, if the storage area’s temperature becomes higher than the specified level, the LCD’s liquid may become isotropic, causing irreversible damage to the LCD. Therefore, only store the ST in areas where

temperatures are within the ST unit’s specifications. After turning OFF the ST , be sure to wait for 5 seconds before turning it ON again. The ST may not operate

correctly if it is restarted too quickly. Due to the possibility of unexpected accidents, be sure to back up the ST unit’s data regularly.

Page 7

LCD Panel Usage Precautions

• The LCD panel’s liquid contains an irritant. If the panel is damaged and any of this liquid contacts your skin, imm ediately rinse the area with running water for at least 15 minutes. If the liquid gets in your eyes, immediately rinse your eyes with running water for at least 15 minutes and consult a doctor.

• The ST unit’s LCD screen may flicker or show unevenness in the brightness of certain images or at some contrast settings. This is an LCD characteristic and not a product defect.

• There’s an individual difference in brightness and tone of LCD screen. Please be aware of this difference before using the lined-up plural units.

• Depending on the ambient temperature, LCD screens may sometimes look whitish (at high temperatures) or blackish (at low temperatures). This is an LCD characteristic and not a product defect.

• Some of ST unit's LCD screens may contain light or dark pixels. This is an LCD characteristic and not a product defect.

• Extended shadows, or “Crosstalk” may appear on the sides of screen images. This is an LCD charact eris tic and not a product defect.

• The color displayed on the ST unit’s LCD screen may appear different when seen from outside the specified viewing angle. This is an LCD characteristic and not a product defect.

• When the same image is displayed on the ST unit’s screen for a long period, an afterimage may appear when the image is changed. This is an LCD characteristic and not a product defect.

• To prevent an afterimage: * Set the ST unit’s display OFF feature when you plan to display the same screen image for a long period of time. * Change the screen image periodically and try to not display the same image for a long period of time.

Page 8

Information Symbols

This manual uses the following icons:

Indicates a warning or a product limitation. Be sure to follow the instructions given with this icon to ensure the safe operation of the ST.

Screen Editor Indicates the GP-Pro EX software.

PLC Abbreviation for Programmable Logic Controller.

* Indicates useful or important supplemental information.

Contains additional or useful information.

SEE

Indicates pages containing related information.

About the Manuals

For the detailed information on ST3000 Series, refer to the following manuals.

• Maintenance/Troubleshooting For the Offline Settings, see Maintenance/Troubleshooting (Offline Settings Guide).

• GP-Pro EX Device/PLC Connection Manual

• GP-Pro EX Reference Manual

• ST specifications may change when optional items are used. Check the optional item installation guides’ specifications for variances, if any.

The manuals can be downloaded from Pro-face Home Page, “Otasuke Pro!”.

“Otasuke Pro!” URL http://www.pro-face.com/otasuke/

Page 9

Model name

ST3000 Series Model Name Indication

A ST 3

∗ ∗∗ - ∗ 1 -

AB C D

2 ST-3200 series (3.8-inch): QVGA (320 x 240 dots)

3 ST-3300 series (5.7-inch): QVGA (320 x 240 dots) 4 ST-3400 series (7.5-inch): VGA (640 x 480 dots) 5 ST-3500 series (10.4-inch): VGA (640 x 480 dots) 01 ST3000 series SIO type 11 ST-3200 series MPI type 02 ST-3300 series MPI type A Monochrome Amber/Red LCD B Monochrome blue mode LCD C Col or LC D S STN color LCD T TFT color LCD D24 DC type power supply is used. AF AC type power supply is used.

∗∗∗

Page 10

ST3000 Series Model Names

The term “ST3000” Series refers to the following ST model numbers:

Series Model Product number

ST3000 series

ST-3200 series

AST-3201A AST3201-A1-D24 AST-3211A (MPI) AST3211-A1-D24 AST-3301B AST3301-B1-D24 AST-3301S AST3301-S1-D24

ST-3300 series

AST-3301T AST3301-T1-D24 AST-3302B (MPI) AST3302-B1-D24

ST-3400 series AST-3401T AST3401-T1-D24

AST3501-C1-D24

AST-3501C

AST3501-C1-AF

ST-3500 series

AST3501-T1-D24

AST-3501T

AST3501-T1-AF

Page 11

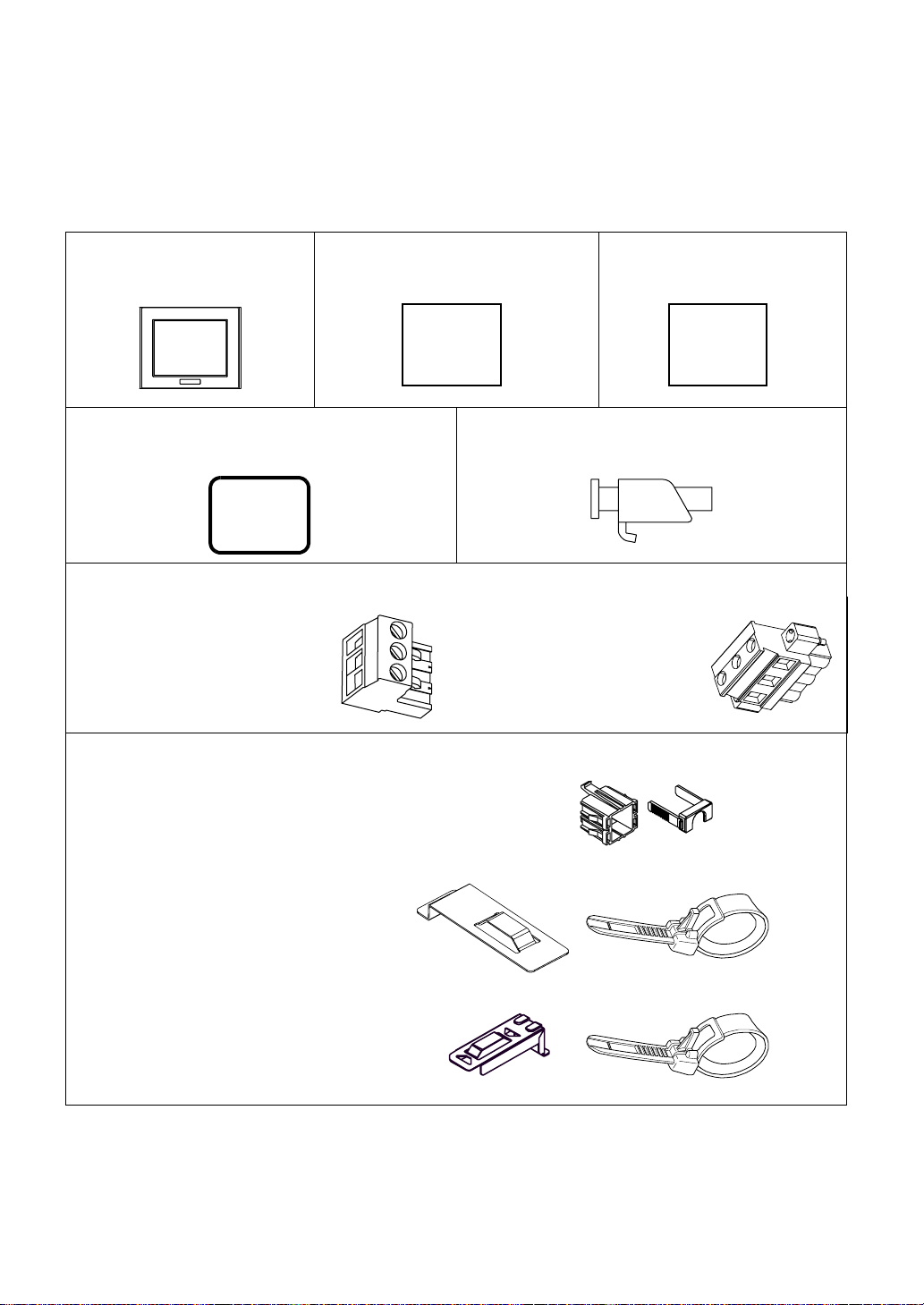

Package Contents

The following items are included in the ST unit’ s package. Before using the ST, please check that all items listed here are present.

ST Unit: 1

Installation Gasket: 1 (Attached to the ST unit)

DC Power Connector: 1

· ST-3200/3300/3400 series (Attached to the ST unit for ST-3200/3300 series)

USB Cable Clamp: 1 set

English and Japanese Installation Guides (One of each)

Installation

Guide

Installation Fasteners: 4 per set

· ST-3500 series (DC type only) (Attached to the ST unit)

Warning/Caution Information: 1

Warning/

Caution

Information

· ST-3200/3400 series Holder: 1, Cover: 1

· ST-3300 series Holder: 1, Clamp: 1

· ST-3500 series Holder: 1, Clamp: 1

This unit has been carefully packed, with special attention to quality. However, should you find anything damaged or missing, please contact your local ST distributor immediately.

Page 12

Installation prerequisites for standards

DC Type

• UL listed products

Industrial Control Equipment refer to UL508

• c-UL listed products

Standard for Process Control Equipment

• DC Type List

Product Model No.

AST3201-A1-D24 3580205-01 99 AST3211-A1-D24 3580205-02 99 AST3301-B1-D24 3580207-02 99 AST3301-S1-D24 3580207-01 99 AST3301-T1-D24 3710010-01 99 AST3302-B1-D24 3710010-02 99 AST3401-T1-D24 3580206-01 99 AST3501-C1-D24 AST3501-T1-D24 99

AC Type

• UL recognized components

Information Technology Equipment - Safety - Part 1 refer to UL60950-1

• c-UL recognized components

Information Technology Equipment - Safety - Part 1

• AC Type List

Product Model

No.

AST3501-C1-AF AST3501-T1-AF 99

refer to CSA-C22.2 No.142

Registration

Model No.

3580208-02

refer to CAN/CSAC22.2 No.60950-1

Registration

Model No.

3580208-01

UL c-UL

[c] [d]

see [a] in the

“DC Type List“

see [b] in the

“DC Type List“

UL c-UL

[a] [b]

UL/c-UL File No.E220851

see [c] in the

“AC Type List“

see [d] in the

“AC Type List“

For the detailed certification's information, refer to the Pro-face Home page.

UL/c-UL File No.E171486

Page 13

Be aware of the following items when building the ST into an end-use product:

• The ST unit’s rear face is not approved as an encl osure. When building the ST unit into an end-use product, be sure to use an enclosure that satisfies standards as the end-use product’s overall enclosure.

• The ST unit must be used indoors only.

• Install and operate the ST with its front pan el facin g outwards.

• If the ST is mounted so as to cool itself naturally, be sure to install it in a vertical panel. Also, it’s recommended that the ST should be mounted at least 100 mm away from any other adjacent structures or machine parts. The temperature must be checked on the final product in which the ST is installed.

• For use on a flat surface of a Type 4X (Indoor Use Only) and/or Type 13 Enclosure.

The safety certificate can be downloaded from Pro-face Home Page. Home Page URL http://www.pro-face.com/

CE Marking

The following units are CE marked products complying with the EMC Directive.

AST3201-A1-D24 AST3211-A1-D24 AST3301-B1-D24 AST3301-S1-D24 AST3301-T1-D24 AST3302-B1-D24 AST3401-T1-D24 AST3501-C1-D24 AST3501-T1-D24

The following units are CE marked products complying with both the EMC Directive and low-voltage directive.

AST3501-C1-AF AST3501-T1-AF

For the detailed information on CE Marked, be downloaded and refer the Declaration of Conformity from Pro-face Home Page. Home Page URL http://www.pro-face.com/

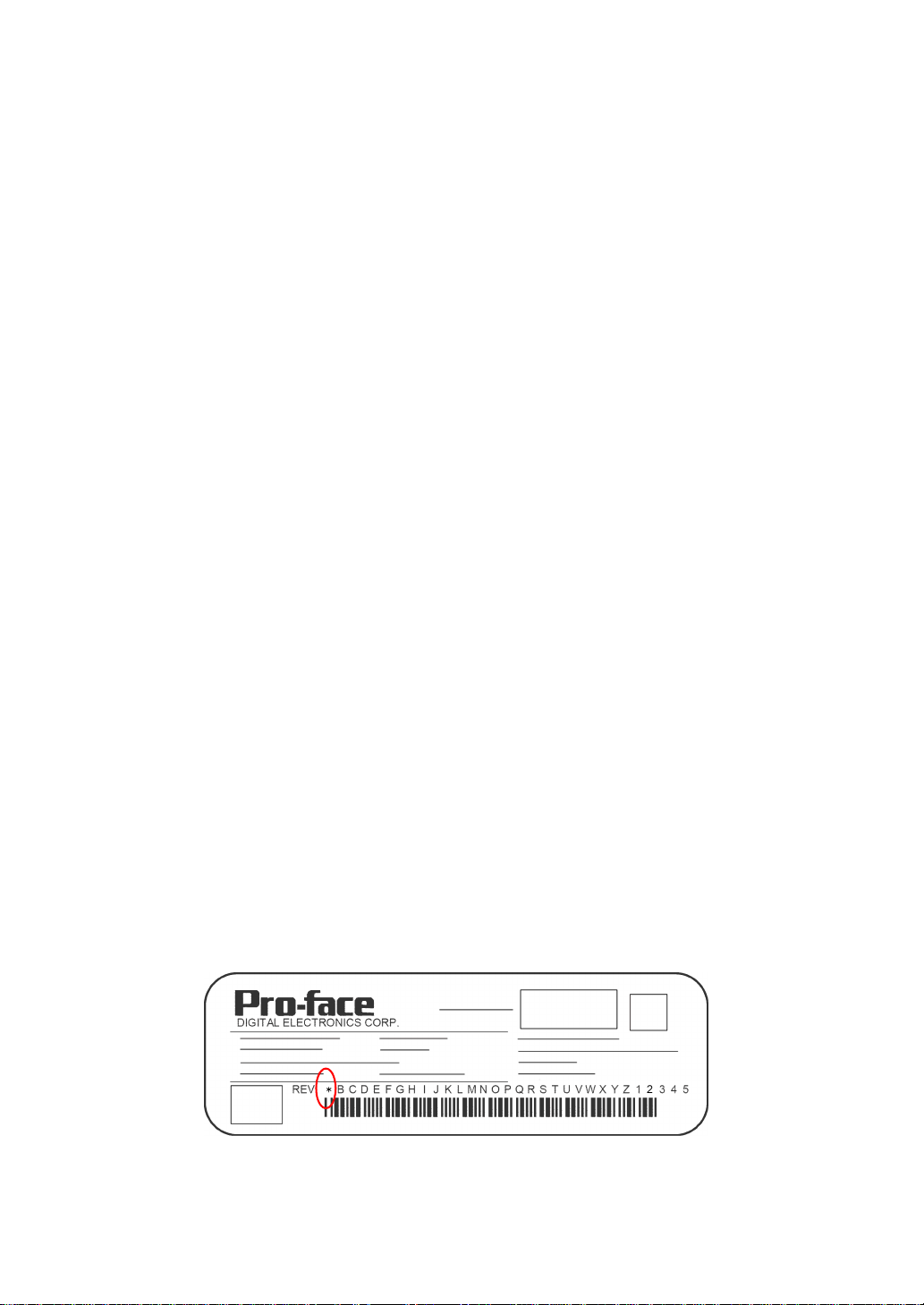

About Revision

The nameplate on the ST has the revision code of the ST. In the example below, the asteris k , which is plac ed at the “A” position, shows that the revision code is “A”.

Page 14

Preface...................................................................................................................... 1

Essential Safety Precautions.....................................................................................2

Information Symbols..................................................................................................7

About the Manuals ....................................................................................................7

ST3000 Series Model Name Indication..................................................................... 8

ST3000 Series Model Names...................................................................................9

Package Contents................................................................................................... 10

Installation prerequisites for standards.....................................................................11

CE Marking.............................................................................................................. 12

About Revision........................................................................................................12

Contents ................................................................................................................. 13

Chapter 1 Overview

1.1 System Design................................................................................................1-2

1.2 Accessories ....................................................................................................1-6

Chapter 2 Part Names and Functions

2.1 ST-3200 Series...............................................................................................2-2

2.2 ST-3300 Series...............................................................................................2-3

2.3 ST-3400 Series...............................................................................................2-4

2.4 ST-3500 Series...............................................................................................2-6

Chapter 3 Specifications

3.1 ST-3200 Series...............................................................................................3-2

3.1.1 General Specifications..........................................................................................3-2

3.1.2 Performance Specifications..................................................................................3-4

3.1.3 Interface Specifications.........................................................................................3-6

3.1.4 Dimensions.........................................................................................................3-11

3.2 ST-3300 Series.............................................................................................3-14

3.2.1 General Specifications........................................................................................3-14

3.2.2 Performance Specifications................................................................................3-16

3.2.3 Interface Specifications.......................................................................................3-19

3.2.4 Dimensions.........................................................................................................3-23

3.3 ST-3400 Series.............................................................................................3-26

3.3.1 General Specifications........................................................................................3-26

3.3.2 Performance Specifications................................................................................3-28

Page 15

3.3.3 Interface Specifications. ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ........3-31

3.3.4 Dimensions................ ... ... .... ... ... ... .... ..................................................................3-33

3.4 ST-3500 Series............................................................................................. 3-36

3.4.1 General Specifications............................................ ... .... ... ... ...............................3-36

3.4.2 Performance Specifications....... ... .... ... ... ... ... .... ... ... ... .........................................3-39

3.4.3 Interface Specifications. ... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ........3-42

3.4.4 Dimensions................ ... ... .... ... ... ... .... ..................................................................3-45

Chapter 4 Installation and Wiring

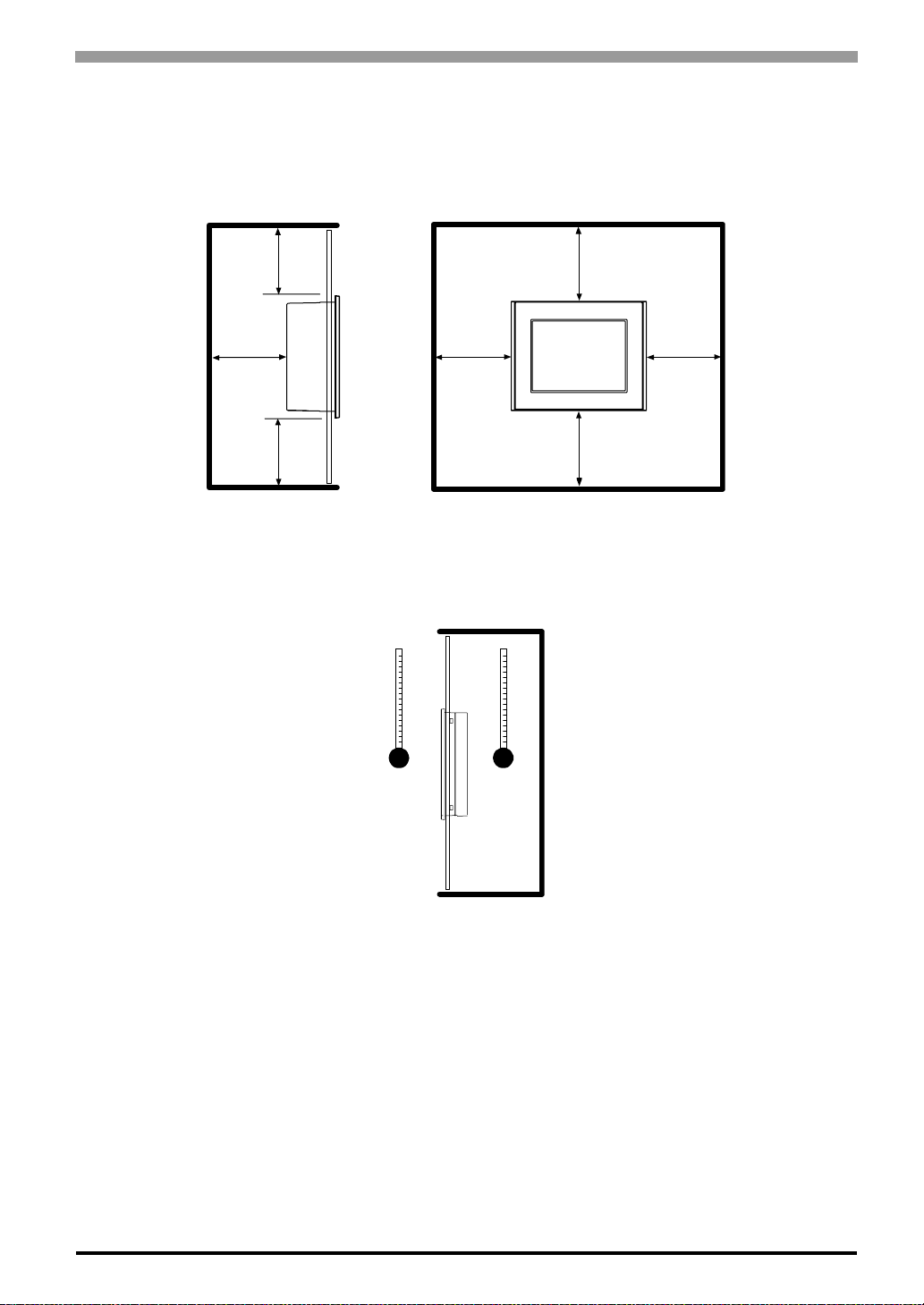

4.1 Installation....................................................................................................... 4-2

4.2 Wiring Precautions.......................................................................................... 4-7

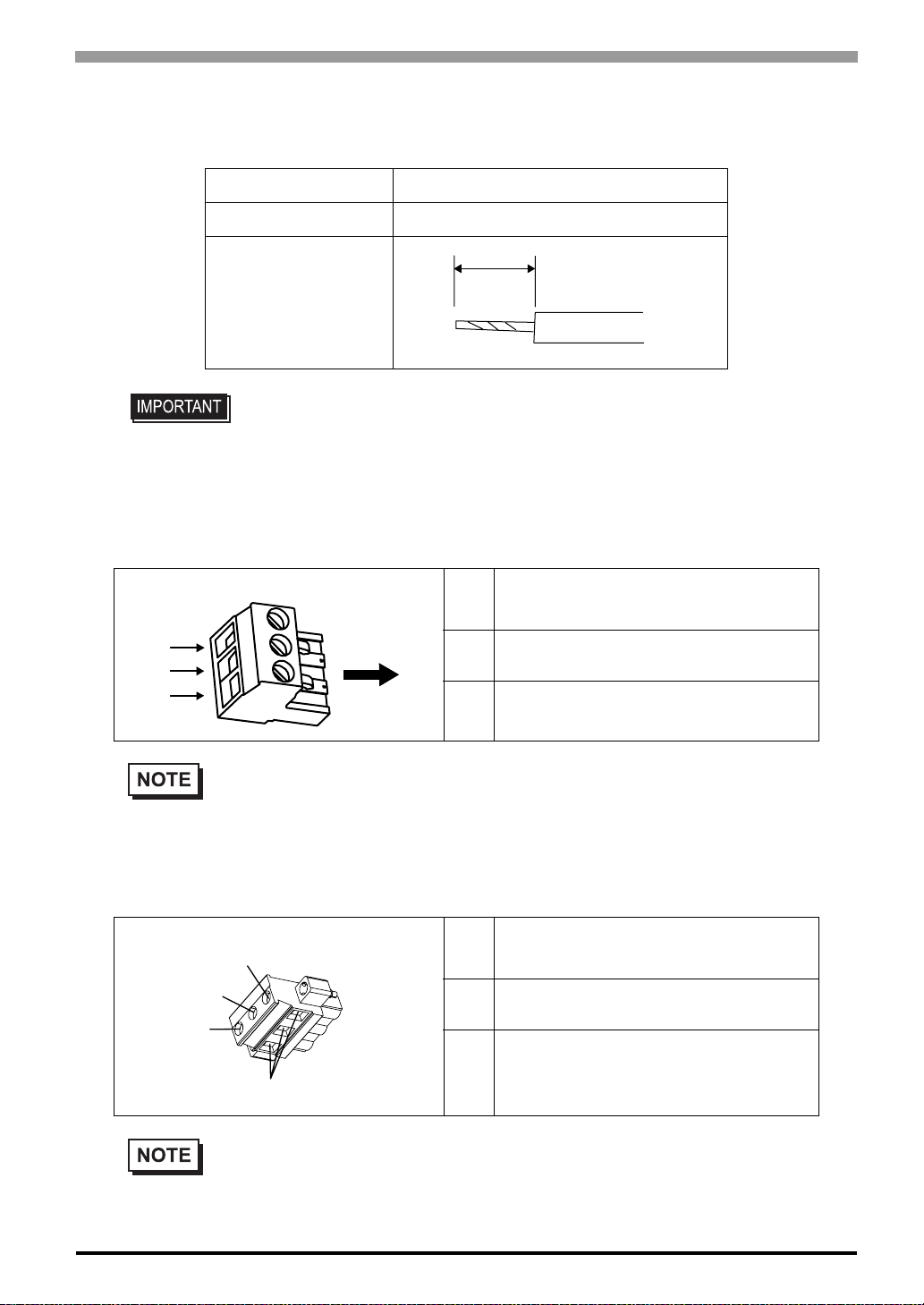

4.2.1 Connecting the Power Cord . ... ... ... .......................................... .... ... ... ... ... .... ... ... ... .4-7

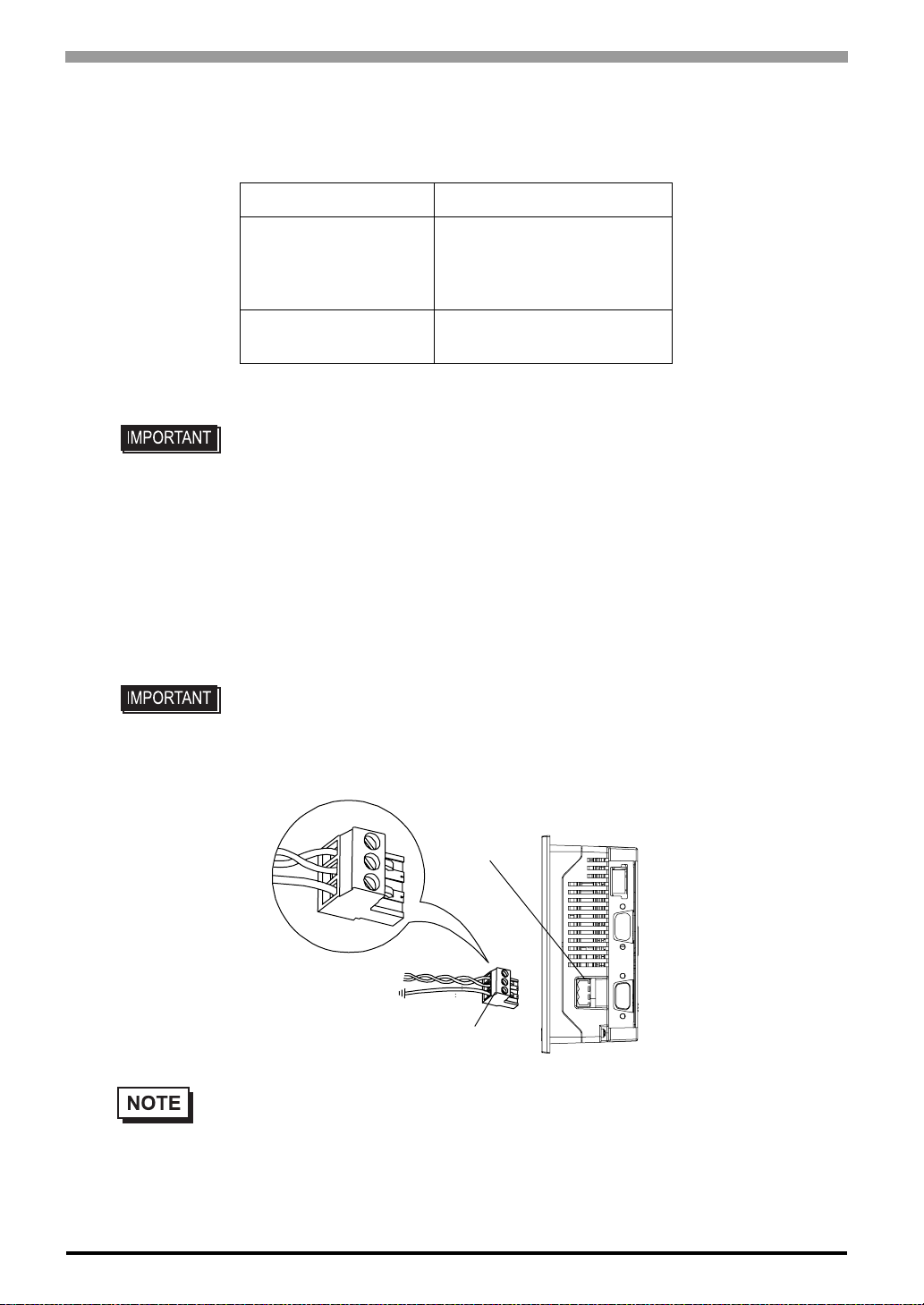

4.2.2 Connecting the Power Supply.............................................................................4-12

4.2.3 Grounding..................... ... .... ... .......................................... ... ...............................4-13

4.2.4 I/O Signal Line Placement ..................................................................................4-13

4.3 CF Card Insertion/Removal ..........................................................................4-14

4.3.1 Inserting the CF Card..........................................................................................4-14

4.3.2 Removing the CF Card.......................................................................................4-15

4.3.3 CF Card Handling...............................................................................................4-15

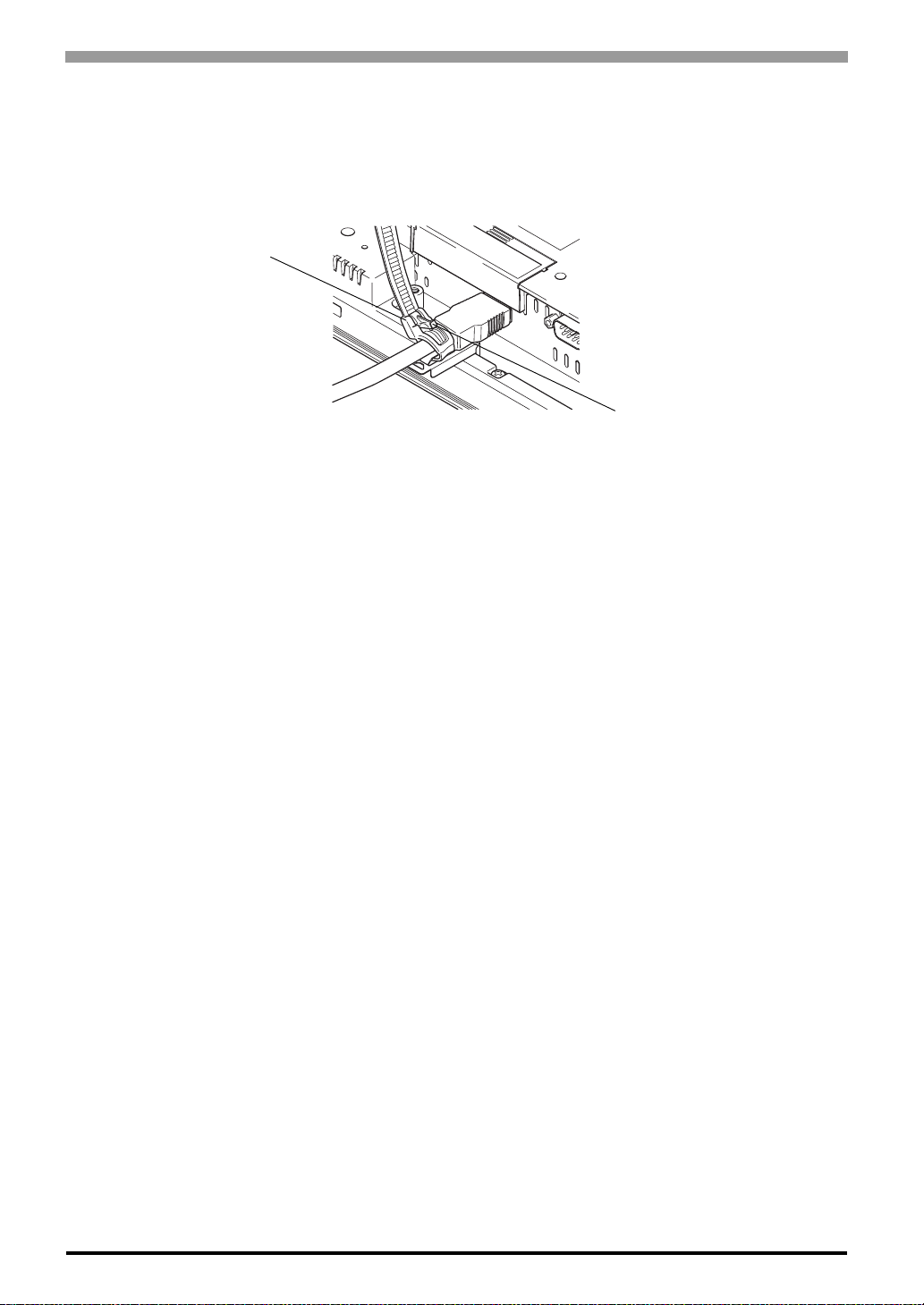

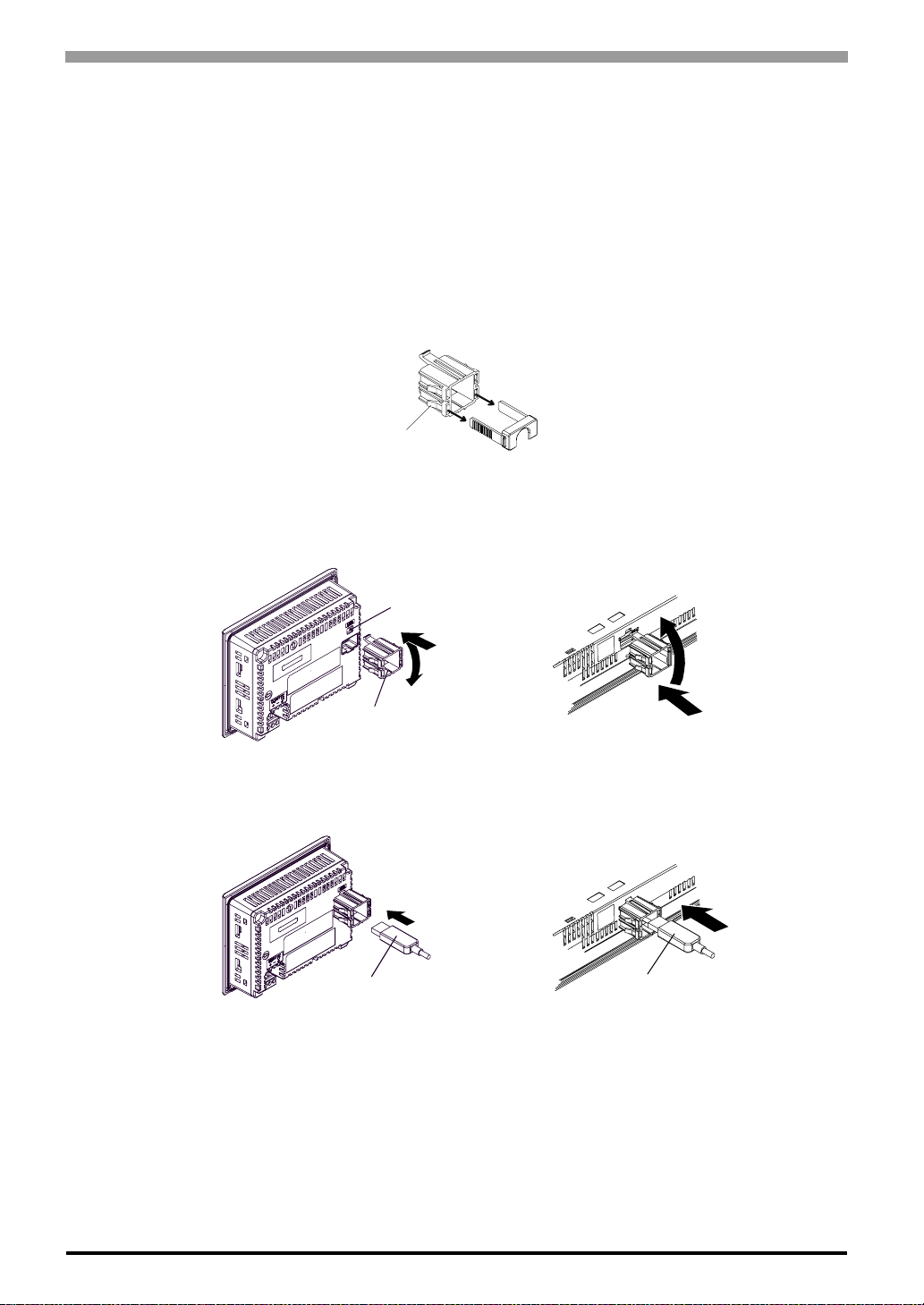

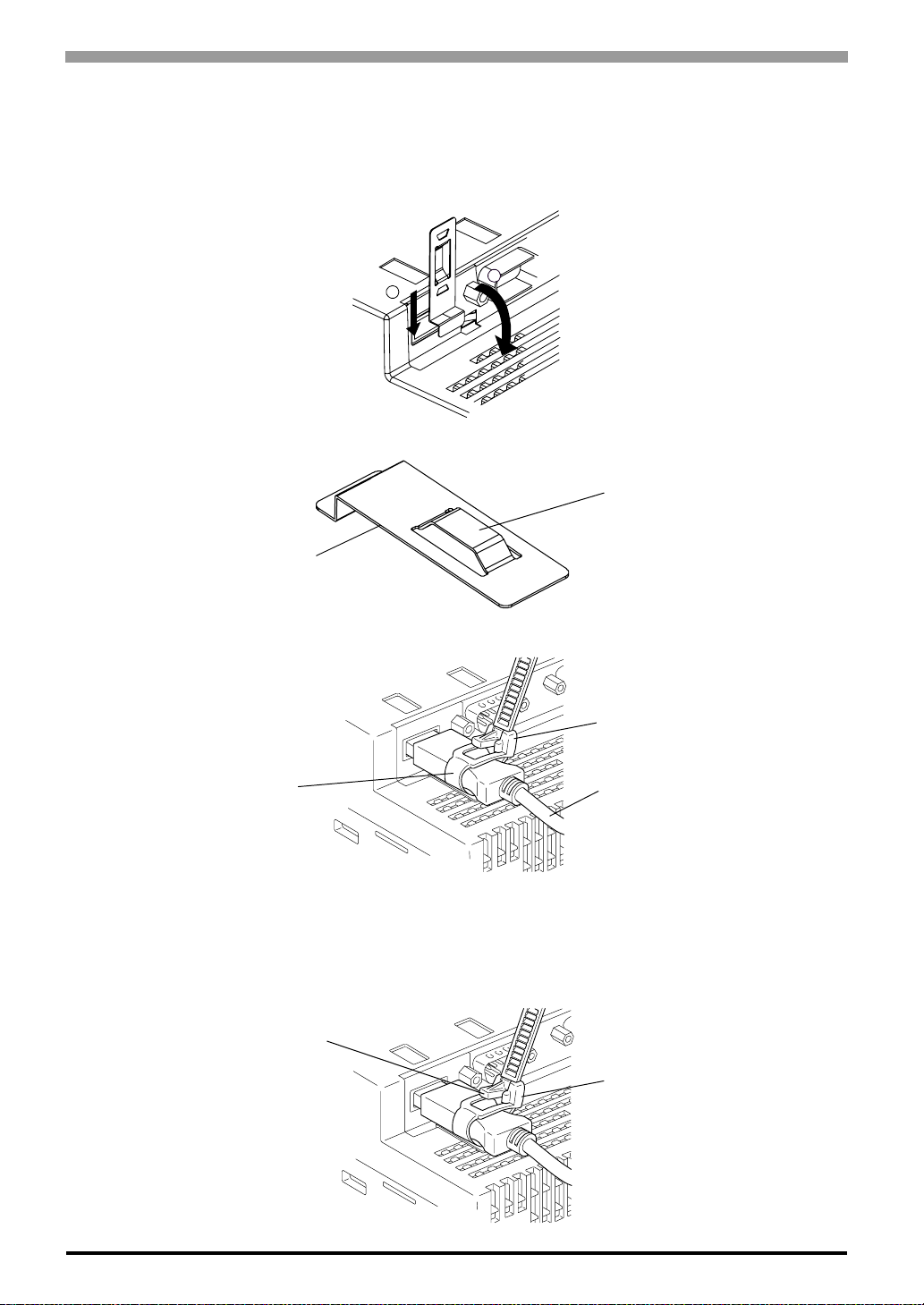

4.4 USB Cable Clamp Attachment/Removal ......................................................4-16

4.4.1 When using the ST-3200/3400 series.................................................................4-16

4.4.2 When using the ST-3300 series..........................................................................4-18

4.4.3 When using the ST-3500 series..........................................................................4-19

Chapter 5 Maintenance

5.1 Cleaning the Display....................................................................................... 5-2

5.2 Periodic Check Points..................................................................................... 5-3

5.3 Replacing the Installation Gasket...................................................................5-4

5.4 Replacing the Backlight ..................................................................................5-6

Page 16

1 Overview

1. System Design

2. Accessories

This chapter describes the peripheral devices that can be connected to the ST Series units.

1-1

Page 17

ST3000 Series Hardware Manual

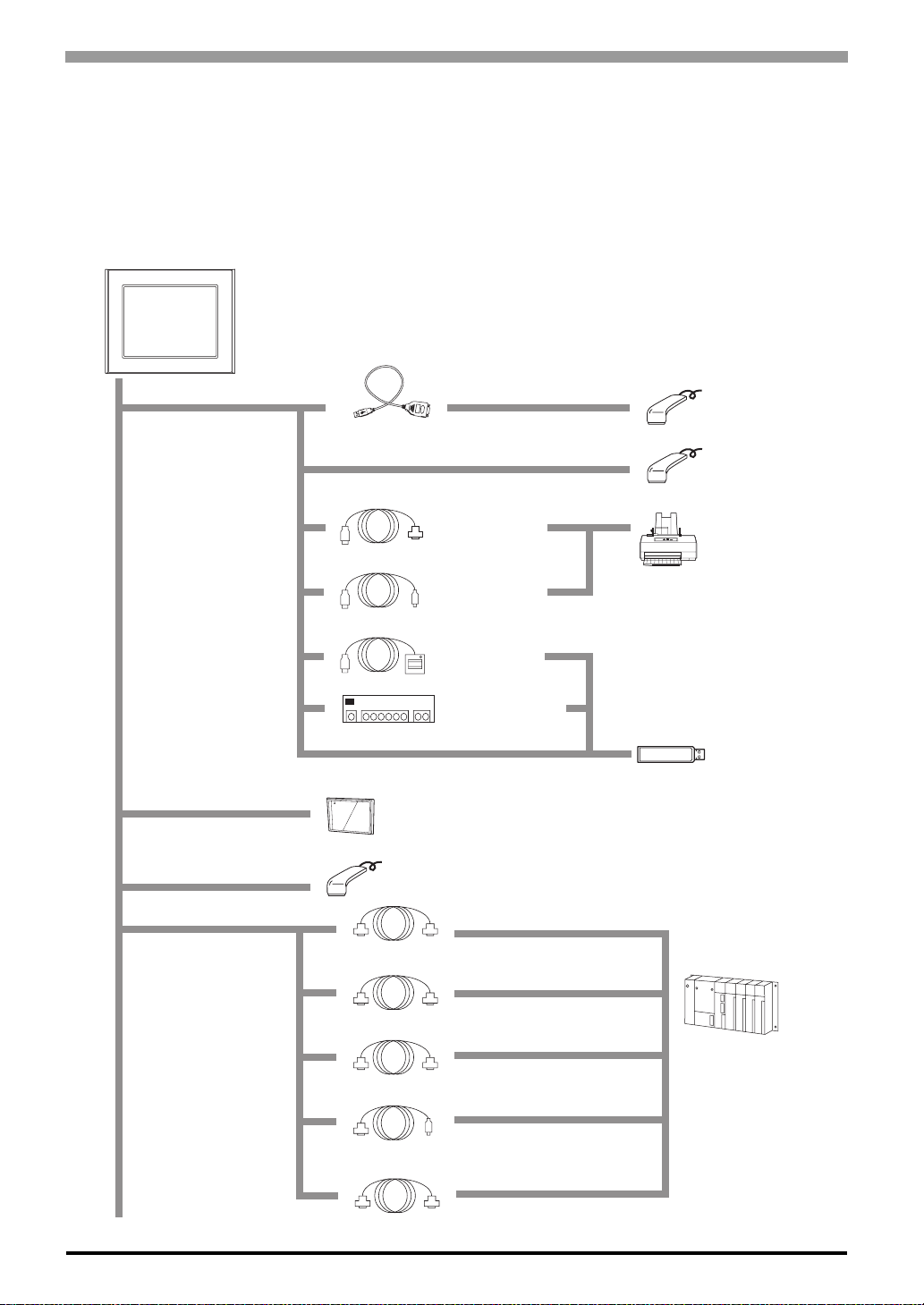

1.1 System Design

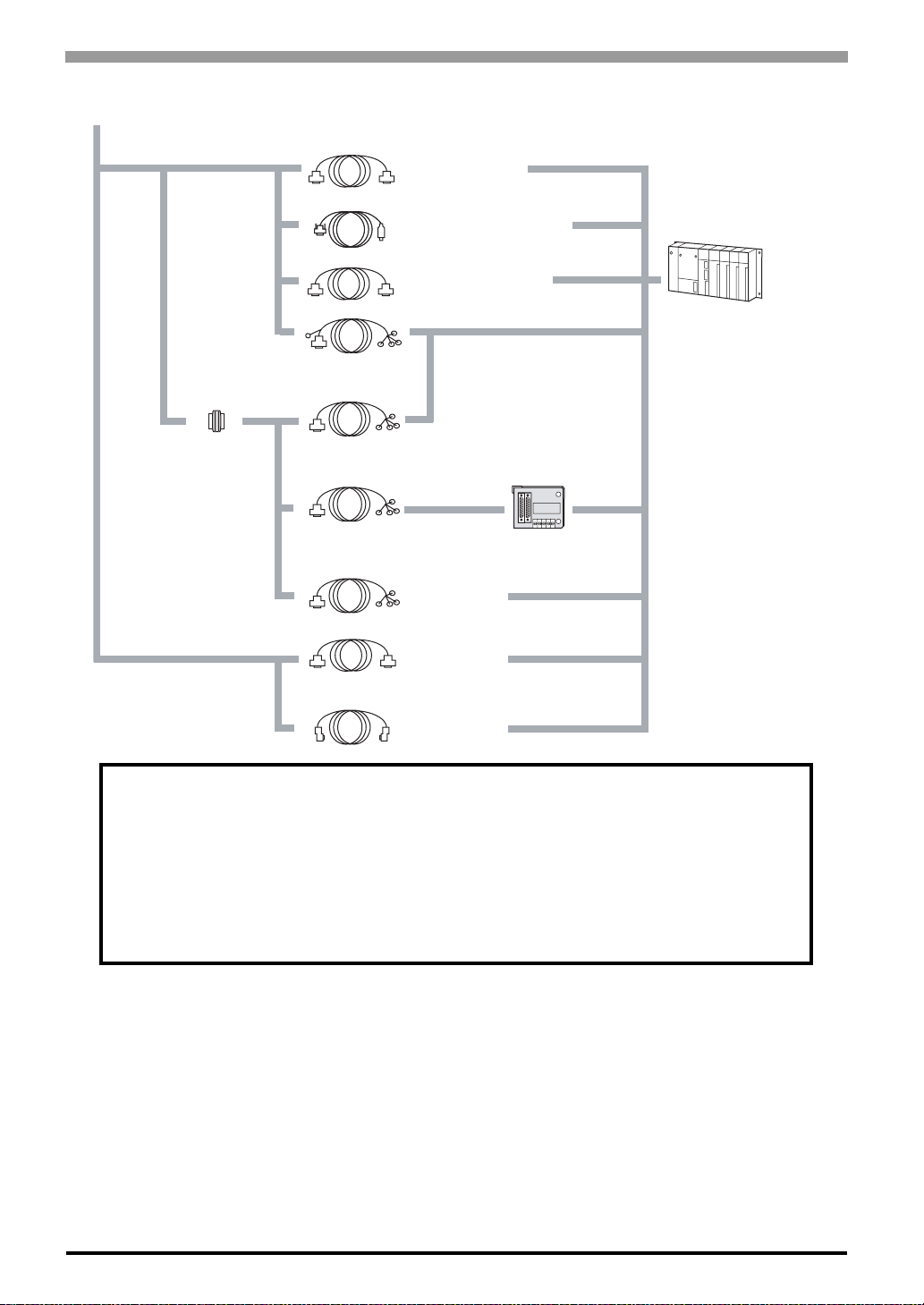

The following diagram illustrates the standard range of items that can be connected to ST3000 Series units. For host controller (PLC, etc.) connection information, refer to the “GP-Pro EX Device/PLC Connection Manual”.

 ST RUN Mode Peripherals

ST Unit

(1)

(2)

(3)

USB-Serial (RS-232C) Conversion Cable CA6-USB232-01

USB-to-IEEE1284 Conversion Cable (Commercial type)

USB Cable FP-US00 or commercial type

USB Front Cable CA5-USBEXT-01

USB Hub (Commercial type)

CA3-CFCALL/128MB-01

CF Card

CA3-CFCALL/256MB-01 CA3-CFCALL/512MB-01 CA6-CFCALL/1GB-01 CA8-CFCALL/2GB-01

Bar-Code Reader (Commercial type)

(6)

Bar-Code Reader (Commercial type)

Printer (Commercial type)

USB Memory Storage (Commercial type)

1-2

RS-232C Cable CA3-CBL232/5M-01

Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01

Omron PLC SYSMAC Link Cable CA3-CBLSYS-01

Mitsubishi PLC Q-Series Connection Cable CA3-CBLQ-01

Siemens TTY Converter Cable CA6-CBLTTY/5M-01

(6)

(10)

Host Controller PLC etc.

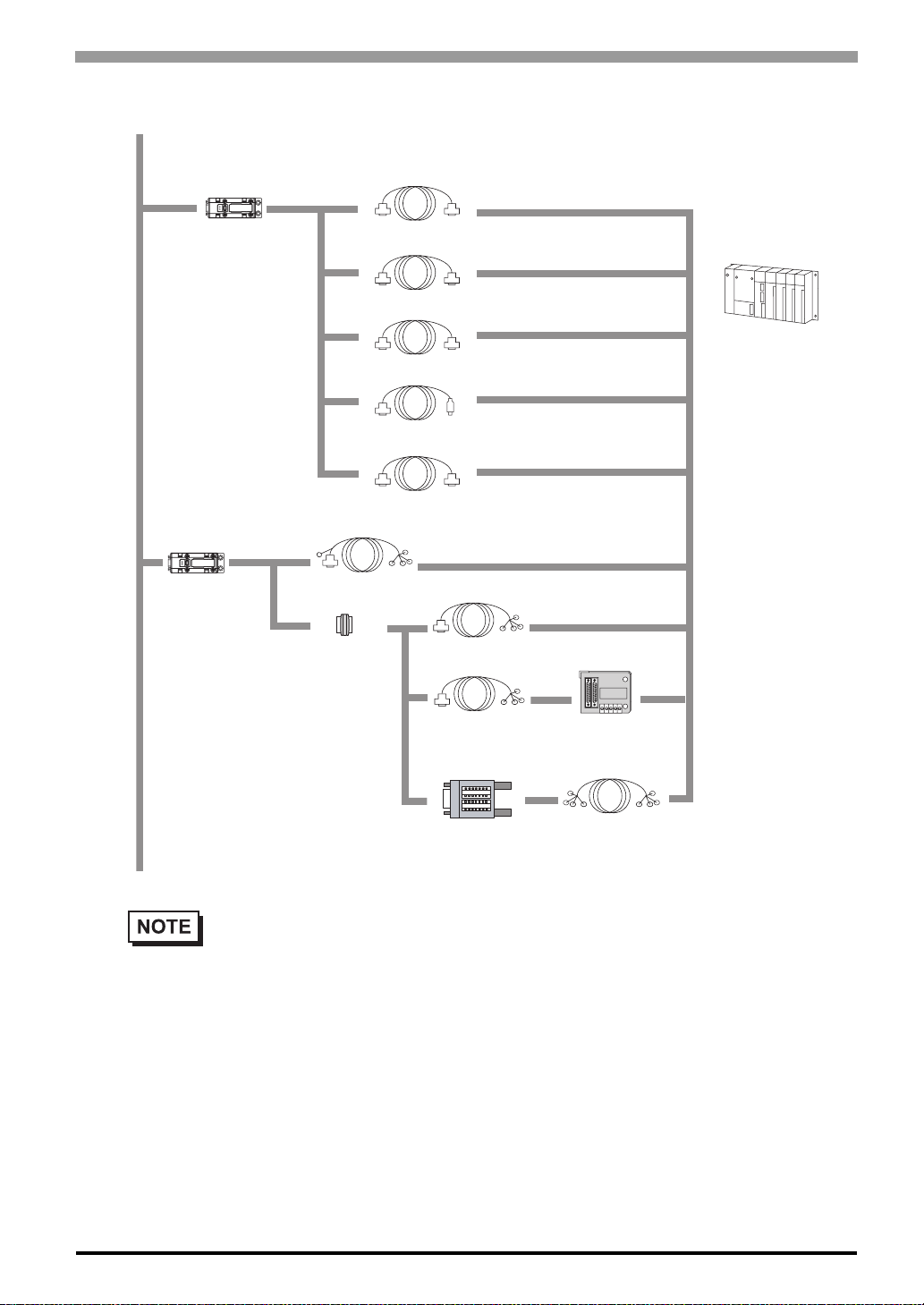

Page 18

Chapter 1 Overview

(3)

RS-232C Isolation Unit CA3-ISO232-01

Switch setting: RS-232C

(3)

RS-232C Isolation Unit CA3-ISO232-01

Switch setting: RS-422

*2,*3

COM Port Conversion Adapter CA3-ADPCOM-01

RS-232C Cable CA3-CBL232/5M-01

Mitsubishi PLC Q-Series Link Cable CA3-CBLLNKMQ-01

Omron PLC SYSMAC Link Cable CA3-CBLSYS-01

Mitsubishi PLC Q-Series Connection Cable CA3-CBLQ-01

Siemens TTY Converter Cable CA6-CBLTTY/5M-01

RS-422 Cable CA3-CBL422/5M-01

RS-422 Cable CA3-CBL422-01

(6)

(10)

(7)

(9)

Host Controller PLC etc.

2 Port Adapter Cable CA3-MDCB11

Terminal Block Conversion Adapter CA3-ADPTRM-01

Mitsubishi PLC A, QnA, FX Series' 2 Port Adapter II GP070-MD11

(7)

RS-422 Cable (Prepared by user)

• When connecting the CA3-ISO232-01, set the 9 Pin connector setting on the COM port to VCC. COM port settings can be set with the GP-Pro EX or in the ST’s offline mode.

1-3

Page 19

ST3000 Series Hardware Manual

(4)

RS-422 Cable CA3-CBL422/5M-01

COM Port Conversion Adapter CA3-ADPCOM-01

RS-422 Cable CA3-CBL422-01

2 Port Adapter Cable CA3-MDCB11

MPI Cable ST03-A2B-MPI21-PEE

Mitsubishi PLC FX-Series Connection Cable

CA3-CBLFX/1M-01 CA3-CBLFX/5M-01

Mitsubishi PLC A-Series Connection Cable CA3-CBLA-01

Mitsubishi PLC A , QnA, FX Series' 2 Port Adapter II GP070-MD11

Multi-Link Cable CA3-CBLMLT-01

PROFIBUS Cable (Prepared by user)

(8)

(9)

(7)

(9)

(7)

(8)(5)

Host Controller PLC etc.

ST Interfaces (1) USB Host Interface (2) CF Card Interface

Only the ST-3400/3500 Series are suppo rted.

(3) Serial Interface (COM1) (4) Serial Interface (COM2)

(except for AST-3211A and AST-3302B)

(5) Serial Interface (COM2)

(AST-3211A and AST-3302B only)

MPI Cable CA3-MPI-PGN-PFE CA3-MPI-PG1-PFE

(8)

PLC Interfaces (6) RS-232C Port

(7) RS-422 Port (8) RS-485 Port (9) Programing Console Port (10) PG Port

1-4

Page 20

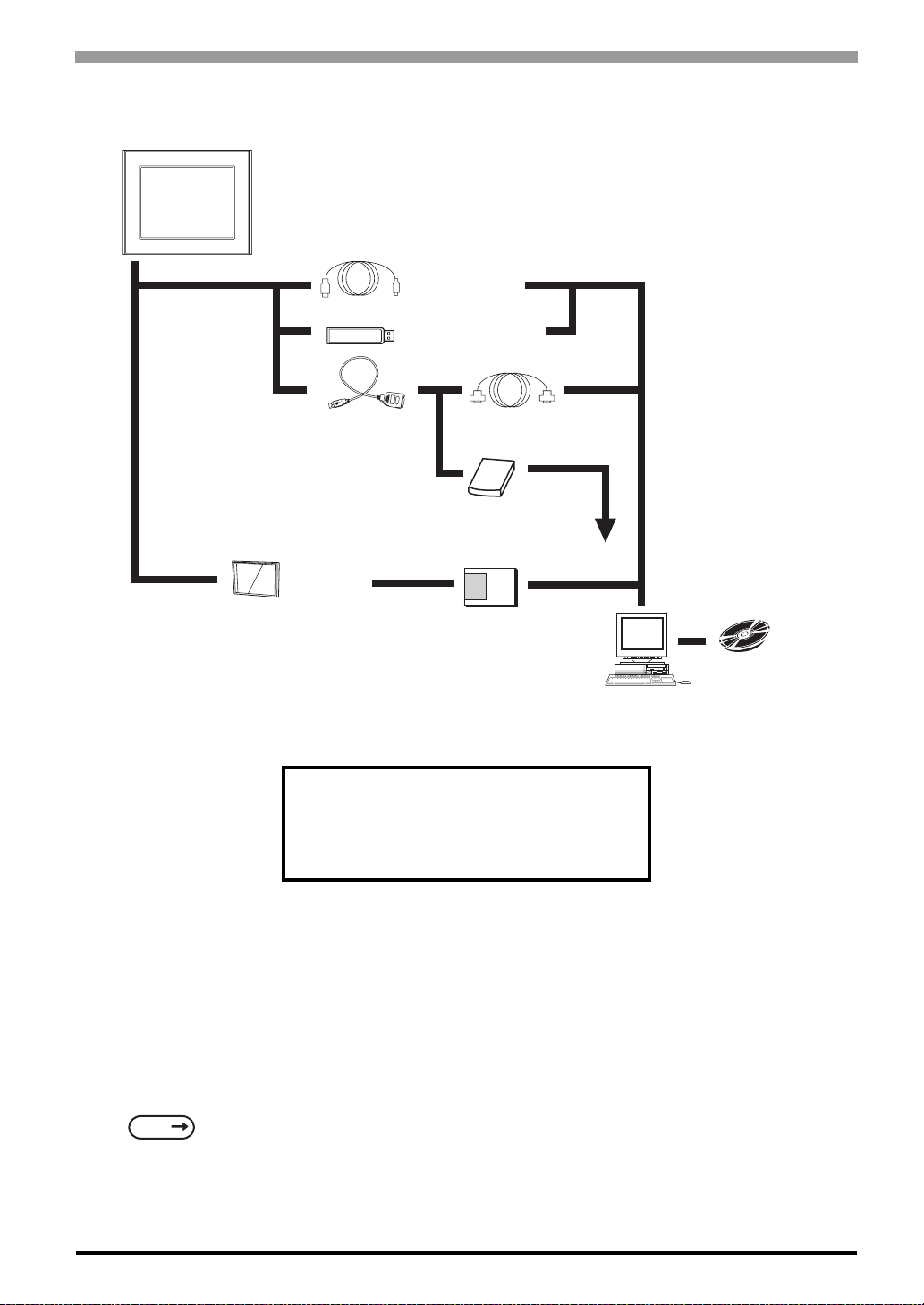

 Edit Mode Peripherals

ST Unit

Chapter 1 Overview

(1)

(2)

USB Transfer Cable CA3-USBCB-01

USB Memory Storage (Commercial type)

USB-Serial (RS-232C) Conversion Cable CA6-USB232-01

CF Card CA3-CFCALL/128MB-01

CA3-CFCALL/256MB-01 CA3-CFCALL/512MB-01 CA6-CFCALL/1GB-01 CA8-CFCALL/2GB-01

ST Interfaces (1) USB Host Interface

(2) CF Card Interface

(Only ST-3400/3500 series are supported.)

RS-232C Cable (Prepared by user)

Modem (Commercial type)

CF Card Adapter GP077-CFAD10

Telephone lines

PCMCIA Slot

USB Port

Serial Port

Personal Computer (Commercial type)

Screen Editor Software GP-Pro EX

*1 For supported models, refer to Pro-face’s support site “Otasuke Pro!”

(http://www.pro-face.com/otasuke/).

You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu - [Connect to Support Site-

“Otasuke Pro!” (C)] command. *2 The RS-232C Isolation Unit does not correspond to RS-422/485 (2 wire) communication. *3 The RS-232C Isolation Unit does not correspond to Serial Multilink communication. *4 For details regarding connection methods, be sure to read “Transferring Projects and Data” under

“COM Transfer Connections” in the GP-Pro EX Reference Manual. *5 Certain types and models of PCs cannot be used.

SEE

GP-Pro EX Reference Manual

1-5

Page 21

ST3000 Series Hardware Manual

1.2 Accessories

All accessories listed here are produced by Pro-face.

 Serial Interface Item

Product Name Model No. Description RS-232C Cable CA3-CBL232/5M-01 (5m)

RS-422 Cable CA3-CBL422/5M-01 (5m) Mitsubishi PLC Q-Series

Link Cable Omron PLC SYSMAC Link

Cable

Mitsubishi PLC A-Series Connection Cable

Mitsubishi PLC Q-Series Connection Cable

Mitsubishi PLC FX-Series Connection Cable

9-pin-to-25-pin RS-232C Conversion Cable

9-pin-to-25-pin RS-422 Conversion Cable

RS-422 Cable CA3-CBL422-01 (5m)

2 Port Adapter Cable CA3-MDCB11 (5m)

Mitsubishi PLC A, QnA, FX Series 2 Port Adapter II

Multi-Link Cable CA3-CBLMLT-01 (5m) Terminal Block Conversion

Adapter COM Port Conversion

Adapter Siemens COM Port

Conversion Adapter Siemens TTY Converter

Cable

CA3-CBLLNKMQ-01 (5m)

CA3-CBLSYS-01 (5m)

CA3-CBLA-01 (5m)

CA3-CBLQ-01 (5m)

CA3-CBLFX/1M-01 (1m) CA3-CBLFX/5M-01 (5m)

CA3-CBLCBT232-01 (0.2m)

CA3-CBLCBT422-01 (0.2m)

GP070-MD11

CA3-ADPTRM-01

CA3-ADPCOM-01

CA3-ADPSEI-01

CA6-CBLTTY/5M-01 (5m)

Connects Mitsubishi PLC A-Series (or other host controller) to the ST. (RS-232C)

Connects a host controller to the ST. (RS-422 / Socket Type)

Connects Mitsubishi PLC Q-Series (or other host controller) to the ST. (RS-232C)

Connects Omron PLC SYSMAC Series unit (or other host controller) to the ST. (RS-232C)

Connects Mitsubishi PLC A, QnA Series programming console I/F to the ST. (Simultaneous use of programming console is not possible.)

Connects Mitsubishi PLC Q-Series programming console I/F to the ST. (Simultaneous use of programming console is not possible.)

Connects Mitsubishi PLC FX-Series programming console I/F to the ST. (Simultaneous use of programming console is not possible.)

The cable that connects the D-Sub 9-pin plug to D-Sub 25-pin socket.

The cable that connects the D-Sub 9-pin socket to D-Sub 25-pin socket.

Connects a host controller to the ST. (RS-422 / Plug Type)

Connects Mitsubishi PLC to the ST using 2 port adapter II (RS-422).

Allows simultaneous use of an ST Series unit and a Mitsubishi PLC A, QnA, FX Series peripheral device.

Connects a host controller to the ST for multi-link (n:1) communication.

Connects output from a serial interface with an RS-422 terminal block.

Connects optional RS-422 communication items to the ST unit’s COM1 port.

Connects Siemens PLCs to the ST. (for RS-485 communication)

Connects Siemens PLC S5 Series to the ST.

Continued

1-6

Page 22

Chapter 1 Overview

Product Name Model No. Description

ST03-A2B-MPI21-PFE

MPI Cable

RS-232C Isolation Unit CA3-ISO232-01

(3.5m) CA3-MPI-PGN-PFE(3.5m) CA3-MPI-PG1-PFE(3.5m)

The interface cable that establishes MPIcommunication between each of the hosts and the ST3000 Series.

Connects a host controller to the ST and provides isolation. RS-232C / RS-422 switching unit.

 USB Host Interface

Product Name Model No. Description USB Transfer Cable CA3-USBCB-01 (2m) USB Cable FP-US00 (5m) Connects a USB printer. (TYPE-B) USB Front Cable CA5-USBEXT-01 (1m)

USB-Serial (RS-232C) Conversion Cable

*1 For supported models, refer to Pro-face’s support site “Otasuke Pro!”

(http://www.pro-face.com/otasuke/).

You can connect to this site by clicking the GP-Pro EX’s [Help (H)] menu - [Connect to Support Site“Otasuke Pro!” (C)] command.

*2 Requires an RS-232C cable (prepared by user) for connection. For details regarding system design,

refer to "  Edit Mode Peripherals (page-5)". For instructions on how to connect between USB-Serial (RS-232C) Conversion Cable and your PC, always refer to the "GP-Pro EX Reference Manual -> Transferring Projects and Data -> COM Transfer Connections".

CA6-USB232-01 (0.5m)

Downloads project data created with the Screen Editor via the ST unit’s Serial I/F.

Extension cable attaching USB port to front panel.

Cable for converting a ST unit's USB interface into a serial interface (RS-232C). Allows connection to modems barcode readers Can be used to transfer project data created with the Screen Editor via a serial interface.

that support RS-232C.

 CF Card Items

Only the ST-3400/3500 Series support a CF Card interface.

Product Name Model No. Description CF Card (128MB) CA3-CFCALL/128MB-01 CF Card (256MB) CA3-CFCALL/256MB-01 CF Card (512MB) CA3-CFCALL/512MB-01 CF Card (1GB) CA6-CFCALL/1GB-01 CF Card (2GB) CA8-CFCALL/2GB-01

CF Card Adapter GP077-CFAD10

Inserted into the ST unit’s CF Card slot.

Used for read/write of CF Card data via a PC’s PCMCIA slot.

1-7

Page 23

ST3000 Series Hardware Manual

 Optional Items

Product Name Model No. Corresponding ST Description

Screen Protection Sheet

Protective Cover

 Maintenance Items

Product Name Model No. Corresponding ST Description Installation Fastener CA3-ATFALL-01 ST3000 Series

Installation Gasket

Connector Cover CA3-BUSCVR-01

USB Cable Clamp (1 port)

USB Cable Clamp (2 port)

DC Power Supply Connector for Medium-sized Units

DC Power Supply Connector for Largesized Units

Attachment

CA6-DFS4-01 ST-3200 Series CA3-DFS6-01 ST-3300 Series PS400-DF00 ST-3400 Series CA5-DFS10-01 ST-3500 Series

CA4-DCMDL-01 ST-3300 Series

CA8-OPD10-01 ST-3500 Series

ST400-WP01 ST-3200 Series CA3-WPG6-01 ST-3300 Series CA5-WPG8-01 ST-3400 Series CA5-WPG10-01 ST-3500 Series

ST-3200 Series ST-3300 Series ST-3400 Series

CA5-USBATM-01 ST-3300 Series

CA5-USBATL-01

CA5-DCCNM-01

CA5-DCCNL-01 ST-3500 Series

CA4-ATM5-01 ST-3300 Series

CA4-ATM10-01 ST-3500 Series

ST-3200 Series ST-3400 Series

ST-3200 Series ST-3300 Series ST-3400 Series

Disposable, dirt-resistant sheet for the ST unit’s screen. (5 sheets/set) (Hard type)

The installation of the cover is to protect Display from leaking liquid and raise resistant performance against chemical substance (5 sheets)

Used to install the ST into a solid panel.

Provides dust and moisture resistance when ST is installed into a solid panel.

Protects the ST unit’s rear face connector.

USB Cable clamp products to prevent disconnection.

Connector for attaching power supply to medium-sized units.

Connector for attaching power supply to large-sized units.

Panel cutout adapter for mounting ST-3300 series in cutout of GP-37W2B.

Panel cutout adapter for mounting ST-3500 series in cutout of GP-2500/2600 series.

1-8

Page 24

2 Part Names and

Functions

1. ST-3200 Series

2. ST-3300 Series

3. ST-3400 Series

4. ST-3500 Series

This chapter describes the names and functions of the ST series components.

2-1

Page 25

ST3000 Series Hardware Manual

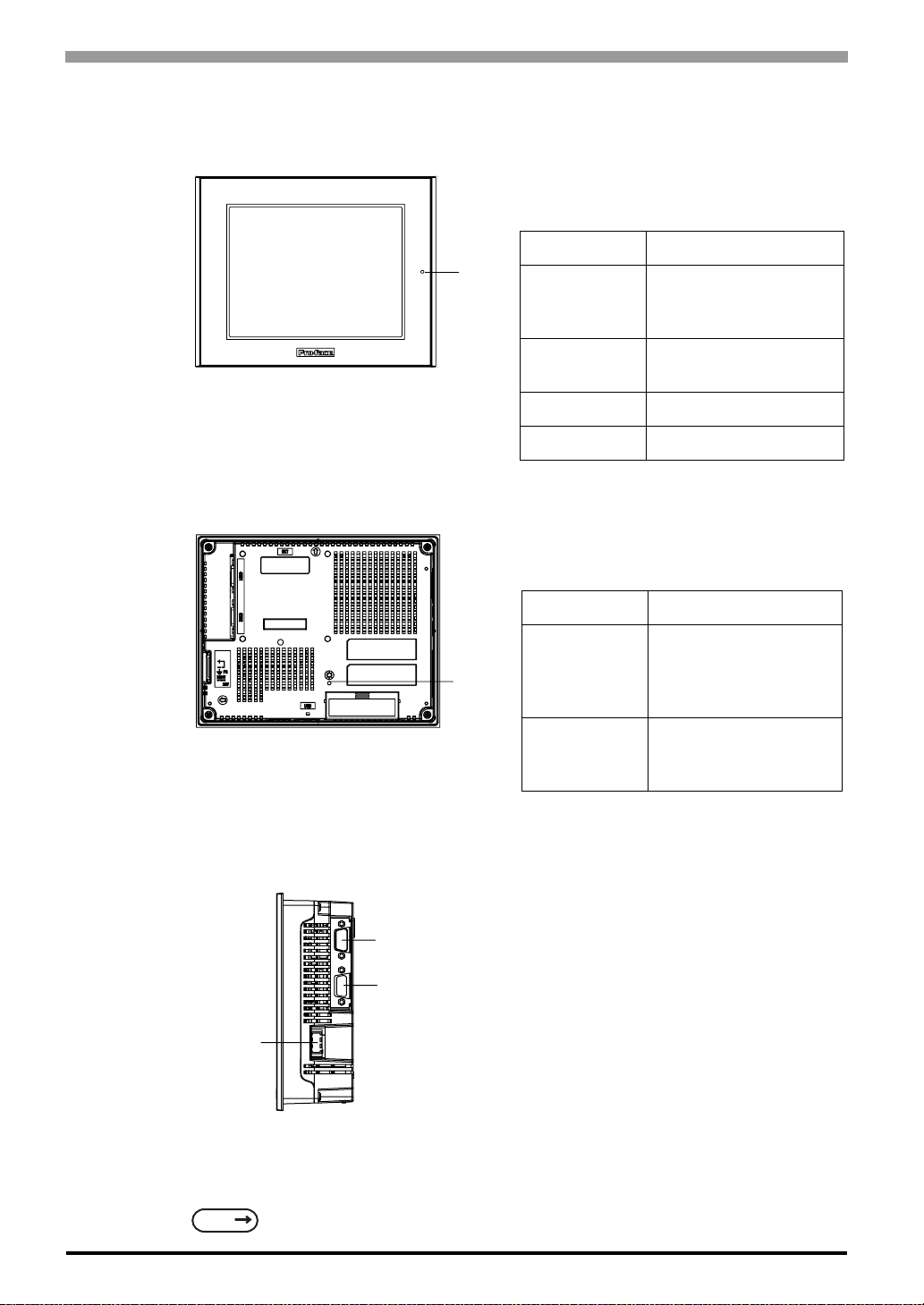

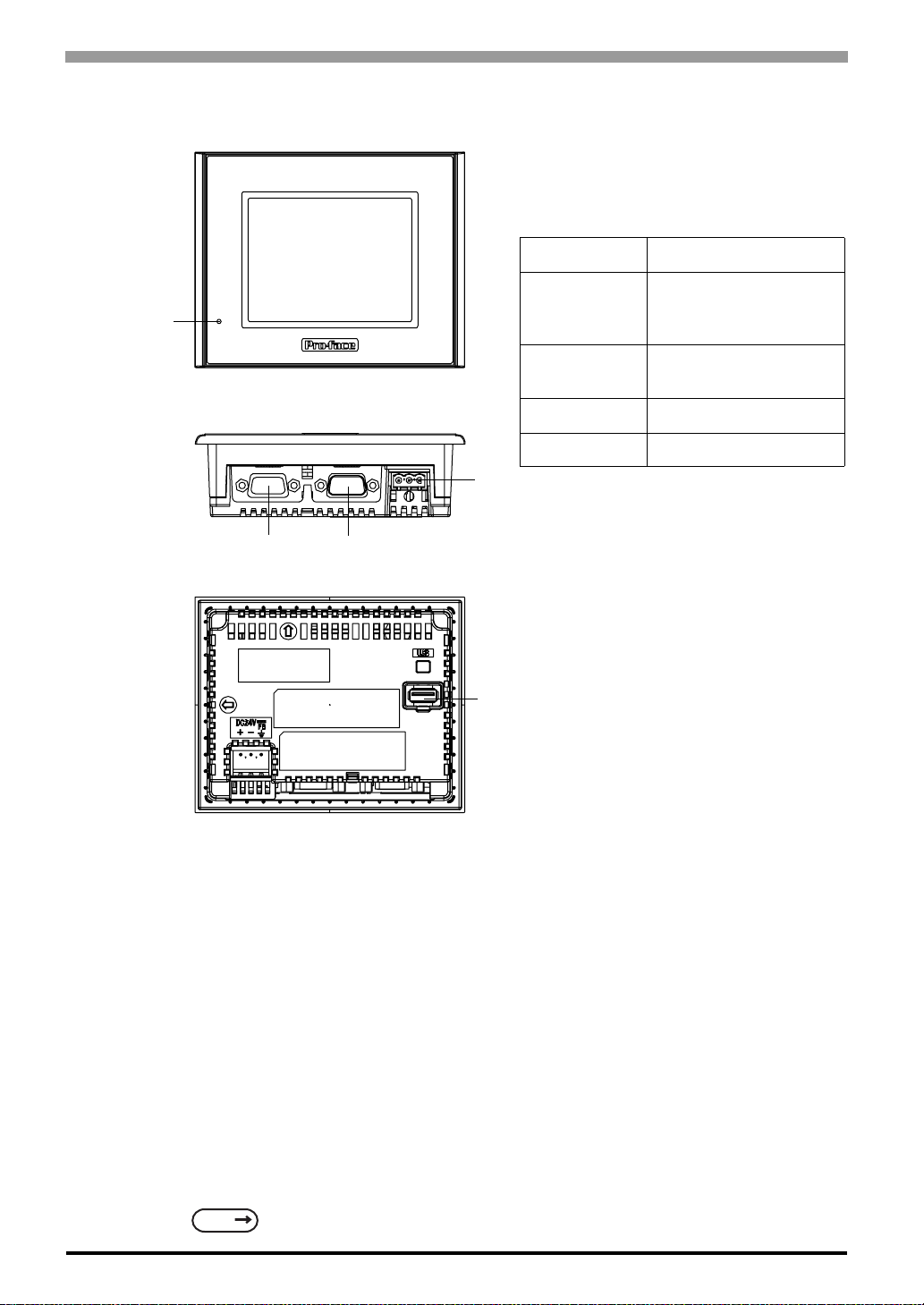

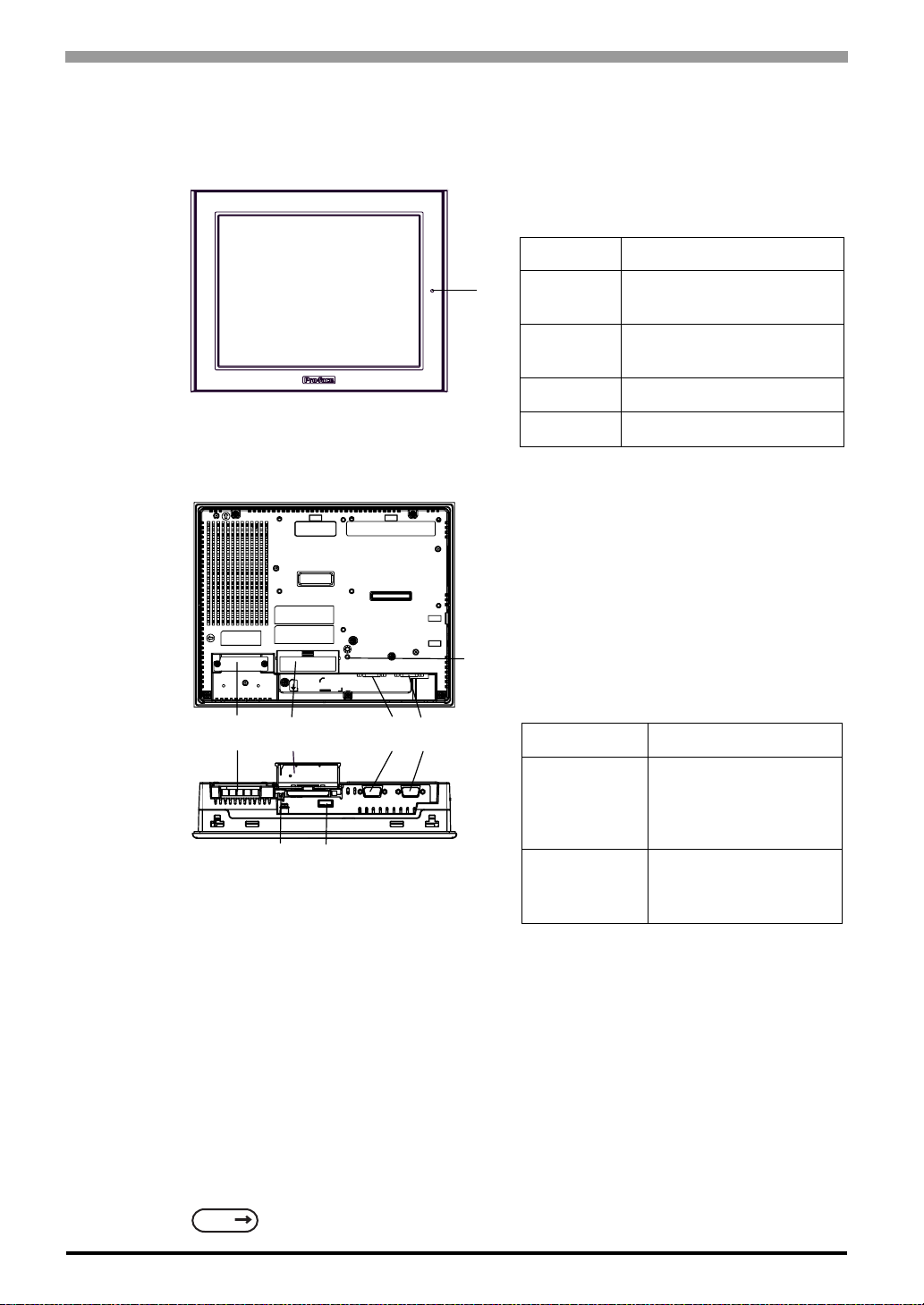

2.1 ST-3200 Series

A: Status LED

This LED indicates the ST’s status, e.g. power input or firmware RUN status.

LED ST Operation

Normal operation (power

Green (lit)

is ON.) or OFFLINE operation.

Front

Bottom

Back

Orange (blinking)

Red (lit) Power is ON. Not lit Power is OFF.

B: Power Plug Connector

C: USB Host Interface (USB)

USB 1.1 compliant. One port for TYPE-A connector. Power supply voltage: DC5V ±5%. Maximum output current: 500mA

Maximum communication distance: 5m Interfaces with transfer cable, USB-compatible printer, and other compatible devices.

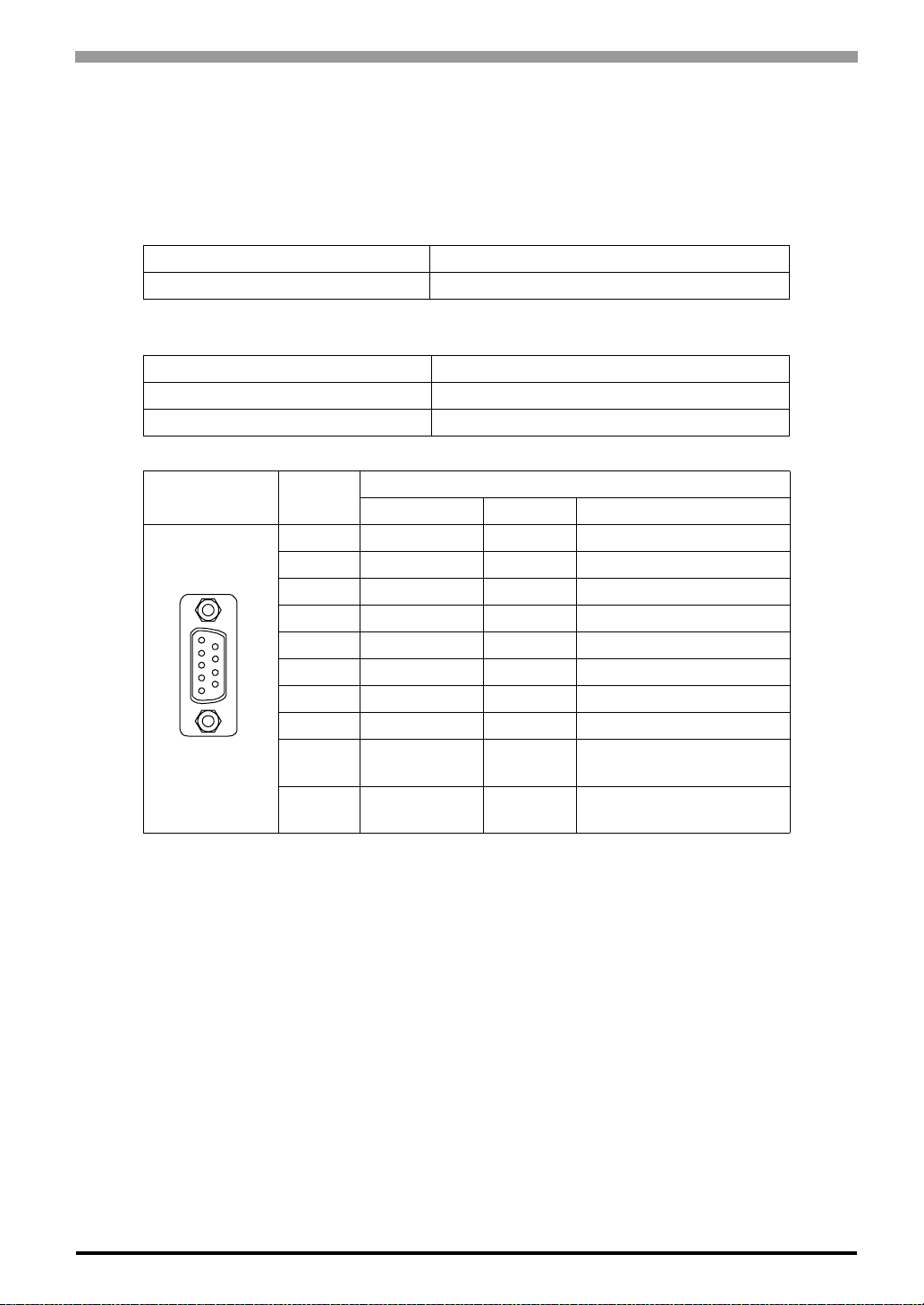

D: Serial Interface (COM1)

RS-232C serial interface. D-Sub 9-pin plug type connector.

During software startup.

2-2

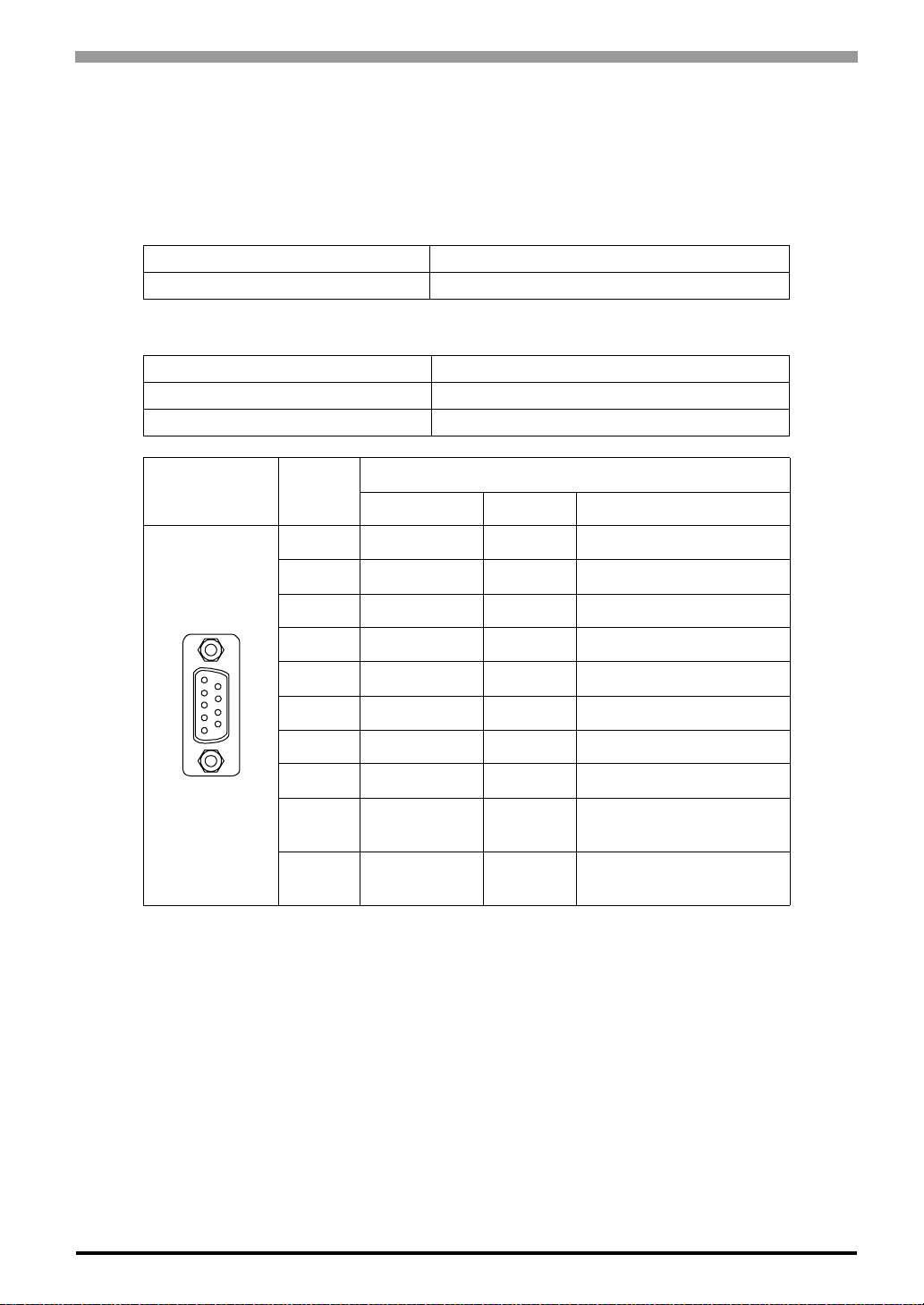

E: Serial Interface (COM2)

AST-3201A:

RS-422/RS-485 plug type connector. AST-3211A: RS-485 (MPI only) serial interface. D-Sub 9-pin socket type connector.

*1 RS-485 is compliant with AST-3201A units with revision code "C" or later.

SEE

About Revision (page 12)

serial interface. D-Sub 9-pin

Page 26

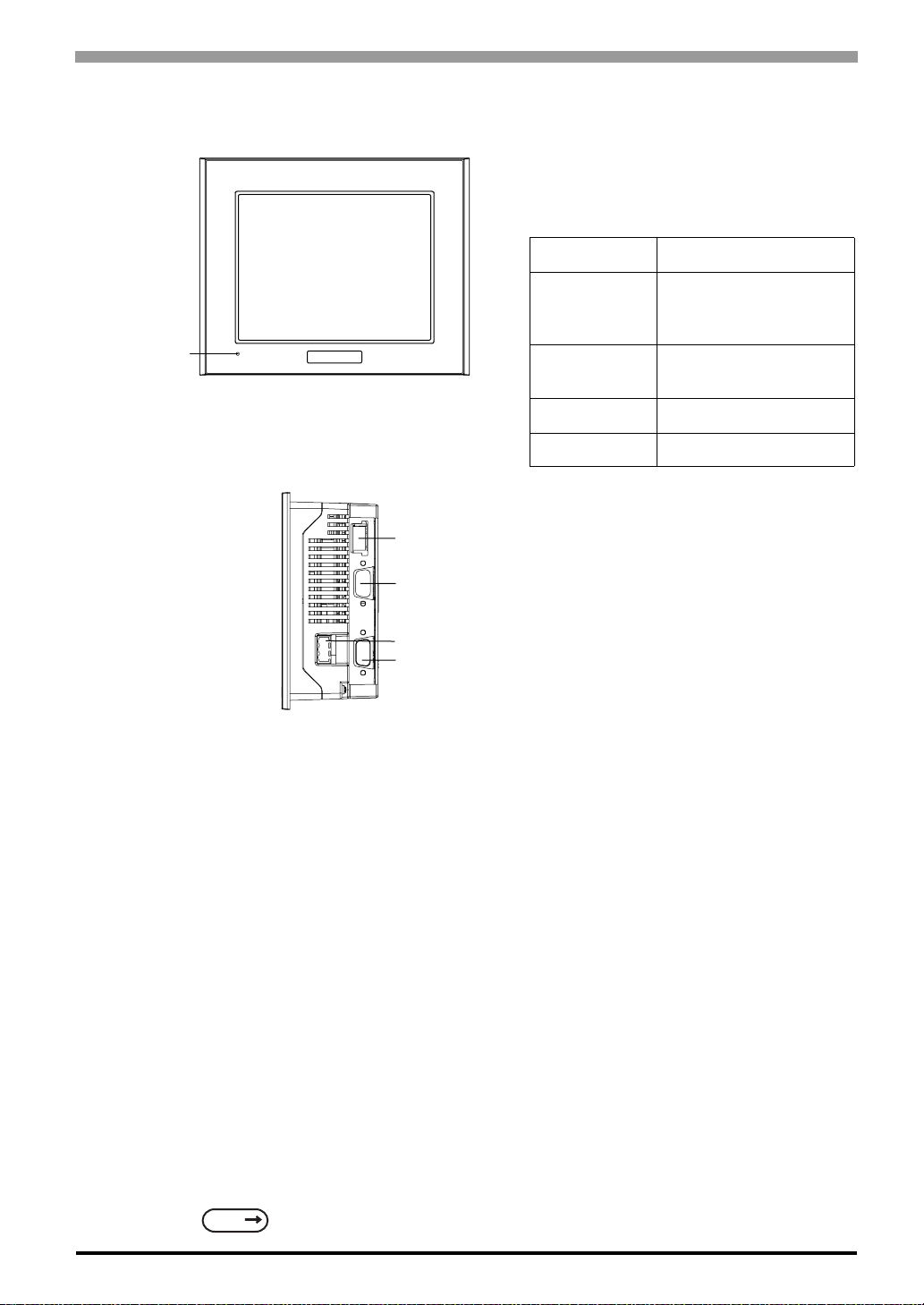

2.2 ST-3300 Series

Front

Right side

Chapter 2 Part Names and Functions

A: Status LED

This LED indicates the ST’s status, e.g. power input or firmware RUN status.

LED ST Operation

Normal operation (power

Green (lit)

Orange (blinking)

Red (lit) Power is ON. Not lit Power is OFF.

B: Power Plug Connector

C: USB Host Interface (USB)

B E

USB 1.1 compliant. One port for TYPE-A connector. Power supply voltage: DC5V ±5%. Maximum output current: 500mA Maximum communication distance: 5m Interfaces to transfer cable, USB-compatible printer, and other compatible devices.

is ON.) or OFFLINE operation.

During software startup.

D: Serial Interface (COM1)

RS-232C serial interface. D-Sub 9-pin plug type connector.

E: Serial Interface (COM2)

AST-3301B, AST-3301S, AST-3301T:

RS-422/RS-485 D-Sub 9-pin plug type connector. AST-3302B: RS-485 (MPI only) serial interface. D-Sub 9-pin socket type connector.

*1 RS-485 is compliant with AST-3301B / AST-3301S with revision code "B" or later. For all other models,

all revisions support RS-485.

SEE

About Revision (page 12)

serial interface.

2-3

Page 27

ST3000 Series Hardware Manual

2.3 ST-3400 Series

A: Status LED

This LED indicates the ST’s status, e.g. power input or firmware RUN status.

LED ST Operation

Green (lit)

Normal operation (power is ON.) or OFFLINE operation.

Front

Back

Orange (blinking)

Red (lit) Power is ON. Not lit Power is OFF.

B: CF Card Access Lamp

This lamp light up when CF card is inserted and CF card cover is closed. However, opening the CF card cover, in the CF card while accessing it continues to light up.

Access Lamp Indicates

Green ON

Green OFF

C: Power Plug Connector

During software startup.

The CF Card is inserted and the CF Card Cover is closed. Or, the CF Card is being accessed.

The CF Card is not inserted or is not being accessed.

2-4

D:Serial Interface (COM1)

Right side

*1 RS-485 is compliant with ST-3400 series units with revision code "A" or later.

SEE

About Revision (page 12)

RS-232C serial interface. D-Sub 9-pin plug type connector.

E: Serial Interface (COM2)

RS-422/RS-485 D-Sub 9-pin plug type connector.

serial interface.

Page 28

Chapter 2 Part Names and Functions

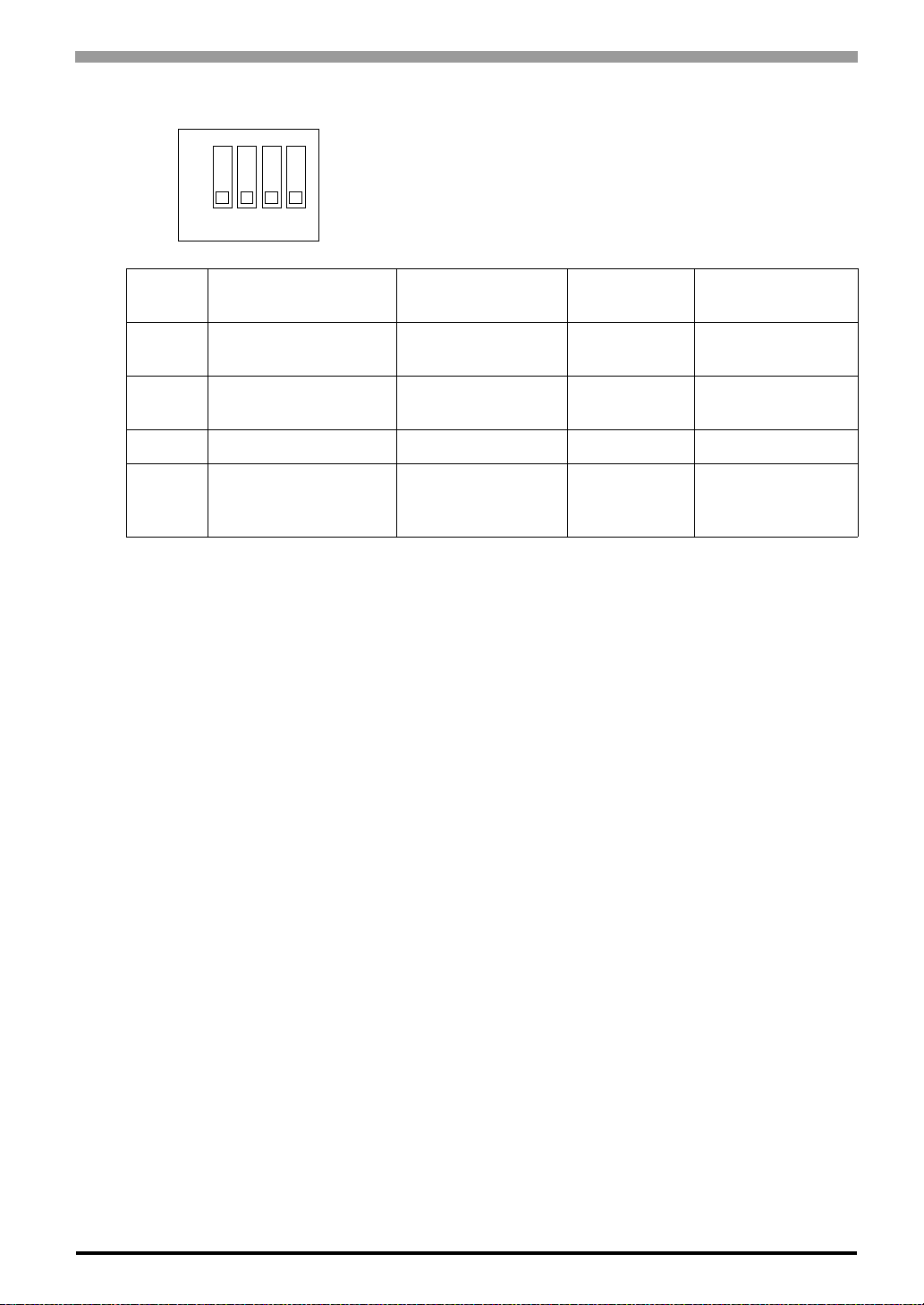

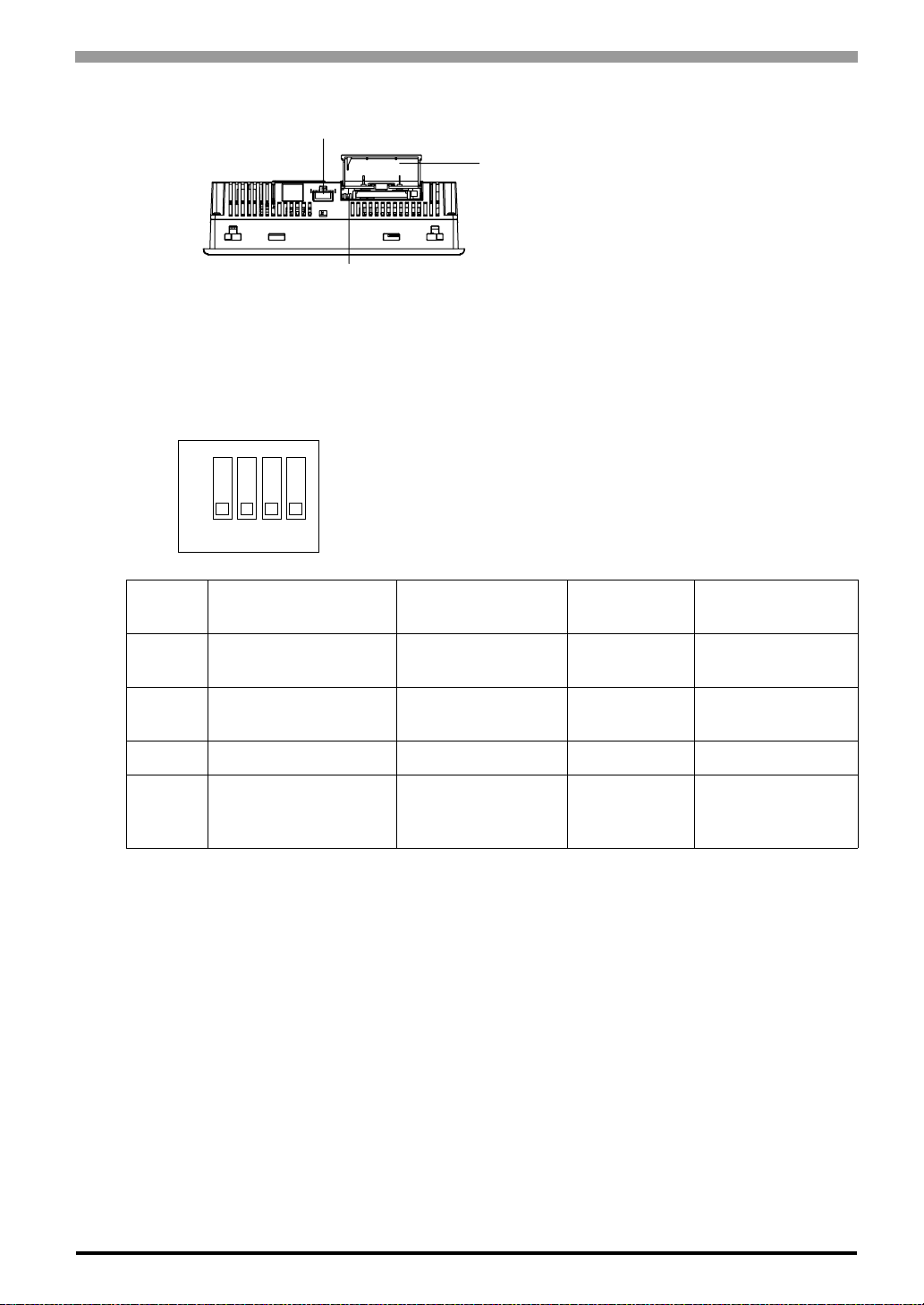

H: DIP Switches

DIP

Switches

Bottom

(With CF Card Cover open)

Function ON OFF Note

F: USB Host Interface (USB)

USB 1.1 compliant. One port for TYPE-A connector.

Power supply voltage: DC5V ±5%. Maximum output current: 500mA Maximum communication distance: 5m Interfaces to transfer cable, USB-compatible printer, and other compatible devices.

G: CF Card Cover

The CF Card I/F and DIP Switches are located in the CF Card Cover opening. This cover must be closed when accessing the CF Card.

1 Start up from CF Card Enabled Disabled

2* Forced transfer mode

3 Reserved - - Constantly OFF

Simulate cover closed,

allowing card to be read even if cover open

* When the unit turns ON with DIP switch 2 ON, the unit starts in transfer mode. Under normal operating conditions, set to OFF.

Forced Transfer Mode: ON

Enabled Disabled

Forced Transfer Mode: OFF

CF Card with startup data required

Used when CF Card cover is damaged

2-5

Page 29

ST3000 Series Hardware Manual

2.4 ST-3500 Series

The following images of an AST-3501T (AC type) Series unit.

A: Status LED

This LED indicates the ST’s status, e.g. power input or firmware RUN status.

LED ST Operation

Front

Back

(CF-Card Cover Open View)

Bottom

Green (lit)

Orange (blinking)

Red (lit) Power is ON. Not lit Power is OFF.

B: USB Host Interface (USB)

USB 1.1 compliant. One port for the TYPE-A Connector. Power supply voltage: DC5V ±5%. Maximum output current: 500mA Maximum communication distance: 5m Interfaces to transfer cable, USB-compatible printer, and other compatible devices.

C: CF Card Access LED

This lamp light up when CF card is inserted and CF card cover is closed. However, opening the CF card cover, in the CF card while accessing it continues to light up.

Access LED Indicates

Green ON

Green OFF

Normal operation (power is ON.) or OFFLINE operation.

During software startup.

The CF Card is inserted and the CF Card Cover is closed. Or, the CF Card is being accessed.

The CF Card is not inserted or is not being accessed.

2-6

D: Power Input Te rminal Block (AC type), Power Plug Connector (DC type) E: CF Card Cover

The CF Card I/F and DIP Switches are located in the CF Card Cover opening. This cover must be closed when accessing the CF Card.

F: Serial Interface (COM1)

RS-232C serial interface. D-Sub 9-pin plug type connector.

G: Serial Interface (COM2)

RS-422/RS-485*1 serial interface. D-Sub 9-pin plug type connector.

*1 RS-485 is compliant with AST-3501C / AST-3501T with revision code "B" or later.

SEE

About Revision (page 12)

Page 30

H: DIP Switches

Chapter 2 Part Names and Functions

DIP

Switches

1 Start up from CF Card Enabled Disabled

2* Forced transfer mode

3 Reserved - - Constantly OFF

Simulate cover closed,

allowing card to be read even if cover open

* When the unit turns ON with DIP switch 2 ON, the unit starts in transfer mode. Under normal operating conditions, set to OFF.

Function ON OFF Note

CF Card with startup data required

Forced Transfer Mode: ON

Enabled Disabled

Forced Transfer Mode: OFF

Used when CF Card cover is damaged

2-7

Page 31

ST3000 Series Hardware Manual

2-8

Page 32

3 Specifications

1. ST-3200 Series

2. ST-3300 Series

3. ST-3400 Series

4. ST-3500 Series

This chapter describes the general specifications, functions, interfaces, and external drawings of the ST.

3-1

Page 33

ST3000 Series Hardware Manual

3.1 ST-3200 Series

3.1.1 General Specifications  Electrical Specifications

Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage Drop 2ms (max.) Power Consumption 13W (max.)

Power Supply

In-Rush Current 60A (max.)

Voltage Endurance

Insulation Resistance

*1. The FWHM (Full-width, half maximum) value is approximately 40µs. (When exceeding

30A)

 Environmental Specifications

AC1000V 20mA for 1 minute

(between charging and FG terminals)

DC500V 10MΩ (min.)

(between charging and FG terminals)

Surrounding Air Temperature

Storage Temperature -20 to +60°C Ambient Humidity

Storage Humidity Dust 0.1mg/m3 and below (non-conductive levels)

Physical

Pollution Degree For use in Pollution Degree 2 environment. Atmosphere Free of corrosive gases Air Pressure Vibration

Resistance (altitude range)

Vibration Resistance

Mechanical

Concussion Resistance

Noise Immunity

Electrical

Electrostatic Discharge Immunity

*1. Extended use in environments where surrounding air temperature is 40°C or higher may

degrade the display quality and result in decreased contrast.

(Wet bulb temperature: 39°C max. - no condensation.)

(sea level to 2000 meters above)

5 to 9Hz single-amplitude 3.5mm[0.14in]

9 to 150Hz constant-accelerated velocity 9.8m/s

X,Y,Z directions for 10 cycle (100 minute)

(147m/s

6kV (complies with EN 61000-4-2 Level 3)

0 to +50°C

10 to 90% RH

800 to 1114hPa

IEC61131-2 compliant

X,Y,Z directions for 3 times)

Noise Voltage: 1000V

Pulse Duration: 1µs

Rise Time: 1ns

(via noise simulator)

P-P

3-2

Page 34

 Structural Specifications

Chapter 3 Specifications

Grounding resistance of 100Ω 2mm

Grounding

or your country’s applicable standard.

(Same for FG and SG terminals)

Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13

Structure

(Front surface at panel embedding)

Feature size: All-in-one

Installation configuration: Panel embedding

Cooling Method Natural air circulation

Installation

Weight Approx. 0.4kg[0.9lb] max. (unit only) External

Dimensions Panel Cut

Dimensions

W130mm[5.12in] X H104mm[4.09in] X D40mm[1.57in]

W118.5mm[4.67in] X H92.5mm[3.64in]

Panel thickness: 1.6mm[0.06in] to 5.0mm[0.20in]

*1. The front face of the ST unit, installed in a solid panel, has been tested using conditions

equivalent to the standards shown in the specification. Even though the ST unit’s level of resistance is equivalent to these standards, oils that should have no effect on the ST can possibly harm the unit. This can occur in areas where either vaporized oils are present, or where low viscosity cutting oils are allowed to adhere to the unit for long periods of time. If the ST’s front face protection sheet becomes peeled off, these conditions can lead to the ingress of oil into the ST and separate protection measures are suggested. Also, if non-approved oils are present, it may cause deformation or corrosion of the front panel’s plastic cover. Therefore, prior to installing the ST be sure to confirm the type of conditions that will be present in the ST’s operating environment. If the installation gasket is used for a long period of time, or if the unit and its gasket are removed from the panel, the original level of the protection cannot be guaranteed. To maintain the original protection level, be sure to replace the installation gasket regularly.

*2. Dimensional tolerance: everything +1/-0mm[+0.04/-0in] and R in angle are below R3[0.12].

or thicker wire,

3-3

Page 35

ST3000 Series Hardware Manual

3.1.2 Performance Specifications  Performance Specifications

Application

Data Backup

Interface

Clock Accuracy

COM1: RS-232C Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400 bps to 115.2 kbps

Serial Interface

USB Host Interface

*1. User active capacity. *2. RS-485 is compliant with AST-3201A units with revision code "C" or later.

Connector: D-Sub 9pin plug COM2: RS-422/RS-485

Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400 bps to 115.2 kbps (RS-422/RS-485)

187.5 kbps (MPI) Connector: D-Sub 9pin plug

USB 1.1 compliant. (TYPE-A conn.) x 1 Power Supply Voltage: DC5V Output Current: 500mA (Max.) Communication Distance: 5m (Max.)

AST-3201A AST-3211A

FLASH EPROM 6MB

SRAM 320KB

Used lithium battery for backup memory

COM1: RS-232C Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400 bps to 115.2 kbps Connector: D-Sub 9pin plug

COM2: RS-485 (MPI only) Asynchronous Transmission Data Length: 7bit/8bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed:

187.5 kbps (MPI) Connector: D-Sub 9pin socket

± 5%

± 65 seconds/ month (at room temperature)

3-4

SEE

*3. The ST’s internal clock has a slight error. At normal operating temperatures and conditions,

with the ST operating from its lithium battery, the degree of error is 65 seconds per month. Variations in operating conditions and battery life can cause this error to vary from -380 to +90 seconds per month. For systems where this degree of error will be a problem, the user should be sure to monitor this error and make adjustments when required.

• When the message “RAAA051 Low battery” is displayed, supply power to the display

• A Lithium battery’s lifetime is: 10 years when the battery’s ambient temperature is 40°C

About Revision (page 12)

unit and fully charge the battery. The battery charges within 24 hours to a level which allows backup operation. Completing a full charge requires about 96 hours (4 days).

or less. 4.1 years when the battery’s ambient temperature is 50°C or less. 1.5 years when the battery’s ambient temperature is 60°C or less. When used for backup: Approximately 100 days, with a fully charged battery. Approximately 6 days, with a half-charged battery.

Page 36

Chapter 3 Specifications

 Display Specifications

Display Type Monochrome Amber/Red LCD Resolution W320 X H240 pixels Dot pitch W0.24mm[0.01in] X H0.24mm[0.01in] Effective Display

Area Color/Shade level Black and White (8 Shades) Backlight LED (Not replaceable) Brightness control 16 levels of adjustment available via touch panel Contrast Adjustment 8 levels of adjustment available via touch panel

Backlight Service Life

Language Fonts

(at 25°C and continuous operation - period until backlight brightness decreases to

Japanese: 6962 (JIS Standards 1 & 2) (including 607 non-kanji characters)

W78.8mm[3.10in] X H59.6mm[2.35in]

50000hrs. or more

50%.)

ANK: 158 (Korean, Traditional Chinese

and Simplified Chinese fonts are downloadable.)

Character Sizes

Font Sizes

Te xt composition

8 X 8 dots 40 Char. X 30 ro ws

8 X 16 dots 40 Char. X 15 rows

16 X 16 dots 20 Char. X 15 rows

Text

32 X 32 dots 10 Char. X 7 rows

*1. Font Sizes can be set up by software.

Standard font: 8X8, 8X16, 16X16 and 32X32 dot fonts

Stroke font: 6 to 127 dot fonts

Standard font: Width can be expanded up to 8 times.

Height can be expanded up to 8 times

 Touch Panel Specifications

Type Resistive Film (analog) Resolution 1024 X 1024 Service Life 1000000 times or more

3-5

Page 37

ST3000 Series Hardware Manual

3.1.3 Interface Specifications

This section describes the specifications of each interface of the ST Series unit.

• The serial interface of the ST Series (except AST-3211A COM2) does not have an isolation function. When the host (PLC) unit is also not isolated, be sure to connect Pin #5 SG (Signal Ground) terminal to reduce the risk of damaging the RS-232C/RS-422/RS-485 circuit.

• ST Series (except AST-3211A COM2) have the SG (signal ground) connection and the FG (frame ground) connection inside. When connecting an external device to the ST using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system.

• The same type of connector is used for COM1 and COM2 of the AST-3201A. Be careful not to mistake one for the other. Connecting them incorrectly disables communication.

• Connecting the RS-232C isolation unit (CA3-ISO232-01) to COM1 enables isolation if needed.

3-6

Page 38

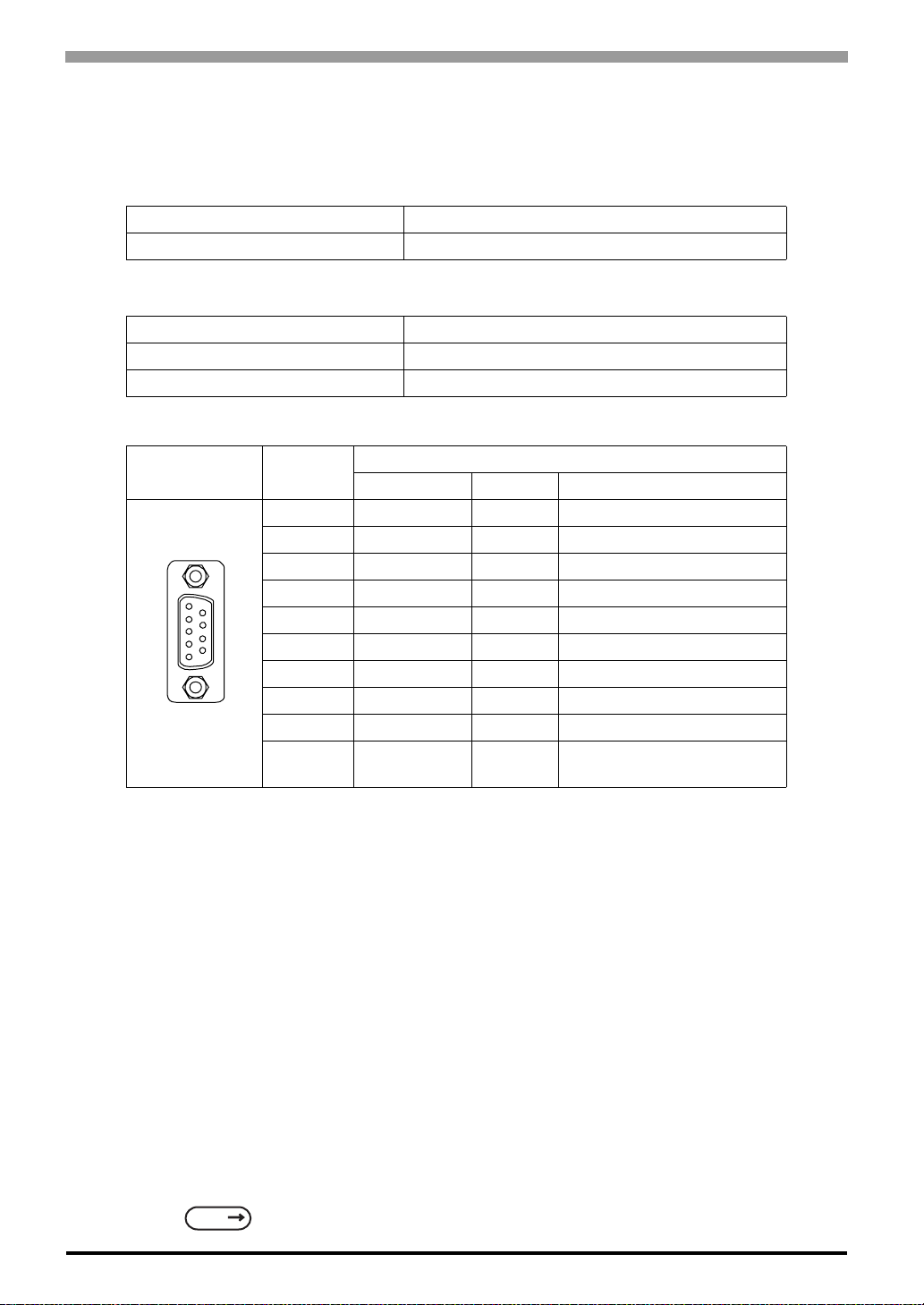

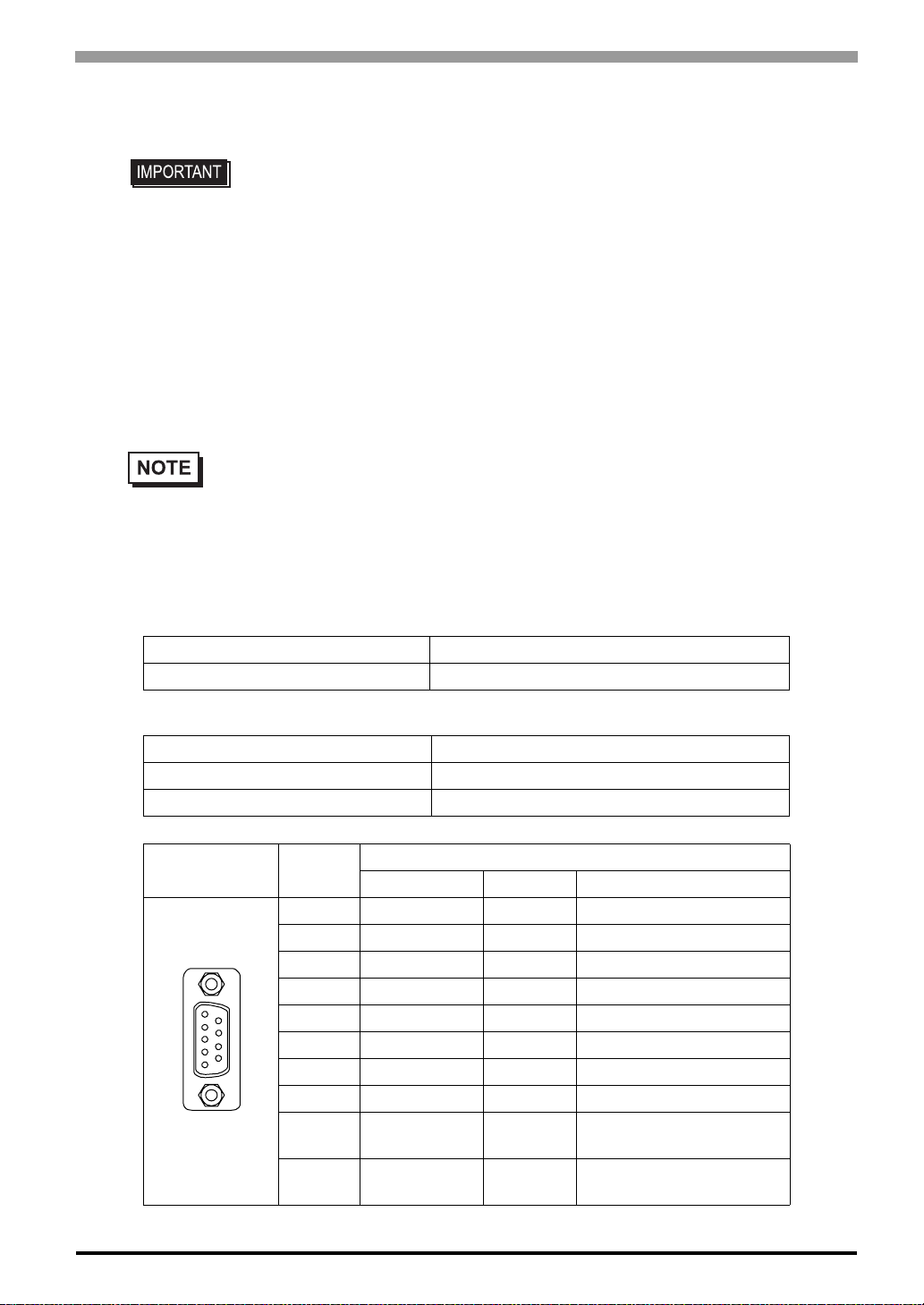

 AST-3201A

 Serial Interfaces (COM1)

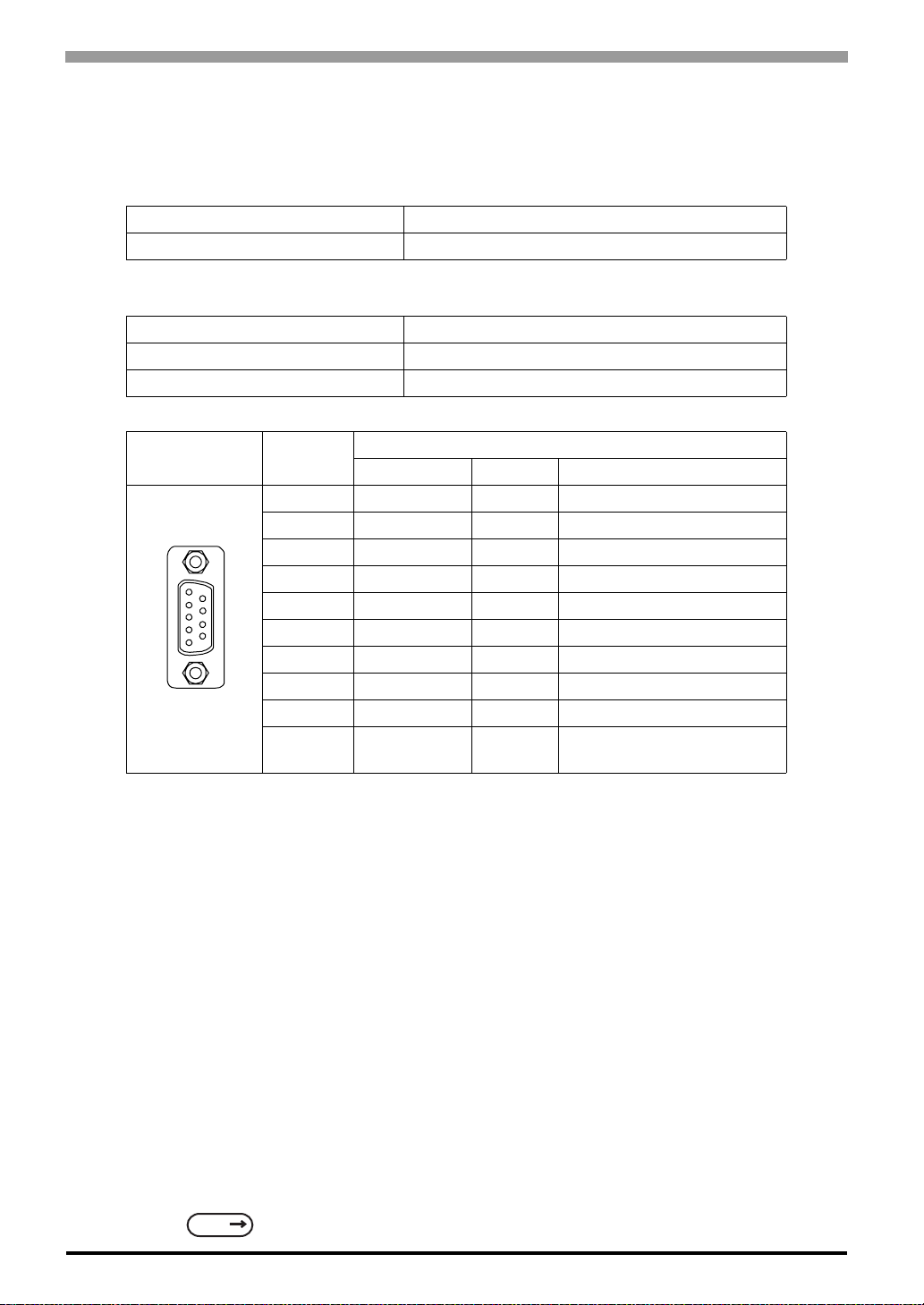

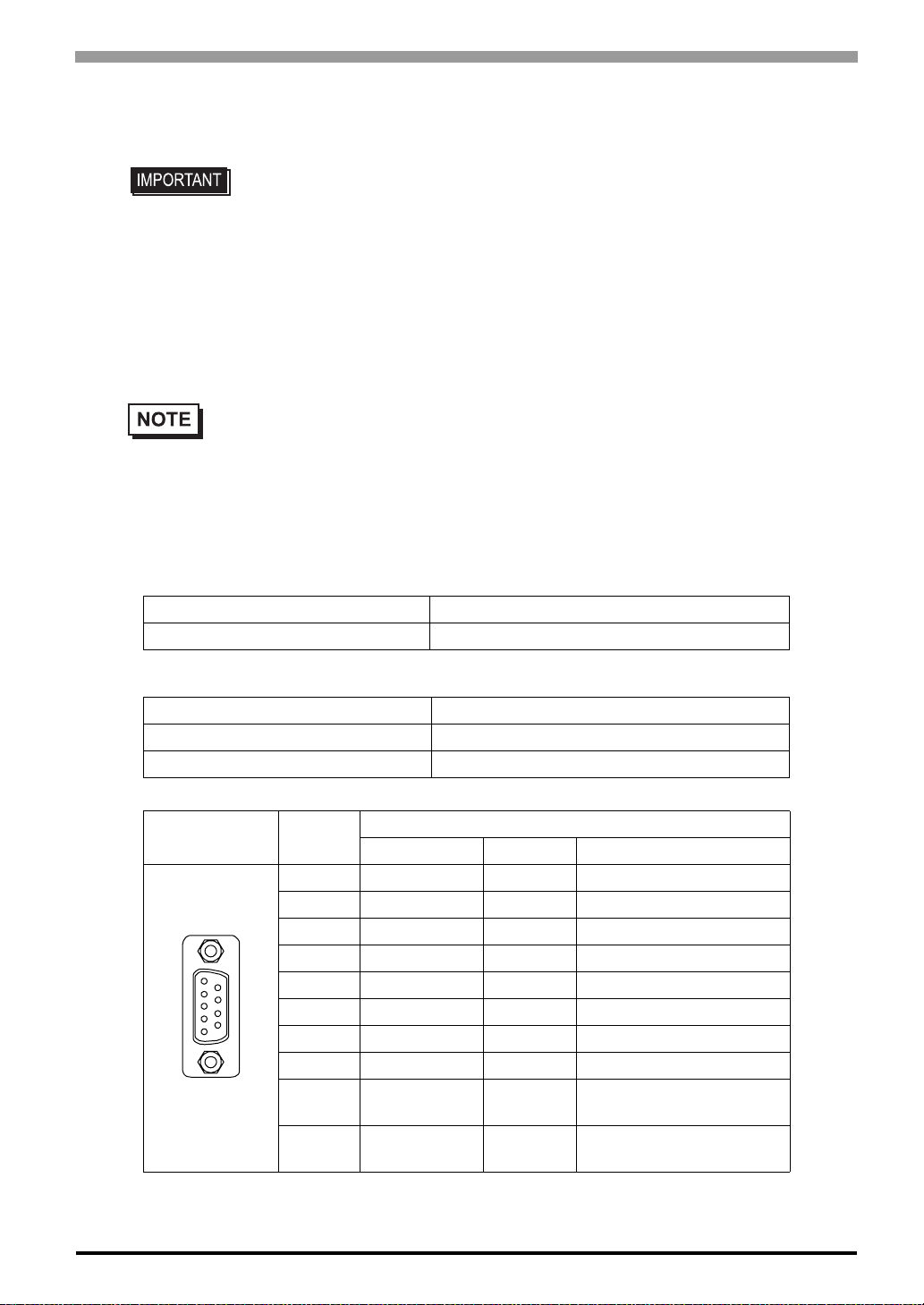

This interface is used to connect an RS-232C cable. D-Sub 9-pin plug connector is used.

ST Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Chapter 3 Specifications

Arrangement

(ST unit side)

*1. The RI/VCC selection for Pin #9 is switched via software. The VCC output is not

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready 5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

protected against overcurrent. To prevent damage or a unit malfunction, use only the rated current.

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-7

Page 39

ST3000 Series Hardware Manual

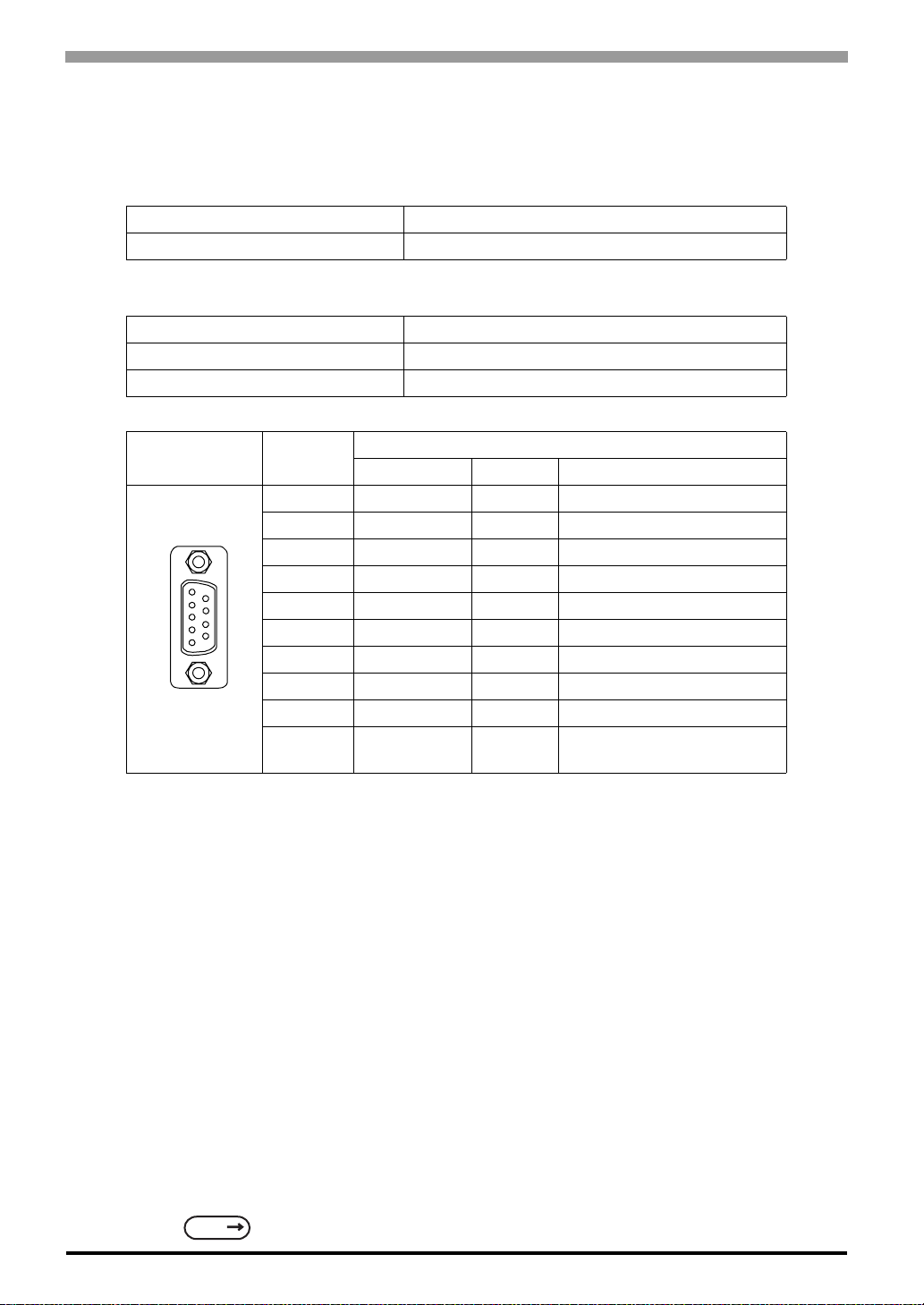

 Serial Interface (COM2)

This interface is used to connect an RS-422/RS-485*1 serial cable. A D-Sub 9-pin plug connector is used.

ST Connector X M2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

Pin No.

1 RDA Input Receive Data A(+) 2 RDB Input Receive Data B(-) 3 SDA Output Send Data A(+) 4 ERA Output Data Terminal Ready A(+)

5 SG - Signal Ground 6 CSB Input Send Possible B(-) 7 SDB Output Send Data B(-) 8 CSA Input Send Possible A(+) 9 ERB Output Data Terminal Ready B(-)

Shell FG -

Signal Name Direction Meaning

RS-422/RS-485

Frame Ground

(Common with SG)

3-8

*1 RS-485 is compliant with AST-3201A units with revision code "C" or later.

SEE

About Revision (page 12)

Page 40

Chapter 3 Specifications

 AST-3211A

 Serial Interface (COM1)

This interface is used to connect an RS-232C serial cable. A D-Sub 9-pin plug connector is used.

ST Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1. The RI/VCC selection for Pin #9 is switched via software. The VCC output is not

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready

protected against overcurrent. To prevent damage or a unit malfunction, use only the rated current.

5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-9

Page 41

ST3000 Series Hardware Manual

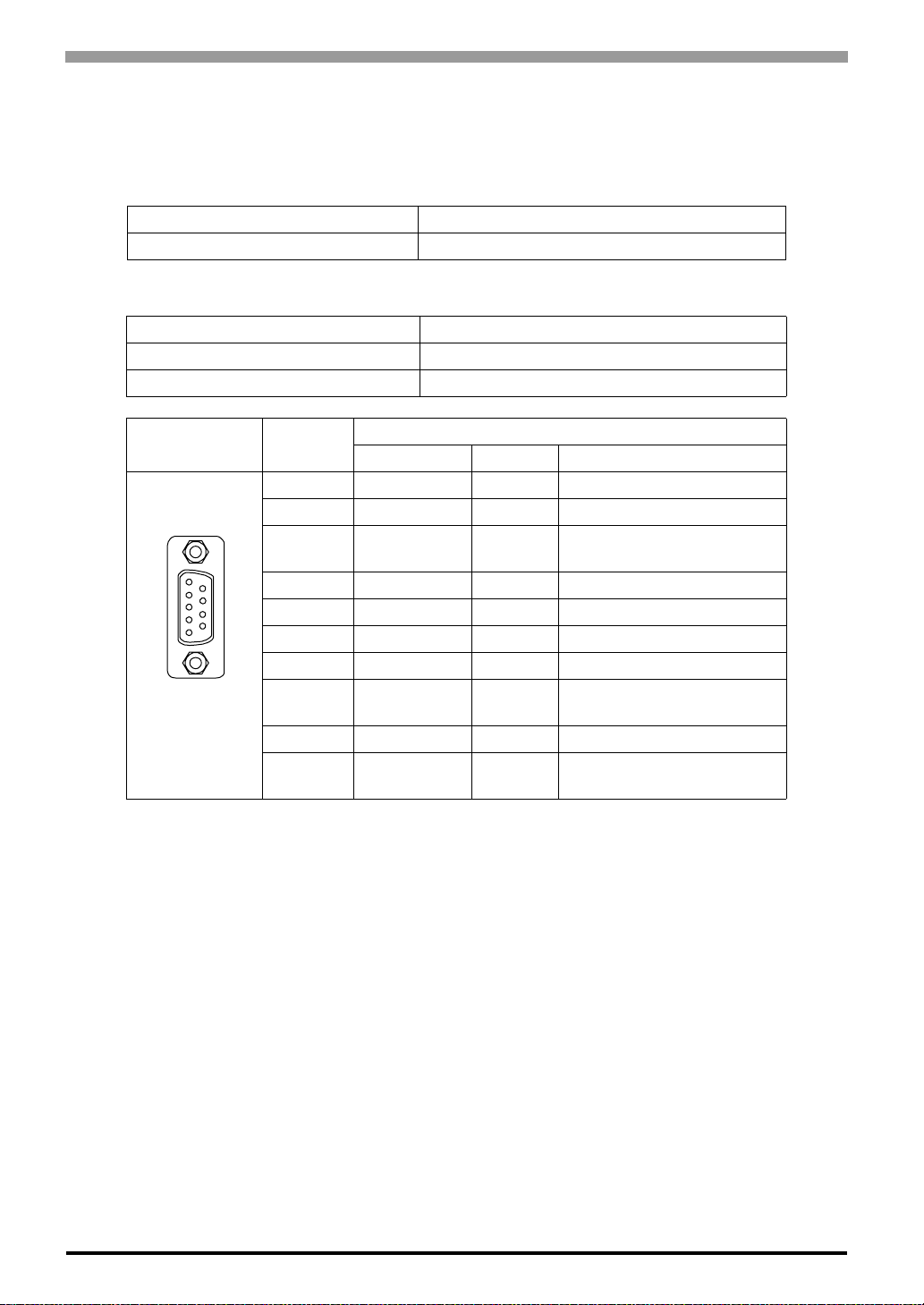

 Serial Interface (COM2)

This interface is used to connect an RS-485 (MPI only) serial cable. A D-Sub 9-pin socket connector is used.

ST Connector XM3B-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2A-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1. The SG and FG terminals are isolated. *2. The 5V output for Pin # 6 is not protected against overcurrent. To prevent damage or

*3. When providing power via the Siemens Co.’s PROFIBUS connector, power cannot

Pin No.

Signal Name Direction Meaning

RS-485 (MPI only)

1NC- 2NC- -

3LINE(+)

Input/

Output 4 RS(RTS) Output Request to Send 5 SG - Signal Ground 6 5V - 5V External Output*2 7NC- -

8LINE(-)

Input/

Output 9NC- -

Shell FG -

unit malfunctions, use only the rated current.

be connected to the Device/PLC.

LINE(+)

LINE(-)

Frame Ground

(Common with SG)

3-10

Page 42

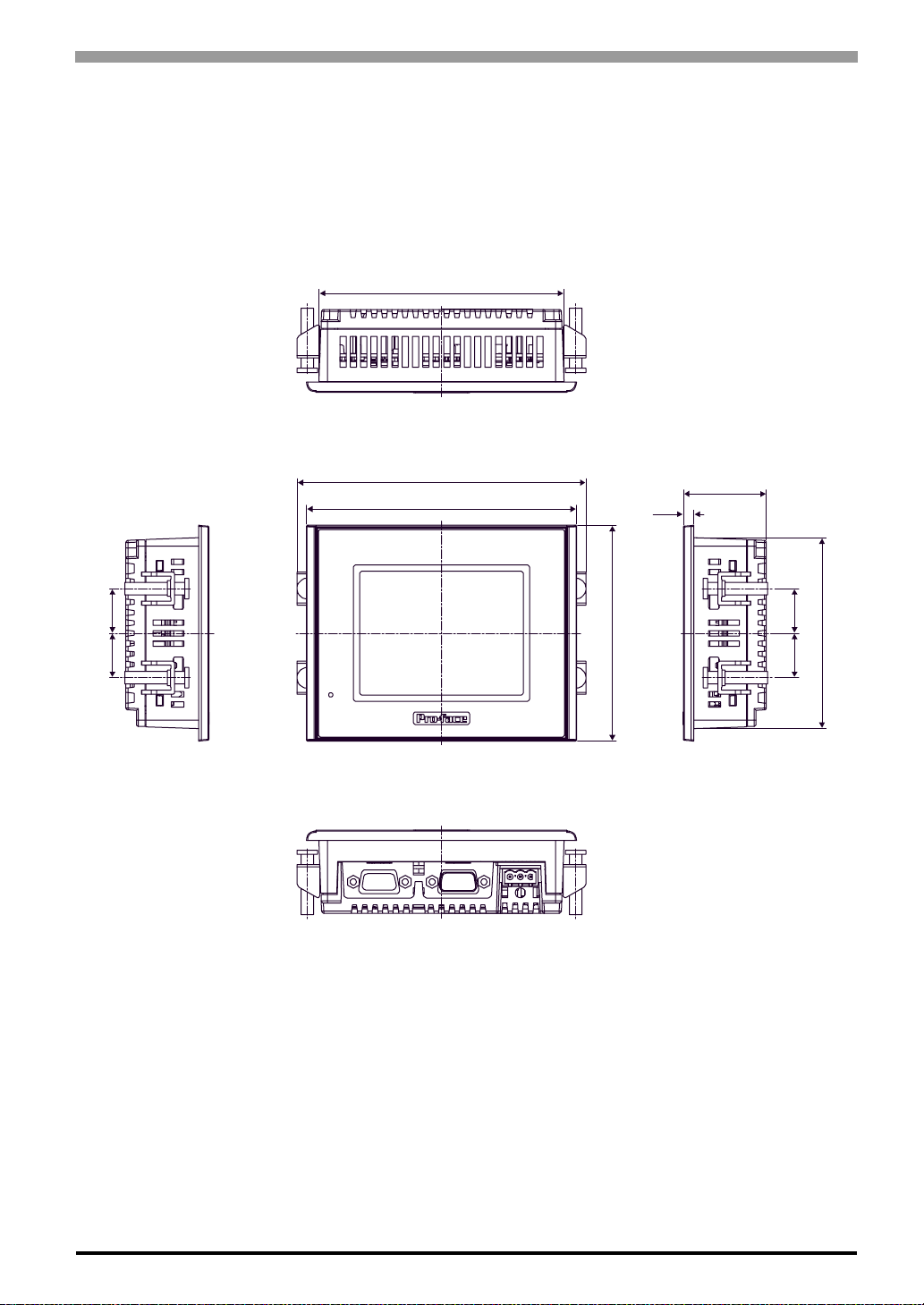

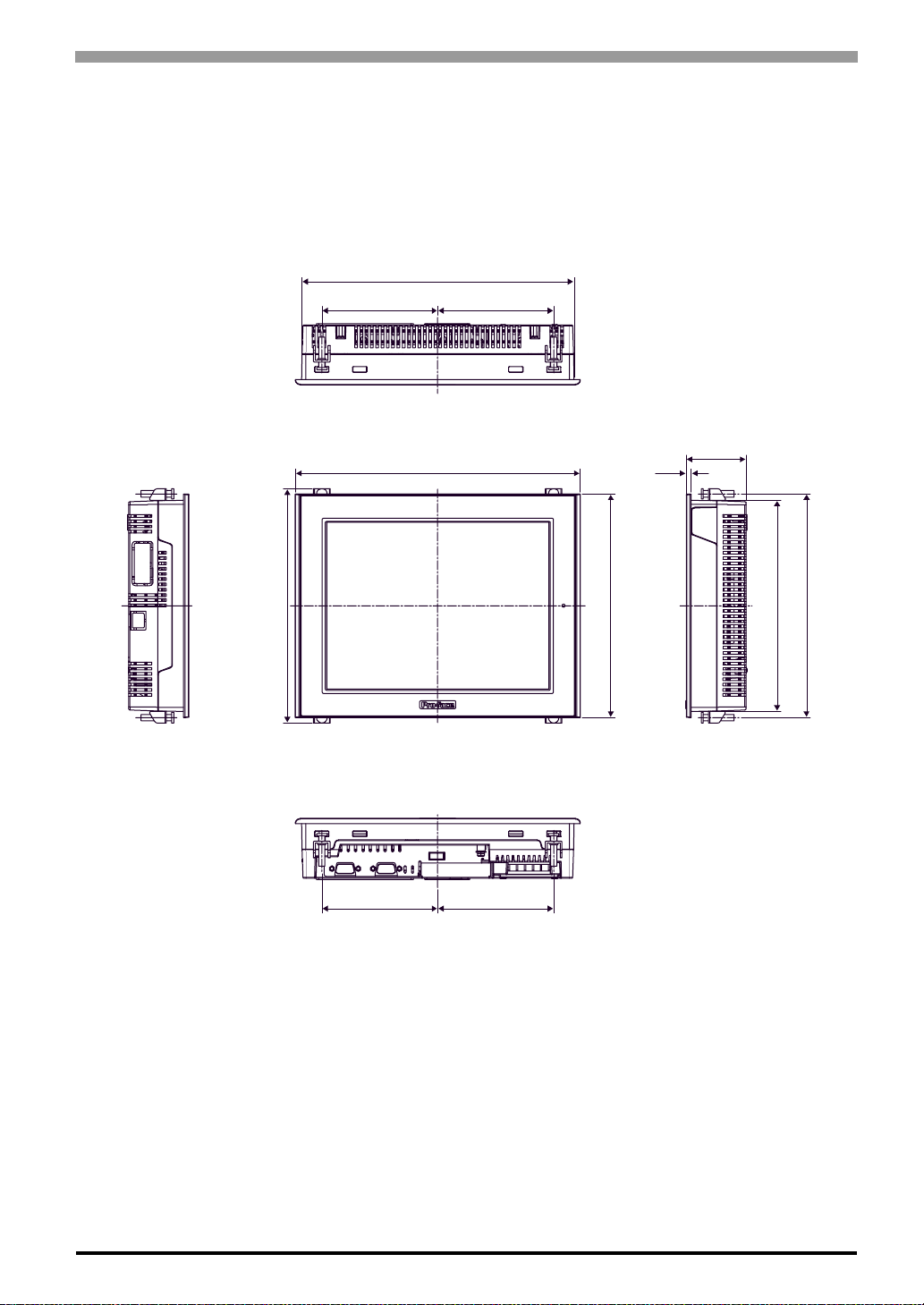

3.1.4 Dimensions

The following dimensions apply to ST-3200 Series units.

 Installation Fasteners Attached Dimensions

Unit: mm[in.]

118[4.65]

Chapter 3 Specifications

Top

21.5[0.85]

Left side

139.3[5.48] 130[5.12]

5[0.20]

40[1.57]

104[4.09]

Front Right side

Bottom

21.5

[0.85]

92[3.62]

21.5

[0.85]

3-11

Page 43

ST3000 Series Hardware Manual

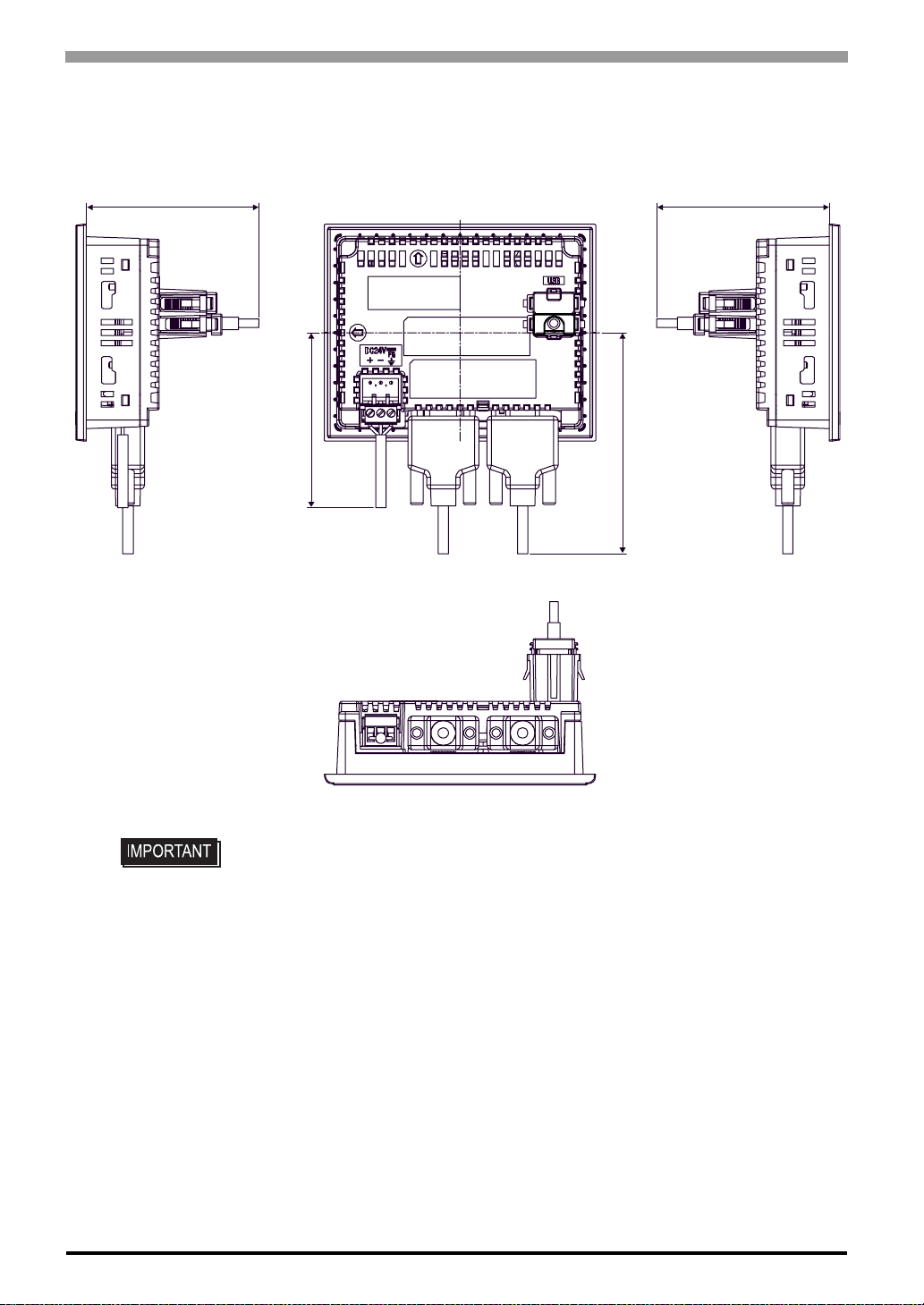

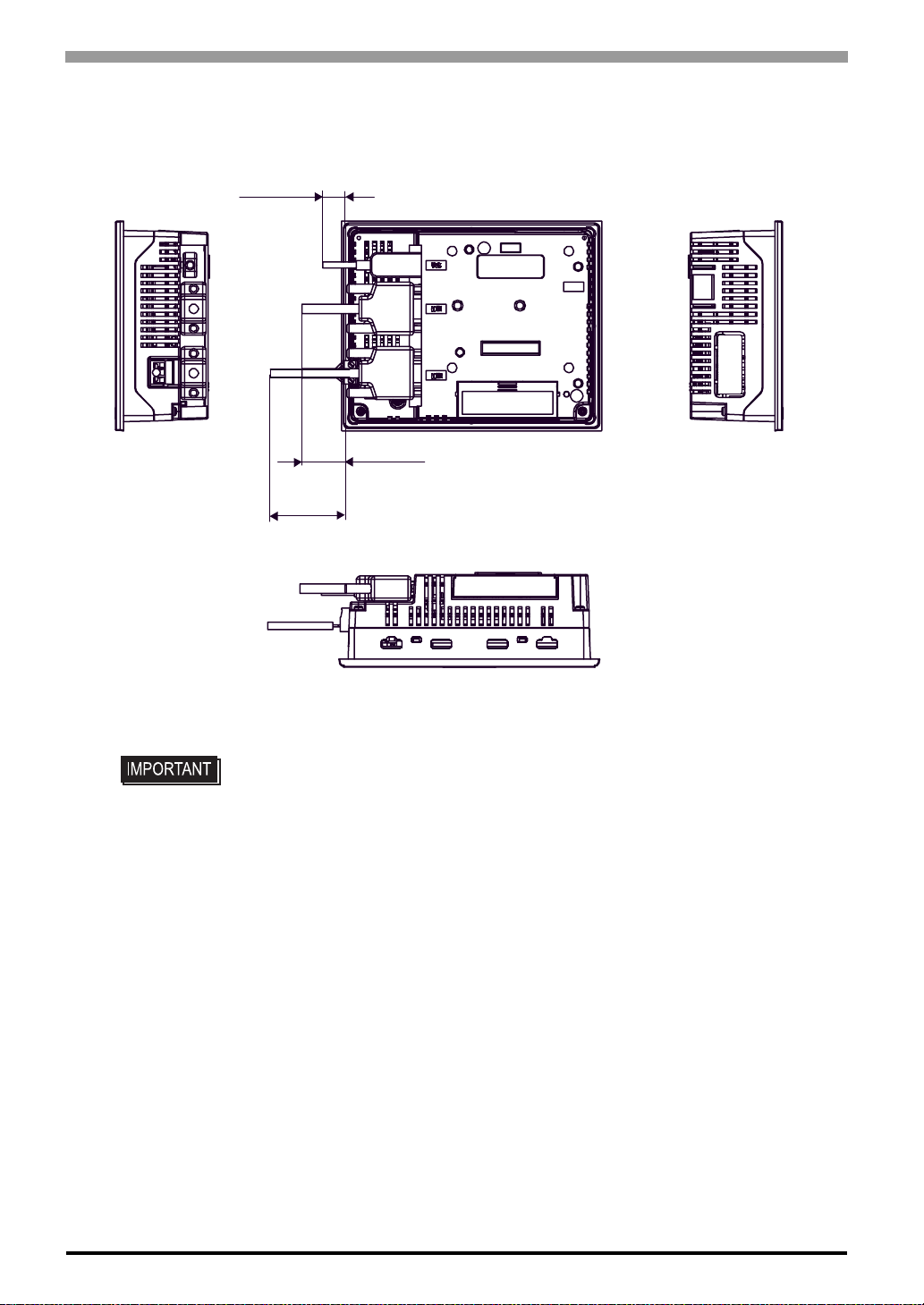

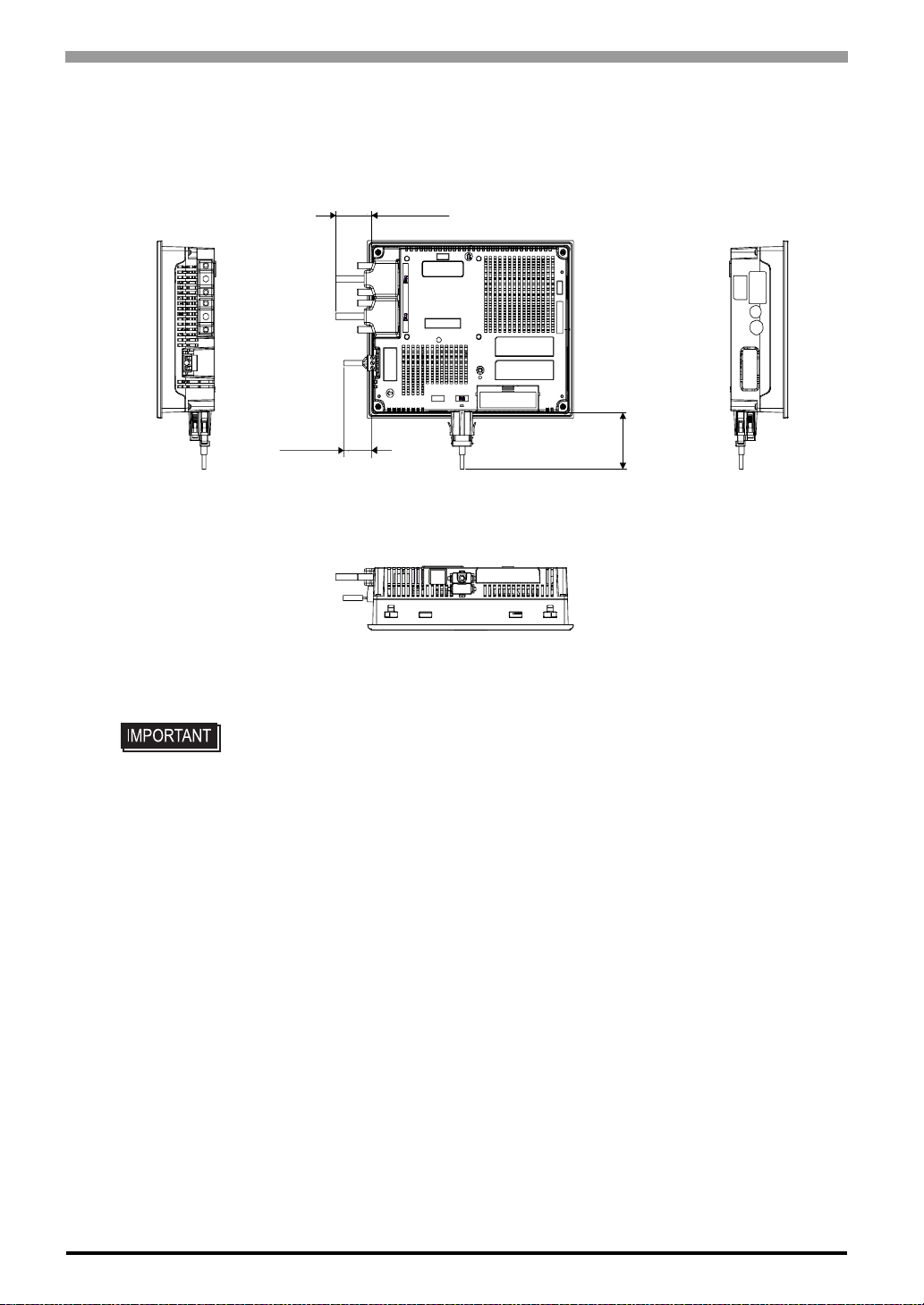

 Cable Attached Dimensions

Unit: mm[in.]

83[3.27]

Left side

83[3.27]

Front

84[3.31]

106[4.17]

Rear Right side

3-12

Bottom

• All the above values are designed in case of cable bending. The dimensions given here are representative values depending on the type of connection cable used. Therefore, they are all intended for reference only.

Page 44

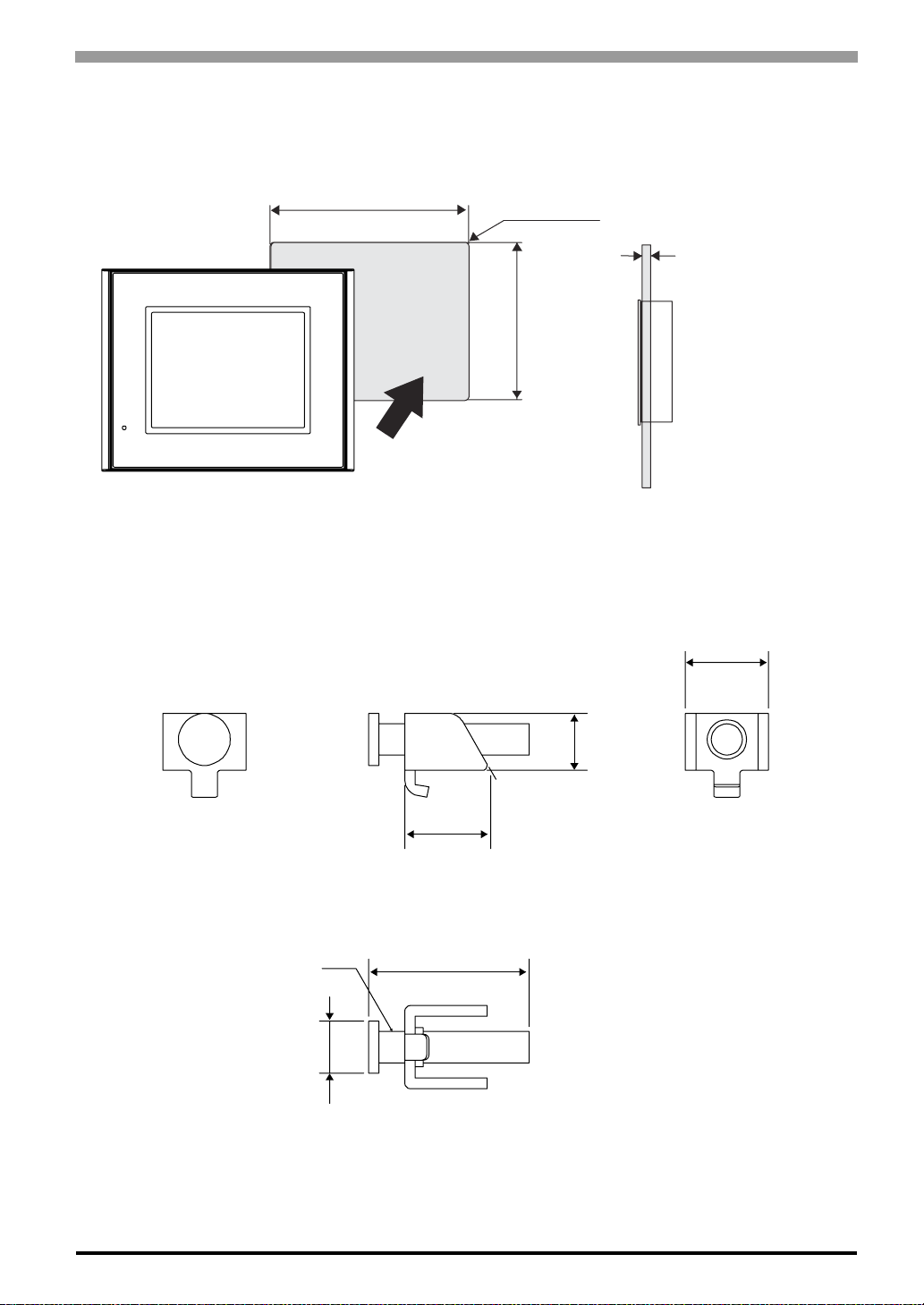

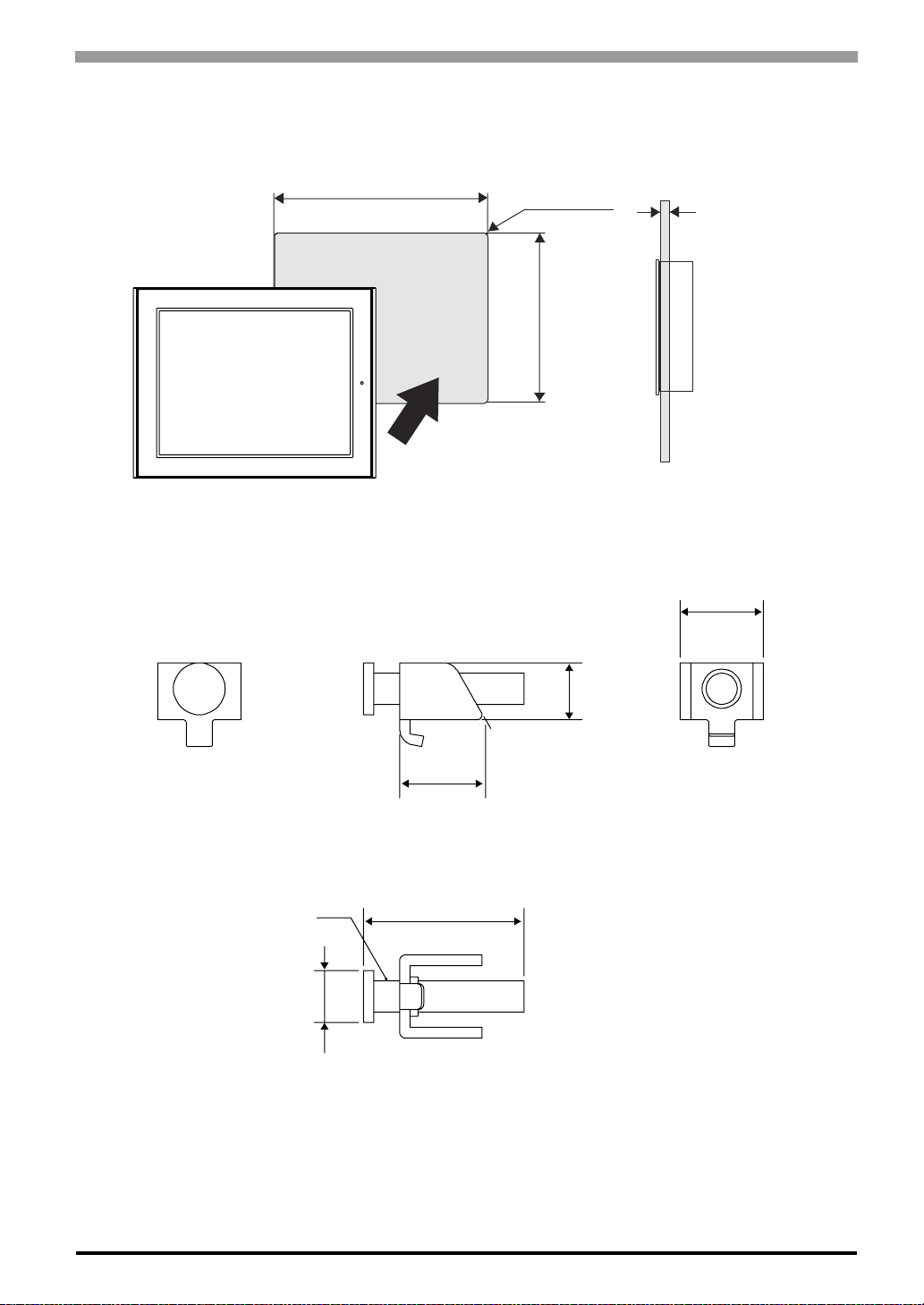

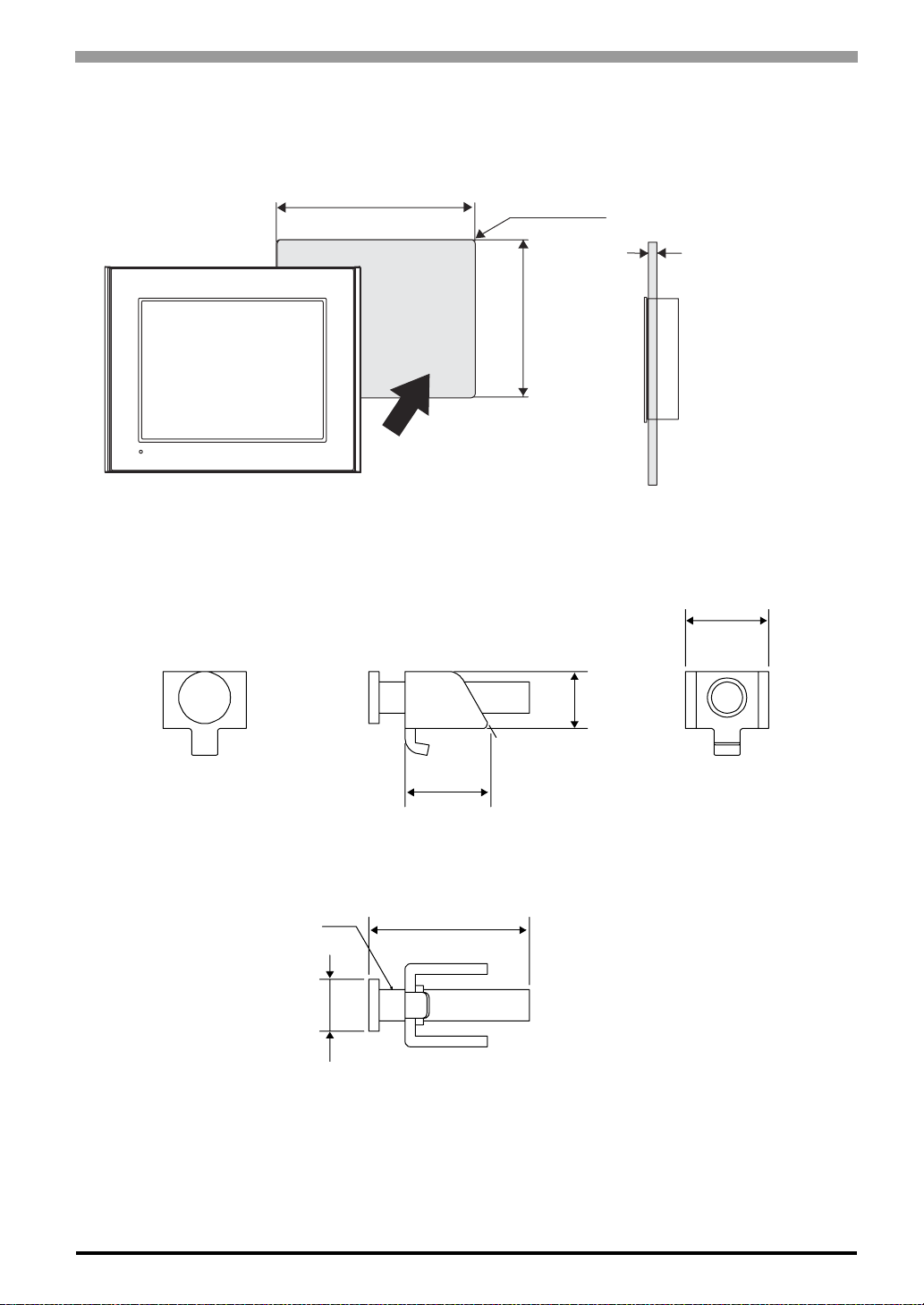

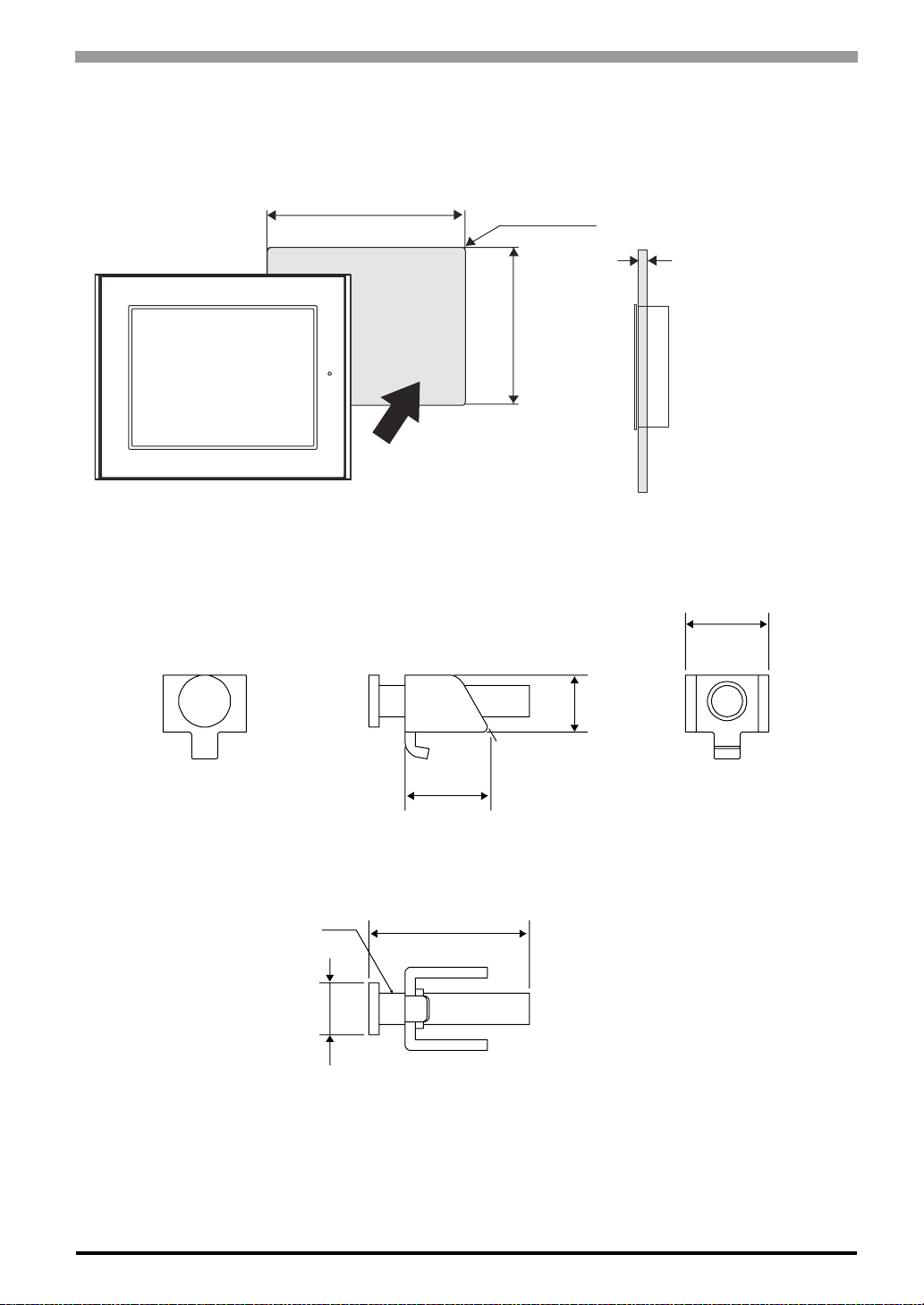

 Panel Cut Dimensions

Unit: mm[in.]

118.5

-0

+0.04

[4.67 ]

-0

Chapter 3 Specifications

r ≤ 3 [0.12]

 Installation Fasteners

Unit: mm[in.]

-0

+0.04

[3.64 ]

-0

92.5

Panel thickness area

1.6[0.06] to 5.0[0.20]

16[0.63]

[0.43]

16.6[0.65]

∅10[0.39]

31[1.22]

3-13

Page 45

ST3000 Series Hardware Manual

3.2 ST-3300 Series

3.2.1 General Specifications  Electrical Specifications

Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage Drop 10ms (max.) Power Consumption 18W (max.)

Power Supply

In-Rush Current 30A (max.)

Voltage Endurance

Insulation Resistance

 Environmental Specifications

AC1000V 20mA for 1 minute

(between charging and FG terminals)

DC500V 10MΩ (min.)

(between charging and FG terminals)

Surrounding Air Temperature

Storage Temperature -20 to +60°C Ambient Humidity

Storage Humidity Dust 0.1mg/m3 and below (non-conductive levels)

Physical

Pollution Degree For use in Pollution Degree 2 environment Atmosphere Free of corrosive gases Air Pressure Vibration

Resistance (altitude range)

Vibration Resistance

Mechanical

Concussion Resistance

Noise Immunity

Electrical

Electrostatic Discharge Immunity

*1. When using Monochrome / STN Color LCD model in an environment where the

temperature reaches or exceeds 40°C for an extended period of time, the screen contrast level may decrease from its original level of brightness.

(Wet bulb temperature: 39°C max. - no condensation.)

(sea level to 2000 meters above)

5 to 9Hz single-amplitude 3.5mm[0.14in]

9 to 150Hz constant-accelerated velocity 9.8m/s

X,Y,Z directions for 10 cycle (100 minute)

(147m/s

6kV (complies with EN 61000-4-2 Level 3)

0 to +50°C

10 to 90% RH

800 to 1114hPa

IEC61131-2 compliant

X,Y,Z directions for 3 times)

Noise Voltage: 1000V

Pulse Duration: 1µs

Rise Time: 1ns

(via noise simulator)

P-P

3-14

Page 46

 Structural Specifications

Chapter 3 Specifications

or thicker wire,

Grounding

Grounding resistance of 100Ω 2mm

or your country’s applicable standard.

(Same for FG and SG terminals)

Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13

Structure

(Front surface at panel embedding)

Feature size: All-in-one

Installation configuration: Panel embedding

Cooling Method Natural air circulation

Installation

Weight Approx. 1.0kg[2.2lb]max. (unit only) External

Dimensions Panel Cut

Dimensions

W167.5mm[6.59in] X H135mm[5.31in] X D59.5mm[2.34in]

W156.0mm[6.14in] X H123.5mm[4.86in]

Panel thickness: 1.6mm[0.06in] to 5.0mm[0.20in]

*1. The front face of the ST unit, installed in a solid panel, has been tested using conditions

*2. Dimensional tolerance: everything +1/-0mm[+0.04/-0in] and R in angle are below R3[0.12].

3-15

Page 47

ST3000 Series Hardware Manual

3.2.2 Performance Specifications  Performance Specifications

AST-3301B, AST-3301S, AST-3301T AST-3302B

Application

FLASH EPROM 6MB

Data Backup

Serial Interface

Interface

USB Host Interface

SRAM 320KB

Used lithium battery for backup memory

COM1: RS-232C Asynchronous Transmission: Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400bps to 115.2 kbps Connector: D-Sub 9pin plug

COM2: RS-422/RS-485 Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400 bps to 115.2 kbps (RS-422/RS-

485)

187.5 kbps (MPI) Connector: D-Sub 9pin plug

USB 1.1 compliant. (TYPE-A conn.) x 1 Power Supply Voltage: DC5V Output Current: 500mA (Max.) Communication Distance: 5m (Max.)

COM2: RS-485(MPI only) Asynchronous Transmission Data Length: 7bit/8bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed:

187.5 kbps (MPI) Connector: D-Sub 9pin socket

± 5%

3-16

Clock Accuracy

*1. User active capacity.

*2. RS-485 is compliant with AST-3301B / AST-3301S with revision code "B" or later. For all other

models, all revisions support RS-485.

SEE

*3. The ST’s internal clock has a slight error. At normal operating temperatures and conditions, with

the ST operating from its lithium battery, the degree of error is 65 seconds per month. Variations in operating conditions and battery life can cause this error to vary from -380 to +90 seconds per month. For systems where this degree of error will be a problem, the user should be sure to monitor this error and make adjustments when required.

About Revision (page 12)

±65 seconds/ month (at room temperature)

Page 48

Chapter 3 Specifications

• When the message “RAAA051 Low battery” is displayed, supply power to the display unit and fully charge the battery. The battery charges within 24 hours to a level which allows backup operation. Completing a full charge requires about 96 hours (4 days).

• A Lithium battery’ s lifetime is: 10 years when the battery’ s am bient temperature is 40°C or less. 4.1 years when the battery’s ambient temperature is 50°C or less. 1.5 years when the battery’s ambient temperature is 60°C or less. When used for backup: Approximately 100 days, with a fully charged battery. Approximately 6 days, with a half-charged battery.

3-17

Page 49

ST3000 Series Hardware Manual

 Display Specifications

AST-3301B AST-3302B AST-3301S AST-3301T Display Type Monochrome blue mode LCD STN Color LCD TFT Color LCD Resolution W320 X H240 pixels Dot pitch W0.36mm[0.01in] X H0.36mm[0.01in] Effective Display

Area Color/Shade level 8 Shades Backlight CCFL (Not replaceable)

Brightness control 8 levels of adjustment available via touch panel Contrast Adjustment 8 levels of adjustment available via touch panel Not Applicable

58000hrs. or more

(at 25°C and continuous operation -

Backlight Service Life

backlight brightness decreases to 50%

or backlight starts to flicker)

Language Fonts

period until

W115.2mm[4.54in] X H86.4mm[3.40in]

256 Colors (No blink)

64 Colors (Enables blink feature)

75000hrs. or more

(at 25°C and con-

tinuous operation

- period until

backlight bright-

ness decreases to

50% or backlight

starts to flicker)

Japanese: 6962 (JIS Standards 1 & 2)

(including 607 non-kanji characters)

ANK: 158 (Korean, Traditional Chinese

and Simplified Chinese fonts are downloadable.)

50000hrs. or more

(at 25°C and con-

tinuous operation

- period until

backlight bright-

ness decreases to

50% or backlight

starts to flicker)

Character Sizes

Font Sizes

Text composition

8 X 8 dots 40 Char. X 30 rows 8 X 16 dots 40 Char. X 15 rows

Text

16 X 16 dots 20 Char. X 15 rows 32 X 32 dots 10 Char. X 7 rows

*1. Font Sizes can be set up by software.

Standard font: 8X8, 8X16, 16X16 and 32X32 dot fonts

Stroke font: 6 to 127 dot fonts

Standard font: Width can be expanded up to 8 times.

Height can be expanded up to 8 times

 Touch Panel Specifications

Type Resistive Film (analog) Resolution 1024 X 1024 Service Life 1000000 times or more

3-18

Page 50

3.2.3 Interface Specifications

This section describes the specifications of each interface of the ST Series unit.

• The serial interface of the ST Series (except AST-3302B COM2) does not have an isolation function. When the host (PLC) unit is also not isolated, be sure to connect Pin #5 SG (Signal Ground) terminal to reduce the risk of damaging the RS-232C/RS-422/RS-485 circuit.

• ST Series (except AST-3302B COM2) have the SG (signal ground) connection and the FG (frame ground) connection inside. When connecting an external device to the ST using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system.

• The same type of connector is used for COM1 and COM2 of the ST (except AST3302B). Be careful not to mistake one for the other. Connecting them incorrectly disables communication.

• Connecting the RS-232C isolation unit (CA3-ISO232-01) to COM1 enables isolation if needed.

 AST-3301B, AST-3301S, AST-3301T

Chapter 3 Specifications

 Serial Interface (COM1)

This interface is used to connect an RS-232C serial cable. A D-Sub 9-pin plug connector is used.

ST Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1 The RI/VCC selection for Pin #9 is switched via software. The VCC output is not protected against

overcurrent. To prevent damage or a unit malfunction, use only the rated current.

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready

5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-19

Page 51

ST3000 Series Hardware Manual

 Serial Interface (COM2)

This interface is used to connect an RS-422/RS-485*1 serial cable. A D-Sub 9-pin plug connector is used.

ST Connector X M2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

Pin No.

1 RDA Input Receive Data A(+) 2 RDB Input Receive Data B(-) 3 SDA Output Send Data A(+)

4 ERA Output Data Terminal Ready A(+) 5 SG - Signal Ground 6 CSB Input Send Possible B(-) 7 SDB Output Send Data B(-) 8 CSA Input Send Possible A(+) 9 ERB Output Data Terminal Ready B(-)

Shell FG -

Signal Name Direction Meaning

RS-422/RS-485

Frame Ground

(Common with SG)

3-20

*1 RS-485 is compliant with AST-3301B / AST-3301S with revision code "B" or later. For all other models,

all revisions support RS-485.

SEE

About Revision (page 12)

Page 52

Chapter 3 Specifications

 AST-3302B

 Serial Interface (COM1)

This interface is used to connect an RS-232C serial cable. A D-Sub 9-pin plug connector is used.

ST Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1. The RI/VCC selection for Pin #9 is switched via software. The VCC output is not

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready

protected against overcurrent. To prevent damage or a unit malfunction, use only the rated current.

5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-21

Page 53

ST3000 Series Hardware Manual

 Serial Interface (COM2)

This interface is used to connect an RS-485 (MPI only) serial cable. A D-Sub 9-pin socket connector is used.

ST Connector XM3B-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2A-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1. The SG and FG terminals are isolated. *2. The 5V output for Pin # 6 is not protected against overcurrent. To prevent damage or

*3. When providing power via the Siemens Co.’s PROFIBUS connector, power cannot

Pin No.

Signal Name Direction Meaning

RS-485 (MPI only)

1NC- 2NC- -

3LINE(+)

Input/

Output 4 RS(RTS) Output Request to Send 5 SG - Signal Ground 6 5V - 5V External Output*2 7NC- -

8LINE(-)

Input/

Output 9NC- -

Shell FG -

unit malfunctions, use only the rated current.

be connected to the Device/PLC.

LINE(+)

LINE(-)

Frame Ground

(Common with SG)

3-22

Page 54

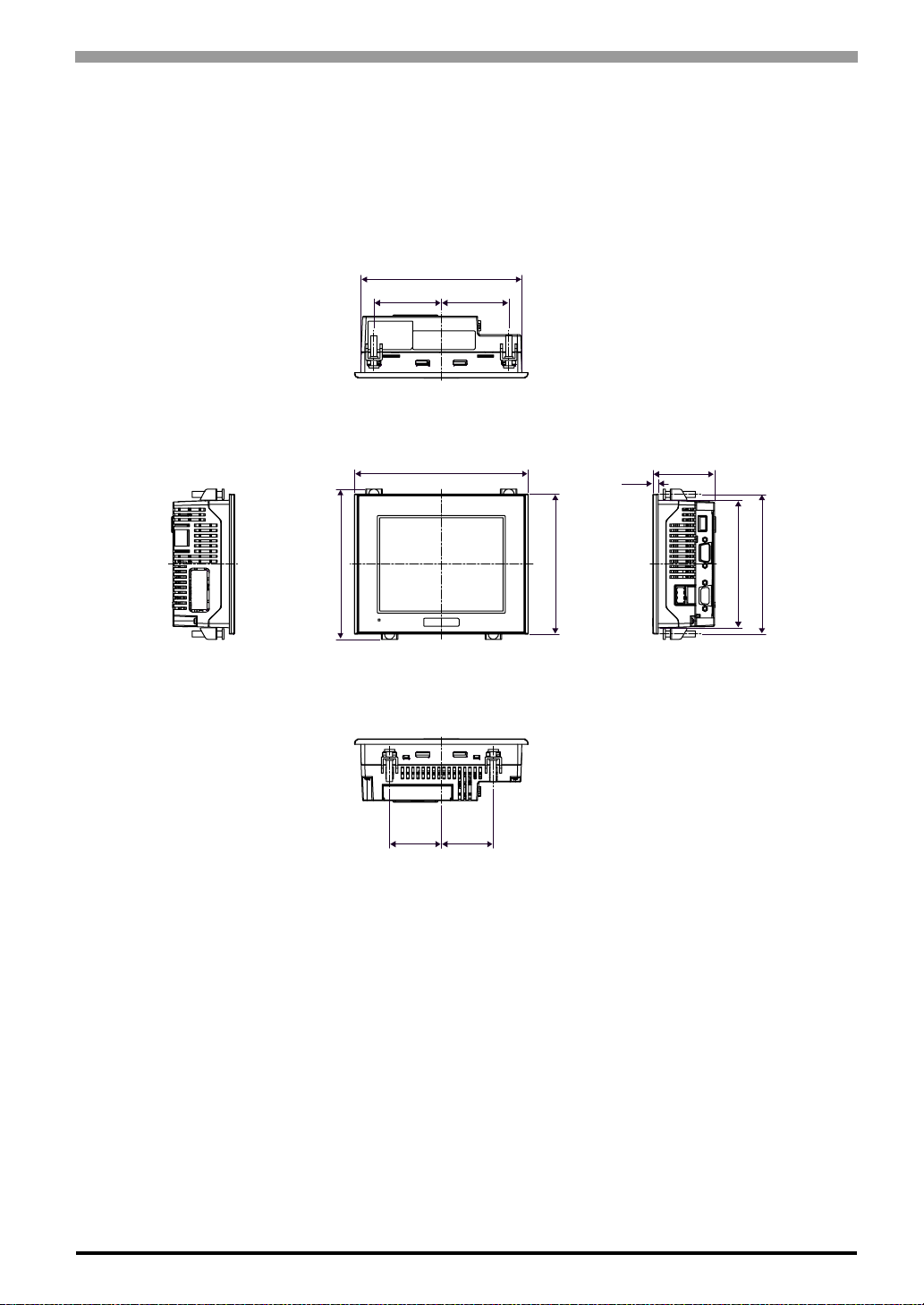

3.2.4 Dimensions

The following dimensions apply to all ST-3300 Series units.

 Installation Fasteners Attached Dimensions

Unit: mm[in.]

155.5[6.12]

65[2.56]

Chapter 3 Specifications

65[2.56]

Top

Left side

144.4[5.69]

167.5[6.59]

Front

[1.97]

Bottom

5[0.20]

135[5.31]

59.5[2.34]

Right side

123[4.84]

134.4[5.29]

3-23

Page 55

ST3000 Series Hardware Manual

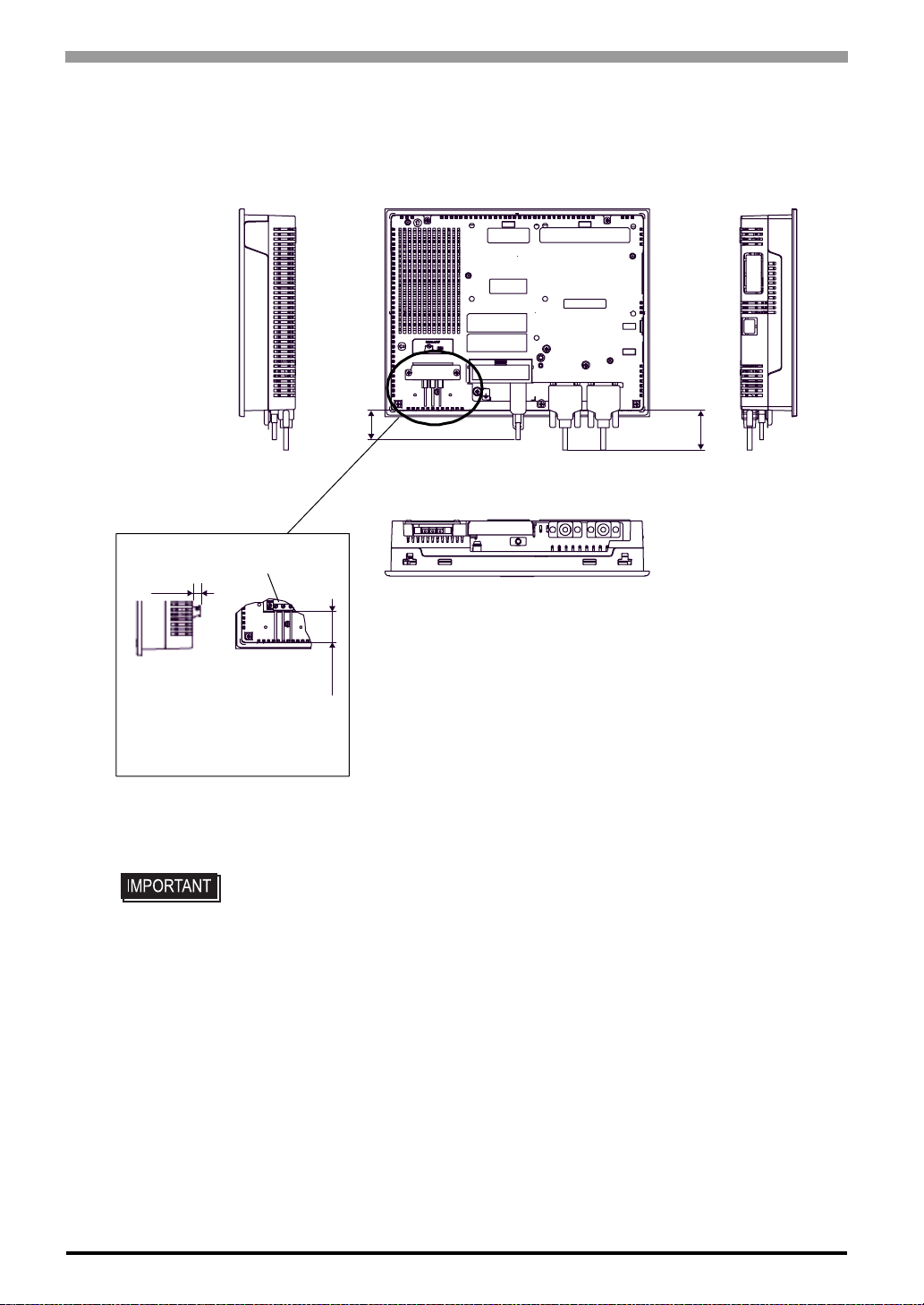

 Cable Attached Dimensions

Unit:mm[in.]

13[0.51]

24[0.94]

Left side

35[1.38]

Rear

Bottom

Right side

3-24

Page 56

 Panel Cut Dimensions

Unit: mm[in.]

156

-0

 Installation Fasteners

+0.04

[6.14 ]

-0 r ≤ 3 [0.12]

+0.04

-0

[4.86 ]

-0

123.5

Chapter 3 Specifications

Panel thickness area

1.6[0.06] to 5.0[0.20]

Unit: mm[in.]

16[0.63]

[0.43]

16.6[0.65]

∅10[0.39]

31[1.22]

3-25

Page 57

ST3000 Series Hardware Manual

3.3 ST-3400 Series

3.3.1 General Specifications  Electrical Specifications

Input Voltage DC24V Rated Voltage DC19.2 to 28.8V Allowable Voltage Drop 10ms (max.) Power Consumption 22W (max.)

Power Supply

In-Rush Current 30A (max.)

Voltage Endurance

Insulation Resistance

 Environmental Specifications

AC1000V 20mA for 1 minute

(between charging and FG terminals)

DC500V 10MΩ (min.)

(between charging and FG terminals)

Surrounding Air Temperature

Storage Temperature -20 to +60°C Ambient Humidity

Storage Humidity Dust 0.1mg/m

Physical

Pollution Degree For use in Pollution Degree 2 environment Atmosphere Free of corrosive gases Air Pressure Vibration

Resistance (altitude range)

Vibration Resistance

Mechanical

Concussion Resistance

Noise Immunity

Electrical

Electrostatic Discharge Immunity

(Wet bulb temperature: 39°C max. - no condensation.)

(sea level to 2000 meters above)

5 to 9Hz single-amplitude 3.5mm[0.14in]

9 to 150Hz constant-accelerated velocity 9.8m/s

X,Y,Z directions for 10 cycle (100 minute)

(147m/s

6kV (complies with EN 61000-4-2 Level 3)

0 to +50°C

10 to 90% RH

and below (non-conductive levels)

800 to 1114hPa

IEC61131-2 compliant

X,Y,Z directions for 3 times)

Noise Voltage: 1000V

Pulse Duration: 1µs

Rise Time: 1ns

(via noise simulator)

P-P

3-26

Page 58

 Structural Specifications

Chapter 3 Specifications

or thicker wire,

Grounding

Grounding resistance of 100Ω 2mm

or your country’s applicable standard.

(Same for FG and SG terminals)

Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13

Structure

(Front surface at panel embedding)

Feature size: All-in-one

Installation configuration: Panel embedding

Cooling Method Natural air circulation

Installation

Weight Approx. 1.8kg[4lb]max. (unit only) External

Dimensions Panel Cut

Dimensions

W215mm[8.46in] X H170mm[6.69in] X D60mm[2.36in]

W204.5mm[8.05in] X H159.5mm[6.28in]

Panel thickness: 1.6mm[0.06in] to 10.0mm[0.39in]

*1. The front face of the ST unit, installed in a solid panel, has been tested using conditions

*2. Dimensional tolerance: everything +1/-0mm[+0.04/-0in] and R in angle are below R3[0.12].

3-27

Page 59

ST3000 Series Hardware Manual

3.3.2 Performance Specifications  Performance Specifications

Application

Data Backup

Serial Interface

Interface

USB Host Interface

Used lithium battery for backup memory

COM1: RS-232C Asynchronous Transmission: Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400bps to 115.2 kbps Connector: D-Sub 9pin plug

COM2: RS-422/RS-485 Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400bps to 115.2 kbps (RS-422/RS-485)

Connector: D-Sub 9pin plug Conforms to USB1.1. (TYPE-A conn.) x 1

Power Supply Voltage: DC5V Output Current: 500mA (Max.) Communication Distance: 5m (Max.)

FLASH EPROM 6MB

SRAM 320KB

187.5 kbps (MPI)

± 5%

CF Card Interface

Clock Accuracy

Compact Flash CF Card Slot (TYPE-II)

*1. User active capacity. *2. RS-485 is compliant with ST-3400 series units with revision code "A" or later.

SEE

*3. The ST’s internal clock has a slight error. At normal operating temperatures and conditions,

About Revision (page 12)

±65 seconds/ month (at room temperature)

3-28

Page 60

Chapter 3 Specifications

3-29

Page 61

ST3000 Series Hardware Manual

 Display Specifications

Display Type TFT Color LCD

Resolution W640 X H480 pixels

Dot pitch W0.237[0.01in]mm X H0.237mm[0.01in]

Effective Display Area W151.68[5.97in]mm X H113.76mm[4.48in]

Color/Shade level

Backlight CCFL (Not replaceable)

Brightness control 8 levels of adjustment available via touch panel

Contrast Adjustment Not applicable

Backlight Service Life

Language Fonts

256 Colors (No blink)

64 Colors (Enables blink feature)

50000hrs. or more

(at 25°C and continuous operation - period until

backlight brightness decreases to 50% or backlight starts to flicker)

Japanese: 6962 (JIS Standards 1 & 2)

(including 607 non-kanji characters)

ANK: 158 (Korean, Traditional Chinese

and Simplified Chinese fonts are downloadable.)

Character Sizes

Font Sizes

Text composition

8 X 8 dots 80 Char. X 60 rows

8 X 16 dots 80 Char. X 30 rows

16 X 16 dots 40 Char. X 30 rows

Text

32 X 32 dots 20 Char. X 15 rows

*1. Fon t Sizes can be set up by software.

 Touch Panel Specifications

Type Resistive Film (analog) Resolution 1024 X 1024 Service Life 1000000 times or more

Standard font: 8X8, 8X16, 16X16 and 32X32 dot fonts

Stroke font: 6 to 127 dot fonts

Standard font: Width can be expanded up to 8 times.

Height can be expanded up to 8 times

3-30

Page 62

3.3.3 Interface Specifications

This section describes the specifications of each interface of the ST Series unit.

• The ST unit’s serial port is not isolated. When the host (PLC) unit is also not isolated, be sure to connect Pin #5 SG (Signal Ground) terminal to reduce the risk of damaging the RS-232C/RS-422/RS-485 circuit.

• When connecting an external device to the ST using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system.

• The same type of connector is used for COM1 and COM2 of the ST. Be careful not to mistake one for the other. Connecting them incorrectly disables communication.

• Connecting the RS-232C isolation unit (CA3-ISO232-01) to COM1 enables isolation if needed.

 Serial Interfaces

 Serial Interface (COM1)

This interface is used to connect an RS-232C serial cable. A D-Sub 9-pin plug connector is used.

Chapter 3 Specifications

ST Connector XM2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1. The RI/VCC selection for Pin #9 is switched via software. The VCC output is not

protected against overcurrent. To prevent damage or a unit malfunction, use only the rated current.

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready

5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-31

Page 63

ST3000 Series Hardware Manual

 Serial Interface (COM2)

This interface is used to connect an RS-422/RS-485*1 serial cable. A D-Sub 9-pin plug connector is used.

ST Connector X M2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

Pin No.

1 RDA Input Receive Data A(+) 2 RDB Input Receive Data B(-) 3 SDA Output Send Data A(+)

4 ERA Output Data Terminal Ready A(+) 5 SG - Signal Ground 6 CSB Input Send Possible B(-) 7 SDB Output Send Data B(-) 8 CSA Input Send Possible A(+) 9 ERB Output Data Terminal Ready B(-)

Shell FG -

Signal Name Direction Meaning

RS-422/RS-485

Frame Ground

(Common with SG)

3-32

*1 RS-485 is compliant with ST-3400 series units with revision code "A" or later.

SEE

About Revision (page 12)

Page 64

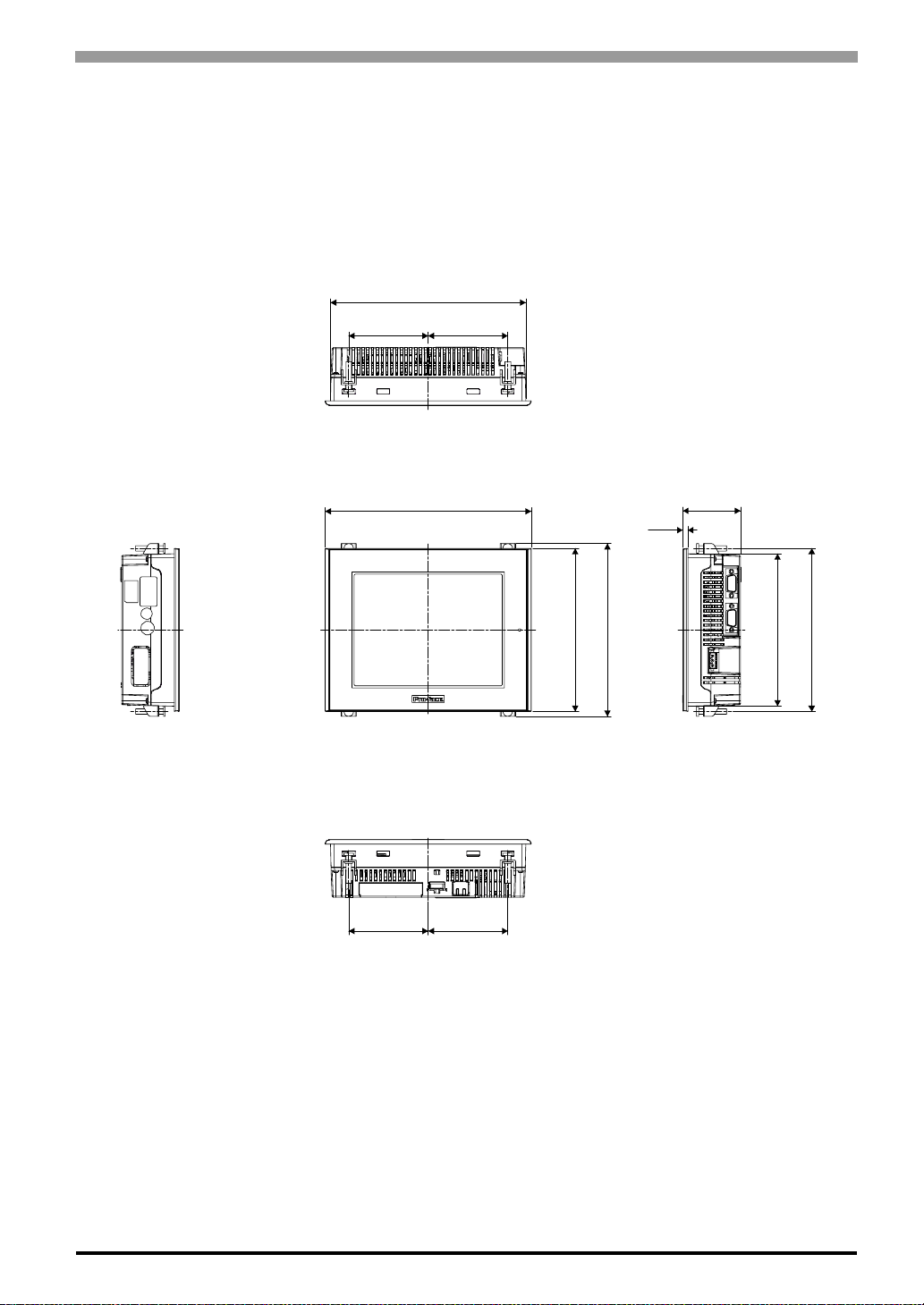

3.3.4 Dimensions

The following dimensions apply to all ST-3400 Series units.

 Installation Fasteners Attached Dimensions

Unit: mm[in.]

204[8.03]

83[3.27] 83[3.27]

Top

Chapter 3 Specifications

Left side

215[8.46]

Front

83[3.27] 83[3.27]

Bottom

170[6.69]

180.4[7.10]

5[0.20]

60[2.36]

Right side

159[6.26]

170.4[6.71]

3-33

Page 65

ST3000 Series Hardware Manual

 Cable Attached Dimensions

Unit:mm[in.]

40[1.57]

Left side

36[1.42]

Rear Right side

Bottom

[2.32]

3-34

Page 66

 Panel Cut Dimensions

Unit: mm[in.]

204.5

[8.05 ]

-0

Chapter 3 Specifications

+0.04

-0 r ≤ 3 [0.12]

Installation Fasteners

Unit: mm[in.]

+0.04

-0

[6.28 ]

-0

159.5

Panel thickness area

1.6[0.06] to 10.0[0.39]

16[0.63]

1 1[0.43]

16.6[0.65]

∅10[0.39]

31[1.22]

3-35

Page 67

ST3000 Series Hardware Manual

3.4 ST-3500 Series

3.4.1 General Specifications  Electrical Specifications

Input Voltage DC24V AC100 to 240V Rated Voltage DC19.2 to 28.8V AC85 to 265V Rated frequency - 50/60Hz Rated frequency range - 40 to 72Hz

Allowable Voltage Drop 10ms or less

Power Supply

Power Consumption 45W or less

In-Rush Current 30A or less 60A or less

Voltage Endurance AC1000V 20mA 1minute AC1500V 20mA 1minute

Insulation Resistance

DC Type AC Type

DC500V 10MΩ (min.)

(between charging and FG

terminals)

1cycle or less

(Voltage Drop interval must

be 1s or more.)

AC100V 0.9A or less

(TYP 0.48A)

AC240V 0.45A or less

(TYP 0.26A)

DC500V 10MΩ (min.)

(between charging and FG

terminals)

3-36

Page 68

 Environmental Specifications

Chapter 3 Specifications

Surrounding Air Temperature

0 to +50°C Storage Temperature -20 to +60°C Ambient Humidity

Storage Humidity Dust 0.1mg/m

Physical

(Wet bulb temperature: 39°C max. - no condensation.)

10 to 90% RH

and below (non-conductive levels) Pollution Degree For use in Pollution Degree 2 environment. Atmosphere Free of corrosive gases Air Pressure Vibration

Resistance (altitude range)

(sea level to 2000 meters above)

800 to 1114hPa

IEC61131-2 compliant

Vibration Resistance

5 to 9Hz single-amplitude 3.5mm[0.14in]

9 to 150Hz constant-accelerated velocity 9.8m/s

X,Y,Z directions for 10 cycle (100 minute)

Mechanical

Concussion Resistance

Noise Immunity

IEC61131-2 compliant

(147m/s

X,Y,Z directions for 3 times)

Noise Voltage: 1000V

1500V

(AC type)

P-P

Pulse Duration: 1µs

(DC type)

P-P

Rise Time: 1ns

Electrical

Electrostatic Discharge Immunity

6kV (complies with EN 61000-4-2 Level 3)

(via noise simulator)

3-37

Page 69

ST3000 Series Hardware Manual

 Structural Specifications

or thicker wire, or your

Grounding

Grounding resistance of 100Ω 2mm

country’s applicable standard.

(Same for FG and SG terminals)

Rating: Equivalent to IP65f NEMA #250 TYPE 4X/13

Structure

(Front surface at panel embedding)

Feature size: All-in-one

Installation configuration: Panel embedding

Cooling Method Natural air circulation

Installation

Weight Approx. 2.5kg[5.5lb] max. (unit only) External

Dimensions Panel Cut

Dimensions

W270.5mm[10.65in] X H212.5mm[8.37in] X D57mm[2.24in]

W259mm[10.20in] X H201mm[7.91in]

Panel thickness: 1.6mm[0.06in] to 10.0mm[0.39in]

*1. The front face of the ST unit, installed in a solid panel, has been tested using conditions

*2. Dimensional tolerance: everything +1/-0mm[+0.04/-0in] and R in angle are below

R3[0.12].

3-38

Page 70

3.4.2 Performance Specifications  Performance Specifications

Chapter 3 Specifications

Application

Data Backup

Serial Interface

Interface

USB Host Interface

CF Card Interface

Clock Accuracy

*1. User active capacity. *2. RS-485 is compliant with AST-3501C / AST-3501T with revision code "B" or later.

*3. The ST’s internal clock has a slight error. At normal operating temperatures and conditions,

Used lithium battery for backup memory

COM1: RS-232C Asynchronous Transmission: Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed: 2400bps to 115.2 kbps Connector: D-Sub 9pin plug

COM2: RS-422/RS-485 Asynchronous Transmission Data Length: 7 bit/8 bit Parity: none, Odd or Even Stop Bit: 1bit/2bit Data Transmission Speed:2400bps to 115.2 kbps (RS-422/RS-485)

Connector: D-Sub 9pin plug Complies with USB1.1. (TYPE-A conn.) x 1

Power Supply Voltage: DC5V Output Current: 500mA (Max.) Communication Distance: 5m (Max.)

Compact Flash CF Card Slot (TYPE-II)

±65 seconds/ month (at room temperature)

SEE

About Revision (page 12)

FLASH EPROM 6MB

SRAM 320KB

187.5 kbps (MPI)

± 5%

3-39

Page 71

ST3000 Series Hardware Manual

• A Lithium battery’s lifetime is: 10 years when the battery’s ambient temperature is 40°C or less. 4.1 years when the battery’s ambient temperature is 50°C or less. 1.5 years when the battery’s ambient temperature is 60°C or less. When used for backup: Approximately 100 days, with a fully charged battery. Approximately 6 days, with a half-charged battery.

3-40

Page 72

Chapter 3 Specifications

 Display Specifications

AST-3501C AST-3501T Display Type Color LCD TFT Color LCD Resolution W640 X H480 pixels Dot pitch W0.33mm[0.01in] X H0.33mm[0.01in] Effective Display

Area Color/Shade level 16 Colors Backlight CCFL (Not replaceable)

Brightness control 8 levels of adjustment available via touch panel Contrast Adjustment Not applicable

Backlight Service Life

backlight brightness decreases to 50% or backlight starts to flicker)

Language Fonts

W211.2mm[8.31in] X H158.4mm[6.24in]

256 Colors (No blink)

64 Colors (Enables blink feature)

50000hrs. or more

(at 25°C and continuous operation - period until

Japanese: 6962 (JIS Standards 1 & 2)

(including 607 non-kanji characters)

ANK: 158 (Korean, Traditional Chinese

and Simplified Chinese fonts are downloadable.)

Character Sizes

Font Sizes

Text co mposition

8 X 8 dots 80 Char. X 60 rows 8 X 16 dots 80 Char. X 30 rows

Text

16 X 16 dots 40 Char. X 30 rows 32 X 32 dots 20 Char. X 15 rows

*1. Font Sizes can be set up by software.

 Touch Panel Specifications

Type Resistive Film (analog) Resolution 1024 X 1024 Service Life 1000000 times or more

Standard font: 8X8, 8X16, 16X16 and 32X32 dot fonts

Stroke font: 6 to 127 dot fonts

Standard font: Width can be expanded up to 8 times.

Height can be expanded up to 8 times

3-41

Page 73

ST3000 Series Hardware Manual

3.4.3 Interface Specifications

This section describes the specifications of each interface of the ST Series unit.

• The ST unit’s serial port is not isolated. When the host (PLC) unit is also not isolated, be sure to connect Pin #5 SG (Signal Ground) te rminal to reduce the risk of damaging the RS-232C/RS-422/RS-485 circuit.

• ST Series have the SG (signal ground) connection and the FG (frame ground) connection inside. When connecting an external device to the ST using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system.

• The same type of connector is used for COM1 and COM2 of the ST. Be careful not to mistake one for the other. Connecting them incorrectly disables communication.

• Connecting the RS-232C isolation unit (CA3-ISO232-01) to COM1 enables isolation if needed.

3-42

Page 74

Chapter 3 Specifications

 Serial Interfaces

 Serial Interface (COM1)

This interface is used to connect an RS-232C serial cable. A D-Sub 9-pin plug connector is used.

ST Connector XM2C-0942-502L <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

*1 The RI/VCC selection for Pin #9 is switched via software. The VCC output is not protected against

overcurrent. To prevent damage or a unit malfunction, use only the rated current.

Pin No.

1 CD Input Carrier Detect 2 RD(RXD) Input Receive Data 3 SD(TXD) Output Send Data 4 ER(DTR) Output Data Terminal Ready

5 SG - Signal Ground 6 DR(DSR) Input Data Set Ready 7 RS(RTS) Output Request to Send 8 CS(CTS) Input Send Possible

9 CI(RI)/VCC Input/-

Shell FG -

Signal Name Direction Meaning

RS-232C

Called status display

±5% Output 0.25A

+5V

Frame Ground

(Common with SG)

3-43

Page 75

ST3000 Series Hardware Manual

 Serial Interface (COM2)

This interface is used to connect an RS-422/RS-485*1 serial cable. A D-Sub 9-pin plug connector is used.

ST Connector X M2C-0942-502LX <OMRON Co.> Interfit Bracket #4-40 inch screws are used.

Recommended Cable Connector XM2D-0901 <OMRON Co.> Recommended Cable Cover XM2S-0913 <OMRON Co.> Recommended Jack Screw XM2Z-0073 <OMRON Co.>

Arrangement

(ST unit side)

Pin No.

1 RDA Input Receive Data A(+) 2 RDB Input Receive Data B(-) 3 SDA Output Send Data A(+)

4 ERA Output Data Terminal Ready A(+) 5 SG - Signal Ground 6 CSB Input Send Possible B(-) 7 SDB Output Send Data B(-) 8 CSA Input Send Possible A(+) 9 ERB Output Data Terminal Ready B(-)

Shell FG -

Signal Name Direction Meaning

RS-422/RS-485

Frame Ground

(Common with SG)

3-44

*1 RS-485 is compliant with AST-3501C / AST-3501T with revision code "B" or later.

SEE

About Revision (page 12)

Page 76

3.4.4 Dimensions

The following dimensions apply to all ST-3500 Series units.

 Installation Fasteners Attached Dimensions

Unit: mm[in.]

258.5[10.18]

Chapter 3 Specifications

Left side

Top

Front

110[4.33]

212.5[8.37]

5[0.20]

57[2.24]

Right side

212.5[8.37]

200.5[7.89]

110[4.33]

270.5[10.65]

222.5[8.76]

1 10[4.33]

Bottom

3-45

Page 77

ST3000 Series Hardware Manual

 Cable Attached Dimensions

Unit:mm[in.]

Left side Right side

30[1.18]

Rear

[1.57]

8.4[0.33]

Power Connector

The DC type unit has the power supply terminals shown above.

Bottom

30[1.18]

3-46

Page 78

 Panel Cut Dimensions

]

Unit: mm[in.]

259

 Installation Fasteners

Unit: mm[in.]

[10.20 ]

-0

+0.04

-0

r ≤ 3 [0.12]

+0.04

-0

[7.91 ]

-0

201

Chapter 3 Specifications

Panel thickness area

1.6[0.06] to 10.0[0.39

∅10[0.39]

16.6[0.65]

31[1.22]

16[0.63]

[0.43]

3-47

Page 79

ST3000 Series Hardware Manual

3-48

Page 80

4 Installation and

Wiring

1. Installation

2. Wiring Precautions

3. CF Card Insertion/Removal

4. USB Cable Clamp Attachment/Removal

This chapter describes the installation and cable arrangement of the ST Series and its peripheral equipment.

4-1

Page 81

ST3000 Series Hardware Manual

4.1 Installation

This section describes the procedures and precautions for installing the ST Series units.

 Check the Installation Gasket’s Seal

It is strongly recommended that you use the installation gasket, since it absorbs vibration in addition to repelling water. For the procedure for attaching the installation gasket, refer to “5.3 Replacing the Installation Gasket”

SEE

5.3 Replacing the Installation Gasket (page 5-4)

• Before installing the ST into a cabinet or panel, check that the installation gasket is securely attached to the unit.

• A gasket which has been used for a long period of time may have scratches or dirt on it, and could have lost much of its dust and drip resistance. Be sure to change the gasket periodically (or when scratches or dirt become visible).

 Creating a Panel Cut

Create the correct sized opening required to install the ST, using the installation dimensions given. Determine the panel thickness according to the panel thickness range with due consideration of panel strength.

SEE

ST- 3200 Series  Panel Cut Dimensions (page 3-13) ST- 3300 Series  Panel Cut Dimensions (page 3-25) ST- 3400 Series  Panel Cut Dimensions (page 3-35) ST- 3500 Series  Panel Cut Dimensions (page 3-47)

4-2

• Check that the installation panel or cabinet’s surface is flat, in good condition and has no jagged edges.

• Even if panel thickness is within recommend range for “Panel Cut Dimensions”, the panel could warp, depending on panel’s material, size, and installation location of ST or other devices. To prevent panel warpage, the installation surface may need to be strengthened.

Page 82

Chapter 4 Installation and Wiring

 Installation Requirement

• For easier maintenance, operation, and improved ventilation, be sure to install the ST at least 100 mm [3.94 in.] away from adjacent structures and other equipment.

Unit: mm[im.]

100 [3.94]

• Be sure that the ambient operation temperature and the ambient humidity are within their designated ranges. (Ambient operation temperature: 0 to 50°C, Ambient humidity: 10 to 90%RH, Wet bulb temperature: 39°C max.) When installing the ST on the panel of a cabinet or enclosure, “Ambient operation temperature” indicates both the panel face and cabinet or enclosure’s internal temperature.

100 [3.94]

Panel Face

• Be su re that heat from surrounding equipment does not cause the ST to exceed its standard operating temperature.

Cabinet interior

4-3

Page 83

ST3000 Series Hardware Manual

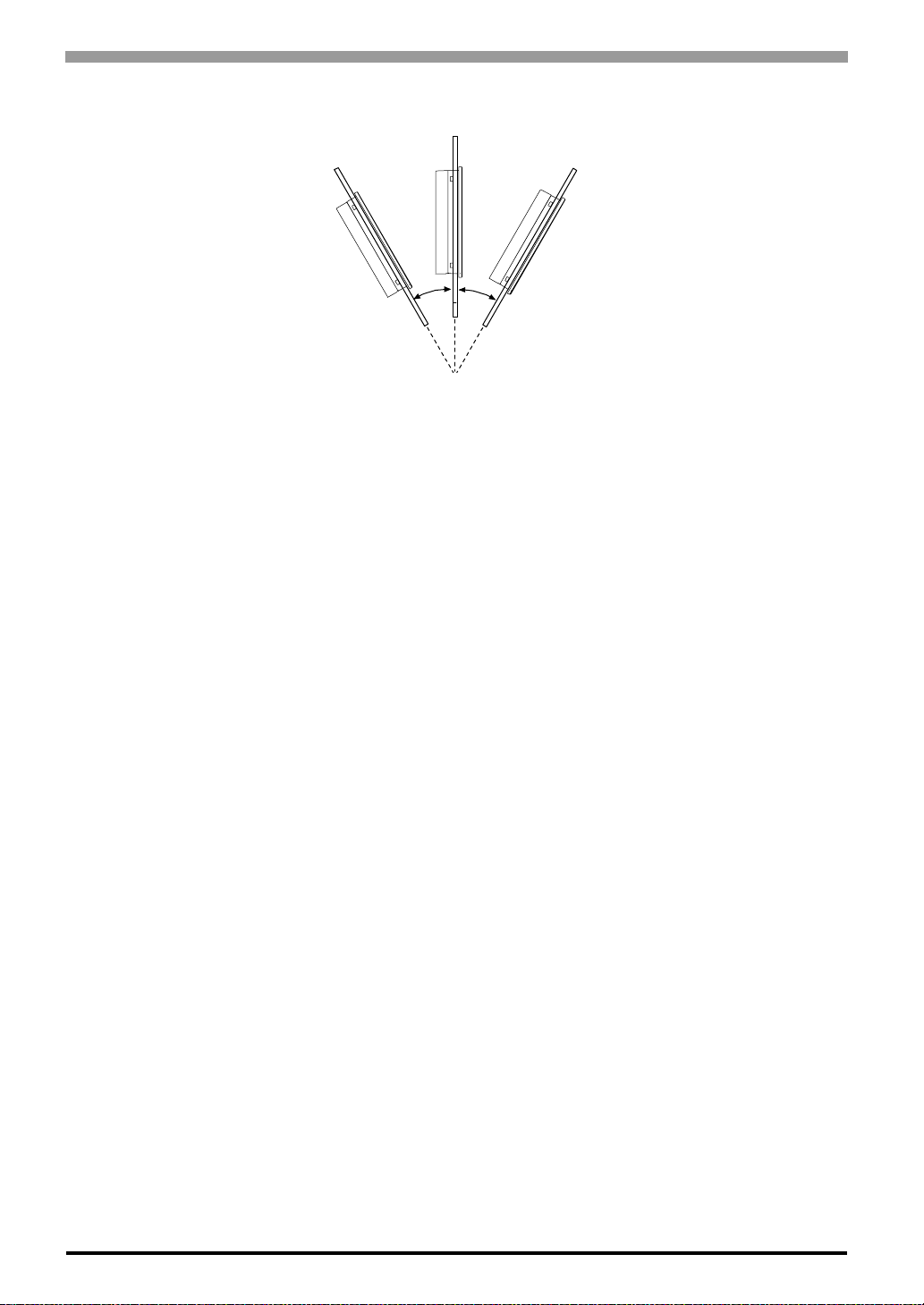

• When installing the ST in a slanted panel, the panel face should not incline more than 30°.

• When installing the ST in a slanted panel, and the panel face inclines more than 30°, the ambient temperature must not exceed 40°C. Y ou may need to use forced air cooling (fan, A/C) to ensure the ambient operating temperature is 40°C or below.

• When installing the ST vertically, position the unit so that the Power Input Terminal Block is also vertical.

30° or less

4-4

Page 84

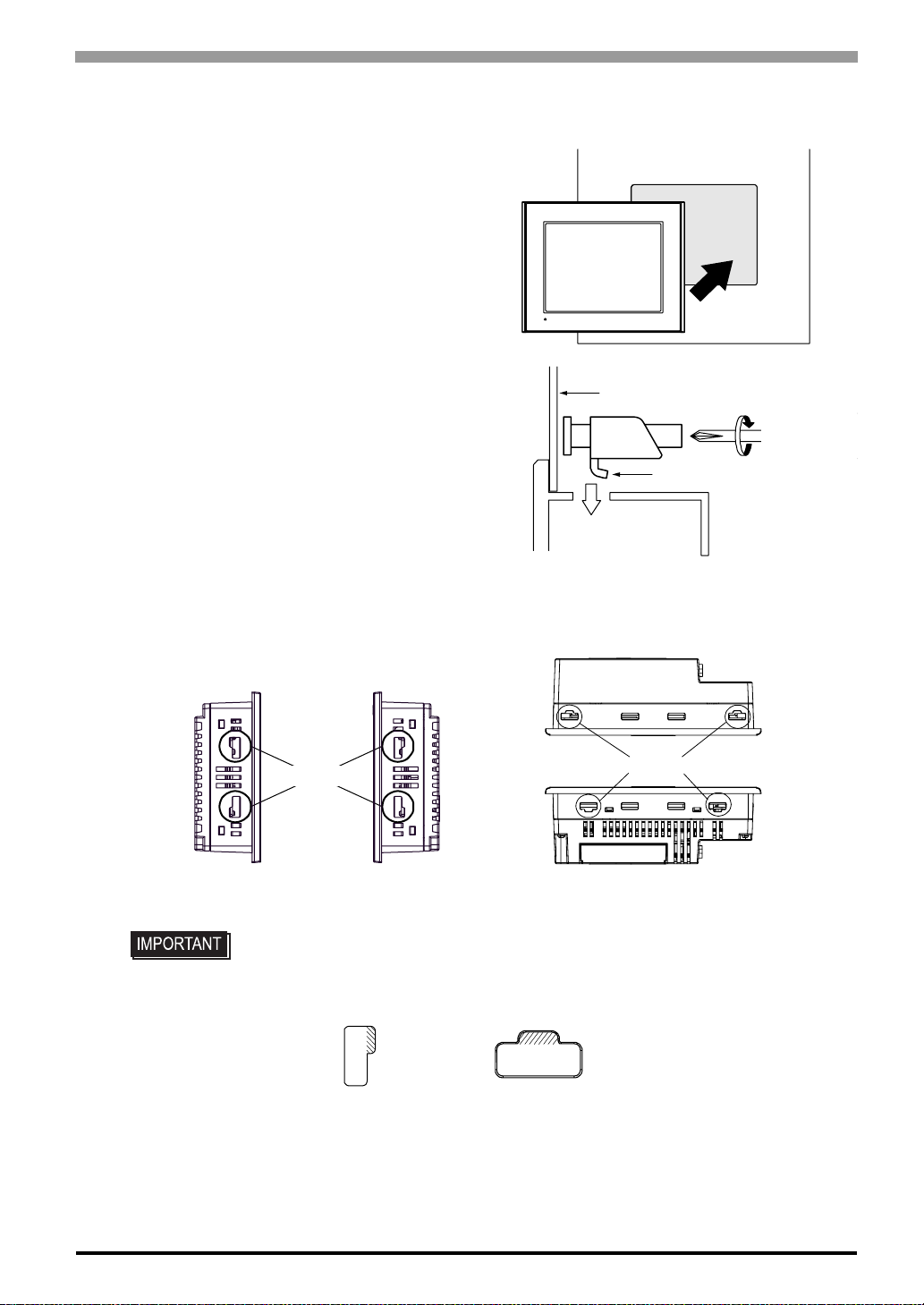

 Installing the ST

(1) Insert the ST into the panel cut, as shown.

Chapter 4 Installation and Wiring

(2) Mount the four panel-mounting brackets

on the right and left sides, or the top and bottom sides of the panel to secure the panel.

Models that have the mounting bracket holes on the sides (The drawing below is the ST-3200 series.)

Left side

Slots

Right side

Installation Panel

Hook

Models that have the mounting bracket holes on the top and bottom (The drawing below is the ST-3300 series.)

Slots

• Be sure to insert installation fasteners in the recessed portion of the installation fasteners hole (see shaded areas in the following figure). If the fasteners are not correctly attached, the ST unit may shift or fall out of the panel.

left and right

top and bottom

4-5

Page 85

ST3000 Series Hardware Manual

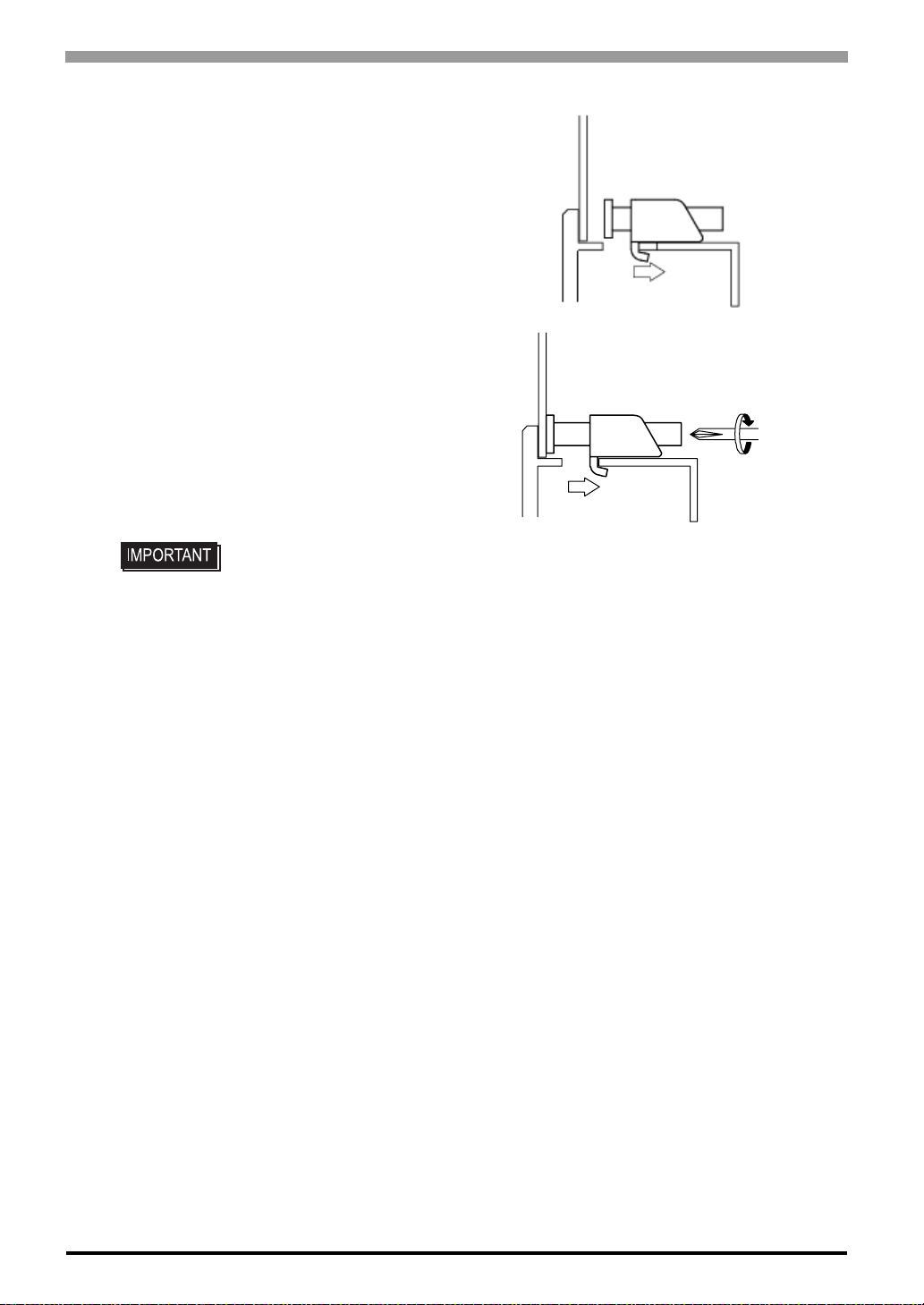

(3) Insert each of the fasteners as shown

below. Be sure to pull the fastener back until it is flush with the rear of the attachment hole.

(4) Use a Phillips screwdriver to tighten each

fastener screw and secure the ST in place.

• Tightening the screws with too much force can damage the ST unit’s plastic case.

• The torque required to tighten these screws is 0.5 N•m.

4-6

Page 86

4.2 Wiring Precautions

This section describes the procedures and precautions for wiring power cords.

4.2.1 Connecting the Power Cord

To avoid an ele ctric shock, prior to connecting the ST unit’s power cord terminals to the power terminal block, confirm that the ST unit’s power supply is completely turned OFF, via a breaker, or similar unit.

Supplying a power voltage other than that specified will damage the power source and the ST unit.

Since there is no power switch on the ST unit, be sure to attach a breaker-type switch to its power cord.

When the FG terminal is connected, be sure the wire is grounded.

Chapter 4 Installation and Wiring

• When the FG terminal is connected, be sure the wire is grounded. Not grounding the ST unit will result in excess noise and vibration.

• ST Series (except AST-3211A, AST -3302B COM2) have the SG (signal ground) connection and the FG (frame ground) connection inside. When connecting the SG wire to another device, be sure that the design of the system/connection does not produce a ground loop.

4-7

Page 87

ST3000 Series Hardware Manual

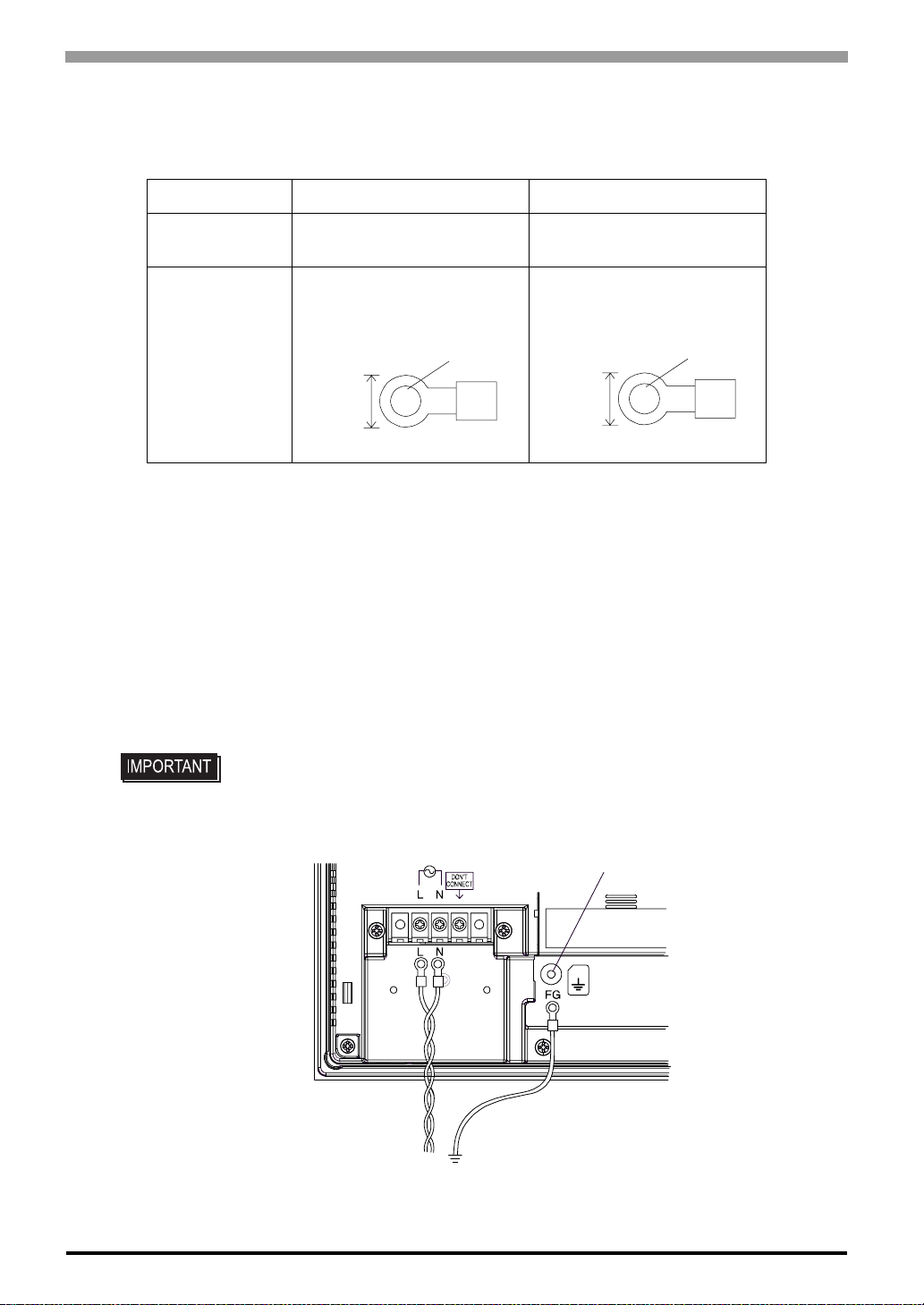

 When using the AC Type

 Power Cord Specifications

AC Power Cord Grounding Wire

Power Cord

Recommended Ring Terminal

Double-insulated Wire

1.25 to 2.0mm V2-MS3 compatible

(J.S.T. Mfg. Co., Ltd.)

less than

6.0mm [0.24in.]

(16-14 AWG)

∅3.2mm [0.13in.] or more

1.25 to 2.0mm

V2-P4 compatible (J.S.T. Mfg. Co., Ltd.)

less than

7.0mm [0.28in.]

(16-14 AWG)

∅4.3mm [0.17in.] or more

*1. In order to prevent a short circuit caused by loose screws, make sure to use a

crimp-type terminal with insulating sleeve.

 Connecting the Power Cord

When connecting the AC type power cord, be sure to follow the procedures given below. (1) Be sure that the ST’s power cord is not plugged in to the power supply. (2) Remove the Terminal Strip’s clear plastic cover. (3) Remove the screws from the two (2) terminals (L, N) and FG (Frame Ground) terminal, position the

Ring Terminals and reattach the scre ws. (Check each wire to make sure the connections are correct.)

4-8

• The torque required to tighten these screws are as follows: Terminal Block: 0.5 to 0.6N•m [5-7Lb•In.] FG (Frame Ground) Terminal: 0.6 to 0.7N•m

FG (Frame Ground) Terminal

(4) Reattach the Terminal Strip’s clear plastic cover.

Page 88

 When using the DC Type

 Power Cord Specifications

Chapter 4 Installation and Wiring

Power Cord Diameter 0.75 to 2.5mm Conductor Type Solid or Twisted Wire

Conductor Length

• Use copper conductors only.

• If the Conductor’s end (individual) wires are not twisted correctly, the end wires may either short against each other, or against an electrode.

 Power Connector (Plug) Specifications

When using the ST-3200/3300/3400 Series

Insertion

−

Direction

(18-12AWG)

7mm[0.28in]

+24V

-0V

FG Grounding Terminal connected to the

• The power supply connector (plug) is CA5-DCCNM-01 (made by Pro-face) or MSTB2,5/3-ST-5,08 (made by Phoenix Contact*1).

*1. For details, please contact your local Phoenix Contact distributor.

When using the ST-3500 Series

−

Power Cord Insertion Holes

• The power supply connector (plug) is CA5-DCCNL-01 (made by Pro-face) or GMVSTBW2, 5/3-STF-7, 62 (made by Phoenix Contact

*1. For details, please contact your local Phoenix Contact distributor.

+24V

-0V

FG Grounding Terminal connected to the

4-9

Page 89

ST3000 Series Hardware Manual

 Wiring

When connecting the Power Cord, use the following items when performing wiring. (Items are made by Phoenix Contact.)

Recommended Driver SZF 1-0.6x3.5 (1204517)

Recommended Pin Terminals

AI 0.75-8GY (3200519) AI 1-8RD (3200030) AI 1.5-8BK (3200043) AI 2.5-8BU (3200522)

Recommended Pin Terminal Crimp Tool

 Connecting the Power Cord

• Be sure to remove the connector from the ST unit prior to starting wiring. Failure to do so may cause an electric shock.

• The temperature rating of field installed conductors: 75°C only.

When using the ST-3200/3300/3400 Series (1) Confirm that the power cord is unplugged from the power supply. (2) Remove the power connector (plug) from the main unit when using the ST-3200/3300 Series.

(When using ST-3400 Series, the power connector (plug) is packaged with other accessories.)

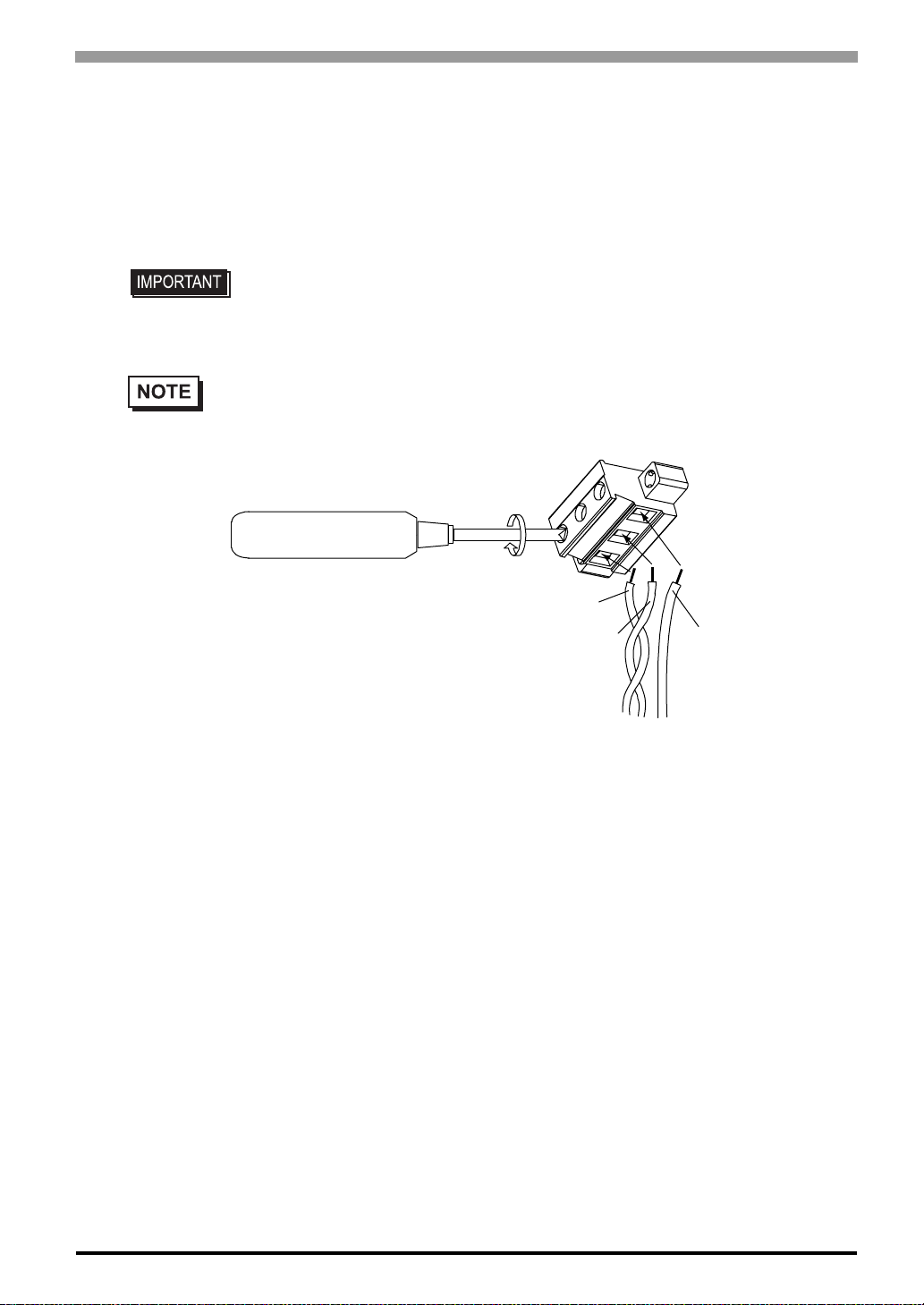

(3) Strip the sheath of the power cord, twist the wire ends, and connect them to the Power Connector.

• Use a slot screwdriver (Size 0.6 X 3.5) to tighten the terminal screws. The torque required to tighten these screws is 0.5 to 0.6N•m [5-7Lb•In.].

• Do not solder the cable connection.

(4) Reattach the Power Connector.

CRIMPFOX ZA3 (1201882)

Power Connector (Socket)

Right side

4-10

Power Connector (Plug)

• Be sure to twist the power cords together, up to the power connector.

(The drawing on the left is the ST-3300 Series.)

Page 90

Chapter 4 Installation and Wiring

When using the ST-3500 Series (1) Confirm that the power cord is unplugged from the power supply. (2) Remove the power connector (plug) from the main unit. (3) Loosen the three screws in the center of the Power Connector (plug). (4) Strip the sheath of the power cord, twist the wire ends, insert them into the bar terminals. (5) Attach them with screws.

• Use a slot screwdriver (size 0.6 x 3.5) to tighten the terminal screws. The torque required to tighten these screws is 0.5 to 0.6N•m [5-7Lb•In.]

• Do not solder the cable connection.

• Be sure to twist the power cords together, up to the power connector.

(6) Attach the Power Connector (Plug) to the ST and attach it to the ST main unit with the right/left

tightening screws.

4-11

Page 91

ST3000 Series Hardware Manual

4.2.2 Connecting the Power Supply

This section describes the precautions for supplying a power voltage.

Twisted-pair cord

Constant

Voltage

Transformer

• If the supplied voltage exceeds the ST unit’s range, connect a constant voltage transformer.

Insulating

Transformer

Main Power

Main

Power

Twisted-pair cor d

ST Power

Input/Output

Power

T1 T2

Input/ Output Power

Main Circuit

Input/Output

Unit

Input/Output

Unit

Input/Output

Unit

Operation

Unit

SEE

Chapter 3 Specifications (page 3-1)

• Between the line and ground, select a power supply that is low in noise. If there is an excess amount of noise, connect a insulating transformer.

• Use constant voltage and insulating transformers with capacities exceeding Power Consumption value.

• When supplying power to the ST unit, be sure to separate the input/output and power lines, as shown.

• To increase the noise resistance quality of the power cord, simply twist each power wire before attaching the Ring Terminal.

• The power supply cable must not be bundled or positioned close to main circuit lines (high voltage, high current), or input/output signal lines.

• Connect a lightning surge absorber, as shown in the diagram, to deal with power surges.

• To avoid excess noise, make the power cord as short as possible.

• DC24V input unit is must be used with a Class 2 power supply.

4-12

Lightning Surge

Absorber

• Be sure to ground the surge absorber (E1) separately from the ST unit (E2).

• Select a surge absorber that has a maximum circuit voltage greater than that of the peak voltage of the power supply.

Page 92

4.2.3 Grounding

This section describes the precautions for grounding the ST unit.

Do not use common grounding, since it can lead to an accident or machine breakdown.

(a) Exclusive Grounding (BEST)

(b) Exclusive Grounding (OK)

Other

Equipment

Other

Equipment

Other

Equipment

Chapter 4 Installation and Wiring

• When supplying power to the ST unit, be sure to separate the input/output and power lines, as shown. [diagram (a)]

• Check that the grounding resistance is 100Ω or less.

• FG and SG terminals are internally connected in the ST. When connecting an external device to the ST using the SG terminal, be sure to check that no short-circuit loop is created when you setup the system.

• The grounding wire should have a cross sectional area greater than

. Create the grounding point as

2mm close to the ST unit as possible, and make the wire as short as possible. When using a long grounding wire, replace the thin wire with a thicker wire, and place it in a duct.

• If exclusive grounding is not possible, use a common grounding point. [diagram (b)] A D-type grounding or equivalent should be used for the grounding point.

• If the equipment does not function properly when grounded, disconnect the ground wire from the FG terminal.

4.2.4 I/O Signal Line Placement

• Input an d output signal lines must be separated from the power control cables for operating circuits.

• If this is not possible, use a shielded cable and connect the shield to the ST unit’s frame.

4-13

Page 93

ST3000 Series Hardware Manual

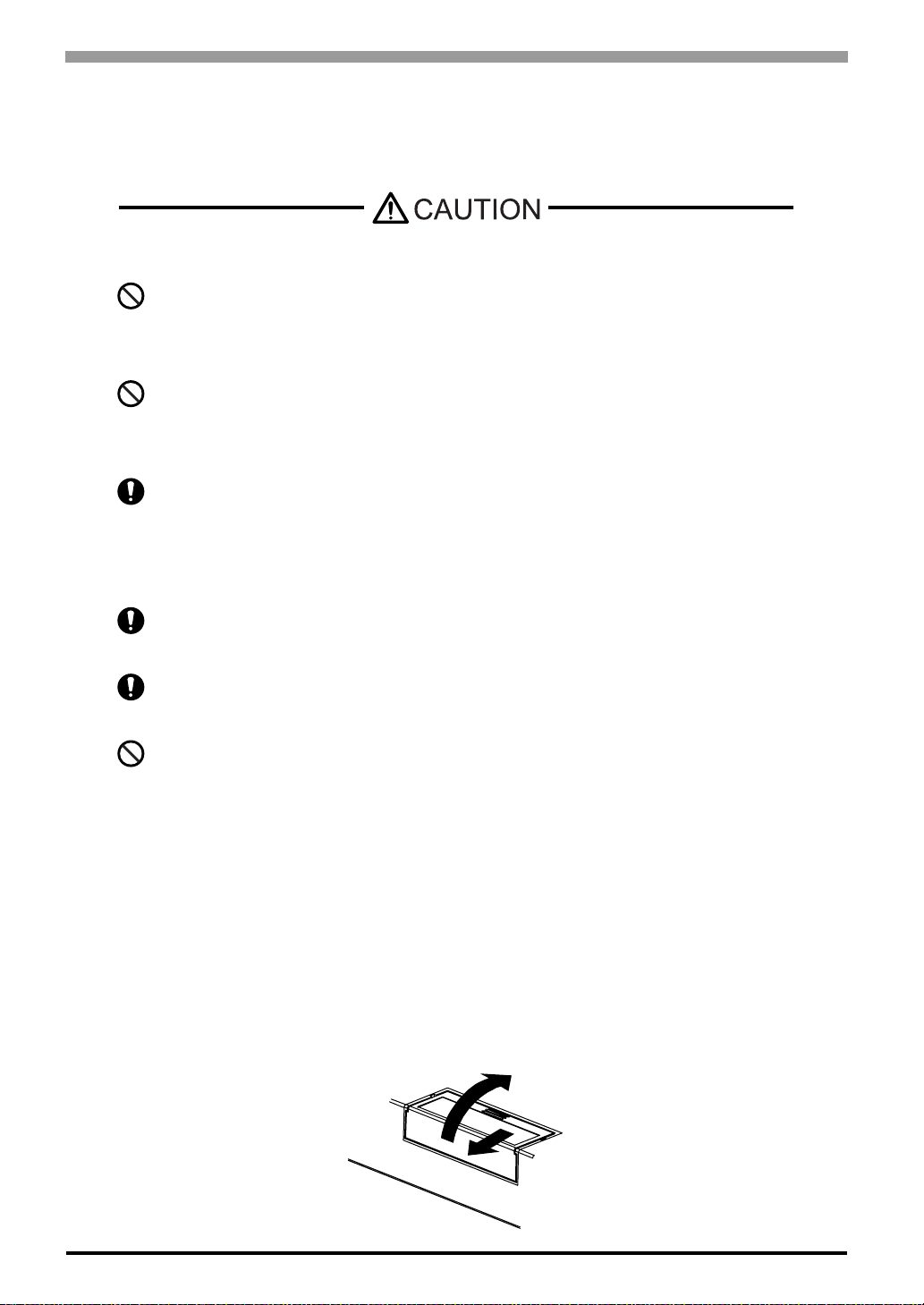

4.3 CF Card Insertion/Removal

This section describes how to insert and remove a CF Card.

When using the ST Unit and a CF Card, observe the following precautions:

Prior to inserting or removing a CF Card, be sure to turn the ST unit’s CF Card ACCESS switch OFF and to confirm that the ACCESS lamp is not lit. If you do not, the CF Card’s internal data may be damaged or lost.

While a CF Card is being accessed (Status LED: Blinking in green), NEVER turn OFF or reset the ST, or insert or remove the CF Card. If you do, th e CF Card’ s interna l data may be damaged or lost.

Prior to inserting a CF Card, familiarize yourself with the CF Card’s front and rear face orientation, as well as the CF Card connector’s position. If the CF Card is not correctly positioned when it is inserted into the Multi Unit, the CF Card’s internal data and the ST unit may be damaged or broken.

Be sure to use only CF Cards manufactured by Pro-face. The CF Card’s internal data may be damaged when using another manufacturer’s CF Card.

Once ST data is lost, it cannot be recovered. Since accidental data loss can occur at any time, be sure to back up all ST screen and CF Card data regularly.

Be sure to follow the instructions given below to prevent the CF Card’s internal data from being destroyed or a CF Card malfunction from occurring:

• DO NOT bend the CF Card.

• DO NOT drop or strike the CF Card against another object.

• Keep the CF Card dry.

• DO NOT touch the CF Card connectors.

• DO NOT disassemble or modify the CF Card.

4.3.1 Inserting the CF Card

Use the following steps to insert the CF Card in the ST. (1) Pull the CF Card Cover frontward and then open it upward.

4-14

Page 94

Chapter 4 Installation and Wiring

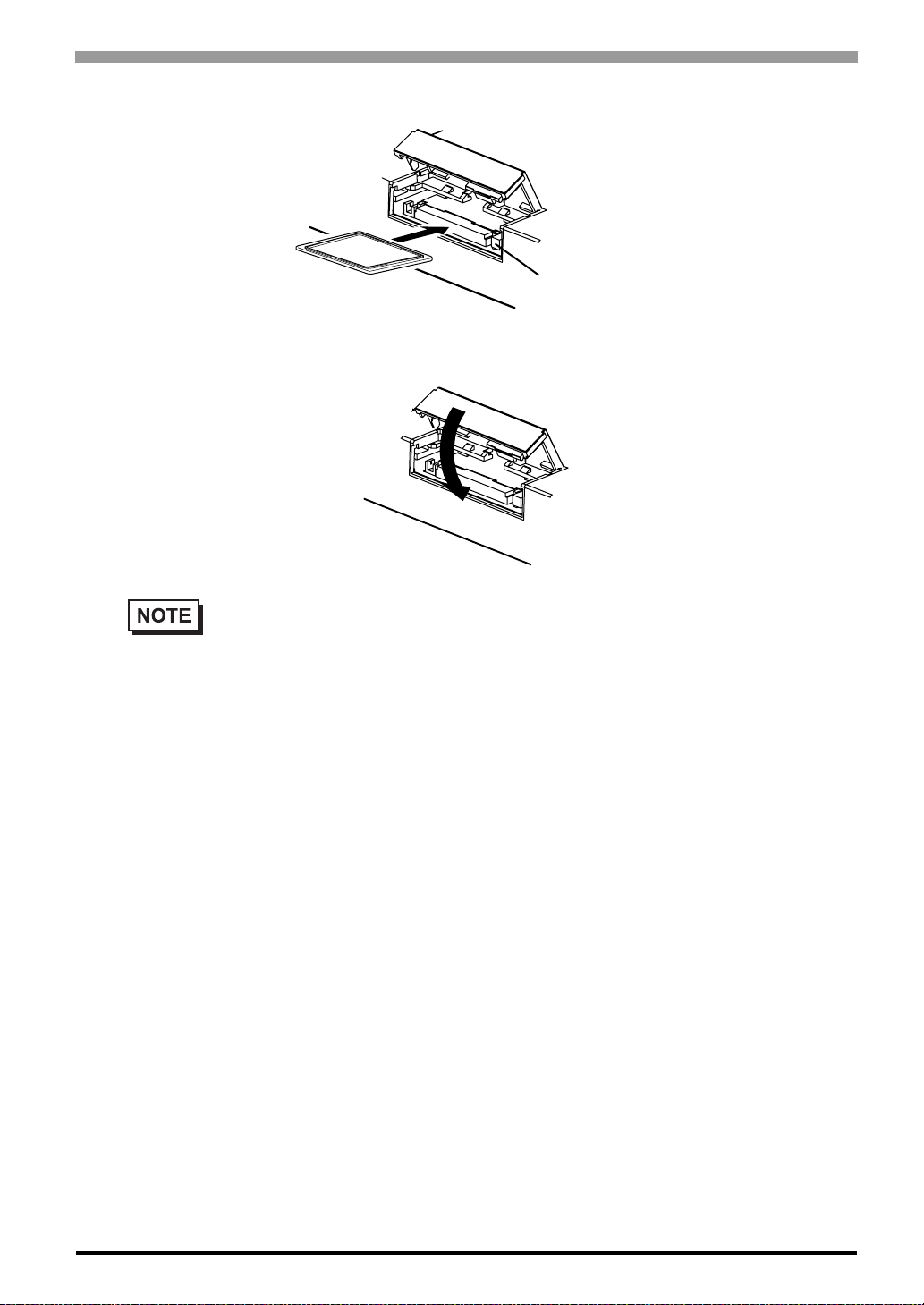

(2) Insert the CF Card in the CF Card Slot, until the eject button is pushed forward.

Eject Button

(3) Close the cover. (As shown.)

• Make sure that the CF Card cover is closed when accessing the CF Card.

4.3.2 Removing the CF Card

Simply reverse the steps shown in the previous “Inserting CF Card” explanation. Prior to pressing the eject button to remove the CF Card, confirm that the CF Card Access LED is turned OFF.

4.3.3 CF Card Handling

The CF Card has a data overwrite limit of approximately 100000 times. Therefore, be sure to back up all CF Card data regularly to another storage media. (100000 times assumes the overwriting of 500KB of data in DOS format.) T wo methods are available for backing up data. After using either met hod (1) or method (2), use your personal computer to save your data to the CF Card.

(1) If your PC is equipped with a PC Card Slot

To view CF Card data on a personal computer, first insert the CF Card into a CF Card Adapter (GP077-CF AD10), then insert the adapto r in the PC card slot of the PC.

(2) If your PC is NOT equipped with a PC Card slot

Use a commercially available PC Card Reader, or a CF Card Reader.

4-15

Page 95

ST3000 Series Hardware Manual

4.4 USB Cable Clamp Attachment/Removal

This clamp is used to prevent the USB cable connected to the USB Host Interface on the bottom of the ST unit from being unplugged due to vibration or other causes.

4.4.1 When using the ST-3200/3400 series  Attachment

(1) Before starting the procedure, lift up the tab on both sides of the USB Holder and remove the USB

Cover.

Tab

(2) Attach the USB holder to the USB Host Interface part of the main unit. Hook a pick of the USB holder

to the attachment hole of the main unit and then insert the other (lower) pick to attach the USB holder.

ST-3200 Series

Attachment Hole

USB Holder

(3) Insert the USB cable into the USB Host Interface.

ST-3200 Series

USB Cable

ST-3400 Series

USB Cable

4-16

Page 96

Chapter 4 Installation and Wiring

(4) Attach the USB cover to attach the USB cable. Insert the USB cover into the tab of the USB holder.

ST-3200 Series

• Check the up/down orientation of the USB cover to ensure that the USB cable is

Tab

secured properly.

USB Cover

ST-3400 Series

USB Holder

Tab

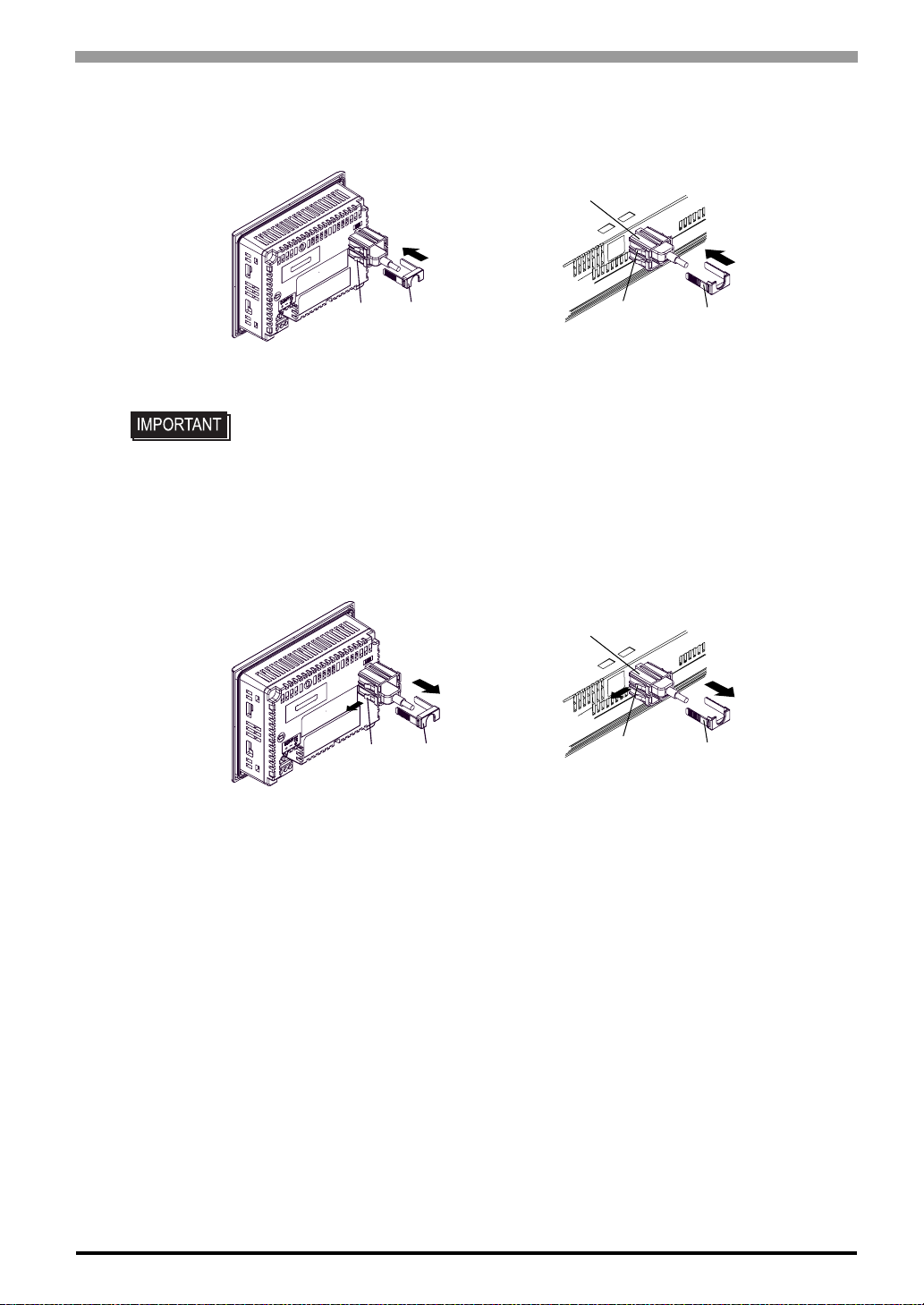

 Removal

(1) Lift up the tab of the USB holder and then remove the USB cover as shown below.

ST-3200 Series

ST-3400 Series

USB Holder

USB Cover

Tab

(2) After removing the USB cable, remove the picks pushing the USB holder from both top and bottom.

Tab

USB Cover

4-17

Page 97

ST3000 Series Hardware Manual

4.4.2 When using the ST-3300 series  Attachment

(1) Insert the USB holder into the slot in front of the ST unit’s USB port and pull it down and forward.

(2) Pass the band of the USB cable clamp through the bridge of the USB holder.

USB Holder

(3) Insert the USB cable into the port. Fasten the band around the plug and secure it with the clamp.

USB Holder

Bridge

Clamp

USB Cable

4-18

 Removal

To remove the clamp from the USB cables, push down on the clamp strap’s clip to release it while pulling up on the clamp.

Clip

Clamp

Page 98

4.4.3 When using the ST-3500 series  Attachment

(1) Insert the USB holder into the slot in front of the ST unit’s USB port and pull it down and forward.

USB Holder

(2) Pass the band of the USB cable clamp through the bridge of the USB holder.

Chapter 4 Installation and Wiring

Bridge

(3) Insert the USB cable into the port. Fasten the band around the plug and secure it with the clamp.

Clamp

USB Cable

USB Holder

4-19

Page 99

ST3000 Series Hardware Manual

 Removal

To remove the clamp from the USB cables, push down on the clamp strap’s clip to release it while pulling up on the clamp.

Clamp

Clip

4-20

Page 100

5 Maintenance

1. Cleaning the Display

2. Periodic Check Points

3. Replacing the Installation Gasket

4. Replacing the Backlight

This chapter explains cautions and inspection criteria that will ensure trouble-free use of the ST.
