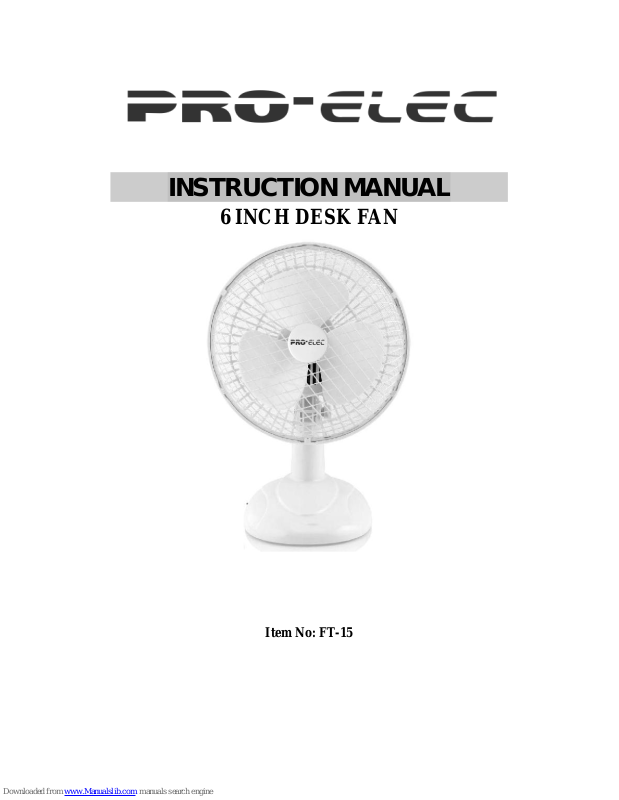

INSTRUCTION MANUAL
6 INCH DESK FAN
Item No: FT-15
CAUTION
1. Read the instructions on the manual carefully before using for the first time.
2. Before connecting to the power source, check if the voltage specified on the appliance
corresponds with the voltage at your home.
3. DO NOT put the appliance or the plug in water or any other liquid. However, if the appliance did
contact with liquid, unplug the appliance immediately and have it checked by a qualified
technician before using it again.
4. Never put objects into the grill when the fan is connected to its power source.
5. Keep an eye on children while the fan is operating. Stay out of reach for children and do not
allow them to play with the fan.
6. It is the best not be exposed to a continuous cold air stream for a long period of time.(esp.
children and elders)
7. DO NOT use the fan in very hot or humid environments, such as bathrooms.
8. Keep the fan away from lace curtains, plants, etc.
9. DO NOT connect the appliance to its power source until completely assembled and adjusted.
10. DO NOT use if the power cord or the appliance is damaged, it must be repaired by an
authorized service representative as special tool and or parts are required.
11. Keep the cord away from traffic area or where it can be stumbled over.
12. Indoor use only.
13. The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a person responsible for
their safety.
STRUCTURE
1.FRONT PROTECTIVE FRAME 2.ROTOR BLADE 3.REAR PROTECTIVE FRAME
4.HANDLE 5.SPEED CONTROL SWITCH 0/1/2 6.KNURL BOLT 7.BASE
ASSEMBLY
1. Position the front grill against the rear grill so that the holes in the rims that
accept the small nut and bolt are in line.
2. Fully tighten the knurl bolt to fix the base.
OPERATING INSTRUCTIONS
1. Connect the power plug to a suitable outlet.
2. Select the desired speed by pressing the switch 0/I/II.
0 – Device Off
I – Low Speed
II – High Speed
3. The incline of the ventilator head can be adjusted by tilting it forward or
backward. The ventilator head can then be locked into position, which is
indicated by an audible click.
Maintenance
1. Before cleaning turn the fan off and unplug from the power supply.
2. To clean the fan use a soft cloth to wipe off any dust. If the fan is very dirty use a damp cloth
and wipe dry. Do not use any cleaning detergents, sprays or other chemicals, as they will
damage the fan.
3. Store the fan in the original packing in a ventilated dry area.
4. The motor bearings are permanently sealed and do not require additional lubrication.
5. Before cleaning turn the fan off and unplug from the power supply.
6. To clean the fan use a soft cloth to wipe off any dust. If the fan is very dirty use a damp cloth
and wipe dry. Do not use any cleaning detergents, sprays or other chemicals, as they will
damage the fan.
7. Store the fan in the original packing in a ventilated dry area.
8. The motor bearings are permanently sealed and do not require additional lubrication.
TECHNICAL DETAILS
Model No. : FT-15
Power consumption: 17W
Main Voltage: 220-240V~50Hz
Dimensions: 200X160X300mm
Weight: 0.55kg
INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL &
ELECTRONIC EQUIPMENT.
This mark on a product and/or accompanying documents indicates that when it is to be
disposed of, it must be treated as Waste Electrical & Electronic Equipment (WEEE).
Any WEEE marked waste products must not be mixed with general household waste, but
kept separate for the treatment, recovery and recycling of the materials used.
For any enquiries regarding the product, please visit www.cpc.co.uk or call 08447 88 00 88
