General Intro
LED is the acronym for “Light Emitting Diode”. LED technology is based on
the electroluminescence generated by the emission of photons. Unlike
common light bulbs whose fi laments work at very high temperatures
and feature a remarkable thermal inertia, an LED emits cold light. The
LEDs that we are interested in are those that emit red, orange, yellow, or
green light. In relatively recent times the creation of a blue LED was also
achieved. This development is very important as a blue LED combined
with green and red radiations allows the creation of a white light source and also of all those colours allowed by an RGB (additive synthesis)
combination. In recent years LED technology has been the choice in all
applications requiring high reliability, long life span and top effi ciency.
Some of its main applications are:
• Decoration and signage
• Variable message LED Walls
• Entertainment and architectural lighting
LED technology is employed more and more in architectural and enter-
tainment lighting instead of more traditional light sources, but its low
power prevents it from replacing them completely. Basically, its main
drawback is the amount of emitted light (fl ux of light expressed in lu-
mens) which ranges up to 120 lm for the most recent professional models, whereas a 60W incandescence light bulb emits a light fl ux of about
550 lumens.
The advantages in the use of LED technology for lighting are:
• Long life span (high emission LED can last up to 50,000 hours)
• No maintenance costs
• High performance (if compared to incandescent light bulbs or
halogen lights)
• Non polluting, as it does not include IR or UV components
• Sharp spot eff ect (highly specifi c point source)
• Safety, as it works with very low voltage (normally around 24 Vdc)
• No sensitivity to humidity or vibrations
• No mercury
Finally, the commercial strength of such equipment lies in its brightness
(four times brighter than fl uorescent lights and tungsten fi lament lights),
low price, high effi ciency and reliability. Furthermore, an LED can last a
lot longer than any classic light source (especially if under mechanical
stress) and its very low absorption allows it to be used anywhere.
Page 5
5
Architectural LED
Entertainment LED
6
23
Made in Italy LED
29
LED Tubes
45
Index
5
Page 6
6
Moving Heads
90 high power RGBW LED Moving Head
Power supply: 100-240V 50/60Hz
Rated Power: 550W
LED: 90 (18Rx2W – 24Gx5W – 24Bx5W – 24Wx5W)
Eff ects: RGBW Colour Mixing, Built-in Programs, Strobe, White Balance, RGB Calibra-
tion, Dimmer, Colour Macros.
Control: DMX 10/14 channels – Stand Alone – Master/Slave
Movements: 540° Pan – 270° Tilt – adjustable speed
IP rating: IP20
This unit complies with CE directives
2
0.2340.4460.6881.01101.44
650LUX
Distance (m)
Diameter (m)
180 86 51 35
BLUE
15°
2
0.2340.4660.6980.95101.40
6930LUX
Distance (m)
Diameter (m)
1850 860 500 330
GREEN
15°
2
0.2040.3960.5680.81101.42
3750LUX
Distance (m)
Diameter (m)
945 407 228 139
RED
15°
2
0.2240.4360.6780.82101.14
10800LUX
Distance (m)
Diameter (m)
2830 1320 743 514
RGB
15°
2
0.2240.4260.6580.94101.26
19300LUX
Distance (m)
Diameter (m)
5030 2300 1302 880
RGB+WHITE
15°
2
0.2240.4260.6280.83101.25
8720LUX
Distance (m)
Diameter (m)
2260 1040 590 394
WHITE
15°
14 channels DMX
PLLEDHTML
100
75
50
25
0
0° -540°
Min
Max
Macro
Macro
DMX
Pan
Tilt
fine
Pan/Tilt
speed
Macro
Value Ch1
0° -280°
Tilt
Ch2 Ch4
Pan
fine
Ch3
Ch5 Ch10
Slow
Fast
Strobe
Ch12
Red
Ch6
Green
Ch7
Blue
Ch8
White
Ch9
Dimmer
Ch11
Dimmer
speed
Ch13
Control
Ch14
Min
Max
Power : 100 - 240V 50/60Hz
LED: 90 RGBW - (18x2WR - 24x5WG - 24x5WB - 24x5WW)
Size: L433xW320xH462 mm
Weight: 20,3 Kgs
65080865356930U
G
REE
N
PLLEDHTML
Page 7
7
Moving Heads
LED moving head with RGB technology. This projector provides illumination via 36
high-effi ciency LEDs (12 red, 12 green, 12 blue) off ering high luminous output as well
as infi nite RGB colour mixing.
LED WASH MOVING HEAD
Input Voltage: 230V / 50Hz - 120V / 60Hz (selectable with onboard switch)
High Power 1W LEDs: 12 red, 12 green, 12 Blue -1,4W over 50000 hours rated life
Beam angle: 15 degree
Movements: 540 degree PAN and 270 degree
Colours & rainbow eff ect: pre-programmed
Electronic dimmer for light output adjustment: from 0 to 100% (no colour varia-
tion) Flash rate 1-25 fps
Protocol: DMX512 - 10 ch (12 Ch in 16 bit mode)
Fuse: T2A Max.
Power Consumption: 70VA
10 channels DMX
PLLEDMLBG
100
75
50
25
0
0° -540°
Macro
Macro
DMX
Pan
Tilt
fine
Macro
Value Ch7
0° -270°
Tilt
Ch8 Ch10
Pan
fine
Ch9
Ch5
Slow
Fast
Strobe
Ch1
Red
Ch2
Green
Ch3
Blue
Ch4
Macro
speed
Ch6
Min
Max
Power: 230V 50Hz - 120V 60Hz
LED: 36: 12R - 12G - 12B
Size: mm. 300L x 290W x 350H
Weight: 9,8 Kgs
PLLEDMLBG
Page 8
8
Moving Heads
RGB LED Spot Moving Head
Power supply: 230V 50Hz - 120V 60HZ
Rated Power: 50W
LED: 1 x 15W RGB full colour LED
Gobo wheel: 9 fi xed gobos + white
Eff ects: Dimmer, Strobe, Colour Macros.
Control: 13-channel DMX – Stand Alone – Master/Slave – Sound Mode
Movements: 540° Pan – 270° Tilt - adjustable speed
IP rating: IP20
This unit complies with CE directives
13 channels DMX
PLLEDMLSUS
100
75
50
25
0
0° - 540°
Macro
Macro
DMX
Pan
Tilt
fine
Macro
Value Ch1
0° - 270°
Tilt
Ch3 Ch4
Pan
fine
Ch2
Ch10
Gobo
Ch13
Red
Ch7
Green
Ch8
Blue
Ch9
Pan / Tilt
speed
Ch5
Min
Max
OFF
ON
Lamp
ON/OFF
Ch6
Macro
Macro
Macro
speed
Ch11
Music
mode
Ch12
ON
OFF
Power : 230V 50Hz - 120V 60Hz
LED: 1 RGB full colour - 15W
Size: L177xW177xH250 mm
Weight: 4,5 Kgs
PLLEDMLS
Page 9
9
Moving Heads
RGB LED Wash Moving Head
Power supply: 230V 50Hz 120V 60Hz
Rated Power: 50W
LED: 1 x 15W RGB full colour LED
Eff ects: Dimmer, Strobe, Colour Macros, Macro Speed.
Control: 13-channel DMX – Stand alone – Master/Slave – Sound Mode
Movements: 540° Pan – 270° Tilt – adjustable speed
IP rating: IP20
This unit complies with CE directives
12 channels DMX
PLLEDMLWUS
100
75
50
25
0
0° -540°
Macro
Macro
DMX
Pan
Tilt
fine
Macro
Value Ch1
0° -270°
Tilt
Ch3 Ch4
Pan
fine
Ch2
Ch10
Red
Ch7
Green
Ch8
Blue
Ch9
Pan / Tilt
speed
Ch5
Min
Max
OFF
ON
Lamp
ON/OFF
Ch6
Macro
Macro
Macro
speed
Ch11
Music
mode
Ch12
ON
OFF
Power : 230V 50Hz - 120V 60Hz
LED: 1 RGB full colour - 15W
Size: L177xW177xH250 mm
Weight: 4,5 Kgs
PLLEDMLW
Page 10
10
Colour Changers
RGB LED WASHER
LEDs: 54 LEDs 1W (18 Red – 18 Green – 18 Blue)
Power supply: 230V/50HZ
Colours System: RGB (Red, Green, Blue) blending system to obtain an infi nite series
of colour nuances.
Control: 12 DMX control channels, Stand alone and Master/Slave
Housing Protection: IP 65.
This unit complies with CE directives.
RGB MUTIPAR LED
LEDs: 36 LEDs 1W (12 Red – 12 Green – 12 Blue)
Power supply: 230V/50HZ
Colours System: RGB (Red, Green, Blue) blending system to obtain an infi nite series
of colour nuances.
Control: 9 DMX control channels, Stand alone and Master/Slave
Housing Protection: IP 33.
This unit complies with CE directives.
Recommended remote controller (optional)
DMX, auto programs
Recommended remote controller (optional)
DMX, auto programs
2
(0.9x0.5)4(1.4x1.0)6(2.0x1.6)8(2.5x2.1)10(3.0x2.6)
307LUX
Distance (m)
Area (sqm)
98 56 27 22
BLUE
15°
2
(0.9x0.5)4(1.4x1.0)6(2.0x1.6)8(2.5x2.1)10(3.0x2.6)
1763LUX
Distance (m)
Area (sqm)
570 270 159 128
GREEN
15°
2
(0.9x0.5)4(1.4x1.0)6(2.0x1.6)8(2.5x2.1)10(3.0x2.6)
1130LUX
Distance (m)
Area (sqm)
360 167 97 78
RED
15°
2
(0.9x0.5)4(1.4x1.0)6(2.0x1.6)8(2.5x2.1)10(3.0x2.6)
2970LUX
Distance (m)
Area (sqm)
950 450 266 218
RGB 100%
15°
2
0.5241.0561.5782.10102.60
300LUX
Distance (m)
Diameter (m)
76 35 20 15
BLUE
15°
2
0.5241.0561.5782.10102.60
1780LUX
Distance (m)
Diameter (m)
460 210 120 90
GREEN
15°
2
0.5241.0561.5782.10102.60
1145LUX
Distance (m)
Diameter (m)
290 130 72 50
RED
15°
2
0.5241.0561.5782.10102.60
2750LUX
Distance (m)
Diameter (m)
700 320 190 145
RGB 100%
15°
12 channels DMX
9 channels DMX
Power: 230V/50Hz
Size: L510xW480Xh210mm
Weight: 8,3 Kg
LED: 54 LEDs W (18 Red – 18 Green – 18 Blue)
Power: 230V/50Hz
Size: L310xW340xH220mm
Weight: 5 Kg
LED: 36 LEDs 1W (12 Red – 12 Green – 12 Blue)
IP 65.
Control:
Housing Protection:
This unit complies with CE directives.
PLHT3LED
PLHTLED
PLLEDCKT
PLLEDCKT
Page 11
11
Colour Changers
Outdoor RGB LED Projector
Power supply: 230V – 50Hz
Rated Power: 65W
LED: 36 1W RGB LEDs (12R – 12G – 12B)
Beam opening: 15°
Eff ects: Dimmer, Strobe, Colour Macros, Macro Speed
Control: 6-channel DMX – Stand Alone – Master/Slave
IP rating: IP65
This unit complies with CE directives
12 channels DMX
100
75
50
25
0
Macro
Macro
DMX
Macro
Value Ch4
Red
Ch1
Green
Ch2
Blue
Ch3
Slow
Fast
Strobo
Dimmer
Ch5 Ch6
Power : 230V 50Hz
LED: 36 RGB - 1W (12R - 12G - 12B)
Size: L200xW290xH230 mm
Weight: 4,5 Kgs
PLLEDCC
Page 12
12
Colour Changers
Outdoor RGB LED Projector
Power supply: 230V – 50Hz
Rated Power: 80W
LED: 54 x 1W RGB LED (18R – 18G – 18B)
Eff ects: Dimmer, Strobe, Colour Macros, Macro Speed
Control: 6-channel DMX – Stand Alone – Master/Slave
IP rating: IP65
This unit complies with CE directives
12 channels DMX
Power : 220V 50Hz
LED: 54 RGB - 1W (18R - 18G - 18B)
Size: L350xW30xH150 mm
Weight: 7,5 Kgs
100
75
50
25
0
Macro
Macro
DMX
Macro
Value Ch4
Red
Ch1
Green
Ch2
Blue
Ch3
Slow
Fast
Strobo
Dimmer
Ch5 Ch6
PLLEDHTBG
Page 13
13
Colour Changers
ARCHITECTURAL STAGE LED
Our SCENO LED follows in the footsteps of our architectural NIGHTWAVE LED, but it is parti-
cularly suited for stage backdrops. Like the NIGHTWAVE LED, it also uses RGB LED technology, which allows an unprecedented control of chromatic synthesis and colour temperature.
Its high protection factor suits it to a variety of applications, both indoors and outdoors. Our
SCENO LED uses 36 RGB triads of high power LEDs 1,2W.
ARCHITECTURAL MODULAR LED
Our NIGHTWAVE LED can be considered a major advancement over traditional colour chan-
ging systems. Its modular compact and elegant housing hosts an RGB LED technology
which allows an unprecedented control of chromatic synthesis and colour temperature.
Its’ very high protection factor makes it ideal for many applications, both indoors and outdoors.
NIGHTWAVE LED features 12 RGB triads of high power LEDs 1,2W.
ARCHITECTURAL MODULAR LED
Power supply: 230V - 50Hz
Power consumption: 50W
LED: 36 led 1,2W RGB (12R - 12G - 12B)
Eff ects: Dimmer, strobe, colour macro
Control: DMX 3 channels
IP rating: IP65
This unit complies with CE directives
ARCHITECTURAL MODULAR LED
Power supply: 230V - 50Hz with PLLEDATPW
Power consumption: 110W
LED: 108 led 1,2W RGB (36R - 36G - 36B)
Eff ects: Dimmer, strobe, colour macro
Control: DMX 3/9 channels
IP rating: IP65
This unit complies with CE directives
DMX channel addresser for
PLLEDAT E PLLEDAT2
Power supply for 3 PLLEDAT2 Extension cable 5m for PLLEDAT2
3 channels DMX
9 channels DMX
Power: 230V 50Hz
LED: 36: 12R - 12G - 12B
Size: mm. 300L x 188W x 200H
Weight: 15 Kgs
Power: 230V 50Hz
LED: 108: 36R - 36G - 36B
Size: mm. 900L x188W x 200H
Weight: 25 Kgs
PLLEDAT
PLLEDAT2
PLLEDATPR PLLEDATPW PLLEDATC5
Page 14
14
Colour Changers
INDOOR LED PANEL
Input Voltage: AC 110-230V 50/60Hz
648 LEDs: 216 R, 216 G, 216 B - Ø5mm
Protocol: DMX512 - 6 / 12 / 24 / 48 channels
Operation modes: DMX512, built-in programs, Master/slave, music mode It is possi-
ble to divide the projector into 2, 4 or 8 independent zones
LED WALL WAS HER
Input Voltage: AC 110-230V 50/60Hz
648 LEDs: 216 R, 216 G, 216 B - Ø5mm
Protocol: DMX512 - 6 / 12 / 24 / 48 channels
Operation modes: DMX512, built-in programs, Master/slave, music mode It is possi-
ble to divide the projector into 2, 4 or 8 independent zones
6/12/24/48 channels DMX
PLLEDPN3B
PLLEDPN3W
6/12/24/48 channels DMX
PLLEDRBB
PLLEDRBW
Power: 230V 50Hz
LED: 648: 216R - 216G - 216 B
Size: mm. 430L x 78W x 236H
Weight: 5 Kgs
Power: 230V 50Hz - 120V 60Hz
LED: 648: 216R - 216G - 216 B
Size: mm. 430L x 78W x 236H
Weight: 5 Kgs
Power: 230V 50Hz
LED: 648: 216R - 216G - 216 B
Size: mm. 860L x 78W x 117H
Weight: 5,5 Kgs
Power: 230V 50Hz
LED: 648: 216R - 216G - 216 B
Size: mm. 860L x 78W x 117H
Weight: 5,5 Kgs
PLLEDPN3B / PLLEDPN3W
PLLEDRBB / PLLEDRBW
Page 15
15
Colour Changers
Outdoor RGB LED Projector
Power supply: 230V 50Hz - 120V 60Hz
Rated Power: 150W
LED: 36 1W RGB LEDs (12R – 12G – 12B)
Beam opening: 25°
Eff ects: Dimmer, Strobe, Colour Macros, Macro Speed
Control: 6-channel DMX – Stand Alone – Master/Slave
IP rating: IP65
This unit complies with CE directives
6 channels DMX
PLLEDATBKUS
100
75
50
25
0
Macro
Macro
DMX
Macro
Value Ch4
Red
Ch1
Green
Ch2
Blue
Ch3
Slow
Fast
Strobo
Dimmer
Ch5 Ch6
Power : 230V 50/60Hz
LED: 36 RGB - 3W (12R - 12G - 12B)
Size: L440xW295xH655 mm
Weight: 14,5 Kgs
PLLEDATBK
Page 16
16
Ambient Eff ects
LED FLASH LIGHT
Input Voltage: AC 230V 50Hz
252 LEDs: 84 R, 84 G, 84 B - Ø10mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave, music mode
Max. Power Consumption: 34W
RGB LED BAR
Input Voltage: 230V/50Hz
312 LEDs: 104 R, 104 G, 104 B - Ø5mm
Protocol: DMX512
Operation modes: built-in programs, Master/slave, music mode.
Max. Power Consumption: 26W
Not included
4 channels DMX
Power: 230V 50Hz
LED: 312: 104R - 104G - 104B
Size: mm. 380L x 90H x 65W
Weight: 1.6 Kgs
Power: 230V 50Hz
LED: 252: 84R - 84G - 84B
Size: mm. 500L x 200W x 255H
Weight: 5 Kgs
PLLEDST
PLLEDBFDMX
SPSK310BK
PLADT01
Page 17
17
Ambient Eff ects

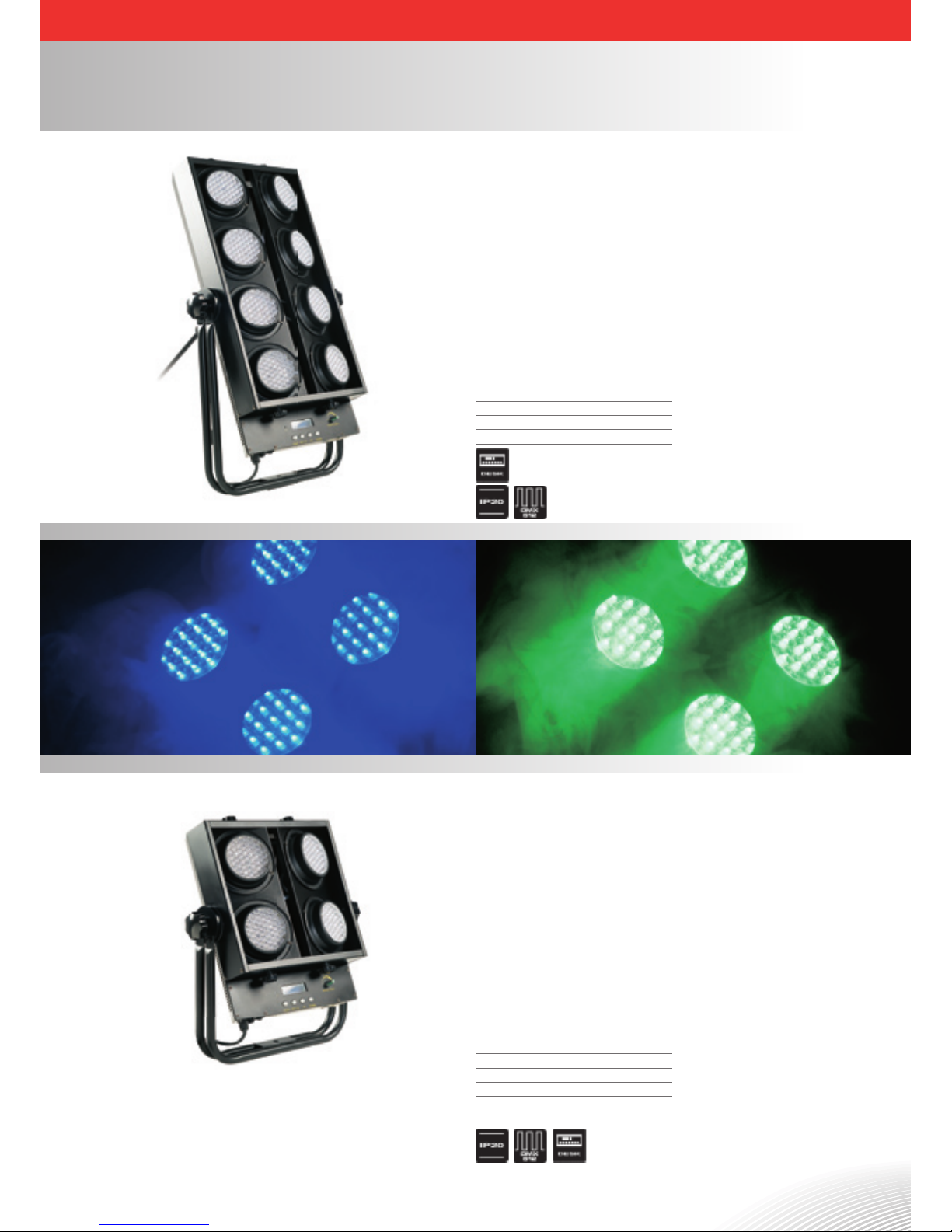

DOUB 4 - LED BLINDER
Input Voltage: 230V 50Hz
220 High Power LEDs: 18x4 R, 18x4 G, 19x4 B - Ø10mm
Beam angle: 20 degree
Protocol: DMX512 - selectable 5/8/14 channels for diff erent applications
Programmable speed variation, variable fade time (2s - 2min), fl ashes
Operation modes: 14 built-in programs, Master/slave, music mode
LCD: 2x16 character
Max. Power Consumption: 53W
DOUB 8 - LED BLINDER
Input Voltage: 230V 50Hz
440 High Power LEDs: 18x8 R, 18x8 G, 19x8 B - Ø10mm
Beam angle: 20 degree
Protocol: DMX512 - selectable 5/8/14/26 channels for diff erent applications Program-
mable speed variation, variable fade time (2s - 2min), fl ashes
Operation modes: 14 built-in programs, Master/slave, music mode
LCD: 2x16 character
Max. Power Consumption: 103W
5/8/14 channels DMX
5/8/14/26 channels DMX
Power: 230V 50Hz
LED: 440:18x8R - 18x8G - 19x8B
Size: mm. 440L x 150W x 820H
Weight: 10.1 Kgs
Power: 230V 50Hz
LED: 220:18x4R - 18x4G - 19x4B
Size: mm. 440L x 150W x 530H
Weight: 6.8 Kgs
PLLEDAB4
PLLEDAB8
Page 18
18
Ambient Eff ects
LIN 8 – LED FOOTLIGHT
Input Voltage: 230V 50Hz
440 High Power LEDs: 18x8 R, 18x8 G, 19x8 B - Ø10mm
Beam angle: 20 degree
Protocol: DMX512 - selectable 5/8/14/26 channels for diff erent applications
Programmable speed variation, variable fade time (2s - 2min), fl ashes
Operation modes: 14 built-in programs, Master/slave, music mode
LCD: 2x16 character
Max. Power Consumption: 103W
LIN 4 – LED FOOTLIGHT
Input Voltage: 230V 50Hz
220 High Power LEDs: 18x4 R, 18x4 G, 19x4 B - Ø10mm
Beam angle: 20 degree
Protocol: DMX512 - selectable 5/8/14 channels for diff erent applications
Programmable speed variation, variable fade time (2s - 2min), fl ashes
Operation modes: 14 built-in programs, Master/slave, music mode
LCD: 2x16 character
Max. Power Consumption: 53W
5/8/14/26 channels DMX
5/8/14 channels DMX
Power: 230V 50Hz
LED: 440:18x8R - 18x8G - 19x8B
Size: mm. 1310L x 145W x 230H
Weight: 7.4 Kgs
Power: 230V 50Hz
LED: 220: 18x4R - 18x4G - 19x4B
Size: mm. 710L x 145W x 230H
Weight: 4.3 Kgs
PLLEDRB8
PLLEDRB4

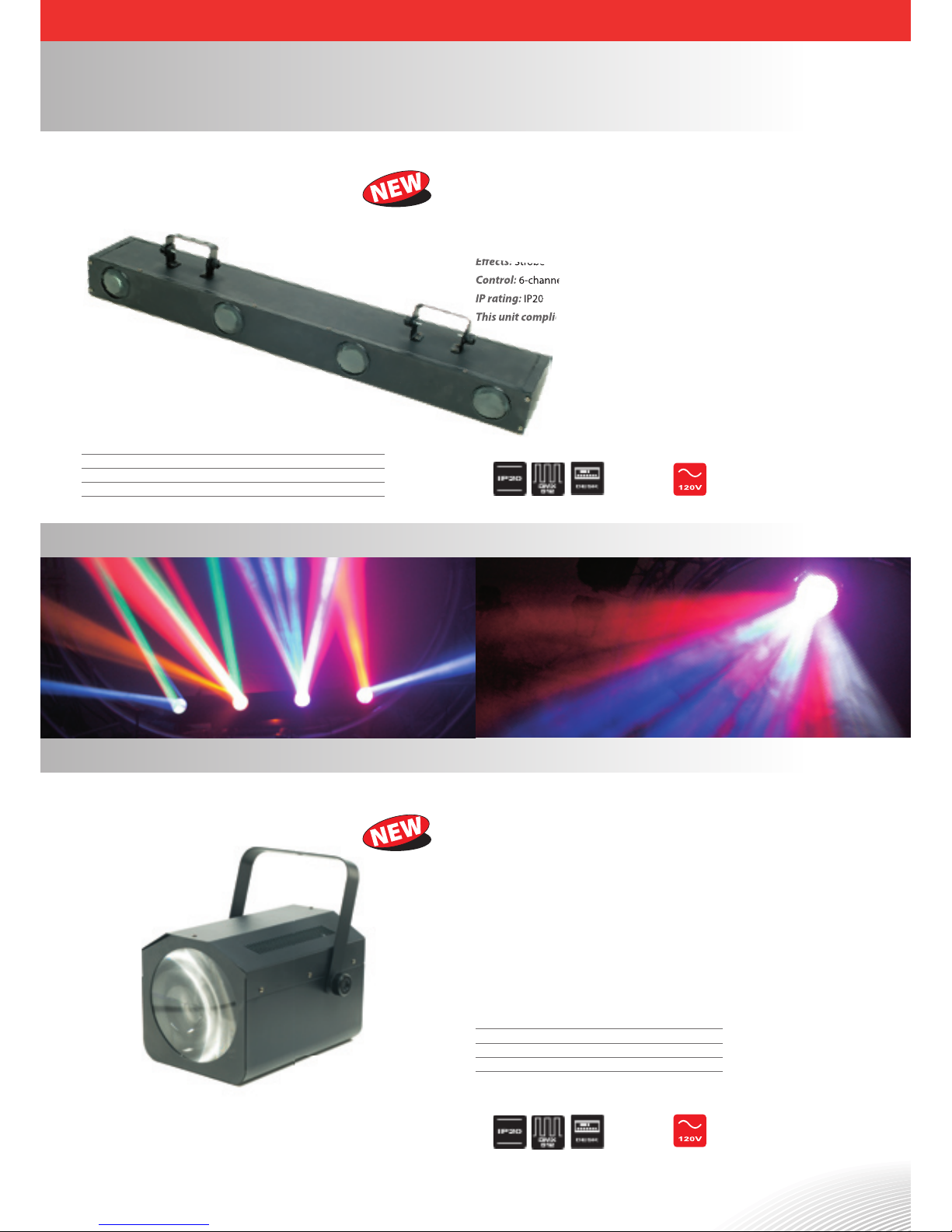

Page 19
19
Ambient Eff ects
4 RGB LED Laser
Power supply: 90-230V – 50/60Hz
Rated Power: 10W
LED: 4x64 RGB LEDs (4x16R – 4x16G – 4x16B – 4x8W – 4x8Y)
Eff ects: Strobe
Control: 6-channel DMX – Stand Alone – Sound Mode
IP rating: IP20
This unit complies with CE directives
Moon LED
Power supply: 230V 50Hz – 120V 60Hz
Rated Power: 35W
LED: 392 led RGBW (140R – 105G – 84B – 63W)
Control: DMX 3 channels, Stand alone, sound mode
IP rating: IP20
This unit complies with CE directives
6 channels DMX
6 channels DMX
PLLEDMOONUS
PLLEDWD
Power : 90 - 230V - 50/60Hz
LED: 4x64 RGBWY - (4x16R – 4x16G – 4x16B – 4x8W – 4x8Y)
Size: L935xW150xH140 mm
Weight: 5,2 Kgs
Power : 230V 50Hz - 120V 60Hz
LED: 392 RGBW - (140R – 105G – 84B – 63W)
Size: L250xW290xH250 mm
Weight: 5 Kgs
Eff ects:
Strobe
Control:
6-channel DMX – Stand Alone – Sound Mode
IP rating:
IP20
This unit complies with CE directives
PLLEDWD
PLLEDMOON

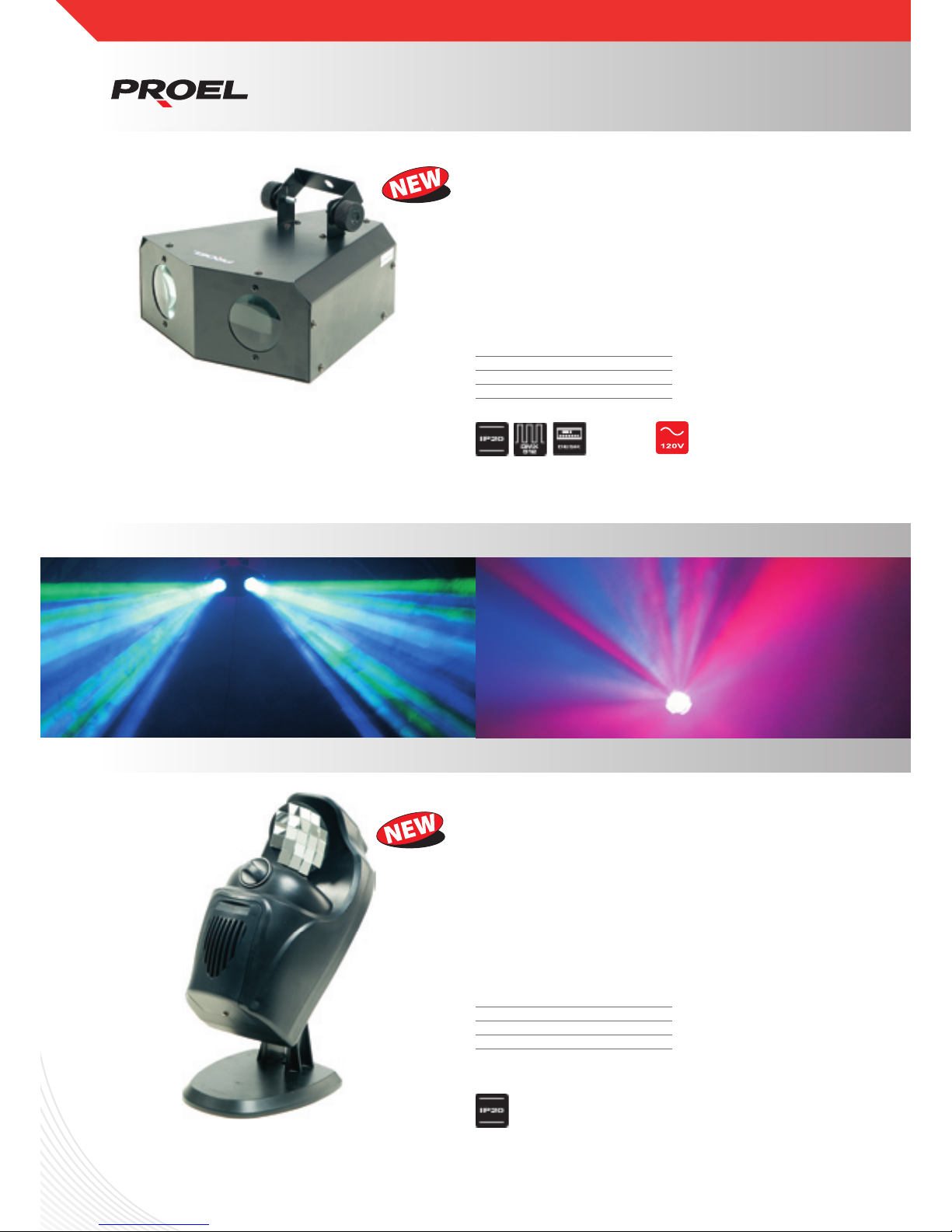

Page 20
20
Ambient Eff ects
Double beam RGB LED Projector
Power supply: 230V 50Hz - 120V 60Hz
Rated Power: 15W
LED: 80 RGB LEDs
Eff ects: Strobe
Control: 2-channel DMX – Stand Alone – Master/Slave – Sound Mode
IP rating: IP20
This unit complies with CE directives
Mini RGB LED Scanner
Power supply: 230V – 50Hz
Rated Power: 5W
LED: 18 RGB LEDs (6R – 6G – 6B)
Control: Sound Mode
IP rating: IP20
This unit complies with CE directives
2 channels DMX
PLLEDBOOUS
Power : 230V - 50Hz
LED: 18 RGB - (6R - 6G - 6B)
Size: L220xW230xH350 mm
Weight: 1,5 Kgs
Power : 230V 50Hz - 120V 60Hz
LED: 80 RGB
Size: L280xW280xH160 mm
Weight: 2,5 Kgs
PLLEDBOO
PLLEDSC

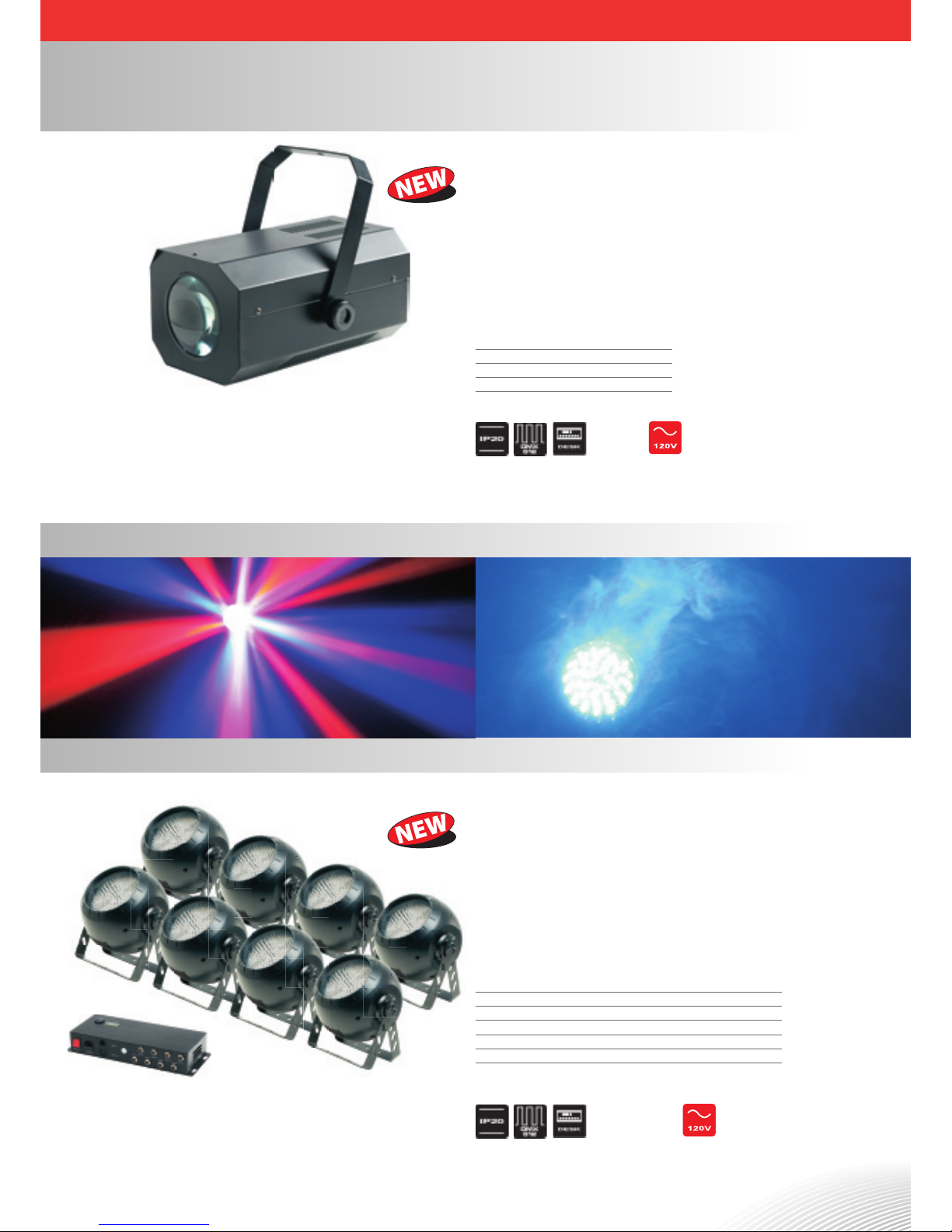

Page 21
21
Ambient Eff ects
Trilly LED
Power supply: 230V – 50Hz / 120V - 60Hz
Rated Power: 15W
LED: 27 RGB LEDs (9R – 9G – 9B)
Control: DMX 6 Channels, sound mode
IP rating: IP20
This unit complies with CE directives
8-LED Spot Kit with separate controller (included)
Power supply: 90-250V – 50/60Hz
Rated Power: 90W
LED: 1920 RGB LEDs (672R – 624G – 624B)
Control: DMX 3/6/12/24/48 channels – Auto Mode – Sound Mode
IP rating: IP20
This unit complies with CE directives
3/6/12/48 channels DMX
PLLEDKITC64
6 channels DMX
PLLEDTRMUS
Power : 90 - 250V 47/64Hz
LED: 1920 RGB - (672R - 624G - 624B)
Size Projector: L210xW210xH230 mm
Weight Progectors: 1,3 Kgs
Size Controller: L140xW370xH60 mm
Weight Controller: 2,1 Kgs
Power : 230V - 50Hz - 120V 60Hz
LED: 3 RGB - 1W - (1R - 1G - 1B)
Size: L370xW175xH155 mm
Weight: 4,4 Kgs
PLLEDTRM
PLLEDKITC64
Page 22
22

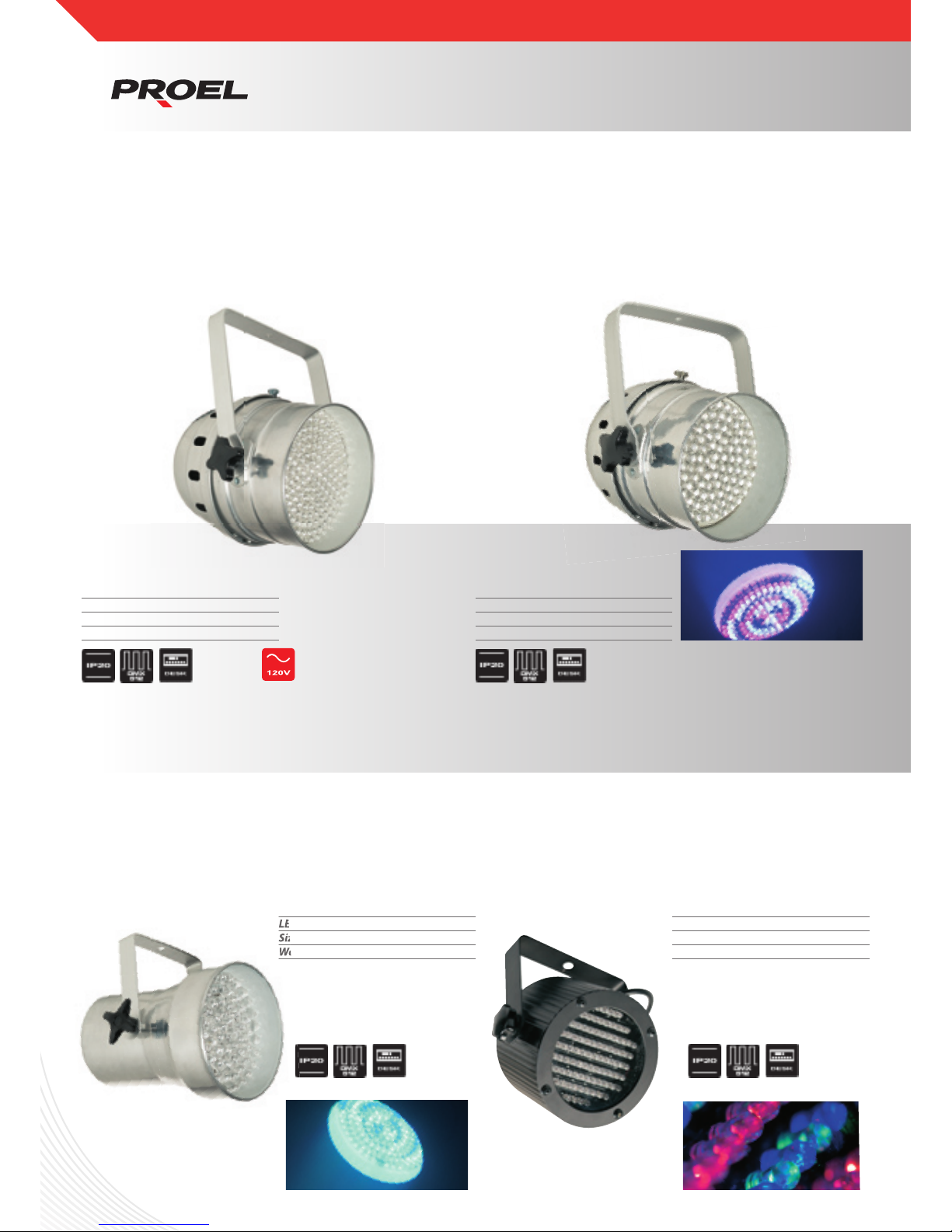

LED Par
LED PAR 64
Input Voltage: 230V 50Hz - 120V 60Hz
183 LEDs: 61 R, 61 G, 61 B - Ø10mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave
Max. Power Consumption: 30W
LED PAR 56
Input Voltage: 230V 50Hz
108 LEDs: 36 R, 36 G, 36 B - Ø10mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave
Max. Power Consumption: 18W
LED PAR 36
Input Voltage: 230V 50Hz
75 LEDs: 25 R, 25 G, 25 B - Ø10mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave
Max. Power Consumption: 8W
LED SPOTLIGHT
Input Voltage: 230V 50Hz
86 LEDs: 28 R, 28 G, 30 B - Ø5mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave.
Max. Power Consumption: 5W
4 channels DMX
PLLEDC64ALUS
4 channels DMX 4 channels DMX
4 channels DMX
Power: 230V 50Hz - 120V 60Hz
LED: 183: 61R - 61G - 61B
Size: mm. 255L x 240W x 255H
Weight: 2.5 Kgs
Power: 230V 50Hz
LED: 108: 36R - 36G - 36B
Size: mm. 200L x 230W x 200H
Weight: 2 Kgs
Power: 230V 50Hz
LED: 75: 25R - 25G - 25B
Size: mm. 155L x 300W x 155H
Weight: 1.3 Kgs
Power: 230V 50Hz
LED: 86: 28R - 28G - 30B
Size: mm. 160L x 120W x 150H
Weight: 1.8 Kgs
LED:
Size:
PLLEDC64AL PLLEDC56AL
PLLEDC36AL PLLEDSP
Page 23
LED Architectural
In the immature fi eld of architectural lighting, LED technology is a must whe-
never coloured light designs are requested.
Now operators, architects and light designers agree on the choice of LED for
all the advantages previously highlighted: low consumption and very long
life span of each lamp.
These features guarantee a performance that would be absolutely unattaina-
ble with conventional lights, especially when the installations are on for long
periods during the day and for months on end.
The wide range of colour mixing and of optics apertures ensures the utmost
adaptability of our products whatever the customer’s need.
The high IP ratings (up to IP 68) of our products make them ideal for all instal-
lations where conventional lights would never meet the safety requirements,
such as in pools and fountains. Our recessed and fl oor spotlights are also of
great interest for architectural lighting, as they can fi t any kind of customised
design.
Introduction
LED PANELS 24
OUTDOOR PROJECTORS 25
LED BARS 26
CEILING PROJECTORS 27
Page 24
24

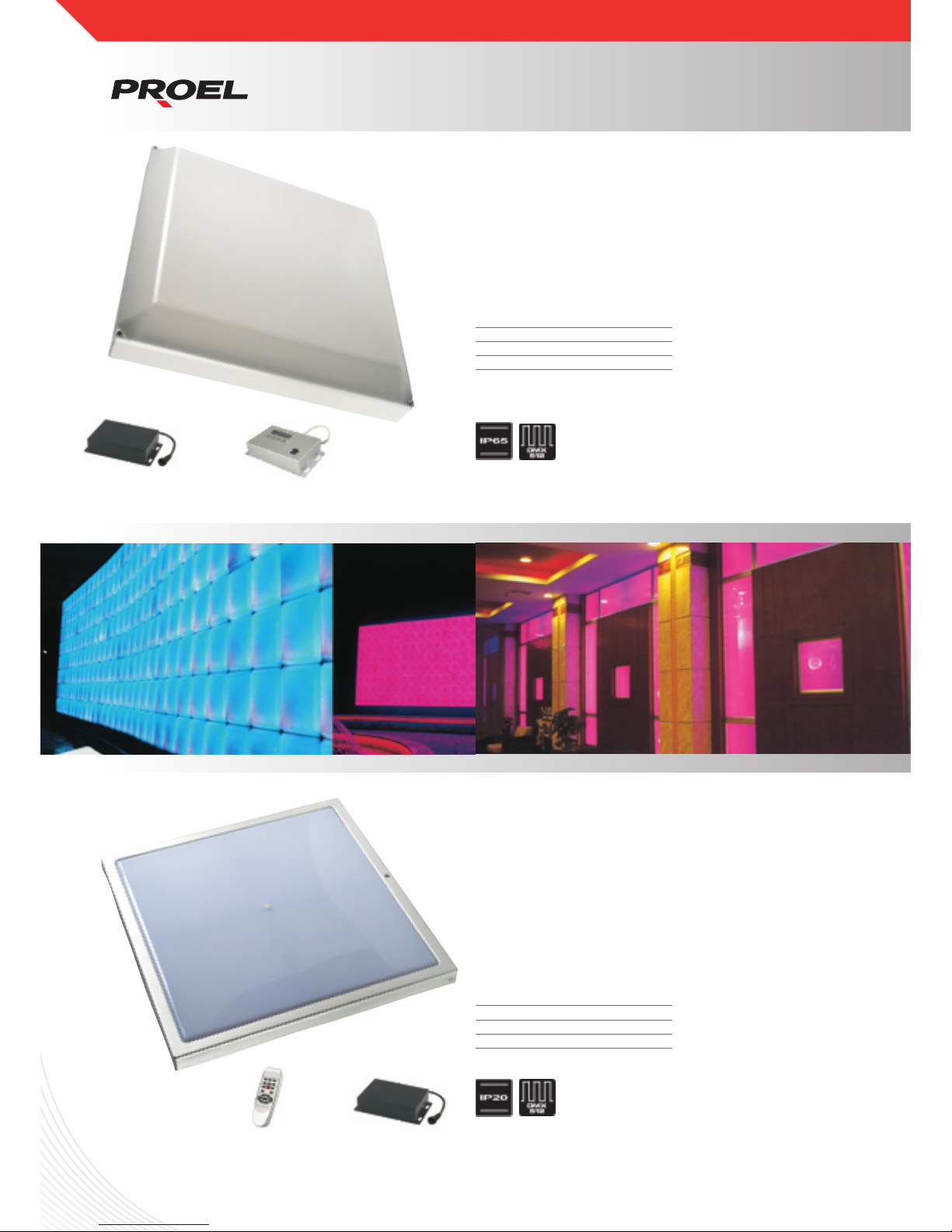

Slim LED Panel
Outdoor Panel
RGB LED Panel
This RGB LED Panel can be used to line any kind of wall or ceiling. It is ideal for outdoor use,
for high traffi c areas, and in nightclubs, pubs, etc.
It features low consumption, long life span and very low maintenance. The employment of
RGB technology allows the creation of a wide variety of colours. Being waterproof, it can be
used both indoors and outdoors.
SLIM LED PANEL
This Slim RGB LED Panel employs RGB technology with single red, green and blue LEDs to
create a wide variety of colours. Thanks to its thin design, it is the ideal choice for nightclubs,
bars, pubs, discotheques, etc.
Signal amplifi er Controller
Remote Signal amplifi er
Power: 230V 50Hz
LED: 288: 96R - 96G - 96B
Size: mm. 600L x 600W x 145H
Weight: 7.2 Kgs
Power: 230V 50Hz
LED: 112: 40R - 36G - 36B
Size: mm. 500L x 500W x 37H
Weight: 4.5 Kgs
PLLEDPN
PLLEDPN2
PLLEDC109SA PLLEDC109
PLLEDC109R PLLEDC109SA
Page 25
25

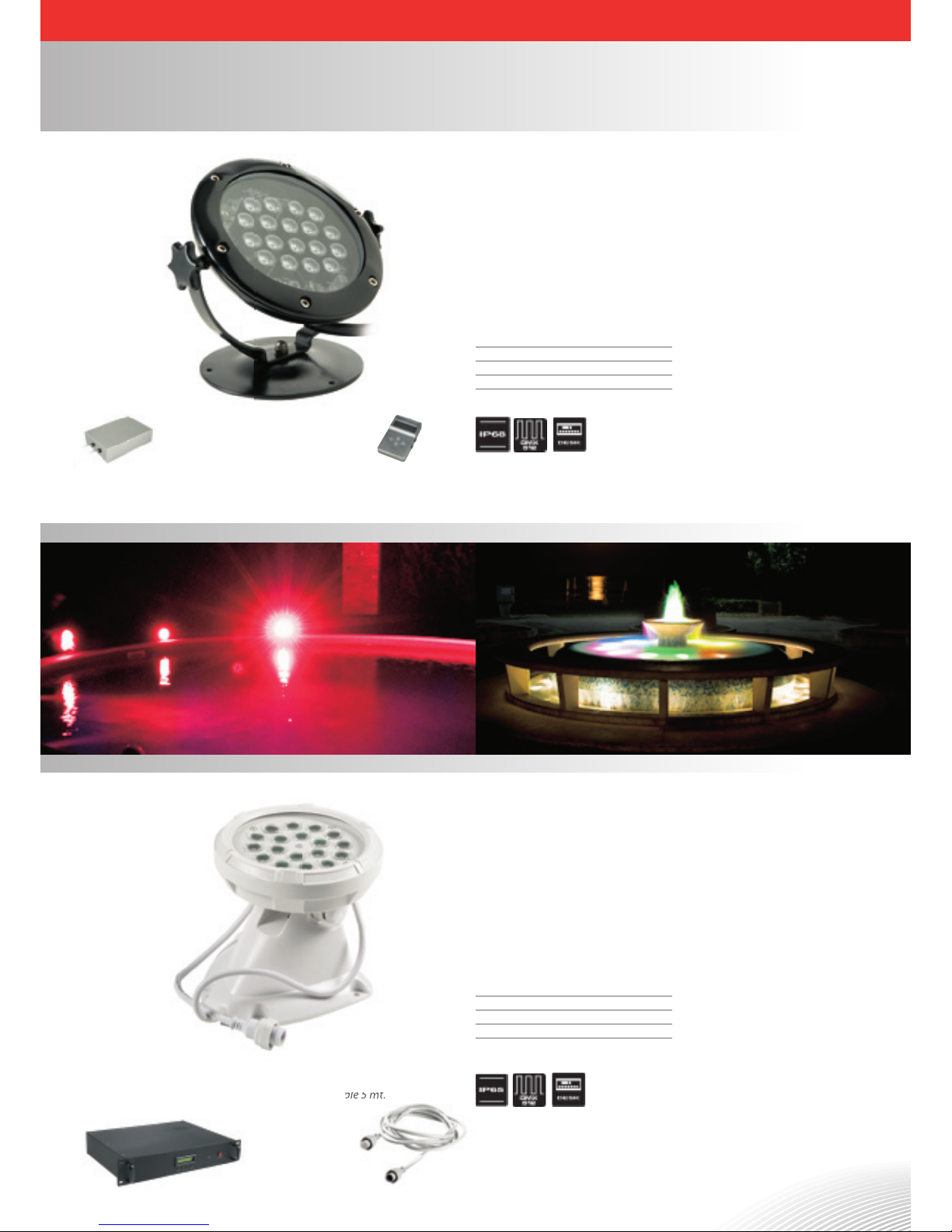

Outdoor Projectors

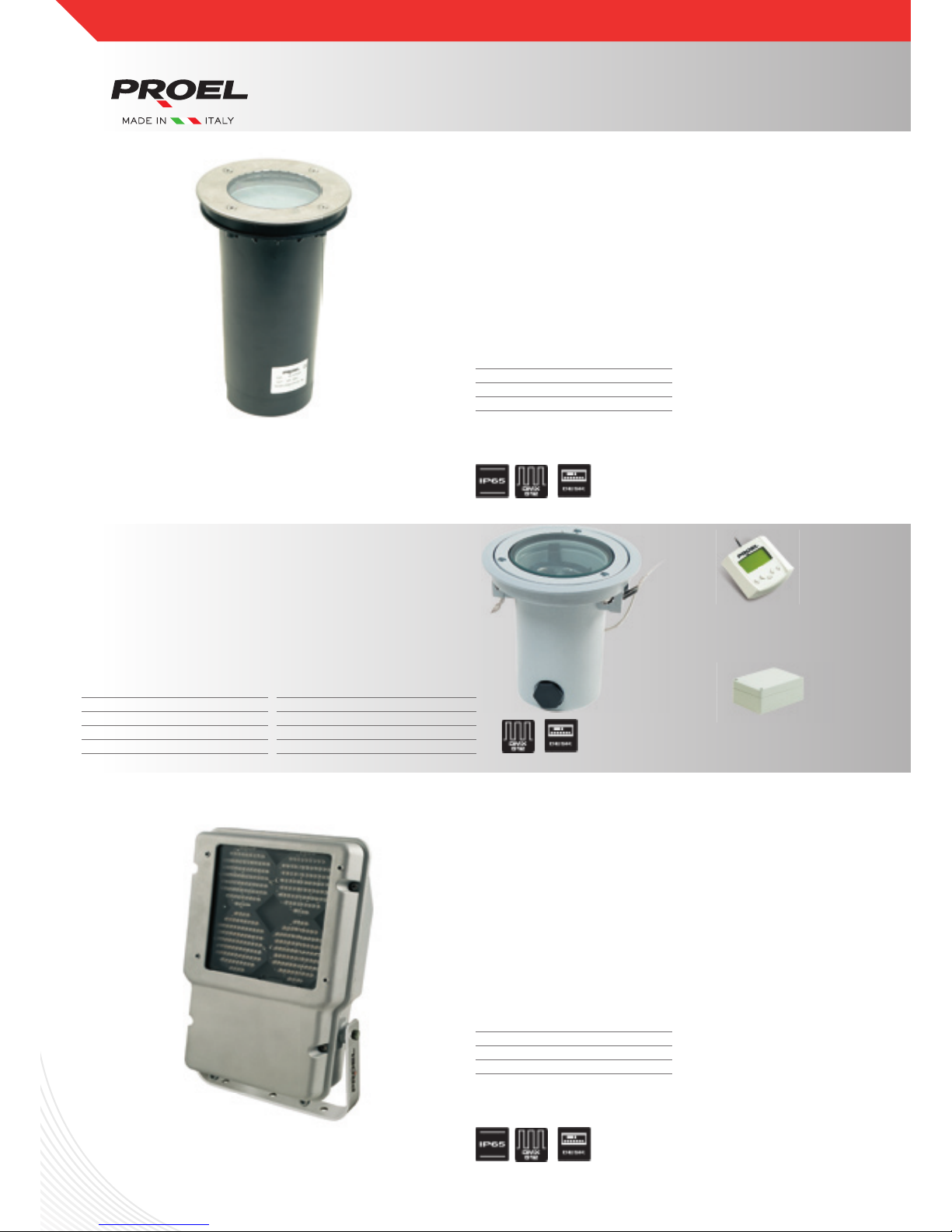

RGB LED FOUNTAIN SPOTLIGHT High Power
Input Voltage: 24 VDC
18 LEDs: 6R - 6G - 6B - 1.2Watt
IP rating: IP68
Protocol: DMX512 - 5 channels
Max. Power Consumption: 24W
RGB LED OUTDOOR SPOTLIGHT
Input Voltage: 24 VDC
18 LEDs: 6 R, 6 G, 6 B - 1Watt
IP rating: IP65
Protocol: DMX512 - 7 channels
Operation modes: automatic mode / DMX
Max. Power Consumption: 18W
Controller max 12 PLLEDOUTRGB
Cable 5 mt.
Power supply case
max 6 output
DMX writer /
controller
5 channels DMX
7 channels DMX
Power: 24 VDC
LED: 18: 6R - 6G - 6B - 1.2 Watt
Size: mm. 255L x 180W x 245H
Weight: 7 Kgs
Power: 24 VDC
LED 18: 6R - 6G - 6B or 18 White
Size: mm. 204L x 176W x 160H
Weight: 2.3 Kgs
PLLEDPWR PLLEDC100
PLLEDFTH
PLLEDOUTC
PLLEDOUT5
PLLEDOUTRGB
Page 26
26

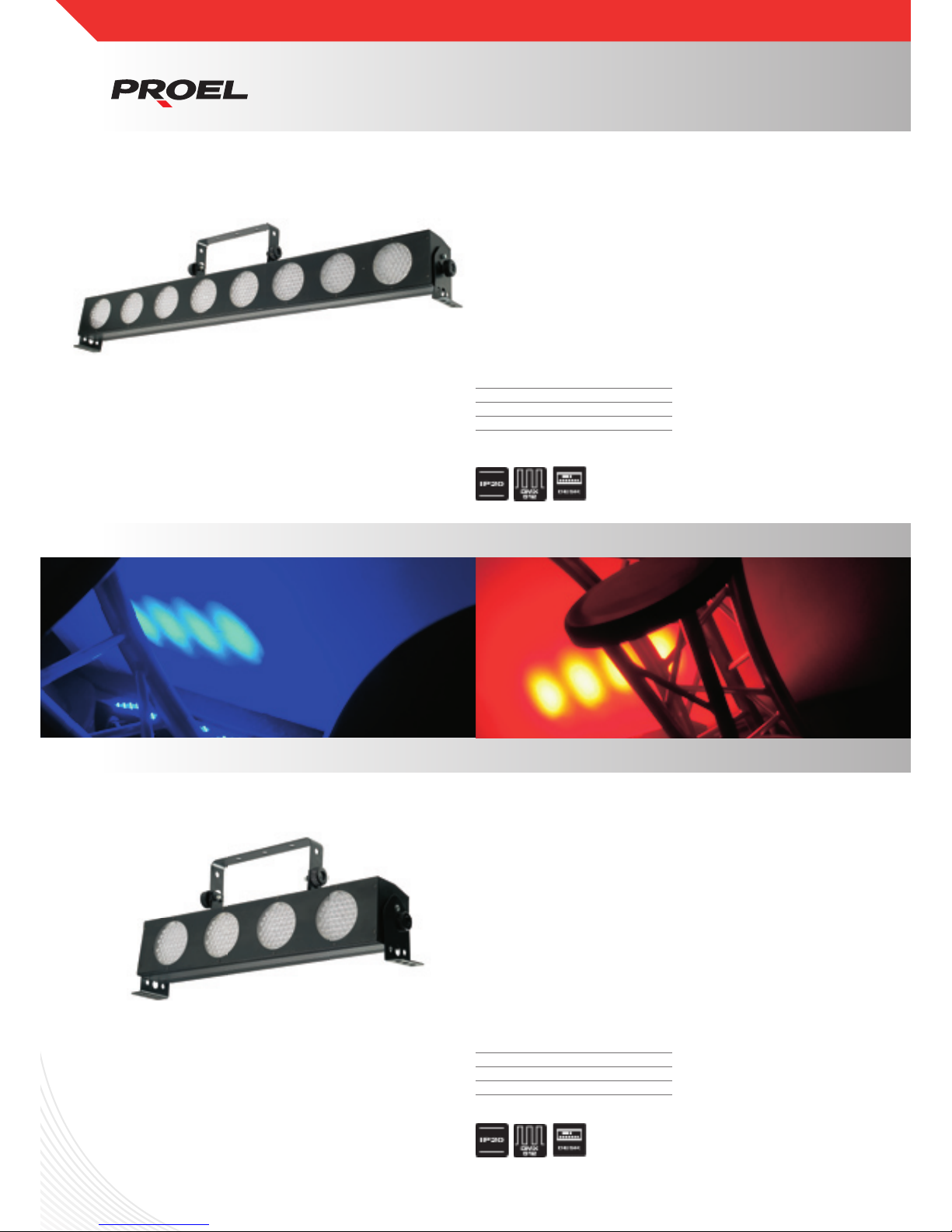

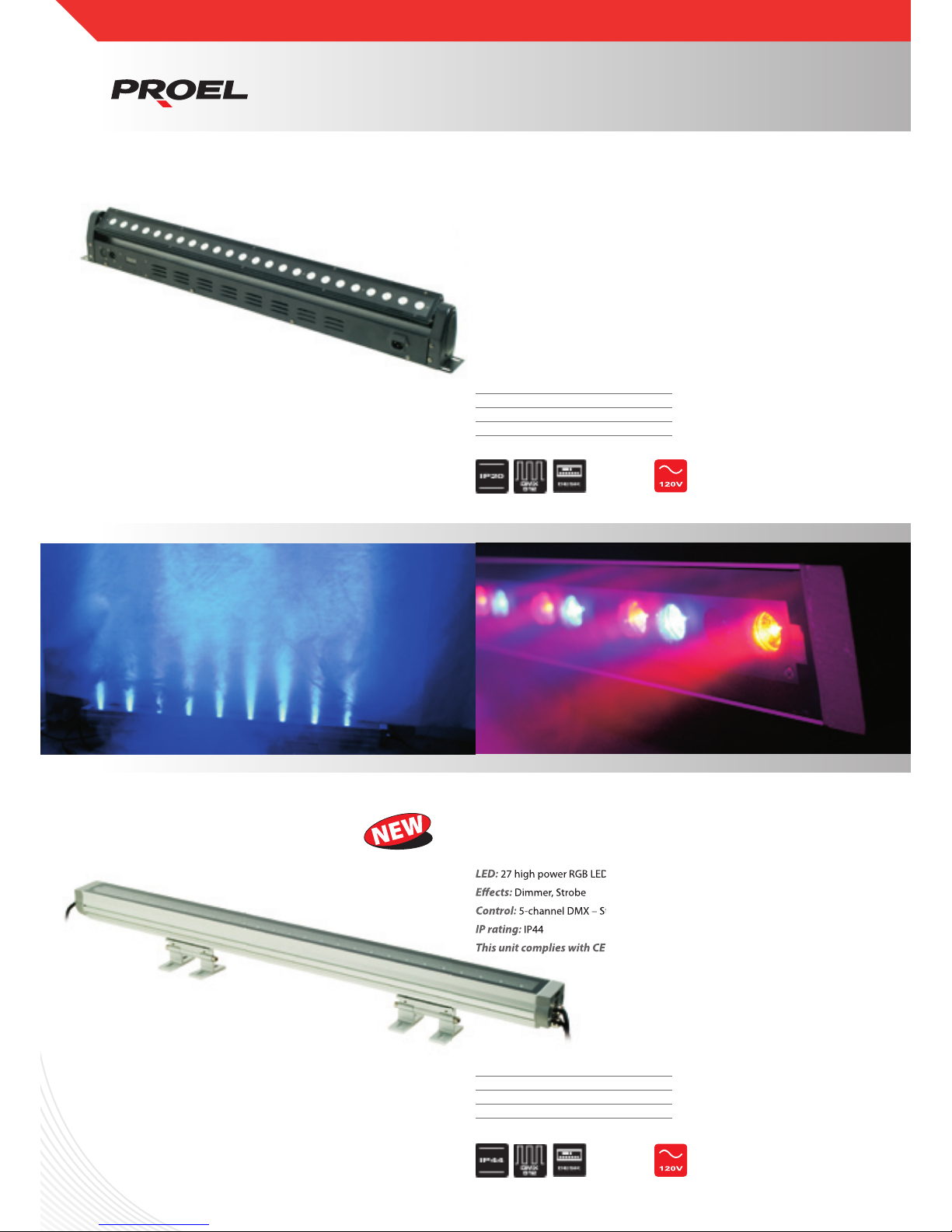

LED Bars
Motorised RGB LED Bar
Power supply: 90-250V – 50/60Hz
Rated Power: 70W
LED: 24 high power RGB LEDs 1,2W (8R – 8G – 8B)
Eff ects: Dimmer, Strobe, Macros
Movements: 135° Tilt
Control: 9-channel DMX – Stand Alone –Master/Slave – Sound Mode
IP rating: IP20
This unit complies with CE directives
RGB LED Bar
Power supply: 100-240V – 50/60Hz
Rated Power: 40W
LED: 27 high power RGB LEDs 1,2W (9R – 9G – 9B)
Eff ects: Dimmer, Strobe
Control: 5-channel DMX – Stand Alone – Master/Slave
IP rating: IP44
This unit complies with CE directives
9 channels DMX
5 channels DMX
PLLEDRBM
PLLEDRBFX
Power : 90 - 250V - 50/60Hz
LED: 24 RGB - 1W - (8R - 8G - 8B)
Size: L970xW73,5xH126 mm
Weight: 6 Kgs
Power : 100 - 240V - 50/60Hz
LED: 27 RGB - 1W - (9R - 9G - 9B)
Size: L1030xW90xH150 mm
Weight: 6,3 Kgs
27 high power RGB LEDs 1,2W (9R – 9G – 9B)
Dimmer, Strobe
5-channel DMX – Stand Alone – Master/Slave
IP44
PLLEDRBM
PLLEDRBFX
Page 27
27

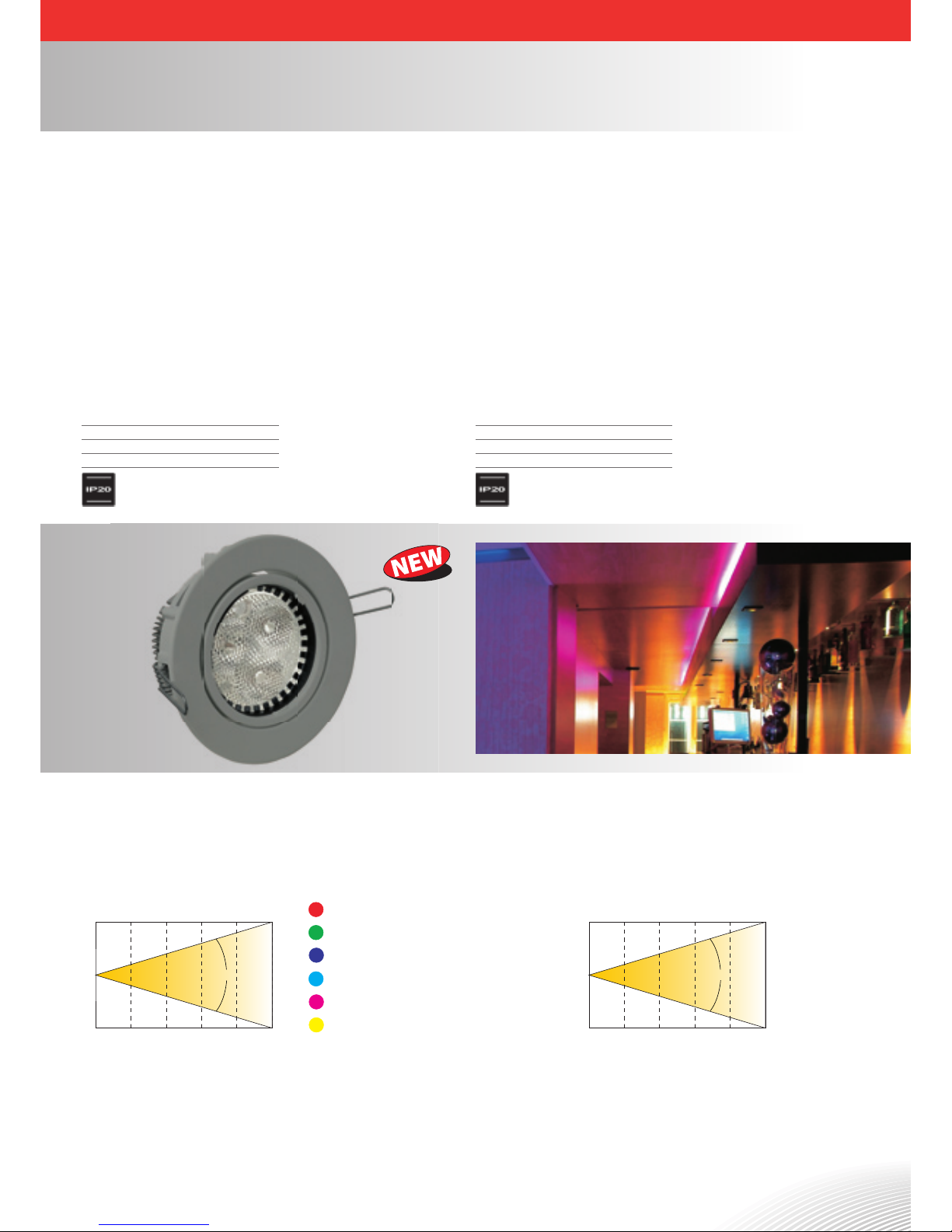

Ceiling Projectors

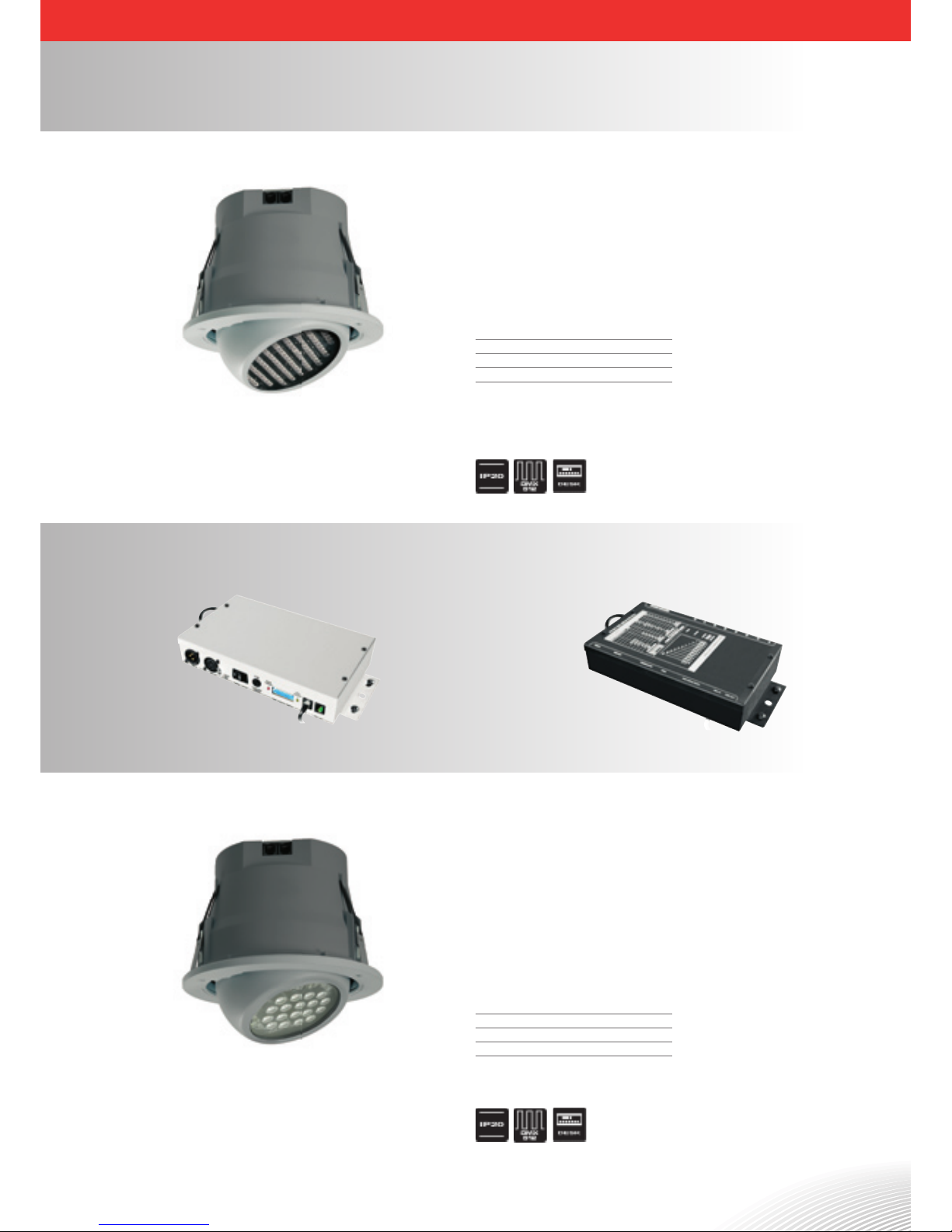

CEILING-MOUNT LED COLOUR CHANGING SYSTEM
Input Voltage: 110 / 220V AC, 50/60Hz
86 LEDs: 28 R, 28 G, 30 B - Ø5mm
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave.
Max. Power Consumption: 6W
CEILING-MOUNT LED COLOUR CHANGING SYSTEM HIGH POWER
Input Voltage: 110 / 220V AC, 50/60Hz
18 LEDs: 6 R, 6 G, 6 B
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave.
Max. Power Consumption: 18W
Splitter for 8 PLLEDCL (230V 50Hz) Splitter for 6 PLLEDCLHP (230V 50Hz)
4 channels DMX
4 channels DMX
Power: 24 VDC
LED: 86: 28R - 28G - 30B
Size: mm. 199L x 168W x 199H
Weight: 1.2 Kgs
Power: 24 VDC
LED: 18: 6R - 6G - 6B
Size: mm. 199L x 168W x 199H
Weight: 1 Kgs
PLLEDCL
PLLEDCLHP
PLLEDCNTR PLLEDCNTRHP
Page 28
Page 29

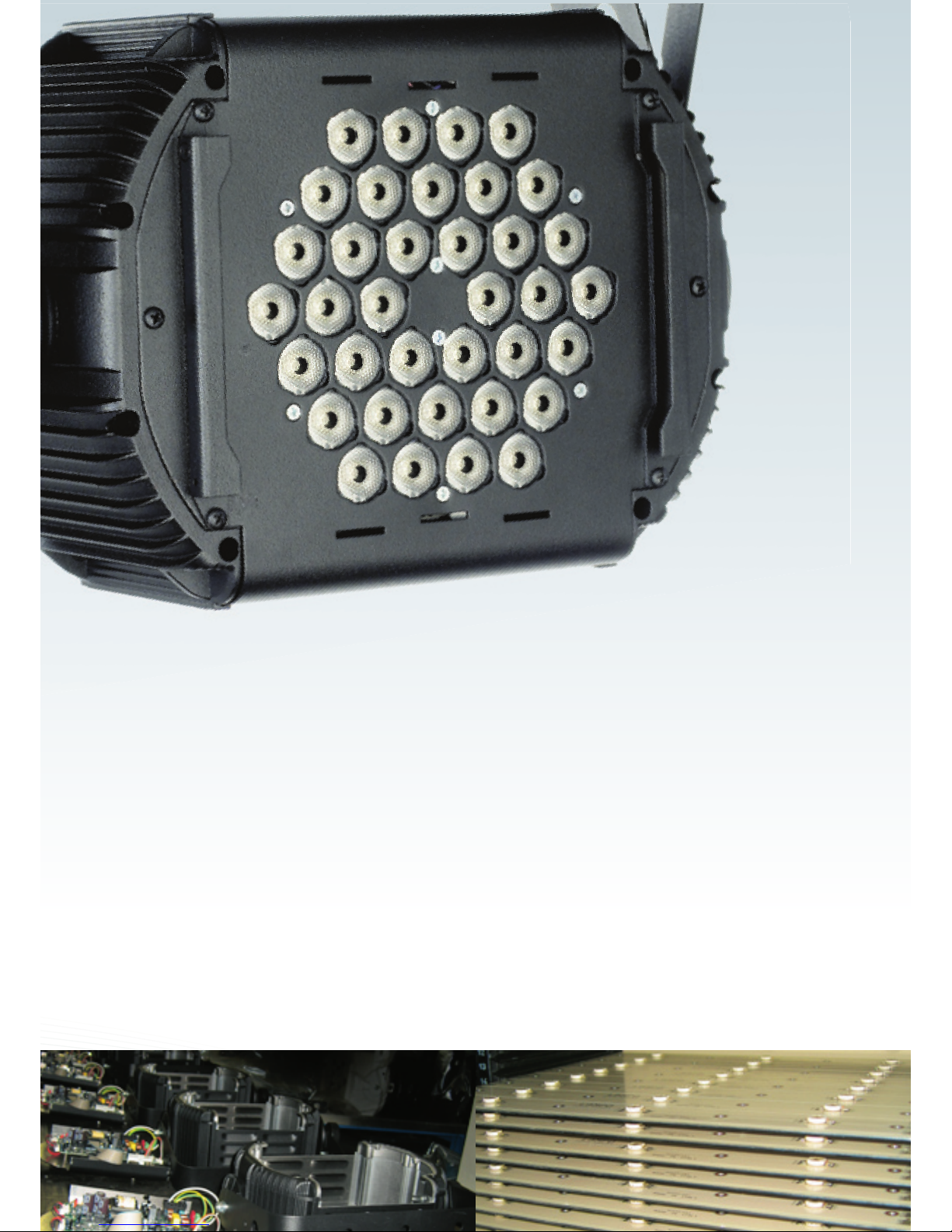

Made in Italy
The continuous evolution of LED technology has led the Proel Group to
create a new product line completely made in Italy. A strong chain of production, a huge R&D commitment and the use of high quality components
position these products at the premium end of the market.
The result is an innovative product line which provides a competitive alter-
native to the traditional light sources (discharge and halogen lamps).
Proel Group’s core design and manufacturing strength is a key factor in
customer service, especially for product customisation which is more and
more required in the fi eld of architectural installation.
Ranging from indoor to outdoor products (with Ingress Protection Rating
up to IP66) allows our customers to work on any projects or meet any tender
or general specifi cations.
Introduction
OUTDOOR PROJECTORS 30-32
INDOOR PROJECTORS 33-34
CEILING PROJECTORS 35
CONTROLLERS FOR LED PROJECTORS 36
LED BARS RGB/WHITE 37-39
CONTROLLERS FOR LED BARS 37
FLOOR OUTDOOR PROJECTORS 40
STRIP LED AND CONTROLLERS 41-44
Page 30
30

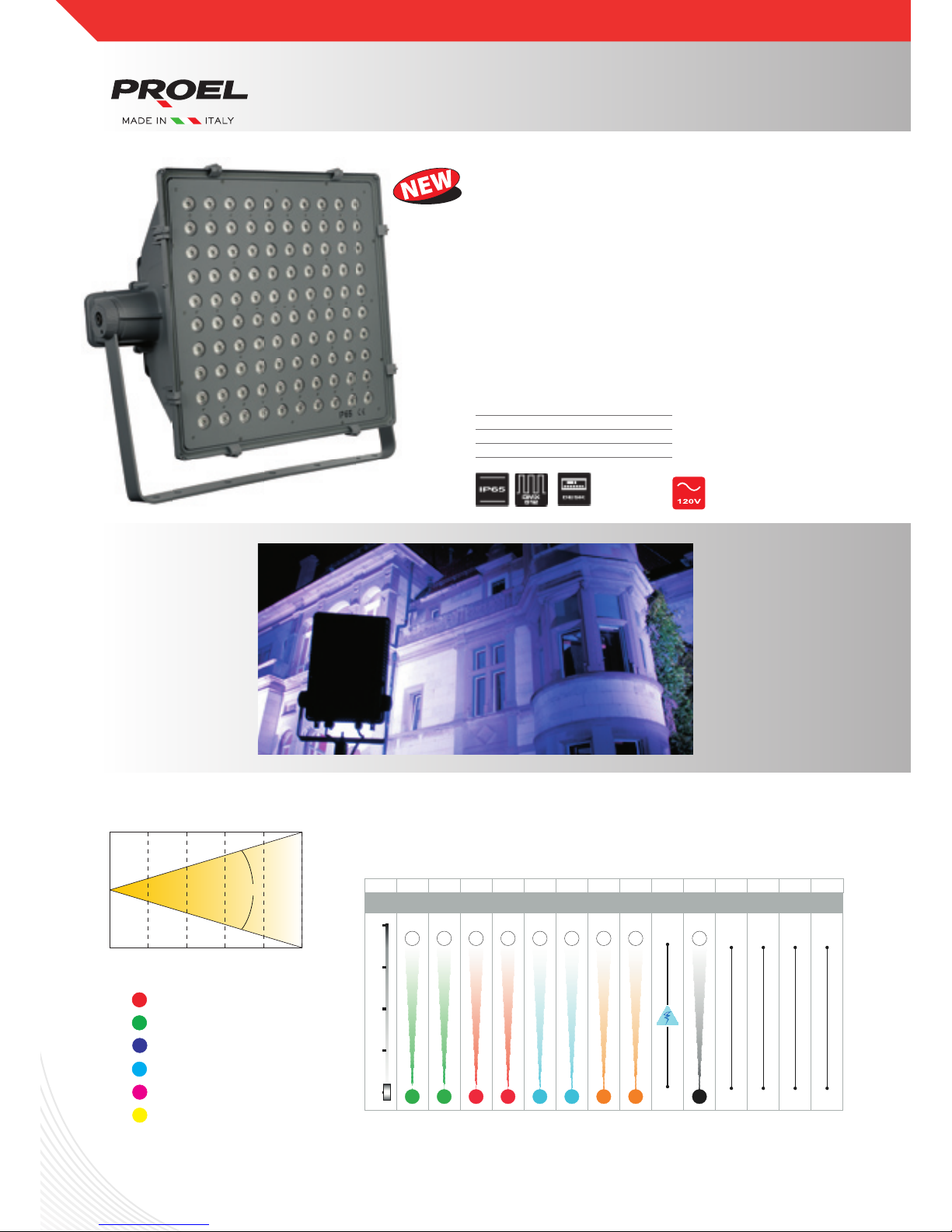

LED Projector
Power supply: 85-265V – 50/60Hz
Rated Power: 360W
LED: 100 3x1.2W RGB full colour LEDs (Seoul LEDs)
Lens: 45° (12° and 30° lenses available)
Eff ects: Dimmer 0-100%, Strobe
Control: DMX 3/14 channels – Stand Alone –Master/Slave
IP rating: IP65
This unit complies with CE directives
Outdoor architectural high power LED projector equipped with 100 RGB full
color LEDs providing uniform colour mixing.
This unit can be used in indoor and outdoor applications thanks to its high
ingress protection rating (IP65).
2
1.9543.9065.8587.80109.75
3703LUX fullon
Distance (m)
Diameter (m)
926 411 231 148
10%
100%
10%
45° LENSES
52°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
3/14 channels DMX
PLLEDAT45
100
75
50
25
0
DMX
CTC
white
Value Ch11
Slow
Fast
Strobe
Ch9
Red
Ch3
Green
Ch1
Blue
Ch5
Dimmer
Ch10
Green
fine
Ch2
Red
fine
Ch4
Blue
fine
Ch6
Amber
Ch7
Amber
fine
Ch8
Speed
Ch12
Frequency
Ch13
Frequency
fine
Ch14
244Hz
1000Hz
Power : 85 - 265V 50/60Hz
LED: 100 RGB full colour - 3,6W
Size: L755xW750xH327 mm
Weight: 28 Kgs
PLLEDAT45
Page 31
31

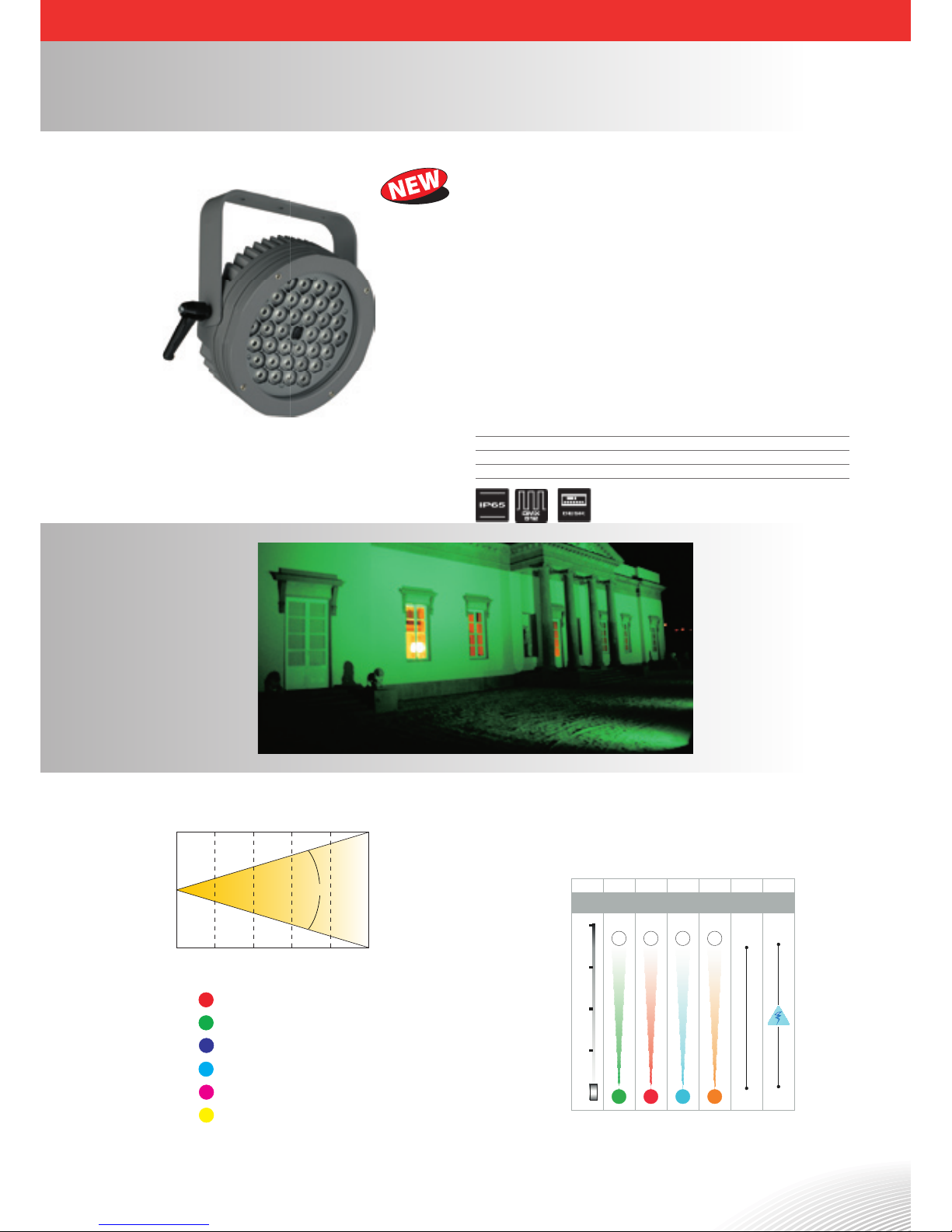

LED Projector
Power supply: 195-265V – 50/60Hz
Rated Power: 44W
LED: 36 1.2W RGB LEDs (12R – 12G – 12B – Cree LEDs)
Lens: 30° (12°, 45° and elliptical lenses available)
Eff ects: Dimmer 0-100%, Strobe
Control: 6-channel DMX – Stand Alone – Master/Slave
External power supply unit
IP rating: IP65
This unit complies with CE directives

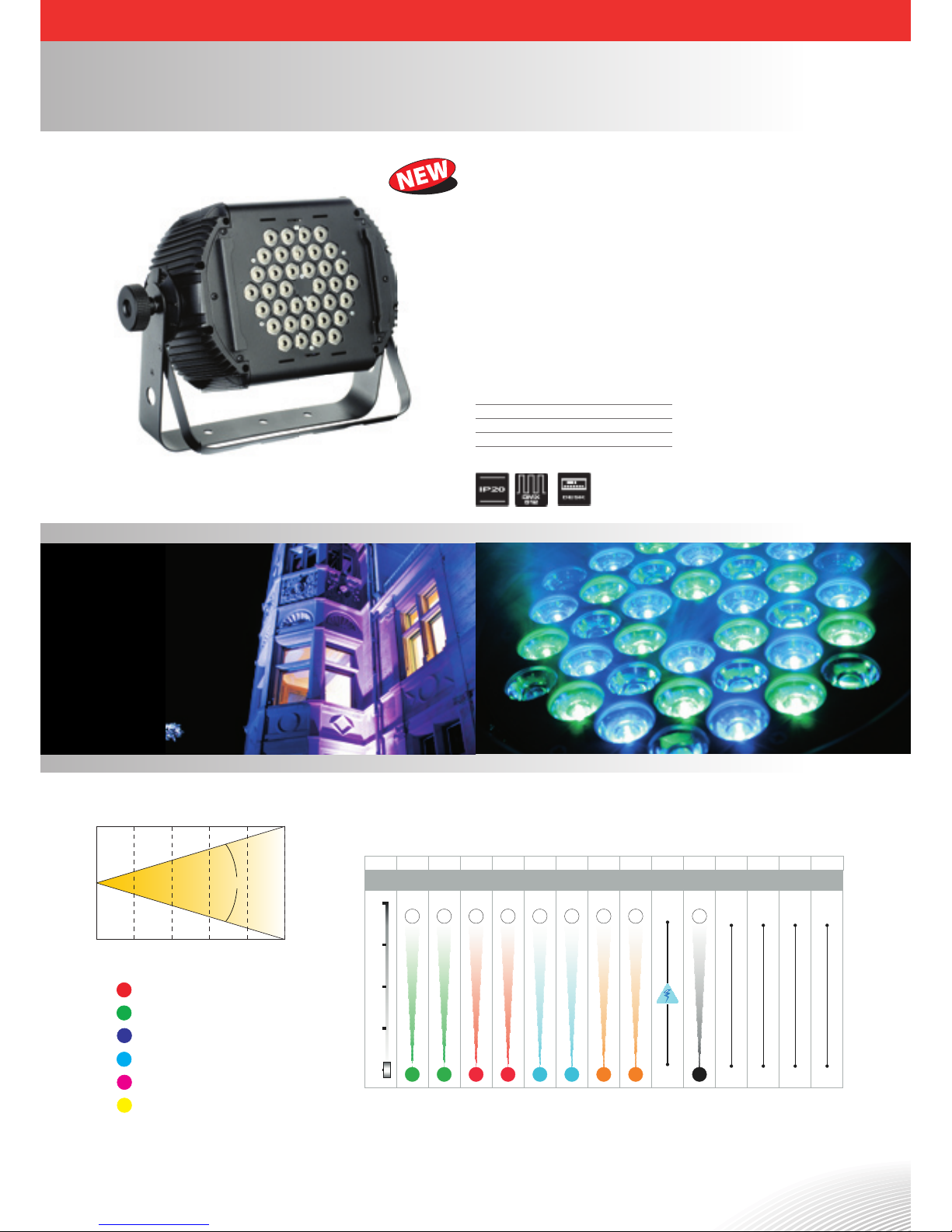

The PLLEDTSS30 is a high power LED colour changer, ideal for use in alumi-
nium truss structures.
This fi xture is designed both for indoor and outdoor applications thanks to
its IP65 protection rating, which makes it particularly suitable for any kind of
special installation.
1
0.3520.7131.0641.4151.77
4930LUX fullon
Distance (m)
Diameter (m)
1233 548 308 197
50%
100%
50%
30° LENSES
20°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
6 channels DMX
100
75
50
25
0
DMX
Strobe
sync
Value Ch5
Slow
Fast
Strobe
Ch6
Red
Ch2
Green
Ch1
Blue
Ch3
Not used
Ch4
OFF
ON
Power : 195 - 265V - 50/60Hz
LED: 36 RGB - 1,2W - (12R - 12G - 12B)
Size: L245xW75xH245 mm (projector) - L205xW152xH100 mm (controller)
Weight: 4 Kgs (projector) - 1,9 Kgs (controller)
PLLEDTSS30
Page 32
32
LED Projector
Power supply: 195-265V – 50/60Hz
Rated Power: 44W
LED: 36 1.2W RGB LEDs (12R – 12G – 12B – Cree LEDs)
Lens: 45° (12° and 30° lenses available)
Eff ects: Dimmer 0-100%, Strobe
Control: 8-channel DMX – Stand Alone – Master/Slave
IP rating: IP66
This unit complies with CE directives
The PLLEDSHT45 is a high power 36 RGB LED colour changer.
This unit can be used in indoor and outdoor applications thanks to its high
ingress protection rating (IP 66).
1
0.5921.1831.7842.3752.96
3069LUX fullon
Distance (m)
Diameter (m)
767 341 192 123
50%
100%
50%
45° LENSES
33°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
8 channels DMX PLLEDDE30
100
75
50
25
0
DMX
CTC
white
Value Ch11
Slow
Fast
Strobe
Ch9
Red
Ch3
Green
Ch1
Blue
Ch5
Dimmer
Ch10
Green
fine
Ch2
Red
fine
Ch4
Blue
fine
Ch6
Amber
Ch7
Amber
fine
Ch8
Speed
Ch12
Frequency
Ch13
Frequency
fine
Ch14
244Hz
1000Hz
Power : 195 - 265V - 50/60Hz
LED: 36 RGB - 1,2W - (12R - 12G - 12B)
Size: L285xW370xH120 mm
Weight: 5,2 Kgs
PLLEDSHT45
Page 33
33
LED Projector
Power supply: 85-265V – 50/60Hz
Rated Power: 44W
LED: 36 1.2W RGB LEDs (12R – 12G – 12B – Cree LEDs)
Lens: 30° (12° and 45° lenses available)
Eff ects: Dimmer 0-100%, Strobe
Control: DMX 1/3/4/7/14 channels – Stand Alone – Master/Slave
IP rating: IP20
This unit complies with CE directives
The PLLEDDE30 is a compact high power LED colour changer.
It is designed for indoor applications requiring high performance, such as
lighting decorations, especially in small spaces.
1
0.3520.7131.0641.4151.77
4930LUX fullon
Distance (m)
Diameter (m)
1233 548 308 197
50%
100%
50%
30° LENSES
20°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
Max 14 channels DMX
100
75
50
25
0
DMX
CTC
white
Value Ch11
Slow
Fast
Strobe
Ch9
Red
Ch3
Green
Ch1
Blue
Ch5
Dimmer
Ch10
Green
fine
Ch2
Red
fine
Ch4
Blue
fine
Ch6
Amber
Ch7
Amber
fine
Ch8
Speed
Ch12
Frequency
Ch13
Frequency
fine
Ch14
244Hz
1000Hz
Power : 85 - 265V 50/60Hz
LED: 36 RGB - 1,2W (12R - 12G - 12B)
Size: L340xW160xH265 mm
Weight: 4,1 Kgs
PLLEDDE30
Page 34
34
LED Projector
Power supply: via PLLEDC2091 (max. 10 fi xtures for each PLLEDC2091)
Rated Power: 3.6W
LED: 3 x 1.2W RGB LEDs (1R – 1G – 1B – Cree LEDs)
Lens: 25° (6° and 45° lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives

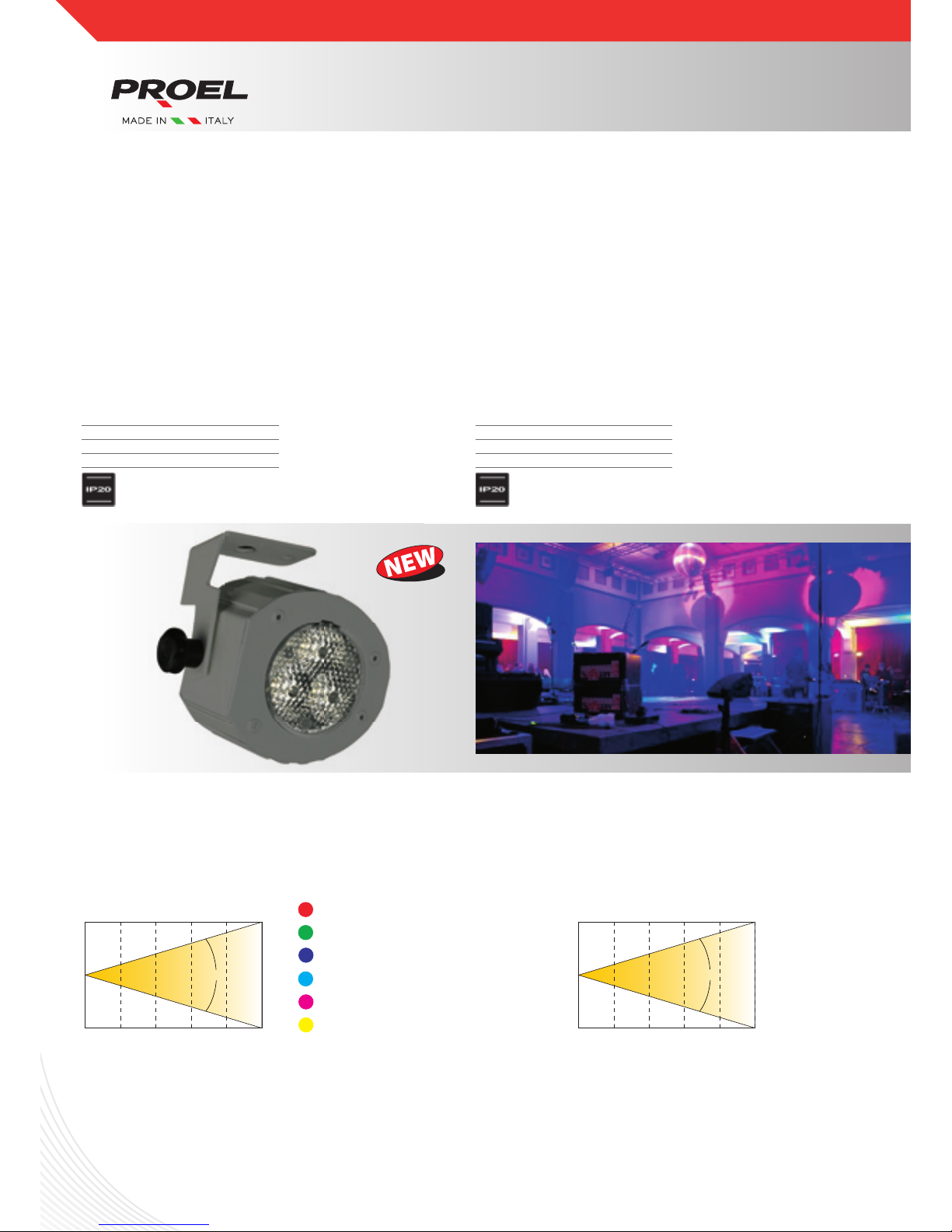

The PLLEDMPRGB is a compact high power LED colour changer.
It is suitable for indoor applications in pubs, cafés or any other small pre-
mises requiring high power lighting.
Power supply: via PLLEDC2091 (max. 10 fi xtures for each PLLEDC2091)
Rated Power: 3.6W
LED: 3 1.2W White LEDs (Cree LEDs)
Lens: 25° (6° and 45° lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives
The PLLEDMPW is a compact high power white LED projector.
It is available in three models: 3200K (PLLEDMPW1) – 4200K (PLLEDM-
PW2) – 5500K (PLLEDMPW3). Suitable for use in pubs, cafés or any other
small premises requiring high power lighting.
1
0.4320.8531.2841.7052.13
366LUXfull on
Distance (m)
Diameter (m)
92 41 23 15
50%
100%
50%
25° LENSES
24°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
1
0.4320.8531.2841.7052.13
1066LUX 5500K
Distance (m)
Diameter (m)
266 118 67 43
813LUX3200K 203 90 51 33
50%
100%
50%
25° LENSES
24°
Power : Via PLLEDC2091
LED: 3 RGB - 1,2W - (1R - 1G - 1B)
Size: L89xW75xH81 mm
Weight: 1,5 Kgs
Power : Via PLLEDC2091
LED: 3 WHITE - 1,2W
Size: L89xW75xH81 mm
Weight: 1,5 Kgs
PLLEDMPRGB PLLEDMPW1 / PLLEDMPW2 / PLLEDMPW3
Page 35
35
LED Projector
Power supply: via PLLEDC2091 (max. 10 fi xtures for each PLLEDC2091)
Rated Power: 3.6W
LED: 3 1.2W white LEDs (Cree LEDs)
Lens: 25° (6° and 45° lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives
The PLLEDSCW is a ceiling-mount compact high power white LED
projector.
It is available in three models: 3200K (PLLEDSCW1) – 4200K (PLLEDSCW2)
– 5500K (PLLEDSCW3). Suitable for use in pubs, cafés or any other small
premises requiring high power lighting.
Power supply: via PLLEDC2091 (max. 10 fi xtures for each PLLEDC2091)
Rated Power: 3.6W
LED: 3 1.2W RGB LEDs (1R – 1G – 1B – Cree LEDs)
Lens: 25° (6° and 45° lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives
The PLLEDSC25 is a ceiling-mount compact high power LED colour
changer.
1
0.4320.8531.2841.7052.13
1066LUX 5500K
Distance (m)
Diameter (m)
266 118 67 43
813LUX3200K 203 90 51 33
50%
100%
50%
25° LENSES
24°
1
0.4320.8531.2841.7052.13
366LUXfull on
Distance (m)
Diameter (m)
92 41 23 15
50%
100%
50%
25° LENSES
24°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
Power : Via PLLEDC2091
LED: 3 WHITE - 1,2W
Size: Diam 83xW56 mm
Weight: 2 Kgs
Power : Via PLLEDC2091
LED: 3 RGB - 1,2W (1R - 1G - 1B)
Size: Diam 83xW56 mm
Weight: 2 Kgs
PLLEDSCW1 / PLLEDSCW2 / PLLEDSCW3PLLEDSC25
Page 36
36
Connections
Power supply: 85-265V – 50/60Hz
Control: DMX from 3 to 14 channels, automatic mode
Aluminium body
IP rating: IP30
This unit complies with CE directives
The PLLEDC2091 is a universal controller for the PLLEDMP, PLLEDSC and PL-
LEDLB9 series of projectors.
Cabling is extremely user-friendly thanks to a CAT5 cable which allows easy
and rapid connection of fi xtures.

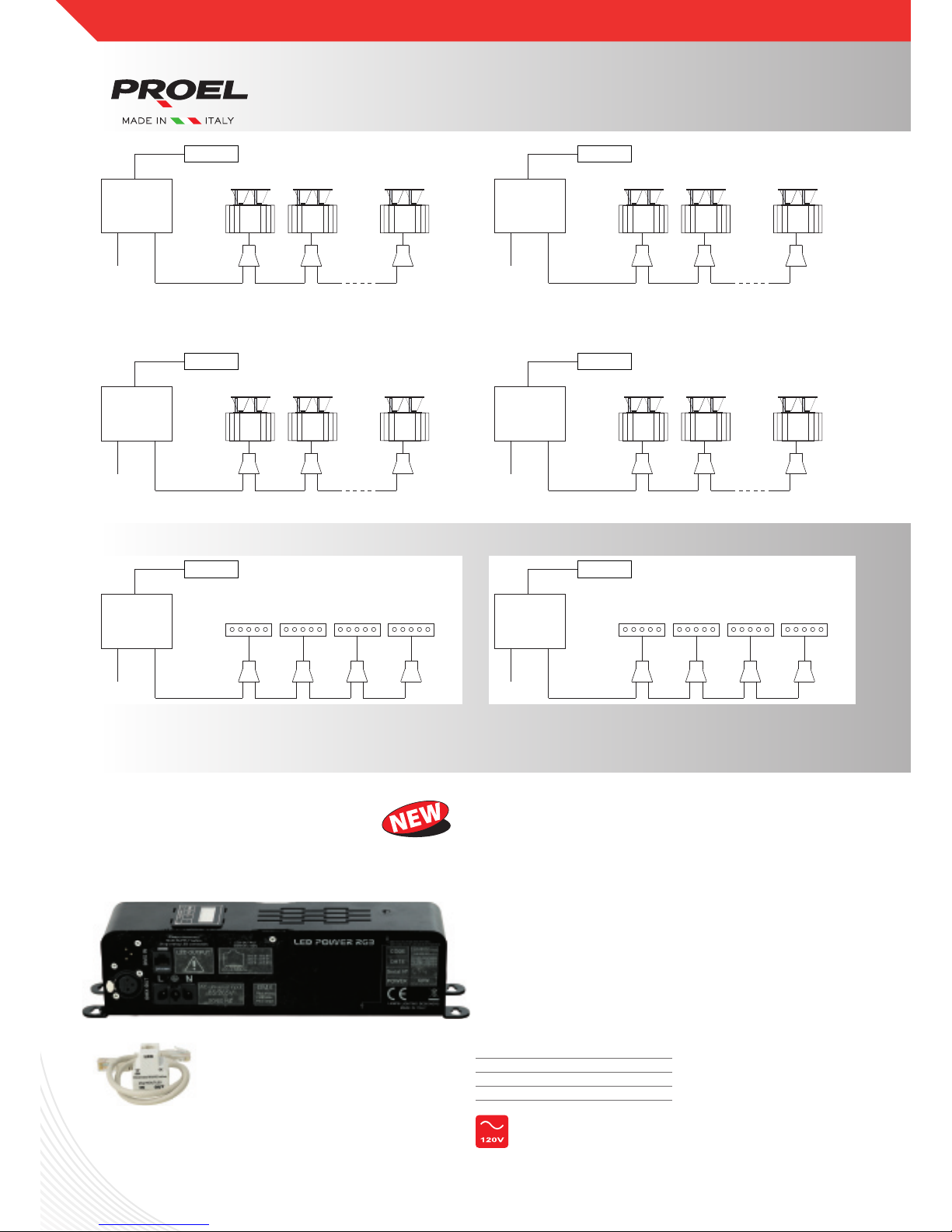

PLLEDC2091
output

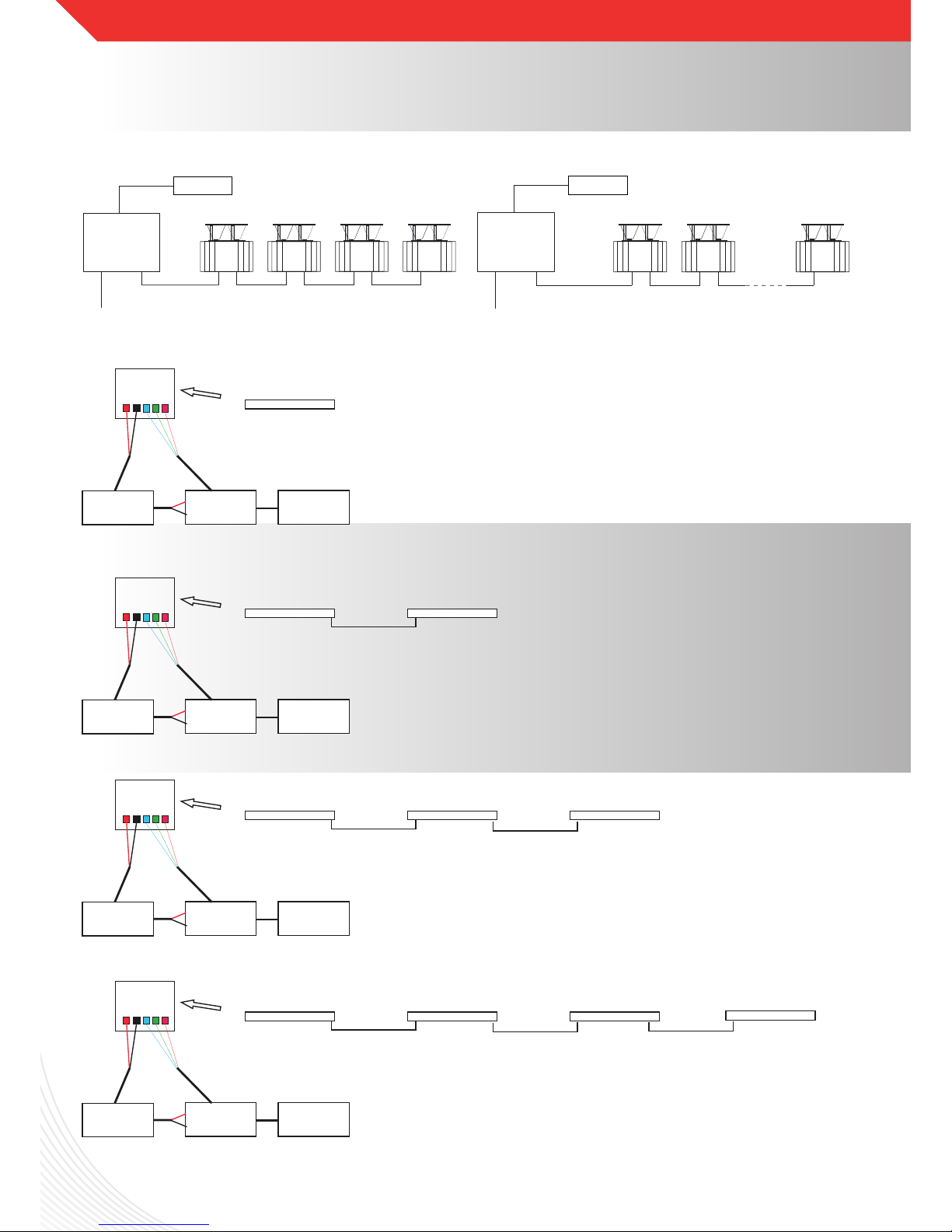

1
power in
DMX
DMX controller
PLLEDHUB
IN OUT
2
PLLEDHUB
IN OUT
3
PLLEDHUB
IN OUT
max 4pcs
PLLEDHUB
IN
PLLEDLB9W30 PLLEDLB9W30 PLLEDLB9W30 PLLEDLB9W30
PLLEDC2091
output
1
power in
DMX
DMX controller
PLLEDHUB
IN OUT
2
PLLEDHUB
IN OUT
3
PLLEDHUB
IN OUT
max 4pcs
PLLEDHUB
IN
PLLEDLB930 PLLEDLB930 PLLEDLB930 PLLEDLB930
PLLEDC2091
output
PLLEDSC25 PLLEDSC25 PLLEDSC25
1 2
max 10pcs
power in
DMX
DMX controller
PLLEDHUB
PLLEDHUB
PLLEDHUB
IN OUT IN OUT IN
PLLEDC2091
output
PLLEDSCW PLLEDSCW PLLEDSCW
1 2
max 10pcs
power in
DMX
DMX controller
PLLEDHUB
PLLEDHUB
PLLEDHUB
IN OUT IN OUT IN
PLLEDC2091
output
PLLEDMPW PLLEDMPW PLLEDMPW
1 2
max 10pcs
power in
DMX
DMX controller
PLLEDHUB
PLLEDHUB
PLLEDHUB
IN OUT IN OUT IN
PLLEDC2091
output
PLLEDMPRGB PLLEDMPRGB PLLEDMPRGB
1 2
max 10pcs
power in
DMX
DMX controller
PLLEDHUB
PLLEDHUB
PLLEDHUB
IN OUT IN OUT IN
PLLEDC2091
Power : 85 - 265V 50/60Hz
Output: 350 mA
Size: L311xW72xH76 mm
Weight: 0,7 Kgs
PLLEDC2091
PLLEDHUB
Page 37
37

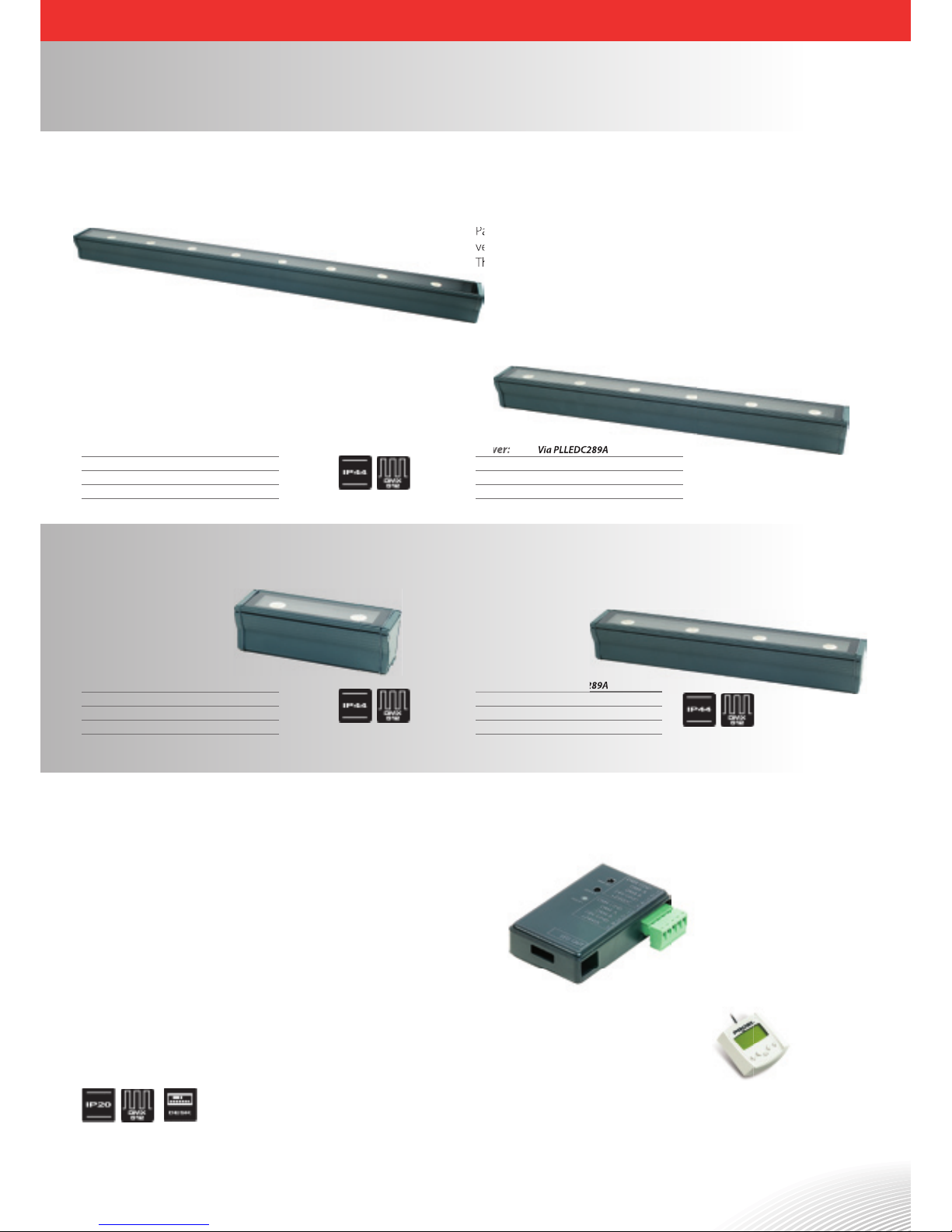

LED Bars
RGB LINEAR WASHER
RGB Linear Washer with full colour technology and high power 3W LEDs.
In order to meet any requirement, we designed four versions in diff erent
sizes: 100 cm with 8 LEDs, 75 cm with 6 LEDs, 50 cm with 4 LEDs, and 25 cm
with 2 LEDs.
Particularly suited for linear fl ood lighting in clubs, pubs and entertainment
venues in general.
Three diff erent beam apertures available: Wide – Medium – Narrow.
DMX remote controller
Max 6 channels
DMX controller, 3 output costant current , or voltage in PWM max 1A @24vdc
Each output is controllable by DMX optoinsulated ,this feature guarantee
,noise rejection and very stable signal receiveing .
DMX setting is self learning , just pushing the button DMXSET the red led
indicate self-learning active mode.
The harness is made by male and female connector for input / output DMX
and power supply .
INPUT ELECTRICAL SPECS:
Input voltage range: 10-28 Vdc
Max power consumption: 74W
OUTPUT ELECTRICAL SPECS:
Common anode
Max power output per channel: 24W
Output current per channel: 1A
Costant current PWM
Controller:
max 1 PLLEDWS8
max 2 PLLEDWS6
max 3 PLLEDWS4
max 6 PLLEDWS2
7 channels DMX
Power: Via PLLEDC289A
LED: 8 RGB full colour 3W
Size: mm. 1000L x 40W x 100H
Weight: 10 Kgs
Power: Via PLLEDC289A
LED: 6 RGB full color 3W
Size: mm. 750L x 40W x 100H
Weight: 7 Kgs
Power: Via PLLEDC289A
LED: 4 RGB full color 3W
Size: mm. 500L x 40W x 100H
Weight: 4 Kgs
Power: Via PLLEDC289A
LED: 2 RGB full color 3W
Size: mm. 250L x 40W x 100H
Weight: 2 Kgs
Via PLLEDC289A
Three diff erent beam apertures available: Wide – Medium – Narrow.
PLLEDC289A
PLLEDWS6
PLLEDWS4PLLEDWS2
PLLEDC174
PLLEDWS8
Page 38
38

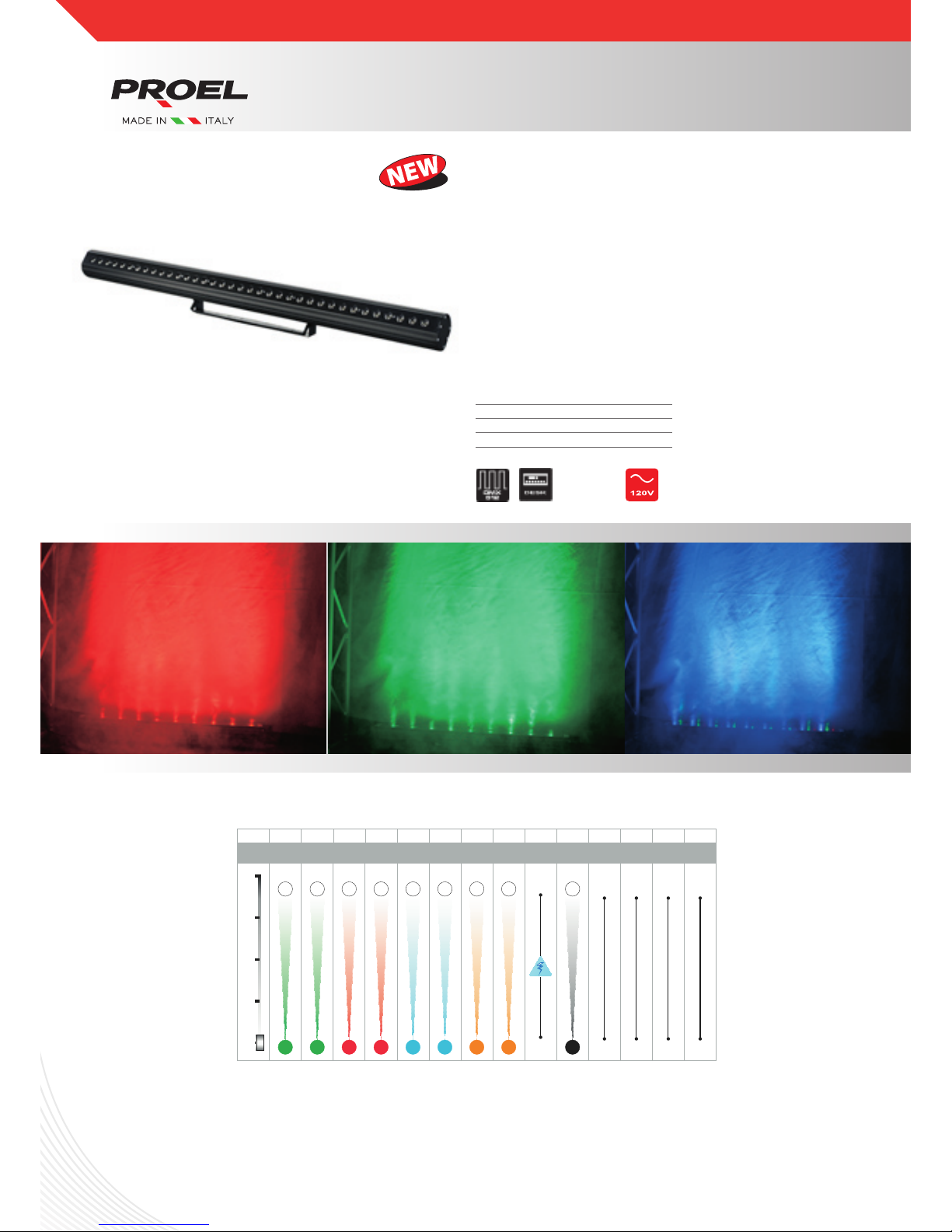

LED Bars
Power supply: 85-265V – 50/60Hz
Rated Power: 44W
LED: 36 led RGB 1,2W (12R 12G 12B Cree LED)
Lens: 30° (12° - 45° and elliptical lenses available)
Aluminium body with cooling fans
Control: DMX from 3 to 14 channels
IP rating: IP40
This unit complies with CE directives

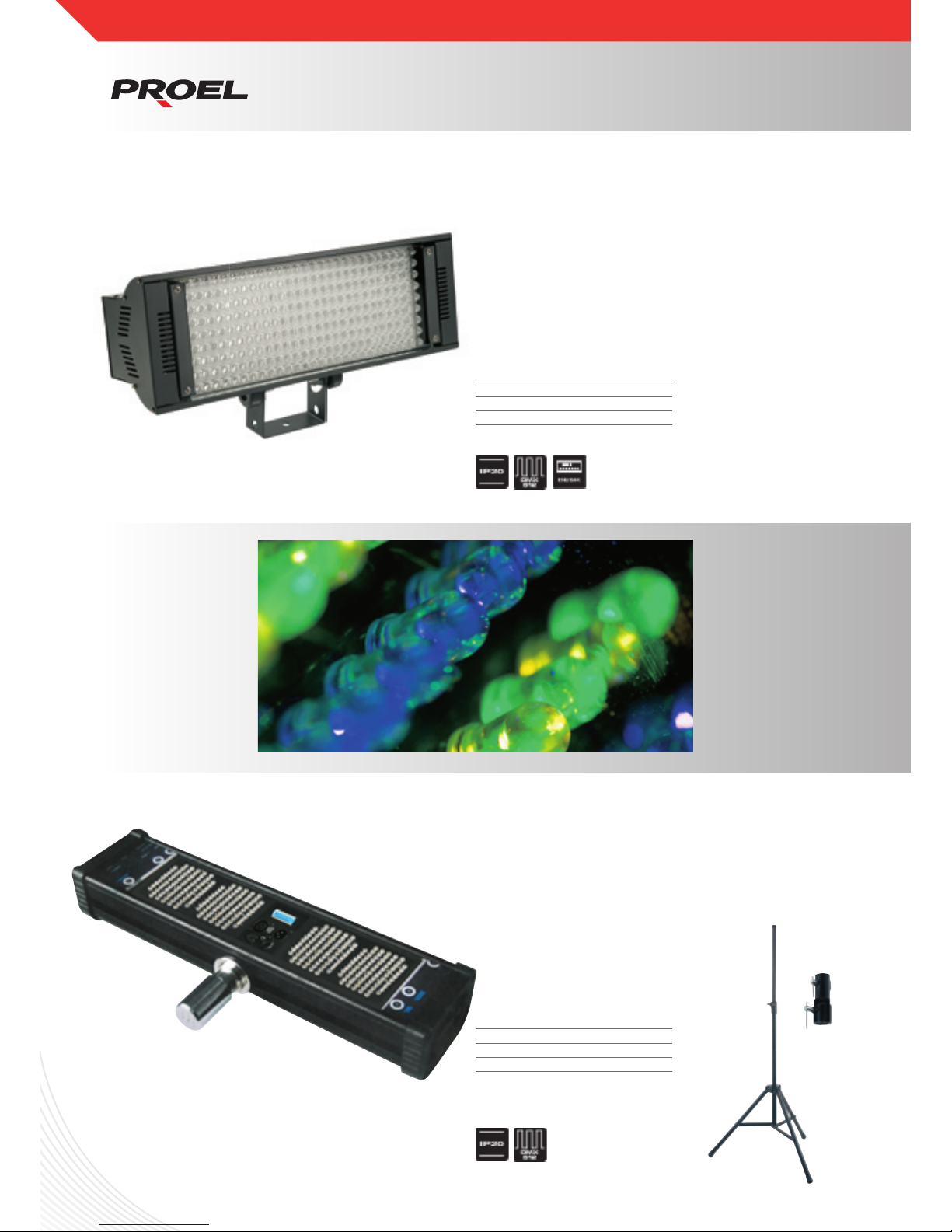

The PLLEDPWS is a high power LED Colour Changing Bar.
It is designed for indoor use in pubs, cafés or any other small premises
requiring high power lighting.
14 channels DMX
PLLEDPWS
100
75
50
25
0
DMX
CTC
white
Value Ch11
Slow
Fast
Strobe
Ch9
Red
Ch3
Green
Ch1
Blue
Ch5
Dimmer
Ch10
Green
fine
Ch2
Red
fine
Ch4
Blue
fine
Ch6
Amber
Ch7
Amber
fine
Ch8
Speed
Ch12
Frequency
Ch13
Frequency
fine
Ch14
244Hz
1000Hz
Power : 85 - 265V 50/60Hz
LED: 36 RGB 1,2W (12R 12G 12B)
Size: L1200xW93xH170 mm
Weight: 4,65 Kgs
PLLEDPWS
Page 39
39
LED Bars
Power supply: via PLLEDC2091 (max. 4 bars for each PLLEDC2091)
Rated Power: 11W
LED: 9 1.2W White LEDs (Cree LEDs)
Lens: 30° (12°, 45° and elliptical lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives

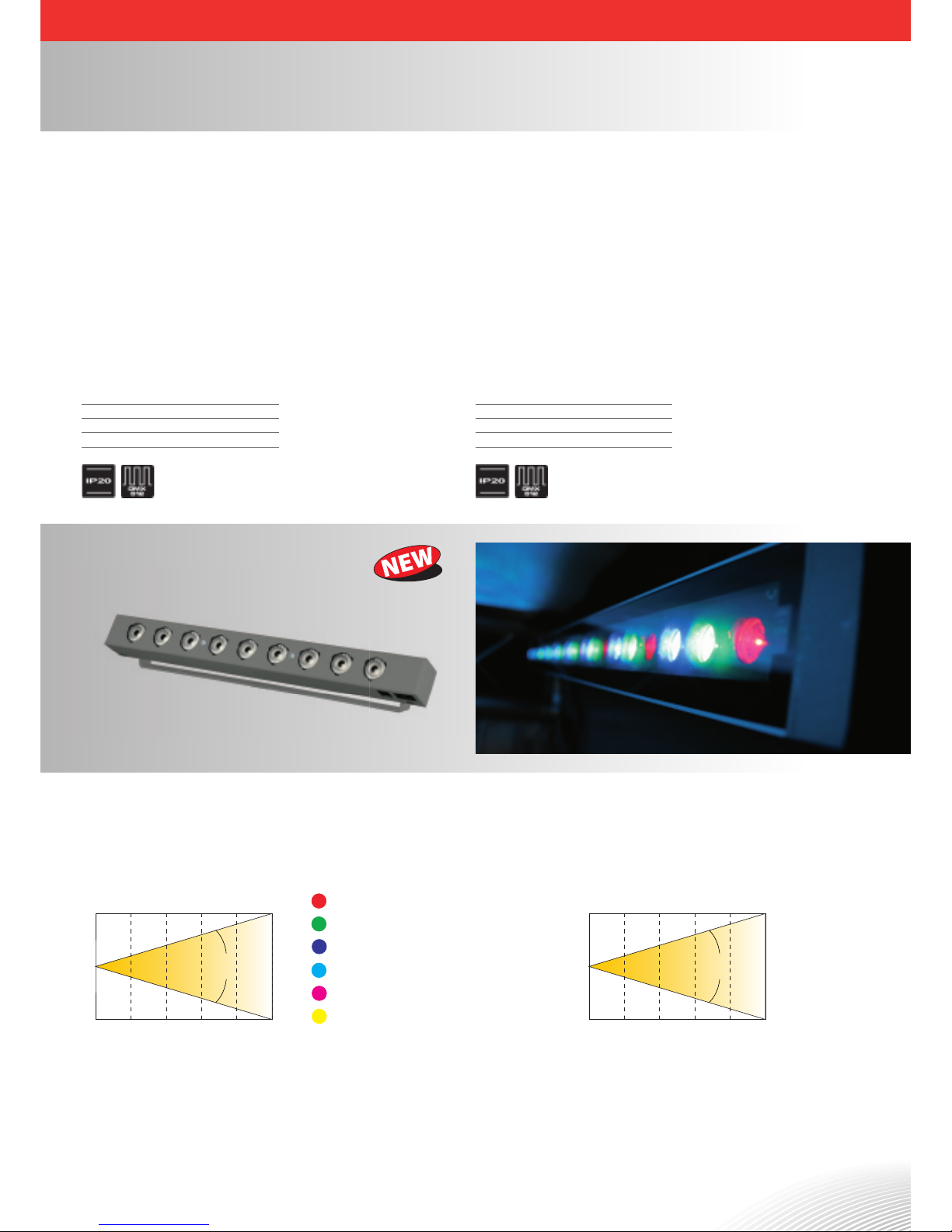

The PLLEDLB9W30 (5500K) is a high power white LED Bar.
It is designed for indoor use, especially for wall lighting applications in
pubs, cafés or any other small premises requiring high power lighting.
Power supply: via PLLEDC2091 (max. 4 bars for each PLLEDC2091)
Rated Power: 11W
LED: 9 1.2W RGB LEDs (3R – 3G – 3B – Cree LEDs)
Lens: 30° (12°, 45° and elliptical lenses available)
Aluminium body
Connection to PLLEDC2091 with CAT5 cable
IP rating: IP20
This unit complies with CE directives
The PLLEDLB930 is a high power LED Colour Changing Bar.
It is designed for indoor use in pubs, cafés or any other small premises
requiring high power lighting.
1
0.2820.5630.8441.1251.41
2866LUX 5500K
Distance (m)
Diameter X (m)
717 318 179 115
50%
100%
50%
30° LENSES
16°
x
20°
RED lux = 39% of maximum light
GREEN lux = 46% of maximum light
BLUE lux = 15% of maximum light
CYANlux = 61% of maximum light
MAGENTAlux = 54% of maximum light
YELLOW lux = 85% of maximum light
1
0.2820.5630.8441.1251.41
1015LUX full on
Distance (m)
Diameter X (m)
254 113 63 41
50%
100%
50%
30° LENSES
16°
x
24°
Power : Via PLLEDC2091
LED: 9 WHITE - 1,2W
Size: L331xW49xH35 mm
Weight: 3 Kgs
Power : Via PLLEDC2091
LED: 9 RGB - 1,2W - (3R - 3G - 3B)
Size: L331xW49xH35 mm
Weight: 3 Kgs
PLLEDLB9W30PLLEDLB930
Page 40
40
Floor Projectors
RGB LED OUTDOOR FLUSH-MOUNT SPOTLIGHT
Input Voltage: 230V 50Hz
86 LEDs: 28 R, 28 G, 30 B
IP rating: IP65
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave.
Max. Power Consumption: 5W

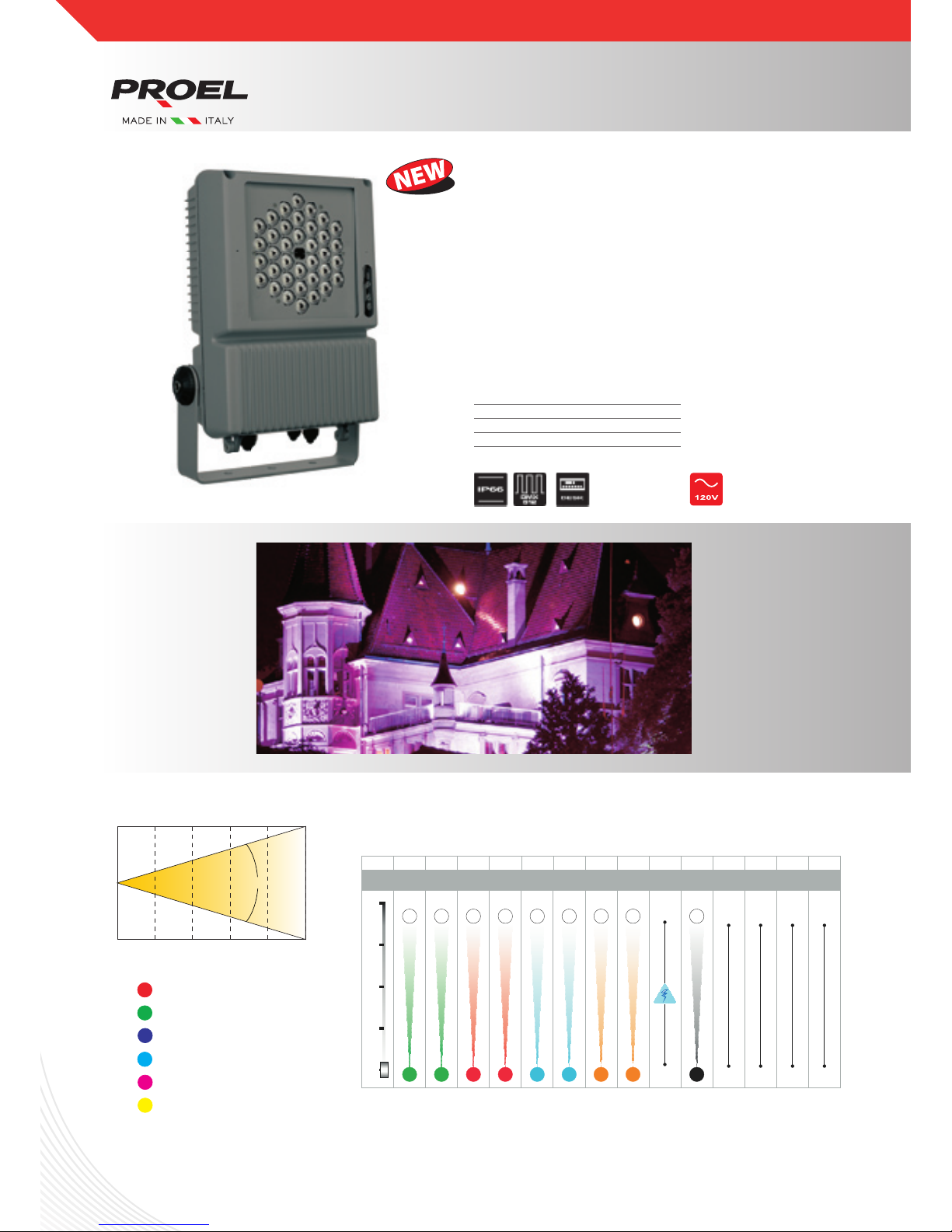

ARCHITECTURAL RGB LED
Power supply: 230v 50Hz
344 LEDs: 112 R, 112 G, 120 B
IP rating: IP65
Protocol: DMX512 - 4 channels
Operation modes: built-in programs, Master/slave.
Max. Power Consumption: 20W
FLOOR MINI PROJECTOR
Two diff erent kinds of this light systems are available: the fi rst features high power white
light sources (3x1W LEDs), and the second kind features high power RGB light sources
(3x1W LEDs). It can be fl ush-mounted in the fl oor (IP67) and is therefore suited for clubs,
hotels, stores, gardens, etc.
Controller - max 12
PLLEDCPHRGB
DMX remote controller
max 6 channels
4 channels DMX
4 channels DMX
4 channels DMX
Model: PLLEDCPHRGB
Power: Via PLLEDC243
LED: 3: 1R 1G 1B 1W
Size: mm. 140L x 140W x 160H
Weight: 1,2 Kgs
Model: PLLEDCPHW
Power: 24 VDC
LED: 3 White 1W
Size: mm. 140L x 140W x 160H
Weight: 1,2 Kgs
Power: 230V 50Hz - 120V 60Hz
LED: 86: 28R - 28G - 30B
Size: mm. 150L x 150W x 400H
Weight: 2.3 Kgs
Power: 230V 50Hz - 120V 60Hz
LED: 344: 112R - 112G - 120B
Size: mm. 200L x 150W x 400H
Weight: 6 Kgs
PLLEDPT
PLLEDCPHW
PLLEDCPHRGB
PLLEDC243
PLLEDAT5
PLLEDC174
Page 41
41
Mini LED Projectors

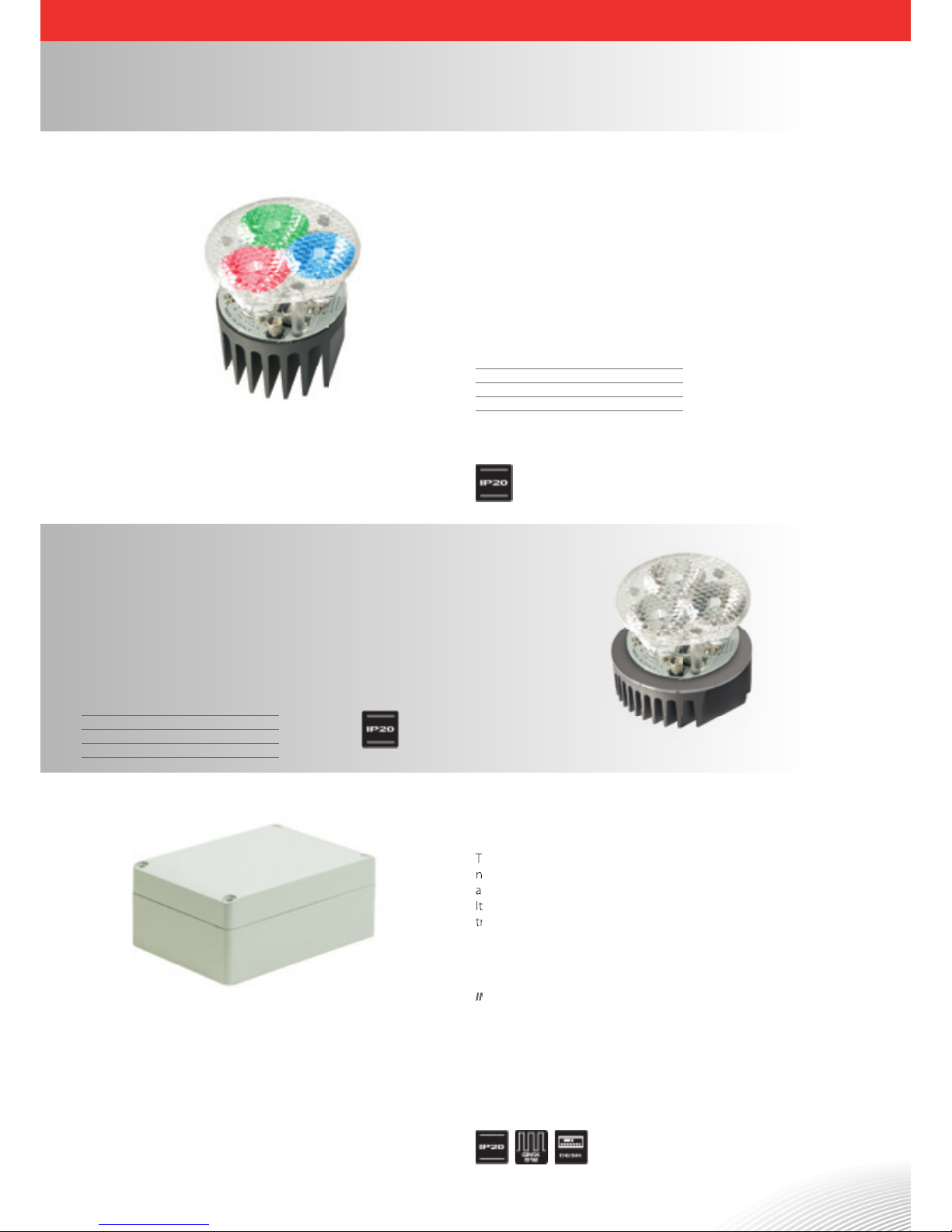

CIRCULAR CEILING RGB 3 LED
This colour changing light system is designed to match traditional supports for dichroic
MR16 lamps with a 51mm/2,01inch diameter.
It is per fect as fl ush-mounted light fi xture for public areas needing special light eff ects
such as bars, clubs, Spas, swimming pools, and to create an ambience in retail stores or in
residential areas.
CIRCULAR CEILING FULL COLOUR 3 LED
This RGB colour changing light system is designed to match traditional PAR20 halogen light
supports. When used with the proper collimation optics it projects a bright beam suited
for the lighting of architectural details or of displayed merchandise in retail stores. It can
be mounted inside standard light fi xtures or in a customized housing. Three versions with
diff erent beam apertures are available: Wide - Medium - Narrow.
INPUT ELECTRICAL SPECS:
Power supply: 195 – 265 VAC
Frequency: 50/60 Hz
Power consumption: 6-50W
OUTPUT ELECTRICAL SPECS:
Power single channel: 4,8 – 12W
Current: 350mA @ 100%
Voltage: Vo 48Vdc
Constant current PWM
Serial connection
The PLLEDC243 is a DMX controller with four constant current output chan-
nels, particularly suitable to drive power LED circuits; the DMX is insulated
and designed to receive signals from DMX512 sources.
It also features an infrared signal receiver to receive data from a remote con-
trol.
7 channels DMX
Power: Via PLLEDC243
LED: 3 LED RGB full color 3W
Size: mm. 70 Ø. x 64H
Weight: 0,5 Kgs
Power: Via PLLEDC243
LED: 3 LED 1 R - 1 G - 1 B
Size: mm. 51 Ø
Weight: 0,5 Kgs
The PLLEDC243 is a DMX controller with four constant current output chan-
PLLEDCL3RGB
PLLEDCL3FRGB
PLLEDC243
Page 42
42

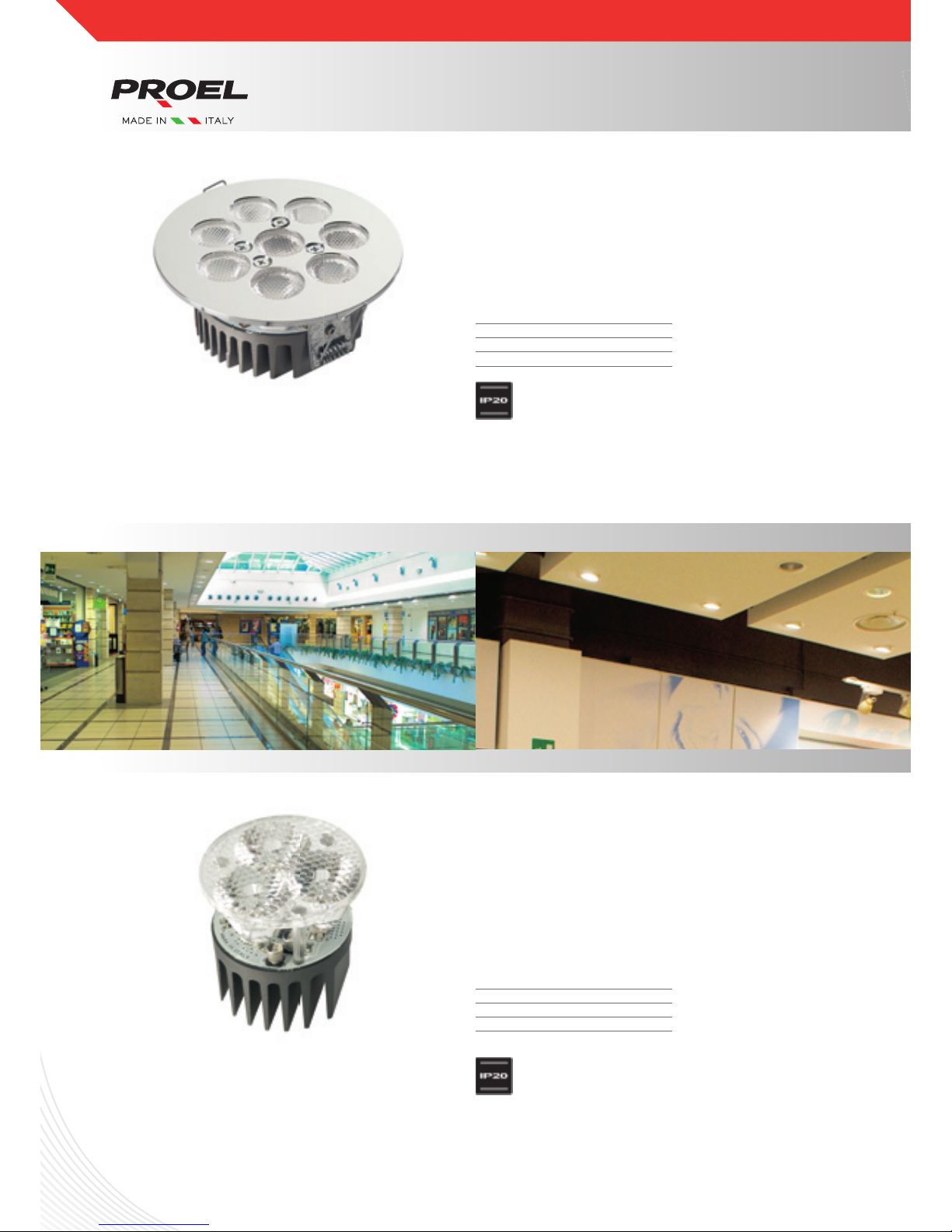

Mini LED Projectors
CIRCULAR CEILING-MOUNT WHITE 8 LED
This White light system is designed to match traditional fl ush-mount housing.
When used with the proper collimation optics it projects a bright beam suited for the li-
ghting of architectural details or of merchandise in retail stores.
Three versions with diff erent beam apertures are available: Wide - Medium - Narrow.
CIRCULAR CEILING-MOUNT 3 WHITE LED
This light system is designed to match traditional supports of MR16 dichroic lamps with a
51mm/2,01inch diameter. It is perfect as fl ush-mounted light fi xture for public areas needing special light eff ects such as bars, clubs, Spas, swimming pools, and to create an ambience in retail stores or in residential areas.
It can match standard cases, but customized housings for wall or track mount can also be
used. Three versions with diff erent beam apertures are available: Wide - Medium - Narrow.
Power: 24VDC
LED: 8 LED WHITE 1W
Size: mm. 88 Ø x 54H
Weight: 1 Kgs
Power: 24VDC
LED: 3 LED WHITE 1W
Size: mm. 51 Ø x 514H
Weight: 0,5 Kgs
PLLEDCL8W
PLLEDCL3W
Page 43
43

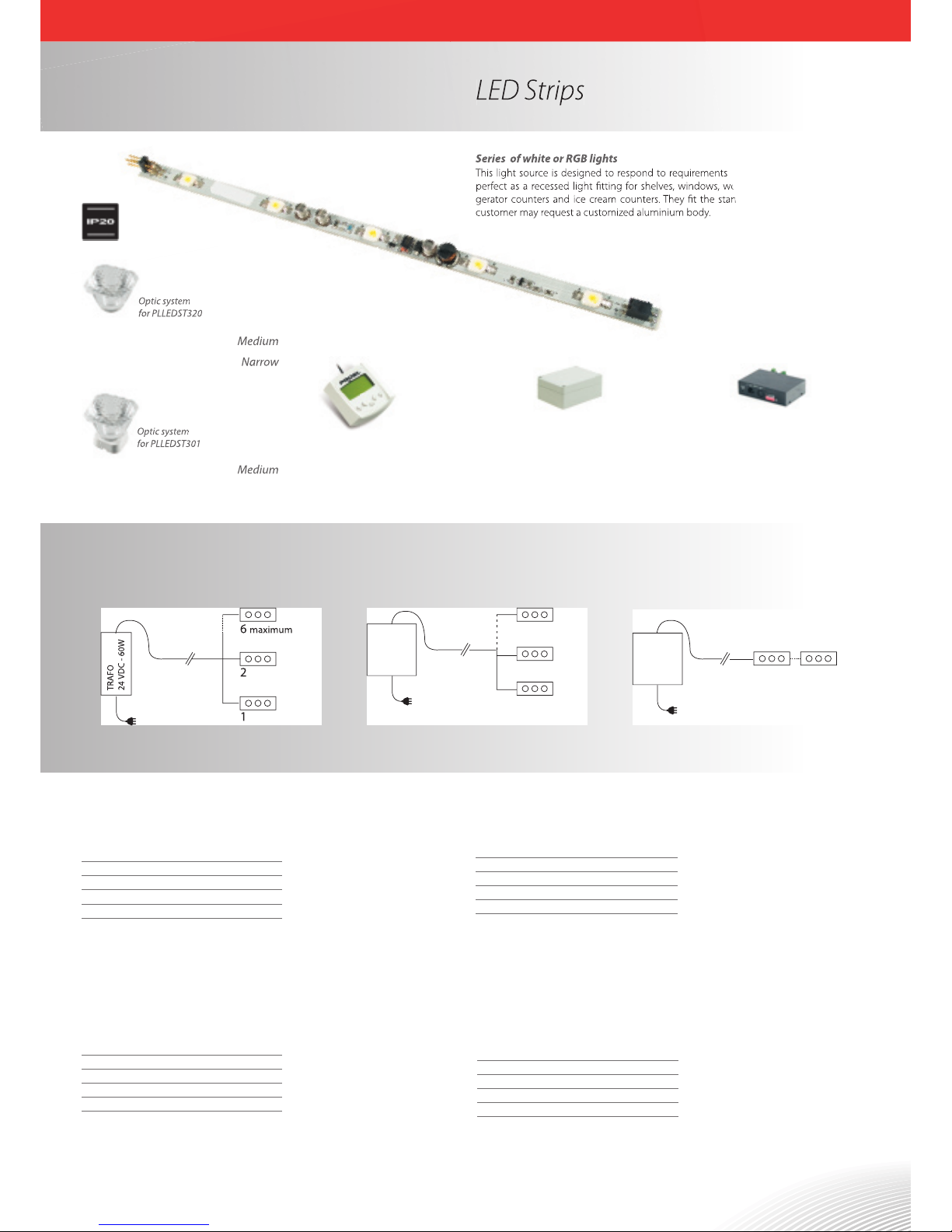

LED Strips
Series of white or RGB lights
This light source is designed to respond to requirements for linear, diff use light. They are
perfect as a recessed light fi tting for shelves, windows, work desks and ideal inside refrigerator counters and ice cream counters. They fi t the standard fl uorescent fi tting or the
customer may request a customized aluminium body.
White - rigid type - single sided
RGB full colour - rigid type - double sided
RGB full colour high power - rigid type - single sided
RGB full colour - rigid type - single sided
Controller for PLLEDST320
max 4 pcs
Optic system
for PLLEDST301
Optic system
for PLLEDST320
Controller for PLLEDSTH
and PLLEDSTDB
PLLEDST301 PLLEDST320 PLLEDSTH - PLLEDSTDB
Medium
Narrow
Medium
Narrow
DMX remote controller
max6 channels
PLLEDCHDB
1 M ax 4 PCS
PLLEDC243
4 maximum
2
1
Model: PLLEDST301
Power: 24 VDC
LED: 5 LEDS WHITE 1W
Size: mm. 229L x 8W x 7H
Weight: 20 g
Model: PLLEDST320
Power: Via PLLEDC243
LED: 3 LEDS RGB full colour 3W
Size: mm. 248L x 8W x 7H
Weight: 20 g
Model: PLLEDSTH
Power: 12 VDC
LED: 12 LEDS RGB full colour 0,08W
Size: mm. 960L x 8W x 3H
Weight: 35 g
Model: PLLEDSTDB
Power: 12 VDC
LED: 24 LEDS RGB full colour 0,08W
Size: mm. 500L x 8W x 7H
Weight: 50 g
Series of white or RGB lights
This light source is designed to respond to requirements for linear, diff use light. They are
PLLEDC243
CONNECTIONS:
PLLEDSTONW
PLLEDSTOMW
PLLEDSTONRGB
PLLEDSTOMRGB
PLLEDCHDBPLLEDC174
PLLEDSTDB
PLLEDST320
PLLEDST301
PLLEDSTH
Page 44
44
Connections
Connection mini led projectors RGB
Connection led bar 8 led RGB
Connection led bar 6 led RGB
Connection led bar 4 led RGB
Connection led bar 2 led RGB
PLLEDC243
outputpower in
DMX
DMX controller
PLLEDCL3FRGB PLLEDCL3FRGB PLLEDCL3FRGB PLLEDCL3FRGB
1 2 3 max 4 pcs
PLLEDC243
output
PLLEDCL3RGB
1 2 max 12 pcs
PLLEDCL3RGB PLLEDCL3RGB
power in
DMX
DMX controller
PLLEDWS2
IN OUT
PLLEDWS2
IN OUT
PLLEDWS2
IN OUT
RED
GREEN
BLUE
- V
+V
TRAFO
24Vdc - 2,3A
PLLEDC289A
DMX
GENERATOR
V+
V-
MAX 4 pcs.
PLLEDWS2
IN OUT
PLLEDWS4
IN OUT
PLLEDWS4
IN OUT
PLLEDWS4
IN OUT
RED
GREEN
BLUE
- V
+V
TRAFO
24Vdc - 2,3A
PLLEDC289A
DMX
GENERATOR
V+
V-
MAX 3 pcs.
PLLEDWS6
IN OUT
PLLEDWS6
IN OUT
RED
GREEN
BLUE
- V
+V
TRAFO
24Vdc - 2,3A
PLLEDC289A
DMX
GENERATOR
V+
V-
MAX 2 pcs.
PLLEDWS8
IN
RED
GREEN
BLUE
- V
+V
TRAFO
24Vdc - 2,3A
PLLEDC289A
DMX
GENERATOR
V+
V-
MAX 1 pc
Page 45
45

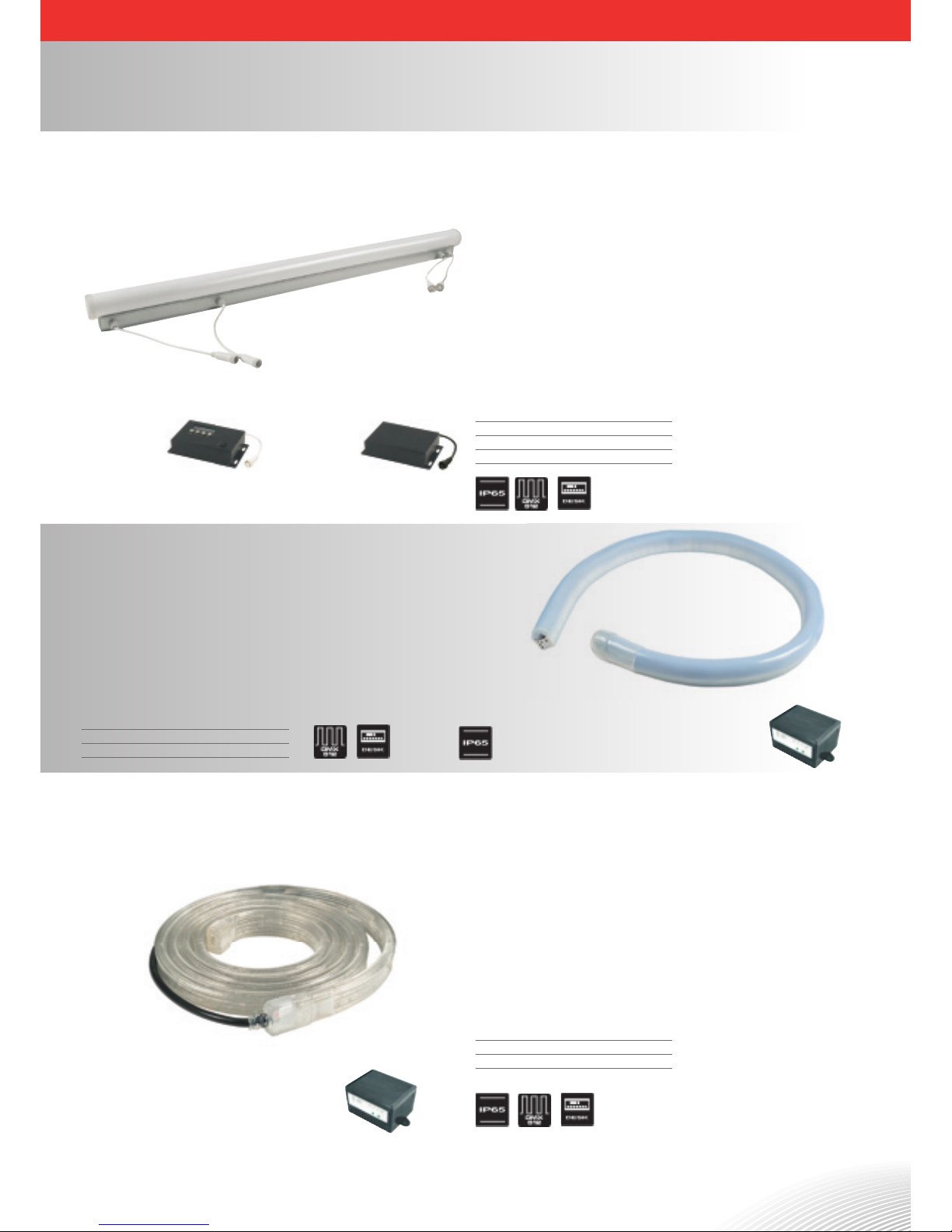

LED Tubes
RGB LED TUBE
Input Voltage: AC 230V 50Hz
144 LEDs: 48 R, 48 G, 48 B
IP rating: IP65
Operation modes: built-in programs, Master/slave.
Functions:
Static colours: red, green, yellow, blue, purple, cyan, white
Colour change: scrolls through all the static colours slow fl ow 1 (single directional
fl ow), slow fl ow 2 (bi directional fl ow), roll chase 1 (rolling backward and forward),
roll chase 2 (scan backward and forward), multi colour, fast fl ow 1, fast fl ow 2, colour
chase, 2 colour fl ow, gray scale colour change.
FLEXIBLE RGB LED TUBE
Input Voltage: 24VDC Via PLLEDC181
5832 LEDs: 1944 R, 1944 G, 1944 B (25 mt)
IP rating: IP65
Control: PLLEDC181 (DMX)
Operation modes: built-in programs, DMX
Sectional tube: minimum unit 0,91 m
Max. Power Consumption: 15W per single unit
FLEXIBLE RECTANGULAR RGB LED TUBE
Input Voltage: 24VDC, Via PLLEDC181
4320 LEDs: 1440 R, 1440 G, 1440 B (54 mt)
IP rating: IP65
Control: PLLEDC181 (DMX)
Operation modes: built-in programs, DMX
Sectional tube: minimum unit 2,7 m
Max. Power Consumption: 14,3W per single unit 0
Power supply
Power supply
Signal amplifi er for PLLEDMCT Controller for PLLEDMCT
4 channels DMX
3 channels DMX
3 channels DMX
Power: 230V 50Hz
LED: 144: 48R - 48G - 48B
Size: mm. 1000L x 80W x 84H
Weight: 1.5 Kgs
Power: 24 VDC Via PLLEDC181
LED: 4320: 1440R - 1440G - 1440B
Size: mm. 54000L x 11,5W x 30H
Power: 24 VDC
LED: 5832: 1944R - 1944G - 1944B
Size: mm. 25000L x 20W x 26H
PLLEDMCT
PLLEDC001SAPLLEDC001
PLLEDFXRGB
PLLEDFXRGBR
PLLEDC181
PLLEDC181
Page 46
46

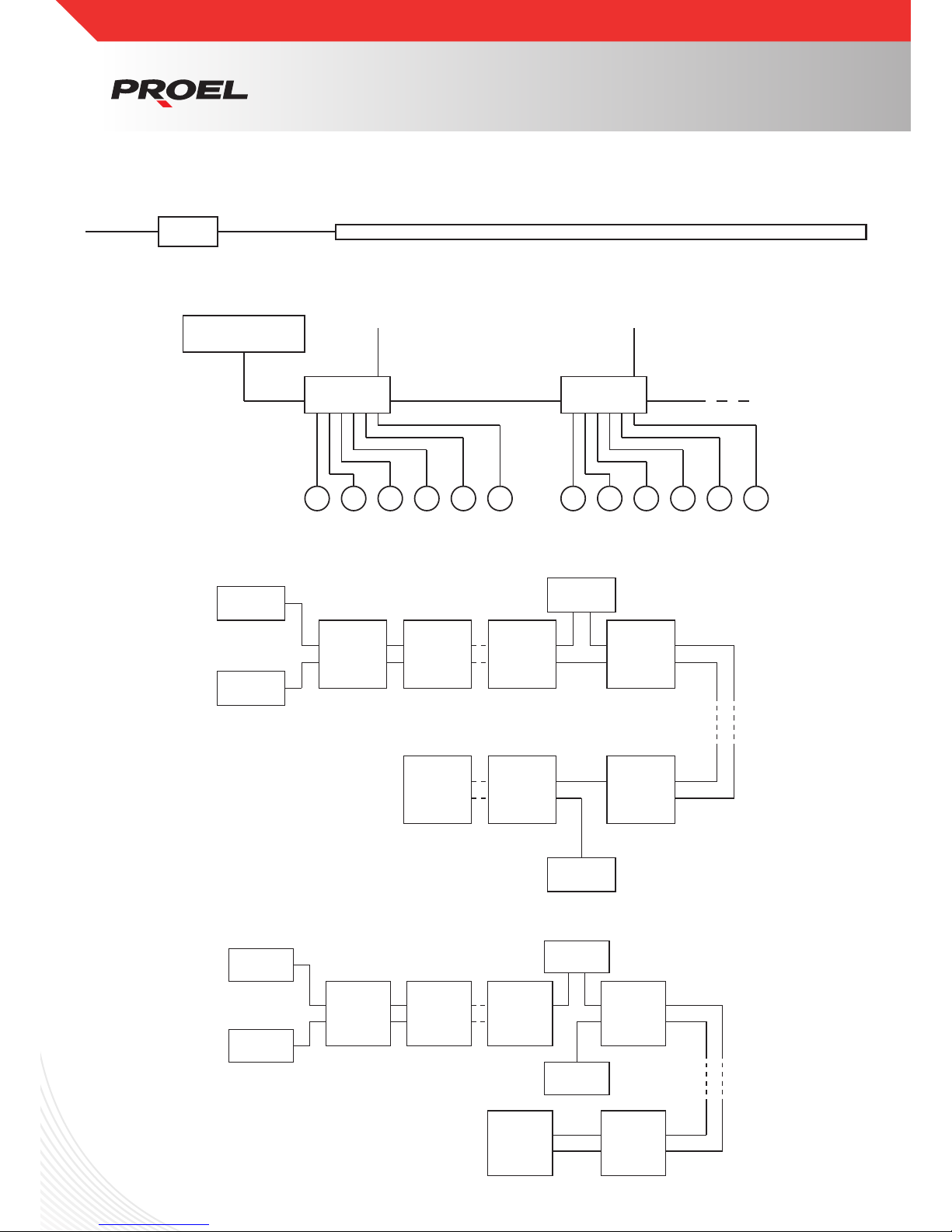

Connections
Connection for LED tubes flex type
Connection for fountain LED projector
Connection for outdoor LED panel
Connection for indoor LED panel
PLLEDJB
n°6 PLLEDFTH n°6 PLLEDFTH
DMX controller
Power in
Signal out Signal out
PLLEDJB
Power in
PLLEDC181
Power in
Max 30 mt of PLLEDFXRGBR
Max 15 mt of PLLEDFXRGB
PLLEDPN2
1 2
61
126
127
60
PLLEDC109SA
Power supply
Power supply
DMX
CONTROLLER
PLLEDPN
1 2
300
31
45
46
30
PLLEDC109SA
Power supply
Power supply
PLLEDC109
Page 47
47
PLADT01 16
PLHT3LED 10
PLHTLED 10
PLLEDAB4 17
PLLEDAB8 17
PLLEDAT2 13
PLLEDAT45 30
PLLEDAT5 40
PLLEDATBK 15
PLLEDATC5 13
PLLEDATPR 13
PLLEDATPW 13
PLLEDAT 13
PLLEDBFDMX 16
PLLEDBOO 20
PLLEDC001SA 45
PLLEDC001 45
PLLEDC100 25
PLLEDC109R 24
PLLEDC109SA 24
PLLEDC109SA 24
PLLEDC109 24
PLLEDC174 37
PLLEDC174 40
PLLEDC174 43
PLLEDC181 45
PLLEDC181 45
PLLEDC2091 36
PLLEDC243 40
PLLEDC243 41
PLLEDC243 43
PLLEDC289A 37
PLLEDC36AL 22
PLLEDC56AL 22
PLLEDC64AL 22
PLLEDCC 11
PLLEDCHDB 43
PLLEDCKT 10
PLLEDCKT 10
PLLEDCL3FRGB 41
PLLEDCL3RGB 41
PLLEDCL3W 42
PLLEDCL8W 42
PLLEDCLHP 27
PLLEDCL 27
PLLEDCPHRGB 40
PLLEDCPHW 40
PLLEDDE30 33
PLLEDFTH 25
PLLEDFXRGBR 45
PLLEDFXRGB 45
PLLEDHTBG 12
PLLEDHTML 6
PLLEDHUB 36
PLLEDKITC64 21
PLLEDLB930 39
PLLEDLB9W30 39
PLLEDMCT 45
PLLEDMLBG 7
PLLEDMLS 8
PLLEDMLW 9
PLLEDMOON 19
PLLEDMPRGB 34
PLLEDMPW1
PLLEDMPW2
PLLEDMPW3
34
34
34
PLLEDOUT5 25
PLLEDOUTC 25
PLLEDOUTRGB 25
PLLEDPN2 24
PLLEDPN3B / PLLEDPN3W 14
PLLEDPN 24
PLLEDPT 40
PLLEDPWR 25
PLLEDPWS 38
PLLEDRB4 18
PLLEDRB8 18
PLLEDRBB / PLLEDRBW 14
PLLEDRBFX 26
PLLEDRBM 26
PLLEDSC25 35
PLLEDSCW1
PLLEDSCW2
PLLEDSCW3
35
35
35
PLLEDSC 20
PLLEDSHT45 32
PLLEDSP 22
PLLEDST301 43
PLLEDST320 43
PLLEDSTDB 43
PLLEDSTH 43
PLLEDSTOMRGB 43
PLLEDSTOMW 43
PLLEDSTONRGB 43
PLLEDSTONW 43
PLLEDST 16
PLLEDTRM 21
PLLEDTSS30 31
PLLEDWD 19
PLLEDWS2 37
PLLEDWS4 37
PLLEDWS6 37
PLLEDWS8 37
SPSK310BK 16
Alphabetical Index
Page 48
48
Icon Legend
Flight Case
It indicates the case code.
Master/Slave
Projectors or eff ects able to communicate with each other (same
model) without controller.
Lamp
Lamp to be set on the eff ect, projector etc to be requested by the
code written beside the icon.
Barndoor
This accessory can be requested by the code written beside the
icon.
Black/Chrome
Product available in black or chrome version.
Desk controller
Desk controller that can be requested by the code written beside
the icon.
Housing IP
Ingress Protection - Degree of protection against severe weather
conditions or elements, to evaluate the external usage of the
projector..
Fluid
Liquid recommended for fog, snow, bubble or foam machines to
be requested by the code written beside the icon.
Music
Projectors or eff ects with the possibility of musical rhythm opera-
tion..
Porta Gobos
Metallic accessory for gobos
Iris
Adjustable iris.
Radio control
Radio control of the functions
Remote control
Remote control of the functions, generally included (check beside
the icon).
Stand
Support for follow spots to be requested by the code written be-
side the icon.
DMX 512 controller
DMX 512 drive dialogue controller
120V
Product available with 120V 60Hz voltage.
Page 49
Loading...
