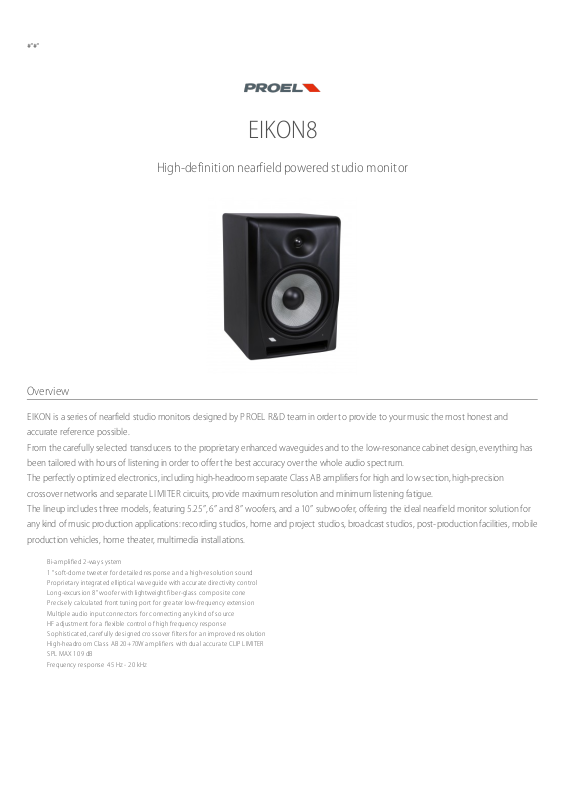

EIKON8
High-definition nearfield powered studio monitor
Overview
EIKON is a series of nearfield studio monitors designed by PROEL R&D team in order to provide to your music the most honest and
accurate reference possible.
From the carefully selected transducers to the proprietary enhanced waveguides and to the low-resonance cabinet design, everything has
been tailored with hours of listening in order to offer the best accuracy over the whole audio spectrum.
The perfectly optimized electronics, including high-headroom separate Class AB amplifiers for high and low section, high-precision
crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.
The lineup includes three models, featuring 5.25”, 6” and 8” woofers, and a 10” subwoofer, offering the ideal nearfield monitor solution for
any kind of music production applications: recording studios, home and project studios, broadcast studios, post-production facilities, mobile
production vehicles, home theater, multimedia installations.
Bi-a mplifie d 2-way sys tem
1 " so ft-dom e twee ter fo r deta iled respo nse and a high-res olutio n so und
Pro prie tary integra ted ellip tical waveguide with accura te direc tivity co ntrol
Lo ng-excurs ion 8” wo ofe r with lightweight fibe r-glas s co mpo site cone
Pre cise ly ca lculated fro nt tuning port for gre ater lo w-frequenc y extens ion
Multip le a udio inp ut conne ctors fo r connec ting any kind o f so urce
HF a djustm ent fo r a fle xible co ntrol o f high frequency respo nse
So phistica ted, ca refully de signed cro ss ove r filters for an impro ved reso lution
High-he adro om Class AB 2 0+70W amp lifiers with dual a ccura te CLIP LIMIT ER
SP L MAX 10 9 dB
Frequency respo nse 45 Hz - 20 k Hz
Page 2
KP8 20 KP8 40 KP8 60 KP8 45 EIKO N10S EIKO N6 EIKO N5 EIKO NPAD8
Technical Specifications
System type 2-way vented enclosure
High Frequency Device 1 “ dome tweeter on elliptical waveguide
Low Frequency Device 8” woofer with fiberglass reinforced cone
Angular Coverage 90° H x 60° V
HF Amplifier Continuous
Power
20W Class AB
LF Amplifier Continuous
Power
70W Class AB
Processing Analog
Frequency Response 45 Hz - 20 kHz
Max SPL 109 dB
Connectors 1/4” JACK, XLR-F, RCA
Controls LEVEL, HF ADJUST
Construction Vinyl laminated MDF cabinet with ABS front
Cabinet Colour Black
Power Supply
230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE
selector
Dimensions (W x H x D) 265 x 380 x 305 mm
Weight 10 kg
