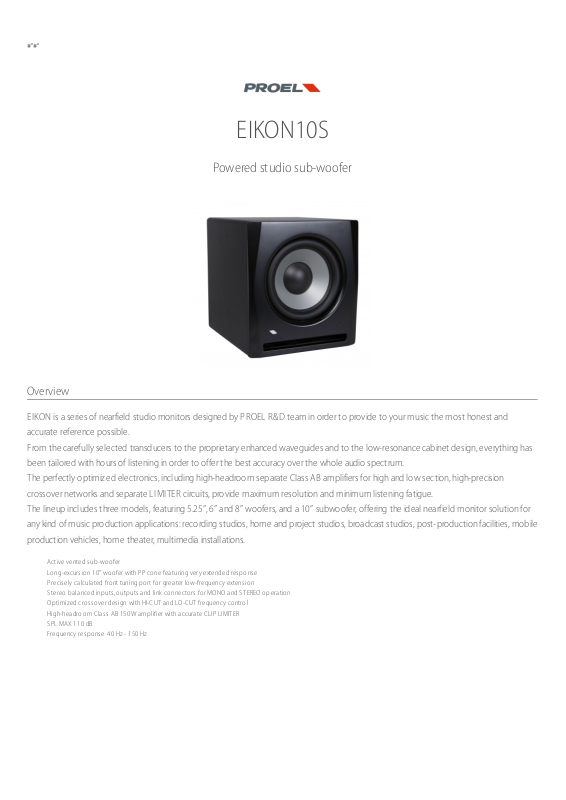

Page 1
#"#"
EIKON10S
Powered studio sub-woofer
Overview
EIKON is a series of nearfield studio monitors designed by PROEL R&D team in order to provide to your music the most honest and
accurate reference possible.
From the carefully selected transducers to the proprietary enhanced waveguides and to the low-resonance cabinet design, everything has
been tailored with hours of listening in order to offer the best accuracy over the whole audio spectrum.
The perfectly optimized electronics, including high-headroom separate Class AB amplifiers for high and low section, high-precision
crossover networks and separate LIMITER circuits, provide maximum resolution and minimum listening fatigue.
The lineup includes three models, featuring 5.25”, 6” and 8” woofers, and a 10” subwoofer, offering the ideal nearfield monitor solution for
any kind of music production applications: recording studios, home and project studios, broadcast studios, post-production facilities, mobile
production vehicles, home theater, multimedia installations.
Active vented s ub-woofe r
Lo ng-excurs ion 10” woofe r with PP co ne fe aturing ve ry exte nded re sponse
Pre cise ly ca lculated fro nt tuning port for gre ater lo w-frequenc y extens ion
Ste reo ba lance d inputs, outputs and link co nnecto rs fo r MONO and S TEREO operatio n
Op timize d cro sso ver design with HI-C UT and LO -CUT fre quency control
High-he adro om Class AB 1 50W am plifier with a ccura te CLIP LIMIT ER
SP L MAX 11 0 dB
Frequency respo nse 40 Hz - 150 Hz
Page 2
EIKO N8 EIKO N6 EIKO N5
Technical Specifications
System type Vented sub-woofer
Low Frequency Device 10” woofer with PP cone
LF Amplifier Continuous
Power
150W Class AB
Processing Analog
Frequency Response 40 Hz - 150 Hz
Max SPL 110 dB
Connectors
1/4” JACK, XLR-F (stereo INPUT), XLR-M (stereo OUTPUT), XLR-
M (LINK)
Controls LEVEL, HI-CUT & LO-CUT frequency selector, PHASE
Construction Vinyl laminated MDF cabinet with MDF front
Cabinet Colour Black
Power Supply 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
Dimensions (W x H x D) 330 x 365 x 365 mm
Weight 15.3 kg
Related Products
Techni cal specifications and appearances are sub ject to chan ge without notice and accuracy is not
gu aranteed. All trademarke are the property of their respectiv e owners. PROEL accepts no liability for an y
loss which m ay be suffered by any person who relies either wholly or in part u pon an y description ,
photograph or statement contai ned herei n. Colors and speci ficati ons may vary from actua l product. PROEL
products are sold throug h authoriz ed full fil lers and resell ers only. Thi s man ual is copyrig hter. No pa rt of
thi s man ual may be rep rodu ced or transmi tted in any form or by any means, electroni c or mechanical,
includi ng photocopying an d recordin g of any kind , for any purpose, without the express written
perm ission of PROEL - Via alla Ruenia 37/43 - CAP 64027 - Sant'Omero (TE) ITAL Y.
