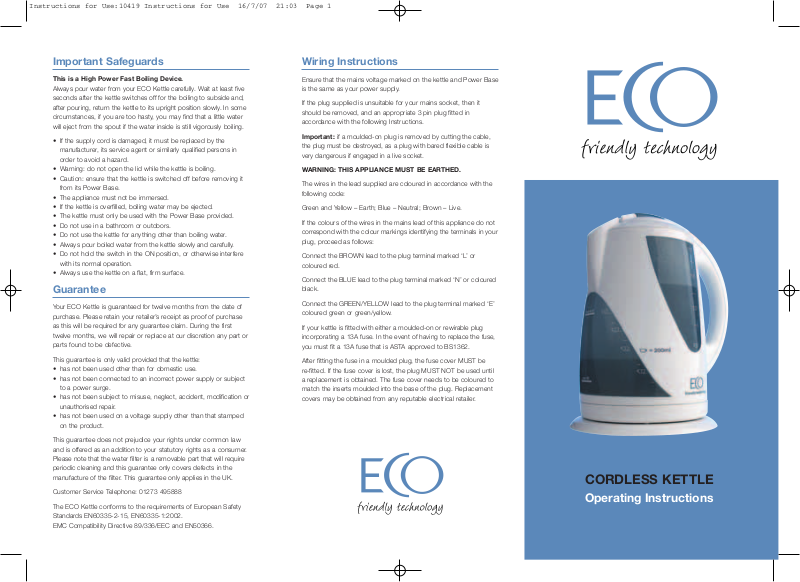

Important Safeguards
This is a High Power Fast Boiling Device.
lways pour water from your ECO Kettle carefully. Wait at least five
A
econds after the kettle switches off for the boiling to subside and,
s
fter pouring, return the kettle to its upright position slowly. In some
a
ircumstances, if you are too hasty, you may find that a little water
c
ill eject from the spout if the water inside is still vigorously boiling.
w
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
• Warning: do not open the lid while the kettle is boiling.
• Caution: ensure that the kettle is switched off before removing it
from its Power Base.
• The appliance must not be immersed.
• If the kettle is overfilled, boiling water may be ejected.
• The kettle must only be used with the Power Base provided.
• Do not use in a bathroom or outdoors.
• Do not use the kettle for anything other than boiling water.
• Always pour boiled water from the kettle slowly and carefully.
• Do not hold the switch in the ON position, or otherwise interfere
with its normal operation.
• Always use the kettle on a flat, firm surface.
Guarantee
Your ECO Kettle is guaranteed for twelve months from the date of
purchase. Please retain your retailer’s receipt as proof of purchase
as this will be required for any guarantee claim. During the first
twelve months, we will repair or replace at our discretion any part or
parts found to be defective.
This guarantee is only valid provided that the kettle:
• has not been used other than for domestic use.
• has not been connected to an incorrect power supply or subject
to a power surge.
• has not been subject to misuse, neglect, accident, modification or
unauthorised repair.
• has not been used on a voltage supply other than that stamped
on the product.
This guarantee does not prejudice your rights under common law
and is offered as an addition to your statutory rights as a consumer.
Please note that the water filter is a removable part that will require
periodic cleaning and this guarantee only covers defects in the
manufacture of the filter. This guarantee only applies in the UK.
Customer Service Telephone: 01273 495888
The ECO Kettle conforms to the requirements of European Safety
Standards EN60335-2-15, EN60335-1:2002.
EMC Compatibility Directive 89/336/EEC and EN50366.
Wiring Instructions
Ensure that the mains voltage marked on the kettle and Power Base
is the same as your power supply.
f the plug supplied is unsuitable for your mains socket, then it
I
hould be removed, and an appropriate 3 pin plug fitted in
s
ccordance with the following Instructions.
a
Important: if a moulded-on plug is removed by cutting the cable,
he plug must be destroyed, as a plug with bared flexible cable is
t
very dangerous if engaged in a live socket.
WARNING: THIS APPLIANCE MUST BE EARTHED.
The wires in the lead supplied are coloured in accordance with the
following code:
Green and Yellow – Earth; Blue – Neutral; Brown – Live.
If the colours of the wires in the mains lead of this appliance do not
correspond with the colour markings identifying the terminals in your
plug, proceed as follows:
Connect the BROWN lead to the plug terminal marked ‘L’ or
coloured red.
Connect the BLUE lead to the plug terminal marked ‘N’ or coloured
black.
Connect the GREEN/YELLOW lead to the plug terminal marked ‘E’
coloured green or green/yellow.
If your kettle is fitted with either a moulded-on or rewirable plug
incorporating a 13A fuse. In the event of having to replace the fuse,
you must fit a 13A fuse that is ASTA approved to BS1362.
After fitting the fuse in a moulded plug, the fuse cover MUST be
re-fitted. If the fuse cover is lost, the plug MUST NOT be used until
a replacement is obtained. The fuse cover needs to be coloured to
match the inserts moulded into the base of the plug. Replacement
covers may be obtained from any reputable electrical retailer.
CORDLESS KETTLE
Operating Instructions
Page 2
Instructions for Use:10419 Instructions for Use 16/7/07 21:03 Page 4
Save water. Save time. Save energy.
Until now, conveniently measuring the correct amount of water to be
boiled in your kettle has not been easy. The result? It is estimated
that, on average, we boil twice the volume of water needed every
time. Which means twice as much energy, twice as much time.
ith a 3kW kettle that’s the same as wasting the energy of around
W
0 light bulbs!
5
our new ECO Kettle is different: the internal reservoir holds a full
Y
capacity of water ready for use, while the measuring button allows
any quantity – from a single cupful to full capacity – to be released
into the separate chamber for boiling. The result? Exactly the right
amount of water every time you boil – and no more waste.
In UK consumer trials directed by the Energy Saving Trust, the ECO
Kettle used an average of 31% less energy then normal kettles.
To take full advantage of the potential of your new ECO Kettle,
please take time to read and follow the instructions in this
booklet, which will explain how the Eco Friendly Technology
works, and how best to care for your new product.
Please pay particular attention to the section dealing with
IMPORTANT SAFEGUARDS, and keep this booklet in a safe
place for future reference.
How to use your ECO Kettle
Carefully unpack the ECO Kettle and its power base, and remove all
packaging materials. Study the illustrations in this booklet to identify
the various parts of the ECO Kettle, and then follow these operating
instructions.
Before first use, boil a full volume of water and discard to ensure that
the interior of the ECO
Kettle is completely clean.
The ECO Kettle is supplied
with some of the mains
cable stowed in the Power
Base. The cable can
simply be lengthened by
releasing it from the clips.
Every kettle is boil tested
as part of our quality
assurance procedures and
this may leave small drops
of water inside the
Reservoir and Boiling
Chamber.
Boiling
Chamber
Power
Base
Lid
Latch
➜
➜
Valve
Button
Reservoir
➜
Indicator
Light
On/Off
Switch
Operation
Check that the Valve Button is in the
raised position, pull back the Latch, and
then open the hinged lid.
ill the main Reservoir to the MAXIMUM
F
evel and close the lid using a small
l
ownward pressure to ensure that the
d
atch engages fully.
L
Place the ECO Kettle on its Power Base
and plug in the Power Cord to a
standard domestic power socket and
switch on.
You are now ready to decide how much
water you wish to boil – from one cup
to the full kettle!
To deliver water to the Boiling Chamber,
press the Valve Button until water flows
into the Boiling Chamber. Watch the
water level rise in the front window until
it reaches the required mark.
When the valve button is released
the valve closes and the water in
the Boiling Chamber is ready to boil.
Always ensure there is enough water to
reach the Min Fill mark (approximately
1 cup = 200ml).
Never fill above the Max Boil mark on
the Boiling Chamber window as water
may be ejected during boiling.
Switch the ECO Kettle ON by pressing
down the On/Off Switch. The Indicator
Light will illuminate to indicate the ECO
Kettle is ON.
When the water has boiled, the ECO
Kettle will switch OFF automatically.
The water can be brought back to the
boil by operating the On/Off switch again. It may be necessary to
wait a few seconds before the switch can be reset.
Do not hold the switch in the ON position as this will damage
the mechanism.
You can simply stop the boiling process at any time by operating
the On/Off Switch to the OFF position.
L
atch
➜
Valve
utton
B
➜
➜
➜
Max
Fill
Press
On/Off
Switch
If at any time you wish to boil all of the
water in the kettle – including the water
contained in the reservoir – simply lock
the valve open by rotating the valve
button in the direction of the arrow
when the button is depressed. Do not
leave the valve in the locked position as
this will prevent your ECO Kettle from
saving energy and may make the lid
seal less effective.
Generally, Valve Open is useful for larger quantities above 1 litre, and
Valve Closed is suitable for smaller quantities – 1 to 5 cups (200ml
to 1 litre).
If the ECO Kettle is inadvertently operated without water in
the Boiling Chamber an automatic cut out will operate to protect
your ECO Kettle. This can simply be re-set as follows: cool the
heating element by releasing water from the reservoir into the boiling
chamber. Wait for a short time for the control to cool sufficiently and
the ECO Kettle will then be ready for use again.
And remember, unused water remaining in the Reservoir is available
for use next time – saving water, time and energy!
Top up the Reservoir to the Maximum level from time to time as
necessary, so that your ECO Kettle is always ready to boil the exact
amount of water you require.
To ensure the water in your ECO Kettle does not get stale, start
each day by discarding any remaining water and refilling with fresh.
alve locked open
V
Looking after your
ECO Kettle
Cord
Storage
Filter
The ECO Kettle is provided with a
removable filter in the spout to remove
limescale etc. If it becomes clogged,
remove and clean under running water.
To maintain optimum performance, it will
be necessary from time to time to clean
the ECO Kettle to remove limescale
deposits. This can be achieved simply
by using a proprietary cleaner made
specially for plastic bodied kettles, and
following the makers instructions.
The outside of your ECO Kettle should
be kept clean using a damp, soft cloth.
Never immerse the ECO Kettle or its
power base in water.
