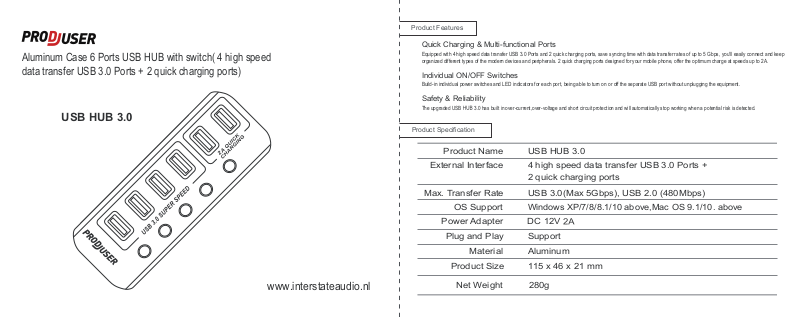

Page 1
Aluminum Case 6 Ports USB HUB with switch( 4 high speed
data transfer USB 3.0 Ports + 2 quick charging ports)
USB HUB 3.0
www.interstateaudio.nl
Product Features
Quick Charging & Multi-functional Ports
Equipped with 4 high speed data transfer USB 3.0 Ports and 2 quick charging ports, save syncing time with data transfer rates of up to 5 Gbps, you'll easily connect and keep
organized different types of the modern devices and peripherals. 2 quick charging ports designed for your mobile phone, offer the optimum charge at speeds up to 2A.
Individual ON/OFF Switches
Build-in individual power switches and LED indicators for each port, being able to turn on or off the separate USB port without unplugging the equipment.
Safety & Reliab
The upgraded USB 3.0 has built in over-current,over-voltage and short circuit protection and will automatically stop working when a potential risk is detected.
Product Specification
Product Name
External Interface
USB HUB 3.0
4 high speed data transfer USB 3.0 Ports +
2 quick charging ports
Max. Transfer Rate USB 3.0(Max 5Gbps), USB 2.0 (480Mbps)
OS Support
Power Adapter
Plug and Play
Material
Product Size
Windows XP /7/8/8.1/10 above,Mac OS 9.1/10. above
DC 12V
Support
Aluminum
115 x 46 x 21 mm
Net Weight 280g
Page 2
Accessories
6 Port USB 3.0 HUB Power Adapter USB 3.0 Cable Manual
4 Data Transfer Ports(high speed up to 5Gbps)
2 Quick Charging Ports
Phone
Tablet
Connection diagram
Connect the DC Adapter into the product and connect
the other cable side in the AC outlet （Do not connect
the DC adapter when not using the fast charge interface）
Connect the USB Cable in the product
Locate the USB Port that you will use and connect the
USB cable
FAST TRANSMISSION
Supports Super Speed Transmission up to 5 Gbps
USB 3.0
USB 2.0
480Mbps
5Gbps
USB 3.0
Flash Drive
Camera
USB 3.0 Port
Laptop PC
Keyboard
Printer
Game Console
Mouse
Individual Switches
ON/OFF : Press The Button
AC Power Adapter
