Prodipe Pro8-3W User Manual

Download

Page 1

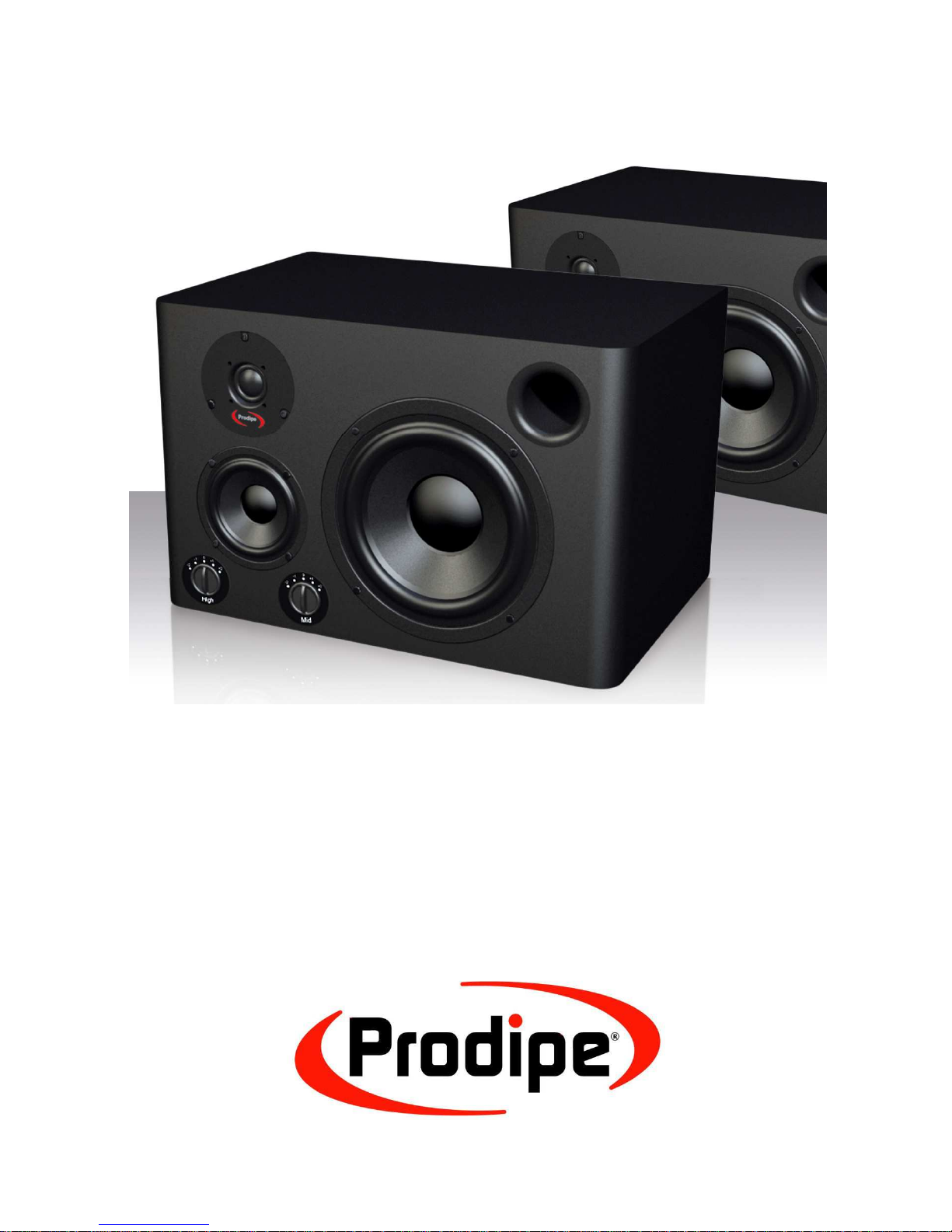

U S E R M A N U A L

S t u d i o M o n i t o r s

Pro8-3W

Page 2

Safety Information

Precautions

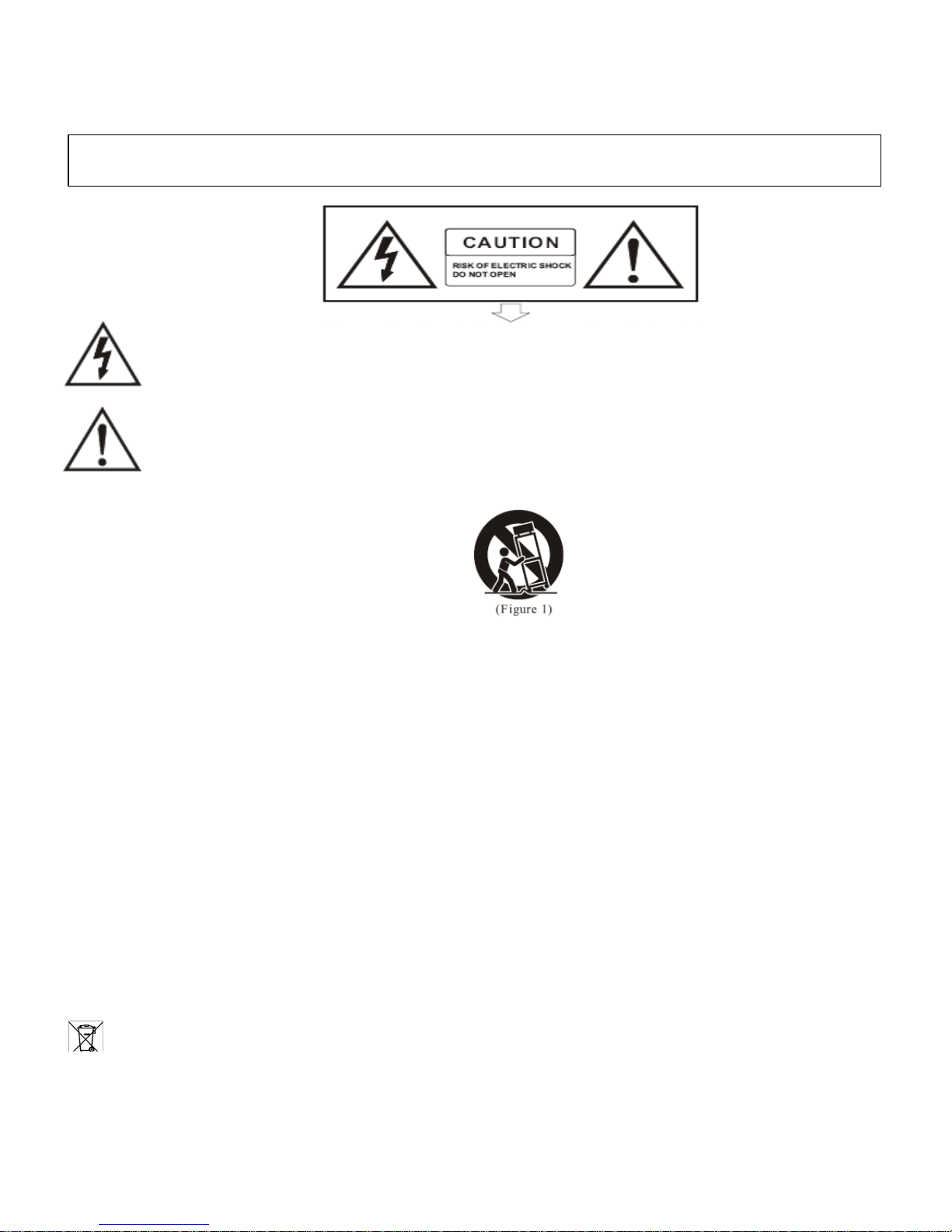

The lightning flash with the arrowhead symbol in an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” inside the appliance that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Important Instructions

1) Read these instructions.

2) Retain these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this appliance near water.

6) Clean only with a dry cloth.

7) Do not block any of the ventilation openings that were installed in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers)

that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the plug provided does not fit into your outlet, consult an electrician to ensure replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point

where it exits from the appliance.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the appliance. If

using a cart, be careful when moving the cart/appliance combination to avoid injury from tip-over (Figure 1).

13) Unplug this appliance during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any

way, for example, the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen inside the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION: The appliance should not be exposed to drips or splashes of water. Objects filled with liquids, such as vases, should

not be placed on the appliance.

Thank you for purc

hasing this digital appliance.

To ensure perfect operation an

d security, please read the manual carefully

and retain it for future reference.

This logo indicates that the product can be recycled after it has been used. Please do not dispose of the product with

your normal household waste. Return the product to the shop where you purchased it or place it in the designated

Page 3

Contents

1 – Introduction ............................................................................................................................4

2 – Connections ............................................................................................................................4

3 – Settings ....................................................................................................................................5

4 – Audio input/output sockets ..............................................................................................6

5 – Speaker Orientation ............................................................................................................6

6 – Specifications .........................................................................................................................1

Page 4

Illustrations et photos non contractuelles

- 4-

1 – Introduction

Thank you for choosing this PRODIPE product.

Safety Information To ensure both your safety and the proper functioning of this product, please take the time to read the safety instructions on the back cover.

WARNING. To avoid any possibility of electric shock, please do not remove the back panel of this product. For any repair work please contact either the shop where you purchased the product or a qualified technician.

Please note that when the volume is turned up high, this equipment can produce sound levels which may irreparably damage your hearing.

2 – Connections

To ensure that your studio monitors are properly connected, please adhere to the following steps:

1. Check your audio lead.

2. Switch on the equipment you intend to use with the speakers (console, PC, audio

equipment, etc.).

3. Check the speaker settings and your audio equipment (volume turned down to its

lowest level).

4. Check the voltage , turn the Prodipe speaker POWER switch  to ON - the blue LED

 should light up.

Note that: when powering off, the Prodipe speakers should be switched off first (switch  to OFF and blue LED  goes out).

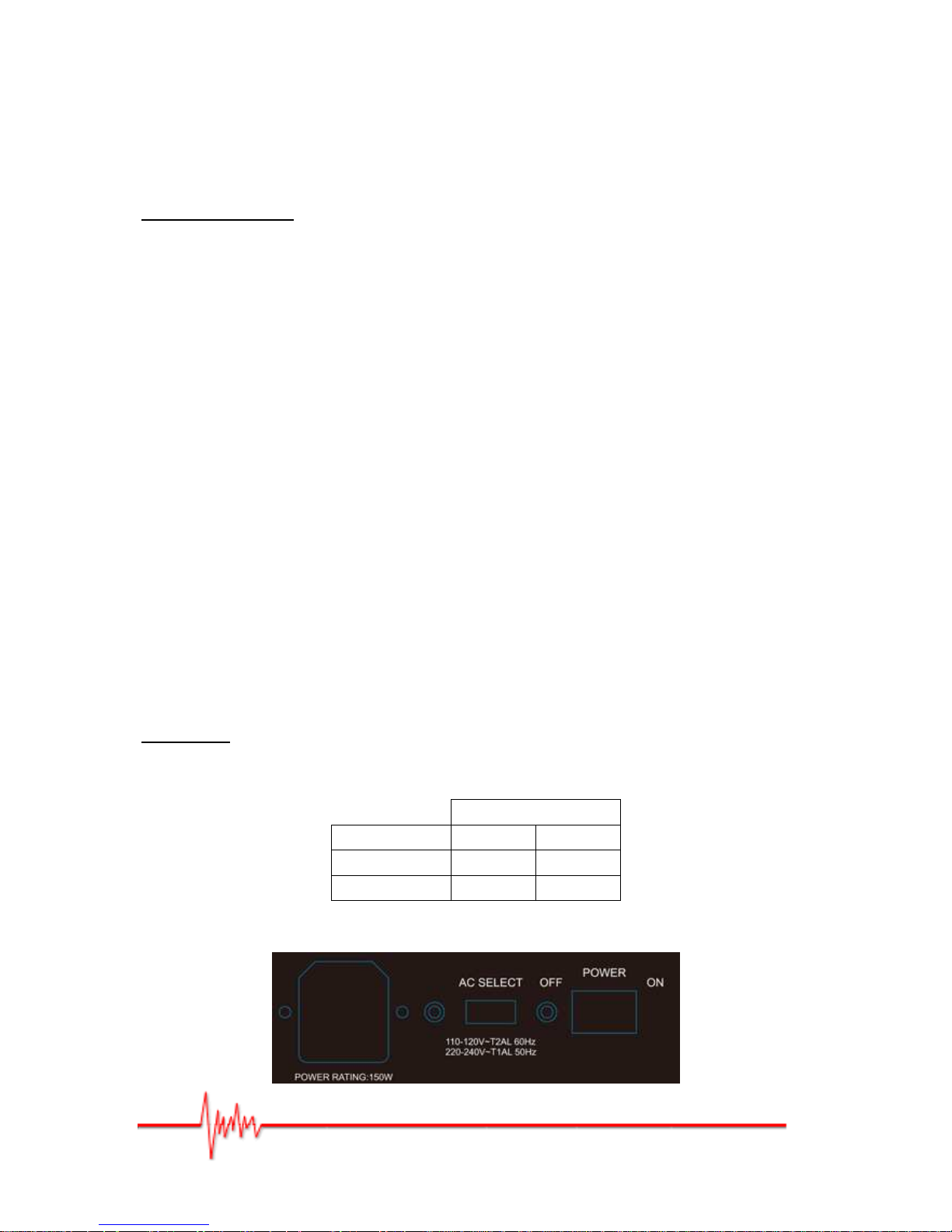

Important: the choice of voltage via the AC SELECT switch  depends on your power supply. Any change to the voltage should be carried out when the speakers are off (switch  to OFF and speakers unplugged from the power supply).

PRO8-3W

POWER SUPPLY 110V – 120V 220V – 240V

AC SELECT 

115V 230V

FUSE 

T2AL T1AL

Figure 1

Page 5

Illustrations et photos non contractuelles

- 5-

3 - Settings

Various settings are available for your Pro8-3W speakers:

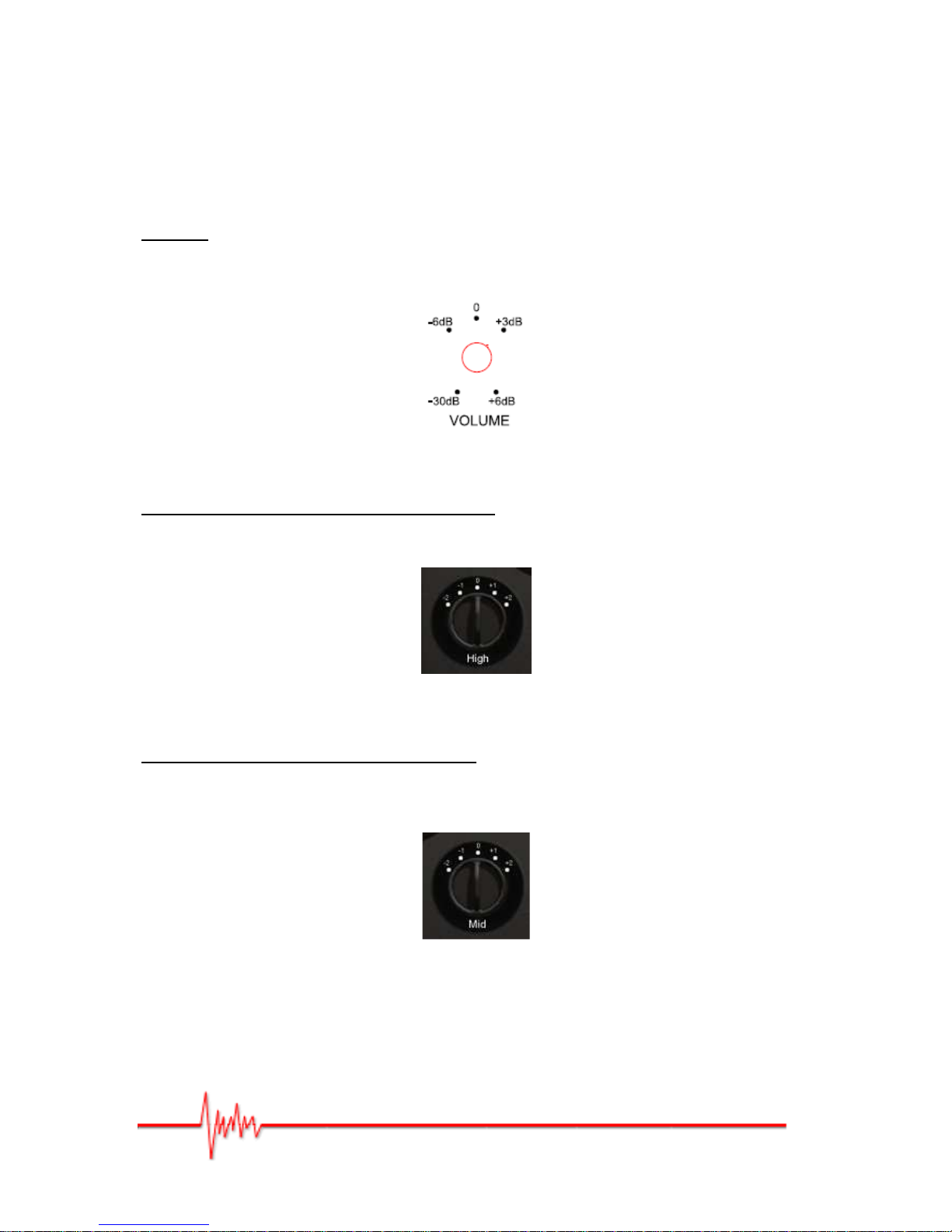

VOLUME The gain can be adjusted using the VOLUME control switch on the rear panel (see Erreur ! Source du renvoi introuvable.). It can be set between -30dB and +6dB.

Figure 2

ADJUSTING THE HIGH FREQUENCIES (High)

The high frequency level can be set using the control switch at the front of the speakers (Figure 3). The following levels are available: -2dB, -1dB, 0dB (flat), +1dB, and +2dB.

Figure 3

ADJUSTING THE MID FREQUENCIES (Mid)

The mid frequency level can be set using the control switch at the front of the speakers (Figure 4). The following levels are available: -2dB, -1dB, 0dB (flat), +1dB, and +2dB.

Figure 4

Page 6

Illustrations et photos non contractuelles

- 6-

4 – Audio input/output sockets

The XLR and TRS sockets are balanced; the RCA is unbalanced.

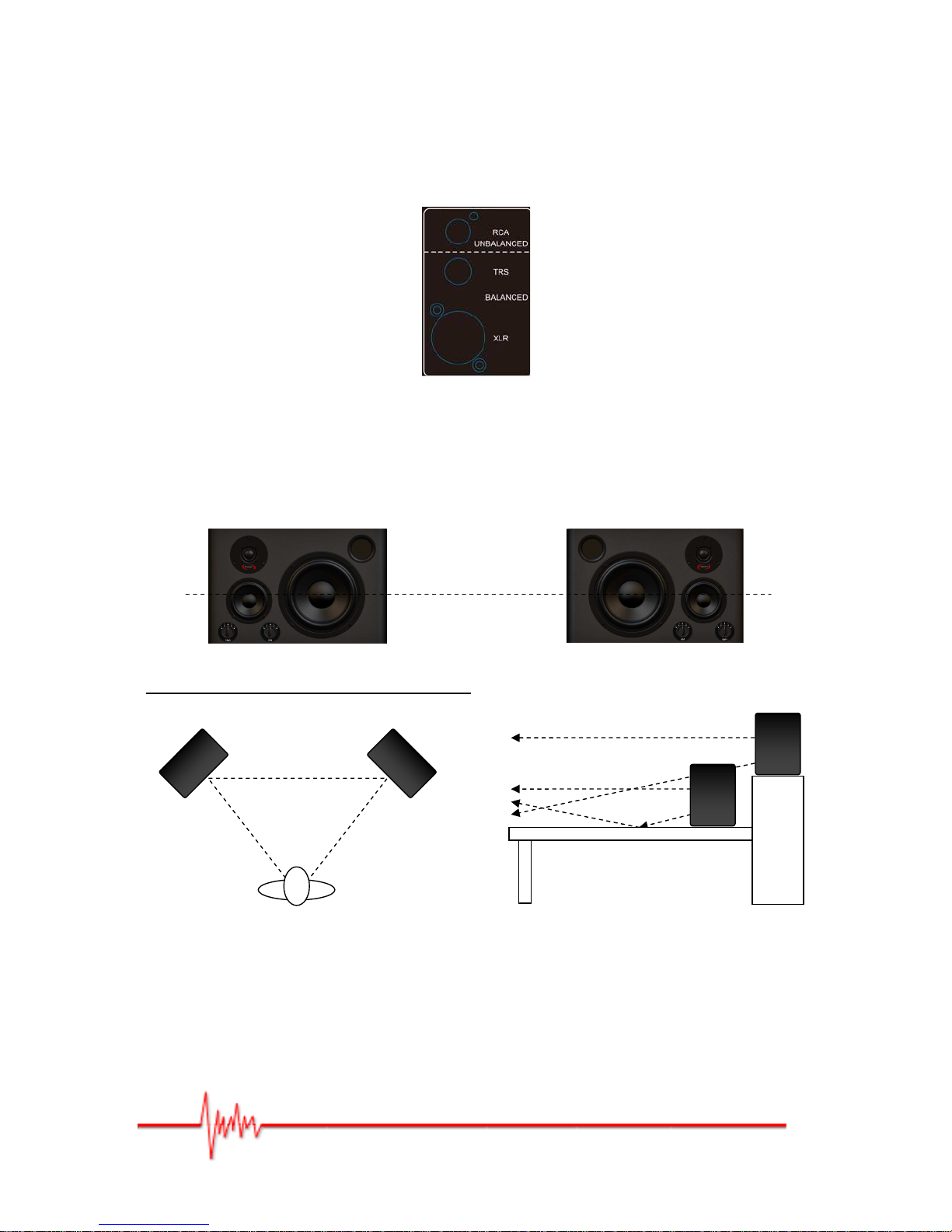

Figure 5 – TRS, XLR, RCA inputs

5 – Speaker Orientation

These Prodipe studio monitors can be placed upright or prone.

Figure 6

Speaker Orientation for Stereo Listening

Stereo Listening Position

Figure 7

Reflection

Figure 8

Equilateral

Triangle

Optimum listening height

Positioning your speakers correctly in a studio setup is critical to their performance.

Reflection is the most likely acoustic problem you will have to deal with. As shown in Figure 8, where you place the speakers in relation to a mixer console can modify the sound wave and hence alter how that sound is perceived.

Page 7

Actual product(s) may differ from illustrations/photographs used

-1-

6 - Specifications

• Active 3-Way Studio Monitors.

• 8” Woofer with magnetic shielding and fibre cone.

• 4” Mid Driver with magnetic shielding and fibre cone.

• 1” Tweeter with magnetic shielding and fibre cone.

• Power Ratio: 90W Woofer, 40W Mid, 20W Tweeter.

• Frequency Response: 45Hz-22KHz (+/-3dB).

• Signal to Noise Ratio: >95dB Typical (A).

• Active Filter.

• Input Impedance: 20K Ohm balanced/10K Ohms unbalanced.

• Input Connectors: 1 XLR & TRS balanced/unbalanced input - 1 RCA unbalanced input.

• HF Trim: -2dB, -1dB, 0dB, +1dB, +2dB.

• MF Trim: -2dB, -1dB, 0dB, +1dB, +2dB.

• LED Power Indicator (On/Off) at the front.

• Power Supply: 110-120V~/60Hz & 220-240V~/50Hz Select.

• Dimensions: 290mm (Height) x 450mm (Width) x 300mm (Depth).

• Weight: 13.8kg (individually)

Page 8

Actual product(s) may differ from illustrations/photographs used

IPE Music

20, rue Clément ADER

Z.A. Les Gloriets

85340 OLONNE SUR MER

France

www.prodipe.com
