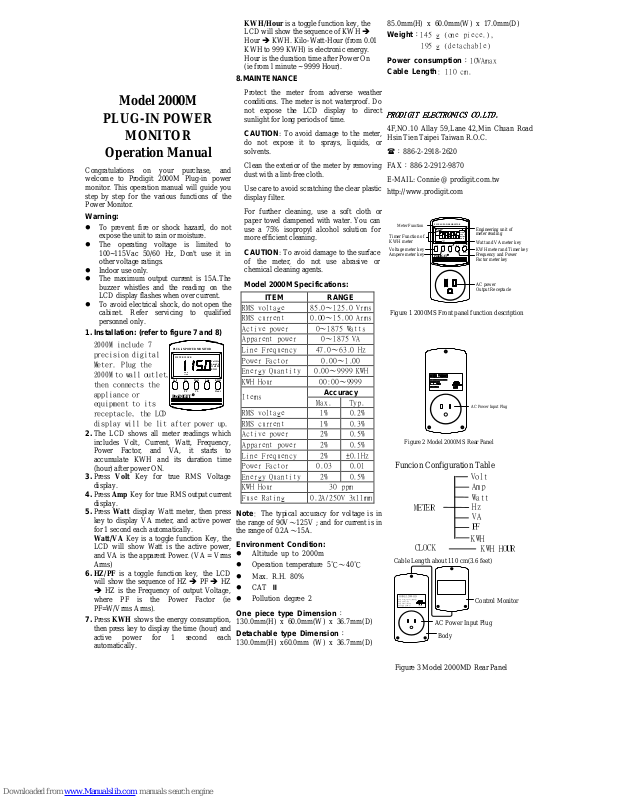

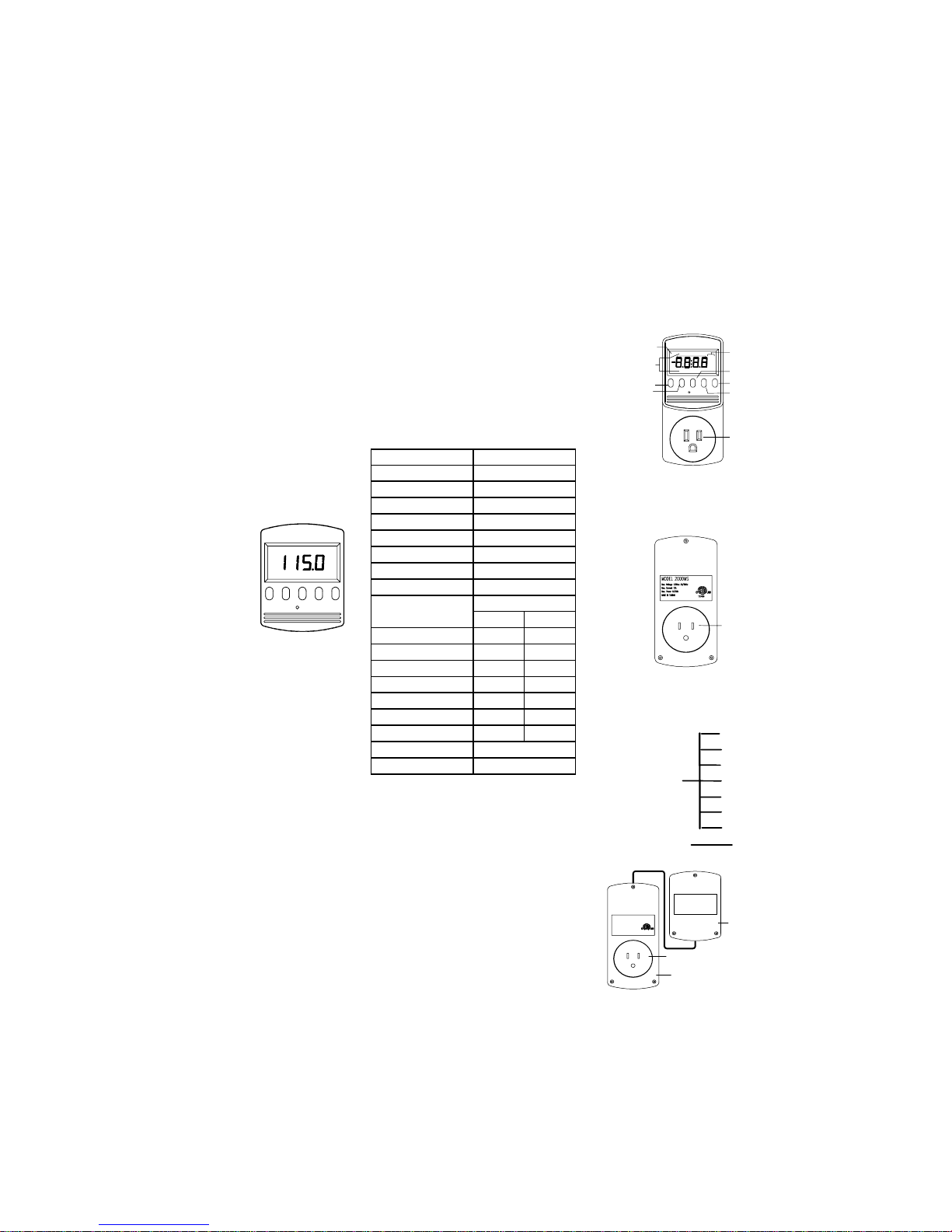

Page 1
Model 2000M
PLUG-IN POWER
MONITOR
Operation Manual
Congratulations on your purchase, and
welcome to Prodigit 2000M Plug-in power
monitor. This operation manual will gu ide you
step by step for the various functions of the
Power Monitor.
Warning:
! To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
! The operating voltage is limited to
100~115Vac 50/60 Hz, Don't use it in
other voltage ratings.
! Indoor use only.
! The maximum output current is 15A.Th e
buzzer whistles and the reading on the
LCD display flashes when over current.
! To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
1. Installation: (refer to figure 7 and 8)
2000M include 7
precision digital
Meter. Plug the
2000M to wall outlet,
then connects the
appliance or
equipment to its
receptacle, the LCD
display will be lit after power up.
2. The LCD shows all meter readings which
includes Volt, Current, Watt, Frequency,
Power Factor, and VA, it starts to
accumulate KWH and its duration time
(hour) after power ON.
3. Press Volt Key for true RMS Voltage
display.
4. Press Amp Key for true RMS output current
display.
5. Press Watt display Watt meter, then press
key to display VA meter, and active power
for 1 second each automatically.
Watt/VA Key is a toggle functi on Key, the
LCD will show Watt is the active power,
and VA is the apparent Power. (VA = Vrms
Arms)
6. HZ/PF is a toggle function key,
the LCD
will show the sequenc e of HZ # PF # HZ
# HZ is the Frequency of output Volta ge,
where PF is the Power Factor (ie
PF=W/Vrms Arms).
7. Press KWH shows the energy consumption,
then press k ey to d isp lay th e tim e (hour ) and
active power for 1 second each
automatically.
KWH/Hour is a toggle fun ction key, th e
LCD will show the sequence of KWH #
Hour # KWH. Kilo-Watt-Hour (from 0.01
KWH to 999 KWH) is electronic energy.
Hour is the duration time after Power On
(ie from l minute ~ 9999 Hour).
8.MAINTENANCE
Protect the meter from adverse weather
conditions. The meter is not waterproof. Do
not expose the LCD display to direct
sunlight for long periods of time.
CAUTION: To avoid damage to the meter,
do not expose it to sprays, liquids, or
solvents.
Clean the exteri or of the meter by removi ng
dust with a lint-free cloth.
Use care to avoi d sc ratc hing th e clea r pla sti c
display filter.
For further cleaning, use a soft cloth or
paper towel d ampe ned wi th wat er. Yo u can
use a 75% isopropyl alcohol solution for
more efficient cleaning.
CAUTION: To avoid damage to the surface
of the meter, do not use abrasive or
chemical cleaning agents.
Model 2000M Specifications:
ITEM RANGE
RMS voltage 85.0～125.0 Vrms
RMS current 0.00～15.00 Arms
Active power 0～1875 Watts
Apparent power 0～1875 VA
Line Frequency 47.0～63.0 Hz
Power Factor 0.00～1.00
Energy Quantity 0.00～9999 KWH
KWH Hour 00:00～9999
Accuracy
Items
Max. Typ.
RMS voltage 1% 0.2%
RMS current 1% 0.3%
Active power 2% 0.5%
Apparent power 2% 0.5%
Line Frequency 2% ±0.1Hz
Power Factor 0.03 0.01
Energy Quantity 2% 0.5%
KWH Hour 30 ppm
Fuse Rating 0.2A/250V 3x11mm
Note: The typical accuracy for voltage is in
the range of 90V～125 V ; and for current is in
the range of 0.2A～15A.
Environment Condition:
! Altitude up to 2000m
! Operation temperature 5℃～40℃
! Max. R.H. 80%
! CAT Ⅱ
! Pollution degree 2
One piece type Dimension：
130.0mm(H) x 60.0mm(W) x 36.7mm(D)
Detachable type Dimension：
130.0mm(H) x60.0mm (W) x 36.7mm(D)
85.0mm(H) x 60.0mm(W) x 17.0mm(D)
Weight：145 g (one piece.),
195 g (detachable)
Power consumption：10VAmax
Cable Length: 110 cm.
PRODIGIT ELECTRONICS CO.LTD.
PRODIGIT ELECTRONICS CO.LTD. PRODIGIT ELECTRONICS CO.LTD.
PRODIGIT ELECTRONICS CO.LTD.
4F,NO.10 Allay 59,Lane 42,Min Chuan Road
Hsin Tien Taipei Taiwan R.O.C.
$：886-2-2918-2620
FAX：886-2-2912-9870
E-MAIL: Connie @ prodigit.com.tw
http://www.prodigit.com
MODEL 2000MD
Max. Voltage 125Vac 50/60Hz
Max. Current 15A
Max. Power 1875VA
MADE IN TAIWAN
R
123456
Figure 3 Model 2000MD Rear Panel
AC Power Input Plug
Cable Length about 110 cm(3.6 feet)
Control Monitor
Body
Funcion Configuration Table
Volt
Amp
Watt
Hz
VA
PF
KWH
METER
CLOCK
KWH HOUR
PLUG-IN POWER MONITOR
Volt
Hz KWH
ProDIGIT
R
KW
H
TIM
E
Amp VA
Watt PF
KWH
Volt Hz
METER CLOCK
Ampere meter key
Voltage meter key
AC power
Output Receptacle
Frequency and Power
Factor meter key
KWH meter and Timer key
Timer Function of
KWH meter
Meter Function
Engineering unit of
meter reading
PF HourVA
Amp Watt
Watt and VA meter key
Figure 1 2000MS Front panel function description
Amp VA
Watt PF
KWH
Volt Hz
PLUG-IN POWER MONITOR
Volt KWH
Hour
ProDIGIT
R
KWH
TIME
METER CLOCK
AmpHz
Watt
VA
PF
AC Power Input Plug
Figure 2 Model 2000MS Rear Panel
Page 2

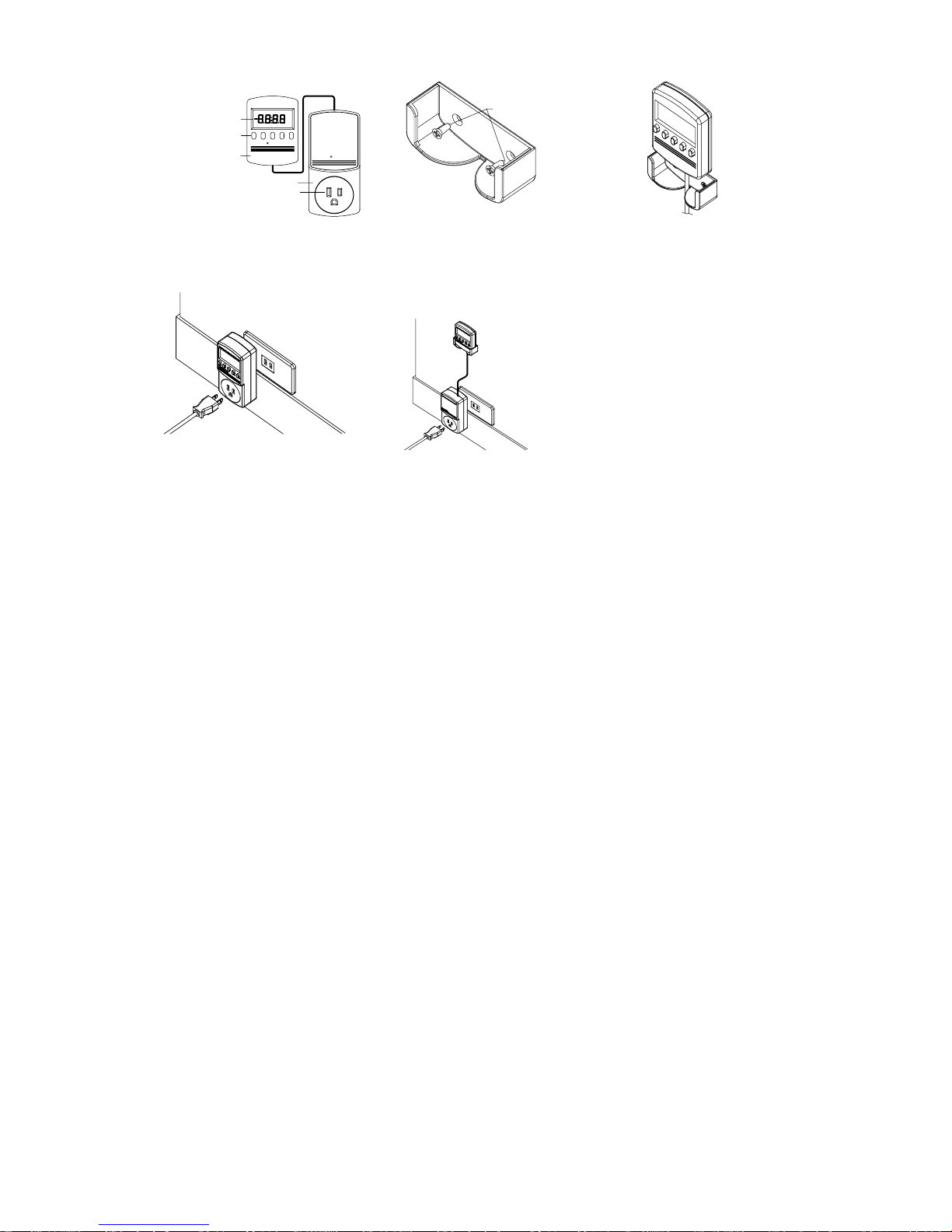

Figure 5 2000MD Control Moinitor
pocket Installation Diagram
Installation Screws
Figure 6 2000MD Contronl monitor pocket
Figure 8 2000MD Installation Diagram
Figure 7 2000MS Installation Diagram
R
KWH
TIME
Amp V
A
Watt PF
KWH
Volt Hz
METER CLOCK
Hour
Am
p
Volt
ProDIGIT
R
PLUG-IN POWER MONITOR
PLUG-IN POWER MONITOR
ProDIGIT
LCD
Operating key
AC Power Output Receptacle
Figure 4 Model 2000CD Front Panel
Control Monitor
Body
Hz Watt
PF VA
KWH
