Prodeco Technologies Phantom X R, PHANTOM 400, G STRIDE 400 V6 User Manual

Some of the content of this manual may differ from your bicycle depending on the options of the bicycle and what your dealer provided.

USER GUIDE

IMPORTANT: ALUMINUM FRAME. NOT INTENDED FOR HARD RIDING. DO NOT JUMP OR HIT CURBS, AVOID IMPACTS. INSPECT FRAME FOR FRACTURES. SERIOUS BODILY HARM CAN OCCUR IF MISUSED. SEE MANUAL FOR ADDITIONAL INFORMATION.

Table of Contents

1) Chapter 1: Introduction ……………………………………………………………………………………………….. 4

a. About this manual ………………………………………………………………………………………………….. 4 b. Important notices …………………………………………………………………………………………………… 4 c. General warning ……………………………………………………………………………………………………. 4 d. A special note to parents ………………………………………………………………………………………….. 5

2) Chapter 2: Getting Started …………………………………………………………………………………………… 5

a. Familiarize yourself with your bicycle’s parts …………………………………………………………………… 5 b. Contents of the box ………………………………………………………………………………………………... 6 c. Registering your new bike ………………………………………………………………………………………… 6 d. Unpacking your box ……………………………………………………………………………………………….. 6 e. Installing the front wheel ..………………………………………………………………………………………… 6 f. Installing and adjusting the handlebar/stem .……………………………………………………………..…….. 7 g. Installing the pedals ………………………..……………………………………………………………………… 7

3) Chapter 3: Battery Management …………….……………………………………………………………………… 8

a. About the battery ….…….…………………………………………………………………………………………. 8 b. Charging the battery …..………………..………………..………………………..………………………………. 8

c. Installing the battery ………………………..…………....………………………..………………………………. 9

d. Removing the battery ……………………………………………………………………………………………… 10 e. Powering the battery ON / OFF …………………………………………………………………………………... 10 f. Battery Fuse ………………………………………………………………………………………………………… 10 g. Storing the battery ………………………………………..………………………..………………………………. 10 h. Battery power indicator ………………………..………………………..…………………………………………. 10 i. Battery replacement ……………….……………………..………………………..………………………………. 11 j. Battery disposal …………………………………………..………………………..………………………………. 11

4) Chapter 4: Electrical Components ………………………………………………………………………………….. 11

a. Hub motor ………….…….…………………………………………………………………………………………. 11 b. Brushless hall sensor controller ……………….………..………………………..………………………………. 11 c. Throttle ………………………..………………………..………………………………………………………...…. 12

5) Chapter 5: Basic Instructions ……………………………………………………………………………………….. 12

a. Bicycle fit ……………………………………………………………………………………………………………. 12 b. Adjusting the saddle …….…………………………………………………………………………………………. 12 c. Your local electric bicycle and bicycle laws …………………………………………………………………..…. 13 d. Safety first …………………………………………………..………………………………………………………. 14 e. Mechanical safety check ………………………………………………….………………………………………. 14 f. Riding an electric bicycle ……...……………………………………………..……………………………………. 15 g. Safe riding in various conditions ……………………………………………………………………………….…. 15 h. Watching for obstacles around you ………………………………………………………………………………. 15 i. Before your first motorized ride ……………..……………………………………………………………………. 15 j. First motorized ride ……………..…………………………………………………………………………………. 15 k. Using your twist throttle …….……..………………………………………………………………………………. 16 l. Using your brakes …………….……………………………………………………………………………………. 16 m. Pedaling ……………………….……………………………………………………………………………………. 16 n. Shifting gears ………………………………………………………………………………………………………. 16

6) Chapter 6: Safety ………………………………………………………………………………………………………. 17

a. The basics ………………………………………..…………………………………………………………………. 17 b. Riding safety ………………………..………………………………………………………………………………. 17 c. Wet weather riding …………………………………………………………………………………………………. 18 d. Reflectors ……………………...……………………………………………………………………………………. 18 e. Night riding …………….……………………………………………………………………………………………. 18 f. Adding accessories ……..…………………………………………………………………………………………. 18

7) Chapter 7: Perfect Fit and Ride ……………………………..………………………………………………………. 18

a. The basics …………………...……..………………………………………………………………………………. 18 b. Frame size ………………………..……………………………………………………………………………...…. 19 c. Recommended sizing ……………..………………………………………………………………………………. 19 d. Control position adjustments ………………………..……………………………………………………………. 19 e. Brake lever height adjustments ………………………..…………………………………………………………. 19 f. Suspension fork adjustment ………………………..……………………….……………………………………. 19

8) Chapter 8: Tire, Tube, Wheel or Axle Repair ……………………………………………………………………… 20

a. Removing the rear motor wheel ………………………..………………………..………………………………. 20 b. Installing the rear motor wheel ………………………..……………………………………………………….…. 20 c. Removing and installing the front wheel ……………………..………………………………..……………..…. 21 d. Replacing a tube or tire …………...………………………………………………………………………………. 22

9) Chapter 9: Maintenance and Replacement ………...……………………………………………………………… 23

a. Keeping your bike clean ………………..………………..………………………..………………………………. 23 b. Avoid scratching your bike …………………..…………..………………………..………………………………. 23 c. Brake bed-in and adjustments ………………………………………..…………..………………………………. 24 d. Brake pad replacement ………………………………….………………………..………………………………. 25 e. Derailleur adjustments ………………………..…………………………….……..………………………………. 25 f. Wheel check ………………………………..……………..………………………..………………………………. 27 g. Lubricating ………………………..…………………………….…………………..………………………………. 27 h. Crankset …………………………………….……………..………………………..………………………………. 27 i. Pedals ……………………………………………………..………………………..………………………………. 27 j. Headset …………………………………..………………..………………………..………………………………. 27 k. Maintenance schedule …………………………….……..………………………..………………………………. 28

l. Torque specifications for common parts ……………....………………………..………………………………. 28

10) Chapter 10: Warranty Service and Repair …………………………………………………………………………. 29

a. 2 year limited warranty …………………………………..………………………..………………………………. 29 b. Registering your bike ……..…………………….………..………………………..………………………………. 30 c. Serial numbers and where to find them ………………..………………………..………………………………. 30 d. Registration card …………………..……………………..………………………..………………………………. 30 e. Part replacement procedure …………...………………..………………………..………………………………. 31 f. Contacting Prodeco Technologies ……………………..…………….…………..………………………………. 31

11) Chapter 11: Specifications …………………….………………………………...…………………………………… 31

12) Chapter 12: Parts ……………………………………………………..…….…………………………….…………… 32

OPERATIONAL INSTRUCTIONS

Chapter 1: Introduction

Prodeco Technologies thanks you for your purchase of your new Phantom X R. Your bicycle is a high quality and environmentally friendly light electric vehicle. This manual will serve to provide you with the information needed to operate, maintain and enjoy it safely. Your electric bicycle should provide you with years of healthy enjoyment provided you follow these steps.

For technical questions or customer service, please contact PRODECO TECHNOLOGIES at 800.943.6190 or e-mail us at service@prodecotech.com.

a) About this manual

To prevent serious injury to yourself and others, and to prevent damage to the bicycle please read and understand these instructions completely before operating your Prodeco Technologies Phantom X R. Your new bicycle is a powerful and reliable electric bicycle. You should use caution and care while getting accustomed to your bicycle’s riding characteristics. The following manual will provide basic instructions regarding your bicycle’s care and maintenance, battery management, operating procedures, and other important information. You should read it thoroughly before riding your new bicycle for the first time. If you have any questions that are not answered in this manual, contact your local authorized Prodeco Technologies dealer or you can call customer service at 800.943.6190.

b) Important notices

 Turn off the battery when your bicycle is not in use.  The battery must be removed when replacing a component or performing maintenance.  Make sure your electric bicycle is properly fitted to you as described in Chapter 5 “Basic Instructions” section a).  Perform the mechanical safety check described in Chapter 5 “Basic Instructions” section e) “Mechanical safety

check” before each ride.

 You should ride your Phantom X R as a traditional bicycle under pedal power prior to riding under motor power for the first

time. This will allow for the familiarization of how your Phantom X R rides and balances.

 When riding under power for the first time, twist the variable throttle very slowly only after pedaling to a slow speed to

understand the strength of the front motor’s performance and grip on the road surface.

 Always apply full front & rear brake lever pressure when attempting to mount or dismount the bicycle.  When attempting to mount or dismount the bicycle, the throttle red button should be in the off position (out) and the

battery switch pressed off.

 Please read the battery pack and detailed charging instructions found in Chapter 3 “Battery Management” before

charging the battery pack for the first time.

 You should fully charge the Li-ion battery according to the charging instructions before your first ride.

 You should always fully charge your Li-ion battery every 10 miles regardless of the amount of small trip distances.

 Always store the battery pack in a cool and dry place.  During periods of prolonged storage, the battery pack should be charged at least once every 4 months at a minimum of

60% or every 2 months at 40%. Do not charge higher than 60% when storing.

 Your Phantom X R can be ridden as a traditional bicycle; it is strongly recommended that you also assist with pedaling

when riding which can greatly increase the distance between battery charges.

 When riding under power, you can enhance distance in between charges by holding the throttle at 10% below full throttle.  When riding under power, add as much non-powered coasting (similar to traditional pedaling) by releasing the throttle and

allowing the bicycle to freely coast under its own momentum. This will greatly increase the distance between charges.

 Familiarize yourself with throttling (10% below full), pedaling and momentum coasting to optimize the distance being

available per charge. If planning a long trip, applying a combination of the 3 distance enhancing methods mentioned above will allow for an uninterrupted power supply for the entire ride.

c) General warning

Like any sport, bicycling involves the risk of injury and damage. By choosing to ride a bicycle, you assume the responsibility for that risk, so you need to know — and to practice — the rules of safe and responsible riding and of proper use and maintenance. Proper use and maintenance of your bicycle reduces risk of injury.

This Manual contains many “Warnings” and “Cautions” concerning the consequences of failure to maintain or inspect your bicycle and of failure to follow safe cycling practices.

WARNING: This image followed by the word WARNING indicates a potentially hazardous situation that,

if not avoided, could result in serious injury or death.

CAUTION: This image followed by the word CAUTION indicates a potentially hazardous situation, which,

if not avoided, may result in minor or moderate injury, serious, damage to the bicycle or the voiding of your warranty or is an alert against unsafe practices.

Many of the Warnings and Cautions say, “you may lose control and fall”. Because any fall can result in serious injury or even death, we do not always repeat the warning of possible injury or death. Because it is impossible to anticipate every situation or condition that can occur while riding, this Manual makes no representation about the safe use of the bicycle under all conditions. There are risks associated with the use of any bicycle which cannot be predicted or avoided, and which are the sole responsibility of the rider.

d) A special note to parents

The Prodeco Technologies Phantom X R is intended for use by adult riders only. Many state laws require electric bicycle riders to be a minimum age of 16 with some states having minimum ages set as low as 10 years old and other states up to 18 years old (at the time of the writing of this manual). As a parent or guardian, you are responsible for the activities and safety of your minor child including the following of your state and local laws in regards to the riding of an electric bicycle by a minor (under the age of 18). That includes, if your state allows a minor to ride, making sure that your minor child can safely ride and control all of the operations of the bicycle, and fully understands all warnings and cautions as indicated in this User Guide. Please read on if you have determined that your minor child can legally and safely ride and control all of the operations of the bicycle. That includes making sure that the bicycle is properly fitted to the child; that it is in good repair and safe operating condition; that you and your child have learned and understand the safe operation of the bicycle; and that you and your child have learned, understand and obey not only the applicable local motor vehicle, bicycle and traffic laws, but also the common sense rules of safe and responsible bicycling. As a parent or guardian, you should read and understand this manual. Before letting any child ride the Phantom X R or any of Prodeco Technologies electric bicycles, review with them all warnings and cautions; as well as the information on the proper usage of your battery pack, charger and bicycle. You must first confirm the laws, rules and regulations regarding electric bicycles in your state, city and local municipality.

WARNING: Make sure that your child always wears an approved bicycle helmet when riding; but also

make sure that your child understands that a bicycle helmet is for bicycling only, and must be removed when not riding. A helmet must not be worn while playing, in play areas, on playground equipment, while climbing trees, or at any time while not riding a bicycle. Failure to follow this warning could result in serious injury or death.

Chapter 2: Getting Started

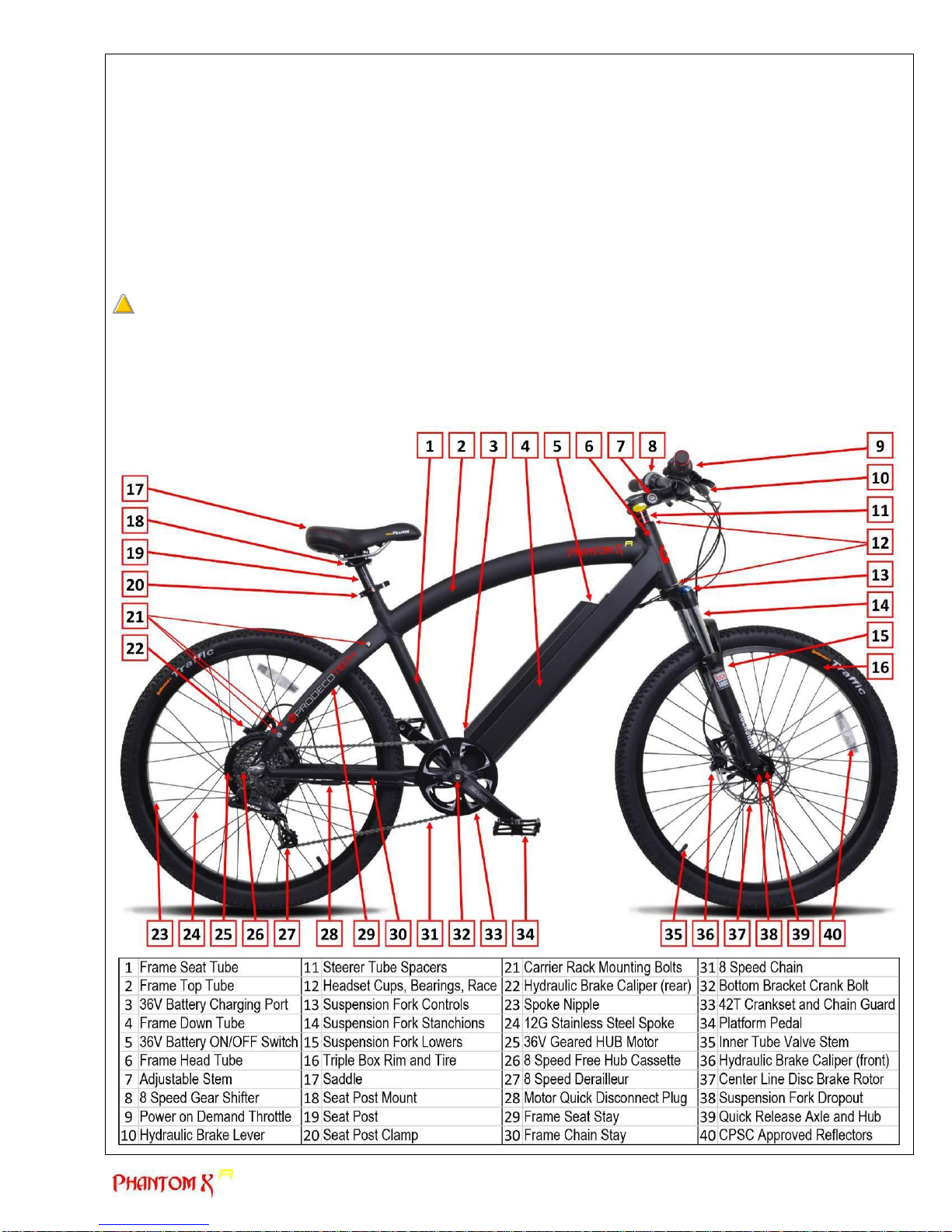

a) Familiarize yourself with your bicycle’s parts

b) Contents of the Box Check the contents of your box. Your new Phantom X R should include the following items in the box or your dealer should have included these items with your purchase:

 Phantom X R Bicycle  Velo Plush Saddle and Seat Post  ProdecoTech 36V 14Ah Li-ion Battery  ProdecoTech 36V 2A Li-ion Charger

 Two Battery Lock Keys  Full size hex keys (2.5, 3, 4, 5, 6 & 8mm)  Philips Head #2 Screwdriver  Torx T25 Driver

c) Registering your new bike For the warranty to take effect, you must register your new bicycle. Registration of your electric bicycle is the only way we can acknowledge and verify the established owner. Your bicycle has 3 individual and unique serial numbers (frame, motor and battery). Each serial number must be registered when filling out the registration form. The serial number on the frame is located under the crank/bottom bracket portion of the frame. The serial number for the motor is found on the motor’s side. The serial number for the battery is located on the barcode label adhered to the underside of the battery.

These numbers should be recorded and registered in case of warranty issues or theft. Please review Chapter 10 “Warranty Service and Repair” section c) “Registering your bicycle” how to register your Phantom X R. You can register by either filling out the online registration form at www.prodecotech.com/register-your-ebike/ or by sending the registration card found in Chapter 10 “Warranty Service and Repair” section d) “Registration card”.

CAUTION: If you have purchased your bicycle by mail order or through a sales channel whereas your new

Phantom X R is still in the box, it is recommended you read Chapter 5 “Basic Instructions” section i) “Before your first ride” prior to your first ride. There may be additional adjustments required due to shipping by the freight carrier.

d) Unpacking your box

Your Phantom X R arrives fully assembled in it’s box. It may require the front wheel, stem and seatpost to be installed. To install the front wheel, read the following section e) Installing the front wheel. The stem installation is detailed afterwards in section f) Installing the stem. You can learn how to insert the seatpost and adjust for your height in Chapter 5 “Basic Instructions” section b) “Adjusting the saddle”.

The Phantom X R has been tested and adjusted prior to being packageded. To remove the Phantom X R, open the top flap of the box and remove the protective top insert. Place one hand under the front portion of the frame and the other hand under the center of the frame. Pull up slowly and the bicycle will lift out of the box. Remove the additional inserts and set the bicycle down by balancing the bicycle on the opened kick stand and rear wheel. The kick stand also performs as a crankset protector.

e) Installing the front wheel The front wheel on the Phantom X R can be installed without tools. A quick release skewer through a hollow axle is utilized for easy and quick wheel installation. A quick release skewer is a rod that has a threaded acorn nut on one end and a cam lever assembly on the other end. The cam lever applies pressure and locks the axle in place.

When installing the wheel for the first time, you must first remove the plastic brake pad spacer as shown in the right side photo by pulling the spacer out. Follow these instructions to install the wheel:

1. Slide the wheel axle into the fork dropouts while aligning the wheel straight.

2. Install the axle quick release skewer. With the quick release fully open, tighten the acorn nut until a slight resistance. Confirm axle is fully seated in the fork’s dropout.

3. Once tightened, close the quick release lever with enough force to clamp and lock the axle into the dropouts. The force must be strong enough for the axle not to become loose. It should take some effort to close the lever but not so much that you are straining. Once closed, you should not be able to easily open the quick release lever.

4. Test to see if the quick release lever will open with 1 finger. If it opens, you must perform the previous step again until the quick release lever clamp is tight.

f) Installing and adjusting the handlebar/stem

The handlebar of the Phantom X R is shipped detached from the stem and temporarily secured to the frame with shipping ties. To install the handlebar and adjust the stem to a comfortable riding position, you will need to use the 4mm, 5mm and 6mm Hex Wrenches included with your bike. The 4mm is required to tighten the binder bolts, the 5mm will tighten the steerer tube bolts and the 6mm will allow you to adjust the angle of the stem.

Start by cutting the shipping ties to free the handlebar from the frame. Then place the center of the handle into the stem’s concaved center. Secure the handlebar clamp plate to the stem with the included 4mm hex wrench or preferably a torque wrench. There are 4 stem binder bolts which tighten the clamp plate to the stem. You will also want to rotate the handlebar to a comfortable riding position prior to the final tightening / torqueing of the stem binder bolts. The stem binder bolts require torqueing of a minimum 60 lb*in. The brake levers, throttle and shifter positions can be adjusted afterwards for proper control.

The stem’s angle can also be adjusted for rise. When adjusting the angle, the stem will rotate closer to the rider allowing for a more upright riding position. The angle adjustment bolt is torqued and tightened at the factory prior to shipping. If changing the angle of the stem, you must properly tighten this bolt afterwards. A loose angle adjustment bolt can become very dangerous during a ride if the stem drops from not being properly tightened. To adjust the angle of the stem, locate the adjusting bolt on the right side of the stem. Use the included 6mm hex key to loosen the adjustment bolt. Pivot the stem to the desired riding position and tighten the angle adjustment bolt. A torque wrench is suggested and the angle adjustment bolt should be tightened to 180lb*in.

The last bolt allowing for an adjustment is the stem’s steerer tube bolt.

To loosen or tighten this bolt, the 5mm hex key will need to be used. The steerer tube bolts grip and secures the stem around the fork’s steerer tube. To align the stem to the front wheel, the steerer tube bolts need to be loosened, the stem aligned and the bolts tightened. The steerer tube bolts require an 80lb*in torque.

WARNING: The handlebar controls will be rotated upwards

changing the angle of the stem. Loosen the 4 stem binder bolts and rotate the handlebar downwards to a preferred riding position. Tighten stem binder bolts to 60lbs*in.

CAUTION: The stem steerer, top cap and angle adjustment bolt

must be checked for tightness to ensure the handlebar stem will not loosen accidentally and either the handlebar does not turn the wheel or the stem angle falls upon riding. Failure to tighten can cause a rider to lose balance and may result in a fall.

g) Installing the pedals

Installation and removal of pedals is a fairly simple process with the included 6mm Hex Key wrench. The pedal axles are made of cromoly steel and the cranks arms are made of aluminum. Therefore, there is a possibility that the hard pedal threads may strip the soft aluminum threads. The important thing to remember is to line up the treads properly and never force the parts to move. The right drivetrain side pedal has regular threading. It turns clockwise as you tighten it and turns counter-clockwise as it is loosened. The left side pedal is the opposite. It turns counterclockwise as you tighten it and turns clockwise as it is loosened.

The Pedal spindles are marked with “R” for “Right” and “L” for

“Left”. The right pedal axle should be installed on the bicycle’s

right crank arm. Initially, gently install it with your hands turning the pedal axle toward the front of the bike. Once it is lined up and turned as far as you can turn it by hand on the crank arm, use the ProdecoTech hex tool / wrench to fully tighten the pedal. The hole for this tool will be in the end of the pedal axle.

Repeat the same process for the left axel. The left axel pedal also requires gentle turning toward the front of the bike. If the pedal doesn’t turn, don’t force it. Verify that you are installing the right pedal on the right side of the bike or the left pedal on the left side of the bike.

Chapter 3: Battery Management

a) About the battery

The Phantom X R’s battery cell system is composed of 50 x Samsung’s Highest Grade NCA 18650 Lithium Nickel Cobalt Aluminum Oxide (LiNiCoAlO2) Cells. These are the same type of cells found in Tesla EV’s. They offer high specific energy, good specific power and high number of charge cycles. To increase charge cycles to 1000 vs an industry average of 600, ProdecoTech reduce the charge cut off from 42V to 41V. Lithium cell degradation accelerates at the charging space of 95% to 100% and drastically reduced when lowered.

The battery is a removable device and can be charged on or off the bicycle. The battery is sealed and maintenance

free, you must never open the battery as this will void the warranty. Each battery has a specific serial number and barcode which can be found on the underside of the battery. Please read the warning labels on your battery and follow these instructions. If removing the battery to charge it, review section d) on how to remove your battery.

b) Charging the battery (SEE PHOTOS THIS AND NEXT PAGE)

You will need to charge your battery prior to powering the bike for the first time. The battery may be in hibernate state which could take over 8 hours for the initial charge. The managed charge is designed to extend the life cycles of the battery. The Battery Management System incorporates a Cell Balancing feature and the initial charge should not be rushed. Charge your battery as follows:

1. Confirm the battery is OFF (No LED Lights) by pressing the ON/OFF rubber panel switch at the top of the battery. The LED indicator lights may or may not come on depending on the state of the battery.

2. Lift the charging port rubber cover open at the bottom of the battery, exposing the DC 2.5mm Power Jack (charging port). There is also a 5v USB power source/communication port. Do not use the USB port other than to power a light or charge a cell phone. The USB 5V is for convenience and not guaranteed to power.

3. Plug the charger into a wall outlet and confirm the charger is OFF. The LED light on the charger will display as clear when OFF. When ON the light will display green and when charging, it will display red.

4. Plug the DC 2.5mm Jack into the battery charging port, confirming a tight connection.

5. Turn the charger ON via the ON/OFF switch located on the charger power cord. The charger light will display red as it starts charging. Upon being fully charged (up to 8 hours initially), the charger will light green.

6. Upon the battery being fully charged, turn the charger OFF via the ON/OFF switch located on the charger power cord. Disconnect the charger from the battery.

7. NEVER leave the charger connected to the battery upon the battery being fully charged. As the battery drains via the BMS (Battery Management System), the charger will continuously charge the battery. This is not good for lithium batteries and will decrease the life of the battery.

c) Installing the battery (SEE PHOTOS)

The Phantom X R’s battery mounts on the downtube of the bicycle from the left side. To mount the battery, you

would first slide the base of the battery into the frame’s lower docking mount (closest to the crankset) and then

move the battery sideways into the lock position. The battery will be a tight fit and ALWAYS confirm the battery is locked in place by pulling the top of the battery sideways. By pulling on the battery, this will assure the battery has locked into position. Review the photos and detailed explanation of how install the battery below.

The battery is secured in place at the base by a round elbow combined with a securing mount. At the top, the battery is secured by a spring loaded cylinder latch. It is IMPORTANT you ALWAYS confirm the battery is locked in place. Follow these instructions to install and lock the battery in place.

1. Confirm the battery is in the OFF position (No LED lights) by pushing the rubber panel switch at the top

of the battery.

2. Hold the battery parallel to the downtube opening, this is where the battery will mount.

3. Angle the bottom of the battery towards the frame’s lower docking mount.

4. Sit the battery base’s round elbow into the round concave space at the frame’s lower docking mount.

5. Slowly place the battery into position by moving the battery sideways, seating it into the frame’s

downtube.

6. Firmly push the side of the battery top to lock the battery in place. The spring loaded latch should have

locked the battery in place.

7. Confirm the battery is locked in place by pulling at the top of the battery as if you were going to remove

it. If the battery moves even the slightest amount, the battery is not locked in place. Remove and reinstall the battery if the battery did not lock in place.

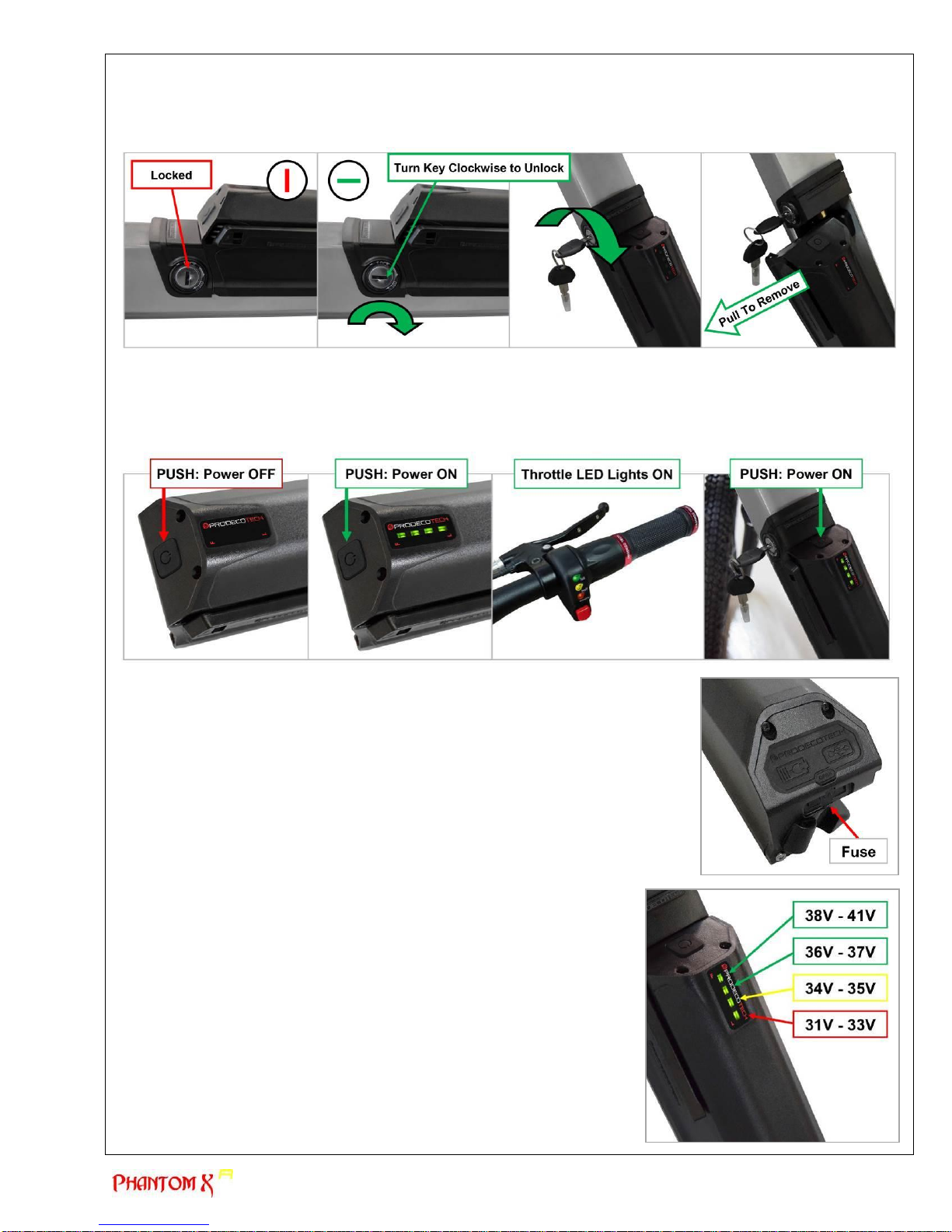

d) Removing the battery (SEE PHOTOS)

The battery locking system is a simple spring loaded latch. The latch (cylinder bolt) is controlled via a key lock

mounted on the left side of the frame’s down tube. When the lock’s keyhole is vertical (12 o’clock position), the

battery is locked in. When the keyhole is turned clockwise horizontally (3 o’clock position), the battery can then be released. Turn the key clockwise to release the spring latch and pull on the battery to remove.

e) Powering the battery ON / OFF (SEE PHOTOS)

The key to the Phantom XR is only to Unlock and Release the battery. The key does not power the battery ON or OFF. To power the battery ON or OFF, simply push the rubber panel switch at the top of the battery. The LED lights will come on and display battery capacity. If the battery is mounted on the bicycle, the Throttle LED lights will also light up. If the battery or throttle LED lights do not come on, charge the battery for a minimum of 8 hours as outlined in section b).

f) Battery Fuse

On the rare occasion the battery does not charge after 8 hours, the fuse or charger may need to be replaced. The fuse is an automotive 30A Blade fuse and located at the bottom side of the battery. (SEE PHOTO)

g) Storing the battery

The Li-ion battery the Phantom X R utilizes is the latest technology in Li-ion battery cells. It is recommended that you do not store the battery in hot conditions. If the bicycle is being stored indoors in a cool environment, the battery should be stored

on the bicycle in the “OFF” position. The battery should be kept away from fires or

sparks and also away from possible water damage. The battery is water resistant and not water proof. Avoid wet conditions such as rain or cover your battery in the rain. Store the battery in a cool dry place and charge to a maximum 80% every 90 Days.

h) Battery power indicator

The Phantom X R has a 3 LED light indicator on the handlebar throttle displaying the battery capacity available. The LED indicator on the throttle is explained in Chapter 4: Electrical Components, section c) “Throttle”. There is also an LED battery indicator on the battery itself. The indicator on the battery has 4 LEDs lights displaying 4 levels of remaining voltage. When pressing the Battery ON / OFF rubber panel switch at the top of the battery to the ON position, the indicator will light 1, 2, 3 or 4 LED lights according to the remaining voltage in the battery. 4 LED lights if 75% to full charge.

The voltage needed to power the motor is a minimum of 30V. When the battery is depleted to 30V, all LED lights will turn OFF and the battery will shut down. If only 2 LED lights remain, the battery is now at > 50% depletion and must be recharged.

i) Battery replacement

If your battery is no longer working properly and needs replacing, you can contact your local authorized dealer for a replacement or contact Prodeco Technologies directly. Contact service@prodecotech.com or call 800-943-6190 to discuss the issue and determine if it is the battery. It is very rare for the battery to have an issue in the first 2 years and there may be another situation with the bicycle rather than the battery if not powering properly. The battery is covered under warranty for the first 2 years of use. After 2 years, a replacement battery can be purchased by contacting your dealer or Prodeco Technologies. The battery part number and price can be found in Chapter 12.

j) Battery disposal

The battery that comes with your Phantom X R is recyclable. When the battery is no longer strong enough to power the bicycle, it may contain cells which could subsequently be utilized to power battery storage banks or used individually. The battery should be recycled and disposed of by the following means:

 Return the battery to your local authorized Prodeco Technologies dealer.  Return the battery directly to Prodeco Technologies.  Drop off to a local specialized battery service and sales center such as Batteries Plus™.  Dispose of the battery at your local city recycling facility.

Chapter 4: Electrical Components

The Phantom X R electric components were developed to be maintenance free with no serviceable parts. There are 5 components used to power your bicycle. Each component can easily be replaced by the average person with minimal mechanical skills. The design has been simplified so your local bicycle shop can service it without issue and minimal time. Please review the sections below on the electrical components used on your ProdecoTech bicycle and how to replace a component for a new one. Each electrical component is listed, except for the battery which was detailed in Chapter 3. Each individual component part number can be found in Chapter 12.

a) HUB motor

The HUB motor utilized on your Phantom X R is one of the most advanced e-bike HUB motors developed today. It is a high efficiency, high torque brushless planetary geared motor with a freehub spinning cassette spindle. The motor will spin freely, the same as a traditional bike hub, only engaging when the throttle is applied. You will be able to pedal and coast your bike the same as a traditional non-electric bike when choosing not to throttle.

The motor is held in place at the frame’s rear dropouts. The dropouts incorporate ProdecoTech’s uniquely designed stainless steel axle plates which have been specifically engineered to spread the torque of the motor through the dropout and rear stays. The stainless steel plates further act as safety devices strengthening the rear aluminum dropouts. When installing the motor, you must always install the axle plates.

The motor offers a nominal 600W of power at 36 Volts and a peak of 828W (1.1hp). The power is sufficient to move the bicycle and rider on flat surfaces at speeds up to twice what a typical rider pedals. Steep inclines may require pedaling by the rider to power over the incline as not to overheat the motor. It is highly suggested the rider pedals

along with the motor to enhance traveling distance even on flat surfaces. The motor is powered through a “Hall

Effect Sensor” approach. A “Hall Effect Sensor” motor is powered in multiple stator phases. As power is phased,

the motor stator rotates engaging the planetary gears and moving the bike forward. The Hall Sensors monitor the stators position. The axle of the motor is the spindle of the planetary gear system. The inside of the hub is lined with an inverted gear, spinning the motor forward.

A weatherproof connector at the motor connects the wiring harness to the motor. This connector is an 8 pin brass connector and designed to withstand the elements. If the motor needs to be replaced, the connector simply has to be unplugged for the motor to be removed as explained in Chapter 8, section a). When installing the motor, it is very important the connector is plugged properly or the motor will not power. There are 2 arrows, one on each end of the connector which must align. There is an additional line on the inside connector which must meet the edge of the outside connector when inserting for the motor to have a solid connection.

b) Brushless hall sensor controller

The Phantom X R motor requires a specific controller to produce the proper “Hall Sensor Effect” as described in the previous section. The controller is considered the brains of the bicycle and is located at the top of the down tube behind the top battery mount. It manages speed and pulls the correct amount of Amps from the battery to power the motor sufficiently based on the position of the throttle. The controller has been designed to be easily changed if an issue was to occur. To access the controller, you would need to remove the top of the battery mount with a Philips screwdriver. The controller has 3 unique connections: Motor, Throttle and Battery. You cannot make an error when connecting or disconnecting the controller due to the unique connections. The controller connects directly to the motor at the motor itself. See Chapter 8, section a) to disconnect the motor.

c) Throttle (SEE PHOTO)

The variable throttle included with all ProdecoTech bicycles has an On/Off button. The red button below the battery indicator on the throttle engages the power to the motor. The twist throttle was designed to allow you the ability to choose the riding speed and determine the amount of torque off the line. Similar to an automobile, the throttle mimics the depressing of the accelerator. The higher the speed, the less distance per charge (less distance per gas tank), the faster you accelerate off the line, the less distance per charge. If there are multiple stop and starts, this will also affect the range of distance per charge. It is recommended you become accustomed to your riding style and adjust the style depending on distance needed per charge. For example: if you are planning a short local trip, full throttle at takeoff and top speed will not be an issue due to your ability to be able to recharge the battery prior to the next trip. If you are planning a longer trip, 30-35 miles or more, it is suggested you add pedaling, hold throttle back 10% and whenever possible allow the bicycle to coast under no throttle power. Coasting under no power is similar to riding a traditional pedal powered bicycle. When riding, a rider will pedal for a few seconds and then stop pedaling, allowing the bike to coast with no power being used. This will greatly enhance your distance between charging.

The throttle incorporates an LED battery indicator to assist the rider with determining the amount of charge left in the battery. You should also understand the LED indicators react according to load. There is 1 Green LED, 1 Yellow and 1 Red LED. If the Green LED no longer lights while the bike is not being powered, it is time to recharge the battery. The Green LED does not always represent a fully charged battery though. For example, the Green LED may be lit until a steep incline. As you ride up the incline, you may notice the Green LED will dim as the motor increases the pulling of Amps from the battery. Depending on the load being placed on the motor and/or grades of incline, the green LED dimming represents the accurate battery capacity. Upon the Green LED no longer being lit during riding, particularly under no load, the battery should be charged prior to the next ride. If the Green LED is dimming under light loads, the battery could be under 50% capacity and should be charged. After multiple rides and charges, you will become familiar with the distance per charge available based on your riding style and terrain. For rides close to home with nominal pedaling needed, you should attempt to fully discharge your battery to enhance your understanding on distances per charge.

Chapter 5: Basic Instructions

a) Bicycle fit

It is very important your Phantom X R is properly adjusted for comfort and to avoid the possibility of losing control while riding. The saddle and handlebar have adjustments available to accommodate riders from 5’ 6” to 6’ 6”. There are saddle height, saddle angle, saddle distance to steering tube, handlebar height and angle adjustment. If you plan to use your electric bicycle also as a traditional pedal bicycle, it is recommended you adjust the saddle height to allow for a full leg extension when pedaling. The ball of your foot when resting on the pedal should only allow for a slight bend at the knee when seated. Please review the following points and subsequent sections in determining how to make the correct adjustments.

1) Is your bike adjusted to your size?

2) To check, see Chapter 7 “Perfect Fit and Ride”. If your bicycle is not properly adjusted for you, you may lose control and fall.

3) Is the saddle at the right height? To check, see Chapter 7 “Perfect Fit and Ride” section a) “Stand over height”.

4) Are saddle and seat post securely clamped? A correctly tightened saddle will allow no saddle movement in any direction. See Chapter 5 “Basic Instructions” section b) “Adjusting the saddle” for details.

5) Are the stem and handlebars at the right height for you? To check, see Chapter 7 “Perfect and Ride” section d)

“Handlebar height and angle”. If not, see Chapter 2 “Getting Started” section f) “Installing and adjusting the handlebar stem”.

6) Can you comfortably operate the brakes? If not, you have the ability to adjust their angle and reach. See Chapter 7 “Perfect

Fit and Ride” section e) “Brake lever height adjustments” for details.

7) Do you fully understand how to operate your new bicycle? If not, before your first ride, have your dealer or contact us to

explain any functions or features that you do not understand after fully reading this manual.

b) Adjusting the saddle

You have the ability to adjust the height of your saddle instantly via the quick release clamp. There is also the ability to angle the nose of the saddle up or down and adjust your riding position to be further or closer to the handlebar. The latter two require the use of the hex key tools included with the purchase of your Phantom X R. Please review the following details on adjusting your saddle.

To adjust the height of the saddle or remove the seat post, no tools are required. The quick release lever is opened by pulling the lever away from the seat tube allowing for the seat tube clamp to loosen the grip around the post. This will allow you to raise or lower the saddle to the desired height. There is a minimum insertion line on the seat post which must be followed and you must not extend the seat post past this mark. It is also important the seat tube clamp is tightened sufficiently around the seat post for it not to slide downwards after the quick release lever is closed. This can be accomplished by tightening the quick release nut clock wise which is located on the

opposite end of the quick release lever. WARNING & CAUTION (next page)

WARNING: The seat post includes a minimum insertion mark. It is important you do not allow the seat

post to be clamped below this mark. This mark must be inserted into the frame pass the top of quick release clamp. If clamping below this mark, it can cause the seat post to break, failure to follow this warning could result in serious injury or death.

CAUTION: The seat tube quick release clamp must be checked for tightness to ensure the saddle will not

accidentally slide into the seat tube when riding. This can cause a rider to lose balance and may result in a fall.

To tilt the nose of your saddle upwards or downwards, you will need to use the 5mm hex key included with your multi-use tool kit that came with your bicycle. The saddle mounting clamp attaches the saddle to the seat post via a front and rear barrel nut and bolt. To bring the nose of the saddle down, loosen the rear bolt by 1 full counter clockwise rotation and tighten the front bolt by 1 full clockwise rotation. Check for comfort and if the nose is still too high, attempt the above step again. Continue to adjust by repeating the step above until the desired nose height is established. If you prefer to raise the nose, you can follow the above step but in the opposite direction (loosen the front bolt counter clockwise 1 rotation and tighten the rear bolt clockwise 1 rotation). All bolts should be tightened to 140 in*lb. (SEE PHOTO)

CAUTION: The saddle mount barrel nuts and bolts must remain tight at

all times. Test saddle for looseness or play in the rotation of the nose. If saddle is loose, tighten the clamp bolts to ensure the saddle will not accidentally rotate up or down when riding. Both bolts should be tightened to 140 in*lb. If loose, this can cause a rider to lose balance and may result in a fall.

Your saddle can be adjusted to be closer or further away from the steering tube/handlebar (you will need to use the 5mm hex key included with your multi-use tool kit). This adjustment is minimal but allows a 7.5mm adjustment in either direction from center mount (15mm total, close to 5/8”). To adjust the saddle closer or further, you must loosen the rear and front barrel nut and bolt set which connects the saddle rails to the saddle mounting clamp located at the top of the seat post. Loosen both bolts by rotating 2 times counter clockwise each. This should allow for sufficient looseness to slide the saddle rails in either direction on the saddle mounting clamp. You must not allow the edge of the saddle mounting clamp to meet with the saddle rail bends. The edge of the clamp must be a minimum of 5mm from the saddle rail bends. Upon establishing the correct position, tighten the saddle mounting clamp bolts 2 times in clockwise direction. Check for tightness of bolts and continue turning if loose. All bolts should be tightened to 140 in*lb. (SEE PHOTO)

CAUTION: The edge of the saddle mounting clamp must have a minimum of 5mm of clearance from the

saddle rail bends. If the edge of the clamp is mounted to close the saddle rail bends and the rider does not position themselves properly on the saddle, this could result in the rails becoming unstable due to the leverage of the riders weight. The rails can bend and can cause a rider to lose balance and may result in a fall.

c) Your local electric bicycle and bicycle laws

Your new Phantom X R was designed to follow the federal guidelines to establish the Phantom X R as a traditional pedal power bicycle within most USA states and to be allowed to ride in bicycle pathways. However, electric bicycle laws change often and you are responsible to confirm legal status of the riding of your electric bicycle in bicycle pathways. Below is a reference section on the USA electric bicycle federal guidelines:

Electric Bicycle Laws (please contact your local transportation department for the specific laws in your state and city regarding riding electric bicycles on bike pathways)

Prodeco Technologies offers the following information as guidance and does not guarantee or assure riders they are following the rules and regulations of their state.

Electric bicycle laws may vary by state to state with most states following the classification of that by the CPSC (Consumer Product Safety Commission), DOT & NHSTA. Further, the US NHSTA (National Highway Traffic Safety Administration) defines low-speed electric bicycles (under 20mph) also as consumer products and not Motor Vehicles for safety standards. The NHSTA adheres for the most part to the CPSC guidelines. We included reference below on how electric bicycles are perceived by the Federal Government’s most important agencies. We do believe new regulation and rules will apply in the future upon the electric bicycle becoming one of the standard forms of transportation for the masses. Prodeco Technologies will continue to follow new rules and guidance set forth by these agencies, always welcoming and adhering to the guidelines they feel are required to assure safety for the electric bicycle rider.

On October 22, 2008, the Federal Highway Administration (FHWA) updated the Bicycle and Pedestrian Provisions of Federal Transportation Legislation to make technical corrections and clarifications.

Below are the important updates reflecting electric bicycles: Motorized Vehicle Use: In general, motorized vehicles are not permitted on non-motorized trails and pedestrian walkways funded under Title 23. Exceptions to this general rule exist for maintenance vehicles; motorized wheelchairs; when State or local regulations permit, snowmobiles; and electric bicycles (weighing under 100 pounds and a top speed of less than 20 miles per hour); "and such other circumstances as the Secretary deems appropriate" (except the Recreational Trails Program which specifically provides funds for motorized trails). In 2008, FHWA developed a Framework for Considering Motorized Use on Nonmotorized Trails and Pedestrian Walkways to implement the "other circumstances" provision.

Prodeco Technologies only offers electric bicycles that fall under the category of “weighing under 100 pounds and a top speed of less than 20 miles per hour”. According to the DOT and NHSTA, Prodeco electric bicycles meet the exception of Motorized Vehicles and therefore can be ridden on non-motorized trails and bike paths permitting state and local laws.

Framework for Considering Motorized Use on Non-motorized Trails and Pedestrian Walkways under 23 U.S.C. § 217

The purpose of this document is to provide guidance to Federal Highway Administration (FHWA) division offices and a consistent framework for determining when to permit an exception for motorized use on non-motorized trails and pedestrian walkways under 23 U.S.C. § 217(h)(5). The relevant legislation reads as follows: 23 U.S.C. § 217. Bicycle Transportation and Pedestrian Walkways (h) Use of Motorized Vehicles.--Motorized vehicles may not be permitted on trails and pedestrian walkways under this section, except for-- (1) maintenance purposes; (2) when snow conditions and State or local regulations permit, snowmobiles; (3) motorized wheelchairs; (4) when State or local regulations permit, electric bicycles; and (5) such other circumstances as the Secretary deems appropriate. (j) Definitions.--In this section, the following definitions apply: (2) Electric bicycle.--The term "electric bicycle" means any bicycle or tricycle with a low-powered electric motor weighing under 100 pounds, with a top motor-powered speed not in excess of 20 miles per hour. (4) Wheelchair.--The term "wheelchair" means a mobility aid, usable indoors, and designed for and used by individuals with mobility impairments, whether operated manually or motorized.

The above 23 U.S.C. § 217 offers direction that the Prodeco Electric Bicycles are allowed on bike-paths (non-motorized trails) due to Prodeco electric bicycles falling under the classification of less than 100 pounds and under 20 mph.

HR 727 SECTION 1, CONSUMER PRODUCT SAFETY ACT

The Consumer Product Safety Act (15 U.S.C. 2051 et seq) is amended by added at the end of the following: LOW-SPEED ELECTRIC BICYCLES

SEC. 38.(a) Notwithstanding any other provision of law, low-speed electric bicycles are consumer products within the meaning of section 3(a)(1) and shall be subject to the Commission regulations published at section 1500.18 (a)(12) and part 1512 of title 16, Code of Federal Regulations. (b) For the purpose of this section, the term `low-speed electric bicycle' means a two or three-wheeled vehicle with fully operable pedals and an electric motor of less than 750 watts (1 h.p.), whose maximum speed on a paved level surface, when powered solely by such a motor while ridden by an operator who weighs 170 pounds, is less than 20 mph. (c) To further protect the safety of consumers who ride low-speed electric bicycles, the Commission may promulgate new or amended requirements applicable to such vehicles as necessary and appropriate. (d) This section shall supersede any State law or requirement with respect to low speed electric bicycles to the extent that such State law or requirement is more stringent than the Federal law or requirements referred to in subsection (a).

SEC. 2. MOTOR VEHICLE SAFETY STANDARDS. For purposes of motor vehicle safety standards issued and enforced pursuant to chapter 301 of title 49, United States Code, a low-speed electric bicycle (as defined in section 38(b) of the Consumer Product Safety Act) shall not be considered a motor vehicle as defined by section 30102(6) of title 49, United States Code.

Local Bicycle Laws

Most states have their own set of bicycle laws regarding traditional pedal powered bicycles. With most states recognizing electric bicycles as traditional pedal powered bicycles you must learn the applicable laws in your area. Your Department of Transportation or Cycle Clubs in your area will have the details involving riding a bicycle in your area and your city’s bike pathways. Requirements for riding will change depending on location. Most cities requiring LED lights, hand signals, riding on the correct side of the road, riding behind and not parallel to other cyclist, etc…

d) Safety first

It is important you follow your local bicycle laws but also it is important you ride safely. Below are examples of understanding how to ride your new Phantom X R safely. Always wear an approved helmet when riding your bike, and follow the helmet

manufacturer’s instructions for fit, use and care of your helmet.

 Do you have all the other required and recommended safety equipment for your area? It’s your responsibility to

familiarize yourself with the laws of the areas where you ride, and to comply with all applicable laws.

 Do you know how to correctly check your wheel axle nuts? Do you understand proper braking techniques? Is your

saddle properly adjusted? How do you power your new electric bicycle? These are all questions you should have the answers to prior to riding for the first time. This USER GUIDE will answer most of the questions you have in regards to your new bicycle and assist you in ensuring your electric bicycle remains safe to ride. You should first read the USER GUIDE in its entirety and familiarize yourself with your new bicycle prior to riding.



 For further safety guidelines, please read Chapter 6: Safety



e) Mechanical safety check

Check the condition of your bicycle before every ride.

 Frame and Fork: Do a detailed visual inspection and make sure there is no frame damage or fractures. View the

welds and tubes for any fracturing, cracks, gouges or damage. Pay close attention to the welds including axle dropout welds. Check the fork for damage including the crown and bridge

 Nuts, bolts and straps: Make sure nothing is loose. Lift the front wheel off the ground by two or three inches then

let it bounce on the ground. Anything sound, feel or look loose? Do a quick visual and tactile inspection of the whole bike. Are there any loose parts or accessories? If so, secure them. If you’re not sure, ask someone with bike experience to check.

 Tires and Wheels: Make sure tires are correctly inflated, see Chapter 8. Check by putting one hand on the

saddle, and the other on the intersection of the handlebars and stem, then bounce your weight on the bike while looking at tire deflection. Compare what you see with how it looks when you know the tires are correctly inflated; and adjust if necessary. Are the tires in good shape? Spin each wheel slowly and look for cuts in the tread and sidewall. Replace damaged tires before riding the bike. Spin each wheel and check for brake clearance and side-to-side wobble. If a wheel wobbles side to side even slightly, or rubs against or hits the brake pads, take the bike to a qualified bike shop to have the wheel trued.

 Brakes: Check the brakes for proper operation. Squeeze the brake levers. Are the brakes properly releasing? All

control cables and hoses seated and securely engaged? Do the disc brake pads grasp the rotors within an inch of brake lever movement? Can you apply full braking force at the levers without having them touch the handlebar? If not, your brakes need adjustment. Do not ride the bike until the brakes are properly adjusted.

 Quick Releases: Make sure seat post, rear axle and frame quick release levers are properly adjusted and all are

in the locked position.

 Handlebar and saddle alignment: Make sure the saddle and handlebar stem are parallel to the bike’s center line,

clamped and bolts tightened enough so that you can’t twist them out of alignment. If not, align and tighten them.

 Handlebar ends: Make sure the left handlebar grip and right throttle grip are secure and in good condition. If not,

replace them.

 Battery Pack Attachment: When attaching the battery, always confirm your battery is firmly attached to your

bicycle before riding. To test the battery attachment, pull sideways at the top of the battery. If attached properly you will not be able to move the battery even the smallest amount. If not, the battery pack may fall off the bike.

CAUTION: The braking of your bicycle is one of the highest concerns in safety. Proper brake lever

mounting and adjustment is crucial for your brakes to work properly.

WARNING: All Quick release levers must be closed and the clamps or axles tight. One loose quick

release lever can cause the rider to lose control and cause serious injury or death.

WARNING: Loose or damaged handlebar grips or extensions can cause you to lose control and fall.

Unplugged handlebars can cut your body, and can cause serious injury in an otherwise minor accident.

f) Riding an electric bicycle

Riding an electric bike is similar to riding a non-electric bike but there are some differences to note. An electric bike is slightly heavier and requires more time to stop due to higher traveling speeds. Your bike is also equipped with a powerful motor that provides a boost noticeable when starting from a stop. The boost is exhilarating, but you must be comfortable with the sensation before riding in crowded or congested areas. To maximize battery life, assist with pedaling, engage throttle to 90% or less and add considerable coasting with no throttle to your riding. Your battery is a finite resource and proper riding techniques will prolong its distance per charge.

g) Safe riding in various conditions

Riders may find themselves riding in a condition they did not plan on encountering. It is important your new Phantom X R is maintained properly for optimum performance. Please read Chapter 9 on the details required to

keep your electric bicycle at its best. An unexpected rain storm, snow flurry or night ride could arise during a day’s

trip and you should always be prepared. Please read Chapter 6 on Safety, so upon encountering an unexpected riding condition, you will be confident and ready.

h) Watching for obstacles around you

Your new Phantom X R travels at higher speeds than most riders are accustomed to, when compared to pedaling a traditional bicycle. It is very important you are aware of your surroundings and obstacles which may appear near you. You must watch the road surface you are traveling on which could cause the tires to slip or cause a flat. Examples are soft shoulders, rocks, pot holes, uneven paths, grates, construction sites. Due to the higher rate of speed when riding under motor power versus pedaling, objects will advance into your path at a faster rate. Pay attention to other riders in your area, automobiles, motorcycles, pedestrians, poles, intersections and road signs to name a few. The Phantom X R resembles a traditional bicycle and people walking, driving or standing may not realize you are on a motor powered vehicle and misjudge your traveling speed.

WARNING: Hitting a pot hole, soft shoulder or other road deviation may cause you to lose control, be

thrown and cause serious injury or death.

i) Before your first motorized ride

Before your first ride study this manual in its entirety. Make sure you are comfortable and confident when sitting on the bicycle. If an adjustment does not feel right or something feels loose, check to ensure you are properly fitted to the bike and do a mechanical safety check as explained in the previous section e). Make sure you fully charge your battery with the appropriate charger included with your bicycle. Be sure to firmly attach the battery to the bicycle. Try to pull the battery off the bike to confirm proper installation. Read Chapter 3, section c) again.

j) First motorized ride

When you buckle on your helmet and go for your first familiarization motorized ride on your new bicycle, be sure to pick a controlled environment, away from cars, other cyclists, obstacles or other hazards. Ride to become familiar with the brake levers against throttling, variable throttle performance while pedaling your new bike and not pedaling. The first motorized ride should be initially pedaling and then slowly pressing down on the throttle to feel the engagement of the HUB motor. Familiarize yourself with the sensation of power.

 Familiarize yourself with the braking action of the bike. To test the brakes at slow speed, shift your weight toward

the rear and gently apply the brakes, rear brake first. Sudden or excessive application of the front brake could pitch you over the handlebars. Applying brakes too hard can lock up a wheel, which could cause you to lose control and fall, review section l) Using your brakes.

 Your bike has a front suspension system, familiarize yourself with how the suspension responds to braking

application and rider weight shifts.

 Check out the handling and response of the bike; and check the comfort.  If you have any questions, or if you feel anything about the bike is not as it should be, take the bike back to your

dealer for advice or contact Customer Service at Prodeco Technologies.

k) Using your twist throttle

The variable throttle on your Phantom X R was designed to allow you the ability to choose the speed to ride at and determine the amount of torque off the line. The throttle operates similar to an automobile; the twisting of the throttle mimics the depressing of the accelerator. The throttle is located on the right side grip and considered a half twist throttle. It is a half twist, as only the inside portion will twist to power the bicycle. The grip itself will not twist. Using you forefinger and thumb, you can safely twist the throttle to propel the bike forward. A half twist throttle is used to avoid accidentally twisting the full grip when mounting and dismounting the bicycle. Your throttle also includes a Power ON and Power OFF button. It is the red button located underneath the LED lights. Depressing the button in activates the throttle and pressing the button out will deactivate the throttle. The ON / OFF button is for further safety. There is also an LED set of lights which assist in determining the amount of battery storage capacity remaining. This is discussed in further detail later in the manual. Throttling is an important factor with any electric bicycle and the distance of traveling available per charge. The higher the speed, the less distance per charge, the faster you accelerate off the line, the less distance per charge. If there are multiple stops and take offs, this also affects the range of distance per charge. It is recommended you become accustomed to your style of riding and adjust the style depending on distance needed per charge. For example: if you are planning a short local trip, full throttle at takeoff and top speed will not be an issue due to your ability to be able to recharge the battery prior to the next trip. If you are planning a longer trip, 10-15 miles or more, it is suggested you add pedaling, hold throttle back 10% and whenever possible allow the bicycle to coast under no power. Coasting under no power is similar to riding a traditional pedal powered bicycle. When riding, a rider will pedal for a few seconds and then stop pedaling, allowing the bike to coast with no power being used. This will greatly increase your distance between charging.

l) Using your brakes

Your Phantom is equipped with a high performance Avid hydraulic disc brake system. The hydraulic front and rear

disc brakes allow your new Phantom to stop quickly and accurately. Larger than industry average Avid HS “Heat

Shedding” stainless steel disc rotors were utilized for their increased heat dissipation. One of the great features

associated with hydraulic brakes is no pad adjustments. Once the calipers are properly installed, there are no further adjustments required as the pads wear. When properly mounted, the Phantom high performance disc brake system offers tremendous stopping power. Prior to leaving the factory, the Phantom brakes were properly mounted and tested. Disc brakes however do require a bed-in process which occurs naturally after 20-40 stops. It can be sped up by following the bed-in guidelines detailed in Chapter 9 “Maintenance and Replacement”, section c) “Brake pad bed in”. When braking, both brake levers should be applied simultaneously. Your left brake lever manages your front brake and your right brake lever manages your rear brake. You should become accustomed to the stopping power of each brake (front & rear). Test each brake separately in a controlled environment for their ability to stop the bicycle. Front brakes when locked can cause the rear wheel to come off the ground and the rider can be thrown off the bicycle. In emergency situations, apply pressure to each brake lever, shift your weight to the back of the bicycle and only attempt to use full force on the front brakes when the bicycle is not stopping quickly enough. Always keep a safe distance between other vehicles, pedestrians and other riders.

WARNING: Locking the front wheel during braking can cause the rear wheel to lift off the ground and

throw the rider off the bicycle. Both brake levers should be applied simultaneously. In an emergency situation shift your weight to the back of the bicycle. Locking the front wheel can cause the rider to lose control, be thrown off the bicycle and cause serious injury or death.

m) Pedaling

Pedaling your Phantom X R is the same as pedaling a traditional bicycle. It is recommended you add pedaling to the power of the bicycle to enhance the distance per charge. The Phantom X R is a 8 speed bicycle and has the ratio of a 42T front chain ring (sprocket) against a 11-32T rear freewheel which is designed to offer an easy pedaling pace at any speed from 1 MPH to 20 MPH. It is recommended on steep inclines, the rider utilizes the throttle to assist in powering the bicycle up the incline and simultaneously drop the bicycle to a lower gear. If a rider’s style of riding is throttle only with no pedaling, distance per charge will be decreased on a steep incline, the rider is required to assist the motor by pedaling to power up the incline.

n) Shifting gears (SEE PHOTO)

The shifting of gears is required to change the ratio of the rotation of pedaling to allow more or less torque and lower or higher speeds according to one complete rotation of the crank set. If requiring more torque, you will shift to a larger rear sprocket for a higher rotation of pedaling to a lower speed of the rear wheel. To switch to a larger rear sprocket, you will need to shift to a lower gear. Gear 1 is the largest sprocket which is 32 Teeth and your lowest gear. One full crank rotation creates a 1.3 turns of the rear wheel. For higher speeds from less rotation of the crankset on flat pathways, you will shift to a smaller rear sprocket for a higher wheel rotation to a lower crankset speed. To shift to a smaller sprocket, you will need to shift to a higher gear. Gear 8 is the smallest sprocket with 11 Teeth and your highest gear. One full crank rotation creates a 3.8 turns of the rear wheel.

Chapter 6: Safety

The manual has detailed safety riding methods. In this chapter we will further discuss additional safety guidelines.

a) The basics

Below is a safety guideline according to the CPSC (US Consumer Product Safety Commission) in regards to riding a bike.

 Always wear a helmet to help prevent head injuries.  Observe all traffic laws and signals, just as automobiles must do.  Don’t ride double or attempt stunts.  Ride near the curb in the same direction as traffic.  Find alternate routes, rather than ride through busy intersections and heavy or high-speed traffic.  Walk -- don't ride -- your bicycle across busy intersections and left turn corners.  Avoid riding in wet weather. When wet, handbrakes may require a long distance to stop.  Avoid riding in the dark. If you do, be sure the bike is equipped with a headlight, a taillight and reflectors.

Apply retro-reflective trim to clothing, or wear reflective vests and jackets.

 Avoid loose clothing or long coats that can catch in pedals or wheels. Leg clips or bands keep pants legs

from tangling in the chain.

 Avoid crossing raised sewer grates.  Regular maintenance is essential for safe riding. Refer to the maintenance recommendations. If you do not

have basic mechanical skills, an authorized dealer should perform repairs and maintenance.

 Align (or "true") wobbly wheels for better control. Spokes also may need adjustment.  Replace all missing, damaged, or worn parts; for example, brake pads, chainguards, chain links, spokes,

screws and bolts, handlebar grips.

 Tighten and/or adjust loose parts.  Periodically inspect frame, fork, spindles and other components for cracking.  Parts should be adjusted to manufacturer's torque specifications.  Inflate tires to recommended pressure, and replace worn tires.  Lightly oil and clean moving parts. Keep oil off rubber.  Keep bicycle indoors when not in use.

b) Riding safety

Below are guidelines according to the NHSTA (National Highway and Traffic Safety Administration) on bicycle safety.

 Protect Your Head: Wear a Helmet - Never ride a bicycle without wearing a properly fitted helmet. Helmets are

proven to be 85-88 percent effective in preventing traumatic brain injury, the primary cause of death and disabling injuries resulting from cycling crashes. Wear a helmet that meets the U.S. Consumer Product Safety Commission (CPSC) standard (see inside of helmet for presence of a label).

 Assure Bicycle Readiness: Ensure Proper Size and Function of Bicycle - Make sure the bicycle fits you: Stand

over the top of the Phantom X R bicycle – there should be minimum 3 inches of clearance from the frame bar. Seat height — as previously mentioned, with the ball of your foot on the pedal, the fully extended leg should have a slight bend. Check all parts of the bicycle to make sure they are secure and working well: The Handlebar should be firmly in place and turns easily. The wheels must be straight and secure; the quick release rear axle must be secured.

 Stop It: Always Check Brakes Before Riding - Always control your speed by using your brakes. Apply the rear

brake slightly before the front brake. Always keep your brakes adjusted. If you cannot stop quickly, adjust your brakes. Review Chapter 9 “Maintenance and Replacement” section c “Brake adjustments” to adjust the brakes. When your hand brake levers are fully applied, they should not touch the handlebars. Ride slowly in wet weather and apply your brakes earlier, it takes more distance to stop.

 See and Be Seen - Wear clothes that make you more visible. Always wear neon, florescent, or other bright colors

when riding a bicycle.

 Avoid Biking at Night - It is far more dangerous to bicycle at night than during the day. The Phantom X R requires

LED lights for night time riding. If you must ride at night, you should also do the following: wear retro-reflective clothing or material, not just white or florescent, especially on your ankles, wrists, back, and helmet. Only ride in areas familiar to you. Brightly lit streets are best. Always assume you are not seen by a driver. Children should NOT ride at night.

 Go With the Flow: The Safe Way is the RIGHT Way - Ride on the right side in a straight, predictable path. Always

go single file in the same direction as other vehicles. Riding against traffic puts you where motorists don't expect you. They may not see you, and may pull across your path, or turn into you.

 Check for Traffic: Always Be Aware of the Traffic Around You - Over 70 percent of car-bicycle crashes occur at

driveways or other intersections. Before you enter any street or intersection, check for traffic. Always look left-right-left, and walk your bicycle into the street to begin your ride. If you are already in the street, always look behind you for a break-in traffic, then signal before going left or right. Watch for left or right turning traffic.

 Learn Rules of The Road: Obey Traffic Laws - Bicycles are considered vehicles. Bicyclists must obey the same

rules as motorists. Read your State drivers handbook, and learn and follow all the traffic signs, laws, and rules for operating a vehicle on the road. Always signal your moves. Be courteous to pedestrians and other vehicle operators. Never wear headphones while riding as they impair your ability to hear traffic. Become familiar with the accommodations that are available for bicyclists in your area. These include bicycle lanes and routes as well as offroad paths. Take advantage of these whenever possible.

 “Drive” with Care: Share the Road - When you ride, consider yourself the driver of a vehicle and always keep

safety in mind. Choose to ride in the bike lane, if available. If the roadway or bike lane is wide, ride to the right; if the lane is narrow, you may choose to ride in the middle of the lane. Take extra precautions when riding on a roadway. Bicycles are smaller than automobiles, and don’t protect the operator like an automobile. You should: Make eye contact, smile, or wave to communicate with motorists. Courtesy and predictability are a key to safe cycling; be considerate and aware of motorists and pedestrians. Learn to anticipate their actions. Remember, pedestrians have the right of way; Ride far enough away from the curb to avoid the unexpected from parked cars (i.e. opening doors or drivers pulling out without checking); Keep control of your bicycle: look behind you while maintaining your bicycle in a straight path; be able to ride with one hand on the handlebars and signal a turn. (Practice these skills in a parking lot); Always look over your shoulder, and if possible, signal before changing lanes; Make sure that books, clothes, and other items are securely attached to the bicycle or carried in a backpack; and Use bells, horns, or your voice to alert pedestrians and bicyclists that you are approaching or passing.

 Stay Focused: Stay Alert - Never wear headphones; they hinder your ability to hear traffic. Always look for

obstacles in your path (potholes, cracks, expansion joints, railroad tracks, wet leaves, drainage grates, or anything that could make you fall). Before going around any object, scan ahead and behind you for a gap in traffic, signal your intentions to move, and then follow through with your intentions. Be aware of the traffic around you. Ride defensively. Use extra care when riding in wet weather, ice, frost, or snow. Slow your speed and allow extra time and space to stop. Use extra care when crossing bridges which are extra slippery under wet conditions. Use caution when crossing a railroad track; cross tracks at a 90-degree angle and proceed slowly.

c) Wet weather riding

Whenever possible, you should avoid riding your bicycle in the rain. Riding a bicycle in the rain is like driving a car in the snow. You will not be able to stop as fast and must leave a larger distance between you and the obstacles around you. Your brakes will not work as efficiently when they are wet. You will not be able to turn as sharp without the danger of slipping. You must also ride away from or be cautious around painted lines, pot holes, sewer or drain grates, rail road crossings, bridges, wet leaves and any other area where a slippery surface can appear with water. Keep an eye out for puddles and turn your lights on if you have them. If you live in an environment where rain riding is expected, you should install front and rear fenders if you have not already done so. Use a cover for your bicycle if leaving it outdoors. Extensive rain can seep into the motor, controller, throttle and battery and cause water damage.

d) Reflectors

The CPSC (US Consumer Product Safety Commission) requires front, rear, wheel and pedal reflectors. Your Phantom X R

includes federal regulated reflectors and they should not be removed. If needing to be replaced, replace them with authorized ProdecoTech reflectors or reflectors approved by the CPSC.

e) Night riding

Almost anywhere in the world today, bicycle night riding requires front and rear lights on your bicycle. You must install front and rear lights if you plan on riding at night. Check your local laws on what is required for night riding. Always wear retro-reflective clothing or material, not just white or florescent, especially on your ankles, wrists, back, and helmet. Only ride in areas familiar to you. Brightly lit streets are best. Always assume you are not seen by a driver. Children should NOT ride at night.

f) Adding accessories

When adding accessories to your bicycle you must check to confirm they do not lower the safety value of your bicycle. Prodeco Technologies offers authorized accessories for your bicycle which have been approved not to lower the safety value. Ask your authorized dealer or contact us if you are not sure about adding an accessory to your bicycle and the possibility of lowering your bicycle’s overall safety.

Chapter 7: Perfect Fit and Ride

It is very important your new Phantom X R is adjusted properly for your size and for comfort. The Phantom X R has multiple adjustments available to offer a comfortable and safe position for riding. A properly sized and adjusted bicycle allows the rider to remain fully alert and avoid injury. Review this chapter carefully and all the adjusting points of your new Phantom X R. If you have difficulty in obtaining the most comfortable riding position or performing available adjustments, contact your authorized dealer for advice. You can contact Prodeco Technologies directly by phone or email and we will assist you with the proper adjustments for your bicycle and your size. The following list is the areas of adjustability the Phantom X R offers:

 Saddle height  Saddle nose angle  Saddle distance to handlebar

 Handlebar height  Stem rise and rotation  Brake lever angle

 Brake lever reach  Fork suspension firmness

a) The basics

Understanding the basics of a bicycle frame size will help in determining the correct positions and adjustments for your body size and comfort. The Phantom X R’s frame was designed to easily accommodate all riders from 5’ 6” to 6’ 6” utilizing the available adjustments. The frame size can be considered anywhere from an 18” to 23” if comparing to traditional measurements. The most important information to remember when sizing your bicycle is that you are comfortable riding, especially when pedaling. With throttled electric bicycles some riders may choose not to pedal and the measurement will be different than for a rider who chooses to pedal and is the same size. Scooters for instance have a much lower saddle height than bicycles due to scooters not being pedaled. A higher saddle height is only recommended for riders who pedal allowing them a full extension of their leg per rotation of the crank.

b) Frame size

The Phantom X R is considered an 19” MTB frame. The typical measurement number used today in choosing a correct frame size for a rider is the seat tube length. This number usually is between 17” to 20” for categorizing MTB bicycle measurements. The seat tube length is measured from the centerline of the crank (bottom bracket) to the top of the seat tube (seat tube clamp). There is another measurement sometimes forgotten which is actually more important and this is the top tube length (seat tube to the steering tube). With the Phantom X R’s stem being available adjustable, fine tuning of this measurement is easily accomplished.

The Phantom X R’s frame measurement follows the principals of a large MTB frame. The Phantom X R further has a high rake seat tube angle. With the high angle seat tube, as a tall rider raises their saddle to accommodate their longer legs, the saddle will pull back offering a longer distance to the steering tube.

c) Recommended sizing

In today’s bicycle industry, the top tube length is actually more important than the seat tube length. With seat posts now available over 300mm, the seat tube length is no longer the most important number. The distance of the bottom bracket to the road should also be taken into consideration when sizing a bike. The top tube length is traditionally the distance from the center of the seat tube to the center of the steering tube. For purposes of sizing the Phantom X R, we will name the distance of the center of the saddle to the center of the handlebar the steering length (similar to the top tube length).

You can adjust the steering length of your Phantom X R by establishing the saddle position and handlebar height combined with the adjusting of the stem rise via rotation. The saddle position can be adjusted for height and distance from the steering tube via the quick release clamp and the saddle clamp. Keep in mind by increasing the height of the saddle, this will also increase the steering length due to the angle of the seat tube. If you choose to use your bicycle as a scooter style vehicle only, you should establish saddle height at a lower position to reduce the center of gravity. Saddle height can be reduced to just above your inseam. Your inseam is the measurement of the inside of your leg.

d) Control position adjustments

The rotated position of the Phantom’s twist throttle and 8 Speed twist shifter are both adjustable. Both the throttle and shifter are locked in place by a small hex bolt fastening a built in clamp to the handlebar. The clamp position can be rotated on the handlebar using the small hex keys included with your multi-piece tool kit. You will need to find the small hex bolt at the clamp and loosen to rotate. Once the desired control position has been determined, tighten the clamp bolt. There will be a limited amount of rotation adjustment due to the brake lever assemblies. To find your ideal riding position, it may require all clamps (throttle, shifter and brake levers) to be loosened. The most important control position is the brake levers. The brake levers should first be adjusted and the throttle and shifter second. The next paragraphs explain show to adjust your brake levers. Throttle/shifter clamp bolts should be tightened to 25 lb*in.

e) Brake lever adjustments

The preferred level of the brake lever assemblies will vary from rider to rider. The brake lever assemblies can be rotated to a desired riding position. The optimal position can be found by extending your fingers straight while sitting in the saddle. Your fingers, when extended straight, should rest on top of the levers or slightly above the levers.

The brake lever assembly has a clamp bolt (see 1 in photo) accessible from the top of the bracket. Using the T-25 Torx ® wrench included within your multi-use tool, loosen the brake lever assembly by turning the T-25 bolt counter clockwise. The lever assembly will now be loose and you can rotate it up or down to establish the preferred position to apply the brakes. A brake lever assembly may require the throttle clamp or shifter clamp to be loosened to allow the brake lever assembly to rotate. The brake lever assembly, throttle and shifter mount can prevent each other not to rotate at a certain point; one will not rotate further without the other requiring to be rotated. A compromise may be required when attempting to align the brake levers and establishing the preferred throttle and /or shifter position. The optimum position to set your brake levers depends on your riding position but it should be the extension of your arm. Your brake lever should be located at the point where your fingers extend straight out from your arms. Upon finding preferred brake lever position, tighten the T-25 Torx ® bolt using your multi-use tool.

Brake lever clamp bolts should be tightened to 55 lb*in.

f) Suspension fork adjustment

The Phantom’s fork is a RockShox XC Suspension Fork. The XC includes a lockout and preload adjustment feature. The lockout does exactly what it states, it locks out the suspension for a firm ride. Soft suspension can absorb power from the motor or rider during climbing or sprinting. The lockout feature includes

Rockshox’s blow off system when hitting a large rock or hole.

The blow off system will bypass the lockout in an emergency.

The preload adjustment increases the spring’s compression. The

heavier a rider, the higher the preload should be adjusted to offset the additional weight. You will want to test various preload adjustments to determine the proper suspension compression for your style riding. Both adjustment knobs can be found at the crown of the fork.

Chapter 8: Tire, Tube, Wheel and Axle Repair

The Phantom X R was designed for ease of servicing. Repairs are no more difficult than on a traditional bicycle. Any neighborhood bicycle shop would be able to repair a flat, change a tire or replace a wheel. Please review the following chapter on how to remove and replace the front and rear wheels of your Phantom X R.

a) Removing the rear motor wheel

The wheel incorporates a motor wire quick disconnect for removing the wheel. To remove the wheel following these instructions, it will only take a few minutes. Read the instructions fully before first attempting to remove the wheel.

 ALWAYS remove the battery from the bicycle prior to service. See Chapter 3: Battery Management, Section d)

Removing the battery.

 Prior to removing the wheel, shift the bicycle into 7 or 8 gear (the smaller COG/sprockets on the rear cassette. It will

be easier to remove the wheel if the chain is at the end of the cassette. Always spin the crank while shifting gears.

 To work on your bicycle wheels, it may be easier to turn the bicycle upside down by placing blankets on the ground

and resting the bicycle on the saddle and handlebar.

 Locate the motor disconnect weather proof plug on the right side of the bike frame 6 inches from the motor axle. Cut

the cable tie which secures the motor wire to the frame.

 Disconnect the Motor Connector to allow the wheel to be removed.  On each axle nut there is a rubber nut protector, remove these protectors simply by pulling on them. On the wired

side of the axle, slide the rubber protector up the wire only a few inches.

 Using a wrench, turn counter clockwise each axle nut until the axle washers are loose.  Remove the wheel from the frame by pulling on the wheel. Be careful not to misplace the axle hardware.  The 8 speed freewheel mounted to the motor can be slid out away from the chain with no issue. The spring of the derailleur

may cause the lower pulley to get in the way of removing the wheel. Simply pull the pulley out of the way.

b) Installing the rear motor wheel

The rear motor wheel installs by sliding the axle into the frame dropouts. Pay attention to the motor axle hardware. Review the photo below to understand the placement of the washers, torque washers, torque plates and axle nuts.

Follow the instructions below on installing the rear motor wheel. Pay special attention to the motor wire exiting the axle. The wire must face downwards when installing.

 ALWAYS remove the battery from the bicycle prior to service. See

Chapter 3: Battery Management, Section d) Removing the battery.

 It is preferred to have the axle washers, torque washers and nuts loose on

the axle when installing. The nuts and washers need to be at the end of the axles while the torque washers need to be inside the dropout towards the motor. The torque washers for both sides and one flat washer on the cassette side is the minimal required. The torque washers are required for the proper spacing and anti-rotation of the axle. They are extremely important and if not installed properly can damage the bike. (SEE PHOTOS PRIOR PAGE)

 Holding the wheel in one hand, the other hand will be used to move the

spring loaded rear derailleur lower pulley and chain out of the way of the dropouts.

 With the chain not in the way, align the wheel to the dropouts while paying close attention to the lining up of the disk

brake rotor into the brake caliper (between the pads). Be careful not to bend the rotor.

 Prior to inserting the wheel into the dropouts, pull the chain onto the cassette.  Slide the motor into the frame dropouts by aligning the axle into the dropouts. The axle has flat edges which require

the axle to enter the dropouts with the flat edges facing front and back. The axle side with the motor wire protruding is to enter the right side dropout (the right side is when standing behind the handlebar) or left side if the bike is upside down.

 Each axle side has a stainless steel dropout torque plate, washers and a nut. Slide the washers over the axles and

tighten nuts by hand.

 Using a wrench, fully tighten axle nuts. Axle nuts should be tightened to 250 lb*in.  Plug motor connection by aligning arrows on each end of the connector and slide together.  Once connectors are plugged, you must test the connection. Install the battery as described in Chapter 3 “Battery

Management” section c) “Installing the battery”. Press the “ON/OFF” switch at the top of the battery to power the bike ON. The LED lights on throttle will light up displaying power to the motor. Pull the motor wheel off the ground (if the bicycle is not upside down) and turn the throttle to test the motor. Confirm the red power button is pushed in “ON” at the throttle. If the motor turns, the connection is solid. If motor does not turn, Press the “ON/OFF” switch at the top of the battery to power the bike OFF. Check the motor connector to ensure a solid connection has be made and arrows are lined up. Test again after checking.

 After confirming a solid connection, use a new cable tie to connect the motor cable to the side of the frame and

once tightened, cut off any excess amount.

c) Removing and installing the front wheel

The front wheel on the Phantom X R can be removed or installed without tools. A quick release skewer through a hollow axle is utilized for easy and quick wheel removal. A quick release skewer is a rod that has a threaded acorn nut on one end and a cam lever assembly on the other end. The cam lever applies pressure and locks the axle in place.

When removing the wheel, it will be easier to turn the bike upside down and rest the bike on its saddle and handlebar. Place a few blankets on the ground as not to scratch the bike. To remove the wheel, follow these steps:

 Locate the quick release lever at the end of the axle on the brake side. Pull the quick release away from the fork

dropout to OPEN and RELEASE the axle.

 Opening the quick release lever will loosen the grip on the fork.  You may be need additional clear axle space to remove the wheel. Do so by loosening the acorn nut at the end of

the skewer. Turn the nut counter-clockwise while holding the quick release lever. This will allow for enough room to clear the safety tabs at the dropouts. It is important when installing the wheel back, your rotate the acorn nut clockwise to tighten.

 Once the wheel has been removed, it is IMPORTANT you insert the Brake Pad Spacer. The Brake Pad Spacer

prevents accidentally compressing the pistons in the hydraulic brakes. If the brake lever is squeezed or moved, the pistons will close on the pads. It will be difficult to open the pads to reinsert the disc brake rotor when replacing the wheel. If the pads are worn, damage to the pistons from over extending could become an issue.

When installing the wheel, it is the reverse process of “removing the wheel’. The process can also be found on page 6,

Chapter 2, Section e) installing the front wheel.

d) Replacing a tube or tire

Read the previous sections a), b) and c) to learn how to remove and replace the front and rear wheel. You will need to understand how to remove the wheel prior to replacing a tube or tire. This section only explains how to remove the tire from the rim and how to replace a tube. Tubes and tires are 2 of the most important components on your new bicycle and must always be in optimum condition. It is important you understand about the tubes and tires equipped on your bicycle.

The Phantom X R uses high-performance Continental Traffic Low Resistance UNI-Directional tires with a 65 PSI rating. Bicycle tires are available in many designs and specifications, ranging from general-purpose designs to tires

designed to perform best under very specific weather or terrain conditions. If, once you’ve gained experience with

your new bicycle, you feel that a different tire might better suit your riding needs; your dealer can help you select the most appropriate design.

The size, pressure rating, and on some high-performance tires the specific recommended use, are marked on the sidewall of the tire. The most important part of this information for you is Tire Pressure. The best and safest way to

inflate a bicycle tire to the correct pressure is with a bicycle pump that has a built-in pressure gauge.

WARNING: Never inflate a tire beyond the maximum pressure marked on the sidewall. Exceeding maximum

pressure may blow the tire off the rim, causing damage to the bike and injury to the rider and bystanders.

WARNING: There is a safety risk in using gas station air hoses or other air compressors. They are not

made for bicycle tires. They move a large volume of air very rapidly, and will raise the pressure in your tire very rapidly, which could cause the tube to explode.

Tire pressure is given either as maximum pressure or as a pressure range. How a tire performs under different terrain or weather conditions depends largely on tire pressure. Inflating the tire to near its maximum recommended pressure gives the lowest rolling resistance; but also produces the harshest ride. High pressures work best on smooth, dry pavement. Very low pressures, at the bottom of the recommended pressure range, give the best performance on smooth, slick terrain such as hard-packed clay, and on deep, loose surfaces such as deep, dry sand. Tire pressure that is too low for your weight and the riding conditions can cause a puncture of the tube by allowing the tire to deform sufficiently to pinch the inner tube between the rim and the riding surface.

CAUTION: Pencil type automotive tire gauges can be inaccurate and should not be relied upon for

consistent, accurate pressure readings. Instead, use a high quality dial gauge.

Ask your dealer to recommend the best tire pressure for the kind of riding you will most often do, and have the dealer inflate your tires to that pressure. Then, visually check inflation by sitting on the saddle with your weight and noticing your tires response. You should also squeeze tires and feel resistance so you’ll know how correctly inflated tires should look and feel. Some tires may need to be brought up to pressure every week or two. Other high-performance tires may also have unidirectional treads, similar to the factory tires on your Phantom X R: their tread pattern is designed to work better in one direction than in the other. The sidewall marking of a unidirectional tire will have an arrow showing the correct rotation direction. When replacing your tires with tires that are unidirectional, be sure that they are mounted to rotate in the correct direction.

There are two kinds of bicycle tube valves: The Schrader or Presta Valve. The air pump you use must have the appropriate fitting for the correct valve stem. The Phantom X R uses Schrader valves. The Schrader valve is the same as an automobile. To inflate a Schrader valve tube, remove the valve cap and clamp the pump fitting onto the end of the valve stem. To let air out of a Schrader valve, depress the pin in the end of the valve stem. The Presta valve has a narrower diameter and is only found on bicycle tires. To inflate a Presta valve tube using a Presta headed bicycle pump, remove the valve cap; unscrew (counterclockwise) the valve stem lock nut; and push down on the valve stem to free it up. Then push the pump head on to the valve head, and inflate. To inflate a Presta valve with a Schrader pump fitting, you’ll need a Presta adapter (available at your bike shop) which screws on to the valve stem once you’ve freed up the valve. The adapter fits into the Schrader pump fitting. Close the valve after inflation. To let air out of a Presta valve, open up the valve stem lock nut and depress the valve stem.

WARNING: Patching a tube is an emergency repair. If you do not apply the patch correctly, the tube can

possibly fail, which could cause you to lose control and fall. Replace a patched tube as soon as possible.

To remove a tire or tube, follow these instructions (you will need tire levers or a similar tool to hold open the bead of the tire):

 Let all the air out from the tube of the wheel having the replacement.  Remove the wheel as described in detail in the previous sections.  Remove the inner tubes air valve cover.  Pull back the tire bead away from the rim. You will see the tube and the inside

of the tire. If it requires too high pressure to pull back the tire bead, there may be still air in the tube. Check to confirm all the air is out of the tube.

 Using 2 tire levers or similar tools, insert one lever end in between the tire

bead and the rim but make sure the lever is on top of the tube and you are not pinching the tube.

 Slide the second lever about 4-6 inches to the side of the first lever. Be

sure not to pinch the tube and to confirm you have the lever on top of the tube and not under the tube. Slide the lever down the side of the wheel between the tire bead and rim edge while lifting the tire bead and sidewall over the rim edge.

 If removing only the tube, you can now pull the tube outside the side of the tire wall. If replacing the tube, you can

now install the new tube.

 If removing the tire, use the tire levers and repeat the previous steps and remove the opposite side of the tire’s

sidewall bead on the same side of the rim you removed the first tire bead. The tire may easily come off the rim if you pull the tire bead over the edge of the rim and the tire levers may not have to be used.

To install a new tire, follow these instructions:

 When installing a new tire you should first insert the tube into the tire. The tube should have been partially inflated to

a soft but full feel removing any wrinkles in the tube.

 Check the mounting side of the rim and confirm the directional path of the tire. High performance tires are usually

directional tires and the arrow on the sidewall represents the rotation of the tire.

 Place the valve of the tube into the valve hole of the rim and slide the bead of the tire over the edge of the rim.  Push the one side wall and bead of the tire around the edge of the wheel’s rim. The tire will slide into place and may

become tight as you finish.

 Once one side of the tire is inserted in the rim, check to make sure the valve stem lines up properly and the tube is

smooth across the rim and inside of tire. The tube should not be bunched up in any area.

 Where the tube valve is, slide the second wall and bead of the tire into the edge of time rim. Follow pushing the tire

wall and bead into the inside edge of the rim.

 You will get to an area of only a few inches left and you will need to apply pressure to push the tire side wall and

bead behind the edge of the rim.

 Once the tire is fully inserted, check for any areas on both sides if the tube is exposed. The tube must not get

trapped between the tire bead and rim edge.

 Locate the tube valve and use your hand to push on the tire on the outside of the valve to help push the valve

further out through the rim.

 Fill the tube with 50% air and then check the tire bead and rim edge again to see if the tube is protruding anywhere.

Once you confirm the tube is not protruding, you can fill the tire to your desired air pressure.

 You are now ready to install the wheel back onto the bicycle according to the previous sections.

Chapter 9: Maintenance and Replacement

Your new Phantom X R was designed for ease of use and owner servicing. There are no tasks which require advanced skills. Most maintenance and replacing of parts were designed to be accomplished by the typical bicycle rider. Please read this section to learn how to keep your Phantom X R performing like new.

a) Keeping your bike clean

Your new Phantom X R is an outdoor friendly electric bicycle but should be kept clean and free from dirt. Dirt on and around seals and drive train components can cause premature wear and dirt on paint and part finishes can cause premature aging. If storing your bicycle outdoors under the elements, you must keep it covered with a high quality bicycle cover to avoid rain, snow or dirt damaging your new bicycle.

To clean your bicycle, follow these instructions:

Your new Phantom X R is a high quality bicycle has been designed to withstand the elements by utilizing stainless steel, anodized and painted aluminum alloys, brass plus galvanized or painted metals. Stainless steel and brass are used in their natural forms and can withstand the elements with no additional protection required. The majority of your bicycle however is fabricated from aluminum alloys which have either a painted finish or have been anodized. Aluminum does not rust but can discolor and corrode over time. The frame has a 3 layer paint finish which protects the aluminum and graphics. Components such as the handlebars, crank arms, chain guard, seat post and more have been anodized through an electrolytic process which increases corrosion and wear resistance. If the frame or components become scratched, these items could slightly corrode around the scratched area. Depending on the care of your bicycle, a scratch could take month or years for corrosion to appear. To maintain future value and years of beauty, it is best to be careful when folding and moving your bicycle not to scratch the metal surfaces. If a surface is scratched, use clear nail polish or black nail polish to cover and seal the scratch.

 Your bicycle incorporates electrical components; it is advised when washing your bicycle you should first

cover the throttle and battery terminals. Use a plastic bag or a plastic wrap to cover the components. Place the bag or wrap around the complete throttle assembly and use a rubber band or tape to secure. The battery should be removed prior to cleaning and a plastic bag or wrap secured by tape can be used to cover the battery terminal. If you are planning for a ride after washing, it is recommended the saddle also be covered. The saddle has miniature holes where there is stitching and water can seep into these small holes.

 To wash your bicycle you will need a small bucket of warm water with car soap, sponge, small brush, chain

lube and a few rags or towels.

 Rinse your bicycle off with a light spray of water to remove any dirt on the surface. Using the sponge and

warm soapy water, wash the frame and frame components which include the forks, handlebar and seat post. Start from the top of the bicycle working your way down.

 Once the frame is washed, use the sponge to clean the motor, spokes, chain guard and rims.  The tires, pedals, crankset and chain will be the remaining items needing to be washed. Use the brush first

on the tires and then the pedals. Rinse the brush and then using the warm soapy water, clean the chain ring, freewheel and finally the chain. If the chain and drive train are very dirty or greasy, a bicycle degreaser should be utilized.

 After washing, spray the bicycle down with fresh water.  Use the rags or towels to dry off the bicycle. Start by drying the frame first, followed by the components, the

wheels, tires and then the drive train.

 Once the drive train is dry, use a chain lube to lubricate the chain.

b) Avoid scratching your bike

c) Brake Bed-In and adjustments

Both brakes on your Phantom are high performance Avid Hydraulic Disc Brakes. No adjusting is required as hydraulic brakes self-adjust. They have powerful stopping power but must be bed in for maximum performance. Please review the following guideline and you can also refer to the included Avid brake guide included with your starter kit. If you are unsure as to a component or installation procedure, please contact your local authorized dealer or Prodeco Technologies.

AVID SAFETY INFORMATION

Brakes are a safety-critical item on a bicycle. Improper setup or use of brakes can result in loss of control or an accident, which could lead to a severe injury.

Avid brakes are a performance product that offers increased stopping power over brakes that you may be used to. This greater power requires less effort to lock-up a wheel when braking. A wheel lock up might cause you to lose control and possibly cause injury. It’s your responsibility to learn and understand proper braking techniques. Consult the owner’s manual for your bicycle and a professional bike dealer.

ALWAYS RIDE UNDER CONTROL

Remember, it takes longer to stop in wet conditions. To reduce the possibility of an accident and minimize trail erosion, you should avoid locking-up your wheels.

FOLLOW THESE INSTRUCTIONS CAREFULLY

If you do not understand the instructions, have the adjustments done by a professional bicycle mechanic. Disc brakes are OIL SENSITIVE! Do not spray any solvents or lubricants in the vicinity of the rotors or brake pads.

NEVER touch the pad surface or rotor surface with your fingers. Doing so will significantly degrade braking performance.

AVID WARNING

Do not touch the braking surface of any rotor with your bare hands, because the oils from your fingers will degrade its performance. Always wear gloves, or handle the rotor by its spokes. Disc brakes become very hot during use. Do not touch the caliper or rotor immediately after use. Make sure the brake has cooled down before making any adjustments.

Hydraulic brake information

 Use only DOT 4 or DOT 5.1 fluids with Avid brakes. DOT 5.1 fluids provide enhanced braking performance.  Do not use a fluid other than DOT fluids suggested. Doing so will damage the system make the brakes unsafe

to use.

 DOT fluids will damage painted surfaces. If any fluid comes in contact with a painted surface (i.e. your frame),

wipe it off immediately and clean with isopropyl.

 Do not allow any brake fluid to come in contact with the brake rotors. If this occurs, clean the rotors with

isopropyl alcohol.

 Do not allow any brake fluid to come in contact with the brakes pads. If this occurs, the pads are contaminated

and must be replaced.

 Used DOT fluid should be recycled or disposed of in accordance to local and federal regulations.  NEVER pour used DOT fluid down a sewage or drainage system or into the ground or a body of water.

Before each ride

Check houses for signs of wear. Squeeze the brake lever firmly and check for proper brake function. Check pads for wear and replace if necessary. Ensure rotors are free of foreign substances and oils.

Pad Break In and Noise

It may take anywhere from 20 to 40 complete stops to break in Avid pads. You may begin to notice an increase in braking power after the first ride. Brake noise can occur not only during the break-in period but off and on throughout the life of the brake pads. Noise is dependent upon factors such as brake setup, rider weight, riding style, braking style, and riding conditions (i.e. dust, soil, and contamination of friction surfaces).

Care and Cleaning

Extreme care must be taken when cleaning both the bicycle and its new disc brakes. Under normal use, it is not necessary to clean the caliper rotor or pads. If necessary, use only water and dish detergent to wash the caliper and rotor being sure to thoroughly rinse all soap residues from the rotor. Dry with a clean paper towel.

d) Pad Replacement

A pad should be replaced when its total thickness (backing plate and friction material) is less than 3mm.

e) Derailleur adjustment (SRAM X7)

If the chain of your bicycle falls off at the largest COG/sprocket or the chain is having problems remaining on the

Problem

Cause

Remedy

Chain jumps from smallest sprocket to frame dropout.

High gear limit screw is not adjusted properly.

Turn in "screw H" until the guide pullet is aligned with the smallest sprocket.

Difficult or impossible to shift chain onto smallest sprocket.

High gear limit screw is not adjusted properly.

Unscrew "screw H" until the guide pullet is aligned with the smallest sprocket.

Chain jumps over largest sprocket and falls between the spokes and largest sprockets or inner cage plate scrapes on spokes.

Low gear limit screw is not adjusted properly.

Turn in "screw L" until the guide pullet is aligned with the largest sprocket.

Rear derailleur or derailleur hanger is bent.

Straighten or replace.

Delayed shifting.

Clearance between guide pulley / sprocket is too large.

Adjust 'b-adjust screw" by rotating counterclockwise.

Rough shifting behavior.

Clearance between guide pulley / sprocket is too small.

Adjust 'b-adjust screw" by rotating clockwise.

Shifts more gears onto smaller sprockets than intended.

Shift cable insufficiently tensioned.

Turn barrel adjuster on the shifter counterclockwise.

Delayed shifting onto larger sprocket.

Shift cable insufficiently tensioned.

Turn barrel adjuster on the shifter counterclockwise.

Delayed shifting onto smaller sprocket.

Shift cable is too tight.

Turn barrel adjuster on the shifter clockwise.

Excessive cable friction, pinch or poorly routed cable.

Lubricate or replace cable & housing. Check for excessive bending of cable housing.

SHIFTING ADJUSTMENT

Check that the chain and the rear derailleur are in the smallest cog position.

While pedaling, twist the shifter up one detent.

If the chain hesitates or does not shift to the second cog, increase the cable tension by turning the shifting adjustment knob counter clockwise.

If the chain shifts beyond the second cog, decrease the cable tension by turning the shifting adjustment knob clockwise.

Repeat the two former steps until shifting and cable tension is accurate.

While turning the crank, shift the chain up and down the cassette several times to ensure your derailleur is shifting smoothly.

correct gear, you may need to adjust your derailleur. There are a multiple ways to adjust your derailleur but for a simple adjustment on the changing of gears, follow these instructions.

 Located at the shifter on your handlebar, there is an adjusting knob where the cable enters the shifter. This

know will fine tune and adjust your derailleur gear shifting. The knob allows the loosening or tightening of the cable which in turn moves the derailleur. Rotate this knob clockwise or counterclockwise until the derailleur is properly changing gears. This is a fine tune and quick fix but for a correct adjustment, the permanent adjustment should be at the derailleur cable locking plate and fixing bolt leaving the shifter knob for fine tuning only.

For a more detailed adjustment of the derailleur, you should bring your bicycle to an authorized ProdecoTech dealer or a neighborhood bike shop who services SRAM derailleurs. There is also a SRAM derailleur guide included with your bike.

Derailleur Troubleshooting

f) Wheel check

From time to time you should check the truing of your wheel and the condition of your spokes. Your spokes can become loose over a period of time, especially if your wheel needs truing. The easiest way to check the truing of your wheels is as follows:

 ALWAYS remove the battery from the bicycle prior to service. See Chapter 3: Battery Management,

Section d) Removing the battery.

 It is best to turn the bicycle upside down and place it on a blanket to avoid scratching the handlebar controls

or saddle. When turning the bicycle upside down, rest the bicycle on the handlebar and saddle. If you prefer not turning the bicycle upside down you will need to pick up the wheel off the ground to test.

 Pick up the front or rear of the bicycle and spin the wheel, the wheel should spin straight.  If the wheel wobbles from more than 1/8” or appears to spin at an angle, there could be multiple causes.

a. If at an angle, check that the wheel axle is straight. If the axle is not properly aligned in the dropouts,

this would cause the wheel to spin at an angle.

b. Wobbling could be caused by the tire bead having been compromised and needing to be reseated.

Look carefully along the lip of the rim for any areas of the tire being out of position or slightly raised.

c. If not the tire bead, a wobbling most likely is the wheel being out of true. Truing is required to be

performed by a person familiar with truing. Bring your bicycle to your local bicycle shop to true the wheel. Hitting a pot hole or jumping a curb can affect the true of the wheel.

d. To check for spoke tension, this can be done by squeezing 2 parallel spokes together. The spokes

should be tight and you should not be able to bend the spokes. If the spokes bend and feel lose, it is important to bring the bicycle to your local bicycle shop and ask for them to tighten the spokes and true the wheel.

WARNING: When placing your hands near the wheels of your bicycle, you must confirm the key has

been removed from the battery and the battery is removed from the bicycle. If the motor powers while your hands are near the wheels, you could become seriously injured.

g) Lubricating

A common area of maintenance with all bicycles is lubrication. Your Phantom X R was designed to be virtually maintenance free but depending on the amount of riding and the environment, your bicycle should be lubricated from time to time. Areas not requiring lubrication are the HUBs, Bottom Brackets and Headset. They have bearing systems which do not require lubrication and any maintenance on these areas should be performed by a service agent.

Lubricating is always at the point where 2 surfaces touch together and friction is created. Your local neighborhood bicycle shop or most mass merchants who sell bicycles will offer various types of lubes for your bicycle. Below are the areas you should lubricate according to your maintenance schedule at the end of this chapter.

 Chain: The chain should be lubricated at each of the links. You can turn the crank counter clockwise while

lubricating each area of pivot.

 Forks: Your forks are suspension forks and you should use a lubricant which does not dissolve rubber

seals. Place a few drops where the fork stanchions (top legs) enter the seals of the lower legs.

 Brakes: Where the brake arms pivot will require a drop of lubricant. Do not put lubricant on the brake rotors

or pads. The brake levers pivot pins require a drop of lube at the top of the pin.

 Derailleur cables: Your brake cables are stainless steel and in lined housings. They normally will not

require lube but if under harsh conditions and the brake cables feel tight, you can add a drop of lubricant at the exit and entrance of each cable from and to the brake housings.

 Folding or Adjustable Mechanisms: The folding or adjustable components such as the handlebar stem

Any other type of lubrication or greasing of bearings should be performed by an authorized Prodeco Technologies dealer.

should be lubricated with a drop of lubricant.

h) Crankset

The crankset of your Phantom X R is a multi-piece system which includes a bottom bracket, crank arms, chainring, chainring bolts, chain guard and chain. All items are designed as maintenance free components except for lubricating the chain from time to time. The bottom bracket is a sealed bearing system with no serviceable parts. Each component of the crankset has an industry standard measurement and is available through your dealer or through Prodeco Technologies directly. Traditional bicycle components will also fit into these measurements. Please refer to the Chapter 12 Parts and Components list for replacement part numbers and the part measurements.

i) Pedals

The Phantom X R has platform pedals to allow for sure footing. The pedals have a double bearing system which may need to be greased from time to time, it is best you bring the pedals to your local bicycle shop to grease the pedal bearings. To install or remove your pedals, see Chapter 2 Getting Started g) Installing the Pedals.

j) Headset

A threadless CNC Alloy cup sealed bearing headsets is what rotates the fork of your Phantom X R. These are maintenance free systems and should not be serviced by anyone other than a knowledgeable bicycle repair shop. The headset is the bearing system where the fork steerer tube mounts through the frame. If you notice play in the bearings, bring your bicycle to a local bicycle shop so they can clean or replace the bearings and tighten the stem.

k) Maintenance schedule: As a common practice you should follow your maintenance schedule. You

Maintenance Schedule

Each Ride

Weekly

Monthly

6 Months

Yearly

Tire Pressure

Tire Condition

Visual Inspection

Brake Lever Pressure

Quick Releases

Handlebar Alignment

Saddle Alignment

Battery Pack Locked

Wheel Check

Inspect Frame Condition (include welds for fissures)

Clean and Lubricate Chain

Check Brake Pads

Lubricate Forks

Lubricate Brakes & Cables

Lubricate Folding Mechanism

Check All Bolts and Torque Settings

Clean Bicycle

Charge Battery

Check Wheel Spokes

Inspect Rim Condition

Inspect Saddle, Rails and Clamp

Grease Pedal Bearings

Check HUB Bearings

Check Headset Bearings

Check Bottom Bracket Bearings

Replace Brake Pads

Replace Brake Cables (depends on use)

Replace Tires (depends on use)

Torque Item

lb per In

lb per Ft

N M

Axle nut (front motor)

250 lb*in

20.8 lb*ft

28.25

Bottom bracket

420 lb*in

35 lb*ft

47.46

Brake lever clamps (at handlebar)

70 lb*in

5.8 lb*ft

7.91

Cassette/Freewheel

300 lb*in

25 lb*ft

33.9

Chainring bolts

80 lb*in

6.7 lb*ft

9.04

Crank bolt

350 lb*in

29.2 lb*ft

39.54

Crank bolt cap (if applicable)

100 lb*in

8.3 lb*ft

11.3

Derailleur bolt

80 lb*in

6.7 lb*ft

9.04

Disc brake caliper bolts (at frame)

80 lb*in

6.7 lb*ft

9.04

Disc rotor bolts

55 lb*in

4.6 lb*ft

6.21

Disc Brake Cable Arms (pinch bolt)

55 lb*in

4.6 lb*ft

6.21

Headset locknut

150 lb*in

12.5 lb*ft

16.95

Kickstand bolt

100 lb*in

8.3 lb*ft

11.3

Pedals

300 lb*in

25 lb*ft

33.9

Saddle rail clamp bolts (M6)

140 lb*in

11.7 lb*ft

15.82

Shifter (at handlebar)

20 lb*in

1.7 lb*ft

2.26

Stem adjustable bolts

150 lb*in

12.5 lb*ft

16.95

Stem clamp binder bolts (4 bolts)

60 lb*in

5 lb*ft

6.78

Stem steerer tube bolts

80 lb*in

6.7 lb*ft

9.04

Throttle

25 lb*in

2.1 lb*ft

2.825

V brake bolts (at frame)

80 lb*in

6.7 lb*ft

9.04

Quick Release (at half way tighten the lever with resistance)

should study it and allow it to become second nature to your riding.

l) Torque specifications for common parts: Nuts and bolts for your bicycle are set to a standard torque

setting at the factory. Over time of use and shipping, nuts or bolts could become loose. Below is a chart of the torque settings in Lb per Inch for the common parts of the Phantom X. They have also been converted to Lb per Foot and NM.

Chapter 10: Warranty Service and Repair

Prodeco Technologies has taken great measures in designing and producing your new bicycle to be issue free while offering years of performance. The bicycle however is a mechanical item and an issue can arise. Your bike components are covered for a 2 year period from the date of purchase or within 30 months of the production date, whichever is sooner. The production date is part of your master serial number. Your master serial number can be found on the production label located on the box your bike arrived in or request this number from your dealer. The breakdown of the master serial number is as follows:

a) 2 Year limited warranty

b) Registering your bike

It is very important you register your new bicycle when purchasing. This is the only way your warranty will take effect. It is required you register your bicycle within 2 weeks from the date of purchase. You must save your receipt of purchase. To register your bicycle, you can fill out the form on the Prodeco Technologies website at www.prodecotech.com or you can fill out the registration card in the next section below and either scan it to service@prodecotech.com, fax it to

954.974.6729 or mail it to: Prodeco Technologies, 1201 NE 38th Street, Oakland Park, FL 33334

c) Serial numbers and where to find them

The motor has the serial number written alongside the outside shell. The frame serial number is located under or on top of the crank of the frame. The serial number for the battery is at the back underside right corner.

d) Registration Card

e) Part replacement procedure

Specifications

Frame:

Aircraft Grade T6 Aluminum Alloy

Finish:

Satin Black w/ Clear Coat Protection

Fork:

RockShox XC w/ Lock Out & Pre-Load Adjust

Motor:

Prodeco 600W HO Brushless Geared Drive

Battery:

Prodeco 36V14Ah (50 X Samsung Korea 18650-29E Cells)

Power:

Twist Throttle Control

Headset:

CNC Alloy Cups Sealed Bearing 44mm Integrated

Stem:

Promax 31.8mm Adjustable Aluminum Alloy

Handlebar:

Riser Aluminum 31.8 x 680L

Front Brake:

Avid DB Hydraulic Disc Brake w/ 180mm SS Centerline Rotor

Rear Brake:

Avid DB Hydraulic Disc Brake w/ 180mm SS Centerline Rotor

Brake Levers:

Avid DB Hydraulic Disc Brake Aluminum Levers

Brake Housings:

Avid DB Hydraulic Hose

Crankset:

Truvativ Aluminum 170 Arms w/ 42 x 3/32" CR

Chain Guard:

Truvativ Aluminum Alloy Sandblasted

Bottom Bracket:

Truvativ 113mm Sealed Bearing 68mm English

Pedals:

Aluminum Alloy Platform 9/16”

Chain:

KMC X8.93 Narrow 1/2" x 3/32"

Front HUB:

WR 100mm 36H Sealed Bearing w/ Quick Release Axle

Rear COG:

SRAM PG-850 11-32 8 Speed

Rear Derailleur:

SRAM X7 8 Speed

Shifter:

SRAM X7 Twist Grip 8 Speed

Rims:

Stars 12G x 36H Triple Box Aluminum

Spokes:

18-8 Stainless Steel 12G & Solid Brass Nipples

Tires:

Continental Traffic Tire 26” x 2.1”

Tubes:

PT 26” X 2.125” 32mm Valve

Kick Stand:

Center Mount All Aluminum Double Leg

Seat Post:

Promax Aluminum 27.2” x 350MM

Seat Post Bracket:

Promax Double Barrel Bolt Infinite Adjust

Saddle:

VL-3205 - Phantom Sport Saddle VELO PLUSH

Reflectors:

Cateye White Front & Wheels w/ Red Rear

Speed:

20 MPH

Range:

20 - 35 Miles

Charging Cycles:

1000 +

Charging Time:

6-7 Hours

Weight Limit:

220 LBS

Frame Warranty:

5 Years

Components Warranty:

2 Years

Weight:

54 LBS

In the occurrence of a component becoming defective, Prodeco Technologies attempts to make part replacement as painless as possible. Simply contact Prodeco Technologies service department and explain the problem. A representative will assist you with getting the part at issue replaced quickly. You can also bring your bicycle to a local authorized dealer and they can assist you with any problem. Parts are always in stock and can be ship immediately. Please refer to Chapter 12: Parts for a list of the parts assembled into your bicycle.

f) Contacting Prodeco Technologies

You can contact us via the website, email, phone, fax or by mail. Please review the contact details below:

Website: www.prodecotech.com Email: service@prodecotech.com Phone: 800.943.6190 Fax: 954.974.6729

Chapter 11: Specifications

Mail: Prodeco Technologies, 1201 NE 38th Street, Oakland Park, FL 33334

Chapter 12: Parts

Part Description

Part Number

Price

ACCESSORY - BELL - Aluminum - v31 - Thumb Lever - 40mm Diameter - Black Shell

AC.BE.TH.40.B

$3.95

BATTERY - v5 - ProdecoTech SAMSUNG - 10S5P - 50 x SAMSUNG 18650.29E Cell - Lithium Ion

BAA.5.PSA.36V14

$599.95

BATTERY CHARGER - Modiary 41V 2Ah for 36V 14.25Ah (DC 2.1mm Connector)

PT.BC.41V2.SL14.25

$39.95

BATTERY MOUNT PART - PTech - v5 Down Tube - 36V - Frame Mount - Top Lock System w/ Keys

PT.BAM.5.DT.36.LO

$22.95

BATTERY MOUNT PART - PTech - v5 Down Tube - 36V - Frame Mount - Bottom Base

PT.BC.36V.2A.13A

$14.95

BOTTOM BRACKET - Truvativ - Square Taper - 113mm x 68mm

PT.BB.TR.SQ.113.68.S

$16.00

BRAKE DISC - Avid DB1 - CALIPER SET - Black - 180 Post Front / Pre-bleed 850mm Hose w/ Lever

PT.BR.AV.DB1.20P.850

$95.00

BRAKE DISC - Avid DB1 - CALIPER SET - Black - 180 IS Rear / Pre-bleed 1700mm Hose w/ Lever

PT.BR.AV.DB1.40IS.1700

$95.00

BRAKE DISC - PART ONLY - Brake Pads - Avid Elixir DB - SINTERED PAD

PT.BR.PT.PD.EXS.08

$12.95

BRAKE HOUSING - Brake - Avid – Hydraulic Hose - Front - 850mm

PT.BR.PT.HO.AHY.850

$10.00

BRAKE HOUSING - Brake - Avid – Hydraulic Hose - Front - 1700mm

PT.BR.PT.HO.AHY.1700

$15.00

BRAKE LEVER - Avid DB1 - Lever Assembly - Left Side - Black

PT.BR.PT.LE.DB1.B.L

$18.00

BRAKE LEVER - Avid DB1 - Lever Assembly - Right Side - Black

PT.BR.PT.LE.DB1.B.R

$18.00

BRAKE ROTOR - Avid - Centerline - 6 Bolt Pattern - Stainless Steel - 180mm

PT.BR.RO.AV.CL.180

$59.00

CABLE HOUSING - Derailleur - Promax - Braided Alloy Carbon - to Size - 1680mm

PT.CAH.DE.PX.BR.1680

$11.95

CASSETTE - 8 Speed - SRAM - PG 850 - 11-32T - Chrome Plated

PT.CS.SR.PG850.1132

$30.00

CHAIN ASSEMBLY - KMC 8.93 - 114 LINKS

CHA.CH.K893.114

$18.95

CHAIN PART - KMC - Connector - Missing Link 2 - Black

PT.CH.KMC.CO.ML2.B

$2.95

CRANKSET - PART ONLY - Truvativ Chain Guard ONLY - for 42T - Black

PT.CR.PT.TR.CG.42.B

$19.95

CRANKSET - PART ONLY - Truvativ Chain Ring Bolts - Double Male & Female - (4 pc set)

PT.CR.PT.TR.CRB.DS

$2.95

CRANKSET - PART ONLY - Truvativ Chain Ring ONLY - 42T - Black

PT.CR.PT.TR.CR.42.B

$12.95

CRANKSET - PART ONLY - Truvativ Crank Arm ONLY - for 42T - Left Side - Black

PT.CR.PT.TR.CA.42LB

$12.95

CRANKSET - PART ONLY - Truvativ Crank Arm ONLY - for 42T - Right Side - Black

PT.CR.PT.TR.CA.42RB

$14.95

CRANKSET - PART ONLY - Truvativ Crank Bolts Only - Hex 2 Piece Set - for Square Taper BB

PT.CR.PT.TR.CB.

$4.95

DERAILLEUR - SRAM - X7 - Medium Cage - 8/9 Speed - Storm Grey

PT.DE.SR.X7.M89.G

$65.00

FORK - Suspension - RockShox - XC28 - 1 1/8" Threadless - 100mm - 9mm QR Axle - Black Matte

PT.FO.RSXC28.26.B

$150.00

FRAME - 2609 - v5 - Phantom X R - Aluminum - Rigid - Black Matte

PT.FR.2609.5.PXR.BM

$249.95

GRIP SET - Prodeco - 27024 - Black Kraton - 90mm Left / 90mm Right - RED Lock Rings

PT.GR.PR.KR.9090.RE

$12.95

HANDLEBAR - Aluminum - Truvativ - Stylo T10 - Mid Rise 30 x 31.8 x 680 - Black Matte

PT.HA.TR.ST10.680.BM

$28.00

HARDWARE - Dropout Plate - 12mm x 10mm Axle - v5 - Left Side - Stainless Steel

PT.HW.DRP12.5.L.SS

$9.95

HARDWARE - Dropout Plate - 12mm x 10mm Axle - v5 - Right Side - Stainless Steel

PT.HW.DRP12.5.R.SS

$9.95

HEADSET - Threadless - Integrated 44mm - Aluminum CNC - SS Sealed Bearings - Black

PT.HE.TL44.CNC.B

$49.95

HUB - FRONT - WR 95 - 36 x 12G - Quick Release DISC Sealed Bearings 100mm

PT.HU.FR.WR95.SBD.B

$21.95

KICK STAND - Aluminum - K519 - Adjustable - Double Leg for 26" Bikes (3º increase)

PT.KS.519.AD.DL.B

$34.95

MOTOR - REAR 26" - Prodeco 36V - 600W - Geared FH Motor - Black

PT.MO.R.26.PR36.600G.B

$349.95

MOTOR CONTROLLER - Brushless HALL (6 MOSFET) 36V23A (940mm Motor Wire) v15A

PT.MC.BH.36.23.940

$59.95

MOTOR WIRE - Harness - 110mm - Female to Female

PT.MWH.110.FF

$19.95

PEDALS - HTI – Alloy Platform - Sealed Bearing - Removable Pins - Cr-mo Axle - BLACK

PT.PE.HTI.A120SS

$69.95

REFLECTOR - Cateye - NGS-272 - Seatpost Bracket - Black

PT.RE.CE.GS272.SPB

$0.95

REFLECTOR - Cateye - NGS-318 - Handlebar Bracket - Black

PT.RE.CE.GS318.HBB

$0.95

REFLECTOR - Cateye - RR-165-BSLW - Front Round Reflector - 165mm - White

PT.RE.CE.165.FRW

$1.95

REFLECTOR - Cateye - RR-165-BSLW - Rear Round Reflector - 165mm - Red

PT.RE.CE.165.RRR

$1.95

REFLECTOR - Cateye - RR-530 - Wheel Reflector Set - White

PT.RE.CE.530.WHW

$2.95

RIM TAPE - Kenda - 26" - 25mm Wide - Poly Strips

PT.RI.KE.26.25.P

$2.95

RIM-Aluminum - Stars - 26" - J32M - Triple Box, 36 Holes x 12G - All Black

PT.RI.ST.26.J32.BB

$39.95

SADDLE - VELO PLUSH 3205 - Sport Vented - 268mm x 173mm - Black w/ Red Stitching

PT.SA.VL.3205.BKR

$24.95

SEAT CLAMP - CNC Aluminum - Promax 335QX - Frictionless - 31.8mm - Black

PT.SC.PX.335QX.318.B

$8.95

SEATPOST - Aluminum Rigid - Promax SP 271 - 0º Offset - 27.2 x 350 - Black

PT.SP.PX.271.272350.B

$18.95

SHIFTER - SRAM - X7 - Twist Grip - 8 Speed

PT.SH.SR.X7.TW.8

$29.00

SPOKE - 12G - 167mm - 18/8 Stainless Steel - Black

PT.SP.12G.167.SS.B

$0.50

SPOKE - 12G - 260mm - 18/8 Stainless Steel - Black

PT.SP.12G.260.SS.B

$0.50

SPOKE NIPPLE - Brass - 12G - 16mm

PT.SP.NI.BR.12G.16

$0.50

STEM - Aluminum - Promax - 570 - Adjustable x 108mm x 1 1/8" THREADLESS x 31.8mm - Black

PT.ST.PX.M57.318.B

$28.95

THROTTLE - Wux - HALF TWIST - Battery Indicator - On/Off Push Button - 36V (800mm Cable)

PT.TH.WX.29.8.36V.5

$18.95

TIRES - Continental - Traffic - 26" x 2.1"

PT.TI.CO.TR.26.21

$34.95

TUBES - Kenda - 26" - 1.95 / 2.125" - Butyl Rubber - 32mm Valve

PT.TU.KE.26.212.32

$6.95

Prodeco Technologies Phantom X R, PHANTOM 400, G STRIDE 400 V6 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
