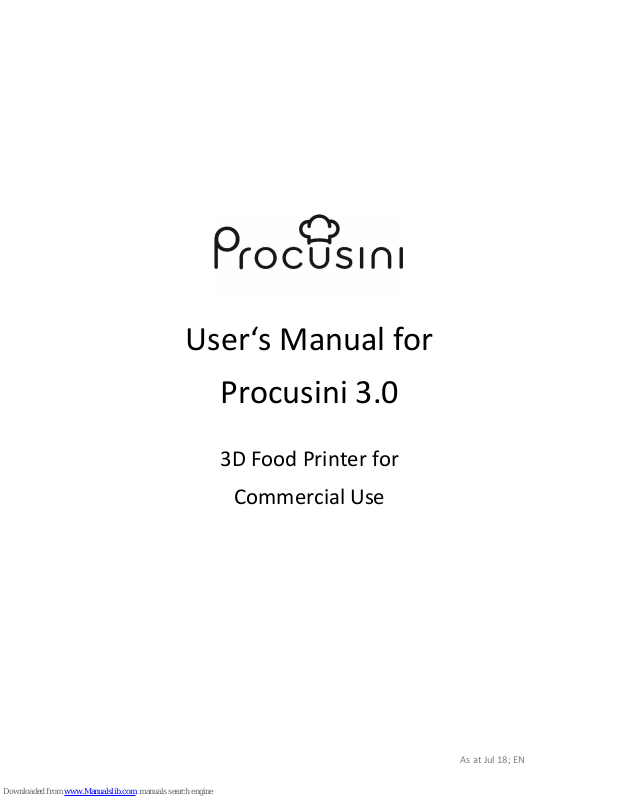

Procusini 3.0 User Manual

As at Jul 18; EN

User‘s Manual for

Procusini 3.0

3D Food Printer for

Commercial Use

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 2 of 33

Content

1 Basic Information ............................................................................................................................ 4

1.1 General description ................................................................................................................. 4

1.2 Technical data Procusini (in/°F) ............................................................................................... 5

1.3 Main components ................................................................................................................... 6

1.4 Schematic overview ................................................................................................................. 6

2 Qualification of personnel ............................................................................................................... 7

3 Safety Procedures / Precautions ..................................................................................................... 7

3.1 General introduction and definition of the safety instructions .............................................. 7

3.2 General safety instructions for machine operation ................................................................ 8

3.3 Special safety instruction for the machine .............................................................................. 8

General directions ........................................................................................................... 8

Setup, location of operation ............................................................................................ 9

3.4 Use in accordance with regulations ...................................................................................... 10

3.5 Liability and guarantee .......................................................................................................... 11

Liability .......................................................................................................................... 11

Guarantee ...................................................................................................................... 11

4 Description ofthe Functions and Operation of the Machine ........................................................ 12

4.1 Procusini and accessories ...................................................................................................... 12

4.2 Preparation ............................................................................................................................ 12

Preparation of the production plate ............................................................................. 12

Preparation of the flexible production mat, silicone .................................................... 12

Preparation of the cartridges ........................................................................................ 13

4.3 Commissioning ...................................................................................................................... 13

Connect Procusini to a WLAN enabled device (AP mode, recommended) ................... 13

Prepare the first production with the Procusini ............................................................ 14

4.4 Produce with the Procusini ................................................................................................... 17

4.5 Turn off the Procusini ............................................................................................................ 19

5 Create your own objects ............................................................................................................... 19

5.1 The Procusini-Club ................................................................................................................. 19

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 3 of 33

5.2 Upload the specially created objects from the Procusini Club into the user interface. ....... 22

5.3 Other uses of the Procusini Club ........................................................................................... 23

Logos .............................................................................................................................. 23

5.4 Freehand drawing.................................................................................................................. 23

5.5 Text messages ....................................................................................................................... 24

5.6 Trace contours ....................................................................................................................... 24

5.7 3D objects with own foods .................................................................................................... 25

6 Other functions of the user interface ............................................................................................ 26

6.1 Changing the cartridge .......................................................................................................... 26

Manual change of the cartridge .................................................................................... 26

6.2 Alignment of the production plate ........................................................................................ 27

6.3 Cleaning ................................................................................................................................. 27

Cleaning the cartridge ................................................................................................... 27

Cleaning the dosing tip .................................................................................................. 27

Cleaning the stainless steel plunger .............................................................................. 27

Cleaning the heatable stainless steel tip ....................................................................... 28

Cleaning of the production plate ................................................................................... 28

Cleaning of the flexible production mat, silicone .......................................................... 28

6.4 Standby mode ....................................................................................................................... 28

6.5 Parking ................................................................................................................................... 29

6.6 Optional: Connect (integrate into the home network) ......................................................... 29

Windows 7 / Windows 8 / Windows 10 ........................................................................ 30

Apple MacBook / MacBook Air / MacBook Pro / iMac / iMac Pro / Mac Pro/Mac mini

30

Tablet (Android) ............................................................................................................ 30

Apple Ipad ...................................................................................................................... 30

7 Troubleshooting ............................................................................................................................ 31

8 Returning Old Devices ................................................................................................................... 33

9 Servicing and Maintenance ........................................................................................................... 33

9.1 Safety instructions for servicing ............................................................................................ 33

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 4 of 33

1 Basic Information

1.1 General description

The Procusini is an easy-to-use Procusini for use in commercial kitchen, e.g. in catering, event
gastronomy or bakery/confectionery.

It consists of a heatable cartridge holder, which is mounted to a positioning unit and operated via
WLAN. The x and y axis are controlled by a tooth belt, while the z axis and the extruder are set into
motion by threaded rods. The cartridge holder is located at the end of the y axis and during the
production process is moved upwards layer by layer by means of the z-motor. The production plate
represents the x axis and serves as a bearing surface for the pads to be printed (flexible production
mat; plates; breads etc.). The food is filled into food-safe cartridges or are available as food-safe
refills. These cartridges are inserted into the cartridge holder and if necessary heated to a
temperature specifically defined for the food item. There is no direct contact between the food item
located in the cartridge and the device itself.

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 5 of 33

1.2 Technical data Procusini (in/°F)

Production

 Usability Food with appropriate consistency
 Technology Layer-by-layer deposition of consumables
 Tip Heatable
 Volume of capsule 2 oz
 Building space 9,8 in

5,9 in
3,9 in

 Precision 0,004 in
 Nozzle diameter 0,02 - 0,05 in
 Rate of printing 0,2 - 2 in/s
 Movement velocity 0,2 - 7,9 in/s

Physical Dimensions

 Measurements:

Maximum space: 23,6 in (Platform moves right and left)
23,6 in
25,6 in

 Packaging volume 19,7 x 23,6 x 25,6 in (L x W x H)
 Weight 9 kg
 Shipping weight 15 kg

Temperature

 Ambient temperature 50 - 82,4 °F
 Storage temperature 32 - 89,6 °F
 Process temperature of

heated cartridge 68 - 140 °F

Power Supply

 Power supply (AC) 85 – 264 VAC; 47 – 63 Hz
 Power (DC) 12 V; 8,5 A; 102W
 Protection Short circuit / Overload / Over voltage / Over temperature
 Power Plug 3 Pin; IEC connector

Software/ Connectivity

 Interface Browser-based
 Compatibility Google Chrome
 Wireless LAN 802.11.b/g/n
 Connectivity Independent printing via WiFi

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 6 of 33

1.3 Main components

(1)Printing Plate

(2)Cartridge holder

(3)Fill level display

(4)Power Switch

(5)Power Supply Socket

1.4 Schematic overview

2 3 4

5

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 7 of 33

2 Qualification of personnel

This machine requires proper training. It is ONLY recommended for use by individuals with sufficient
training and/or those that are monitored by a person who has been properly trained on the safety
and intended use of the machine.

This machine is not meant for use by children.

This machine is to be operated by a single person!

Troubleshooting, service, and maintenance are to be performed only by qualified individuals who are
familiar with the technology and dangers of the machine and have been authorized by Print2Taste.

Work on electrical components is to be performed only by trained electricians.

The address for service is found in Chapter 6 of this user’s manual.

3 Safety Procedures / Precautions

The following information pertaining to safety- and possible hazards is important not only for
protection of the machine, but also to protect the user. Please read through the following points
carefully:

3.1 General introduction and definition of the safety instructions

Important safety- and device-relevant instructions are represented as symbols in this handbook. The
directions are to be followed at all times in order to prevent accidents or damage to people or things.

WARNING! Danger from electrical current! This symbol indicates a situation in which
dangerous situations may exist due to electrical currents. If this safety information is
ignored, injury or a life-threatening situation may result.

WARNING! This symbol indicates dangers which may lead to injuries. Uphold all of the
given safety instructions exactly as indicated and pay special attention in such cases.

WARNING! Hot surface! This symbol indicates that a hot surface is present on the machine
during operation. If this is ignored, the user may get burned or a fire hazard may result!

WARNING! Danger from moving parts – keep fingers and other body parts away. This
symbol indicates the risk of injuries which may occur if the user reaches into the machine
during operation. Body parts may be smashed, drawn in, or injured in other ways.

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 8 of 33

3.2 General safety instructions for machine operation

This device is built according to the current technical rules and regulations. However, dangers may
arise if the device is used in an inappropriate manner or out of accordance with regulations.

The information contained in the user’s manual designed to protect the user from injury. It

additionally serves to avoid mistakes, thus assuring that the device runs safely and disturbance-free

In order to avoid dangers and to ensure optimal performance, neither alterations nor reconstructions
are to be performed on the machine unless explicitly approved by the manufacturer.

The device may only be used in technical and operationally safe conditions in accordance with the
instructions contained within this user’s manual.

In the case of damage occurring due to a lack of observance of this operation manual, the guarantee
is voided. We take no responsibility for subsequent damages.

The manufacturer assumes no liability for damages to persons, objects or property that occur due to
inappropriate handling or a lack of adherence to the safety instructions. In these cases, the
guarantee is voided.

3.3 Special safety instruction for the machine

The information pertaining to work safety corresponds to the regulations of the European Union at
the time at which the device was manufactured.

General directions

Warning: Never leave the Procusini unattended when in use!

Warning: High temperatures may develop in the printing head of the Procusini. For this
reason, never grasp the printer while in operation. Change the food cartridge only after the
printer has cooled down sufficiently

Warning: The power supply plug must always be in the vicinity of the printer and be easily
reachable.

Warning: In the case of emergency, immediately disconnect the power source and power
plug!

Warning: In order to prevent fire or electrocution, never set this device onto damp or wet
surfaces.

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 9 of 33

For commercial use as defined by the use in compliance with regulations, the user is required to
comply with the given work safety provisions and the current rules and standards as well as
observing any new specifications for the entire service life of the machine. For use outside of the
European Union, the occupational safety legislation and regional stipulations are to be followed
according to all local, state and federal regulations.

In addition to the occupational safety notes in this manual, the valid safety- and accident prevention
regulations as well as the valid environmental protection stipulations for the location at which the
machine operates are to be observed and maintained:

Setup, location of operation

Place the Procusini onto a stable, horizontal, large enough area only. Please note that the production
plate moves from right to left when operating and thus requires enough space. Additionally, some
movement also occurs vertically. When selecting the operating location, please make sure that the
device is able to move in these directions.

Choose the operating location in a way that children cannot reach the product.

When setting up the device, please make sure that the power adapter is easily accessible in order to
quickly and easily shut off the device in the event of an error.

Do not place the machine in areas where extreme temperatures, strong vibrations, high humidity
(i.e. rain or steam), dust, or heavy mechanical stresses may occur.

Do not place any liquid-filled vessels (i.e. glasses, vases, etc.) on top of or in the vicinity of the
machine and never pour water over the machine. Fluids may enter the machine casing and impair
the electronic stability of the machine. Additionally, there is a high risk of fire or life-threatening
electrical shocks!

If such an event occurs, shut down the respective power supply plug completely (i.e. turn off the
circuit breaker and earth leakage circuit breaker) and then pull the power cord from the socket.
Disconnect all wires from the device. The entire product is not to be used again. Please contact a
specialized dealer or the manufacturer.

Do not place any sources of ignition such as stoves, fryers or burning candles next to or on top of the
device.

While setting up the machine, be sure that the power line is not squeezed or damaged by sharp
corners.

Take note of the additional safety instructions found in the individual chapters of this manual.

User´s Manual for Procusini

For questions, please do not hesitate to email us at: [e-mail]

Page 10 of 33

3.4 Use in accordance with regulations

Procusini is an easy-to-use Procusini for use in commercial applications, for instance in gastronomy,
catering, or pastry kitchens.

Only the intended food-proof cartridges may be used. Moreover, the intended food-proof
production plate has to be applied during the production process.

Care must be taken that only piece-free, paste-like food items can be processed, such as marzipan,
pasta dough, Choco, fondant, etc.

The machine may only be used under continuous monitoring of the operating personnel.

The machine is only intended for indoor use.

The permissible surrounding temperature for the system lies between 68 - 140 °F. The maximum
allowable operating temperature for the printer head is 140 °F.

The surrounding area should be dry and largely dust-free.

The reliability of device operation is only assured under operation in accordance with the regulations
found in this operator’s manual.

All technical work, including assembly and servicing, is to be performed only by qualified individuals
and those who have been authorized by Print2Taste.

The Procusini is only intended for printing edibles from the designed cartridges. The Procusini is
designed for food printing in the provided cartridges with the appropriate templates and objects
from the Procusini Club only.

Any use deviating from the intended purpose and/or other type of use of the equipment is forbidden
and is considered to be out-of-accordance with regulations and will negate the product warranty.

Claims of any type against the manufacturer and/or its agent due to damages resulting from use
other than the intended use are barred.

The user is held solely accountable for any damages occurring during use of the device that deviates
from the intended use.

Please retain all original packaging as well as all shipping and handling material. This is the only way
to assure a successful and safe transport of the Procusini, for instance in the case of a return under
warranty!

Print2Taste takes no liability for devices that are not returned in their original packaging or have
been packaged improperly!
