Page 1
www.proctorsystems.com
User Manual ver.2.0
Megapixel IP Dome Camera
1.3MP / 2.0MP /3.0MP
Page 2
Megapixel IP Camera Manual
www.proctorsystems.com
2/
55
Safety Precaution
² he power before installing system.
² Do not install under the direct sunlig ht or in dusty areas.
² Make sure to use the product within the temperature and humidity spe
ed in the
spe
² Do not operate the product in presence of vibrations or strong magne
² Do not put electrically conducting materials in the ventilation hole.
² Do not open the top cover of
the products. It may cause a failure or electric shock on the
components.
² To prevent from overheating, make sure to keep the distance at least 10cm from the
ventilation hole.
² Make sure pro per voltage before connecting the power.
We appreciate your purchasing Proctor Megapixel IP Camera.
Before installing the product, please read the following wit h care
Page 3
Megapixel IP Camera Manual
www.proctorsystems.com
3/55
Table of Content
1. Introduction .......................................................................................................................... 4
About this manual ............................................................................................................... 4
Features............................................................................................................................. 4
Product and Accessories ...................................................................................................... 5
System Connections ............................................................................................................ 7
2. Installation ............................................................................................................................ 9
3. System Operation ................................................................................................................ 11
Remote Video Monitoring ................................................................................................... 11
Initialization of IP address ................................................................................................... 14
4. Remote Configuration .......................................................................................................... 15
Using Web Brower ............................................................................................................. 15
System Configuration ......................................................................................................... 16
Video Configuration ........................................................................................................... 20
Audio Configuration ........................................................................................................... 25

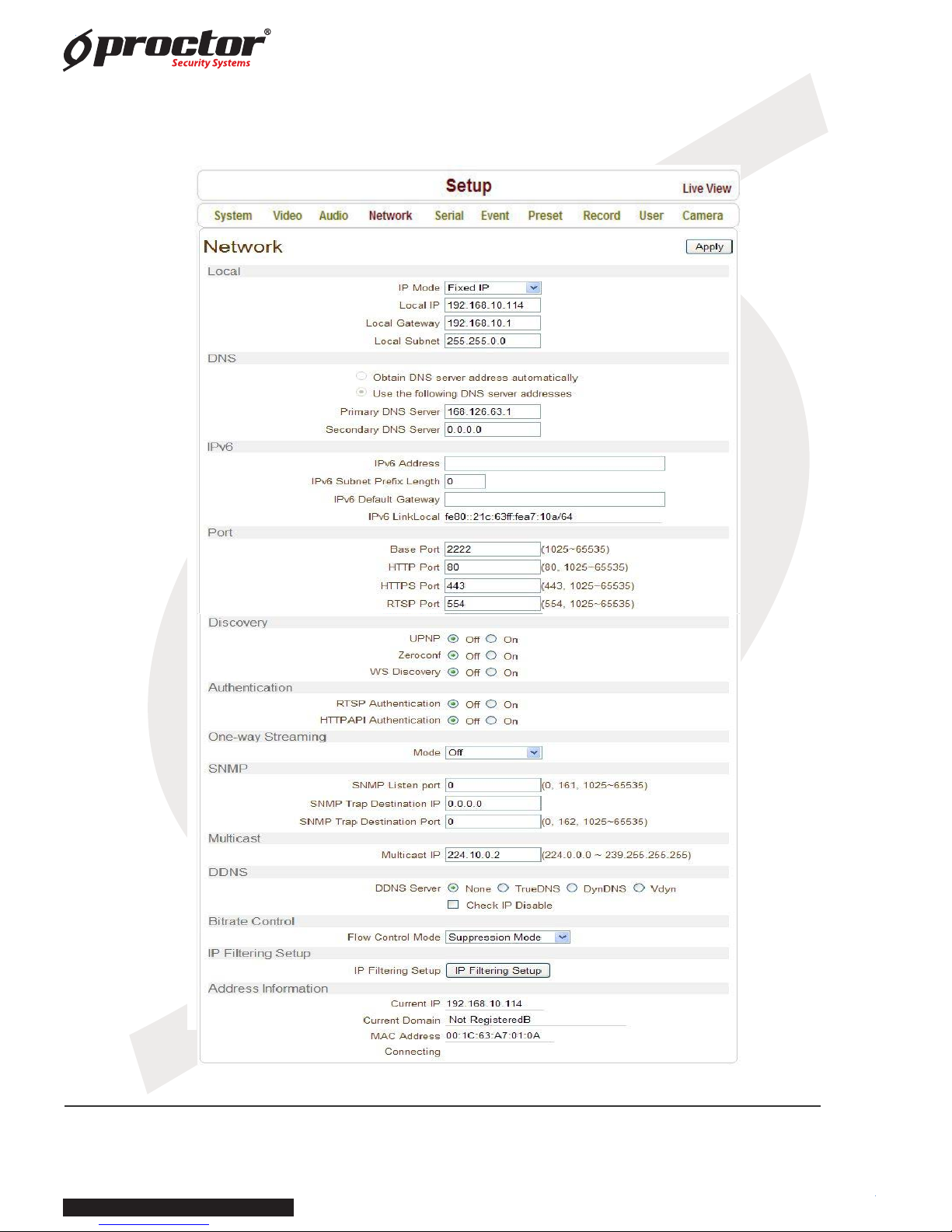

Network Configuration ........................................................................................................ 26
Serial Configuration ........................................................................................................... 33

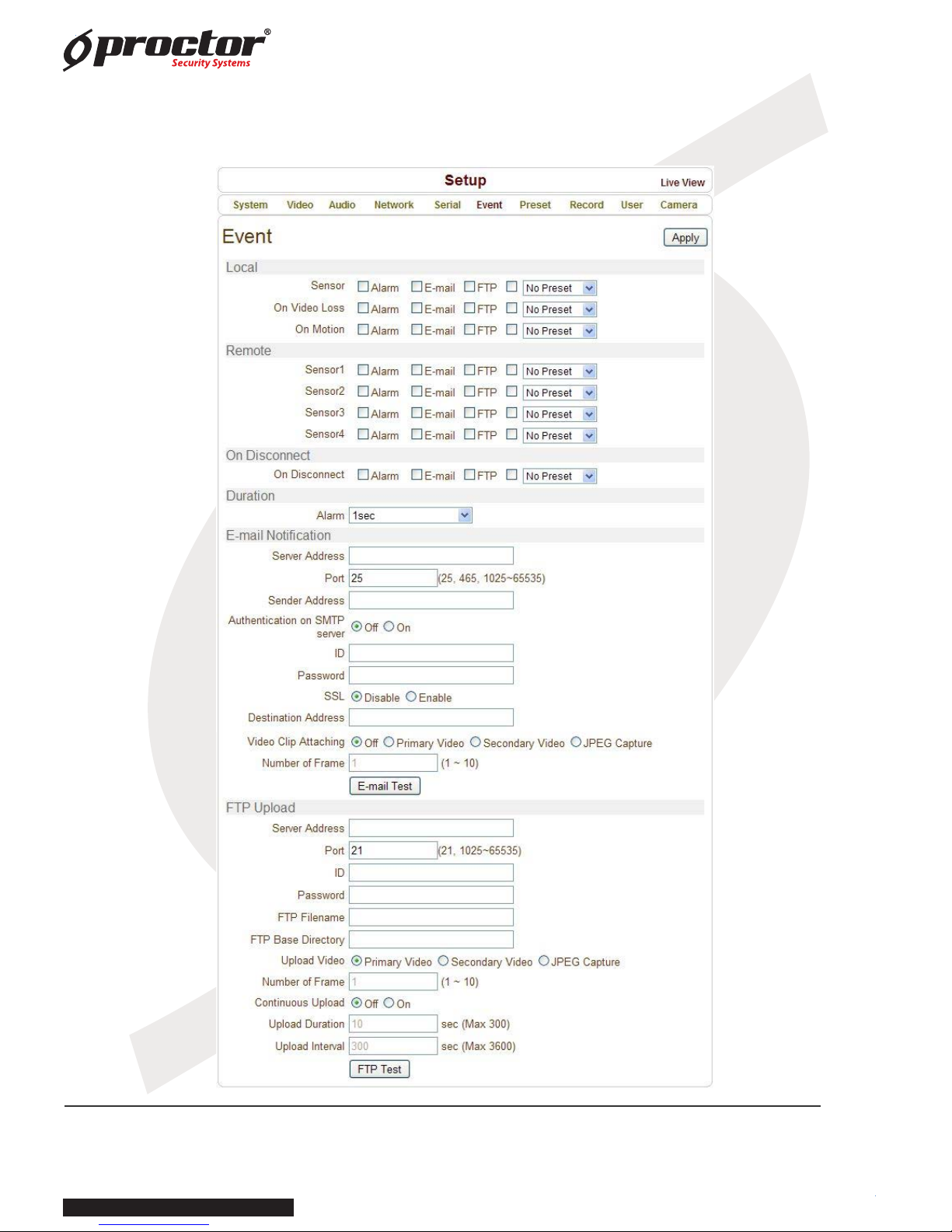

Event Configuration ........................................................................................................... 36
P
reset Configuration .......................................................................................................... 42

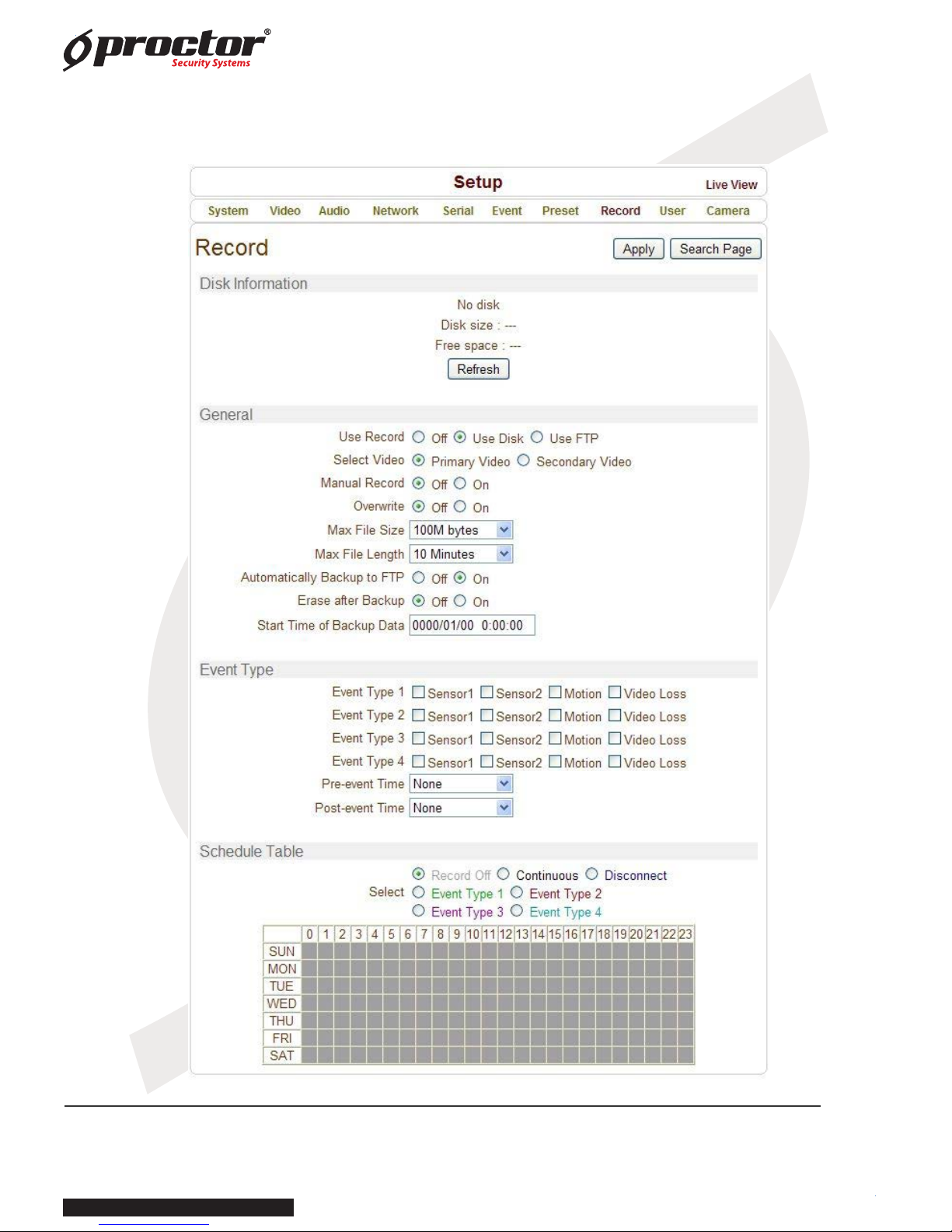

Record Configuration ......................................................................................................... 43
User Configuration ............................................................................................................ 50

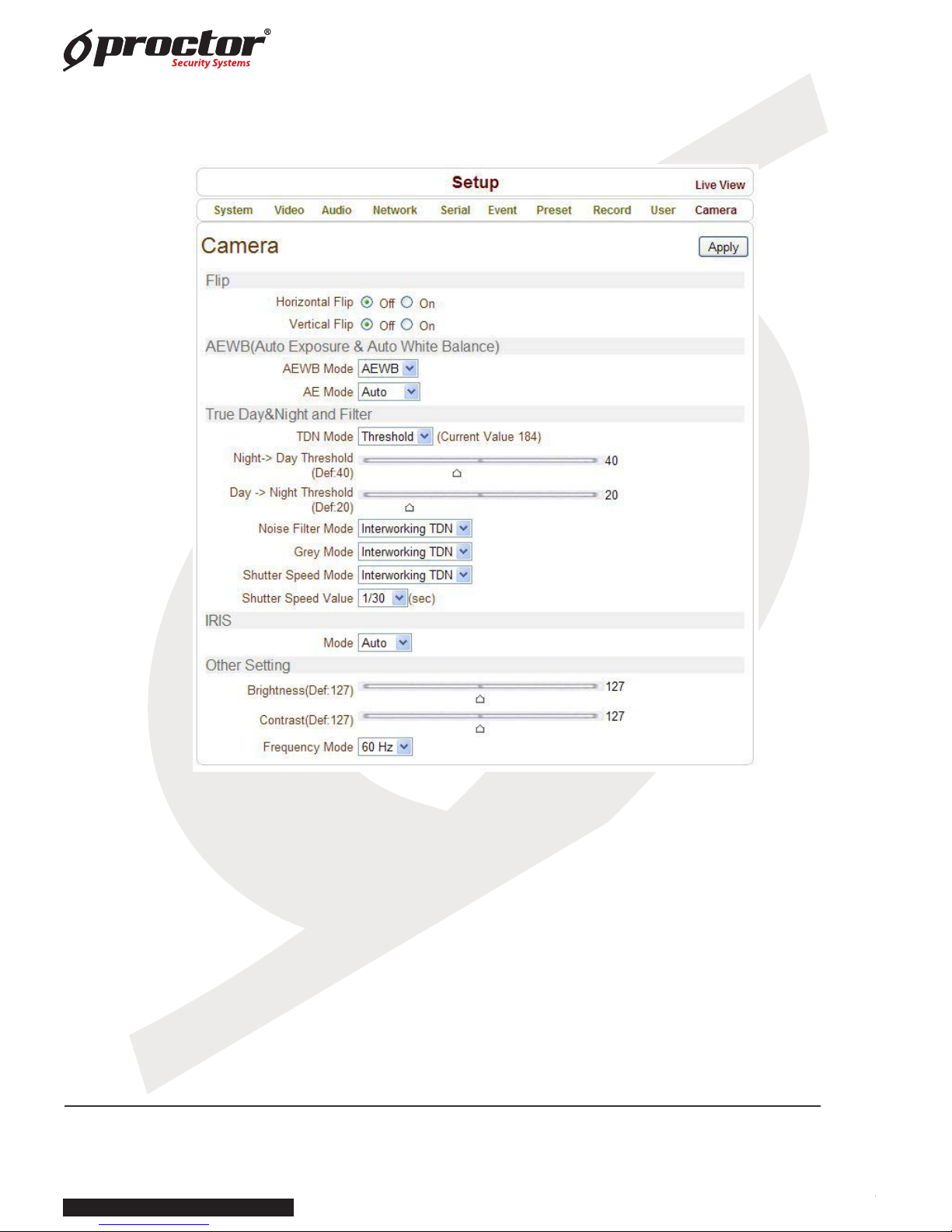

Camera Configuration ........................................................................................................ 52
Page 4
Megapixel IP Camera Manual
www.proctorsystems.com
4/55
1. Introduction
About this manual
This user manual p r ovi des inf ormation on operating and managing the premium network camera. The manual
includes instructions of installation, operation and conguration of the system as well as how to make
troubleshooting.
Features
Megapixel IP c amer a is m egapixel network-based system wit h rem ote l ive m onit oring, audio monitori ng and
control via an IP network such as LAN, ADSL/VDSL, and Wireless LAN.
Video
l Highly ecient compression algorithm, H.264 & MJPEG support
l Wide range of transmission rates: 32kb ps ~ 10mbps
l Various transmission modes: CBR, VBR
l Motion detection
Audio
l Multi-transmission mode: Si mpl ex ( Megapix el I P camer a à Client PC or Decoder, Cl ient PC or Decoder
à Megapixel IP camera), Full Duplex
Network
l Fixed IP & Dynamic IP (DHCP) support
l 1:1, 1:N support
l Multicasting
l Automatic transmit rate control according to network conditions
l OnVIF, PSIA compliant
Serial Data
l RS-485 support
l Data pass-through mode : Serial data communication between IP camera and decoder
Sensor and Alarm
l Support direct connections of external sensor and alarm devices
l Event Alarm
Page 5
Megapixel IP Camera Manual
www.proctorsystems.com
5/55
User Interface
l Diagnose and upgrade through dedicated program called True Manager
l System conguration using Internet Explorer
High Reliability
l Reliabl e embedded system
l System recovery by dual watch-dog functions
Product and Accessories
Megapixel IP
Dome Camera
Quick Manual
SW and User Manual CD
1.3 Megapixel IP Camera Manual
www.proctorsystems.com
User Manual
ver.2.0
Megapixel IP Dome Camera
1.3MP / 2.0MP /3.0MP
Page 6
Megapixel IP Camera Manual
www.proctorsystems.com
6/55
Part Names and Functions
Rear View
Connector Function
1. Ethernet/802.3af Ethernet port/802.3af LED :
Booting and syst em check
2. RESET Button Initialization of networ k setting
3. AUDIO IN Audio input
4. AUDIO OUT Audio output
5. POWER I N DC 12V
6. SENSOR/ALARM Sensor input/ Alarm output
7. RS-485 RS-485 port
8. Composite Out Composite Out
9. SD CARD SD memory card slot
②
①
Page 7
Megapixel IP Camera Manual
www.proctorsystems.com
7/
55
or
or
or
System Connections
IP camera can be connected in either 1 to 1 connection where one camera i s connected to one PC cli ent or a
decoder sy stem or 1 to many c onnections where one sy stem can be connec ted t o sev er al PC s and decoder
syste ms. (vi deo server can work as a video decoder which takes the data f r om a v i deo server or IP camera,
decodes and outputs analog video.)
Topology
Generally, I P camera and PC or a decoder is connected in 1-to- 1 m ode or 1-to m any conguration.
l 1:1 Connection .
One cam era is installed at a site where v ideo images are transmitted. A PC or a decoder is i nstalled at a
central location to receive and view the video images on an analog monitor. Audio and serial data are
transferred in either direction.
l 1:N Connection .
Site
Rem ote Center (Decoder)
Rem ote Center
Site
Rem ote Center (PC SW)
Site
Rem ote Center
Page 8
8/55
In this conguration, a site can be monitored from many remote central locations. Maximum connections
would be limited by network bandwidth connection. Functionally, the VMS (Video Management System)
software provided can replace the decoder.
Multicast Mode
If the network supports multi c a st i ng, a large num ber of decoder s c an be used to receive video eec t ively from
a camera using a single streaming of video and audio. However, multicast mode is possible only when
network environment supports multicast.
Relay
Video and audio data can be retransmitted from a center to another center. T he arrangement is u seful when
the network bandwidth to the site is limited while there are more than one center want to monitor the site.
VMS ( Video Management System)
VMS (Video Management System) is a Window-based remote monitoring program in order to monitor or
control video, audio, and ev ents in real time from several IP cameras or video servers. Please refer to the
VMS User Manual for more in detail.
VMS
Site
Rem ote Center
Site Cent er 1( Decoder)
Cent er 2 ( Decoder)
Site
Rem ote Center (Decoder)
onne
ctions
em
en
t System)
ode
rs canbe
used to rec
ei
ve v
ideo
eecti v
io.
is
be retr
t t site is
sit e.
ev
Megapixel IP Camera Manual
www.proctorsystems.com
Page 9
Megapixel IP Camera Manual
www.proctorsystems.com
9/
55
2. Installation
Connecting Network (LAN)
l Connect the power adaptor to IP camera
l Connect network cable to ethernet port
l To display video through composite port, after connecting each port to a monitor, set preview option “ON”
on the web-viewer page.
Connecting Audio
Audio is full-duplex. It is possible to set the mode as Tx-onl y, Rx-only or Tx-Rx.
l Connect audio input and output ports to audio devices accordingly.
l The Audi o si gnal required i s li ne level , so audio equipment wit h an am p, mi xe r or other
ampl i er should
be used.
Connecting Serial Ports
RS-485 of IP camera can be connected to ex ternal equipment such as PT receiver etc. PC client can send PT
commands to the ex ter nal equipment via the serial port.
When a decoder system instead of PC client is connected to IP camera, the serial port and that of the decoder
system works in pass-through mode. That is, data from one port is delivered to the other port, vice versa
Connecting Sensor and Alarm
Connect sensor and alarm dev ic es to cor r esponding t er m inals accordingly.
Connecting Power
After conrming the power source, connect power adaptor and connect the 12VDC connector to the IP
camera.
Page 10
Megapixel IP Camera Manual
www.proctorsystems.com
10/
55
Check if it Works
Once the power i s sup plied t o the IP camer a, it will start booting. The I P camera will boot up to an operating
mode after approximately 40-60 seconds. The green LED on the Ethernet port will ash indicating the IP
camera is ready.
Software provided on the di sc called True Manager allows y ou to check the IP address and other network
details of the IP camera. Please refer to the True Manager manual f or instructi ons on how to nd the IP
address of the IP camera and
if required changing it.
Page 11
Megapixel IP Camera Manual
www.proctorsystems.com
11/
55
3. System Operation
Remote Video Monitoring
There are two ways to monitor video when th e center syst em and IP cam era ar e connected. In o rder f or a
proper operation, an I P address must be set accordingl y. Pl ease ref er to Tru e Manag er Manual en closed
with product for further details.
Default ID : admin Default Password : 1234
.
Video Monitoring using Internet Explorer
Open Internet Explorer and enter camera’s IP address. The system will ask for conrmation to install Activ e- X
control. Once authorized, the Internet Explorer will start to display video im ages f rom camera as shown below.
Default IP Address : http://192.168.10.100
Page 12
Megapixel IP Camera Manual
www.proctorsystems.com
12/
55
l Video Select
Select the Video str eam t o be viewed: Primary or Secondary
This camera is capable of dual streami ng; primary streaming and secondary streaming.
Video will be displayed according to the resol ution set on video conguration. If dual streaming ( “Use
Dual Encode” Menu in Video page ) is not activated, se condary video is not available
l View Size
Adjust the Screen size
Screen size is initially adjusted accor ding to the compression resolution. If you click 50% icon, the whole
screen si
ze will be reduced to half size.
l Digital Zoom
Control the Digital zoom on the screen
The more the camera zooms in, the smaller th e s quar e of control panel is. Position of the
image can be changed by moving position of the square.
If you press x1, the screen will return to the normal size.
l PTZ Contr ol (Optical Zoom & Digital zoom built-in the camera)
Control PTZ and PTZ Control Panel is used f or controlling external PTZ devices when the
external PTZ devices are connected t hrough serial port.
It is
possible to make zooming control by Zoom in/out buttons of PTZ control Panel (In
order to use digital zoom, select Digital zoom ON in the Camera tab)
- Stop
Stop on-going PTZ action.
- Focus Near, Focus Far, Auto Focus
Adjust the focus of the lens
l Select Preset
Set preset position and move to the
specic preset position.
- Goto : Move to the selected pr eset entry if the preset entry is set.
- Set : Set the current position to the selected preset entry.
- Clear : Delete the selected preset entry.
l Sensor Input
Display the sta tus of the sensor in real time.
This camera supports one sensor input. When t he sensor of the camera is working, the sensor light turns
red.
Page 13
Megapixel IP Camera Manual
www.proctorsystems.com
13/
55
l Alarm Output
Operate the alarm devic e by pressing t he number ic on
This camera supportsone alarm output. A number icon indicates status of the alarm dev ice.
l Snapshot
Capture video images and store them as BMP or JPEG les.
l Talk
Transfer audio from PC’s mic to the camera.

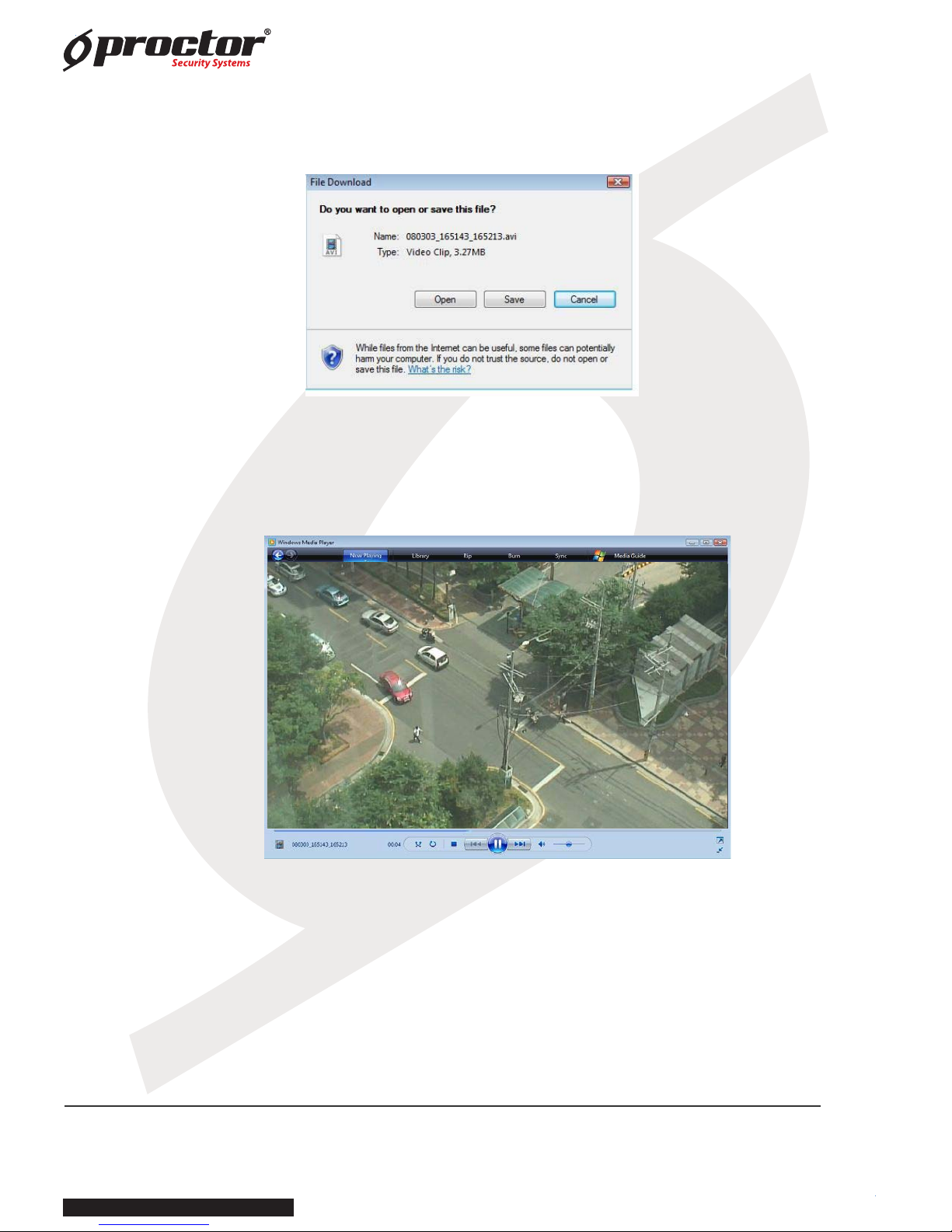

l File Record
Recording to an AVI le on L ive V iew page is available. AVI les are generated in th e s pecied folder or
in specied le name on the PC where web browser is running.
1. Press “ Set ” button
to select folder or create a new folder. Enter the le name on Filename eld.
2. Press “Start” button to start to record.
3. Press “Stop” button t o stop to record.
4. AVI le named “ IP address_hh_mm_ss” or “File name_IP
address_hh_mm_ss” will be generated in the specied folder depending on
whether the path specied a folder or a prex of the le name.
l Display Bu er
Set the num ber of video frames to be buered before being displayed on web browser. Larger value
results in smoother video by sacri ci
ng the latency. A setting of 10 ~ 15 frames can be used generally for
most situations.
Video Monitoring with Decoder System
Once camera’s IP address is s et in the remote IP address section of the decoder, the decoder system will
connect to camera and start receiving the video images. Normally, a monitor c onnected to the decoder will
display video images
Page 14
Megapixel IP Camera Manual
www.proctorsystems.com
14/
55
Initialization of IP address
If a syste m I P addres s i s l o st , t he system can be reset to the system default IP address usi ng t he reset button
in the back side of the system .
1. Whire syst me is in operation, press the reset button for more than 5 seconds.
2. The system will reboot automatically
3. Once the sy stem r eboots, IP address will be set to the system default as below.
· IP mode Fixed IP · IP address 192.168.10.100
· Subnet mask 255.255.255.0 · Gateway 192.168.10.1
· Base port 2222 · HTTP port 80
Page 15
Megapixel IP Camera Manual
www.proctorsystems.com
15/
55
4. Rem ote Conguration
Using Web Brower
Remote setting i s av ailable by using web browser. Enter IP address of camera and then a liv e view sc reen
appears as bel ow. Press Setup button located i n the upper right area of the m onitoring screen t o go to the
server setup. For Remote Setting, user should be authorized higher t han manager level.
The con gurations are grouped into 10 categories: System , Video , Audio , Network , Serial , Event, PTZ,
Record, User and Camera. Any conguration c
hanges are not applied until Apply button is pressed. Leaving
the page without pressing Apply button, any changes in the page will be discarded.
Enter IP Address
Press Setup button
Page 16
Megapixel IP Camera Manual
www.proctorsystems.com
16/
55
System Conguration
Page 17
Megapixel IP Camera Manual
www.proctorsystems.com
17/
55
General
l System I D
Enter System ID that is used as a camera ti tle
The set System ID is displayed wi t h v ideo im age on Web brows er. T he Syste m ID i s also transferred t o
remote software, such as VMS, and displayed on it .
l Language
Select the language to be used for web-based conguration
Firmware
l Firmware version
Display the current rmware version
l Board ID
Display the Network board ID of the camera recognized by system
l Upgrade
Upgrade rmware
1. Press Browse button to select a rmware le from PC.
2. Press Firmware Upgrade button to start to upgrade.
3. Messages for showing status ( downloading / upgrading) will be displayed.
4. The camera will reboot automatically after completing upgrade. Do not turn the camera o during
upgrading
Page 18
Megapixel IP Camera Manual
www.proctorsystems.com
18/
55
Cong Backup & Restore
l Backup
All the setting of conguration can be st ored.
l Restore
Stored con gur ation can be browsed and restored. The server is rebooted once Cong Restore button
is pressed.
Time
l Start Time
The latest the camera’s booting date and time
l Current Time
Current date & time
Enter a new date and time and press Set Current Time button to update date & time
l Time Format
Change the time format. Sel ec table time formats are as below
- YYYY/MM/DD hh:mm:ss (Ex. 2010- 4-11 18:18:42)
- DD/MM/YYYY hh:mm:ss (Ex.11- 4-2010 18:18:42)
- MM/DD/YYYY hh:mm:ss (Ex. 4-11-2010 18:18:42)
l Time Zone
Select time zone of where the c am er a is i nstalled.
Depending on the time zone, Daylight Saving Time will
work automatically
A time zone is a region of t he earth that has unif o rm st andar d time, usually referred to as the local
time. By convention, time zones compute their local time as an oset from UTC (Coordinated
Universal Time). In c asual use, GMT (Greenwich Mean Time) can be considered equiv al ent to UTC.
Local time is UTC plus the current time zone oset for the considered l oc ation
Page 19
Megapixel IP Camera Manual
www.proctorsystems.com
19/
55
l Automatically synchronize with NTP server
Synchronize the camera tim e with an NTP server usi ng NTP (network time protocol).
Name of the NTP server should be registered on NTP server Name.
Reboot
l Reboot the camera.
Do not press the Reboot button unless the server needs a reboot.
Factory Reset
l All settings incl uding user acc ounts and logs are cleared.
Factory Reset except network settings
l All the se ttings except for current network settings are changed to default values.
The Network Ti me Protocol ( NTP ) is a protocol for synchronizing t he clocks of computer systems
over packet-switched, v ariable-latency data networks. It is designed partic ularly to resist t he eects
of variable latency b y using a jitter buer.
Page 20
Megapixel IP Camera Manual
www.proctorsystems.com
20/
55

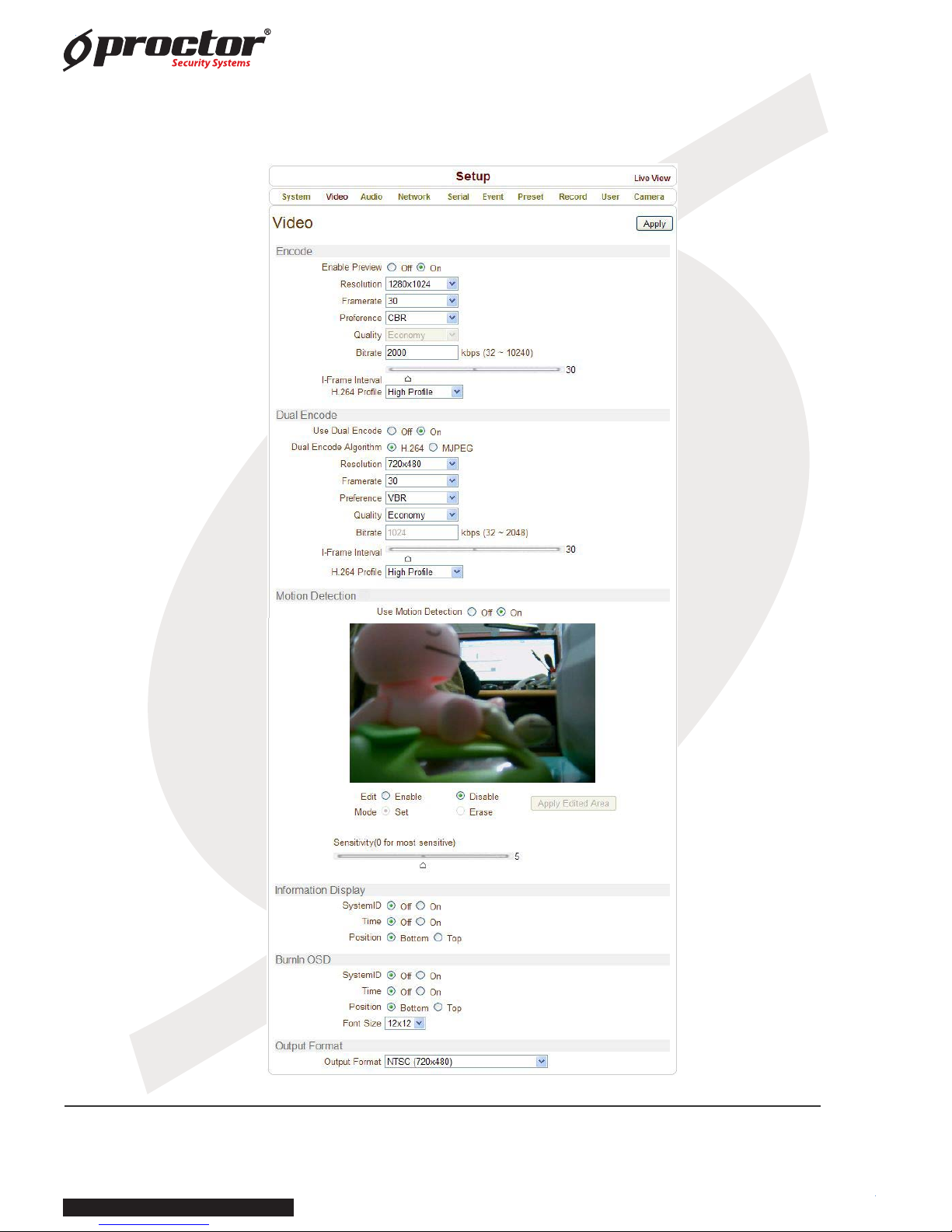

Video Conguration
Page 21
Megapixel IP Camera Manual
www.proctorsystems.com
21/
55
Encode
l E nable Preview
1. Select ON to enable to display vi deo on the monit or that is connected t o the c om posite or HD-SDI video
port.
2. Select the Output format accordingly in the end of the Video page.
Note that when Enable Preview is ON , dual streaming is not available.
When the video is transmitted directly to the monitor through BNC cabl e, t he v ideo does not go thorough
network and encoding. Therefore, there is less delay and no an eect from network limitation.
l Resolution
Select video encoding resolut ion.
l Framera
te
Determine the maximum number of frames per second for the video stream.
1,2,3,4,5,6,8,10,15,20,25 and 30 fram e ra te c an be selected. The actual f ram e ra t e of v ideo ca n be less
than the maximum frame rate set due to the network bandwidth limitation
l Preference
Select encoding mode to control video quali ty or bitrate: Quality(VBR) or Bit rate(CBR).
If ‘Bitrat e’ selected, the video encoding will be eected by the ‘Bitrate’ value entered. Therefor e, “Bi trat e”
mode c
orresponds to CBR (Constant Bit rate) encoding.
If ‘Quality’ selected, the video encoding will be eected by the quality of image selected. Therefore,
“Quality” mode corresponds to VBR (Variable Bit Rate) encoding.
l Quality
Select Video quality. 7 levels of quality are available.
Quality mode (VBR encoding) tries to encode every frame in a constant quality. Therefore, resulti ng
bitrate may vary a lot dependi
ng on
the complexity or activity changes in the input video. It is preferred
whe
n constant video quality is required and network bandwidth is enough for delivering the stream of
highly varying bitrate.
l Bit rate
Determine bitrate value between 32 ~ 10240kbps.
Bitrate mode (CBR encoding) allows you to set a xed target bitrate that consumes a predictable amount
of bandwidth. In order to k eep t he bitrate limit, video quality is controlled dynamically accordi ng t o the
complexity or activity changes in t he input video.
l I-Frame Interval
Determine I-frame Interval between 1 and 255.
Page 22
Megapixel IP Camera Manual
www.proctorsystems.com
22/
55
l H.264 Prole
Select H.264 Prole: High Prole or Baseline Prole
The standard denes v arious sets of capabilities, which are referred to as proles, targeting specic
classes of applications.
- High Prole (HiP)
The primary prole f or broadcast and disc storage applications, particularly for high-denition tel evi sion
applications (for ex ample, this is the prole adopted by t he Blu-ray Disc st orage format and the DVB
HDTV broadcast service).
- Baseline Prole (BP)
Primarily for low-cost applications that require additional data l oss robustness, this prole is used in some
videoconferencing and mobile applications. Thi s prole includes all features that are supported in the
Constrained Baseline Prole, plus three additional features that can be used for loss robustness (or for
other purposes such a s low-delay multi-point video stream compositing).
Dual Encode
l Use Dual Encode
1. Select O button on the Enable Preview to enable to use Dual Encode
2. Select ON t o enable to use Dual Encoding
The secondary video can be viewed on Live View window by selecting Secondary on Video selection
l Dual Encode Algorithm
Select H.264 or MJPEG for the secondary streaming.
In case of H.264, either Bitrat e mode or Quality mode c an be selected for Preference mode in. On the
other hand, MJPEG supports Quality mode only.
Page 23
Megapixel IP Camera Manual
www.proctorsystems.com
23/
55
Motion Detection
l Use Mo tion Detection
Determine to use Motion Detection function
l Motion Detection Area Editing
Congure regions for motion detection. Regions of arbitrary shape can be congured by the f ollowing
steps.
Sel ec t Enable on Edit tab
Sel ec t editing Mode. Set is for including cells to motion detection region and Erase is for excluding.
Select cells using the ri ght button of t he mouse. Multipl e cells can be select ed conv enientl y by press
and dragging.
Press Apply Edited Area to save
the editing
l Sensitivity
Sensitivity is the condition to trigger an event of motion detection.
The value determines the sensitivity of the motion detection within a block: the smaller, the more sensitive.
It is selectable from 0 to 10.
Information Display
System ID and/or server tim e can be display over the video window i n Internet Explorer. Each item can b e
turn on or o separately, and position also can be congured. This information is displayed after the video is
decompressed.
Page 24
Megapixel IP Camera Manual
www.proctorsystems.com
24/
55
BurnIn OSD
Insert system ID and date/time in t he compressed v ide o . System ID and time respectively can be turned on
or o in the video. Position and Font size can be congured also. System ID for BurnIn OSD exists
independently from normal Sy stem ID.
Note that size of Burnin OSD display varies according to t he encoding resoluti on setting. This is inevitable
because Burnin OSD is inserted to the frames before encoding is performed. The following table describes the
rule for
BurnIn OSD display.
Resolution Small (8x8) Middle (16x16) Large (32x32)
352x480 / 352x240 / 352x576 / 352x288 2 1 0
720x480 / 720x240 / 720x576 / 720x288 /
640x480 / 800x600
2 2 1
1024 x 768 / 1280x720 / 1280 x 960 /
1280x1024 / 1440x900 / 1600x900 / 1680x1050
/ 1920x1056 / 1920x1080 / 2048x1536 /
2560x1600 / 2592x1936
2 2 2
2 : Both System ID and Time are displayed
1 : Either System ID or Time can be displayed. When both are enabled, System ID is displayed.
0 : No items are displayed. This is because video area is too small to display OSD text in large text.
Output Format
Output Format menu appears only when Enable Preview is on.
Select the output format for the monitor pr ev iew according to the video output and monit or specication.
Page 25
Megapixel IP Camera Manual
www.proctorsystems.com
25/
55
Audio Conguration
Algorithm
l Algorithm
Select the audio algorithm: G .711 or AAC
G.711 and AAC from client to server direction a re supported. Thus, bi directional audi o communication is
supported.
l Bit rate
Select the bitr ate between 64Kbps and 128kbps when AAC is selected
The sam pling rate is xed to 8KHz and 32KHz for G .711 and AAC respectively.
Note that when camera is connected to a decoder, the decoder’s audio algorithm should be set identically
to transmit audio pr operly.
Mode
l Select audio operation mode
Mode Action
O No operation
Tx-Only Transmit only
Rx-Only Receive only
Tx & Rx Transmit and Receive
Input Gain
l Set audio input gain from 0 to 31.
Page 26
Megapixel IP Camera Manual
www.proctorsystems.com
26/
55
Network Conguration
Page 27
Megapixel IP Camera Manual
www.proctorsystems.com
27/
55
Local
l IP mode
Select the IP mode: Fixed IP or DHCP (Dynamic Host Conguration Protocol)
Depending on the selected mode, further conguration items come as follows
IP Mode Selection Description
Fixed IP
Local IP Fixed IP address
Local
Gatewa
y
Gateway IP address
Local Subnet Subnet mask
DHCP N/A
☞ Please ask IP address i nformation from ISP provider or network manager.
DNS
l Obtain DNS server address automatically
Get DNS serv er address autom atically when IP mode is DHCP.
l Use t he following DNS server addresses
Enter the DNS server I P address.
- Primary DNS server
- Secondary DNS server
Ipv6
l Ipv6 Address
Enter the deginated Ipv6 address.
l Ipv6 Subnet Prex Length
Enter the bit number of Ipv6 Subnet.
l Ipv6 Default Gateway
Enter the deginated Ipv6 gateway.
Domain Name System (DNS ) is a database system that translates a computer's fully qualied
domain name i nto an IP address. Networked com puters use IP addresses to locat e and connect to
each other, but IP addresse s can be dicult for people to rem em ber. For ex am pl e, on the web, it's
much easier to remember the domain name www.amazon.com than it is to remember its
corresponding IP address (207.171.166.48). E ach organization that maintains a com puter network
Page 28
Megapixel IP Camera Manual
www.proctorsystems.com
28/
55
l Ipv6 Link Local
Display Ipv6 Link Local.
Port
l Base Po rt (1025 ~ 65535)
Enter the Base Port number.
Network base por t i s use f or communicati on with remote clients. In order for camera and remot e sy st e m s
(decoder or VMS, NVR software) to be connected, the port number must be identically congured in
camera side and client side.
l HTTP Port (80, 1025 ~ 65535)
Enter HTTP port used for web-based connection
l HTTPS Port (443, 1025 ~ 65535)
Enter HTTPS port used for secured HTTP connection.
l RTSP Port (554, 1025 ~ 65535)
Enter RTSP
port used for RTSP-based connection. The default RTSP port is 554
RTSP (Real Time Streaming Protocol) is a standard for media streaming between s erver and client.
Discovery
l UPNP
By setting UPNP to ON, it allows the discovery by the client according to UPNP (Universal Plug and Play)
protocol.
l Zeroconf
By setting Zeroconf to ON, it allows the discovery by the client according to Zeroconf protocol.
l WS Discovery
Discovery function based on web service is enabled. It allows the discovery by Client SW which is
supporting Onvif.
Authentication
l RTSP Authent ication
If RTSP Authentication set to ON, user in t he cli ent side is asked to enter User ID and Password.
l HTTP API A uthe nt ication
When HTTP API authentication set to ON, H TTP Authentication is asked for all clients which use HTTP
API .
Page 29
Megapixel IP Camera Manual
www.proctorsystems.com
29/
55
One-way Streaming
l Thi s IP camera provides two k inds of one-way(unidirectional) str eaming based on UDP to clients: RTP
and MPEG-TS . Both are a kind of broadcasting where trac from client to server is not generated at all.
l RTP (Real-Time Transport Protoco l) is an Internet protocol used for transmitting single real-time
multimedia data such as audio and video to a sel ect group of connected clients. Normally RT SP uses
RTP to format packets of multimedia content. RTP menu is used
when the RTP only stre aming wi thout
RTSP connection. RTP stream will be transmitted t o the destination set. T he SDP (Session Description
Protocol) le can be found in the server, and a client c an retri eve it using http connection.
Related settings are as follows:
-
Destination IP : Set the IP Address of the destination system whic h will receive RTP stream
If the sy st e m is decoder, RT S P authentication i nfor m at i on c an be ent er ed i n t he mi ddl e of RTS P URL a s
follows:
rt
sp://admin:1234 @192.168.10.100:554/video1
-
Destination Port : Set the Port of the destination system which will receive RTP stream
-
User Name : Enter the User name that will be used as session name in the SDP le.
-
File Name : Enter the le name that will be used as the nam e of t he SDP le. Then, i t c an be accessed
through http://ServerAddress/lename
Page 30
Megapixel IP Camera Manual
www.proctorsystems.com
30/
55
l MPEG-TS is a standard format for transmission and storage of audio, video, and data,[7] and is used in
broadcast systems such as D VB and ATSC. Transport Stream is specied in MPEG-2 Part 1, System s
(formall y known as ISO/IEC standard 13818- 1 or ITU-T Rec. H.222.0). Transport stream species a
container format encapsulating packetized elementary streams, with error correction and stre am
synchronization features for maintaining transmission integri ty when the signal is degraded.
As MPEG-TS itself suppo
rts only AAC as the audio algorithm, only video is streamed when audio
algorithm is set to G.711.
Related settings are as follows:
-
Destination IP : Set the IP Address of the destination system whic h will receive MPEG-TS stream
-
Destination Port : Set the Port of the destination system which will receive M PEG -TS stream
SNMP
Setup for using SNMP (Simple Network Management Protocol). It is compatible to both SNMPv1
and SNMPvec. Settings for using SNMP (Simple Network Management Protocol) are as following
l SNMP Listen Port(0, 161, 1025 ~ 65535): The port is f or connecting external devices when system
operates as a SNMP client. SNMP is not used by setting 0 value.
l SNMP Trap Destination IP : Set the SNMP Trap Destination IP.
l SNMP Trap Destina tio n Port ( 0, 162, 1025 ~ 65535): Set the S
NMP Tra p Destinati on Port. SNMP is not
used by setting 0 value.
Multicast
l Multicast IP
The Multicast menu i s used f or conguring t he mul ti c ast I P addres s to which media stream is delivered
when a client such as a Decoder, VMS or NVR software is connected in multicast mode. The multicast IP
address selection range is between 224.0.0.0 and 239.255.255.255. The selection can be used only
when media protocol is set to Multicast.
Simple Network Management Protocol (SNMP) is used by network management systems to
communicate wit h network elements. SNMP lets TCP/IP-based network management cli ents use a
TCP/IP-based internetwork to exchange information about the conguration and status of nodes.
SNMP can also generate trap messages used to report si gnicant TCP/IP events asynchronously to
interested cli ents. For example, a router could send a message if one of it s redundant power supplies
Page 31
Megapixel IP Camera Manual
www.proctorsystems.com
31/
55
DDNS
Select the DDNS (Dynamic DNS ) serv er to use. One of the t wo server s can be sel ec ted.
l True DNS: TrueDNS service is used in this mode. Systems can be registered on the website for
TrueDNS serv ic e: http://ns1.truecam.net
. System will get a domain name of xxx.truecam.net sty le. Please
refer to user guide document for True DNS service.
l DynDNS: DynDNS service is used in this mode. Refer www.dyndns.org
for details. ID, Password and
Domain name are needed when DynDNS is set.
l Vdyn: Vdyn is a DDNS service provided by Visionica ( http://visionica.com
). No further conguration i s
required for using thi s service. It int ernally use s MAC address for the registration. W hen it succeeds, the
domai n nam e of the form 001C63A607EC.visionica.i nfo is displayed on CurrentDomain entry of Network
page. E-mail setting is not mandatory.
l Check I P Di sable: If “ Check IP Disable” i s selec ted, it will skip to check its own IP. In Fixed I P m ode, the
set IP will be registered on DDNS server. In DHCP m ode, dynamically assigned I P will be registered on
DDNS server. Normally Check IP Disable should be unchecked in order to obtain public IP in the network.
Bitrate control
When t here are more than one client connected to the camer a, due to bandwidth dierenc e among the cli ents
some of them do not have enough bandwidth to receive encoded stream completely. In this case, it is possible
to select the way to stream video to clients as following.
- Frame Drop Mode: Encoding is performed strictly according to video settings. When a client is
connected through a net work wit h l ess bandwidth, it may not r eceive all the frames. That is, f rames are
dropped on sending module
if the network is bottlenecked.
- Suppression Mode: Encoding bitrate and frame rate are adjusted not to drop any frames when the
network band widths to some clients are limited. In this case, all clients can be aected by the aver aged
bitrate and frame rate.
Dynamic DNS is a method, protocol, or net work service that provides the capability for a networked
device, such as a router or computer system using the Internet Protocol Suite, to notify a domain
name server to change, in real time (ad-hoc) the active DNS conguration of its congured
hostnames, addres ses or ot her info r mation st ored in DNS.
Page 32
Megapixel IP Camera Manual
www.proctorsystems.com
32/
55
Address Information
Followed network information is displayed (Read only)
l IP Address: The Camera own IP address. This information is useful when the camera’s IP mode
is set to DHCP.
l Domain Name: In case the camer a is registered at DDNS server, the registered domain name is
displayed.
l MAC Address: Display the MAC address of t he camera . In case the camera is registered at DDNS
server, the MAC address is used in DDNS registration.
l Connecting: Client IP Addresses that are current ly connected to sy
stem are listed. (1) Indicates
Page 33
Megapixel IP Camera Manual
www.proctorsystems.com
33/
55
Serial Conguration
Page 34
Megapixel IP Camera Manual
www.proctorsystems.com
34/
55

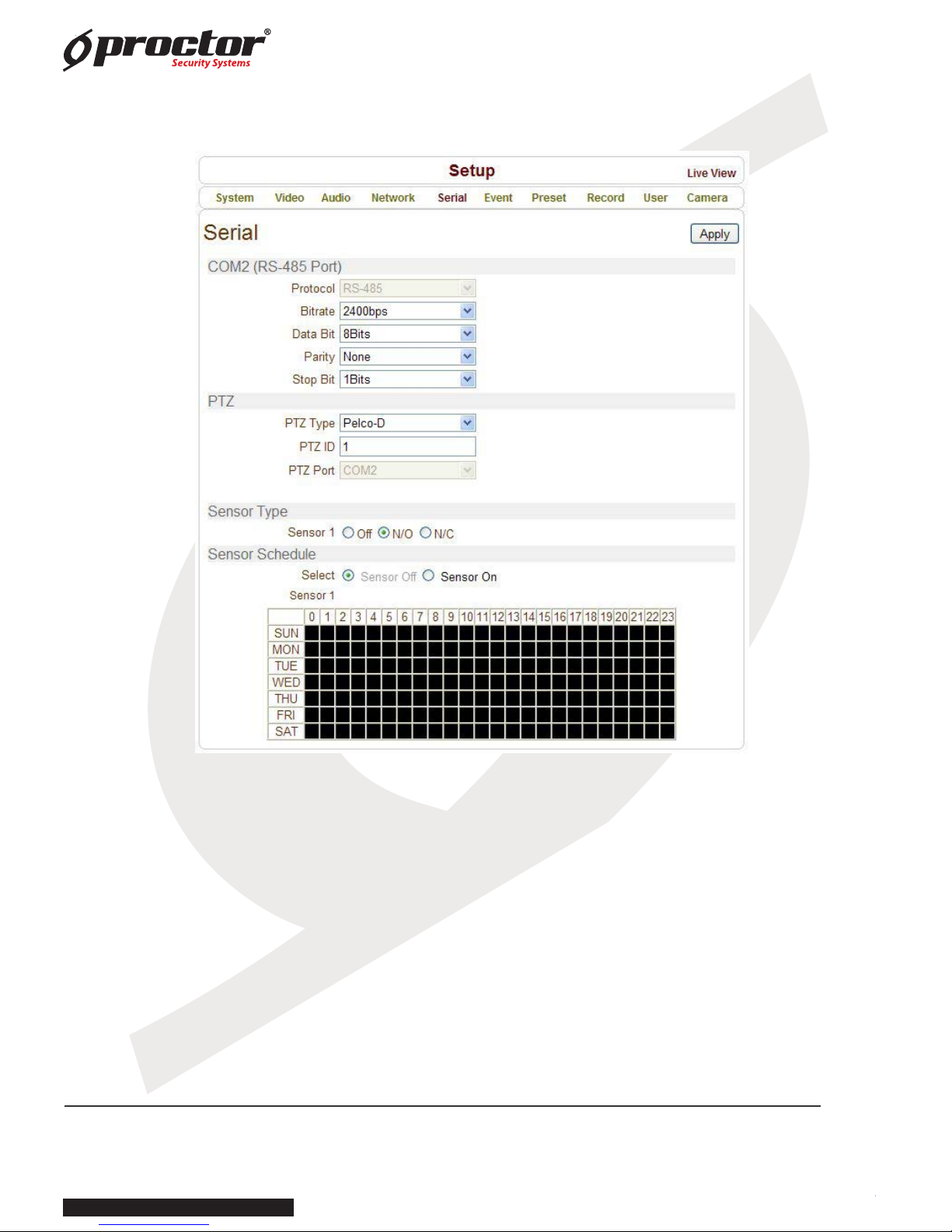

Serial Port Conguration
l Serial Port Information
This camera supports one RS-485 serial port
By default, Pelco-D protoc ol is used wi t h 2400bps baudrate.
Sensor Type
l There is one sensor input port on Megapixel IP camera.The sensor port can be congured to the
following.
Function Operation
OFF Not used
NO (Normally Open) The port is normally open and activated when closed.
NC (Normally Closed) The port is normally closed and activated when opened.
The function of the sensor port is set based on the type of the sensor connected.

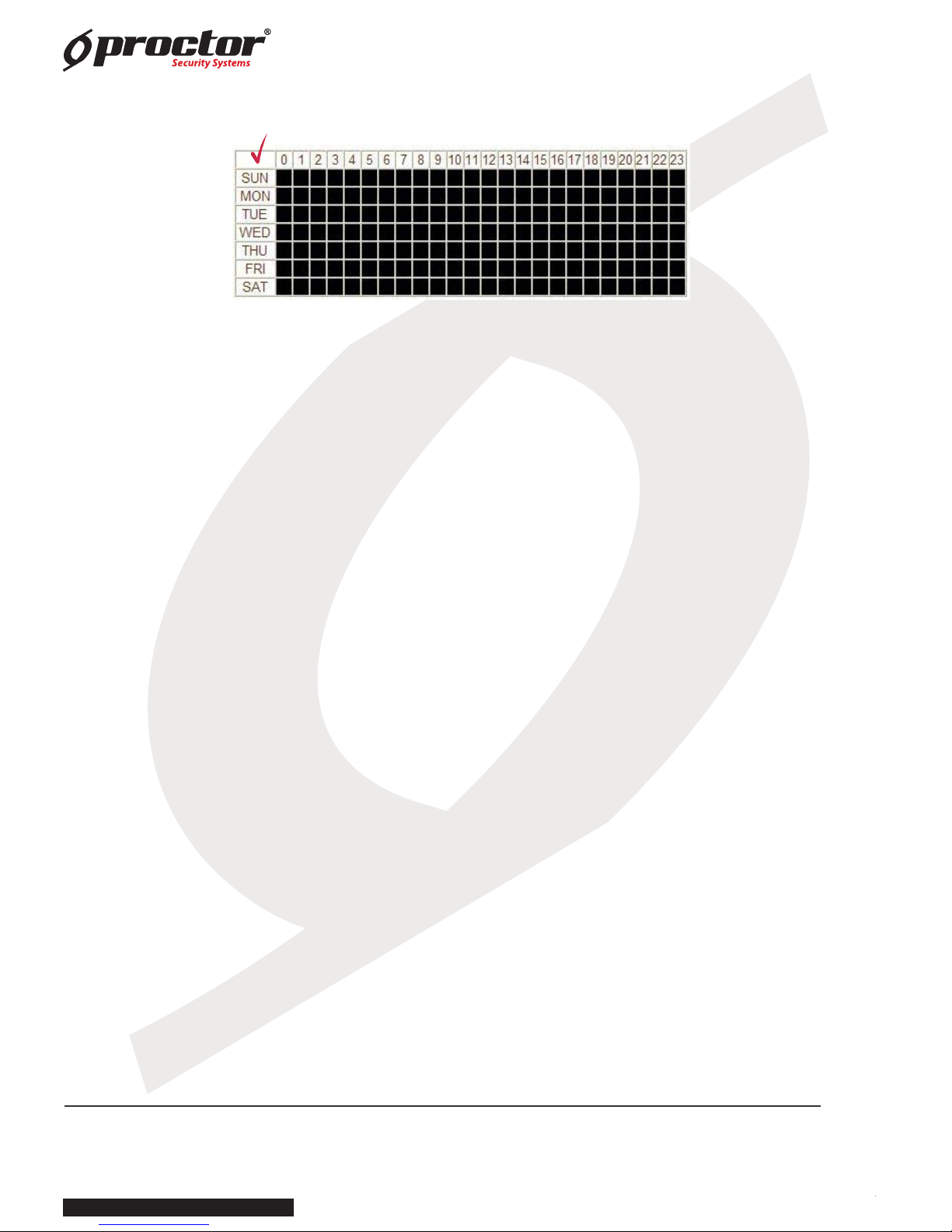

Sensor Schedule
l Choose Sensor OFF or Sensor ON and click the below schedule cells to make Sensor Schedule
according to day of week and hour.
- Click desired “Cell” to set schedule.
- Click desired “Time Line or Date Line” to set schedule.
Page 35
Megapixel IP Camera Manual
www.proctorsystems.com
35/
55
- To set all cells in the schedule, click below “Empty Cell”.
Page 36
Megapixel IP Camera Manual
www.proctorsystems.com
36/
55
Event Conguration
Page 37
Megapixel IP Camera Manual
www.proctorsystems.com
37/
55
When a decoder i nst ead of a PC client i s c onnected to an IP camera, one syste m becomes a Local system
and the other a Remote system (Generally a system which is being used by the user is called as Local
syste m). Then, actions for ev ents can be congured for ev ents from the remote system as well as for local
system. For exam ple, i t i s possi bl e to turn on an alarm dev ice in loc al (center) decoder system when a sensor
device in remote ( site) IP camera is triggered. Local section c o n gur e s t he acti ons f or events from local (self)
system, and conguration activ ates local devices and Remote secti ons c ongure t he acti ons f or ev ents from
remote (peer) system.
The following table lists the possible acti ons for events.
Action Description
Alarm out Triggers alarm (relay) port.
E-mail
Sends E-mail to the specied address. AVI
le can be attached
FTP Upload A V I le to a specied FTP server
Preset Move to the Preset position
Local & Remote Event Conguration
l Sensor
Congure the actions when the sensor is activ ated. Multiple actions can be set f or a single event.
l On Video Loss
Congure the actions when video input signal is lost. Multiple actions can be set for a single event.
l On Motion
Congure the actions when motion is detected. Multiple actions can be set for a singl e event.
On Disconnect
Congure the actions when t he link (connection) with peer sy stem is disconnected. Multiple acti ons can be set
for a single ev ent.
Duration
Set the duration of alarm or beep activ ation in case of an event. If it is set to continuous, it will be in active
state until an operator reset it manually.
Page 38
Megapixel IP Camera Manual
www.proctorsystems.com
38/
55
E-mail Notication
Specify the information to send event information, when E-mail is sel ected a s an event action.
l Server Address
Enter an address of mail(SMTP) server
l Port
Specify a port for SMTP operation ( Port 25 i s the default port in SMTP operation . If a dierent port is
congured in the SMTP server, this port needs to be changed accordingly).
l Sender Address
Enter an account registered in the SMTP server.
l Authentication on SMTP server
This function is applicable when the E-mai l server
requires authentication for sending E-mail.
l ID & password
When the server requires authentication, ID and Password of an E-mail account need to be entered.
l SSL
This function is applicable when the E-mai l server requires encryption for sending E-mail.
l Destina tion address
Enter Destination address. More t han one addr ess can b e entered b y delimiting comma (,) or semi-colon
(;). Destination address can take up to 63 characters.
l Video Clip Attaching
Video clip sto red at the mom ent of ev
ent can be a ttached as an AVI or JPEG le format. When dual
encoding is enabled, Primary video , Secondary video (H.264 only) or JPEG Capture can be selected.
The duration of video clip can be congured with Pre-Event Time and Post-Event Time in Event
Record sect ion..
l Number of Frame
The number of JPEG frames is congured. This setting is applicable only when JPEG Capture is
selected.
l E-
mail Test
E-mail sending can be tested with t his button. Please note that congured settings shoul
d be saved rst
by pressing Apply button befor e usi ng E-mail Test function. One of the following messages will come as
a result of the test.
Page 39
Megapixel IP Camera Manual
www.proctorsystems.com
39/
55
Message Description
E-mail sent successfully
Test E-mail has been sent successfully. Reception in the client
can be checked.
Failed to connect SMTP
server
Connection to the SMTP server failed. It is necessary to check if
the server i s reachable and server address and port are correct.
Authentication failed
The server i s reachable but authentication failed. ID and/or
password need to be checked.
SMTP server rejected the
mail
The server i s reachable, but mail sending failed due to a reason
other than authentication. This error happens often when the
server authentic ates according to its own rule. For example , IP
addresses of a speci c range or addressed of a specic sux are
allowed.
Page 40
Megapixel IP Camera Manual
www.proctorsystems.com
40/
55
FTP Upload
Specify the information to upload event information, when FTP is selected as an event action’
l Server Address
Enter an address of an FTP server to receive video les
l Port
Specify a port for FTP operation (Port 21 is the default port in FTP operation. If a dierent port is
congured in the FTP server , this port needs to be changed accordingly).
l ID & password
Enter ID and Password for accessing the FTP server.’
l FTP File name
The names of les upload by FTP can be specied
by user. If a xed name is specied, the le is
overwritten repeatedly.
Max lengt h of a l e name is 60 characters. If the n ame i s left blank, le name is determined according t o
the internal rule implemented in the rmware.
The following macros are supported to form variable parts of le names. The strings are case-sensitive.
%YYYY : year
%MM : month
%DD : day
%hh : hour
%mm : minute
%ss : second
%EVENT : event type (Sensor1, Motion, ...)
%ADDR : address of the server (Domain na
me when DDNS is used.
Otherwise IPaddress)
“.avi” or “.jpg” will be added automatically at t he end of the lename depending on the type of video le.
l FTP Base Directory
Specify the name of t he di rectory to be created in the FTP server. It is valid only when Use Record i s se t
to Use FTP on Record session
l Upload video
Primary Video and S
econd
ary Video (H.264 only), JPEG Capture can be selected fo r uploading. The
duration of vi deo clip c an be con gured with Pre-Event Time and Post-Event Time i n Event Record
sect
ion.
Page 41
Megapixel IP Camera Manual
www.proctorsystems.com
41/
55
l Number of Frame
Enter frame number of JPEG Capture ( from 1 to 10).
l Continuous Upload
Continuous upload ‘ On’ allows video clips to be transmitted regularly regardless of occurrenc e of ev ents.
When this mode is turned on, FTP upload b y events is suppressed.
l Upload Duration
Specify recording duration of a video clip to be transmitted. (Max 300 sec).
l Upload Interval
Specify transmission interval. (Max 3600 sec).
Upload Duration is not incl uded in Upload interv al. For example, if Upload int
erval is 60 seconds and
Upload duration is 20seconds, a video clip for 20seconds is transmitted every 80 se conds.
l FTP Test
FTP upload function can be tested with this button. Please note that congured settings should be saved
rst by pressing Apply button before using FTP Test function . One of the following messages will come
as a result of the test.
Message Description
FTP connection tested
successfully
The connection to the FTP server is successful.
Failed to connect FTP
server
The connection to the FTP server failed. It is necessary to check if
the server i s reachable and server address and port are correct.
Authentication failed
The server i s reachable but authentication failed. ID and/or
password need to be checked..
Failed to upload le
File upload failed. The user of the ID is not allowed for writing into
the directory or FTP server can be full.
Failed to erase le
Failed to delete the test le. The user of the ID doesn ’t have the
privilege for le deletion.
Page 42
Megapixel IP Camera Manual
www.proctorsystems.com
42/
55
Preset Conguration
Preset
l Select preset # and insert the name of preset.
l Set camera position for the preset and press Save List button.
Page 43
Megapixel IP Camera Manual
www.proctorsystems.com
43/
55
Record Conguration
Page 44
Megapixel IP Camera Manual
www.proctorsystems.com
44/
55
DISK
SD memory can be used, and at least 1GB size is recommended. Either EXT3 or FAT32 le syst em can be
used. A disk with either EXT3 or FAT32 l e sy stem can be read in Li nux PC. Howev er, onl y di sk wi t h FAT3 2
l e system can be read in Windows PC.
Less than 4Mb ps of video bit rate is recomm ended wh en you record and m onitor v i deo si m ul taneousl y si nc e
frame dropping may happen due to performance limitation.
Disk information
Be sure to restart the syste m after connecting an SD card. During booting, the system reads status of disk and
initializes it. Once the initialization of a disk is nished, the status of di sk is shown on Record page of webbased se tup.
Refer to the chart for checking the status of disk.
Disk status Description
Disk error detected Error
No disk Disk is not connected to the syste m.
Searching Disk information Checking the status of di sk. Refr esh the page and wait
until the status is changed.
Mounting and
Recovering Disk...
Performing recovery process when disk damage is found.
It takes from seconds to minutes for recovering.
Disk format needed Disk is attached, but the type of the le system is
unknown or damaged.
Unknown disk type detected
USB Disk available Available to be used for recording
Disk removed
or in abnormal state
Disk is detached during operation or t here is damage on
the le sys te m. If it happens while disk is connected, it is
recommended to format the disk.
Page 45
Megapixel IP Camera Manual
www.proctorsystems.com
45/
55
General
l Use record
- O : Recording function will not be used when “O” is selected
- Use Disk : Recording will be enabled and data will be wr itten to a disk
- Use FTP : Recording will be enabled and data will be uploaded to an FTP server. In this mode FTP upload
by event is automatically disabled.
l Select Video
Select video stream t o r ec or d.
l Manual Record
When ON is selected, record is operated regardless of schedule.
l Overwrite
When the di sk bec omes full, t he oldest data are deleted autom
atically. It i s v alid only when Use Record
is set to Use Disk .
l Max F ile Size/Max File Le n gt h
Max File Size option is f or limiting the size of AVI le. If small le size is set, l es of small size will be
generated but numbers of the les will be increased. Max File Length option is for limiting the time
length of AVI le. If the size of a le becomes Max File Size or the duration of the recording reaches Max
File Length , a new le is created.
l Automatically Backup to FTP
Dat
a recorded in the disk c an be uploaded to an FTP server automatically for backup. FTP server is
congured on Event page. It is valid only when Use Record is set to Use Disk .
l Erase After Backup
Data are deleted i n the di sk autom ati call y after being uploaded to the FTP server. It is v alid only when
Automatically Backup to FTP is used.
l Start Time of Backup Data
Specify the time of the data in the disk from which Backup to FTP Disk is performed. This time is changed
automatic ally as the backu
p to FTP serv er goes. S o i t i s u seful t o check current backup status. It is valid
only when Automatically Backup to FTP is used.
Page 46
Megapixel IP Camera Manual
www.proctorsystems.com
46/
55
l FTP Base Directory
Specify the name of the directory to be created in the FTP serv er. It is valid only when Use Record is set
to Use FTP .
Event Type
Three recording modes ar e supported: Continuous , Event , Disconnect . I n case of Event recording, event
types can be selected among se v e ral ev ents. Sel ected event type is used f or conguring the sc hedule table.
Up to 4 event types c an be con gured and eac h ev ent type can be a com bination of sensor, vi deo l oss and
motion event.
l Pre-event Time
Specify the duration of recording before an ev ent happens.
l Post-event Time
Specify the duration after the event is cl eared.
Schedule Table
Actual recording mode is determined by Schedule Table , where recording mode congured by day (of a
week) and hour.
Each of recording mode congures the recording operation as follows:
- Record o : No recording
- Continuous : Records continuously
- Disconnect : Recording is started when the system loses the connection to its last client(Decoder,
VMS/NVR) etc. When there are multiple clients and one of the client is disconnected, this doesn’t happen.
- Event Type : Records when an event
congured in Event Type setting happens.
Checking status of recording
Recording status can be checked on t he main view page.
Page 47
Megapixel IP Camera Manual
www.proctorsystems.com
47/
55
Search and Playback
Recorded video and audio data c an be saved as AVI format in the di sk . I n general, one AVI l e is created for
an ev ent in case of event-based recording. Howev er, it is possi ble that recorded data by serious of events
happening continuously c an be merged to a s i ngle AVI le depending on pre/post event time setting. The size
of le is limited to 10 ~ 200MB or 10 minutes. In case of continuous recording, AVI les are created in series
and the size of each is limited to 10 ~ 200MB or 10 minutes.
l Search
Actual recording A le currentl y being recorded doesn’t appear unti l it is completed. In case of Continuous
recording, a le will be shown after 10 minutes from the start of recording, for a le is generated ev e r y 1 0
minutes.
1. Press Search Page button on the Record setup page. Dates with recording data will be shown as follows.
2. First, choose the date for search and the list of A V I les will be shown.
3.
The le name shows the date and time: “ Date Begin Time End Time.avi ”
.
4. Press Root to move back to the page with date list.
Page 48
Megapixel IP Camera Manual
www.proctorsystems.com
48/
55
l Playback
1. Selecting an AVI le will show a dial og for opening or saving the le
.
2. Pressing Save button, the le will be st ored i n th e P C. T he AVI l e ca n be pl ayed wi th Wi ndows M edia
Player.
3. If you press Open in the dial og, the le will be downloaded and played automatically with Media Pl ay er.
4. Another connection t hrough web is disabled during downloading and it is also not allowed to download
two AVI les at the same time.
Page 49
Megapixel IP Camera Manual
www.proctorsystems.com
49/
55

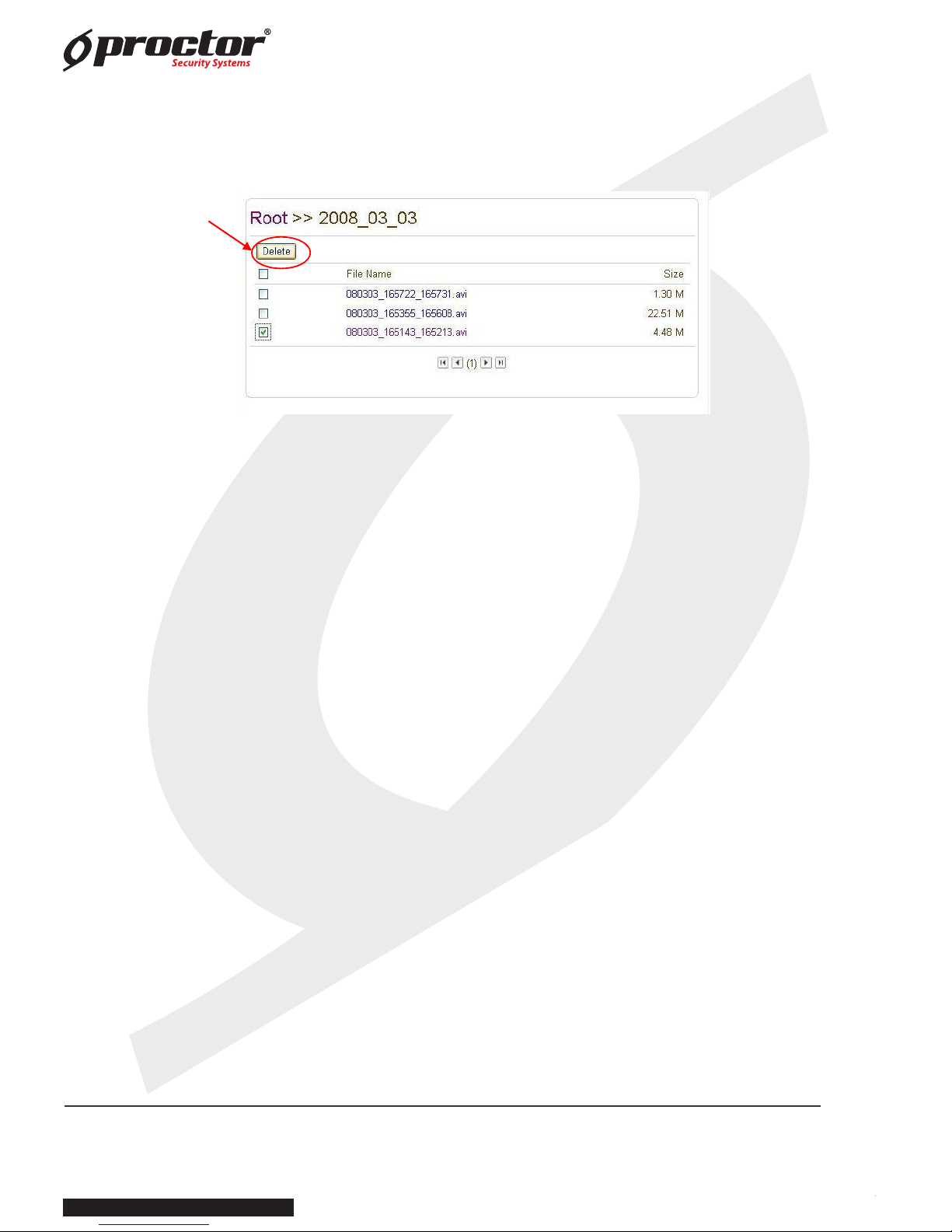

l Deletion of data
1. If you want to delete rec orded les, select the les by checking the item in front of each le and press
Delete button.
2. It is possible to delete mu ltiple les at once.
Page 50
50/
55
User Conguration
User List
l User can be registered and privilege level of a user can be specied. User conguration is allowed only to
admin user. Max 16 users can be registered and each user can have one of four privileges.
Privilege Allowed Operations Remarks
Admin All operations User ID = admin
Manager
All operations except for user
conguration
User Live viewing and PTZ control
Guest Live viewing only
l Add User
Press Add button. The following wi ndow will appear.
Enter User ID and password (Up to 15 characters) and select Privilege Level
is
t
privil
level o
users c
r
followi
Megapixel IP Camera Manual
www.proctorsystems.com
Page 51
Megapixel IP Camera Manual
www.proctorsystems.com
51/
55
l Delete User
Select the User to be deleted and press Delete button.
l Change Password

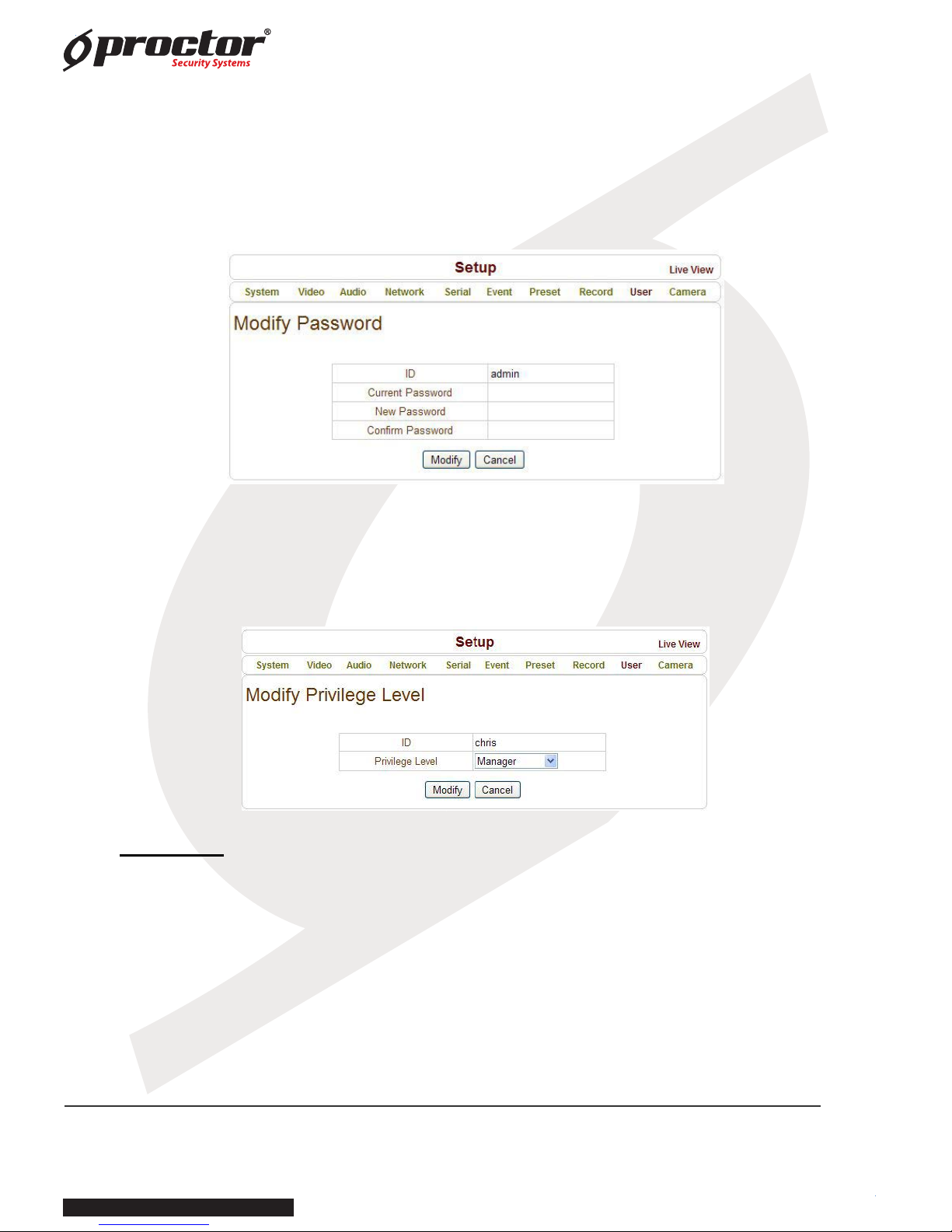

Press Modify Password button. The following window will appear.
Enter the current password and then set a new password.
l Mo dify Privilege Level
Press Modify Privilege button to change User level. It is not allowed to change the priv ilege level of
admin user.
Login Policy
l Authentication Type
HTTP authentication based on RFC 2617(HTTP Authenti c ation: Basic and Digest Access Authentication)
is supported.
l S kip Lo gin pr ov ides for convenient access to the server when authentication is not required. When Ski p
Login is set to Enable , l ogin st ep is sk ipped. The privil ege lev el after login in this way is determined by
the setting of Privilege Level After Login Skipped .
Page 52
Megapixel IP Camera Manual
www.proctorsystems.com
52/
55
Camera Conguration
Page 53
Megapixel IP Camera Manual
www.proctorsystems.com
53/
55
Flip
l Horizontal Flip
The image appear left and ri ght side cosses when “on” is sel ected.
l Vertical Flip
The image appear up and down si de croses when “on” is seleted.

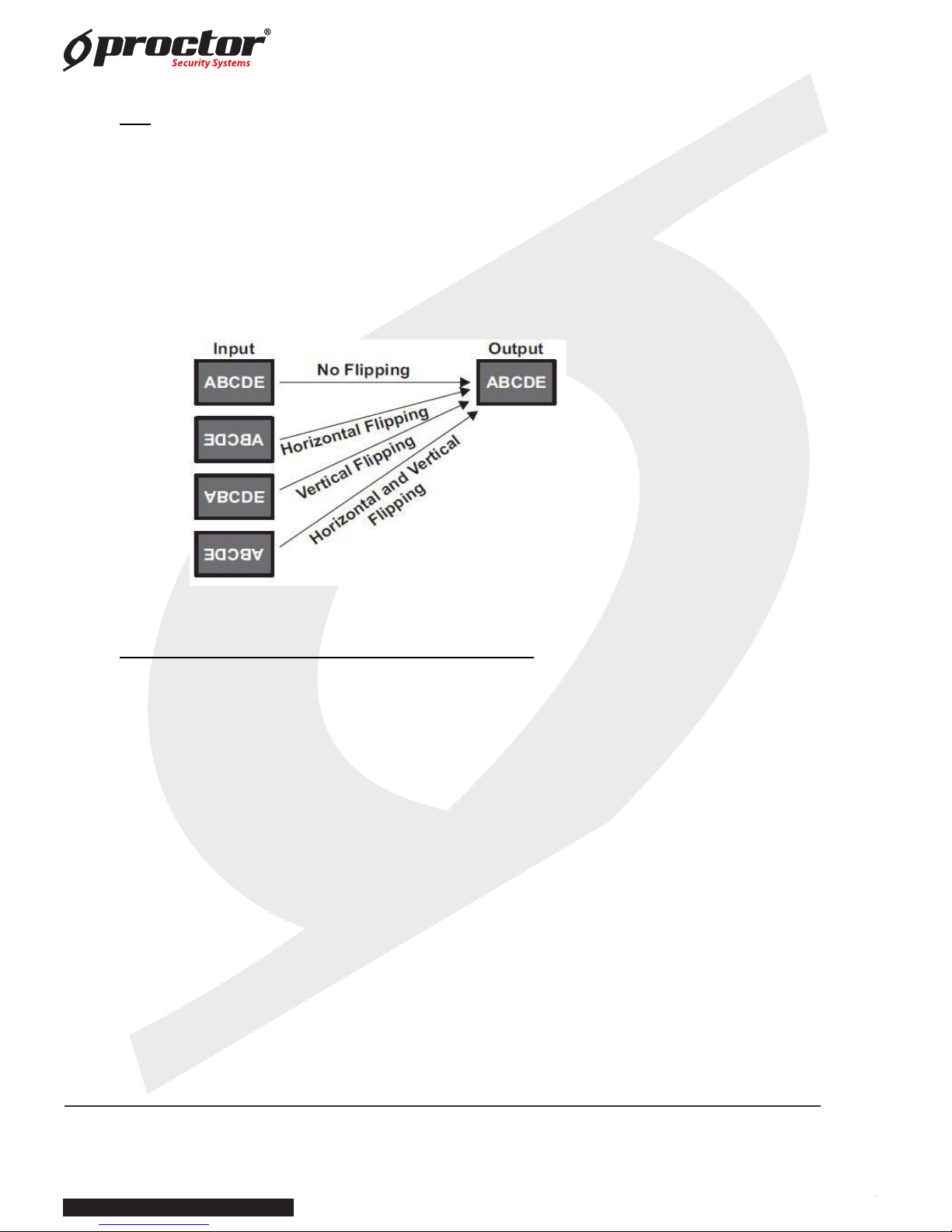

Refer to the principle of lpping image
Auto Ex posure & Auto White Balance (AE & AWB)
AE control gain , iris and exposure time for image quality automatically.
AWB control R,G,B gain for color balance automatically.
l AEWB Mode
AEWB : AE & A WB function is enable
AE : Only AE function is enable
AWB : Only AWB function is enable
None : AE & AWB function is disable
l AWB Index
Indoor : Select this option when camera is installed at indoor
Outdoor, Select this option when cam er a is i nstalled at outdoor
l AE Index
Day : Select this option when you want better ima
ge quality.
Night : Select this option when you want brighter image.
l AE Mode
Auto : AE adjust brightness by i nternal value automatically.
Manual : AE adjust brightness by the values which are AE Target, AE MAX and AE MIN
Page 54
Megapixel IP Camera Manual
www.proctorsystems.com
54/
55
l AE Target
The AE tar get can be adjusted in th e range 0-40. Lower v alue mean darker im age. This is used on AE
mode.
l AE MAX
The AE MAX can be adjusted in the range 0- 45.
l AE MIN
The AE MIN can be adjusted in the range 0-35.
The changes of image become i nsensitive if the v alue i s lower and sensitiv e if the v al ue is larger in
case of these both AE MAX and AE MIN.
True Day & Night(TDN)
Megapixel IP camera use IR lter for image quality. IR lter is on during day and o during night.
l TDN M ode
Threshold : TDN i s controlled by day & night threshold value
Auto : TDN is controlled by internal value
Day : TDN is made on day mode forcibly
Night : TDN is made on night mode forcibly
l Day Threshold
The Day T hreshold canbe adjusted in t he range 0-40. TDN is r ecognised as day and turn on I R Filter
when brightness i s bigger than the value .
l Night Threshold
The Night Threshold
can be adjusted i n t he range 0-20. TDN is re cognised as Night and turn on IR Fi lt er
when brightness is lower than the value.
l Noise Filter Mode
The Noise Filter Mode interworks with TDN. The noise lter mode is on during night and o during day.
On : Noise lter is on always
O : Noise lter is o always
l Grey Mode
The Grey Mode int erworks with TDN. The grey lter mode i s on during night and the color is If TDN
decide on night, then image remove color(grey image)
Im
age add color (color image) when TDN decide on day.
On : image remov e color always (gery image)
O : image add color always (color image)
l Shutter Speed Mode
Shutter Speed Mode con gures whether Shutter Speed Value setting is t o be applied or not. Enabling
Shutter Speed Mode is useful to get b righter video in a low illumination environm ent by sacricing the
framerate.
On : Shutter Speed setting is appl
ied
O : Shutter Speed setting is not applied
Page 55
Megapixel IP Camera Manual
www.proctorsystems.com
55/
55
l Shutter Speed Value
Shutter speed can be selected in the range of 1/ 30 sec to 1 se c. When 1/6 sec is selected fo r ex am pl e,
the image sensor is ex posed for 1/6 sec, and thus max 6 frames can be obtained for one second.
IRIS
Megapixel IP camera support Auto IRIS Lens
l Mode
Auto : IRIS is controlled by AE
Open : IRIS force max opening
Close : IRIS force closing
Other Setting
l Brightness
The image brightness can be adjusted in the range 0-255 where a highter v alue produses a bri ghter
image.
(127 : default, 0 : the darkest, 255 : the brightst)
l Contrast
Adjust the image’s contrast by rasing or lowering the value in this eld.
(127 : default, 0 : the weakest, 255 : the strongest)
l Frequency Mode
Operation f r equency can be sele ct ed i n o r der t o avoid ickering under uorescent light. T he value ca n be
either 50Hz or 60Hz.
(127 : default, 0 : the weakest, 255 : the strongest)
Loading...
