Welcome
Thank you for choosing a Procontrol product.
Procontrol Electronics Ltd has grown to an important national company of developing and manufacturing
software, hardware, electronic devices, access control systems, work time attendance systems, queue
control, client caller, and access protection systems since 1981. Thousands of satisfied customers have
experienced the security ensured by our long run planning, reliable works, and the world trademark s
standing behind us.
Our total product range can be viewed on our web page: www.procontrol.hu
.
6. of 43
Procontrol Electronics Ltd.
www.procontrol.hu
Procontrol Proxer7
Security guide
Please read this guide carefully before insta lling
and using the device. Please use the device
properly and as described in the following
manual.
The guarantee is insured only if the device is used
with the implem e nts approved or specified by the
manufacturer, and it is cleaned and mainta ined as
described in this guide.
• The manufacturer does not take warranty for
the faults arisin g from improper use.
• Incorrect installation
• Connecting to inappropriate electric network
• Incorrect maintenance
• Not approved modifications, interventions
• Using non-original spare components
• Do not store and operate the device out of the
given temperature ranges, it can lead to
malfunction
• Do not try to modify or dismount any part of
the device
• Do not allow the indoor version types of this
product to come into contact with water or
other liquids.
• Do not store the device close to a heat source
or direct flame
• Use the device only the proper way as
described in the guide.
• Use the equipment only for the purpose it has
been designed for.
About the security
Use the power supply provided by manufacturer
for the device. Use electric power connection as
specified in this guide.
To avoid fire and electrical shock
Be aware that nobody pushes trash, gums and
other stuffs into the slots of the device.
Do not install attachments and accessori es tha t
are not designed for this device. Unplug the
device in case you do not use it for a very long
time.
Cleaning
Power down the device before starting the
cleaning process. Use wet cleaning rag.
General rights and responsibilities
Procontrol Ltd has the exclusive right for
producing the device.
Procontrol Electronics Ltd. reserves the right to
modify this documentation and software without
notice.
In no event shall Procontrol Ltd. be liable for any
claim, damages or other liability out of or in
connection with the usage of the device.
Warranty period is 2 years.
7. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
General description
The Proxer7 is a prox imity card reader, which provides RFID cards and transponders (of
various shapes, such as wristbands or keyfobs) t o read. The Proxer7 enables a secure and simple
authentication. The communication without physical contact allows a long service life. The
Proxer7 is a widely used RFID reader device, knows a wide range of c ommunications protocols
and encoder types.
Features:
• RFID Proximity card reader
• Desktop version with USB or RS232
• Optional wall-mounted version with RS485 and
Wiegand
• 125/134 kHz and/or 13,56 MHz
• Encoders, mobile phones with NFC module
• Size: 79 x 117 x 24 mm
• User-configurable properties
• Extensive integration
• Multicolored LED light
Parameters, customization
The Proxer7 has a number of adjustable
parameters. The detailed description can be
found in these parts of the document:
• Optional card reader- and data
transmission modes
• Card data sending to the host device
• Optional communications protocol
• Configurable entitlement feedback
• Variable light and sound signals
• Optional USB peripheral device
emulation
Package contains:
• Proxer7(USB): Proxer7 reader+USB A –
micro B cable
• Proxer7(RS232): Proxer7(RS232) reader
+ RS232 serial cable + power supply
• Proxer7(RS485): Proxer7(RS485) reader
+ 1m patch cable
• Documentation and installation CD,
Proxer7Manager program
Option:
• Power supply
• Cable, passive PoE kit
• Cross cable
8. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Types
All the Proxer7 type is available in external design.
Type
micro
USB
RS232
RS485
Wiegand
Low
Frequen
cy
reader
High
Frequency
reader
Outer
output
Inner
output
STP
output
Proxer7-EM-U
√ Only
EM
√
Proxer7-LF-U
√ √ √
Proxer7-HF-U
√ √ √
Proxer7-FF-U
√ √ √ √
Proxer7-EM-232
√ Only
EM
√
Proxer7-LF-232
√ √ √
Proxer7-HF-232
√ √ √
Proxer7-FF-232
√ √ √ √
Proxer7-EM-485
√ Only
EM
√
Proxer7-LF-485
√ √ √
Proxer7-HF-485
√ √ √
Proxer7-FF-485
√ √ √ √
Proxer7-EM-W
√ Only
EM
√
Proxer7-LF-W
√ √ √
Proxer7-HF-W
√ √ √
Proxer7-FF-W
√ √ √ √
Proxer7-T-EM-485STP
√ √ √ √
9. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Explanation of the type de signation
Communication interface and output
Explanation:
External interfaces:
Desktop application. The connector is on one of the shorter outsides of the
device.
Internal interfaces:
The connector is in the inside of the device. Fixed reader app li cati on s (wall-
mounted terminal)
One-way
communication:
Only for data sending.
Two-way
communication:
Data sending, receiving.
Type
Direction of
communication
Configuration
Type of connector
U
2 Direction
Outer
micro USB-B, USB 2.0
RS232
2 Direction
Outer

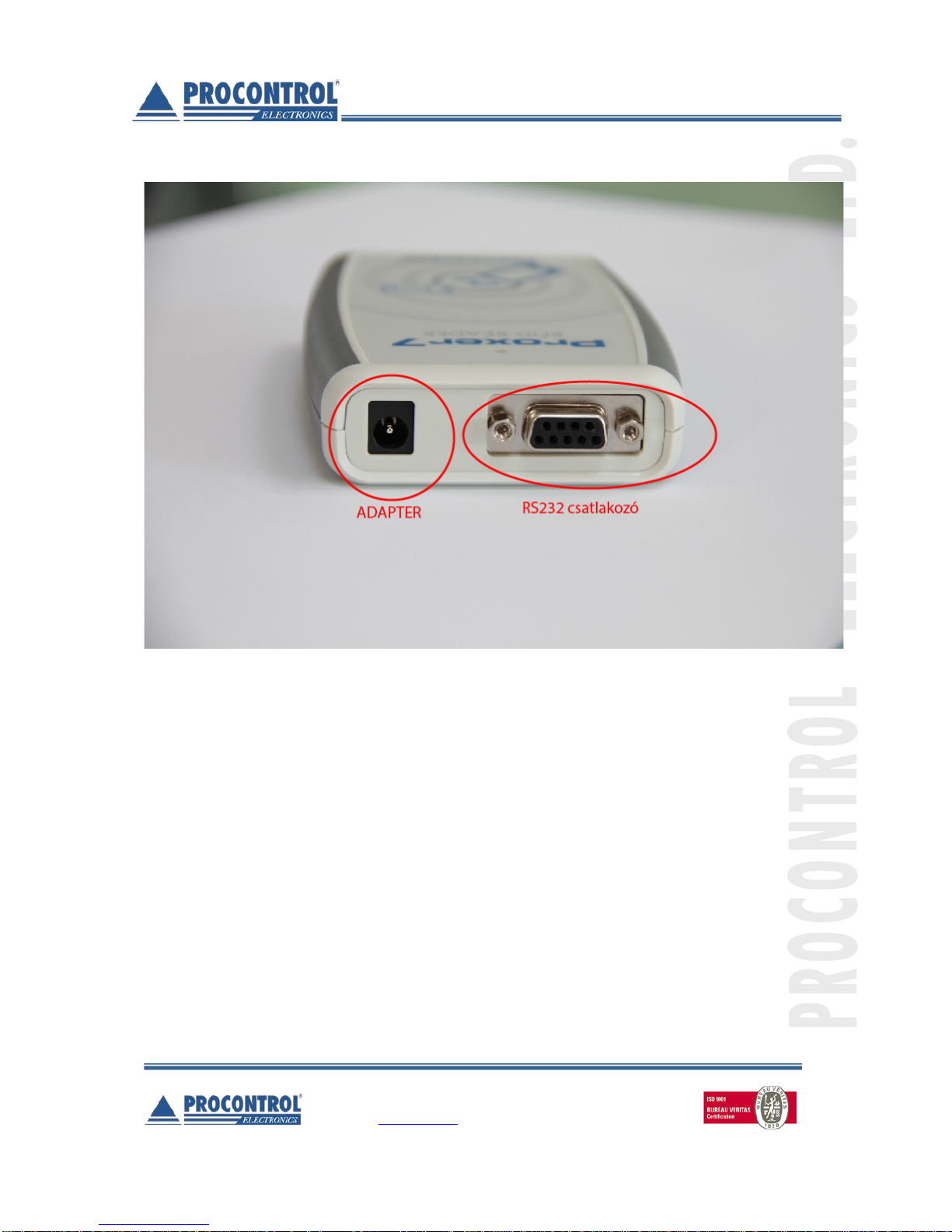

9 pole D-SUB, 5,5mm DC connector socket
RS485
2 Direction
Inner
RJ45 connector
Proxer7 – LF – U
U:
micro USB
232: RS232
485: RS485
WGD: Wiegand
STP: Special, integrable output in the
STP Ltd. system
EM: EMarine
reader
LF: Low Frequency reader
HF: High Frequency reader
FF: Low + High Freq. reader
10. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
RFID interface attributes
Name
Operating frequency range
Low Frequency reader
125-134kHz
High Frequency reader
13,56MHz
Wiegand
1 Direction
Inner
4 pole connector
11. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Detailed description
Available versions
The Proxer7 Proximity RFID card reader is a desktop device designed for use in a confined space, it
has no special immunity. Accordi ngly, the ba sic version available in the two most widely used office types
of connections, with USB or RS232. In these versions, the connector is on the outside of the box, can be
connected to a personal computer with standard external data cable.
Because nowadays widespread access control using RS485 or Wiegand communication interface,
the Proxer7 is available with these versions. The Proxer7 is eligible in wall-mountable design with internal
connector for the cables are inside of the housing,
The Proxer7 is basically external input peripherals, responsible for reading the RFID transponder ID
and transmission via communication interface, similar to an external keyboard, which is used to input a
code. In normal using the success of the communication, transmission with the RFID transponder will be
showed with sound and lights signaling, the user can be sure of the reading success. The device sounds,
lights and signaling capabilities can be used to further entitlement feedback too, which instructed the
eligibility by the computer, in case of bidirectional communication capability interfaces.
The Proxer7 i s a great configurable device that allows the use of existing ex-post, in-built system.
Changing the parameters often change the basic operation of the device, which in extreme cases can result
in even further communications fail. For the easier handling and restore the default settings, on the Proxer7
desktop versions back is a RESET button, by pressing restarts the device with default parameters.
Adjustable parameters overview
To the settings you need a pc, connected reader and the Proxer7Manager program.
All-type parameters
Parameter
name
Settings options
Explanation
Transmitter
watching
ON
The device sends the data of the encoder several times
continuously.
OFF
Lights
Regular
Type of light signals
12. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Proxer6 scheme
Tone
12 tone alarm
The signals are separately changeable
Sent bit
number
Number: 1 - 64
It determines whether bit of RFID card will be transmitted.
Sent data type
Decoded card data
The device will decode the RFID identifier before the sending
Undecoded card data
Only for types with two way communication
(With RS485, RS232 and USB cables. With Wiegand the device will not give any result.)
Parameter
name
Setting options
Explanation
Sent character
number
Number: 1 - 255
Determines how many characters of the RFID card code will
be sent out.
Supplementary
character
Optional character
If the RFID code need less character, the code will be
supplemented with that character
Message
templates
25 character long
template
Data will be inserted between frames to the sending,
Enter sending
ON
Determines, that an ENTER character will follow the sent
message or not.
OFF
Code into two
parts
2 * 16 bit sending
Determines, that the code will be sent as 1 32bit number or 2
16bit numbers.
1* 32 bit sending
Communication
protocol
ASCII
Simple text message communication with HOST
PCS
PCS type communication with HOST
Authority
feedback
ON
The device needs a command about eligibility or not.
OFF
Transmitter
Automatic
The device starts automatically transmitter searching
13. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
searching
Command
The device needs command to the transmitter searching
Transmitter
data sending
ON
The device can send the data of the transmitter, not only the
ID number.
OFF
Only for types with RS232 and RS45
Parameter
name
Setting options
Explanation
Baud-rate
1200, 2400, 4800,
9600, 14400, 19200,
28800, 38400, 56000,
57600, 115200,
128000, 256000
The serial communication bit rate can be selected.
Only for types with USB
Parameter
name
Setting options
Explanation
USB
Emulation type
Virtual serial port
The PC recognizes the card reader as a virtual serial port or a
virtual keyboard.
Virtual keyboard
Virtual
Keyboard
language
HUN
The emulated USB keyboard language can be selected
ENG
Parameters description
Transmitter presence
The Proxer7 Proximity RFID reader is able to continual card presence observing, thereby further
expanding the capabilities of the reader. For example, the RFID card can be used as hardware key, where
the computer application will run only as long, as the authorized card is on the reader. The Proxer7 reader
with default settings will be reading the ID transmitter only once, if the transmitter does not leave the radio
frequency field. The wat ching of the transmitter presence is a switchable parameter, the effect depends on
the mode of searching, and it has effect only with automatic adjustment. The device in case of RFID
14. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
transmitter gives sounds-, and lights signal only once, but in activated case sends constantly the ID at
regular intervals (333ms) to the HOST device until the owner transmitter is in the reading field.
Condition of monitoring
Automatic reading
Command to read
Parameter ON
At detecting a new RFID
transmitter, the device gives one
light signal and as long as the
transmitter does not leave the
readin g field will b e in every 25 0
seconds the ID to the HOST sent.
At detecting a new RFID
transmitter
(it begins with the
command,) the device sends once
a light and sound signal, until the
transmitter does not leave the
reading field. With the command
of the HOST will be the last read
ID sent.
Parameter OFF
At detecting a new RFID
transmitter, the
device gives one
light signal and
until the
transmitter in the reading field,
sends the ID only one time.
The device detecting for new
RFID transmitter only with
command. In case of new
transmitter, gives one light- and
sound signal, send the read ID to
the HOST and then switch off the
reading field.
Adjustable sound- and light signals
On the Proxer7 device are the sound- and light signals changeable. In case of the sound signals is
there 4 versions (ON, OFF, authorized transmitter, unauthorized transmitter), all of them are adjustable
parameters. To the customization are available 12 pre-defined audio samples, each of them can be selected
as a sound signal. Light signals have two schemes. The „Proxer7” scheme is of the Procontrol Electronics
Ltd. own developed light-signaling scheme. The description of the light signaling sees at the end of the
document.
Sent bit number
The RFID transponder ID can be represented by number of bits. This parameter is a numeric value;
the Proxer7 reader will send the data according to the number of bits. The number of bits interprets by LSB.
The following table shows the effect of the parameter on the 32547698 ID. The binary is to 32 bits, the
decimal data is to 10 characters supplemented to see.
Sent bit number
Got binary and decimal numbers
32
Binary
00000001111100001010001101110010
Decimal
0032547698
20
Binary
00000000000000001010001101110010
Decimal
0000041842
15. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
12
Binary
00000000000000000000001101110010
Decimal
0000000882
Sent datatype
The RFID transponders are from general to allow the verification of the correctness of the data
stream in either parity bits, or using ’checksum’. The Proxer7 reader verifies the correctness of the data
stream in all cases. It also happens that the transponder’s physically printed ID came from the given
sequence of data stream. So we talk decoded and undecoded data stream. In both cases the data stream
identifies the card. The decoding is the recover to the provided number by the manufacturer, the possibility
of individual identification with the transponder is not affected.
The undecoded data stream will be in all cases in hex format forward.
Sent
datatype
Explanation
Decoded
If the identification of the RFID type is successful and the decoding information is
available, the reader decrypts the specified identification number by manufacturer’s and
then transmits via communication interface to the user.
Undecoded
The RFID transponder ID will be sent to the PC 1:1, only in hex format
Sent number of characters
The needed characters to the identification of RFID ID may be different, depending on the size of
the ID number (the larger the number, the more characters can be repres en ted only). If the connected system
wait for constant number of character sending, namely does not handle the dynamically changing number of
character IDs, in case of that should be send the independent of the size of ID number, which can be made
with this parameter.
If the ID does not fit the here defined number of characters, the Proxer7 automatically send at the
length which good for it. If the ID would be fit on shorter character, as the here defined, the Proxer7
supplement. (See under „Additional character” parameter).
If the ID does not fit the here defined number of characters, but do not wa nt t he Proxer7 send more
characters because of foregoing, needed the size of ID reduce with the ’sent number of bits’ parameter.
The following example illustrates the operation described above. The value of the additional
characters is „0” currently. It is assumed that sending the decoded data stream is set, so the Proxer7 reader
will send a decimal number.
16. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
ID
Sent number of
character [parameter]
Sent number of
bits [parameter]
Sent message via Proxer7
32547698
10
32
0032546798
5
32
32546798
5
16
41842
Additional character
The co-parameter of the sent number of character is the additional character. If the addition
needed to the right number of character, it would be supplemented with the here defined character.
In the following example the „sent number of character’s value = 10.
ID
Additional character
Sent message via Proxer7
32547698
„0”
0032546798
„P”
PP32546798
Message template
The Proxer7 device’s basic function is the reading and sending of the RFID transponder ID. It may
be necessary in established system to use a custom frames attach to the message. The Proxer7 device can
store a 20 character long message, within the place of ID determined, allowing an individual parcel frame,
the opening and closing characters to add to the message. The total length of the message is given here by
the number of frame characters and length of ID, so the 20 character length would be not reduced.
In the following example the sent number of bits = 32, sent number of character = 10 and
additional character = 0.
ID
Message template
Sent message via Proxer7
32547698
ID:[ID place]: Procontrol
ID:0032546798: Procontrol
Enter sending
If the ‘ENTER sending’ parameter can be sent, then fit at the end of the message an ENTER
character
17. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Code into two parts
A significant number of currently widespread RFID systems operate with 32-bit identifier, but the
older RFID systems used 16-bit identifier. To ensure the compatibility of such systems, the user practice
spread to the more advanced 32-bit identifier 2x16-bit identification number interpreted divided into two
sent some readers. The, the Proxer7 can send the code into two parts with enabled parameter.
The parameter will be read with Sent datatype = Decoded card data and in case of receiving
identification of appropriate length (32-bit). The parameter interacts with the Sent characters parameter,
the number of characters will be read on the full length of message, so the 2x16-bit will be jointly
represented on the character number.
The effect of the parameters showed in the following example, Sent num ber of bits = 32, Sent
number of character = 10 and additional character = 0
ID
Code into two parts
Sent message via Proxer7
32547698
Enabled
0049641842
OFF
0032547698
Communication protocol
The Proxer7 device knows two types of communication protocol, the ASCII protocol and the PCSW
protocol developed by Procontrol Electronics Ltd. The ASCII is a simple character coder standard, based on
Latin ABC. Practically service a simple text output, the ID of card will be sent as a simple numeric
character string. The PCS (Procontrol Communication Standard) is the own standard of Procontrol
Electronics Ltd. More complex, but more secure, packet transfer based method, the detailed description can
be asked at ordering.
ATTENTION! The commands would only be executed of the correct modes and functions are activate
(eligibility fee d ba ck, card presence, transmitter searching)!
The type of communication protocol is a switchable parameter. The settings vary according to the
command structure; this is summarized in the table below.
Set parameters
ASCII
PCS
HOST command Answer of reader
HOST
command
Answer
of reader
Eligibility
feedback:
OFF
Automatically
card reading
- xxxxxxxxxx(+Enter) ECRRP
Manual card
reading
:TRNUM?;(+Ente
r)
:TRNxxxxxxxxxx;(+Ent
er)*
:NO_TR;(+Enter)
CCRRE ECRRP
Eligibility feedback: ON :RIGHTOK;(+Ent See under: Light and EAUAC See under:
18. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
er)
:RIGHTNO;(+Ent
er)
sound signals
EAURE
Light and
sound
signals.
Commands:
ASCII protocol
xxxxxxxxxx(+Enter)
Card numbers with 10 digits accuracy, if necessary supplemented with 0,
opening and closing characters. Example: 0032654396 (+Enter)
:TRNUM?;(+Enter)
To start a reading, requesting the card number.
:TRNxxxxxxxxxx;(+Enter)
Card numbers with 10 digits accuracy, if necessary supplemented with 0,
opening and closing characters.*
:NO_TR;(+Enter)
There is no transmitter within range of the reader after 2 seconds.
:RIGHTOK;(+Enter)
The card is authorized.
:RIGHTNO;(+Enter)
The card is unauthorized
PCS protocol
ECRRPdxxxxxxxxxxd
Card numbers with 10 digits accuracy, with 0, opening and closing
characters.*
EAUAC
„Event Authentication Accepted”
EAURE
„Event Authentication Refused”.
CCRRE
„Command Card Read Request”
* The answer depends on the „Send transmitter data” parameter.
Authority feedback
The Proxer7 device can be int eg rated in
examining entitlement system, based on the HOST
device itself is capable to let the user know about his authority. The eligibility feedback is a switchable
parameter, after the activation the sound and light signaling will be changed.
Eligibility fee db a c k
Alerts
19. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
ON
In case of new transmitter the device indicate with a short light and tone the
cognition and ID sending to the HOST. Subsequently in accordance with the
command of the HOST (see under: Commands) response give sound- and light
signal to show the authority.
OFF
The device does not examine eligibility, gives f or each new transmitter eligible
tone, light signal is according to the setting.
Device modes – transmitter searching
The Proxer7 proximity RFID reader works basically in two modes, the type of modes is a
switchable parameter. In the „automatic” mode the device start the transmitter search, in „the command”
mode from t he HOST came command stars. The settings of mode are with effect on the speed of reading
and on the radio frequency field (and the consequent uneasiness). In the automatic mode the starter of
reading is the device (depends on the version) or the user. The modes and their effect see in the table below:
Start of transmitter
search
Wire version
Automata reading
The device creates a constant excitation field; search a new transmitter in every 333.
seconds. The IDs in the reading field will be automatic send to the HOST.
Command to
reading
The device periodically switches on the reading field. The reading starts the
command of HOST. During the (2 sec) reading the device read each ID in the
reading then switches the field and sends the ID to the HOST.
Sending of the transmitter data
The Proxer7 RFID card reader identifiers in the reading field the transmitter’s type and parameters.
The settings are for the sending of them. This function allows the user to know not only the ID number, but
also the type and bit speed. The following table indicates the effect of parameters in the different
communication protocols and transmitter search mode.
Communications
protocol/transmitter search
mode
Sending of the card data is ON
ASCII / automatic search
EMARIN_2KBAUD_0032547698
ASCII / command to search
:TRD-EMARIN_2KBAUD_0032547698;
20. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
PCS*
ECRRPd[decoded ID on 4 bytes]d[producer code on 1
byte]d[undecoded ID on 8 bytes]d[data speed on 1 byte]d[card type ID
1 byte]d
* The PCS (Procontrol Communication Standard) is the Procontrol Electronics own protocol standard, the
documentation ask at the ordering process.
Baud-rate
In case of Proxer7 with RS232 and RS485 serial p ort is possibility to the changing of the bit speed
of the communication port. After the change of the parameter need the restart of the device.
The USB peripheral emulation types
The Proxer7 RFID reader can more peripheries emulate with USB port to the PC connected, it
allows wide range of integration. The type of emulation parameters can be adjusted by the user. The
emulated peripheral devices are as follows.
Emulated periphery via USB
Short description
Virtual serial port
The PC after the install of the right driver knows the device as a
serial port. Each communication with the device is easily through a
simple terminal program. Parameters of serial communication:
115200kbaud, 8bit, 1 stop bit.
Virtual keyboard*
The PC know the device as a keyboard, the data will detect as a
keyboard typed characters.
* In that mode the communication can be only one way, the device can send data to the PC, reverse
communication is not possible. To restore the two ways communication see below the detailed description.
Language of keyboard emulation
The Proxer7 with appropriate settings is suitable for multiple language keyboard emulation. The
different language manifests in the practice of the different button allocation. T he button code depends on
the physical location of button. The same location in two different language keyboard results the same code.
The PC’s operating system identifies the correct character depend on the language settings. For example:
the code of „0” character is on the English and Hungarian keyboard: the code of “0” on the English
keyboard is “ö” character code on the Hungarian keyboard. Selecting the appropriate language ensures that
the PC interpret the characters from the Proxer7 device properly.
The select of the keyboard language obviously interpreted only in case of USB keyboard emulation
application. In case of other type is ineffective.
21. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Using of the Proxer7
Connection to the PC
Description
Illustration
Plug the reader to the pc with the USB
cable. ATTENTION!
At the connection
of cable be careful, otherwise the
connector may be damaged!
Connection with PoE cable:
Wait for the light and sound signal. It
takes max. 5 seconds. On Windows PC
(at the first connection) a pop-up
windows shows the connection.
22. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Install the adequate software. If the
installation of virtual serial port is done,
open the Proxer7Manager.exe support
program (can be find on the CD).
Note: If
an error is detected on
Windows 7 or newer
version, run the
program with administrator rights.
Approach the RFID transponder to the
reader, approx. 4 cm (or closer) until the
device signal has been given). The
reader ready to use.
23. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
General use of the card reader
Card reading in optimal distance
The RFID measurement field of Proxer7 average is
5cm from the device. The transmitter reading
happens in this distanc e.
Parameter restoring to the default status RESET
In some cases needed the restoring of the default
status –
for example if the USB emulates not a
virtual serial port and we want the parameters reset.
How to restore: with a thin and sharp instruments
press through the tiny holes at the back of the device
the RESET button
ATTENTION! The button already responding to the
fine push. The powerful movements may damage the
device.
24. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Program loader mode
The RESET button pressing and holding of the
device takes in the program loader mode. About the
program update is a detailed description at the end of
the document.
ATTENTION! The button already responding to the
fine push. The powerful movements may damage the
device.
Installation on Windows XP
Description of steps
Illustration
When the reader connected is, the new hardware
wizard starts automatically. Click the option „No,
not this time” and then click Next to continue.
25. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
„Install from a list or a specific location
(Advanced) and click Next to continue.
Click Include this location in the search. Click
Browse and locate the path of the software driver
(Procontrol Virtual COM Port Driver). Click Next.
Choose the suitable one to your operating system.
26. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7

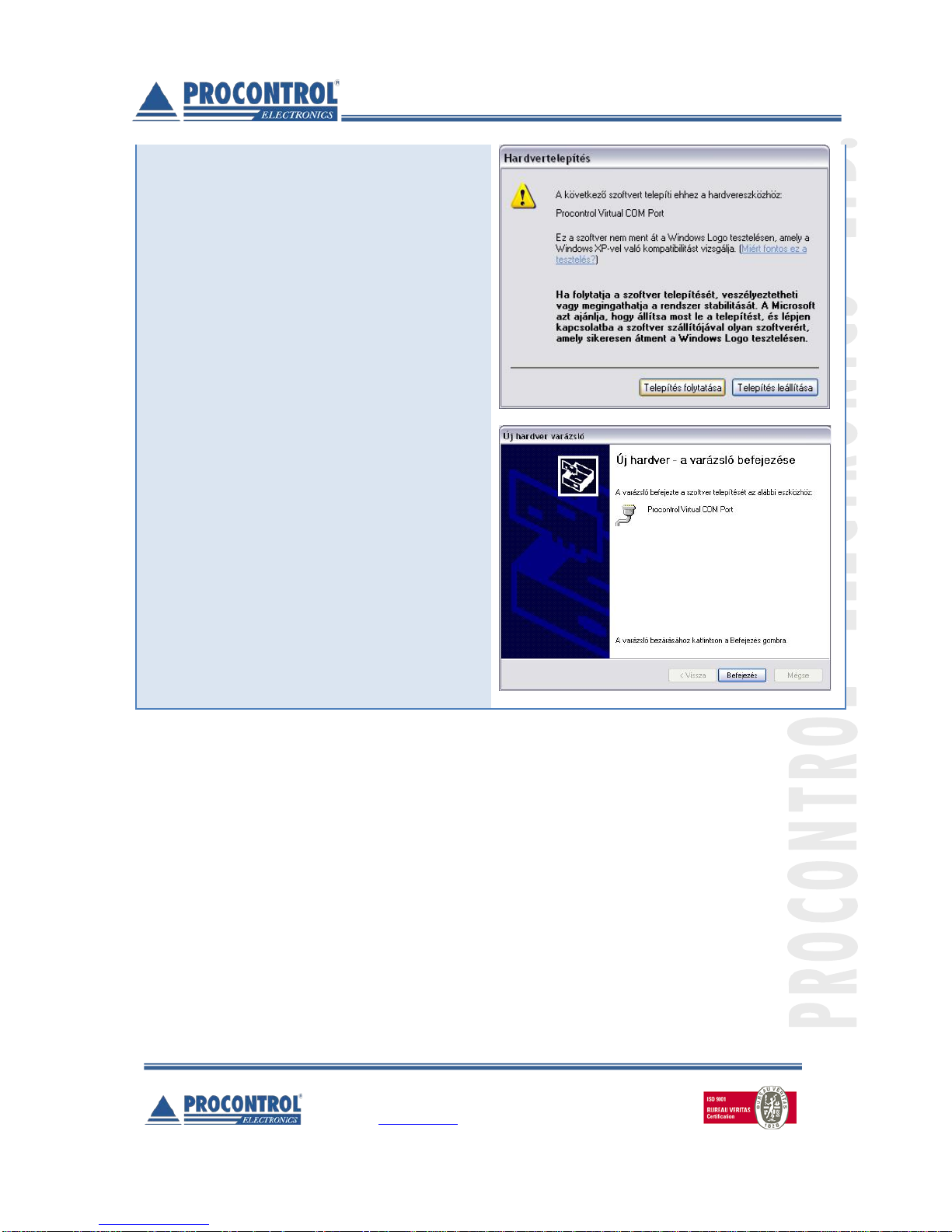

In the next window click „continue anyway”
At the end of the installation click „Finish”. The
reader ready to use.
Settings of the serial port, control on Windows XP operating
system
Some application program can not handle a bigger sequential number port as the specific
communications port, so it is possible that after the Proxer7 connecting, the installed program still does not
recognize the reader. In this case may be necessary the direct modify of communications port. The
following guide will help you.
27. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Description of steps
Illustration
Start the control panel (Start menu →
Control panel). Click the system icon.
In the pop-up window choose the
„Hardware” tab and click „Device
Manager”
28. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
In the next window you can see your
personal computer’s hardware components..
Search the „Ports (COM and LPT)” menu,
then click on the little „+” button the view
the devices
they connected through serial
port to the pc.
Search the „Procontrol Virtual Com Port”
device, and than whit
right button choose
the „Features” option.
29. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
In the pop-up window choose the „Port
settings” tab then click „Specials”
In the next window next to „COM-port
number” can be chosen the suitable COMport. From then the Proxer7 available trough
this connected port.
30. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
The Proxer7Manager program
To the Proxer7 reader is a Proxer7Manager program to t ry the basic functions and retool some of
the parameters. When the program starts automatically search for the communications port to which the
Proxer7 connected.
ATTENTION! If the device is not right connected to the pc, the program does not go on.

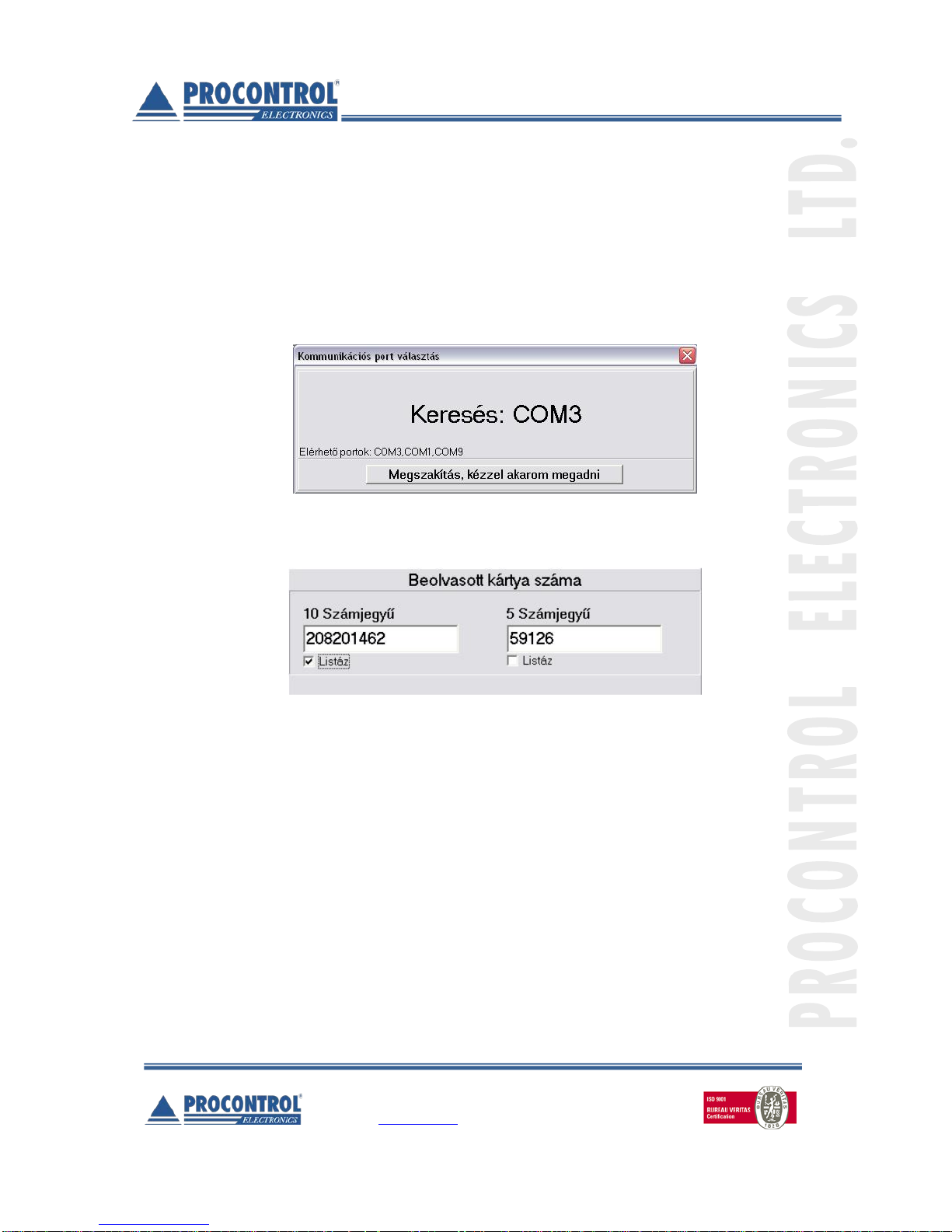

The program shows on the next window the ID of read card. T here is an opportunity make a list.
Click „Listáz”
31. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Lights- and sound signals
The device is suitable for basic events sign (e.g. card reading, rejection of unauthorized card, faulty
operation, service mode, etc.) with LED light and sound signal. T he sound signals are customizable, see
below „Setting Parameters” section. If the card is continuously within the read range, re-reading give not
new light or tone. Each light signals communicate with the following warning message:
Basic function:
1. Successful starting : 3 short, rapid , green blink
2. Normal operating state ,the reader is ready:
1 short green flash in every 10 seconds
3. The card reader is active: light green frequent blinking
4. Successful card reading
a. Eligibility without fe ed b ac k:
1 long and 1 short green flash
b. Eligibil ity with feedback
i. Authorized cases:
1 long and 1 short green flash
ii. Unauthorized cases:
1 quick and 1 long red flash
5. Bootloader:
Orange flash in every 2 seconds
6. Error: uninterrup ted red light
7. Knock-off: 3 long, red flashes.
32. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Case
Sound
LED-lights
Successful starting: 3 short, rapid , green blink
Normal operating state: the reader is ready, 1 short
green flash in every 10 seconds
The card reader is active: light green frequent blinking
Successful
card reading
Eligibility
without
feedback
1 long and 1 short green
flash
Eligibility
with
feedback
Authorized cases:1
long and 1 short green
flash
Unauthorized cases:
1 quick and 1 long red
flash
Bootloader: Orange flash in every 2 seconds
Error: uninterru p te d red light
Knock-off: 3 long, red flashes.
33. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Update in the Proxer7 device
Description of steps
Illustration
Each device has bootloader. This is a special
mode to new update download. Before the
update, click FWLoader program.
As the type of connection choose the „serial
port connection”(soros porti kapcsolat)
option, then choose the right virtual serial
port(használt soros port),
(connect the
device!), baud rate option
(soros porti
baudrate): „115200”, PCS-address(A
készülék PCS-címe): „255”.
Selected the „Firmware update” tab, load
the firmware. The program is now re ady to
update the current firmware.
34. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Press the RESET button on the back of
device until with a beep restarted. As a
result, the device enters in the program
loader mode, where the default parameters
return (regardless of program loading).
To test the connection, click "View Unit Information" button on the device. Under the "Messages" tab then
shall appear the following message:
Device information: 00018 SZABO- 2012-03-06 12:23 Projekt: 9 Készülék: 90 (készülékkód) Rx/Tx buflen: 0/0 Név:
Proxer6 CardReader------ BL rev: 21 Uptime: 921 [a FW fut] A CPU típusa: 060 Feszültség: 000
The important information of this message is with red highlighted (rest of the message contains
variables attached to a sample of the message).
This indicates that the connection is established with the
device, and this is the normal mode (not in bootloader mode).
To the bootloader mode and to the new firmware automatic install click the „Telepítés”, then wait 5-10
seconds.
The FW run
35. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7

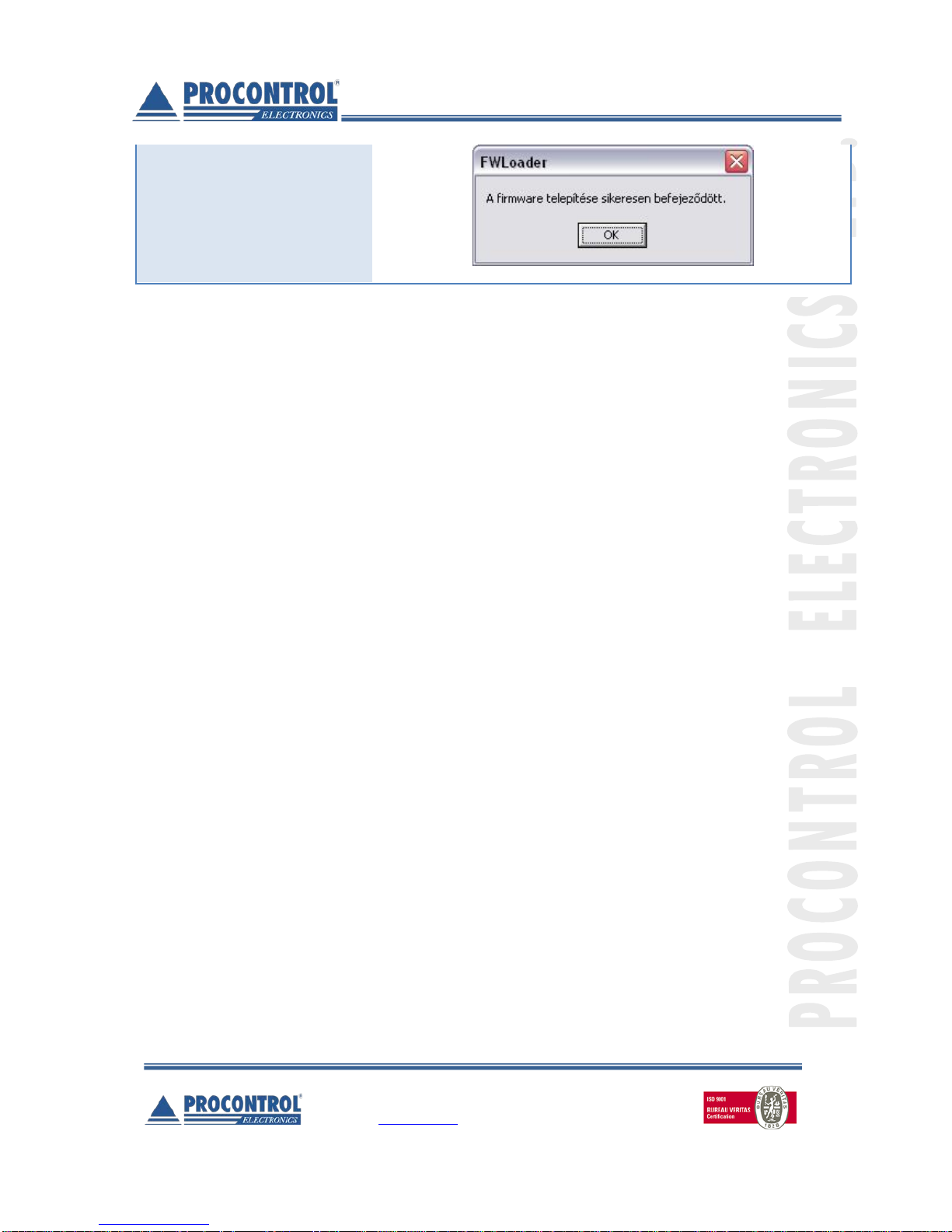

The firmware installing was
successful.
36. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Technical description
RFID Proximity compatibility, features
Frequency
Card types
Low frequency (125/134kHz)
• eMarine (EM4100,4102,4200)
• ProxCard II
• Indala
• Indala Kan tech
• ISO 18000
• ISO 11784/85 HDX
• ISO11784/85 FDX(-B)
• TI RFID (Tiris)
• Casi Rusco
• HITAG 1/S
• HITAG 2
High frequency (13.56MHz)
ISO-14443A
• Mifare Classic (1 k/ 4k)
• Mifare Ultralight
• Mifare DESFire
• Mifare Plus
• Mifare ProX
• Mifare SmartMX
• SLE66R35
ISO-15693
• Texas Instruments TAG-I T Plus
• Texas Instruments TAG-IT Standard
• Texas Instruments TAG-I T Pro
• PicoPass
• HID iClass
• Legic Advan t
ISO-14443B
• SRI512, SRT512,SRI4K,SRIX4k
• ISO-14443B
ISO-18092/NFC
• NFCIP-1
• NFC card emulati on (passive)
• Mobile phone with NFC functionality (Android,
iOS, Windows Mobile)with the previously
mentioned modes
37. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Technical parameters
Electrical parameters
Name of parameters
Connector type
Technical parameter
Power supply voltage
USB
5V
RS232, RS485, Wiegand
12 - 24V
Power consumption
USB
~750mW
RS232, RS485, Wiegand
~250mW
Average reading distance
All-type
0 – 5cm
Connector type
USB
microUSB AB
RS232
9 pole D-SUB, 5,5mm DC
RS485
RJ45
Wiegand
4pole serial terminal
Communication standard
USB
USB 2.0
RS232
RS232
RS485
RS485
Wiegand
Wiegand 26 (< 37) bit
LED indicator
All-type
1 LED with 3 color (Red, Green, Orange)
Operating parameters
Operating temperature
-25 – 50 °C
Relative humidity
0 – 95 %
Operating Elevation
0 – 3000 m
Storage temperature
-15 – 45 °C
Storage relative humidity
0 – 95 %
Storage altitude
0 – 15000 m
Volume
max 85 dB
Physical parameters
Height
24mm
Width
78,97mm
Depth
117,23mm
Weight
65g
Color
RAL7035, RAL7012
38. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Compatible operating systems
The list of accompanying programs (virtual serial port setup, communications software, etc. ...)
Compatible Operating Systems:
• Microsoft Windows 98
• Microsoft Windows 2000
• Microsoft Windows NT
• Microsoft Windows XP
• Microsoft Windows Vista
• Microsoft Windows 7
• Microsoft Windows 8
• Microsoft Windows 8.1
Other operating systems to use (OS X, Linux) we recommend the USB HID device emulation
(keyboard emulation).
39. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Technical drawings
40. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Wiring, connection
Proxer7 OEM (1)
41. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Proxer7 OEM (2)
42. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Proxer7-FF-232
43. oldal / 44
PROCONTROL ELECTRONICS LTD
www.procontrol.hu
Procontrol Proxer7
Technical supports
Should you have any problems or need assistance with you Procontrol Products, please feel free to contact
our support department by any of the means below:
Procontrol Electronics Ltd.
www.procontrol.hu
6725 Szeged, Cserepes sor 9/b.
Tel: (62) 444-007
Fax: (62) 444-181
Email: info@procontrol.hu
Service:
Email: service@procontrol.hu
Loading...
