DevCom2000 Mobile User Manual
QUICK START
DevCom2000 Mobile uses Device Descriptions (DDs) to access data stored in the memory of the smart field
device. These DDs are developed by the manufacturer for their products and, in turn, distributed by the HART®
Communication Foundation (HCF) worldwide. The latest DDs are included as part of the DevCom2000 Mobile
installation. Visit the HCF website (www.hartcomm.org) or the ProComSol website (www.procomsol.com) for
update information.
The following steps will allow you to install and quickly begin using DevCom2000 Mobile:
Step 1: Install the DevCom2000 Mobile application
Insert the DevCom2000 Mobile SD Card into the SD slot of the Mobile device. Connect the Mobile to your PC and
verify the ActiveSync program is running.
Note: The step in this paragraph is only required if the SD Card is not supplied, but instead the DD Library is
supplied as a program install. When the DD library is installed, it is placed in the “C:\HCF\DDL\Mobile\Library”
directory on the PC. Copy the Library folder to the SD Card on the Mobile so that the path appears as “SD
Card\Library”. Please note that on some Mobile devices “SD Card” may have slightly different text. (Note: You
will overwrite the existing SD Card\Library subdirectory if this is an update.)
Insert the DevCom2000 Mobile installation CD into the CD drive on your computer. The DevCom2000 Mobile
installation will automatically start and guide you through the installation process. Install DevCom2000 Mobile in
its default location. If the installation program does not begin automatically, please go to StartRun and enter
“CDRom drive letter”:\setup.exe. This will begin the installation program. After the install is finished on the PC,
select “Device” on the Mobile to finish installation. See Section 4.2 for details.
Step 2: Connect the communication interface
Connecting to a HART device requires special interface hardware to be attached to your computer. These
interfaces ("HART Modems") are available from ProComSol, Ltd and other sources. The interface should be
connected and configured. The preferred interface is a Bluetooth HART Modem - ProComSol, Ltd model HM-BTBAT-ER. See Section 4.4 for details.
Step 3: Connect to the field device
Find a connection point for the device’s 2-wire 4-20mA loop you wish to communicate with. For communications
you must have a suitable load resistance or a 250Ω resistor must be placed in series with the device. Using the clips
from the HART interface, connect to the HART device. While the HART Communication signal is available
anywhere along the 4-20mA wiring, it is often easiest to connect across the field device's terminals (caution should
be observed when working in a hazardous area, many Mobile’s are not rated for intrinsic safety and should only be
connected in a safe area).
MAN-1017 8/9/2011 Our Quality Management System is Page 1
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step 4: Activate DevCom2000 Mobile
Launch DevCom2000 Mobile by selecting the DevCom2000 Mobile icon from the Start menu.
You will now be asked to Activate DevCom2000 Mobile. You can use it for 10 days before you need to Activate
it. Select “No” to continue in Demo mode. Activation only needs to occur once. See Section 4.3 for details.

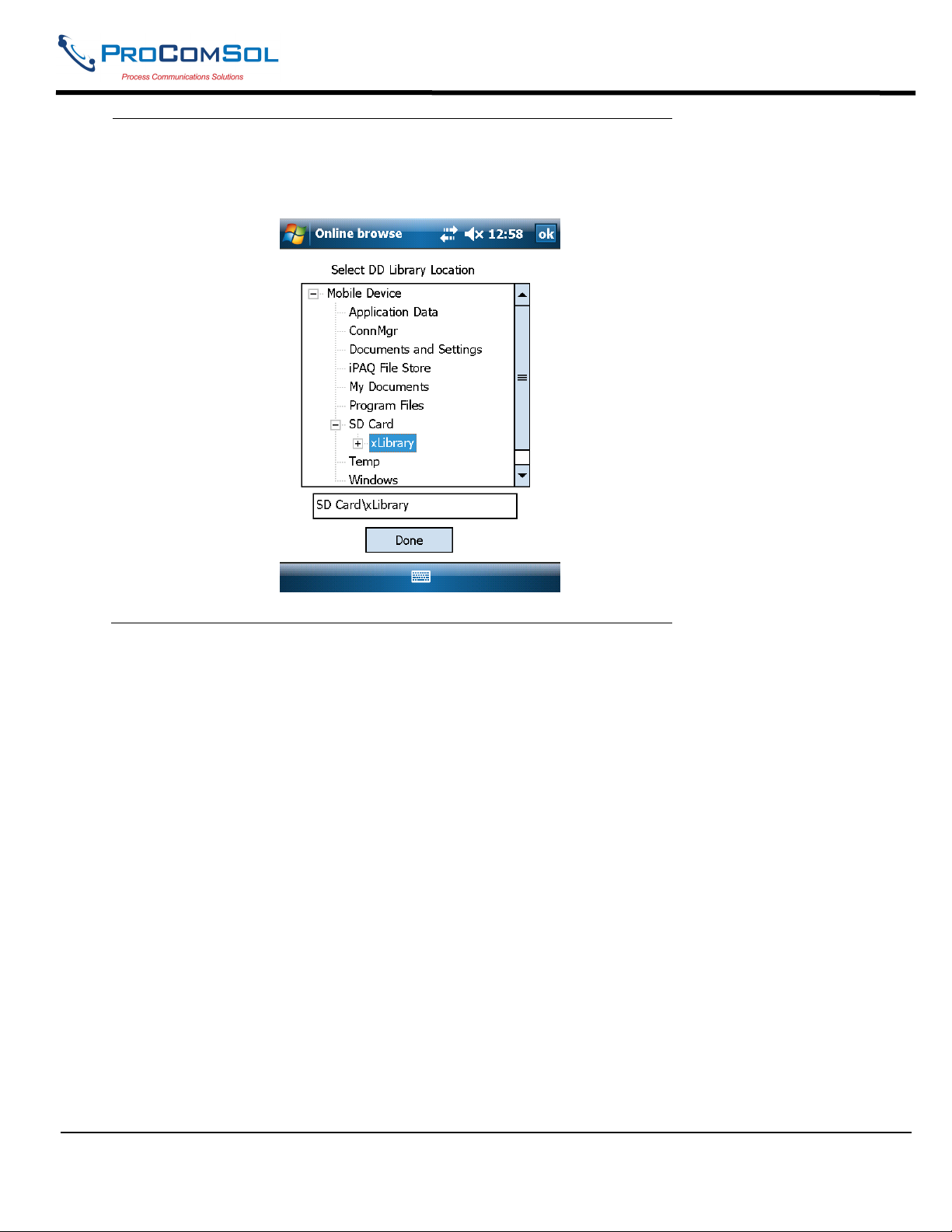

On some Mobile devices another step is required in order to select the DD library location. This is only required if
the SD card has a name that is not standard. In this case a screen will come up where the user will need to select
the path of the DD Library in the Mobile device. The selection will appear in the box at the bottom of the screen.
Step 5: Browse the Device
Operating DevCom2000 Mobile is similar to working with Windows Explorer. DevCom2000 Mobile
communicates to the field device, establishes a connection and learns its identity. Once DevCom2000 Mobile
knows its identity, DevCom2000 Mobile locates the device's DD and loads it. From this point forward operation of
DevCom2000 Mobile is determined by the DD provided by the product's manufacturer. If a DD for the device is
not present, a generic DD will be used.

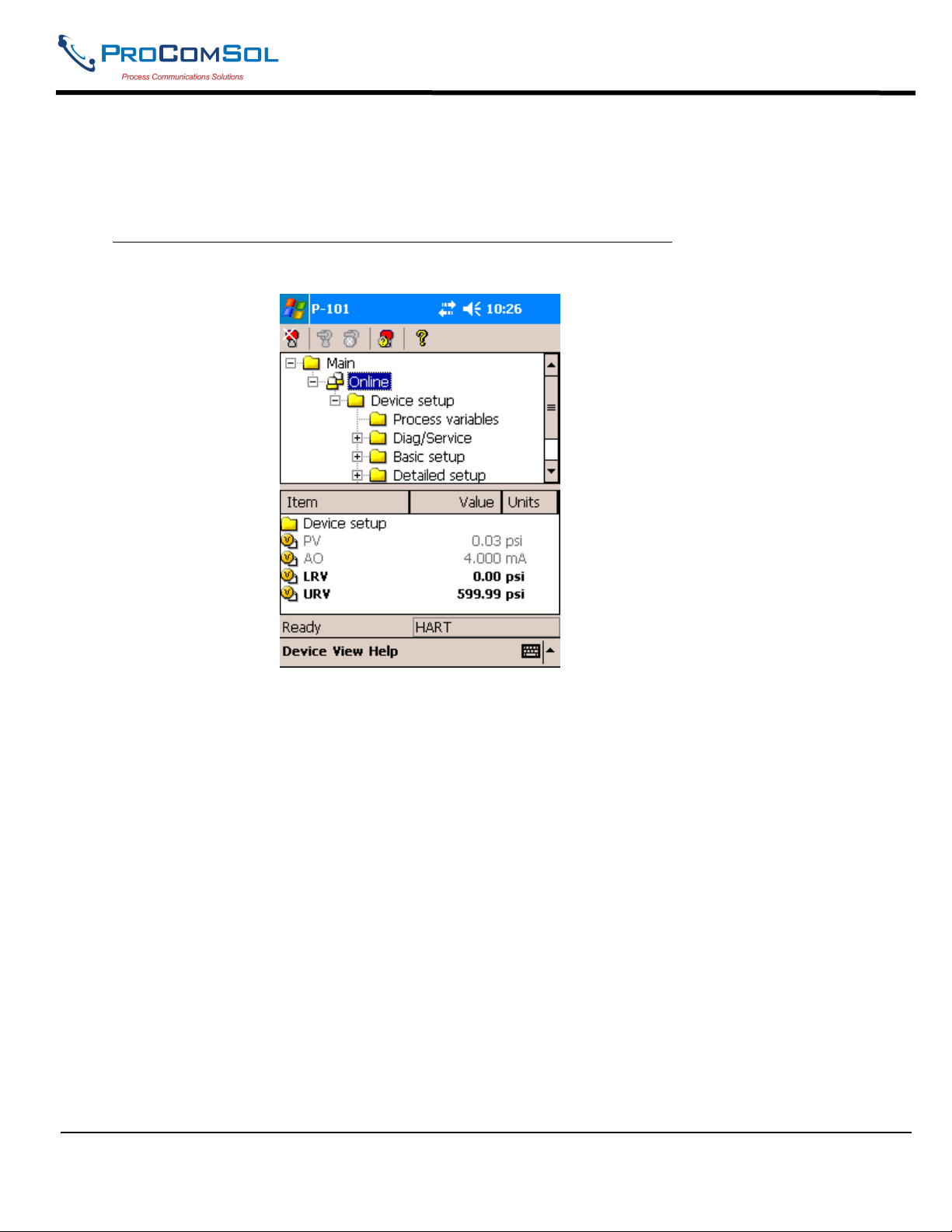

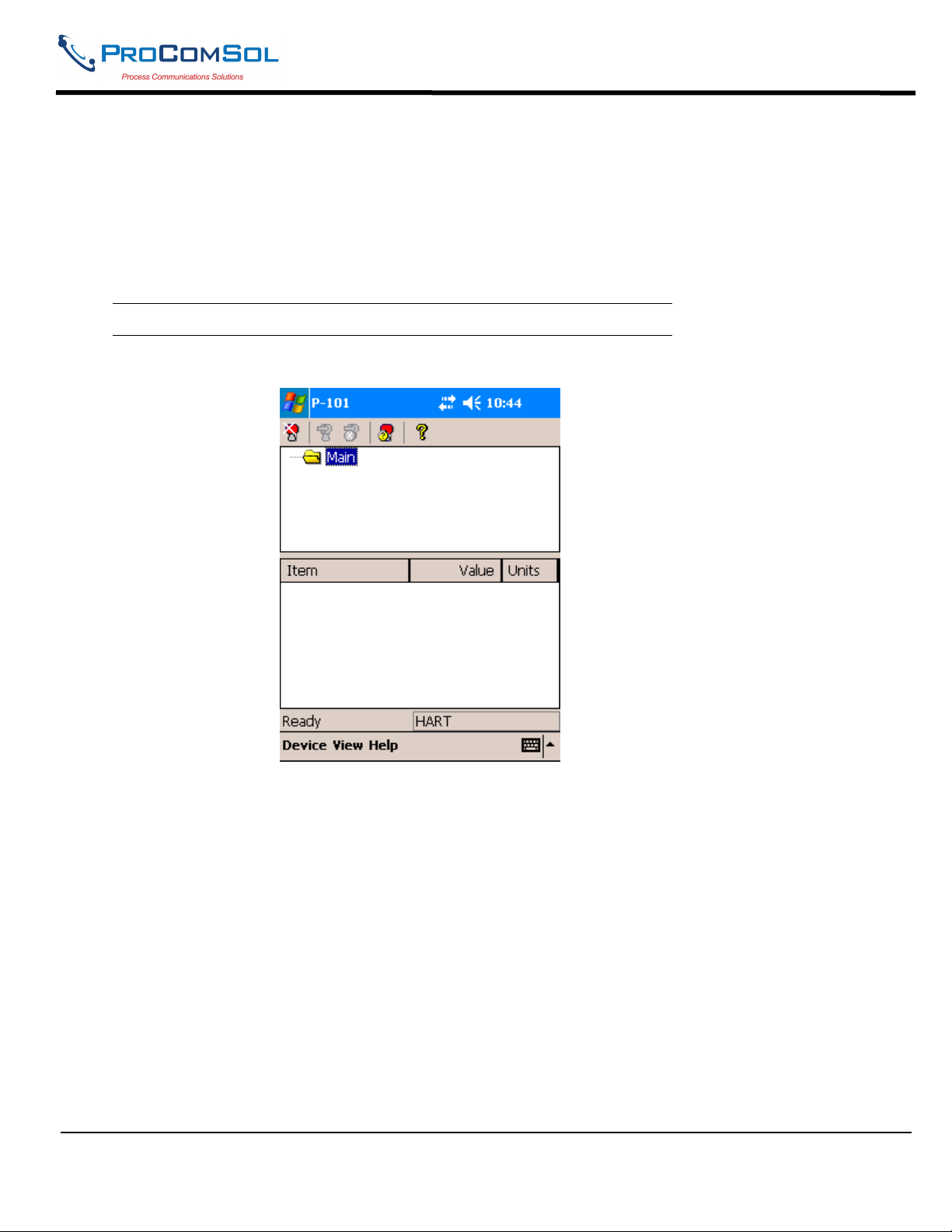

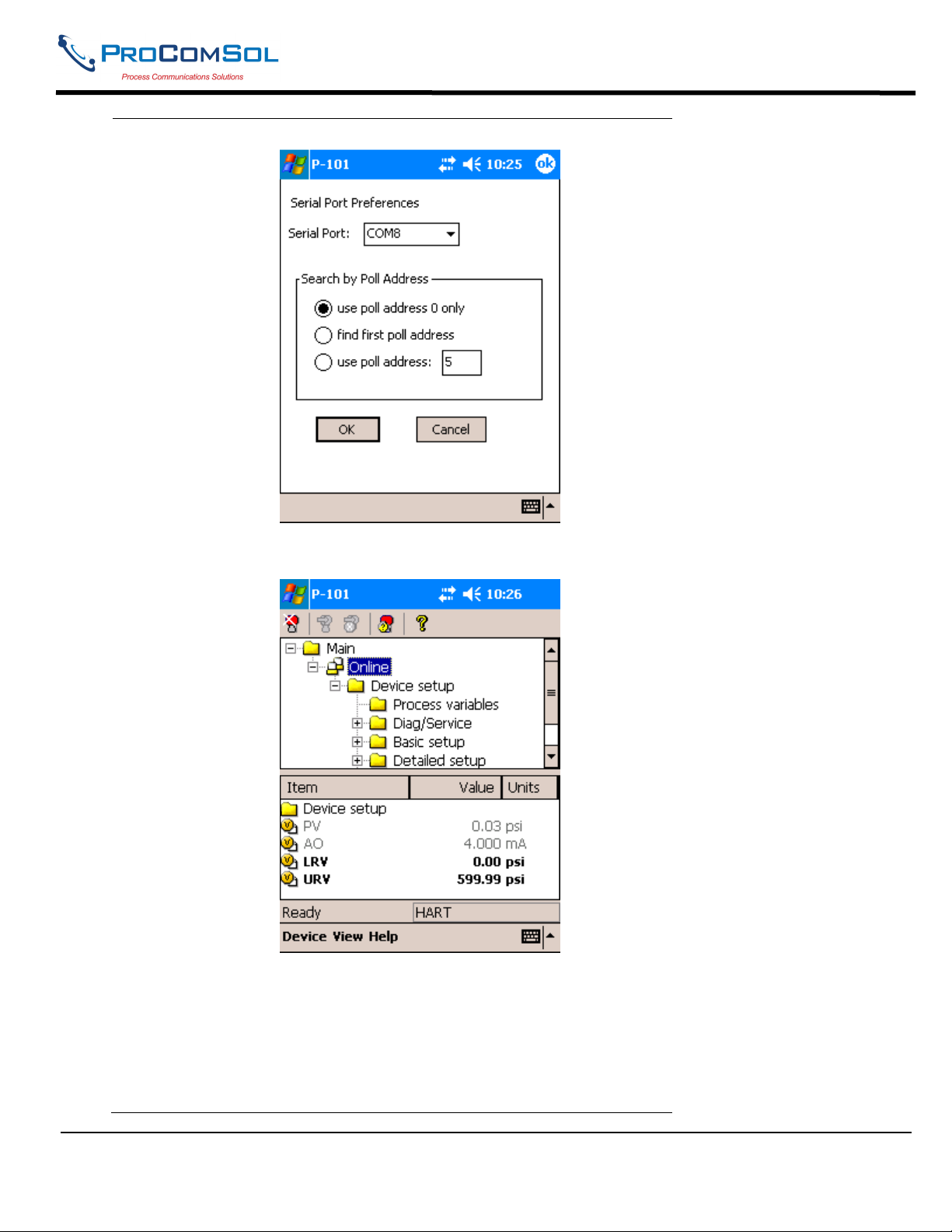

By default, DevCom2000 Mobile will open the Browser window. The organization of the data in this explorerstyle window is dictated by the device DD. The top tree-pane of this window shows the logical groups of field
device data. These are called "Menus". The bottom data-pane shows the data, any sub-groups and any standard
operating procedures found on a given menu.
You can browse through the field device data by expanding (click "+" symbol) or collapsing (click the "-" symbol)
the menus in the tree-pane. You can also double-click the folder symbol when seen on the data-pane.

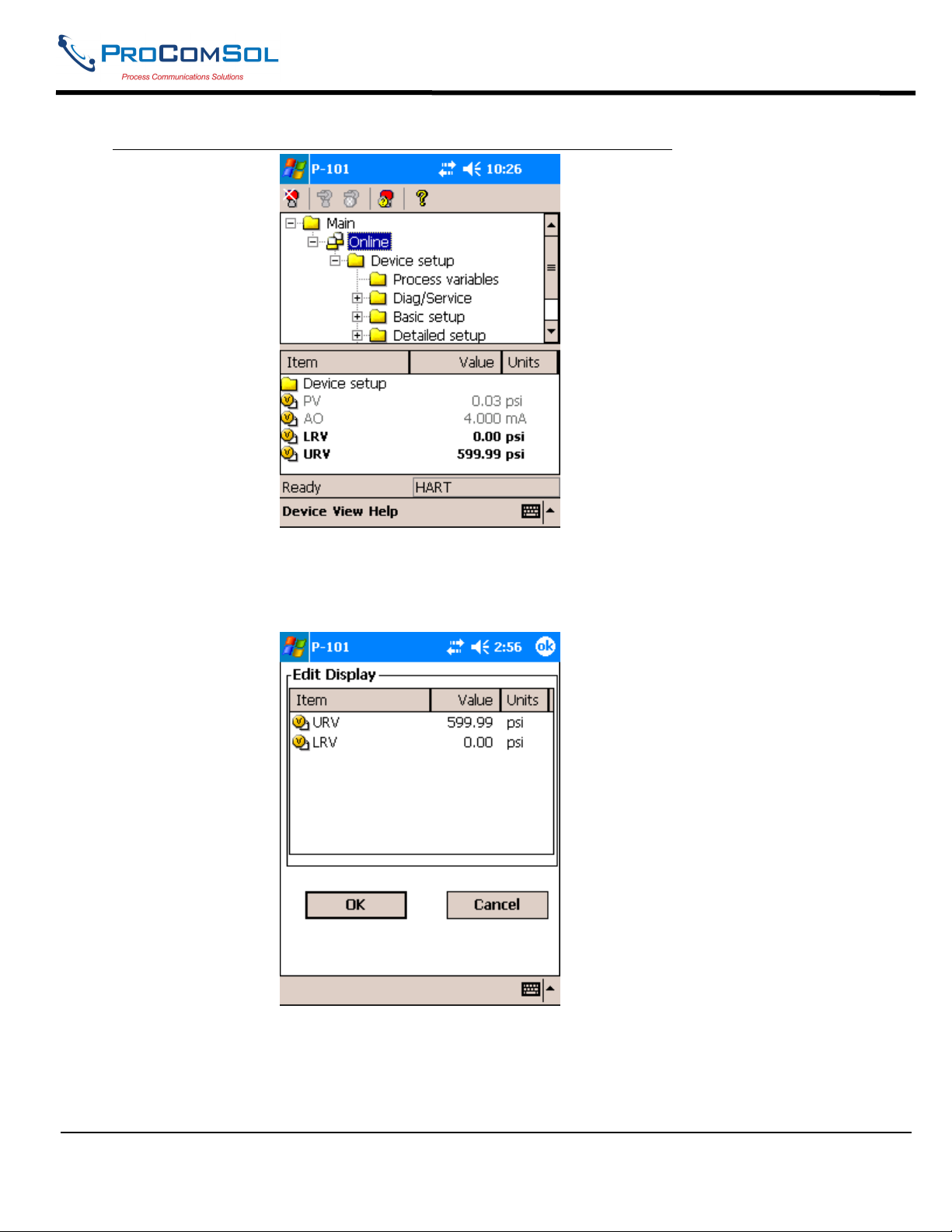

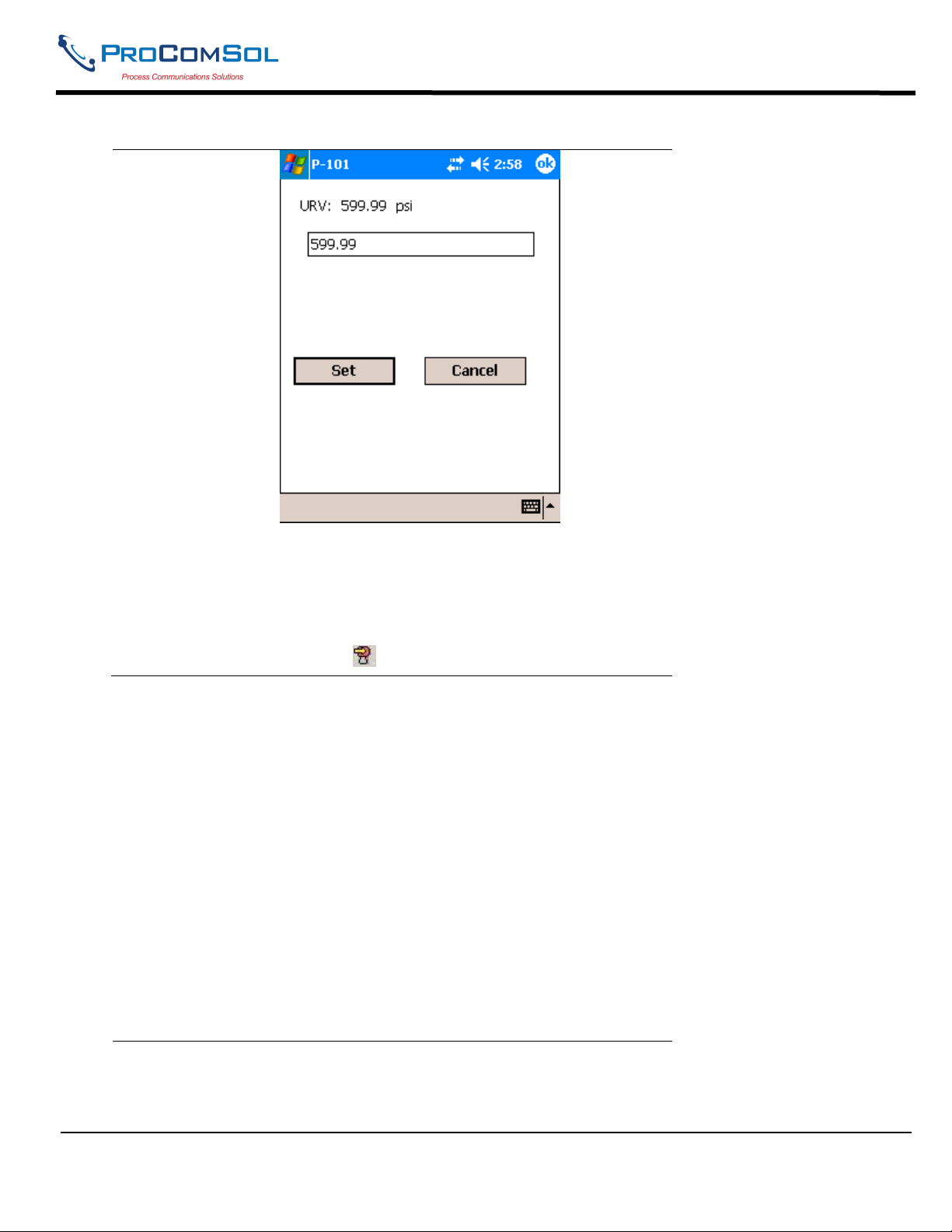

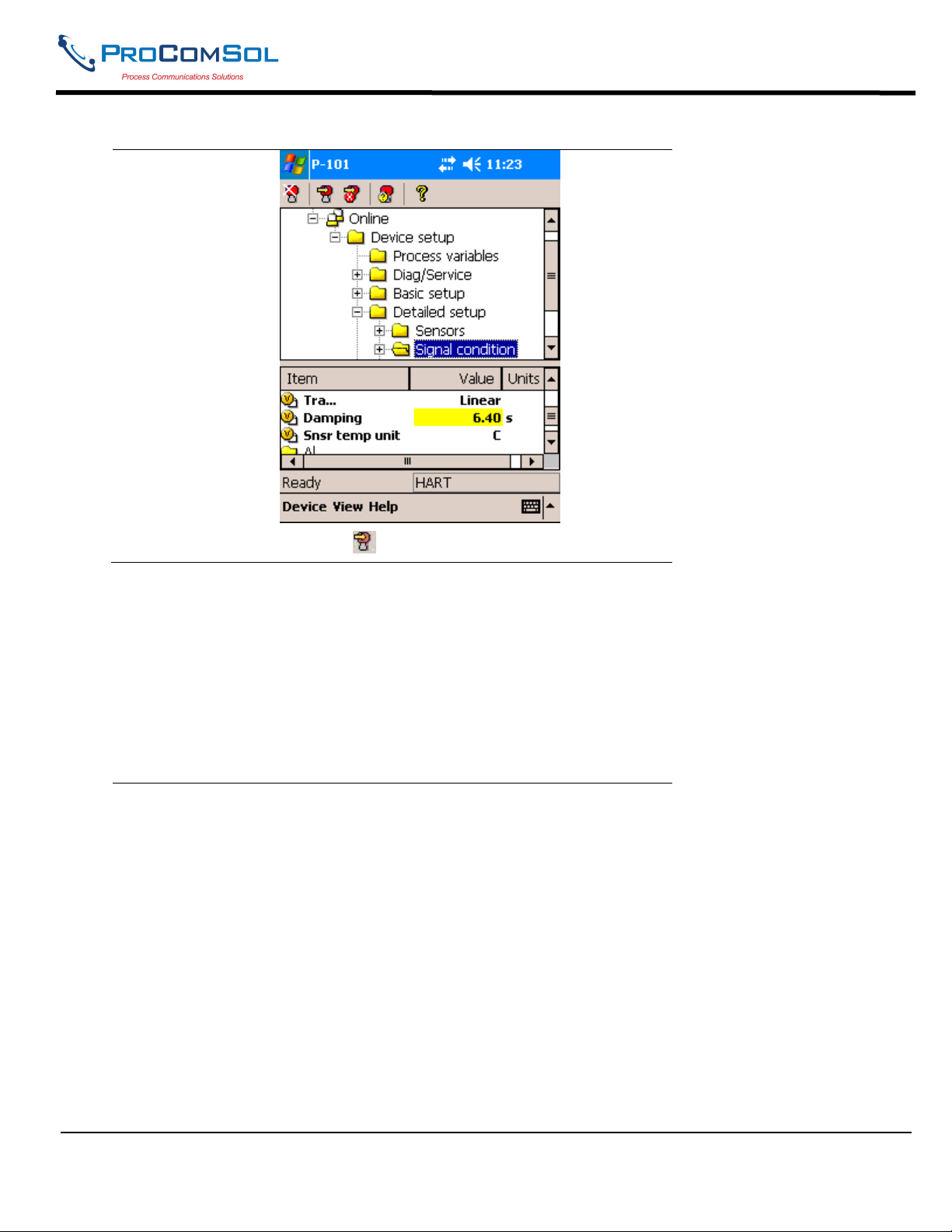

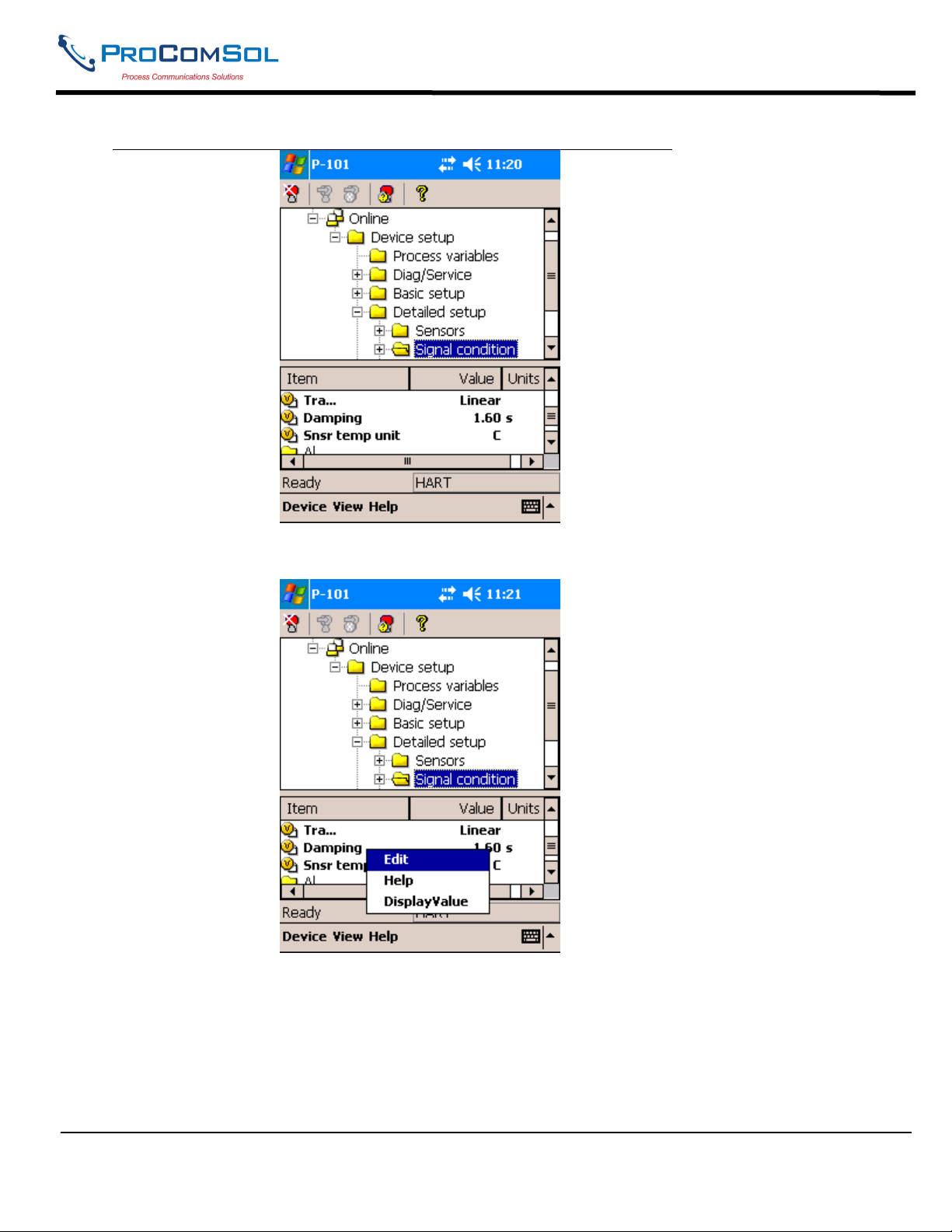

Step 6: Modify the Device's Configuration
The Browser allows access to all of the data exactly as described by the product's manufacturer’s DD. When you
find elements of the field device's configuration you want to change, simply double-click and edit the data. Once
you have changed the configuration to suit your needs, press the Send icon to commit the data and transfer it to
the field device.

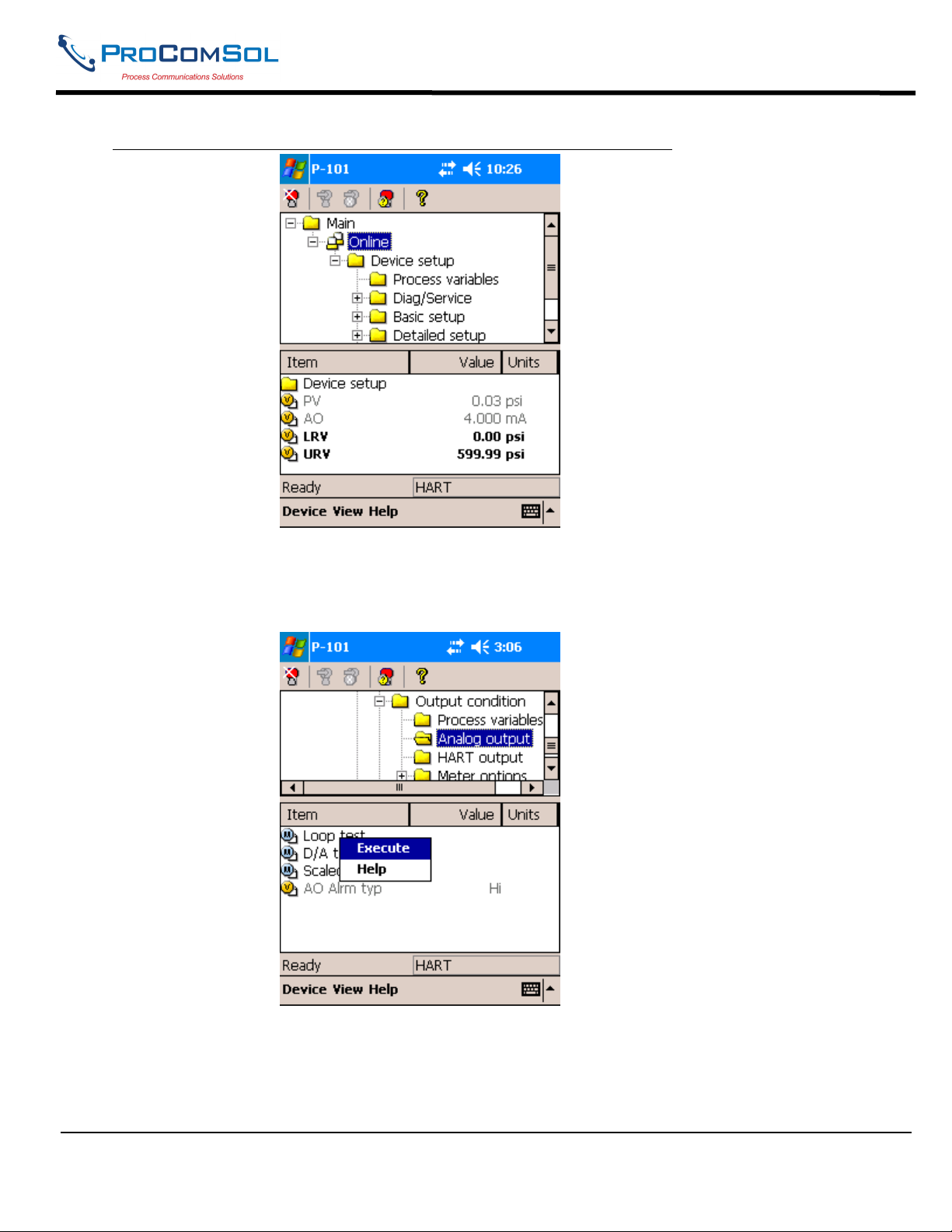

Step 7: Performing Maintenance and Testing the Field Device
Many devices perform Methods or Standard Operating Procedures (SOPs) that may need to be performed to ensure
the device is in peak condition. These Methods may include calibrating the loop current, trimming the transducer
values or performing some diagnostic test on the field device. Methods appear in the data-pane just like data does.
Double-click on the Method and it will start running in a separate window. The Method will guide you through the
process ensuring the procedure is completely and consistently performed. When the Method is complete the
window will disappear.
Step 8: Exit
When you are through working on the field device simply exit DevCom2000 Mobile. Once the program exits, you
can then disconnect the HART interface hardware.
MAN-1017 8/9/2011 Our Quality Management System is Page 2
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Table of Contents
QUICK START .....................................................................................................................................1
1 Introduction ......................................................................................................................................4
1.1 Acronyms and Definitions ...................................................................................................4
1.2 Conventions Used in This Manual .......................................................................................4
1.3 Document Organization .......................................................................................................5
1.4 Getting Help .........................................................................................................................5
2 Overview of DevCom2000 Mobile .................................................................................................6
3 System Requirements.......................................................................................................................7
4 DevCom2000 Mobile Installation....................................................................................................8
4.1 Prerequisites .........................................................................................................................8
4.2 Installing the DevCom2000 Mobile Application .................................................................8
4.3 Activating DevCom2000 Mobile .........................................................................................9
4.4 Bluetooth Settings on the Mobile ......................................................................................12
4.5 Connecting to the HART Network ....................................................................................15
4.6 Uninstalling the DevCom2000 Mobile Application ..........................................................15
5 Using DevCom2000 Mobile ..........................................................................................................17
5.1 Starting DevCom2000 Mobile ...........................................................................................17
5.2 Getting Familiarized with DevCom2000 Mobile Explorer ...............................................19
6 Functions and Basic Operations.....................................................................................................22
6.1 Overview ............................................................................................................................22
6.2 Viewing Device Configuration (typical, actual view may change based on DD) .............22
6.3 Configuring Device Information........................................................................................24
6.4 Calibrating HART Field Devices.......................................................................................33
6.5 Viewing the Device and Communication Status ...............................................................33
6.6 Saving Device Configuration To Memory ........................................................................35
6.7 PC Interface to Mobile .......................................................................................................36
6.8 DD Library Updates ...........................................................................................................37
Appendix A Troubleshooting Guide ...................................................................................................36
Appendix B Mobile Data Input Guide ................................................................................................37
Appendix C Contact Information.........................................................................................................39
MAN-1017 8/9/2011 Our Quality Management System is Page 3
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
1 INTRODUCTION
The Smart Device Communicator (DevCom2000 Mobile) allows access to and management of a HART compatible
field device's configuration and calibration. This manual provides the information about the Hardware setup,
Communication with Smart devices, and functions of DevCom2000 Mobile.
DevCom2000 Mobile is unique in that it uses the DD of the connected device to determine what information to
display, what variables are available for edit, and what procedures to follow for calibration, setup, and maintenance.
1.1 Acronyms and Definitions
Acronym Definition
DD Device Description File. This contains the device
information.
DDL Device Description Language
HCF HART Communication Foundation
DevCom2000 Mobile Smart Device Communicator
1.2 Conventions Used in This Manual
Following formatting conventions are used in this guide:
Convention Description
Words in bold type Field names including buttons in the display,
or important phrases.
Arrow Windows pull down menus and their options
are separated by .
For example, click Device New Device to
connect to a new device.
Courier font
UPPERCASE Acronyms
UPPERCASE within
angle brackets
Information that you type, parts of the code
quoted for explanations or as examples.
Command keys
For example, press <ENTER>.
MAN-1017 8/9/2011 Our Quality Management System is Page 4
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
1.3 Document Organization
DevCom2000 Mobile user manual is organized into the following sections:
Section 1
Describes the scope and objective of DevCom2000 Mobile
user manual along with the organization of the remaining
part of the manual.
Section 2
Provides an overview of the DevCom2000 Mobile
application and its architecture.
Section 3
Provides the information pertaining to hardware and
software requirements for the DevCom2000 Mobile
application.
Section 4
Provides the steps to install, activate, and uninstall the
DevCom2000 Mobile application.
Section 5
Provides the steps to start the DevCom2000 Mobile
application and connecting to field devices.
Section 6
This section explains different aspects of the DevCom2000
Mobile application and its functionalities.
1.4 Getting Help
If you need help or encounter problems when using DevCom2000 Mobile or this guide, please contact ProComSol,
Ltd. See Appendix C for contact information. Please provide the following information.
Create a text description of the problem. If possible, provide the text in event sequence, which will enable
the duplication of the problem. Provide information about the system. This information must include:
• DevCom2000 Mobile version and serial number
• Mobile information: make, model, and operating environment (Windows version)
• Device information: make, model, and device revision
• Point of contact: complete mailing address, telephone number, and e-mail address,
• The date and time of the problem occurrence.
MAN-1017 8/9/2011 Our Quality Management System is Page 5
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
2 OVERVIEW OF DEVCOM2000 MOBILE
Field devices such as flow, pressure, level, temperature transmitters, and valve positioners provide the physical
connection to the process. These devices allow the control system to monitor and manipulate process conditions.
HART devices maintain a real-time database of process, configuration, identification, and diagnostic information.
This information can be accessed using the HART Field Communications Protocol.
HART devices are capable of providing functions and features far beyond the basic task of providing a process
input or accepting a control output to manipulate process conditions. Many HART compatible device manufactures
create a DD (Device Description) describing all of these functions and features specific to that device. The DD also
provides information essential to the successful configuration and calibration of the device.
DevCom2000 Mobile uses these DD’s to access the data stored in a device, providing full configuration and setup
support for all registered HART DD’s.
DevCom2000 Mobile accesses and presents field device data based solely on its DD. No other files, information or
custom drivers are required. DevCom2000 Mobile is intended to monitor and configure a single device at a time, it
is directly connected to the current loop of the particular device and:
• Provides user interface to configure the HART field device,
• Provides a means to configure and view all the parameters related to HART field device, and
• Provides an option to view the detailed status and diagnostic capability of the device.
DevCom2000 Mobile allows viewing and modifying of field device parameters based on the DD. Using the
device’s DD, DevCom2000 Mobile performs various tests to verify the proper operation of the HART device.
DevCom2000 Mobile runs as a standalone software package and must have a HART compatible modem attached to
the system to interrogate the HART base devices.
MAN-1017 8/9/2011 Our Quality Management System is Page 6
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
3 SYSTEM REQUIREMENTS
The following minimum system requirements are recommended for operation of DevCom2000 Mobile.
Mobile Device
Processor Speed: 624 Mhz
Memory RAM: 128 MB
Memory ROM: 256 MB
Screen: 256-color VGA
SD Card or Micro SD Card Slot
SD Card 500 Meg or greater (included with software)
HART Modem Bluetooth to HART modem - ProComSol,
Ltd supplies HART modems
Communication Port Bluetooth
Operating System Pocket PC 2003, Windows Mobile 5.0,
Windows Mobile 6.x
MAN-1017 8/9/2011 Our Quality Management System is Page 7
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
4 DEVCOM2000 MOBILE INSTALLATION
4.1 Prerequisites
You need to be familiar with the basic functions of the following when installing the DevCom2000 Mobile tool:
• Microsoft Windows
• HART communication interface
• HART field device
• Mobile Syncing using Windows ActiveSync
4.2 Installing the DevCom2000 Mobile Application
To install the DevCom2000 Mobile application, perform the following steps:
Step Action
1 Insert the DevCom2000 Mobile SD Card into the SD slot of the
Mobile device. Connect the Mobile to your PC and verify the
ActiveSync program is running. :
2 Note: The step in this paragraph is only required if the SD Card
is not supplied, but instead the DD Library is supplied as a
program install. When the DD library update is installed, it is
placed in the “C:\HCF\DDL\Mobile\Library” directory on the
PC. Copy the Library folder to the SD Card on the Mobile so
that the path appears as “SD Card\Library”. Please note that on
some Mobile devices “SD Card” may have slightly different
text. (Note: You will overwrite the existing SD Card\Library
subdirectory if this is an update.)
3 Insert the DevCom2000 Mobile CD into the CD-ROM drive.
Auto run should begin installation, if not:
4 Click Start and choose Run. From the Run window, click
Browse.
5 In the Look In box, browse to your CD drive.
6 Double-click the drive to access the CD content.
7 Look for the setup.exe file and double-click the same. This
process will take you through a sequence of installation wizard
steps.
8 Follow the instructions on the upcoming screens to complete the
Installation.
9 Once completed on the PC, a step remains on the Mobile. Select
the “Device” option on the screen below:
MAN-1017 8/9/2011 Our Quality Management System is Page 8
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
4.3 Activating DevCom2000 Mobile
DevCom2000 Mobile must be activated for continued use. If the program is not activated, it will not run after 10
days. The following procedure will activate the software:
Step Action
1 Start the DevCom2000 Mobile Application. The following
Demo mode window is displayed:
MAN-1017 8/9/2011 Our Quality Management System is Page 9
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
If you want to evaluate DevCom2000 Mobile before purchasing,
select “No”. You will have 10 days of unlimited program use
before you will need to purchase a license.
2 If “Yes” is selected, the following window appears:
You will then need to contact ProComSol, Ltd to obtain the
registration keys. You must supply the User Codes to
ProComSol, Ltd support personnel. You can activate in any of
the following ways:
1. Call ProComSol, Ltd at 216.221.1550. Have the program
Serial Number and User Codes ready.
2. Or, send an email to support@procomsol.com containing your
company name, Serial Number, and User Codes.
3. Or, send a fax to ProComSol, Ltd (216.221.1554) containing
your company name, Serial Number, and User Codes.
The above information will be processed at ProComSol, Ltd and
an appropriate response will contain the required Reg Keys. The
user will need to enter the Reg Keys and the Serial Number.
If successful, the program continues as normal. You will not
need to perform the activation process again.
3 We have tried to make the Activation process as easy as
possible. Contact ProComSol, Ltd if you have any difficulties
4 On some Mobile devices another step is required in order to
select the DD library location. This is only required if the SD
card has a name that is not standard. In this case a screen will
MAN-1017 8/9/2011 Our Quality Management System is Page 10
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
come up where the user will need to select the path of the DD
Library in the Mobile device. The selection will appear in the
box at the bottom of the screen.
MAN-1017 8/9/2011 Our Quality Management System is Page 11
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
4.4 Bluetooth Settings on the Mobile
Bluetooth must be enabled on the Mobile. To enable and setup the Mobile for Bluetooth communications with a
Bluetooth HART Modem, perform the following.
Step Action
1 Tap Start Settings. Then select the “Connections” tab. The
following screen is displayed:
2 Select the Bluetooth icon. Make sure Bluetooth is turned on. If
not, select “Turn On” from this screen:
MAN-1017 8/9/2011 Our Quality Management System is Page 12
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 Select the “Accessibility” tab and verify the following settings:
4 Select the “Services” tab and verify the following settings for
Serial Port:
5 Select the “Advanced” tab to see what outgoing COM port was
assigned to the Modem. It is shown as COM8 below. Also
make sure the box is unchecked as shown:
MAN-1017 8/9/2011 Our Quality Management System is Page 13
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
MAN-1017 8/9/2011 Our Quality Management System is Page 14
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
4.5 Connecting to the HART Network
The DevCom2000 Mobile application communicates with the HART Field Devices through a HART compatible
communication interface (e.g., a "HART Modem"). Using this communication interface you will transmit real-time
HART data between DevCom2000 Mobile and the connected HART compatible field device.
There are a wide variety of HART compatible interfaces. Please follow the manufacturer’s instruction for
connecting your interface to the Mobile. This manual uses the HART modem manufactured by ProComSol, Ltd,
called the HM-BT-BAT-ER. It uses the Bluetooth interface.
Turn the HM-BT-BAT-ER on. It is assumed you have already performed the Bluetooth pairing procedure. See the
HM-BT-BAT-ER documentation for details. Using the clips on the wires from the HART modem, connect to the
device across the 4-20ma signal. If a suitable load resistance is not available, a 250Ω resistor must be placed in
series with the device power supply.
Figure 1 Typical DevCom2000 Mobile Hardware Setup
4.6 Uninstalling the DevCom2000 Mobile Application
To uninstall the DevCom2000 Mobile application, perform the following steps on the PC:
Step Action
1 Click Start Programs ProComSol DevCom2000
Mobile Uninstall DevCom2000 Mobile
2 Or, Click Start Settings Control Panel Add/Remove
Programs
MAN-1017 8/9/2011 Our Quality Management System is Page 15
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 In the Add/Remove Programs dialog window, select the
DevCom2000 Mobile program that you want to uninstall.
4 Click Remove.
5 Click OK to confirm the removing of the selected application.
MAN-1017 8/9/2011 Our Quality Management System is Page 16
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
5 USING DEVCOM2000 MOBILE
5.1 Starting DevCom2000 Mobile
The HART compatible field device must be connected to a Mobile running DevCom2000 Mobile to configure or
calibrate the field device, or to view the field device's data. Make sure to establish the physical connection between
the field device and the DevCom2000 Mobile computer. With the physical connection established, launch
DevCom2000 Mobile by clicking the DevCom2000 Mobile icon on your program screen. You can also start the
application by going to your Mobile's Start Menu and selecting Start DevCom2000 Mobile.
Step Action
1 Start the DevCom2000 Mobile Application. The following
application window is displayed:
DevCom2000 Mobile will then automatically identify the field
device and open a communication channel to (i.e., a connection
with) the field device.
2 Setting Preferences Device Preferences
If communications cannot be established, you may need to
change the communication settings using the Preferences dialog
box.
The serial port box will show the available com ports. Select the
one your HART modem is using. You may also change the
polling options for the computer. If you do not know the poll
address of the device you are trying to communicate with, use
the default address 0 setting.
MAN-1017 8/9/2011 Our Quality Management System is Page 17
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 When the device is connected to DevCom2000 Mobile, the
browser window appears with online (i.e. root menu) selected.
The top pane of the window shows the menu structure and the
bottom pane of the window displays corresponding parameters
of the menu selected.
The DevCom2000 Mobile screens shown in this document are
only an example of what you may see when connected to your
field device. What you see is actually controlled by the DD and
the device. The menus, data, status and configurations displayed
MAN-1017 8/9/2011 Our Quality Management System is Page 18
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
are specified by the field device's manufacturer in the DD itself.
4 Select the required menu to configure or review the field
device's data.
5.2 Getting Familiarized with DevCom2000 Mobile Explorer
5.2.1 Using the Menu Bar Menus
DevCom2000 Mobile Explorer provides visual representation and structure of the application window.
Menu Explanation
The Device Menu offers the following
sub-menu options:
New Device - Connect to a new device or
reconnect to the same device.
Preferences – Brings up the Preferences
dialog box.
Document Device – Brings up the
Document Device dialog box.
Exit - Exit DevCom2000 Mobile.
The View Menu offers the following submenu options:
Toolbar - Hide or show the Tool Bar.
Status Bar - Hide or show the Status Bar.
Device Condition – View detailed device
status.
Available DDs – Shows what DDs are
available to DevCom2000 Mobile
The Help menu offers the following submenu options:
DevCom2000 Mobile Help – Brings up
Help information for the DevCom2000
Mobile application.
Device Help – Brings up help information
for the connected device (if available).
About DevCom2000 Mobile – Shows
copyright information, support
information, and application Serial
Number.
MAN-1017 8/9/2011 Our Quality Management System is Page 19
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
5.2.2 Using the Pop-up Menus
When you tap and hold a menu item, a Pop-up menu will appear with different functionality depending on what
menu item type was selected. A summary:
Menu Explanation
The Menu Pop-up Menu offers the
following sub-menu options:
Open – Opens the selected menu.
Help – Brings up help information on the
selected menu.
Device Details – Brings DD information
for the connected device. Only works on
the Online menu.
The Variable Pop-up Menu offers the
following sub-menu options:
Edit – Brings up the Edit menu for the
selected variable.
Help - Brings up help information on the
selected variable.
Display Value – Shows the selected
variable on the full screen with scroll bars.
This is so the entire variable can be seen
without abbreviations.
The Method Pop-up Menu offers the
following sub-menu options:
Execute – Starts the selected Method in a
new window.
Help – Brings up help information for the
selected Method.
5.2.3 Using the Toolbar
When you start the application, by default, the toolbar buttons appears on the main window. If it fails to display,
click View Toolbar option from the menu bar to bring up the toolbar.
Following are the buttons available in the DevCom2000 Mobile application toolbar to perform the necessary tasks:
Button Description Corresponding Menu Option
Connect to a new device
Device New Device
device
Send parameter changes to the
MAN-1017 8/9/2011 Our Quality Management System is Page 20
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Button Description Corresponding Menu Option
Cancel parameter changes
and Communication
View more status on Device
View Device Condition
(Command 48 status)
Shows About screen
Help About
5.2.4 Familiarizing with Icons
DevCom2000 Mobile application uses different icons to represent different elements of the application. Following
table lists the icons and their meanings:
Icon Meaning
Indicates a menu or submenu in the navigation tree
Indicates a currently selected menu or submenu in the
navigation tree
Online menu icon. The actual DD menu comes under this.
Indicates a “Variable” item
Indicates a “Method” (Standard Operating Procedure) item
Indicates an “Edit Display” item
MAN-1017 8/9/2011 Our Quality Management System is Page 21
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
6 FUNCTIONS AND BASIC OPERATIONS
6.1 Overview
DevCom2000 Mobile allows the user to monitor and configure a single device at a time in the field. Each device is
associated with the DD when the device information is present. A DD may contain any of the following
parameters/elements:
Variable
A variable is defined as the data contained in the device (e.g. Device Firmware Version). There are two types of
variables:
Editable Variable – It allows the operator to modify the value and download it to the device.
Non-Editable Variable – It is a read-only data from the device.
Edit Display
This option is used to view a group of parameters. You can also modify a single parameter from this group, based
on which other parameters of the device get altered.
For example, if the Engineering Unit of the device is modified, the corresponding Low Limits and High Limits
change as per the Engineering Unit set.
Method / Standard Operating Procedure (SOP)
This option helps to perform various tests on the device for instance, Self Test and Loop Test. A Method or SOP is
a series of steps that are executed in a sequence results in the completion of some device related tasks. When a
method gets invoked, it gives various warning messages and options to the user, by which the user can thoroughly
test the device. If a test is aborted by operator command at any stage of the sequence, the method invokes
additional steps to bring the device back to its original state before the test.
6.2 Viewing Device Configuration (typical, actual view may change based on DD)
To view the configuration of the device that is connected to DevCom2000 Mobile, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
been established:
MAN-1017 8/9/2011 Our Quality Management System is Page 22
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
The top pane of the window shows the menu structure and the
bottom pane of the window displays corresponding parameters
of the menu selected.
The menus are displayed depending on the type of device that is
being connected. These menus are displayed based on the DD
file of the particular device.
If no DD is available for the device the DevCom2000 Mobile
will select the standard DD. This should provide limited
functionality for the device. NOTE: If a parameter is updated
that is not supported by the device you will receive an error.
2 Expand the menu by clicking the “+” sign and double-click to
view the device parameters. Below is an example of an
expanded menu:
MAN-1017 8/9/2011 Our Quality Management System is Page 23
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 Select the menu and view the associated parameters to view the
device information.
6.3 Configuring Device Information
6.3.1 Overview
DevCom2000 Mobile allows you to view and configure the field device parameters based on the device description.
However, the device vendor defines most of the parameters at the factory. These parameters become read only for
the users and the user cannot modify the values. The related variables are grouped under various menus of different
levels as defined in the DD file. Expand or collapse the tree view using the “+” or “-“sign to access the device
configuration parameters.
Following table describes the details about the device configuration:
Step Action
1 Ensure that the application is running and communications have
been established:
MAN-1017 8/9/2011 Our Quality Management System is Page 24
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
The top pane of the window shows the menu structure and the
bottom pane of the window displays corresponding parameters
of the menu selected.
2 Expand the menu by clicking the “+” sign and double-click to
view the device parameters.
3 There are three types of variables: dynamic, read/write and read
only. The parameters that are grayed out indicate that these are
dynamic variables (variables that get updated online by the
device) or read only variables.
Following points describe how the device parameters represents
their status when connected to DevCom2000 Mobile:
Bold Font: Modifiable Values
Normal Font: Menu Item
Gray Font: Dynamic or Read Only Variables
4 Select the parameter and configure the values, as required.
5 The subsequent topics explain how to configure device
parameters.
MAN-1017 8/9/2011 Our Quality Management System is Page 25
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
6.3.2 Variable
To edit the parameter variables of the connected device, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
been established:
Expand the menu by clicking the “+” sign and double-click to
view the device parameters.
2 Select the menu where the editable parameter is present as
shown below:
MAN-1017 8/9/2011 Our Quality Management System is Page 26
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 Tap and hold the variable to edit it. A pop-up menu will appear
on the screen:
4 Select “Edit”. The following dialog box appears on the screen:
MAN-1017 8/9/2011 Our Quality Management System is Page 27
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
5 Tap the Keyboard icon to bring up a keyboard for data entry.
The screen will now look like this:
Note that there are several ways to enter data using the Mobile.
See Appendix B for more options.
6 Make the changes to the parameter value, as required.
7 Click Set to accept the changed value. The change gets reflected
as shown:
MAN-1017 8/9/2011 Our Quality Management System is Page 28
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
8
Click on the Send icon to commit the changes to the device.
6.3.3 Edit Display
The Edit Display is a variation on the Variable edit. An additional window helps the user view a group of
parameters based on the DD. You can also modify a single parameter from this group. Parameters linked to the
edited field will be updated automatically
To view and configure these variables, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
been established
MAN-1017 8/9/2011 Our Quality Management System is Page 29
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
Expand the menu by clicking the “+” sign and double-click to
view the device parameters.
2 Double click the parameter you wish to edit. The following
dialog box appears on the screen:
3 Double click the parameter you wish to edit from within the Edit
Display box. The following dialog box appears on the screen:
MAN-1017 8/9/2011 Our Quality Management System is Page 30
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
4 Make the change to the value, as required.
5 Click Set to accept the changes. Or press Cancel to cancel the
changes.
6 Click OK to close the Edit Display dialog box.
7
Click on the Send icon to commit the changes to the device.
6.3.4 Executing Methods or Standard Operating Procedures
Methods are defined in the DD file for the device that DevCom2000 Mobile is connected to. You can select the
Method and execute it for calibrating the device, trouble shooting, etc. Method execution leads you through a
number of steps, like in a wizard.
A Few examples of methods include,
Setting high and low range calibration points
Calibration of the device
Run the advanced diagnostic test procedure
Execute tests to gather information on device operation.
To execute a Method, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
been established:
MAN-1017 8/9/2011 Our Quality Management System is Page 31
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
Expand the menu by clicking the “+” sign and double-click to
view the device parameters.
2 Select the menu where the method is present and tap and hold to
bring up the Method pop-up menu:
3 Select Execute to start the Method. Below is an example of a
Method screen:
MAN-1017 8/9/2011 Our Quality Management System is Page 32
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
4 Click OK to move to the next dialog in the Method sequence.
5 Or, click Abort to cancel the Method execution.
6 Click Help to get specific help for that step of the Method. This
Help information is provided by the device DD.
6.4 Calibrating HART Field Devices
Calibration of field devices and loop test are achieved by executing the Methods or Standard Operating Procedures
that are specific to device. Methods are defined based on the test parameters specific to the device, providing
information for the calibration of that device.
See the previous section for Method execution.
6.5 Viewing the Device and Communication Status
DevCom2000 Mobile provides the user with the ability to monitor the device specific status of the device and the
communication network.
When there is error communicating with the device, it is recognized and indicated to the user. The user can view
more details of such errors, using the View Device Condition from the main window.
To view the device and communication status, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
MAN-1017 8/9/2011 Our Quality Management System is Page 33
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
been established:
Expand the menu by clicking the “+” sign and double-click to
view the device parameters.
2 Select View Device Condition from the main window or
choose the status icon from the toolbar. Following window is
displayed:
The Device Status tab option shows the status of the device and
the communication network. The individual status is indicated
by green and red LEDs.
MAN-1017 8/9/2011 Our Quality Management System is Page 34
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 Additional tabs may be available depending on the DD. Tap the
arrow buttons to move amongst the tabs.
4 Click X to close the Status window.
6.6 Saving Device Configuration To Memory
HART Device configurations can be saved to memory as a text file to document the device. Fields are delimited
with a comma so that the data can be imported into configuration management software packages.
To save device configurations to disk, perform the following steps:
Step Action
1 Ensure that the application is running and communications have
been established:
2 Select Device Document Device from the main window.
The Document Device Dialog Box is displayed:
MAN-1017 8/9/2011 Our Quality Management System is Page 35
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Step Action
3 The default directory is \HART Configs. The default file name
is Tag_Device ID. The filename can be changed by the user.
Use the “Browse” button to change directories and/or filenames
also.
4 Enter a Note in the Notes field if desired. Maximum of 255
characters.
5 Press the “Save Device Config” button to save device
configuration.
6.7 PC Interface to Mobile
The Windows Explorer program is a convenient way to copy configuration files back to the PC for archiving and
storage. The Mobile looks like a disk to the Windows file system. Below is an example screen shot:
MAN-1017 8/9/2011 Our Quality Management System is Page 36
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
The default location for the saved configuration files is the directory “\My Documents\HART Configs”. Simply
highlight the desired files and copy to your PC. Once on the PC, they can be viewed or imported to many different
software packages.
6.8 DD Library Updates
When the DD library update is installed, it is placed in the “C:\HCF\DDL\Mobile\Library” directory on the PC.
Copy the Library folder to the SD Card on the Mobile so that the path appears as “SD Card\Library”. Please note
that on some Mobile devices “SD Card” may have slightly different text. (Note: You will overwrite the existing SD
Card\Library subdirectory.)
MAN-1017 8/9/2011 Our Quality Management System is Page 37
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Appendix A
Troubleshooting Guide
Problem:
Will not communicate
Hardware Check:
Verify the following:
1. Com port number on Preferences Dialog box matches HART interface hardware.
2. Loop power supply is on.
3. Loop resistance between 250 ohms and 1Kohms.
4. Loop current within HART limits.
5. If multi drop configuration, all transmitters in loop have unique addresses.
6. HART interface hardware connected across loop resistor or across transmitter terminals.
Problem:
Get the message “Error opening COMx”
Verify the following:
1. Com port number on Preferences Dialog box matches HART interface hardware.
2. HART interface hardware installed.
Problem:
The system cannot find the path specified error box
Try the following:
1. Verify that the DevCom2000 Mobile SD Card is inserted into the SD slot of the Mobile.
2. Select the path of the DD Library in the Mobile device when starting up DevCom2000 Mobile.
Problem:
Serial Number does not match Activation input boxes
Note the following:
1. The Program Serial Number is different than the Activation Codes.
2. Activation Codes required after 10 days of Demo program use.
MAN-1017 8/9/2011 Our Quality Management System is Page 38
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Appendix B
Mobile Data Input Guide
There are several different ways to enter data on a Mobile. Tap the up arrow next to the Input Panel icon. The
following will appear:
Keyboard
Use the stylus to tap letters, numbers, and symbols on the on-screen keyboard to enter typed text directly onto the
screen.
1. From any application, tap the up arrow next to the Input Panel icon.
2. Tap Keyboard to display a keyboard on the screen. Note: To see symbols, tap the 123 key.
3. Tap a letter, symbol, or number to enter information.
4. Tap OK.
Letter Recognizer
Use the stylus and Letter Recognizer to write letters, numbers, and symbols on the screen. Create words and
sentences by writing in uppercase (ABC), lowercase (abc), and symbols (123) as instructed here.
1. From any application, tap the up arrow next to the Input Panel icon.
2. Tap Letter Recognizer.
3. Write a letter or symbol between the dashed line and baseline.
- To display in uppercase, write a letter between the hatch marks labeled ABC.
- To display in lowercase, write a letter between the hatch marks labeled abc.
- Write a number or draw a symbol between the hatch marks labeled 123.
MAN-1017 8/9/2011 Our Quality Management System is Page 39
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
What you write will be converted to text.
Note: For the Letter Recognizer to work effectively, write characters between the dashed line and baseline.
- If you are writing a letter like “p,” write the top portion within the dashed line and baseline, and the tail portion
below the baseline.
- If you writing a letter like “b,” write the bottom portion within the dashed line and baseline, and the top portion
above the dashed line.
Note:To view help on using Letter Recognizer, open the program and tap the question mark next to the writing
area.
Transcriber
Use the stylus and Microsoft Transcriber to write words, letters, numbers, and symbols anywhere on the screen.
1. From any application, tap the up arrow next to the Input Panel icon.
2. Tap Transcriber to display the Transcriber Intro screen.
3. Tap OK.
4. Tap New at the bottom of the screen.
5. Begin writing on the screen. What you write will be converted to text.
Note: To “teach” Transcriber your style of writing, tap on the “a” icon at the bottom of the screen to display the
Letter Shapes screen and follow the instructions.
Block Recognizer
Write letters, numbers, and symbols using the stylus and Block Recognizer. Create words and sentences by writing
letters and numbers in specific areas.
1. From any application, tap the up arrow next to the Input Panel button.
2. Tap Block Recognizer.
3. Write a word, letter, or symbol between the hatch marks.
- To type text, write a letter between the hatch marks labeled “abc.”
- To type numbers or symbols, write a number or symbol between the hatch marks labeled “123.” What you write
will be converted to text.
MAN-1017 8/9/2011 Our Quality Management System is Page 40
ISO 9001:2008 Certified
DevCom2000 Mobile User Manual
Appendix C
Contact Information
ProComSol, Ltd
Process Communications Solutions
13001 Athens Ave
Suite 220
Lakewood, OH 44107
USA
Phone: 216.221.1550
Fax: 216.221.1554
Email: sales@procomsol.com
support@procomsol.com
Web: www.procomsol.com
MAN-1017 8/9/2011 Our Quality Management System is Page 41
ISO 9001:2008 Certified
Loading...
